Plastic Shakedown Behavior and deformation Mechanisms of Ti17 Alloy under Long Term Creep-Fatigue Loading

1. Introduction

Titanium alloys are commonly used to manufacture rotating components of aero-engines, such as blades, discs, and shafts, due to their high specific strength, excellent creep resistance, and corrosion resistance [1,2]. These critical components not only experience fatigue loading caused by frequent start-stop processes but also creep loading and thermal stresses during the cruise phase [3] [4]. The mechanical behavior of materials under creep-fatigue cyclic loading is well summarized by the shakedown theory. Material shakedown refers to the state in which the accumulated plastic strain in the material stabilizes after several load cycles, without affecting its initial function and leading to failure. In general, under cyclic loading, materials mainly exhibit three mechanical behaviors: elastic shakedown, plastic shakedown, and ratcheting [5]. Both elastic and plastic shakedown correspond to a steady accumulation of plastic strain, while ratcheting corresponds to the continuous accumulation of plastic deformation that eventually leads to failure [6]. Studying the shakedown behavior of titanium alloys under creep-fatigue cyclic loading is of great practical significance for rationally determining the permissible range of cyclic loading in titanium alloy materials, maximizing their load-bearing potential, and guaranteeing the safe and stable operation of aero-engines.

In recent years, a lot of research has been carried out on the creep-fatigue of titanium alloys, but it has been concentrated on life prediction and damage, etc. Yutaro Ota et al. [7] proposed a more universal life assessment method within the range of DTotal = 0.6-1.2 to evaluate creep-fatigue damage without considering the microstructure, based on linear damage accumulation theory. Zhang Mingda et al. [8] investigated the influence of holding time and stress ratio on the creep-fatigue life of Ti6242 alloy. They found that longer holding time caused a monotonic decrease in creep-fatigue life, while higher stress ratios caused an exponential increase in creep-fatigue life. Kumar et al. [9] investigated the creep-fatigue damage across multiple scales of the Ti-6Al-4V alloy based on the damage mechanics, developed a multi-scale damage model, and created a creep-fatigue damage map. L.R. Zeng et al. [10] conducted in-situ tests to understand the creep-fatigue damage mechanism of the bimodal titanium alloy Ti-6Al-4V, and described a new mechanism in which elastic deformation of the αs phase was gradually converted to plastic deformation during the creep stage from the perspective of stress relaxation, thus promoting fatigue damage. However, the shakedown behavior under creep-fatigue cyclic loading has received little attention. Therefore, studying the shakedown behavior of titanium alloys under creep-fatigue cyclic loading and its micro-mechanisms has great theoretical significance in filling the current research gap in this field.

Ti17 alloy is a β-type bimodal titanium alloy with high strength, toughness and hardenability [11,12]. It is one of the important materials for aero-engines, mainly used to manufacture engine discs [13]. These parts are subjected to the long-term combined effects of creep, fatigue, and temperature in service. In this paper, the creep-fatigue (CF) cyclic loading tests of Ti17 alloy were conducted, focusing on characterizing the shakedown behavior of Ti17 alloy from the perspective of stress-strain curve. The evolution of strain components during shakedown was analyzed, such as creep strain, residual strain, anelastic strain and ratcheting strain obtained by decomposing the total strain. Furthermore, based on the plasticity-creep superposition model, as proposed by Kan Qianhua et al. [14,15], a theory model for the shakedown behavior was established according to the results of tensile tests, low-cycle fatigue (LCF) tests and CF tests. Additionally, TEM analysis was carried out to preliminarily explain the micro-mechanisms of the Ti17 alloy undergoing CF test to reach a shakedown state. Understanding the shakedown behavior of Ti17 titanium alloy is significant in fully exploiting the material’s potential.

2. Materials and Experiments

2.1. As-Received Material

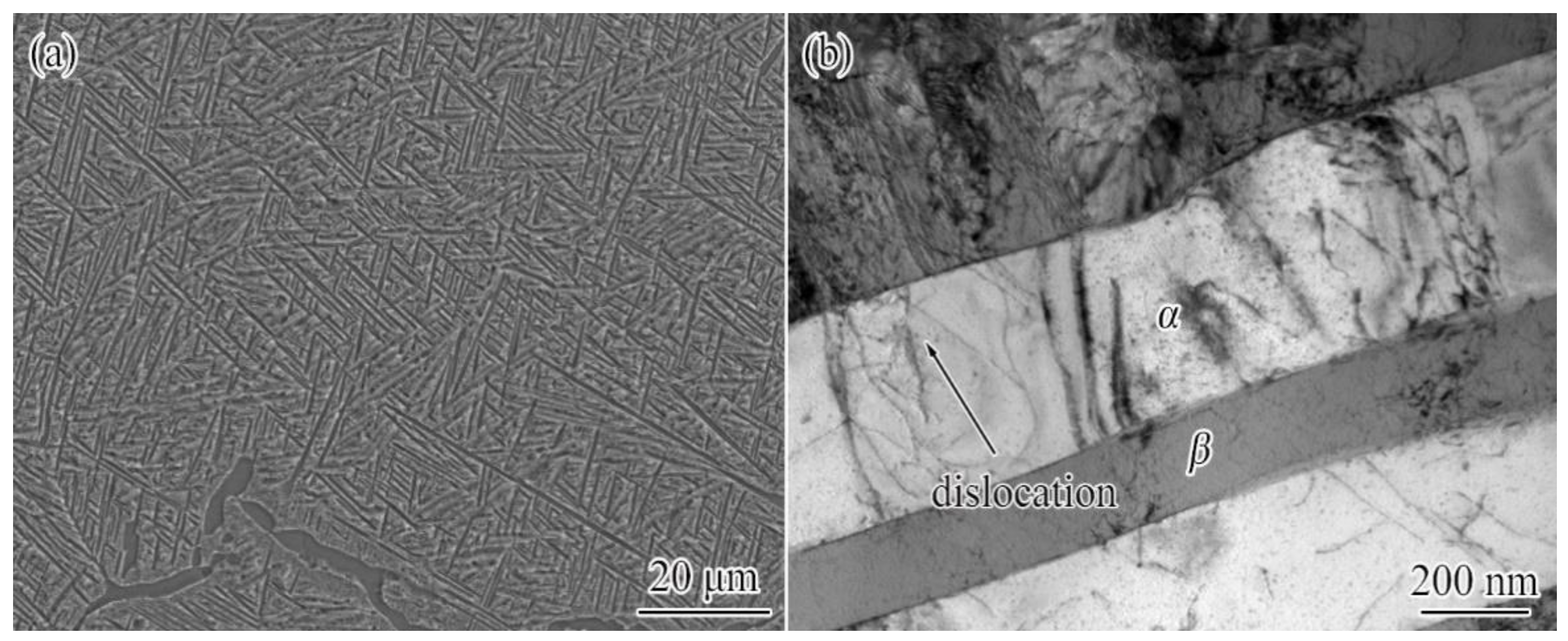

The as-received material used in the CF tests is Ti17 alloy with a uniform basket-weave microstructure, as shown in Figure 1. It can be seen that the original microstructure consists of interwoven layers of α colonies and β-transformed matrix between the α phases. The α phase contains a small amount of dislocations, which terminate at the α/β phase boundaries, with localized areas of dislocation entanglement. The main chemical composition of Ti17 alloy is shown in Table. 1.

2.2. Mechanical Tests

Tensile tests, LCF tests and CF tests were performed in the as-received material. CF tests are used to study the shakedown behavior, and tensile and LCF tests are used to determine the material parameters of the shakedown theory model.

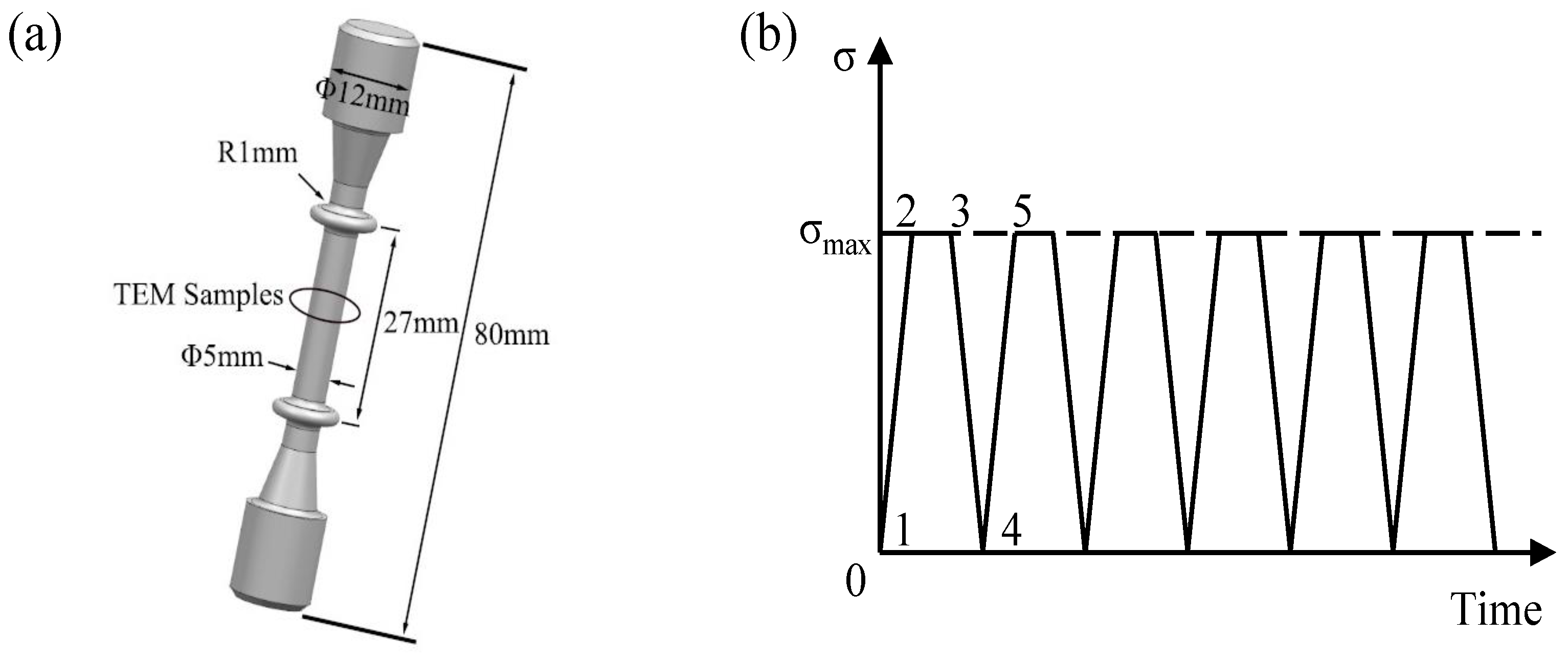

For CF tests, the specimen is shown in Figure 2(a). The stress-controlled CF tests are conducted at 300℃, which is the typical service temperature of Ti17 alloy. The specimen is heated to the designated temperature and holds for 30 minutes to achieve a uniform temperature distribution. Then, the heated specimen is loaded to 600MPa with a load speed of 0.03KN/s and holds the stress for 60 minutes, as shown in Figure 2(b) from point 1 to point 3. Finally, after the stress holding, the specimen is unloaded to 0MPa with an unloading speed of 0.03KN/s, as shown in Figure 2(b) from point 3 to point 4. A total of 6 cycles of the above process are performed throughout the CF tests.

The CNCJ-100E type electronic persistent creep testing machine is used for the CF tests. Three pairs of thermocouple wires are attached to the bottom, center and top positions of specimens to record the temperature during tests and the temperature difference is within ±2℃. The strain for CF tests is measured by a high-temperature extensometer.

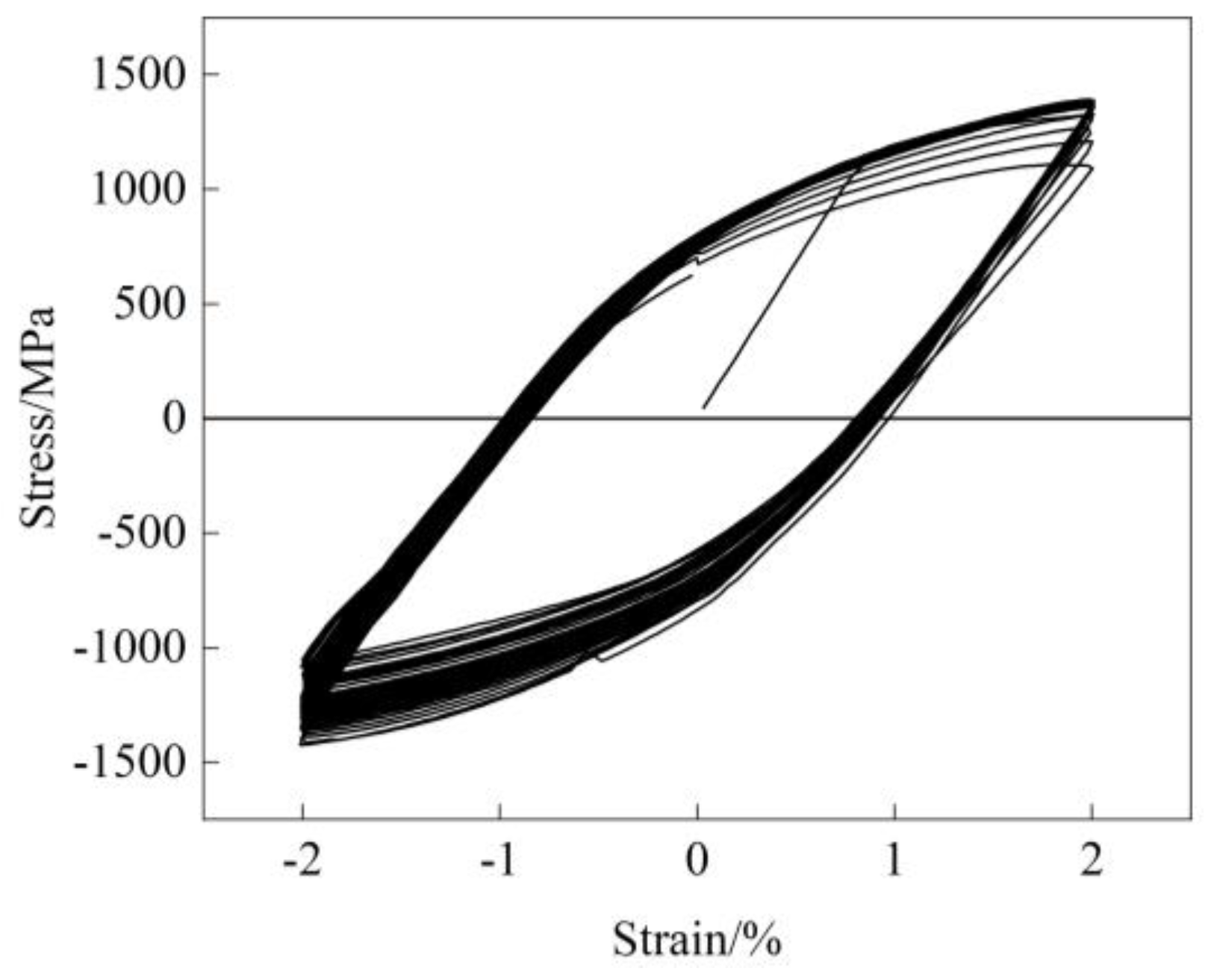

For tensile and LCF tests, tensile tests are conducted at 300°C with controlled strain rates of 0.008%/s and 0.08%/s, respectively. LCF tests with strain amplitude ±2% and strain rate 0.08%/s are conducted at 300°C too. The tensile tests are performed using the CMT5105 electronic universal testing machine, and the LCF tests are conducted on the EHF-EV101K2 electro-hydraulic servo fatigue testing machine.

2.3. Microstructure Characterization

To reveal the shakedown mechanism of Ti17 alloy under CF tests, TEM is performed to analyze the evolution of dislocations. TEM samples are prepared along the transverse section of the specimens, thinned to 50μm by mechanical grinding. Then twin-jet thinning technique is used to reduce the thin zone in the center of samples at 28V and -25℃. The mixed solution used in the twin-jet thinning technique is 6%HClO4: 34%C4H9OH: 60%CH3OH. TEM observations are conducted on the ThermoFisher Talos F200X transmission electron microscope with an accelerating voltage of 300 KV.

3. Shakedown Theory Model

The model used in this paper is the plasticity-creep superposition model, proposed by Kan Qianhua et al. [14,15], which has been verified to be able to reasonably predict the mechanical behaviors of metal materials under uniaxial CF cyclic loading.

3.1. Main Equations

The main equations of the theory model adopted in this paper are shown as follows:

$${\mathit{\epsilon }}_{\mathit{ij}}={\mathit{\epsilon }}_{\mathit{ij}}^e+{\mathit{\epsilon }}_{\mathit{ij}}^{\mathit{in}}+{\mathit{\epsilon }}_{\mathit{ij}}^c+{\mathit{\epsilon }}_{\mathit{ij}}^T$$

(1)

$${\mathit{\epsilon }}_{\mathit{ij}}^e=D_{\mathit{ijkl}}^{-1}{\mathit{\sigma }}_{\mathit{kl}}$$

(2)

$${\dot{\mathit{\epsilon }}}_{\mathit{ij}}^{\mathit{in}}=\sqrt{\frac{3}{2}}{〈\frac{F_y}{K}〉}^n\frac{S_{\mathit{ij}}-{\mathit{\alpha }}_{\mathit{ij}}}{‖S_{\mathit{ij}}-{\mathit{\alpha }}_{\mathit{ij}}‖}$$

(3)

$${\dot{\mathit{\epsilon }}}_{\mathit{ij}}^c=\sqrt{\frac{3}{2}}\frac{{\left(\frac{3}{2}{\dot{\mathit{\epsilon }}}^c\text{:}{\dot{\mathit{\epsilon }}}^c\right)}^{1/2}{S}_{\mathit{ij}}}{‖S_{\mathit{ij}}‖}$$

(4)

$${\dot{\mathit{\epsilon }}}_{\mathit{ij}}^T=c_{\mathit{ij}}\dot{T}{\mathit{\delta }}_{\mathit{ij}}$$

(5)

$$F_y=\sqrt{\frac{3}{2}\left(S_{\mathit{ij}}-{\mathit{\alpha }}_{\mathit{ij}}\right)\left(S_{\mathit{ij}}-{\mathit{\alpha }}_{\mathit{ij}}\right)}-Q$$

(6)

$$S_{\mathit{ij}}={\mathit{\sigma }}_{\mathit{ij}}-\frac{1}{3}{\mathit{\sigma }}_{\mathit{kk}}{\mathit{\delta }}_{\mathit{ij}}$$

(7)

$$\dot{Q}=\mathit{\gamma }\left(Q_{\mathit{sa}}-Q\right)\dot{p}$$

(8)

where, ${\mathit{\epsilon }}_{\mathit{ij}}$, ${\mathit{\epsilon }}_{\mathit{ij}}^e$, ${\mathit{\epsilon }}_{\mathit{ij}}^{\mathit{in}}$ and ${\mathit{\epsilon }}_{\mathit{ij}}^c$ are the total strain, elastic strain, inelastic strain and creep strain respectively；${\dot{\mathit{\epsilon }}}_{\mathit{ij}}^{\mathit{in}}$ is inelastic strain rate, ${\dot{\mathit{\epsilon }}}_{\mathit{ij}}^c$ is creep strain rate and ${\dot{\mathit{\epsilon }}}_{\mathit{ij}}^T$is thermal strain rate; Dijkl is matrix of elasticity; K and n are the viscosity constant and viscosity index; $\langle \rangle$is McCauley’s bracket and means: as x≤0,$〈\mathrm{x}〉=0$; as x>0, $〈\mathrm{x}〉=\mathrm{x}$; cij is isotropic coefficient of thermal expansion; Sij is deviatoric stress, αij is back stress; Q is isotropic deformation resistance, $\dot{Q}$ is isotropic hardening rate, Qsa is the saturated isotropic reinforcement deformation resistance; γ is isotropic hardening rate parameter。

3.2. Ohno-Abdel-Karim Nonlinear Kinematic Hardening

The evolution equations of nonlinear kinematic hardening [16] with a critical state of dynamic recovery are used in this paper, back stress αij is divided into M components:

$${\mathit{\alpha }}_{\mathit{ij}}=\sum _{k=1}^M{r}^{\left(k\right)}{b}_{\mathit{ij}}^{\left(k\right)}$$

(9)

the critical state of dynamic recovery is reflected by a surface $f^{\left(k\right)}={\stackrel{-}{\mathit{\alpha }}}^{\left(k\right)2}-r^{\left(k\right)2}=0$, where, ${\stackrel{-}{\mathit{\alpha }}}^{\left(k\right)}={\left(\frac{3}{2}{\mathit{\alpha }}^{\left(k\right)}\text{:}{\mathit{\alpha }}^{\left(k\right)}\right)}^{\frac{1}{2}}$is equivalent back stress, $r^{\left(k\right)}$is the radius of the critical surface.

$${\dot{b}}_{\mathit{ij}}^{\left(k\right)}=\frac{2}{3}{\mathit{\zeta }}^{\left(k\right)}{\dot{\mathit{\epsilon }}}_{\mathit{ij}}^{\mathit{in}}-{\mathit{\zeta }}^{\left(k\right)}\left[{\mathit{\mu }}^{\left(k\right)}\dot{p}+H\left(f^{\left(k\right)}\right)〈{\dot{\mathit{\epsilon }}}_{\mathit{ij}}^{\mathit{in}}\text{:}\frac{{\mathit{\alpha }}_{\mathit{ij}}^{\left(k\right)}}{{\stackrel{-}{\mathit{\alpha }}}^{\left(k\right)}}-{\mathit{\mu }}^{\left(k\right)}\dot{p}〉\right]b_{\mathit{ij}}^{\left(k\right)}-x^{\left(k\right)}{\left({\stackrel{-}{\mathit{\alpha }}}^{\left(k\right)}\right)}^{m^{\left(k\right)}-1}{b}_{\mathit{ij}}^{\left(k\right)}$$

(10)

the last two terms of Eq. (10) are the back stress static recovery term and the thermal recovery term, respectively, and the introduction of these two terms can improve the accuracy of the model prediction of the high-temperature cyclic loading behavior. ζ(k), μ(k), χ(k), m(k) are the temperature-dependent constants; H(f(k)) is Heaviside function，means: as f(k)>0, H(f(k)) =1; as f(k) ≤ 0时，H(f(k))=0。

3.3. Determination of Material Parameters

The material parameters modulus of elasticity E and Poisson's ratio ν are obtained by tensile tests. The viscosity constant K and viscosity index n can be obtained by monotonic tensile tests at different strain rates. For monotonic tensile tests, plastic strain rate $\dot{p}={\left[({\mathit{\sigma }}_e-Q)/K\right]}^n$, equivalent stress σe is equal to the tensile stress σ, take the maximum stress point of the tensile curve, at this point isotropic deformation resistance Q = Qsa, through the two sets of tensile curves at different strain rates can be found out the material parameters K and n [17].

Due to the presence of isotropic hardening, the effect of isotropic hardening must be removed before determining the kinematic hardening parameters ζ(k) and r(k) [18,19]. Assuming that the cyclic hardening is reflected only by isotropic hardening, the relationship curve of the evolution of the cyclic maximum stress σmax with the accumulated plastic strain p can be obtained by strain-controlled cyclic loading tests under a certain strain amplitude. Figure 3 shows the stress-strain curves under uniaxial strain cycling with a strain amplitude of 2%, and Figure 4 gives the relationship between the maximum stress σmax and the accumulated plastic strain p in each cycle. Fitting the curves shown in Figure 4, we can obtain the following function reflecting isotropic hardening:

$$\mathit{\sigma max}={\mathit{\sigma }}_{\mathit{m}\mathit{a}\mathit{x}}^0(1+67.486\mathit{p})0.0098$$

(11)

where ${\mathit{\sigma }}_{\mathit{m}\mathit{a}\mathit{x}}^0$ is the peak stress of the first cycle. Defining the function h(p)=(1+67.486p)0.0098, the effect of isotropic hardening on monotonic tensile tests can be removed by using Eq. (12).

σ*= σ / h(p)

(12)

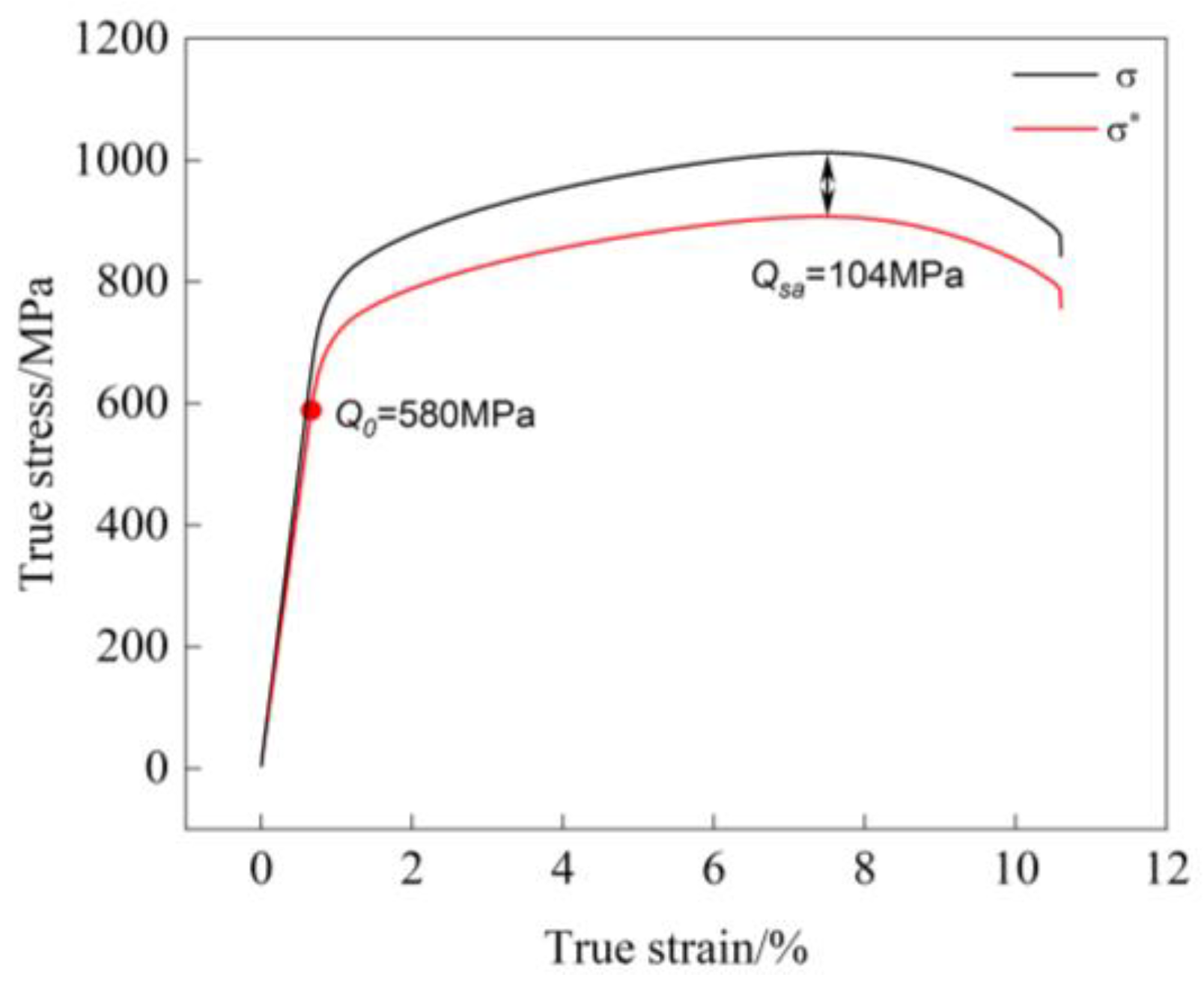

The monotonic tensile curve after the removal of isotropic hardening is shown in Figure 5. The saturated isotropic deformation resistance Qsa is the maximum difference between σ and σ* in the figure, and the initial isotropic deformation resistance Q0 is the stress at the beginning of the elastic phase of the tensile curve when it is transformed to the yield phase. The kinematic hardening parameters ζ(k) and r(k) are determined by Eq. (13) and Eq. (14) [14,18,20], respectively, and σ0 is the corresponding stress when ${\mathit{\epsilon }}_0^{\mathit{p}}$=0 in the monotonic tensile curve.

$${\mathit{\zeta }}^{\left(k\right)}=\frac{1}{{\mathit{\epsilon }}_k^p}$$

(13)

$$r^{\left(k\right)}=(\frac{{\mathit{\sigma }}_k-{\mathit{\sigma }}_{k-1}}{{\mathit{\epsilon }}_k^p-{\mathit{\epsilon }}_{k-1}^p}-\frac{{\mathit{\sigma }}_{k+1}-{\mathit{\sigma }}_k}{{\mathit{\epsilon }}_{k+1}^p-{\mathit{\epsilon }}_k^p}){\mathit{\epsilon }}_k^p$$

(14)

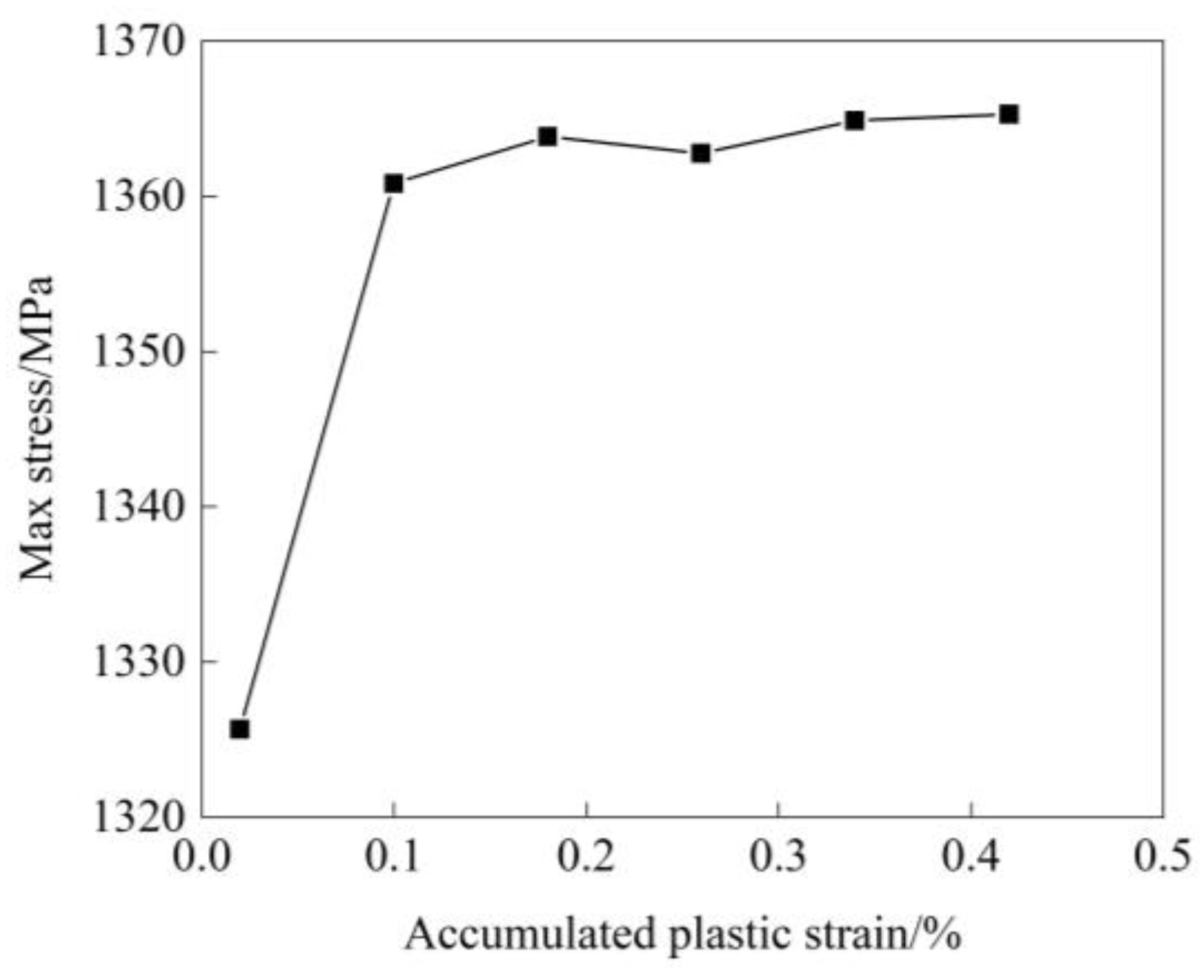

In addition, the isotropic hardening rate parameter γ was determined by fitting the relationship curve between maximum stress σmax and accumulated plastic strain p, as shown in Figure 4, through Eq. (14); the ratchet parameter μ and the back stress thermal recovery parameters x(k) and m(k) were obtained by trial-and-error method based on the results of creep-fatigue experiments [14].

σmax=f1+f2 [1-exp(-γp)]

(15)

4. Results and Discussion

4.1. Stress-Strain Curves

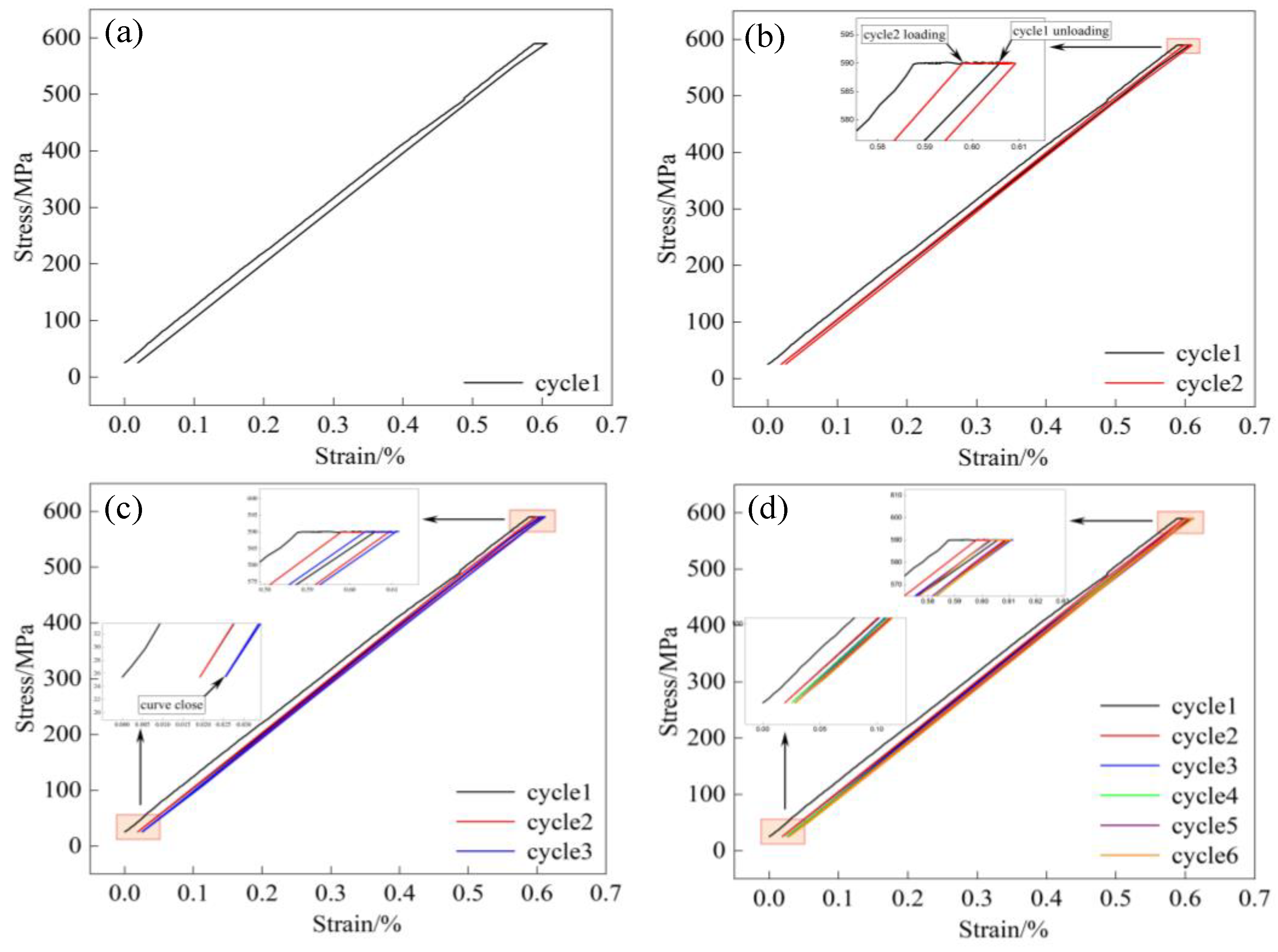

The stress-strain curves of Ti17 alloy under CF tests are shown in Figure 6. Cycle 1 is shown in Figure 6(a), due to the peak stress 600MPa being less than the yield stress of Ti17 alloy at 300℃, the loading and unloading stages show elastic deformation. At the stress-holding stage, the specimen produces an obvious plastic deformation due to creep. After unloading of stress, part of the residual strain is retained in the specimen, and the cyclic curve is not closed, the plastic strain increment ∆εp ≠ 0. Furthermore, the area enclosed by the stress-strain curve in cycle 1 is larger, which means the plastic strain energy ∆wp is greater. Cycle 2 is shown in Figure 6(b), the specimen still undergoes elastic deformation during the loading and unloading stages, but the total strain at the end of loading is smaller than that at the beginning of unloading in cycle 1. The plastic deformation induced by creep during the stress-holding stage is reduced, and the "horizontal line segment" in the curve representing the creep strain is partially overlapped with cycle 1. After unloading, the residual strain in the specimen increases slightly, and the curve has a tendency to be closed. The area enclosed by the strain-stress curve in cycle 2 also decreases, indicating a reduced plastic strain energy ∆wp.

In cycle 3, as shown in Figure 6(c), the stress-strain curve exhibits similar characteristics to cycle 1 and cycle 2. The deformation during the stress-holding stage further decreases, and there is a greater overlap between the curve and the cycle 2. At this cycle, the curve is completely closed after unloading, and the plastic strain increment ∆εp = 0. The area enclosed by the strain-stress curve continues to decrease, indicating the plastic strain energy ∆wp continues to decrease, but still does not go to 0.

Finally, from Figure 6(d), it is found that the curves always maintain the closed characteristic after unloading in the 4th, 5th, and 6th cycles, and there is no more new plastic strain increment, ∆εp=0. The curves in the last three cycles overlap with each other, and the area enclosed by the strain-stress curve is similar, the plastic strain energy ∆wp≠0, and the specimen enters into a special "self-balancing" state after unloading is completed in the 3rd cycle.

According to the shakedown theory, after a certain number of cyclic loads, the plastic deformation of the material is repeated, forming a stable alternating plasticity, and the material enters into a plastic shakedown state. The stress-strain curve of the Ti17 specimen is closed after the unloading of the 3rd cycle, i.e., the creep deformation of the stress-holding stage is recovered during the unloading process, and there is no more new plastic strain increment after unloading, ∆εp=0. And the curves overlap with that of the subsequent cycles, indicating the strain in each cycle is repeated continuously along the same path, suggesting that the specimen enters the plastic shakedown state after the 3rd cycle. A similar plastic shakedown phenomenon was also observed in studies of other metallic materials [21,22].

4.2. The Evolution of Strain Components

In order to show more intuitively the strain evolution process of Ti17 alloy reaching the plastic shakedown state in the CF tests, strain decomposition is needed. The total strain is decomposed according to the different stages of the stress-strain curve, the stress-strain curve of cycle 1 is taken as an example, as shown in Figure 7. From point 1 to point 2 is the loading stage, which produces elastic-plastic strain; from point 2 to point 3 is the stress-holding stage, which produces creep strain; from point 3 to point 4 is the unloading stage, which produces elastic-plastic strain, anelastic recovery strain, and visco-plastic strain; and from point 4 to point 5 is the reloading stage, which produces visco-plastic strain and elastic-plastic strain. Of course, there is also ratchet strain due to cycling during these stages.

Since the peak stress is relatively low, the plastic and visco-plastic strains during the loading and unloading stages are neglected. The ratchet strain is defined as the average of the maximum strain εmax and the minimum strain εmin per cycle [23,24], noting that this definition of ratchet strain includes both creep strain and accumulated plastic strain. Thus, the various components of strain: elastic strain εe, creep strain εc, residual strain εre, anelastic strain εan, and ratchet strain εr can be expressed as follows:

εe = σmax / E

(16)

εc= ε3 - ε2

(17)

εre= ε4

(18)

εan= ε3- ε4- σmax/E

(19)

εr=(εmax+ εmin)/2

(20)

Based on whether the specimen reaches the plastic shakedown state, the CF test is divided into the initial stage, transition stage, and shakedown stage, specifically, cycles 1 and 2 are the initial stage, cycle 3 is the transition stage, and cycles 4, 5 and 6 are the plastic shakedown stage. The evolution of strain components with the number of cycles is shown in Figure 8 and Figure 9.

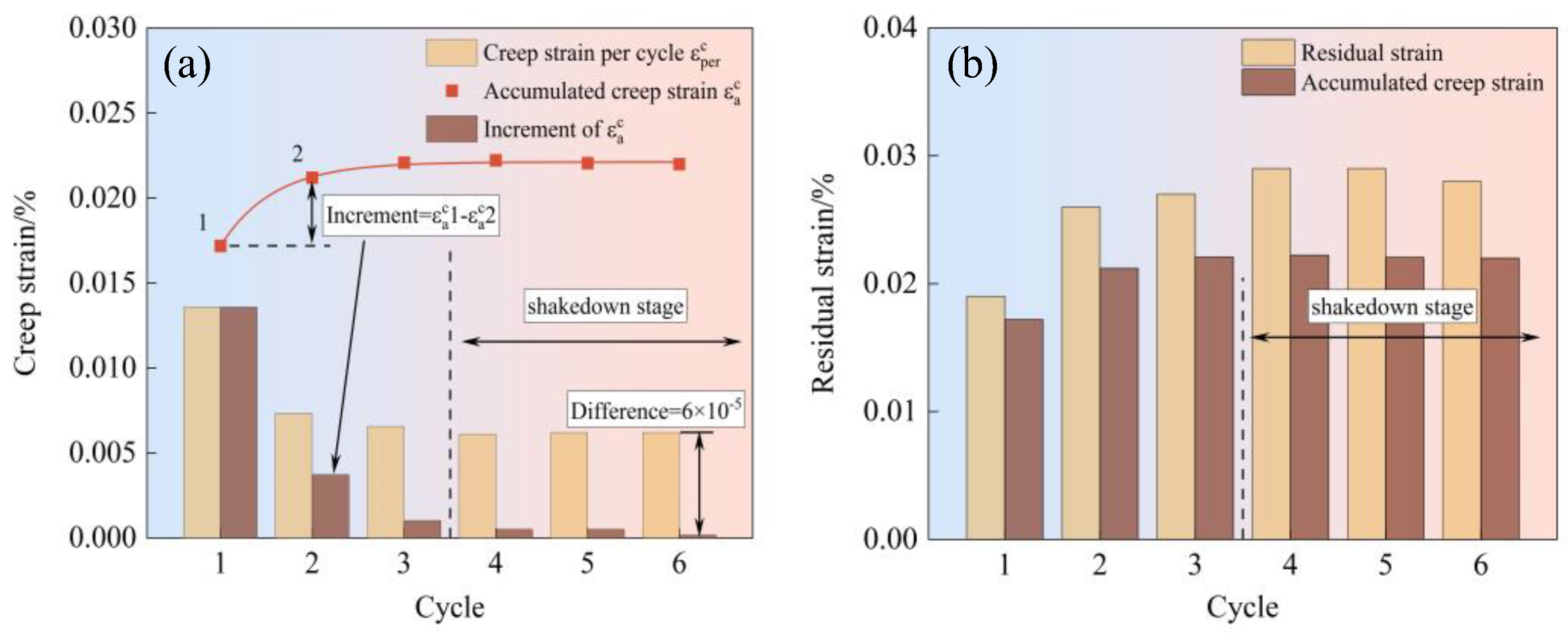

The variation of creep strain εc and residual strain εre are shown in Figure 8. During the initial stage, the creep strain per cycle ${\mathit{\epsilon }}_{\mathit{per}}^c$ is large at the beginning and then decreases rapidly. It decreases to a stable value in cycle 3 (transition stage). In the plastic shakedown stage, the amount of creep strain per cycle ${\mathit{\epsilon }}_{\mathit{per}}^c$ shows similar quantities. This implies that the accumulated creep strain ${\mathit{\epsilon }}_a^c$ gradually increases, but the growth rate gradually decreases, as shown in Figure 8(a). It reaches the maximum accumulated value in cycle 3, and afterward, the accumulated creep strain ${\mathit{\epsilon }}_a^c$ remains at this value. Creep strain presents the above law because the initial stage of cycle corresponds to the initial creep stage with a faster creep rate, so the same stress-holding time, the creep strain is larger. While in the plastic shakedown stage, the specimen gradually enters the steady creep stage, the creep rate decreases and is relatively stable, the creep strain is smaller and consistent [25]. Additionally, the creep strain per cycle ${\mathit{\epsilon }}_{\mathit{per}}^c$ is greater than the increment of accumulated creep strain ${\mathit{\epsilon }}_a^c$, especially in the plastic shakedown stage, indicating not all of the creep strain in the stress-holding phase is retained in specimens.

In Figure 8(b), the accumulated residual strain εre gradually increases during the initial stage, with a decreasing growth rate. In the transition stage, the residual strain εre increases to a maximum value. Finally, in the plastic shakedown stage, the residual strain εre no longer increases and maintains the maximum value. The residual strain εre represents the deformation retained in the specimen after CF tests, which is a reflection of the damage in the specimen. In order to reduce the accumulation of damage in the CF cyclic loading of Ti17 alloy, the residual strain εre before reaching the plastic shakedown state should be reduced as much as possible. According to Figure 8(b), it can be seen that the plastic strain of the cycling process is mainly contributed by the creep strain εc during the stress-holding stage, so the residual strain εre is also mainly dependent on the creep strain εc. As the creep strain εc generated in the initial stage is dominant, in order to reduce the residual strain εre before plastic shakedown, reducing the creep strain εc in the initial stage is the most effective method.

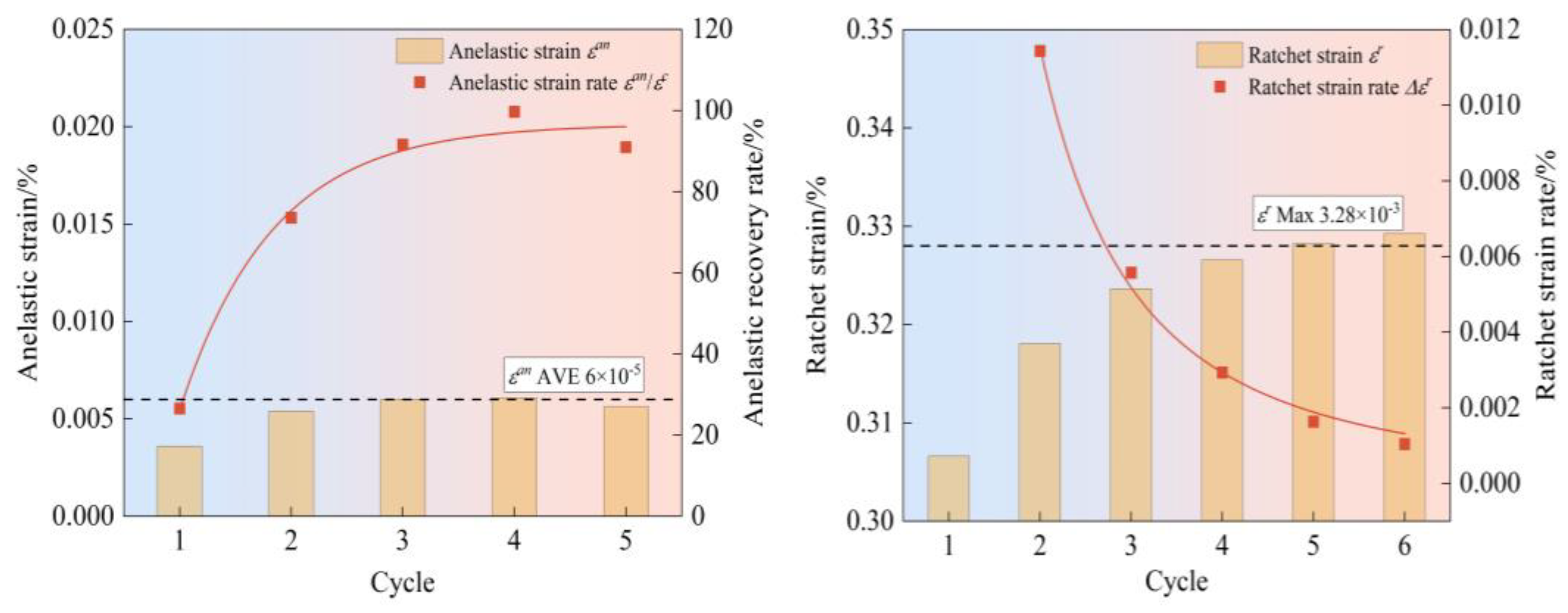

From Figure 9(a), it can be seen that the anelastic strain εan remains nearly constant at approximately 6×10-5 over the 6 cycles, similar to the investigation results of Zheng Xiaotao [26]. This constant is equal to the difference between increment of ${\mathit{\epsilon }}_a^c$ and ${\mathit{\epsilon }}_{\mathit{per}}^c$, as marked in Figure 8(a). Defining the anelastic recovery rate $\dot{\mathit{\epsilon }}\mathit{an}$as the ratio of the anelastic strain εan to the creep strain per cycle ${\mathit{\epsilon }}_{\mathit{per}}^c$, $\dot{\mathit{\epsilon }}\mathit{an}$=εan/${\mathit{\epsilon }}_{\mathit{per}}^c$. The anelastic recovery rate$\dot{\mathit{\epsilon }}\mathit{an}$increases exponentially with the number of cycles. At the initial stage (i.e., initial creep stage), the amount of anelastic strain εan keeps constant, but the creep rate decreases significantly, so the anelastic recovery rate $\dot{\mathit{\epsilon }}\mathit{an}$ increases faster. After the 3rd cycle, when the specimen reaches the plastic shakedown state, the creep during the stress-holding time enters into a steady creep stage, with a constant creep rate and a constant anelastic recovery rate. In addition, in cycle 3, the anelastic recovery rate $\dot{\mathit{\epsilon }}\mathit{an}$ grows to nearly 100%, indicating that the creep strain εc in the stress-holding time is almost completely recovered during the unloading [27]. This results in the repetitive plastic strain during the cyclic loading process, marking that the specimen enters the plastic shakedown state.

The variation of ratchet strain εr is different from the anelastic strain εan, as shown in Figure 9(b). The ratchet strain εr gradually increases and approaches a maximum value in the initial stage, which remains constant in the plastic shakedown stage. The ratchet strain rate is defined as the increment of ratchet strain relative to the previous cycle (i.e., dεr/dN). The ratchet strain rate decreases rapidly and reduces to nearly 0% in the 3rd cycle, after which the ratchet strain caused by stress cycling no longer increases. The lowest point of decreasing ratchet strain rate is also in the 3rd cycle, i.e., the plastic shakedown transition point, which indicates that the phenomenon of anelastic recovery not only slows down the accumulated creep strain rate, but also reduces the ratchet strain rate [28]. Because anelastic recovery can reduce the accumulation of creep damage in the material [29], which is one of the most important reasons for the specimen to exhibit plastic shakedown.

In the process of creep-fatigue cyclic loading of Ti17 alloy, all strain components undergo rapid changes in the early cycles, with creep strain per cycle εc, residual strain εre, and ratcheting strain εr tending to decrease or increase towards their respective stable values. Once the plastic shakedown state is reached, the value of each strain component remains essentially constant. When the specimen enters the plastic shakedown state, the anelastic recovery rate increases to 100% and the ratchet strain rate decreases to 0%. The deformation of the specimen due to cyclic creep-fatigue is repeated over and over again to form stable alternating plasticity.

4.3. Validation of Shakedown Theory Model

Using the methodology for determining the material parameters presented in Section 3.3, the values of the material parameters required for the shakedown theory model are obtained as shown in Table. 2.

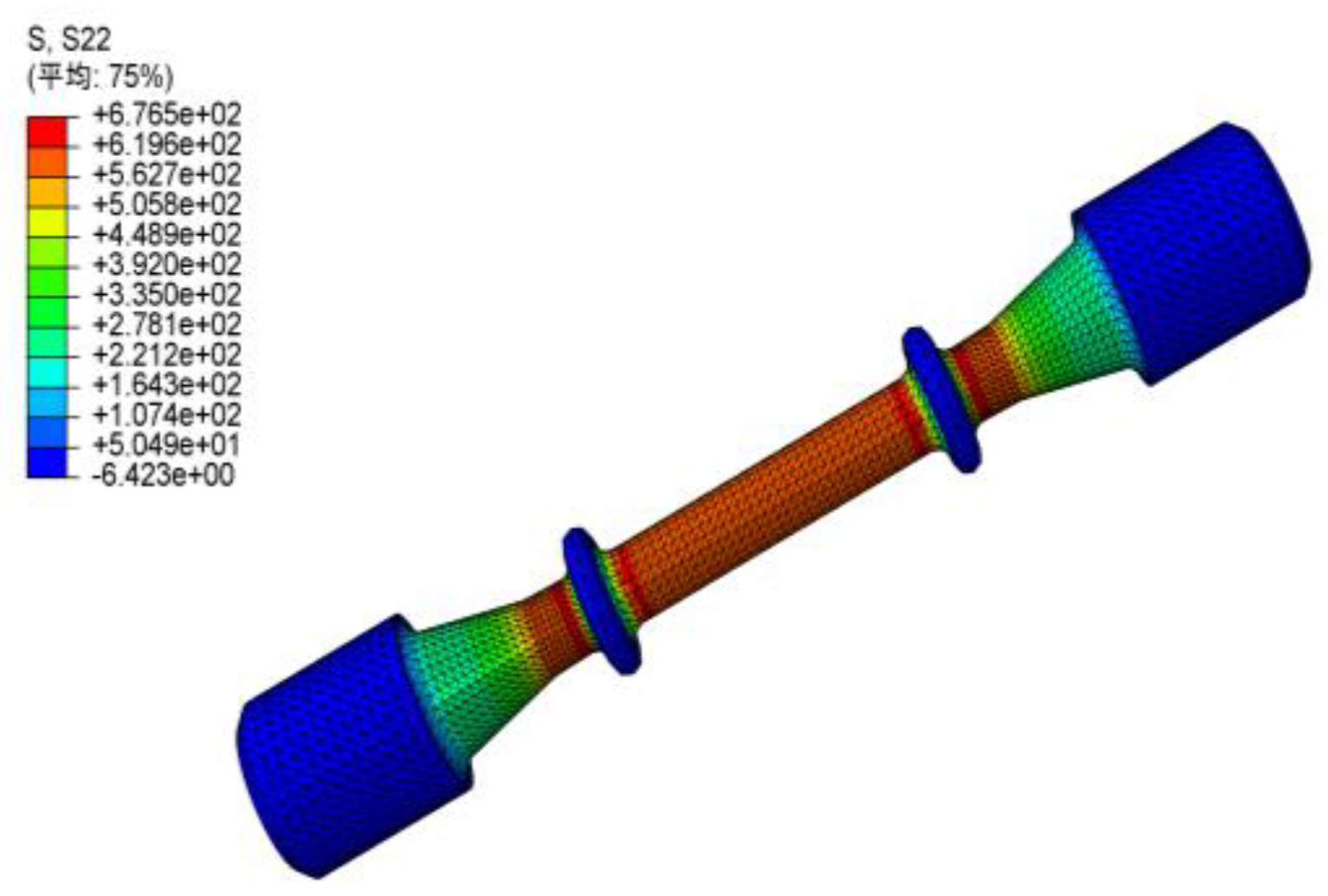

To verify the accuracy and adaptability of the shakedown theory model and material parameters, the simulation of the CF test was carried out using Abaqus software under the same conditions. The geometry used in this model is a Φ5mm bar with an axial load of 11781N applied at one end, and the other end is completely fixed; then, the model is meshed with tetrahedral C3D4 cells, and finally, 49678 cells are divided, and the model of the loaded state is shown in Figure 10.

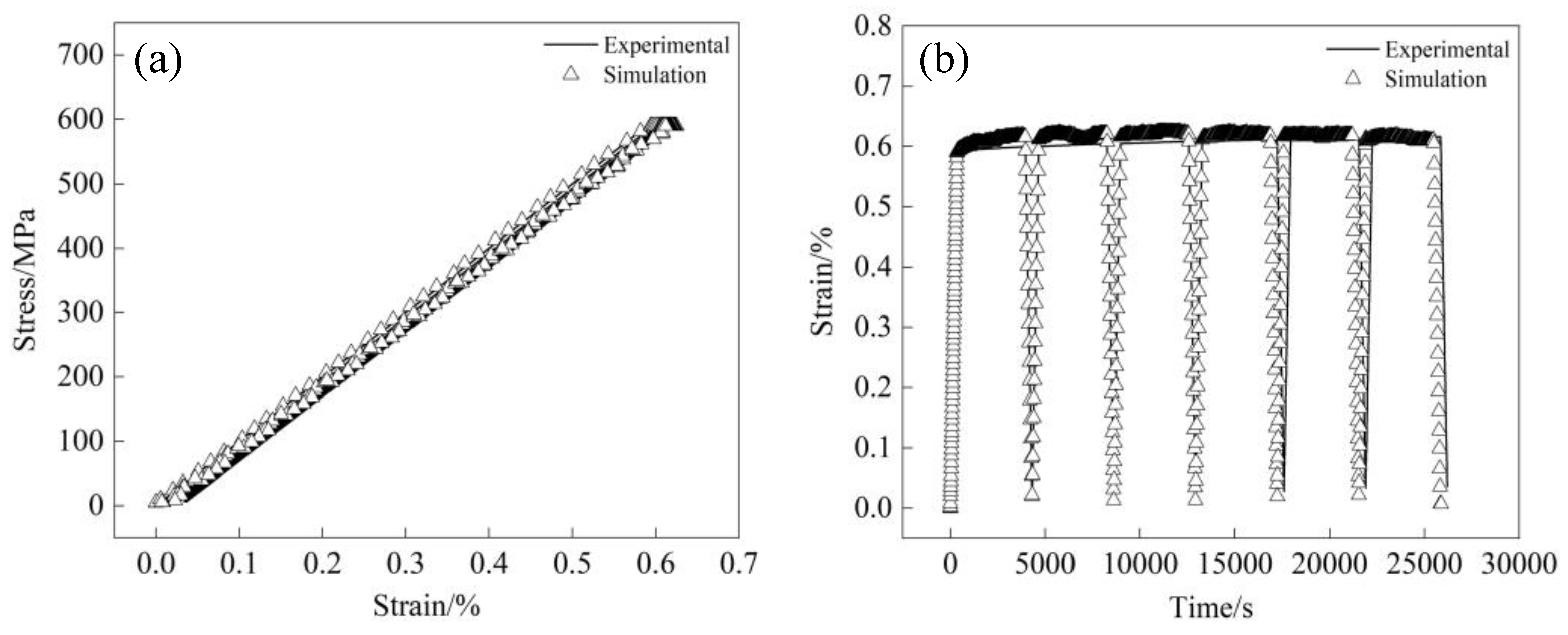

The simulation results and the corresponding experimental results are given together in Figure 11, and the relative errors between the simulated and experimental strain values for different cycles are statistically shown in Table. 3. From Figure 11, the simulation results of CF of the shakedown theory model at 300°C have a good overlap with the experimental results, and the statistical results in Table. 3 show that the maximum relative error between the simulation and experimental results for different cycles is not more than 4%. It is shown that the model can accurately predict the shakedown behavior of Ti17 alloy under the corresponding experimental conditions. The establishment of this model provides a theoretical basis for the shakedown analysis of aero-engine rotating components at higher temperatures.

4.4. Microscopic Mechanisms of Plastic Shakedown

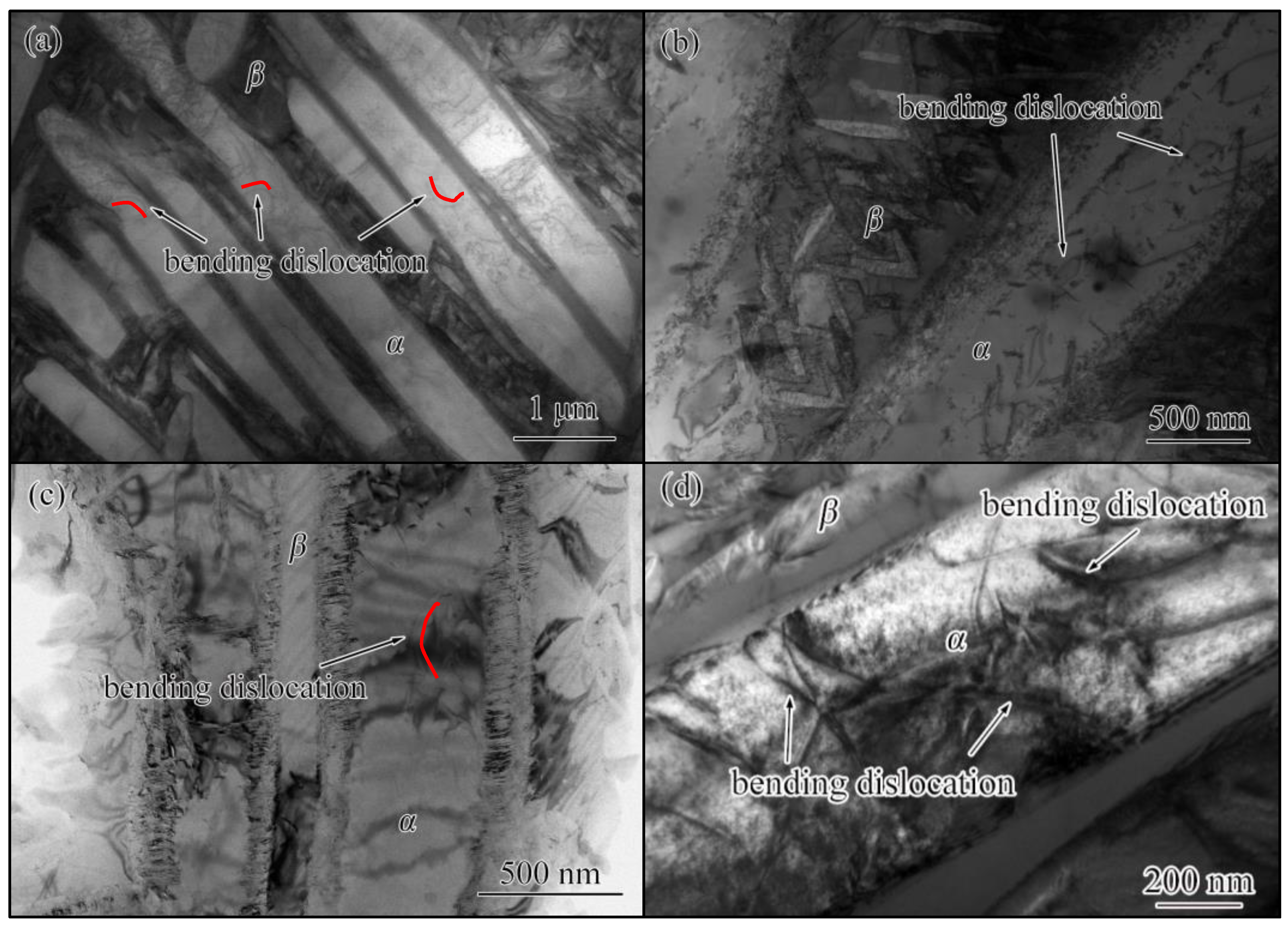

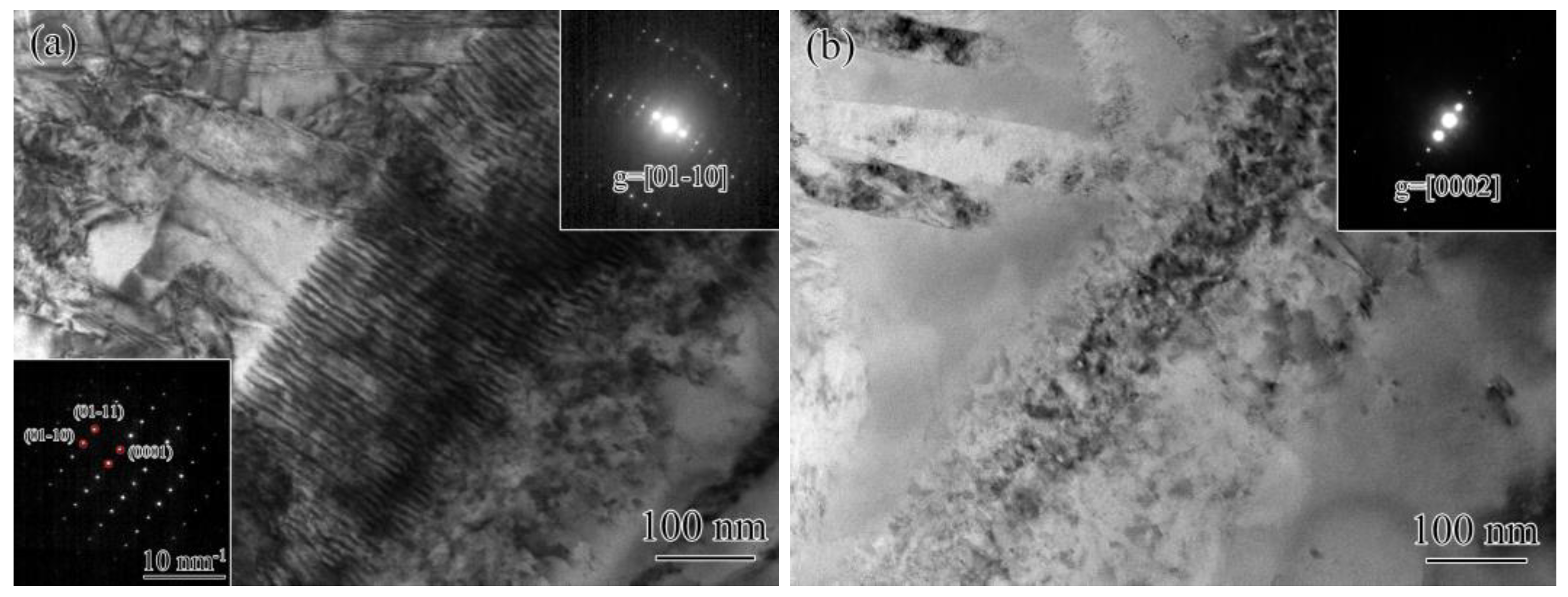

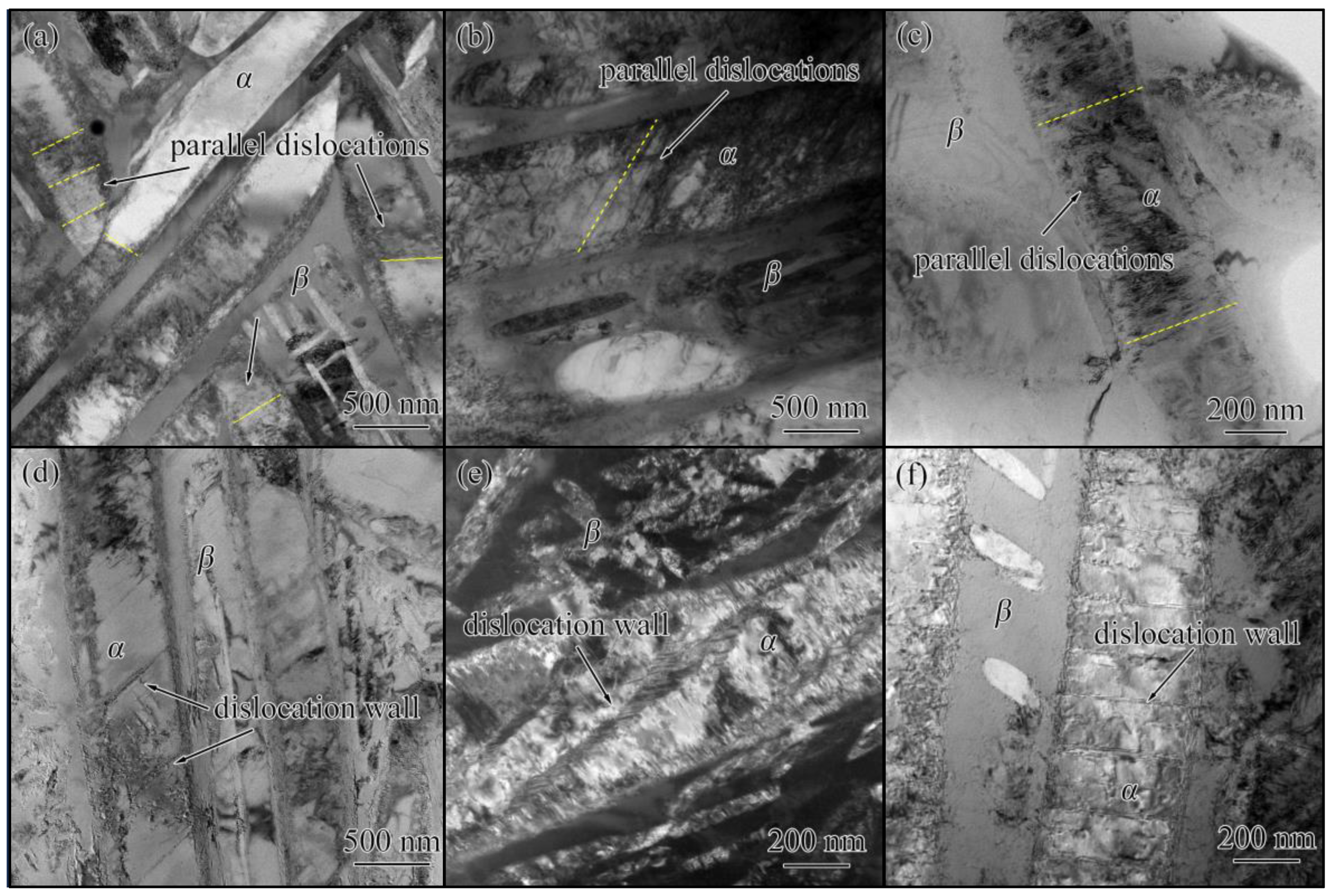

To reveal the micro-mechanisms of plastic shakedown of Ti17 alloy, TEM observation was carried out on the specimens after the CF test. Figure 12 shows the microstructure of Ti17 specimens in the plastic shakedown state. Compared with the initial structure (Figure 1(b)), it is observed that the deformation of the basket-weave microstructure is non-uniform, with pronounced dislocation slip occurring in favorably oriented α phases and lower dislocation density in unfavorably oriented α phases. Moreover, the area of dislocation pile-up within the α-phase is narrow, indicating the localized nature of deformation in the basket-weave microstructure [30]. Creep-fatigue primarily gives rise to two distinct structures in the highly slip-prone α phases [31]: one is a large number of parallel dislocations in the α-phase, which extend across the whole α-phase and are plugged at the α/β grain boundary, as shown in Figure 12(a)(b)(c); the other is the formation of dislocation walls and the low-density dislocation zone between the dislocation walls in the lamellar α-phase, as shown in Figure 12(d)(e)(f).

During the initial stage of CF tests, the dislocation density is low and the dislocation pile-up is not serious. The resistance to dislocation slip is weak, resulting in low deformation resistance. Therefore, during the initial cycles, especially the cycle 1, the specimen experiences significant strain, with all strain components being large. After undergoing substantial plastic deformation, dislocations rapidly multiply within favorably oriented α phases. Due to the limited number of slip systems in titanium alloy α phase, it is widely believed that the activation of slip primarily occurs on the basal or prismatic <a> slip systems [32,33]. As a result, the dislocations within α phase mainly originate from the same slip system, and the dislocation lines exhibit a parallel morphology. Figure 13 shows the dislocation slip lines in two-beam images as observed by TEM. The type of dislocation can be determined according to dislocation invisibility criterion: if the Burgers vector b is normal to the operating vector g, g–b=0. For titanium alloys with HCP structure, Table. 4 lists the common dislocation Burgers vector and determination criterion [34]. When the operating vector g= [01-10], the observed dislocation lines in the TEM images can be determined as <a> or <a+c> type dislocations. In Figure 13(b), when the operating vector g= [0002], the observed dislocation lines at the same position disappear. Only <a> type dislocation lines would disappear under this operating vector g. Therefore, it can be concluded that the observed parallel dislocation lines are <a> type dislocation lines.

In the transition stage, the dislocation density has increased significantly, the dislocations are entangled with each other and pile-up at grain boundaries, and the dislocation slip resistance is greatly enhanced. On the one hand, this activates the dislocation climb leading to the formation of dislocation walls where dislocations within the walls either annihilate each other or get absorbed into the walls [35]. On the other hand, it results in back stress cyclic hardening, and the obstructed movement of pile-up dislocations across grain boundaries prevents the presence of dislocations in unfavorably oriented α phases and higher hardness β phases, causing non-uniform deformation, which further exacerbates back stress hardening [36].

Finally, in the plastic shakedown stage, hindered by the combined effects of pile-up dislocations and non-uniform deformation, both the externally applied tensile stress during stretching and the reverse stress on dislocations generated during stress relaxation upon unloading are lower than the critical shear stress required to drive dislocation slip. As a result, dislocations have difficulty in initiating motion. This is macroscopically reflected in a significant decrease in strain rate and the stabilization of strain components. However, the continuous action of the applied stress during the stress-holding stage causes elastic bending of dislocation segments, as shown in Figure 14. This is manifested as a small amount of “creep strain” on the stress-strain curve. It should be noted that this “creep strain” is not an irrecoverable plastic strain and it will disappear upon unloading due to the re-straightening of bending dislocation segments through the occurrence of anelastic recovery [37] [38,39]. This conclusion was already pointed out in Nardone’s study on the cyclic creep behavior controlled by anelastic recovery [40]. The anelastic recovery strain during unloading is initially stored in the strain accumulated during the stress-holding period, and this strain has not yet completely transformed into irrecoverable “creep strain”. The micro-mechanism behind this phenomenon is primarily attributed to the back stress generated by the line tension of dislocations in bending. If unloading occurs during the bending process of dislocations, the strain can be recovered. Souni has also observed bending dislocation segments in TEM images during the study of anelastic creep behavior in near-α titanium alloy Ti6242Si, suggesting that the deformation of dislocation segments controlled by dislocation climb dominates the anelastic strain [27]. The phenomenon of dislocation segment bending and re-straightening occurs repeatedly during CF loading and unloading, resulting in continuous repeated deformation of the specimen, ultimately leading to the attainment of a plastic shakedown state.

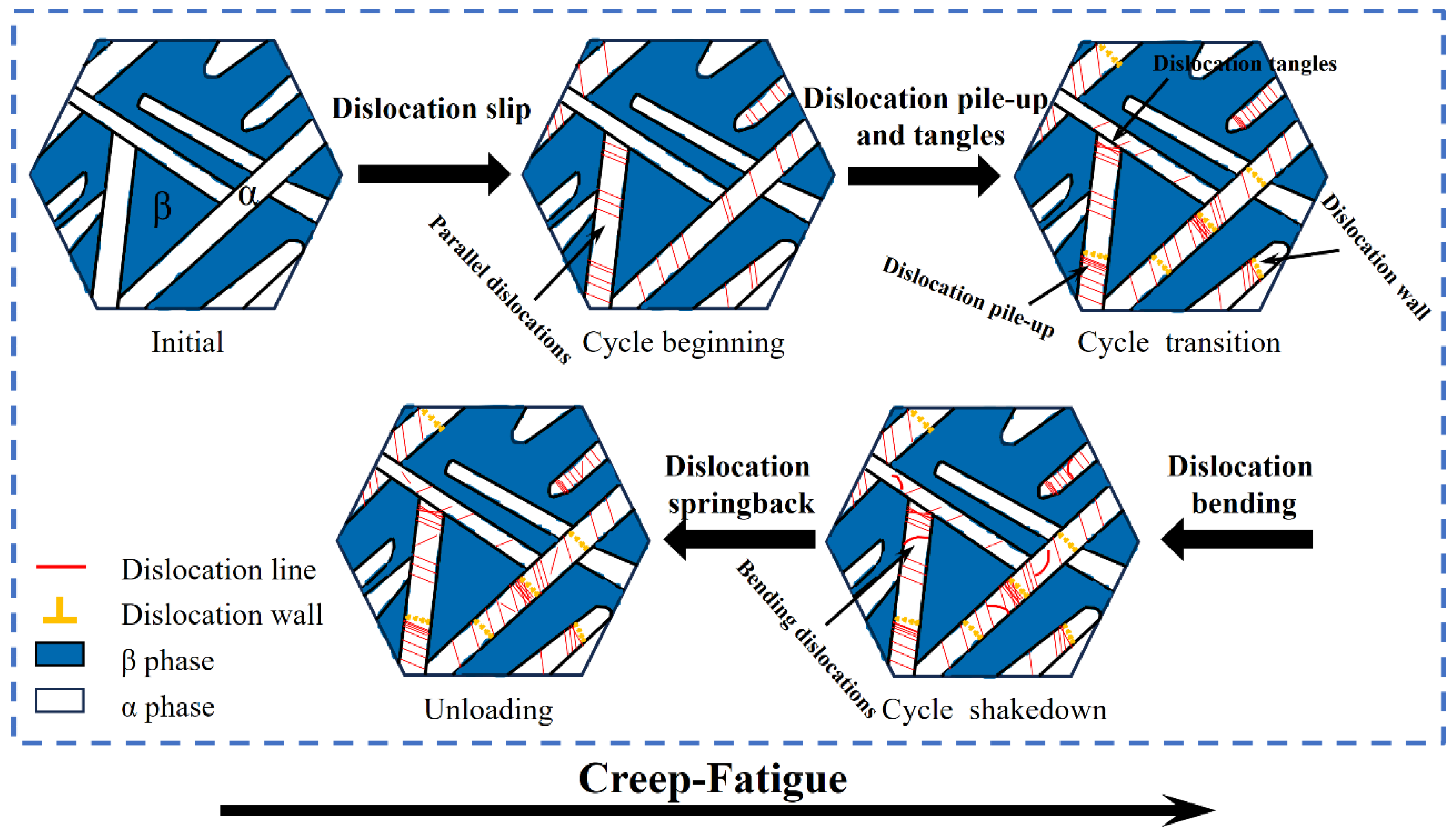

Based on the above discussion, the micro-mechanisms of plastic shakedown of Ti17 alloy under CF loading have been summarized in Figure 15, which shows a certain region in the basket-weave structure of Ti17 alloy. The dislocations within the α-phase in the as-received material can be neglected. Ti17 alloy undergoes the dislocation slip in the initial stage. Then the dislocation plugs and entangles continuously inducing dislocation climbing in the transition stage. Finally, the dislocation bending during stress-loading and the re-straightening during unloading reach a balance, a plastic shakedown state is manifested in the macroscopic state.

5. Conclusions

This paper has investigated the plastic shakedown behavior of Ti17 alloy through CF tests, established a shakedown theory model, and examined the micro-mechanisms of plastic shakedown behavior by TEM. The main conclusions are as follows:

(1) Ti17 alloy specimens experience CF tests at 300°C. During the initial stage, significant strain is observed, with the creep strain per cycle ${\mathit{\epsilon }}_{\mathit{per}}^c$ rapidly decreasing, while residual strain εre and ratchet strain εr increase rapidly. After three cycles, the specimens reach a plastic shakedown state, with the strain components tending to stabilize. The anelastic recovery rate increases to 100%, and the ratchet strain rate decreases to 0%.

(2) Based on the plasticity-creep superposition model, a theory model for the CF shakedown behavior of Ti17 alloy is established. This model can accurately describe the shakedown behavior of Ti17 alloy at 300°C, and the relative error between the simulation and experimental results can be controlled within 4%.

(3) TEM observations reveal that the multiplication and pile-up of dislocations during cyclic loading, as well as the non-uniformity of deformation, result in strong back stress cyclic hardening. The increased resistance to dislocation slip leads to the elastic bending of dislocation segments during the stress-holding stage and their subsequent re-straightening upon unloading, giving rise to anelastic recovery. Back stress cyclic hardening and anelastic recovery are the main mechanisms for the plastic shakedown behavior of the Ti17 alloy.
