Eicosapentaenoic Acid Rescues L-Type Ca²⁺ Channel Remodeling Caused by Saturated Fatty Acids via Both Free Fatty Acid Receptor 4-Dependent and -Independent Pathways in Cardiomyocytes

1. Introduction

A large number of epidemiologic studies demonstrate that higher saturated fat intake is associated with an increased risk of sudden cardiac death, suggesting that the effects of dietary saturated fat may be usually sufficient to cause heart diseases [1,2,3,4]. High levels of circulating saturated fatty acids are also associated with diabetes, obesity, and hyperlipidemia [5,6]. In the heart, the accumulation of saturated fatty acids has been proposed to play a role in the development of heart failure and arrhythmias [6,7,8]. The two major circulating fatty acids are saturated palmitic acid (C16:0) and monounsaturated oleic acid (C18:1) [9,10]. Palmitic acid is one of the most abundant fatty acids in human/animals and its overload induces lipotoxicity resulting in apoptosis, endoplasmic reticulum stress and reactive oxygen species production [11,12]. In addition, several recent studies have reported that plasma concentrations of palmitic acid were increased in a high-fat diet-induced obesity mouse model which has been used in a large number of publications to demonstrate lifestyle-related diseases in animals [7,8,9,10,13]. Exposure of high levels of palmitic acid to isolated cardiomyocytes is known to result in contractile dysfunction and apoptosis [7,14]. It is also recognized that palmitic acid-induced ROS production impairs cellular Ca²⁺ handling possibly through the decrease of L-type Ca²⁺ currents, increase of the open probability of SR Ca²⁺ release channels, slowing SR Ca²⁺ reuptake, and the activation of sarcolemmal Na⁺/Ca²⁺ exchange activity, ultimately leading to reduced SR Ca²⁺ content [7,15,16,17]. In contrast, numerous animal experiments and human epidemiological studies [18,19,20,21] have shown that omega-3 polyunsaturated fatty acids (PUFAs) exert beneficial effects on physical health. The strongest evidence for a valuable action of PUFAs has to do with cardiovascular diseases, causing a number of physiological changes such decreasing heart rate and lowering blood pressure [22]. Interestingly, accumulating evidence from in vitro experiments has demonstrated that omega-3 PUFAs exert antiarrhythmic effects [23,24,25,26]. Eicosapentaenoic acid (EPA) has been shown to affect sodium channels [23] to protect cardiomyocytes against arrhythmias induced by high extracellular calcium, ouabain, isoproterenol, or lysophosphatidylcholine [24]. EPA and docosahexaenoic acid (DHA) are also known to regulate the activity of L-type Ca²⁺ channels, which plays an important role in reducing excessive excitability and increasing refractoriness of cardiac myocytes [25,26]. Thus, inhibition of Na⁺ and/or Ca²⁺currents may account for the acute antiarrhythmic effects of omega-3 PUFA [23,24,25,26]. However, the underlying mechanisms associated with saturated fatty acid-induced long-term electrical remodeling of cardiomyocyte remain unclear [27,28,29].

Recently, the molecular targets for PUFAs were elucidated [30,31]. The free fatty acid receptor 4 (FFAR4) is a G protein-coupled receptor for endogenous medium- or long-chain fatty acids that attenuates metabolic diseases and inflammation. PUFAs are generally full agonists for FFAR4 [30,31] that are expressed in various cell types including cardiomyocytes [28,29]. It has been reported that high-fat diet-induced obesity and liver steatosis were more severe in FFAR4-deficient mouse than in wild-type mouse [32], suggesting the functional importance of this receptor in lipid pathology. Of note, Murphy et al. showed that FFAR4 in cardiac myocytes responds to endogenous fatty acids, reduces oxidative damage, and protects the heart from pathological stress. This could provide important translational implications for targeting FFAR4 in cardiovascular disease [33]. Furthermore, EPA was more effective than DHA at preventing lethal arrhythmias by inhibiting inflammasome and sympathetic innervation through activation of peroxisome proliferator-activated (PPAR) γ-mediated FFAR4-dependent and -independent signaling pathways after injury [34]. These results suggest that FFAR4 becomes an important site of action for EPA in the regulation of cardiac electrical activity. However, the role of EPA on cardiac electrical remodeling and transcriptional regulation of ion channels in the modification of these FFAR4-mediated signaling pathways has not been elucidated. Thus, the aim of this study was to investigate the possible beneficial effects of EPA and FFAR4 on saturated fatty acid-induced electrical remodeling in cardiac myocytes, focusing on the voltage-gated L-type Ca²⁺ channel.

2. Results

2.1. Actions of Saturated Fatty Acid on the L-Type Ca²⁺ Channel and the Cellular Excitability

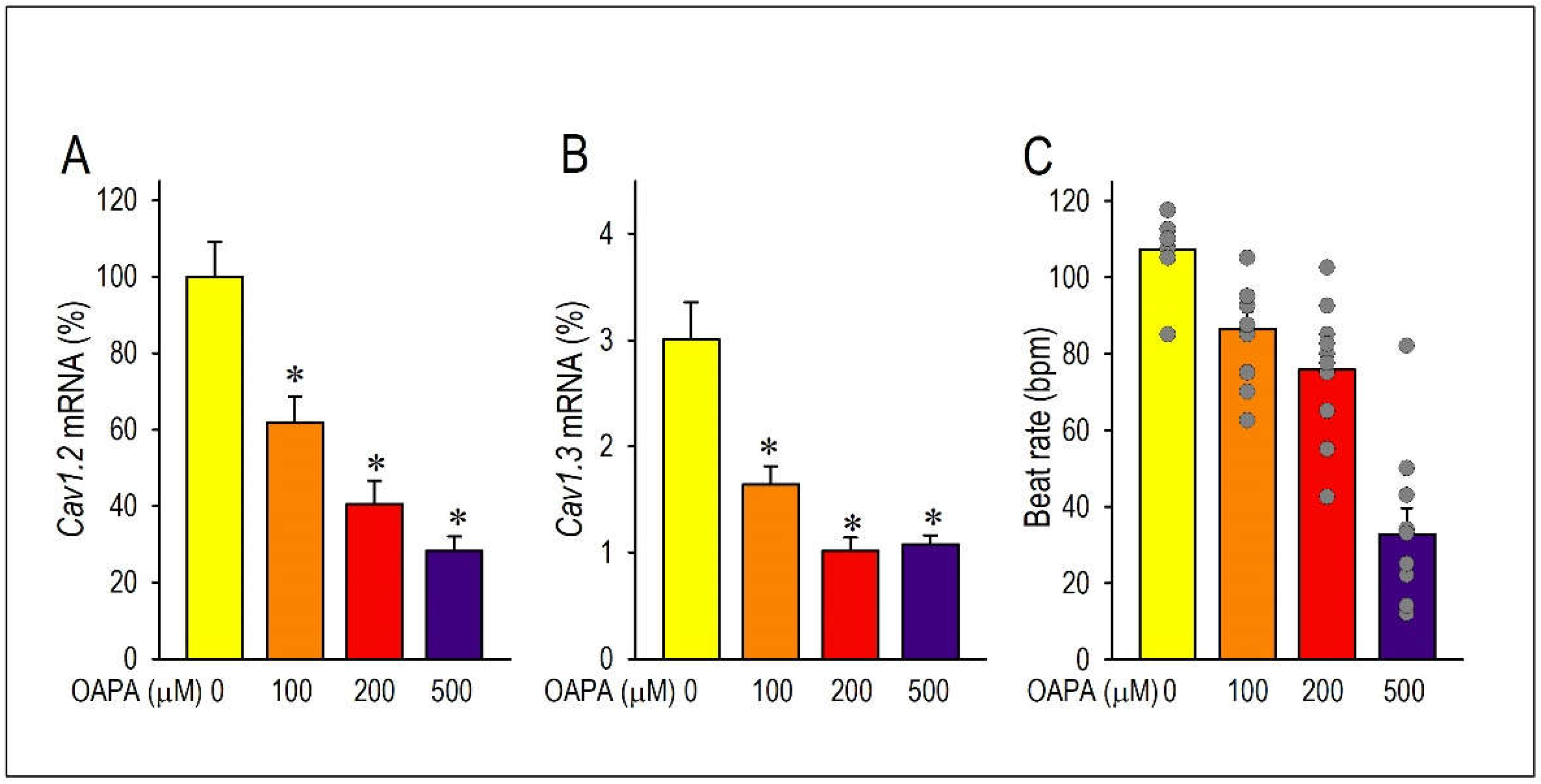

To determine whether cardiomyocyte excitability and automaticity can be affected by a high level of saturated fatty acid, we examined effects of OAPA (100 to 500 μM) on neonatal mouse cardiomyocytes for 24 h. Since cardiomyocytes’ beating or automaticity was strongly influenced by the function of pacemaker ion channels, we first measured the mRNAs of these pacemaker ion channels in cardiomyocytes with OAPA by use of real-time PCR. In preliminary studies, OAPA significantly reduced the expression of HCN4 and KCNJ3 mRNAs (data not shown). Interestingly, at the same time, the expression of Cav1.2 and Cav1.3 L-type Ca²⁺ channel mRNAs were drastically reduced by OAPA (Figure 1A,B). Because the Cav1.3 mRNA was expressed at much lower levels than that of Cav1.2, approximately ~3% of Cav1.2 in neonatal cardiomyocytes (Figure 1A,B), we focused on the Cav1.2 L-type Ca²⁺ channel in this study. To investigate the possible effect of saturated fatty acid on cardiac automaticity in neonatal mouse cardiomyocytes, the spontaneous beating rate of cardiomyocyte was measured by live cell imaging system. As shown in Figure 1C, OAPA treatment significantly decreased the spontaneous beating rate in a dose-dependent manner. Interestingly, polyunsaturated fatty acid EPA as well affected the expression of Cav1.2 mRNA (Figure 2A). Although 50 μM or higher concentration of EPA significantly decreased Cav1.2 mRNA expression, lower concentration of EPA (1 μM or 10 μM) had negligible effect on Cav1.2 expression (Figure 2A). Given these results, we conclude that OAPA, and EPA with very high concentration, reduces the beating rate of cardiomyocytes in a concentration-dependent manner concomitant with the reduction of Cav1.2 (and Cav1.3) L-type Ca²⁺ channel expression in cardiomyocytes.

2.2. EPA Rescued OAPA-Induced Reduction of L-Type Ca²⁺ Channel

Combined actions of OAPA and EPA on Cav1.2 expression and beating rate were then examined based on the results in Figure 1 and Figure 2A,B. Interestingly, reduction of Cav1.2 and Cav1.3 mRNA expression caused by OAPA were all rescued by the presence of EPA (Figure 2A,B). Of note, even the highest concentration of OAPA (500 μM) was without effect on Cav1.2 and Cav1.3 mRNA expression when 10 μM EPA was applied together (Figure 2C,D). These results suggest the rescue effect of EPA on the OAPA-mediated remodeling of the L-type Ca²⁺ channel when applied for 24 h. Consistent with these results, a decrease of the beating rate caused by OAPA was cancelled in the presence of EPA (Figure 2E). In addition, a significant reduction of the protein expression levels of Cav1.2 caused by OAPA was completely rescued by EPA verified by Western blotting (Figure 3A). Furthermore, immunocytochemical analysis confirmingly revealed that OAPA suppressed the expression of Cav1.2 channel protein which was completely rescued by EPA (Figure 3B,C). These results were all consistent with the changes of Cav1.2 mRNA as shown in Figure 2. Functional modification of Cav1.2 was then confirmed by the electrophysiological method to explore the changes of the L-type Ca²⁺ channel current (I_Ca.L). Since the saturated fatty acid OAPA strongly decreased the expression level of Cav1.2 which was blocked by EPA, a rescue of L-type Ca²⁺ channel current by EPA was expected. In conventional whole-cell patch clamp experiments using neonatal rat cardiomyocytes, I_Ca.L was recorded. Results in Figure 4 demonstrate that OAPA significantly reduced I_Ca.L when applied for 24 h_, which was completely rescued by 10 μM EPA. Importantly, current (I)-voltage (V) relationship was unchanged in the presence of OAPA and EPA, suggesting that gating properties of the Cav1.2 channel was not modified by OAPA and/or EPA (Figure 4B).

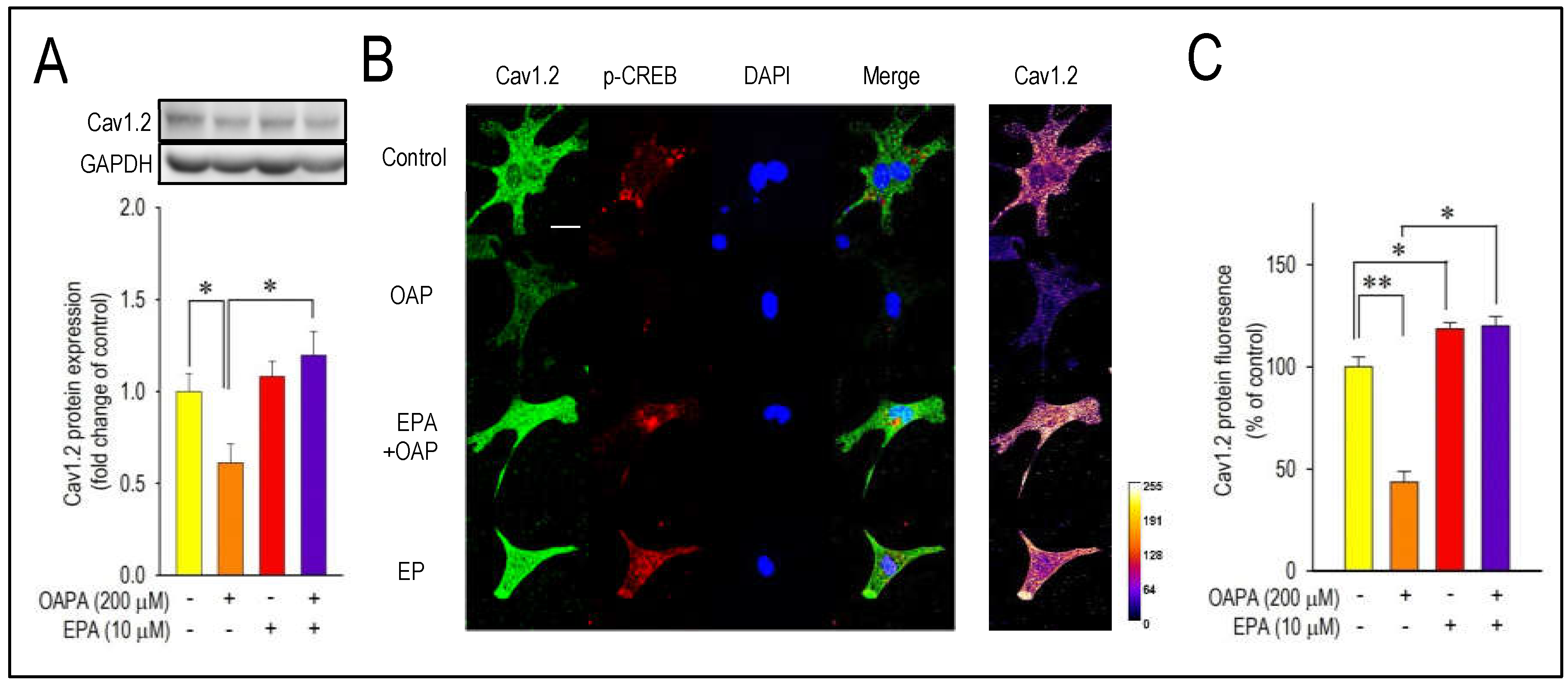

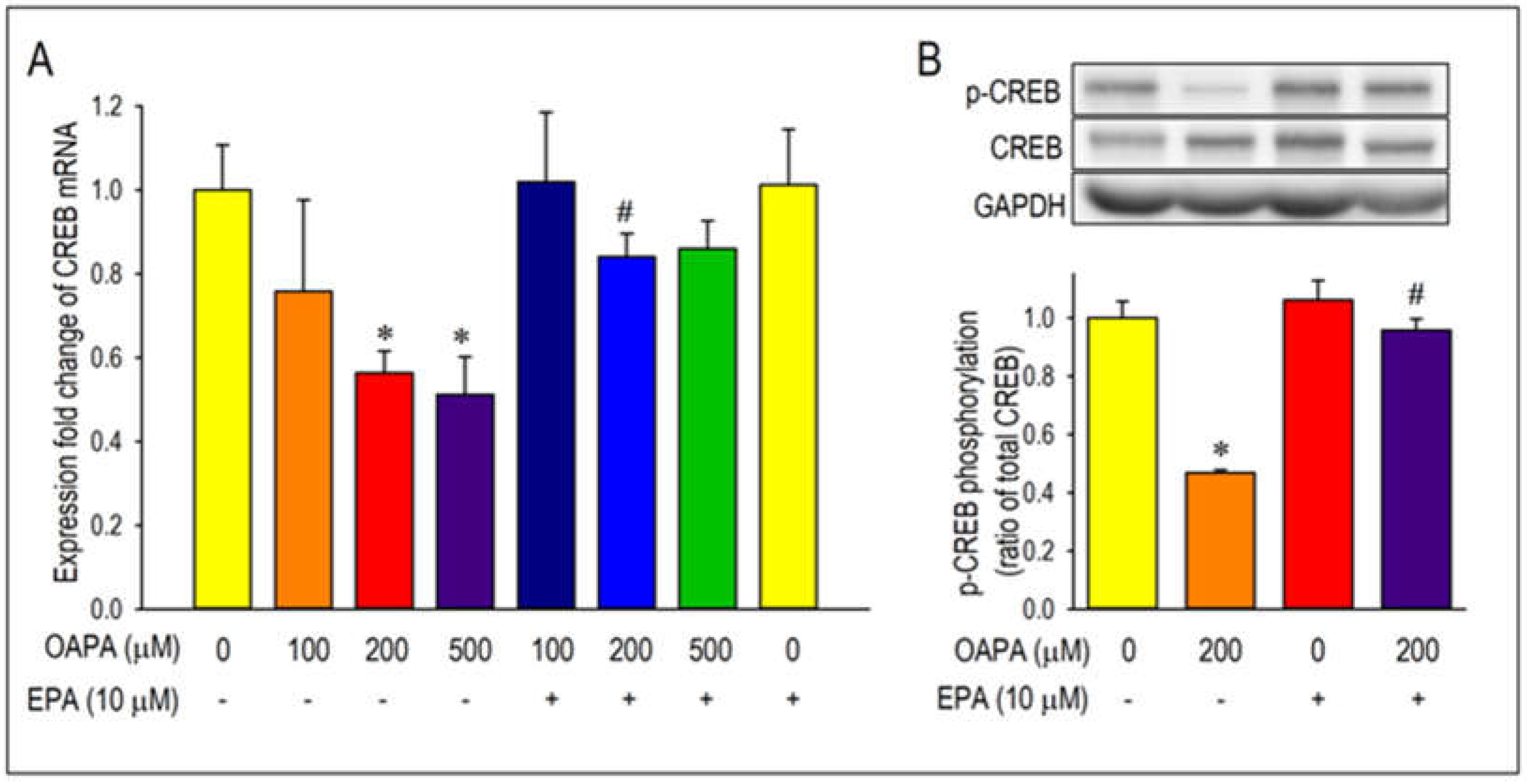

Activation of the transcription factor adenosine-3’, 5’-cyclic monophosphate (cAMP) response element binding protein (CREB) as detected by phosphorylation of CREB has been recognized as an index of the initiation of Cav1.2 transcription [35]. Accordingly, expression and the changes of CREB mRNA by OAPA were explored in the presence or absence of EPA. Importantly, CREB mRNA was reduced by OAPA in a dose-dependent manner, which was highly consistent with the changes of Cav1.2 mRNA (Figure 1A) and Cav1.2 protein (Figure 3A). In accordance with the regulation of Cav1.2 mRNA, EPA rescued the changes of CREB mRNA. A reduction of the phosphorylated component of CREB in the nucleus was also rescued by EPA, strongly suggesting that EPA rescues Cav1.2 protein through a transcriptional pathway involving CREB (Figure 5B).

2.3. Actions of FFAR4 in Cardiomyocytes

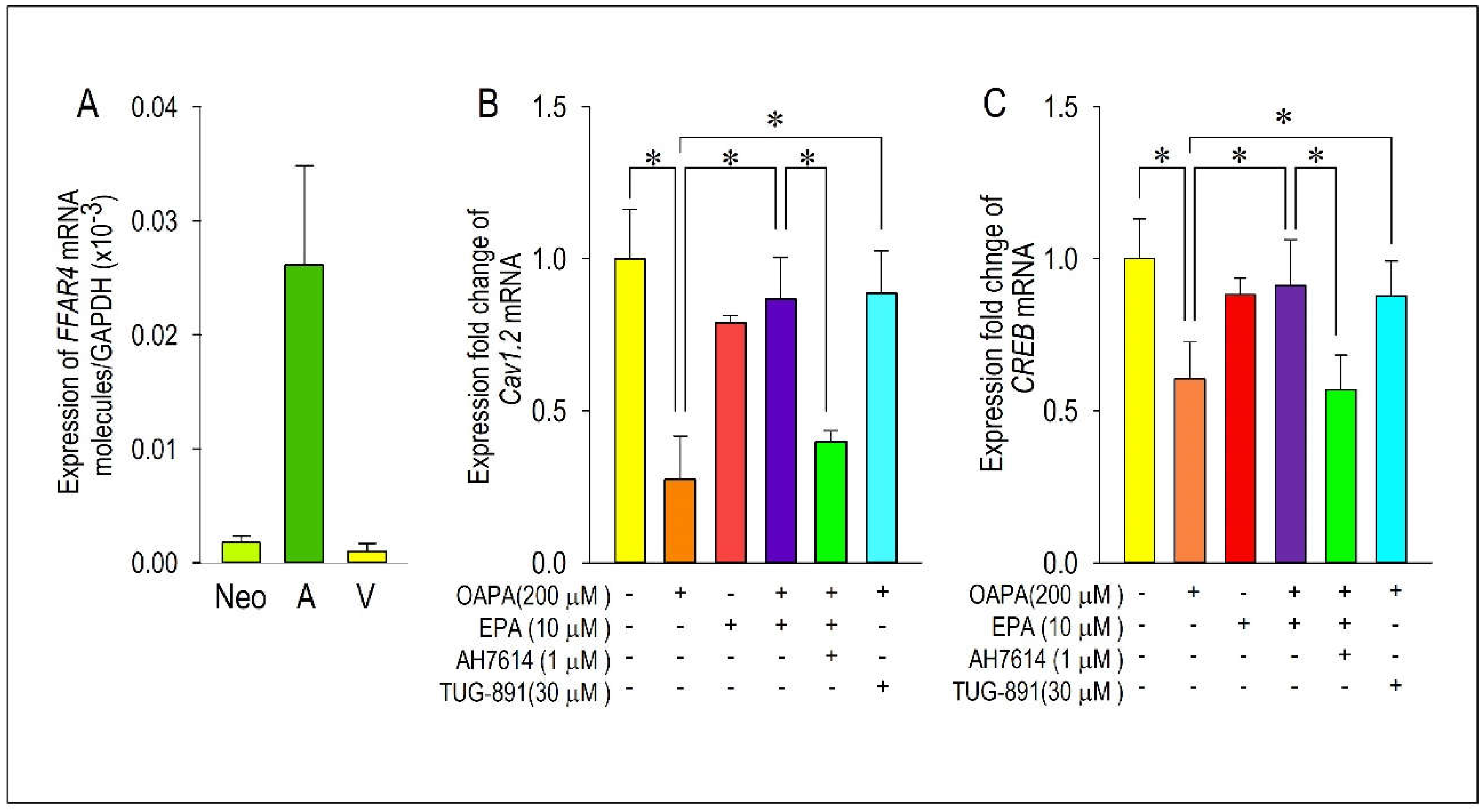

Albeit the downregulation of Cav1.2 and CREB mRNA expression caused by OAPA and the rescue by EPA were confirmed, their signal pathways are largely unknown. To clarify the intracellular signal pathway responsible for the action of EPA, functional role of the EPA receptor FFAR4 was examined. To our knowledge, function of FFAR4 is poorly known in cardiac tissue and/or cardiomyocytes. We investigated whether FFAR4 could be detected in the adult mouse heart and neonatal mouse ventricular cardiomyocytes by using real-time PCR analysis. Figure 6A clearly demonstrates that FFAR4 is detectably expressed in adult and neonatal hearts. Notably, there was an approximately 25-fold difference in FFAR4 mRNA expression between the atrium and the ventricle in the adult mouse heart; surprisingly, FFAR4 was extremely highly expressed in the atrium. Based on the result that FFAR4 was appreciably expressed in neonatal ventricular cardiomyocytes, FFAR4-mediated signal pathways to regulate Cav1.2 and CREB were examined by use of neonatal mouse ventricular cardiomyocytes; an FFAR4 antagonist AH7614 and an FFAR4 agonist TUG-891 were applied [36]. It is worthy of note that the actions of EPA to rescue Cav1.2 and CREB were blocked by an FFRA4 antagonist AH-7614 (Figure 6B,C). Even more, reduction of Cav1.2 and CREB mRNA caused by OAPA was rescued by an FFAR4 agonist TUG-891 mimicking the effect of EPA (Figure 6B,C). These results firmly suggest the mechanism of FFAR4-mediated L-type Ca²⁺ channel regulation pathway led by EPA in cardiomyocytes.

2.4. Actions of ROS for Cav1.2 Expression

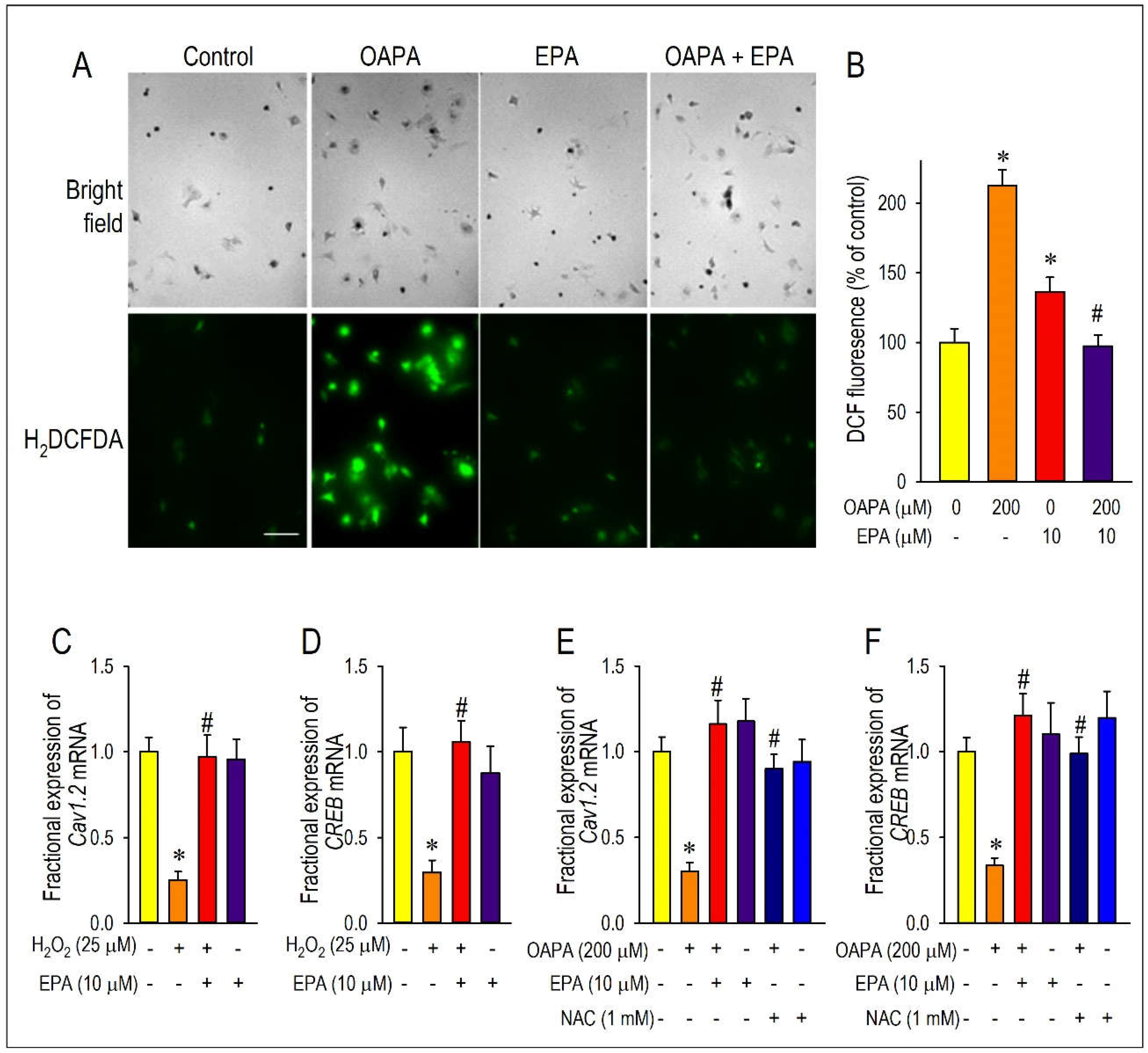

To investigate the effect of OAPA treatment on the level of oxidative stress, amount of reactive oxygen species (ROS) accumulation was measured in cardiomyocytes. As shown in Figure 7A,B, the level of ROS was relatively low in cardiomyocytes exposed to normal culture medium. On the other hand, OAPA treatment caused ROS accumulation in cardiomyocytes, which was rescued by EPA co-treatment. Intriguingly, EPA alone increased the ROS accumulation to a certain degree, although we did not examine the action any further in this study. Based on these results, it is suggested that EPA may act as a scavenger to remove ROS in cardiomyocytes. Roles of ROS for the modulation of Cav1.2 and CREB expression were further examined by use of hydrogen peroxide (H₂O₂) which induces oxidative stress in cardiomyocytes (Figure 7C,D). When cardiomyocytes were loaded with H₂O₂ for 24 h, the expression of Cav1.2 and CREB mRNA was markedly suppressed. However, the simultaneous administration of EPA nearly completely rescued the reduction of Cav1.2 and CREB mRNA. The ROS scavenging effects on OAPA insults for expression of Cav1.2 and CREB mRNA were examined by use of an ROS scavenger N-acetylcysteine (NAC) in comparison with EPA. NAC distinctly rescued expression of Cav1.2 and CREB mRNA, suggesting that OAPA down-regulates Cav1.2 and CREB by the mechanism associated with ROS accumulation. Taken together, it is concluded that OAPA-induced ROS accumulation modulates Cav1.2-L-type Ca²⁺ channel transcription through FFAR4-independent pathway.

3. Discussion

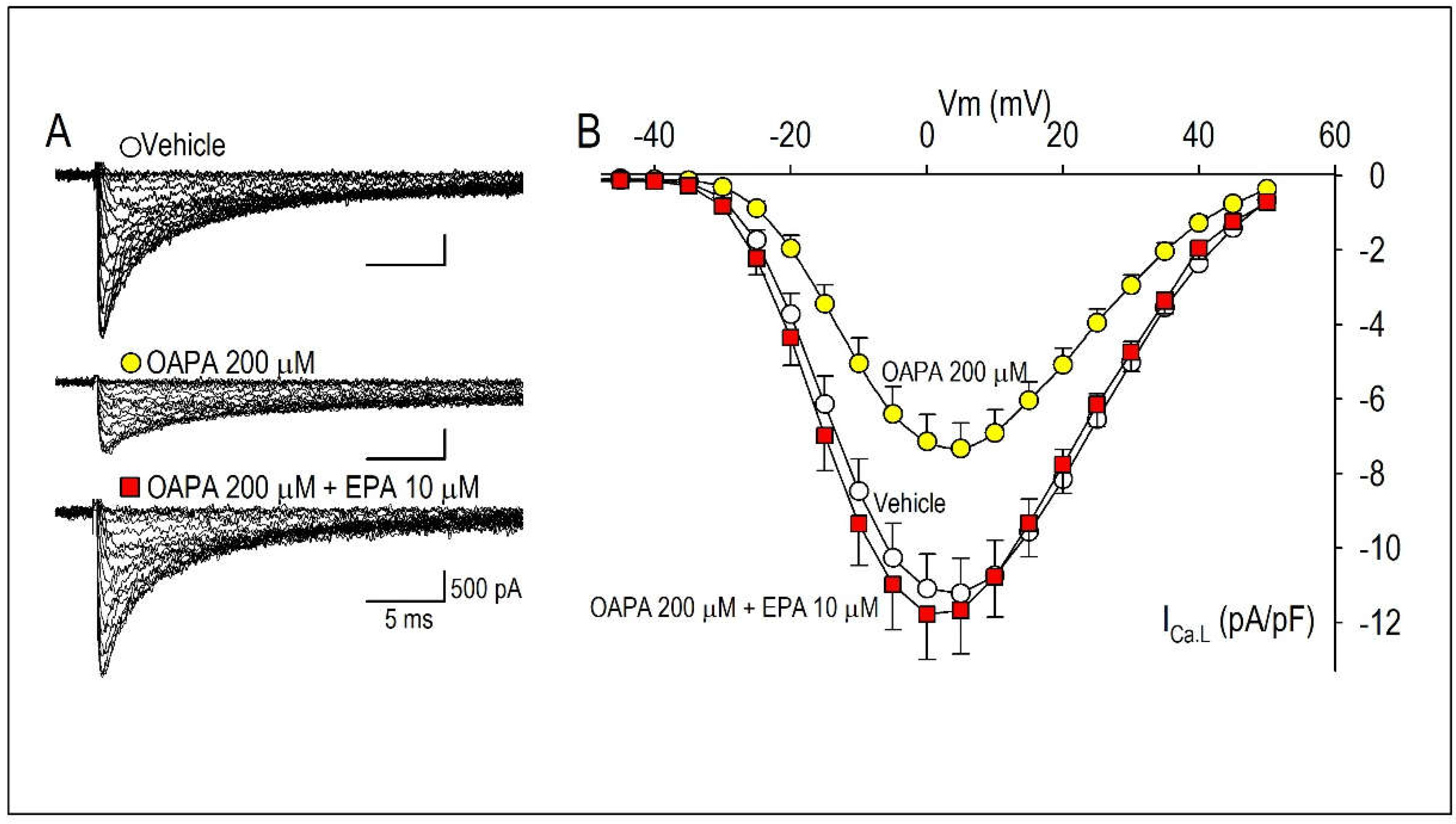

The major findings of this study were that (1) the long-term application of OAPA decreased Cav1.2 mRNA/protein, I_Ca.L and the spontaneous beating of cardiomyocyte, (2) EPA application reversed the remodeling of Cav1.2 channel caused by OAPA, (3) an FFAR4 agonist TUG-891 reversed expression of Cav1.2 and CREB mRNA caused by OAPA, (4) an FFAR4 antagonist AH-7614 abolished the effects of EPA on Cav1.2 and CREB mRNA caused by OAPA, (5) OAPA increased ROS production, while the action was eliminated by EPA, (6) an ROS generator H₂O₂ decreased the expression of Cav1.2 and CREB, which was prevented EPA, and (7) suppressions of Cav1.2 and CREB mRNA by OAPA was prevented by an ROS scavenger NAC.

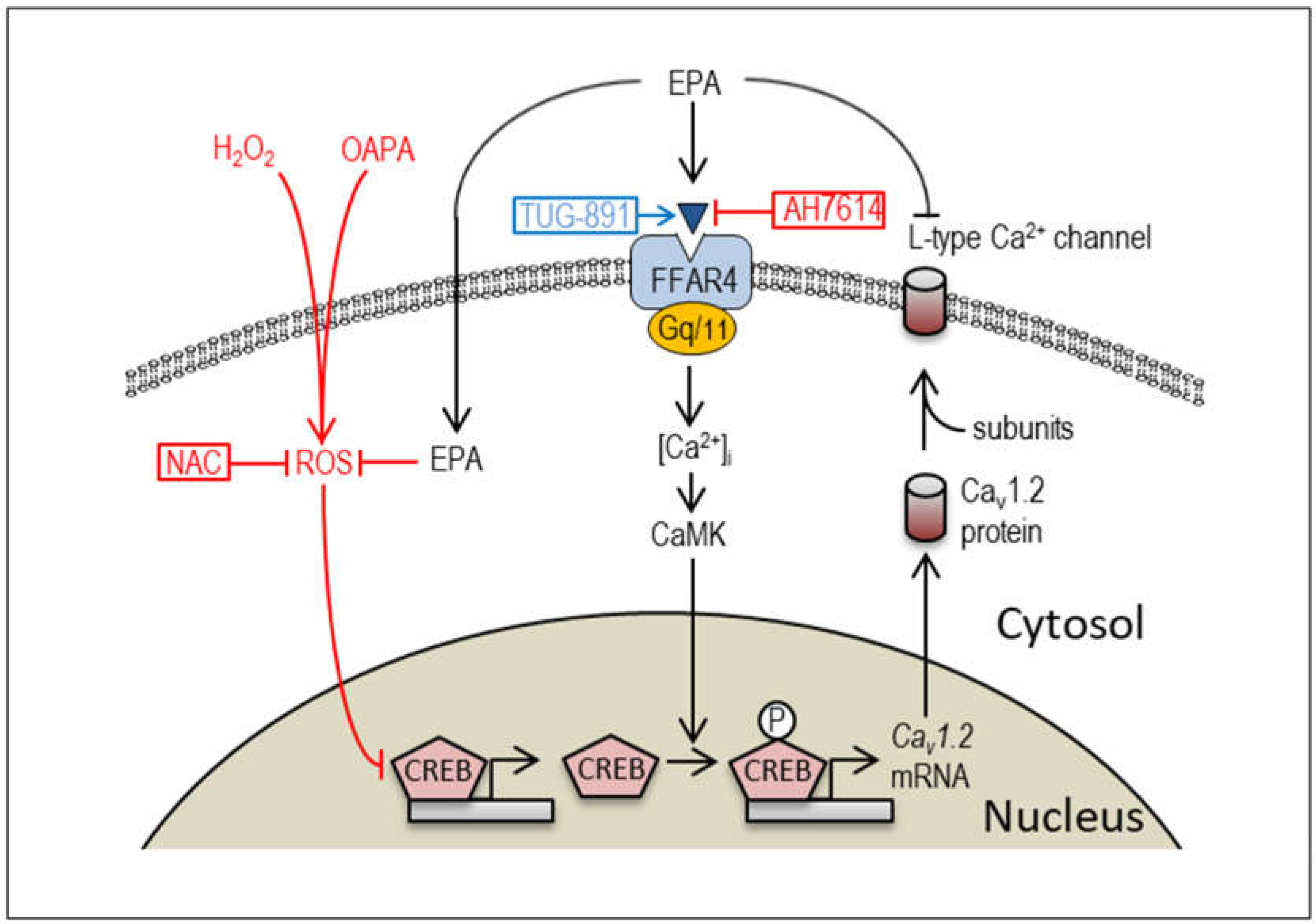

Intracellular Ca²⁺ homeostasis is a critical determinant of cardiac function, and the levels of intracellular Ca²⁺ are cooperatively regulated by the sarcolemmal Ca²⁺-ATPase, several types of the Ca²⁺ channels, the sodium-calcium exchanger, and other regulatory proteins. At the same time, intracellular Ca²⁺ signaling plays an essential role in cardiac gene expression and cardiogenesis [37,38]. In this context, it is not surprising that EPA modifies the expression of Cav1.2 through the intracellular Ca²⁺ regulatory pathway (Figure 8). We believe that the present study reveals the novel mechanism by which EPA administration rescues the downregulation of voltage-gated L-type Ca²⁺ channels caused by excessive amounts of saturated fatty acids and/or ROS in cardiomyocytes. In recent years, although little is known about the intracellular molecular mechanisms by which EPA exerts cardioprotective effects in cardiomyocytes, there has been increasing interest in FFAR4, a selective receptor for EPA [33]. Because EPA-induced FFAR4 activation is known to signal through modulation of Gq/11 proteins to stimulate CaMK activity in various cell types [33,36], and because CREB-dependent regulation of Cav1.2 channel transcription has been reported in cardiomyocytes [35], it is proposed that EPA regulates Cav1.2 channel expression possibly through the FFAR4-CaMK-CREB signaling pathway (Figure 8). Of note, FFAR4-independent signal pathway of EPA for the regulation of Cav1.2 expression is also proposed in this study. Since EPA has many double bonds and long-chain carbons, incorporation of EPA into the plasma lipids within the plasma membrane can alter its properties and influence the function of various membrane proteins including ion channels and receptors [27]. Furthermore, the intracellular concentration of EPA can easily be upregulated following extracellular EPA treatment [39]. Taken together, the ROS-scavenging effects of EPA to upregulate CREB and Cav1.2 could be attributed to its FFAR4-independent pathway at the same time. Although the signaling pathway of ROS generation caused by intracellular OAPA is well recognized [40], mechanism of EPA as an ROS scavenger is not clear, which obviously needs to be further elucidated.

Several studies have revealed an association between omega-3 PUFA intake and a lower risk of cardiovascular events including arrhythmias. More specifically, omega-3 PUFA is known to modify cardiac excitability by regulating ion channel functions in cardiomyocytes [41,42]. EPA is believed to prevent atrial and ventricular arrhythmias in animal experiments by inhibiting voltage-gated ion channels such as the Na⁺ channel [42,43], the Ca²⁺ channels [44], and some types of the K⁺ channels [45]. These findings suggest that the antiarrhythmic actions of EPA are mediated by direct interaction with membrane ion channels. On the contrary, long-term beneficial actions of PUFAs were to limit atrial remodeling that predispose patients to develop atrial fibrillation [46]. These observations suggest that PUFAs may act as antiarrhythmic nutrients to modify cardiac excitability when applied for long-term periods as well. Actually, several independent studies have reported effects of PUFAs to modulate expressions of ion channels in the heart; EPA suppressed expression levels of K⁺ channels and their related genes, Kir6.2, Kcna5, Kcnd2, KChIP2 [47,48], and Na⁺ channel mRNA [49]. Interestingly, in partially agreement with our findings, Xu at al. recently demonstrated that long-term application of fish oil upregulated the expression of Cav1.2 channel protein in the rabbit heart [45], which is in the sharp contrast to the previous studies reporting an antagonistic action of EPA to the voltage-gated Ca²⁺ channel [50]. A potentiation of the Ca²⁺ channel by long-term application of EPA could be accordingly considered as a compensatory action that maintains intracellular Ca²⁺ concentration reduction caused by the short-term effect. However, the long-term effect of EPA on the Ca²⁺ channel may be more complicated than the above postulation. It is known that ingested EPA is present in the blood in the form of phospholipids. PUFAs bind to and are incorporated into phospholipids in cell membranes because they are structurally unsaturated. EPA may affect membrane fluidity, lipid microdomain formation, and trans-membrane signaling. Consistently, an animal study demonstrated a significant increase in EPA and DHA concentrations in the ventricular myocardium of mouse supporting the notion that EPA acts, at least in part, directly on cardiomyocytes to maintain the electrical properties of ion channels present on the cell membrane [45]. Although this study did not assess the mechanism further, high concentration of EPA can reduce expression of the Ca²⁺ channel by itself (Figure 2A,B). Considering that human serum concentration of EPA approximately ranges from 14 μM to 100 μM [51], it is assumed that the long-term action of EPA on the Ca²⁺ channel expression could be affected by various factors including concentrations of EPA and co-existence of other saturated/unsaturated fatty acids, FFAR4 density on the plasma membrane, endogenous intensity of CaMK signals, and the magnitude of CREB-dependent transcription in cells.

Although several publications describe that omega-3 fatty acids prevents ventricular arrhythmias [52], much more large number of studies document that EPA prevents atrial fibrillation in animal studies and clinical observation [52,53]. It is crucial to note that expression level of FFAR4 in the atrium was 25 times larger than that in the ventricle (Figure 6A). Although electrophysiological actions of EPA on cardiomyocytes appear not only via FFAR4, a dense distribution of FFAR4 in the atrium suggests that actions of EPA on the Ca²⁺ channel are highly expected in the atrium. A negative chronotropic effect of EPA [54] may also be associated with the FFAR4 expression distinction in the heart. Relatively high concentrations of EPA by itself reduced expression of Cav1.2 and Cav1.3 mRNA (Figure 2A,B), in spite of the fact that EPA rescued reduction of them caused by OAPA. Taken together, it is suggested that EPA is able to decrease automaticity or responsiveness of the sinus node. Because the sinus node is located within the atrial tissue and is functionally connected to the atrial cardiomyocytes, impact of FFAR4 activation in the atrium could influence pacemaker rhythm accordingly. In humans, expression of FFAR4 decreases in cardiomyocytes with heart failure [33]. Thus, it is likely that expression of FFAR4 in the atrium may change in the pathological conditions such as in atrial fibrillation, suggesting the importance of FFAR4 density in evaluation of EPA action at the pathological condition of the heart.

Limitations of this study include uncertainty about whether these results are directly applicable to humans with dyslipidemia. Results in this study were obtained from animal experiments with isolated mouse/rat cardiomyocytes, and in vitro analysis that used real-time PCR and patch clamp analysis but not applied to human body. Although the impact of an FFR4 agonist TUG-891 on the expression of Cav1.2 and CREB was robust, it is uncertain whether FFAR4-dependent effect of EPA is more dominant than the FFAR-4 independent effect to rescue the L-type Ca2+ channel, which needs further studies. Also underlying mechanisms that connect FFAR4 and Cav1.2 remain largely unclear and require further investigation.

4. Materials and Methods

4.1. Chemicals

Reagents were obtained from Sigma Aldrich (St. Louis, MO) or WAKO (Osaka, Japan) unless otherwise indicated. Triton X-100 was purchased from MP Biomedicals (Aurora, OH). Fetal bovine serum was obtained from Biosera (Biosera, Nuaille’, Chile). Collagenase type IV was purchased from Worthington (Lakewood, NJ). H₂DCF-DA (2’,7’-dichlorodihydrofluorescein diacetate), ProLong Diamond Antifade Mountant with 4’,6-diamidino-2-phenylindole dihydrochloride (DAPI) were from Molecular Probes (Eugene, OR). Anti-CREB antibody (1:1000, Cell Signaling, Beverly, MA, USA), phosphospecific antibody against anti-pCREB (Ser 133), and Alexa Fluor 488 and 594-conjugated secondary antibodies were from Cell Signaling (Danvers, MA). All reagents from commercial sources were of analytical grade.

4.2. Isolation of Neonatal Mouse Cardiomyocytes

C57BL/6 mouse and Wistar rats (Japan SLC, Inc., Shizuoka, Japan) were provided with food and water ad libitum and the room temperature was maintained at 25°C ± 1°C in a 12-hour light/12-hour dark cycle. Neonatal mouse or rat cardiomyocytes were enzymatically isolated and cultured as previously described [55,56]. The cardiomyocytes were maintained at 37°C under 5% CO₂ in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum for 24 h. After 24 h of culture, > 70% of the cells adhered to the substrates and started to exhibit spontaneous beating (data not shown). For electrophysiological experiments, we used isolated neonatal rat cardiomyocytes.

4.3. Preparation of OAPA and Cell Culture

Oleic acid (OA) was solubilized in anhydrous methanol, and then prepared 100 mM stock solution. Palmitic acid (PA)-bovine serum albumin (BSA) conjugate was prepared through soaping PA with 0.5 N sodium hydroxide (NaOH) and mixing with BSA. Briefly, 100 mM stock solution of PA in 0.5 N NaOH was incubated at 70°C for 30 mins. And then, we prepared a mixture in OA at a concentration of 500 μM and PA at a concentration of 250 μM. Both fatty acids were complexed to BSA in a ratio of 2:1 (OA:PA) and total concentration of 100-500 μM. Because in vitro studies have shown that the PA at physiological concentrations exhibits a dose-dependent cytotoxic effect associated with ROS production and apoptosis or necrosis in neonatal cardiomyocytes [9], we tried to examine a combination of OA with PA, which is more suitable for simulation of simple electrical remodeling than PA alone. Medium supplementation with OA (500 μM) / PA (250 μM) mixture (OAPA) in the presence or absence of EPA (10 μM) for 24 h. To investigate the effect of removing accumulated ROS, cardiomyocytes were exposed to an OAPA for 24 h in the presence or absence of 1 mM NAC, an ROS scavenger.

4.4. Measurement of Intracellular ROS Accumulation

Intracellular ROS accumulation was detected using H₂DCFDA, whose green fluorescence signal is increased by its oxidation by ROS. Cells were incubated with 2 μM H₂DCFDA for 50 minutes at 37˚C and rinsed with HEPES buffer twice before observation. Images were acquired and digitized on a BIOLEVO BZ-9000 epifluorescence microscope (Keyence, Osaka, Japan), and analyzed at 200 x magnification using the associated software (Keyence).

4.5. Electrophysiological Measurements

Whole-cell voltage clamp experiments were performed as described previously [57]. L-type Ca²⁺ channel current (I_Ca.L) was recorded from a holding potential (V_H) of −50 mV followed by various test potentials. I_Ca.L density was obtained by normalizing I_Ca.L to the cell capacitance. All experiments were conducted at 37°C. For measuring I_Ca.L, the bath solution was composed by Na⁺- and K⁺-free solution contained (mM): Tetraethy-lammonium chloride (TEA-Cl) 120, CsCl 6, 4-aminopyridine (4-AP) 5, MgCl₂ 0.5, 4,4P-diisothiocyanostilbene-2,2P-disulfonic acid (DIDS) 0.1, HEPES 10, CaCl₂ 1.8, and glucose 10 (pH of 7.4 adjusted with TEA-OH). The pipette solution contained (mM): CsCl 130, Mg-ATP 2, EGTA 5, and HEPES 10 (pH of 7.2 adjusted with 1 M CsOH).

4.6. Quantitative Real-Time PCR

Total RNA was extracted from rat neonatal ventricular cardiomyocytes using TRIzol (Invitrogen, Carlsbad, CA, USA) 24 h after the treatment with agents described above. The single-stranded cDNA was synthesized from 1 µg of total RNA using Transcriptor First Strand cDNA Synthesis Kit (Roche Molecular System Inc, Alameda, CA, USA). Real-time PCR was performed on Light Cycler (Roche) using the FastStart DNA Master SYBR Green I (Roche) as a detection reagent. Forward and reverse primer sequences respectively for mouse L-type Ca²⁺ channel isoforms and transcription factor were designed from their sequence in the GeneBank database as follows (accession numbers are indicated in parentheses): CACNA1C (NM_001255999), forward 5’-ACATCTTCGTGGGTTTCGTC-3’, reverse 5’-TGTTGAGCAGGATGAGAACG-3’; CACNA1D (NM_028981), 5’-CTTTTGGAGCCTTCTTGCAC-3’, reverse 5’-CTGGACTGAATCCCAAAGGA-3’; FFAR4 (NM_181748), forward 5’-GCCCAACCGCATAGGAGAAA-3’, reverse 5’-GTCTTGTTGGGACACTCGGA-3’; CREB (NM_133828), forward 5’-TGGAGTTGTTATGGCGTCCT-3’, reverse 5’-CGACATTCTCTTGCTGCCTC-3’. Glyceraldehydes-3-phosphate dehydrogenase (GAPDH; GU214026) mRNA was used as an internal control. Data were calculated by 2^−∆∆CT and presented as fold change of transcripts for Cav1.2 genes in myocytes and normalized to GAPDH (defined as 1.0 fold).

4.7. Western Blot Analysis

Cultured neonatal mouse cardiomyocytes were treated with OAPA in the presence or absence of EPA for 24 h in DMEM. After the treatments, cardiomyocytes were washed twice with ice cold PBS and harvested using cell scraper, and then lysed in RIPA buffer containing protease inhibitor mixture and phosphatase inhibitors on ice for 1 h. The extracted protein concentration was determined by the BCA protein assay kit (Pierce). Samples containing 40 μg were denatured at 95°C for 5 min in loading buffer [Tris-HCl (pH 6.8) 250 mM, 4% SDS, 1% β-mercaptoethanol, 1% bromophenol blue, and 20% glycerol], separated by SDS polyacrylamide gel electrophoresis using 10% polyacrylamide gel, and then transferred from the gel to a PVDF membrane (Hybond-P; GE Healthcare Bio-Sciences, Piscataway, NJ, USA). To prevent nonspecific binding, the blotted membranes were blocked with 5% skim milk in tris-buffered saline (TBS) with 0.1% Tween 20 (TBST) for 1 h at room temperature and then probed overnight at 4°C with an anti-CREB antibody (1:1000, Cell Signaling, Beverly, MA, USA), phosphospecific antibody against anti-pCREB (Ser 133) (1:1000, Cell Signaling), and Cav1.2 (1:200, Alomone Labs, Jerusalem, Israel). The blot was visualized with anti-rabbit IgG horseradish peroxidaseconjugated secondary antibodies (1:2000, American Qualex, CA, USA) and an ECL prime Western Blotting Detection System (GE Healthcare Bio-Sciences). GAPDH antibody (1:1000, Proteintech, China) was used as loading control. The relative target protein levels were quantified by densitometry normalized to GAPDH on the same membrane. Band density was measured using Image J software (National Institute of Health, USA).

4.8. Immunocytochemistry

The details of the experiments protocol were performed as described previously [55]. Primary antibodies against Phospho-CREB (1:200, Cell Signaling, Beverly, MA, USA) and Cav1.2 (1:200, Alomone Labs Ltd., Jerusalem, Israel) were applied following by incubation with the appropriate fluorescence-labeled secondary antibodies (Cell Signaling) for 1 h at room temperature. After several washes, the samples were air-dried, mounted with a drop of ProLong Diamond Antifade Mountant with DAPI (Molecular Probes) and subjected to microscopy. Images were obtained with a confocal microscope system (A1R, Nikon, Tokyo, Japan) equipped with a PlanFluor 60X objective lens and excitation lasers (488 and 561 nm, Melles Griot). Images were saved in TIFF format and analyzed by ImageJ software (Wayne Rasband, National Institutes of Health).

4.9. Statistical Analysis

Statistical analysis was conducted using SigmaPlot 14.0 (SigmaPlot version 14.0-Systat Software, Inc, London, UK). All data are expressed as mean ± SE. The significance of differences was determined by on-way ANOVA followed by Tukey’s test. Values of p < 0.05 were considered statistically significant.
