Sub-Sharvin Conductance and Incoherent Shot-Noise in Graphene Disks at Magnetic Field

1. Introduction

Although electronic properties of matter are governed by the rules of quantum mechanics [1], it is very unlikely to find that any measurable characteristic of a macroscopic system is determined solely by the universal constants of nature, such as the elementary charge (e) or the Planck constant (h). In the last century, two notable exceptions arrived with the phenomena of superconductivity [2], namely, the quantization of magnetic flux piercing the superconducting circuit, being the multiplicity of the flux quantum ${\Phi }_0=h/\left(2e\right)$ [3,4], and the ac Josephson effect, with the universal frequency-to-voltage ratio given by $2e/h=1/{\Phi }_0$ [5]. Later, with the advent of semiconducting heterostructures [6], came the quantum Hall effect [7,8,9,10,11,12] and the conductance quantization [13], bringing us with the conductance quantum $g_0=s{e}^2/h$ (with the degeneracy $s=1$, 2, or 4). Further development of nanosystems led to the observation of Aharonov-Bohm effect manifesting itself by magnetoconductance oscillations with the period $2{\Phi }_0=h/e$ [14], as well as the universal conductance fluctuations [15,16,17,18], characterized by a variance $\propto {\beta }^{-1}{(s{e}^2/h)}^2$, with an additional symmetry-dependent prefactor ($\beta =1$, 2, or 4). Related, but slightly different issue concerns the Wiedemann-Franz (WF) law defining the Lorentz number, ${\mathcal{L}}_0=\frac{{\pi }^2}{3}{(k_B/e)}^2$ (with the Boltzmann constant $k_B$) [2], as the proportionality coefficient between electronic part of the thermal conductivity and electrical conductivity multiplied by absolute temperature. Although the WF law is followed, with a few-percent accuracy, in various condensed-matter systems, it has never been shown to have metrological accuracy [19,20,21,22,23,24].

Some new ’magic numbers’ similar to the mentioned above have arrived with the discovery of graphene, an atomically-thin form of carbon [11,12]. For undoped graphene samples, charge transport is dominated by transport via evanescent modes [25], resulting in the universal dc conductivity $4e^2/\left(\pi h\right)$ accompanied by the sub-Poissonian shot noise, with a Fano factor $F=1/3$ [26,27,28,29,30,31]. For high frequencies, ac conductivity is given by $\pi e^2/\left(2h\right)$, leading to the quantized visible light opacity $\pi \alpha$ (with $\alpha \approx 1/137.036$ being the fine-structure constant) [32,33,34]. A possible new universal value is predicted for the maximum absolute thermopower, which approaches $\approx k_B/e$ near the charge neutrality point, for both monolayer and gapless bilayer graphene [39,40,41,42,43].

Away from the charge-neutrality point, ballistic graphene samples show the sub-Sharvin charge transport [35,36], characterized by the conductance reduced by a factor of $\pi /4$ compared to standard Sharvin contacts in two-dimensional electron gas (2DEG) [37,38]. What is more, the shot noise is enhanced (comparing to 2DEG) up to $F\approx 1/8$ far from the charge-neutrality [30,31]. Detailed dependence of the above-mentioned factors on a sample geometry was recently discussed in analytical terms [36], on the example of edge-free (Corbino) setup, characterized by the inner radius $R_{\mathrm{i}}$ and the outer radius $R_{\mathrm{o}}$ (see Figure 1). It is further found in Refs. [35,36] that the ballistic values of the conductance and Fano factor are gradually restored when the potential barrier, defining a sample area in the effective Dirac-Weyl Hamiltonian, evolves from a rectangular toward a parabolic shape.

Here, we focus on the Corbino geometry, which is often considered when discussing fundamental aspects of graphene [25,44,45,46,47,48,49,50,51,52,53,54]. In this geometry, charge transport at high magnetic fields is unaffected by edge states, allowing one to probe the bulk transport properties [48,49,50,51,52,53]. Recently, we have shown numerically that thermoelectric properties in such a situation are determined by the energy interval separating consecutive Landau levels rather then by the transport gap (being the energy interval, for which the cyclotron diameter $2r_c<R_{\mathrm{o}}-R_{\mathrm{i}}$) [54]. In this paper, we address a question how the shot-noise behaves when the tunneling conductance regime is entered by increasing magnetic field at a fixed doping (or decreasing the doping at a fixed field)? Going beyond the linear-response regime, we find that the threshold voltage $U_{\mathrm{on}}$, defined as a source-drain voltage difference that activates the current at minimal doping, is accompanied by quasi-universal (i.e., weakly-dependent on the radii ratio $R_{\mathrm{o}}/R_{\mathrm{i}}$) value of $F\approx 0.56$. The robustness of the effect is also analyzed when smoothing the electrostatic potential barrier.

The paper is organized as follows. In Sec. Section 2 we briefly present the effective Dirac Hamiltonian and the numerical approach applied in remaining parts of the paper. In Sec. Section 3, we derive an approximation for the transmission through a doped Corbino disk at non-zero magnetic field and subsequent formulas for charge-transfer characteristics: the conductance and the Fano factor. Our numerical results, for both the rectangular and smooth potential barriers, are presented in Sec. Section 4. The conclusions are given in Sec. Section 5.

2. Model and Methods

2.1. Dirac Equation for the Disk Geometry

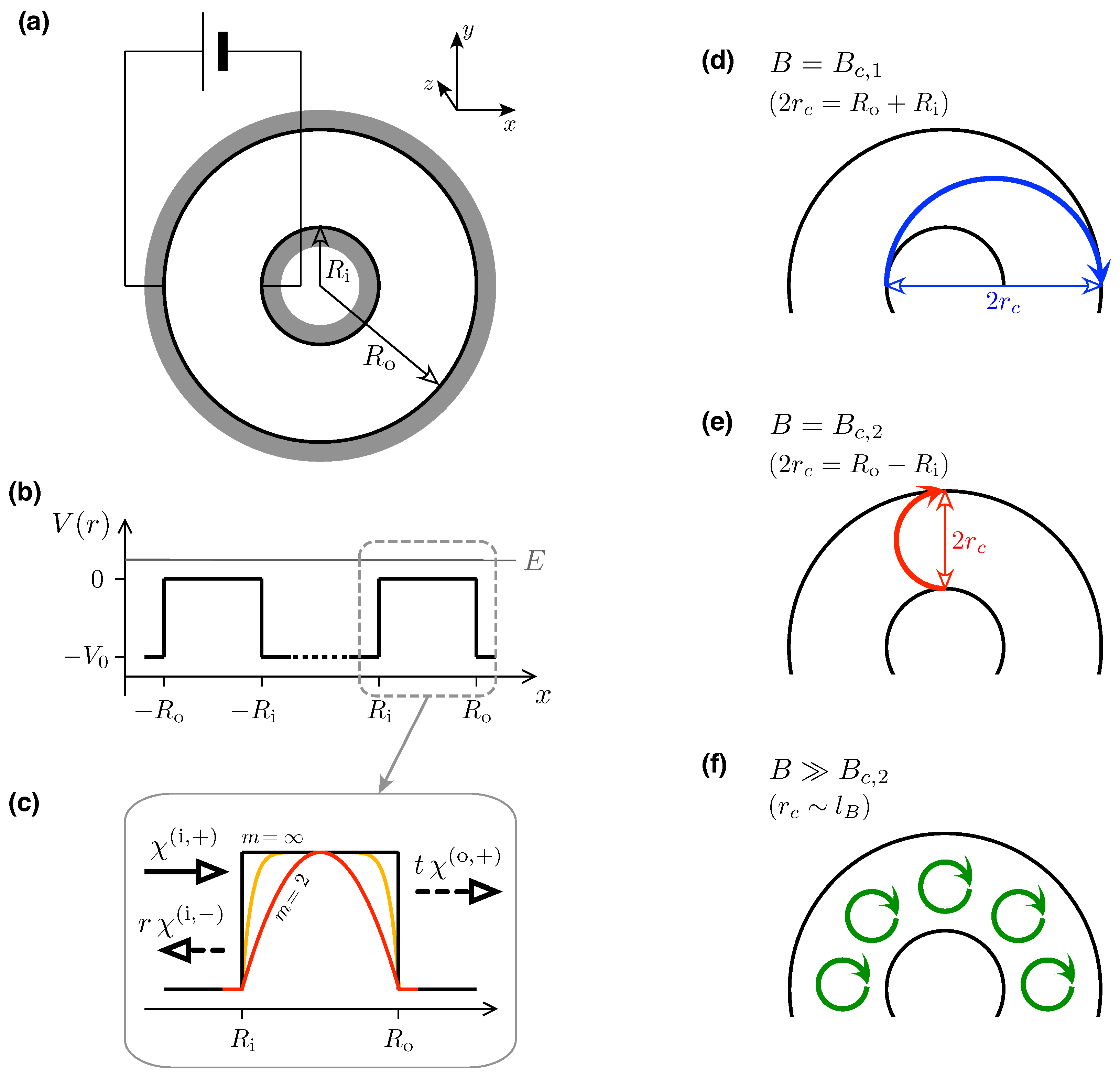

Our analysis of the device shown schematically in Figure 1 starts from effective wave equation for Dirac fermions in graphene, near the K valley,

$$\left[v_F(\mathbf{p}+e\mathbf{A})·\sigma +V\left(r\right)\right]\Psi =E\Psi ,$$

(1)

where the Fermi velocity is given by $v_F=\sqrt{3}{t}_{0}a/(2\hslash )$, with $t_0=2.7$eV the nearest-neighbor hopping integral and $a=0.246$nm the lattice parameter, $\mathbf{p}=-i\hslash ({\partial }_x,{\partial }_y)$ is the in-plane momentum operator, we choose the symmetric gauge $A=\frac{B}{2}(-y,x)$ corresponding to the perpendicular, uniform magnetic field $\mathbf{B}=(0,0,B)$, and $\mathbf{\sigma }=({\sigma }_x,{\sigma }_y)$, where ${\sigma }_j$ are the Pauli matrices [55]. The electrostatic potential energy in Eq. (1), $V\left(r\right)$, is given by

$$V\left(r\right)=-V_0\times \left\{\begin{array}{cc}\frac{2^m{|r-R_{\mathrm{av}}|}^m}{|R_{\mathrm{o}}-R_{\mathrm{i}}{|}^m}\hfill & \mathrm{if}|r-R_{\mathrm{av}}|⩽\frac{R_{\mathrm{o}}-R_{\mathrm{i}}}{2},\hfill \\ 1\hfill & \mathrm{if}|r-R_{\mathrm{av}}|>\frac{R_{\mathrm{o}}-R_{\mathrm{i}}}{2},\hfill \end{array}\right.$$

(2)

where we have defined $R_{\mathrm{av}}=(R_{\mathrm{i}}+R_{\mathrm{o}})/2$. In particular, the limit of $m\to \infty$ corresponds to the rectangular barrier (with a cylindrical symmetry); any finite $m⩾2$ defines a smooth potential barrier, interpolating between the parabolic ($m=2$) and rectangular shape. In principle, barrier smoothing can be regarded as a feature of a self consistent solution originating from the diffusion of carriers; we expect this feature to strongly depend on the experimental details, with graphene-on-hBN devices [48] showing rectangular, rather then smooth, profiles.

Symmetry of the problem allows one to look for the wave function in the form

$${\Psi }_j(r,\phi )=e^{i(j-1/2)\phi }\left(\begin{array}{c}{\chi }_a\\ {\chi }_b{e}^{i\phi }\end{array}\right),$$

(3)

where $j=\pm 1/2,\pm 3/2,\cdots$ is the total angular-momentum quantum number, the components ${\chi }_a={\chi }_a\left(r\right)$, ${\chi }_b={\chi }_b\left(r\right)$, and we have introduced the polar coordinates $(r,\phi )$. Substituting the above into Eq. (1) bring us to the system of ordinary differential equations

$$\begin{array}{cc}\hfill {\chi }_a^{\prime }& =\left(\frac{j-1/2}{r}+\frac{eBr}{2\hslash }\right){\chi }_a+i\frac{E-V\left(r\right)}{\hslash v_F}{\chi }_b,\hfill \end{array}$$

(4)

$$\begin{array}{cc}\hfill {\chi }_b^{\prime }& =i\frac{E-V\left(r\right)}{\hslash v_F}{\chi }_a-\left(\frac{j+1/2}{r}+\frac{eBr}{2\hslash }\right){\chi }_b,\hfill \end{array}$$

(5)

where primes denote derivatives with respect to r.

2.2. Analytic Solutions

For the disk area, $R_{\mathrm{i}}<r<R_{\mathrm{o}}$, Eqs. (4), (5) typically need to be integrated numerically; key details of the procedure are presented in Appendix A. Here we focus on the special case of rectangular barrier ($m=\infty$), for which some analytic solutions were reported [44,45,56].

In particular, in the absence of magnetic field ($B=0$), the spinors ${\chi }_j={({\chi }_a,{\chi }_b)}^T$ corresponding to different j-s can be written as linear combinations [44]

$${\chi }_j^{\left(\mathrm{disk}\right)}=A_j\left(\begin{array}{c}{H}_{j-1/2}^{\left(2\right)}\left(kr\right)\\ i\eta H_{j+1/2}^{\left(2\right)}\left(kr\right)\end{array}\right)+B_j\left(\begin{array}{c}{H}_{j-1/2}^{\left(1\right)}\left(kr\right)\\ i\eta H_{j+1/2}^{\left(1\right)}\left(kr\right)\end{array}\right),$$

(6)

where $H_{\nu }^{\left(1\right)}\left(\rho \right)$ [$H_{\nu }^{\left(2\right)}\left(\rho \right)$] is the Hankel function of the first [second] kind, $k=\left|E\right|/(\hslash v_F)$, the doping sign $\eta =sgnE=\pm 1$ (with $\eta =+1$ indicating electron doping and $\eta =-1$ indicating hole doping), and $A_j$, $B_j$, are arbitrary complex coefficients. For $B>0$, Eq. (6) is replaced by [45,56]

$${\chi }_j^{\left(\mathrm{disk}\right)}=A_j\left(\begin{array}{c}{\xi }_{j\uparrow }^{\left(1\right)}\\ i\eta z_{j,1}{\xi }_{j\downarrow }^{\left(1\right)}\end{array}\right)+B_j\left(\begin{array}{c}{\xi }_{j\uparrow }^{\left(2\right)}\\ i\eta z_{j,2}{\xi }_{j\downarrow }^{\left(2\right)}\end{array}\right),$$

(7)

where $z_{j,1}={\left[2(j+s_j)\right]}^{-2s_j}$, $z_{j,2}=2{(\beta /k^2)}^{s_j+1/2}$ (with $s_j\equiv \frac{1}{2}sgnj$, $\beta =eB/(2\hslash )$), and

$${\xi }_{js}^{\left(\nu \right)}=e^{-\beta r^2/2}{\left(kr\right)}^{|l_s|}\left\{\begin{array}{cc}M({\alpha }_{js},{\gamma }_{js},\beta r^2),& \nu =1,\\ U({\alpha }_{js},{\gamma }_{js},\beta r^2),& \nu =2,\end{array}\right.$$

(8)

with $l_s=j\mp \frac{1}{2}$ for $s=\uparrow ,\downarrow$, ${\alpha }_{js}=\frac{1}{4}\left[2\right(l_{-s}+|l_s|+1)-k^2/\beta ]$, and ${\gamma }_{js}=\left|l_s\right|+1$. $M(a,b,z)$ and $U(a,b,z)$ are the confluent hypergeometric functions [57].

For the leads, $r<R_{\mathrm{i}}$ or $r>R_{\mathrm{o}}$, the electrostatic potential energy is constant, $V\left(r\right)=-V_0$. We further assume $B=0$ and $E>-V_0$ (electron doping) in the leads, allowing one to adapt the wave function given by Eq. (6); i.e., for the inner lead, $r<R_{\mathrm{i}}$,

$${\chi }_j^{\left(\mathrm{inner}\right)}=\left(\begin{array}{c}{H}_{j-1/2}^{\left(2\right)}\left(Kr\right)\\ i{H}_{j+1/2}^{\left(2\right)}\left(Kr\right)\end{array}\right)+r_j\left(\begin{array}{c}{H}_{j-1/2}^{\left(1\right)}\left(Kr\right)\\ i{H}_{j+1/2}^{\left(1\right)}\left(Kr\right)\end{array}\right),$$

(9)

and for the outer lead, $r>R_{\mathrm{o}}$,

$${\chi }_j^{\left(\mathrm{outer}\right)}=t_j\left(\begin{array}{c}{H}_{j-1/2}^{\left(2\right)}\left(Kr\right)\\ i{H}_{j+1/2}^{\left(2\right)}\left(Kr\right)\end{array}\right),$$

(10)

where $K=|E+V_0|/(\hslash v_F)$ and we have introduced the reflection and transmission coefficient. The first spinor in each of Eqs. (9) and (10) represents the incoming (i.e., propagating from $r=0$) wave, the second spinor in Eq. (9) represents the outgoing (propagating from $r=\infty$) wave.

2.3. Mode-Matching Method

Since the current-density operator following from Eq. (1), $\mathbf{j}=e{v}_F\sigma$ does not involve differentiation, the mode-matching conditions for $r=R_{\mathrm{i}}$ and $r=R_{\mathrm{o}}$ reduce to the equalities for spinor components, namely

$${\chi }_j^{\left(\mathrm{inner}\right)}\left(R_{\mathrm{o}}\right)={\chi }_j^{\left(\mathrm{disk}\right)}\left(R_{\mathrm{o}}\right)\mathrm{and}{\chi }_j^{\left(\mathrm{disk}\right)}\left(R_{\mathrm{i}}\right)={\chi }_j^{\left(\mathrm{outer}\right)}\left(R_{\mathrm{i}}\right).$$

(11)

The resulting formula for transmission probability for j-th mode becomes particularly simple upon taking the limit of heavily doped leads, $U_0\to \infty$. In particular, for $B=0$, substituting Eq. (6) into the above gives [58]

$$T_j={\left|t_j\right|}^2=\frac{16}{{\pi }^2{k}^2{R}_{\mathrm{i}}{R}_{\mathrm{o}}}\frac{1}{{\left[{\mathfrak{D}}_j^{(+)}\right]}^2+{\left[{\mathfrak{D}}_j^{(-)}\right]}^2},$$

(12)

where

$$\begin{array}{cc}\hfill {\mathfrak{D}}_j^{(\pm )}& =Im\left[H_{j-1/2}^{\left(1\right)}\left(k{R}_{\mathrm{i}}\right)H_{j\mp 1/2}^{\left(2\right)}\left(k{R}_{\mathrm{o}}\right)\right.\hfill \\ \hfill & \pm \left.H_{j+1/2}^{\left(1\right)}\left(k{R}_{\mathrm{i}}\right)H_{j\pm 1/2}^{\left(2\right)}\left(k{R}_{\mathrm{o}}\right)\right].\hfill \end{array}$$

(13)

Analogously, for $B>0$ one finds, using Eqs. (7) and (8),

$$T_j={\left|t_j\right|}^2=\frac{16{(k^2/\beta )}^{|2j-1|}}{k^2{R}_{\mathrm{i}}{R}_{\mathrm{o}}(X_j^2+Y_j^2)}{\left[\frac{\Gamma \left({\gamma }_{j\uparrow }\right)}{\Gamma \left({\alpha }_{j\uparrow }\right)}\right]}^2,$$

(14)

where $\Gamma \left(z\right)$ is the Euler Gamma function, and

$$\begin{array}{cc}\hfill & X_j=w_{j\uparrow \uparrow }^{-}+z_{j,1}{z}_{j,2}{w}_{j\downarrow \downarrow }^{-},Y_j=z_{j,2}{w}_{j\uparrow \downarrow }^{+}-z_{j,1}{w}_{j\downarrow \uparrow }^{+},\hfill \\ \hfill & w_{js{s}^{\prime }}^{\pm }={\xi }_{js}^{\left(1\right)}\left(R_{\mathrm{i}}\right){\xi }_{j{s}^{\prime }}^{\left(2\right)}\left(R_{\mathrm{o}}\right)\pm {\xi }_{js}^{\left(1\right)}\left(R_{\mathrm{o}}\right){\xi }_{j{s}^{\prime }}^{\left(2\right)}\left(R_{\mathrm{i}}\right).\hfill \end{array}$$

(15)

For $B<0$, one gets $T_j\left(B\right)=T_{-j}(-B)$.

Details of numerical mode-matching, applicable for smooth potentials, are given in Appendix A.

2.4. Landauer-Büttiker Formalism

In case the nanoscopic system is connected to external reservoirs, characterized by the electrochemical potentials $\mu$ and $\mu +e{U}_{\mathrm{eff}}$ (for simplicity, the two reservoirs are considered; for more general discussion see Ref. [59]), the conductance of the system is related to the transmission probabilities for normal modes ($T_j$-s) via

$$G\left(U_{\mathrm{eff}}\right)=\frac{\langle I\rangle }{U_{\mathrm{eff}}}=\frac{g_0}{U_{\mathrm{eff}}}{\int }_{\mu }^{\mu +e{U}_{\mathrm{eff}}}dϵ\sum _j{T}_j\left(ϵ\right),$$

(16)

where $\langle I\rangle$ denotes the average electric current and the zero-temperature limit is taken. The conductance quantum is $g_0=4e^2/h$, taking into account spin and valley degeneracies. $U_{\mathrm{eff}}$ denotes the effective voltage difference between the reservoirs (notice that the actual voltage applied may differ from $U_{\mathrm{eff}}$ due to charge-screening effects). Similarly, the Fano factor, relating the current variance, $〈{\left(I-\langle I\rangle \right)}^2〉$, to the value ${〈{\left(I-\langle I\rangle \right)}^2〉}_{\mathrm{Poisson}}$ one would measure in the absence of correlations between scattering events (occurring, e.g., in the tunneling limit of $T_j\ll 1$ for all j-s), is given by

$$F\left(U_{\mathrm{eff}}\right)=\frac{〈{\left(I-\langle I\rangle \right)}^2〉}{{〈{\left(I-\langle I\rangle \right)}^2〉}_{\mathrm{Poisson}}}=\frac{g_0}{G{U}_{\mathrm{eff}}}{\int }_{\mu }^{\mu +e{U}_{\mathrm{eff}}}dϵ\sum _j{T}_j\left(ϵ\right)\left[1-T_j\left(ϵ\right)\right],$$

(17)

where ${〈{\left(I-\langle I\rangle \right)}^2〉}_{\mathrm{Poisson}}=e\langle I\rangle /\Delta t=eG{U}_{\mathrm{eff}}/\Delta t$ with $\Delta t$ denoting the time of measurement.

In the linear-response regime ($U_{\mathrm{eff}}\to 0$), Eqs. (16) and (17) reduces to

$$G(U_{\mathrm{eff}}\to 0)=g_0\sum _j{T}_j,$$

(18)

and

$$F(U_{\mathrm{eff}}\to 0)=\frac{{\sum }_j{T}_j(1-T_j)}{{\sum }_j{T}_j},$$

(19)

where $T_j=T_j\left(\mu \right)$. For the disk geometry, summation range is limited by the number of propagating modes in the inner lead, $\left|j\right|⩽j_{\max }=\lfloor K{R}_{\mathrm{i}}\rfloor -\frac{1}{2}$ with $\lfloor x\rfloor$ denoting the floor function of x. (For heavily-doped leads, $j_{\max }\to \infty$.)

As a notable example, we consider the zero-doping limit ($\mu \to 0$). In such a case, Eq. (14) simplifies to [45,60]

$$T_j(\mu \to 0)=\frac{1}{{cosh}^2[(j+\Phi /{\Phi }_0)ln(R_{\mathrm{o}}/R_{\mathrm{i}})]},$$

(20)

where $\Phi =\pi (R_{\mathrm{o}}^2-R_{\mathrm{i}}^2)B$ is the flux piercing the disk area and we have defined ${\Phi }_0=2(h/e)ln(R_{\mathrm{o}}/R_{\mathrm{i}})$. Assuming the narrow-disk range, $R_{\mathrm{o}}\approx R_{\mathrm{i}}$, we can approximate the sums occurring in Eqs. (18) and (19) by integrals, obtaining

$$G\approx G_{\mathrm{diff}}=\frac{2\pi {\sigma }_0}{ln(R_{\mathrm{o}}/R_{\mathrm{i}})}\mathrm{and}F\approx F_{\mathrm{diff}}=\frac{1}{3}.$$

(21)

The above reproduces pseudodiffusive conductance and the shot-noise power for a disk geometry [44]. For larger $R_{\mathrm{o}}/R_{\mathrm{i}}$, both characteristics are predicted to show approximately sinusoidal conductance oscillations with the field B [45,60,61].

The case of doped disk, for which one may expect to observe some features of the sub-Sharvin charge transport [35,36], is discussed next.

3. Approximate Conductance and Fano Factor at the Magnetic Field

Before calculating the conductance G and Fano factor F within the mode-matching method described in Sec. Section 2, we first present the approximating formulas for incoherent transport, obtained by adapting the derivation of Ref. [36] for the $B>0$ case.

3.1. Corbino Disk in Graphene as a Double Barrier

A key step in the derivation is to observe that, in the multimode regime ($k{R}_{\mathrm{i}}\gg 1$) for which one can consider well-defined trajectories, the disk symmetry cause that incident angles ${\theta }_1$ and ${\theta }_2$, corresponding to the interfaces at $r=R_{\mathrm{i}}$ and $r=R_{\mathrm{o}}$ (see Figure 2) remain constant (up to a sign) after multiple scatterings. Therefore, one can apply the double-contact formula for incoherent transmission [62,63], namely

$$\begin{array}{cc}\hfill {\left\{T\right\}}_{\mathrm{incoh}}& =\frac{1}{2\pi }{\int }_{-\pi }^{\pi }d\varphi \frac{T_1{T}_2}{2-T_1-T_2+T_1{T}_2-2\sqrt{(1-T_1)(1-T_2)}cos\varphi }\hfill \\ \hfill & =\frac{T_1{T}_2}{T_1+T_2-T_1{T}_2},\hfill \end{array}$$

(22)

where the transmission probabilities $T_1$, $T_2$, corresponding to a potential step of infinite height, are given by

$$T_l=\frac{2cos{\theta }_l}{1+cos{\theta }_l},l=1,2,$$

(23)

and $\varphi$ is assumed to be a random phase acquired during the propagation between $r=R_{\mathrm{i}}$ and $r=R_{\mathrm{o}}$ (or vice versa). Similarly, we calculate the incoherent squared transmission, useful when evaluating the Fano factor,

$$\begin{array}{cc}\hfill {\left\{T^2\right\}}_{\mathrm{incoh}}& =\frac{1}{2\pi }{\int }_{-\pi }^{\pi }d\varphi {\left(\frac{T_1{T}_2}{2-T_1-T_2+T_1{T}_2-2\sqrt{(1-T_1)(1-T_2)}cos\varphi }\right)}^2\hfill \\ \hfill & =\frac{{\left(T_1{T}_2\right)}^2(2-T_1-T_2+T_1{T}_2)}{{(1+T_1{T}_2-T_1{T}_2)}^3}.\hfill \end{array}$$

(24)

Next, the incoherent conductance in the linear-response regime is evaluated by inserting ${\left\{T\right\}}_{\mathrm{incoh}}$ (22) into Eq. (18),

$$G_{\mathrm{incoh}}=G_{\mathrm{Sharvin}}{〈{\left\{T\right\}}_{\mathrm{incoh}}〉}_{u=sin{\theta }_1},$$

(25)

with

$$G_{\mathrm{Sharvin}}=2g_{0}k{R}_{\mathrm{i}}.$$

(26)

For the Fano factor, one can analogously derive from Eq. (19)

$$F_{\mathrm{incoh}}=1-\frac{{〈{\left\{T^2\right\}}_{\mathrm{incoh}}〉}_{u=sin{\theta }_1}}{{〈{\left\{T\right\}}_{\mathrm{incoh}}〉}_{u=sin{\theta }_1}}.$$

(27)

The summation over $2k{R}_{\mathrm{i}}$ modes is approximated in Eqs. (25), (27) by averaging over the variable $u=sin{\theta }_1$, within the range of $-1⩽u⩽1$. Explicitly,

$${〈{\left\{T^n\right\}}_{\mathrm{incoh}}〉}_{u=sin{\theta }_1}=\frac{1}{2}{\int }_{u_c}^{1}du{\left\{T^n\right\}}_{\mathrm{incoh}},n=1,2,$$

(28)

where the lower integration limit ($u_c$) is defined via the value of $sin{\theta }_1$, below which the trajectory cannot reach the outer interface ($r=R_{\mathrm{o}}$). (In other words, for $u=sin{\theta }_1<u_c$, the geometric derivation to be presented below leads to $|sin{\theta }_2|>1$.)

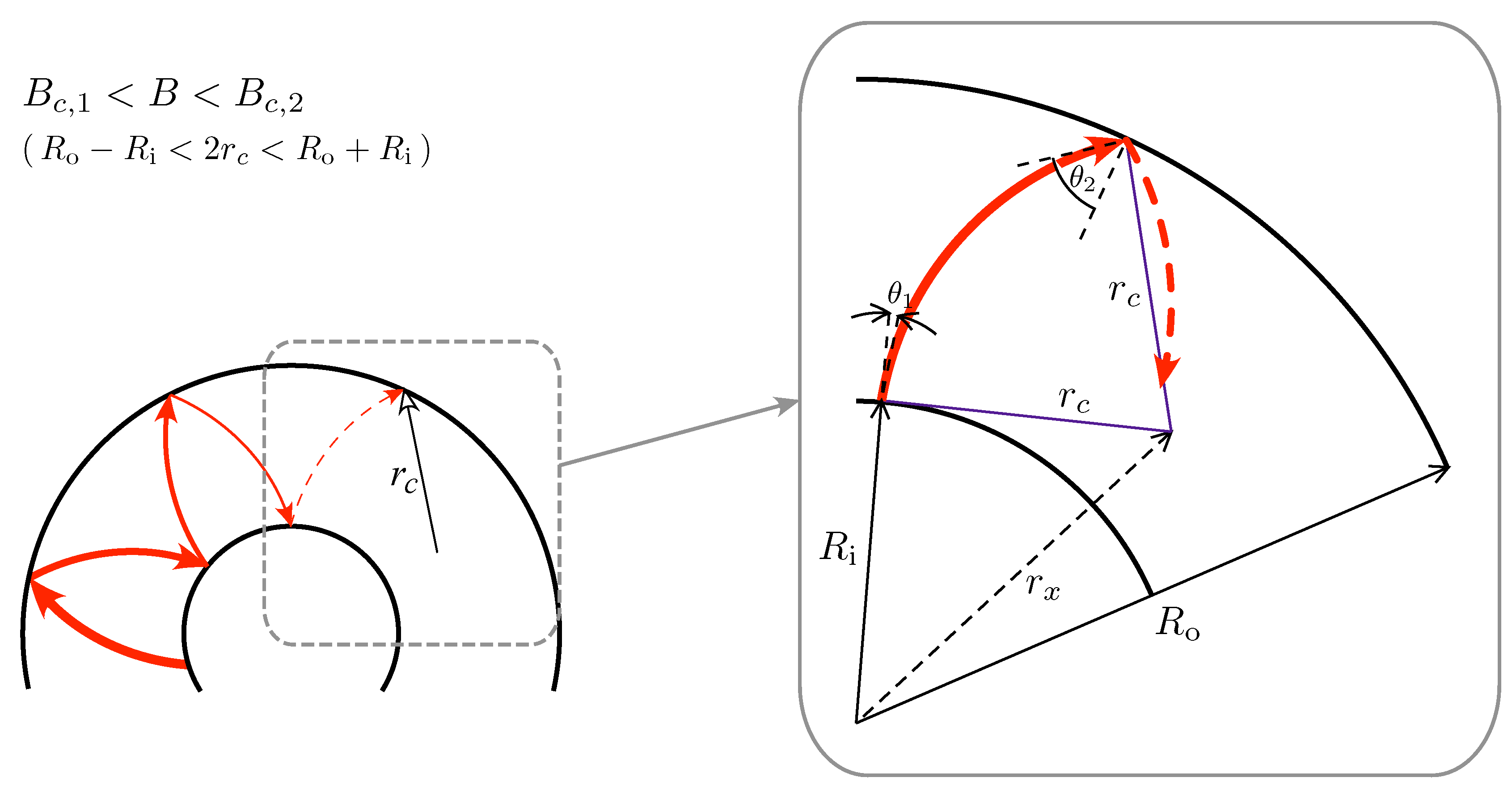

The missing elements, necessary to calculate ${〈{\left\{T^n\right\}}_{\mathrm{incoh}}〉}_{u=sin{\theta }_1}$ in Eq. (28) is the dependence of ${\theta }_2$ on ${\theta }_1$ and B [see Eqs. (22), (23), and (24)], as well as the dependence of $u_c$ on B. Since we have assumed constant electrostatic potential energy in the disk area, the trajectory between subsequent scatterings (see Figure 2) forms an arc, with the constant radii

$$r_c=\hslash k/\left(eB\right)=\left|E\right|/\left(v_{F}eB\right),$$

(29)

(i.e., the cyclotron radius for massless Dirac particle at $B>0$), centered at the distance $r_x$ from the origin. Now, solving the two triangles with a common edge $r_x$ (dashed line) and the opposite vertices in two scattering points, we find

$$r_x^2=R_{\mathrm{i}}^2+r_c^2+2R_{\mathrm{i}}{r}_{c}sin{\theta }_1$$

(30)

(for the triangle containing a scattering point at $r=R_{\mathrm{i}}$), and

$$r_x^2=R_{\mathrm{o}}^2+r_c^2-2R_{\mathrm{o}}{r}_{c}sin{\theta }_2$$

(31)

(for the triangle containing a scattering point at $r=R_{\mathrm{o}}$). Together, Eqs. (30) and (31) lead to

$$sin{\theta }_2=\frac{R_{\mathrm{o}}^2-R_{\mathrm{i}}^2-2R_{\mathrm{i}}{r}_{c}u}{2R_{\mathrm{o}}{r}_c}.$$

(32)

Subsequently, the value of $u_c$ in Eq. (28) is given by

$$u_c=\left\{\begin{array}{cc}-1,\hfill & \mathrm{if}B⩽B_{c,1}\hfill \\ \frac{R_{\mathrm{o}}^2-R_{\mathrm{i}}^2}{2R_{\mathrm{i}}{r}_c}-\frac{R_{\mathrm{o}}}{R_{\mathrm{i}}},\hfill & \mathrm{if}{B}_{c,1}<B⩽B_{c,2}\hfill \\ 1,\hfill & \mathrm{if}B>B_{c,2}\hfill \end{array}\right.,$$

(33)

where we have additionally defined

$$B_{c,m}=\frac{2\hslash k}{e\left[R_{\mathrm{o}}-{(-1)}^m{R}_{\mathrm{i}}\right]},m=1,2.$$

(34)

3.2. The Zero-Field Limit

Typically, averages occurring in Eqs. (25) and (27) need to be evaluated numerically. Analytic expressions are available, e.g., for zero magnetic field [36]

$$\begin{array}{cc}\hfill G_{\mathrm{incoh}}(B\to 0)& =G_{\mathrm{Sharvin}}\frac{(2a+\frac{1}{a})arcsina+3\sqrt{1-a^2}-\frac{\pi }{2}(a^2+2)}{1-a^2},\hfill \\ \hfill F_{\mathrm{incoh}}(B\to 0)& =\left\{2a\sqrt{1-a^2}(53+279a^2+88a^4)-3\pi a(12+82a^2+45a^4+a^6)\right.\hfill \\ \hfill & \left.+6(1+45a^2+82a^4+12a^6)arcsina\right\}\hfill \end{array}$$

(35)

$$\begin{array}{cc}\hfill & /\left\{6{(1-a^2)}^2\left[\pi a(a^2+2)-6a\sqrt{1-a^2}-2(2a^2+1)arcsina\right]\right\},\hfill \end{array}$$

(36)

where we have defined the inverse radii ratio $a=R_{\mathrm{i}}/R_{\mathrm{o}}$.

3.3. The Zero-Conductance Limit

In the this paper, we focus on the limit of $B\to B_{c,2}-$ (i.e., B approaching $B_{c,2}$ from below), for which $G_{\mathrm{incoh}}\to 0$. Introducing the dimensionless $0<\epsilon \ll 1$, one can express the cyclotron diameter, see Eq. (29), as

$$2r_c=R_{\mathrm{o}}-R_{\mathrm{i}}+\epsilon \left(R_{\mathrm{o}}-R_{\mathrm{i}}\right).$$

(37)

In turn, the value $u_c$, see Eq. (33), can be approximated (up to the leading order in $\epsilon$) as

$$u_c\approx 1-\epsilon \left(1+\frac{R_{\mathrm{o}}}{R_{\mathrm{i}}}\right).$$

(38)

It is now convenient to define the variable

$$\alpha =\frac{1-u}{\epsilon \left(1+R_{\mathrm{o}}/R_{\mathrm{i}}\right)},$$

(39)

such that the integration over $u_c⩽u⩽1$, occurring when evaluating ${〈{\left\{T^n\right\}}_{\mathrm{incoh}}〉}_{u=sin{\theta }_1}$ from Eq. (28), can be replaced by integration over $1⩾\alpha ⩾0$. Transmission probabilities ($T_1$, $T_2$) for the interfaces at $r=R_{\mathrm{i}}$ and $r=R_{\mathrm{o}}$, see Eqs. (22), (23), (24) and (32), can now be approximated as

$$\begin{array}{cc}\hfill T_1& \approx 2\sqrt{2\alpha \left(1+\frac{1}{a}\right)}{\epsilon }^{1/2},\hfill \end{array}$$

(40)

$$\begin{array}{cc}\hfill T_2& \approx 2\sqrt{2(1-\alpha )\left(1+a\right)}{\epsilon }^{1/2},\hfill \end{array}$$

(41)

where we have used $a=R_{\mathrm{i}}/R_{\mathrm{o}}$ again.

Using the above expressions, we can now rewrite the averages occurring in Eq. (28), up to the leading order in $\epsilon$ again, as follows

$$\begin{array}{cc}\hfill {〈{\left\{T\right\}}_{\mathrm{incoh}}〉}_u& =\frac{G_{\mathrm{incoh}}}{G_{\mathrm{Sharvin}}}\approx \frac{2\left(1+\frac{1}{a}\right)}{\sqrt{2}}{\epsilon }^{3/2}{\int }_0^{1}d\alpha \frac{\sqrt{\alpha (1+\frac{1}{a})}\sqrt{(1-\alpha )(1+a)}}{\sqrt{\alpha (1+\frac{1}{a})}+\sqrt{(1-\alpha )(1+a)}},\hfill \end{array}$$

(42)

$$\begin{array}{cc}\hfill {〈{\left\{T^2\right\}}_{\mathrm{incoh}}〉}_u& \approx \frac{2\left(1+\frac{1}{a}\right)}{\sqrt{2}}{\epsilon }^{3/2}{\int }_0^{1}d\alpha \frac{\alpha (1-\alpha )\left(2+\frac{1}{a}+a\right)}{{\left[\sqrt{\alpha (1+\frac{1}{a})}+\sqrt{(1-\alpha )(1+a)}\right]}^3}.\hfill \end{array}$$

(43)

Remarkably, both quantities decays as $\propto {\epsilon }^{3/2}$, but their ratio, occurring in Eq. (27) for the Fano factor, remains constant (for a given a). The integrals in Eqs. (42) and (43) can be calculated analytically, leading to

$$\begin{array}{cc}\hfill F_{\mathrm{incoh}}(B\to B_{c,2}-)& =1-\left\{4\sqrt{a}+39a-58a^{3/2}-23a^2-23a^{5/2}-58a^3+39a^{7/2}+4a^4\right.\hfill \\ \hfill & +\left(69a^2-18a^3-18a\right)\sqrt{1+a}artanh\left(\frac{\sqrt{a}}{\sqrt{1+a}}\right)\hfill \\ \hfill & +\left.\left(69a^2-18a-18a^3\right)\sqrt{1+a}artanh\left(\frac{1}{\sqrt{1+a}}\right)\right\}\hfill \\ \hfill & /\left\{{(1+a)}^3\left(1+\sqrt{a}\right)\left(1-3\sqrt{a}+a\right)+3a{(1+a)}^{5/2}artanh\left[\frac{(1+\sqrt{a})\sqrt{1+a}}{1+\sqrt{a}+a}\right]\right\}.\hfill \end{array}$$

(44)

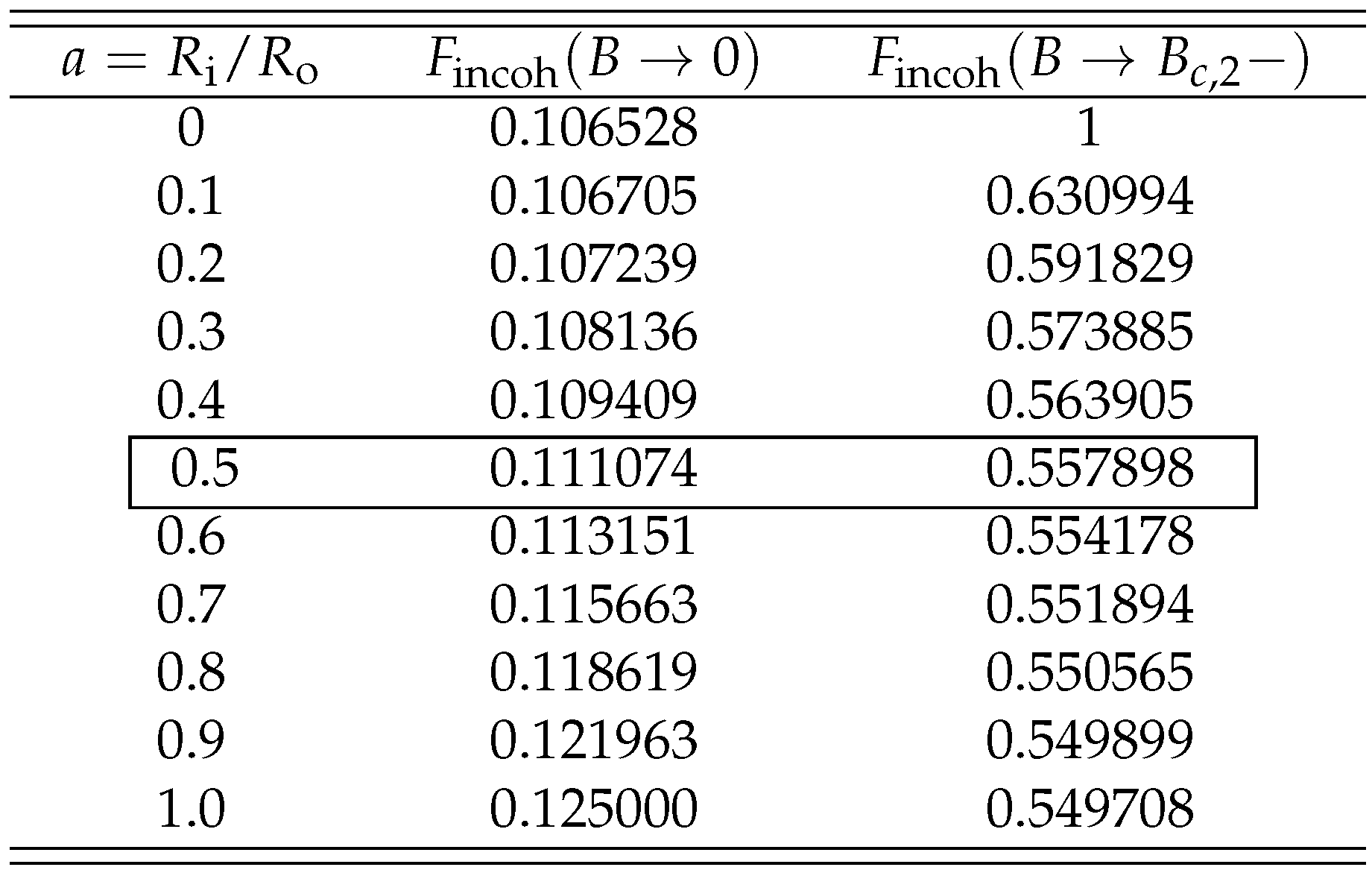

Numerical values of $F_{\mathrm{incoh}}(B\to 0)$ and $F_{\mathrm{incoh}}(B\to B_{c,2}-)$ for selected $a=R_{\mathrm{i}}/R_{\mathrm{o}}$ are given in Table 1. For $F_{\mathrm{incoh}}(B\to B_{c,2}-)$, we see that the poissonian value of $F_{\mathrm{incoh}}=1$, which one could expect due to the vanishing conductance, is reconstructed only for $a\to 0$ (i.e., for $R_{\mathrm{o}}\gg R_{\mathrm{i}}$). For finite radii ratios, nontrivial values of $0<F_{\mathrm{incoh}}<1$ occurs. Remarkable, for moderate disk proportions ($a⩾0.5$), $F_{\mathrm{incoh}}(B\to B_{c,2}-)$ shows very weak dependence on a, decaying by less then $2\%$ (from $F_{\mathrm{incoh}}\approx 0.56$ at $a=0.5$ to $F_{\mathrm{incoh}}\approx 0.55$ for $a\to 1$, with $a\to 1$ representing the narrow-disk limit of $R_{\mathrm{o}}\approx R_{\mathrm{i}}$).

For this reason, in the following numerical analysis, we fixed the disk radii ratio at $a=0.5$ (i.e., $R_{\mathrm{o}}=2R_{\mathrm{i}}$). We also stress that the derivation presented above, holds true for the parameter $\epsilon \to 0+$, quantifying the ratio of cyclotron diameter $2r_c$ to radii difference $R_{\mathrm{o}}-R_{\mathrm{i}}$, see Eq. (37). Therefore, it is irrelevant whether one increases the magnetic field at a fixed chemical potential, or reduces the chemical potential at a fixed $B>0$ (as long as the system stays in a multimode range, $k{R}_{\mathrm{i}}\gg 1$).

4. Results and Discussion

Main doubt arising when we consider the applicability of Eq. (44) for real quantum systems concerns the possible role of evanescent waves, totally neglected in our derivation. Obviously, they should not play an important role when the system is highly conducting (such as in the zero-field case [36]); however, since the Fano factor is determined by the ratio of two cumulants, both vanishing for sufficiently high field, it is not fully clear which contribution (from propagating or from evanescent modes) would govern the value of F for $B\to B_{c,2}$? On the other hand, resonances with Landau levels are not expect to play a significant role, as they form very narrow transmission peaks, contributions of which get immediately smeared out beyond the linear-response regime.

In the remaining parts of the paper, compare the results of computer simulation of quantum transport through the disk in graphene, with the predictions for incoherent scattering presented in Sec. Section 3, in attempt to propose an experimental procedure allowing one to extract the nontrivial value of $F\approx 0.55$ from the data plagued with other contributions.

4.1. The Rectangular Barrier of an Infinite Height

As a first numerical example, we took the limit of $V_0\to \infty$ and $m\to \infty$ in Eq. (2), for which close-form expressions for transmission probabilities were presented in Sec. Section 2.

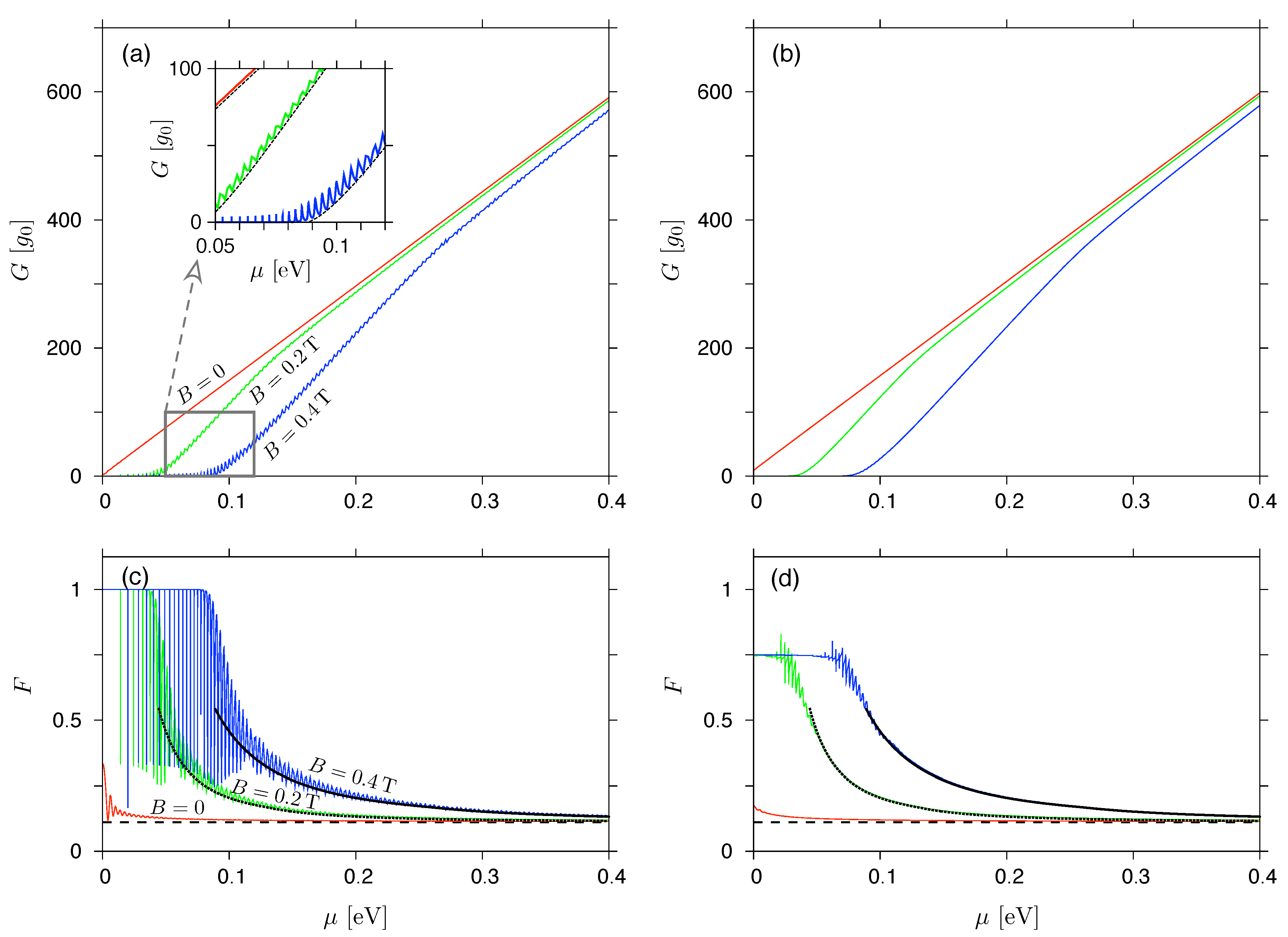

In Figure 3, we compare the linear-response conductance $G(U_{\mathrm{eff}}\to 0)$, see Eq. (18), with $G\left(U_{\mathrm{eff}}\right)$ calculated from Eq. (16) for a small but nonzero value of $U_{\mathrm{eff}}=0.01$V, both displayed as functions of the chemical potential. Also in Figure 3, same comparison is presented for the Fano factor $F\left(U_{\mathrm{eff}}\right)$ [see Eqs. (19) and (17)]. It easy to see that prominent, aperiodic oscillations visible for both charge-transfer cumulants in the $U_{\mathrm{eff}}\to 0$ limit are significantly reduced even for small $U_{\mathrm{eff}}>0$. In fact, for $U_{\mathrm{eff}}=0.01$V and $B>0$, the values of $F_{\mathrm{incoh}}$ calculated from Eq. (27) [black lines] are closely followed by $F\left(U_{\mathrm{eff}}\right)$ obtained from the numerical mode-matching, as long as the former can be defined, i.e., for $B<B_{c,2}$ at a given $\mu$. We further notice that the value of $\mu$ for which $B\approx B_{c,2}$ and $F\left(U_{\mathrm{eff}}\right)\approx 0.56$ corresponds to $G\left(U_{\mathrm{eff}}\right)\sim g_0$ (up to the order of magnitude). For smaller $\mu$, such that $B>B_{c,2}$ and $F_{\mathrm{incoh}}$ is undefined, $F\left(U_{\mathrm{eff}}\right)$ saturates near the value $\approx 0.75$, apparently below the poissonian limit of $F=1$.

To better understand the nature of the results we now, in Figure 4, go further beyond the linear-response regime, calculating $G\left(U_{\mathrm{eff}}\right)$ and $F\left(U_{\mathrm{eff}}\right)$ for $\mu =-e{U}_{\mathrm{eff}}/2$ (notice that for an infinite rectangular barrier we have the particle-hole symmetry, and both cumulants are even upon $\mu \leftrightarrow -\mu +e{U}_{\mathrm{eff}}$) and displaying them as functions of $U_{\mathrm{eff}}$.

We further introduce the activation voltage $U_{\mathrm{on}}=U_{\mathrm{on}}\left(B\right)$, meaning of which can be understood as follows. The cyclotron diameter, see Eq. (29), naturally defines the range of energies for which $2r_c\left(E\right)<R_{\mathrm{o}}-R_{\mathrm{i}}$ and the system shows $G\approx 0$ (up to the evanescent modes). On the other hand, as we have set $\mu =-e{U}_{\mathrm{eff}}/2$, the effective voltage defines the energy range of $\left|E\right|⩽e{U}_{\mathrm{eff}}/2$, being the integration interval in Eqs. (16) and (17). In turn, $G\left(U_{\mathrm{eff}}\right)>0$ is expected for $U_{\mathrm{eff}}⩾U_{\mathrm{on}}$, a value of which can be approximated as

$$U_{\mathrm{on},\mathrm{incoh}}=v_{F}B\left(R_{\mathrm{o}}-R_{\mathrm{i}}\right),$$

(45)

where we have simply rewrite equality $2r_c\left(e{U}_{\mathrm{on}}\right)=R_{\mathrm{o}}-R_{\mathrm{i}}$ neglecting the evanescent modes.

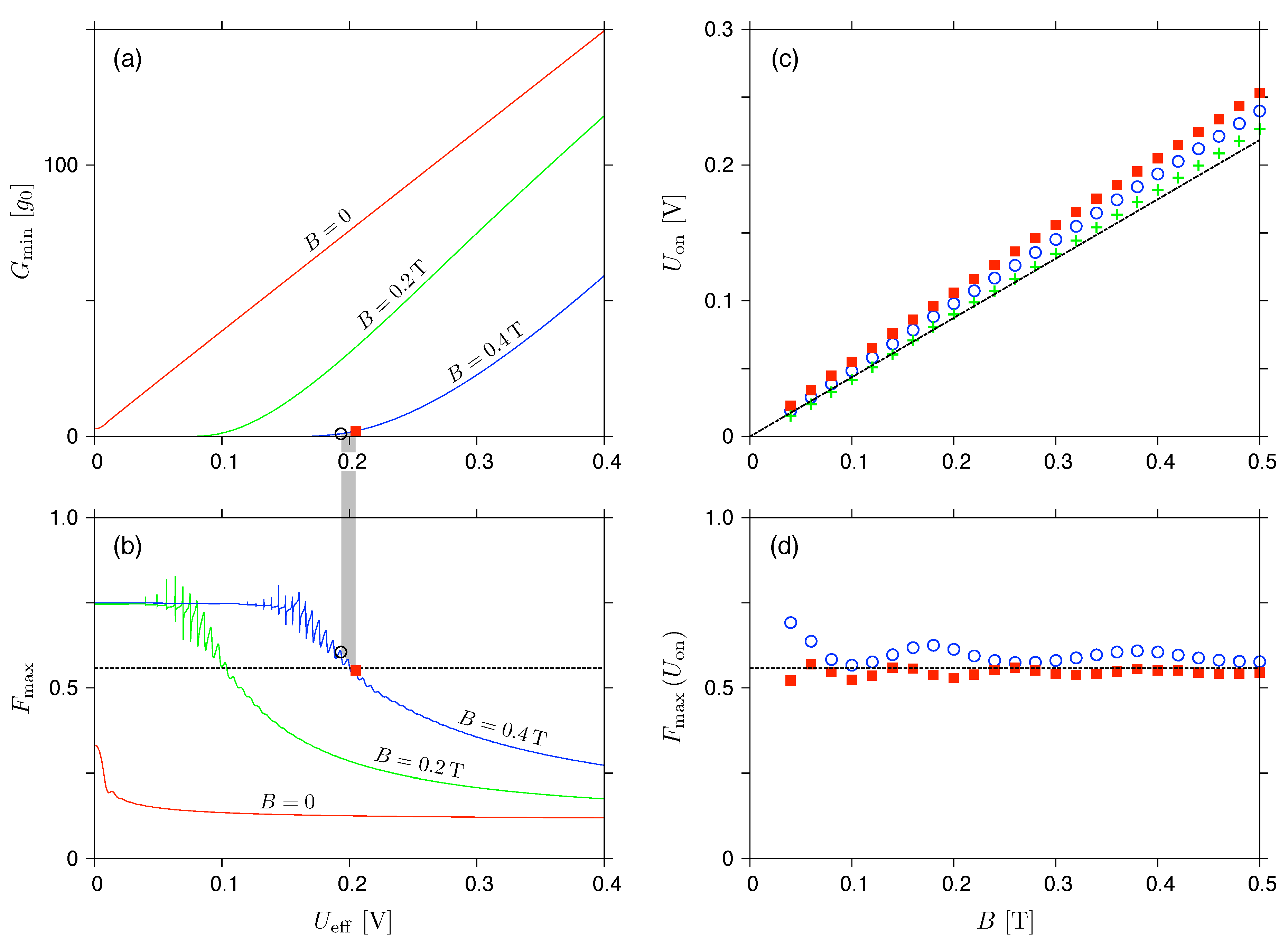

When looking on the conductance spectra illustrated in Figure 4(a) we see, for $B>0$, a wide range of lower $U_{\mathrm{eff}}$ for which $G\approx 0$, attached (via a cusp region) to the range of (approximately linearly) increasing G. In order to determine the value of $U_{\mathrm{on}}\left(B\right)$ directly from the conductance spectra $G\left(U_{\mathrm{eff}}\right)$, we find numerically the value of $U_{\mathrm{on}}^{\left(1\right)}$ such that $G\left(U_{\mathrm{on}}^{\left(1\right)}\right)=g_0$, and $U_{\mathrm{on}}^{\left(2\right)}$ such that $G\left(U_{\mathrm{on}}^{\left(2\right)}\right)=2g_0$, see the datapoints in Figure 4(a). Then, the linear extrapolation is performed to obtain

$$\begin{array}{cc}\hfill U_{\mathrm{on}}^{\left(0\right)}& =U_{\mathrm{on}}^{\left(1\right)}-\left(U_{\mathrm{on}}^{\left(2\right)}-U_{\mathrm{on}}^{\left(1\right)}\right)\frac{G\left(U_{\mathrm{on}}^{\left(1\right)}\right)}{G\left(U_{\mathrm{on}}^{\left(2\right)}\right)-G\left(U_{\mathrm{on}}^{\left(1\right)}\right)}\hfill \\ \hfill & =2U_{\mathrm{on}}^{\left(1\right)}-U_{\mathrm{on}}^{\left(2\right)},\hfill \end{array}$$

(46)

such that $G\left(U_{\mathrm{on}}^{\left(0\right)}\right)\approx 0$. The resulting values of $U_{\mathrm{on}}^{\left(i\right)}$, depicted in Figure 4(c) [datapoints], stay close to $U_{\mathrm{on},\mathrm{incoh}}$ obtained from Eq. (45) [dashed line].

Remarkably, the values of the Fano factor corresponding to $U_{\mathrm{eff}}=U_{\mathrm{on}}^{\left(i\right)}$, $i=1,2,$ see Figure 4(b), are close to $F_{\mathrm{incoh}}(B\to B_{c,2}-)\approx 0.56$. Similar observation applies for all studied values of $B⩽0.5$T, see Figure 4(d); a typical deviation does not exceed $5\%$.

4.2. Smooth Potential Barriers

In this subsection, we extend our numerical analysis onto smooth potential barriers, defined by choosing $2⩽m<\infty$ in Eq. (2). Moreover, the barrier height is now finite, i.e., $V_0=t_0/2=1.35$eV, being not far from the results of some first-principles calculations for graphene-metal structures [64,65]. According to our best knowledge such a model, first proposed in Ref. [35], seems to be the simplest providing qualitatively correct description of the conductance-spectrum asymmetry observed in existing experiments [46,50,53], in which the conductance for $\mu <0$ is noticeably suppressed, comparing to the $\mu >0$ range, due to the presence of two circular p-n junctions in the former case. (Such a feature is also correctly reproduced by a simpler model assuming the trapezoidal potential barrier [66], allowing a fully analytic treatment, but this approach produces an artificial conductance maximum near $\mu =0$.)

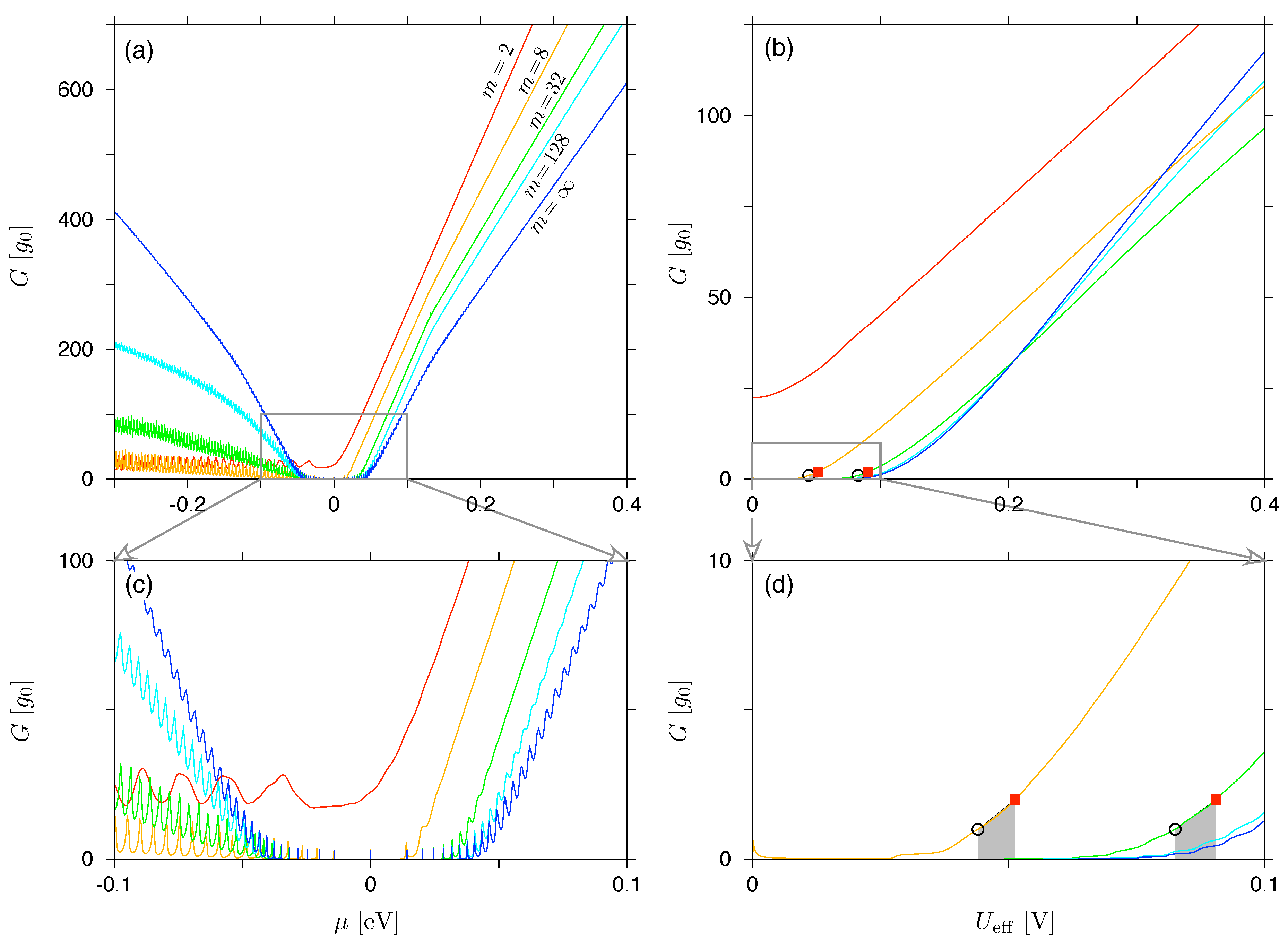

The conductance spectra for five selected values of m are displayed in Figure 5, both for the linear-response regime [see Figure 5(a,c)] and beyond [Figure 5(b,d)]. This time, we have limited out presentation a single value of magnetic field, i.e., $B=0.2$T. It must be notice that finite value of $V_0$ results in small, but visible spectrum asymmetry also for $m=\infty$.

The finite-voltage results, $G\left(U_{\mathrm{eff}}\right)$ at $\mu =-e{U}_{\mathrm{eff}}/2$, allows as to determine the activation voltage, $U_{\mathrm{on}}\left(B\right)$, in a similar manner as for an infinite-barrier case (see previous subsection). When attempting to apply the incoherent-scattering approximation to smooth potentials, some modification is required for Eq. (45), which now can be rewritten as

$$U_{\mathrm{on},\mathrm{incoh}}=v_{F}B{L}_{\mathrm{diff}}\left(m\right).$$

(47)

In the above, we have introduced the m-dependent effective sample length given by [35,36]

$$L_{\mathrm{diff}}\left(m\right)=|R_{\mathrm{o}}-R_{\mathrm{i}}|{\left(\frac{\hslash v_F}{|R_{\mathrm{o}}-R_{\mathrm{i}}|V_0}\right)}^{1/m},$$

(48)

which reduces to $L_{\mathrm{diff}}(\infty )=R_{\mathrm{o}}-R_{\mathrm{i}}$ for a rectangular barrier, and gives $L_{\mathrm{diff}}(m=2)\ll R_{\mathrm{o}}-R_{\mathrm{i}}$ for the parabolic case. In brief, Eq. (48) can be derived by imposing $V(\pm L_{\mathrm{diff}}/2)=-E_{\mathrm{diff}}$, where $E_{\mathrm{diff}}$ denotes the value of Fermi energy, above which Sharvin conductance overrules the pseudodiffusive conductance, namely,

$$E_{\mathrm{diff}}=\frac{\hslash v_F}{R_{\mathrm{o}}-R_{\mathrm{i}}}\approx 1\mathrm{meV}\mathrm{for}{R}_{\mathrm{o}}-R_{\mathrm{i}}=500\mathrm{nm}.$$

(49)

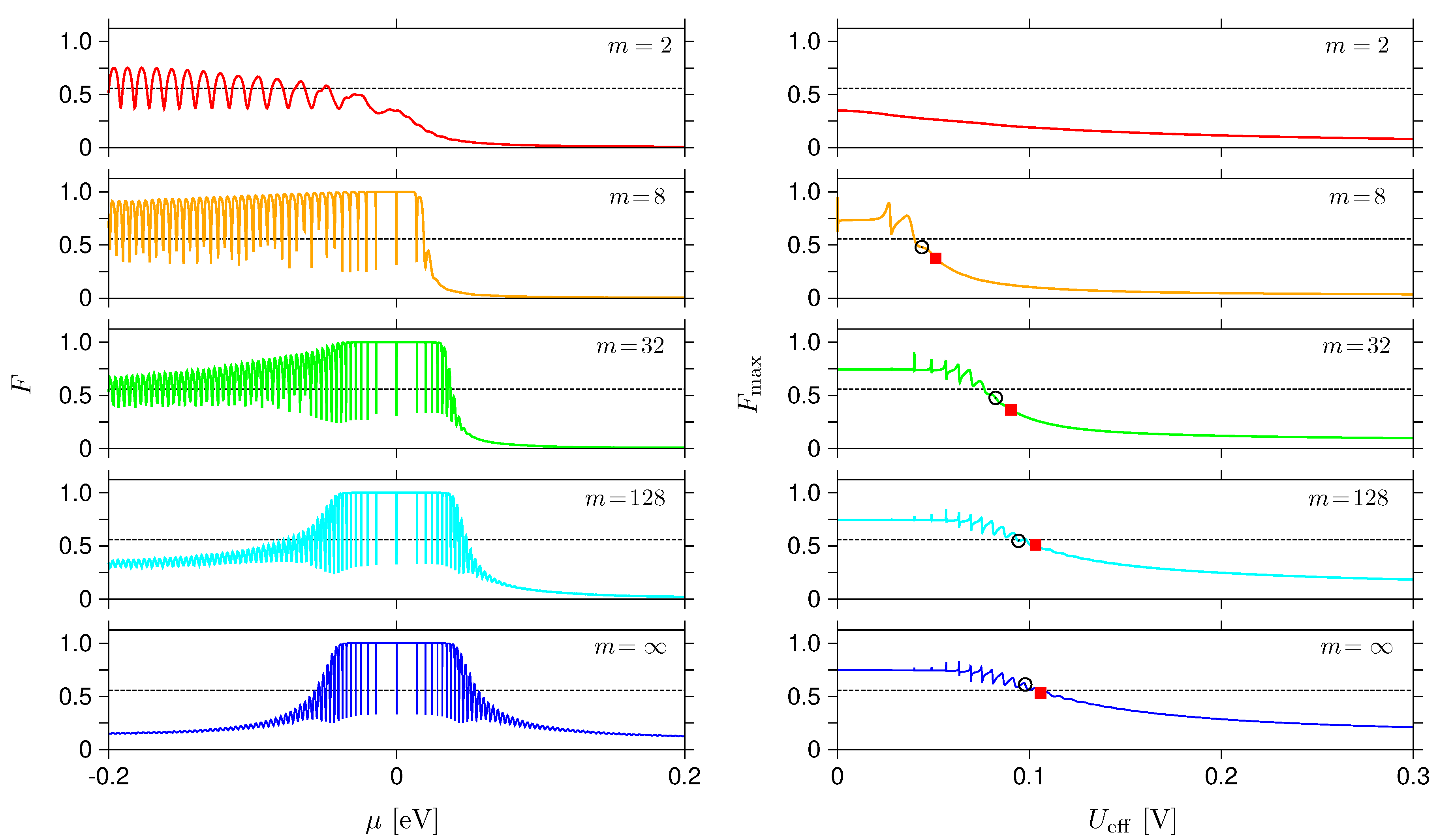

In Figure 6 we show the Fano factor, for same five values of m as previously used for the conductance (see Figure 5), and $B=0.2$T, as a function $\mu$ in the linear-response limit ($U_{\mathrm{eff}}\to 0$), as well as a function $U_{\mathrm{eff}}$ for $\mu =-U_{\mathrm{eff}}/2$ (see left or right side of Figure 6, respectively). Again, the aperiodic oscillations almost vanish when entering the nonlinear response regime; in fact, the shape of $F_{\max }\left(U_{\mathrm{eff}}\right)$ appears to be much less sensitive to the value of m than the linear-response $F\left(\mu \right)$. Datapoints on the right side of Figure 6, identifying the values of $F\left(U_{\mathrm{on}}^{\left(i\right)}\right)$, $i=1,2,$ such that $G\left(U_{\mathrm{on}}^{\left(i\right)}\right)=i{g}_0$ (see Figure 5), are available starting from $m=8$ (although the deviation from $F_{\mathrm{incoh}}(B\to B_{c,2}-)\approx 0.56$ is significant in such a case), whereas strong asymmetry of $F\left(\mu \right)$ is visible up to $m=32$.

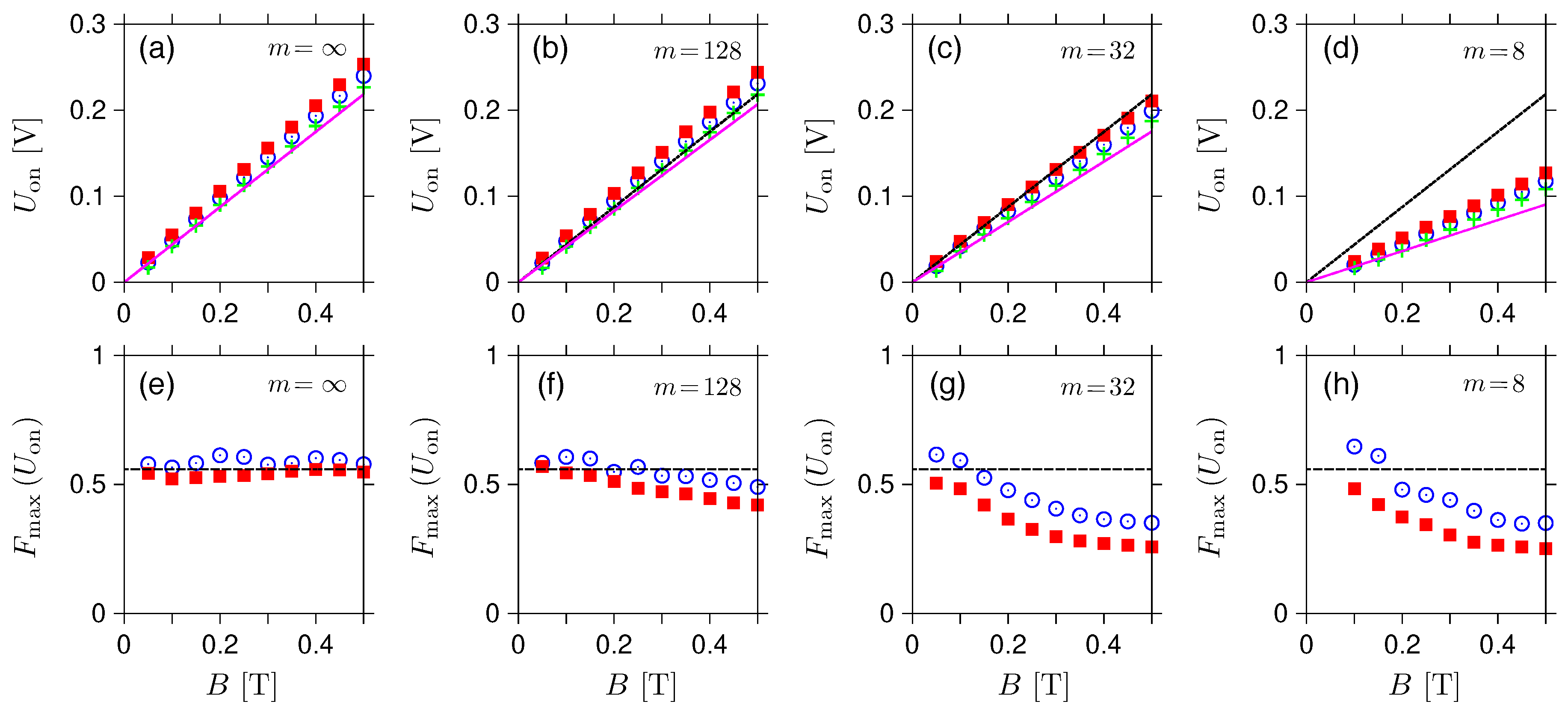

The values of $U_{\mathrm{on}}^{\left(i\right)}$ and the corresponding $F\left(U_{\mathrm{on}}^{\left(i\right)}\right)$, for the magnetic fields up to $B⩽0.5$T, are displayed in Figure 7. It can be noticed that the voltages $U_{\mathrm{on}}^{\left(i\right)}$, see datapoints in Figure 7(a–d), show relatively good agreement with the approximation given by Eq. (47) [purple solid lines]; in fact, significant deviation from Eq. (45) relevant for the rectangular barrier [black dashed lines] can be noticed for $m=8$ only. On the contrary, corresponding Fano factors $F\left(U_{\mathrm{on}}^{\left(i\right)}\right)$, see datapoints in Figure 7(e–h), stay close to the value of $F_{\mathrm{incoh}}(B\to B_{c,2}-)\approx 0.56$ only for $m=\infty$ and $m=128$, showing that the incoherent treatment of the shot-noise power, which we put forward in Sec. Section 3, is applicable only if the potential profiles is close to (but not necessarily perfectly matching) the rectangular shape.

5. Conclusions

We have put forward an analytic description of the shot-noise power in graphene-based disks in high magnetic field and doping. Assuming the incoherent scattering of Dirac fermions between two potential steps of an infinite height, both characterized by a priori nonzero transmission probability due to the Klein tunneling, we find that vanishing conductance should be accompanied by the Fano factor $F\approx 0.56$, weakly-dependent on the disk proportions.

Next, the results of analytic considerations are confronted with the outcome of computer simulations, including both rectangular and smooth shapes of the electrostatic potential barrier in the disk area. Calculating both linear-response and finite-voltage transport cumulants, within the zero-temperature Landauer-Büttiker formalism, we point out that the role of evanescent waves (earlier ignored in the analytic approach) is significant in the linear-response regime, however, one should able to detect the quasi-universal $F\approx 0.56$ noise in a properly designed experiment going beyond the linear response regime. To achieve this goal, the following procedure is proposed: First, the activation voltage (for a fixed magnetic field) needs to be determined, by finding a cusp position on the conductance-versus-voltage plot, above which the conductance grows fast with the voltage (the average chemical potential is controlled by the gate such that the conductance is minimal for a given voltage). Having the activation voltage determined, one measures the noise for such a voltage, expecting the Fano factor to be close to $F\approx 0.56$.

We expect that the effect we describe should be observable in ultraclean samples and sub-kelvin temperatures (such as in Ref. [48]); for higher temperatures, hydrodynamic effects may noticeably alter the measurable quantities [53]. Since the noise-related characteristics seem to be generally more sensitive to the potential shape then the conductance (or the thermoelectric properties earlier discussed in Ref. [54]), the experimental study following the scenario presented here may be a suitable way to check whether the flat-potential area of a mesoscopic size is present or not in a given graphene-based structure.
