Elemental Dissolution in Multicomponent PDC Based Mixed-Phase Hard Films

1. Introduction

Nanoindentation is one of the most coveted mechanical characterization techniques at nanoscale for various types of materials which includes, alloys, nanomaterials, and thin films [1,2,3,4] The loading parameters which include load, depth, strain-rate, indenter shape, holding time etc leaves an impact pertaining to which the choice of material for specific low dimensional application can be envisaged [5,6,7] They are being merged with microscopic techniques (AFM) and are being applied on unconventional materials like conducting polymers, bio ceramics and human bones and tissue [8,9,10].

Multicomponent materials like high-entropy alloys (HEA) and high-entropy ceramics (HEC) on the other hand have surface out in recent times as significant materials having vast technological importance. High Entropy Alloy (HEA) is a composition of multiple principal elements in an equimolar or near equimolar ratio. Where the number of elements is not less than five (≥5) and the atomic % of each element between 5% and 35 %. [11,12,13]. HEAs show enhanced properties of hardness, strength, wear resistance, corrosion resistance, fatigue, and fracture resistance [14].. The mechanical properties of HEAs like yield stress, tensile strength, hardness, fracture toughness and wear resistance are significant aspects for their application and have been subject to nanoindentation [15,16]. HEAs like Co_1.5CeFeNi_1.5Ti, Al_0.2Co_1.5CrFeNi_1.5Ti; AlCoCrFeNi, NbMoTaV, Cu_0.5NiAlCoCrFeSi, CoCrFeNi, CoCrFeMnNi, FeCoNi, CrFeCoNi along with HEA carbides, HEA oxides, HEA carbonitrides have shown high wear resistance, tensile strength, yield strength, ductility, and fracture toughness [17,18,19,20].

Interestingly, the Polymer-derived ceramics (PDC) like Si-C-N, Si-B-C-N with enormous high temperature stability due t0 the formation of nanocomposites is being investigated over the past 30 years and fall in the category of moderate entropy alloy or ceramics (HEA/HEC) [20]. The ternary nanocomposite material Si-C-N was first introduced to the scientific community as a high-temperature oxidation-resistant polymer-derived ceramic (PDC) [21]. PDCs combine the functional properties of polymers with the mechanical and chemical durability of ceramics. Polymer-derived ceramics (PDCs) have a polymer-like nanostructure and ceramic-like properties, e.g., creep and oxidation resistance [22].

The Si-C-N has shown stability up to 1600°C and it remains in the amorphous state up to 1500^oC. These properties make silicon carbonitride a promising material for prospective applications such as structural ceramics, MEMS, hard protective coatings, and electronic materials [23]. Si-C-N is being currently looked for the absorption of electromagnetic waves (shielding) [24,25,26,27], as thin film pressure and temperature sensors [28,29,30,31], as a bonding layer for memory devices [32] MEMS magnetic devices [33] and even in endodontics [34]. It has also been reported to show both metallic and piezoelectric properties and is a good alternative to SiC which only has insulating properties [35,36,37,38,39]. There have been several investigations on PDC coatings and derivatives of Si-C-N over recent years some of which are given in Table 1.

The free carbon content within the SiCN is the main factor in its performance. It affects the crystallinity affecting the mechanical properties like hardness, modulus, and fracture toughness, and the thermal and electrical conductivity which are essential properties for the use as sensors and other MEMS devices [51,52,53,58]. Theoretical calculations have been performed on the high hardness shown by Si-C-N showing the effect of high-density carbon allotropes [59] and experimental evidence of stable SiC₂N₂-Si₂CN₄ phases has also been reported recently [60] An attempt has therefore been made in this communication to investigate the role of the excess carbon in the creating the surface morphology at different deposition conditions. Although similar work has been reported by us previously [61,62,63,64], the primary focus here is on the effect of deposition pressure. The ITO/PDC thin film exhibits excellent stability, and has been reported to be using for high temperature sensing applications [65].

PDC based hard coatings are being deposited along with other multicomponent counterparts like Ti-B-N, Ti-B-Si-C(N) etc possessing mixture of nanocrystalline carbides (SiC, TiC), boride (TiB₂) and nitrides (Si₃N₄, CNx, TiN, cBN)) phases which gives toughens them apart from providing hardness, being the necessary and sufficient properties especially for the protection of the underlying substrate [66] and has also been used in asses any intermetallic formation useful for micro electronic packaging [67]

2. Materials and Methods

The coatings deposited by magnetron sputtering (HINHIVAC, Bangalore) using sintered targets of SiC, TiB₂ along with the passage of Nitrogen gas (N₂) as per the requirement of the coating composition. Transmission electron microscope (EM 200, Philips) was used for morphological analysis and the mechanical characterizations were done with the help of nanoindentation (MTS USA) and scratch tester (Ducom, Bangalore)

3. Results and Discussions

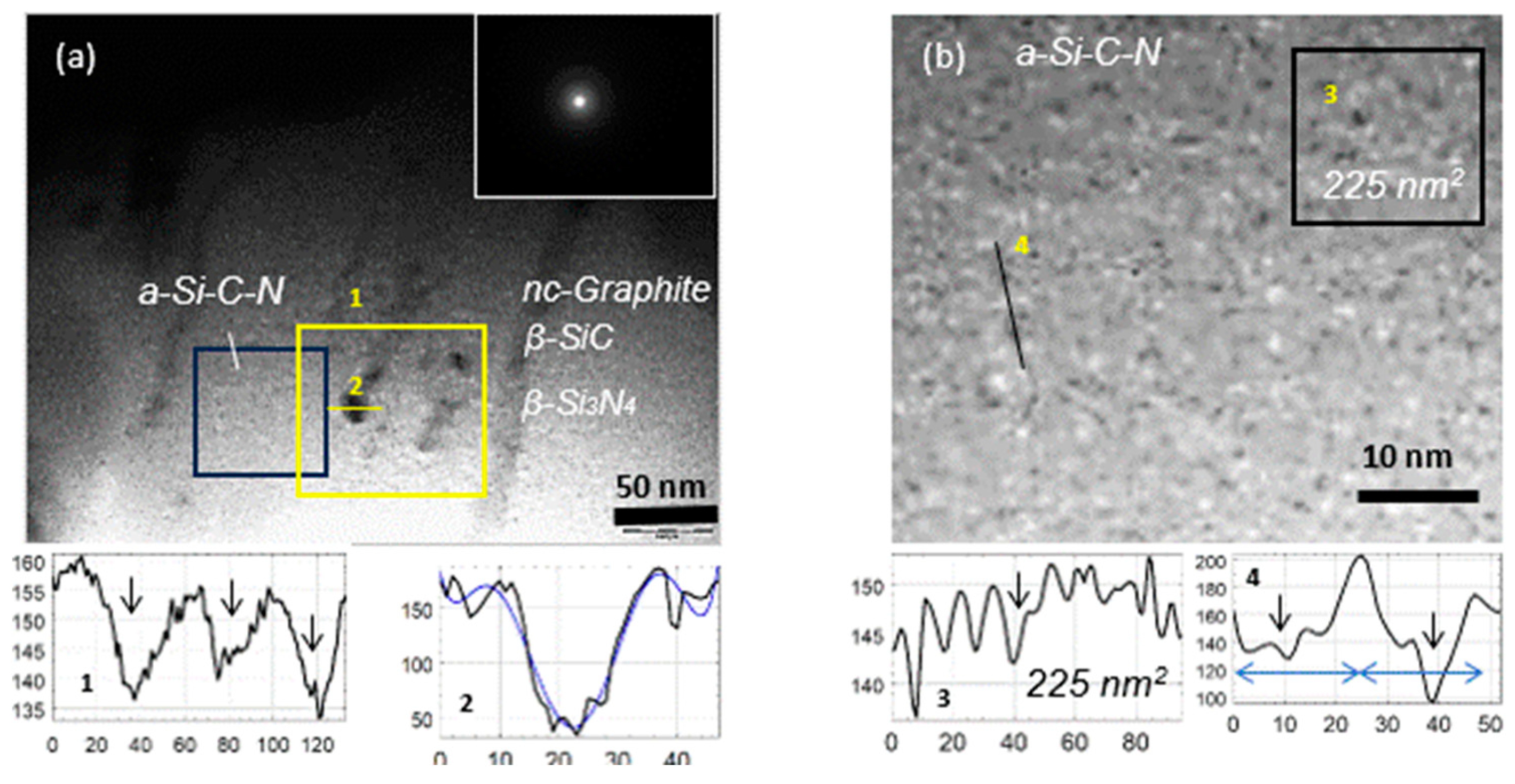

The surface of the heterogeneous microstructure in the case of inhomogeneous crystallite growth is depicted in the TEM image of Si-C-N coatings, which shows the deposition of 5 nm-sized crystallites in the amorphous Si-C-N matrix deposited at 100 ^oC. (Figure 1a) [68] The amorphous character was amply demonstrated by the SAED pattern. When amorphous carbon (a-C) joined forces with Si and N to form an a-Si-C-N matrix, the nucleation and development of nano crystallites of β-Si3N4, β-SiC, and even nanocrystalline (nc) graphite initially started to happen. The surface profile of the designated areas showed the distribution of the nanocrystallites.

An expanded view of the amorphous region showing the formation of ultrafine crystallites is shown in Figure 1b. Using the surface profile, an approximate surface density of 0.045 nm2 was determined. Two significant peaks, each made up of smaller peaks, were visible in the linear profile. This illustrates how larger crystallites have been formed through the joining of smaller crystallites. For fracture analysis, the crystalline morphology is crucial. Greater toughness is typically provided by smaller crystallites. On the other hand, a material that is overly hard is brittle and prone to shattering. When connecting mechanical qualities to interfacial crystallinity, hard coatings need to be considered. Under ideal circumstances, the films were found to be on average harder than 20 GPa [61,62,63,69]. To investigate the stress distribution beneath the depression that causes fracture, finite element analysis was performed [70,71,72,73,74,75].

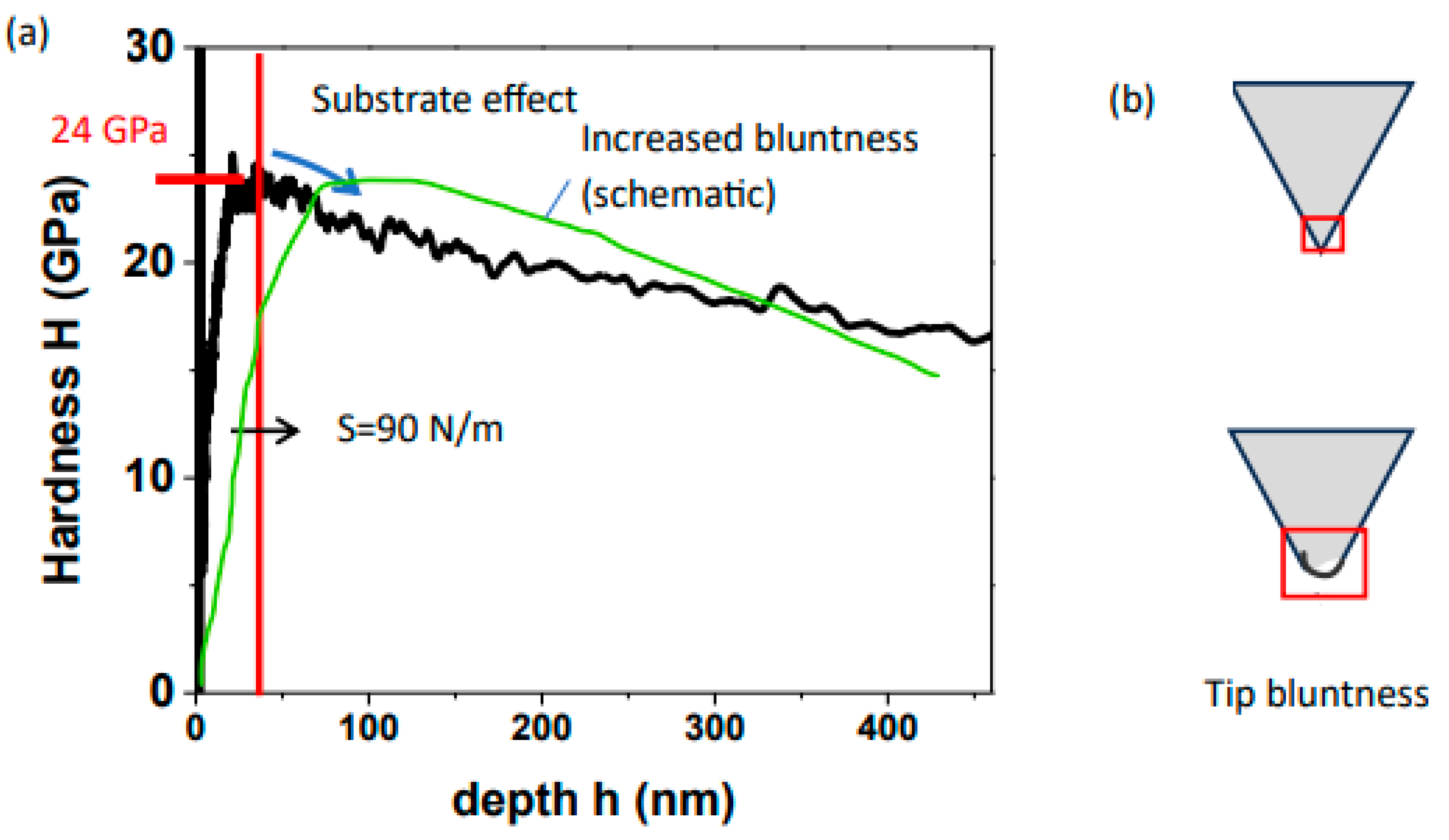

Following a predetermined depth interval, a hardness value is obtained in accordance with the initial instrumentation parameters, providing a hardness profile with depth as opposed to a single numerical value. (Figure 2a). The profile can be seen to reach a maximum followed a decrease. The maximum value is taken as the hardness which in this case is 24 GPa [61,62,63]. The substrate effect, which begins at roughly 10% of the coating thickness, is what is causing the drop. The coating appears to be roughly 400 nm thick based on the commencing at 40 nm. After being used a lot, the indenter tip needs to be adjusted since it becomes blunt and might cause the substrate effect to occur at greater stresses, as schematically shown. (Figure 2b),

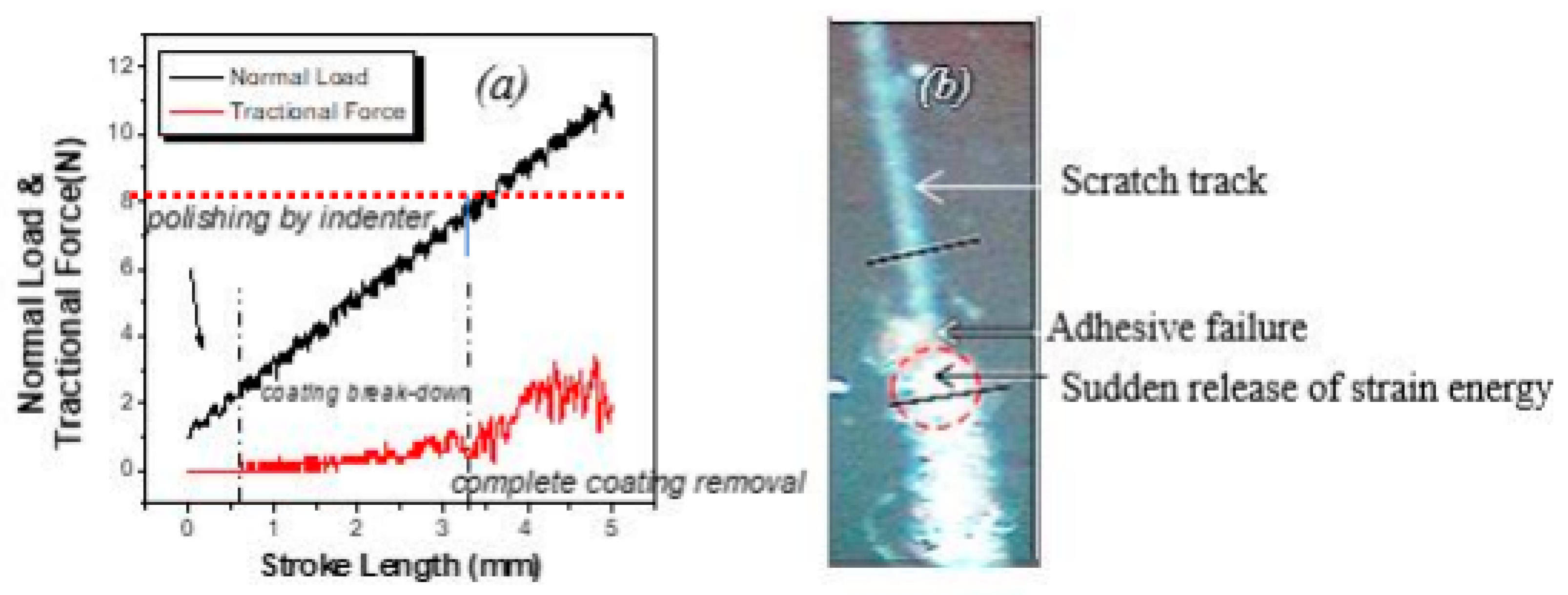

The area under the H-d plot up to 40 nm is around 90 N/m, which corresponds to the coating stiffness. The yielding generated by the Berkovich indenter is constrained till 40 nm till the substrate effect commences, which suggests the strain imposed during indentation has a deeper influence than the depth and activates the substrate effect on reaching the coating-substrate contact. SiCN's crystallographic orientation is pseudohexagonal ion (lower symmetry than standard crystallographic orientation), hence compliance components for the various normal and shear components exist. However, due to the fine crystallite size, the directional effect averages out, leaving us with a more isotropic situation. The dislocation glide observed in typical metals and alloys is difficult to achieve in these high temperature ceramics. Even at high temperatures, an increase in load applied frequently results in fracture. The interface (adhesion) therefore plays a crucial function. The adhesive characteristics of Si-C-N coatings were thoroughly explored utilising sliding indentations. The representative scratch test performed on SiCN/glass is shown in Figure 3 [76], where the coating can be seen to fail due to the release of strain energy which manifests itself by a change in the reactional force plot on being subject to a ramping sliding load. Scratch tests have also been performed on energy based smart materials, AF4 coatings on silicon (Si) and glass (SiO₂) for electronic packaging, and alumina-silica coatings used in bio-medical implants [77,78].

High entropy alloys (HEA) and high entropy ceramics (HEC) are examples of multicomponent materials that are currently being studied, as was indicated in the introductory section. Similar to this, as time has gone on, more elemental species have been added to tertiary, quaternary, and quinary nanocomposites. The material Ti-B-Si-C has been deposited as nanocomposite coatings utilising either a single target of Ti-B-Si-C or two distinct targets of TiB₂ and SiC. The presence of TiB2 has primarily contributed to the material's hardness exceeding 40 GPa. Ti-B-Si-C has a better fracture toughness than other binary or ternary nanocomposite materials. The dislocation distribution in front of a developing fracture was linked to the fractographic features [79]

Nitrogen incorporation along will lead to formation of tertiary Ti-B-N or quinary Ti-B-Si-C-N nanocomposite coatings having constituent phases formed asper the deposition conditions employed. The difficulty however one faces is the loss of control on the tune ability of the different possibility phases as the component number enhances. A decrease in hardness was found with the addition nitrogen further to Ti-B-Si-C implying the fact that it was due to TiB₂ and/or TiC which was providing the high values of hardness and nitrogen incorporation probably caused the deposition of Si-C-N based phases which usually have a higher fraction of amorphization and have greater chances of graphitization due to the excess carbon present in the structure [20] with a comparatively reduced hardness (Figure 4a,b).

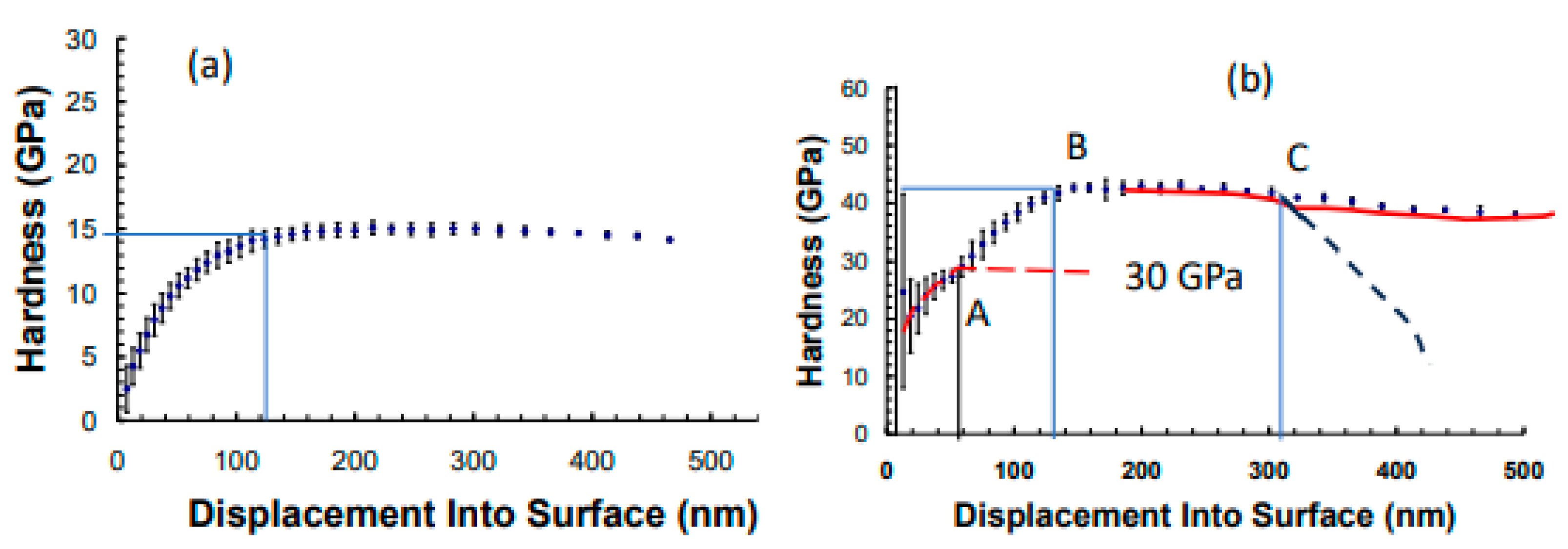

Another observation made from the hardness profile is that it can be deconvoluted into two separate profiles as shown with 30 GPa profile region A) getting merged at around 50nm with the finally obtained 40GPa profile (regio B). A shift of the 40GPa profile to lower values takes place around 320nm (region C) which may not be the usual substrate effect as the curve does not follow a continuous decrease as shown by the dotted line. A possible explanation of the above observations is in the formation of multi-phased composition which shows a cross sectional variation, an effect which became prolific due to nitrogen. In case of multilayers, an alternate harder and softer coatings pin the dislocations at the interface restricting their motion making the coatings hard not at the expense of losing the toughness to a significant amount.

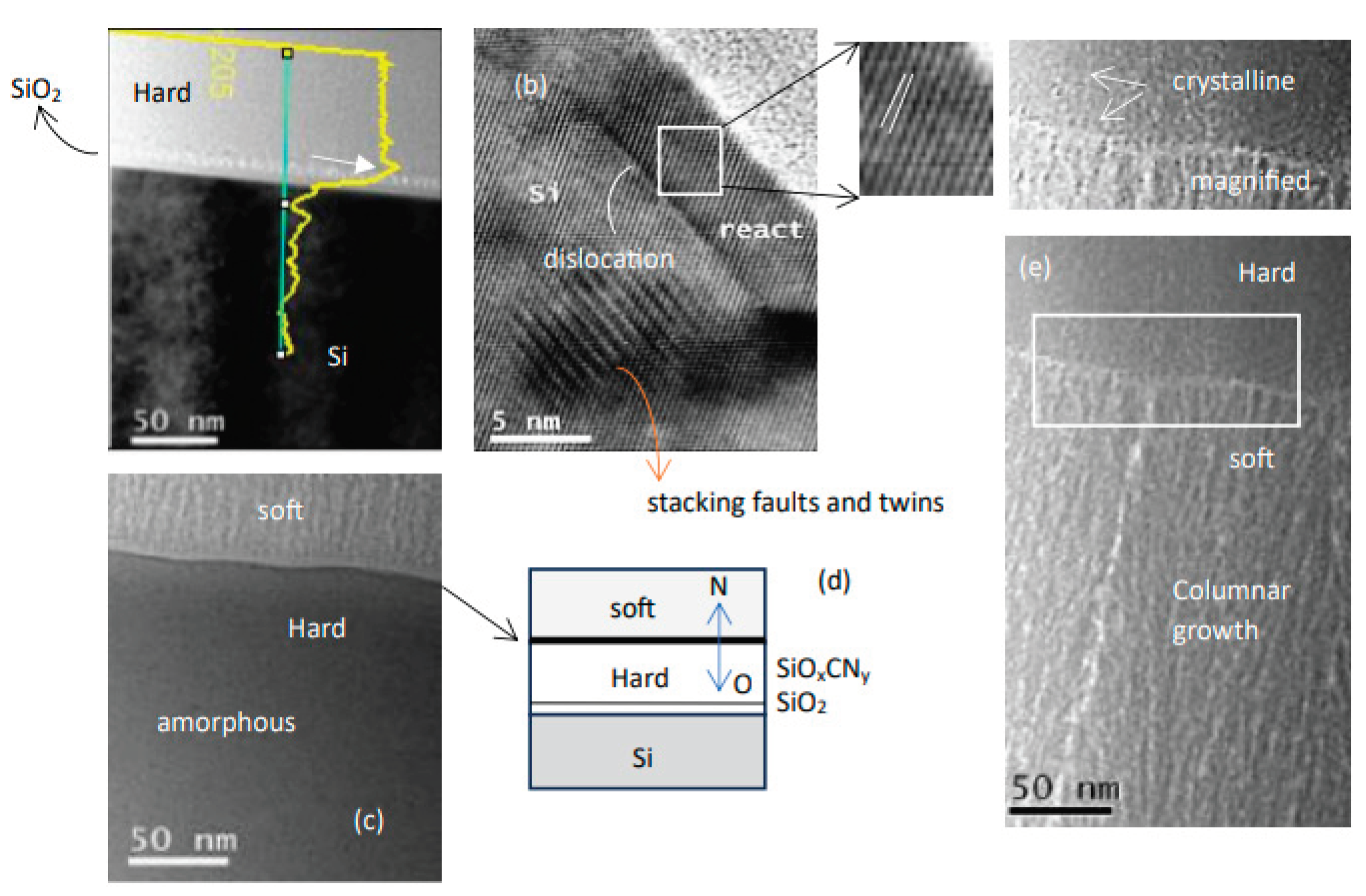

An interface cross sectional study of hard-soft-hard multilayered Si-C-N films on silicon substrate. shows the interface of Si substrate and the first hard layer to be consisting a thin SiO₂ native oxide line and mainly amorphous Si-C-N. The native oxide usually found on the silicon surface exposed to atmosphere is about 250 nm. The image however shows it to be about 5nm.This is indicative of the fact that it haa almost dissolved in to hard phase leaving a feeble trail of its existence as show by the image analysis line profile (Figure 5a)

Evidence of stacking faults and twins were also observed in the Si substrate (Figure 5b) A higher nitrogen incorporation leads to slower growth rate and columnar crystalline growth which also causes a reduction in hardness as also found in Ti-B-N films. The interface between the Si substrate and the hard Si-C-N phase was found to have a thin native oxide layer while the hard phase was mainly amorphous in nature consisting of Si, C and N elements (Figure 5c). The amorphous nature was due to the rapid growth process and higher oxygen concentration. The formation of SiO_xCN_y is therefore predominant in the regions close to the substrate, however the relative oxygen concentration with respect to nitrogen (x/y) decrease as one moves further up (Figure 5d) and hence once can observe hints of crystallization (however not columnar) growth in the hard phase followed by the softer SiCN film, as observed in the magnified view with changed contrast (Figure 5e). The non-columnar growth accounts for the enhanced toughness.

The Ti-B-Si-C-N coating may have formed amorphous regions locally just below the top hard surface and may account for the 30 GPa plot (region A) in Figure 4b. The harder phase might have formed there after (region B). The dislocation restriction occurs in this region C which accounts for reappearance of the softer phase and a change in crystalline nature. The interface region having more percentage of N than O could have led to the formation of Ti-O-B-Si-C-N based softer amorphous phases. A further investigation is required in this matter to confirm the claims made.

4. Conclusions

• The crystalline structure of the SiCN films regulated the formation of electrical conduction channels with ductile fracture and linear unloading.
• Tip bluntness causing the substrate effect to be obtained at higher depths of penetration
• When nitrogen was added to Ti-B-Si-C, Si-C-N instead of TiC or TiB₂ formed, which resulted in a decrease in hardness. due to formation of alternate harder and softer films
• The oxide at the interfacial region is responsible for the amorphization of the hard films developed on the silicon whose relative concentration with nitrogen decreases as one moves further away from the substrate
