Unveiling the Doping and Temperature Dependent Properties of Organic Semiconductor Orthorhombic Rubrene from First-Principles

1. Introduction

Organic Semiconductors (OS) contain pi-bonded molecules which are made up of carbon and hydrogen atoms [1] and are bound together by van der Waals interactions. Therefore, OS have much lower hole mobility than inorganic semiconductors due to significantly reduced covalent coupling generated by the van der Waals contact [2]. Nevertheless, interest and research in OS have grown in recent years. They are seen as potential candidates for the future generation of electronic gadgets as they offer the possibility to be used for the manufacturing of low-cost and lightweight devices that may be huge in size and flexible [3]. The OS earliest application as a photo-conductive coating in laser printers [4] paved the way to other successful opto-electronic devices, such as Organic Solar Cells (OSCs) and Organic Light-Emitting Diodes (OLEDs) [5]. Due to their improved transport properties [6], OS may soon substitute inorganic Semiconductors as primary material for high-speed electronics [6] devices. Graphene is an excellent example, for its potential to replace Inorganic Semiconductors such as Silicon and Gallium-Arsenide in the near future.

In spite their promising future, there is still room for improvement in the characterization of OS, for their rational design and optimization of their properties. These properties are completely determined by the content and arrangements of the molecules making up the OS. This stems from the fact that these molecules are experimentally created via synthetic Chemistry. Besides, OS have an extremely low dielectric constant of approximately 3–5 [6]. This yields a large exciton binding energy and most often poor electrical characteristics. Nevertheless, recent breakthroughs have enabled to overcome many of the obstacles, providing new fundamental insight into the main factors governing the performance of OS [6].

Despite their low mobility, Organic Semiconductors still find application in OLEDs and solar cells. Organic Light-Emitting Diodes are now widely employed in commercial displays [7]. They benefit from having a high contrast, brightness, and lower power usage. As mentioned earlier, despite the limited mobility and high exciton binding energy, OS are also used in OLED televisions and smartphone displays [8]. These characteristics make OS more appropriate for emissive devices than absorptive ones. The OS are primarily, electrical insulators that can become semiconductors when charges are introduced from valence to conduction band through photo-excitation or doping [9]. In some cases, OS exist as amorphous thin films or molecular solids [10]. Due to remarkable charge carrier mobility and luminous efficiency [11], Rubrene C₄₂H₂₈ (5,6,11,12-tetraphenylnaphthacene) is also a typical OS material that is useful in Organic Thin-Film Transistors (OTFTs), OLEDs and OSCs. Rubrene is also commonly used in OLEDs as yellow fluorescent dye to boost luminous efficiency, stability, and durability [12].

The Rubrene structure is essentially a four-winged tetracene molecule [13] which belongs to the Polycyclic Aromatic Hydrocarbon family. Organic molecular crystals are potential semiconductor materials for LEDs, Solar Cells, and electrical applications. Organic crystals differ from inorganic solids with covalent or ionic bondings in terms of mobility and photo-excitement due to weak intermolecular interactions [14]. Rubrene has the highest carrier mobility for holes 40 cm²/(V.s) and a high photoconductivity which make it an exceptional OS [15]. These properties are employed in applications of Rubrene in luminous and flexible devices. Rubrene crystals have closed molecular packing that is oriented in a certain direction which is known as the "b" direction; this implies that transport in a Rubrene crystal is one-dimensional in nature [16]. Growing high crystalline Rubrene thin films is expensive and this impedes its practical applications [17]. Several techniques have been developed over the years to grow Rubrene thin films. Rubrene thin films can be grown in amorphous, polycrystalline, or single crystal forms utilizing various techniques. Some of the experimental techniques include pulsed laser evaporation of solidified solutions [18] and physical vapor transport [19].

In recent years, the increase in demand for new innovations in electronics has grown rapidly, hence the need to investigate the elastic, mechanical, temperature and doping dependent properties of organic semiconductor Rubrene. These findings will enable the creation of entirely new design rules with improved durability and precise parameter control.

Therefore, for the first time we attempt to calculate and investigate the temperature and doping dependent properties orthorombic Rubrene using density functional theory (DFT) calculations. In this research, we represent the structural, electronic, elastic and mechanical (elastic constants, shear, bulk and young modulus, Pugh’s ratio and Vickers hardness) properties. Also, we intend to record the values for Pugh’s ratio and Vickers hardness for the first time.

2. Method and Computational Procedure

Structural optimization of the initial atomic positions and lattice structure of Orthorhombic Rubrene were performed after obtaining initial parameters from the study of Reyes-Martinez [20]. The electronic cutoff for wavefunctions, the Monkhorst-Pack k-point grid [21] and the lattice parameters optimization were carried out with a convergence criteria of 1mRy per atom. The atomic positions were relaxed to obtain the ground state structure of Orthorhombic Rubrene. The structural optimization and electronic structure were carried out with the Perdew-Burke-Enzenhoff [22,23,24] exchange correlation functional of the density functional theory, DFT [25,26] as implemented in the Quantum Espresso Package [27,28] using a plane-wave cut-off of 45 Ry and a 2 x 6 x 4 Monkhorst-Pack grid with a Gaussian broadening of 0.01 Ry. The thermo_pw code across a strain range of -0.0075 to +0.0075 at 0.005 steps was used to calculate the elastic constants using the stress-strain technique. Ultrasoft pseudopotentials [29] as obtained from QE Pslibrary [30] were used to treat the valence and core electrons interactions. To calculate the elastic properties of Orthorhombic Rubrene via the stress-strain method, the stiffness matrix Cij corresponding to nine independent elastic constants were obtained for Rubrene crystal structure with Laue class D_2h (mmm), while ions were relaxed in each deformation. Furthermore, mechanical properties of Rubrene were obtained from the elastic constants such as, the internal strain and load-deflection [31]. The elastic constants were evaluated for small strains (∈) by applying Hooke’s law and its energy E.

In the determination of the transport properties, a plane-wave calculation was performed to relax the system followed by a non-self consistence calculation with a dense 40000 k-points. In the G-vectors, 311243 dense grids were used in the Fast Fourier Transform dimensions, while the starting wave-functions were randomized with 784 atomic wave-functions. The results obtained from the Boltztrap calculations were then used to obtain the transport effective mass, and the electronic fitness function through the TransM code [32]. These calculations help screen semiconductors as either thermoelectric or in relation to conductivity.

3. Results and Discussion

3.1. Structural Properties of Orthorhombic Rubrene

As shown in Table 1, a lattice constant of 26.79 $\widehat{A}$ (50.8257 a.u.) was obtained and it is in good agreement with the experimental value of Ref. [20]. Table 1 shows the optimized lattice parameters a = 26.7903 Å, b = 7.17001 Å, and c = 14.2112 Å for Orthorhombic Rubrene. These values are in close agreement with those reported in theoretical studies Ref. [33] and Ref. [34].

Table 1. Calculated and measured lattice constant of orthorhombic Rubrene.

Reference	Lattice Constants			Method/Theory
	a ($\widehat{A}$)	b ($\widehat{A}$)	c ($\widehat{A}$)
Present work	26.79	7.17	14.21	GGA
Ref. [33]	26.86	7.19	14.43	GGA
Ref. [34]	26.660	7.142	14.025	vdW-DFT
Ref. [34]	26.965	7.206	14.442	Experiment at 294K
Ref. [35]	26.789	7.170	14.211	Experiment at 100K
Ref. [36]	14.1289	7.1455	26.7450	GGA

Table 1. Calculated and measured lattice constant of orthorhombic Rubrene.

Reference	Lattice Constants			Method/Theory
	a ($\widehat{A}$)	b ($\widehat{A}$)	c ($\widehat{A}$)
Present work	26.79	7.17	14.21	GGA
Ref. [33]	26.86	7.19	14.43	GGA
Ref. [34]	26.660	7.142	14.025	vdW-DFT
Ref. [34]	26.965	7.206	14.442	Experiment at 294K
Ref. [35]	26.789	7.170	14.211	Experiment at 100K
Ref. [36]	14.1289	7.1455	26.7450	GGA

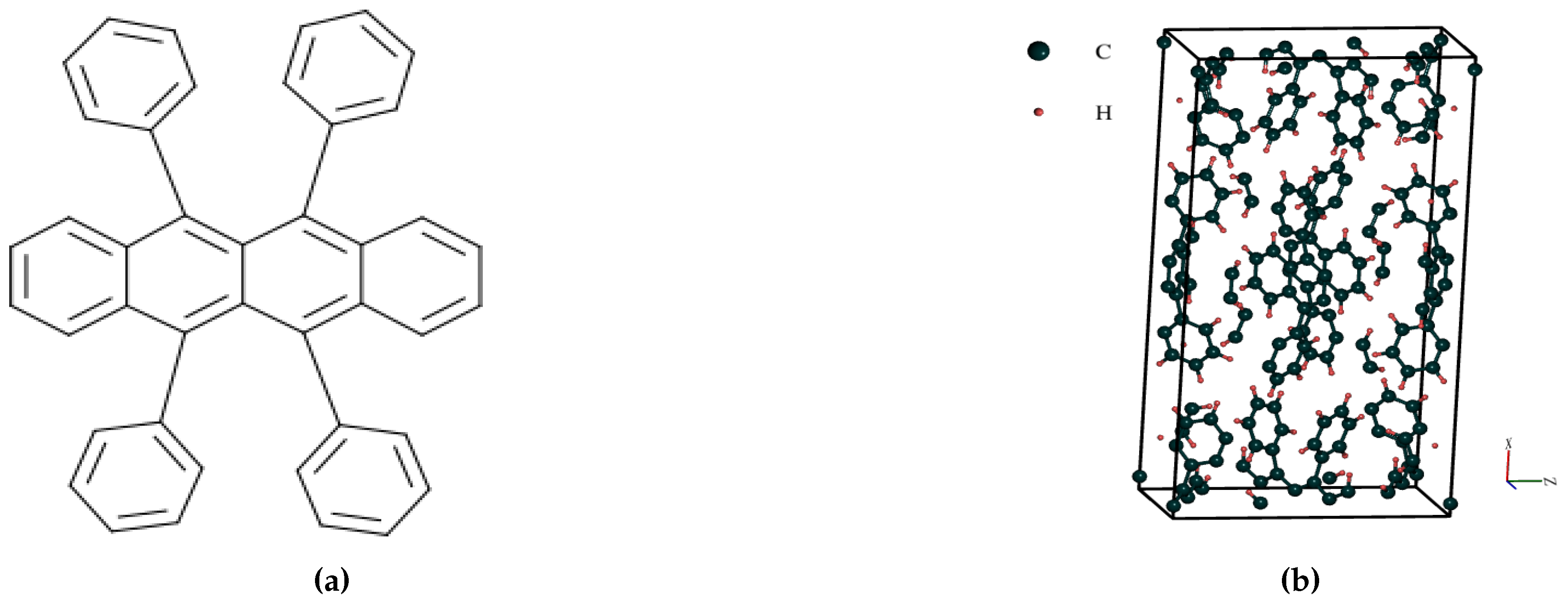

The relaxed structure of orthorhombic Rubrene (Figure 1b) shows the compound to be a polymorph with the Cmca space group. Whenever Rubrene molecules unite to form Orthorhombic crystals, the resulting molecules have a centrosymmetric structure with 2/m symmetry. The cell parameters of Orthorhombic Rubrene crystal (as reported in Table 1) shows the molecules are organized in a herringbone packing pattern with nearly complete $\pi$- $\pi$ stacking in the b direction. This is responsible for its large charge-carrier mobility, which has been affirmed in several pieces of research [16,34]. The mobility of charge carriers in Orthorhombic monocrystals can approach 40 cm²/Vs, which is equivalent to that of amorphous silicon [37,38]. As seen in most organic crystals, Rubrene’s electronic transport is very anisotropic. High mobility values can only be obtained along the lattice’s b axis. The features obtained from Figure 1b agrees reasonably well with the results of Ref. [34] and [39]. The structural properties obtained in this work agree with previous theoretical and experimental values.

3.2. Electronic Properties

Figure 2 depict the density of state and band structure, as well as the state and behaviour of electrons in an Orthorhombic Rubrene crystal. The numerical values for the direct bandgap between the Highest Occupied Molecular Orbit (HOMO) and the Lowest Unoccupied Molecular Orbit (LUMO) are shown in Table 2. The highest valence band results from the highest occupied molecular orbital (HOMO), whereas the lowest conduction band results from the lowest unoccupied molecular orbital (LUMO). Generally, an energetic bandgap of ∼1-5eV has been recorded for OS such as Orthorhombic Rubrene [33], as they tend to have a diminishing density of states around the Fermi energy. This is proportional to the size of the electrical gap, which is fairly considerable. This reduces the density of thermally generated charge carriers in pure organic crystals, such as silicon.

Table 2. Comparison of band gaps (HOMO - LUMO) of orthorhombic Rubrene obtained in this work, experiments and previous calculations.

Reference	Band Gap		Theory
	Nature	Energy (ev)
Present work	Direct	1.26	PBE
Ref. [36]	Direct	1.13	PBE
Ref. [40]	Direct	1.357	B3LYP 6-311G
Ref. [41]	Direct	2.50	B3LYP/6-311G(d,p)

Table 2. Comparison of band gaps (HOMO - LUMO) of orthorhombic Rubrene obtained in this work, experiments and previous calculations.

Reference	Band Gap		Theory
	Nature	Energy (ev)
Present work	Direct	1.26	PBE
Ref. [36]	Direct	1.13	PBE
Ref. [40]	Direct	1.357	B3LYP 6-311G
Ref. [41]	Direct	2.50	B3LYP/6-311G(d,p)

As shown in the band structure (Figure 2), the bottom of the conduction band (CB) and the top of the valence band (VB) occur at the same momentum value. This implies that the band structure of organic semiconductor Rubrene has a direct bandgap, as can be observed with some other organic semiconductors. The direct bandgap of 1.26 eV obtained within PBE agrees with the calculation of Ref [36] using PBE also with a direct bandgap of 1.13 eV Ref. [41] and [42] found a greater disparity between HOMO and LUMO. Their calculated band gap is 2.50 eV and 2.60 eV respectively at B3LYP/6-311G(d,p) level, which differs from other calculations. So far, there is no theoretical literature report on the consequential variation in the HOMO-LUMO gap [43]. The highest VB’s structural characteristic controls hole transport behaviour. The band splitting of the VB of orthorhombic Rubrene is fairly minimal. Pressure increases intermolecular interaction, resulting in increased mobility [44]. High mobilities are only for holes, and electron mobilities are several orders of magnitude lower [42,45]. Rubrene is a p-type material, as are the vast majority of organic semiconductors [42].

The number of possible electrons (or hole) states per volume at a given energy is given by the density of states as shown in Figure 2. The density of states distribution at the top of VB is relatively smooth in the orthorhombic Rubrene.

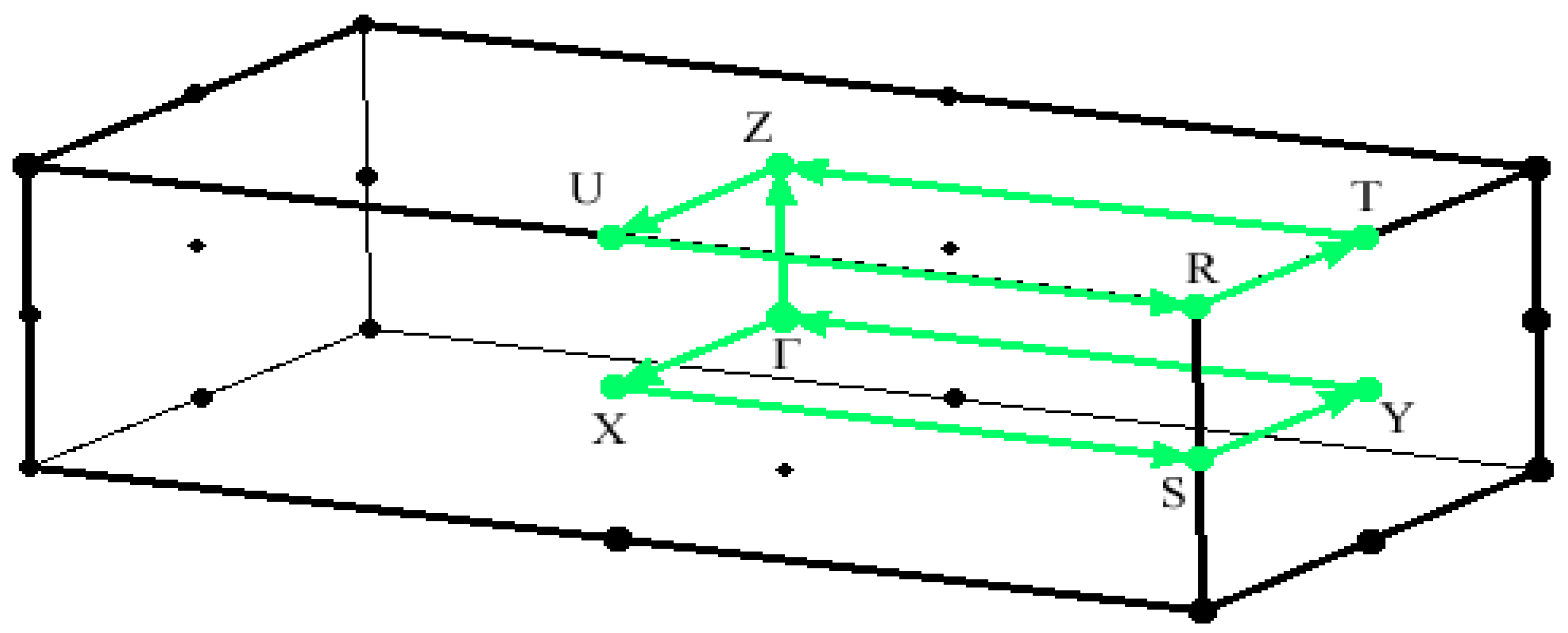

The high-symmetry points’ reciprocal coordinates are $\mathrm{\Gamma }$ = (0, 0, 0), X = (0, 0, 0.5), S = (0, 0.5, 0.5), Y = (0, 0.5, 0), $\mathrm{\Gamma }$ = (0, 0, 0), Z = (-0.5, 0, 0), U = (-0.5, 0, 0.5), R = (-0.5, 0.5, 0.5), T = (-0.5, 0.5, 0), and Z = (-0.5, 0, 0). Each band in the band structures occurs in pairs because the orthorhombic Rubrene crystal structure comprises two molecules in a unit cell. Figure 2 depicts the band structure along the k-path $\mathrm{\Gamma }$ – X – S – Y – $\mathrm{\Gamma }$ – Z – U -R – T - Z, where $\mathrm{\Gamma }$ -Z corresponds to the `a’ crystal axis and $\mathrm{\Gamma }$ -Y to the `b’ axis in real space [16].

3.3. Elastic Properties

The values of the computed C_ij show that the Born-Huang Stability criteria have been fully satisfied [46] which proves Rubrene to be mechanically stable. The estimated bulk modulus B, shear modulus G, Young’s modulus E, Poisson ratio, Pugh ratio, and Vickers Hardness using the Voigt-Reuss-Hill approximation are shown in Table 4 [47]. According to [48], a material is considered to be ductile if its bulk to shear modulus ratio, B/G, is more than 1.75; otherwise, it is brittle. The obtained Pugh ratio is 0.74667, which shows Rubrene to be brittle than ductile. This property implies the ability to break with minimal elastic deformation when stressed and no considerable plastic deformation. Brittle materials have more strength than ductile materials. Brittle materials are more resistant to compression. Even high-strength brittle materials absorb relatively little energy before breakage. This feature proves the ability of orthorhombic Rubrene as an organic semiconductor useful in redefining the future of flexible and stretchable electronics. Furthermore, the Poisson’s ratio can also prove the ductility of a material if the ratio is greater than 0.26 and brittleness is less than 0.26. The obtained Poisson ratio is 0.03292, which agrees with the Pugh ratio can classify orthorhombic Rubrene as brittle.

Table 3. Comparison of independent elastic constants of orthorhombic Rubrene obtained in this work, experiment and previous calculations.

Reference	This work	Ref. [20]	Ref. [34]	Ref. [34]
Method	PBE	AIREBO	vdw-DFT	Experiment
C11 (GPa)	18.8	15.54	25.31	18.48
C12 (GPa)	-8.7	1.08	6.94	2.63
C13 (GPa)	1.6	2.08	6.78	7.68
C22 (GPa)	13.6	17.85	16.99	13.39
C23 (GPa)	9.4	10.82	10.53	7.77
C33 (GPa)	14.6	13.29	13.94	14.32
C44 (GPa)	7.2	2.03	6.66	6.46
C55 (GPa)	13.2	1.97	4.41	2.8
C66 (GPa)	6.5	3.36	3.67	6.8

Table 3. Comparison of independent elastic constants of orthorhombic Rubrene obtained in this work, experiment and previous calculations.

Reference	This work	Ref. [20]	Ref. [34]	Ref. [34]
Method	PBE	AIREBO	vdw-DFT	Experiment
C11 (GPa)	18.8	15.54	25.31	18.48
C12 (GPa)	-8.7	1.08	6.94	2.63
C13 (GPa)	1.6	2.08	6.78	7.68
C22 (GPa)	13.6	17.85	16.99	13.39
C23 (GPa)	9.4	10.82	10.53	7.77
C33 (GPa)	14.6	13.29	13.94	14.32
C44 (GPa)	7.2	2.03	6.66	6.46
C55 (GPa)	13.2	1.97	4.41	2.8
C66 (GPa)	6.5	3.36	3.67	6.8

The Vickers hardness H_v is obtained as shown in Table 4. The hardness of a material measures its resistance to plastic deformation produced by applied forces. The result helps characterise the elastic and plastic properties of a solid. The predicted Vickers hardness H_v of 1.080 GPa was obtained for orthorhombic Rubrene using Chen’s model [49]. The result shows that orthorhombic Rubrene is far from hard and cannot be classified as superhard.

Elastic Constants $C_{ij}$ (GPa) = $\left[\begin{array}{cccccc}18.846944& -8.738236& 1.566589& 0.00000& 0.00000& 0.00000\\ -8.738236& 13.633697& 9.433130& 0.00000& 0.00000& 0.00000\\ 1.566589& 9.433130& 14.599899& 0.00000& 0.00000& 0.00000\\ 0.00000& 0.00000& 0.00000& 7.220388& 0.00000& 0.00000\\ 0.00000& 0.00000& 0.00000& 0.00000& 13.187243& 0.00000\\ 0.00000& 0.00000& 0.00000& 0.00000& 0.00000& 6.507988\end{array}\right]$ Calculated elasticity tensor for orthorhombic Rubrene

Also, the calculated reduced elastic constants and anisotropy ratio (C₂₂/C₃₃) of orthorhombic Rubrene obtained in this work is shown in Table 5. The values of reduced constants C₂₂, C₃₃, and the anisotropy ratio (C₂₂/C₃₃) are in close agreement with the result of Ref [34] from the experimental and vdw-DFT method. These findings may be beneficial not only for studying the strain effect on carrier mobility [16], but also for Rubrene’s actual use as a flexible electrical device [34].

Its directional elastic properties need to be analysed and visualised to better understand an anisotropic material such as Rubrene. This includes the young modulus, linear compressibility, shear modulus and Poisson ratio as shown in Figure 5. The debye temperature and average Debye sound velocity recorded in this research for orthorhombic Rubrene are 331.008K and 2384.484m/s, respectively (Table 4).

Table 4. Calculated Voigt-Reuss-Hill approximation moduli for orthorhombic Rubrene in this work

Method	PBE
Bulk Modulus (GPa)	4.163
Shear Modulus (GPa)	11.519
Young Modulus (GPa)	5.576
Poisson Ratio	0.03292
Pugh Ratio (B/G)	0.74667
Vickers Hardness (GPa)	1.08
Average Debye sound velocity ( m/s )	2384.484
Debye temperature (K)	331.008

Table 4. Calculated Voigt-Reuss-Hill approximation moduli for orthorhombic Rubrene in this work

Method	PBE
Bulk Modulus (GPa)	4.163
Shear Modulus (GPa)	11.519
Young Modulus (GPa)	5.576
Poisson Ratio	0.03292
Pugh Ratio (B/G)	0.74667
Vickers Hardness (GPa)	1.08
Average Debye sound velocity ( m/s )	2384.484
Debye temperature (K)	331.008

Table 5. Calculated reduced elastic constants and anisotropy ratio (C₂₂/C₃₃) of orthorhombic Rubrene obtained in this work, experiments and previous calculations.

Reference	Method	C22(GPa)	C33 (GPa)	Anisotropy ratio (C22/C33)
This work	PBE	13.6	14.6	0.93
[34]	vdw-DFT	15.08	12.12	1.24
[34]	Experiment	13.02	11.13	1.17

Table 5. Calculated reduced elastic constants and anisotropy ratio (C₂₂/C₃₃) of orthorhombic Rubrene obtained in this work, experiments and previous calculations.

Reference	Method	C22(GPa)	C33 (GPa)	Anisotropy ratio (C22/C33)
This work	PBE	13.6	14.6	0.93
[34]	vdw-DFT	15.08	12.12	1.24
[34]	Experiment	13.02	11.13	1.17

Young modulus is a mechanical property that measures the tensile/rigidity or stiffness of a material when the force is applied. It implies the ratio of the tensile stress to the proportional deformation/tensile strain.

$$\begin{array}{c}\hfill E=\frac{\sigma }{\epsilon }\end{array}$$

(1)

Where tensile stress $\sigma =\frac{F}{A}$ is the force per unit area and tensile strain $\epsilon =\frac{dl}{l}$ is extension per unit length. The young modulus reported for orthorhombic Rubrene in this work is 55.76 kbar which shows Rubrene as a non-rigid material (Figure 4a).

Linear compressibility or the bulk modulus helps describe a material’s behaviour when pressure is applied, which can be either negative or positive. The 2D and 3D surface plot (Figure 4b and Figure 5b) shows the positive values of linear compressibility plotted in green and the negative value in red. The result indicates that orthorhombic Rubrene crystal structure exhibits negative linear compressibility.

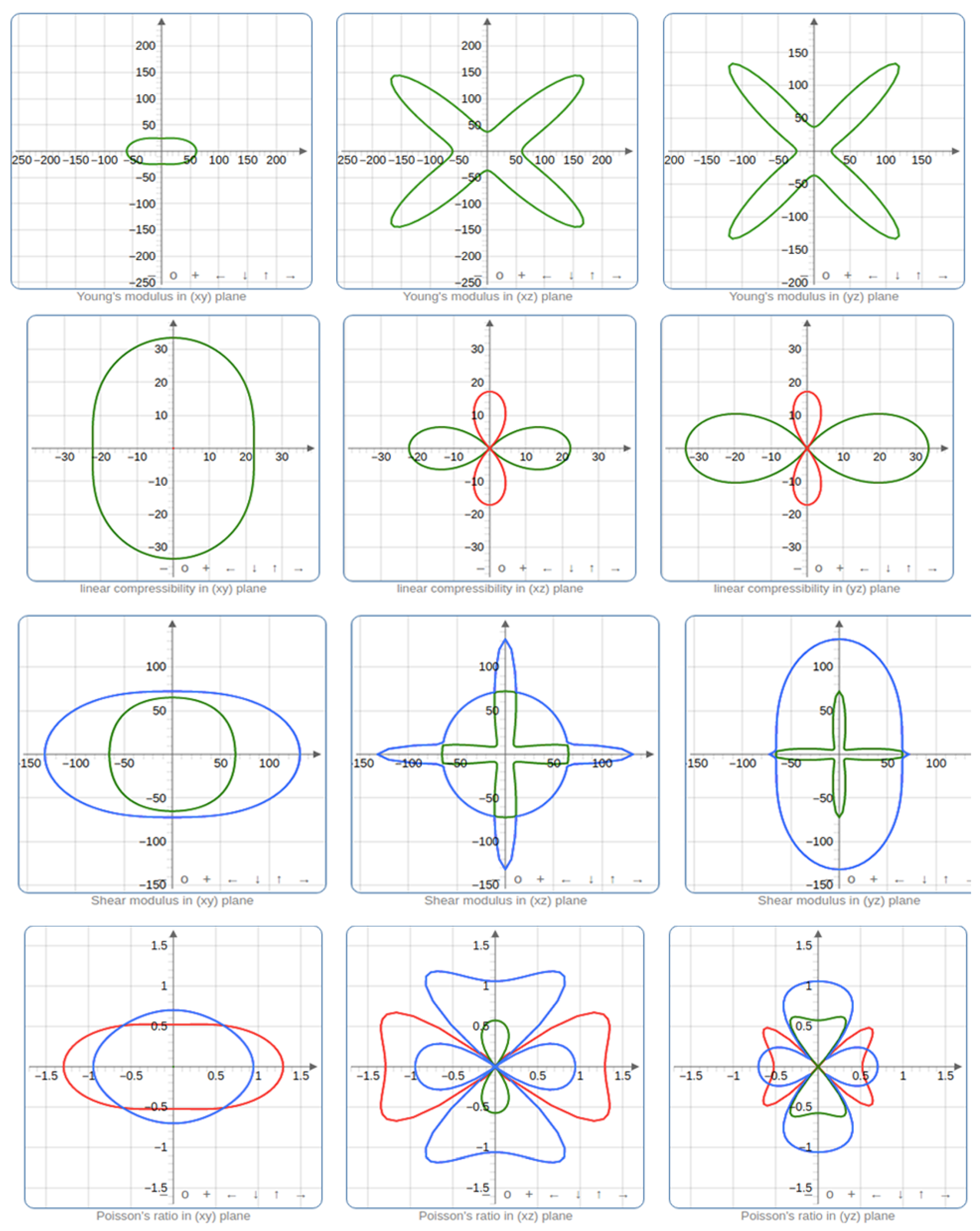

Figure 4. (a)Young’s Modulus, (b)Linear Compressibility, (c)Shear Modulus, and (d)Poisson Ratio’s in 2D showing its directional planes

Figure 4. (a)Young’s Modulus, (b)Linear Compressibility, (c)Shear Modulus, and (d)Poisson Ratio’s in 2D showing its directional planes

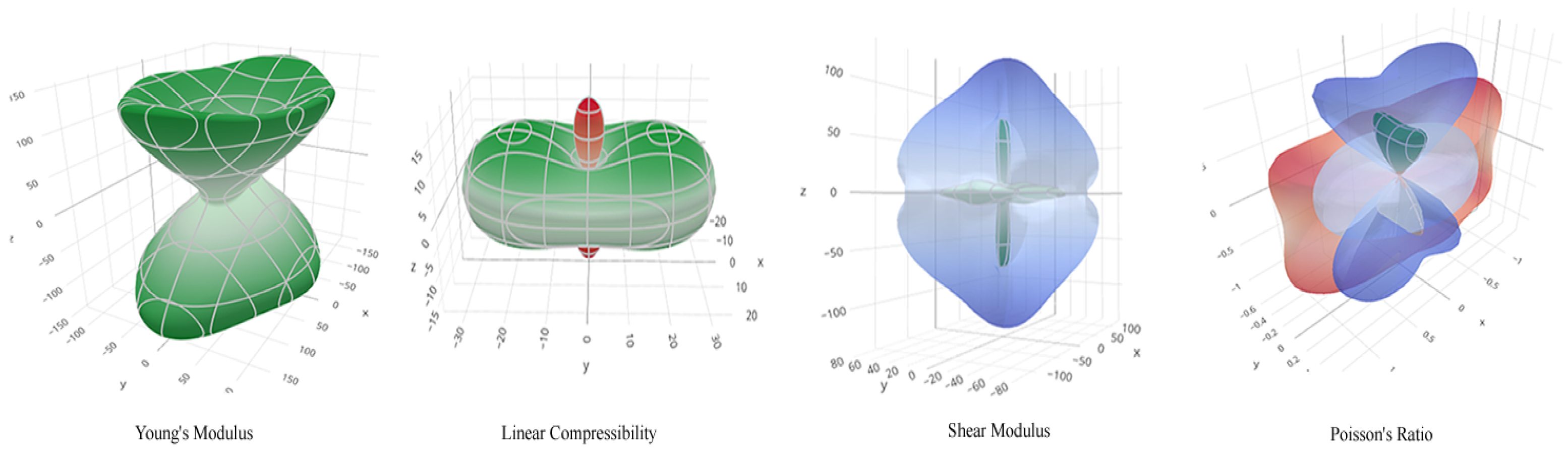

Figure 5. (a)Young’s Modulus, (b)Linear Compressibility, (c)Shear Modulus, and (d)Poisson Ratio’s in 3D showing its directional planes

Figure 5. (a)Young’s Modulus, (b)Linear Compressibility, (c)Shear Modulus, and (d)Poisson Ratio’s in 3D showing its directional planes

Shear modulus is the ratio of shear stress to the shear strain. It gives information on how resistant a material is to deformations as shown in Figure 4c and Figure 5c. The 2D and 3D plots of the Poisson ratio Figure 4d and Figure 5d showed the lateral strain and the longitudinal strain on orthorhombic Rubrene. Poisson ratio for elastic materials is the ratio of the lateral strain and longitudinal strain, which gives information on how materials deform under loading. However, the calculated Poisson ratio value is 0.03292, which lies between -1 to 0.5. The result showed the pristine form of orthorhombic Rubrene as almost perfectly incompressible as there is little or no transverse deformation when axial strain is applied.

3.4. Temperature and Doping Dependent Properties

To address the thermoelectric properties, the electronic fitness test is crucial as it evaluates the thermopower for arbitrary band structures and conductivity [32]. Suitable thermoelectric materials, in general, have intricate electronic structures that aren’t described by a simple parabolic band [32]. Therefore, electronic fitness function calculation is necessary to identify such materials and address the $\sigma$ (Conductivity) and S (Seebeck coefficient) conflict.

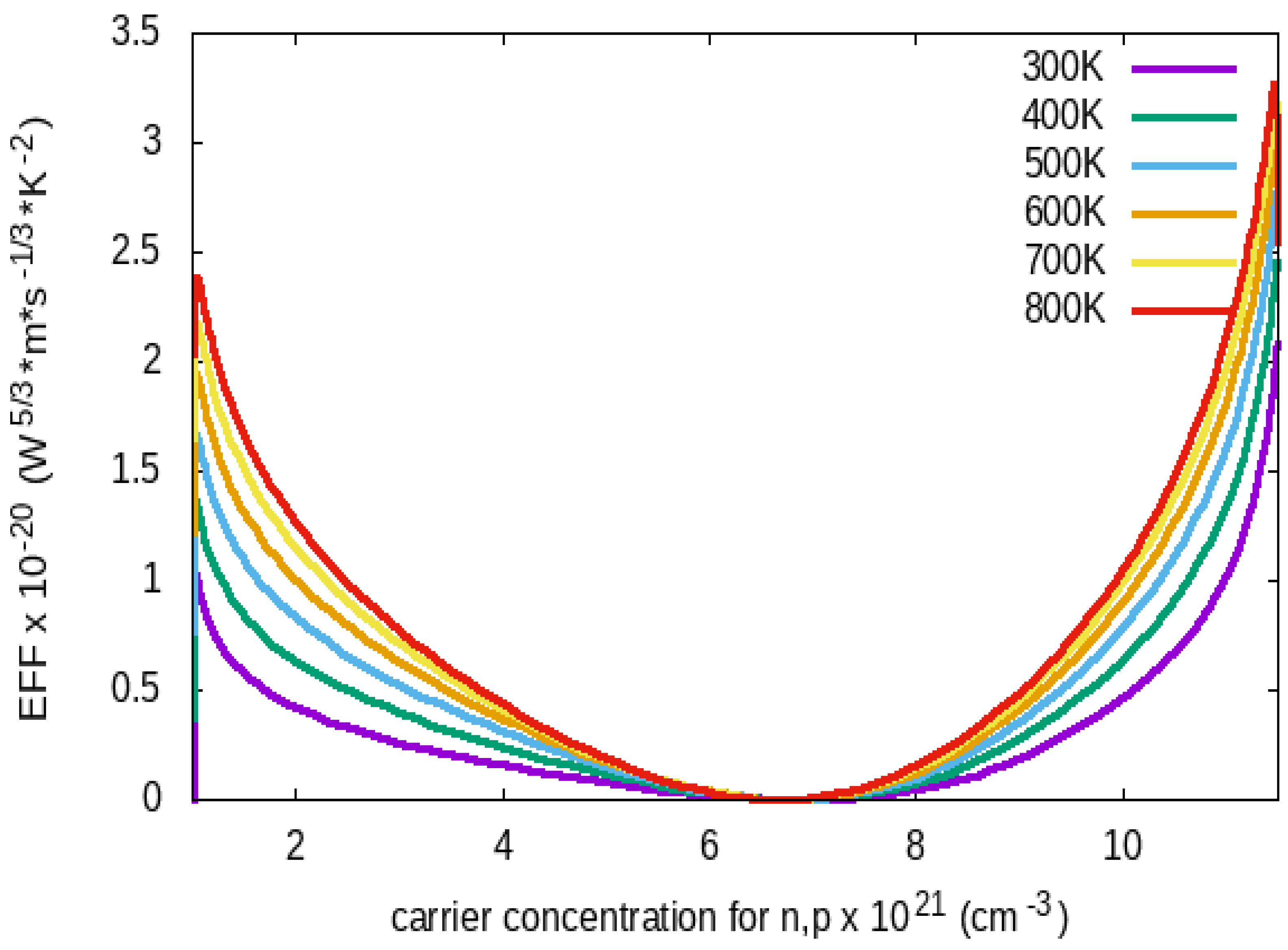

The Electronic Fitness Function (EFF) displayed in Figure 6 shows an increase with temperature for both concentrations, which is caused by the rising temperature and which improves its thermoelectric performance. There is a dip at carrier concentration 6.5 x 10²¹ for the hole concentration and reaches peak at 2 x 10²¹ and 1.1 x 10²². This work also predicted that orthorhombic Rubrene has a high electronic fitness function at about 500K. Organic semiconductors like Rubrene are mostly p-type semiconductors.

The structure for the EFF in Figure 6 shows larger p-type EFF values at high doping levels. This is attributed to the secondary conduction band contribution in Rubrene. Furthermore, as the temperature rises, it exhibits improved p-type performance. Valley anisotropy, higher band degeneracy, and multiband contributions in valence bands at higher energies, particularly at high doping levels, result in larger EFF in p-type materials. The features observed from these results show orthorhombic rubrene as a promising organic material for thermoelectric applications.

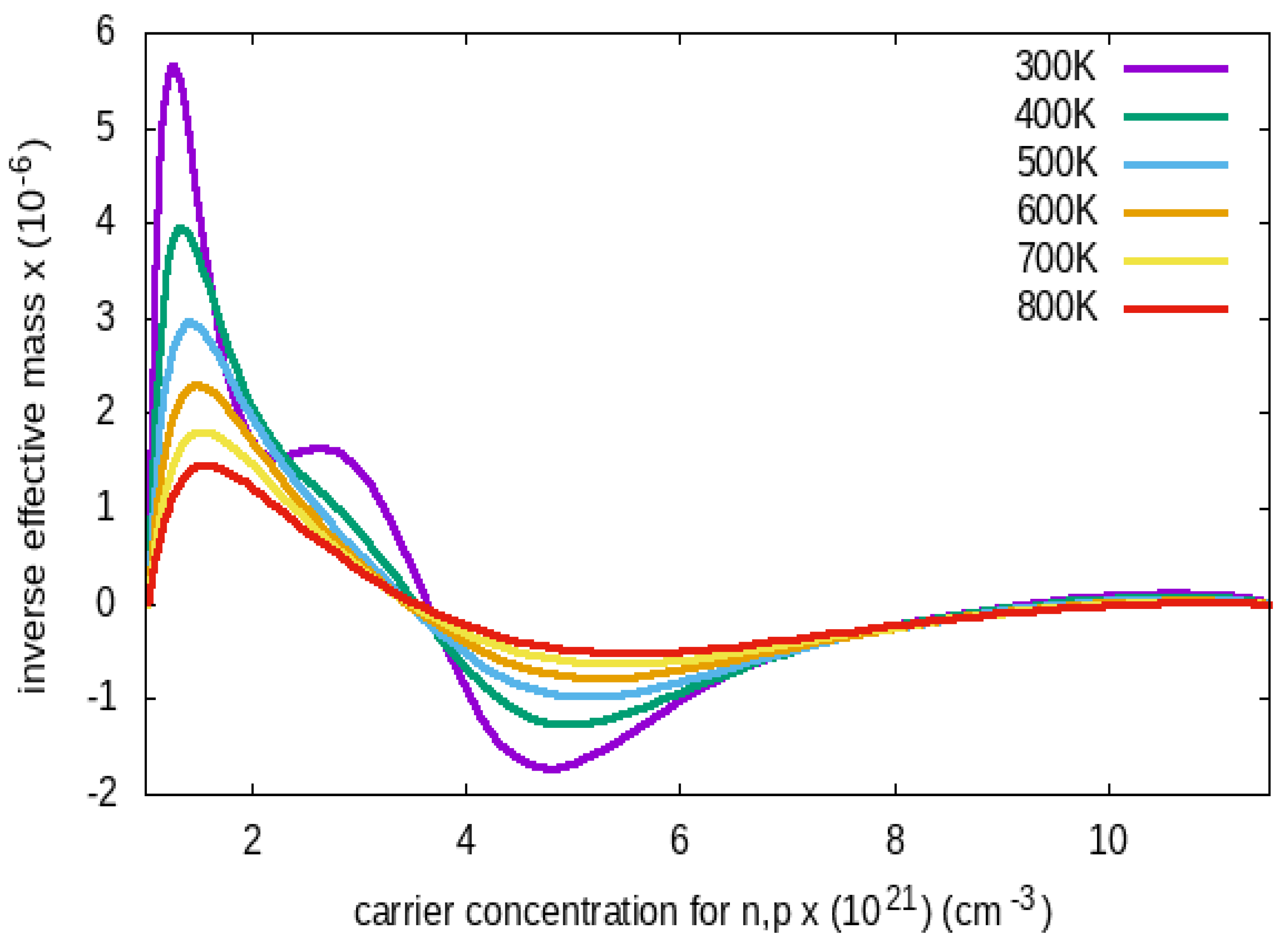

Figure 7 depicts the transport inverse effective mass as a function of carrier concentrations ranging from 300K to 800K. The result shows it exhibits a light, effective mass of holes. This agrees with the experiments performed in Ref [50].

Figure 7. Inverse Effective Mass as a function of the Carrier Concentrations from 300K to 800K

Figure 7. Inverse Effective Mass as a function of the Carrier Concentrations from 300K to 800K

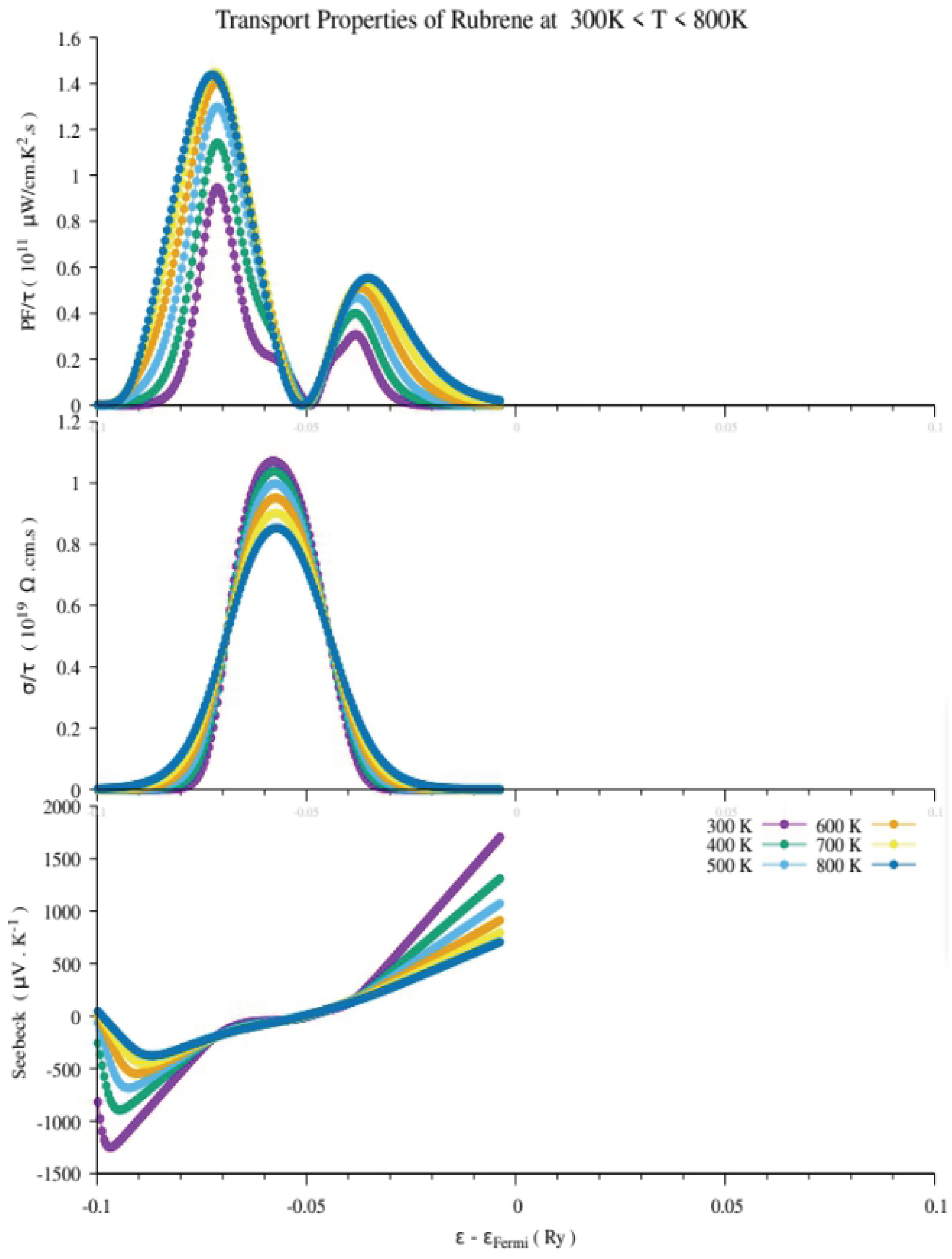

Figure 8. Transport properties of Rubrene showing the power factor, electrical conductivity and Seebeck coefficient, respectively.

Figure 8. Transport properties of Rubrene showing the power factor, electrical conductivity and Seebeck coefficient, respectively.

4. Conclusion

Using Density Functional Theory via First-Principles calculations, the structural, electrical, lattice dynamics, elastic, temperature, and doping-dependent characteristics of orthorhombic Rubrene were unveiled. Other properties, such as the Pugh ratio, Vickers hardness, electronic fitness function, and transport effective mass of the orthorhombic Rubrene crystal structure, are predicted in the present work.

The relaxed structure of orthorhombic Rubrene showed that it has a high charge carrier mobility. The band structure calculations show that orthorhombic Rubrene has a direct bandgap of 1.26 eV. This property makes it suitable for use in high-power electronics. The small bulk modulus (4.163 GPa) and Vickers hardness (1.080 GPa) reflect the orthorhombic Rubrene crystal structure as not super hard. The obtained Pugh ratio is 0.74667, which shows rubrene to be brittle rather than ductile. The calculated transport inverse effective mass and electronic fitness function confirm the orthorhombic Rubrene crystal structure to be a thermoelectric material of p-type. Furthermore, the results of the transport effective mass and the electronic fitness function obtained showed that Rubrene is a promising thermoelectric material that performs best at high temperatures of about 500 K.
