Surface Chalking upon Weathering of Dark-Colored PVC Articles and Relevant Stabilizers

1.1. Scope

The durability has gained more and more magnitude in saving resources in the context of the eco-design of the articles [1]. PVC articles have a primary role in this scenario as they are made up of a sustainable material contributing significantly to energy saving [2,3]. However, despite their noteworthy durability, there is still the need to improve their stability, particularly outdoors, where degradation phenomena such as photodegradation, photooxidation, photo-catalyzed oxidation, photobleaching, side chemical reactions, and thermal degradation occur. Dark-colored articles are particularly susceptible to color change [4,5,6] and it was also considered that colors of plastics may play a role in the plastic photoaging [7]. In this context, a key role is played by PVC stabilizers necessary to preserve the resin towards degradation in processing and during items' service life. Therefore, it is crucial to understand the chemical mechanism underlying the degradation phenomena to design more effective stabilizers. Many scientific papers have been published on the thermal degradation of PVC, and they are discussed in Ref. [8,9,10,11,12,13,14,15,16]. Although many studies have been published, a complete review of outdoor weathering mechanisms leading to chalking is still missing.

Thermal, photochemical, and chemical phenomena act simultaneously during the natural outdoor weathering of PVC. It is well known that PVC degrades thermally through a zip-like elimination of hydrogen chloride (HCl) with consequent conjugated polyene sequences formation. Studies [12,17] have confirmed that it acts through an ion-pair mechanism where free radicals generated by the interaction between HCl and polyene sequences plays a crucial role [18].

The Theory section describes the weathering mechanisms in detail and step by step.

Experimental section has the aim to study the impact of some acid scavengers in extending the durability of dark-colored PVC articles upon weathering, and specifically their impact on chalking. To this latter aim, natural and accelerated weathering tests are used to confirm the reliability of fast methods to screen the appropriate stabilizer recipes.

1.2. Theory

1.2.1. Introduction

As PVC is only transparent at wavelengths more than 250 nm, the initiation is likely due to chromophores found in the PVC resin. However, polyenes rapidly become the main absorbing species among chromophores due to their high extinction coefficient [19]. Only polyene sequences with more than four double bonds can interact with sunlight at the ground, as the atmosphere screens wavelengths shorter than about 290 nm (Table 2, [20]).

When photons hit the PVC item, two kinds of reactions take place. The first generates conjugated polyene sequences and HCl [19]. The chromophores absorb the photons, and one of the non-radiative pathways releases Cl radical, starting the zip-elimination fast before oxygen can be involved [19]. This yields conjugate polyene sequences and their crosslinking. The UV screen from polyene sequences protects the matrix from further degradation.

A second series of reactions involves oxygen, and it causes a severe photooxidation, bringing to chain scission and the formation of carbonyls (Figure 1, Figure 2). Zip elimination will dominate where oxygen is lacking. Therefore, it will take place underskin and is called photodegradation. The second series of reactions will take place in the proximity of the surface, where oxygen concentration is high: it is called photooxidation (Figure 1, Figure 2). Titanium dioxide can promote a strong photooxidation, and this is called photocatalyzed oxidation. Fillers, commonly found in the PVC compound, can react with HCl, impacting on weatherability of the article. When the photo or photocatalyzed oxidation destroys the surface, it exposes the photodegraded underskin to light and oxygen, and the polyene sequences are oxidized through photobleaching [21].

Figure 1 outlines the overall first stage of the PVC photodegradation and photooxidation mechanism leading to chain scission, polyene sequence formation, and crosslinking, depending on the exposure conditions [19].

As evident from the calculated quantum yields (Table 1), the presence of oxygen also enhances the chain scission and triggers the generation of peroxides and ketones [19].

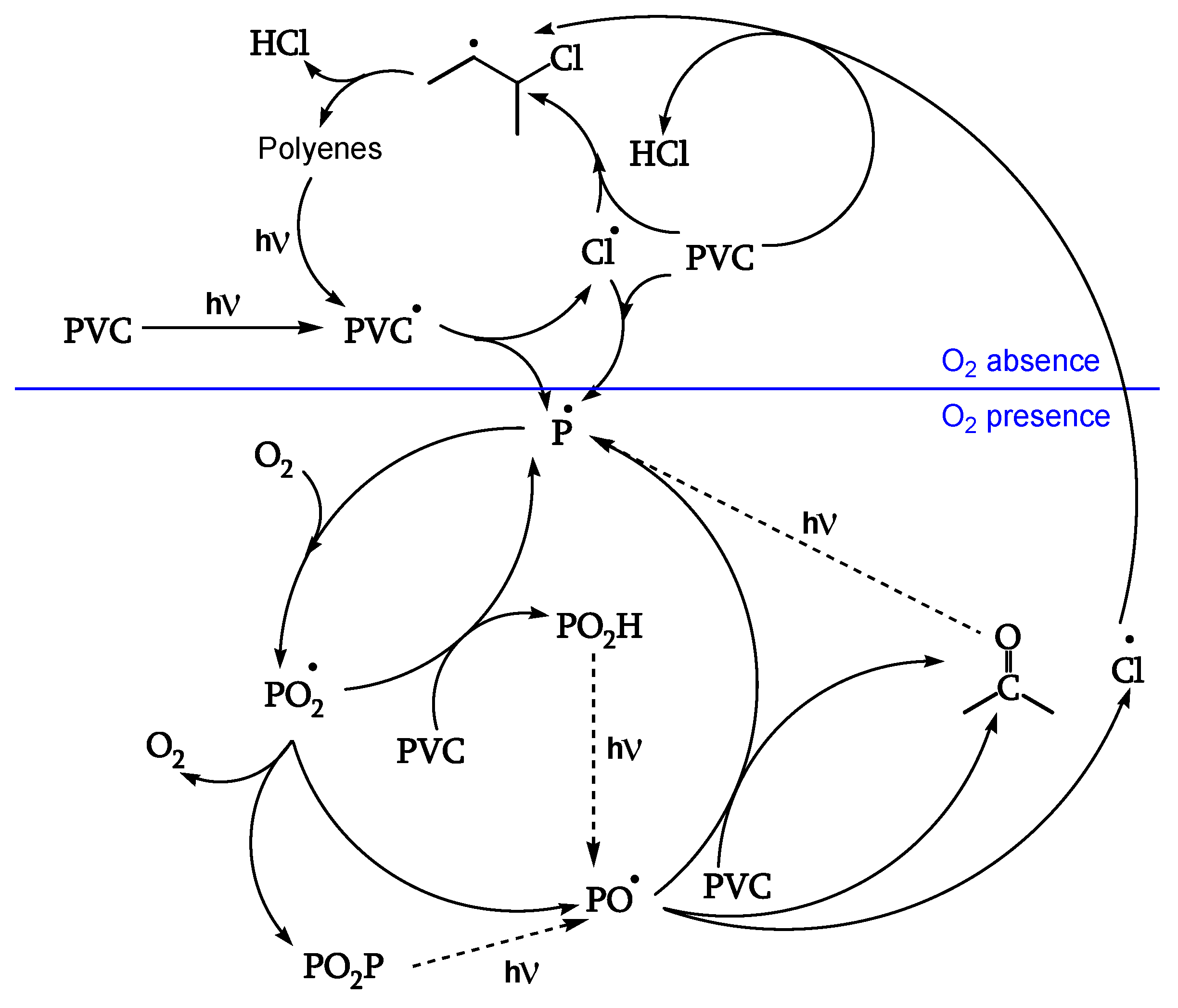

The reactions of Figure 1 are also described in Figure 2 in a simplified form with complete lines. This latter Figure, however, also outlines two subsequent degradation stages.

In fact, the reaction goes further in a second stage (dashed lines in Figure 2), leading to photocleavage of peroxides and ketones and generating further initiating radicals [19].

The following paragraphs will detail the chemistry of photo-degradation and -oxidation.

1.2.2. Photodegradation

1.2.2.1. Initiation

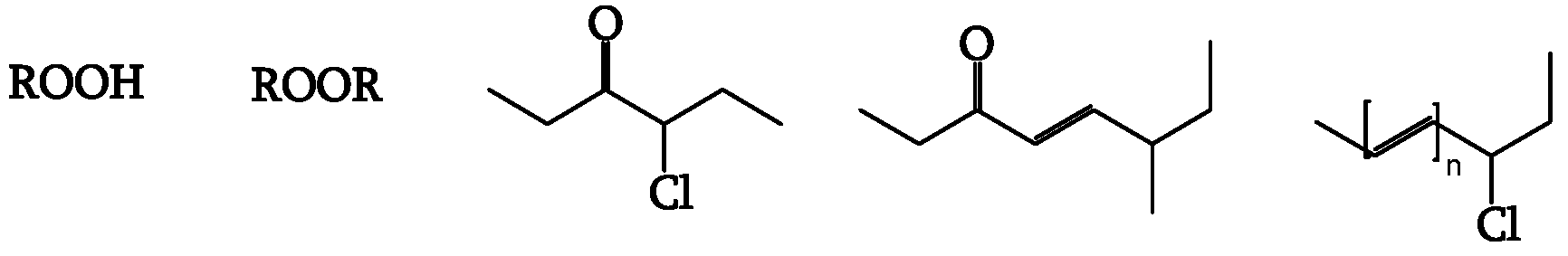

Impurities and chromophores trigger photodegradation. Polyenes, hydroperoxides, and ketones are possible chromophores (Figure 3).

Hydroperoxides generate radicals upon light irradiation (Figure 4, [22]) as well as ketones do through Norrish type I reaction (Figure 4, [23]). Polyene sequences, having a high extinction coefficient, are the most absorbing chromophores [19]. Table 2 [20] gives the UV-visible absorptions of polyenes of different lengths.

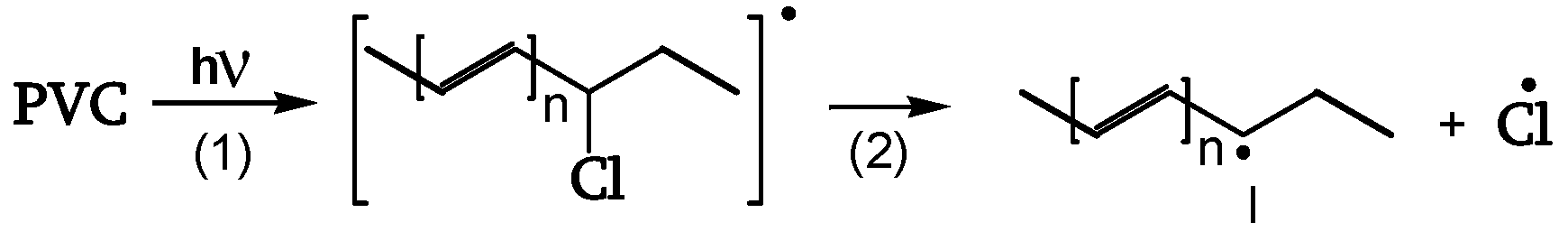

Moreover, photodegradation studies in the presence and absence of oxygen showed the independence of the quantum yield of HCl on the irradiation time and the initial amount of unsaturation. That leads to the hypothesis of alkene-photo-sensitized degradation processes [19,24].

In this processes, excited singlet polyenes deactivate by radiative and non-radiative processes. Only 1% of absorbed photons generates HCl due to the restricted mobility that favors radical recombination (reaction 2 of Figure 5) [19].

1.2.2.2. Polyene formation

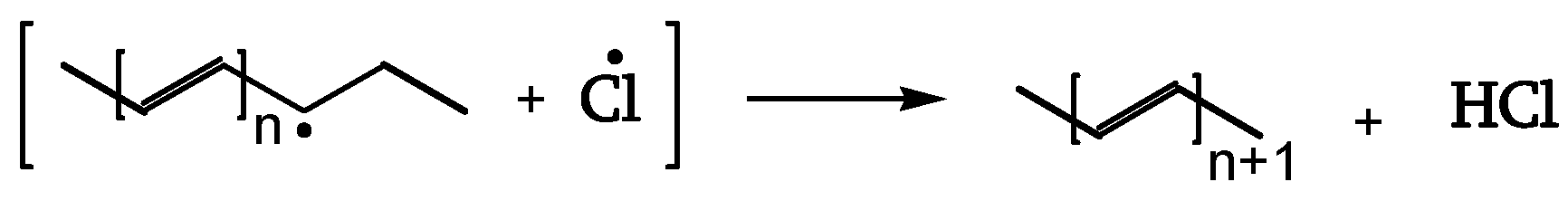

Cage reaction of Cl• with the adjacent CH₂ leads to termination and HCl evolution (Figure 6).

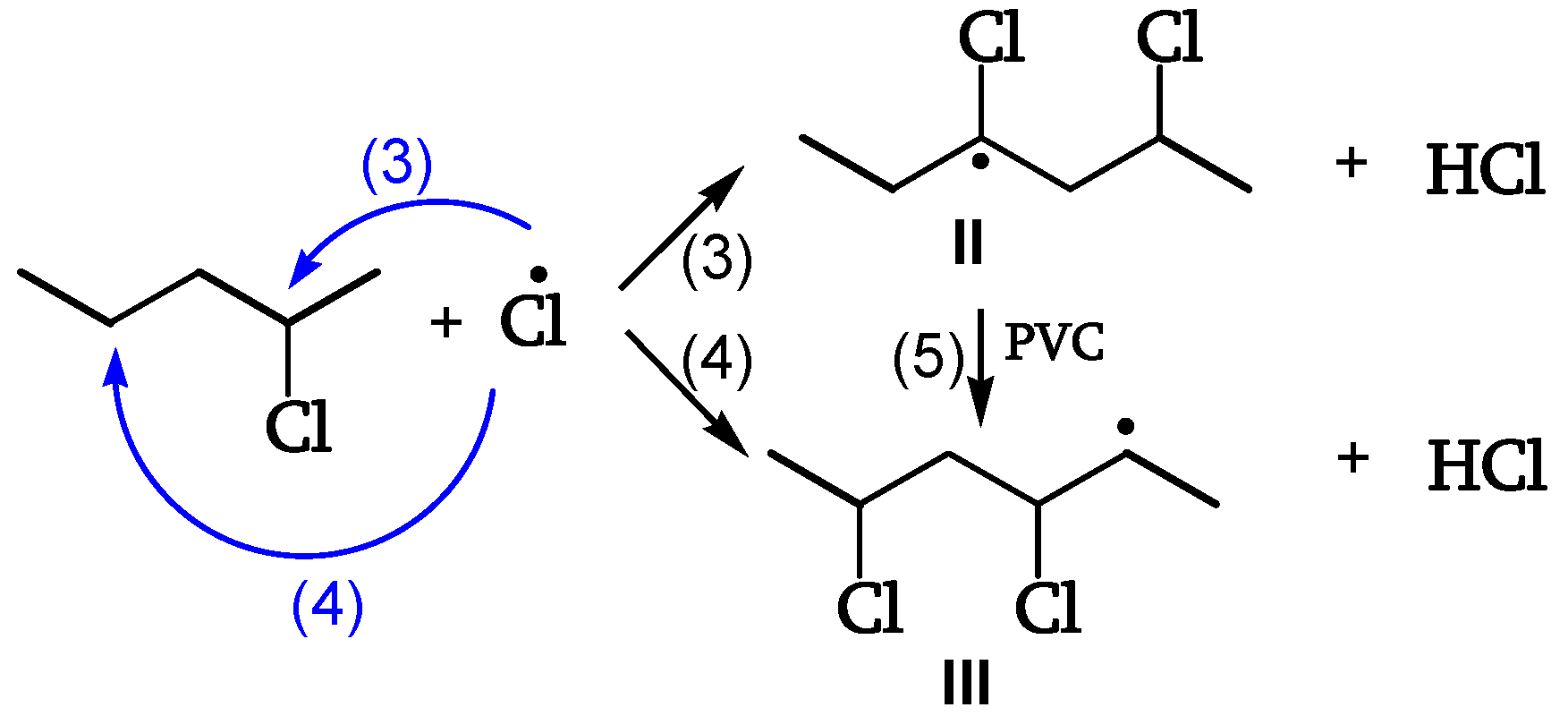

Cl• escaping the cage abstracts H from CHCl (reaction 3) or, preferably (five times faster), from CH₂ (reaction 4). The unstable radical (II) yields the α-radical (III) (Figure 7, [19]).

The β-chloroalky radical (II) splits off a Cl• (reaction 9). That Cl• (cage reaction 10) reacts with the close-by CH_2, initiating the dehydrochlorination, generating polyenes of increasing length (dashed line) (Figure 8, [19]).

1.2.2.3. Chain scission and crosslinking

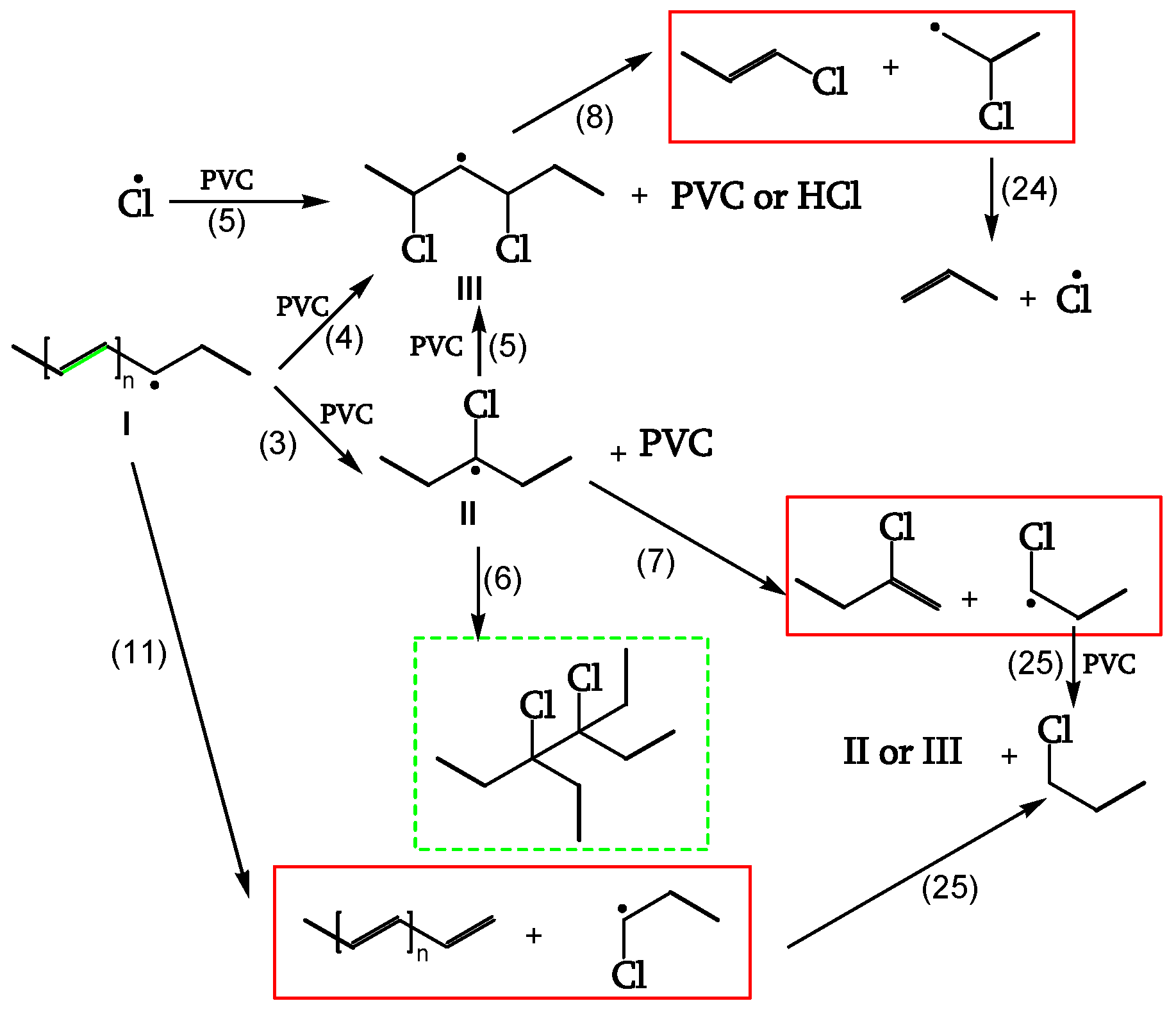

Radicals can be stabilized by β-scission (chain scission) of C-C bonds (reactions 7, 8, 11). The released radical fragments (•CHCl-CH₂- or •CH₂-CHCl-) propagate either by reacting with PVC to regenerate II and III (reaction 25) or by splitting off a Cl• (reaction 24). Radical III is sufficiently stable and provides crosslinking (reaction 6) (Figure 9, [19]).

1.2.3. Photooxidation

1.2.3.1. Initiation

The same initiation occurs in the presence or absence of oxygen, as the excited singlet polyenes (with very short lifetimes, about 10^-9 sec) cannot be quenched by it (Figure 5, [19]).

1.2.3.2. Peroxidation

The polyenyl radical I (contrary to the less stable radical II) reacts with oxygen (reaction 12) to give peroxy radical IV. The attack on CH₂ of the PVC chain yields radical II (reaction 13). The attack on the CHCl of the PVC chain yields radical III (reaction 14). Radical III does not have labile β-Cl and reacts with oxygen to give γ-chloroalkylperoxy radical V (reaction 15) (Figure 10, [19]).

1.2.3.3. Reaction of the peroxy radical

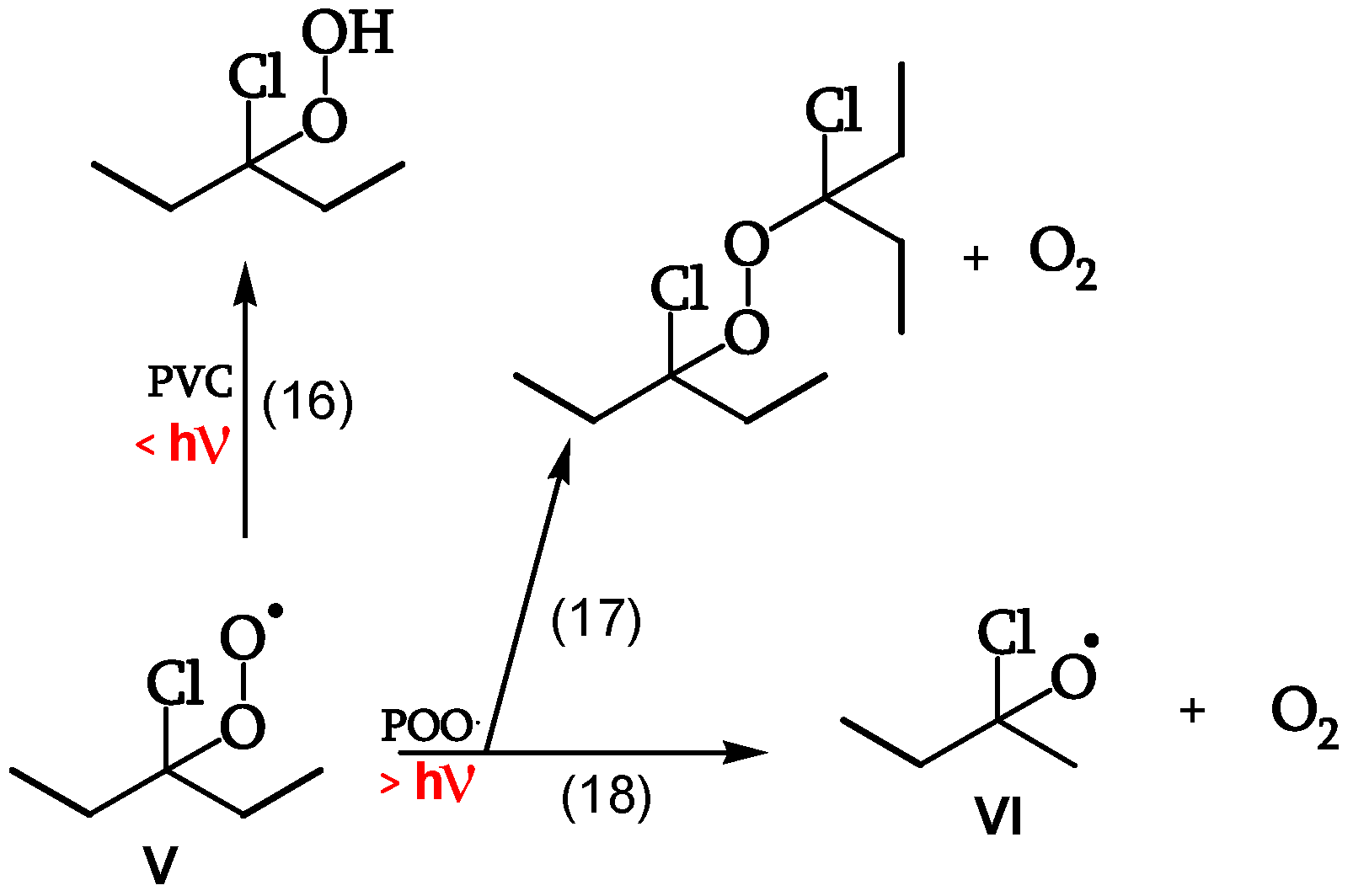

At low irradiations, radical V abstracts H from PVC (reaction 16). The same radical V, at higher irradiations, either reacts with another peroxy radical to give "termination" (reaction 17) or reacts with another peroxy radical to give alkoxy radicals VI (reaction 18) (Figure 11, [19]). Peroxide obtained by reaction 17 is a photoreactive re-initiating site.

1.2.3.4. Reaction of the alkoxy radicals

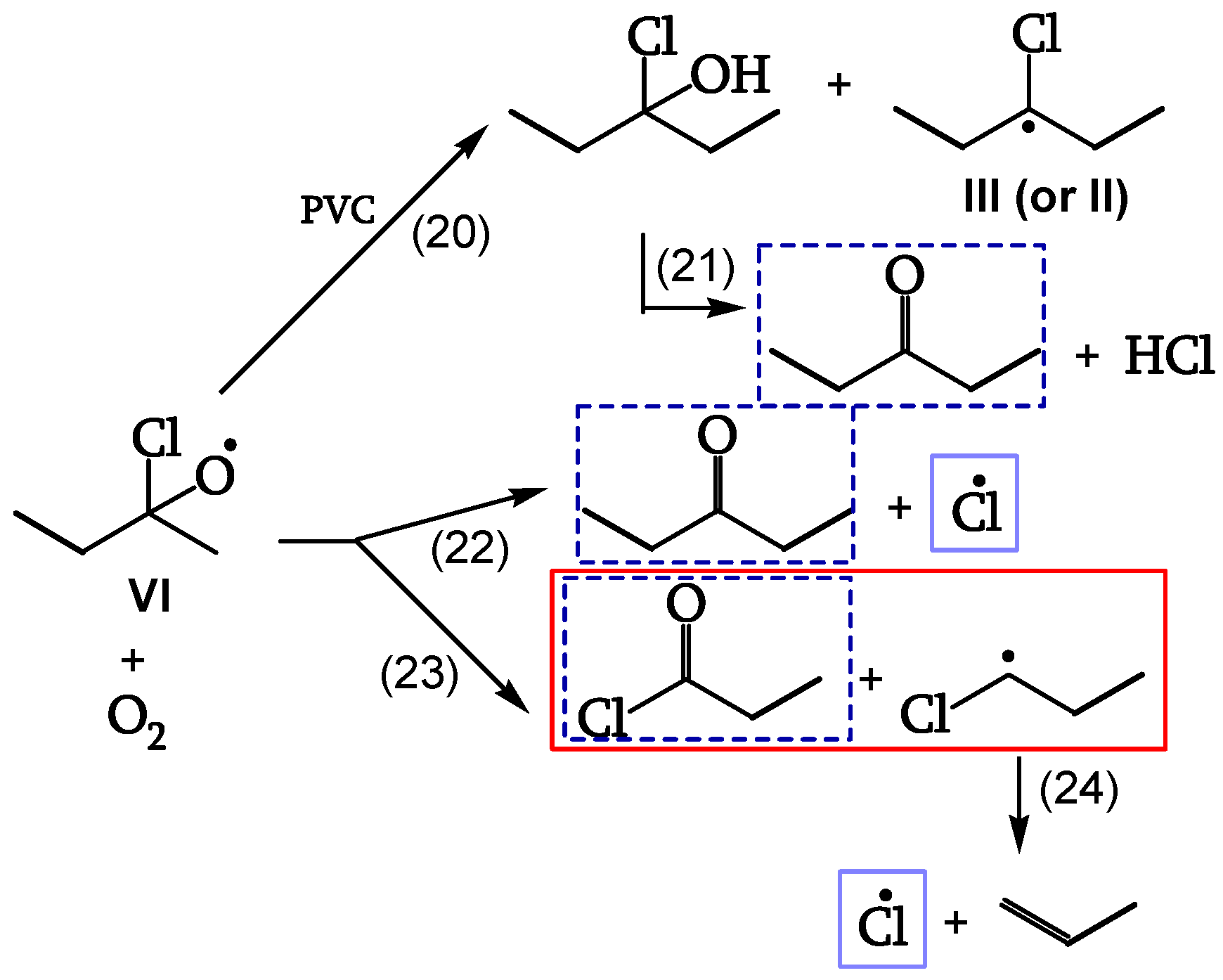

Alkoxy radical VI either abstracts H from PVC (reaction 20), eventually decomposing to the corresponding ketone (reaction 21), or is stabilized by β-scission, giving ketones and either Cl• (reaction 22) or chain scission (reaction 23). These additional Cl• account for a 40% increase of θ _HCl in the presence of oxygen (Figure 12, [19]).

1.2.3.5. Termination

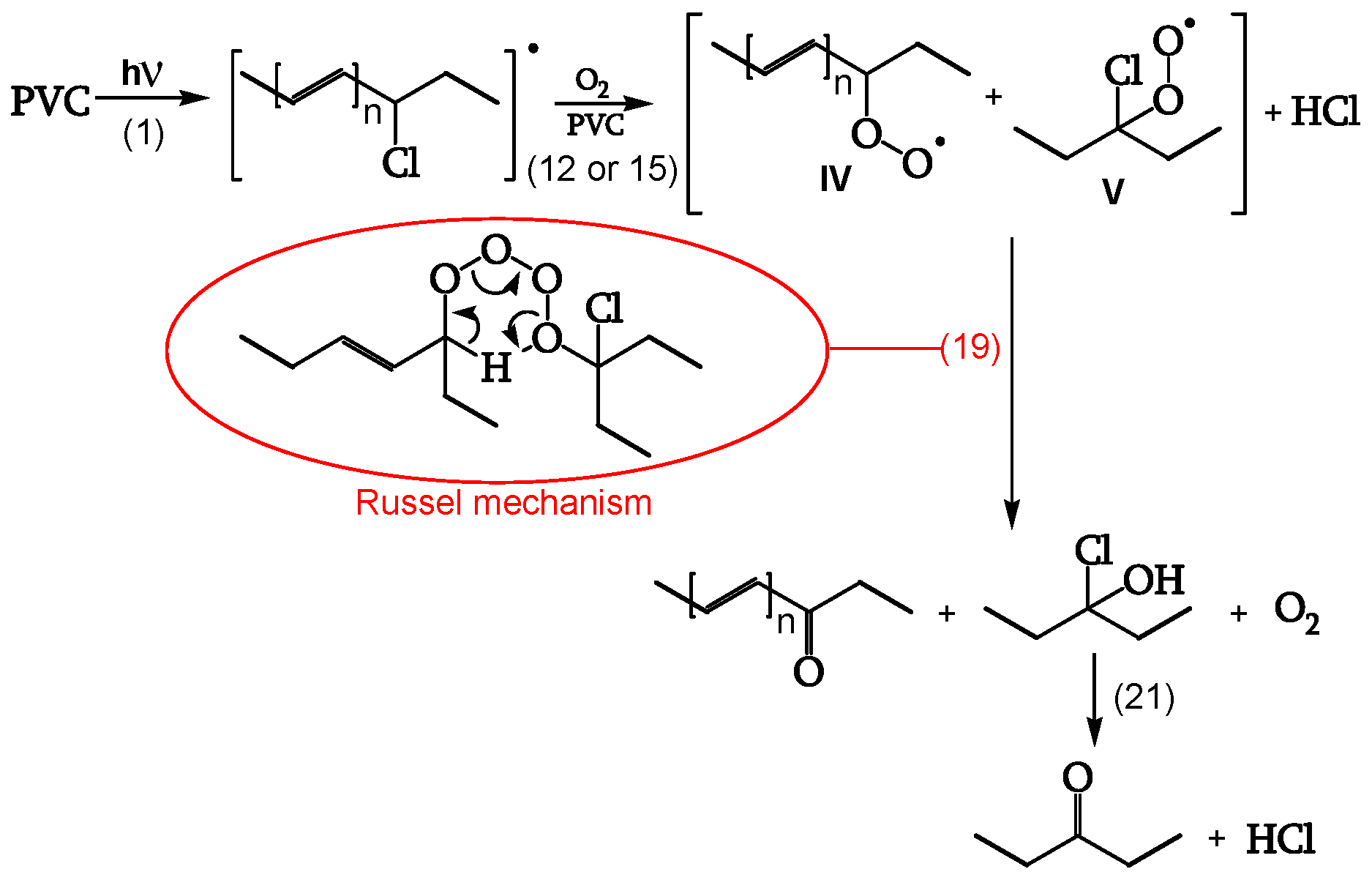

Cage reaction between peroxy radicals IV and V, via a Russel mechanism (reaction 19), leads to a ketone and an α-chloroalcohol. The α-chloroalcohol decomposes to give a ketone (reaction 21). That is why θ _C=O > θ _POOH, as evidenced in Table 1 (Figure 13, [19]).

1.2.4. Photobleaching

Experiments in Ref. [21] were carried out, irradiating with UV lamp samples of PVC (with and without oxygen) and then irradiating them with a lamp emitting in the solar spectrum region (i. e. 515 nm). In this second stage, a lowering of the absorbance was attributed to the photobleaching of conjugated double bonds by oxygen, winning the competition with their formation (Figure 14).

This kind of bleaching also occurs in the dark, and

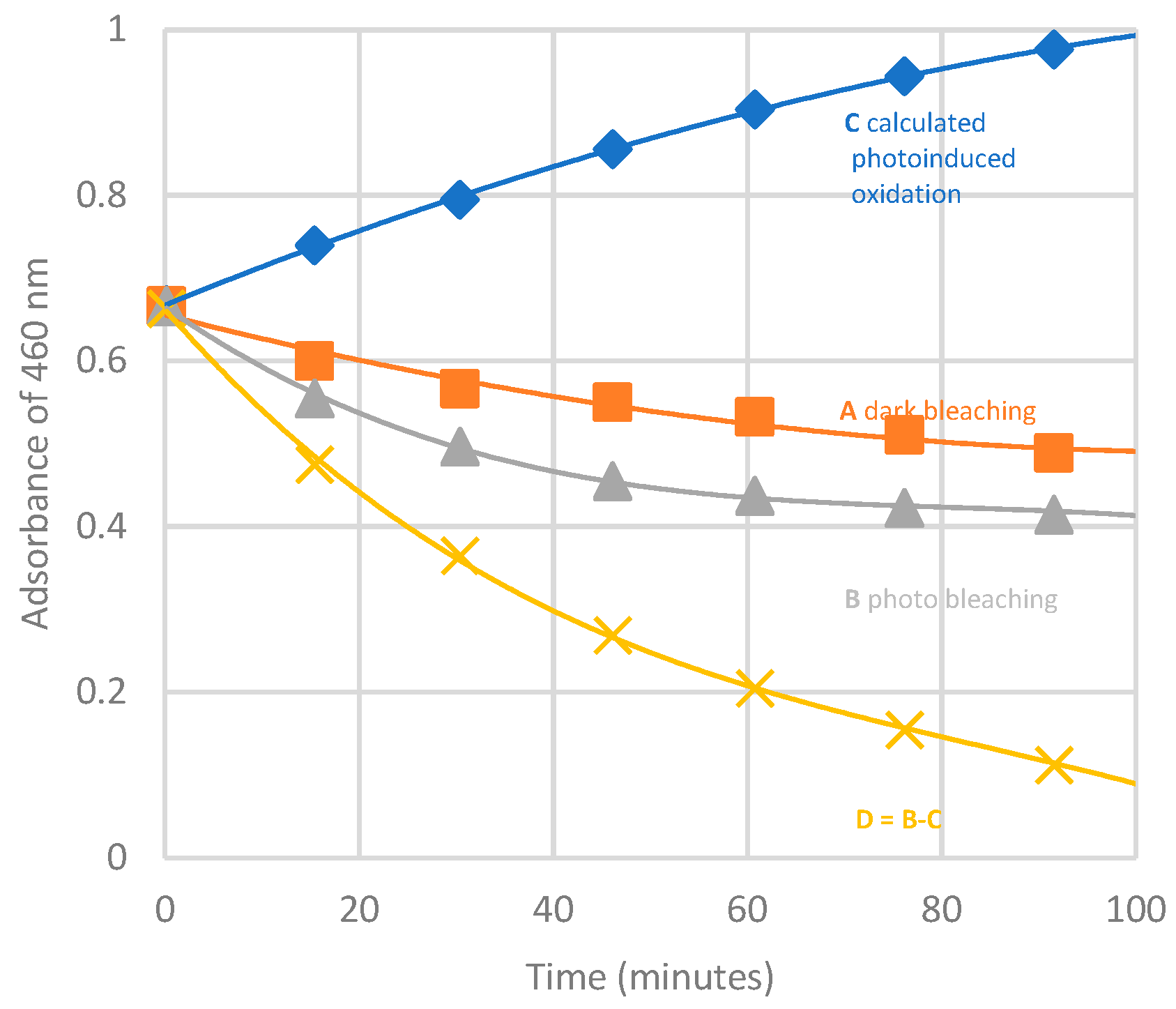

Figure 15 describes the neat contribution of photobleaching when the absorbance increase from polyenes formation is subtracted.

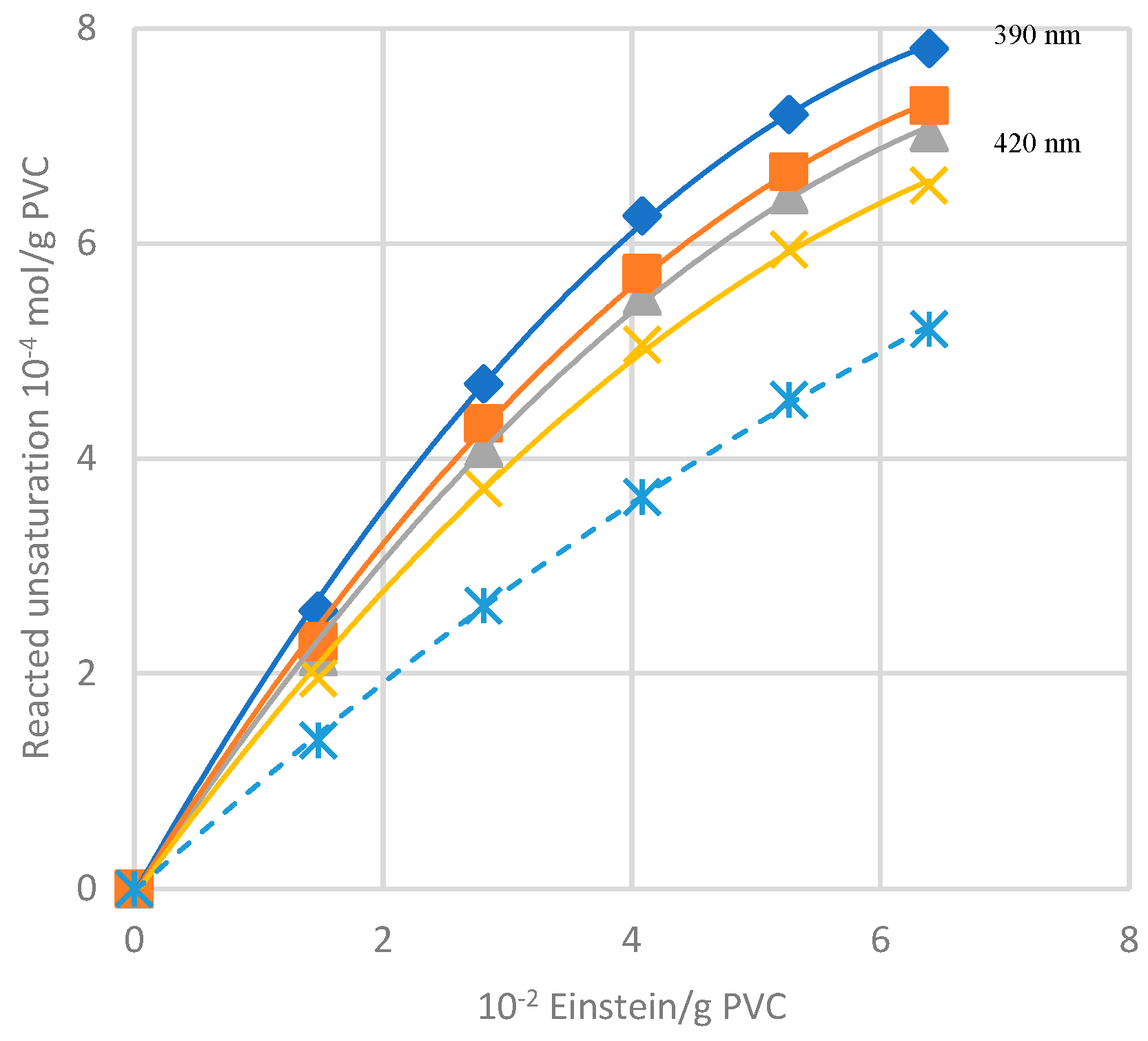

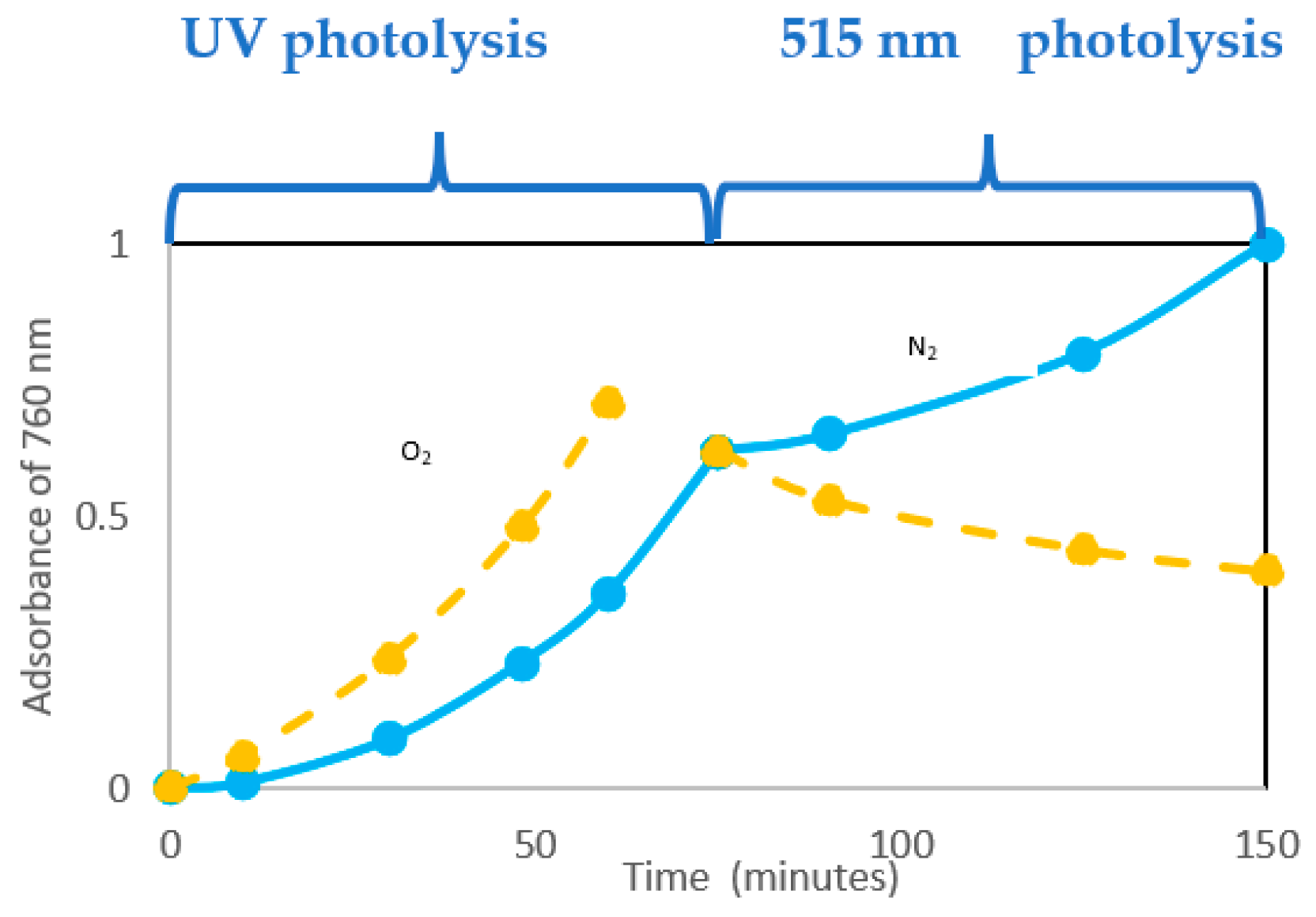

Figure 14 shows the extent of photobleaching (full lines) vs. dehydrochlorination (dashed line) under photolysis. The quantum yield of photobleaching is higher than dehydrochlorination one (θ _{photobleaching} = 1.5*10^-2 vs. θ _HCl = 0.9*10^-2). Θ _{photobleaching} is not very dependent on the wavelength. Thus, it is similar regardless of the length of the conjugated polyene sequence (as it will be schematically described in Figure 16).

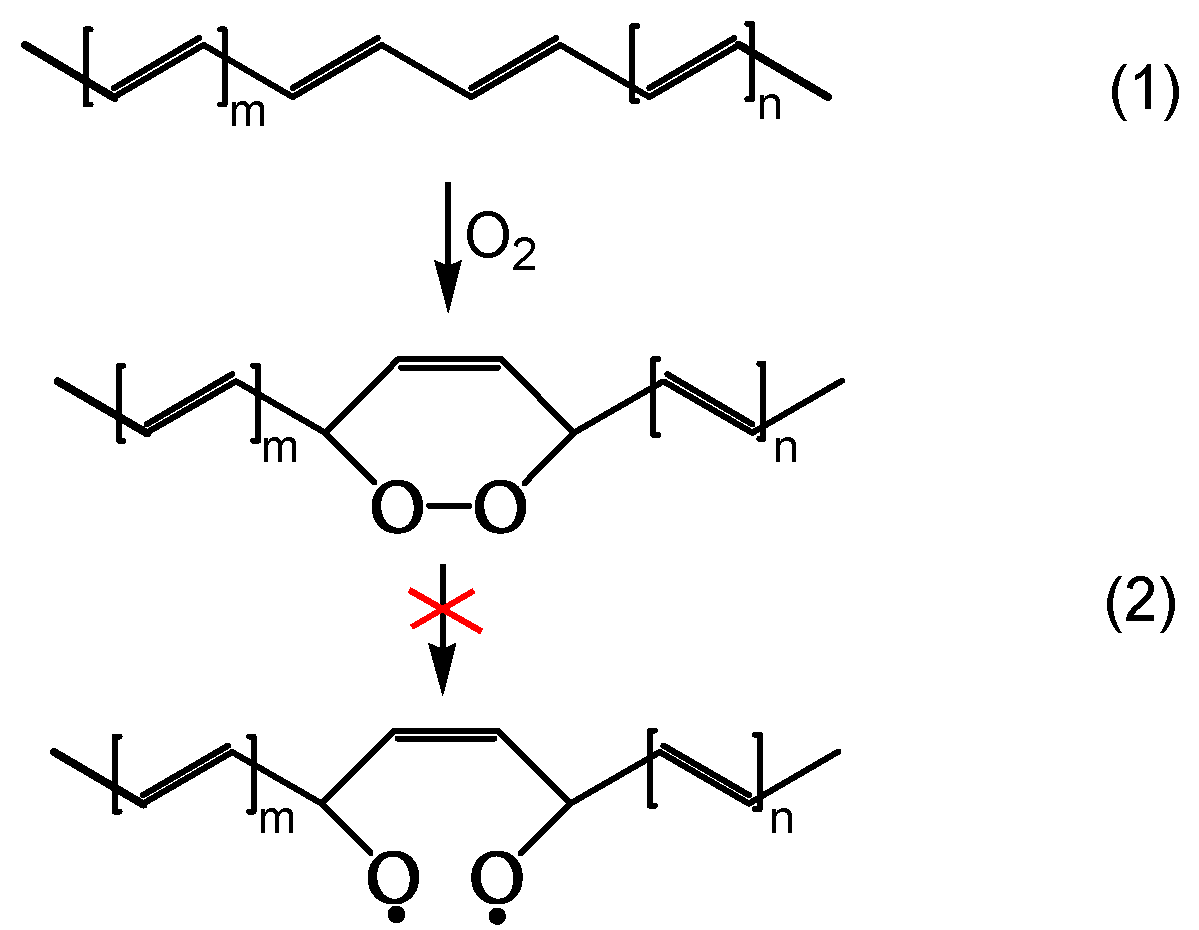

The mechanism leading to dark bleaching involves a step where ground-state oxygen reacts with polyenes (reaction 1 of Figure 17), generating stable cyclic peroxides at room temperature. Their stability stems from very little HCl evolved during oxygen bleaching in the dark.

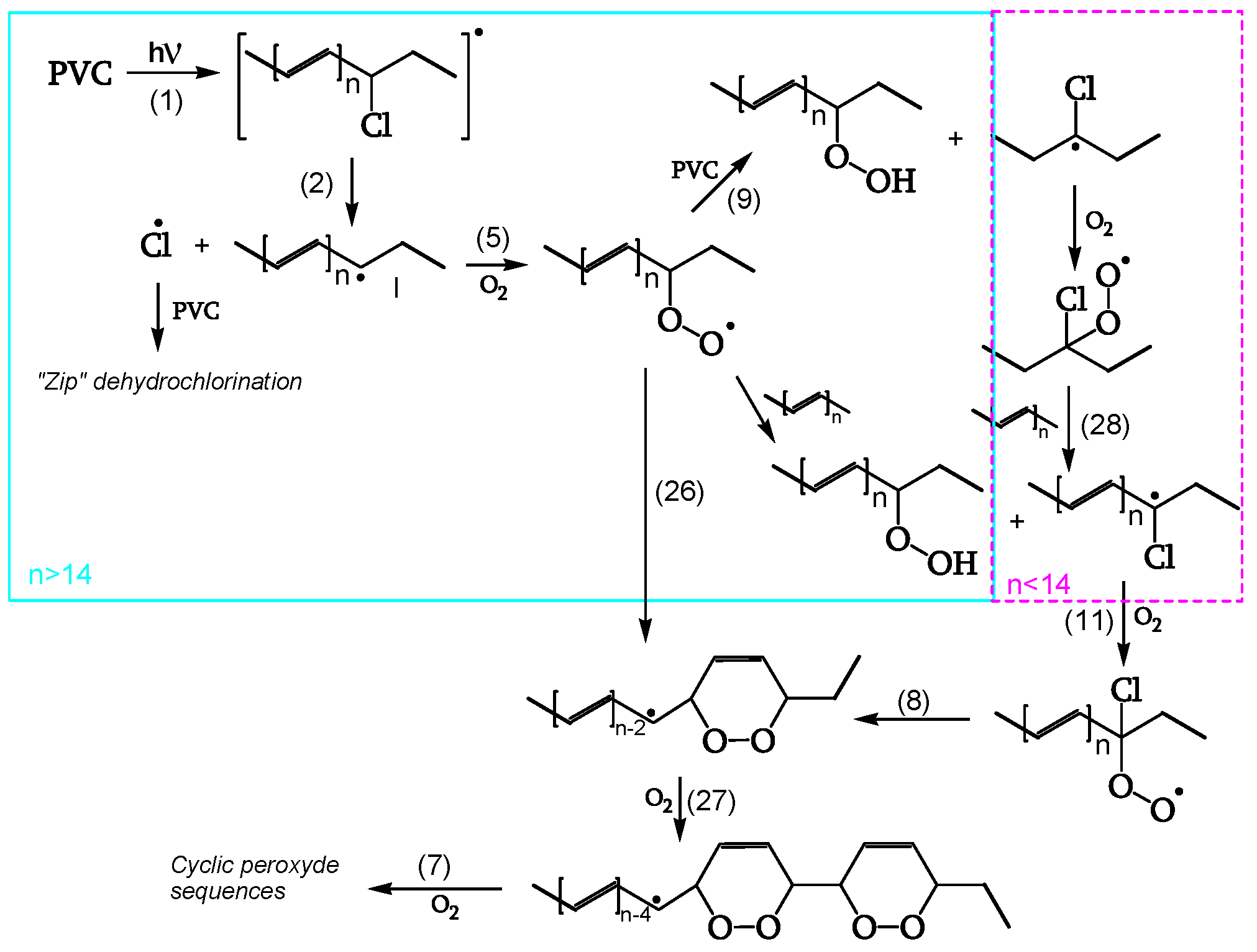

Unlike the dark one, in photobleaching (Figure 18), polyenyl radical I is stable enough to react with oxygen (reaction 5). The resulting polyenyl peroxy radical may form cyclic peroxides (reaction 26). Then, a step-by-step polyene sequence shortening follows, forming adjacent cyclic peroxides (reactions 7, 27). Reactions 26 and 27 also apply to shorter polyene peroxy radicals resulting from reactions 5, 11, and 28, thus accounting for the bleaching of polyenes with n < 14 (not absorbing the 515 nm radiation).

1.2.5. Segmentation of degradation layers

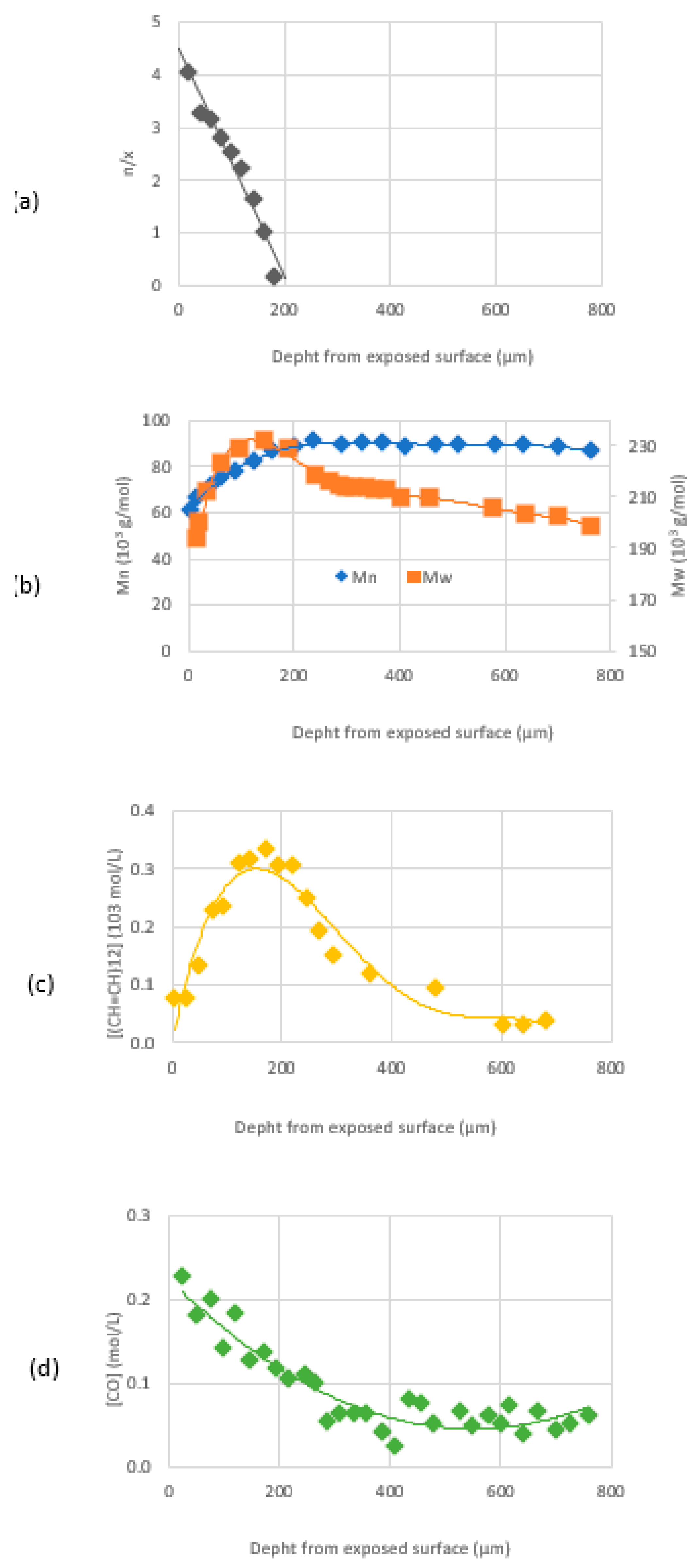

Studies on the generation of polyenes and carbonyl species in the presence of stabilizers have been done and led to the conclusion that the (photo)oxidation is diffusion-controlled [25]. This concept was completed by further studies on crosslink/chain scission ratio, molecular weight, presence of polyenes, and carbonyl species along the thickness of an article exposed to sunlight (Figure 19, [26]).

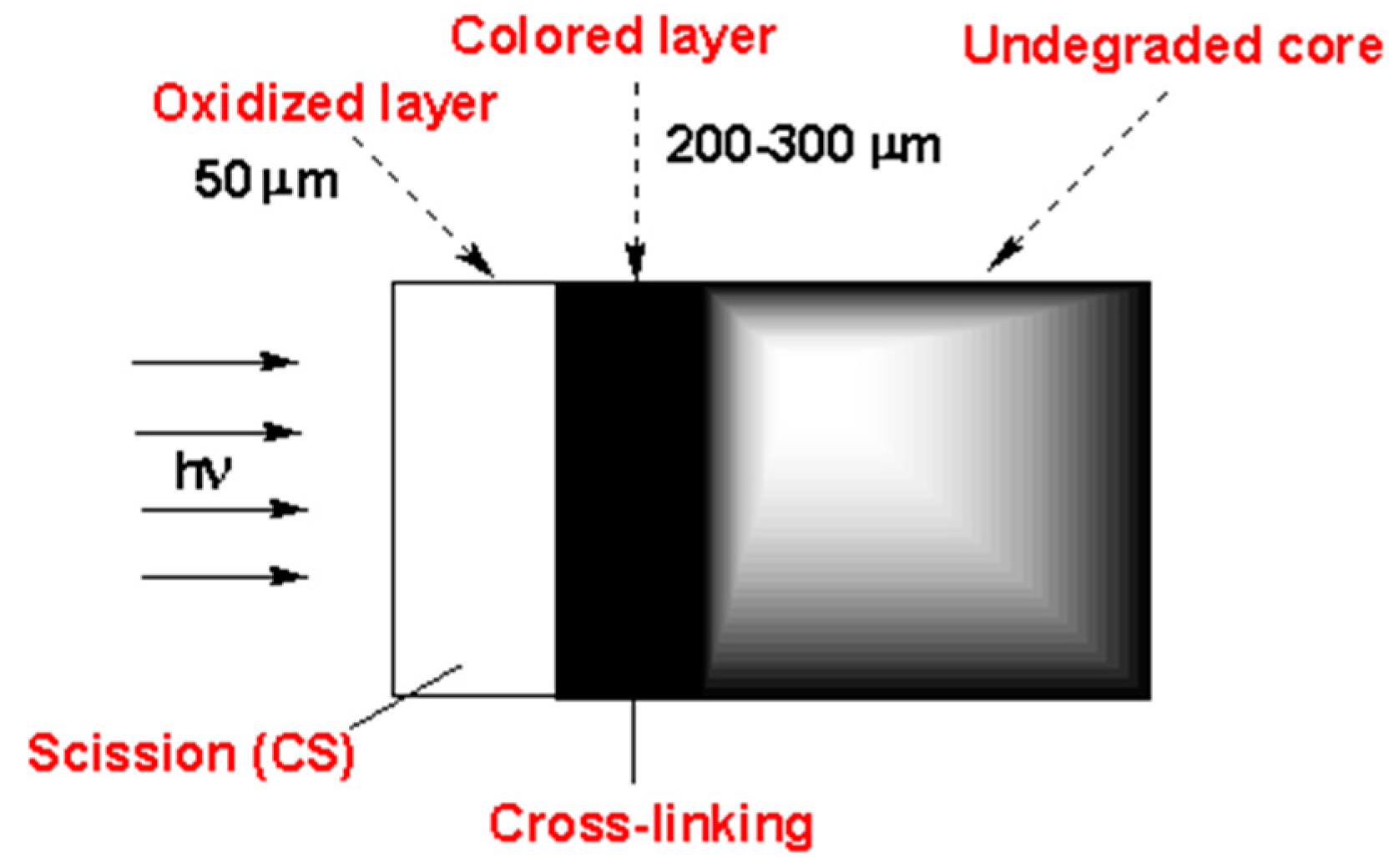

That showed that there are three zones (roughly indicated by the different colors in Figure 20) along the thickness of a PVC article exposed to sunlight:

• A superficial one (about 50 microns thick) with the predominance of oxidation products and chain scission: oxidation is oxygen diffusion-controlled in this region, and chain scission results from oxidation reactions and is followed by chalking.
• A lower underskin zone (between 50 and 300 microns) with a predominance of conjugated polyenes. This region is dominated by crosslinking (resulting from C• radicals) and polyene growth.
• An undegraded core zone beyond 300 microns. In this region, photochemical reactions do not occur as the photons are screened by polyenes when they are more and more generated after a specific time.

The formation of the two superficial degraded layers is because:

1

at the beginning of the exposure, the irradiation layer (X1) is higher than the diffusion-controlled Oxidation layer (Xco)

4

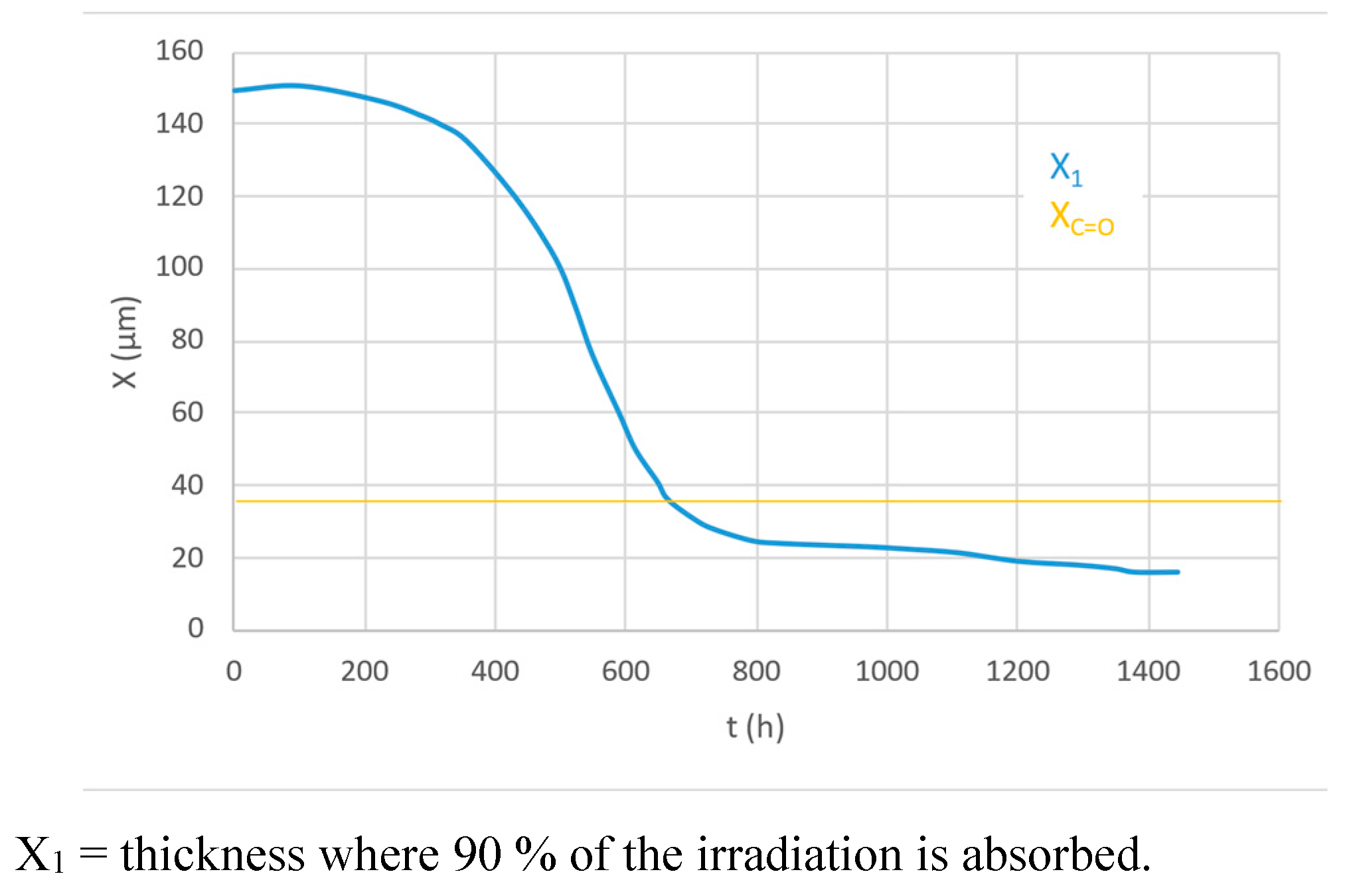

later on, polyene build-up provides a screen effect, and the irradiation layer (X1) becomes lower than the oxidation layer (Xco); this prevents any progression of the oxidation front towards the core (Figure 21, [27])

1

at a certain point in time, the superficial layer is embrittled by oxidative chain scission and cracks producing chalking that is, naturally, mechanically removed from the surface

5

the polyenes, lacking their «protective layer» undergo photobleaching, shifting the boundary between degraded zones towards the core.

The sequential generation of dark polyene sequences, their bleaching, and eventually the erosion of the cracked surface triggers the typical cyclic change of color in outdoor exposure [28,29].

The thickness of the oxidation profile (Xco) increases with higher temperatures due to the higher diffusivity of oxygen, while it is independent of irradiation intensity. The depth of the max polyenes concentration decreases with higher irradiation intensity and increases with higher temperature.

As the outer layer of PVC degrades, particles of pigment like titanium dioxide and fillers like CaCO₃ are released, producing a white powdery deposit: this phenomenon is known as "chalking." It is known that different colors may affect plastic photoaging by influencing its solar absorbance [7]. In addition, as chalking makes the article look whitish, this phenomenon is more apparent in dark-colored samples than in white-pigmented ones. This particular weakness of dark-colored articles is well-known and is an actual challenge for manufacturers [4-6].

1.2.6. Effects of pigments and fillers

1.2.6.1. Effects of titanium dioxide pigments

Figure 22 shows that titanium dioxide limits light penetration to 1-fifth. (Figure 22c). The fact that the thickness of the degraded layer is 1-third (Figure 22a for carbonyls, b for polyenes) [30] is due to the following reasons:

• UV light penetration decreases with time as polyenes buildup
• Small radicals such as OH● and Cl● diffuse beyond the irradiation layer
• Photoreactions can be initiated by wavelength radiation close to the titanium dioxide cut-off (i.e., the limit between transmittance absorption and scattering, 365 nm)

In addition, it is also well known that, despite its screening effect, titanium dioxide (if not adequately coated or in the anatase form) promotes polymer degradation [31]. Furthermore, due to the PVC surface layer's degradation, titanium dioxide contributes to the chalking phenomenon described above, in presence of water, as usually it happens in hot humid climates such as Florida. On the other hand, chalking is not a common issue in hot dry climates. This behavior is due to the typical mechanism through which TiO₂ brings the oxidation of the organic substances in presence of water [32,33].

1.2.6.2. Effects of fillers

Fillers also influence the degradation and chalking of weathered PVC articles. CaCO₃ is an example of a filler capable of reacting with HCl from PVC degradation to give the water-soluble calcium chloride. Its washout leaves holes, increasing the surface area subject to degradation and worsening the weathering. This phenomenon is increasingly evident if the filler amount rises [34].

1.2.7. HCl effect on Carbonyl formation and inhibition

Schemes of Figure 1 and Figure 2 do not involve HCl in the reactions in the presence of oxygen. However, it was observed that in PVC photooxidation, there is a first autocatalytic phase in the formation and a subsequent inhibition phase for carbonyl species (

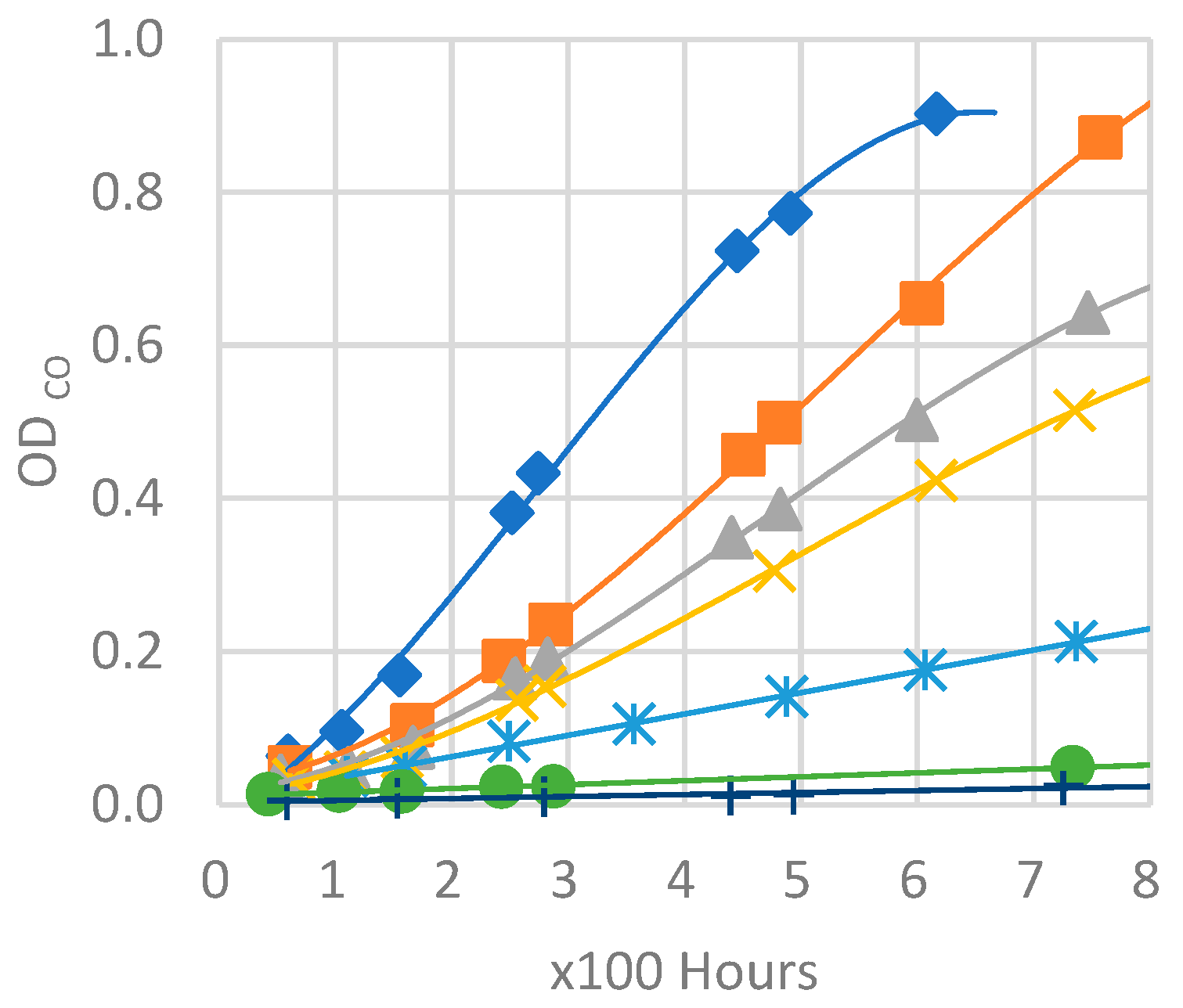

Figure 23, [35]). As evident at short and long irradiation times, the initial auto-acceleration and the final auto-inhibition are favored when the thickness is high: the diffusion of a reactant from the sample to the atmosphere can thus control their kinetic behavior.

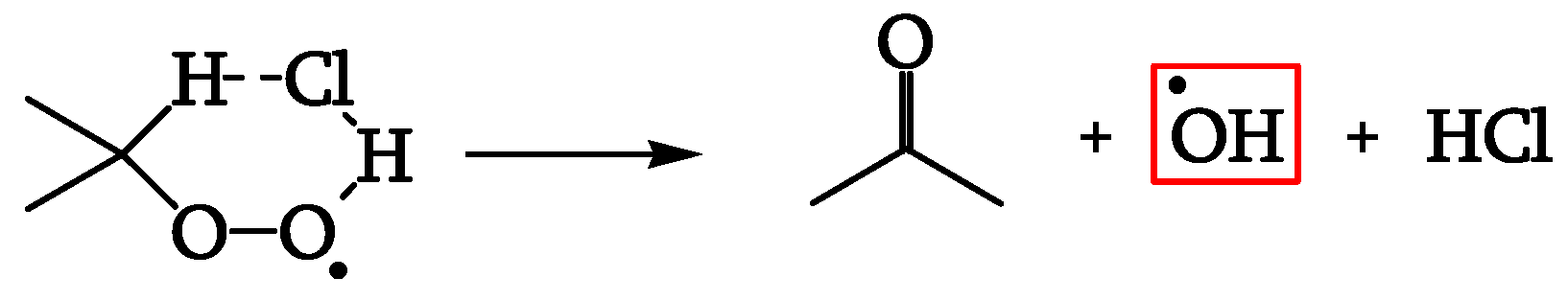

This reactant may thus be a gas such as HCl, which can explain the initial auto-acceleration with hydroxyl radical formation (Figure 24).

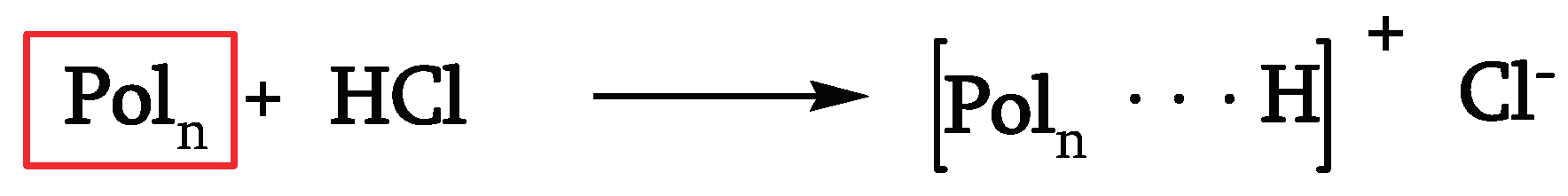

HCl can also explain the final auto-inhibition. A charge transfer complex of HCl with polyenes (not photochemically active, differently from polyenes themselves) is described in the literature (Figure 25),

2. Experimental

As degradation results in cracking and the final effect is the chalking of the surface, this mainly affects the color variation of dark-colored articles. For this reason, several dark green samples were prepared, as this color is particularly affected by weathering.

In the presence of pigments with high light fastness, the color change is due mainly to the chalking from the degraded surface rather than the degradation of the pigment itself. As shown above, carbonyl formation is limited to the surface as well (§ 2. 3.). Therefore, as HCl seems to play a role in the carbonyl formation (§ 2. 5.), samples with higher and higher loading of acid scavengers were prepared to study their effect on surface degradation of the dark green colored samples. Several acid scavengers are available and, among them are hydrotalcites (also exchanged with different metals such as zinc, lithium, tin, titanium, zirconium), hydrocalumite, ettringites, dawsonites, garnets, calcium and magnesium hydroxides, zeolites, metal carboxylates, organic phosphites, epoxy compounds. Their general mechanism of action is well known and reviewed in literature [36].

2.1. Materials and methods

Samples are manufactured using a base formulation made up of 100 parts w/w of PVC K65 from Vynova, 15 parts w/w of calcium Carbonate Valtochim from Umbriafiller, 0.25 parts w/w of acrylic processing aid Reamod P220, lubricants REALUBE RL/105 CP (0.3 parts w/w), REALUBE SS 16-18 (0.2 parts w/w), REALUBE PO (0.15 parts w/w), Calcium-Zinc Corepack (1.8 parts w/w) from Regens S.p.A.. V5000179 precolor PVC Dark green Cool Type from MASTER TEC GmbH is the selected pigment, has a high light fastness and contains titanium dioxide, too.

2.2. Sample preparation

The formulations in Table 3 were prepared by adding the indicated acid scavengers to the base formulation, prepared as described above, into a dry blend obtained using a PlasMec laboratory high-speed heater and cooler mixer combination. A sample without any acid scavenger is not presented as, in its absence, PVC samples would not have been obtained as it is a key component of thermal stabilizers too.

The following protocol was used for the blending:

-

Ambient temperature: Start low speed – add all components – switch to high speed

-

110°C: Discharge the heater mixer into the cooler mixer

-

40°C: Discharge cooler mixer

All specimens (cut into pieces of 2 bv 10 cm) have been produced by a Bausano MD30 fully instrumented parallel twin-screw extruder with the following parameters:

-

Temperature profile: 145, 150, 160, 170, 165, 190, 195°C

-

Screw speed: 22 rpm

-

Torque: about 21-22 Nm

-

Mass Temperature: about 180°C.

2.3. Weathering

2.3.1. Natural outdoor exposure

Natural outdoor exposure was carried out at the Reagens plant in San Giorgio di Piano (BO, Italy), southward 45°.

San Giorgio di Piano has:

-

Typical annual solar irradiance is around 5.40 GJ/m².5

-

The average temperature of the warmest month of the year is 25 °C5

-

Severe climate according to DIN EN 12608-1:2020 [37].

2.3.2. Accelerated exposure

Accelerated exposure was carried out both with a xenon-arc tester Altas Ci4000 Weather-Ometer according to DIN EN 513:2018 [38], method 2 (hot climate)6 and with a Q-Lab QUV Accelerated Weathering Tester according to ISO 4892-3:2016 [39] Method A/Cycle 17

2.4. Colour measurement

Color has been measured on three replicates with an X-Rite SP 62 colorimeter working at D65/10. Evaluations were based on Delta E, representing the overall color change. The definition of Delta E and L*, a*. and b* is in DIN EN 13245-1:2010 [40].

3. Results and Discussion

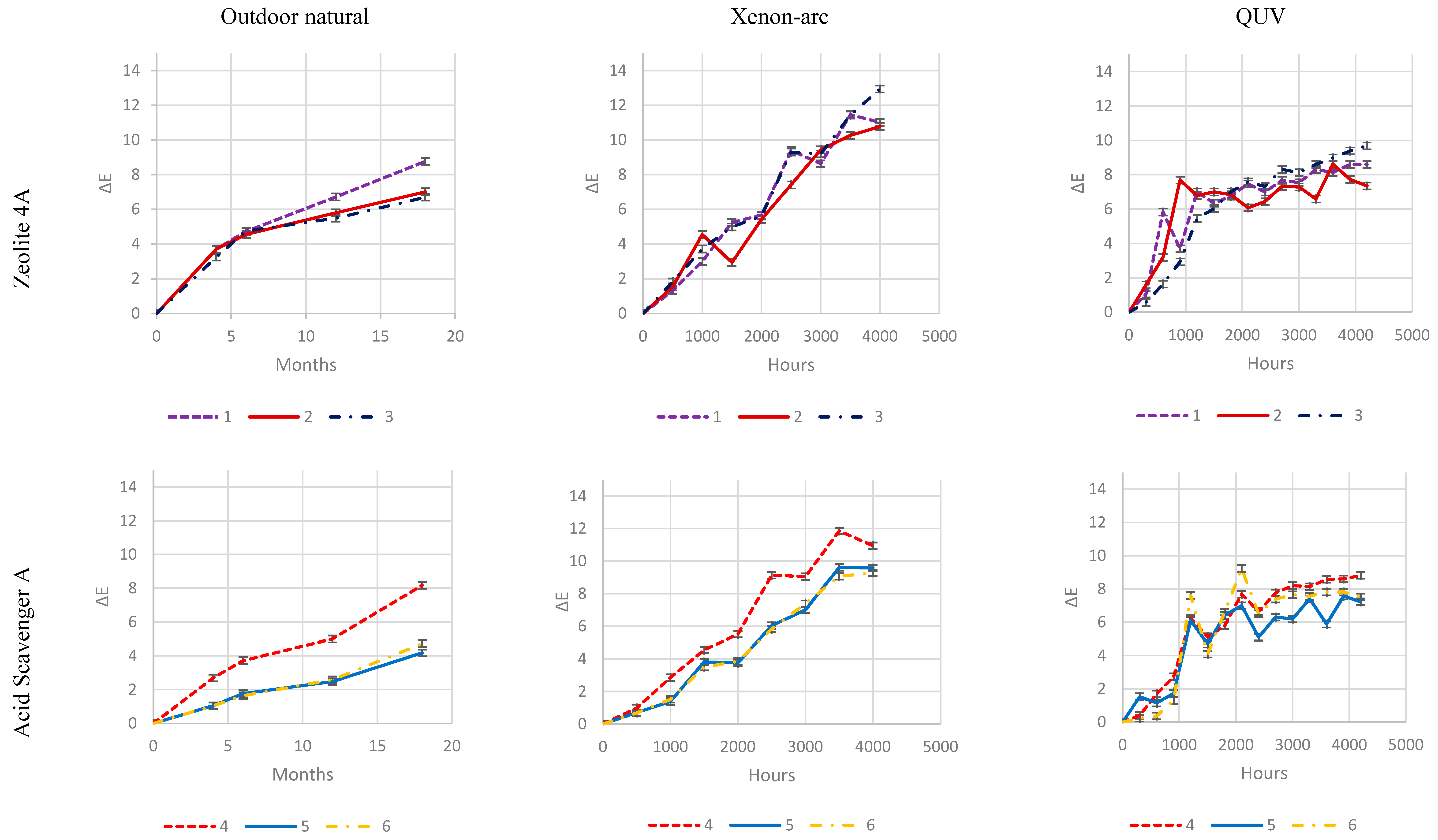

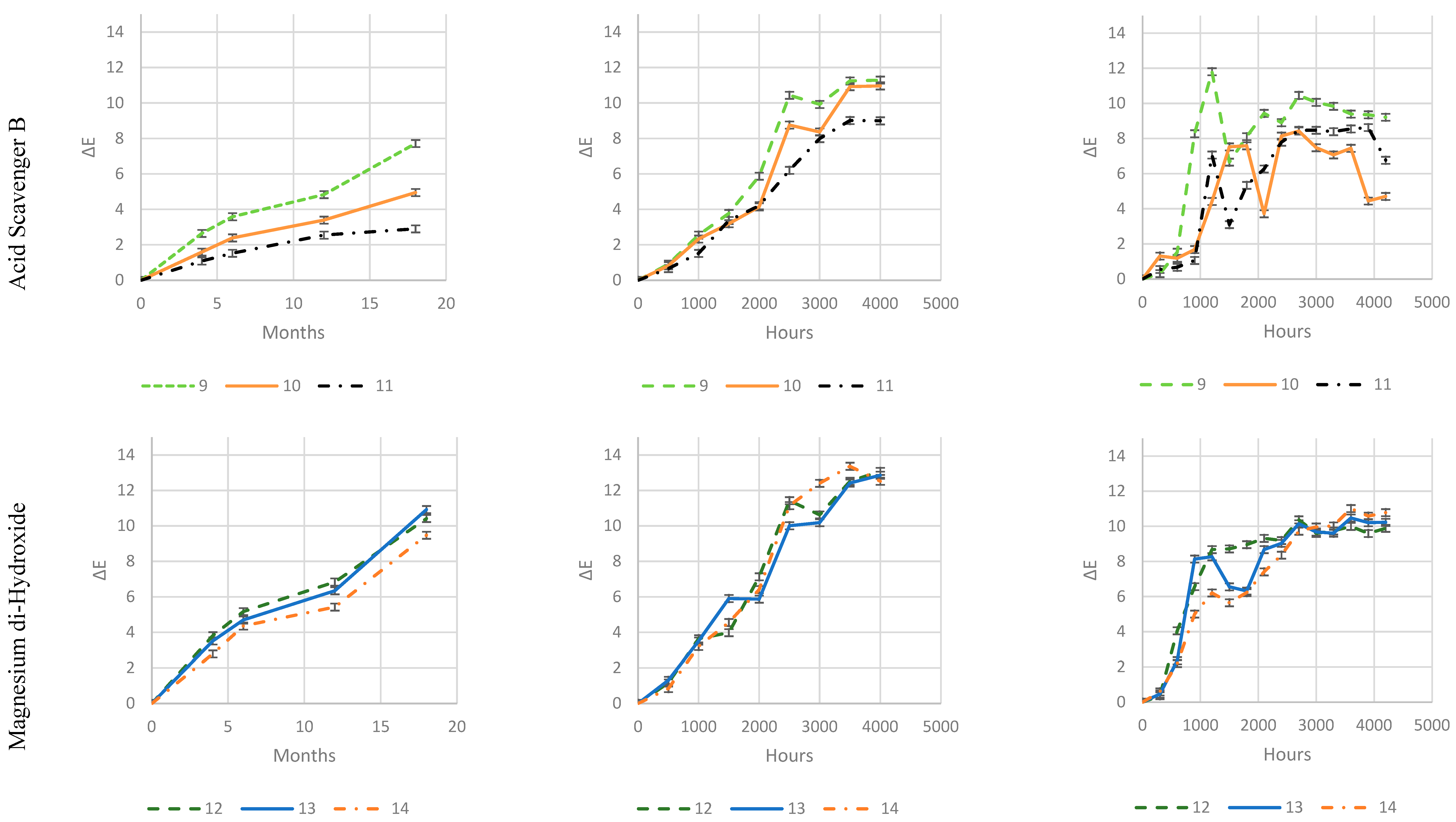

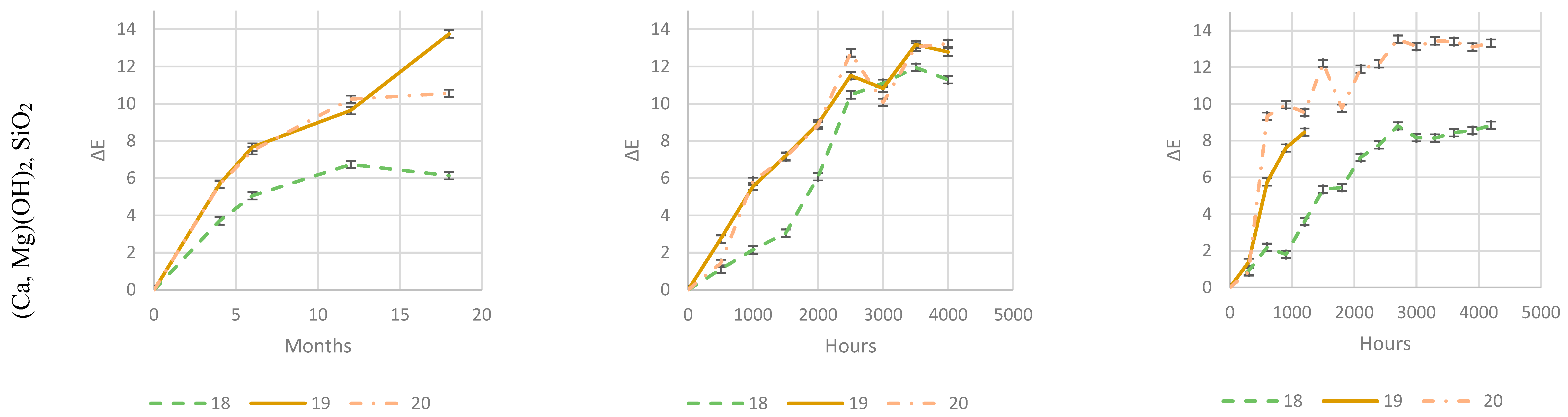

As it is evident from Figure 26, both natural outdoor and accelerated weathering data are in accordance and show that higher loadings of some acid scavengers are more effective than others against photodegradation (e. g. Acid Scavenger One-pack A and Acid Scavenger One-pack B), while some of them are almost ineffective (e. g. simple Magnesium di-hydroxide, or simple Zeolite 4A), or even detrimental as a trivial (Ca, Mg)(OH)₂, SiO₂.

Increased loadings of Zeolite 4A and, in particular, Magnesium di-hydroxide, has no impact on color change during exposure, which is evident in all three exposure types.

An increased loading of (Ca, Mg)(OH)₂, SiO₂, is even more and more detrimental for the color change when it raises from 1 phr to 4 or 8 phr. This is probably due to the reaction of HCl with calcium generating water-soluble CaCl₂. As in the case of CaCO₃, outlined in § 2. 6. 2., CaCl₂ brings water into the matrix making the surface more prone to photooxidation. Furthermore, it is washed out during natural outdoor rain times and in accelerated weathering devices during their wet cycles, leaving holes, cavities and uneven surface. Thus, the increased surface area and a stronger photooxidation worsen the weathering (§ 2. 6. 1.). As in the case of CaCO₃, this phenomenon is increasingly evident as amount rises. This adverse effect probably offsets the beneficial HCl scavenging mechanism.

Zeolite 4A provides slightly higher protection at 4 and 8 phr, while an increase in Magnesium di-Hydroxide loading does not.

On the contrary, well-balanced acid scavenger packages like Acid Scavenger One-Pack A and Acid Scavenger One-Pack B provide stronger and stronger protection against weathering as their loading increases. In particular, Acid Scavenger One-Pack B provides the strongest protection effect, lowering Delta E when it is increased from 4 to 8 phr. On the contrary Acid Scavenger One-Pack A effect is leveled off at a concentration above 4 phr.

It is noteworthy that milder (and closer to reality) weathering methods allow a better discrimination between the performance of formulations than accelerated ones. For example, this is evident for Acid Scavengers One-Pack A where the difference in performance between its 2 and 4-8 phr is well evident in natural weathering. On the contrary it is less noticeable in the more aggressive xenon-arc tester, and almost not evident in the far more aggressive QUV tester. Regarding Acid Scavenger One-Pack B, natural weathering well discriminates among the performance of its 1, 4, and 8 phr loading. This gap is narrower in xenon-arc tester where the difference between 1 and 4 phr is negligible. In the QUV test apparatus, the Acid Scavenger One-Pack B loading effect is not evident at all. The slightly improved protection of Zeolite 4A at higher loading is not evident at all, not only in the most accelerated QUV tester, but also in the intermediate accelerated xenon-arc tester.

This point out the importance of extended test in the real field for a better understanding of the weathering performance, while accelerated ones should be used only for screening purposes. From a practical point of view, an accelerated screening QUV test would have been helpful to discriminate between evidently detrimental additives (e. g. (Ca, Mg)(OH)₂, SiO₂) and beneficial ones (e. g. Acid Scavenger One-Pack B), but only natural outdoor exposure have allowed to investigate the loading effect of the latter.

4. Conclusions

Acid scavengers are remarkable substances designed to prevent thermal degradation and also to scavenge HCl during the thermal decomposition and combustion of low-acidity PVC compounds for cables [41,42,43,44]. For these reasons, they already are crucial ingredients in formulating PVC compounds.

In addition, the paper shows another aspect, somehow new, of some acid scavengers in preventing the drawbacks coming from the exposure of the items outdoors, where thermal degradation and photodegradation, photooxidation, photo-catalyze oxidation, and chemical reactions bring phenomena affecting not only the aesthetic but also the mechanical properties of the articles.

The comprehensive understanding of the photodegradation mechanism of PVC and experiments carried out proves that acid scavengers not only are effective against HCl-catalyzed zip-like elimination that proceeds in the absence of oxygen but also against carbonyl formation, chain scission and surface chalking in the presence of oxygen.

This new experimental evidence confirms the mechanism outlined in § 2. 5., where HCl plays a crucial role in photooxidation of the matrix. A role that, until now, was not considered at all in commonly accepted theories of weathering.

Therefore, acid scavengers are beneficial to prevent weathering degradation, acting in several ways:

• First, protecting the polymer during processing limits the generation of conjugated double bonds acting as chromophores initiating the photodegradation and photooxidation (§ 2. 2. 1., 2. 3. 1.).
• Providing a reservoir of stabilizers that limit the evolution of colored conjugated double bonds underskin in the absence of oxygen (§ 2. 5.)
• Providing a reservoir of stabilizers that limit the evolution of cracking, and eventually chalking, on the surface in the presence of oxygen (§ 2. 7.).

It is worth noting that not all acid scavengers have the same positive effect, but some of them are neutral or even detrimental to surface discoloration, probably due to the water uptake stimulating the photo-oxidation of the matrix.

The design of the appropriate stabilizer formulation is thus still a complex choice of the proper ingredients and needs several laboratory and, eventually, real field tests.
