Study of Mid-Pressure Ar Radiofrequency Plasma Used in Plasma-Enhanced Atomic Layer Deposition of α-Al₂O₃

1. Introduction

Extensive research has been conducted on aluminum oxide as a thin-film material with diverse applications including protective coatings, diffusion barriers, and electronic and optical devices. Crystalline Al₂O₃ films offer clear advantages in applications that require elevated chemical stability, specific optical or electronic attributes, and superior mechanical properties. The deposition of crystalline Al₂O₃ thin films using traditional thermal atomic layer deposition (ALD) is challenging. The use of plasma during the ALD process (PEALD) has the potential to facilitate the process as it can reduce energy consumption and enable growth of crystalline thin films with higher density at a reduced growth temperature (TG) compared to the thermal ALD processes [1]. The main functions of plasma in the ALD process are

(i) generation of reactive species that participate in surface reactions [2,3,4,5,6,7], and

(ii) energy delivery to treated surface.

Reactive plasma species such as metastable state atoms and molecules and vibrationally excited molecules can promote film growth by delivering their potential energy to the film via Auger processes [8], thereby reducing the activation energy of the reactions [2]. When the ALD process occurs in the active plasma region, energy transfer to the film surface can also occur via ions and heavy particles impacting the surface with high kinetic energy. In this case, the temperature of the impact site increases locally because of the momentum exchange between these particles and film lattice atoms, enabling crystalline film growth at lower substrate temperatures [1]. Plasmas offer the flexibility to produce specific reactive species, for example, by choosing a suitable gas composition and gas pressure, and tailoring gas-phase chemistry with ALD surface reactions to obtain thin films with specific properties [9].

Capacitively coupled plasma is a commonly used plasma source in PEALD reactors, which based on geometry, can be divided into direct and indirect treatment devices [1]. In the case of the direct treatment, the substrate is placed directly into the plasma on an electrode; therefore, the deposited films experience reactions of neutral plasma species diffused to the film as well as the impact of ions. Indirect-treatment devices utilize remote plasma sources, and substrates are placed in the plasma particle effluent, which mostly consists of long-lifetime reactive species. The production of reactive species (e.g., O, O₃, H, OH, N, N₂(A), NH_x) occurs in the plasma of molecular gas or inert gas with a molecular gas admixture [9,10,11,12], whereas higher concentrations of molecular gas have been found to be favorable with respect to the reactive species yield [13]. At the same time, the increase in the molecular content impedes discharge ignition, which forces to increase the voltage needed for the discharge ignition and sustaining [14], which in turn could increase the plasma switching time jitter and force the plasma to run in the high-current, γ-mode. The high-current mode has been found to worsen the film uniformity compared to that produced using a low-current α-mode [15]. A possible solution for lowering the plasma ignition voltage while still producing reactive species is to use remote inert gas plasma that is mixed with molecular gases downstream from the plasma source. Such an arrangement has rarely been studied, although it has been found to provide a more stable discharge and even increase in the yield of reactive species [16].

In our previous study [17], we investigated the influence of Ar plasma applied during different steps of the ALD process on the growth of Al₂O₃ from the trimethylaluminum (TMA) and water (H₂O) vapor. The Ar plasma was mixed with the precursors downstream of the plasma source. According to the X-ray reflection (XRR) studies of the films deposited at substrate temperature of T_G = 650 K on Si(100), the application of plasma during the H₂O pulse and during the purge periods following the TMA and H₂O pulses caused an increase in the densities of the films compared with the densities of the films deposited by thermal ALD, that is, without plasma excitation. However, all films obtained on bare Si(100) substrates were amorphous, and the increase in density caused by plasma excitation did not exceed 2%. More remarkable changes were caused by plasma excitation to the properties of the Al₂O₃ thin films deposited on the α-Cr₂O₃ seed layers. According to the X-ray diffraction (GIXRD) studies, the films deposited at T_G ≥ 600 K on α-Cr₂O₃ seed layers using the Ar plasma during the purge after the H₂O pulse contained the α-Al₂O₃ phase, whereas the films deposited using thermal ALD were amorphous.

As the growth of α-Al₂O₃ at these relatively low T_G values is of marked importance for many applications, a more extensive study of plasma processes causing this effect was performed in the research described in this paper. Electrical measurements, spatiotemporal optical emission spectroscopy and tunable diode laser absorption spectroscopy (TDLAS) were used to determine the plasma parameters that could influence the PEALD process.

2. Materials and Methods

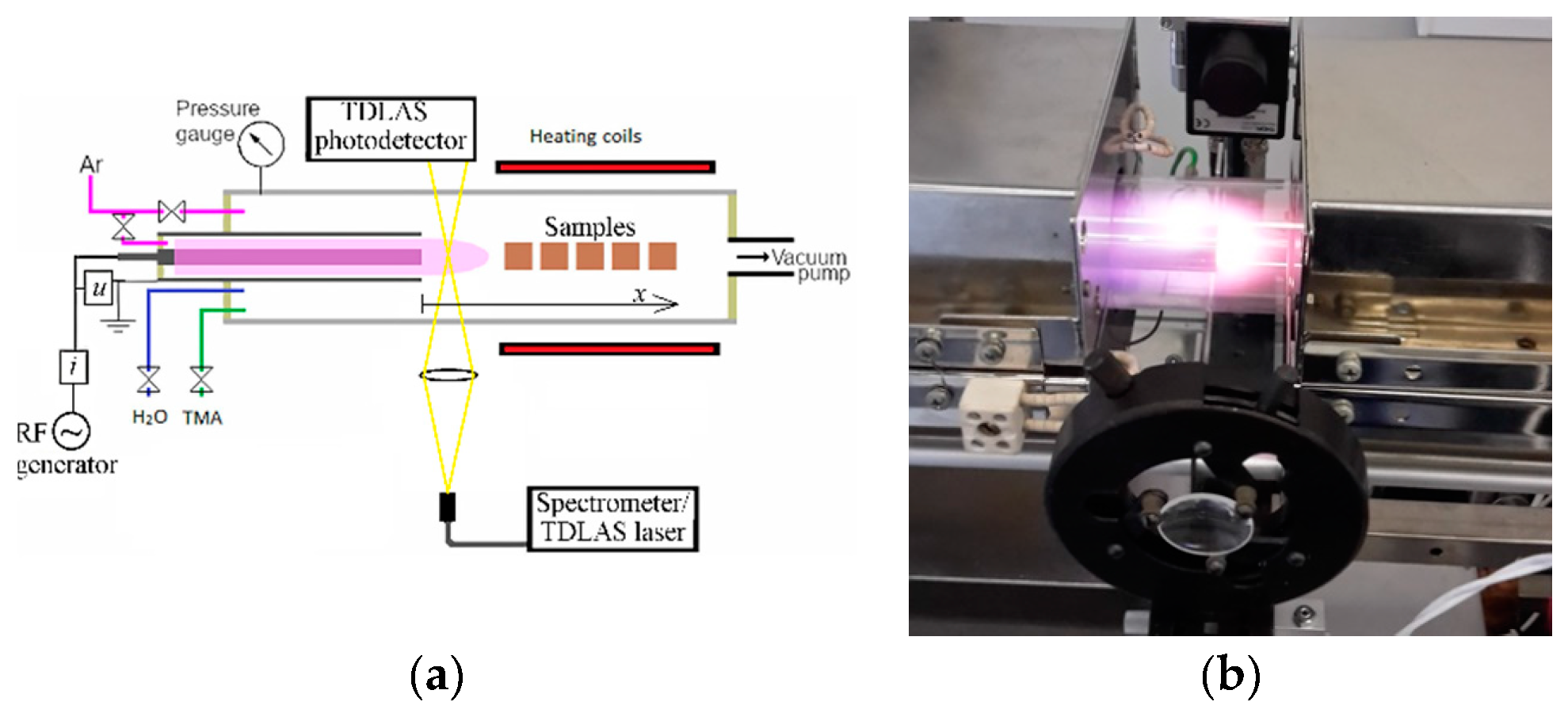

The experimental setup (Figure 1) has been described in our previous study [18]. Here, the more specific details are focused on. The plasma was ignited using a 13.6 MHz RF generator coupled with a BDS-AMN 750 automatic matching network (both produced by BDISCOM SRL).

The generator output power, fixed at 30 W, was switched on and off by using a signal from the ALD process controller. At this generator power, the output voltage was sufficiently high for instant ignition of the plasma. A coaxial electrode configuration was used. The diameter of powered central stainless-steel electrode was 6.4 mm and the inner diameter of grounded surrounding stainless-steel tube was 16 mm (hereafter- “plasma tube”). The length of each electrode was 500 mm. The diameter of the quartz tube isolating the reactor from ambient air was 47 mm. The overall flow of Ar through the reactor was 300 sccm, whereas the flow through the plasma tube was 150 sccm. The pressure in the reactor was 1.9-2.1 Torr. TMA (98%) and H₂O were used as precursors in the ALD film deposition, and carried by a 300 sccm Ar (99.999%) flow,. The durations of the TMA and H₂O pulses and the TMA purge were 2 s, while that of the H₂O purge was 5 s. Al₂O₃ films were deposited on a Si(100) substrate covered with an α-Cr₂O₃ seed layer. The deposition of the seed layer is described in a previous study [18]. The samples were inserted into the reaction chamber on a SiO₂ holder. The temperature of the samples was recorded prior to the ALD cycles after the temperature stabilization using a K-type thermocouple.

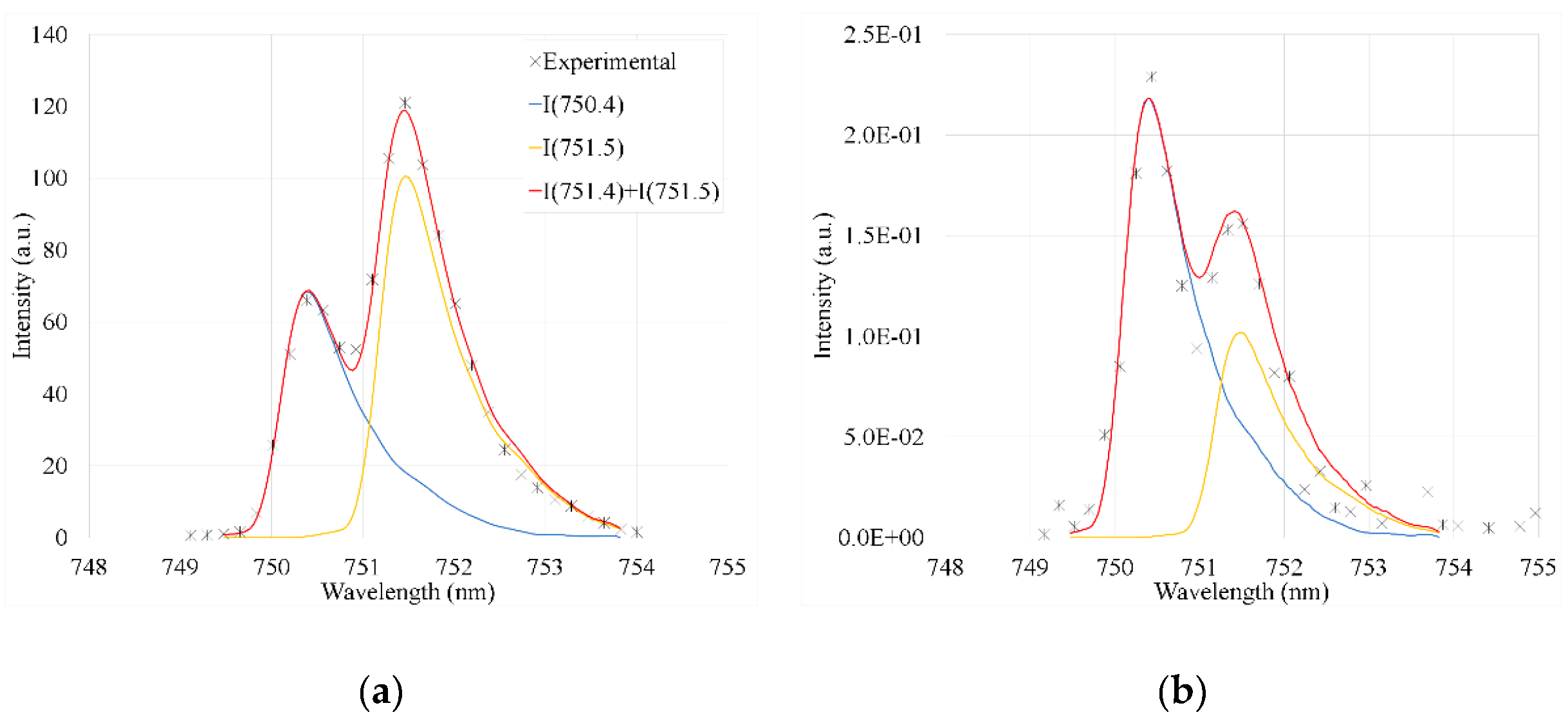

The phase composition, thickness, density, and roughness of the films was measured using a SmartLab (Rigaku) diffractometer and analyzed using the GIXRD and XRR methods. The optical emission spectra of the plasma were recorded along the plasma axis at different distances (x) from the plasma tube orifice (Figure 1a) using Ocean Insight HR4 PRO (spectral range 274–414 nm, resolution around 0.1 nm) and Ocean Optics USB4000 (spectral range 185–850 nm, resolution around 1 nm) spectrometers. Because of the moderate spectral resolution of the USB4000 spectrometer, some spectral lines were not resolved and were deconvoluted using a nonoverlapped Ar spectral line at 696.5 nm as an instrumental function. An example of the deconvoluted lines is shown in Figure 2.

The fitting of the experimental and calculated spectra used for the estimation of rotational temperature and the concentration of Ar atoms in the metastable state 1s₅ (Paschen notation) was performed using the MathCad software function Minimize. Electrical characteristics were recorded using the oscilloscope Tektronix TDS-540B. The voltage (u) was measured using a 1:100 Tektronix voltage probe P5100, while the current (i) was measured using a McPherson current monitor 6585. The concentration of Ar 1s₅ state atoms was estimated using a TDLAS unit. The scan range of the Littman-type external cavity diode laser Thorlabs TLK-L780M with a power of 50 mW was 740–800 nm and the line width was < 130 kHz. The free spectral range and finesse of Fabry–Perot interferometer Thorlabs SA-200, used to check the laser operation stability and to calibrate the relative wavelength, were 1.5 GHz and 200 respectively. A photodetector Thorlabs APD110A2 coupled with an interference filter with a central wavelength of 763.5 nm and a full width at half maximum of 40 nm was used to register the laser signal.

3. Results and Discussion

3.1. Plasma Characteristics

3.1.1. Discharge Appearance and the Choice of Generator Power

The appearance of the discharge depended on the generator power. At low power values, the radiation intensity in the plasma tube was low, and the space between the electrodes was only partly filled with plasma. An increase in the generator power caused the gradual filling of the tube with plasma, and finally, the emergence of a plasma plume outside the tube. At a generator power of 30 W and after a long-term Ar purge, the bright plasma plume of Ar discharge extended outside the tube to a distance of 2–3 cm, while the diameter of the plume was somewhat larger than that of the outer electrode, as shown in Figure 1b. A very low-intensity plasma column was observed at longer distances (up to 10 cm). By further increasing the generator power, randomly located irregular plasma sparks in addition to the homogenous plasma appeared between the electrodes. With the appearance of sparks, instabilities in the plasma plume outside the tube were observed. Therefore, ALD was conducted at a generator power of 30 W. Outside the tube, the discharge appearance also depended on the ALD step. The TMA and H₂O pulses caused a rapid reduction in the extent of the plasma plume outside the plasma tube and changed the plasma color. During the following purge, plasma extension was gradually restored.

3.1.2. Electrical Characteristics

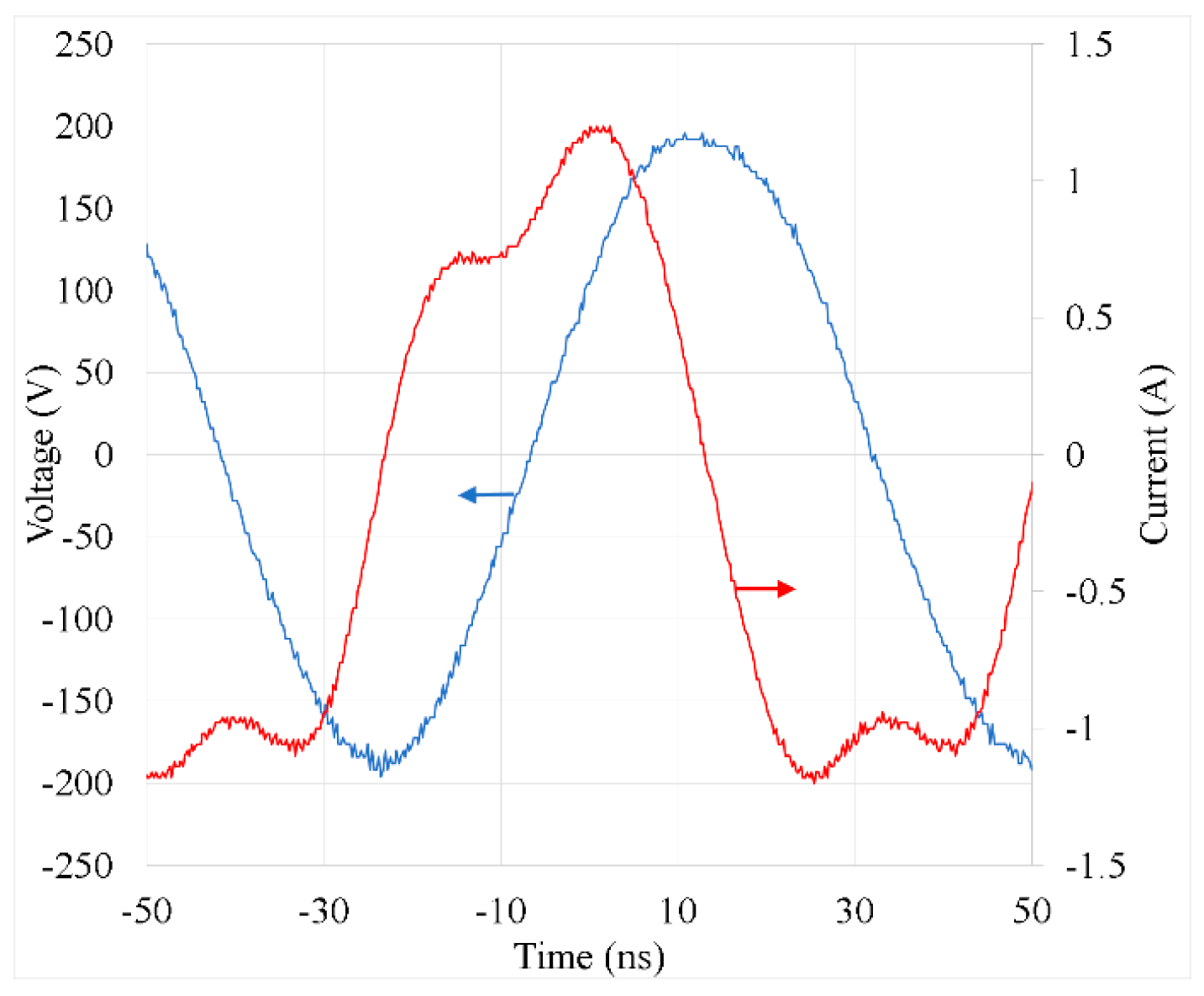

Plasma power was calculated from the current and voltage waveforms as described in our previous studies [19,20]. When the plasma was produced at a low generator power, the waveforms exhibited a sinusoidal shape, similar to that observed without discharge. At a generator power of 30 W, the current waveform deviated significantly from a sinusoidal waveform, as shown in Figure 4. The irregular shape of the current waveform can be explained by the different areas of powered and grounded electrodes.

The plasma power was estimated using the formula $P=\frac{1}{T}{\int }_0^T{i}_{\mathrm{p}}\left(t\right) u_{\mathrm{p}}\left(t\right)\mathrm{d}t$. The phase shift component caused by different lengths of the connecting cables, parasitic capacitance, etc., was determined from the measured u and i waveforms without discharge, and it was considered in the plasma power calculation. At a generator power of 30 W, the phase shift between i and u was 84.2 ± 1.0°, and the plasma power was 11.6 ± 1.8 W. The plasma power did not depend on the Ar plasma gas flow rate in the plasma tube (tested in the range of 100–300 sccm) or on the gas composition outside the plasma tube in the reactor. Hence, the plasma power was completely determined by the Ar discharge inside the plasma tube.

3.1.3. Plasma spectrum

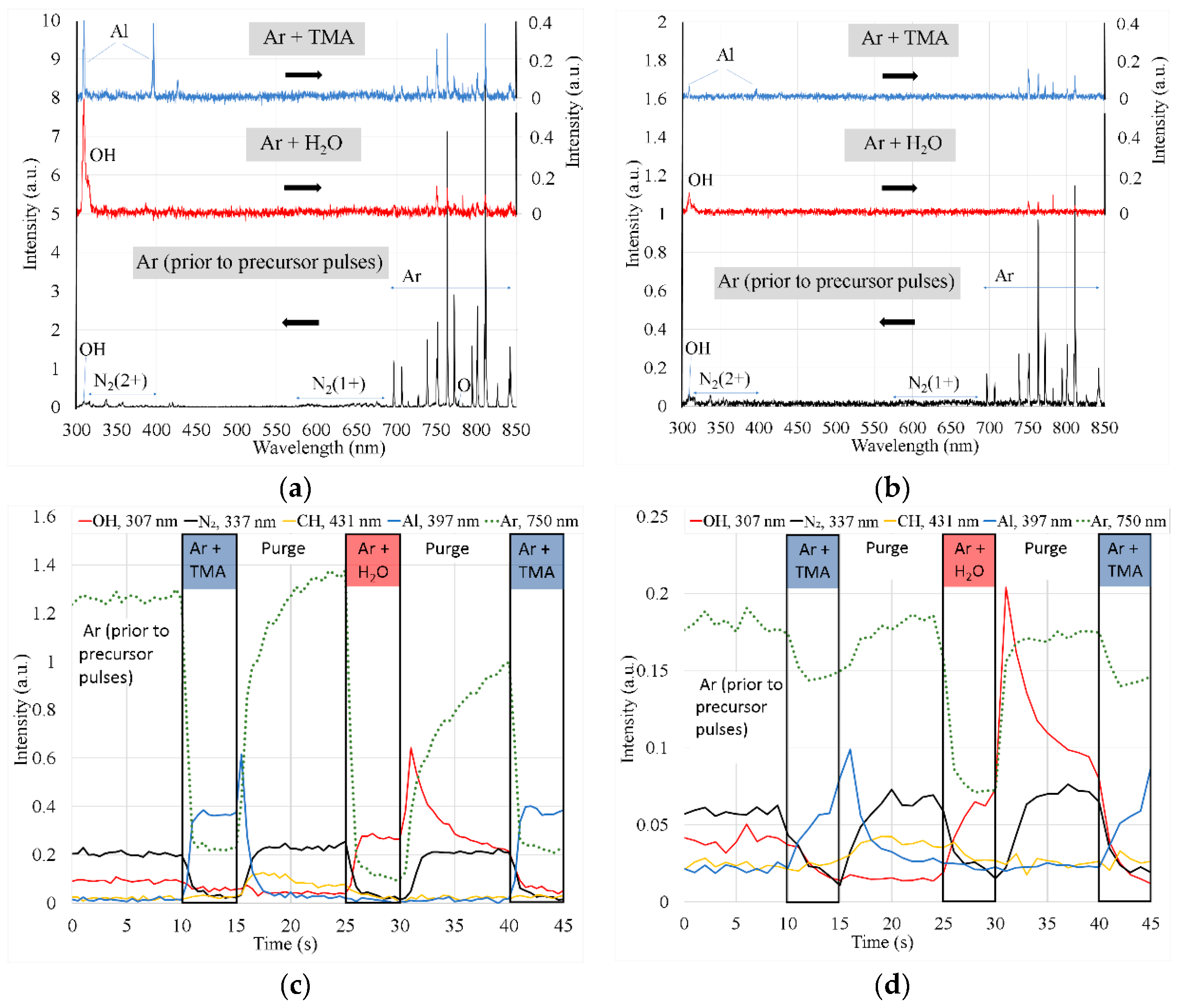

The optical emission spectra recorded at a distances 5 and 50 mm is shown in Figure 5a,b. In the case of the Ar plasma, the most intense spectral lines belonged to Ar. Because of impurity additives in Ar (due to leakage, etc.), a weak atomic oxygen line at 777 nm and bands of OH at 308 nm, the N₂ first positive system (FPS) at 550–700 nm, and a second positive system (SPS) at 300–400 nm were observed. The deconvolution of the N₂(C-B,0-0) band also revealed the presence of an NH(A-X,0-0) band at 336 nm (Figure S1). The start of the TMA pulse caused a rapid decrease in the intensity of the aforementioned molecular bands and atomic lines (Figure 5c, time interval Δt = 10–15 s). As a result of TMA (Al₂(CH₃)₆) decomposition, bright Al lines at 308.22, 309.27, 394.40 and 396.15 nm appeared in the spectra. During the following purge (Δt = 15–25 s), the intensity of the Ar lines and N₂ bands gradually increased and became even more intense than before the ALD pulses, whereas the OH intensity decreased due to H₂O removal in reaction with TMA. The emission of CN radicals at 358, 388, and 416 nm, CH at 386 and 431 nm, and C₂ at 516.2 nm were identified from the molecular bands [21,22,23,24]. Interestingly, although the appearance of these bands is also related to TMA decay, they were not observed during the TMA pulse but during the TMA purge. A possible reason for this observation is the increase in the electron temperature and density during TMA purge, which enabled the production and excitation of these molecules. Similar to the TMA pulse, the H₂O pulse (Δt = 25–30 s) reduced the intensities of all spectral lines and N₂ bands with the exception of the OH band. The increased production of OH excited states molecules can be attributed primarily to the reaction between Ar 1s_2…5 atoms and H₂O molecules [25,26,27]. During the purge following the H₂O pulse (Δt = 30–40 s), the intensities of the Ar lines and N₂ bands gradually increased, whereas the OH intensity reached a sharp maximum at ~ 1 s after the end of the H₂O pulse and then started to decrease.

With an increase in the distance x the intensities of all bands and lines decreased; however, the general trends remained similar, as described above (Figure 5b,d).

3.1.4. Gas Temperature

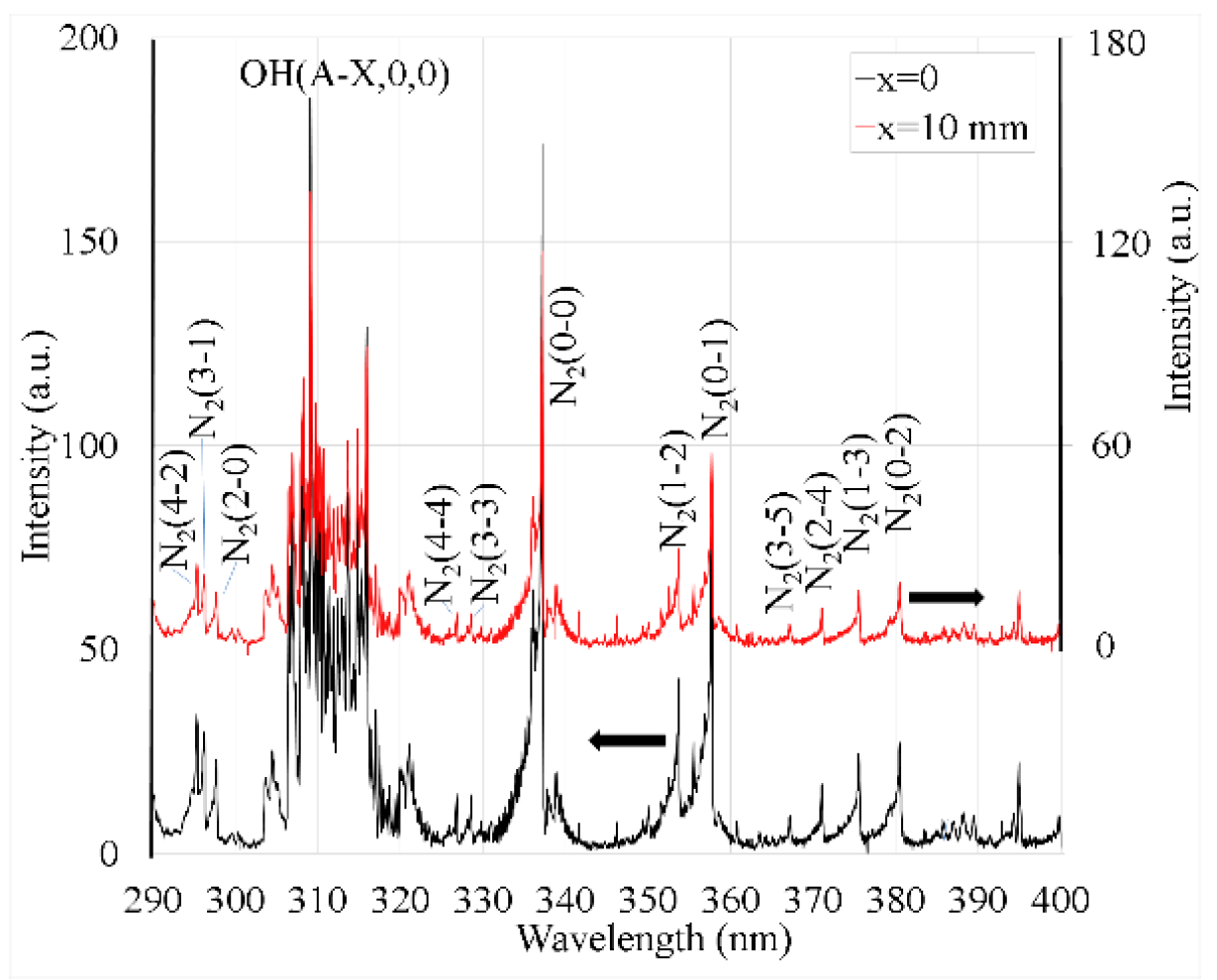

The plasma gas temperature (T_gas) was estimated using different methods. Firstly, T_gas was estimated on the basis of the N₂(C) rotational temperature (T_rot) calculated for several vibrational transitions, as described in our previous study [28]. In the case of electron impact excitation of N₂(C), T_rot ≈ T_gas. However, in the Ar discharges, T_rot of these molecules could be influenced by the energy transfer from the metastable Ar atoms, which can result in remarkably higher T_rot values than T_gas [28]. The rotational temperatures of the N₂ SPS vibrational transitions 0-2 (bandhead at 380 nm), 1-3 (375 nm) and 2-4 (371 nm) (Figure 6) were estimated in Ar discharge (after a long-term Ar purge) to reduce the interference of TMA/H₂O additives on the rotational spectra. The temperature near the plasma tube orifice estimated under such conditions is expected to be somewhat higher than that during ALD pulses because the plasma plume extension outside the plasma tube was largest in the case of pure Ar discharge, and the plasma power was insensitive to the gas composition outside the plasma tube (Section 3.1.2).

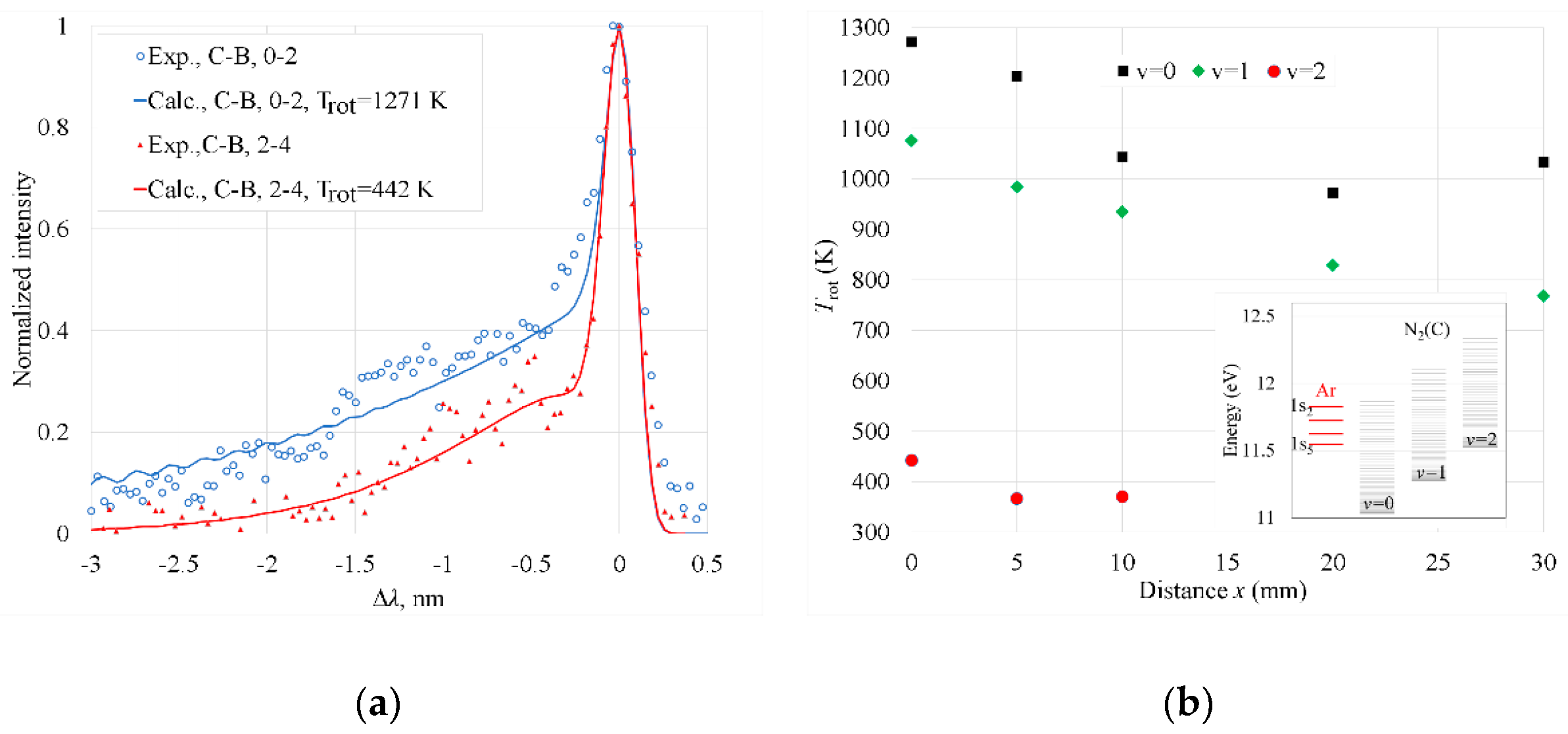

Examples of the recorded and calculated spectra of the N₂ SPS vibrational transitions 0-2 and 2-4 are shown in Figure 7a. The lowest rotational temperature, T_rot ≈ 450±100 K, among the studied N₂ SPS vibrational transitions was found for N₂(C,v=2) near the plasma tube orifice (x = 0 mm), and it diminished with distance (Figure 7b). At x > 10 mm, the N₂(C-B,2-4) band intensity was too low for the reliable estimation of temperature.

Considerably higher T_rot values were found for the N₂(C,v<2) vibrational states, reaching 1300 K for N₂(C,v=0) and ≈1100 K for N₂(C,v=1) (Figure 7b). This dependence of T_rot on the number of vibrational states v can be explained by the excitation transfer from the Ar metastable state atoms ${\mathrm{A}\mathrm{r}\left(1{\mathrm{s}}_2\dots 1{\mathrm{s}}_5\right)+\mathrm{N}}_2\left(\mathrm{X}\right)\to \mathrm{A}\mathrm{r}+{\mathrm{N}}_2\left(\mathrm{C}\right)$, which can cause an overpopulation of higher rotational levels when comparing the population distribution corresponding to the equilibrium with T_gas [28]. From an energetic point of view, the ability to populate higher rotational states via this reaction decreases for higher values of v, as shown in the inset of Figure 5b, and the reaction rate coefficient also decreases with the vibrational number. For example, at 300 K, the ratio of the rate coefficients for the population v = 0, 1, and 2 states is 1:0.25:0.1 [29]. Therefore, with trace amounts of N₂ in Ar plasmas, lower vibrational levels are more susceptible to the overpopulation of higher rotational levels than higher vibrational levels. At higher pressures, the neutral particle collisions can still thermalize the rotational population distribution even for the vibrational state N₂(C,v=0) and enable T_rot to be used as T_gas estimate [30]; at the low pressure used in our experiment, the thermalization is apparently too slow, and T_rot from N₂(C,v<2) overestimates T_gas.

An attempt to determine T_gas was made using the OH(A-X,0-0) transition, which has been used to estimate T_gas at higher pressures [31]. In our spectra, the OH(A-X,0-0) band at 307 nm is one of the brightest peaks during the H₂O pulse and the following purge (Figure 6). Similar to N₂(C,v<2), higher rotational levels of OH(A,0) can be excited by the energy transfer from excited Ar atoms, which results in T_rot higher than that expected from T_gas [26]. The radiative lifetime of OH(A,v=0) is remarkably longer than that of the N₂ SPS bands [28]. Therefore, the rotational relaxation can still be expected to achieve a population distribution equilibrium with T_gas. However, in our plasma, OH(A v=0) T_rot also overestimated T_gas, as the temperature determined using Lifbase software [32], T_rot(x=0) = 1300 K, was remarkably higher than that of N₂(C,v=2). Apparently, the relaxation was still too slow at our gas pressure.

The gas temperature was additionally estimated by analyzing the absorption shape of the 763.5 nm line, which was determined using the TDLAS technique. The shape of the line depends on T_gas [33,34]; and the temperature estimation procedure is described in Figure S2. The remarkable fluctuation of the laser emission of our TDLAS setup (Figure S3) and the low signal-to-noise ratio prevented the reliable determination of T_gas as a function of the distance x. At x = 0, the determined temperature was 700 ± 200 K (Figure S2). This coincided with T_rot of N₂(C,v=2) within the uncertainty margins.

The knowledge of the plasma power also allows a rough estimation of the T_gas [35]. Under stationary conditions $T_{gas}=T_E+\frac{w}{n_0·C_p·{\nu }_H}$, where T_E is the temperature of plasma tube, $w\approx$0.14 W cm^-3 is the power density, n₀ is the gas density, C_p ≈3.3$·$10^-23 J/K is the specific heat of Ar at constant pressure per atom and ${\nu }_H=\frac{{8·\lambda }_{Ar}}{n_0·c_p·r^2}+\frac{2·v_{gas}}{L}$ is the heat removal frequency. Here ${\lambda }_{Ar}$ is the Ar thermal conductivity (0.0177 W/(K$·$m)), r = 8 mm is the inner radius of the plasma tube, v_gas the linear velocity of the gas (5.9 m/s) in the plasma tube, and L = 500 mm is the length of the plasma tube. The first and second terms in the formula used for the calculation of ${\nu }_H$ give the heat removal frequency by heat conduction and convective heat transport, respectively. Under our conditions, the contribution of the heat removal by convective heat transport is ≈2.3%. Therefore, T_gas depends only slightly on n₀. Presuming T_E is stabilized at room temperature, the calculated T_gas near the plasma tube orifice is T_gas≈ 360 K. Actually, T_E is probably higher owing to poor cooling of the plasma tube; however, it is expected to be lower than the maximum temperature of the O-rings of our vacuum system (ERIKS’ 51414 green, T_max = 473 K). This gives the upper limit of the T_gas of 540 K, which also coincides with the T_rot of N₂(C,v=2) within the uncertainty margins. Therefore, in the following, we used the T_rot of N₂(C,v=2) as the T_gas.

3.1.5. Line-Integrated Concentration of Ar Metastable, 1s₅ State Atoms

The concentration of metastable Ar 1s₅ state atoms ([Ar(1s₅]) was determined in the Ar discharge on the basis of Ar spectral line λ₀= 763.5106 nm absorption (transition 1s₅$\to$2p₆) [36] using the TDLAS technique [33]. The estimation was performed x values 0–10 mm as at longer distances the absorption was below the detection limit of our TDLAS apparatus. The optical depth (OD) (Figure 8a) was determined as $\mathrm{O}\mathrm{D}=\mathrm{l}\mathrm{n}\left(\frac{I_0}{I_t}\right)=k\left(\lambda \right)·l$, where I_t and I₀ are the laser intensities with and without the plasma, respectively, k and l are the absorption coefficient and absorption length, respectively.

The concentration of Ar(1s₅) state atoms was calculated using the experimentally determined OD according to the formula $\left[\mathrm{A}\mathrm{r}\left(1{\mathrm{s}}_5\right)\right]=\frac{8·\pi ·g_i·c}{{\lambda }_0^4·g_j·A_{ij}·l}\int k\left(\lambda \right)·l·d\lambda$ [33]. Here, g_i = 5 and g_j = 5 are the statistical weights of the upper and lower states, respectively; c is the speed of light; A_ij = 2.45·10⁷ s^-1 is the Einstein coefficient; λ₀ = 763.5106 nm is the center wavelength of the absorption transition [23], and l = 20 mm is the absorption length. The concentration of Ar(1s₅) atoms decreased with increasing x almost exponentially from 4.5∙10¹⁰ to 4∙10⁹ cm^-3 when x increased from 0 to 10 mm.

Introduction of any ALD precursor caused a decrease in the concentration of Ar(1s₅) below the detection limit of our TDLAS apparatus. However, the spectral measurements indicated that during TMA and H₂O pulses Ar(1s_2…5) concentrations were very low. Compared with the other Ar spectral lines, the intensity of the Ar line at 750.4 nm was less sensitive to the introduction of TMA and H₂O. The rate coefficient for the population of the upper state of this transition, 2p₁, via the direct electron impact excitation from the ground state, is higher than that for other 2p-1s transitions observed in the spectra, whereas for other transitions, the stepwise excitation from Ar 1s_2…5 is more important [37]. As an example, Figure 2 shows intensities of spectral lines at 750.4 (transition 2p₁→1s₂) and 751.5 nm (transition 2p₅→1s₄) registered from Ar plasma and during a TMA pulse. The 751.4 nm line was more intense in the Ar discharge prior to the ALD pulses and also during the purge periods, but during the TMA and H₂O pulse the 750.4 nm line dominated. Notably, the ratio of the rate coefficients for the direct electron impact excitation to 2p₁ and 2p₅ was approximately 2 [37] in the electron temperature range T_e = 2.5–3.5 eV. This is close to the intensity ratio of the transitions 2p₁→1s₂ and 2p₅→1s₄ (Figure 2b). Considering similar Einstein coefficients of these transitions (A_750.4=4.5∙10⁷s^-1, A_751.5=4.0∙10⁷s^-1 [36]), this finding indicates negligible stepwise excitation of Ar states during the TMA and H₂O pulse due to very efficient quenching of the 1s_2…5 states.

3.2. Effect of Plasma on Film Properties

The ALD process used for deposition of films for post-growth studies consisted of ALD cycles, repeated 1000 times. Each cycle contained the following steps: TMA pulse (duration 2 s), purge (2 s), H₂O pulse (2 s), and purge (5 s), whereas it was possible to switch the plasma on for any step. Our previous study [17] revealed that the plasma applied during the TMA pulse caused TMA decomposition, resulting in low-density amorphous Al₂O₃ films. It was also found that plasma had a detrimental effect on crystal growth when applied during the TMA purge, whereas in this case, the film growth per cycle (GPC) and density were similar to those of thermal ALD. As indicated by the intensity decay of the Al spectral lines (Figure 5c), the TMA residuals were removed from the gas within 1-2 s of the TMA pulse. Similar, fast TMA removal after TMA pulse was also concluded from Q-pod quartz crystal microbalance (QCM) measurements [17]. With a decrease in the intensity of the Al lines during the TMA purge, CH, CN, and C₂ bands appeared in the spectrum (Figure 5c) and were observed during the entire TMA purge step. The appearance of these bands, but not Al lines, indicates that plasma applied during the TMA purge caused decomposition of surface intermediate species formed during the TMA (Al₂(CH₃)₆), pulse. This enables the formation of excited CH, CN, and C₂ molecules via plasma-chemical reactions involving desorbed CH_x species. Al atoms remain on the surface, which explains why the GPC and density of the film were not affected by the plasma applied during the purge following the TMA pulse.

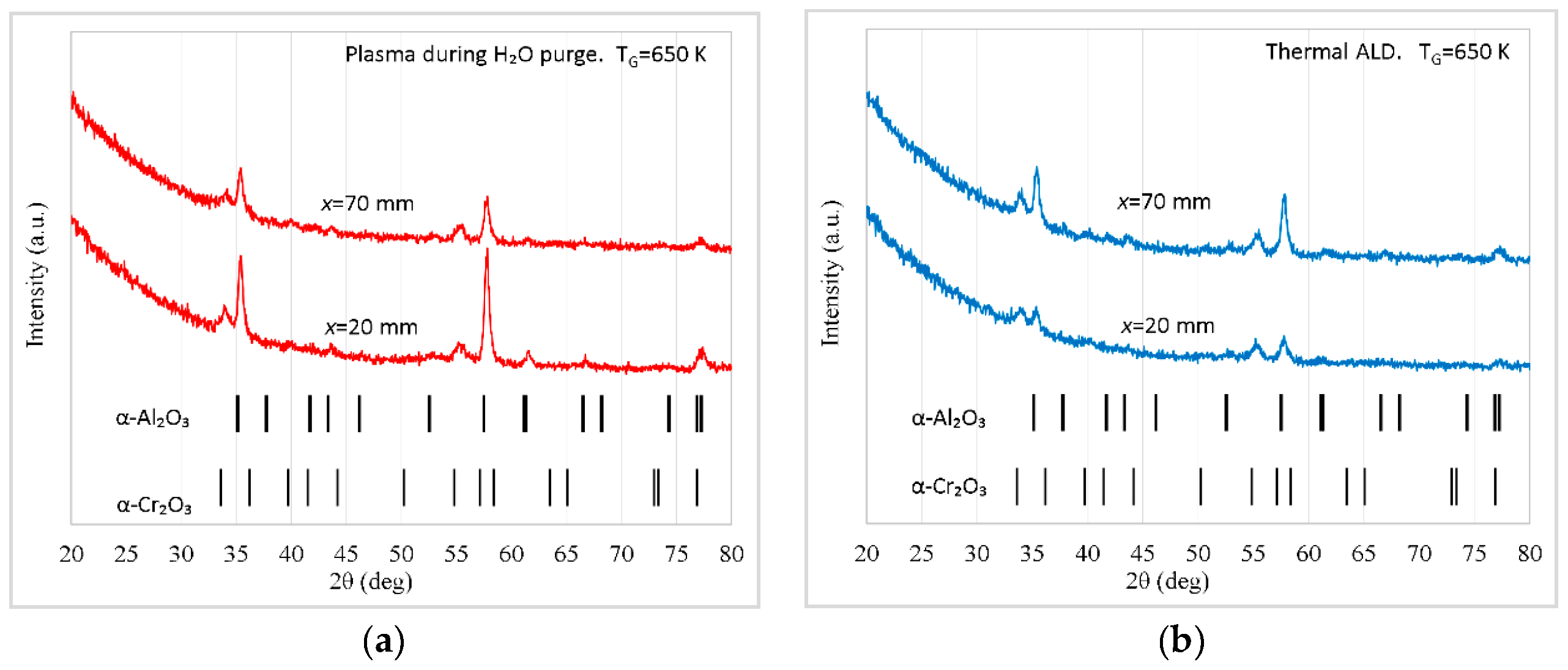

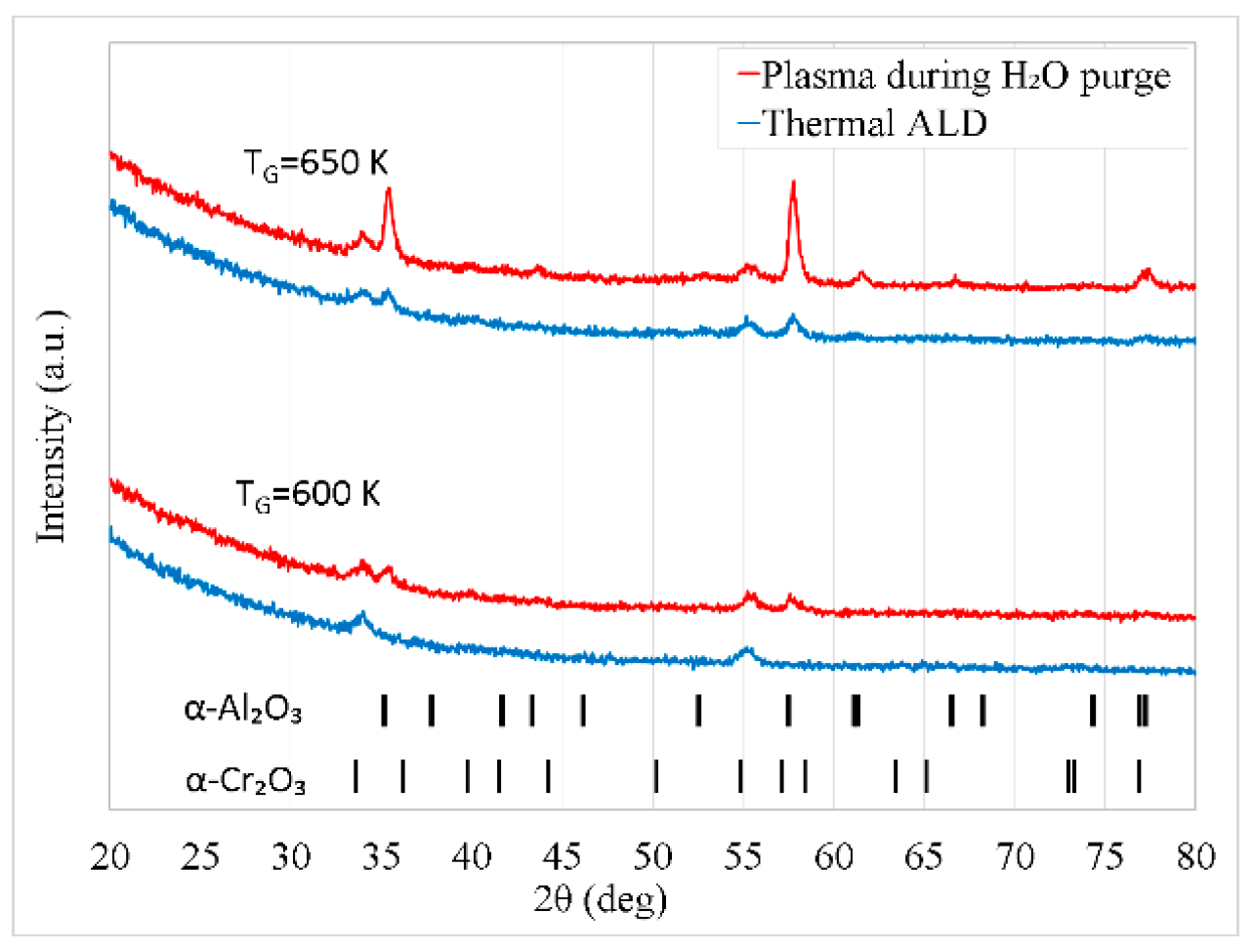

The plasma excitation, applied during the purge following the H₂O pulse or during the H₂O pulse and the following purge, most significantly contributed to the increase in the density and crystallization of the Al₂O₃ films grown on the α-Cr₂O₃ seed layers. This effect enabled us to obtain α-Al₂O₃ in the films deposited at 600 K (Figure 9).

The film growth depended on the distance between the samples and orifice of the plasma tube. At a distance x = 20 mm, the plasma applied during the purge following the H₂O pulse significantly enhanced the growth of α-Al₂O₃ as shown in Figure 10. By contrast, the GIXRD diffractograms of films deposited by PEALD and thermal ALD at x = 70 mm were similar. Consequently, the plasma influence on the crystal growth was negligible in the latter case.

Our previous study showed that compared with the purge following the TMA pulse, a markedly longer purge period was needed after the H₂O pulse to obtain self-limited film growth [17]. Spectral measurements of the present study confirmed this result, as the OH band intensity decay after the H₂O pulse was substantially slower than that of the Al lines observed after the TMA pulse (Figure 5). The likely reason for this is the gradual release of H₂O to the gas phase from the surface due to the reaction between OH groups formed during the H₂O pulse [38]:

$$2\mathbf{O}\mathbf{H}\left(\mathbf{a}\mathbf{d}\mathbf{s}.\right)\to \mathbf{O}\left(\mathbf{a}\mathbf{d}\mathbf{s}.\right)+{\mathbf{H}}_2\mathbf{O}\left(\mathbf{g}\mathbf{a}\mathbf{s}\right)$$

(1)

and the subsequent formation of excited OH in the gas-phase reactions as explained in Section 3.1.3. As the surface hydroxyl groups are absorption sites for TMA [39], the decrease in the site concentration on the surface causes a reduction in GPC. Plasma applied during the H₂O purge caused a significant (~ 10%) decrease in GPC compared with that obtained in thermal ALD (Table 1). However, the density of the film deposited by PEALD on the substrates located at a distance of 20 mm from the plasma tube were around 7% higher than the densities of other films (Table 1). Thus, the plasma applied during the H₂O purge insignificantly influenced the mass growth per cycle (MGPC) at x = 20 mm, while at x = 70 mm, the effect of plasma on MGPC was considerable.

A possible explanation for this difference is the plasma enhancement of the reaction described by Equation 1 on one hand and re-adsorption of OH radicals formed in plasma on the other hand. At x = 20 mm, the concentration of OH radicals in the gas phase was probably high enough to compensate the loss of surface OH groups while at x = 70 mm, this kind of compensation was evidently not obtained. As the concentration of OH in the gas phase could not be very high even at x = 20 mm, the re-adsorption was obviously a site-sensitive process supporting crystallization. With increasing x, the concentration of OH in the gas phase decreased (Figure 5) and, therefore, the contribution of OH re-adsorption to the crystal growth also decreased and became negligible.

The effect of possible plasma heating that could also promote the crystallization and influence GPC is not probable because the GPC values of the films deposited at higher gas temperature (inside plasma plume at x = 20 mm) and at lower gas temperature (at x = 70 mm) are the same while according to the results of our previous study, GPC should considerably decrease with increasing T_G. For example, T_G increase from 620 to 650 K caused a GPC decrease from 0.115 to 0.089 nm [17]. In addition, the plasma turned on for the purge period following the TMA pulse did not cause changes in GPC.

A possible explanation for the fast decay of the plasma effect on the crystallization, observed with increasing x, was the corresponding decrease in the concentration of reactive species and short lifetime of those species. The formation of long-living H₂O₂ has also been observed in the plasma at atmospheric pressure in the presence of water vapor [40]. but under our conditions, the corresponding reaction is relatively slow (rate coefficient k₁≈4∙10^-14 cm³s^-1 at 400 K [41]) and the lifetime of OH seems to determine concentration profile of the reactive species in the gas phase. Although the quenching of the ground state OH radical, OH(X), is slower than that of the OH(A) state [42,43], the convective transport of OH(X) from the OH-rich plasma plume region to the sample location at x = 70 mm is still unlikely. For example, in the case of an Ar : 9% H₂O mixture plasma at 200 Torr pressure, the OH density decay to 10% took up approximately 500 µs, whereas the OH diffusion losses were insignificant [44]. Considering 100 times lower pressure and linear velocity of gas in our reactor (1.1 m/s), such decay occurs already within 55 mm. Actually, this distance is expected to be even smaller as at our low pressure additionally OH diffusion losses should be significant. Spectral measurements that revealed a rapid decrease in the OH intensity and, consequently in the OH concentration with increasing x (Figure 5c,d) confirmed this estimation.

4. Conclusions

The present study investigated the properties of low-pressure argon RF plasma, used in the plasma-enhanced atomic layer deposition of Al₂O₃ films. The plasma power, estimated from the recorded electrical characteristics was approximately 12 W. The argon metastable atom density in pure Ar plasma decreased10 times with increasing distance from the plasma tube orifice from 0 to 10 mm. The addition of ALD precursors reduced the density of metastable atoms down to the levels that were below the detection limit of the apparatus used. The gas temperature was estimated using the N₂(C,v=2) rotational temperature, which was near the plasma tube orifice ≈400 K. Plasma spectra, measured during the TMA pulse, revealed TMA disintegration, as concluded from the appearance of Al lines and CN(B-X) bands. The H₂O pulse caused a rapid increase in the OH(A-X,0-0) band intensity, indicating an effective OH production reaction between the Ar 1s_2-5 atoms and H₂O molecules.

It was proposed that the main plasma agents that helped Al₂O₃ crystallization were OH radicals. Plasma enhanced Al₂O₃ crystallization was observed only for samples located near the plasma tube orifice, inside the plasma plume where the OH concentration was high. Because of the rapid decay in OH concentration with distance, the plasma effect on crystallization was negligible at a distance of 70 mm from the tube orifice.
