Possible Association of a Novel c.7664A>C Variant of CELSR1 with Primary Lymphedema: Family Case Report

1. Introduction

Primary lymphedema (PLD), including isolated, syndromic, and systemic forms, occurs at a frequency of approximately 1-1.15 per 100,000 individuals under the age of 20 [1,2]. PLD arises from congenital anomalies and is associated with dysplasia, hypoplasia, or hyperplasia of components of the lymphatic system, caused by genetic mutations. In 1998, the first association between mutations in the FLT4 (VEGFR3) gene and primary congenital lymphedema was demonstrated, followed by the discovery that lymphedema-distichiasis can be caused by FOXC2 mutations in 2000 [3].

Mutations in seven genes, FLT4, GJC2, FOXC2, SOX18, GATA2, CCBE1, and PTPN14, were shown to be responsible for the development of 36% of inherited and 8% of sporadic lymphedema cases[4]. Most of them are associated with the VEGFR3 signaling pathway, the key player of embryonic lymphangiogenesis. There are increasing evidence of an association between pathways involved in vascular morphology and the development of PLD. The examples include the adhesion receptor CELSR1 and lymphatic malformation 9 (OMIM: 619319), atypical cadherin FAT4 and Hennekam lymphangiectasia-lymphedema syndrome 2 (OMIM: 616006), connexin GJC2 and lymphatic malformation 3 (OMIM: 613480), and the mechanosensitive ion channel component PIEZO1 and lymphatic malformation 6 (OMIM: 616843) [5].

2. Materials and Methods

Patient’s recruitment

Patients were treated at the Lymphology Center of the Kazan Federal University in 2021-2023. Study was approved by the local ethical committee (2020-12-28, #27) of the Kazan Federal University. Written informed consent was obtained for all patients.

MRI

Magnetic resonance lymphography (MRL) was performed using a 3.0 T MR Siemens Magnetom Verio instrument. 3D-TSE heavily T2-weighted magnetic resonance imaging was performed, data were analyzed by Syngo 3D for MIP transformation (Siemens Medical Solutions, USA).

Exome sequencing and analysis

DNA was isolated from blood samples using the QIAAmp DNA mini kit (Qiagen, USA) according to the manufacturer's instructions. DNA libraries were prepared using Agilent SureSelectXT Human All Exon v8 (Agilent Technologies, USA) and sequenced on the NextSeq 500 platform (Illumina Inc., USA). Raw reads were mapped to the human reference genome hg38 using BWA v. 0.7.17 [6]. The improvement of reads alignment and whole exome variant calling were performed using the Genome Analysis Tool Kit v.4 [7] according to the GATK Best Practices recommendations [8]. For single nucleotide variant (SNV) calling, the Haplotype Caller module was used. High-quality SNVs were filtered using vcf-annotate [9] with the following parameters: MinDP=20, Qual=10, and MinMQ=10, and annotated using wANNOVAR [10]. Synonymous variants and variants with MAF ≥1% according to the GnomAD (v. 3.1.2, total) [11] and RUSeq [12] databases were excluded from variant analysis. PolyPhen2, SIFT, MutationTaster, and CADD algorithms were used to predict the contribution of the detected variants to the functional activity of CELSR1. Clinical significance was assessed according to the ACMG criteria [13].

Sanger sequencing

Direct sequencing of exon 25 of CELSR1 were performed using ABI 3730 DNA Analyzer (Thermo Fisher Scientific, USA). Primers for PCR and sequencing were designed with PrimerQuest Tool (Integrated DNA Technologies, USA) and synthesized by Genera, LLC (Russia). Primer’s sequences were the follows (5’→3’):

Forward: GGGACTGGGTTTGTGTTCAT

Reverse: GGTCTGTTGGAAATCTGTGGT

CELSR1 target region was amplified by Q5 DNA polymerase (NEB, USA) according to the manufacturer’s guide with T_a=65°C.

3. Results

3.1. Family case

Children were born in a family of non-consanguineous parents; lymphatic pathologies were not diagnosed in parents or closer relatives in 3 generations. Mother was diagnosed with chronic pyelonephritis, toxoplasmosis, herpes simplex virus, and cytomegalovirus infection. Patient’s aunt (mother’s sister) has frequent recurrent erysipelas without visual signs of foot edema.

Male patient was delivered by natural vaginal childbirth as the first child of a first gravida with birth weight of 3454 g and Apgar score 8/9. Intrauterine left-sided hydronephrosis was diagnosed using routine antenatal ultrasound examination. Surgical treatment of vesicoureteral reflux was performed after birth, and secondary shrinkage of the left kidney and chronic pyelonephritis developed. At two months increased volume of the right foot was observed, at three months lymphostasis was confirmed by medical examination. Complex Physical Decongestive Therapy (CPDT) was carried out irregularly from the age of 11; positive result was achieved after 4 courses of therapy at 13 years, whereas intradermal thrombosis of the right foot was diagnosed at 15. At the age 17 patient had II-III stage lymphedema of right lower limb, including foot and lower third of the leg, with recurrent erysipelas, lymphocysts, papillomas. After CPDT symptoms decreased significantly (Figure 1 A-C).

His younger sister was delivered by natural vaginal childbirth as the second child of a second gravida with birth weight of 3994 g and Apgar score 8/9. Mixed CNS lesion, congenital adrenal hyperplasia and virilization was diagnosed after birth, whether her karyotype test showed no deviations. Prenatal lesions associated with lymphedema or other disorders were not discovered, edema of right lower limb was detected at 2-3 months, left lower limb edema was developed at 10 months (Figure 1D). Patient underwent treatment with CPFT 1-2 times a year with positive results from 2 years, and at the age 8 she had II stage lymphedema of both lower limbs, including foot and leg, without skin lesions.

3.2. Family case

Both patients were examined by MRL without contrast agent. No pathogenic changes were revealed in the thoracic duct, whereas hypoplastic and aplastic lymphatic components in lower extremities were discovered (Figure 2).

In boy on the right thigh in the upper third of the lower extremities, the femoral lymphatic vessel was not visualized, proximally and distally on the thigh vessels were not changed, deep lymphatic vessels of the muscles in the right leg were 2 times smaller than in the left. The medial and lateral subcutaneous lymphatic collectors of the right lower limb were not visualized, and subcutaneous lymphatic vessels were represented as diffuse small vessels.

In girl hypoplastic deep lymphatic vessels of the lower legs and thighs were visualized. The medial and lateral subcutaneous lymphatic collectors of both lower extremities were aplastic and not visualized. The subcutaneous lymphatic vessels were represented as diffuse small vessels.

3.3. Exome analysis

Exome variants were sorted by the frequency according to GnomAD 3.1 database and those with frequency ≤ 1% were selected for further analysis. 467 common variants in 360 genes were identified, and among them only CELSR1 was shown to be associated with PLD. No pathogenic or even rare variants with uncertain/unknown significance were found in the 87 other genes associated with isolated or syndromic PLD, including FLT4, GJC2, FOXC2, SOX18, GATA2, CCBE1, and PTPN14, which have been linked with the most cases of the disease [4].

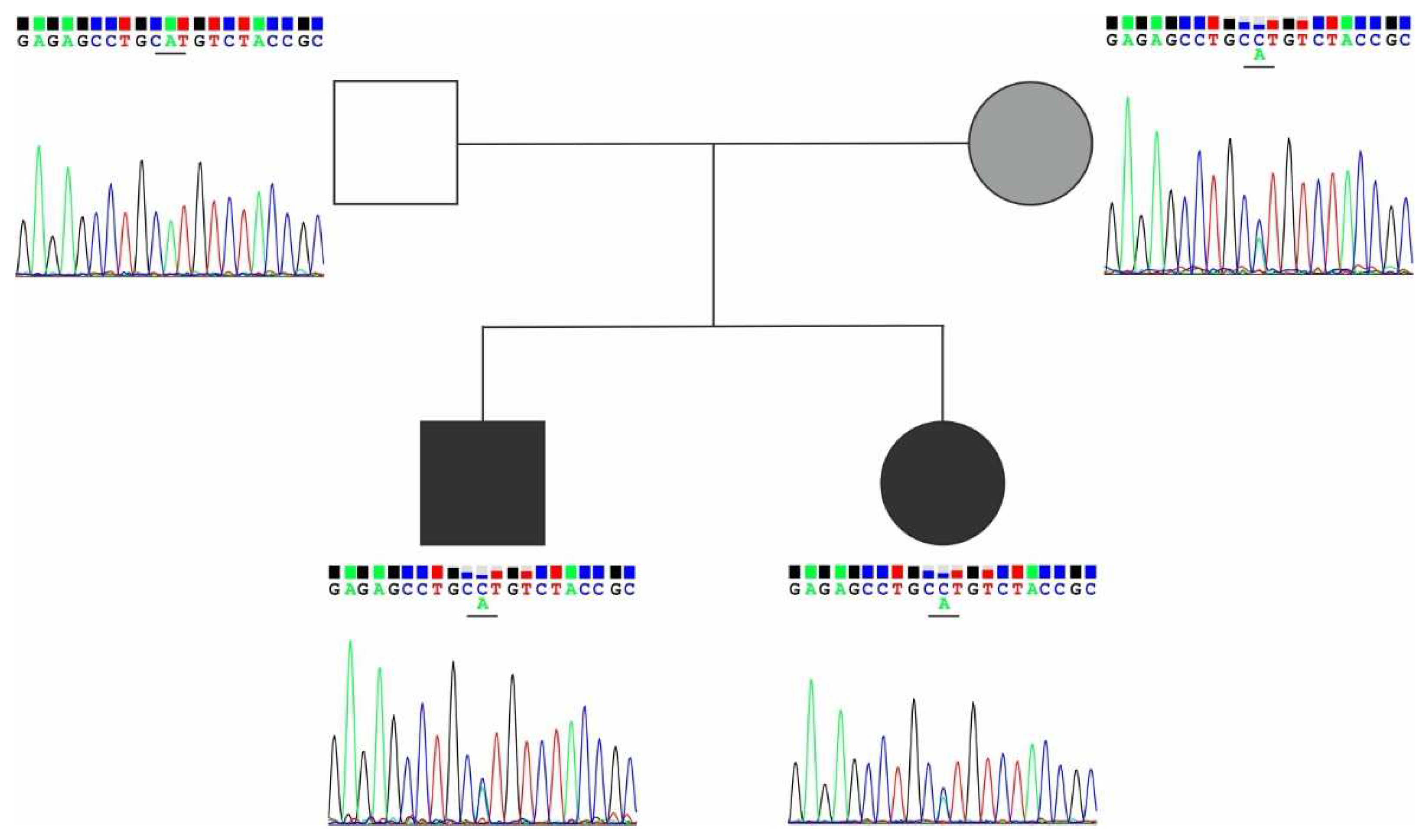

Genomic c.7664A>C variant was identified as a joint variant for two siblings. Variant was additionally analyzed by Sanger sequencing in children and their parents. Heterozygous change was confirmed in both children and their mother, whereas father was unaffected (Figure 3).

In silico predictors SIFT, Plyphen2 and Mutation tester, as well as the evolutionary conservation assessment instruments alone, were used to estimate the possible influence of c.7664A>C variant on the protein function, and all of them predicted this variant to be deleterious (Table 1).

4. Discussion

CELSR, planar cell polarity organizer, forms trans-dimers and is involved in the organization of polarized structures between neighboring cells [14,15] and have a coordinating effect in the propagation of a signal from cell to cell [16,17]. Animal models revealed, that these process are necessary for the proper formation of the neural tube and its derivatives[18,19], stereocilia and neurons in the inner ear[20,21], ciliated cells of the fallopian tube[22] and other tubular organs, hair[23], and endothelial valve cells[24]. Nevertheless, the functioning of CELSR family proteins at the molecular level remains largely unclear. Like most adhesion GPCRs, they are orphan receptors with an unknown activation mechanism. Even the assumption of a connection between CELSR and heterotrimeric G-protein is based only on the presence of a 7-TM domain characteristic of GPCRs, and the site that interacts with any G-protein has not yet been identified. Experimental data indicate that adhesion G protein–coupled receptors (ADGRs) can activate signaling events unrelated to G-proteins but based on homophilic trans-interactions necessary for planar cell polarity[15].

Disruptions in CELSR1 in humans are associated with the development of lymphatic malformation 9 (LM9, OMIM: 619319). The expression of Celsr1 in mouse vessels begins during the formation of valves at embryonic day 16 (E16-E16.5) [24], which is approximately equivalent to 23 weeks of gestation in humans [25]. During this process, endothelial cells elongate, undergo reorientation, and coordinated migration into the lumen of the vessel, where they initiate valve leaflet formation. Knockout of Celsr1 in mice leads to disruption of intercellular contacts, endothelial cells are unable to rearrange and adopt a perpendicular orientation for valve formation, leading to aplasia and impeding the ability of the lymphatic system to collect and drain fluid from tissues, ultimately resulting in lymphedema[26]. However, Celsr1 is necessary for development but not for maintaining the structure of lymphatic vessels - knockouts after valve formation do not have a significant impact on vessel structure[24].

CELSR proteins are non-classical cadherins that do not interact with catenins, unlike classical representatives. The structure of CELSRs includes a large ectodomain, with 8 or 9 N-terminal cadherin repeats, up to 8 epidermal growth factor-like domains, two laminin G-type repeats, an EGF-like laminin, one hormone receptor motif (HRM), and a GPCR Autoproteolysis Induction (GAIN) domain. The membrane part consists of a 7-transmembrane domain (7-TM), and the intracellular cytoplasmic tail has 300-600 amino acid residues [15]. The GPS region in the GAIN domain of most ADGRs is responsible for autoproteolysis in the extracellular domain, which occurs in the ER during receptor biosynthesis. Mature ADGRs are usually cleaved and exist as a non-covalently bound complex of N- and C-terminal fragments, but some of them, including CELSR1, do not cleave due to the absence of a consensus catalytic sequence (Leu↓Thr/Ser/Cys) in GPS [15]. Cadherin-like, EGF-like, and laminin-like repeats confer adhesive properties and facilitate intercellular communication, while GAIN and laminin domains can bind unidentified ligands.

Transmembrane domain of CELSR1 is relatively small (~8% of all amino acids), and contains few known mutations, especially those associated with diseases. We discovered rare variant, c.7664A>C, resulted in the substitution of histidine to proline at position 2555 (H2555P) of the intracellular loop in the CELSR1 transmembrane domain in a brother and sister with lower extremity lymphedema caused by aplasia and hypoplasia of lymphatic structures. The oedema in both children appeared in the first year of life, and LD was not diagnosed in of other family members. Despite the low/unknown frequency of the detected polymorphism in the population, which is one of the evidences of pathogenicity [13], identified variant cannot be confidently classified as pathogenic or neutral. The possible pathogenicity of H2555P, in addition to its frequency of occurrence, is evidenced by its presence in two close relatives with primary lymphedema and by the results of in silico analysis predicting a damaging/negative effect of the mutation on protein function. However, no missense mutation in the transmembrane domain of CELSR1 has been previously classified as pathogenic in LM, and no functional analysis of such alterations has been performed. The pathogenic/likely pathogenic findings closest to p.H2555 include p.A2510P/V and p.D2601N, revealed in the patients with congenital heart defects and primary angle closure glaucoma [27,28,29].

To date, less than 10 experimental studies have been published describing the genetic features and clinical-phenotypic characteristics of CELSR1-associated lymphedema (Table 2). It has been shown that the disease belongs to forms with early manifestation (first decade of life), characterized by incomplete penetrance and variable expression, predominantly affecting females.

Both our patients demonstrate hypoplasia and aplasia of lymphatic vessels in lower extremities. Such a structure of the lymphatic system, onset of lymphedema at birth or in infancy without syndromic features and systemic involvement is associated with the number of conditions, including Lymphatic malformation 1 (Milroy’s lymphedema, OMIM 153100, 5q35.3, FLT4), Lymphatic malformation 2 (OMIM 611944, 6q16.2-q22.1), Lymphatic malformation 3 (OMIM 615907, 1q42.13, GJC2), Lymphatic malformation 4 (OMIM 615907, 4q34.3, VEGFC), Lymphatic malformation 5 (OMIM 153200, not mapped), Lymphatic malformation 9 (OMIM 619319, 22q13.31 CELSR1), Lymphatic malformation 10 (OMIM 619369, 8p23.1, ANGPT2).

Aplasia or hypoplasia of initial lymphatic vessels is well-known clinical feature of Milroy’s lymphedema, as well as blood vessel abnormalities, including prominent leg veins and saphenous venous reflux [35,36,37]. In our study, both siblings have been presented by aplasia of lymphatic vessels according to MRL data (Figure 2). Additionally, male patient had prominent vein on left leg, however nail abnormalities or venous insufficiency were not identified in any of the children. Clinical features of another PLD types are much less studied, so it’s not possible to make a more accurate comparison in phenotypes. However, we did not find any pathogenic changes in coding sequences of genes, associated with primary lymphedema, except of CELSR1, in our patients.

5. Conclusions

Advancements in genetic testing technologies have revolutionized the diagnosis of changes in various genes associated with lymphedema development. The identification of molecular genetic features of primary lymphedema subtypes has enabled healthcare professionals to provide patients with information about their disease and how to manage potential complications effectively[3,38,39]. At the same time, the use of next-generation sequencing technologies in biomedical and clinical research has led to the discovery of numerous variants of uncertain significance, making the interpretation of results challenging and reducing the number of successful genetic diagnoses. In the case of CELSR1, analyzing the functional and clinical significance of genetic variations is complicated by the fact that the mechanisms of activation and regulation of the receptor remain poorly understood, and the frequency of detectable mutations is very low. Several pathogenic and likely pathogenic variants of CELSR1 have been previously associated with primary lymphedema progression. In our study, for the first time, a substitution in the 7-TM domain of the CELSR1 was revealed in the familiar case of primary lymphedema. To date variant cannot be confidently classified as pathogenic and requires further investigations but might be considered during molecular genetic examination of DNA samples of patients with primary lymphedema.
