Abstract
Globally, weeds interfere with agricultural production activities and have a very serious impact on agriculture and animal husbandry. Identifying a safe and reliable weed control strategy might increase yield, production net income, and improve crop quality. A field experiment was carried out to explore the effects of weeds interference frequency on the yield and quality of Glycyrrhiza uralensis Fisch in an arid and semi-arid area of northwest China. The experiment consisted of seven treatments and were (1) no weeding, marked as WF0; (2)-(7) artificial weeding by hoe once every 1, 2, 4, 6, 8, 10 weeks after emergence, marked as WF1, WF2, WF4, WF6, WF8 and WF10, respectively. We found that the higher weeding frequency had a higher the plant height, photosynthesis, yield and quality. The highest yield was obtained in the WF1 treatment, while the cost of weeding was the highest among all treatments. The concentration of liquiritin and glycyrrhizic acid were increased by 53.24% and 36.57%, with the highest nitrogen metabolism enzymatic activities and quality in WF4 treatment. WF4 treatment exhibited the largest increases in the net income among all treatments in both growing seasons, with respective increases up to 71.39 % and 78.81%. These findings suggested that weeding once every 4 weeks would be an effective and sustainable measure to control weeds in an arid and semi-arid area.
Keywords:
weeds interference frequency
; yield and quality
; sustainable agriculture
; the optimal ratio of medicinal materials and weeds
; G.uralensis
1. Introduction
Globally, weeds interfere with agricultural production activities and have a very serious impact on agriculture and animal husbandry [1,2]. Weeds and crops form a complex system in the ecosystem, competing directly for resources, including water, nutrients, light and space, which can affect the growth, yield and quality of crops, ultimately leading to substantial economic losses[3]. Weeds caused 45% of yield loss; however, this percentage may rise to 94-96% in rice, 50% in pulses, 72% in sugarcane and nearly 90% in almost all vegetables with an increase in weed interference[4]. In traditional agriculture, farmers had a proactive approach to weed removal, clearing them as soon as they were noticed[5]. Nonetheless, hand weeding is time-consuming, labor-intensive and tedious, leading to higher production costs [6]. Although chemical weed control using herbicides has been the most popular and effective method [7,8], it affects the quality and safety of crops and pollutes the environment. In addition, a single herbicide application cannot control the entire weeds over the growing season[9]. Moreover, the evolution of herbicide resistance has also become a major problem, further complicating the process of weed control [10]. All these factors can significantly impact the sustainable development of farmland ecosystems. Therefore, identifying a safe and reliable weed control strategy that can not only increase yield and production net income but also improve crop quality is of great significance.
Previous studies have shown that some weed control strategies can improve the yield and quality of cultivated crops. Weed diversity mitigates crop yield loss. For instance, yield loss decreased from 60% to 30% in wheat paddocks with an increase in the weed species richness from 7 to 20 [11,12]. As one of the common weeds of grain fields, corn cockle (Agrostemma githago L.) promotes crop growth and improves the yield and quality in the wheat field by secreting gibberellin, agrosfemin and allantoin into the soil [13,14].
Proactive management of weed diversity may increase crop productivity[15]. Most studies have shown that weeds impact crop yield, the yield is sub-correlated with the intensity of weed disturbance and constantly clearing all weeds during the entire growth period is the best approach to increase output. A previous study found that corn fields without weed interference had the highest grain yield[16]. Continuous weeding significantly reduced weed density and weed dry matter and increased weed control efficacy, ultimately improving plant growth, yield attributes and the overall yield of groundnut [17]. Similar results were reported in wheat[7], rice [18] and other crops[19]. Some studies have also suggested that weeds not only interfere with crop yield but also affect quality. The yield of the paddy field without weed interference was about 50% higher than that of the weed field and rice processing, and appearance quality and seed nitrogen accumulation were also the best[20]. Other studies have shown that although weed interference affects crop growth and yield, they have no significant effect on quality. Notably, an increasing duration of weed interference negatively affected crop height, head diameter and 1000-kernel weight but not seed oil content[21]. Three times of artificial weeding in the early stage of the Radix bupleuri field significantly increased the root weight but had little effect on the total amount of saponin A and saponin D[22]. It can be seen that weed control has different effects on the yield and quality of cultivated crops. Photosynthesis [23,24], anti-stress enzyme activity [25,26] and nitrogen metabolism during growing season significantly affect crop yield and quality. However, the impact of weed interference frequency on these plant indicators has not been fully tested.
Licorice (Glycyrrhiza uralensis Fisch) is a perennial herb of the genus Glycyrrhiza in the family Leguminosae. It is one of the most popular traditional Chinese herbal medicines and has been used for over 2000 years in China. Its dried roots and rhizomes are widely used in Eastern and Western countries as medicine. This species contains numerous active ingredients [27,28], including liquiritin (LQ) and glycyrrhizic acid (GA), which are the main medicinal components specified in the Chinese Pharmacopoeia. The artificial cultivation of wild Licorice began in the 1980s in China and has become one of the leading industries in recent years. Weed control is a main technical obstacle restricting the large-scale cultivation of Licorice.
In the past 40 years, Licorice has been comprehensively studied in terms of plant systematic classification[29], chemical composition[30], pharmacological efficacy [31,32], separation and extraction methods [33,34,35], metabonomics [36,37], clinical application [38,39,40], etc. Most studies on artificial Licorice cultivation have largely focused on seed treatment [41,42], the best sowing and harvesting date [43,44], water stress [37,45], fertilization [46] and pest control[47], with only a handful of studies on weed control and herbicides. Herbicides pose significant challenges to the safe medical use of licorice.
We hypothesized that (i) different weed interference frequencies might affect the growth, photosynthetic physiology and enzyme activity of Licorice, and then change its yield and quality and (ii) the effects of different weed interference frequencies on the yield and quality might have a critical value, which is conducive to improving the economic benefits of its ecological planting. The present study aimed to (i) identify the differential efficacy of weed interference frequencies on yield and quality and (ii) determine the optimal interference frequency and the cost of ecological planting.
2. Materials and Methods
2.1. Study Site
The field experiment was conducted in 2021 and 2022 at Tianjizhang village of Licorice cultivation base, Yanchi County, Ningxia, in northwest China (Long. 107º16′48"E, Lat. 37°48′0"N, ca. 1427 m above sea level). The region is characterized by a typical continental monsoon climate with a mean annual temperature of 7.7°C, total annual precipitation of 290 mm and annual evaporation of 2132 mm. The soil type is mainly aeolian sandy soil, sierozem, which is barren and vulnerable to wind erosion. The region is a typical desert steppe area, dominated by xerophytes and mesoxerophytes.
2.2. Experimental Set-Up
One-year-old transplanted seedlings of Licorice were planted in early May at a depth of approximately 15 cm with a 30 × 12 cm spacing row and harvested in mid-October in each year (2021-2022). The planting density was about 27 plants m-1. Each plot had an area of 3 × 5 m.
The weed control test was started after the emergence of Licorice. The experiment consisted of seven treatments and was carried out as a randomized complete block (RCB) design with three replications. The treatments were (1) no weeding, marked as WF0; (2)-(7) artificial weeding by hoe once every 1, 2, 4, 6, 8, 10 weeks after emergence, marked as WF1, WF2, WF4, WF6, WF8 and WF10, respectively. All plots, whether weeding or not weeding, received the same agronomic management practice.
2.3. Weeds Investigation
Three quadrats (1 × 1 m) were randomly selected in the three plots without weeding. Weeds were removed from the ground and kept in ovens at 80℃ to a constant weight. Then, aboveground biomass accumulation (g/m2) was calculated. Weed species and density were also recorded.
2.4. Sampling and Measurements
2.4.1. Growth index
In mid-September of each year, 30 healthy plants with uniform growth were chosen for plant height (vertical height through the center of the crown) and crown size (length and width through the center of the crown) measurement using steel tape (accuracy of 0.1 cm) in different treatment plots. The ground diameter was measured using a vernier caliper (accuracy of 0.01 mm).
2.4.2. Photosynthetic parameters
Healthy leaves were selected at 2/3 of the plant from the ground on a sunny day at the end of August of each year for the measurement of the net photosynthetic rate (Pn, μmol/m2·s), transpiration rate (Tr, mmol/m2·s), stomatal conductance (G, mmol/m2·s) and intercellular carbon dioxide (CO2) concentration (Ci, μmol/mol) using a LI-COR 6800 portable photosynthesis system (LI-COR Biosciences, Lincoln, NE, USA). The reference (CO2) was set to 400 μmol/mol, light intensity was 1000 μmol/m2·s, temperature was 24°C and water vapor pressure difference (VPD) was 1.0 kPa. Three leaves were selected for each treatment as three replicates. The measurement time was between 9:00 and 11:00 A.M., and leaves were tiled to cover the whole leaf chamber (6 cm2). The chlorophyll soil plant analysis development (SPAD) value was measured using a portable chlorophyll SPAD meter (SPAD-502 Plus, Konica Minolta, Japan).
2.4.3. Antioxidant and nitrogen metabolism enzymes
Healthy leaves were collected at the end of August every year and stored in a dry ice sampling box. The leaves were taken back to the laboratory and placed in a refrigerator at -80℃ for determination. Antioxidant enzymes, including superoxide dismutase (SOD), peroxidase (POD) and catalase (CAT), and nitrogen metabolism enzymes, including glutamine synthetase (Gs), nitrate reductase (NR), nitrite reductase (NiR) and glutamate synthase (NG), were determined by spectrophotometry (BioPhotometer, Eppendorf, Germany) according to the instructions of the corresponding kits (provided by Suzhou Michy Biomedical Technology Co., Ltd., China).
2.4.4. Yield and effective components
All Licorice roots in each plot (3 × 5 m) were dug out in mid-October each year and dried naturally. Its dry weight was measured and the yield per hectare was calculated. The content of LQ and GA were determined by high-performance liquid chromatography (HPLC) according to the 2020 edition of Chinese Pharmacopoeia.
2.5. Data Analysis
Analysis of variance (ANOVA) was estimated using Statistical Analysis System software (SAS 8.1) and means were compared following a protected least significant difference (LSD) procedure at a 5% level of probability using the Duncan Multiple Range Test (DMRT). Data from the two seasons were examined independently. The box line chart, correlation analysis graph and principal component analysis (PCA) graph were performed using Metware Cloud — a free online platform for data analysis ( https://cloud.metware.cn ).
3. Results
3.1. Weeds Investigation
There were 9 species of weeds in the non-weeding plot, belonging to 4 families and 7 genera (Table 1). Weeds with a higher density and aboveground biomass were Setaria viridis and Chenopodium album, with a density of 27 m-2 and 7 m-2 and biomass of 62.12 g·m-2 and 236.71 g·m-2, respectively. The weed densities in the plot without weeding was 46 m-2, about 465000 ha-1.
3.2. Growth of Licorice
Different weed interference frequencies had different effects on growth in both growing seasons (Table 2). Generally, the growth index value showed a downward trend with a decrease in the weeding frequency. The plant height, ground diameter and crown width of Licorice treated with WF1 were the highest, and the values in 2021 were 51.17 cm, 5.51 mm and 963.23 cm2 respectively, which were 31.54, 31.19% and 94.55% higher than those of WF0 treatment (lowest values), and the difference was significant (P < 0.05). The values in 2022 were 42.67 cm, 5.13 mm and 747.52 cm2 respectively, which were also significantly increased by 81.96, 95.05 and 137.39% compared with WF0 treatment (lowest values).
Meanwhile, no significant difference in plant height index was found between WF1 and WF2 treatments in 2021 (P > 0.05). Similarly, no significant difference was detected between WF1 and WF2 or WF4 treatments in 2022 (P > 0.05); however, the difference between WF1 and other treatments was significant in both growing seasons (P < 0.05). Overall, no significant differences in plant height, ground diameter and crown width were observed between WF2 and WF4, WF6 and WF8, WF10 and WF0 treatments (P > 0.05).
3.3. Photosynthetic Parameters
The effects of different weed interference frequencies on photosynthetic parameters were also different in both growing seasons (Table 3). The effects of different treatments on the Pn were WF1 > WF4 > WF2 > WF6 > WF8 > WF10 > WF0 in 2021 and WF1 > WF4 > WF2 > WF8 > WF6 > WF10 > WF0 in 2022. The effects on the Tr were WF1 > WF4 > WF2 > WF8 > WF6 > WF10 > WF0 in 2021 and WF1 > WF4 > WF2 > WF6 > WF8 > WF10 > WF0 in 2022.
Pn, Tr, G and SPAD values in the WF1 treatment within 2 years were the highest. Compared with the WF0 treatment (lowest values), these parameters increased by 0.85, 0.47, 1.96 and 0.33 times and 0.96, 0.73, 1.50 and 0.39 times in 2021 and 2022 respectively, and the differences were significant (P < 0.05). However, no significant differences in these parameters were found between WF2 and WF4 treatments and among WF6, WF8 and WF10 treatments (P > 0.05).
3.4. Antioxidant Enzyme Activities
Generally, the values of antioxidant enzyme activity in different treatments showed an increasing and then a decreasing trend in both growing seasons (Table 4). Notably, the WF1 treatment exhibited the lowest SOD, CAT and POD values.
In 2021, the SOD activity in WF10 and WF0 treatments were significantly higher than that in other treatments (P < 0.05), which was 4.01 and 3.74 times higher than that in WF1 treatment, respectively. The CAT activity in the WF8 treatment and POD activity in the WF10 treatment were significantly higher than those in other treatments (P < 0.05). In 2022, the SOD activity in WF8 treatment was the highest, and the change in CAT and POD activities was consistent with that in 2021.
3.5. Nitrogen Metabolism Enzyme Activities
Similarly, the activities of nitrogen metabolism enzymes in different treatments also exhibited an increasing and then a decreasing trend in both growing seasons (Table 5). The value of higher weeding frequencies was significantly higher than that of lower weeding frequencies. NR, NiR, NG and Gs activities in WF1, WF2, WF4 and WF6 treatments were higher, while those in WF8, WF10 and WF0 treatments were lower. NR, NiR and NG activities in the WF4 treatment were the highest. Compared with the WF0 treatment, these parameters increased by 1.76, 0.67, and 2.19 times and 6.93, 0.56, and 2.33 times in 2021 and 2022 respectively, and the differences were significant (P < 0.05). Gs activities were the highest in WF6 and WF4 treatment in 2021 and 2022 respectively.
3.6. Yield and Effective Components
The yield showed a downward trend with a decrease in the weeding frequency in both growing seasons (Figure 1). The highest yield was obtained in the WF1 treatment, and the dry weight reached 2536.46 and 2122.20 kg/ha in 2021 and 2022 respectively, which was 71.41% and 55.65% higher than that without weeding respectively, and the difference was significant (P < 0.05). However, no significant differences were observed among WF1, WF2 and WF3 treatments and between WF8 and WF10 treatments (P > 0.05).
The contents of LQ and GA in different treatments were much higher than those specified in the 2020 edition of Chinese Pharmacopoeia (LQ: 0.50%, GA: 2.00%) (Figure 2 and Figure 3). The highest LQ and GA were found in the WF4 treatment in both growing seasons, and the lowest value was found in the WF0 treatment. In 2021, LQ content increased by 35.67% and 53.24% in the WF4 treatment compared with the WF1 and WF0 treatments. The GA increased by 11.74% and 36.57% in the WF4 treatment compared with the WF1 and WF0 treatments. In 2022, LQ and GA increased by 19.23% and 21.30% in the WF4 treatment compared with the WF1 treatment respectively and by 24.71% and 35.48% compared with the WF0 treatment respectively.
3.7. Economic Benefit
The change trend in the gross income and dry weight of Licorice under different treatments was similar, while the net income changed differently in both growing seasons. WF4 treatment exhibited the largest increases in the net income among all treatments in both growing seasons, with respective increases up to 71.39 % and 78.81% compared with the WF0 treatment. The net income in the WF6 treatment was the second and that in the WF0 treatment was the lowest. The WF4 treatment did not differ significantly from the WF6 treatment (P > 0.05) but significantly differed from other treatments (P < 0.05).
Table 6.
Effect of weeds interference frequencies on Economic Benefit .
| Year | Weeds interference frequency | Weeding costs (CNY/ha) |
Gross income (CNY/ha) |
Net income (CNY/ha) |
|---|---|---|---|---|
| 2021 | WF1 | 12000 | 40583.31±1276.38a | 16583.31±1276.38bc |
| WF2 | 6000 | 33973.09±1986.02b | 15973.09±1986.03cd | |
| WF4 | 3000 | 35011.40±353.84 b | 20011.40±353.84a | |
| WF6 | 1950 | 32720.22±1834.66b | 18770.22±1834.66ab | |
| WF8 | 1500 | 28103.03±946.79c | 14603.03±946.79cd | |
| WF10 | 1200 | 27122.79±1186.75c | 13922.79±1186.75de | |
| WF0 | 0 | 23675.86±1413.25d | 11675.85±1413.25e | |
| 2022 | WF1 | 12000 | 33955.20±1312.96 a | 9955.20±1312.96d |
| WF2 | 6000 | 33225.60±1743.35a | 15225.60±1743.35b | |
| WF4 | 3000 | 32548.80±1177.42 a | 17548.80±1177.42a | |
| WF6 | 1950 | 29336.00±1452.55 b | 15386.00±1452.55ab | |
| WF8 | 1500 | 26294.40±1086.57c | 12794.40±1086.57c | |
| WF10 | 1200 | 26325.60±1358.29c | 13125.60±1358.29bc | |
| WF0 | 0 | 21814.40±815.04d | 9814.40±815.04d |
Note: In 2021 and 2022, the total input of each treatment was 12000 CNY / ha ( seedling, land rent and other inputs, excluding weeding costs ), and the price of dry goods was 16 CNY / kg in 2021 and 2022.
3.8. Combined Correlation Analysis of Growth and Physiological Indexes with Yield and Effective Components
The correlation between growth and physiological indexes (photosynthetic indicators, antioxidant enzyme activity, nitrogen metabolism enzyme activity) and yield and effective components of Licorice was analyzed, and the Mantel test results were as follows.
In 2021, the dry weight of G.uralensis was significantly positively correlated with GD, Pn, SPAD, CS, Tr and G (Sorted by the size of the correlation coefficient) and negatively correlated with SOD, POD and CAT. LQ was positively correlated with NG, NiR, Gs and NR. GA was significantly positively correlated with Gs and NR (Figure 4 and Figure 5).
In 2022, the dry weight of G.uralensis was significantly positively correlated with Pn, Tr, SPAD, CS, PH and GD and negatively correlated with POD, CAT and SOD. Meanwhile, LI was significantly positively correlated with NR, NG and Gs. Additionally, GA was significantly positively correlated with Gs, NR, NiR and NG (Figure 6 and Figure 7).
3.9. PCA of Weed Interference Frequencies
To assess the difference between the seven weed interference frequencies in the field, PCA was performed on 18 indicators, including growth, photosynthetic indicators, antioxidant enzyme activity, nitrogen metabolism enzyme activity, yield and effective components of G.uralensis (Figure 8).
PCA showed that the total variance of the model described by PC1 and PC2 axes was 73.29% in 2021 and 67.44% in 2022, which suggested that there were differences among the seven treatments.
4. Discussion
4.1. Effect of Weed Interference Frequencies on Growth of Licorice
The present study found that the degree of different weed interference frequencies affecting normal growth was inconsistent. The plant height, ground diameter and crown in WF1, WF2 and WF4 treatments were higher (Table 2). The study was conducted in the arid and semi-arid areas of China, with low rainfall and high evaporation. Plant growth is often affected by water stress. In this study, there were about 465000 weeds per hectare in Licorice field, which consumed approximately 157.33 kg of (NH₄)₂SO₄, 41.95 kg of Ca(H₂PO₄)₂ and 62.93 kg of K₂SO₄[49]. Since nutrient absorption in weeds is often faster and higher than in crop plants[50], it might be that weeds consumed the N, P, K and water required for the normal growth of Licorice, ultimately affecting its morphological structure.
4.2. Effect of Weed Interference Frequencies on Photosynthetic Parameters of Licorice
This study found that an increase in weed interference affected water, nutrients and light available for growth, leading to the occurrence of a series of adaptive changes in photosynthetic physiology. The G of without weeding treatment was significantly lower than that of other treatments, and the SPAD value was also lower (Table 3). This might be due to weed competition, leading to leaf water deficit, stomatal limitation[51] and photosynthetic pigment degradation[52], reducing the Pn value and ultimately the energy and material provided for growth. Contrarily, treatment with a high weeding frequency was less affected by weed competition, and photosynthetic parameters were relatively high, leading to the production of dry matter. This was consistent with the effect of weeds on growth and yield.
4.3. Effect of Weed Interference Frequencies on Antioxidant Enzyme Activities of Licorice
Plants can spontaneously induce osmotic regulation and catalyze a series of antioxidant enzymes under a stressful environment, thus removing excess reactive oxygen species and alleviating stress damage [53]. The antioxidant enzyme activity increases when plants are under stress[54]. In this study, the activities of the three enzymes in different treatments showed an increasing and then decreasing trend (Table 4). The content of the three types of enzymes was lower in the treatment of weed removal once a week, which might be due to lower levels of weed stress, strong photosynthetic capacity, and relatively low active oxygen-free radicals that destroy the cell membrane. The decrease in photosynthetic capacity reduced the transmission rate of photosynthetic electrons with the aggravation of weed interference, which was conducive to the flow of electrons to molecular oxygen, resulting in the production of superoxide radicals in plants and the accumulation of reactive oxygen species in cells [55] and an increase in the content of three enzymes in Licorice leaves. When the degree of weed interference exceeded the adaptation range, weed stress damaged the cell membrane system and the physiological system in plants, and the activity of antioxidant enzymes showed a decreasing trend.
4.4. Effect of Weed Interference Frequencies on Nitrogen Metabolism Enzyme Activities of Licorice
Nitrogen is a key plant nutrient known to affect primary and secondary metabolism in plants. The lack of nitrogen nutrition leads to the accumulation of carbon-based secondary metabolites such as terpenoids and phenols [56,57]. The current study found that low weed interference frequency treatments promoted NR, NiR, NG and Gs activities, while high weed interference frequency significantly inhibited its enzyme activities. The WF4 treatment had higher nitrogen metabolism enzyme activities (Table 5). This might be because the study area is arid and semi-arid, the land is barren and the weeds consume a certain amount of nitrogen under low weed interference frequency. Mild nitrogen deficiency might promote an increase in nitrogen metabolism enzyme activities. However, under high weed interference frequency, weeds consume a large amount of nitrogen, resulting in an extreme lack of nitrogen nutrition in Licorice, which might inhibit the nitrogen metabolism pathway during growth, lowering the activities of nitrogen metabolism enzymes.
4.5. Effect of Weed Interference Frequencies on Yield and Effective Components of Licorice
Our data showed that the effects of different weed interference frequencies on yield were consistent with those on growth and photosynthesis. The yields in the WF1, WF2 and WF4 treatments were higher, and the yield in the WF0 treatment was the lowest. Since Licorice with higher plant height, crown width and ground diameter and better growth had stronger photosynthetic capacity, more dry matter was accumulated, and the corresponding yield was higher. It is inferred that the growth status of the underground and aboveground parts of the plant has a direct positive correlation with its photosynthetic capacity.
The effects of different weed interference frequencies on the accumulation of active ingredients and the activities of nitrogen metabolism enzymes were also consistent. WF4-treated Licorice had higher LQ and GA contents. This might be because secondary metabolites of Licorice increase to varying degrees under the condition of mild weed interference to protect the carbon/nitrogen nutrient metabolism balance and adapt to the weed-stress environment. Therefore, it was inferred that a moderate weed interference frequency would help improve the accumulation of active ingredients.
5. Conclusions
In summary, different degrees of weed interference frequencies had different effects on the yield and quality of Licorice. WF1, WF2 and WF4 treatments exhibited higher yields, followed by WF6, WF8 and WF10 treatments, with the lowest yield observed in WF0 treatment. Moderate weed interference frequency was beneficial to increase the content of LQ and GA. In addition, it was proved that WF4-treated Licorice had higher LQ and GA contents, which was consistent with its high economic benefits. Therefore, considering the quality and economic benefits of the local ecological planting of Licorice, the WF4 treatment would not only significantly improve the quality and economic benefits and save labor but also promote the sustainability of the farmland ecosystem. It would be a green ecological and efficient measure to prevent and control weeds in farmland. The study findings have certain reference significance for regulating the quality of Chinese medicinal materials using weeds in the future. Further studies should explore the optimal ratio of medicinal materials and weeds.
Author Contributions
Investigation, (Dongqing Wang) D.W., (Hua Liu) H.L., (Bin Ma) B.M. and M.L.; data analysis (Dongqing Wang) D.W. and (Bin Ma) B.M.; writing-original draft preparation, (Dongqing Wang) D.W.; writing-review and editing (Dongqing Wang) D.W. and (Bin Ma) B.M.; project administration, (Dongqing Wang) D.W.; funding acquisition, (Bin Ma) B.M. and M.L.. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by Natural Science Foundation of Ningxia Hui Autonomous Region (2022AAC03421), National Modern Agricultural Industry Technology System Funding (CARS-21), Ningxia Hui Autonomous Region Agricultural Science and Technology Independent Innovation Funding Project (NGSB-2021-16), and the sixth batch of autonomous region youth science and technology talents lift project.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
All new research data are presented in this contribution.
Acknowledgments
We want to thank all the members of our team who have contributed by involvement in the experimental process.
Conflicts of Interest
The authors declare no conflict of interest.
Abbreviations
| PH | Plant height |
| GD | ground diameter |
| CS | crown size |
| Pn | net photosynthetic rate |
| Tr | transpiration rate |
| G | stomatal conductance |
| Ci | intercellular CO2 concentration |
| SOD | superoxide dismutase |
| POD | peroxidase |
| CAT | catalase |
| GS | glutamine synthetase |
| NR | nitrate reductase |
| NiR | nitrite reductase |
| NG | glutamate synthase |
| DW | dry weight |
| LQ | liquiritin |
| GA | glycyrrhizic acid |
References
- Vasileiou, M., et al., Transforming weed management in sustainable agriculture with artificial intelligence: a systematic literature review towards weed identification and deep learning. 2024. 176: p. 106522. [CrossRef]
- Ekwealor, K.U., et al., Economic Importance of Weeds: A Review. Asian Plant Research Journal, 2019. 3(2): p. 1-11. [CrossRef]
- Worthington, M., et al., Breeding Cereal Crops for Enhanced Weed Suppression: Optimizing Allelopathy and Competitive Ability. Journal of Chemical Ecology, 2013. 39(2): p. 213-231. [CrossRef]
- Hossain, M.S., et al., Determination of Critical Period for Sustainable Weed Management and Yield of Jute (Corchorus olitorius L.) under Sub-Tropical Condition. 2023. 15(12): p. 9282. [CrossRef]
- Adenawoola, A.R., et al., Effects of frequency of weeding on the growth and yield of long-fruited jute (Corchorus olitorius) in a rainforest area of southwestern Nigeria. Crop Protection, 2005. 24(5): p. 407-411. [CrossRef]
- Pahade, S., et al., Efficacy of Sulfentrazone 39.6% and Pendimethalin as a Pre Emergence Application against Weed Spectrum of Soybean (Glycine max L. Merrill). International Journal of Plant & Soil Science, 2023. 35(12): p. 51-58. [CrossRef]
- Tomar, D.S., et al., Comparative Efficacy of Different Herbicidal Combinations on Weed Growth and Yield Attributes of Wheat. International Journal of Environment and Climate Change, 2023. 13(8): p. 889-898. [CrossRef]
- Moss, S., Integrated weed management (IWM): why are farmers reluctant to adopt non-chemical alternatives to herbicides? Pest Management Science, 2019. 75(5): p. 1205-1211. [CrossRef]
- Emmanuel, K., et al., The effect of weed control timing on the growth and yield of upland rice (Oryza sativa L.). Journal of Agricultural Sciences,Belgrade, 2021. 66(1): p. 27-38. [CrossRef]
- Kraehmer, H., et al., Herbicides as Weed Control Agents: State of the Art: I. Weed Control Research and Safener Technology: The Path to Modern Agriculture. Plant Physiology, 2014. 166(3): p. 1119-1131. [CrossRef]
- Adeux, G., et al., Mitigating crop yield losses through weed diversity. Nature Sustainability, 2019. 2(11): p. 1018-1026. [CrossRef]
- Storkey, J., et al., What good is weed diversity? Weed Research, 2018. 58(4): p. 239-243. [CrossRef]
- D.Gajic, Interaction between wheat and corn cockle on brown soil and smonitsa. J Sci Agric Ｒes, 1966. 19: p. 63. [CrossRef]
- Søgaard, B., et al., A positive allelopathic effect of corn cockle, Agrostemma githago, on wheat, Triticum aestivum. Canadian Journal of Botany, 1992. 70(9): p. 1916-1918. [CrossRef]
- Ferrero, R., et al., Weed Diversity Affects Soybean and Maize Yield in a Long Term Experiment in Michigan, USA. Front. Plant Sci., 2017. 8: p. 236. [CrossRef]
- Mubeen, K., et al., Interference of horse purslane (Trianthema portulacastrum L.) and other weeds affect yield of autumn planted maize (Zea mays L.). Saudi Journal of Biological Sciences, 2021. 28(4): p. 2291-2300. [CrossRef]
- Priyanka, et al., Effect of Combined Application of Herbicides on the Growth, Yield Attributes, Yield and Profitability of Kharif Groundnut [Arachis hypogaea (L.)]. International Journal of Environment and Climate Change, 2023. 13(9): p. 2413-2424. [CrossRef]
- Liu, C., et al., Benefits of mechanical weeding for weed control, rice growth characteristics and yield in paddy fields. Field Crops Research, 2023. 293: p. 108852. [CrossRef]
- Abdallah, I.S., et al. Weed Control, Growth, Nodulation, Quality and Storability of Peas as Affected by Pre- and Postemergence Herbicides. Horticulturae, 2021. 7, p.307. [CrossRef]
- Liao, P., et al., Effects of different density of Cyperus difformis and Ammannia baccifera on rice yield，processing and appearance quality. Acta Agriculturae Zhejiangensis, 2022. 34(11): p. 2348-2357.
- Stefanic, E., et al., The Critical Period of Weed Control Influences Sunflower (Helianthus annuus L.) Yield, Yield Components but Not Oil Content. Agronomy, 2023. 13(8): p. 2008. [CrossRef]
- Tian, Y., et al., Effects of different weeding frequencies and methods on the yield and quality of Radix bupleuri. Plant Doctor, 2021. 34(3): p. 49-57. [CrossRef]
- Walter, J., et al., Here comes the sun: How optimization of photosynthetic light reactions can boost crop yields. Journal of Integrative Plant Biology, 2022. 64(2): p. 564-591. [CrossRef]
- Wu, A., et al., A cross-scale analysis to understand and quantify the effects of photosynthetic enhancement on crop growth and yield across environments. Plant, Cell & Environment, 2023. 46(1): p. 23-44. [CrossRef]
- Jhanzab, H.M., et al. Chemo-Blended Ag & Fe Nanoparticles Effect on Growth, Physiochemical and Yield Traits of Wheat (Triticum aestivum). Agronomy, 2022. 12, 757.
- LIU, X., et al., Effects of microbial agents and corn protein ferment on physiological characteristics in leaves and yield of tomato. Chinese Journal of Applied Ecology, 2023. 34(11): p. 3039-3044. [CrossRef]
- Hanli, D., et al., Differences in the endophytic fungal community and effective ingredients in root of three Glycyrrhiza species in Xinjiang, China. Peer J, 2021. 9: p. e11047. [CrossRef]
- Man, S., et al., Chemical analysis and anti-inflammatory comparison of the cell culture of Glycyrrhiza with its field cultivated variety. Food Chemistry, 2013. 136(2): p. 513-517. [CrossRef]
- Li, X., et al., Study on classification system and experimental biology of Glycyrrhiza L. 2015: Fudan University Press.
- Liu, G., et al., Chemical Constituents in Glycyrrhiza uralensis: AReview. Modern Chinese Medicine, 2021. 23(11): p. 023.
- Kong, S., et al., Chemical and pharmacological difference between honey-fried licorice and fried licorice. Journal of Ethnopharmacology, 2023. 302: p. 115841. [CrossRef]
- Li, N., et al., Research progress on chemical constituents and pharmacological effects of different varieties of Glycyrrhizae Radix et Rhizoma and predictive analysis of quality markers. Chinese Traditional and Herbal Drugs, 2021. 52(24): p. 7680-7692. [CrossRef]
- Hao, J., et al., A Study of the Ionic Liquid-Based Ultrasonic-Assisted Extraction of Isoliquiritigenin from Glycyrrhiza uralensis. BioMed Research International, 2020. 2020: p. 7102046. [CrossRef]
- Lee, E.J., et al. Isolation and Characterization of Compounds from Glycyrrhiza uralensis as Therapeutic Agents for the Muscle Disorders. International Journal of Molecular Sciences, 2021. 22, p.876. [CrossRef]
- Shen, M., et al., Research Progress on Extraction and Separation Methods of Licorice Flavonoids. Chinese Traditional Patent Medicine, 2021. 43(1): p. 154-159. Medicine.
- Bai, H., et al., Metabolomics study of different parts of licorice from different geographical origins and their anti-inflammatory activities. Journal of Separation Science, 2020. 43: p. 1593–1602. [CrossRef]
- Zhang, D., et al., Widely target metabolomics analysis of the differences in metabolites of licorice under drought stress. Industrial Crops and Products, 2023. 202: p. 117071. [CrossRef]
- Yang, L., et al., The anti-diabetic activity of licorice, a widely used Chinese herb. Journal of Ethnopharmacology, 2020. 263: p. 113216. [CrossRef]
- Bell, R.F., et al., Liquorice for pain? Therapeutic Advances in Psychopharmacology., 2021. 11. [CrossRef]
- Zhang, Q.-h., et al., Traditional Uses, Pharmacological Effects, and Molecular Mechanisms of Licorice in Potential Therapy of COVID-19. Frontiers in Pharmacology, 2021. 12: p. 719758. [CrossRef]
- Li, R., et al., Salicylic acid improved salinity tolerance of Glycyrrhiza uralensis Fisch during seed germination and seedling growth stages. ACTA AGRONOMICA SINICA, 2020. 46(11): p. 1810-1816. [CrossRef]
- Huang, W., et al., Study on seed germination characteristics of Glycyrrhiza uralensis Fisch Seed, 2018. 37(8): p. 12-15.
- Zhu, L., et al., Influence of Seeding Date on Glyrrhiz a uralensis Fisch Surviving through Winter and Growth Characteristic of Root System. Journal of Desert Research, 2007. 27(3): p. 469-472.
- Ye, J., et al., Comparisons of yields and effective constituents of various kinds of licorice in different picking time. Chinese Traditional Patent Medicine, 2016. 38(5): p. 1088-1092. Medicine.
- Song, K., et al. The Effect of Soil Water Deficiency on Water Use Strategies and Response Mechanisms of Glycyrrhiza uralensis Fisch. Plants, 2022. 11, p. 1464. [CrossRef]
- Huang, J., et al., Changes in C:N:P stoichiometry modify N and P conservation strategies of a desert steppe species Glycyrrhiza uralensis. Scientific Reports, 2018. 8(1): p. 12668. [CrossRef]
- Chang, H., et al., Feeding preference of Altica deserticola for leaves of Glycyrrhiza glabra and G. uralensis and its mechanism. Scientific Reports, 2020. 10(1): p. 1534. [CrossRef]
- Bond, W.J., et al. , Ecology of sprouting in woody plants: the persistence niche. Trends in Ecology and Evolution. Trends in Ecology & Evolution, 2001. 16(1): p. 45-51. [CrossRef]
- An, W., et al., Weed species and control measures in cultivated licorice field. Agricultural Science-Technology and Information, 2008. 12: p. 33-34.
- Kaur, S., et al., Understanding crop-weed-fertilizer-water interactions and their implications for weed management in agricultural systems. Crop Protection, 2018. 103: p. 65-72. [CrossRef]
- Flexas, J., et al., Drought-inhibition of Photosynthesis in C3 Plants: Stomatal and Non-stomatal Limitations Revisited. Annals of Botany, 2002. 89(2): p. 183-189. [CrossRef]
- Joshi, R., et al., Transcription Factors and Plants Response to Drought Stress: Current Understanding and Future Directions. 2016. 7: p. 1029. [CrossRef]
- Gadelha, C.G., et al., Exogenous nitric oxide improves salt tolerance during establishment of Jatropha curcas seedlings by ameliorating oxidative damage and toxic ion accumulation. Journal of Plant Physiology, 2017. 212: p. 69-79. [CrossRef]
- Sheng, Z., et al., Osmotic Regulation, Antioxidant Enzyme Activities and Photosynthetic Characteristics of Tree Peony ( Andr.) in Response to High-Temperature Stress. Phyton-International Journal of Experimental Botany, 2023. 92(11): p. 3133--3147. [CrossRef]
- Li, B., et al., Elevated CO2-induced changes in photosynthesis, antioxidant enzymes and signal transduction enzyme of soybean under drought stress. Plant Physiology and Biochemistry, 2020. 154: p. 105-114. [CrossRef]
- Saloner, A., et al., Nitrogen supply affects cannabinoid and terpenoid profile in medical cannabis (Cannabis sativa L.). Industrial Crops and Products, 2021. 167: p. 113516. [CrossRef]
- Radušienė, J., et al., Effect of nitrogen on herb production, secondary metabolites and antioxidant activities of Hypericum pruinatum under nitrogen application. Industrial Crops and Products, 2019. 139: p. 111519. [CrossRef]

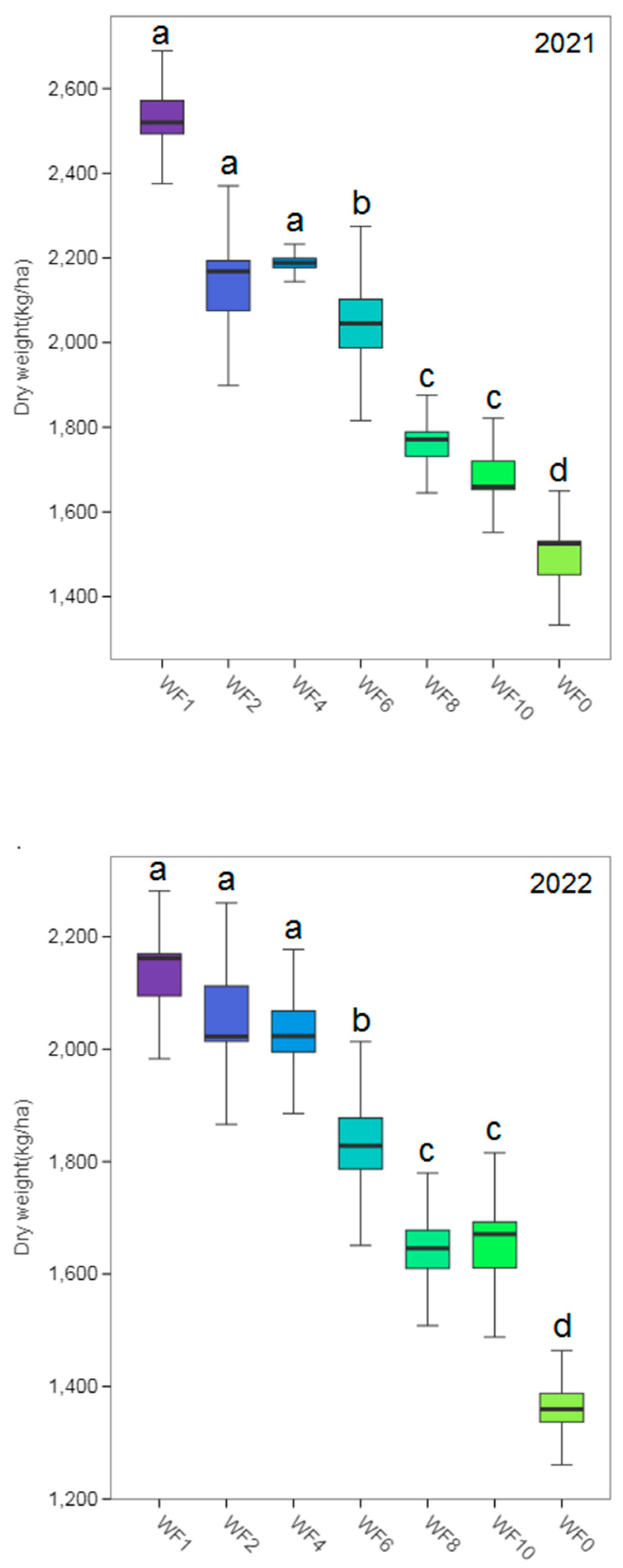

Figure 1.
Effect of weeds interference frequencies on yield in 2021and 2022.

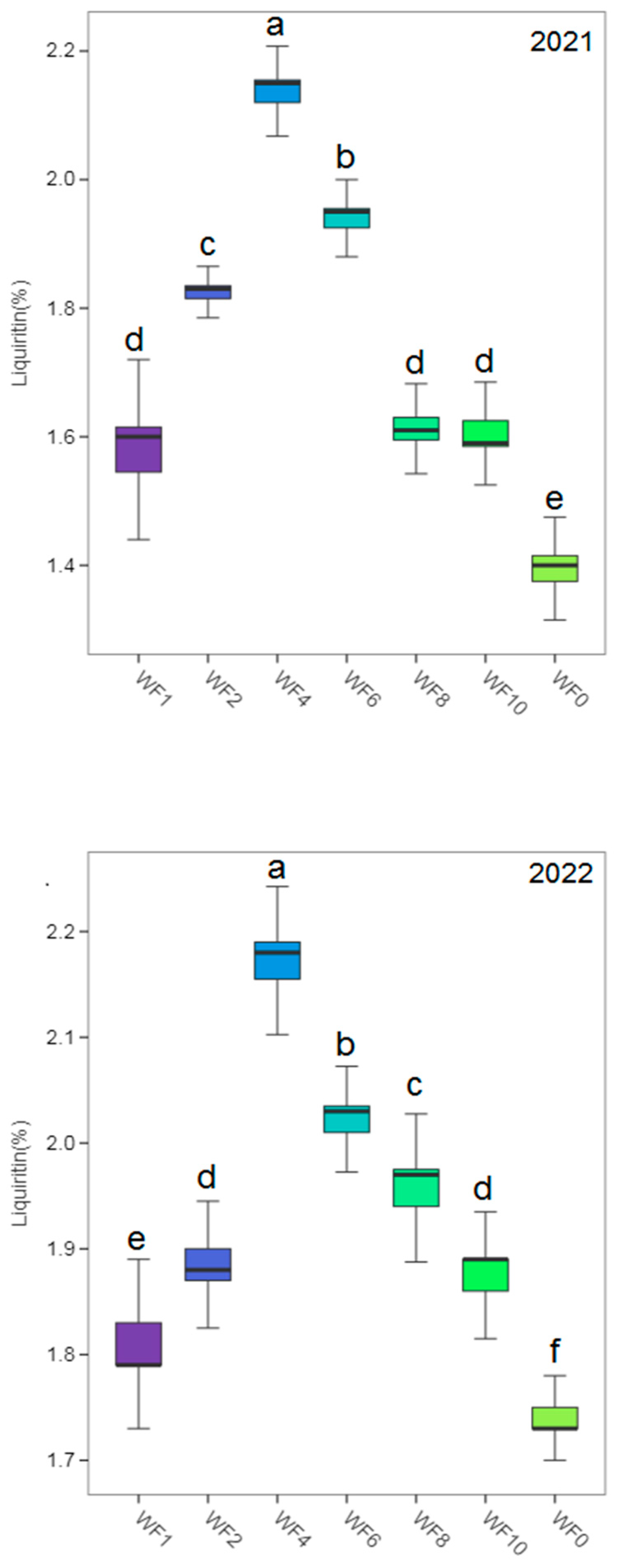

Figure 2.
Effect of weeds interference frequencies on liquiritin in 2021and 2022.

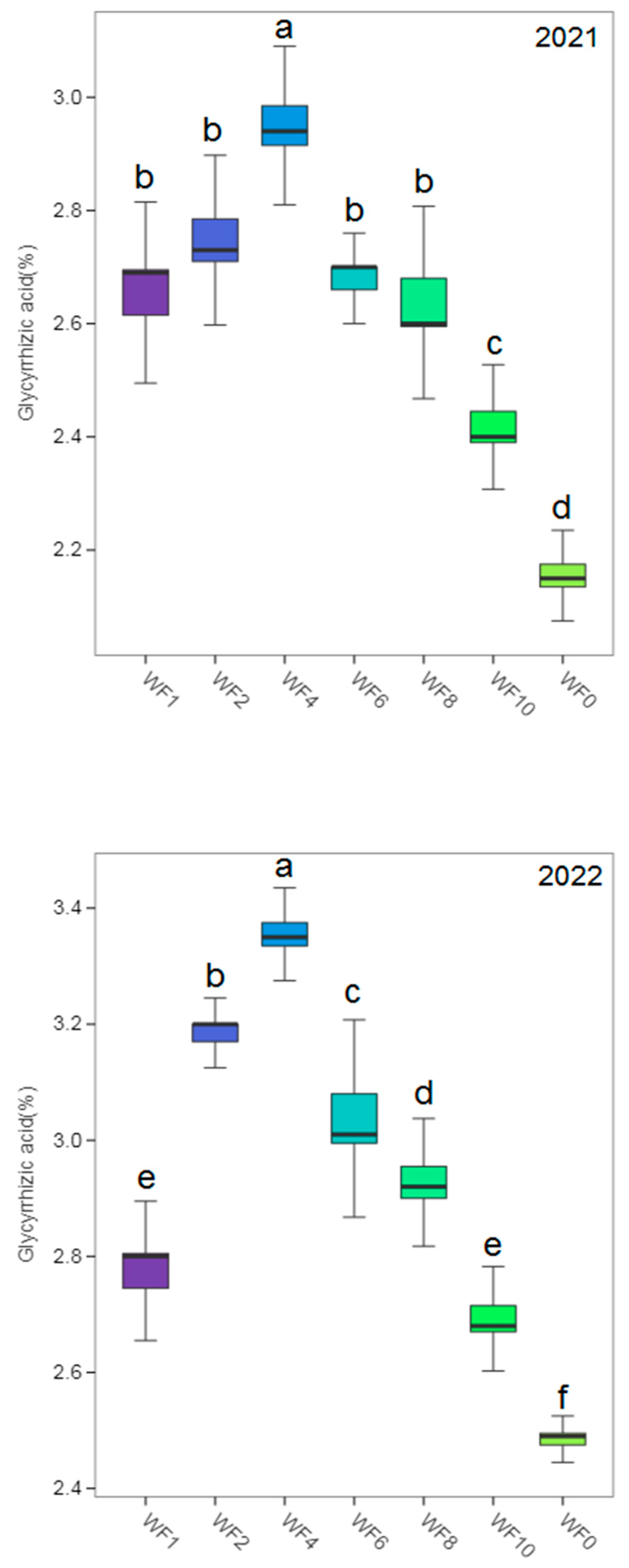

Figure 3.
Effect of weeds interference frequencies on glycyrrhizic acid in 2021and 2022.

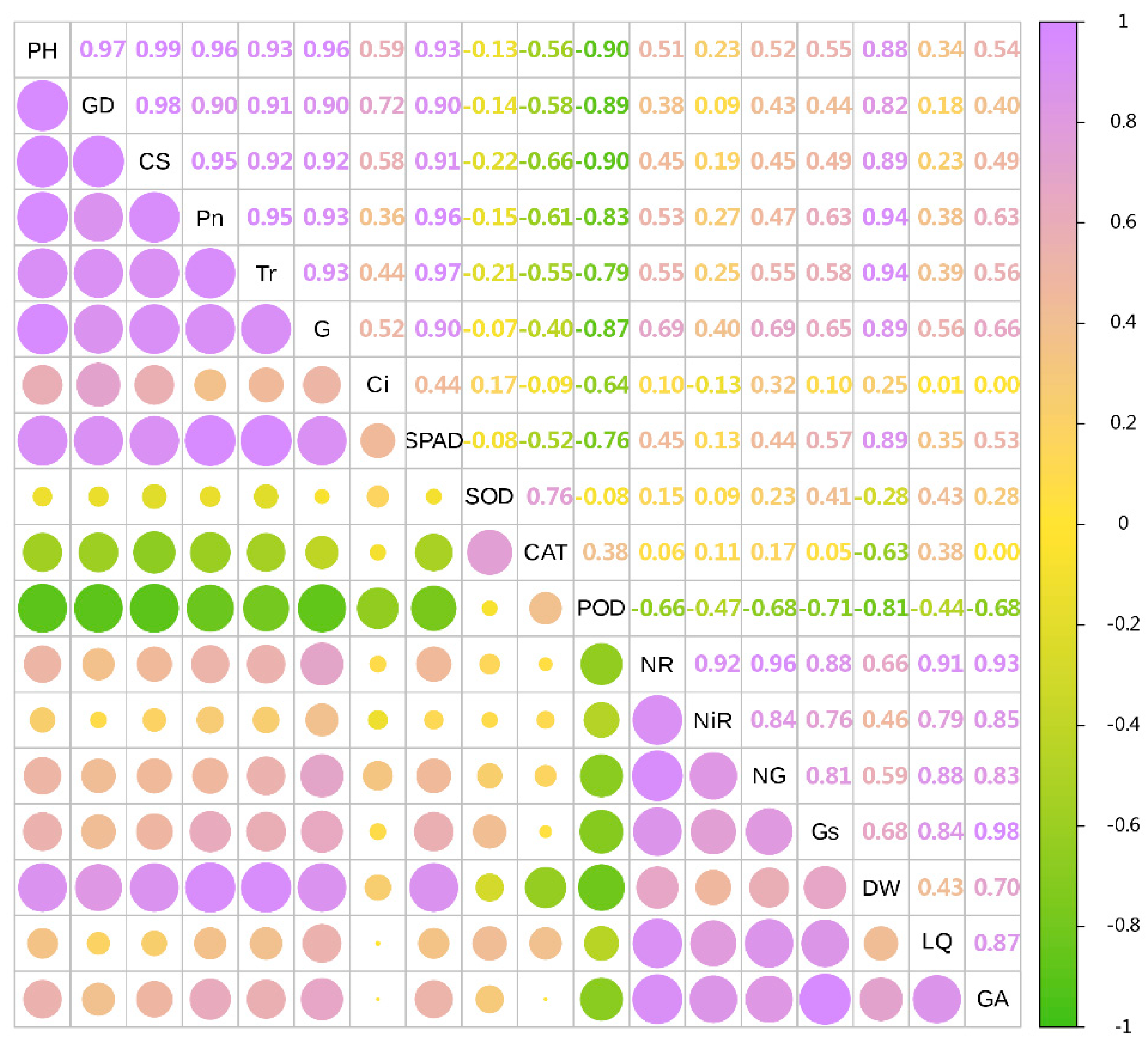

Figure 4.
Correlation analysis of growth and physiological indexes with yield and effective components in 2021.
Figure 4.
Correlation analysis of growth and physiological indexes with yield and effective components in 2021.

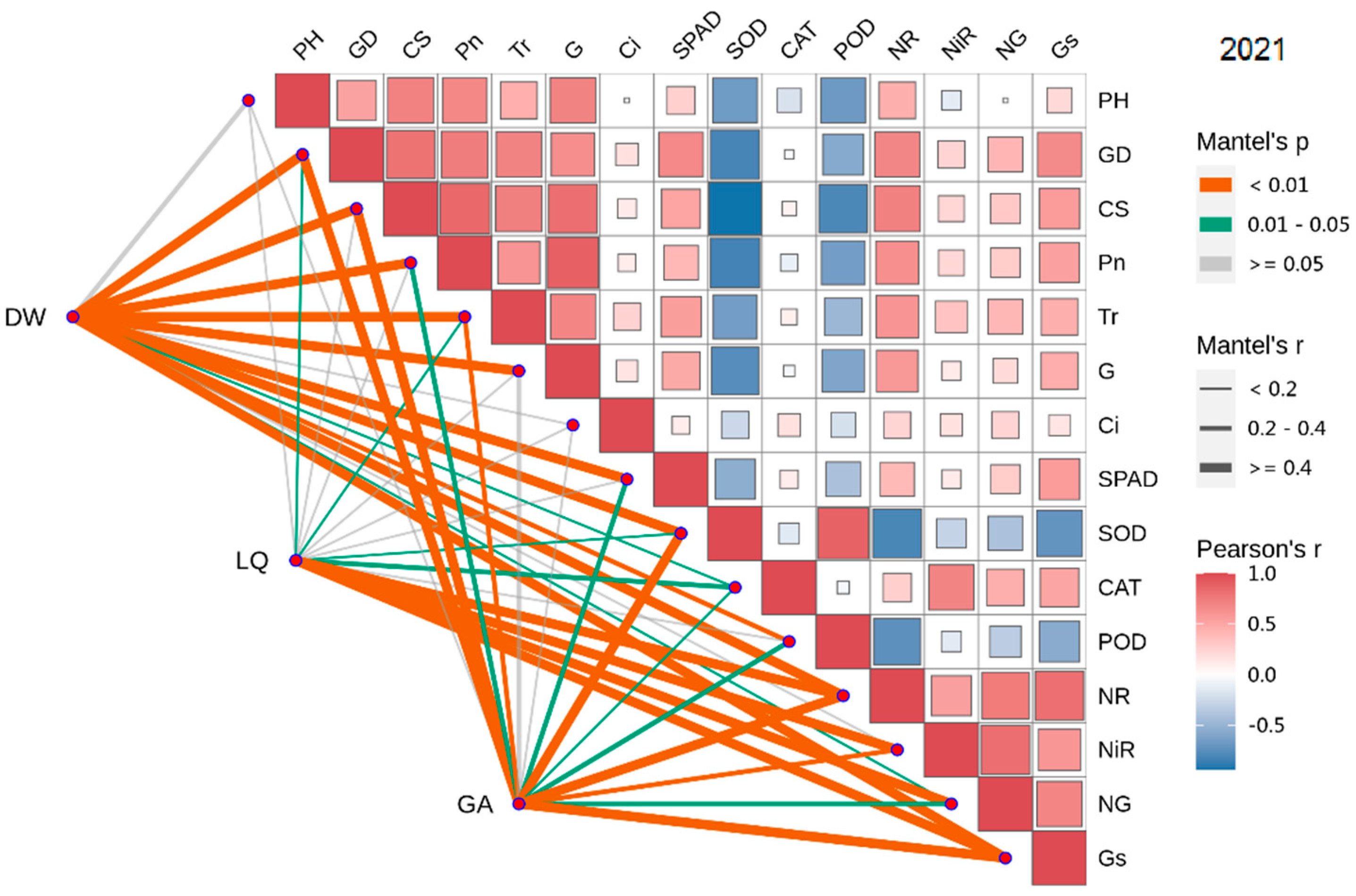

Figure 5.
Combined correlation analysis of growth and physiological indexes with yield and effective components in 2021.
Figure 5.
Combined correlation analysis of growth and physiological indexes with yield and effective components in 2021.

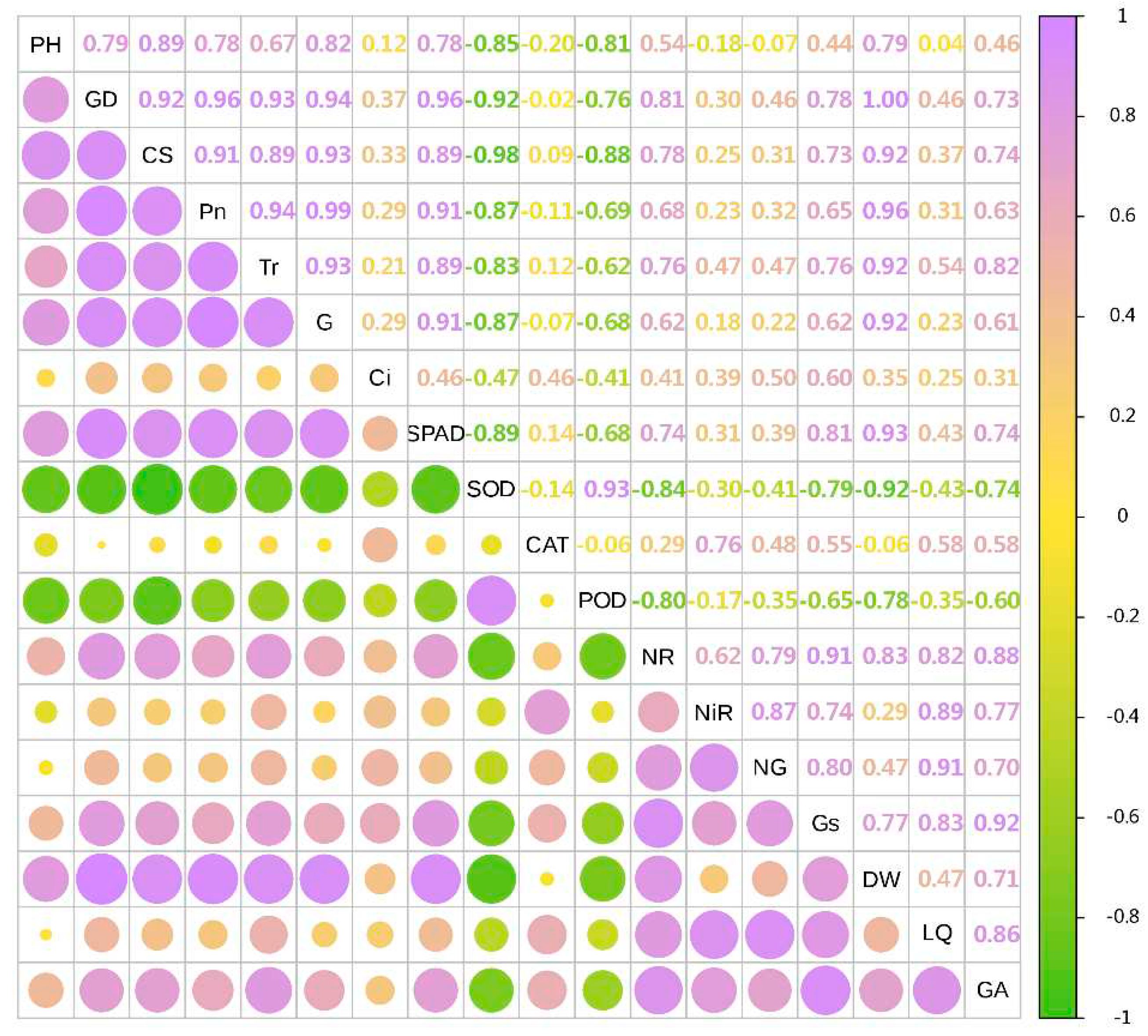

Figure 6.
Correlation analysis of growth and physiological indexes with yield and effective components in 2022.
Figure 6.
Correlation analysis of growth and physiological indexes with yield and effective components in 2022.

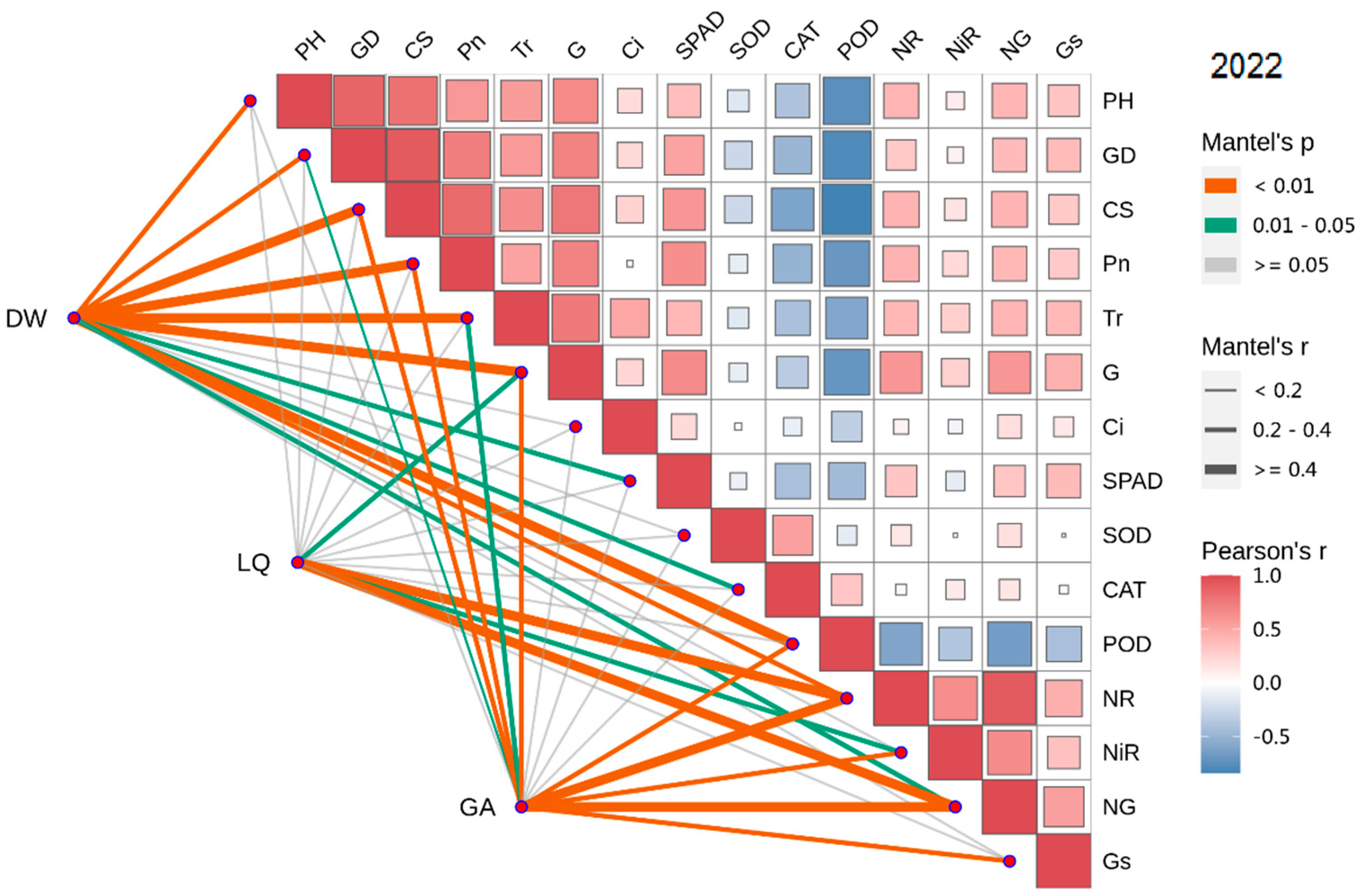

Figure 7.
Combined correlation analysis of growth and physiological indexes with yield and effective components in 2022.
Figure 7.
Combined correlation analysis of growth and physiological indexes with yield and effective components in 2022.
Figure 8.
The PCA of Weed Interference Frequencies in 2021 and 2022.
Table 1.
Weeds investigation of non-weeding plots.
| Family | Genus | Species | Density（no.·m-2） | Biomass（g·m-2） | |
|---|---|---|---|---|---|
| 1 | Poaceae | Setaria | S. viridis | 27 | 62.12 |
| 2 | Poaceae | Echinochloa | E. crusgalli | 2 | 3.84 |
| 3 | Chenopodiaceae | Corispermum | C. declinatum | 2 | 16.52 |
| 4 | Chenopodiaceae | Chenopodium | C. album | 7 | 236.71 |
| 5 | Chenopodiaceae | Chenopodium | C. foetidum | 2 | 4.80 |
| 6 | Chenopodiaceae | Chenopodium | C. aristatum | 1 | 1.09 |
| 7 | Compositae | Artemisia | A. scoparia | 3 | 0.38 |
| 8 | Chenopodiaceae | Salsola | S. collina | 1 | 1.72 |
| 9 | Geraniaceae | Geranium | G.sibiricum | 1 | 2.64 |
| total | 46 | 329.82 |
Table 2.
Effect of weeds interference frequencies on the growth.
| Year | Weeds interference frequency | Plant height （cm） |
Ground diameter （mm） |
Crown size （cm2） |
|---|---|---|---|---|
| 2021 | WF1 | 51.17±6.59a | 5.51±0.23a | 963.23±38.11a |
| WF2 | 49.43±5.51ab | 5.01±0.19bc | 823.63±55.35b | |
| WF4 | 43.30±1.55bc | 5.07±0.15b | 809.19±62.07b | |
| WF6 | 40.50±1.23c | 4.93±0.25bcd | 672.96±90.32c | |
| WF8 | 42.37±5.95bc | 4.64±0.24cd | 730.74±46.48bc | |
| WF10 | 39.33±2.52c | 4.54±0.21de | 504.04±30.34d | |
| WF0 | 38.90±1.73 c | 4.20±0.26e | 495.11±17.91d | |
| 2022 | WF1 | 42.67±1.45a | 5.13±0.40a | 747.52±20.26a |
| WF2 | 34.89±5.05ab | 3.93±0.49b | 586.41±46.01b | |
| WF4 | 36.89±7.04ab | 3.83±0.25b | 574.07±51.27bc | |
| WF6 | 31.44±2.72bcd | 3.73±0.47b | 470.52±91.19d | |
| WF8 | 33.00±6.69bc | 3.77±0.85b | 491.41±60.78cd | |
| WF10 | 25.00±5.03cd | 2.67±0.25c | 322.15±24.30e | |
| WF0 | 23.45±5.18d | 2.63±0.23c | 314.89±13.45e |
Note: The crown width of this study was defined as the multiplication of two diameters passing through the center of the crown[48].
Table 3.
Effect of weeds interference frequencies on photosynthetic parameters.
| Year | Weeds interference frequency | Pn (μmol/m2·s) | Tr(mmol/m2·s) |
G (mmol/m2·s) |
Ci(μmol/mol) | SPAD |
|---|---|---|---|---|---|---|
| 2021 | WF1 | 34.88±1.35a | 16.19±1.07a | 890.64±137.21a | 309.03±13.07a | 44.90±4.97a |
| WF2 | 25.49±2.56bc | 13.97±2.03bc | 557.30±147.16bc | 299.63±19.21a | 41.53±4.71ab | |
| WF4 | 28.57±1.48b | 15.80±0.36 ab | 629.25±104.12b | 300.38±11.03a | 40.80±4.00ab | |
| WF6 | 24.62±2.41c | 13.43±1.28c | 491.88±115.33bc | 322.00±30.00a | 41.07±1.40ab | |
| WF8 | 24.06±1.54c | 13.56±0.83c | 550.73±59.40bc | 310.73±19.40a | 40.00±5.01ab | |
| WF10 | 22.15±3.67cd | 12.97±1.46cd | 431.91±43.81cd | 293.71±10.77a | 38.33±2.72ab | |
| WF0 | 18.87±1.09d | 11.02±1.03d | 300.71±10.54d | 297.62±18.33a | 33.77±7.35b | |
| 2022 | WF1 | 22.43±3.23a | 12.15±1.71a | 603.21±102.03a | 325.30±12.50a | 40.17±5.29a |
| WF2 | 20.21±1.66ab | 10.39±0.81ab | 446.60±83.45bc | 295.74±5.03a | 36.53±1.18a | |
| WF4 | 20.24±4.27ab | 10.68±1.30ab | 581.78±81.98ab | 299.37±40.59a | 36.60±3.38a | |
| WF6 | 16.15±0.75c | 10.10±1.43ab | 447.70±118.98bc | 317.73±14.08a | 34.87±4.95ab | |
| WF8 | 17.57±1.21bc | 9.36±1.28bc | 430.27±116.35bc | 315.40±21.86a | 35.77±1.40ab | |
| WF10 | 14.87±0.63cd | 9.04±2.92bc | 308.39±16.75cd | 283.54±49.72a | 33.80±1.30ab | |
| WF0 | 11.46±1.34d | 7.02±0.56c | 241.63±20.23d | 301.78±10.44a | 28.80±6.94b |
Table 4.
Effect of weeds interference frequencies on antioxidant enzyme activities.
| Year | Weeds interference frequency | SOD ( U/g FW ) |
CAT ( μmol/min/g FW ) |
POD ( U/g FW ) |
|---|---|---|---|---|
| 2021 | WF1 | 415.23±60.15d | 128.36±17.58e | 89.16±3.57e |
| WF2 | 802.89±66.61c | 300.04±10.20c | 92.73±21.40de | |
| WF4 | 947.39±50.11c | 399.19±55.07b | 160.49±32.10c | |
| WF6 | 1122.11±58.57b | 411.90±45.74b | 181.89±32.10bcd | |
| WF8 | 1203.29±129.87b | 511.35±30.34a | 210.42±17.84bc | |
| WF10 | 2080.94±119.27a | 234.78±5.96d | 385.04±7.69a | |
| WF0 | 1967.78±93.04a | 145.63±13.16e | 256.79±92.73b | |
| 2022 | WF1 | 1648.03±246.22c | 27.87±11.15c | 21.93±8.00c |
| WF2 | 1817.54±42.030bc | 54.25±13.54c | 30.67±11.72bc | |
| WF4 | 1891.68±155.685bc | 164.43±22.15b | 34.00±9.17bc | |
| WF6 | 1990.55±154.53ab | 206.98±17.16a | 40.67±1.15c | |
| WF8 | 2255.41±204.68a | 217.55±19.32a | 50.67±15.28b | |
| WF10 | 1811.35±164.48bc | 164.41±27.28b | 124.33±18.50a | |
| WF0 | 1784.57±249.06bc | 161.76±29.38b | 102.33±27.32a |
Table 5.
Effect of weeds interference frequencies on nitrogen metabolism enzyme activities.
| Year | Weeds interference frequency | NR (nmol/min/gFW) |
NiR (μmol/h/gFW) |
NG(nmol/min/gFW) | Gs (μmol/h/gFW) |
|---|---|---|---|---|---|
| 2021 | WF1 | 197.89±25.41b | 4.70± 0.50d | 196.16±18.75b | 12.47±0.94ab |
| WF2 | 215.28±12.58ab | 4.90±0.37cd | 205.40±10.52b | 12.56±0.61ab | |
| WF4 | 239.58±22.24a | 7.05±0.29a | 384.95±24.30a | 13.15±0.84ab | |
| WF6 | 210.89±14.29ab | 6.26±0.35b | 390.32±8.83a | 13.31±0.59a | |
| WF8 | 128.59±19.64c | 5.65±0.68bc | 158.70±13.49c | 12.04±0.69bc | |
| WF10 | 91.20±11.31d | 4.90±0.48d | 153.46±9.01c | 10.90±0.47cd | |
| WF0 | 86.74±7.44d | 4.22±0.13d | 122.45±12.51d | 9.76±0.80 d | |
| 2022 | WF1 | 98.59±19.64d | 3.55±0.68c | 205.40±8.44b | 9.47±0.94ab |
| WF2 | 147.89±25.41c | 5.13±1.01ab | 208.70±13.49b | 10.56±1.42a | |
| WF4 | 252.91±39.14a | 6.05±0.29a | 359.68±11.99a | 10.80±1.41a | |
| WF6 | 188.61±23.69b | 5.32±0.89a | 344.54±9.28a | 10.36±0.52a | |
| WF8 | 90.02±11.14d | 3.68±0.74c | 190.21±11.60b | 10.15±0.84ab | |
| WF10 | 61.20±11.31de | 3.65±1.11c | 120.62±24.08c | 9.26±0.71ab | |
| WF0 | 31.91±4.54e | 3.89±0.27bc | 108.07±9.81c | 8.51±1.09b |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
