Identification of Causes of Air Pollution in the Specific Industrial Part of the Czech City of Ostrava in Central Europe

1. Introduction

Air pollution is one of the most important environmental problems, especially in urban areas where most people live. Knowledge about the level of air pollution in the region of interest is critical to assess the impact in the quality of life of every resident. The study area is located in the north-eastern part of the Czech Republic in the city of Ostrava, which is part of the Ostrava-Karviná agglomeration. The agglomeration is part of the Upper Silesian Basin, which is located in the Czech Republic and in the larger area of Poland. Coal mining and related industry began here in the 17th century. There is a high density of individual heating with solid fuels (a high proportion of coal combustion), many industrial sources that were historically linked to coal mining in the Upper Silesian Basin and, last but not least, a rich transport infrastructure [1]. The situation is particularly serious given that this is a densely populated area. The negative impact on the environment and air quality has been recorded since the 1970s. Air quality improved in the 1990s with the onset of economic restructuring in both countries. Another reason for the improvement was the accession of both countries to the European Union and the need to adapt legislation to EU requirements [2]. These measures have improved air pollution levels in the region, but problems remain. In the study area, there are still exceedances of the limits, especially for PM₁₀ and benzo[a]pyrene (BaP). In the case of the carcinogen BaP, the annual limit of 1 ng/m³ is exceeded significantly over the long term. In some years it is even more than 10 times higher. Although annual PM₁₀ concentrations have not exceeded the annual limit of 40 µg/m³ in the last 4 years, the number of permissible exceedances of the daily limit is exceeded every year, i.e. more than 35 times over 50 µg/m³.

Elevated concentrations of both pollutants cause a number of health risks, especially in a densely populated region. The most significant source of PM₁₀ and BaP is individual heating with solid fuels. In the Czech Republic in 2019, local heating sources accounted for 55.1 % of PM₁₀ concentrations and 96.4 % of BaP concentrations [3]. BaP is produced almost exclusively by combustion processes and is the product of incomplete combustion at temperatures of 300 to 600 °C [4]. The contribution to BaP concentrations varies in different parts of the Czech Republic and depends on the position and density of its sources. The greatest burden by emissions of BaP occurs in the Moravian-Silesian region due to higher proportion of black coal combustion in bulk-burning type boilers in households [5,6,7,8].

The Ostrava-Radvanice (TORE) station has the highest BaP concentrations in the Czech Republic on the long term. Annual mean BaP concentrations at this station range from 7.7 to 9.6 ng/m³ over the last 5 years 2017–2021[3], whereas the annual limit for BaP is 1 ng/m³ [9,10,11].

Previous processing and model evaluations have not been able to reliably identify the main contributor to this pollution at this station [12,13]. Real measured BaP concentrations were higher than the results from the model calculations. The previous model results for this area also indicated that for BaP, the contribution of foreign sources (transboundary air pollution transport) was the largest contributor to the annual mean concentration (exceeding the limit value by several times), at around 45 %. Similarly, the contribution of foreign sources at the nearest industrial stations (Ostrava-Přívoz and another location Ostrava-Radvanice) was also based on the same method. Furthermore, the model results showed that the year-round coking plant operated by ArcelorMittal Ostrava a. s. (now Liberty Ostrava, a. s.) contributes relatively less to the total annual mean BaP concentration in this locality, as well as automobile traffic, in the order of a few percent [14].

However, if we relate this share to the mean annual BaP concentration measured at the station, the absolute contribution of foreign sources at the TORE station is approximately twice as high as the one at the other two industrial stations. Of course, this cannot correspond to reality. A closer look at the modelling results shows that the absolute contribution of foreign sources calculated by the CAMx model (ww.camx.com) is comparable at these sites. The spatial distribution of annual averages of BaP presented that the annual mean concentration measured at the stations decreases with increasing distance from the Czech-Polish border. The Ostrava-Radvanice site is an exception. Assuming the accuracy of the measured concentrations, the only possible explanation is that a significant source (or group of sources) of BaP emissions, which significantly affects the concentrations measured at the Ostrava-Radvanice TORE station locally, is missing or incorrectly accounted in the model inputs [14,15,16].

The lack of precise information meant that there were no convincing arguments on where to target measures to reduce emissions of this pollutant. At stations in the National Air Quality Monitoring Network of the Czech Republic, 24-hour (daily) BaP concentrations are measured every 3rd day (or 6th day). This makes it impossible to assess the level of air pollution by this pollutant in more detail depending on meteorological variables (mainly wind direction and wind speed) and to identify the possible source of pollution on the basis of these assessments.

Due to the above-described pitfalls, the Czech Hydrometeorological Institute has decided to realize an innovative method of sampling at 3-hour intervals in the period January-April 2021. Subsequently, broad-spectrum analyses were performed. The increased technical and financial complexity of this solution was positively compensated by the higher representativeness of the measurements in relation to meteorological conditions and thus higher unambiguity and credibility of the assessment. The extraordinary reliability of the assessment conclusions was achieved by using two completely independent methodological approaches for quantifying the immission shares of pollution sources: source identification based on the dependence of air pollution levels on meteorological conditions and source identification based on the PMF model - Positive Matrix Factorization [17,18]. Both solutions are independent of the input emission data.

Such extensive measurements, analyses and post-processing of the results were carried out within the project ARAMIS - Air quality Research, Assessment and Monitoring Integrated System (http://www.projekt-aramis.cz/), which is funded by the Technology Agency of the Czech Republic and the project KAPOOO - Regional Action Plan for Air Protection (https://www.msk.cz/cs/temata/zivotni_prostredi/krajsky-akcni-plan-pro-oblast-ochrany-ovzdusi---kapooo-10409/), which is being implemented under the Environment, Ecosystems and Climate Change programme funded by the Norway Grants 2014–2021. Within the project of emission reduction, measures targeting the most problematic air polluters, implemented or at least proposed before the project started, are analysed based on earlier series of regional air quality measurements. The project also includes an analysis of previously identified pollution sources. This will contribute to a targeted, detailed and more accurate identification of air pollution sources. Based on the analyses, the most effective measures will be proposed and further integrated into the action plan. The purpose of these measures is to achieve an improvement in air quality in the Czech Republic, in the Moravian-Silesian Region.

Activities within both projects were supported by the Regional Authority of the Moravian-Silesian Region (www.msk.cz/), the Statutory City of Ostrava (https://www.ostrava.cz/cs), the municipalities of the districts concerned, Public Health Institute Ostrava (https://www.zuova.cz/) and also integrated steel business Liberty Ostrava a. s. (https://libertysteelgroup.com/cz/).

2. Materials and Methods

The sampling was carried out at three monitoring sites (TOBA, TOKU and TORE) between 14 January and 14 April 2021.

2.1. Monitoring Sites

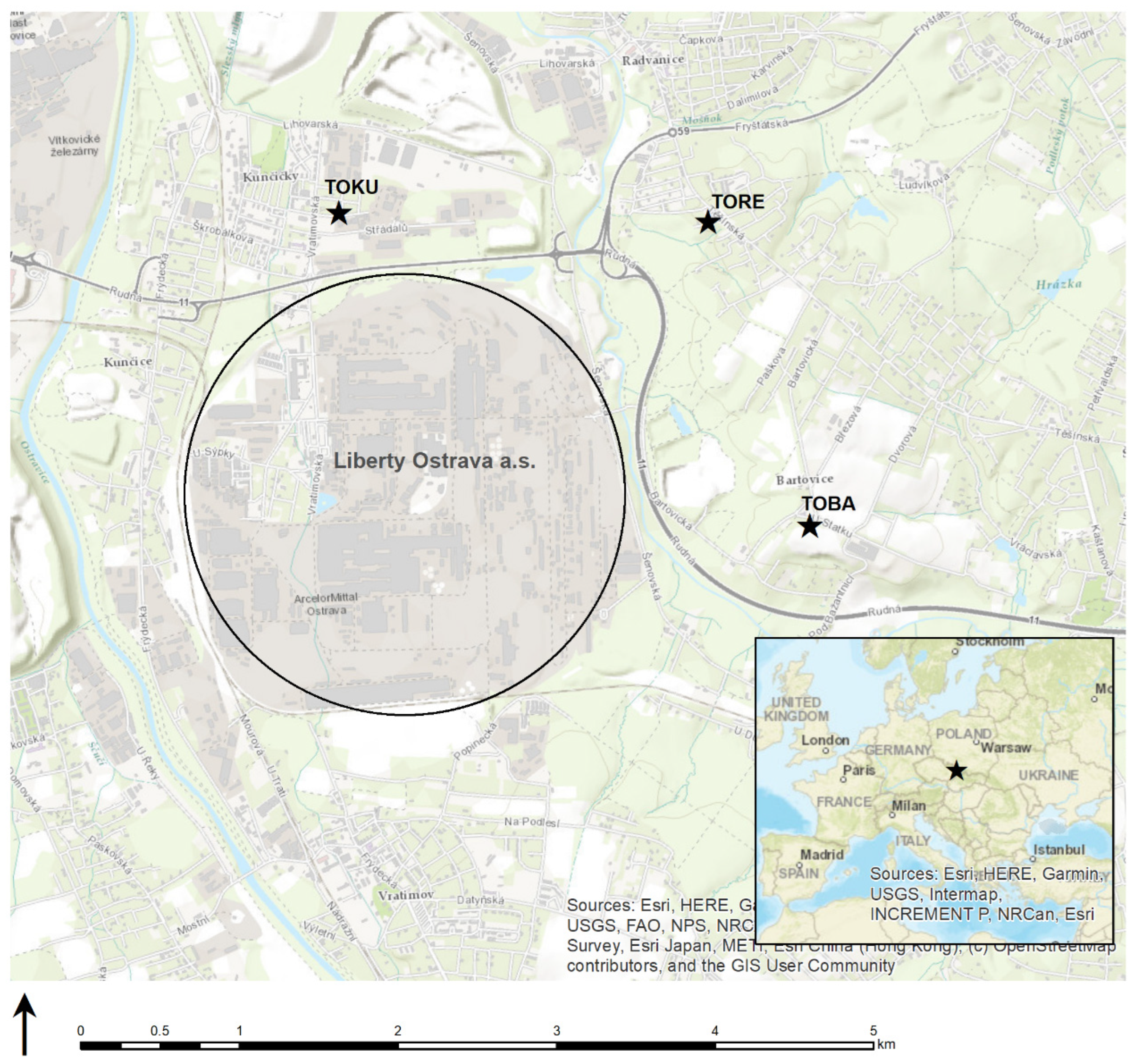

The locations were selected with regard to the location of the industrial complex Liberty Ostrava a. s. and other existing sources of air pollution. These were three stations located in the vicinity (Figure 1) of the Liberty Ostrava a. s. site, in the direction north (Ostrava-Kunčičky - TOKU), northeast (Ostrava-Radvanice - TORE) and east (Ostrava-Bartovice - TOBA) of the site. Two new locations in Ostrava-Kunčičky and Ostrava-Bartovice were purposely selected for two sampling sites. The third station was located on the site of the existing long-term air quality monitoring station Ostrava-Radvanice ZÚ, located in the Nad Obcí Street. This station is owned by The Public Health Institute in Ostrava and operated with the support of the Statutory City of Ostrava. The distance between TOKU and TORE is about 2.3 km, TORE and TOBA about 2 km and TOBA and TOKU about 3.6 km. The TOBA station was located at the fire station. The site is on the outskirts of the village near buildings of the civic facilities, there are agricultural areas nearby. The TOKU station was located in the fire station area, with low-rise residential development and buildings of the civic facilities.

The TORE station belongs to the National Air Quality Monitoring Network and is classified as industrial, suburban-zoned, with industrial and residential characteristics [15,19,20]. In the vicinity of the station, in the southern part of Ostrava-Radvanice, on sloping terrain, there is a low-rise development of family houses at a distance of about 60 m from a medium-traffic road. The industrial characteristics of the station are determined by the main source of air pollution from the metallurgical industrial complex (production of coke, sinter, iron, steel, secondary metallurgy and associated steel processing plants, power plant and heating plant), which is located in a valley positioned about 1.1 to 4.1 km to the south-west. The purpose of the location of the station is to represent the contribution from industrial sources of air pollution on a microscale, a few metres to 100 metres [3].

2.2. Sampling

Three Leckel SEQ automatic samplers with a controlled flow of 2.3 m³/h and an accuracy of 2 % were used to collect atmospheric PM₁₀ on filters at each monitorng site. The samples were collected every 9 hours for a period of 3 hours, and the sampling periods were the same for all samplers at all sites. A total of 240 regular samples and 12 field blanks (5 % of samples) were collected at each site for each laboratory method.

The PTFE filters (Cytiva Whatman, diameter of 46,2 mm) were used for gravimetric, elemental, anhydrosacharides, cations, and anions analyses while quarz fibre filters (Ahlstrom-Munksjö, MK5, diameter of 47 mm diameter) were used for organic (OC) and elemental (EC) carbon and PAH analyses. Prior to the organic and elemental carbon and PAH analyses, the filters were pre-baked at 800°C for 3 hours.

2.3. Laboratory Analysis

In all samples, the same laboratory procedures were conducted. The Mettler Toledo, XPR6UD5 model was used for gravimetric PM₁₀ mass measurement (with a method detection limit of 0.6 µg/m³). Clean filters were stabilized at a temperature of 19–21°C and a relative air humidity of 45–50 % for 48 and 12 hours before the first and the second weighing, respectively. The exposed filters were stabilized under the same conditions for 48 and 24 hour, respectively.

For the determination of OC and EC concentrations, thermo-optical transmission (Sunset Laboratory Inc., model 4L) adopting the EUSAAR_2 thermal program was used, which is a widely published European standard method for atmospheric aerosol samples [21,22]. A Merck calibration standard (10 µl of saccharose CAS 57-50-1 of carbon concentration 4.2109 µg/µl dosed on the filter) was used after every ten measured samples to ensure accuracy. The measured OC data were corrected for the field blank values, and the field blanks EC concentration was found to be negligible. The limit of quantification for organic and elemental carbon was determined as three times the concentration of laboratory blanks (3.6 and 0.02 µg/m³, respectively). Positive OC sampling artefacts were evaluated based on doubled filters, where top filters were placed directly on top of bottom filters in the same position in the sampler. A total of 66 out of 683 collected filters were doubled at all three sites. No significant difference was found between the field blanks and bottom filters, nor between the laboratory blanks and the field blanks. The mean and standard deviation of laboratory blanks, field blanks and bottom filters OC concentrations were of 1.21±0.46, 1.36±0.64 and 1.36±0.80 µg/cm², respectively.

Anhydrosacharides and ions (levoglucosan, mannosan, galactosan, SO₄^2-, NO₃^-, Cl^-, Br^-, F^-, NH₄⁺, Na⁺, K⁺, Ca²⁺ and Mg²⁺) concentrations were determined with HPAE chromatography (using a two-channel Metrohm, 940 Professional IC Vario with PAD and CD detector for anhydrosugars and ions, respectively). This method has been widely used worldwide for many years [23]. For chromatography analyses, all samples were extracted in 10 mL of pure water (PURELAB® Elga flex) using a horizontal eccentric shaker (350 rotations per minute for 1 hour). Water extracts were then filtered through the Cytiva Whatman Puradisc nylon membrane filters (25 mm diameter, 0.45 µm porosity). The Metrohm Metrosep A Supp, Metrosep Carb 2 and Metrosep C6 column guards were used for anhydrosugars, cations and anions, respectively. The limit of quantification and relative uncerainty for individual anhydrosugars were 10 ng/m³ and 20%. In the case of ions these values were 5 ng/m³ and 15%.

Concentrations of PAHs were measured using the liquid chromatography EPA TO 13 method in the laboratory of the Public Health Institute Ostrava with a relative uncertainty of 20%. The limit of quantification for benzo[a]anthracene, benzo[a]pyrene, benzo[b]fluoranthene, benzo[ghi]perylene, benzo[j]fluoranthene, benzo[k]fluoranthene, dibenzo[a,h]anthracene, chrysene and indeno [1,2,3-cd]pyrene was 0.3, 0.1, 0.3, 0.3, 2.9, 0.3, 0.6, 0.3 and 0.6 ng/m³, respectively.

Macro and trace elements (Na, Mg, Al, Si, S, K, Ca, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, As, Se, Cd, In, Sb, Ba, Pb) were measured by ED XRF (Thermo Scientific – ARL Quant X) with the samples autorotated during measurement. The method is well known and has been tested over the long-term for the elemental analyses of aerosol samples [24]. Three measurement repetitions of each sample were averaged to reduce measurement uncertainty. The method calibration was based on the individual Micromatter XRF calibration standard on PTFE filter for each element. Tables S1 and S2 in the Supplementary Material show limits of quantification and relative uncertainties of the macro and trace elements analysis.

Due to measurement and laboratory losses, 206 (TOBA), 237 (TOKU) and 239 (TORE) valid samples were used in the PMF modeling. Except the filters-based laboratory analyses results, also concentrations of gases from the TORE site were used, as their measurement was a part of long-term air quality monitoring provided by the The Public Health Institute in Ostrava [25].

2.4. Identification of Pollution Sources Depending on Wind Direction and Wind Speed

The assessment makes an important contribution by enabling the evaluation of BaP concentrations in relation to meteorological variables such as wind direction and wind speed at shorter intervals of 3 hours. Previously, only 24-hour averages of this pollutant were available, which made it difficult to establish a complete relationship with short-term (hourly or 10-minute) measurements of wind direction and speed. For the assessment of daily concentrations it is possible to use the method of calculating the daily type of wind (prevailing daily wind direction). While the method of calculating the prevailing daily wind direction is suitable for assessing daily concentrations, it may not be accurate enough for identifying sources of air pollution in a given area [26,27].

The processing used 3-hour averaged concentrations of BaP and PM₁₀ and hourly values of meteorological variables. The values are in UTC and are referenced to the beginning of the measurement interval, i.e. the mean PM₁₀ concentration for hour 0 is the mean PM₁₀ concentration for the period 0 to 3 h UTC.

Direct meteorological measurements were carried out in Ostrava-Bartovice (TOBA). For all three locations, measurements of wind direction and wind speed in this locality were used due to the uncomplicated orography and small distance. The suitability of using this wind rose was verified by comparison with a representative wind rose for Ostrava from the climatological station Ostrava-Poruba for the same period. For the purpose of comparison with the 3-hour averaged values of the measured pollutants, vector averages of wind direction were calculated for the given 3-hour intervals.

In the processing, concentration roses were used to represent the data, showing the distribution of contribution of maximum PM₁₀ concentration for a given wind direction and wind speed. The weighted concentration roses, as opposed to concentration roses, provide information on how often a given combination of wind direction and wind speed occurs and indicate how much the concentrations measured for a given wind speed and direction contribute to the overall mean concentration over a given period. The concentration roses reveal the situations at maximum contributions of a given pollutant in a given location. The weighted concentration rose will show from which wind direction and at which wind speed the pollution was coming at the highest rate over the whole period. It is clear from the above that the two types of roses for the same location and period can differ significantly. To give a better idea, concentration roses without including wind speed were also shown. Evaluation and comparison of these types of roses can indicate the location of sources that most frequently affect air quality at a given location, but also the location of sources from which concentrations come only sporadically, but at maximum contributions.

In order to evaluate the often discussed possible influence of emissions from the Liberty Ostrava a. s. premises on the air quality in the TOBA, TOKU and TORE locations, azimuths (sectors) were drawn from each station, including the delineation of air flow directions from the Liberty Ostrava a. s. premises with respect to the stations. In the case of TOBA, this is an angle of 250°–305°, TOKU 125°–160° and TORE a section at an angle of 190°–250°. The remaining angles up to 360° (outside the section including the Liberty Ostrava a. s. site) are included and marked “outside the direct influence of the Liberty Ostrava a. s. site”.

Statistical characteristics with concentration distributions indicating median and outliers are presented using boxplots. Statistical analyses and their graphical display were performed using the R software, MS Excel and ArcGIS.

2.5. Positive Matrix Factorization

The U.S. EPA PMF receptor model v. 5.0 was used, which is commonly used worldwide for the source apportionment. It has been used several times for the PM_2.5 and submicron PM source apportionment in the study area [28,29,30,31]. The method is based on time series correlations of individual analytes concentration. Analytes with a similar time course are grouped by the model into factors, which represent specific sources or groups of sources, which contribute to air pollution. For each factor, the model calculated its absolute and relative contribution to the ambient air PM₁₀ concentration. Based on the weight portion of BaP in each factor, the factor’s contribution to the total ambient concentration of this pollutant was then calculated. The PMF is often used on speciated PM_2.5 datasets with a size above 100 samples [17]. The dataset size (about 240 samples from each location) was therefore sufficient for reliable source apportionment. Nevertheless, the data from all three sites was merged in one dataset for the PMF model for more reliable and stable results. Samples collected at different sites and combined into the one overall dataset have already been used in many other PMF source apportionment studies. This approach has proven to increase the statistical significance of the analysis, although it assumes that the chemical profiles of the sources do not significantly vary at the different sites [32].

The modelling was conducted following the guidelines outlined in the PMF 5.0 manual [17]. The Base Run solution was mathematically stable and geochemically meaningful, with Q/Qexp ratio of 0.93. The coefficient of determination for the measured and modelled concentrations of PM₁₀ and BaP was R²=0.97 and R²=0.78, respectively. The level of fit achieved for BaP was satisfactory and for PM₁₀, it exceeded the good accordance standard set in the previous PMF model applications in other locations in the Czech Republic [33,34]. The extra modeling uncertainty was 12 %.

A total of 41 analytes were assigned as STRONG and 2 as WEAK (Si and the total variable PM₁₀) and used in PMF model. Some analytes, such a Al, S, Ni, Cd, In, some PAHs (BbF, BjF, BkF, DBahA, CRY), fluoride, chloride, bromide, and gaseous pollutants measured by automatic analyzers at the TORE site, were excluded from the measured analytes (assigned as BAD in the model) due to unsatisfactory signal-to-noise ratio, duplication with another analyte, or insufficient dataset. Concentrations of other duplicate and gaseous analytes in the dataset, e.g., sulfur determined by ED XRF [24,35] or nitrogen oxides, were reduced by 3 orders of magnitude to minimize their effect on PM₁₀ mass apportionment.

The stability of the solution was verified mainly by the bootstrap method using 20 test selections. As the Base Run did not achieve sufficient accordance for some factors, a fine rotation of the model solution was performed with the best results achieved at Fpeak=+0.5. Although rotated solution was mathematically stable (bootstraps compliance >=95 %), some factors representing primary particles from nearby sources (see subsection 3.2.1 for their description) showed a minor interfactorial interference. Therefore, the nitrate and sulphate content in the individual heating factors and the carbonaceous particulate content in the mineral dust factor were contrained to zero. Consequently, the Constrained Run was launched, and in its output, the mass of nitrates and sulphates was meaningfully shifted from the individual heating factors to the factors representing secondary aerosol. The model solution preserved sufficient stability, which was verified by the bootstrap method.

3. Results and Discussion

The main statistics of measured concentration in PM₁₀ at the TOBA, TORE and TOKU monitoring sites are shown in the S3 (in the Supplementary Material). The table includes also mean relative uncertainties used in the PMF model. Values below the detection limit were replaced by half of method detection limit in the S3 (Supplementary Material).

3.1. Identification of Pollution Sources Depending on Wind Direction and Wind Speed

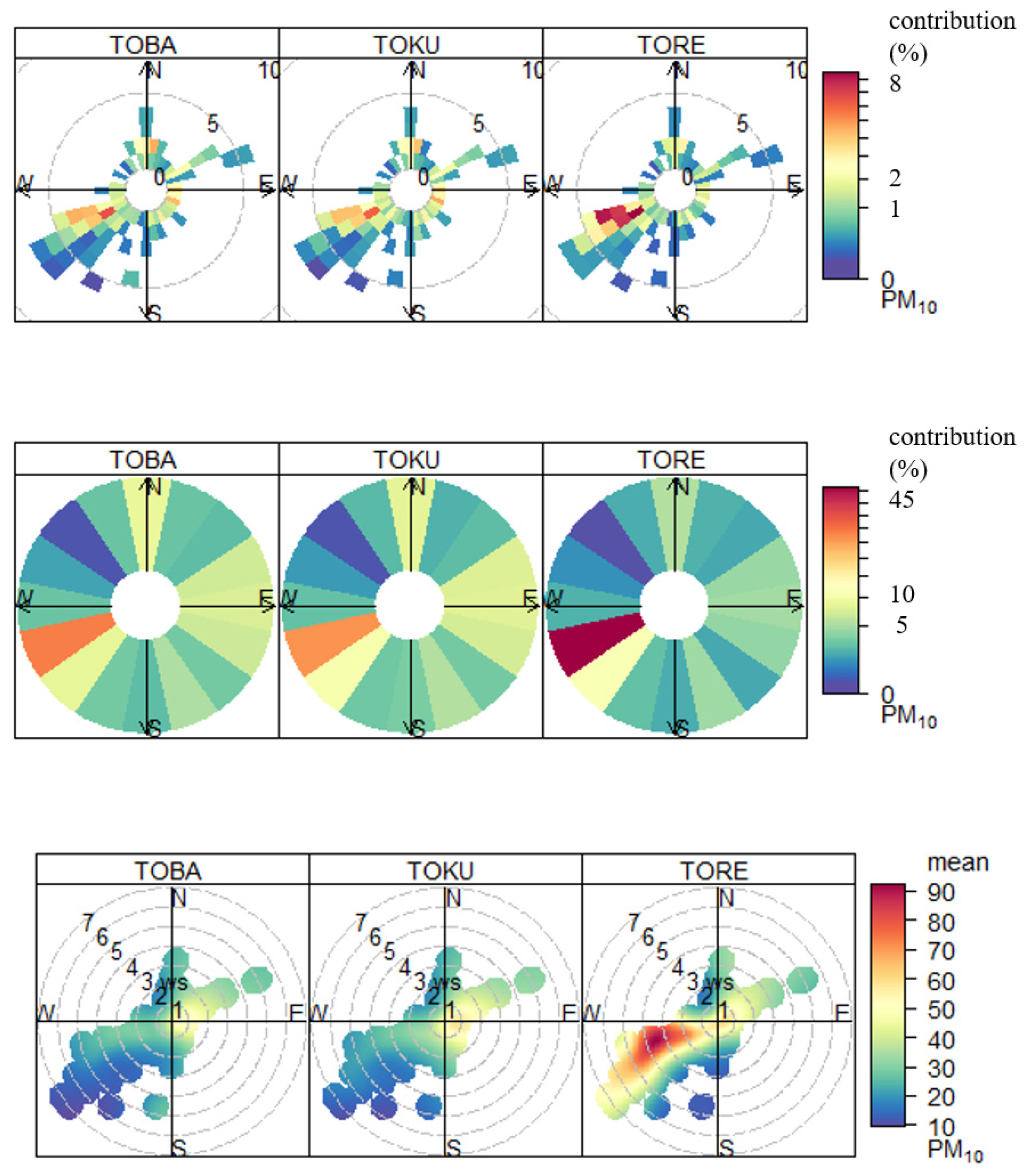

PM₁₀ concentrations depending on wind direction and wind speed are shown in Figure 2. The weighted concentration rose (Figure 2 top) presents the highest frequency of mean PM₁₀ contributions from the southwest sector at all three stations. The highest contributions came to the TOBA and TOKU sites at wind speeds of 1–2 m/s, and 1–4 m/s at the TORE site. In Figure 2 in the middle the weighted concentration roses are presented without including wind speed for simplified illustration. The concentration roses at the bottom of Figure 2 show that at the TOBA and TOKU sites the maximum PM₁₀ concentrations came from the eastern sector at wind speeds up to 1.5 m/s; at the TORE site from the WSW to SW direction at wind speeds of 2 to 4.5 m/s.

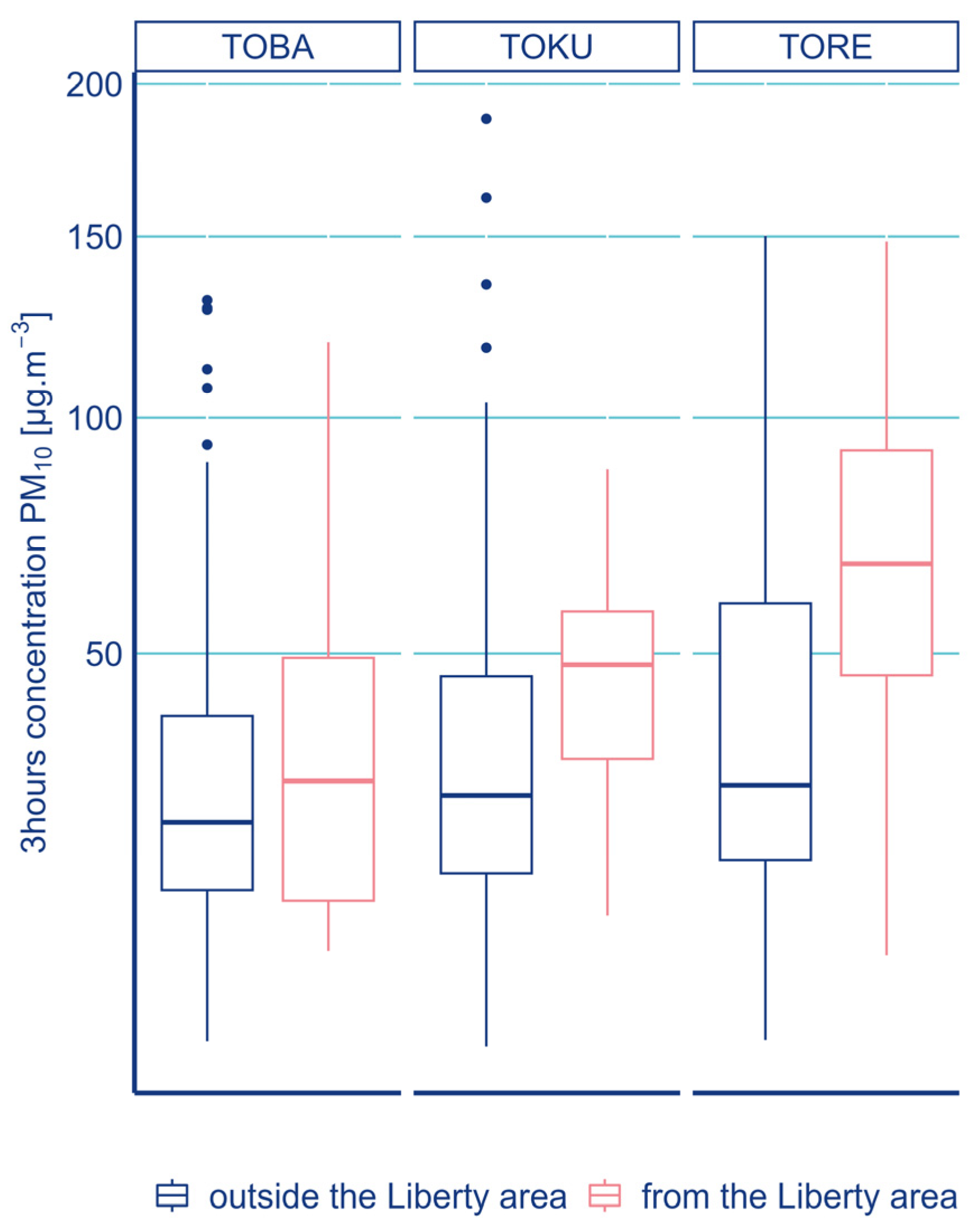

Median and mean PM₁₀ values are higher at all locations in the direction from the Liberty Ostrava a. s. site, but maximum 3-hour PM₁₀ concentrations also occurred by the wind direction from the area outside the Liberty Ostrava a. s. site (Figure 3, Table 1). If we calculate the percentage of influence on the total PM₁₀ concentration load in a given locality, the influence of the direction away from the Liberty Ostrava a. s. premises prevails in the TOBA and TOKU localities (88 % and 93 %), but in the TORE locality the influence on the PM₁₀ concentrations from the direction away from the Liberty Ostrava a. s. premises prevails in 57 % (Table 1).

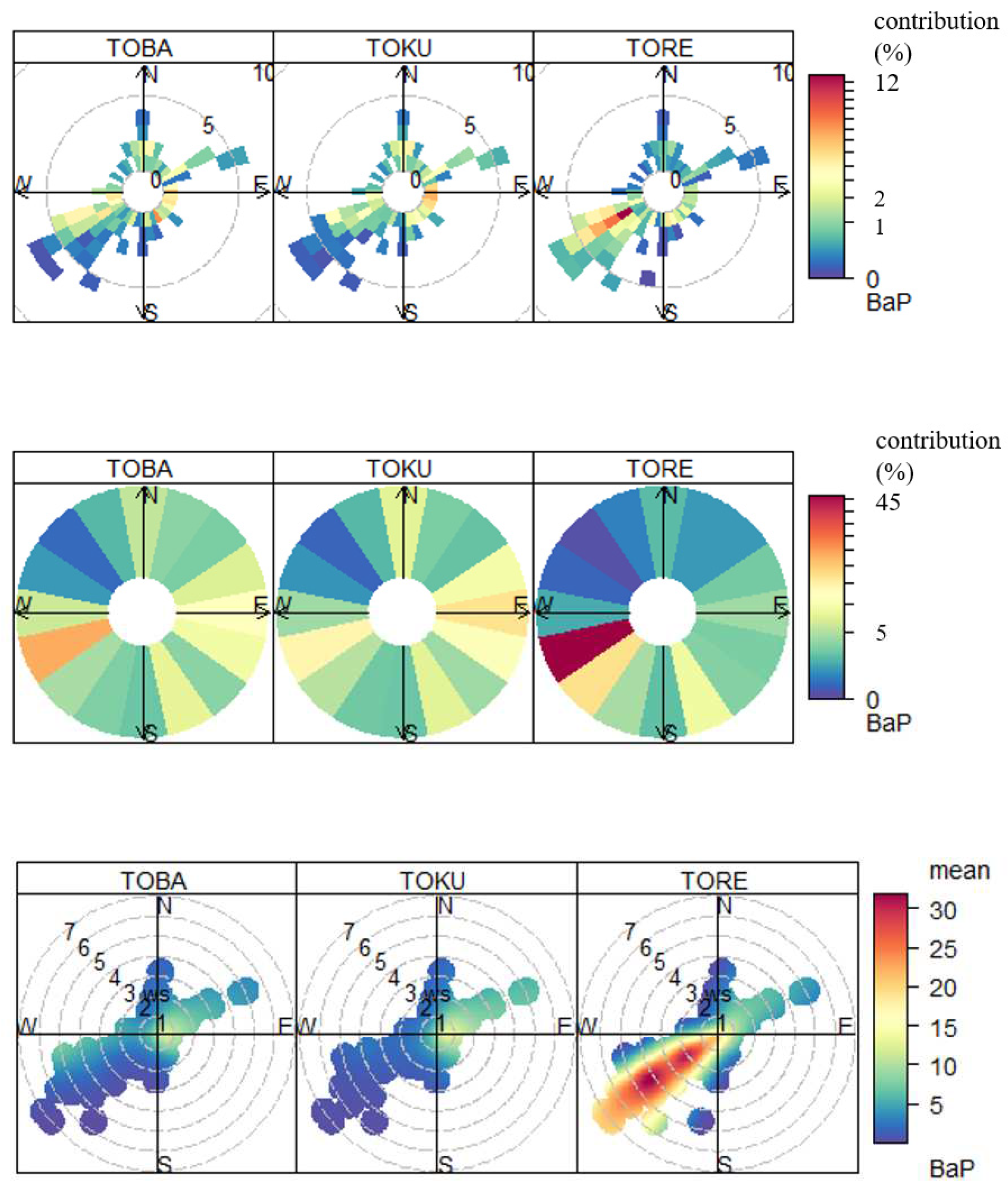

Weighted concentration roses for BaP and the sites TOBA and TORE, show the most frequent contributions from the WSW direction, for the site TOKU from the E direction. However, in the case of the TOBA site they were on mean 15 to 20 % lower than in TORE. The highest mean contributions at TORE were most often achieved at wind speeds of 1–2 m/s, but also up to 4 m/s (Figure 4 top and middle). The maximum contributions of BaP, however, several times lower than at the TORE site, came mainly from the eastern sector at the TOBA and TOKU stations, and clearly from the SW sector at the TORE station (Figure 4 bottom).

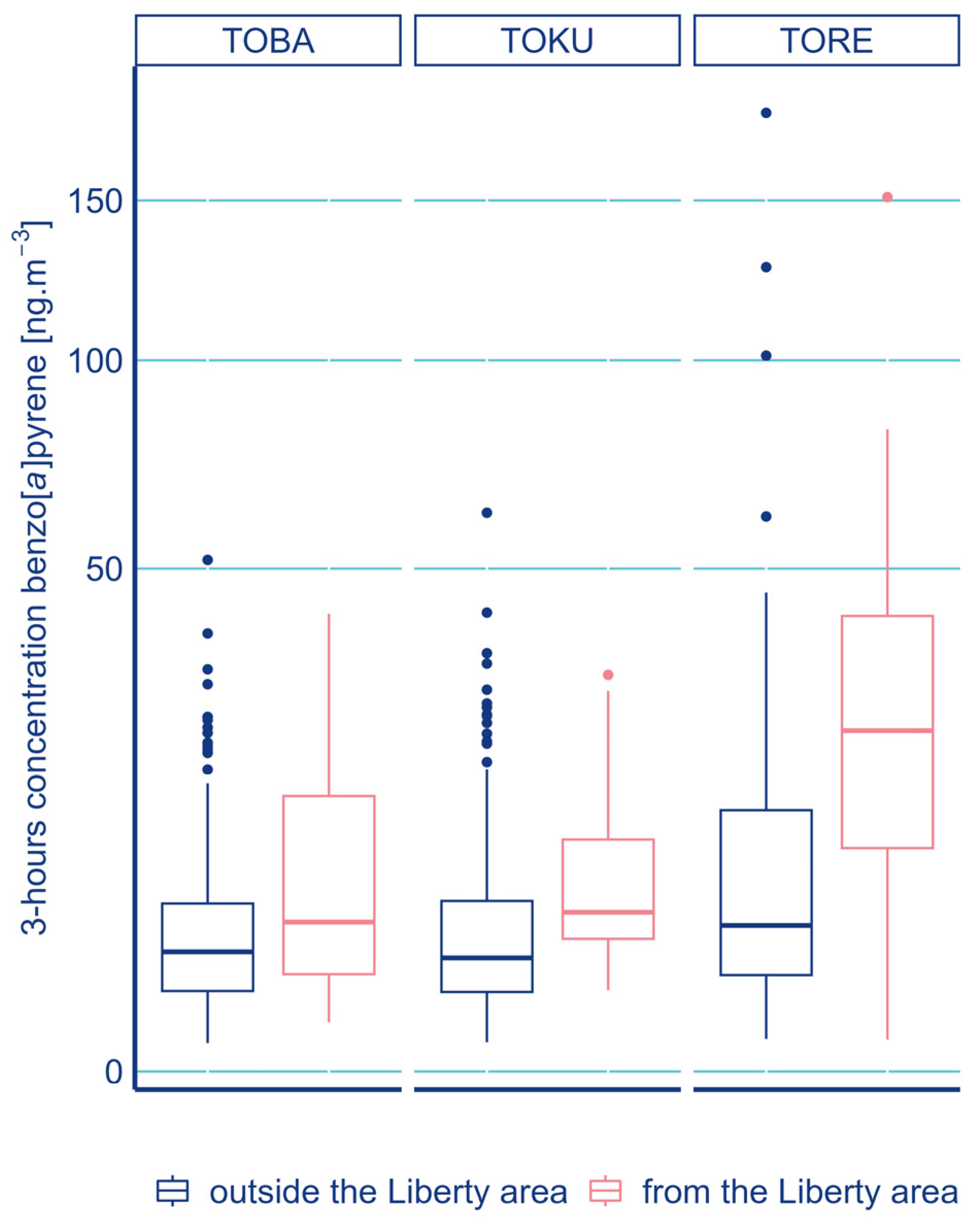

The statistical distribution of 3-hour BaP concentrations from the direction from and outside from the Liberty Ostrava a. s. (Figure 5) shows higher median and mean values of BaP at all locations in the wind from the Liberty Ostrava a. s. site. Higher occurrence of maximum 3-hour BaP concentrations was also registered at wind directions outside the Liberty Ostrava a. s. site. The highest mean concentration of BaP in the wind direction from Liberty Ostrava a. s. was at the station TORE 28.4 ng/m³ (TOBA 9.6 ng/m³; TOKU 10 ng/m³). In the TOBA and TOKU sites, the percentage contribution to the air quality load of BaP concentrations from the direction outside the area of Liberty Ostrava a. s. was significantly higher (83 % and 90 %). At the TORE site, the contribution to air pollution by BaP in the direction from the area of Liberty Ostrava a. s. (67 %) was significantly higher (Table 2).

3.2. Identification of Pollution Sources by PMF

Stable and geochemically meaningful solution was found for 10 PMF factors. Their key characteristics are summarized below, with further details about their chemical composition and time-series contributions shown in graphs in the Supplementary Material.

HEAT CC - primary particulate matter from coal-fired household heating. The factor had a high proportion of EC, OC, PAH and chlorine in chloride form, along with bromides. EC and OC were dominated by low temperature fractions, and among metals, As, Se and Pb were the most abundant. The factor’s contributions to PM₁₀ significantly fluctuated, commonly taking values of about 10 µg/m³, peaking at 40 µg/m³, with a clear decreasing trend during the measurement campaign (January to April). The factor contribution was significantly higher at night.

HEAT BB - primary particulate matter from biomass household heating. The factor had the high content of OC and anhydrosaccharides in ionic form, with significantly lower concentrations of PAHs than the factor representing heating with coal. Low-temperature fractions predominated in the carbonaceous particles, and there was a significant abundance of K in ionic form, with only Zn and Cu being significant among metals. The time series of the factor contribution was highly variable, usually taking values of about 10 µg/m³, peaking at almost 50 µg/m³. There was a clear decreasing trend in the contribution over the measurement period, and the factor contribution was significantly higher at night.

CRUSTAL - primary particles made up of mineral particles (Si, Ti, Ba, K, Mg). These were mostly particles of natural origin. The time series of the factorial contribution was characterised by a dominant short-term contribution ranging from 40 to more than 50 µg/m³ between February 24 and 27, 2021, during the episode of long-range aerosol transport from the Sahara region. For the rest of the measurement period, the model showed contributions of this factor close to 0 or at noise level, probably due to interference with other factors. The factor did not have obvious diurnal variability. The Ca contribution to the chemical profile is likely underestimated due to interference with the “IND Ca” factor commented below.

Na-Cl - primary particles consisting of Na in ionic form, Mg and chloride. The factor had less significant abundance of other elements typical for resuspension and road traffic brake & tire wear (Ba, Cu, Cr, Sb), suggesting the main origin from road salt and from the premises of Liberty Ostrava a. s. The time series of the contribution was moderately variable compared to other factors, with significant differences between sites, usually in the lower units of µg/m³, exceptionally over 10 µg/m³. The factor did not have pronounced diurnal variability.

IND Ca - primary particles consisting mainly of Ca and Mg accompanied by Sb, and less significantly also V and Mn. These are particles from industrial handling of bulk materials, mainly in the north-eastern part of the Liberty Ostrava a. s. site. At the TOBA site, an indistinct contribution of the factor was associated with the bulk material landfills in the south-eastern part of the premises of that company. At the TOKU location, occasional contributions of the factor occurred due to the transport of particles from the slag disposal site situated to the north-east. The time series was highly variable with short-term peaks and extreme differences between measurement sites, with short-term peaks in the tens of µg/m³ at the TORE site. The diurnal variability was high at the TORE site with higher values at night and in the morning between 6 and 9 am. In contrast, no obvious daily trend was found at the other sites.

IND HM - primary particles with complex polymetallic composition (Mn, Fe, Cu, Zn, Pb, As, less significantly also Cr, V, Sb, Ca and Cl). The composition dominated by Mn and Fe is typical of iron and steel production particles. The concentration contribution varied substantially from site to site. It was relatively significant at the TORE site, while at other measurement sites, it was close to 0. The time series of the factor contribution to PM₁₀ concentration was extremely variable, with short-term peaks in the tens of µg/m³ at the TORE site. Its diurnal variability was strong with no apparent daily trend.

IND PAHs - primary particles dominated by polycyclic aromatic hydrocarbons and iron, with carbonaceous particles consisting almost exclusively of the carbon fractions EC3 and especially EC4. The factor contribution was relatively high and with a strong variable time series at the TORE, in contrast to low values at the other sites. The high contribution of iron in the factor profile is due to interference with the IND HM factor, suggesting an origin in the same geographic area. Iron is also the carrier of the mass contribution of this factor to PM₁₀, which took values up to the first tens of µg/m³ at the TORE site. The factor contribution had no apparent daily trend.

TRA - primary carbon particles from road transport. Elemental carbon prevailed over organic carbon in the factor profile, especially the high-temperature fraction EC3. A group of metals typical of abrasion and resuspension from road traffic (Cr, Cu, Ba, Ca, Ti, V, Mn, Fe, Sb) was abundant in it. In the context of the other factors, the contribution to PM₁₀ was moderately variable with a weak increasing trend from winter to spring. The highest values were reached at the TOKU site, the lowest at the TOBA site. It usually varied in units of µg/m³, rarely above 10 µg/m³. The diurnal variability of the contribution was not clearly pronounced, with slightly higher values in the daytime.

SIA - secondary particles of a predominantly inorganic origin, consisting mainly of sulphate and ammonium nitrate. The factor profile showed a significant content of Se, while Pb was also present but less apparent. The factor contribution time series exhibited low variability, no diurnal trend, and a decreasing trend during the campaign. The factor represents a predominantly winter type of secondary aerosol with a complex origin, primarily induced by household heating, but also to a lesser extent by automobile traffic and industrial emissions. Factor contributions typically varied up to 10 µg/m³, with occasional elevations in the tens of µg/m³, rising to over 80 µg/m³ during the episode of poor air quality between February 9 and 11, 2021.

C-Na-NO3 - a factor with unclear interpretation, consisting mainly of a mixture of high temperature organic carbon particles, salt and nitrates. The factor mass is likely dominated by secondary organic aerosol and sodium nitrate. The contribution of the factor to PM₁₀ concentrations varied in a similar range at all sites, typically from 0 to 10 µg/m³, with slightly higher values in the daytime, especially in the early afternoon. The time series of the factor contribution and small differences between sites suggest a regional origin. The most probable interpretation of this factor is that it is a wintertime secondary aerosol induced, at least in part, by photochemical processes from nitrogen oxides and carbonaceous particulate emissions originating predominantly from household heating and road traffic.

3.2.1. Model Contributions to PM₁₀

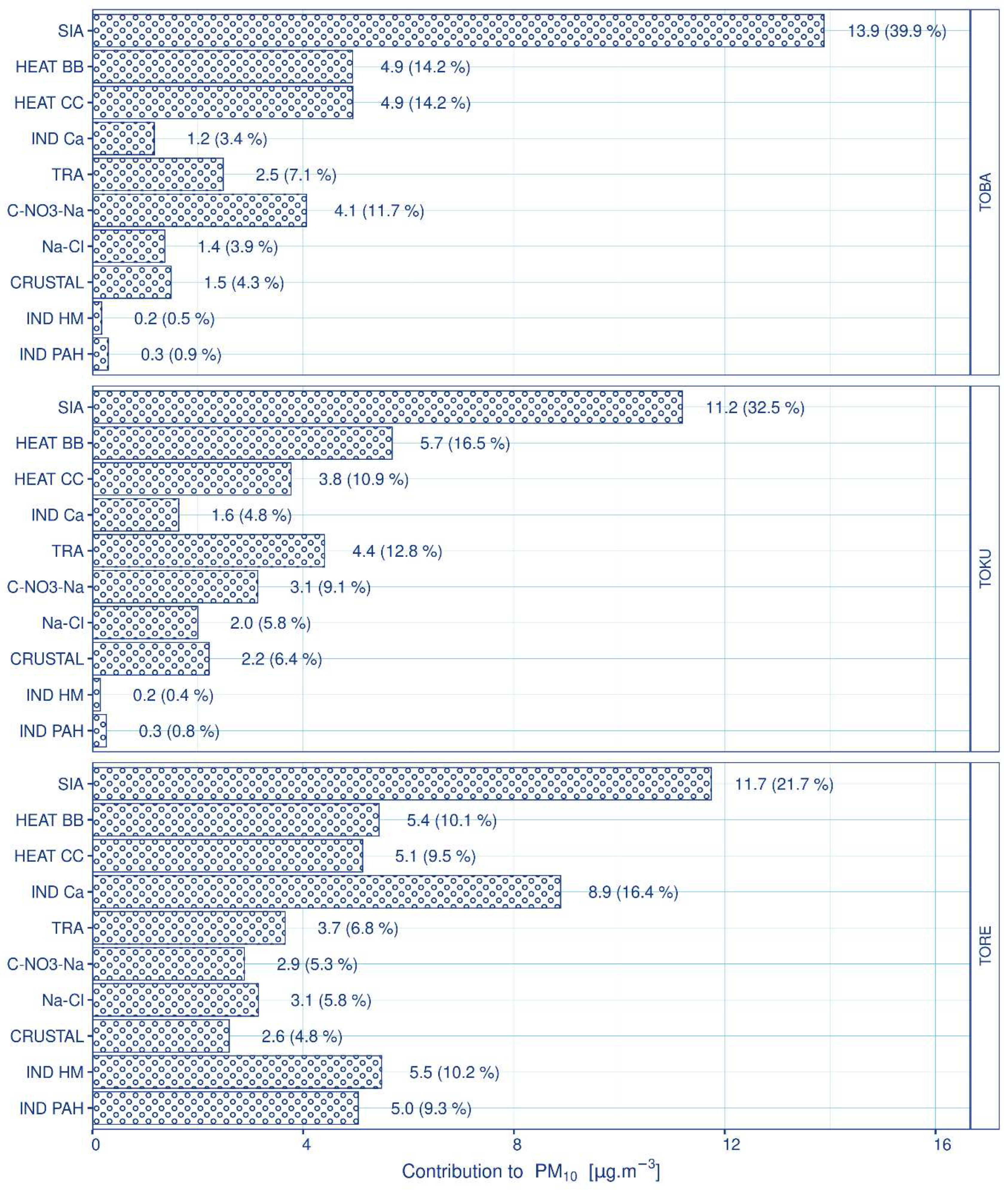

Model factor contributions were quantified separately for each monitoring site. The Constrained model contributions are shown in Figure 6. There was only a minor difference between the Constrained and Fpeak Run (please compare Constrained model contributions with Figure S4 in the Supplementary Material). The most different was the contribution of secondary inorganic aerosol (SIA) factor, which was 4 to 6% higher in the Constrained Run.

SIA factor, which consisted mainly of ammonium sulphate and ammonium nitrate, contributed to PM₁₀ mass concentration from 20 to 40 %, with negligible differences among monitoring sites. Maximum contributions occurred in winter days of bad dispersion conditions (Figure S6 in the Supplementary Material). This suggests prevailing regional or long-range transport origin of this pollution type. The higher levels of PM₁₀ concentrations in the Polish part of Silesia, located approximately 20 km southeast of the survey area, compared to the study area [36,37,38], along with the use of similar traditional methods of household heating (predominantly individual coal-fired boilers), should be taken into account. The significant secondary aerosol formation in the close Poland and its subsequential atmosferic transport could contribute to the SIA concentration in the study area, especially during occasional winter north-easterly wind direction situations. Previous studies [39] have already indicated significant transboundary transport of polluted air from the Silesian Voivodeship in Poland to the Ostrava city area. The highest contributions of the SIA factor occurred on February 1st and between February 9th and 11th during weak wind flow from the north quadrant, taking into account the uncertainties of wind direction measurement discussed above. Aditionally, the polar plot of the SIA factor (Figure S9 in the Supplementary Material) shows high PM₁₀ contributions from east and northeast directions during low and moderate wind speed, indicating probable both local and regional SIA origin. Low contributions come probably from sources in Ostrava city and its outskirts, while high contributions during moderate wind speed suggest longer transport than local origin, and together with wind direction, they suggest a spread from the Polish border area. The contribution of Poland to the SIA factor thus appears to be significant, but quantification is not possible.

The second and third most significant factors were coal (HEAT CC) and biomass (HEAT BB) household heating, with individual contributions of aproximately 10 to 15 %, and combined contribution of aproximately 20 to 30 %. The polar plots (Figure S10 and S11 in the Supplementary Material) show high contributions of these factors when wind speed was low. At the TOBA and TORE sites, contributions peaked during east and northeast wind flow, whereas at the TOKU site, the direction was ambiguous with slightly higher contributions from the northwest. Differences among monitoring sites and the high contributions during low wind speed suggest a local pollution origin.

Regarding the factors mentioned above, PM₁₀ contributions at the TORE were significantly different compared to the other sites. Although the absolute contribution of heating to PM₁₀ was similar to the other two sites (around 5 µg/m³), relatively it was the lowest (around 10 % for both coal and biomass heating). This is due to the significant contribution of industrial mineral dust (“IND Ca” factor), which contributed about 9 µg/m³ here (around 15 % of total PM₁₀ concentration).

After secondary inorganic aerosol, household heating and industrial mineral dust, the next most important factor was primary particles from the road traffic (“TRA” factor) with a contribution ranging from about 7% (TOBA and TORE) to 13% (TOKU). These contributions represent only primary particles (brake, tyre and road surface wear and exhaust emissions) but road traffic nitrogen oxides emissions play a significant role in secondary inorganic aerosol formation [40,41,42]. Traffic emissions also make up a part of winter secondary organic aerosol C-Na-NO3 discussed in the following paragraph. Moreover, road resuspension can interfere with the CRUSTAL factor because of similar elemental composition (the predominant elements found in road dust, including Si, Al, Fe, Ca, Mg and others [43,44], are the most abundant also in the Earth’s crust). All together, traffic contribution can be estimated as one-fifth to one-quarter of the PM₁₀ concentration.

The winter secondary organic aerosol (C-Na-NO3 factor) made up 3 to 4 µg/m³ PM₁₀ (about 5 % at the TORE, about 12 % at the other sites). Despite the challenging interpretation, it was very stable factor in all tested model runs with number of factors from 5 to 11. The stability of the C-Na-NO3 factor, its correlation with temperature and wind directions of the highest factor contributions indicate connection with traffic emissions from the frequent highway nearby (S12 in the Supplementary Material).

The primary particles consisting of sodium chloride and mineral particles varied negligibly among the sites. They individually reached about 3 to 6 % of PM₁₀. The factor was labeled as “Na-Cl” based on the dominant components in factor profile. The Na and Cl contribution to the factor mass was several times higher than that of other species, clearly indicating the dominance of salt particles. Regarding the relative species contribution to PM₁₀, the levels of accompanying species was negligible. As shown by polar plots in Figure S15 in the Supplementary Material, there were significant differences of Na-Cl contribution among the sites, making its long-range transport unlikely. Na-Cl aerosol mass predominantly came from anthropogenic sources. At the TORE site, it was especially the sinter and coking plant. At the other two sites, the main sources were households coal-fired boilers and road salt resuspension.

A specific episode of Sahara dust transport with high PM₁₀ concentrations occured during sampling period (see 24th to 26th February in Figure S16 in the Supplementary Material). The determined contribution of the CRUSTAL factor thus probably does not correspond to normal winter situation in the area.

Industrial particles with heavy metals and PAHs (“IND HM” and “IND PAH” factors) were a minor component of PM₁₀. Industrial emissions accounted for a significant portion of PM₁₀ mass only at the TORE site (about 10 % in total). Less than one percent of PM₁₀ was attributed to these factors at the other sites. Polar plots in Figure S17 and S18 in the Supplementary Material clearly indicate that the origin of all three industial factors can be attributed to the Liberty Ostrava a. s.

Time series of absolute PM₁₀ concentrations, absolute contributions of concentrations and relative species concentrations of identified air pollution factors are shown in Figure S4–S8 in the Supplementary Material. Polar plots for all factors are shown in Figure S9–S18 in the Supplementary Material.

3.2.2. Model Contributions to benzo[a]pyrene

The contributions of PMF contrained model factors to the concentration of BaP during the measurement campaign are documented in Figure 7. The difference between the Contrained ant Fpeak Run contributions are negligible (please compare Figure 7 with Figure S5 in the Supplementary Material).

Source aportionment results at TOBA and TOKU sites were dramatically different compared to the TORE site. At TOBA and TOKU, the dominant source of BaP was household heating, with coal heating contributing approximately 4 ng/m³ (TOKU) and 5 ng/m³ (TOBA) during the measurement period. Biomass heating contributed only the tenths of ng/m³ (lower units of %). In total, biomass and coal household heating made up approximately 90 % of BaP concentration at these measurement sites. Industrial emissions of BaP accounted for about 0.5 ng/m³ (about 10 %) at the TOBA and TOKU measurement sites. The contribution of biomass household heating may seem surprisingly low according to the model, which could be due to the prevalence of coal in the household heating fuel mix in the region. At the TORE site, industrial sources made the highest contribution to BaP concentration. The mean contribution of industrial sources to the concentration of BaP was 9.5 ng/m³ at TORE (about two-thirds in relative terms). Remaining contribution to the BaP pollution was attributed predominantly to household heating at TORE. At all three sites, transport and other pollution sources played only a minor role in BaP concentration, contributing less than 1 %.

The BaP concentration and the population exposure rapidly decrease with the distance from the TORE site. The source apportionment results provided for the TORE site are applicable in the area with radius roughly about 500 m, maximum 1 km around this site.

3.3. Comparison of Methods

The above conclusions are based on two independent evaluations. The assessment of air pollution depending on meteorological conditions and the PMF receptor model in all its parameters are valid only for the locations where the measurements were made. However, the synthesis of information from these three sites allows an interpretation that is valid for the eastern part of Ostrava and adjacent municipalities (Vratimov, Slezská Ostrava, Rychvald, Horní Suchá, Havířov). The sampling campaign took place during the cold period, when meteorological conditions, especially wind direction and speed, did not differ significantly from the long-term mean over the corresponding part of the year. Wind speed and direction measurements were compared with the long-term mean of the climatological station Ostrava-Poruba, which is representative for the territory of the city of Ostrava. Based on the described meteorological accordance, the identified causes of pollution can be consider to be valid for the winter and transitional period (heating season) in a medium-term timescale (several years).

According to the assessment of pollutant concentrations as a function of wind direction and wind speed, slightly more than half of the PM₁₀ pollution at the TORE site originated from the direction of the Liberty Ostrava a. s. site, while in the other two sites assessed, approximately one tenth of the pollution originated from the direction of this site.

The PMF model identified a contribution of the Liberty Ostrava a. s. metallurgical plant to the PM₁₀ concentration in Ostrava-Radvanice of about 1/3 of the total concentration. In the other two sites (Ostrava-Bartovice and Ostrava-Kunčičky), the total contribution of sources related to the operation of Liberty Ostrava a. s. to the PM₁₀ concentration represents about 5 % of the concentration. When comparing the results obtained by these two methods, it must be taken into account that, when wind direction comes from the direction of the Liberty Ostrava a. s. site, the air contains not only pollution from emissions from the steelworks site, but also background pollution originating from the areas in front of the site (on its windward side). It is therefore logical that the contribution from metallurgical sources calculated by the PMF model is lower than the estimation based on the wind direction and wind speed assessment.

A smaller deviation in the results of the two methods was found for BaP because the spectrum of its sources is very limited compared to PM₁₀. According to the assessment of BaP concentrations depending on wind direction and wind speed, in Ostrava-Radvanice the contribution of BaP from the direction of the Liberty Ostrava a. s. site was about two-thirds of the total concentration, whereas in the other two sites the contribution from this metallurgical site was only one-tenth to one-fifth of the pollution. Similarly, the PMF model attributed nearly two-thirds of the total BaP to the metallurgical sources. This is only slightly lower (units of percent) than in the case of the wind direction and wind speed assessment. In the Ostrava-Kunčičky and Ostrava-Bartovice sites, the PMF model attributed about one tenth of the BaP concentration to the metallurgical sources, which is similar to the wind direction and wind speed assessment results.

The agreement between the results of the two methods used is clear and guarantees the reliability of the main conclusions drawn concerning the effect of metallurgical and other sources, especially in the case of BaP.

4. Conclusions

Within the framework of the ARAMIS project and the KAPOOO project, the identification of air pollution sources was carried out on the basis of the winter intensive part of the measurement campaign in three locations in the eastern part of Ostrava in the Czech Republic. The intention was to identify the main causes of air pollution by PM₁₀ and BaP in this area. The evaluation was based on a statistical assessment of measured pollutant concentrations as a function of wind direction and wind speed and a receptor model of PMF. A significant methodological contribution to the causes of high air pollution in this area was the use of the 3-hour PM₁₀ aerosol sampling period.

Overall, household heating and road traffic were identified as the main contributors to PM₁₀ in the study area, while other factors were less significant. The only area where industrial primary particle sources had a higher contribution than household heating and road traffic was the part of the Radvanice district near the TORE site. With this exception, the highest portion of the PM₁₀ mass made up of secondary inorganic aerosols, specifically ammonium sulphate and ammonium nitrate. The precursors of these aerosols came mainly from individual household heating emissions.

Near the TORE site in Radvanice district, relatively high BaP concentrations have been proved. Due to high pollution level gradient in the area, values measured at the TORE site are relevant for a limited population and should not be used directly for the health impact assessment in the study area. The BaP yearly mean concentration in Radvanice district and an estimation of the affected population size should be based on the all-year air quality monitoring. In general, while the metallurgical plant Liberty Ostrava a. s. was the primary source of BaP pollution in the part of Radvanice district near the TORE site, the effect of household heating was prevalent in all other districts of Ostrava.

Comparison of these and previous results reveals significant differences in the causes of air pollution between submicron and larger particles, as well as between mass and particle number contributions in the study area. Although the previous study [28] identified industrial and traffic aerosols as predominant in the submicron range, the presented research highlights that local household heating and regional secondary aerosols induced by a complex mix of sources (including local household heating, industrial, and traffic sources) are the main sources of PM₁₀ concentrations. Because the secondary aerosols, which constitute the predominant component of PM₁₀ mass, belong to the PM_2.5 fraction, a similar conclusion is likely to be valid for the causes of PM_2.5 air pollution. Since the PM₁₀ and PM_2.5 levels in the air, unlike PM₁, are legislatively regulated, the presented results clearly imply current regional air protection priorities. Reducing household emissions is essential, since they have a significant impact on both primary and secondary particle concentrations. The replacement of old household heating systems, especially those burning coal, with low-emission alternatives is necessary. Reducing traffic and industrial emissions in line with European air protection strategies are secondary measures that are also crucial.
