Plant Growth-Promoting Bacteria Enhance Survival, Growth, and Nutritional Content of Sugarcane Propagated through Pre-sprouted Seedlings under Water Deficit

1. Introduction

Sugarcane is a vital bioenergy crop due to its rapid growth and high energy balance, representing a relevant alternative in the production of biofuels [1,2,3]. The high concentration of sucrose in its stalks mostly meets the demand of the sugar-energy sector [4], which favors replacing fossil fuels and minimizing the anthropogenic impact on the planet.

Brazil ranks first in global sugarcane production, with production estimated at 677.6 million tons in the 2023/24 harvest, representing an increase of 10.9% compared to the 2022/23 harvest, which makes us a country with great potential for exporting biofuels [5]. Favorable soil and climate conditions and the use of technologies have made it possible to increase the efficiency of inputs, reduce production costs, and increase the productivity of land and human resources [6,7].

Since the dawn of sugarcane cultivation, sugarcane fields have been established by planting billets containing buds that provide the sprouting of new plants [4,8]. In this method, a high density of billets is necessary to ensure adequate sprouting, contributing to the reduction of stalks used for sugar and ethanol production [9]. Brazilian researchers have developed a method of planting pre-sprouted seedlings (PSS) to reduce the material used. This method consists of individualizing the buds in trays so that the sprouts emerge before planting, which reduces the number of stalks used per area in this operation by 90% [9,10,11].

The use of PSS as propagation material has stood out due to the efficiency promoted through varietal guarantee and high health [10,12,13,14], especially in association with the MEIOSI (Simultaneously Occurring Interrotational Method) system, due to the smaller production scale and operational advantage [15,16].

However, PSS have reduced nutrient and water reserves compared to the conventional method and, consequently, are more susceptible to abiotic stresses, especially water restriction [17]. Therefore, water supplementation is recommended after transplanting PSS from plant seedling nurseries to the field since there is high plant mortality in planting seasons with low rainfall [10,17,18].

Furthermore, as the sugarcane cycle can vary from 12 to 18 months, this crop is susceptible to climatic adversities throughout the year. Scarce water supply is the main limiting factor to sugarcane’s good growth and development [4,19], with the beginning of development being the most sensitive period to water restriction [20,21]. Therefore, technologies that mitigate water restrictions are required to form new sugarcane fields that meet the demand for sugar, biofuels, and by-products even under limited resource availability [22]. The current climate change scenario, characterized by increased temperature and reduced precipitation and aggravated by the burning of fossil fuels, supports these new technologies [1,23,24,25].

An alternative that has shown positive results is using plant growth-promoting bacteria (PGPB). Among the known species, the most abundant belong to the genus Bacillus [26,27,28]. Many of these bacteria can produce phytohormones, antioxidant enzymes, and siderophores, in addition to promoting the availability of nutrients through nitrogen fixation and solubilization of phosphate, potassium, and micronutrients [29,30,31,32,33,34], inducing tolerance to environmental stresses, such as water deficiency [34,35,36].

In this sense, increases in sprouting speed and root and shoot dry matter accumulation of sugarcane PSS have already been observed under the association of PGPB and nitrogen doses [37]. Furthermore, the increase in nutrient concentration in the shoot, the increase in photosynthetic efficiency and water use, as well as the stimulation of root system growth after inoculation with Bacillus subtilis under water deficit conditions have already been reported in sugarcane [36,38]. Tolerance to water deficiency induced by Bacillus licheniformis has also been reported in maize [39] and potato [40], mainly due to increased water use efficiency, CO₂ assimilation, and greater production of antioxidant enzymes.

The association of two Bacillus species is a promising approach to improving plant growth, given the particularities present in each species and the increased spectrum of action and specificity [41,42]. However, there are still no studies involving the association of Bacillus licheniformis and Bacillus subtilis in sugarcane propagated by PSS in the field.

Considering the importance of seeking plant tolerance to water stress, the advance in the use of PSS in the formation of new sugarcane fields, the biological mechanisms of action of these microorganisms, and the potential of the association of two species of the Bacillus genus, this research hypothesizes that the inoculation of PSS, during its formation in the plant seedling nursery, with Bacillus licheniformis and Bacillus subtilis will increase the survival rates and growth of seedlings after transplanting in the field, as well as improving the nutritional status, resulting in higher multiplication rates for MEIOSI under different water regimes.

Therefore, this study aimed to evaluate the survival, growth, nutrient content, and yield of sugarcane plants from a pre-sprouted seedling nursery treated with Bacillus licheniformis strain FMCH001 (DSM32154) and Bacillus subtilis strain FMCH002 (DSM32155) under different water regimes.

2. Materials and Methods

2.1. Description of the experimental area

The experiment was conducted in the field during 2021–2022, in Lençóis Paulista County, Sao Paulo, Brazil (22º 78’ 44’’ S, 48º 79’ 90’’ W, and 687 asl).

The region’s climate is considered tropical in altitude (CWa) according to the Köppen climate classification, characterized by temperatures ranging from 4°C (from June to August) to 38°C (from November to February) [43].

The soil of the experimental area is classified as Allic Red Latosol [44]. Granulometric analyses of the soil, proposed by Donagemma et al. [45], showed 73.9% of sand, 19.5% of clay, and 6.6% of silt, characterized by a medium-textured soil, according to the texture class grouping triangle [44], with the production environment classified as E2 [46,47].

A soil chemical analysis was performed at 0–20 cm and 20–40 cm depths before the experiment was set up (Table 1), according to the methodology proposed by van Raij et al. [48]. The experiment area was prepared with plowing, subsoiling, and leveling harrowing. 1,000 kg ha^–1 of dolomitic limestone was applied two months before the experiment installation, according to Vitti et al. [49].

The fertilization was performed with 30 kg ha^–1 of N, 60 kg ha^–1 of P₂O₅, and 40 kg ha^–1 K₂O, corresponding to 150 kg ha^–1 of the 08-40-08 fertilizer formulated [49]. The cover fertilization was performed 60 days after transplanting (DAT) with 60 kg ha^–1 of N, corresponding to 130 kg ha^–1 of urea, according to Cantarella et al. [50].

2.2. Plant Material, Experimental Design, and Treatments

The IACSP01-5503 cultivar was used because it is considered rustic, adapted to the production environment, and has industrial gains of around 15% compared to the variety most cultivated in the Mid-South of Brazil (RB867515) [51]. The propagation method was the pre-sprouted seedlings (PSS) method, produced by planting buds extracted from the stalks in trays containing 54 cells. The seedlings were 45 days old and were transplanted to the experimental area after seven days of hardening.

The transplanting took place on August 4, 2021, through a manual planter, with a spacing of 0.6 m between plants. The seedlings had four fully developed leaves with cut ends, maintaining a standard of 30 cm length per leaf. This practice aims to reduce water vapor loss by transpiration [9]. Each plot was composed of two lines of 12.5 m and a spacing of 0.60 m from each other, based on the principles of the Simultaneously Occurring Interrotational Method (MEIOSI) [15].

The experimental design used was a randomized block in strips (split-block) using a 2×4 factorial scheme consisting of two inoculation conditions (with and without PGPB) and four water regimes (0%, 33%, 66%, and 100% of the ideal irrigation depth for establishment and initial development) until 57 DAT, with four replicates. After this period, all plants received only water from precipitation.

The PGPB used was a commercial product composed of Bacillus licheniformis strain FMCH001 (DSM32154) (minimum of 1.0 x 10¹¹ colony forming units – CFU g^–1) and Bacillus subtilis strain FMCH002 (DSM32155) (minimum of 1.0 x 10¹¹ CFU g^–1). The inoculation occurred in the plant seedling nursery through a watering can containing the bacteria solution at 0.324 g of the commercial product in 1.35 L of spray volume per tray.

The spray volume was defined based on the saturation point of the trays’ alveoli, which corresponded to 25 mL. At the same time, the product dose was stipulated based on the dose recommended in the leaflet (200 g ha⁻¹) and the planting spacing, which allowed us to delimit the area of each plant in the field.

The irrigation rate was defined according to the estimated evapotranspiration of the sugarcane crop in the early-stage, based on Equation (1).

$$GIR=\frac{{\sum }_{i=1}^{n}ETci}{Efficiency}$$

(1)

where GIR: gross irrigation rate; n: watering shift; ETci: Etoi*Kc; Etoi: evapotranspiration obtained from database; Kc: early-stage crop conversion factor.

2.3. Meteriological conditions and crop management

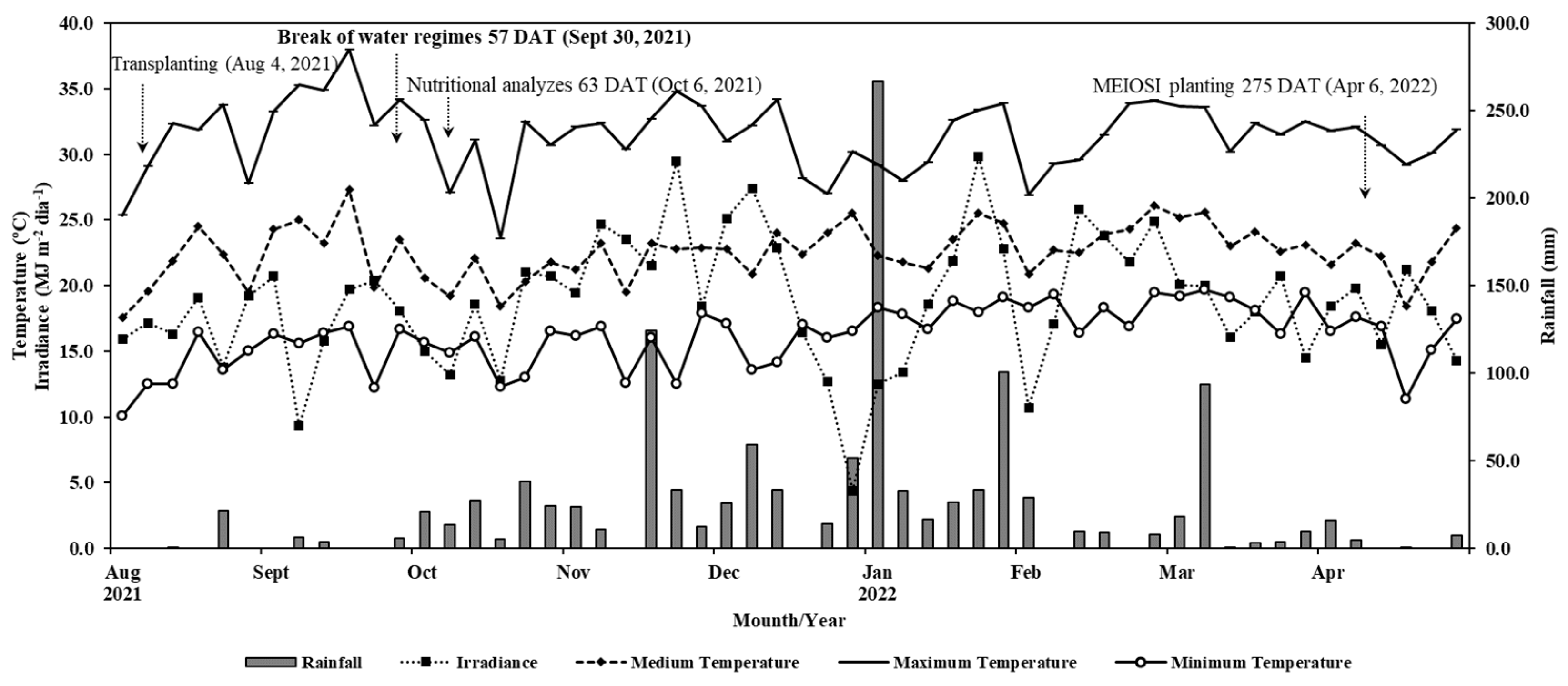

During the experimental period, evapotranspiration data (EToi) were collected from the São Manuel Experimental Farm Meteorological Station – UNESP. After determining the required gross rate, the proportions of each treatment were calculated (0, 33, 66, and 100%). The water supply occurred until September 30, 2021 (57 DAT), coinciding with the beginning of frequent rainfall (Figure 1).

The average air temperature during the experiment was 22.3°C, and the total rainfall volume reached 1,059 mm (Figure 1).

Weed management occurred periodically manually. Considering pest and disease management, there was no incidence of any pathogen at the control level that would require the application of pesticides.

2.4. Evaluations

2.4.1. Plant Survival

Plant survival (PS) was assessed 30 DAT. The ratio between the number of living plants per plot and the number of seedlings transplanted in each plot (32 plants) enabled us to calculate the percentage of surviving plants. Any plant with at least one erect green leaf was considered a survivor and counted, according to Equation (2):

$$SP \left(\%\right)=\frac{S}{NI}\times 100$$

(2)

where S is the number of plants that survived, and NI is the initial number of plants.

2.4.2. Water use efficiency

Water use efficiency (WUE) was determined at the end of the water regime imposition at 63 DAT, according to Equation (3):

$$WUE (g m^{-3})=\frac{DB}{L}$$

(3)

where DB is the total dry biomass at 63 DAT (g), and L is the amount of water applied via irrigation plus precipitation until 63 DAT (m³).

2.4.3. Morphological variables

The evaluations of the number of tillers (NT), stalk height (SH), stalk diameter (SD), and shoot dry biomass (SDB) were performed in five plants per plot at 63 DAT (seven days after the end of the water regimes).

The NT was determined by counting the tillers in each plot. SH was determined using a tape measure, and the measurement was taken from the ground to the +1 leaf sheath insertion. The SD was determined using a digital caliper (MeterMall, 150 mm, and 0.1 mm reading, Marysville, OH, USA), and the measurements were performed in the lower third of the stalk. Additionally, for SDB, the sampled plants were dried in an air-forced circulation oven at 65°C until a constant mass was reached and then weighed on a balance (Balmak, ELC–6/15/30, Santa Barbara d’Oeste, SP, Brazil).

2.4.4. Growth Analysis

Evaluations for growth analysis took place from 27 to 231 DAT, with collections every 21 days until the unfolding time.

For this purpose, leaf area (LA) and dry matter mass (DMM) were assessed (Radford, 1963-[52]). Leaf area was estimated according to Equation (4) (Hermann and Câmara, 1999-[53]), using +3 leaf width and length measurements.

$$\mathrm{L}\mathrm{A}=\mathrm{L}\times \mathrm{W}\times \mathrm{0,75}\times (\mathrm{N}+2)$$

(4)

where L is the +3 leaf length, characterized as the third leaf with the ligule fully open, W is its width, 0.75 is the crop correction factor, and N is the number of green leaves.

To determine the leaf dry matter mass (LDMM) and the shoot dry matter mass (SDMM), the plants were separated into leaves + sheaths, and stalks. The samples were kept in a forced air circulation oven at 65°C until they reached a constant mass and then weighed on a 0.01 g precision scale (Balmak, ELC-6/15/30, Santa Bárbara d’Oeste, SP, Brazil), with the results expressed in grams per plant.

The LDMM, SDMM, and LA data were used to determine the crop growth rate (CGR, g day^–1, Equation (5)), relative growth rate (RGR, g g^–1 day^–1, Equation (6)), net assimilation rate (NAR, g dm^–2 day^–1, Equation (7)), leaf area ratio (LAR, dm² g^–1, Equation (8)), specific leaf area (SLA, dm² g^–1, Equation (9)), and specific leaf weight (SLW, dm² g^–1, Equation (10)), considering the number of days (ND). The dry matter mass and leaf area data were adjusted using the Anacres program (Portes and Castro Júnior, 1991-[54]).

$$\mathrm{C}\mathrm{G}\mathrm{R}=\frac{\left(\mathrm{D}\mathrm{M}\mathrm{M}2-\mathrm{D}\mathrm{M}\mathrm{M}1\right)}{\mathrm{N}\mathrm{D}}$$

(5)

$$\mathrm{R}\mathrm{G}\mathrm{R}=\frac{\left(\ln \mathrm{D}\mathrm{M}\mathrm{M}2-\ln \mathrm{D}\mathrm{M}\mathrm{M}1\right)}{\mathrm{N}\mathrm{D}}$$

(6)

$$\mathrm{N}\mathrm{A}\mathrm{R}=\left(\frac{\mathrm{D}\mathrm{M}\mathrm{M}2-\mathrm{D}\mathrm{M}\mathrm{M}1}{\mathrm{N}\mathrm{D}}\right)\ast \left(\frac{\ln \mathrm{L}\mathrm{A}2-\ln \mathrm{L}\mathrm{A}1}{\mathrm{N}\mathrm{D}}\right)$$

(7)

$$\mathrm{L}\mathrm{A}\mathrm{R}=\frac{\mathrm{L}\mathrm{A}}{\mathrm{S}\mathrm{D}\mathrm{M}\mathrm{M}}$$

(8)

$$\mathrm{S}\mathrm{L}\mathrm{A}=\frac{\mathrm{L}\mathrm{A}}{\mathrm{L}\mathrm{D}\mathrm{M}\mathrm{M}}$$

(9)

$$\mathrm{S}\mathrm{L}\mathrm{W}=\frac{1}{\mathrm{S}\mathrm{L}\mathrm{A}}$$

(10)

2.4.5. Nutritional assessments

At 63 DAT, +1 leaf (top visible dewlap – TVD) was collected, their midribs were discarded, and the middle third was used for evaluation [55]. The collection period corresponds to the period without precipitation, allowing the differentiation of the water regimes since, after this, the rainfall regime homogenized the irrigation of the sugarcane field.

The sampled material was washed out and kept in an air-forced circulation oven at 65°C until a constant weight was reached, followed by crushing in a Willey mill. The concentrations of nitrogen (N), phosphorus (P), potassium (K), calcium (Ca), magnesium (Mg), sulfur (S), boron (B), copper (Cu), iron (Fe), manganese (Mn), and zinc (Zn) were determined according to AOAC [56].

Leaf N was extracted by sulfuric digestion and determined by the Kjeldahl method. At the same time, the extraction of K, Ca, Mg, S, P, Fe, Zn, Mn, B, and Cu occurred by nitroperchloric digestion [56]. Potassium, Ca, Mg, Fe, Zn, Mn, and Cu were determined by atomic absorption spectrophotometry (AAS), and S, P, and B were determined by the colorimetric method.

Nutrient accumulation was calculated using Equation (11):

$$NA=LB\times NC$$

(11)

where where NA is the nutrient accumulation (g or mg plant⁻¹); LB is the leaf biomass (g) and CN is the nutrient concentration (g or mg kg⁻¹).

2.4.6. Morphological variables of the root system

At 243 DAT, the roots were collected using a sampling probe made of stainless steel, measuring 120×5.08 cm (length × internal diameter), comprising approximately 405 cm³ of collection volume at each 20 cm depth. The probes were made in duplicate parallel to the planting lines, in the projection of the crop line and on its sides at 20 cm from the plants, at depths of 0-20, 20-40, 40-60, and 60-80 cm.

The samples were sieved through a 2 mm mesh, the soil was removed, and the roots were isolated by washing them in running water. To separate the impurities, the material resulting from the washing was placed in water, and the roots were collected with tweezers. The roots were stored in 50% ethanol solution vials to avoid dehydration. To analyze the morphology of the root system, the roots were placed in a 15×25 cm (width × length) acrylic tub containing water. The samples were then scanned using an optical scanner (EPSON, Perfection V700 Photo, Sao Paulo, Brazil) with a resolution of 250 dpi, and the images obtained were analyzed using the WinRhizo Pro program (Regent Instrument Inc, 2007, Quebec, Canada) to determine root length (RL) (cm), surface area (SA) (cm²), area projection (AP) (cm²), root volume (RV) (cm³), average root diameter (RD) (mm), and number of bifurcations (NBif) at four depths (0-20, 20-40, 40-60, and 60-80 cm) [57].

2.4.7. Yield, Productivity, and Multiplication Rate

Harvesting occurred on April 6, 2022, at 245 DAT, when the plants had a multiplication rate of 1:8, with an average of 11 buds per stalk and 10 stalks per meter [58].

To estimate yield, we determined the stalk length (SL), stalk diameter (SD), number of nodes (NN), internode length (IL), mass of 10 stalks (M10), and number of stalks per meter (NSM). The NSM was counted in the central 10 meters of each plot, and the M10 was determined on a load cell scale (Tomate, STC-02, Sao Paulo, Brazil).

Stalk productivity, expressed in tons of stalks per hectare (TSH), was estimated using the methodology proposed by Landell and Silva [59], using Equation (12):

$$TSH=\left(\mathrm{0,007854}\times d^2\times h\times S\right)\ast E^{-1}$$

(12)

where d is the diameter (cm), h is the height (cm), S is the number of stalks per meter, and E is the spacing (m).

In addition, the unfolding rate for manual MEIOSI planting was also determined according to the number of buds per stalk or the stalk height and tillers per meter, as recommended in the Technical Manual for planting sugarcane in MEIOSI [58].

2.5. Statistical Analysis

The data were subjected to analysis of variance (ANOVA) with the F test. When there was a statistical difference, the data relating to the qualitative factor (presence and absence of inoculation with PGPB) were submitted to the T-Test (p≤0.05* and p≤0.01**) and those referring to the quantitative factor (water regimes) were subjected to regression analysis (p≤0.05* and p≤0.01**) using the AgroEstat software (AgroEstat, version 2015, Jaboticabal, SP, Brazil).

Pearson’s linear correlation coefficient (p≤0.05* and p≤0.01**) between variables influenced by inoculation was analyzed using the R software (Version 4.3.1, Vienna, Austria). Using Pearson’s correlation values, each R-value was interpreted within the following ranges (Table 2):

3. Results

3.1. Plant Survival

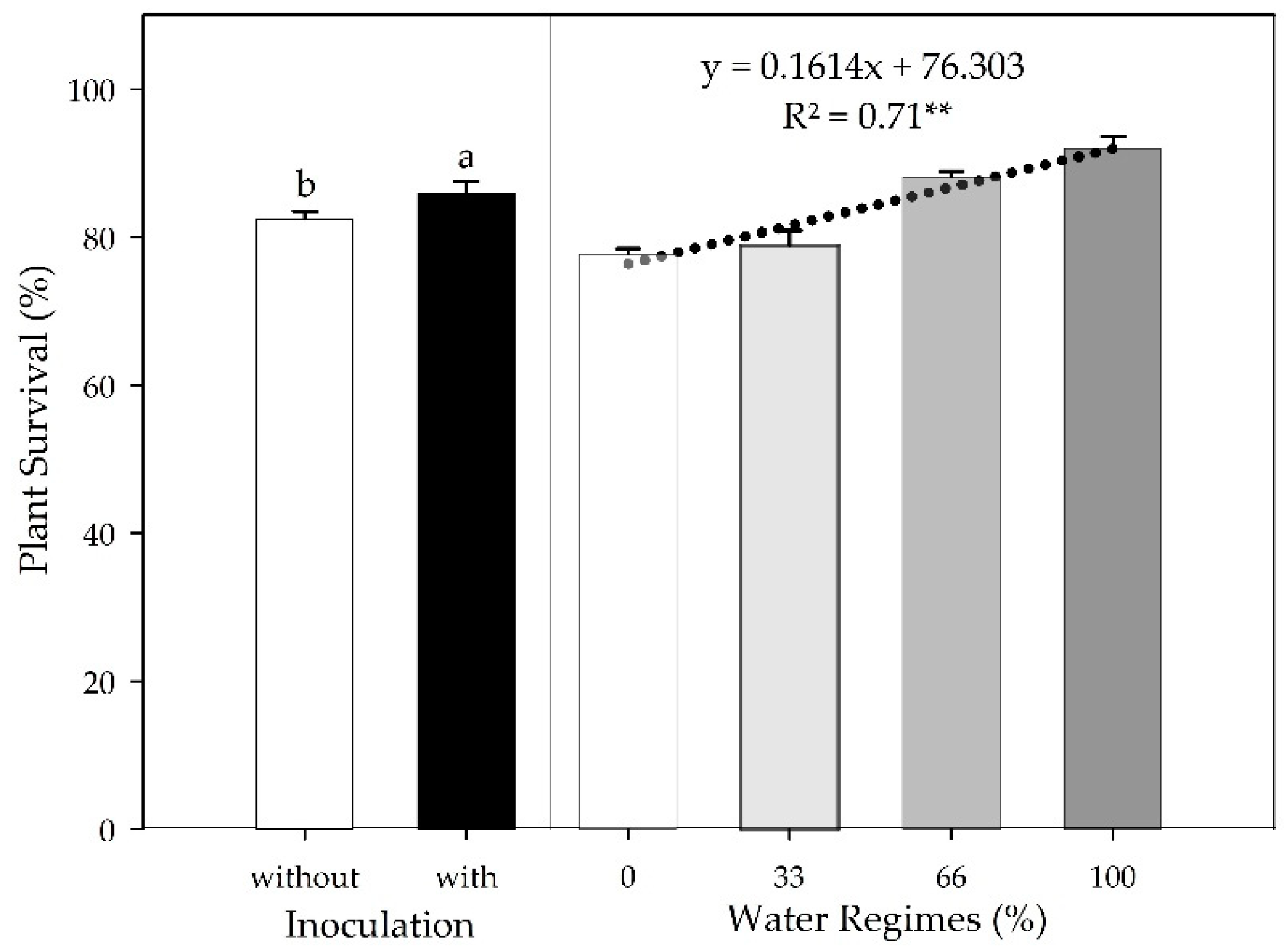

The different water regimes and PGPB inoculation affected plant survival (PS) at 30 DAT. Water supply influenced the percentage of PSS survival in the field, with a positive linear regression (p≤0.01, R² = 0.71), and inoculation with PGPB increased PSS survival by 3.13% (p≤0.05) (Figure 2). There was no interaction between the factors for this variable, indicating a highly significant linear adjustment with the water regimes in both inoculation conditions.

3.2. Shoot biometry

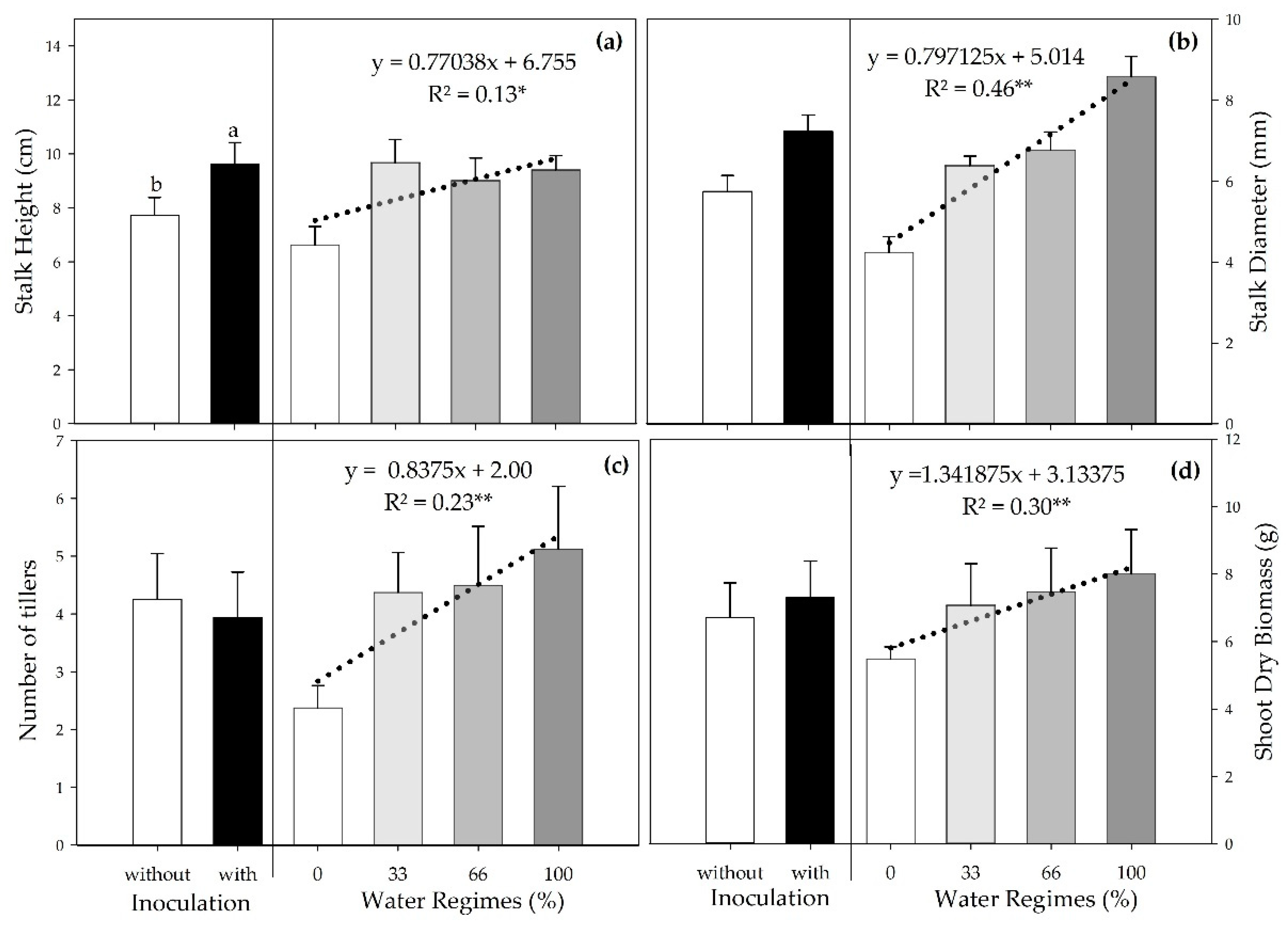

Water regimes and inoculation influenced stalk height (SH), with no interaction between these factors. Inoculation led to a 22.2% increase in SH compared to the control (Figure 3a). There was a significant linear regression for the different water regimes. Although the variation between the regimes with the highest water availability (33%, 66%, and 100%) was slight, they provided an average increase of 41.3% in SH compared to severe water deficiency (0%).

There was a linear adjustment between water regimes for stalk diameter (SD) (R² = 0.46**); as water availability increased, SD increased (Figure 3b). Similarly, the number of tillers (NT) and the shoot dry biomass (SDB) also increased linearly with the increase in irrigation rates (R² = 0.23** and R² = 0.30**, respectively) (Figure 3c,d).

3.3. Water use efficiency

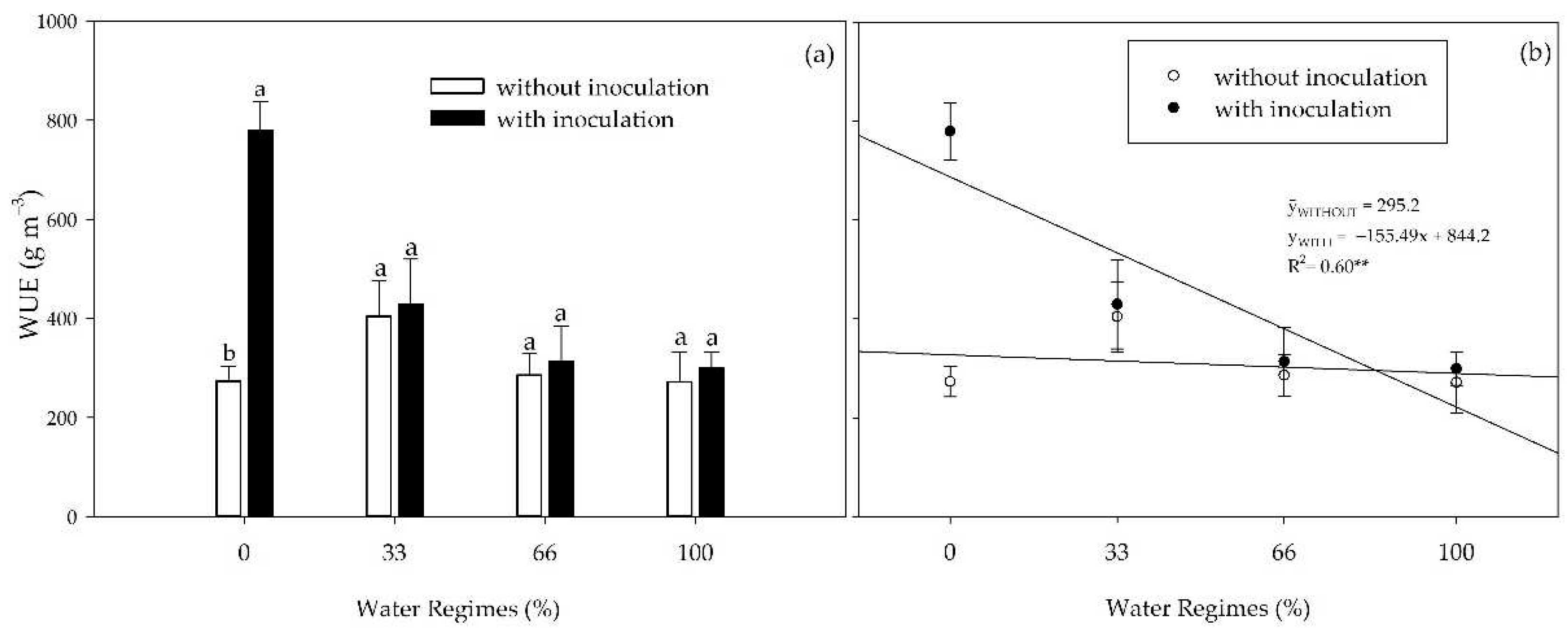

There was an interaction between inoculation and water regimes for water use efficiency (WUE) (Figure 4). Inoculation increased WUE by 185% in the absence of initial water supply in the 0% water regime. With increased water availability, although PGPB provided higher nominal averages, no statistical difference existed (Figure 4a). Increased water availability reduced the WUE of inoculated plants but did not influence the WUE of non-inoculated plants (Figure 4b).

3.4. Growth Analysis

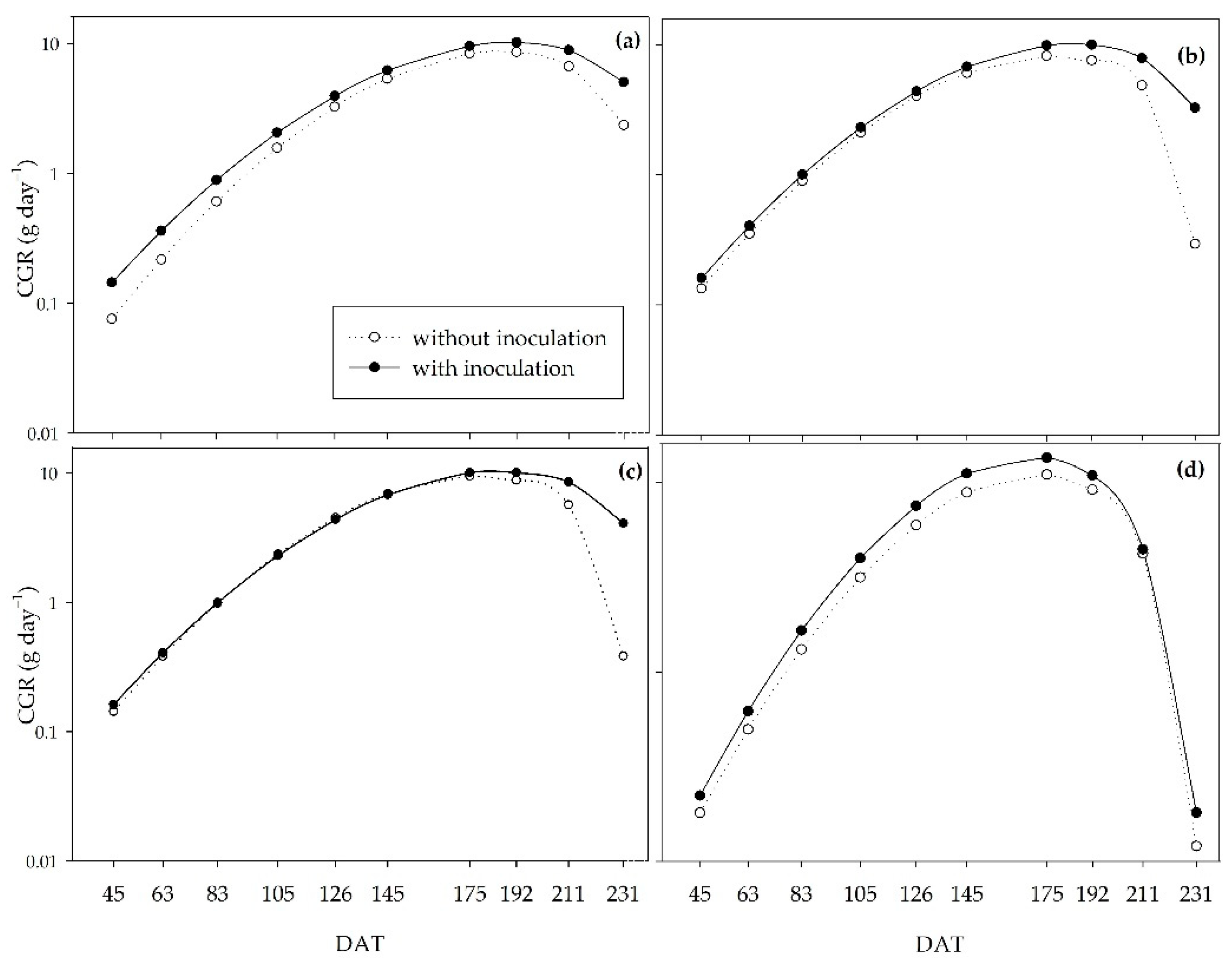

According to the crop growth rate (CGR), the crop reached its maximum growth at approximately 180 DAT (Figure 5). In the absence of irrigation (0%) and 33% of the initial irrigation, inoculation with Bacillus provided greater CGR throughout the experimental period (Figure 5a,b), with the most obvious difference at 192 DAT. At 192 DAT, in the 0% regime, the inoculated plants reached 10.21 g day^–1, and the non-inoculated plants 8.60 g day^–1; and in the 33% regime, there was an increase of 2.42 g day^–1 in the inoculated plants. In the 66% water regime, inoculation resulted in a higher GCR from 145 DAT onwards (Figure 5c), while under an adequate water regime (100%), inoculation increased the GCR until 211 DAT, followed by a sharp decrease in this variable at 231 DAT, both in the presence and absence of PGPB. All the treatments decreased growth speed at 211 DAT, with a sharper decrease for non-inoculated plants in the 33% and 66% regimes.

The relative growth rate (RGR) shows the plant’s growth based on the amount of already existing dry matter. This variable had a downward trend over the period studied for all treatments. As water availability increased, there was a reduction in the difference between inoculated and non-inoculated plants, represented by the approximation of the curves (Figure 6). In the 0% water regime, the non-inoculated plants had a higher RGR until 175 DAT, at which point the curves were inverted, and the inoculated plants provided a higher TCR from 192 DAT to 231 DAT (Figure 6a). Similar behavior occurred in the 33% regime (Figure 6b). In the 66% regime, there was no difference between the presence or absence of PGPB until 175 DAT, at which point the inoculated plants stood out (Figure 6c). Under an adequate regime (100%), the RGR was very similar between inoculated and non-inoculated plants (Figure 6d).

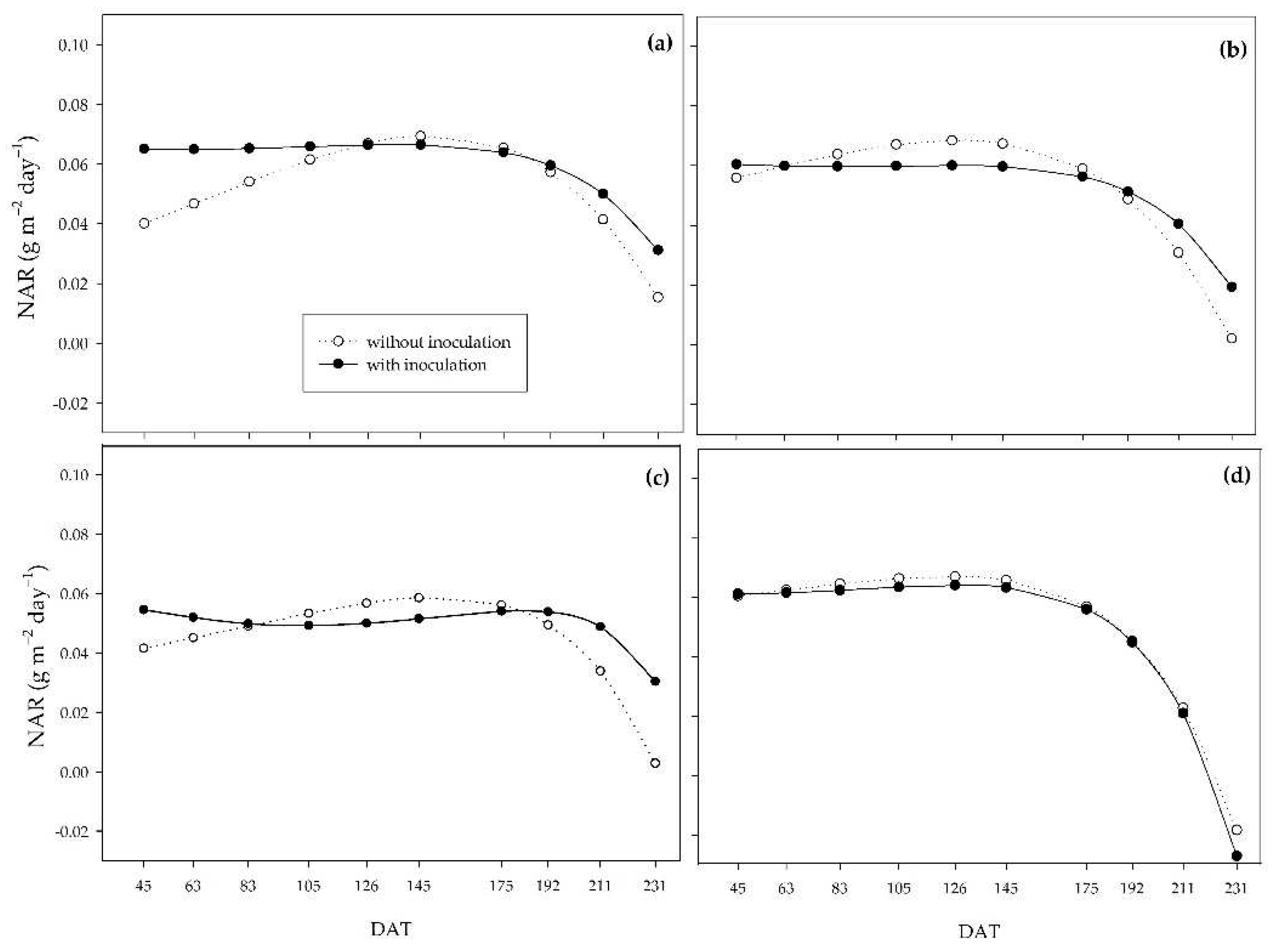

Regarding the net assimilation rate (NAR), there was different behavior between the water regimes. Under the 0% water regime, the inoculated plants had higher net assimilation throughout the cycle. There was a marked decrease in non-inoculated plants, while the PGPB attenuated this decrease (Figure 7a). The same behavior was observed in the inoculated plants under the 33% water regime, in which, at 83 DAT, the non-inoculated plants had higher NAR until 192 DAT, after which NAR became more elevated in the inoculated plants (Figure 7b). Under a 66% water regime, the PGPB provided greater NAR than the control. However, after the beginning of frequent rainfall and the cessation of irrigation, the non-inoculated plants reached higher NAR values until 175 DAT, when there was a sharp decrease in this variable under this condition. At the same time, in the inoculated plants, this decrease was attenuated (Figure 7c). Under suitable initial water conditions (100%), plants with and without inoculation behaved similarly, with a sharp reduction towards the end of the cycle (Figure 7d).

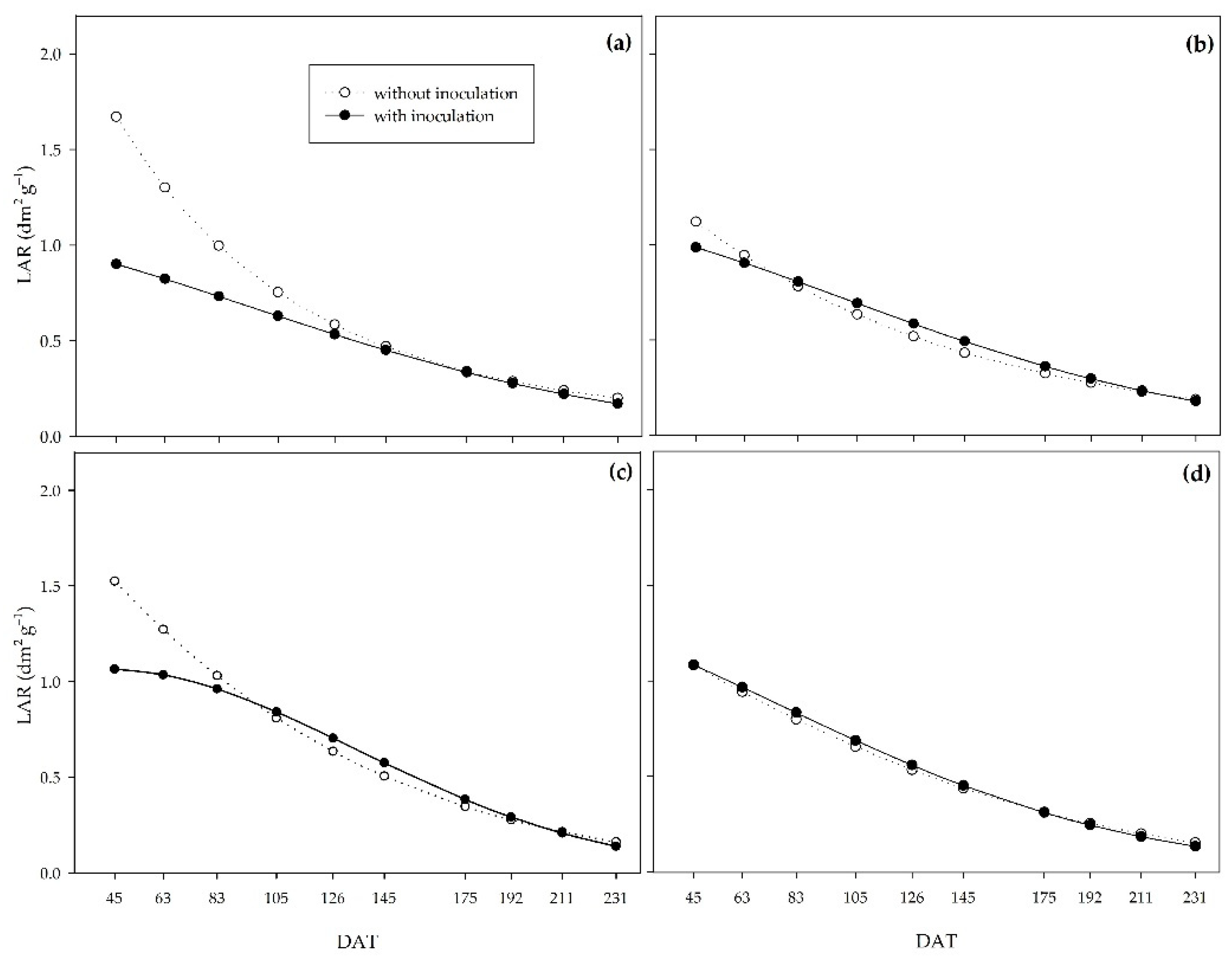

The leaf area ratio (LAR) showed a similar pattern in all the water regimes (Figure 8). Under controlled irrigation, non-inoculated plants had higher LAR up to 126, 63, and 83 DAT under the water regimes of 0% (Figure 8a), 33% (Figure 8b), and 66% (Figure 8c), respectively. However, under adequate water availability, there was no inoculation effect throughout the experiment (Figure 8d).

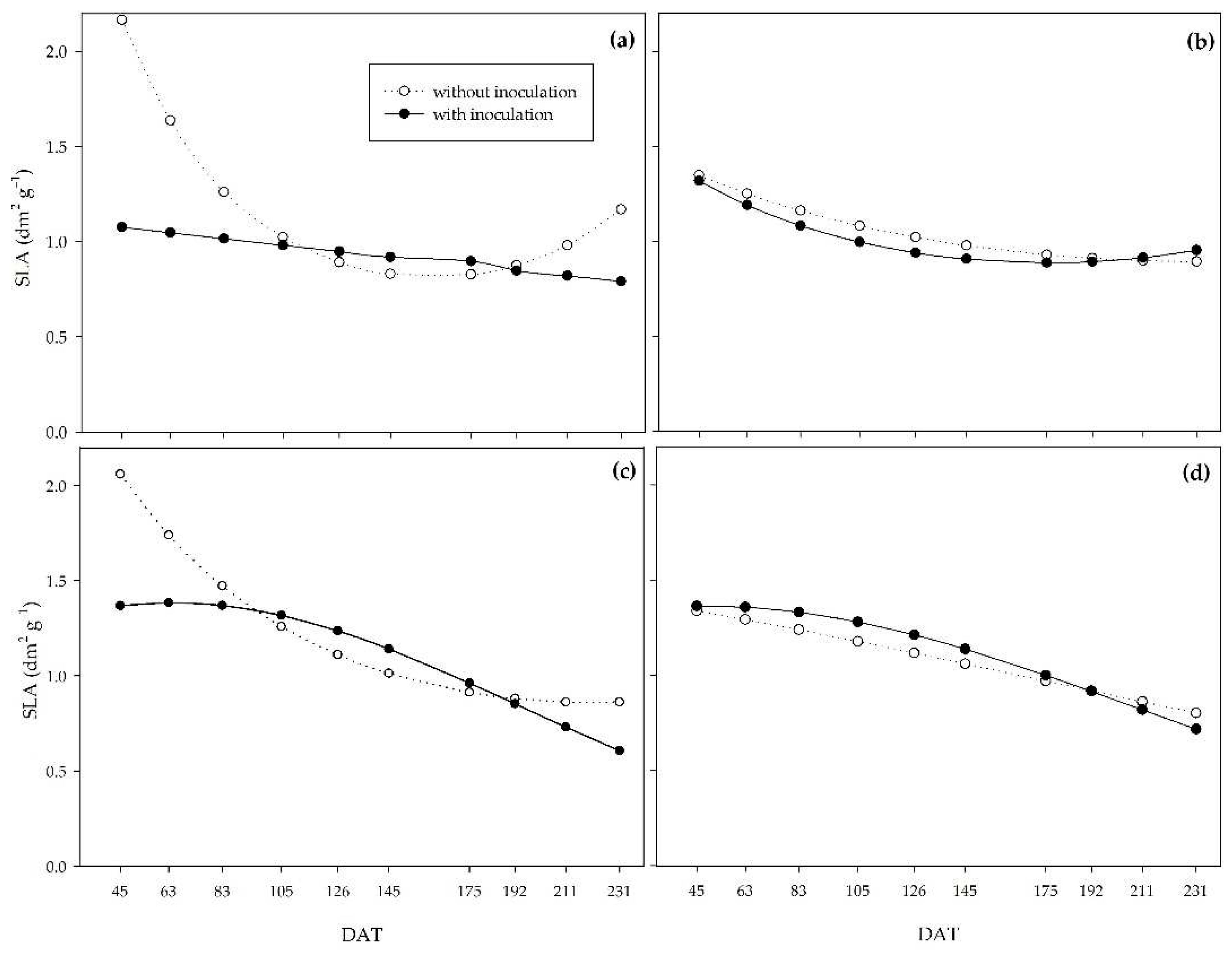

For the specific leaf area (SLA), in the 0% water regime, the non-inoculated plants provided higher values until 105 DAT, when the curves of both treatments cross and remain stable until 211 DAT, when the non-inoculated plants stand out compared to the inoculated ones again (Figure 9a). Under a 33% water regime, inoculation did not affect SLA, with a slight reduction in values between 45 and 231 DAT for both treatments (Figure 9b). Under a 66% water regime, the curves were similar to the 0% regime. Still, both had higher values throughout the cycle, with 58.1% and 55.6% reductions between 45 and 231 DAT for the non-inoculated and inoculated plants, respectively (Figure 9c). As for the adequate water regime, although the inoculated plants had higher values up to 175 DAT, the curves were similar between inoculated and non-inoculated plants throughout the cycle (Figure 9d).

The SLA and LAR indices behaved similarly; as for both, the non-inoculated plants provided higher values at the beginning of the cycle under the 0%, 33%, and 66% water regimes. However, under severe water restriction (0%), the curves crossed later, at 175 DAT (Figure 9).

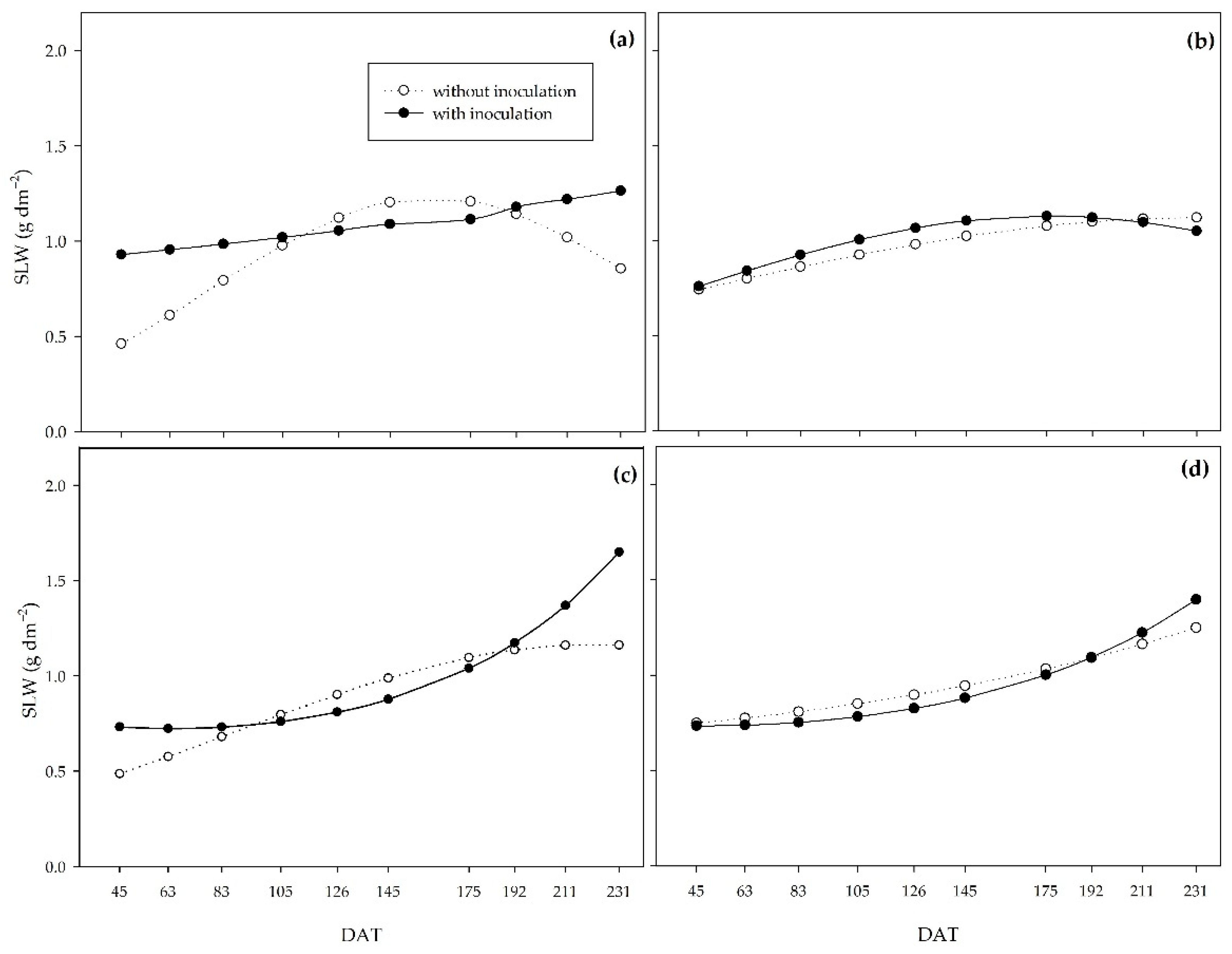

Specific leaf weight (SLW) behaved inversely to LAR and SLA (Figure 10). Possibly, the PGPB increased leaf thickness at the beginning of the cycle under the 0%, 33%, and 66% water regimes, whereas under the adequate water regime, this increase occurred at the end of the cycle.

3.5. Nutritional variables

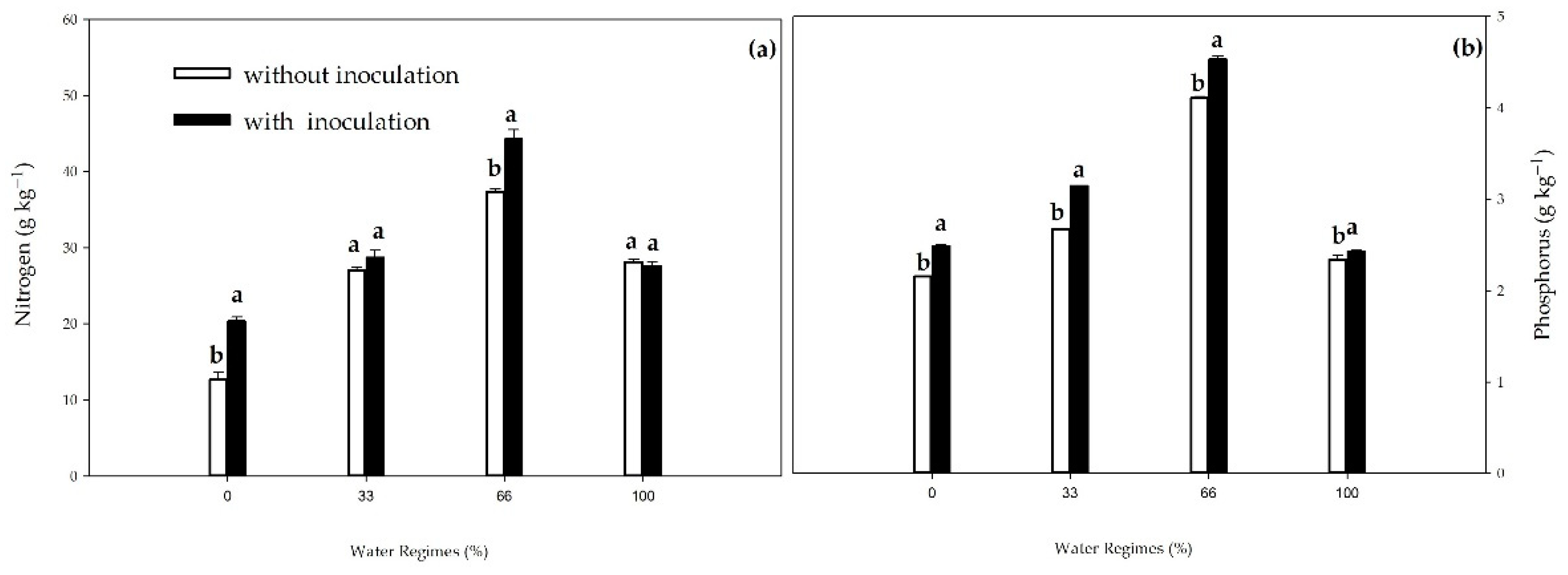

There was an interaction between inoculation and water regimes for N and P. PGPB provided increases of 63.2%, 61.7%, and 18.3% under water regimes of 0%, 33%, and 66%, respectively, compared to the control without inoculation (Figure 11a). Inoculation with B. licheniformis and B. subtilis increased the P content in all water regimes compared to non-inoculated plants, with increases of 15.2%, 17.6%, and 10.3% in the 0%, 33%, and 66% water regimes (p≤0.01), respectively, and 3.8% in the adequate water regime (p≤0.05) (Figure 11b).

The treatments did not influence the K, Ca, Mg, and S contents (Table 3).

There was an interaction between the factors inoculation and water regimes for Zn and Mn contents (Figure 12). The PGPB provided higher Mn content than the control under water regimes of 66% and 100% (Figure 12a). In inoculated plants, the water regimes did not influence the Zn content; however, in non-inoculated plants, there was an influence on the irrigation levels (Figure 12b). The PGPB provided higher Zn levels in the 0% water regime.

There was a linear adjustment between water regimes for Fe and Cu levels, with increased water availability increasing the contents of these nutrients (Table 4).

The water regimes influenced the leaf accumulation of all the macronutrients, with a significant linear adjustment (p≤0.01). The highest determination coefficients were observed for N and P (R = 0.56** and R = 0.59**, respectively) (Table 5). Water regimes also influenced micronutrient contents, with a significant linear adjustment (p≤0.01). Inoculation with B. licheniformis and B. subtilis influenced Cu accumulation, with an increase of 27.17% compared to non-inoculated plants (Table 6).

3.6. Morphological variables of the root system

The interaction between the inoculation and water regimes did not influence the root system variables, regardless of depth. Although root volume (RV), area projection (AP), and surface area (SA) were influenced by inoculation with PGPB at a depth of 0–20 cm (p≤0.05), there was no interference from inoculation at the other depths. At a depth of 0–20 cm, inoculated plants had an increase of 15.79% and 13.67% in RV and SA, respectively, compared to non-inoculated plants (Table 7).

Water regimes influenced root length (RL), SA, AP, and number of bifurcations (Nbif) at 60–80 cm depth. There was a linear regression inversely proportional to the water regimes, in which increased water availability reduced RL, SA, AP, and Nbif (Table 7).

3.7. Yield and multiplication rate

There was an interaction between the factors inoculation and water regimes on the number of stalks per meter (NSM). PGPB influenced NSM in the 33% and 100% water regimes, with increases of 9.78% and 18.10%, respectively, compared to the control and, consequently, there was an inoculation effect on TSH and multiplication rate (MR) (Figure 13). This way, the PGPB increased TSH in the 33% and 100% water regimes due to the higher NSM. However, the increase in MR was only verified in the 33% water regime (Figure 13c).

There was a linear adjustment of the water regimes for internode length (IL) and number of nodes (NN), with the increase in water availability reducing NN but providing greater IL (Table 8).

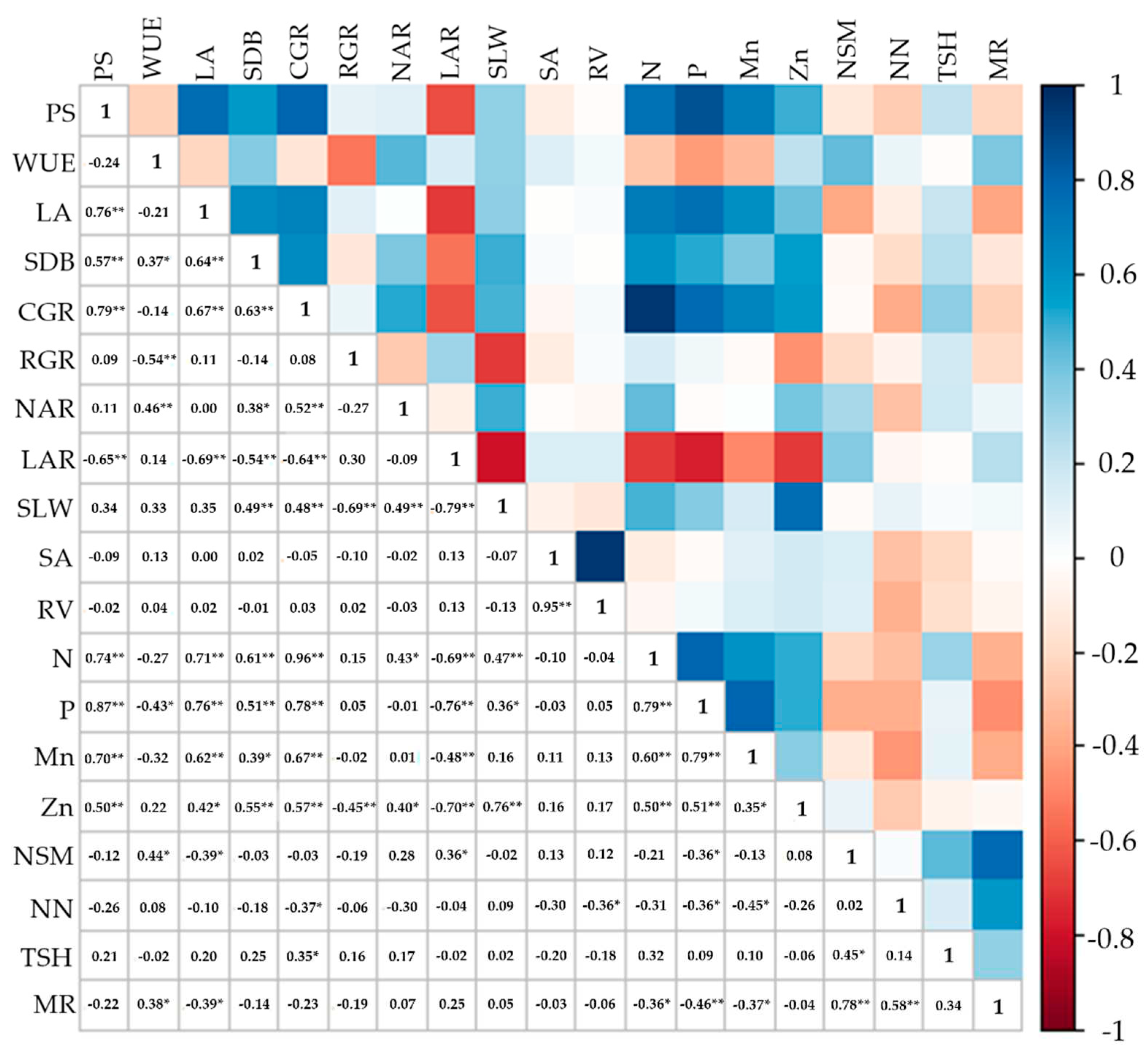

3.8. Pearson`s correlation

There was a highly positive correlation between PS, LA, SDB, CGR, N, P, Mn, and Zn. Survival was inversely correlated with LAR (R² =–0.65**) (Figure 14).

WUE correlated strongly with RGR, NAR, SDB, P content, NSM, and MR. There were correlations between LA, SDB, CGR, N, P, Mn, and Zn content (Figure 14). Inversely proportional correlations between LA and LAR and NSM and MR were observed. Similarly, SDB correlated with N, P, Mn, Zn, CGR, SLW, and NAR.

The variables SP, LA, and SDB correlated strongly with each other. Regarding growth analysis, CGR correlated with NAR, SLW, and all the nutrients. RGR correlated negatively with WUE, SLW, and Zn content (Figure 14). So did LAR, which showed an inversely proportional correlation with CGR, SLW, N, P, Mn, and Zn content and correlated positively only with NSM (R² = 0.36*). There was also a correlation between N, P, Mn, and Zn content.

Root variables correlated positively with each other (SA and RV), and RV correlated negatively with NN (R² = –0.36*) (Figure 14). NSM, NN, and MR correlated so that NSM and NN directly affected MR.

4. Discussion

The establishment method using PSS is under development in Brazil [18], and its expansion is associated with the significant growth of the MEIOSI production system [60]. The MEIOSI system consists of planting central rows of sugarcane in consortium with other crops of economic interest. After harvesting the crops grown between the rows, the sugarcane in the main rows is used as propagation material for the rest of the area [15,16,58]. The search for propagation materials that present varietal guarantee and better health conditions drives the expansion of PSS planting in this production system. In addition, sugarcane propagated by this method has nutritional and tillering characteristics similar to the conventional method [18].

However, despite the reduction in the propagation material volume for the MEIOSI central rows, PSS have low water and nutrient reserves, a poorly developed root system, and low leaf area when they are transplanted to the field [17], which makes water supplementation indispensable for plant establishment, since the absence of irrigation leads to high plant mortality and the need for replanting [18].

This study showed that plant growth-promoting bacteria (PGPB) from the genus Bacillus spp. can help with this problem. The increase in plant survival promoted by PGPB inoculation at 30 DAT suggests that the inoculated plants were influenced by the biological mechanisms already reported by B. licheniformis [35,61] and B. subtilis [38,62,63,64,65,66], such as the production of phytohormones, siderophores and exopolysaccharides, biofertilization, and remediation of abiotic stresses. In the absence of inoculation, PSS survival of 82.4% corroborates with the percentage found by Almeida Neto et al. [67]. Although no other studies evaluate PSS survival in the field under the use of microorganisms, studies report the action of PGPB in improving rooting and nutritional aspects [37,68,69,70,71].

Inoculation of B. licheniformis and B. subtilis can be a promising approach to improving plant growth, as the particularities of each species allow for a greater spectrum of action on signaling pathways, nutrient solubilization, and phytohormone production [38,41,42,72]. Our results show that inoculation promoted an increase in stalk height (SH) at 63 DAT, a result similar to that found by Brandi et al. [41], who reported that the association of two bacteria of the Bacillus genus increased the sugarcane height. In contrast, individual inoculation of each species did not raise this parameter. However, PGPB inoculation did not affect the number of tillers (NT), stalk diameter (SD), and shoot dry biomass (SDB), a result that was also observed by Wang et al. [73] and Ferreira et al. [70].

Water is indispensable for plant development and is involved in metabolic processes. Hence, a decrease in water supply directly and indirectly interferes with various processes related to plant growth and development [74,75], which explains the increase in SH, SD, NT, and SDB as the water supply increased.

As water availability decreased, there was an increase in WUE; however, the inoculation × water regime interaction was only verified under severe water restriction (0% irrigation), where PGPB surprisingly increased WUE by 185%. These results indicate that the plants treated with FMCH001 and FMCH002 had better control of maintaining the plant’s water status during the progressive drought than the non-inoculated control plants. These bacteria remain as spores for survival in water-scarce conditions, which helps them survive better in extreme conditions for extended periods [39].

Inoculation provided a higher crop growth rate (CGR) at the peak of development (145 to 192 DAT) for all the water regimes studied. The CGR measures the variation in dry matter mass over time, which in this study reached the maximum accumulation of dry matter mass per day at approximately 180 DAT. Between 130 and 180 days after planting, in mid-August/September, sugarcane plants are at the peak of their development due to favorable temperature and rainfall conditions [4], which justifies the higher net assimilation rate (NAR) for all treatments. The CGR and NAR curves corroborate the results of Pedula et al. [76], who showed an increase in these indices by applying five diazotrophic bacteria.

The relative growth rate (RGR) is the increase in dry matter mass per unit of original dry mass over a period, representing the plant’s efficiency in producing new material [54]. The RGR curves were inverted throughout the cycle between the inoculated and non-inoculated plants. The inoculated plants began the cycle with lower RGR in the 0 to 33% water regimes and higher RGR in the 66 and 100% regimes. The opposite was observed at the end of the experiment, where the inoculated plants had higher mass values per pre-existing mass compared to the non-inoculated plants in the 0 and 33% water regimes.

It is estimated that 40% of the photoassimilates produced by plants go into the production of exudates by the root system [77]. The exudates released by plant roots play a role in maintaining and interacting with rhizospheric microorganisms [78], as they are the primary source of organic carbon in the rhizodeposition process [79]. Root exudation represents a significant carbon cost for the plant [80]. At the beginning of the cycle, under water restriction, the plants may have partitioned part of their assimilates for the inoculated bacteria maintenance, which possibly affected carbohydrate production. This allowed the colonies to settle and develop in the rhizosphere of the plants and promote the inversion of the curve at the end of the cycle. Under conditions closer to adequate in terms of the necessary water supply (66 and 100% water tables), the partitioning to the production of exudates probably didn’t interfere enough to influence the production of dry matter by pre-existing material.

It is worth noting that the treatments related to the water regimes took up to 57 DAT (Figure 1), after which all the plants were subjected to natural rainfall. Considering the long period of the crop in the field (231 DAT) and the controlled irrigation period (57 DAT), it is possible that, at the end of the evaluations, the dry matter mass production parameters were level for all the water regimes.

The NAR considers leaf area as the surface capable of producing carbohydrates. In this case, unlike the RGR, the inoculated plants showed higher values at the beginning of the cycle, which indicates that the photoassimilates resulting from the higher net assimilation rate of the inoculated plants were being partitioned to resources other than the production of shoot dry matter mass, such as the root system improvement [39,81]. These resources may have aided the greater production of shoot dry matter mass after 145 DAT, as shown by the CGR and RGR curves under inoculation with B. licheniformis and B. subtilis.

The leaf area ratio can be interpreted as the ratio between the assimilatory surface and the material assimilated by that surface. Thus, lower values under the action of PGPB indicate the action of Bacillus on yield efficiency, as it indicates that the inoculated plants produced more assimilate per unit of assimilatory surface [54].

On the other hand, the specific leaf area (SLA) represents the ratio between leaf area and leaf dry matter mass, while the specific leaf weight (SLW) indicates the inverse of SLA. Both indices allow us to analyze leaf thickness since the higher the SLA, the lower the leaf thickness, and the higher the SLW, the greater the leaf thickness. Thus, compared to non-inoculated plants, PGPB increased leaf thickness at the beginning of the cycle for the 0, 33, and 66% regimes. For the 0% regime, the leaf thickness of the treatments leveled off at around 110 DAT. PGPB promoted greater leaf thickness, which explains the higher net assimilation rate in inoculated plants during this period. The higher leaf thickness may represent greater shoot dry biomass production efficiency by improving the photosynthetic apparatus, mainly due to the vascular bundle sheath in C₄ plants such as sugarcane [4]. SLW at 63 DAT was highly correlated with shoot dry biomass, crop growth rate, and net assimilation rate (R² = 0.5**).

These results show the potential of PGPB to promote tolerance to water deficiency since, under water restriction, these bacteria enabled greater dry matter mass yield efficiency at the end of the experiment, as well as a higher assimilation rate and greater leaf thickness at the beginning of the PSS growth in the field.

Several reports of bacteria of the genus Bacillus increase the rooting of sugarcane, which explains the increase in volume, area projection, and surface area of roots at a depth of 20 cm [28,36,82]. One of the ways PGPBs promote tolerance is by acting on signaling pathways that promote more significant partitioning of assimilates to the root system [81]. In addition, these bacteria are abundant in the root zone of drought-adapted plants [39].

Zhang et al. [83] demonstrated that B. subtilis could regulate auxin homeostasis in A. thaliana, resulting in higher auxin levels in the root system. In addition, species of the genus Bacillus spp. can synthesize auxins, gibberellins, cytokinins, and spermidines, which increases the division and elongation of root cells [84]. Roots are considered one of the essential adaptive traits for withstanding water stress. Much evidence shows that plants with more prolific, deeper, and higher root biomass can tolerate water stress better than plants with thinner root systems since roots are the only organ capable of extracting water from the soil profile [85,86].

In addition to increased rooting, which increases the uptake of water and nutrients, enabling the tolerance to water deficiency in plants [74,75,87], it also increases root and shoot dry matter, directly related to the plant’s WUE [39]. In this study, inoculation increased the absorption of N, P, Mn, and Zn at 63 DAT and increased WUE at whole plant level under more severe water stress.

Increased water restriction led to increased bifurcations and the surface area of the roots at 60–80 cm depth. Water deficit stimulates the expansion of the root system to deeper regions of the soil profile [88,89,90,91]. The emission of root hairs increases the surface area and maximizes water uptake [75].

Water entry into the xylem directly affects the concentration of ions in the leaf tissues. Under water restriction, nutrient absorption decreases due to transpiration, which reduces mass flow. However, due to the reduction in dry matter mass resulting from water restriction, the reduction in absorption may have a low effect on the element concentration in the tissue [92]. Thus, the final nutrient concentration in the tissues depends on the relation between the reduction in uptake and dry matter accumulation. If the decrease in uptake is more significant than the reduction in dry matter accumulation, the element concentration in the tissues will be more significantly affected [93]. Here, we found an influence of water regimes on N, P, Ca, Mn, Zn, and Fe levels. On the other hand, water regimes did not affect K, Mg, S, B, and Cu levels, probably due to the decrease in dry matter mass accumulation. However, leaf accumulation of these nutrients, considering dry matter mass, was strongly influenced by water regimes.

Around 40% to 70% of the N and 80% to 90% of the P fertilizers applied are lost to the environment due to variations in soil dynamics [94]. In this sense, the use of B. licheniformis and B. subtilis can minimize these losses and contribute to nutrient uptake, promoting sugarcane growth in the initial phase, with nutritional increases of 14.9% and 10.8%, respectively, compared to the control in the 66% water regime.

The increase in P content (13%) was also observed by [95], studying PSS treated with B. subtilis and B. pumilus. In addition, the authors reported greater root growth and an increase in total dry matter in PSS treated with B. subtilis. The Bacillus genus is deeply associated with phosphorus solubilization [96] due to mechanisms such as the production of organic acids, acidification, and chelation [36,97], which increases the nutrient uptake efficiency by the roots, especially under adequate water availability.

As diffusion is the primary means of P-root contact, water availability is indispensable for the successful uptake of this nutrient by the roots; the lower the humidity, the more critical the P diffusion, especially in sandy soils [98,99], which explains the increase in phosphorus availability from 0 to 66% of the irrigation depth. In addition, water is mainly required to mineralize organic P through microbial activity [100].

However, PGPB contributed to minimizing this effect in conditions of low water availability since, under severe water stress, there was a 15.3% increase in the P content of inoculated plants. Fonseca et al. [36], studying PSS inoculated and not inoculated with B. subtilis under adequate water regime and moderate drought, found increases of 15% and 33% in P content in irrigated plants and under moderate drought, respectively, in inoculated plants.

The endogenous P availability influences the N metabolism, so plants with an adequate P supply increase the nitrate uptake from the soil solution, which is transported from the roots to the shoot, with a more significant accumulation of amino acids in the leaves and roots [101,102,103]. This is why the N and P contents had a high correlation (R² = 0.8**), indicating that the metabolism dynamics of these nutrients are strongly interlinked. Nitrogen is essential for forming proteins and enzymes that help plant growth and development [75]. In our study, water availability also contributed to higher N levels in the treatments associated with Bacillus. The 66% rate was higher than the others, possibly due to the mechanisms above and the higher P levels in this irrigation rate. In a study carried out by Rosa et al. [104], the authors assessed the interaction of N and P concentrations in sugarcane leaves inoculated with A. brasilense, B. subtilis, and P. fluorescens as a function of phosphate fertilization and found an increase in N concentration which resulted in higher agro-industrial quality of the sugarcane.

Singh et al. [105], when verifying the potential of nitrogen-fixing rhizobacteria, found that Bacillus species isolated from the root system of sugarcane plants could produce ammonia and showed high nitrogenase activity in vitro. This explains the promotion of N uptake by sugarcane by applying B. licheniformis and B. subtilis [36,82,106]. Under water stress, PGPB promoted a 60.8% increase in N content compared to the control, corroborating Gírio et al. [37], who studied sugarcane seedlings inoculated with PGPB associated with the application of N in low-fertility soils and found gains in initial growth, dry matter mass, and root length, regardless of fertilizer application, resulting in a positive physiological effect of the bacteria on sugarcane growth.

The correlation between the contents of N, P, and Zn and SLW, CGR, LA, and PS shows that the increase in the leaf nutrient concentration resulted in greater thickness, which led to greater net CO₂ assimilation, promoting greater survival and a higher crop growth rate. The effect of inoculation with Bacillus on the uptake of N and P is already well-established, but verifying a high correlation between these nutrients and plant survival elucidates the mechanisms of action of these microorganisms in the survival of pre-sprouted seedlings in the field.

PGPB also favored the uptake of Mn and Zn. Rana et al. [107] cite that Mn and Zn can be supplied to plants by microbial exudates since uptake is carried out directly by microorganisms [108]. Most bacteria of the Bacillus genus are gram-positive and have a significant amount of teichoic acid and peptidoglycan. These compounds have amide and carboxyl groups that can give cells a functional charge through the proton loss originating from metals’ electrostatic attraction [109]. In a heavy metal phytoremediation study, Huang et al. [110]. reported that two species of the genus Bacillus sp. improved Mn absorption and increased this nutrient content in the leaves and stem of Broussonetia papyrifera. This suggests that the Bacillus species studied promoted a more significant translocation of these nutrients to the shoot. In addition, the increase in root length and surface area seen in inoculated plants is closely linked to the uptake and translocation of micronutrients.

The soil Zn mobility is directly associated with microbial metabolism [111]. Zn uptake and transport in plants occur in several stages and can be affected by nitrogen mediated by microorganisms [107]. There is evidence that the plant nitrogen status can positively impact the nutrient translocation between the root and shoot and positively affect the root Zn uptake. Rana et al. [107] demonstrated a highly significant correlation between Zn and N and P concentrations, as observed in our results (Figure 14). This suggests that the improved nutritional status promoted by B. licheniformis and B. subtilis about the nutrients N and P may have favored Zn uptake.

Inoculation did not influence the yield variables SH, SD, NN, and IL at harvest. However, PGPB increased NT under the 33% and 100% water regimes. The number of tillers per meter is a component of productivity that acts as a strong indicator of drought tolerance in sugarcane [112], so the increase obtained from B. licheniformis and B. subtilis in the initial 33% regime demonstrates the tolerance-promoting potential of these species. Other studies have also reported an increase in the number of tillers under inoculation with species of the genus Bacillus [36,41,96,113].

The increase in NT in the 33% and 100% water regimes resulted in higher MEIOSI multiplication rates in these conditions, considering the high level of correlation between these variables (R² = 0.8**). It is, therefore, pertinent to emphasize the beneficial effects of inoculation with two species of Bacillus in PSS in the context of producing basic propagative material for the MEIOSI system. The increase in the NT results in greater quantities of plant material suitable for subsequent planting throughout the area [58,114].

The different water regimes influenced the NN and, consequently, the IL. The lowest irrigation rates reduced IL. This phenomenon is called curling and is common in water restriction conditions [115]. Therefore, as the multiplication rate is a result of the number of tillers per meter and the number of buds per stalk [58], and lower initial irrigation rates resulted in shorter internodes and a greater number of nodes/buds, the multiplication rate responded with a linearity that was inversely proportional to the regimes.

All of these demonstrate that the synergism between B. licheniformis and B. subtilis favored the sugarcane pre-sprouted seedlings growth in the MEIOSI system, with an increase in root attributes and nutrient uptake and, therefore, favored the multiplication rate in the MEIOSI system, even under water deficiency.

5. Conclusions

We reported how Bacillus licheniformis strain FMCH001 (DSM32154) and Bacillus subtillis strain FMCH002 (DSM32155) increased plant survival and water use efficiency of sugarcane pre-sprouted seedlings in the field. Inoculation with two Bacillus species benefited crop growth in the MEIOSI system, mainly because it increased root attributes and thus favored nutrient uptake such as N, P, Mn, and Zn. In addition, inoculation increased the number of stalks in the initial water regimes of 33% and 100%, which resulted in a higher multiplication rate in the MEIOSI system. In addition to the need to supply water at the beginning of the establishment of sugarcane pre-sprouted seedling areas, sugarcane fields depend on high doses of fertilizers for their proper development, influencing their longevity. Therefore, these results have important implications for sustainability since, in addition to increasing nutrient uptake, the study showed that the inoculation with B. licheniformis and B. subtillis is a viable strategy to favor the efficiency of water resources in the formation of sugarcane fields using plant material from pre-sprouted seedlings.
