Detection of miR-155 Using PNA at Physiological-Like Conditions by Surface Plasmon Resonance and bioFET

1. Introduction

MicroRNAs (miRNAs) are small non-coding nucleic acids of about 18-25 nucleotides which play a pivotal role in gene regulation of all superior organisms, including humans, and are involved in several cellular processes, such as proliferation, differentiation and apoptosis [1-3]. Given their physiological importance, deregulation of miRNAs is related to the development of numerous disease states, including multiple forms of cancer [4,5] Therefore, miRNAs are excellent molecular biomarkers with high potentialities in diagnostics [6-8]. However, their small size and low concentrations make the detection of miRNAs rather difficult. Currently, oligonucleotides are essentially detected by biomolecular techniques (e.g. real time PCR, northern blotting, microarray analysis) [9-11]. Although these methods may reach relatively high performances, their use in the clinical diagnostic field is rather hampered by several reasons. Indeed, they require long waiting times, necessitate the use of specific labels, and often involve extensive sample handling by highly specialized personnel with significant costs [12]. Biosensors technologies are susceptible to offer good solutions to the above-mentioned problems, allowing, additionally, optimized and sensitive clinical detection of miRNAs [13,14]. A biosensor is a device able to perceive biological events (e.g., the interaction between two molecular partners) and to transduce them in the form of a chemical, physical or electrical signal [15]. In the last decades, electrochemical biosensors, and in particular bio-Field Effect Transistor (bioFET) based device, have received great attention essentially because they can reach levels of sensitivity and specificity comparable to the canonical methods, being at the same time label-free, low cost, and presenting high potentiality to be automatized with no-or little sample pre-treatment [16,17,18]. Briefly, in a FET device, the electric current flows between two electrodes (source and drain) linked by a semiconductor channel; a third electrode (gate), coupled to the device through a thin dielectric layer, can modulate the conductance between the drain-source electrodes according to its voltage [19]. When specific biological probes, previously immobilized onto the gate surface, capture the target of interest a release of charges towards the gate electrode occurs. Accordingly, the change of the gate voltage will affect the source-drain current, allowing thus to correlate this variation to the target concentration [20]. However, current detection involves only the accumulated charges within the so-called Debye distance from the electrode which, in turn, strongly depends on the ionic strength of the solution [21,22]. Natural capturing probes for miRNAs are constituted by their complementary DNA or RNA strands which give rise to duplexes via a hybridization process. Since both partners display negatively charged phosphate backbones, a high ionic strength is required to optimize the hybridization process; about 500mM represents the optimum ionic strength to shield the electrostatic repulsion and to facilitate nucleic acid hybridization [23,24]. Therefore, such a constraint limits the bioFET capabilities: indeed, the greater the ionic strength of the working solution, the smaller is the Debye length within which the charges carried by the target miRNAs that can be perceived [21]. One promising solution to this problem may be represented by the use of peptide nucleic acids (PNAs) as capturing probe for miRNAs. PNAs are nucleotide analogues where the negative phosphate backbones are replaced by repeated units of N-(2- amminoetil)-glycine connected by peptide bond [25,26]. Accordingly, PNA, can hybridize with complementary nucleic acids at lower ionic strengths, when compared to canonical counterparts [27,28]; with a subsequent reduction of the Debye length leading to a substantial improvement of the bioFET detection capability. Therefore, this approach presents the important advantage to render accessible bioFET-based detection at physiological conditions which are usually characterized by an ionic strength of about 150mM [29]. However, the absence of the negative phosphate backbones also modifies the interaction kinetics between PNA and the complementary nucleic acids; and the relationship between ionic strength and PNA-miRNAs interaction on solid surfaces should be therefore investigated [30,31,32,33]. On such a basis, the present work has the objective of paving the way for the development of a bioFET-based biosensor for a clinically relevant microRNA at physiological-like conditions by using PNA molecules as capturing probes. Our target is microRNA 155 (miR-155), a multifunctional miRNA regulating B cell differentiation and development stages, by also playing a key role in the mammalian immune system [34,35]. MiR-155 is overexpressed in various malignant tumor cells, such as hepatocellular carcinoma, breast cancer, colon cancer [36,37] whose detection deserves high interest, as biomarker, in diagnostics and prognosis [38].

Since the kinetics can be strongly modulated by the ionic strength and, on the other hand, it could have a significant impact on the bioFET response, we have preliminary investigated the hybridization process between miR-155 and the related PNA by Surface Plasmon Resonance (SPR), to extract the association and dissociation rates under the experimental conditions of bioFET sensing [39,40]. We have then implemented a procedure on a custom-made bioFET setup to detect miR-155 at 150 mM ionic strength. The results indicate that our label-free, PNA-bioFET system is capable of a highly specific recognition of miR-155 with a limit of detection (LOD) in the nano-molar concentration under physiological-like conditions.

2. Materials and Methods

2.1. Materials

Single-stranded RNA oligonucleotides with the sequence of human miR-155-5p (5′-uaa ugc uaa ucg uga uag ggg-3′), the PNA complementary strands (5′-uag cuu auc aga cug aug uug a-3′, miR-21, 7.0 kDa), as well as miR-21-5p (5′-uag cuu auc aga cug aug uug a-3′, miR-21, 7.0 kDa), and miR-141-5p (5′-uaa cac ugu cug gua aag aug g-3′, miR-141, 7.1 kDa), were purchased from Metabion (Planegg, Germany) as dry pellets. The thiolated PNA oligomer with complementary sequence to miR-155 (5′-uag cuu auc aga cug aug uug a-3′, miR-21, 7.0 kDa) was synthesized by biomers.net (Ulm, Germany) and shipped in dry form as well. Oligos were purified by high-performance liquid chromatography−mass spectrometry (HPLC−MS). The pellets were resuspended in sterile 10mM sodium phosphate buffer (NaPi, 8.1 mM Na₂HPO₄, 1.9 mM NaH₂PO₄) in aliquots by 100µM concentration, miRs at pH= 7.8 and the PNA at pH=6, and then stored at 253 K. 6-mercapto-1-Hexanol (MCH) was purchased from Sigma-Aldrich Co. Work surface and equipment were decontaminated by using RNaseZap (Ambion; Sigma Aldrich Co.). Buffers were prepared using reagents from Sigma-Aldrich Co. and bi-distilled water; after having been microfiltered (Sartorius, Gottingen, Germany), they were stored at 277 K and thermalized at room temperature before experiments.

2.2. SPR Measurements

SPR experiments were conducted at 298 K with a Biacore X100 instrument (GE Healthcare, BioSciences AB, Uppsala, Sweden). The ligand PNA was immobilized onto a customizable Sensor Chip Au (GE Healthcare) surface, while the analyte miR-155 was fluxed free in solution over the ligand-functionalized sensorchip. Their interaction, upon leading to the analyte molecules to accumulate over the surface, produced changes in the refractive index of the medium, allowing then to monitor the process in real time through the induced shift in the SPR angle.

For the immobilization, thiolated PNA solutions were incubated for 1 h with 100 mM dithiothreitol (DTT) (Sigma-Aldrich Co.) in NaPi buffer at pH 8.0 in order to break the disulfide bond protecting the thiol (−SH) moiety; the obtained PNA-SH was eluted from NAP10 columns (GE Healthcare, USA) with working buffer (PBS, 6.84 mM Na2HPO4, 3.16 mM NaH2PO4, 126.32 mM NaCl, I = 150 mM, pH 7.2) for the removal of DTT. The sensorchip surface was cleaned with H²O² (Merck Millipore, Darmstadt; Germany) under ultraviolet (UV) light for 30min, according to the so-called liquid-based hydrogen peroxide-mediated UV-photooxidation (liquid-UVPO) technique [Johnson et al.], washed with ultrapure water and dried with nitrogen. Once docked in the instrument, the chip was primed with running buffer (working buffer with 0.005% surfactant p20 (GE Healthcare). Using Manual Run (Biacore X100 software), an injection of 130 μL of a solution of 8 μM PNA-SH in working buffer at pH 7.2 was carried out exclusively in the measurement cell (Fc2) at a flow rate of 5 μL/min for 1080 s, while the control flow cell (Fc1) was not functionalized. Then, the Manual Run was immediately ended and the chip was kept docked in the instrument overnight, allowing incubation at 298 K. Afterwards, in order to passivate the Au surface, both flow cells were injected with 130 μL of a solution of 1 mM 6-mercapto-1-hexanol (MCH, Sigma- Aldrich Co.) in running buffer with 0.2% Ethanol (Sigma- Aldrich Co.), at a flow rate of 5 μL/min for 1080 s.

After a 5h incubation, unreacted groups were finally removed from the surface by the means of 30 s pulses of 100mM NaOH (Sigma- Aldrich Co.). In such a way, about 500 resonance units (RU) of PNA-SH were immobilized in Fc2; a rather low immobilization level was chosen to limit mass transport, rebinding and steric hindrance [40]. Interaction analyses were performed by SCK and MCK kinetics assays. In SCK assays, five sequential increasing concentrations of miR-155 in running buffer (0.01, 10, 50, 175 and 750 nM) were injected over the PNA surface in both flow cells for 180 s, each followed by a 180 s dissociation step with running buffer; finally, each cycle was ended by a dissociation step of 1200s. In MCK assays, instead, in each cycle one of five increasingly higher concentrations (0.01−750 nM) of miR-155 was fluxed for 180 s, followed by a dissociation step of 1200 s with running buffer and by a 30 s pulse of regeneration solution (100mM NaOH) at 30 μL/min, used to unbind analyte molecules from the PNA on the surface. After preliminary tests, to prevent mass transport [40], the fastest flow rate (30 μL/min) that allowed to monitor the association step for the longest time was chosen. At the beginning of all assays, bare buffer flow was used to equilibrate the surface to provide the blank response which, in combination with the control response registered from Fc1, was used to correct the sensorgrams for non-specific binding to the surface, systematic noise, and instrumental drift. Experimental data was evaluated using the BiaEvaluation software 2.1 (GE Healthcare). Goodness of fits was estimated from the residual plots, χ² value, and U value, the latter estimating the uniqueness of the calculated parameters (not significantly correlated for U < 15) [41]. Measurements were conducted in triplicates.

2.3. Gold Sensing Area Functionalization

Screen-printed electrodes (DRP-220AT-U75, with gold sensing track area of 2.0 mm²) were purchased from METROHM Italiana Srl. The gold sensing area of electrodes was cleaned and activated using the liquid-UVPO technique [42]. The biofunctionalization procedure of active electrodes by PNA exploited the formation of a self-assembled monolayer (SAM) through the thioester bond generated between the terminal thiol of PNA probes and the gold surface of electrodes [43]. It consisted of two steps separated by rinsing the gold surface with filtered (0.2 µm filtering membrane pore size) deionized water and drying by pure nitrogen. In the first step, the gold sensing area was incubated with 12 µL of a mixed solution of PBS (6.84 mM Na2HPO4, 3.16 mM NaH2PO4, 126.32 mM NaCl, I = 150 mM, pH 7.2) containing 350µM MCH and 15µM PNA for 3 hours at room temperature. The role of MCH molecules in the first co-immobilization step was to distance the PNA probes from each other, thus making them more accessible to binding with miR-155 [44,45,46]. In the second step, the electrodes were incubated with 12µL of PBS containing 1mM MCH for one hour at room temperature, to block the unreacted site of gold sensing area. For what concerns the control electrodes, only the second immobilization step was implemented maintained. The sensor surface of electrodes was then rinsed as described above and the sensors were used immediately.

2.4. BioFET Set Up and Electrical Measurements

For electrical measurements, the functionalized electrodes were inserted into a printed circuit board (PCB) with integrated a commercial zero-threshold n-type metal oxide semiconductor field effect transistor (mosFET; ALD110900A from Advanced Linear Devices Inc., Sunnyvale, CA, USA). The electrodes were then horizontally inserted into a commercial fluidic cell (METROHM Italiana Srl) characterized by a conical opening able to accommodate the functionalized sensing area of electrode together with a commercial bulky Ag/AgCl reference electrode (DriRef-2, World Precision Instruments Ltd, Hitchin, UK). The use of the fluidic cell provides a high stability to the system. The conical opening of fluidic cell also allowed target injections to be performed in a controlled manner and in proximity to the functionalized electrode sensing area. The experimental measurements were carried out by a Keithley 2636B (TeKtronix, Beaverton; OR, USA), with a sensitivity in the fA range for current measurements and µV range for potential ones. Two source-mater units (SMUs) of the Keithley apparatus were used. The SMU1 applied the voltage (V_ds) between drain and source electrodes, which was kept constant at 100mV for all experiments, and measured the corresponding current flow (I_ds). The SMU2 applied a potential bias (V_ref) to reference electrode in solution. Biosensing experiments were carried out in NaPi 150mM pH=7.2 as working buffer (working volume of 200µL). The real-time assays were performed at constant V_ds (100mV) and V_ref (450mV) and the I_ds current was monitored over-time. 15µL volumes at increasing concentrations of miR-155 were added by pipetting into the conical opening of fluidic cell (the same working buffer was used to avoid current variation as result of change in pH or ionic strength in the solution [47]). The specificity tests were carried out in the same conditions described above but substituting mirR-155 with noncomplementary miRNAs. All biosensing experiments, as well as the control tests, were repeated three times.

3. Results and Discussion

3.1. SPR Investigation

The kinetics of PNA/miR-155 hybridization in physiological-like conditions has been investigated by SPR kinetic assays. Indeed, the SPR set up, although based on a continuous-flow microfluidic approach, allows to up-close mimic the conditions occurring in biosensing experiments, in which the molecular probe, immobilized on the gate surface, interacts with the target specimen free in solution. The gold-coated surfaces of the SPR sensor chips have been functionalized with PNA molecules (see Materials and Methods) and subsequently submitted to the flow of miR-155 in running buffer (NaPi, I=150mM, pH 7.2). Figure 1 shows the monitored response over time (sensorgram) of a representative single-cycle kinetic (SCK) assay, in which solutions of five increasing concentrations (0.01, 10, 50, 175, 750 nM) of miR-155 have been fluxed over a PNA-immobilized chip, separated by bare buffer injections of the same volume, and followed by a final, prolonged (1200s) flow of bare buffer.

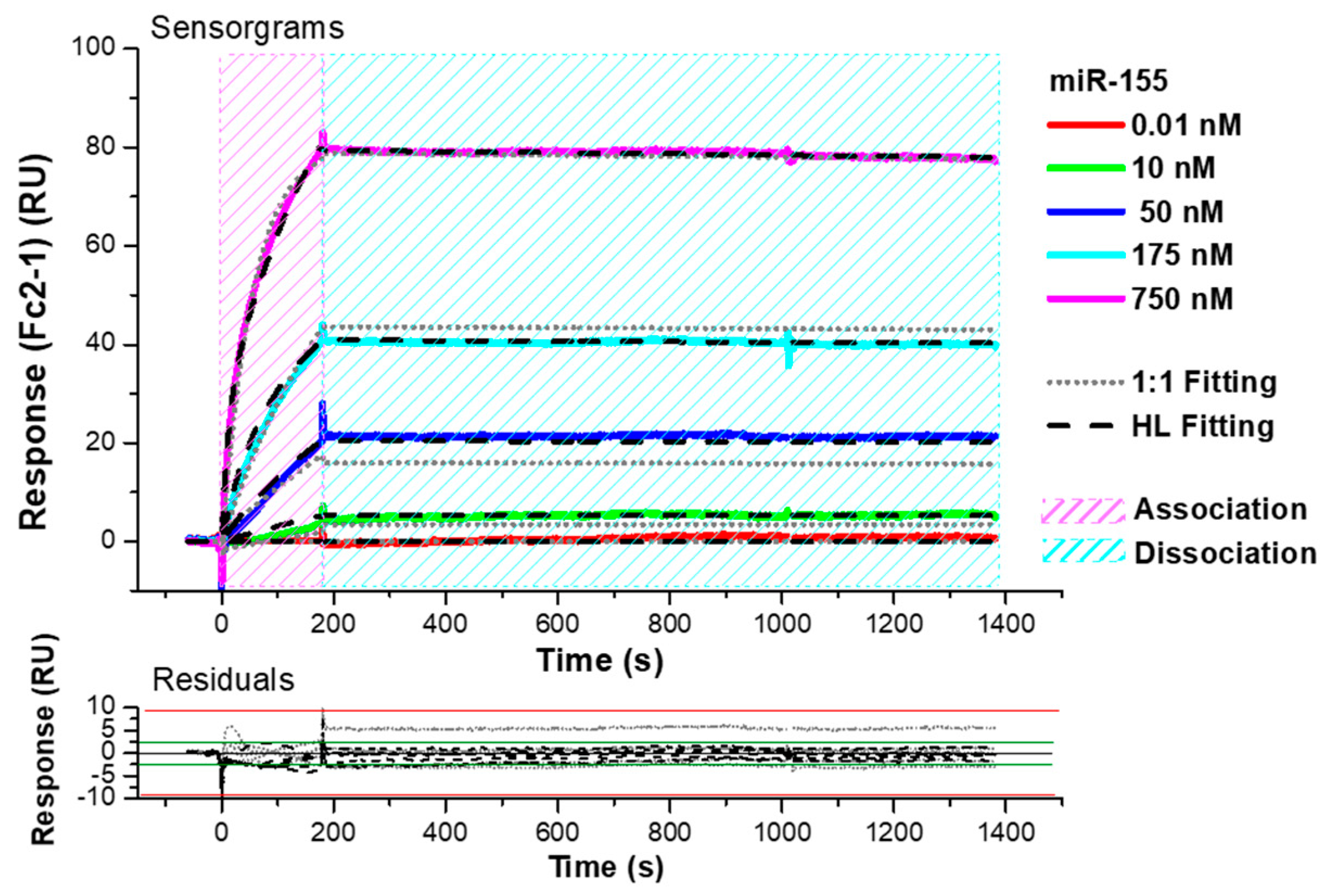

During miR-155 injections, the registered response presents a significant rise, signalling that more and more miR-155 molecules carried in the continuous flow of buffer are being held close to the surface, by specific interaction with PNA (association phase). Moreover, these ascending curves do not level out within the analyte injection period (180s), hinting to a rather slow dissociation rate. As the analyte carrying flow is substituted by buffer alone to promote removal of miR-155 from the surface (dissociation phase), a comparatively much smaller fall of the signal can be observed: the response decreases only by 5% on average, even after a long waiting time (1200s). These results indicate a quite strong and long-lived interaction between the partners. First, we have fitted the obtained sensorgram by the 1:1 Langmuir binding model, which assumes a simple reversible biomolecular reaction [48]. By obtaining a score of χ² =8.88, we found a value of (3.3±0.5) × 10⁴ M^-1 s^-1 for the association rate constant (k_on) and of (2.4±0.3) × 10^-5 s^-1 for dissociation rate constant (k_off), leading to an equilibrium dissociation constant (K_D= k_off/k_on) of 0.7±0.5 nM. As shown in Figure 1, the 1:1 fitting curve shows slight deviations from the experimental data. Similar deviations from the Langmuir trend have been observed for the hybridization kinetics of oligonucleotides immobilized onto copolymer-coated glasses, and they have been ascribed to some inhomogeneity in the arrangement of molecules on the surface, giving rise to an accumulation of charges onto the surface and then to steric hindrance [49]. Accordingly, the sensorgrams have been analysed through the Heterogeneous Ligand (HL) binding model, which considers some heterogeneity in the layer of surface-attached molecules and describes the binding curve as the sum of two main independent sub-populations. HL fitting scores a better χ²=2.54, with uniformly distributed residuals of small entity (see Figure 1), and identifies two equal-weight contributions characterized by: k_on¹= (1.2±0.6) × 10⁴ M^-1 s^-1and k_off¹=( 1.2±0.2) × 10^-5 s^-1, k_on²=(2±1) × 10⁵ M^-1 s^-1 and k_off²=(4±2) × 10^-5 s^-1; the corresponding equilibrium dissociation constant being K_D¹=1.1±0.6 nM and K_D²=0.2±0.4 nM. Notably, the values of the association and dissociation rate constants extracted by the two applied models are quite similar; this suggesting that PNA/miR-155 hybridization can be suitably described by a 1:1 reversible reaction, while the heterogeneity in the PNA layer, possibly causing different accessibility to the surface binding sites, does not substantially alter the interaction kinetics. To further verify these results, kinetic assays have been also performed by the multi-cycle kinetic (MCK) approach, in which a regeneration step is carried out after each miR-155 injection (see Materials and Methods). Since only minimum dissociation can be obtained by fluxing buffer alone, 30s long pulses of 100mM NaOH at 30µL/min have been used to remove from the surface miR-155 molecules hybridized to the PNA, before injecting the next concentration of miR-155. Such an approach, under the assumption that the repeated exposure to the regeneration solution does not alter the PNA layer, also allows to better estimate the value of k_off, as all the analyte injections are followed by prolonged (1200s) dissociation steps. In Figure 2, the sensorgrams of a representative MCK assay show progressively higher signals as the concentration of the injected miR-155 solutions increases from 0.01 to 750 nM.

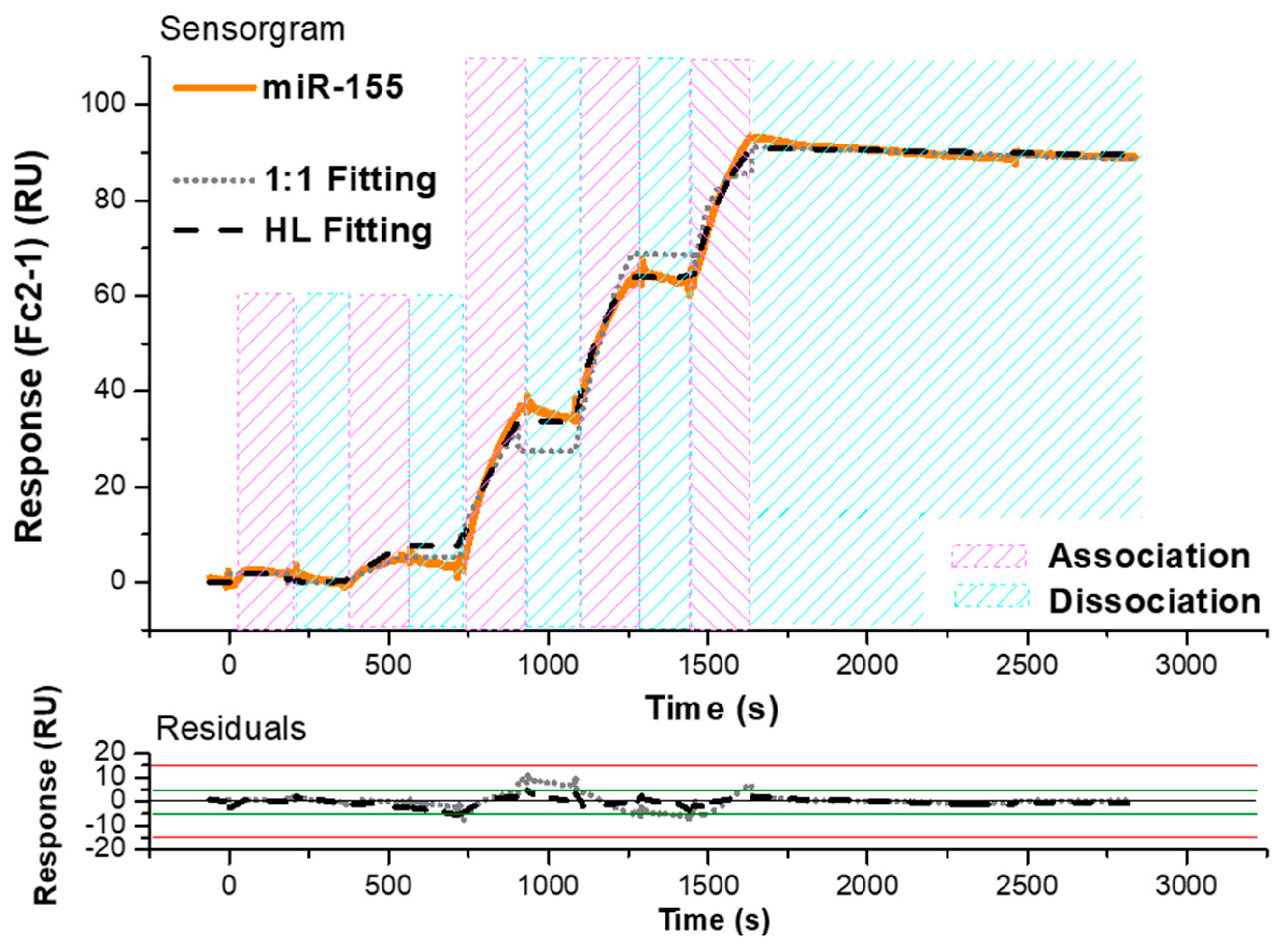

The trend of the sensorgrams is similar to that observed with the SCK approach, with response curves rising without reaching a plateau within the association phases and not significantly decreasing during the dissociation steps. A fitting of MCK data by the 1:1 Langmuir binding model, with χ²=7.84, has provided: k_on= (2.3±0.6) × 10⁴ M^-1 s^-1,k_off=(3±1) × 10^-5 s^-1and K_D=1±1 nM. Conversely, the HL fitting, with χ²=4.05, identifies two contributions: the main described by k_on¹= (2±1) × 10⁴ M^-1 s^-1, k_off¹=(2±1) × 10^-5 s^-1, K_D¹=1±1 nM and the minor by k_on²= (1±1) × 10⁵ M^-1 s^-1, k_off²=(9±1) × 10^-6 s^-1, K_D²=0.1±0.1 nM. The MCK assay has provided association rates comparable to the ones obtained by the SCK method and even slower dissociation rates (at the detection limit), confirming a quite strong and long-lasting interaction between the partners. Accordingly, at the physiological ionic strength, the association between immobilized PNA and free miR-155 molecules is an efficient process, with hybridization occurring within rather short times. On the other hand, the complex dissociation rates are characterized by a very long lifetime, indicating that the formed duplex is quite stable. Notably, the found results indicate a more stable interaction in comparison to that observed between miR-155 and its complementary RNA strands (antimiR-155) in similar measurement conditions [50]. Finally, the resulting K_D values denote a high affinity which falls within the range observed for duplex formation of oligonucleotides free in solution [51]. To evaluate the specificity of the PNA-functionalized surface for the detection of miR-155, control SPR experiments with nontarget miRNAs have been performed. A sensor chip immobilized with PNA has been exposed to the flow of 1µM solutions in running buffer of miR-21; miR-141, miR-155 and a mix of all three miRNAs. For each case, the test has been repeated three times, with the surface being regenerated after each analyte injection. A comparison of all the collected SPR responses is shown in Figure 3.

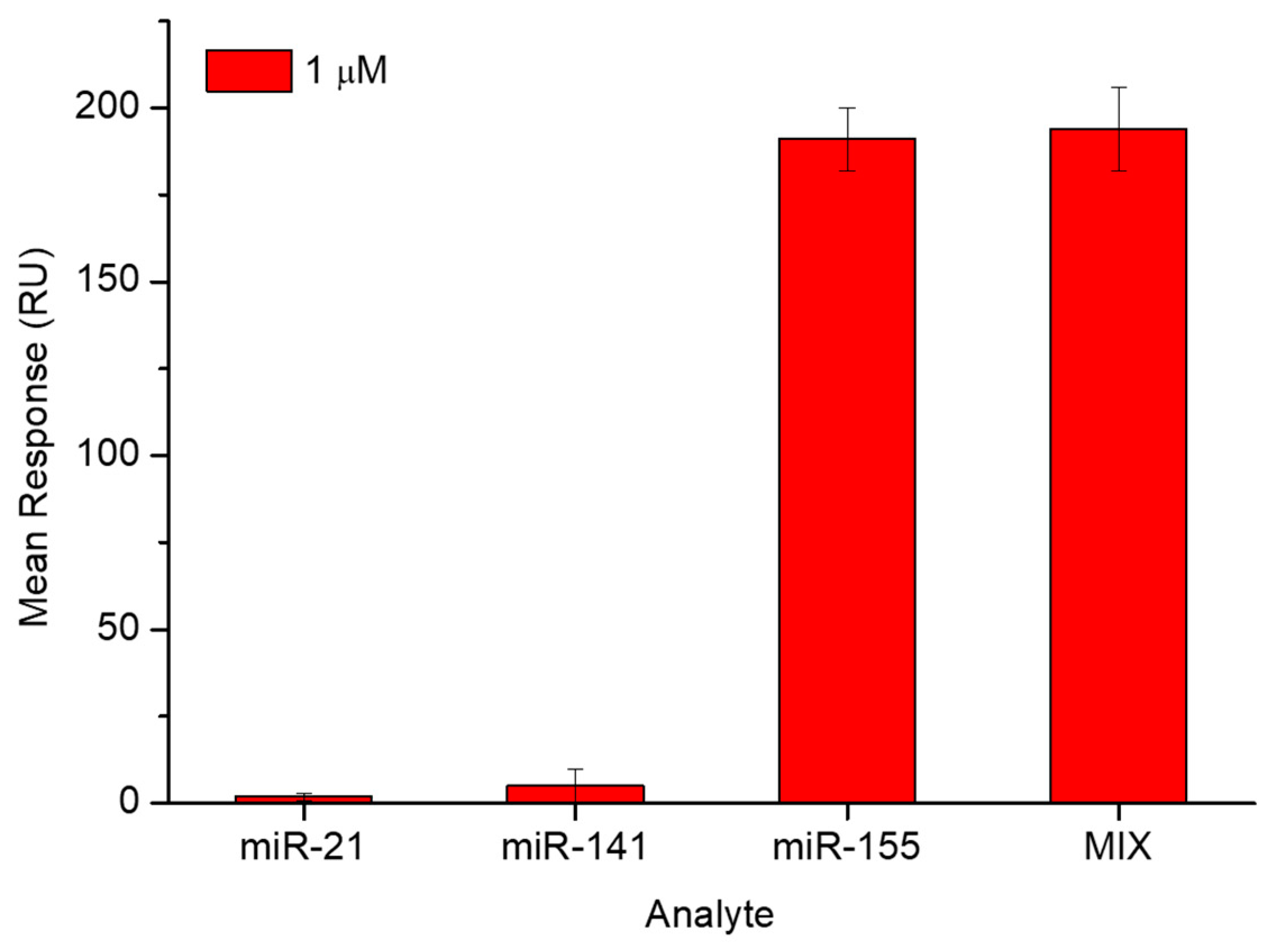

A substantially negligible signal has been obtained for miR-21 and the response of miR-141 is 90% lower than that observed with miR-155, while the mix solution displays an intensity corresponding substantially to that of miR-155 alone. The used non-complementary miRNA strands did not generate a significant system’s response; with this supporting the high specificity of the PNA towards miR-155.

3.2. Biosensing Analyses by a bioFET Setup

SPR results indicate that, in hundreds of seconds, the interaction between the partners has largely occurred. Although a direct extrapolation of the SPR results, which are obtained in microfluidic conditions, to bioFET experiments which are performed in static fluid conditions, cannot be done, this information may guide about the temporal window within which real time BioFET measurements can be reliably performed.

The gold sensing area of the electrodes (representing the functional extended gate of the bioFET system) has been functionalized with PNA molecules. In parallel, control electrodes without probes have been prepared (for more details see Materials and Methods). The gold electrodes have been subsequently connected to the gate of bioFET and inserted into the fluidic cell, which was, in turn, filled with a working buffer solution identical to that used for SPR assays. In all experiments, prior to real biosensing analyses, the real-time current has been registered until it reached a plateau sufficient to ease later biosensing tests and the related signal evaluation [52]. In this regard, it has been decided to start of the injections an average current variation of less than 0.01uA over 200s. Notably, electrodes have reached the stability in slightly different times; with this being likely due to small fabrication differences between electrodes and to the heterogeneity of the functionalized layers. However, in almost all the cases the stability has been reached within a waiting time from 1000 to 2000 s. After current stabilization, multiple injections of solutions containing increasing concentrations of miR-155 have been performed, at 100 s time intervals, on both active and control electrodes by continuously recording the current.

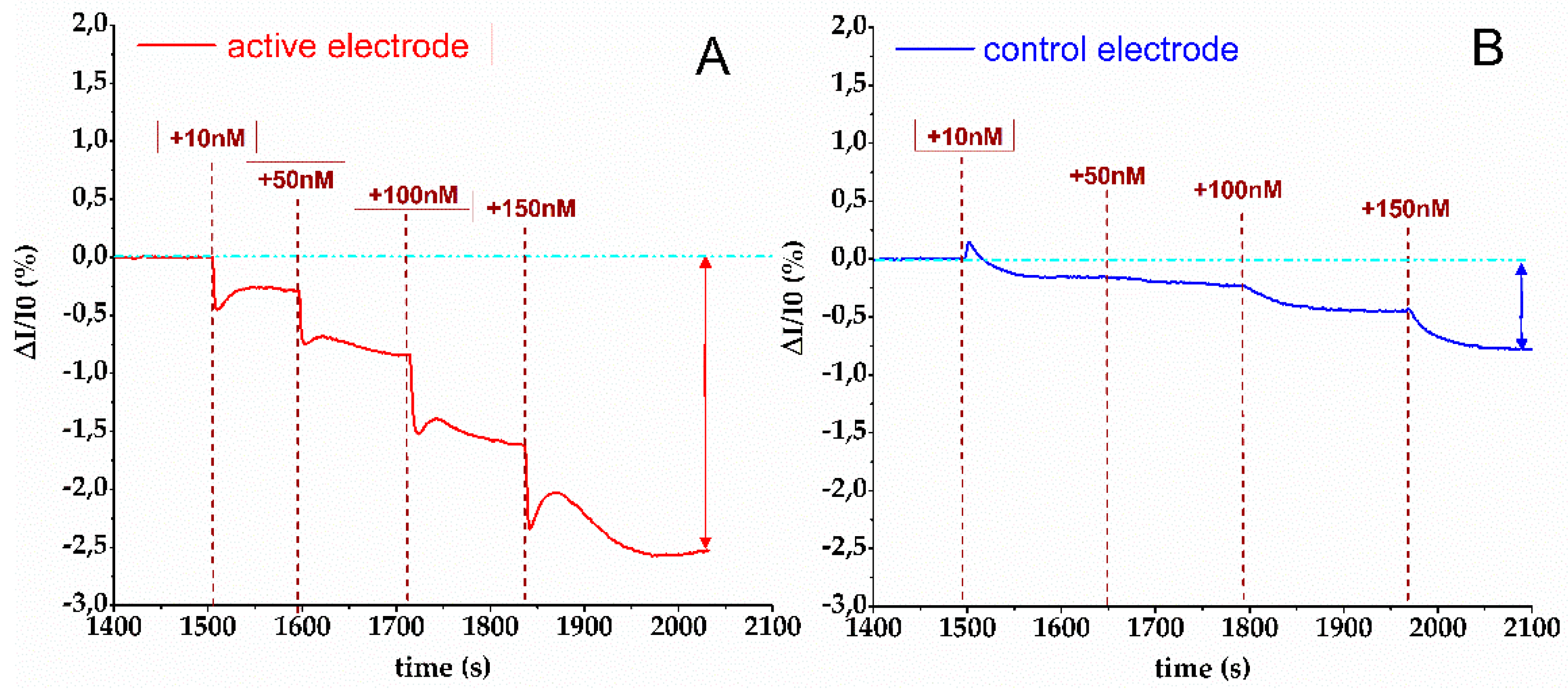

Figure 4A,B show the real-time responses of representative biosensing assays performed on both the active and control electrodes, respectively, by adding successive solutions of miR-155 at 10, 50, 100, 150 nM concentrations.

Upon adding a miR-155 containing solution, a rapid current drop occurs, followed by a rise which reaches a sort of equilibrium, indicating that the hybridization of miR-155 molecules with PNA probes has occurred. Such a behaviour finds a correspondence with the SPR results and indicates that immobilized PNA probes efficiently capture the target miR-155 in solution, within a relatively short time (about 100s).

To compare the injection effects occurred on different electrodes, the current value after stabilization has been normalized to the current variation according to the formula (I_ds-I₀)/I₀ =∆I/I₀, where I_ds stands for the real-time recorded current while I₀ is the current value obtained just after stabilization [53]. As shown in Figure 4A, drops of I_ds are detected in all the cases, upon adding solutions containing the target. Such a behaviour is consistent with the negative charges that are released to the gate by the captured miR-155 molecules at pH=7.2 [52] and with the fact that our bioFET uses a n-type transistor in which the main electric carriers are electrons. Indeed, in these operative conditions, the negative charges provided by the miR-155 molecules move away the electrons from the conductive channel, connecting the drain and source electrodes, and cause a decrease in the recoded I_ds. Furthermore, progressively higher current drops are detected as far as the concentration of the target in the fluidic cell increases.

Injections of miR-155 carried out on the control electrode (see Figure 4B) have yielded a much lower decrease in current. These I_ds variations could be attributed to random non-specific adsorption which may persist even after passivation of the gold electrode surface [54]. With the aim of eliminating contributions given by such non-specific interactions we have subtracted from the current variations of the active electrodes the corresponding current detected for the control electrodes (∆I/I_0(A)- ∆I/I_0(C)).

Notably, the very long dissociation time evaluated by SPR allows us to approximate that the almost totality of the PNA-bound miR-155 molecules will not have dissociated by the end of the measurement (i.e. within 600 s after the first injection); and indeed.

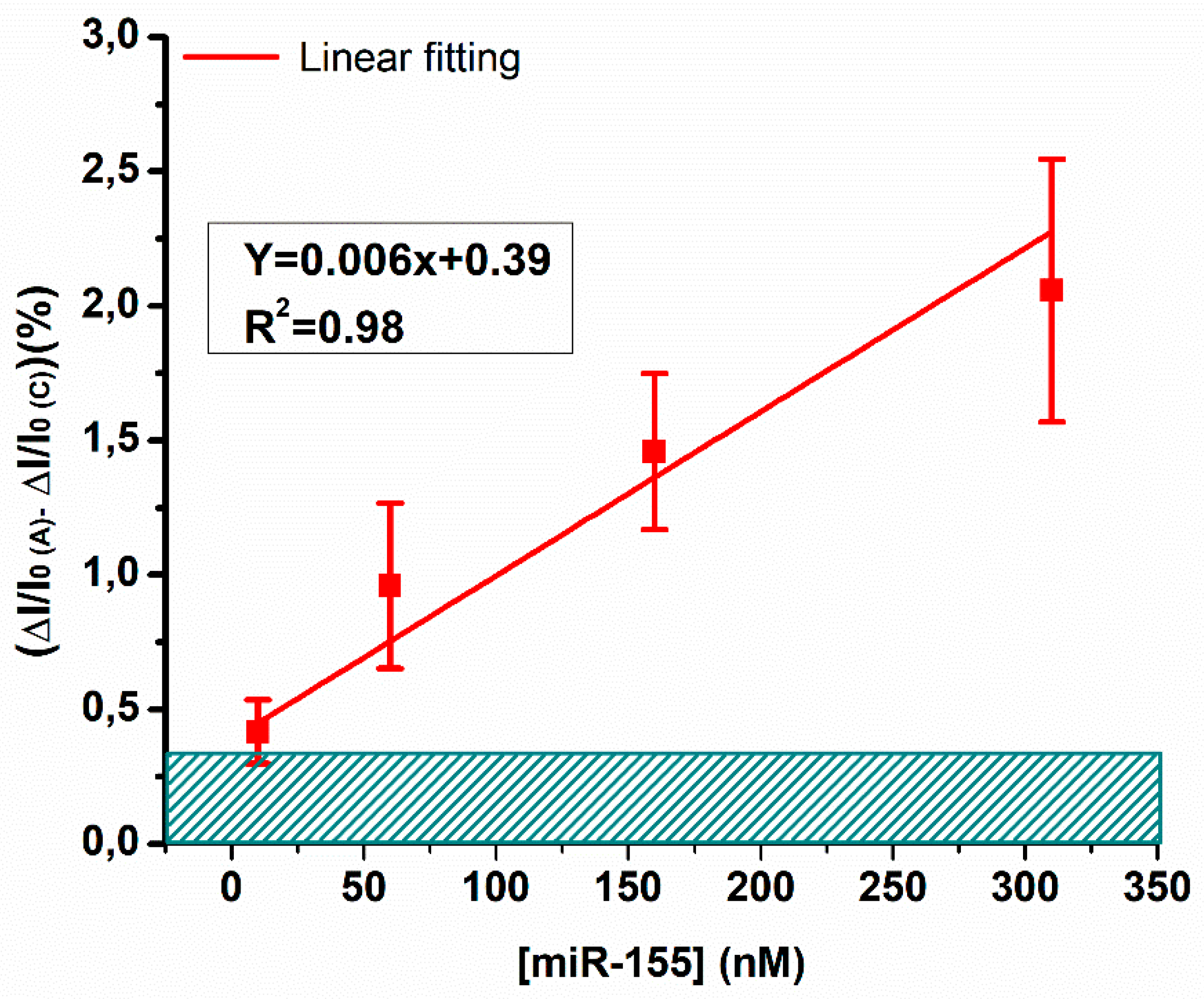

Notably, the final I_ds response corresponds to the total miR-155 concentration (as obtained by cumulating the different injections) [55]. Accordingly, the effective concentrations of miR-155 in the fluidic cell at each step are about 10, 60, 160 and 310 nM. The obtained signal variations have been plotted vs. the miR-155 concentration to construct the calibration plot, as shown in Figure 5.

The PNA-bioFET system response is characterized by a good linearity as witnessed by the R² = 0.988 value. Globally, these results indicate that bioFET allows a robust and sensitive detection of miR-155 at 150mM ionic strength, in agreement with kinetic characteristics found in SPR (fast association, slow dissociation and high affinity interaction).

Furthermore, single injections of working buffer have been performed on active electrodes with the aim to obtain the blank signal required for the calculation of the limit of detection (LOD) of our system; such a quantity being defined by IUPAC as the smallest measure that can be reasonably detected for a given analytical procedure, and which is obtained by the blank signal incremented by a certain number of times [56]. Here, the LOD has been calculated as the average signal obtained by blank injections plus three times relative standard deviation (barred box at the bottom of figure 5) [53,57]. Following this criterion, we have found a LOD of about 5nM. Such a value is similar to that found in other bioFET setups for small single strand DNA [58,59] and in other electrochemical biosensors for microRNAs detection [60,61].

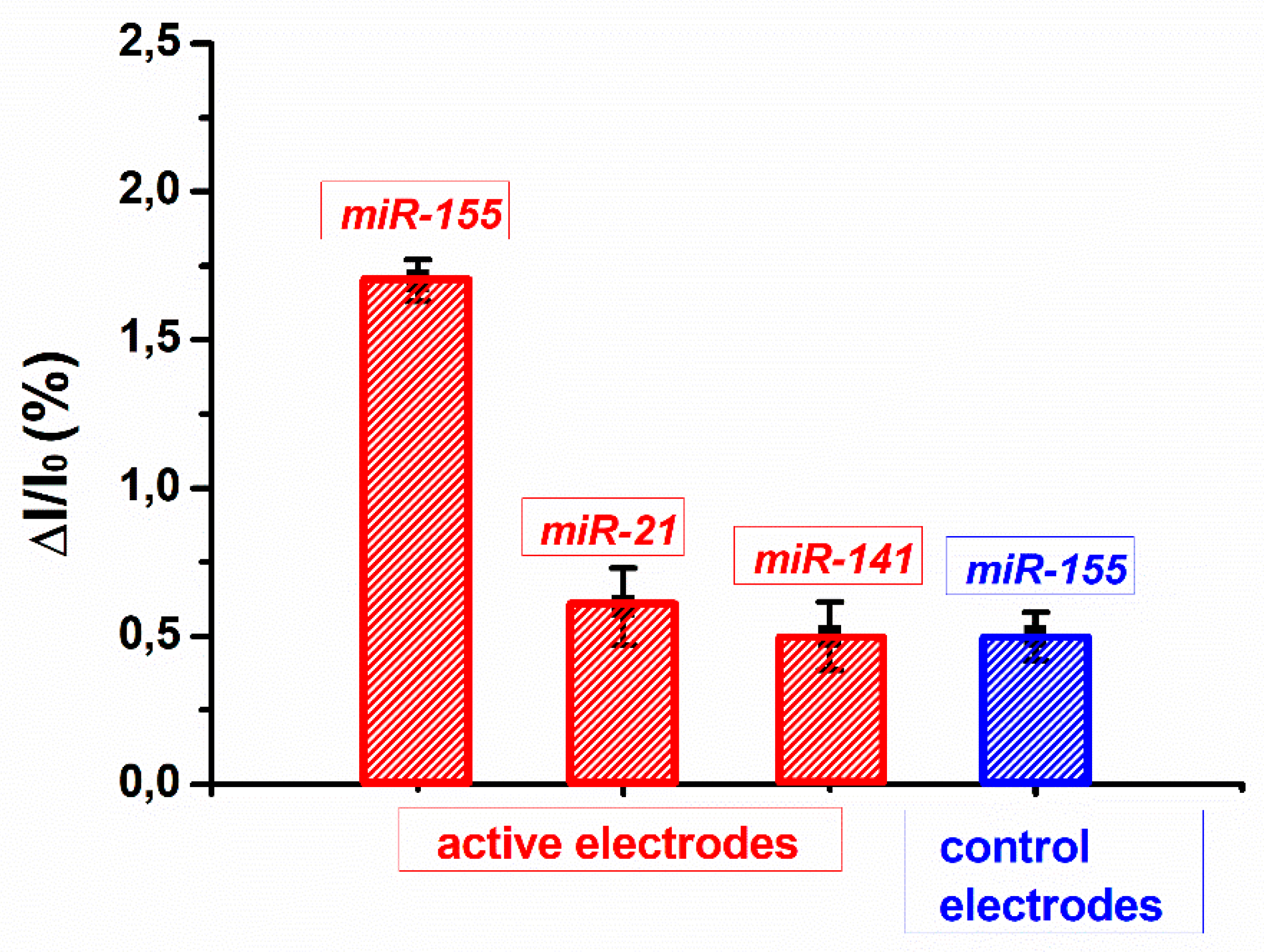

Finally, the specificity of the bioFET setup has been evaluated by adding the same non-complementary miRNAs (miR-21 and miR-141) as done in SPR testing. For this purpose, sequential injections of miR-21, miR-141 and miR-155 at concentration of 150nM have been carried out on the active electrodes. The collected PNA-bioFET responses are shown in Figure 6.

Non-complementary miRNA injections have yielded a much lower current variation, which is indeed comparable to that occurring when miR-155 is injected to non PNA-functionalized electrodes (control electrodes in Fig 6, blue box). The residual activity for nonspecific miRNAs could be explained in terms of non-specific adsorption; in some respect being favoured by the static nature of electrode wetting in our bioFET system [54].

4. Conclusions

PNA molecules revealed to be extremely promising capture probes for miR-155 allowing to reach an efficient hybridization even at relatively low ionic strengths. The investigation by SPR of the interaction kinetics between PNA molecules immobilized on a gold-coated surface with miR-155 in fluxed solution at an ionic strength of 150 mM, has provided an association and dissociation rates of k_on= 2 ·10⁴ M^-1 s^-1 and k_off=2 · 10^-5 s^-1, respectively, and an affinity of about 10⁹ M^-1. These results, on one hand, indicate that PNA can hybridize miR-155 even at the ionic strengths mimicking the physiological conditions, and, on the other, that they may represent a optimal capture probe for bioFET experiments. BioFET measurements performed by successive injections at progressively higher concentrations of miR-155 have allowed us to extract a biosensing calibration plot characterized by a very good linearity in the 10-150 nM miR-155 concentration range and showing a LOD of about 5 nM. Control bioFET experiments with other miRNAs, such as miR-21 and miR-141, have shown that PNA is quite specific in capturing miR-155. The remarkable performance reached in the present study in terms of rapidity, specificity, absence of labels indicates that our bioFET sensing approach could be very promising to be translated in clinical diagnostics in physiological fluids.
