Non-athletic Cohorts Addressed by Longitudinal Whole-Body Electromyostimulation Trials – an Evidence Map

1. Introduction

Whole-Body Electromyostimulation (WB-EMS) is a training technology with increasing popularity world-wide. In contrast to the recognized local EMS predominately applied in orthopedic therapy, WB-EMS stimulates most major muscle groups simultaneously but with dedicated impulse intensity and without relevant orthopedic demands. Thus, much more than local EMS, WB-EMS can be considered as a time-effective, joint-friend and highly customizable alternative to conventional exercise [1]. Whilst this aspect is attractive for athletes looking to improve sport-specific skills, reduce the risk of injuries or adverse effects (i.e., back pain), the main area of WB-EMS application, however, is sedentary or at least non-athletic adults [2] wanting to increase physical fitness, function or health-related outcomes. A quick look at the rapidly increasing and very complex research on WB-EMS reveals an unequal addressing of cohorts by present studies. Most of the WB-EMS trials focus on healthy adults, with fewer studies covering participants with specific conditions or diseases. This might be attributable to the rather stringent index of absolute or relative contraindications published by a German expert group in 2019 [3], based in part on an overcautious approach due to a lack of evidence and several adverse effects of intense WB-EMS application reported in the media. In stark contrast, Belt Electrode-Skeletal Muscle Electrical Stimulation (B-SES), a neuromuscular stimulation technique that stimulates large muscle areas and can thus be considered as very closely related to WB-EMS, focuses predominately on frail cohorts in a hospital setting. Adding both systems might increase the evidence for a wider applicability of WB-EMS on different outcomes in varying non-athletic cohorts. Accordingly, in order to provide evidence and identify gaps in knowledge and/or future research on WB-EMS needs [4], we conducted a systematic and comprehensive review of the WB-EMS and eligible B-SES literature. The resulting evidence (gap) map [5] aimed to provide an overview of cohorts addressed by WB-EMS trials and to support the readjustment of potentially excessive contraindications.

2. Methods

The literature search for this systematic review and evidence map followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) Statement

Search

Study reports from the five electronic databases (Medline [PubMed], The Cochrane Central Register of Controlled Trials [CENTRAL], Cumulative Index to Nursing & Allied Health [CINAHL via Ebsco Host], SPORTDiscus (via Ebsco Host) and The Physiotherapy Evidence Database [PEDro]) and two study registers (Clinical trial.gov and the WHO’s International Clinical Trials Registry Platform [ICTRP]) published from their incentives up to 6^th March 2023 were searched without language restrictions. Strategies were developed applying free-text words as no database-specific key words (e.g. MeSH, Thesaurus) were identified. We piloted our search and found a good balance for maximizing sensitivity and precision by (a) constructing the search around the term whole-body electromyostimulation only and (b) searching the title and abstract fields only in PubMed, CINAHL and SPORTDiscus, excluding Medline hits in CINAHL and by applying the ‘Trials’ filter in CENTRAL. To identify additional study reports, we Google Scholar manually on the same date as the medical databases. The full strategies can be found in supplemental table S1 (Appendix).

Selection process

Titles, abstracts and full texts were independently screened by two reviewers against the pre-specified eligibility criteria. Disagreements were resolved by discussion or with the help of a third reviewer. The reasons for excluding ineligible studies were recorded. In case of missing data or doubtful information, authors were contacted for a maximum of three times within a four-week period.

Eligibility criteria

Study design

We included all longitudinal study designs except single case studies. Review articles, editorials, conference abstracts, and letters were also not considered. The same was applied for bachelor or master theses, while doctoral theses (dissertations) were included.

Population

Sedentary or at least non-athletic cohorts independently of participant characteristics were included. Cohorts comprised of athletes or sport students were excluded. However, recreational sports persons were accepted.

Comparators

Type or even presence of a control group was not considered as an eligibility criterion.

Intervention

We only included studies that applied Whole-Body Electromyostimulation (WB-EMS [6]) or other kinds of electromyostimulation able to stimulate large muscle areas1 simultaneously2. Studies that applied local EMS or focused on single muscle groups were not considered.

Outcomes

In the present analysis, we included studies that focus on physical fitness, function, body composition and health-related outcomes. Special emphasis was further placed on safety aspects of the WB-EMS intervention. Briefly, we focus particularly on adverse effects of the WB-EMS study intervention independently of type (e.g. orthopedic, metabolic) or severity. However, temporary muscular soreness after WB-EMS application was not considered as an unintended side effect.

Data management

Search results were downloaded and imported to Endnote. Duplicates were identified and excluded based on the method proposed by Bramer et al. [7]. Title and abstract screening as well as full-text screening was conducted using Endnote. In cases of multiple publications that addressed the identical cohort but reported varying outcomes (e.g. [8,9,10,11] only the main publication was included.

Data items

A Microsoft Excel table applied in former studies [12,13] and modified for the present research topic was used to extract relevant data from the included studies. One author extracted the study, participant, and intervention characteristics, two other authors checked and confirmed the results. The table was structured into several domains. Publication characteristics include information related to the study type, first author, year and country of the publication while study characteristics listed, for example, the number of study arms, sample size in WB-EMS and control group, comparator (i.e. predominately sedentary control group or active control) and methodologic quality of the studies as determined by the Physiotherapy Evidence Database (PEDro) Scale Risk of Bias Tool.

Intervention characteristics include (1) mode of application, i.e. isolated WB-EMS or WB-EMS with voluntary movements that should not relevantly affect outcomes versus superimposed WB-EMS or exercise added to WB-EMS. (2) WB-EMS system including the corresponding manufacturers. (3) Duration of the application (in months), training frequency (sessions/week), length of the session (in min). (4) Details of the impulse protocol i.e. impulse type (mono / bipolar), impulse frequency (in Hz), impulse breadth (in µs), impulse intensity, impulse application (continuous or intermitted impulse), length of the impulse phase (in s) and (if applicable) intermitted impulse break (in s).

Due to the topic of the present evidence map, special emphasis was placed on cohort and study characteristics. Cohort and participant characteristics include in particular gender, age, BMI, baseline training status, conditions and diseases, drop out, adherence to the WB-EMS protocol and adverse effects of the intervention. Trials were categorized into studies with predominately healthy cohorts and studies that focused on participants with specific health-related problems, syndromes (e.g. metabolic syndrome) or diseases. Where applicable, study cohorts were classified according their conditions and diseases applying the International Statistical Classification of Diseases and Related Health Problems (ICD-10-GM, [14]).

Quality assessment

Eligible studies were assessed for risk of bias by two independent reviewers using PEDro [15] specifically dedicated to physiotherapy and/or exercise studies. In case of inconsistencies, a third independent reviewer made the decision. Studies with >7 score points were classified as high, 5-7 score points moderate and <5 score points as low methodological quality studies respectively [16].

Data synthesis

Results are displayed for all studies in tables showing publication and study characteristics, exercise and stimulation characteristics and cohort and participant characteristics of the studies included. To provide a rapid overview in the present evidence map, bubble charts with 4 dimensions were created with the x-axis, health status according to ICD-10-GM categories (Figure 2 and 3), The y-axis presents the number of studies that focus on the corresponding cohort while the color of the bubble represents either WB-EMS vs. B-SES application (Figure 3) or dedicated health status of the cohort applied as a criterion for inclusion or reported as a simple co-morbidity (Figure 2). Finally the size of the bubble indicates the methodologic quality according to PEDro. The biggest size indicates at least one study of high methodologic quality (i.e. PEDro Score ≥8 score points [16] in the domain. The lowest size of the bubble chart represents at least one study of low methodologic quality.

3. Results

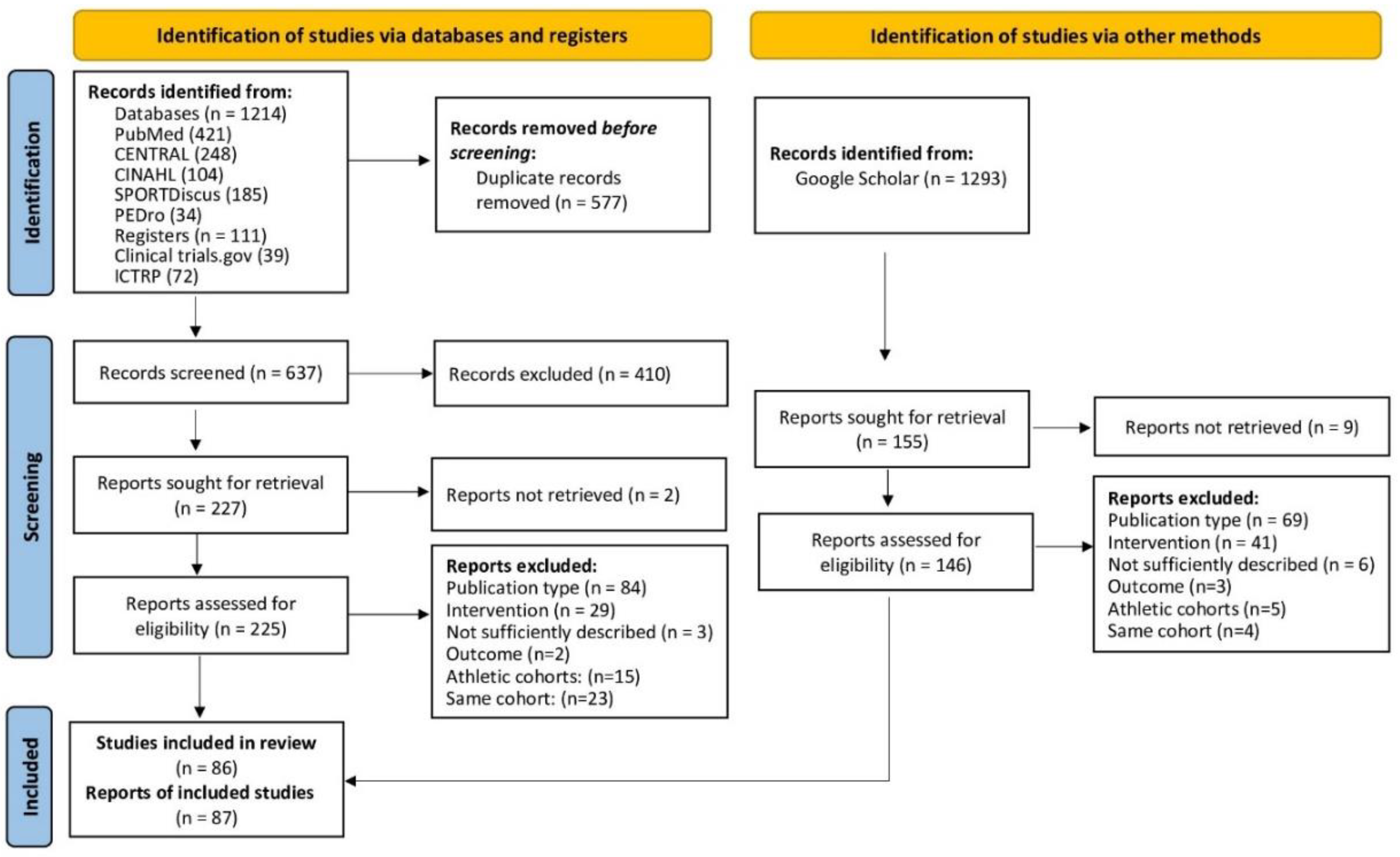

Of the 1103 records, 86 longitudinal studies/projects with 87 cohorts were finally included in the present evidence map (Figure 1) [11,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101].

Publication and study characteristics

Table 1 displays publication and study characteristics of the included trials. The vast majority of the studies were RCTS (69%). Most of the randomized controlled trials (RCTS, 69%) applied a parallel group design, three short-term studies provided a cross-over design [42,58,93]. Nineteen non-randomized controlled trials (NRCTs, 22%) and eight (9%) intervention studies without control groups [28,30,34,54,63,88,92,96] were also included. Predominately due to the study design, the methodological quality according to PEDro (Table 1) varies considerably. Considering that NRCTs and in particular intervention studies without control groups failed to obtain points for randomization, allocation concealment, blinding or even group comparison [15], low methodological quality according to PEDro widely reflects the study design. Furthermore, considering that proper blinding of the participants3 and particularly the caregivers (WB-EMS instructors) in exercise studies is hardly possible, a score index of eight on the 10-point PEDro scale can be considered as the realistic maximum in WB-EMS studies.

Most studies were conducted in Germany (n=28), Japan (n=18), Korea (n=8), Spain (n=5), Iran (n=5), Brazil (n=4) and Italy (n=3). The vast majority of studies were published after 2015 (>90%). The number of study arms varied from one [30,34,54,63,88,92,96] to five [62]. The number of participants per study arm varied between three [65] and 96 [83] in the WB-EMS group(s) and (if applicable) from three [65] to 80 [56] in the control group(s). Study length varied from 10 days [90] to 12 months [47,98]. Unfortunately 15 studies (16 subgroups) failed to report the drop-out rate and did not respond to our queries or were unable to calculate the drop-out rate retrospectively. The drop-out rate of the remaining studies varied from 0% to 59%. Of the 11 studies with drop-out rates ≥25%, 9 studies focused on patients with severe complaints and diseases (e.g. end-stage kidney disease, stroke, critically illness, cancer)[37,39,42,51,60,80,81,90](Table 1).

Exercise and WB-EMS characteristics

Supplemental table S2 displays exercise and WB-EMS characteristics of the studies. Sixty-nine studies applied whole-body electromyostimulation (WB-EMS), 18 studies applied Belt Electrode-Skeletal Muscle Electrical Stimulation (B-SES). About two thirds of the WB-EMS studies used miha-bodytec devices (Gersthofen, Germany) while B-SES technique involved exclusively HomerIon (Tokyo, Japan). Although difficult to classify, about 80% of the cohorts conducted predominately isolated WB-EMS, i.e. a protocol without adjuvant or additional movements with relevant effect on the primary study outcome. The remaining studies applied either superimposed WB-EMS (i.e. exercises intensified by WB-EMS) or combined WB-EMS and conventional exercise. In parallel, three quarters of the studies provided an active WB-EMS mode, i.e. predominately movements during the impulse phase. B-SES studies generally focused on a passive EMS application mode. WB-EMS training frequency varied from daily application [60,61,65] to one session per week [21,46,56,59,79,86,94,95,99,101]. Average training frequency of the B-SES studies was significantly (p<.001) higher compared with WB-EMS (4.1±1.7 versus 2.0±0.8 sessions/week). The session length varied between 12-20 min [21] and 90 min [17]. Most studies (n=75) applied WB-EMS or B-SES protocols of 20-30 min (Table 2). All but one study [53] focused on low-frequency stimulation protocols from 4 Hz [42] to 100 Hz [87] and impulse widths of 200-400 µs. The majority of studies applied intermitted WB-EMS protocols predominately with 4-6 s of impulse and 2-4 s of impulse break; only 4 studies provided consistently continuous impulse during the session [33, 42, 57, 93](Table 2). At least seventeen studies [17,20,21,22,23,31,43,44,62,66,67,68,70,75,77,79,87] worked with variable WB-EMS programs i.e. applied varying WB-EMS parameters - predominately impulse frequency, width or impulse phase/break - during the session or during the intervention. Apart from a few studies that evaluated solely the effects of low impulse intensity ([40,46,57] and one study that applied very high impulse intensity [92], all other WB-EMS studies scheduled moderate to high impulse intensities based on the Borg CR-10 (…or rarely CR-20) scale, rate of the maximum impulse tolerance (60-80% 1MT) or according to the authors' estimation. In contrast, several B-SES studies applied stimulation protocols up to maximum tolerable intensity (e.g. [27,36,42,65,93].

Apart from WB-EMS application some studies applied in specific diets (e.g. [18,23,35]) or provided protein supplements ([11,46,72,100]).

Participant and cohort characteristics

Table 2 reports characteristics of the cohorts and study participants. In summary, the studies cover all (adult) age categories in female, male and mixed gender categories. Most studies (51%) included men and women, 33% focused on female and 16% on male participants. About 20% of the studies addressed cohorts largely independently of age. Eleven studies (12%) focused exclusively on cohorts 30 years and younger, twelve studies (14%) included only participants 70 years and older. With respect to premenopausal women, no longitudinal study focused on issues related to pregnancy, puerperium or lactation.

Forty-six of the 78 trials that reported corresponding data, addressed cohorts predominantly or exclusively with overweight (i.e. mean BMI ≥25.0 kg/m²). However, only about one third of them defined overweight or obesity as a criterion for inclusion.

Diseases or conditions were criteria for inclusion in 60% of the WB-EMS/B-SES studies. Apart from two studies [27,57] that focused on healthy young (22±2) or older people (60-90 years) with limited mobility, all the other B-SES studies addressed predominantly hospitalized people with severe diseases. In contrast, about half of the WB-EMS trials addressed apparently healthy cohorts; further only one WB-EMS study [91] applied an ambulatory setting. A large variety of conditions and diseases were reported, thus, following the ICD 10 classification [14] the cohorts were categorized into different domains and subcategories. Due to the critically ill and/or multi-morbid status of some cohorts, the corresponding trials were cited for more than one classification.

Neoplasms

In summary, six studies with 7 study groups [36, 76, 80,81,82,83] addressed cohorts with malignant neoplasms. The research group of Zopf et al. [76,80,81,82,83] in particular focused on this issue applying WB-EMS for 12 weeks each. So far, the authors have published data on their ongoing advanced cancer project [80] with subgroup analyses on hematological malignancies [81], gastro-intestinal [76], pancreatic [83], prostate and colorectal cancer [82]. Hamada et al [36] focused on patients at the early stage of allogeneic stem cell transplant predominately in people with acute leukemia applying B-SES for four post-transplantation weeks4. Other studies did not focus on but also included cancer patients [88]. Of importance, none of the studies reported adverse effects during the intervention. Evidence for WB-EMS or B-SES application in cancer patients provided by the non-randomized studies and subgroup-analysis can be considered moderate (evidence level IIa).

Endocrine, nutritional and metabolic diseases

A large number of studies focused on cohorts particularly with metabolic disorders and diseases. Apart two studies with sarcopenic obesity cohorts [11,46], 10 further studies addressed cohorts with obesity [17,22,23,38,48,74,75,91,96,100]. However, only six studies considered “obesity” as an eligibility criterion [11,22,46,48,74,75]5. One further study applied abdominal obesity [47] as an eligibility criterion. Apart from one exception with overweight [88], all trials on B-SES exercised with people with normal BMI or even severe underweight [42]. Of importance, none of the studies on obesity reported adverse effects during the intervention. Considering the evidence level of the studies, with three RCTs [11,22,75:Kemmler, 2016 #31] of high methodologic quality that applied obesity as a criterion for inclusion, evidence level provided for EMS application can be classified as high.

Cohorts with non-insulin dependent Diabetes Mellitus (NIDDM) were addressed by five randomized and non-randomized trials or intervention studies without CG [38,39,89,93,96] that applied WB-EMS (n=2) or B-SES (n=3) for two to four months. Two of the B-SES studies included hospitalized cohorts with diabetic ulcers undergoing minor amputation [39] or end stage diabetes kidney disease [93]. Additionally, four other B-SES studies did not focus on but included a large proportion of participants with diabetes [37,54,55,88]. Of importance, a further three moderate to high quality RCTs [23,43,74] focused on cohorts with the Metabolic Syndrome applying WB-EMS for 3-6 months. Unfortunately, one [93] study on NIDDM and MetS failed to report adverse effects. Summarizing the evidence of the studies, with two moderate methodologic quality RCTs [39,93] evidence for EMS application in NIDDM can be considered moderate-high. Additionally, three low-moderate quality RCTs that applied MetS as a criterion for inclusion [43,74] and did not observe adverse effects might increase evidence for WB-EMS application in people with cardiometabolic diseases.

Diseases of the nervous system

Only a few studies focused on cohorts with diseases of the nervous system [29,58]. While the high-quality RCT of Di Cagno et al. [29] focused on stage 1 (mild) – 3 (moderate) Parkinsons disease in patients 50-80 years old for their 12-week WB-EMS trial, the NRT of Mori et al.[58] addressed Huntington patents during dialysis with B-SES for 6 weeks6. While DiCagno et al. [29] observed no adverse effects, unfortunately Mori et al [29] did not report unintended effects of B-SES application.

Cardiovascular diseases

The non-controlled cohort 2.5-month WB-EMS study of Fritsche et al [34] and the 4-month NRCT of van Buuren [97] included solely participants with chronic heart failure [34,97]. Two other moderate quality B-SES studies [55,90] selected acute heart failure as an eligibility criterion and applied 10 and 14 days of B-SES during hospitalization. In parallel, about 50% of the critically ill patients included in the two low and moderate methodologic quality RCTs of Nakamura et al. [60,61] and 70% of the older hemodialysis patients included in the moderate quality RCT of Homma et al. [37] displayed heart failure, cardiopulmonary arrest [60,61] or had a history of ischemic heart disease [37]. Apart from two studies [60,61] with critically ill patients that failed to report unintended side effects related to the intervention, none of the studies reported adverse effects.

Severe ischemia of the lower limbs/peripheral arterial diseases [54,65] was an eligibility criterion in two low methodologic quality B-SES trials. Neither study observed adverse effects related to the intervention.

The low methodologic quality RCT of Lukashevich et al [53] exclusively addressed patients <6 month after the stroke event with high frequency WB-EMS for 3 weeks. In parallel the vast majority (16 of 18) of the bedridden older participants of the moderate quality RCT of Kataoka et al. [42] suffered from cerebral infarction, cerebral or subarachnoid hemorrhage or hypoxic ischemic encephalopathy (B-SES). Among the two B-SES studies of Nakamura et al. [60,61] with critically ill patients and the moderate quality B-SES RCT of Homma et al. [37] about half suffered from stroke [37] or displayed a history of cerebrovascular events/disease. Apart from the two low to moderate quality RCTs of Nakamura et al. [60, 61] with their particularly vulnerable cohort that did not report adverse effects, none of the other studies that focused on “stroke patients” reported adverse effects of the EMS intervention.

Surprisingly, hypertonic cohorts were not specifically addressed by longitudinal studies. However, the proportion of study participants with hypertension averaged >50 to >90% in four B-SES trials [37,55,88,90]. None of the four low to moderate quality studies reported adverse effects of the intervention. Nevertheless, due to the high incidence of hypertension in the adult population a dedicated study that provides evidence for the safe application of WB-EMS in this cohort would be quite welcome.

Diseases of the respiratory system

No study has so far applied diseases of the respiratory system as a criterion for inclusion in WB-EMS studies. However, 30% and 60% of the two low and moderate quality B-SES RCTs on critically ill patients of Nakamura et al. [60,61] suffered from respiratory failure. In parallel, three other low-moderate methodologic quality studies reported the inclusion of patients with respiratory failure or COPD [55,64,90]. While the latter three studies did not observe unintended side effects, Nakamura et al. [60,61] did not report adverse effects in his critically ill patients.

Musculoskeletal and connective tissue diseases

So far, only one moderate quality WB-EMS RCT of 8 weeks applied (knee) osteoarthritis as the main criterion for inclusion [70]. The study reported no adverse effect of the WB-EMS application.

Sarcopenia, recently included in the ICD 10 GM (M62. 84), was specifically addressed by two high-quality WB-EMS RCTs of 4 and 6 months in an ambulatory setting [11,46] and by one 4-week RCT conducted in a stationary setting [91]. In summary, none of the studies observed adverse effects of the EMS protocol. Considering the poor muscle mass or/and function reported by many B-SES studies (e.g. [37,42,60,61,63,64,90,93], a large proportion of these cohorts might also suffer from sarcopenia.

Non-specific chronic low back pain was the primary eligibility criterion in two 3-month high-quality WB-EMS studies and two 6- and 8-week NRCT [51,56,84,99]. None of the trials reported adverse effects during the intervention.

Osteopenia or Osteoporosis was the main criterion for inclusion in three moderate or high-quality WB-EMS studies of 10, 14 and 52 weeks [44,94,98]. None of the studies observed adverse effects of the EMS intervention.

In parallel to Sarcopenia, the vast majority of B-SES studies and WB-EMS studies with older people (i.e. 60 years and older) might also include a high proportion of people with osteopenia/osteoporosis – this relates in particular to female cohorts with their increased peri- and (early) post-menopausal bone loss [105]. The fact that adverse effects were not observed underscores the safety of EMS application in these older cohorts.

Diseases of the genitourinary system

Several 6-12-week low to moderate methodologic quality studies applied B-SES during dialysis in patients with chronic kidney diseases [37,58,63,88,93]. At least two other low to moderate quality B-SES studies included a moderate-large proportion of patients with chronic renal disease [55,90] or post renal replacement therapy [60,61]. Unfortunately four studies that included patients with renal diseases failed to list adverse effects while the remaining studies did not observe unintended side effects of the EMS intervention.

Critical illness, multi-morbidity

Three low to moderate B-SES studies focused in particular on critical ill patients treated in intensive care units [60,61,64] for 10-40 days. While Nakamura et al [61] did not address this issue, Nonoyama et al. [64] and Nakamura et al [60] reported no adverse effects of B-SES application in their study.

When defining multi-morbidity as the simultaneous presence of three and more chronic diseases [106], many B-SES studies and at least four WB-EMS studies [11,25,46,91] included multi-morbid cohorts and applied WB-EMS for one to six months. Although not all B-SES studies focused on this issue, no study reported adverse effects of the EMS application.

Frailty, functional limitation

In their moderate quality RCT, Kataoka et al. [42] focused on severely fail, bedridden elderly patients in their 12-week B-SES study. Another two-month low quality WB-EMS pilot study [25] applied frailty as a criterion for inclusion. Boutry-Regard et al. [27] only included older people with limited mobility7 in their 12-week moderate quality B-SES RCT. None of the studies listed above reported adverse effects of the EMS application.

Apart from these trials, several other studies that focused e.g. on critically ill patients [60,61,64]; Sarcopenia [11,46,91] or end stage kidney disease [93] included a large proportion of frail or physically limited older people. The fact that none of the studies reported unintended side effects might increase the evidence of WB-EMS application in this domain.

Adverse effects

Apart from ten studies (WB-EMS n=6; B-SES n=4), with three studies [58,61,93] addressing cohorts with conditions and diseases, all other studies reported or submitted the prevalence of adverse effects on request. Beside one study [92] and independently of the cohorts addressed, no study reported side effects of the EMS intervention be it with WB-EMS or B-SES. The only study that reported acute negative effects of WB-EMS [92] focused on the effects of very high impulse intensities in novice WB-EMS applicants with rhabdomyolysis effects in a closely medically supervised setting, however. In summary, the study reported exceptionally high creatine kinase and myoglobin levels 3-4 days after one-off 20 min WB-EMS application. This cannot be considered as an adverse effect, however, but as the primary study outcome.

Authors should discuss the results and how they can be interpreted from the perspective of previous studies and of the working hypotheses. The findings and their implications should be discussed in the broadest context possible. Future research directions may also be highlighted.

4. Discussion

This project aimed to identify and summarize studies that reported data on longitudinal WB-EMS application or closely related techniques able to stimulate large muscle areas in different non-athletic adult cohorts. In summary, the present evidence map provided evidence for the (safe) application of WB-EMS (including B-SES) techniques in several, even critically ill, cohorts covered by the 86 studies included.

With respect to age and gender, most cohorts were addressed by the trials. This particularly includes older women and men either community living, institutionalized or hospitalized, who are specifically relevant for joint friendly, highly customizable and consistently supervised training technologies. Although WB-EMS-induced reductions of total or regional body fat are limited [111], many studies focused on overweight cohorts. Few of the studies applied a combination of WB-EMS and diet [18,23,35,100]. Although some specific research questions remain, we feel that evidence for WB-EMS application in overweight cohorts is sufficiently provided.

Apart from cohorts with overweight or obesity, the majority of trials with sedentary, non-athletic adults’ addressed cohorts with health-related problems and limitations. This refers in particular to B-SES which is used primarily in hospitals and care facilities. Of crucial importance no study, be it with advanced Cancer, Diabetes, Stroke, Parkinson, chronic heart failure, pAVK, COPD, Sarcopenia, Osteoporosis, pre-frailty or frailty, chronic renal failure or even critically ill cohorts, observed adverse effects related to WB-EMS or B-SES application. However, one should bear in mind that the studies provided close supervision predominately by medical staff. Summarizing the results of the evidence map for health issues, a sufficient body of evidence for WB-EMS application is available for cohorts with (1) non-specific chronic low back pain, (2) sarcopenia, (3) osteopenia/osteoporosis, (4) obesity, (5) non-insulin dependent diabetes mellitus and MetS, (6) cancer/neoplasms (7) chronic renal diseases, (8) multi-morbidity and (9) critically ill hospitalized patients, although for the latter group, adverse effects were not consistently provided.

Still insufficient evidence is available for WB-EMS application in cohorts with (1) acute or chronic heart failure, (2) diseases of the respiratory system or (3) cerebrovascular diseases, a condition particularly promising for WB-EMS due to the lack of other training options.

Our study identified several gaps of WB-EMS research with respect to the cohorts addressed. However, not all heath related domains are equally relevant for dedicated WB-EMS research. This applies in particular for people with local limitations (e.g. arthropathies, spondylopathies) accessible for local EMS-application. On the other hand, cohorts with conditions or diseases that benefit from simultaneous stimulation of large muscle groups and limited options for conventional exercise training will be particularly important for WB-EMS research. The corresponding gaps in WB-EMS research concerning cohorts with Alzheimer’s diseases, polyneuropathies, myoneural disorders or multiple sclerosis but also to stroke or general immobilization should be addressed with particular emphasis.

Apart from providing evidence for WB-EMS application in varying study cohorts and drawing attention to gaps in the WB-EMS literature, another aim of the present evidence map was to support considerations of decision makers with respect to future recommendations on absolute and relative contraindications for WB-EMS application. To our best knowledge, only one available publication summarized contraindications for WB-EMS [3]. Although these recommended contraindications focus on the non-medical, commercial German WB-EMS market, most other providers and many researchers consider these recommendations to be mandatory. Briefly addressing the history of these contraindications, the commercial WB-EMS market suffered from a series of adverse effects that resulted in critical discussions in media and led to a temporary ban in Israel (review in [112]). The lack of mandatory regulations for qualification of providers and (in particular) instructors led the German expert group on WB-EMS [112] to issue very cautious recommendations in 2019. In the meanwhile, a rather dense network of Federal regulations address WB-EMS application (e.g. [113]) which includes the mandatory licensing of WB-EMS instructors/caregivers (e.g. Germany:[114]). Apart from federal regulation, the introduction of “medical WB-EMS” defined as (1) primarily therapeutic intervention (2) based on an existing diagnosis (3) provided by qualified medical–therapeutic personnel, (4) in compliance with current guidelines and (5) using medical devices [112] allows an opening of WB-EMS-application for cohorts previously excluded [3]. We feel that the present evidence map will be helpful in the elaboration of an updated list of relative and absolute contraindications on WB-EMS-application. However, this approach must be conducted in close liaison with expert groups.

Some features of this evidence map might be irritating or hard to grasp for the reader. First of all, the present evidence map focuses on “cohorts” included by WB-EMS studies and thus differs from most evidence maps that address “study outcomes” (e.g.[115]). Both parameters are similarly important, but since a comprehensive analysis and description of both aspects failed, we decided to give priority to the “cohort aspect”. This reflects our aim to provide timely data for the readjustment of absolute and relative contraindication on WB-EMS.

One may argue that combining WB-EMS, defined as “simultaneous application of electric stimuli via at least six current channels or participation of all major muscle groups with a current impulse effective to trigger muscular adaptations”[6], with B-SES technique might not be reliable. While many features are comparable (Supplemental Table S2), B-SES neuromuscular stimulation uses a monophasic, exponentially climbing pulse. Further, depending of the B-SES device, five (e.g. [37]) or six (e.g. [36,42]) electrodes are fixed at the waist/lower back and/or thigh and ankles, resulting in a lower stimulation area compared to WB-EMS. Additionally, in contrast to usual WB-EMS application in an upright standing position, all included trials applied B-SES in a sitting [27] or a (mainly) supine position predominately in a passive mode i.e. without voluntary movements during the impulse phase. While the duration of WB-EMS or B-SES session is largely similar, training frequency of B-SES is significantly higher. Stimulus intensity of B-SES was consistently described as the maximum tolerable impulse intensity without pain (or discomfort); i.e. largely in line with the specification applied by WB-EMS. For both methods acute stimulation effects on deeper muscle layers of the thigh and lower legs were reported [116,117]. We based our criteria of “safety” on missing adverse effects. We agree with the objection that this did not necessarily indicate that WB-EMS is a harmless exercise technology for every cohort. This particular refers to the application of too intense application particularly in novice users that have resulted in severe rhabdomyolysis [92,118]. However, considering recently updated guidelines [119] and the rather restrictive contraindications on WB-EMS [3], we conclude that safety standards in WB-EMS application are exceptionally high at least compared with other types of exercise or exercise technologies. Nevertheless, no WB-EMS study exceeded the length of 12 months [98] (and thus long-term adverse effects were not recorded), which indicates the need for scientific long-term monitoring of WB-EMS application. Further, although not addressed by the present work but nevertheless important for increasing safety, more research on the customization of WB-EMS protocols is required to meet specific demands, particularities and preferences of different populations.

Due to the large number of studies, poor information provided, difficulties in proper translation and partially missing author response, we might still have failed to identify all eligible articles or always correctly classify or describe the included articles. This may also be attributable to the approach of including all kinds of longitudinal (full text) studies irrespective of their design. We agree that this would be a limitation when addressing “study outcomes”, however when addressing “cohorts” the study design might be of lesser relevance. Nevertheless, it is important to classify the contribution of the single studies for evidence and relevance of the domain. This was covered by considering whether the corresponding trial considered the dedicated disease/condition as a criterion for inclusion or as a simple co-morbidity. In parallel, methodologic quality was rated by the PEDro scale specifically dedicated to clinical physiotherapy and exercise studies. However, this score is not perfectly suitable for non-randomized controlled trials; nevertheless our approach allows a rough overview of this important aspect.

Finally, a relevant limitation of the present review is the missing data, which is particularly important in the domain of adverse effects related to WB-EMS application. Although we contacted the corresponding authors several times by email or phone, we failed to obtain data of 10 studies. Unfortunately, these included the particularly important studies with vulnerable cohorts [58,61,93]. Of minor importance for the presence study, albeit relevant for studies that focus on effects, many researchers do not report the WB-EMS intervention comprehensibly or completely.

5. Conclusions

The present work provides evidence for the application of WB-EMS techniques in a wide range of human cohorts. We conclude that priority should be given to WB-EMS research in people with neurological and cerebrovascular diseases to address existing evidence gaps. This does not exclude advanced research on cohorts repeatedly addressed by WB-EMS studies, however. Nevertheless, the unique selling points of WB-EMS i.e. its ability to involuntarily stimulate large muscle groups simultaneously with adequate intensity but low orthopedic stress, should be considered in the decision of WB-EMS application in eligible cohorts. Another demand related to WB-EMS application in vulnerable cohorts is that ongoing or at least long-running projects should address the long-term safety of WB-EMS. Addressing safety of WB-EMS applications, although a few articles failed to report adverse effects, none of the identified trials, be it with advanced cancer, diabetes, stroke, Parkinson, chronic heart failure, pAVK, COPD, sarcopenia, osteoporosis, frailty, chronic renal failure or even critically ill cohorts, observed adverse effects related to WB-EMS or B-SES application. Although this of course did not indicate the complete harmlessness of WB-EMS, advanced federal regulations and mandatory qualification and education of WB-EMS providers and trainers suggest that an easing of the very restrictive contraindications of WB-EMS at least for consistently supervised settings should be considered in the nearest future.
