Developing an Internal Preference Map for Assessing Cow's and Camel's Milk Enriched with Date Syrup

1. INTRODUCTION

Dates is one of the major agricultural products in Saudi Arabia in which the production reaches 1.6 million tons in 2021. One of the most important by-products of dates is dates syrup which can be utilized as a sweetener and nutritious in many products including dairy drinks. Studies indicated that the total losses of date in Saudi Arabia reach up to 25% [1,2,3,4,5]. This requires efforts for marketing dates with its derivatives that milk flavored with date syrup would be a potential success for the dairy and dates industries.

Date Syrup (locally called Dibbs) is a natural sweetener, that can be an appropriate ingredient in developing new dairy products to improve their nutrient properties [4,6,7]. Date syrup is a thick dark brown in color with a total sugar 70 to 80%, (mostly reducing sugars of glucose and fructose). Furthermore, macro and micro components of dates syrup may play a significant role in considering it rich in nutrition [8]. Thermal and rheological behavior and quality of date syrup, mostly manufactured from second and third-quality dates grades, at different processing stages should be evaluated [9,10,11,12]. Several studies have been conducted to determine the rheological, thermal, and physical properties of date syrup as well as cow’s and camel’s milk [4,6,8,13,14,15,16,17,18]. Other researchers showed that the ingredient of date syrup in the formulation of dairy products led to good outcomes and had potential health benefits, thereby, increasing sales and have consumer satisfaction [2,19,20,21].

The dairy industry in Saudi Arabia is a very advanced sector and the most successful food industrial projects with 1.68 tons of milk annually. Thus, the dairy industry based on cow’s milk has a potential of a vital role in SA's dairy industry[22].

Camel milk is getting more attention recently, that needs efforts for best utilization. Saudi Arabia has the largest number of camels in the Arabian Peninsula (1.4 million camels) with an average daily milk yield of 5 – 20 Kg [22]. This makes SA among the highest consumption of camel’s milk in the world [13]. Nevertheless, this camel milk industry is facing several challenges including the needs of new product development, and technological innovations [23,24].

The utilization of dairy milk (cow and camel) into dairy drinks with flavor and sweeteners is getting popularity especially with youngsters and in schools. However, most of the flavors and sweeteners added to milk drinks are imported and may lack some nutritional value to complement that of milk. Dates syrup would be an excellent candidate as a natural flavor and sweetener additive in dairy drinks. One of those suggested products is the milk (camel or cow) drink flavored with date syrup, which combines the nutritional value of both milk and dates [6]. Thus, dates syrup would have a positive impact on public health as well as national economy.

New product development can be conducted from either innovative technologies or market opportunities. Irrespective of where the new product originates, the success of these products depends on consumer judgment. Therefore, consumer research should be conducted during the process of product development [25]. One of the powerful scientific tools is sensory analysis which can be used to distinguish differences in visual features and assess a product’s acceptability. The difference in responses of consumers may present differentiated preference patterns [26]. While, in classic consumer science, liking is measured with the 9-point hedonic scale [27,28], principal component analysis (PCA) is widely used as a multivariate analytical, statistical technique that can be applied to quantitative descriptive analysis for sensory evaluation of various food and dairy products [29,30,31,32,33,34,35,36].

Recently, interest increased in research dealing with product preference mapping [37]. Preference mapping can be defined as a group of methods for exploring the responses of consumers to a set of products through multivariate statistical mapping [31,34,38,39,40,41,42,43].

Very limited work is available that relates adding dates syrup (from different varieties ) as flavors and sweeteners to milk (from "milch" animals). The objective of the present work was to study consumers liking patterns for flavored milk drinks from dates syrup (from Khlass and Sukkary dates), at different percentage, added to milk (cow and camel) utilizing preference mapping analysis.

2. MATERIALS AND METHODS

2.1. Extraction of date syrup

Two varieties of fully-ripen date fruits (Sukkary and Khlass); free of physical damage, insects, and fungal infection, were obtained. The selected fruits were cleaned and stones were removed. The date fruit pulp was blended with distilled water (1 date pulp: 3 distilled water; w/w). The date syrup was prepared following the method described by [4,14,44], with slight modification. Briefly, 500 g from each date variety was mixed with 1500 ml of purified water. Then, the mixture was placed in water bath with a mixer at 80 °C for 15 min (Kenwood, FPP230 Series, United Kingdom-Cole Parmer BT-15 and Laboratory Heated Water Bath Recirculating 12"x12") to extract sugar from dates pulp into water. The resulting date pulp-water suspension was filtered using paper filter-press (Seitz Pilot Filter Press, Model A20z, K150, Germany) The semi-industrial mechanical filtration device is based on the use of Seitz-EK (Seitz-Filter-Werke Theo and Geo Seitz Pall Filter Systems GmbH and Co., D-55543 Bad KreuZnach, Germany) cellulose filter sheets (Filter Sheets). Then the filtrate further centrifuged at 3000 rpm for 15 minutes using Digital Bench-Top Centrifuge (High-Speed 1500~12000RPM 24 Glass Capillary Capaci). The purified date juice was then concentrated at 65 °C under vacuum using climbing film evaporator (QVF Teaching system, CTSY EVAPO RATION Climbing Film and Natural Circulation Eva Porator) to obtain the date syrup (80 $º$Brix). Dates syrup was then kept in refrigerated storage until the start of analysis and application.

2.2. Sample preparation

2.3. Sensory evaluation

Using the XLSTAT design of experiment for sensory analysis tool (XLSTAT Version 2016.01.26040), 16 milk drinks (two date syrup varieties × two types of milk × four addition,%) were prepared and served in four sessions to the 16 trained assessors. In each session, four products were randomly served. The four samples were prepared two hours before each evaluation session and kept in thermos flasks at 5 ºC. Mineral water at ambient temperature (~24°C) was used to rinse the mouth between tests. The samples were presented to the consumers in random order, labeled with three-digit codes randomly generated by the software. Sensory testing was conducted in the standard sensory laboratory of the College of Food and Agriculture Sciences, equipped with individual booths.

The trained panel consisted of sixteen judges (men aged 30 to 50). All assessors were previously trained and involved in similar sensory evaluations. Five attributes were evaluated using nine hedonic scales from (‘‘1-dislike extremely’’ to ‘‘9-like extremely’’). The attributes were Taste, Flavor, Texture, Color, and Overall acceptance. The selected attributes were chosen from previous consumer tests on similar samples [26], and which are of common use for consumer tests in the beverage industry [45].

2.4. Data analysis

The nine hedonic scales

Factorial analysis of variance was performed on the assessors overall acceptance scores, considering milk (two types), date syrup (two varieties), and percentage of addition (four %) as sources of variation, and significant differences were checked using Fisher’s LSD test (p < 0.05). The results were analyzed using SAS 9.2 software [46].

Cluster analysis

Agglomerative hierarchical clustering (AHC) (XLSTAT software) was performed to classify groups of consumers. This analysis was performed on standardized liking scores, using Euclidean distances and Ward’s method as the agglomeration criterion. The differences between the clusters were calculated with a one-way ANOVA and Duncan’s significance (p<0.05).

Preference mapping

Preference mapping was conducted using (PREFMAP) tool of XLSTAT (Version 2016.01.26040) to relate the preference patterns to the assessors as well as the intensities of the measured attributes. The external preference mapping approach was described by [47], and [37]. The details of using this method by the XLSTAT tool were discussed by [19].

3. RESULTS

3.1. Trained panel sensory evaluation

The factorial analysis of variance showed that there was a significant effect of the main factors: milk type and add% on the five attributes. Moreover, dates syrups variety had a significant effect on taste, color, and overall acceptance evaluations (p<0.05), as shown in Table 1. However, it had no significant effect on flavor and texture evaluations. All interactions showed significant effects on all five attributes.

There were variations in score preferences of syrup, milk, and add% based on the attributes selected as shown in Table 2. For the overall acceptance evaluation, the cow’s milk with 15 (w/w %) of Khlass syrup followed by cow’s milk with 10 (w/w %) of Sukkary syrup were the most liked samples.

The panelist gave all Camel’s milk samples lower liked than those of cow’s milk (Table 2). Ccow’s milk flavored with 20 (w/w %) of Khlass syrup or 10 (w/w %) of Sukkary syrup was the most liked in taste evaluation, followed by camel’s milk with 10 (w/w %) of Sukkary syrup or 15 (w/w %) of Khlass syrup (Table 2).

The cow’s milk with 5 (w/w %) of Khlass syrup followed by Camel’s milk with 10 (w/w %) of Sukkary syrup were the most liked in flavor evaluation, whereas texture evaluation showed that the Camel’s milk with 5 (w/w %) of Khlass syrup and 15 (w/w %) of Sukkary syrup followed by cow’s milk with 10 (w/w %) of Khlass syrup were the most liked ones. On the other hand, the cow’s milk with 15 (w/w %) of Sukkary syrup followed by cow’s milk with 10 (w/w %) of Khlass syrup was the most liked in color (Table 2). Finally, the cow’s milk with 10 (w/w %) of Sukkary syrup followed by cow’s milk with 5 (w/w %) of Sukkary syrup was the most liked score in color.

3.2. Sensory map

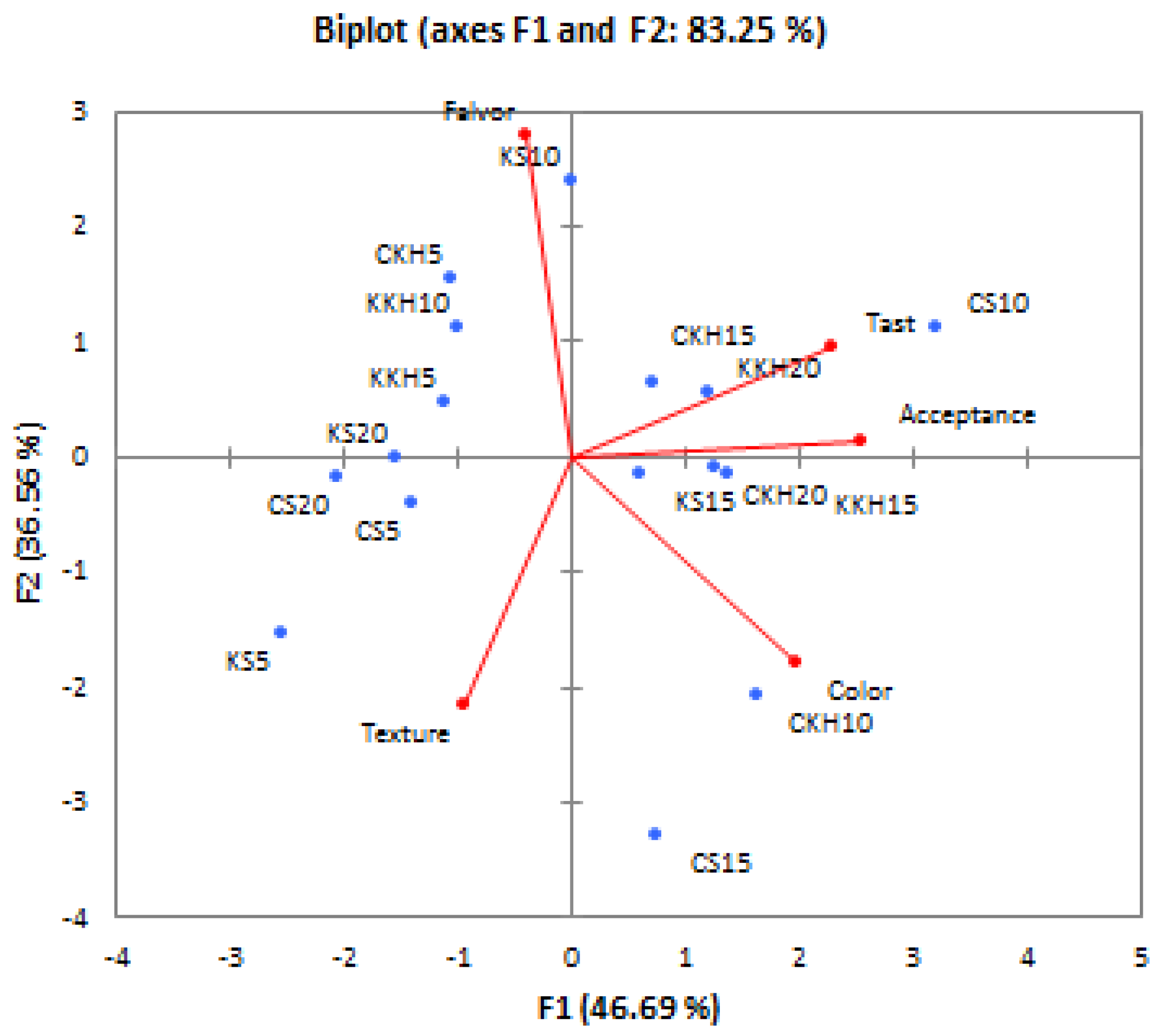

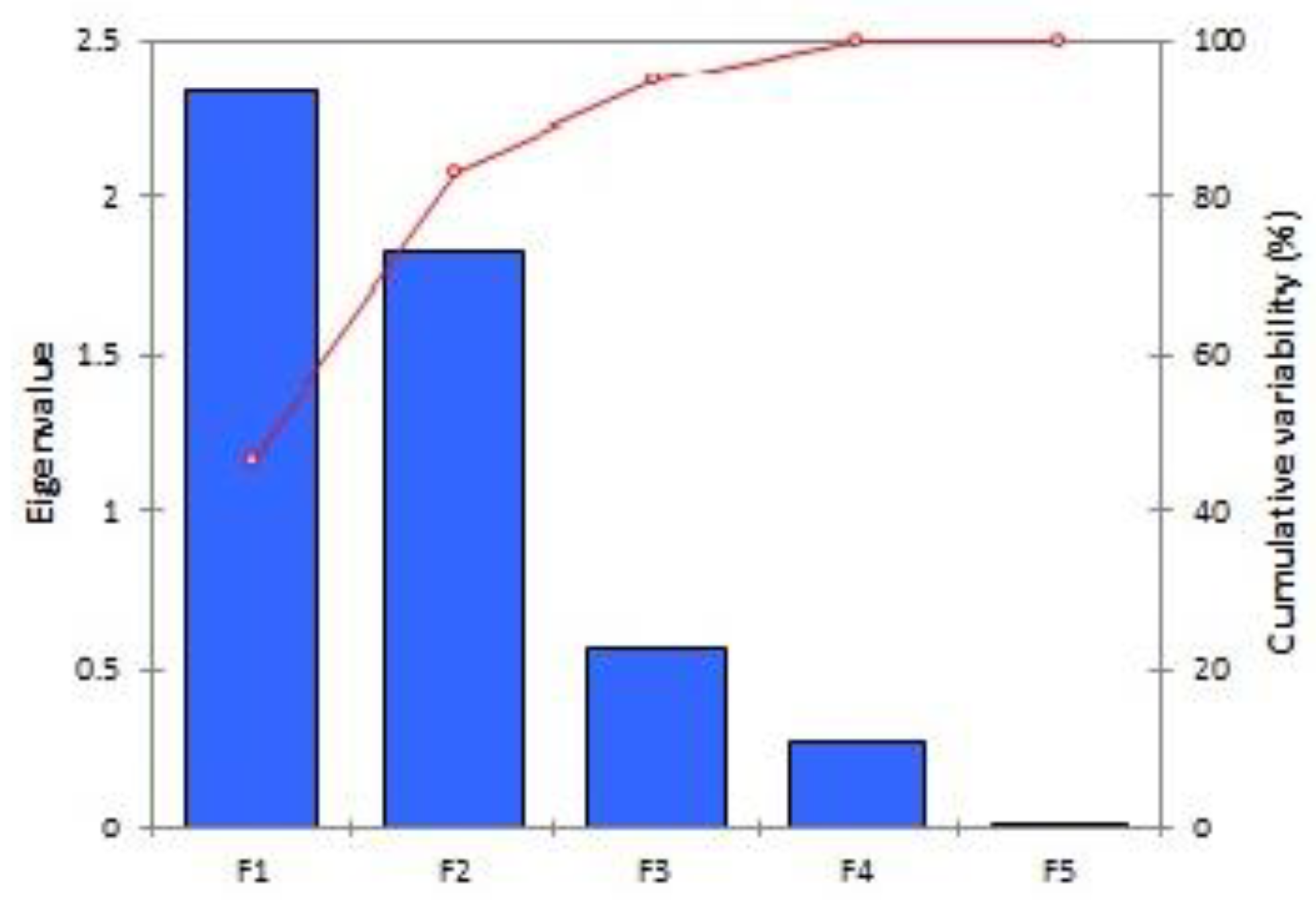

The Principal Component Analysis (PCA) results indicated that all sensory variables measured on the sixteen samples can be summarized in two main orthogonal components accounting for 83.25% of the total variance. The scree plot (Figure 1) addressed the two main components. To improve the elucidation of the two PCA components analysis, the total variability for each component and the accumulated variability for all components were obtained (Table 3). Even though the change aggregated by the first two components stays at 83.25% of the aggregate, the first component has 46.7 % of variability while the second component has 36.7% of variability.

Table 4 represents the contribution of the variables in each of the two main components. It can be construed that the first component represents the following variables: overall acceptance, taste, and color, while the second component refers to flavor and texture. The first is representing more overall acceptance; more liked the taste and more acceptance color in the positive range, and less acceptance and less desired color in the negative range. The second component, the flavor, and texture can be further distinguished in the positive range, and less flavored recognized and more disliked texture in the negative range (Figure 2).

Samples CS10, CKH15, and KKh20 are located on the positive side of the map for the first component (overall acceptance, taste) as well as the positive range for the second component (Flavor). Although samples KS10, CKH5, KKH10, KKH5, and KS20 are in the positive range of the second component (flavor), they are in the negative range of the first component (acceptance and taste). Finally, samples CS20, CS5, and KS5 are situated in the negative range of both components.

3.3. Cluster analysis

Consumers were grouped into five clusters based on the scores given to the tested samples. Cluster analysis was achieved based on Ward's method through the agglomerative hierarchical clustering (AHC) included in XLSTAT software. Table 5 describes the parameters obtained from AHC analysis, culster2, and culster1 have the same percentage of appearance (29%, and 28% respectively) followed by culster4 (19%), then cluster3 (13%) and finally culster5 (11%).

Table 6 represents the consumer’s overall acceptance liking for each cluster and the sample preferences within each cluster. Cluster 1 (28% of consumers) shows samples CKH10 as the most liked one followed by CS5, CKH15, and KKH15 at the same level of liking. Cluster 2 (29%) shows samples CKH20 as the most liked one followed by CKH15, and KKH10 at the same degree of liking while CS5 was the most disliked one. Cluster 3 (13%) shows the samples KS10 and KKH10 with the same liking score level as the most preferred followed by KS10 and KS15; respectively. While CKH15 is the most liked in Cluster 4 (19%), CKH20 and KKH5 have the lowest liking score. Finally, Cluster 5 (11%) shows CS5 andKS10 as the most liked samples.

3.4. Preference Map

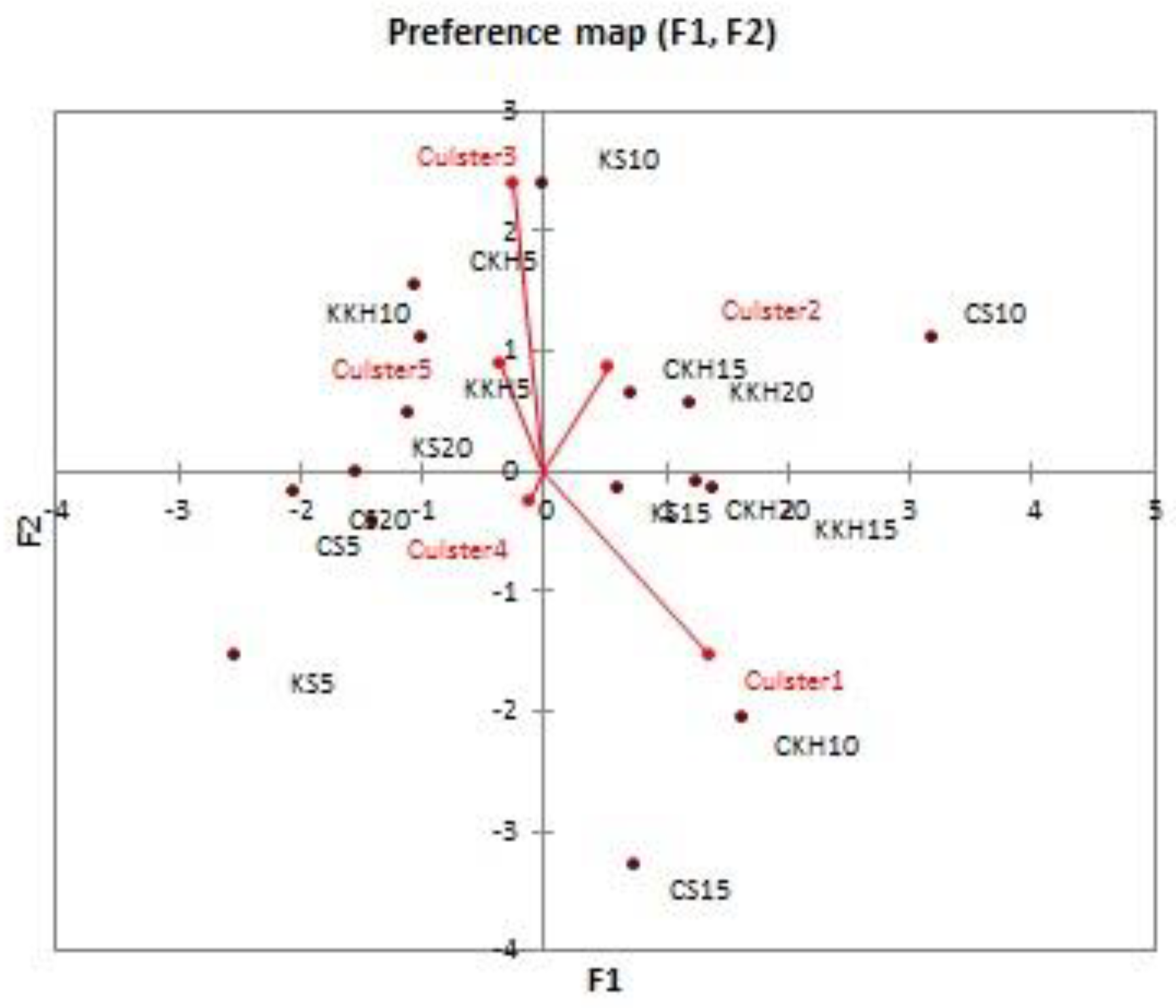

In Figure 3, bi-dimensional Preference Maps can be noticed. This map indicates the direction of maximum preference for each one of the clusters. The position or direction for each cluster confirms the existence of two main component analyses. One group of consumer clusters includes cluster2 located on the positive side of both dimensions, whereas the other group is made of cluster4 located on the downside of both dimensions. On the other hand, culster1 is located on the positive side of the first component (overall acceptance, taste, and color) and the negative side of the second component (flavor and texture). Finally, clusters three and five are located on the positive side of the second component and the negative side of the first component.

As can be observed from Figure 3, consumers in cluster2 prefer samples KS10, CS10, CKH15, and KKH20 with all studied attributes positively. The two clusters of consumers prefer samples with high and medium values of flavor and texture including samples CKH5, KKH10, KKH5, and KS20. Cluster1 with 28% of consumers with cluster2 with 29% of consumers, low values for F1 and F2. For these consumers, willfully to cluster4 (19% of consumers), there is a negatively lower value for all.

4. DISCUSSION

4.1. Trained panel sensory evaluation

In general, the overall acceptance scores were in average values of the hedonic scale (3.8–5.9) and influenced by all factors, which was inferable from the detailing of the sample formulation (Table 2). However, one of the interesting results of this research work is in predicting product performance in the market and distinguishing between different formulations, so the focus of this work was on the patterns of liking.

Exploration of the interaction between factors for the samples and their attributes, generally it was found that the samples with cow’s milk were more liked in all attributes. The more Khlass syrup with cow’s milk or camel milk, the more tastes like. In contrast, the more Khlass syrup with cow’s milk or camel milk, the less flavor liked. From the texture point of view, more Khlass syrup with camel milk, less liking was found.

Unlike Khlass syrup, the Sukkary syrup is inversely liked by adding a percentage to Camel’s milk concerning texture attribute. Finally, no trend was discovered for color attributes. These results are in agreement with those found by [48]. Although the overall acceptance averaging the liking considering the samples that are liked the least, and vice versa, the other attribute's intensity plays an impotent role in trained panelist scores.

4.2. Sensory map

Unlike conventional dairy products, Camel’s milk is slightly saltier and has a heavy taste, thus most of the Camel’s milk samples are located on the negative side of the first component in a sensory map (Figure 2). Additionally, Camel’s milk taste is very sensitive to its compositions, and these compositions are wildly variated due to several factors [49]. Thus, most of the camel’s milk samples are located on the positive side of the second component in the sensory map which represents flavor and texture attributes.

According to [16], the trained panelists may be able to identify different flavors in pasture-based cow’s milk, while [50] stated that there was no significant difference in overall acceptance based on cow’s feed, differences could be clarified in the assessment of flavored milk with dates syrup.

4.3. Cluster and preference mapping analysis

The cluster analysis results in five consumer groups; cluster two which accounts for 29% of the consumers extends to more overall acceptance, more liking taste includes samples CS10, KS10, CKH15, and KKH20. As a result, adding 10% (w/w) of Sukkary syrup to cow’s or camel’s milk will be more acceptable to the consumer if these drinks are commercially produced. On the other hand, adding 15% (w/w) and 20% (w/w) of Khlass syrup to cow’s and camel’s milk respectively led to the same results. However, no report was published on preference maps for such drinks; these findings may be in concordance with previous for other dairy products flavored with date syrup.

Hashim [51] stated that adding 25% of date syrup to ice cream enhanced consumer’s overall acceptance. In another study, [52] indicated that adding date syrup to ice cream had a similar degree of likeness and overall acceptance as regular ice cream. Even though, it is not a simple task to translate the preference map component values for preferred products into practical standard measurements of quality [27].
