Blackening Mechanism of Zn-Mg-Al Alloy Coated Steel Pre-pared by Water Vapor Treatment

1. Introduction

In contemporary industries, particularly in automotive, architecture, and electronics, there has been a growing demand for premium and distinctive designs featuring unique colors [1]. The significance of product color has consequently gained prominence, with consumer preferences for black products contributing to a luxurious, urban, and modern image across all age groups, resulting in a rising trend in demand [2]. Black products not only exert positive effects in terms of external aesthetics but also exhibit desirable functional characteristics, including superior heat absorption properties [3]. The prevalent method for achieving a black appearance involves the application of black coating, where the surface is painted with black pigments. This approach is widely adopted due to its ability to entirely cover the typically shiny and silver appearance of steel surfaces, often resulting from zinc (Zn) plating or zinc-alloy plating with magnesium (Mg) and aluminum (Al) [4,5]. However, challenges arise in terms of cost, necessitating thicker coatings to fully conceal the silver-white appearance. Additionally, difficulties arise in executing additional forming processes such as welding, and environmental concerns emerge due to the substantial use of coating materials, including the emission of volatile organic compounds (VOCs) [6]. Moreover, blackening through coating presents limitations in achieving performance improvements beyond the enhancement of appearance. Damages to the coating, leading to the exposure of the base material, not only compromise external aesthetics but also give rise to corrosion resistance issues [7,8]. To address these challenges, recent research has explored environmentally friendly approaches such as water vapor treatment and anodizing to achieve steel surface blackening, as opposed to traditional coating methods applied to Zn-Mg-Al alloy-plated steel sheets [4,5,9,10]. The primary focus of investigation for steel surface blackening has been the water vapor treatment method. This method entails spraying high-temperature water vapor (50-350℃) for more than 24 hours on Zn-based alloy-plated steel, containing 0.1-22.0 wt.% of Al components and 0.1-10 wt.% of Mg, within a sealed container. The outcome is the formation of a thin black film on the coating layer. Additional elements such as manganese (Mn), copper (Cu), and bismuth (Bi) are introduced to enhance the blackening effect, although it has been noted that excessive amounts (beyond 1 wt.%) may diminish this effect [4,8,11]. Despite the extensive research on blackening layers in various settings, a comprehensive understanding of the underlying principles remains elusive. Therefore, this study focuses on the blackening of the coating through water vapor treatment applied to Zn-Mg-Al alloy-plated steel produced using the hot dipping method. The analysis includes an examination of morphology, elemental composition, phase and crystal structure, and optical properties of the blackening layer. The objective is to provide insights into the factors and mechanisms governing the formation of blackening, as detailed in the subsequent sections.

2. Materials and Methods

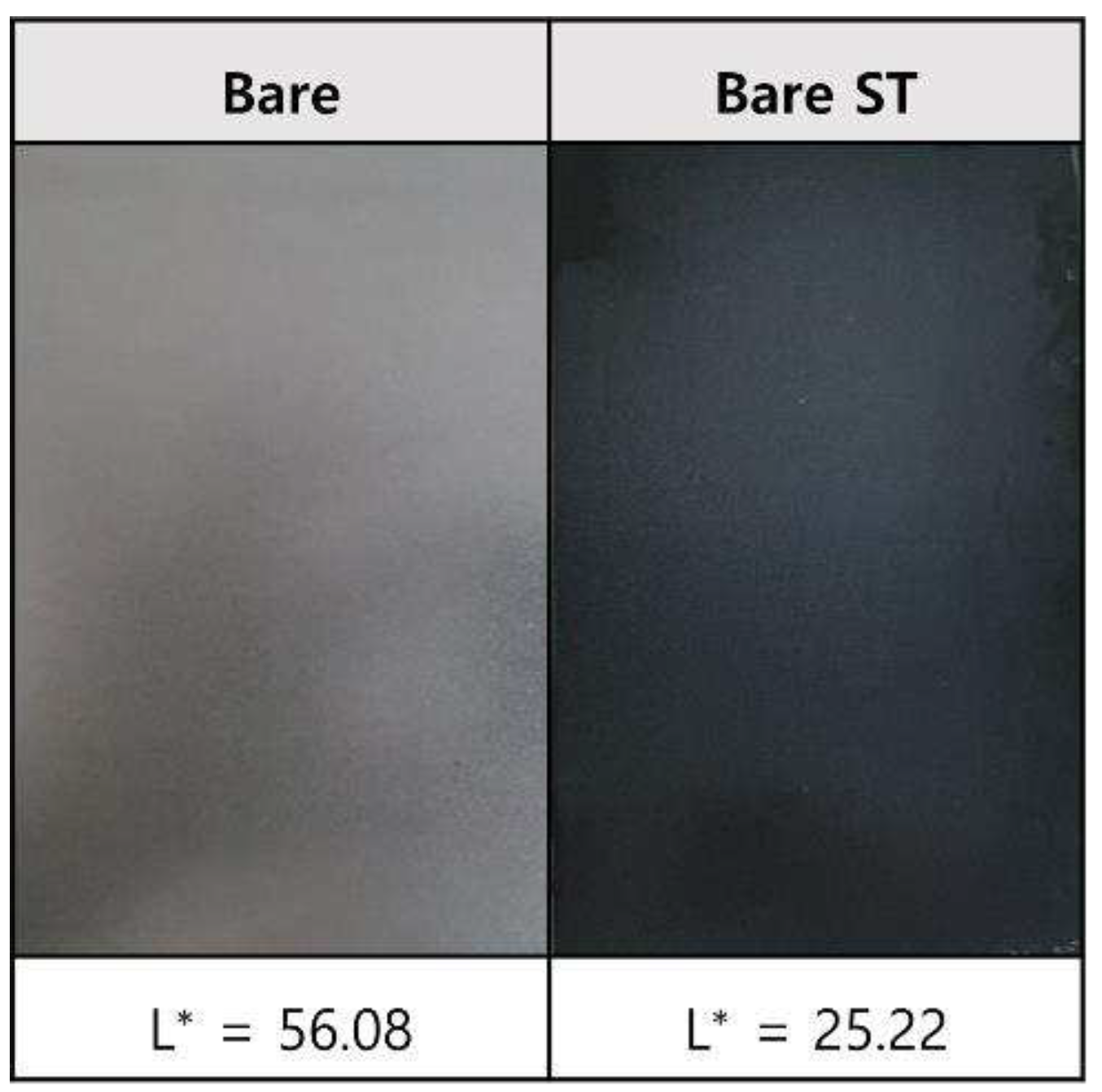

The Zn-Mg-Al test specimen was produced using a hot dipping method, and the nominal composition of the alloy coating is 94.5 wt.% Zn–3.0 wt.% Mg–2.5 wt.% Al. Prior to water vapor treatment, impurities on the surface were removed by degreasing using sodium hydroxide (NaOH) and ultrasonic cleaning in ethanol (C₂H₅OH). The specimen was then washed with ultrapure water with a resistance value of 18.2 MΩcm and dried completely in air. To form a black coating layer, the prepared coating was subjected to water vapor treatment for 1 hour and 30 minutes in a saturated steam atmosphere at 150℃, according to the process shown in Figure 1. The appearance of the resulting black test specimen is shown in Figure 2. and in this paer, the specimen before water vapor treatment is referred to as bare, and the specimen after water vapor treatment is referred to as bare st. To elucidate the mechanism of black coating formation, the surface and cross-sectional morphology of the specimens before and after water vapor treatment were observed using FE-SEM and TEM. GD-OES and EDS was used for elemental composition analysis. The phase and crystal structure analysis were conducted using HR-XRD and XPS, and UV-VIS/NIR was used for optical property analysis, including absorbance and bandgap.

3. Results

3.1. Material Characterization

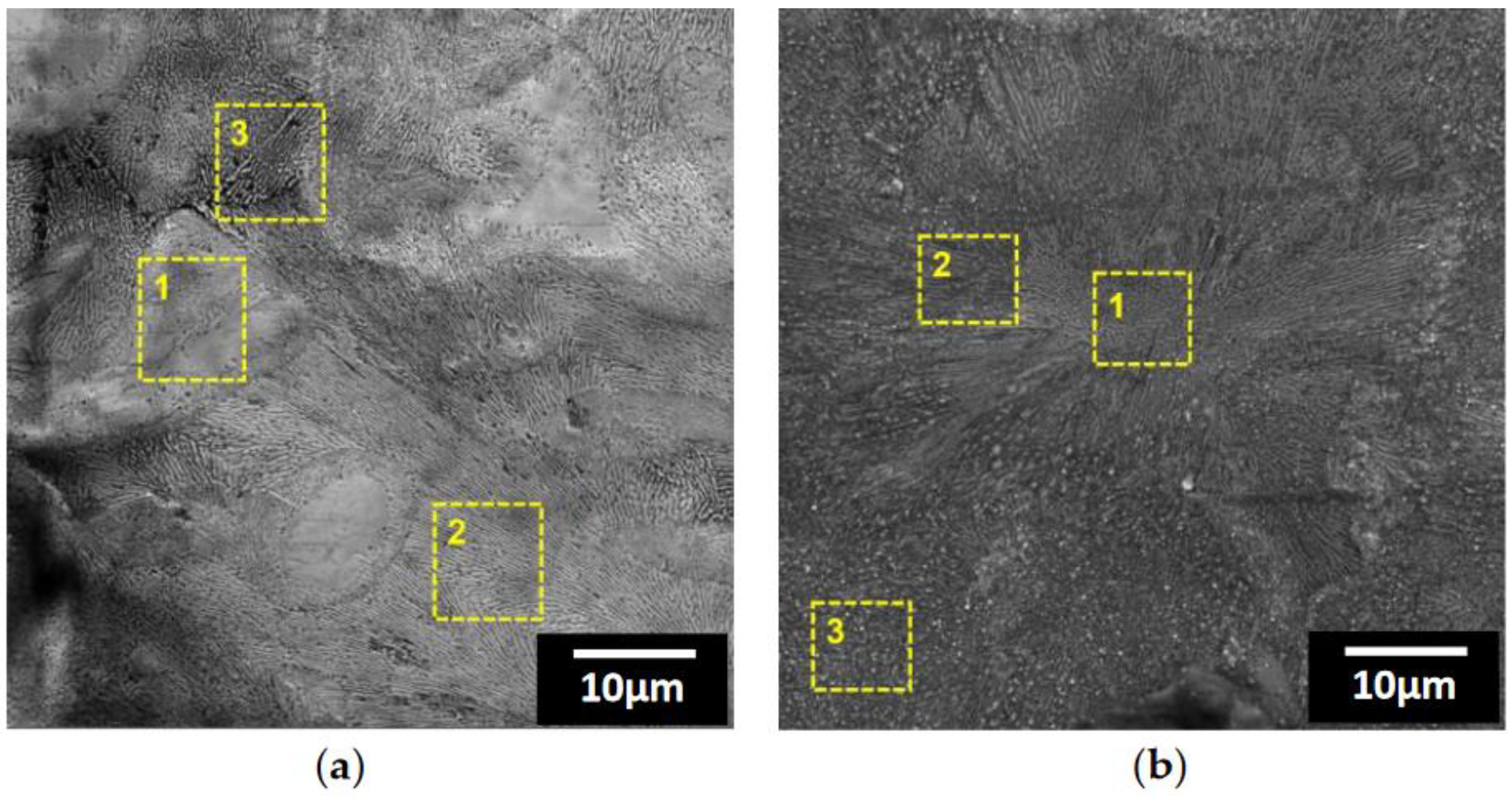

Figure 3 depicts the surface morphology of test specimens both before and after water vapor treatment. Consistent with previous findings for Zn-Mg-Al, lamellar structures are evident in the Zn-matrix phase, Zn-MgZn2 binary, and Zn-MgZn2-Al ternary phases, as indicated by the elements presented in the surface composition of the bare specimen in Table 1. Specifically, examination of the bare specimen’s surface in Figure 3(a) reveals the presence of the Zn-matrix phase and Zn-MgZn2-Al ternary phase [12]. Following water vapor treatment, Figure 3(b) illustrates the destruction of the lamellar structure, replaced by a diffusion-like shape. Region (3), distinguished by the highest O content and a rough surface, is presumed to have undergone the most substantial oxide formation during water vapor treatment. This suggests that the occurrence of light scattering due to surface roughness may contribute to blackening. Conversely, regions (1) and (2), retaining the lamellar structure and undergoing diffusion, exhibit comparatively less oxide formation, as indicated by the elements present in the surface composition of the Bare ST specimen in Table 2. Analysis of the oxygen composition in Bare ST suggests that an increase in the ratio of oxygen elements is associated with the advancement of blackening.

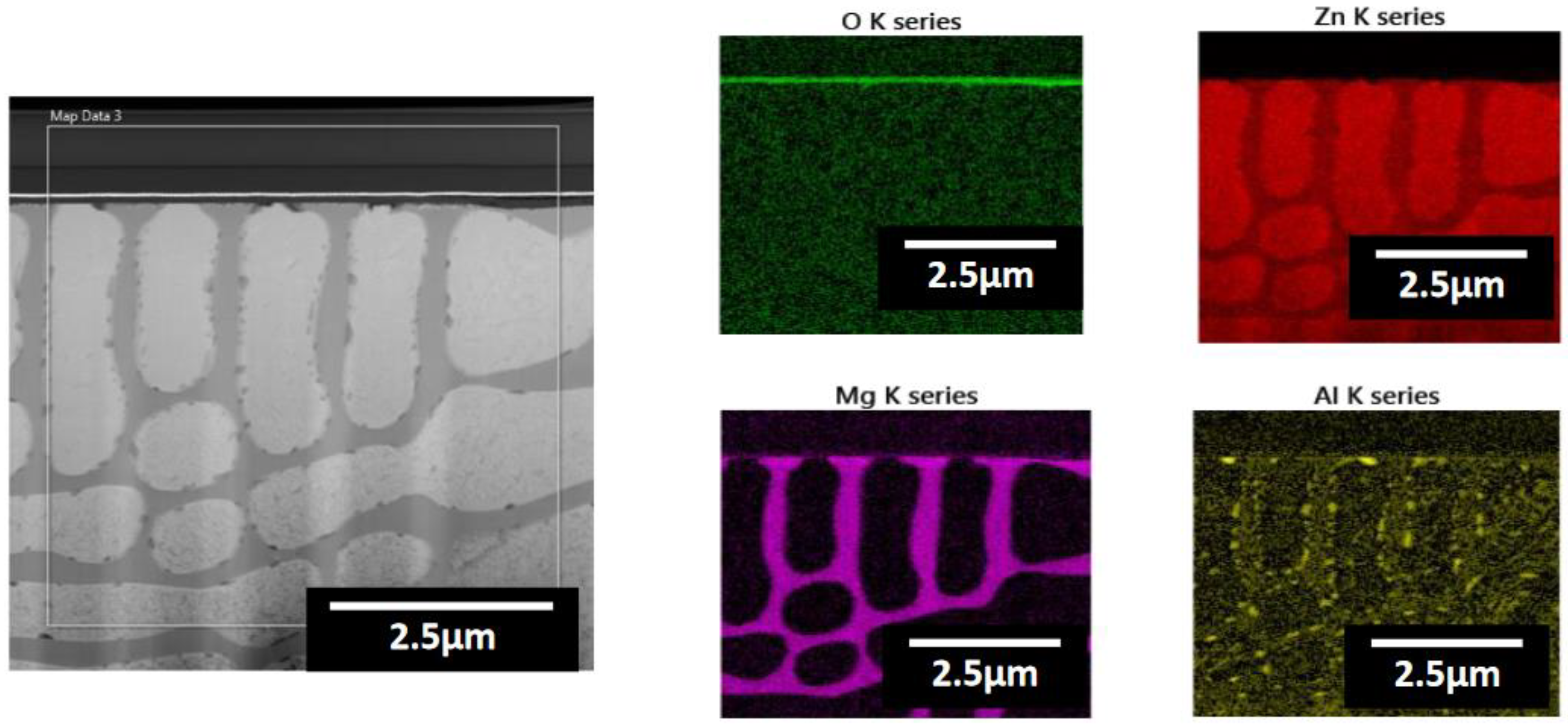

Similarly to the surface morphology results observed in Figure 3, when examining the cross-sectional morphology of the Bare specimen in Figure 4, it was confirmed that a lamellar structure is formed between the intermetallic compounds. Additional TEM analysis with EDS mapping revealed predominantly formed Zn, and when confirming the point element composition in the region where Mg elements were mapped, it was determined to be 23.99 at% Mg and 71.75% Zn. This suggests the formation of the intermetallic compound MgZn2. Furthermore, Al was found to be distributed around Zn and Mg, similar to the results observed on the surface. Oxygen, as seen in the mapping, was found to be extremely thin near the surface, indicating the presence of a naturally formed oxide layer on the metal surface.

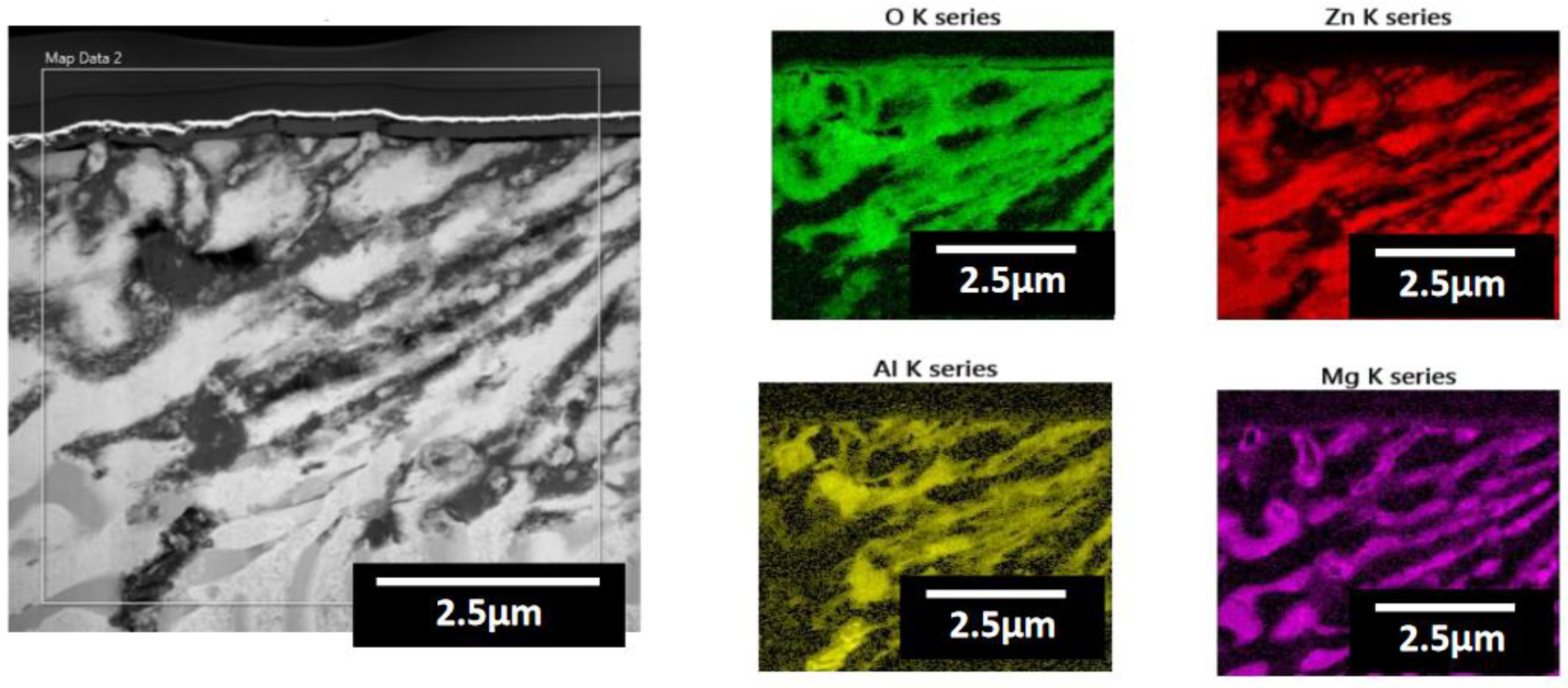

In contrast, Figure 5 shows the examination of cross-sectional morphology and EDS mapping of Bare ST, where it was observed that the lamellar structure, akin to the surface morphology, was disrupted and appeared to be diffusing. This phenomenon was attributed to surface treatment occurring due to high-temperature steam. Through EDS mapping to confirm the shapes of each element, it was evident that the boundaries were clearly defined in Bare, while in Bare ST, all elements were diffused. Particularly, oxygen (O) was found to be formed approximately 5 μm deep from the surface. This led to the conclusion that an oxide layer formed through steam treatment on the surface.

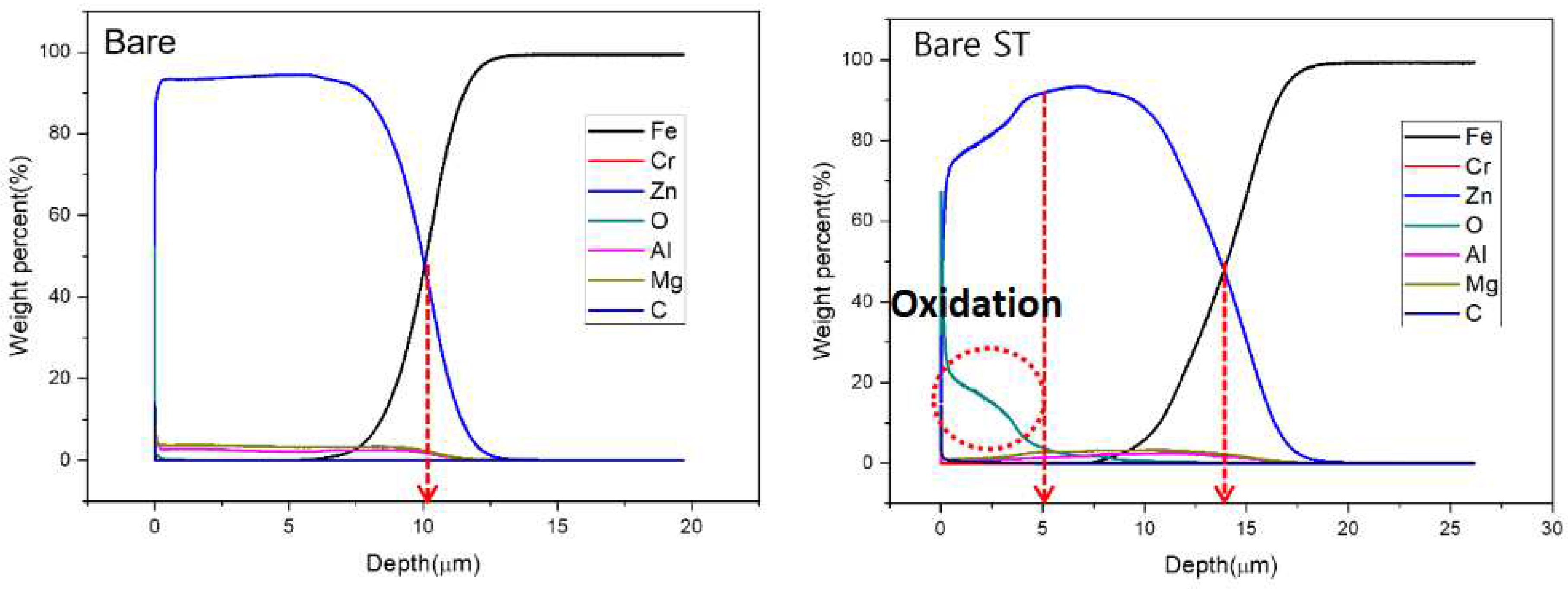

Figure 6 presents the depth-wise elemental composition analysis results from the surface analyzed through GD-OES. When examining the depth-wise elemental composition of Bare, it was observed that Zn predominantly occupied the surface, consistent with the composition of the test specimen. Small amounts of Mg and Al were also detected, and Fe showed an increase from a depth of 10 μm, intersecting with the decreasing Zn, indicating the formation of an approximately 10 μm alloy coating on the specimen.

Unlike Bare, in the case of Bare ST, a higher proportion of O was observed on the surface, with the proportion gradually decreasing to a depth of about 5 μm. Additionally, the depth of the coating layer was approximately 14 μm, with a surface oxide layer of 5 μm thickness. This observation indicates an increase in the thickness of the oxide layer. This observation aligns with the results obtained through TEM’s oxygen mapping, supporting the hypothesis that the main factor contributing to blackening is the formation of an oxide layer on the surface.

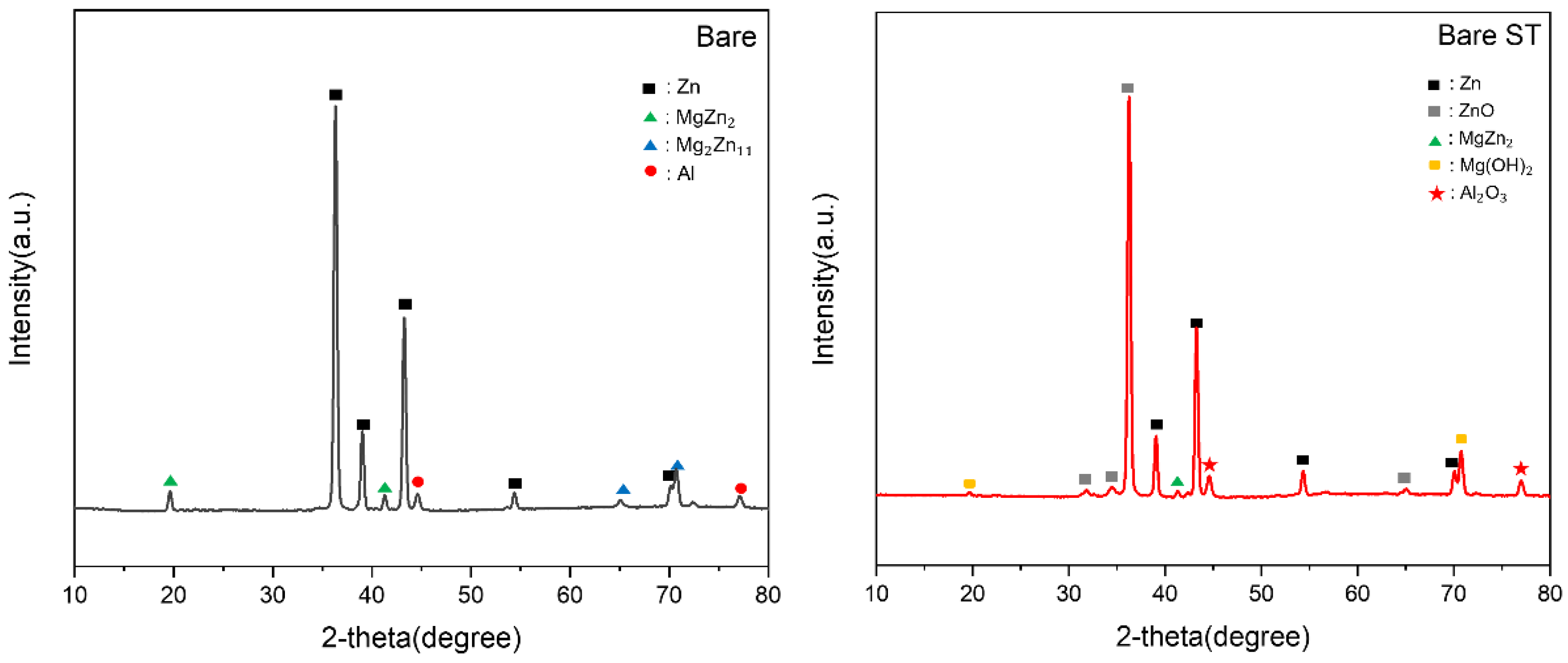

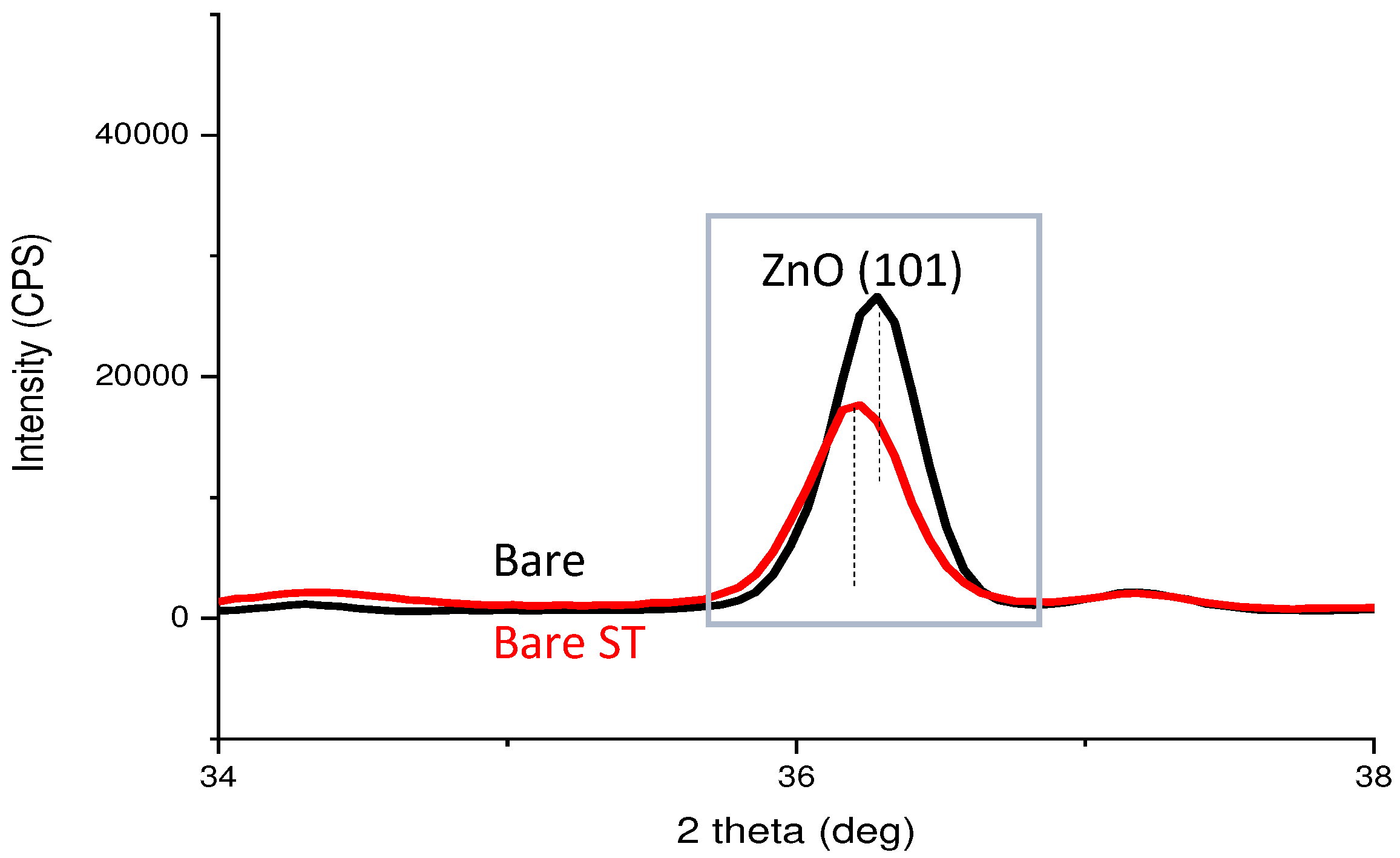

Next, we analyzed the crystal structure and phase information of the test specimen film using XRD. As seen in Figure 7, peaks for mostly Zn and MgZn2 are detected in the Bare specimen. In contrast, after the water vapor treatment, Bare ST specimen’s peaks for oxides such as zinc oxide (ZnO) and hydrated oxides such as Mg(OH)₂ were detected. It was judged that oxides were formed on the surface, similar to the EDS composition analysis, and it was confirmed that hydrated oxides were also formed on the surface. Based on the ZnO peak from the XRD analysis, the crystal size and interplanar spacing were analyzed using Bragg’s law in equations 1 and 2. It was found that the interplanar spacing of ZnO increased after the water vapor treatment through Figure 8 [13]. This is presumed to result from a chemical state change or oxygen vacancy, as illustrated in Figure 9 [14].

$$\mathrm{L}=\frac{0.9\lambda }{FWHM·cos\theta }(\mathrm{L}:\mathrm{lattice}\mathrm{interplanar}\mathrm{spacing}\mathrm{of}\mathrm{the}\mathrm{crystal}, \lambda :\mathrm{wavelength}\mathrm{of}\mathrm{the}\mathrm{characteristic}\mathrm{x}-\mathrm{ray}, \theta :\mathrm{x}-\mathrm{ray}\mathrm{incidence}\mathrm{angle})$$

(1)

$$\mathrm{D}=\frac{n·\lambda }{sin\theta }(\mathrm{D}:\mathrm{spacing}\mathrm{of}\mathrm{the}\mathrm{crystal}\mathrm{layers}, \mathrm{n}=\mathrm{integer}, \lambda :\mathrm{wavelength}\mathrm{of}\mathrm{the}\mathrm{x}-\mathrm{ray}, \theta :\mathrm{the}\mathrm{angle}\mathrm{between}\mathrm{incident}\mathrm{ray}\mathrm{and}\mathrm{the}\mathrm{scatter}\mathrm{plane})$$

(2)

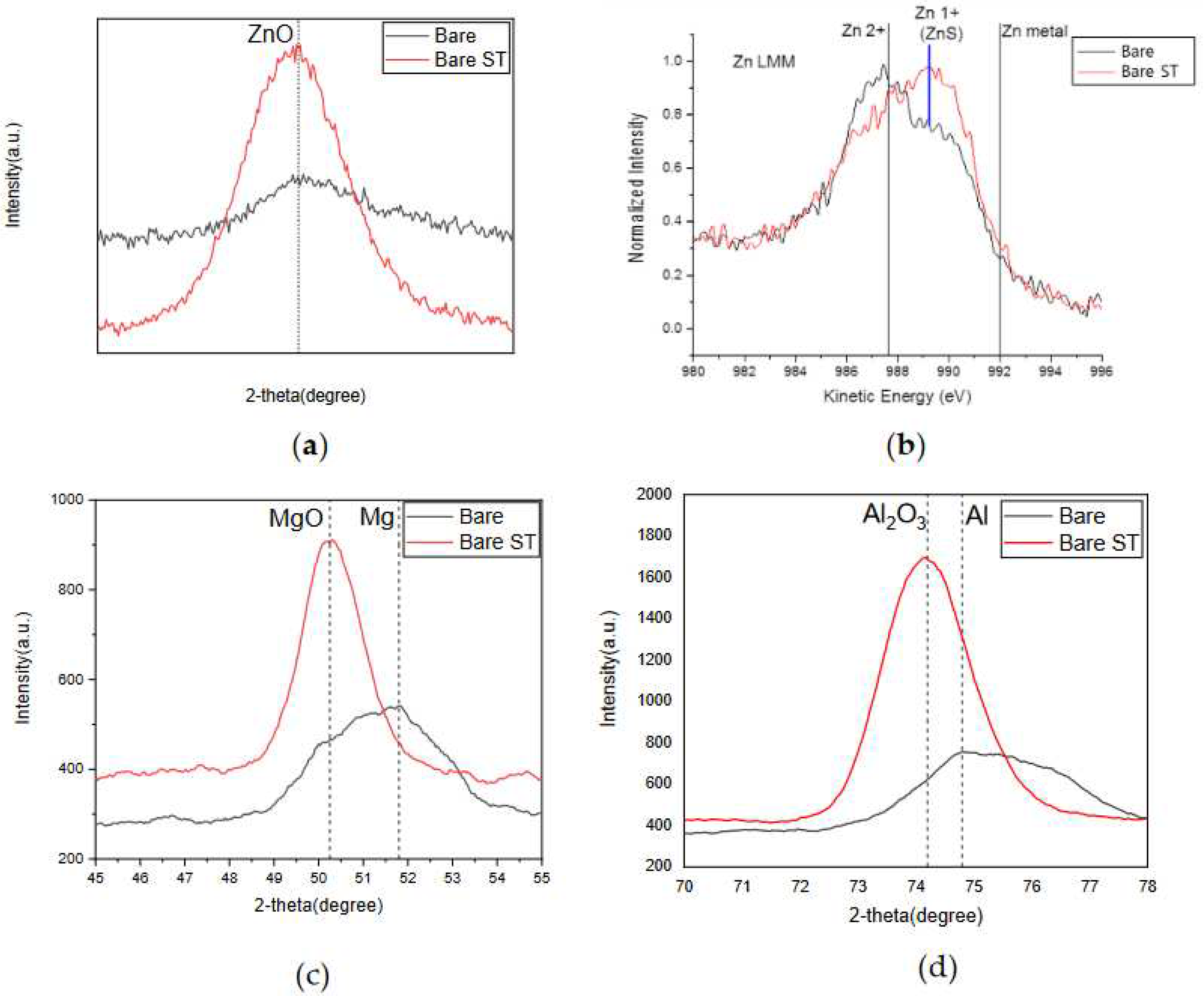

In addition, the crystal structure was verified through XPS spectra analysis, as illustrated in Figure 10 and Figure 11. Following water vapor treatment, discernible peaks emerged in the binding energy of the oxide and hydroxide in the Zn 2p, Mg 1s, and Al 2p results, corroborating the formation of oxide and hydroxide, in line with the findings from XRD.

Upon scrutinizing the Zn LMM spectra for the oxygen Auger peak in the Bare specimen, a peak indicative of Zn²⁺ ion binding was observed. Conversely, in the Bare ST specimen post-steam treatment, a peak corresponding to Zn¹⁺ binding was identified. This observation suggests a shift in the ZnO peak after steam treatment, signifying a transformation from ZnO to ZnO_1-x. The alteration is likely attributed to the change in oxidation state during the transformation from ZnO to ZnO_1-x. Furthermore, as depicted in Figure 11, the O1s binding energy peak was subjected to fitting, revealing three distinct peaks with binding energies of approximately 530.2, 530, and 528 eV, respectively. The lowest binding energy is associated with the metal-oxygen bond (M-O), such as ZnO or MgO, the intermediate energy corresponds to oxygen vacancy, and the highest energy is linked to the bond with moisture on the metal surface (OH^-) [15]. Notably, oxygen vacancy was not detected in the sample before water vapor treatment, but its occurrence was confirmed after treatment. Consequently, the observed increase in the interplanar distance of ZnO, as evidenced in the XRD results, is attributed to the occurrence of oxygen vacancy in ZnO, leading to the formation of an oxygen-deficient oxide

(2) Optical Characterization

Figure 12 illustrates the analysis of optical properties using UV-Vis-nir to measure reflectance across the wavelength range of 0-2500 nm. Upon measuring reflectance, it was observed that the black specimen exhibited low reflectance, akin to the brightness depicted in Figure 2. For the conversion of reflectance to absorbance, representing the extent of light absorption, the Kubelka-Munk equation (equation 3) was applied [16]. Upon examining the absorbance results, a sharp increase was observed around 390 nm in the visible light range for the black specimen after water vapor treatment, suggesting absorption of visible light by a certain factor, as depicted in Figure 12.

$$\mathrm{F}\left(\mathrm{R}\right)=\frac{{(1-R)}^2}{2R}=\frac{a}{s}\left(\mathrm{F}\right(\mathrm{R}):\mathrm{absorbance}\mathrm{R}:\mathrm{diffuse}\mathrm{reflectance}, \alpha :\mathrm{absorption}\mathrm{coefficient}, \mathrm{s}:\mathrm{scattering}\mathrm{coefficient})$$

(3)

This is attributed to the absorption of visible light resulting from ZnO defects caused by an increase in interfacial distance due to oxygen vacancies, as revealed in the preceding XRD and XPS analyses. In addition, the band gap was measured based on the obtained absorbance using the Tauc plot. The Tauc plot graph can be obtained by using photon energy and optical energy as the x and y axes, respectively, and the formulas for obtaining photon energy and optical energy are shown in Equation 4 and Equation 5 [17].

$$\mathrm{E}=\frac{hc}{\lambda }(\mathrm{E}:\mathrm{photon}\mathrm{energy}, \mathrm{h}:\mathrm{Planck}\mathrm{constant}, c:\mathrm{speed}\mathrm{of}\mathrm{light}, \lambda :\mathrm{wavelength}\mathrm{of}\mathrm{light})$$

(4)

$${\left(\mathrm{a}\mathrm{h}\mathrm{v}\right)}^2=2.303·\mathrm{F}\left(\mathrm{R}\right)·\mathrm{E}\left(\mathrm{F}\right(\mathrm{R}):\mathrm{absorbance}, \mathrm{E}:\mathrm{photon}\mathrm{energy})$$

(5)

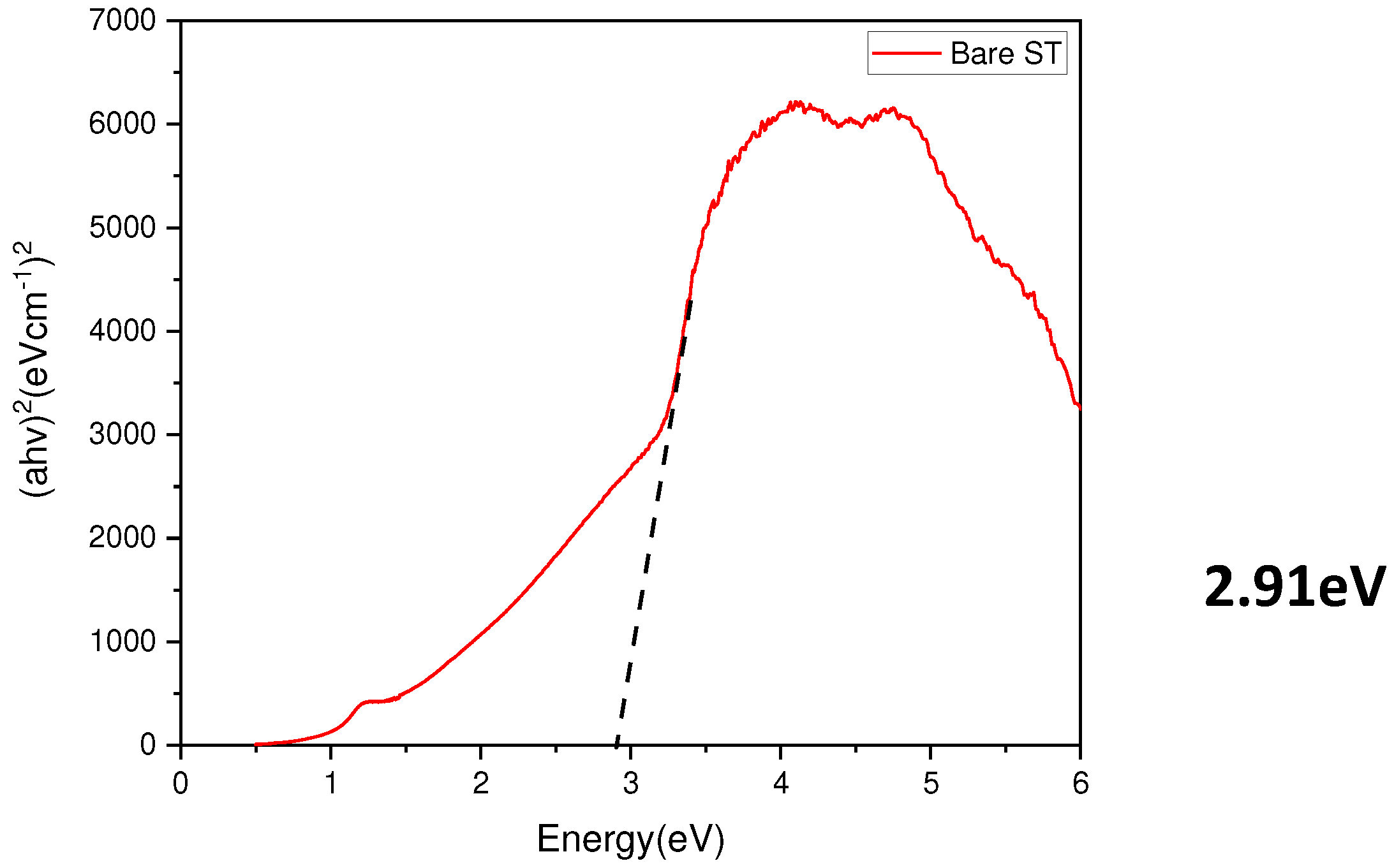

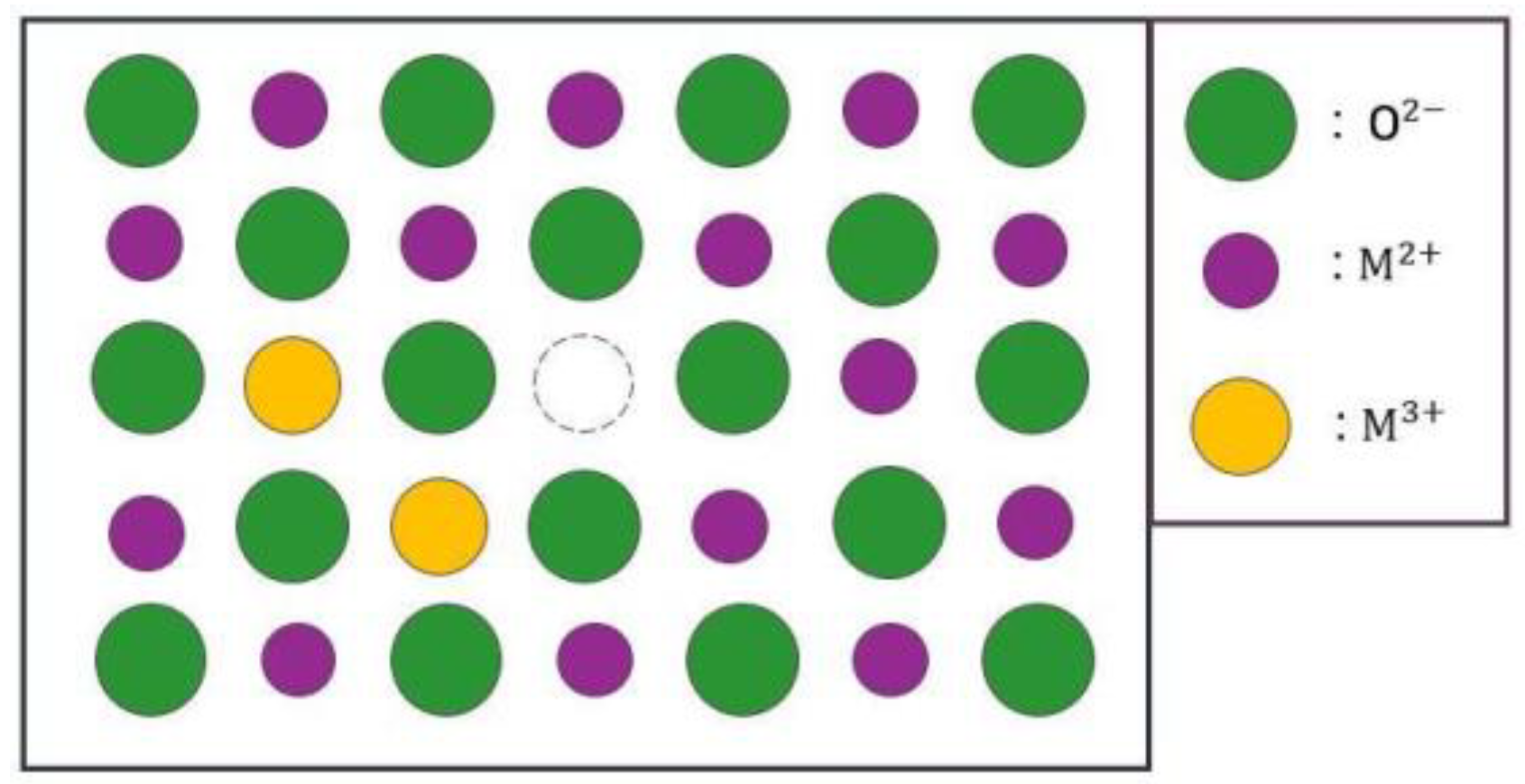

Derived from the absorbance, the band gap of Bare ST was calculated to be approximately 2.92 eV, as illustrated in Figure 13. This value is lower than the typical band gap of ZnO, which is 3.4 eV, indicating that the band gap energy decreases with the proportion of oxygen in ZnO [18]. Hence, the band gap measurement implies the presence of oxygen deficiency in ZnO. As observed in Figure 14., the reactive Mg and Al ions combine with oxygen to form ZnO_1-x, an oxygen-deficient oxide, by extracting oxygen from ZnO.

4. Conclusions

This study delves into the mechanism of blackening on the surface of Zn-Mg-Al alloy-coated steel sheets resulting from high-temperature water vapor treatment, produced through the hot-dip galvanizing method. The findings can be succinctly summarized as follows:

1)

Following water vapor treatment of the Zn-Mg-Al alloy-plated steel sheet, surface roughness increased, and particle size slightly grew. Examination of the surface and cross-section after water vapor treatment revealed the formation of an oxide layer, suggesting that the primary contributor to blackening is likely the influence of oxides, such as ZnO and Mg(OH)₂ in the surface layer.

2)

Oxides and hydrated oxides were confirmed to form after water vapor treatment, leading to the creation of oxygen vacancies. This resulted in an increase in the lattice spacing of ZnO and the formation of oxygen-deficient oxide.

3)

Measurement of the optical bandgap of the blackened test specimen yielded a value of approximately 2.9 eV, significantly lower than the 3.4 eV of ZnO. This indicates the formation of a non-stoichiometric structure, ZnO_1-x, due to the presence of defects. Visible light absorption by these defects is determined to be the cause of blackening.

4)

The test specimen in this study had a composition of Zn 94.5 wt.%, Mg 3.0 wt.%, Al 2.5 wt%. Future research should explore blackening under improved conditions by varying the ratios of Mg and Al, investigating factors promoting blackening at lower energy levels.
