Membrane Separation of Chicken Byproduct Hydrolysate for Up-Concentration of Bioactive Peptides

1. Introduction

Biotransformation of underutilized protein biomasses (e.g., food processing byproducts) to value-added ingredients is an important element in efficient resource utilization. Enzymatic protein hydrolysis (EPH) is one of the attractive biotechnological processes used for the degradation of protein biomasses, thereby enabling the recovery of valuable ingredients such as bioactive peptides, lipids, and minerals [1,2]. Small molecular weight bioactive peptides generated using EPH have great potential as health-promoting ingredients in the form of functional foods and nutraceuticals [3]. Beyond their role as sources of nutrients, such peptides have been shown to have a wide range of biological functions, including blood glucose regulation, antihypertensive and cholesterol-lowering effects [4,5]. In the production of such bioactive peptides for human consumption, downstream separation technologies are essential unit operations implemented to improve vital sensory attributes as well as to concentrate bioactive constituents [6]. Typically, EPH relies on the use of food-grade protease cocktails with limited specificity and the resulting hydrolysates are complex mixtures of various peptides, undigested proteins, free amino acids, minerals, and other metabolites. Hence, when a specific type of health-promoting bioactive peptides is the aim, it is necessary to have adequate downstream processing technologies (i.e., filtration). Such filtration can have a dual aim of disregarding undesired constituents (e.g., allergenic large proteins) as well as up-concentration of the desired constituents (e.g., bioactive peptides). Bioactivity of a given peptide depends on various characteristics, including amino acid sequences, molecular weight (MW), hydrophobicity, charge, and acido-basic character [7]. Peptides MW has been demonstrated to have a great impact on the bioactivity of protein hydrolysates [8,9]. Lima et al. have shown that small molecular weight peptides isolated from chicken byproduct hydrolysates using size exclusion chromatography are associated with in vitro antidiabetic activity [10]. When the molecular weight is given as the determinant factor for a given bioactivity, pressure-driven membrane separations can be used as a downstream unit operation to increase their specific activity.

Membrane separations, including microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO), are useful techniques to extract, concentrate, purify, or fractionate valuable molecules from effluents, wastes, or by-products from food processing industries [11,12]. They have been used for a couple of decades to treat protein hydrolysates of dairy origin [13,14], and animal [15] or vegetable/fruit products [16]. It can also be used for protein separation, but it is limited to the isolation of proteins with relatively close molecular weight [17]. It relies on the action of pressure to transport the solvent (usually water) and dissolved substances smaller than the pores through the membrane, while dissolved substances bigger than the pore size and suspended substances are retained. Due to the concentration difference between the two sides of the membrane, osmotic pressure, which adds to the flow resistance of the membrane, needs to be overcome as well [18]. Membrane fouling, which is mainly the adsorption and deposition of retained substances on the membrane surface and subsurface, is the main factor in the process of protein ultrafiltration [19]. According to their molecular weight cut-off (MWCO), UF or NF have been suggested for the separation of peptide hydrolysates [20]. NF can be used to concentrate hydrolysates [21,22], whereas UF membranes with high MWCO (20 to 100 kDa) are adapted to the separation of peptides and non-hydrolyzed proteins or proteolytic enzymes [23,24]. On the other hand, UF membranes with intermediate MWCO (about 4000 to 8000 Da) allow hydrolysates to be fractionated with the result of enrichment in some ranges of molecular weight [25].

This work aimed to study the different filtration processes for up-concentration of dipeptidyl peptidase IV (DPP-IV) inhibiting bioactive peptides from chicken byproduct protein hydrolysates. DPP-IV is an important therapeutic target for type 2 diabetes, and peptides from EPH of byproducts have been indicated as potential inhibitors of this target. A recent study by Wubshet et al. [26] has demonstrated that DPP-IV inhibition of the crude chicken byproduct hydrolysate is associated with low molecular weight peptides with an average molecular weight of 500 Da. The present study was designed to evaluate MF, UF, NF, and RO as scalable downstream processes for up-concentration of the low molecular weight bioactive peptides. Chicken byproduct hydrolysate was fractionated systematically in a four-step process consisting of MF, UF, NF, and RO. To evaluate the performance of the separation processes, the behavior of the membrane permeability during the separation process was obtained from the measurement of mass flow rates. The composition of the chicken byproduct hydrolysate and the separation resulting from the MF, UF, NF, and RO were characterized by SEC (Size exclusion chromatography) and LC-OCD-OND (Size-exclusion chromatography-organic carbon detection-organic nitrogen detection) chromatograms. Moreover, in vitro DPP-IV inhibition of the permeates after the different filtration stages were valuated to guide and optimize the up-concentration of the bioactive peptides.

2. Materials and Methods

2.1. Preparation of chicken byproduct hydrolysate

Mechanical deboning chicken residue (MDCR) biomass was supplied by a Norwegian food producer (Nortura, Hærland, Norway). The biomass was homogenized using a food processor, vacuum packed into plastic bags, and stored at -20 °C before the hydrolysis. Hydrolysis of MDCR was performed as described in [26]. The hydrolysis was performed in a Reactor-Ready™ jacketed reaction vessel (Radleys, Saffron Walden, Essex, United Kingdom). Water running through the vessel jacket was kept at 60 °C and delivered using a JULABO circulator pump (Julabo GmbH Seelbach, Germany). Homogenized MDCR (500 g) was suspended in 1 L distilled water and stirred at 300 rpm until the suspension reached 60±1 °C (45 min). Then, the selected protease preparation (FoodPro^® PNL, 25 g, 5% w/w) was added to the stirring mixture to start the hydrolysis. Hydrolysis time was 45 minutes, after which hydrolysis was quenched by thermal inactivation of the protease. Thermal inactivation was achieved by the rapid increase of temperature in the microwave oven (Menumaster, ACP, IA, USA) followed by heating the mixture at 95 °C for 15 minutes inside the water bath (Precision GP 10, Thermo Scientific, MA, USA). After inactivation, the mixture was centrifugated for 15 minutes, at 4400 rpm at 25 °C, using Multifuge4 KR centrifuge (Thermo Scientific, MA, USA) to separate the sediment from the supernatant. The supernatant was transferred into an extraction funnel to separate the oil from the aqueous phase. The aqueous phase was then filtered using Pall^® Depth Filter Sheets T2600. The water phase was aliquoted in 250 mL plastic containers and stored frozen at -40 °C, until it was lyophilized using a Gamma 1-16 LSC plus freeze dryer (Martin Christ Gefriertrocknungsanlagen, Osterode am Harz, Germany). The chicken hydrolysate solution used in filtration experiments was prepared by mixing 3.75 g of raw chicken byproduct hydrolysate (RCH) powder in 1 L of deionized water. The amount of 500 mL of the initial solution was divided into 4 filtration series as follows: RCH1 (100 mL of initial solution), RCH2 (80 mL of initial solution), RCH3 (60 mL of initial solution), RCH4 (40 mL of initial solution).

2.2. Dead-end membrane filtration

2.2.1. Stirred cell membrane filtration unit

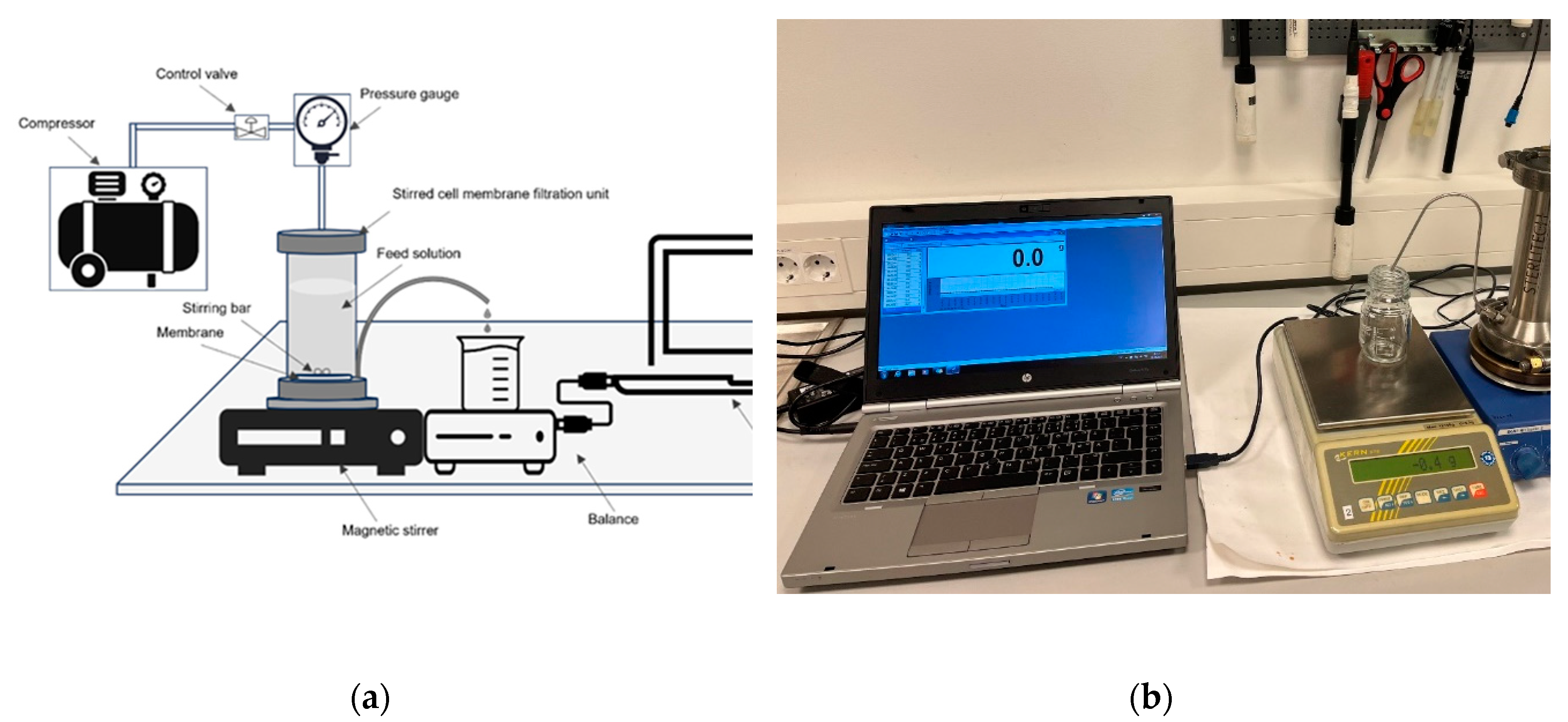

The setup of the stirred cell membrane filtration unit is shown in Figure 1. Membrane filtration experiments were carried out at an ambient temperature of 19–22 ˚C, using a high-pressure stirred cell dead-end filtration unit (Sterlitech Corporation HP4750, WA, USA), with a maximum volume of 316 mL, a membrane diameter of 47 mm, and an active membrane area of 8.55 cm². The operating pressures were supplied by a compressor and were chosen between 3 and 6 bar, depending on the resistance of the membranes used. During the experiment, the pressure was measured and kept constant using a pressure gauge and further adjusted by the control valve. A homogeneous feed to the membrane was guaranteed by a stir-bar hanging above the membrane, while the filtration unit was placed on a magnetic stirrer set to 50 rpm. The permeate was collected in a beaker placed on an electronic balance (PCB 1000, Kern & Sohn GmbH, Germany), connected to a data acquisition system, and the mass was recorded at regular 10-second intervals. The filtering continued until all the volume was filtered. The monitored mass flow was converted to volume flow using density at the given temperature. When a new filtration experiment was started, the first 5 mL of filtrate were discarded, considering a dead volume on the filtrate side of the filtration unit, and the tubes to the beaker collecting the filtrate. After filtration, the flange at the top of the filter was opened to remove the filter paper with the cake. The mass of the filtrate, filtration time, pressure, and filtration temperature were recorded for the calculation of a filtering rate.

2.2.2. Membranes

The separation experiments were performed using the following membranes:

• Pall^® MF membrane (FluoroTrans W PVDF, Pall, USA) with a nominal pore size of 0.2 µm;
• TriSep polyethersulfone UF membrane with a MWCO of ~5 000 Da (TriSep flat sheet membrane, UF5, PES, 47 mm, Sterlitech, USA);
• TriSep poly piperazine-amide NF membrane with MWCO ~200 Da (TriSep flat sheet membrane, TS80, PA, 47 mm, Sterlitech, USA);
• TriSep polyamide-TFC RO-membrane (MWCO not available) (TriSep flat sheet membrane, ACM4, PA, 47 mm, Sterlitech, USA).

Before the filtration experiments, the membranes were soaked in DI water for at least 24 hours to ensure that any shipping or storage preservatives were washed out properly, and the membranes were allowed to swell. After a membrane had been placed in the stirred cell, compaction was guaranteed by filtering 20 mL (or until constant flux had been achieved) of deionized water at the chosen transmembrane pressure (TMP).

2.2.3. Reference membrane flux using deionized water

The permeabilities of all membranes were determined from the filtration of deionized water at a pressure of 3 bar, and after a stable flux had been achieved. The permeabilities obtained from these tests are referred to as the “clean membrane flux”. They are used as the benchmark to judge the impact of particulate and dissolved substances and the effect on membrane fouling.

2.2.4. Filtration operating performance

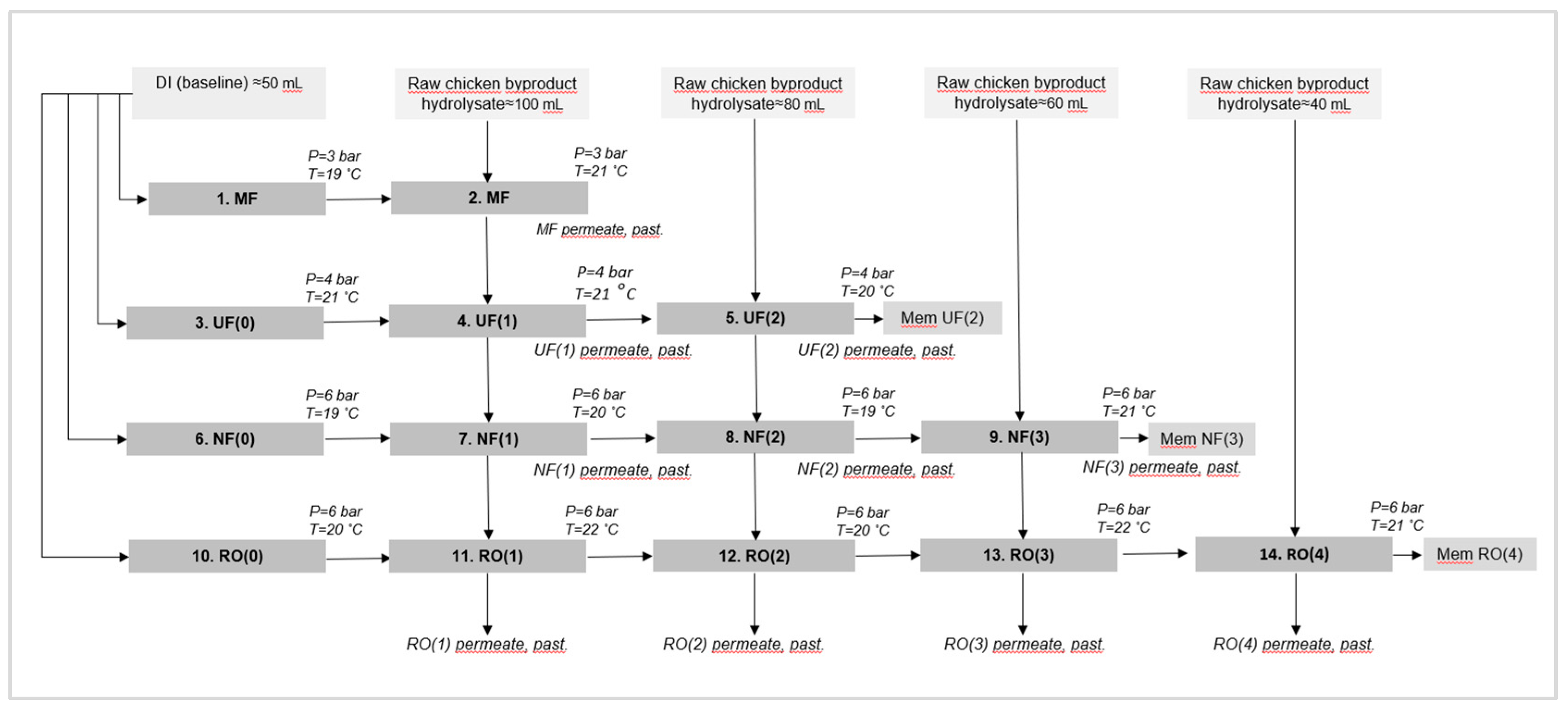

The performance of four different membranes (MF, UF, NF, and RO) in the treatment of chicken hydrolysate was studied. The experimental flow is depicted in Figure 2. These processes yielded the samples MF, UF(1), UF(2), NF(1), NF(2), and NF(3), as well as RO(1), RO(2), RO(3) and RO(4), which were screened for inhibition of DPP-IV enzyme, and analyzed using size exclusion chromatography and LC-OCD-OND. After each filtration step, samples of 7 mL permeate were reserved for further analysis of bioactivity.

2.2.5. Pasteurization of permeates

At the end of each filtration step, the permeates produced were pasteurized at 90 °C for 30 minutes to avoid degradation of permeates caused by microorganisms. Pasteurization was achieved using a heating circulator with a capacity of 4.5 L (Julabo GmbH Seelbach, Germany).

2.2.6. Calculation of permeability

The mass flow rate obtained using the mass on the balance per unit of time was converted to a volume flow rate considering the density of the liquid at the given temperature and membrane flux J_m was calculated according to equation 1.

$${\mathrm{J}}_{\mathrm{m}}=\frac{Q}{a}$$

(1)

Where J_m = volumetric water flux through membrane [L/m²/h]; Q = flow rate [L/h]; a = membrane area [m²].

As the membrane flux is dependent on viscosity and thus on temperature, membrane flux J_s, normalized for the standard temperature of 20 °C, was calculated according to equation 2 [27].

$${\mathrm{J}}_{\mathrm{s}}=\mathrm{J}{\mathrm{m}}_{}\left(\frac{{\mu }_m}{{\mu }_s}\right)$$

(2)

Where J_s = flux at standard temperature (typically 20 °C) [L/m²/h]; J_m = flux at measured temperature [L/m²/h]; µ_m = dynamic viscosity of permeate at measured temperature [kg/m/s]; µ_s = dynamic viscosity of permeate at standard temperature [kg/m/s].

Further, the specific flux was normalized for pressure by calculating the permeability P_s at the standardized temperature of 20 °C according to equation 3.

$${\mathrm{P}}_{\mathrm{s}}=\frac{J_s}{TMP}$$

(3)

Where TMP = transmembrane pressure [bar].

2.3. Analytical methods

2.3.1. Turbidity, conductivity, pH

The turbidity of filtrates at different stages of the filtration process was monitored and measured using a turbidimeter (Hach 2100Q, USA) with a repeatability of 0.01 NTU. The pH of the permeates was measured with a pH meter (Multi7430, VWR, Canada) equipped with an electrode compensating for temperature variation. The conductivity of permeates was measured using a conductivity meter (Multi7430, VWR, Canada) with a measurement range of 0.00 to 20.00 mS/cm.

2.3.2. Particle size distribution

Particle size concentration and distribution of raw chicken byproduct hydrolysate was measured using a Particle Counter PCSS fluid lite equipped with a LDS45/50 laser sensor (Markus Klotz GmbH, PCSS fluid lite, Germany) set to a particle size measuring range from 0.8 to 100 µm with 16 size classes, and a flow rate of 30 mL/min. During the measurement, the feed was stirred using a magnetic stirrer at 200 rpm at room temperature for all the experiments. 10 mL of the raw chicken hydrolysate was measured in 5 replicates. Measured data were evaluated using the Protrend software.

2.3.3. DPP-IV inhibition assay

Dipeptidyl peptidase IV (DPP-IV) inhibition study was performed using a commercial screening Assay Kit (ab133081) (Abcam PLC, Cambridge, UK). The assay is based on a release of the fluorescent moiety from the fluorogenic substrate (Gly-Pro-Aminomethylcoumarin or AMC), caused by the activity of the DPP-IV enzyme. For the initial screening, hydrolysates were tested using final concentrations of 1.0 mg/mL and 0.5 mg/mL. For IC₅₀ value measurements, a total of nine concentrations were tested in a range from 0.01 mg/mL to 7.00 mg/mL, in triplicates. Inhibitor samples were prepared by dissolving lyophilized hydrolysates in the assay buffer (20 mM Tris-HCl, pH 8.0, containing 100 mM NaCl, and 1 mM EDTA) to the corresponding stock solution and subsequently filtering them through a Millex-HV PVDF 0.45 μm 33 mm filter (MilliporeSigma, Burlington, MA, USA). The assay kit was used according to the instructions from the manufacturer. Experiments were performed in triplicates, in 96-well microplates, with a final volume of 100 µL per well. Inhibitor wells contained 10 µL of the test sample, 10 µL of the enzyme solution, 50 µL of the substrate solution, and 30 µL of the assay buffer. To the initial activity wells, assay buffer was added instead of inhibitor solution, and to the background wells, assay buffer was added instead of both inhibitor and the enzyme solution. Sitagliptin (final conc.=100 µM) was used as a positive control for the inhibition. The assay mixture was incubated for 30 min at 37 °C before acquiring emission values (λ_exc=355 nm, λ_em=455 nm). Fluorescence measurement was carried out using a Synergy H1 hybrid multi-mode microplate reader (SynergyBiotek, Winooski, VT, USA). The average value of background fluorescence was subtracted from all the readings of the samples. The % inhibition of each sample was calculated relative to the initial activity of the enzyme (with H1, out of any inhibitor added) as follows:

$$\%Inhibition=\frac{Initial enzyme activity - Enzyme activity with inhibitor}{Initial enzyme activity}x 100 \left(4\right)$$

2.3.4. Size exclusion chromatography

Samples of permeates for high-sensitivity, size-exclusion chromatography with organic carbon detection and organic nitrogen detection (LC-OCD-OND) analysis were collected in dedicated 10 mL oven-burned DOC-free amber glass vials. For the analysis, samples were diluted 400 times using deionized ultrapure water. Signals resulting from the deionized water were subtracted from the signals obtained from diluted samples before further calculation of the fraction’s concentrations. Quantitative analysis of organic matter fractions was performed by a modified version of the LC-OCD-8 model; SC2000 system (Postnova analytics, Landsberg, Germany) together with high-sensitivity organic carbon detection OCD (DOC-Labor Huber), UV-detector PN3211 (Postnova analytics) and SEC column filled with Toyopearl HW-50S (30 µm, dimensions 250x20 mm) [28,29]. Data interpretation was carried out with the evaluation software ChromCALC.

In addition, the size-exclusion chromatography equipped with UV detection (LC-UV) was performed as described by Wubshet et al. [30]. Chromatographic runs were controlled from Chromeleon™ Chromatography Data System (CDS) software (Thermo Fisher Scientific). From chromatographic runs of both molecular weight standards and test hydrolysates, a UV trace of 214 nm was used. SEC chromatograms of the hydrolysates were converted to molecular weight distributions and weight average molecular weights (MW) were calculated, using a calibration curve constructed based on molecular weight standards. These calculations were performed in MATLAB (R2022b, The Mathworks Inc.), using the openly available SEC2MWD toolbox [31]. Areas of the specified fractions in the chromatogram were calculated using the same toolbox.

3. Results and Discussion

3.1. Physical and chemical characterization of hydrolysate

The physical and chemical properties of raw (unfiltered) and MF-filtered hydrolysates are given in Table 1. The pH of the hydrolysates might impact the membranes, however, in the measured samples the pH was neutral. Conductivity reflects the concentration of salts. High salt concentrations will cause high osmotic pressure in NF and RO. Conductivity was moderately low with 600 to 800 µS cm^-1. Turbidity is a proxy for particle concentrations and allows prediction of how particle concentrations might deposit on the membranes and reduce flux. The measured turbidity of the unfiltered hydrolysate was approximately 33 NTU. MF (0.2 µm pore size) removed most of the particulate matter, decreasing the turbidity from 33.6 to 5.8 NTU. Pasteurization of the hydrolysate increased the conductivity for both the unfiltered and filtered samples. This points to the dissolution of otherwise colloidal substances, which even pass the MF membrane, at elevated temperatures during pasteurization. This hypothesis was confirmed by the decrease in turbidity of the filtered hydrolysate from 5.8 NTU to 4.1 NTU, due to pasteurization. For the unfiltered samples, the dissolution of relatively few colloidal particles was not reflected in a measurable lower turbidity.

3.2. Particle size distribution

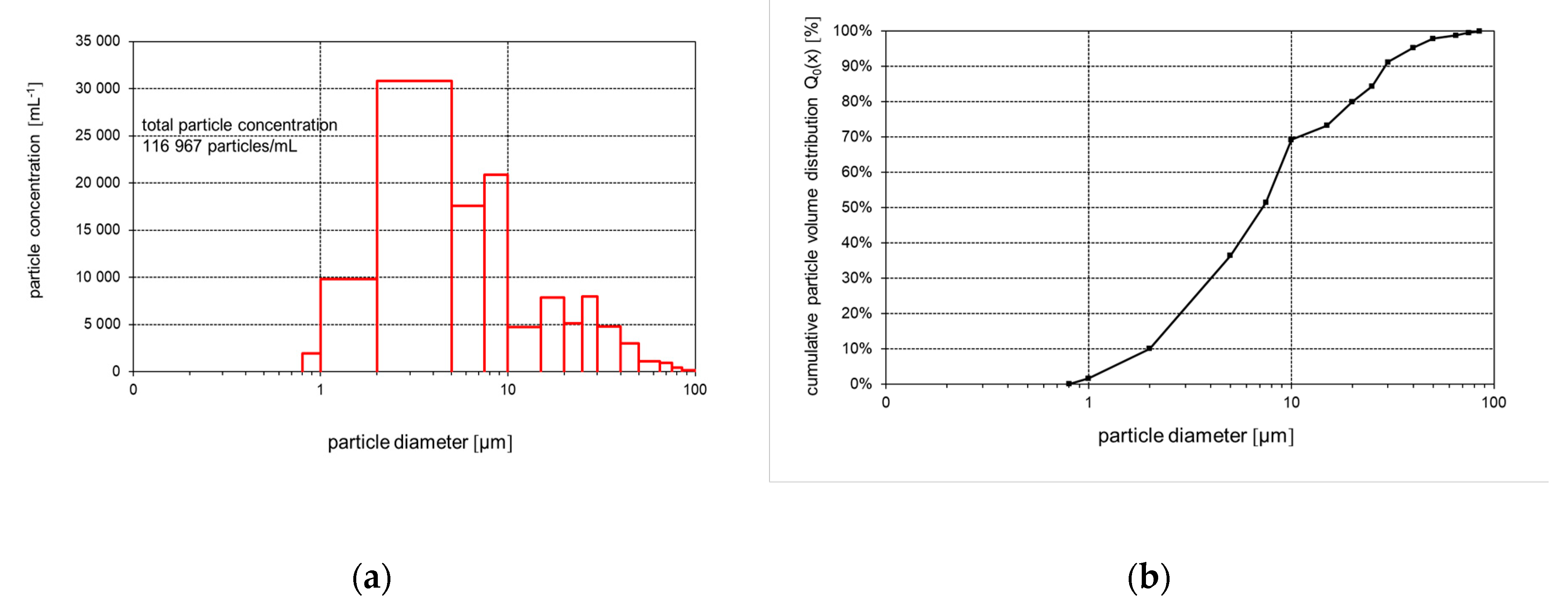

Figure 3 shows the particle concentrations in the different size classes (a) and the particle size distribution (b) of the raw chicken byproduct hydrolysate. The total particle concentration in the raw hydrolysate was found to be 116 967 particles per mL (Figure 3 (a)). This is a high concentration and corresponds to the high turbidity. Diameters of 0.8 µm are below the optical resolution of the instrument, and therefore not counted. Most particles were found in the size classes below 10 µm, which comprise about 70% of all particles. Also, a break in the slope of the cumulative number distribution can be seen, as the slope decreases sharply at that size (Figure 3(b)). In the production of the hydrolysate (Section 2.1) depth filters were used, which, according to the manufacturer, perform best at particle sizes above 15 µm, i.e., remove particles above 15 µm best. Thus, the results from the particle size measurements were in accordance with the production process. The high particle concentration and the size distribution, mainly demonstrate that most of the particles were below 10 µm in diameter. This confirms that high amounts of particles will deposit on the membranes when using UF, NF, and RO for the separation of dissolved substances.

3.3. Effect of membrane filtration on concentrations of organic matter fractions

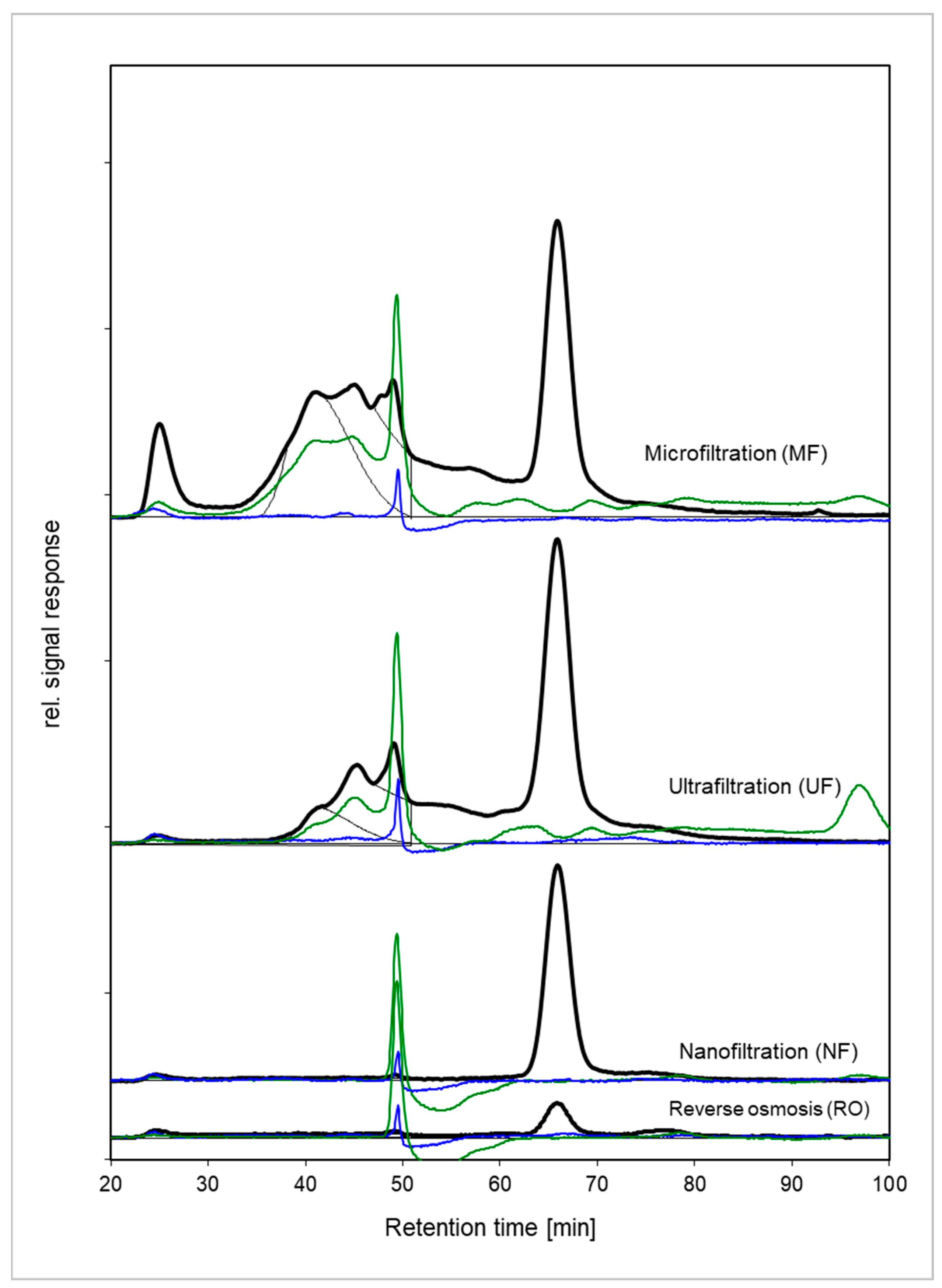

Concentrations of dissolved organic substances in the hydrolysate were analyzed using LC-OCD-OND. Figure 4 shows the chromatograms with carbon, nitrogen, and UV signals for chicken byproduct hydrolysate that had been filtered using MF, UF, NF, and RO membranes. The CDOC (Chromatographic organic carbon) is illustrated as distinctive peaks for specific molecular weight fractions. The size of the fractions was obtained and reported specifically for carbon and nitrogen by integrating the signal response over time. Fraction A mainly contains high molecular weight compounds with a MW>20 kDa, while fraction B has organic matter of about 1 kDa, fraction C of MW>500 Da, and fraction D organic substances of MW<500 Da. As low molecular weight compounds, different substances with MW<500 Da eluted at approximately the same time as fraction D (they were reported together with fraction D). The low molecular weight substances (LMW) of fraction D were eluted after 55 minutes and up to 100 minutes. A specific peak appeared at 66 minutes and was observed for all 4 filtrations of the chicken byproduct hydrolysate (Figure 4).

The concentrations of DOC (Dissolved organic carbon), and C and N in the different fractions, are compiled in Table 2. It is important to note the ratio N/C in the hydrolysate after MF. This ratio indicates the contribution of proteinaceous compounds to the organic substances. For fraction A (MW>20 kDa), nitrogen was found in a concentration of 16 ppm in the hydrolysate. Based on a rule of thumb for the carbon/nitrogen mass ratio of 3 in proteins and almost no nitrogen in polysaccharides [28], the percentage of proteinaceous carbon in fraction A can be estimated to be 43%. For fraction B, this was estimated to be 91%, and for fraction C, it was 64%. Fraction D may contain small peptides, single amino acids, and other low molecular weight compounds with MW>500 Da. Therefore, a calculation of the percentage of proteinaceous carbon was not reasonable for fraction D. Considering DOC, i.e., the sum of all fractions, the membranes with decreasing pore sizes from MF, UF, and NF to RO removed an increasing amount of dissolved organic substances. While DOC was about 2.1 g (2134 ppm C) in the MF-filtered hydrolysate, the concentration decreased to about 1.7 g after UF, to 0.39 g after NF, and further to 0.18 g after RO. Hydrophobic organic carbon (HOC) which contains organics that irreversibly stick to the SEC gel eventually passed the UF membrane, while both NF and RO decreased to 70 to 80 ppm.

Fraction A, which contains high molecular weight substances such as proteins with MW>20 kDa, was removed completely by UF. While the hydrolysate contains 114 ppm of fraction A, the concentration was decreased below the limit of quantification (LOQ) by UF. Also, fraction B, which contains organic matter in the molecular weight size range of 1 kDa, was removed by more than 75% (325 ppm past MF, 76 ppm past UF). Fraction C was removed to a minor extent by UF (about 26%, from 178 ppm to 132 ppm). Thus, it might happen that some of the desired peptides were removed by UF as well. Together, the fractions A and B comprised about 34% of the CDOC and about 20% of the DOC. Consequently, as the desired peptides are expected in the molecular size range of 500 Da, applying UF may remove about 20% of the undesired organic carbon. NF and RO removed both fractions A and B almost completely (>97%). However, they also removed fraction C, with MW around 500 Da, completely, indicating that they also may remove the desired peptides. Fraction D with MW<500 kDa passed UF almost completely, while it was removed completely by NF and RO. The same applies to the removal of low molecular weight neutrals by UF, which passed UF completely. About 50% passed NF, and about 13% even passed RO. Accordingly, as desired bioactive peptides have an average molecular weight of 514 Da [8], it can be concluded that UF may be a feasible separation to remove undesired high molecular weight substances from the chicken hydrolysate. Based on the LC-OCD analysis discussed above, the sought bioactive peptides were eluted as fractions C and D. Consequently, NF and RO would retain these bioactive peptides in the concentrate, together with all other organics substances in the same MW range, as well as those with a higher molecular weight (fractions A and B). NF and RO would, therefore, concentrate all types of organic substances. Hence, these two membrane filtrations were ruled out as a potential downstream separation approach for up-concentration of the sought bioactive peptides (i.e., fraction C). However, UF was shown to retain high molecular weight substances in fractions A and B, while the bioactive peptides in LC-OCD fractions C and D were eluted (Figure 4). Based on this, it is expected that the number of bioactive compounds will be higher in UF-filtered hydrolysate, compared to MF-filtered hydrolysate. Therefore, UF was selected as a promising filtration approach for further evaluation of bioactivity and molecular weight distribution of the permeates.

3.4. Membrane permeabilities

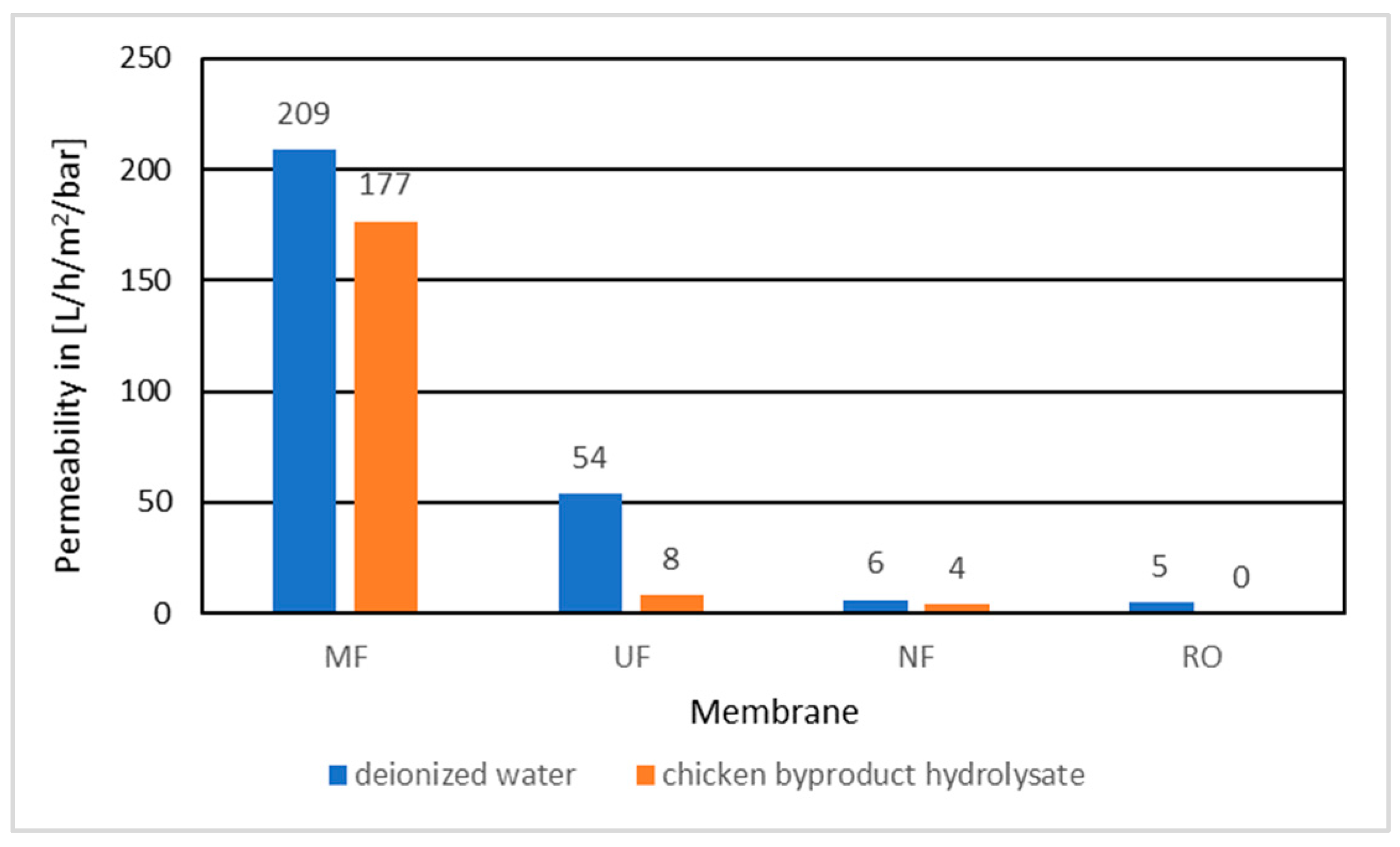

Figure 5 shows the permeabilities of the membranes when filtering deionized water and raw chicken byproduct hydrolysate through the MF, UF, NF, and RO membranes. The permeabilities of the deionized water were in the range expected according to the manufacturer’s specifications. While the permeability for the UF membrane was about 25% of the MF’s permeability, the NF’s permeability was about 3% (6.2 L/m²/h/bar), and the RO membrane permeability was about 2% (4.6 L/m²/h/bar) of the MF membrane’s permeability. As expected, when chicken byproduct hydrolysate was filtered, permeabilities were lower than the permeabilities of deionized water. The MF mainly removed particles with a diameter larger than about 0.2 µm and the permeability decreased by 15%. However, the UF decreased by about 85% (8.2 compared to 53.7 L/m²/h/bar) and the NF by about 35% (4.0 compared to 6.2 L/m²/h/bar). With RO the permeability was so low that it was not measurable. During several hours, only a few milliliters of sample were produced.

The decreases in permeabilities can be compared to the removal of organic carbon by the respective membrane filtration since the relative permeability, when compared to the permeability with deionized water, reflects the relative number of substances removed from the chicken byproduct hydrolysate and their properties in the respective pore size range. While MF removes particles, dissolved organic carbon (DOC) was not impacted. However, the high molecular weight substances from fractions A and B were removed almost completely by UF sticking to the membrane and causing a pronounced decrease in permeability (Table 2). Furthermore, the removal of DOC by NF was even more pronounced than for UF. As the high molecular weight compounds had been removed before by UF these did not block the NF membrane. The properties of the compounds in fractions C and D removed by NF did not block the membrane to an extent as high as the high molecular weight substances in fractions A and B. Hence, with moderate permeability and the desired molecular weight selectivity discussed previously, UF was chosen as a potential approach for the up-concentration of bioactive peptide fractions from crude chicken byproduct hydrolysate.

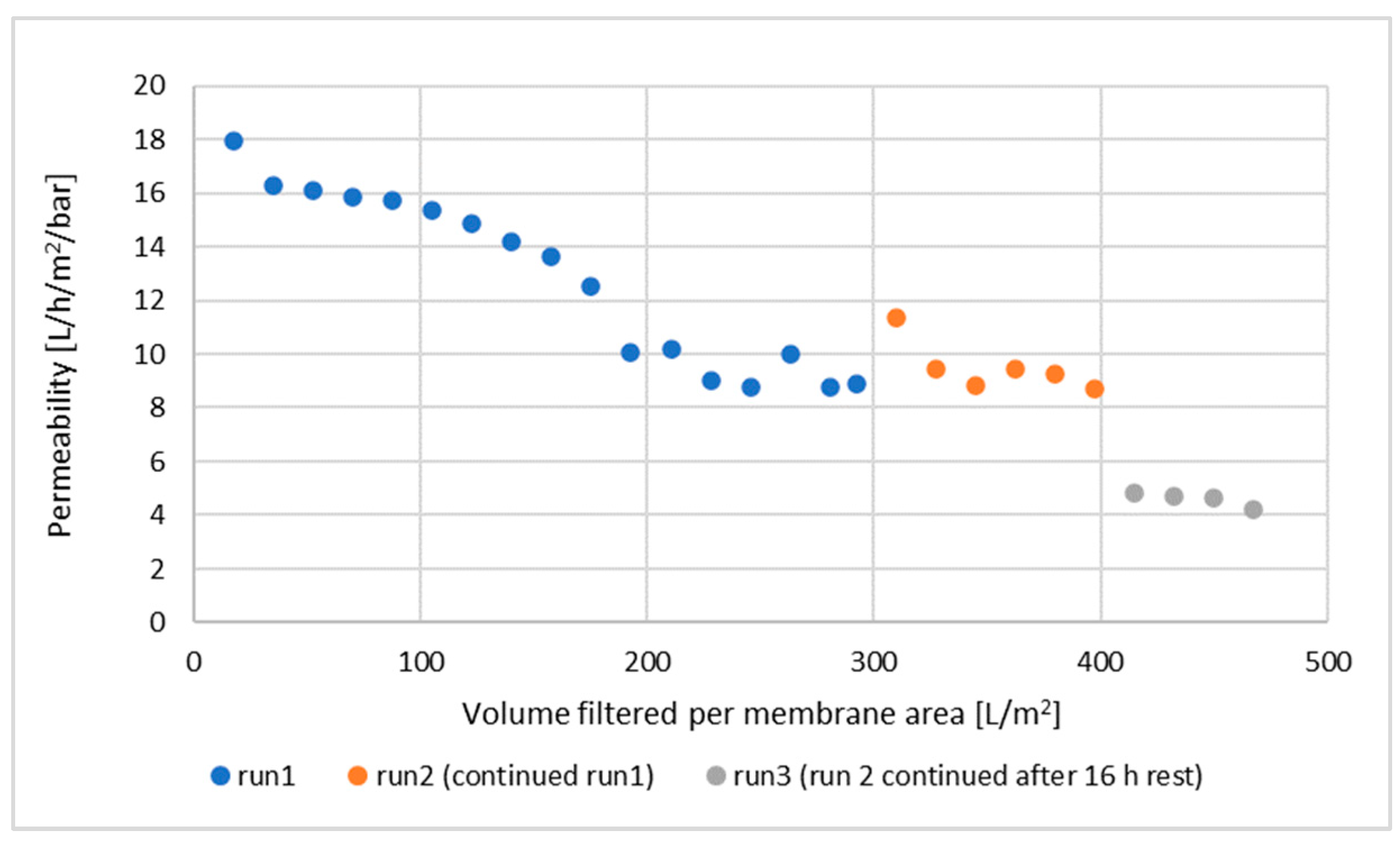

Figure 6 shows the impact of the treated volume on permeability, due to the deposit of particles and high molecular weight substances on the UF membrane. Membrane filtration was carried out in three phases. First, 250 mL (300 L/m²) were filtered without interruption. Then, the filtration was stopped and was taken into operation after refilling of hydrolysate for filtration. Last, the filtration had been stopped for 16 hours, to check the effect of an interruption of operation. For the first 300 L/m², permeability decreased continuously, due to deposition of particles and high molecular weight substances. It reached a plateau due to no further high molecular weight substances being able to penetrate and block the pores, due to lack of space and pore openings large enough. Further organic substances were deposited mainly on top of the membrane. Resting of the deposit, which might happen during an interruption of the process, may cause biological changes due to bacterial growth leading to higher resistance and thus lower permeability [20].

3.5. Effect of applied downstream processing on the DPP-IV inhibitory activity of the chicken byproduct hydrolysate

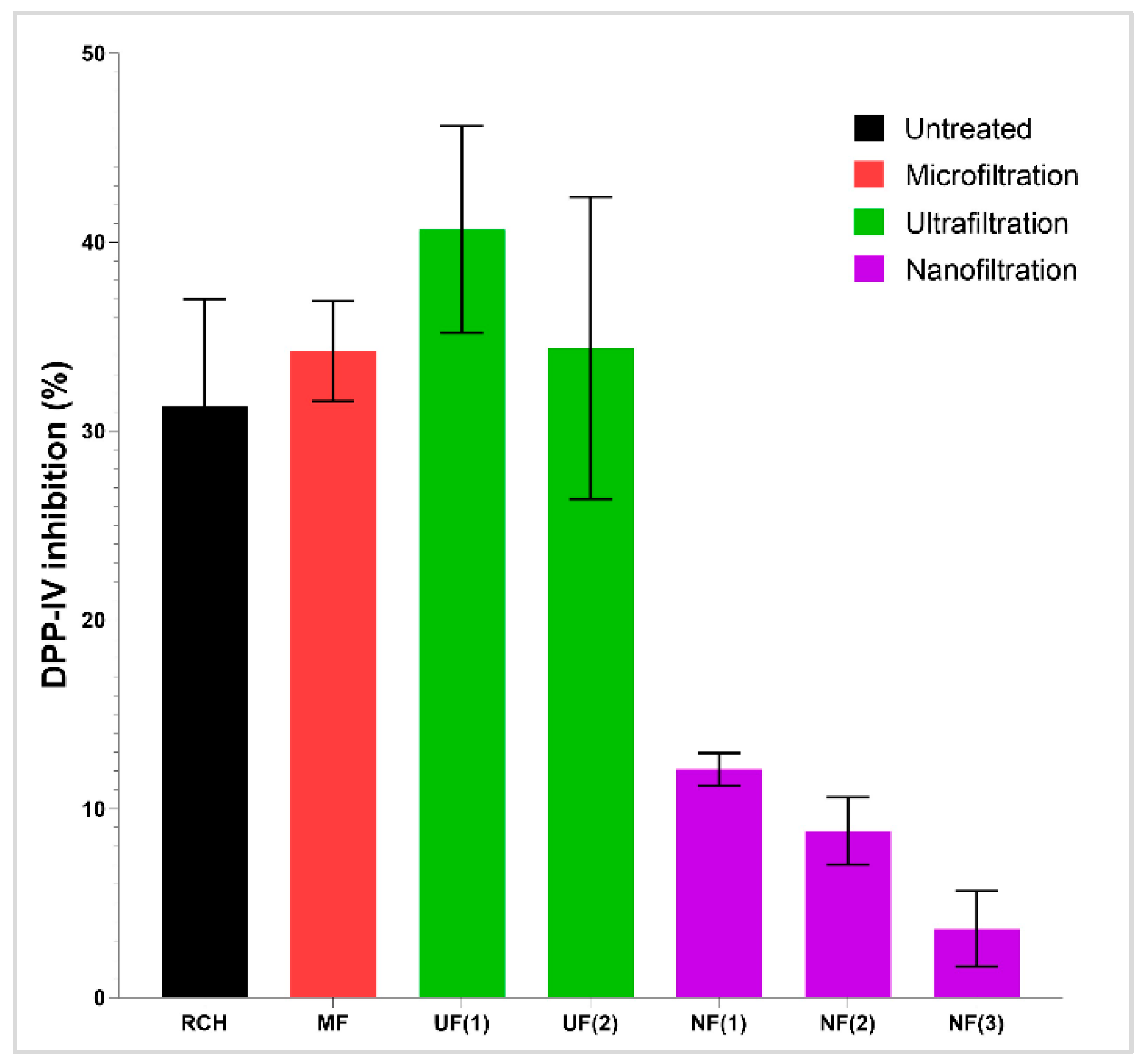

The effect of the performed downstream processing on the DPP-IV inhibitory activity of MDCR hydrolysate was evaluated. The preliminary screening involved the permeates produced as described in Section 2.2.4. The permeates MF, UF(1), UF(2), NF(1), NF(2), and NF(3) were tested at the assaying concentrations of 0.5 mg/mL (Figure 7). Comparing all the treatments, hydrolysates processed only by microfiltration and ultrafiltration (MF, UF(1) and UF(2)), showed the best DPP-IV inhibition (59.5–60.0% at 1 mg/mL and 34.2–40.7% at 0.5 mg/mL). This agrees with hypotheses discussed in Section 3.3, as well as with literature reports which confirmed that the bioactive peptides usually comprise two to twenty amino acids [32,33]. The nanofiltration process notably decreased the inhibitory activity, and these permeates (NF(1), NF(2), and NF(3)) showed low DPP-IV inhibition (9.5–21.8% at 1 mg/mL and 3.6–12.1% at 0.5 mg/mL). This confirms the conclusions drawn from the LC-OCD-OND analysis, that NF retained a major part of the bioactive peptides, while they passed the UF membrane. Samples obtained by RO treatments were not evaluated due to very low material recovery, which rendered this treatment not feasible for the intended purpose.

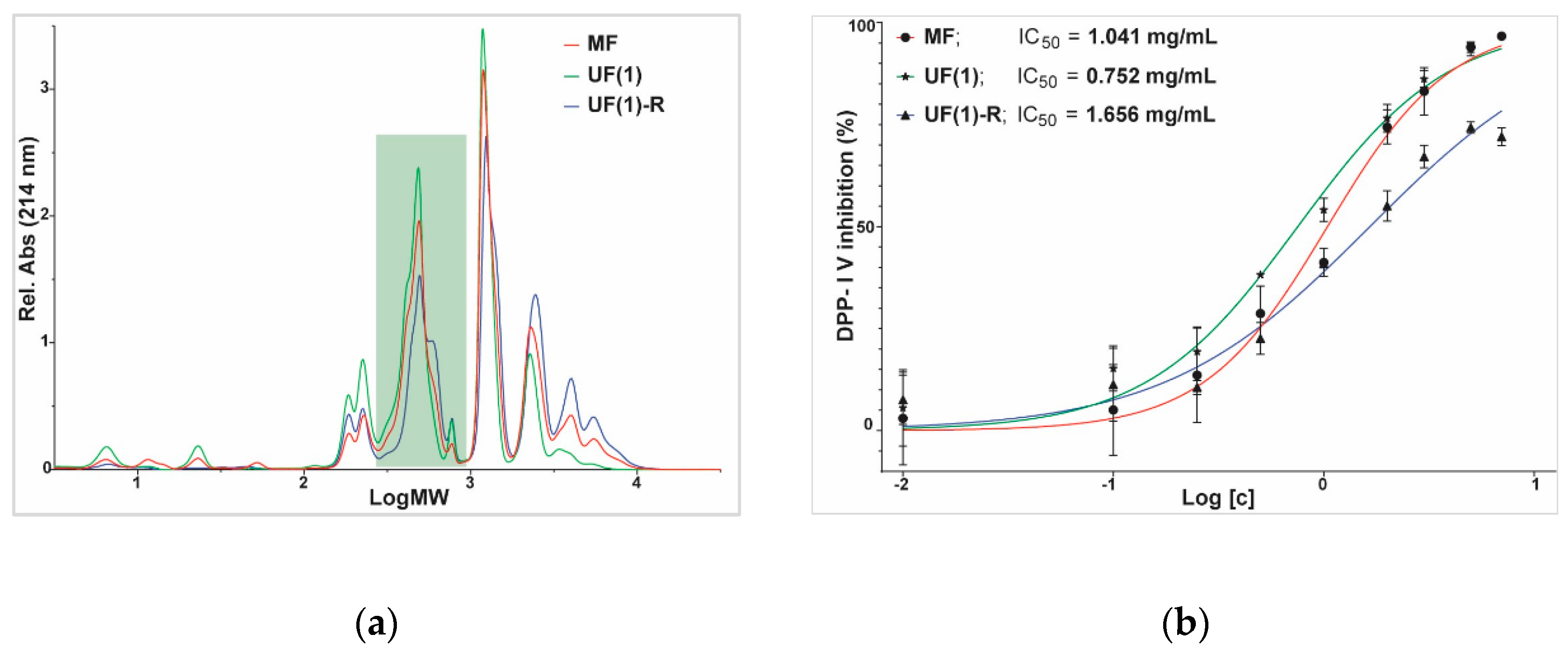

To study the effect of the promising MF and UF permeates more thoroughly, IC₅₀ values of these samples were determined (Figure 8). In addition, a portion of a retentate (UF(1)-R) from the production of sample UF(1) was collected, and its IC₅₀ value was determined, as well, for comparison purposes. Ultrafiltration sample UF(1), showed an IC₅₀ value of 0.75±0.07 mg/mL, comparable to other potent DPP-IV inhibitors derived from various food sources [34], and significantly more potent compared to microfiltration sample MF, which showed an IC₅₀ value of 1.04±0.12 mg/mL. On the contrary, the retentate sample UF(1)-R showed a significantly lower potency at an IC₅₀ value of 1.66±0.19 mg/mL.

SEC chromatograms (Figure 8 (a)) distinctly show the decrease in the amount of the largest peptides, with molecular weights larger than 1785 g/mol. The average molecular weight, calculated from the SEC chromatograms, was 883 g/mol for the UF(1), and 1437 g/mol for MF (0.2 µm). Retentate (UF(1)-R) had an AMW of 1759 g/mol. The amount of the fraction with the largest molecules decreased from 24.7% in 0.2 µm permeate to 10.6% in UF(1) permeate. The UF permeates had the largest amount of the fraction with molecular weights from 283 to 906 g/mol, corresponding to fractions C and D from LC-OCD-OND measurements.

4. Conclusions

This study presents the possibility of UF/NF separation as a downstream processing for chicken byproduct hydrolysates. The particle size distribution measurements of the chicken byproduct hydrolysate showed that most of the particles were below 10 µm in diameter confirming that high amounts of particles will deposit on the membranes when using UF, NF, and RO for the separation of dissolved substances. Of the four membranes studied, the UF membrane showed the best separation properties with respect to maximizing the yield and up-concentration of the bioactive peptides. It became clear that the membranes with decreasing pore sizes from MF, UF, and NF to RO removed an increasing amount of dissolved organic substances. The LC-OCD analysis confirmed that NF and RO would retain the bioactive peptides in the concentrate, together with all other organic substances in the same MW range, as well as those with a higher molecular weight. Hence, these two membrane filtrations were ruled out as a potential downstream separation approach for the up-concentration of the sought bioactive peptides. The permeabilities of the filtered chicken byproduct hydrolysates were considerably lower than the permeability of deionized water. The MF mainly removed particles with a diameter larger than about 0.2 µm and the permeability decreased by 15%. However, the permeability of UF decreased by about 85% and the permeability of NF by about 35%. The permeability of the RO was so low that it was not measurable. With moderate permeability and the desired molecular weight selectivity, UF was chosen as a potential approach for the recovery of bioactive peptide fractions from crude chicken byproduct hydrolysate. The permeate from UF showed the IC₅₀ value of 0.75 mg/mL, significantly more potent compared to microfiltration permeate from MF (IC₅₀ 1.04 mg/mL). SEC chromatograms showed a decrease in the amount of the largest peptides. In conclusion, UF was demonstrated to be a feasible downstream process for up-concentration of small molecular weight bioactive peptides from chicken byproduct hydrolysate.
