Hydroxyapatite as a Material for Transplantology: Clinical Experience and Prospects of Application

1. Introduction

The basis of modern medical technologies aimed at bone tissue regeneration is the widespread use of grafts, the main component of which is hydroxyapatite. The diversity of grafts and their constituent materials used is an equal reflection of the extremely large variety of pathological conditions of bone tissue requiring the application of regenerative medicine technologies.

At the same time, the use of any grafts requires preliminary detailed analysis of the immune response in response to the introduction of this or that material. In this context, the unique properties of such materials as hydroxyapatites and their compositions [1,2], including exceptional phenomena in the context of immune response [3,4,5], become extremely important. In this regard, there is a need for a more detailed presentation of hydroxyapatites and their compositions as the main components for the fabrication of grafts to restore structural and functional pathologies of bone tissue.

Native form of hydroxyapatite: description of structure and functions in the body

First of all, it is necessary to note the fact that hydroxyapatite is the native form of bone tissue calcium and occupies 70-90% of the bone tissue matrix volume. In bone tissue hydroxyapatite is represented in the form of crystals of small size and is characterized by the stoichiometric formula Ca₁₀(PO₄)₆(OH)₂ [6]. According to the age of a person, three main ranges of their average size are distinguished: up to 6 six years of age, 188-215 nanometers; between 6-19 years of age, 232-252 nanometers; and in adulthood, 252-283 nanometers [7]. Together with collagen I, which occupies up to 90% of the organic phase of bone, it forms the spectrum of the main structural and functional features of bone tissue [8].

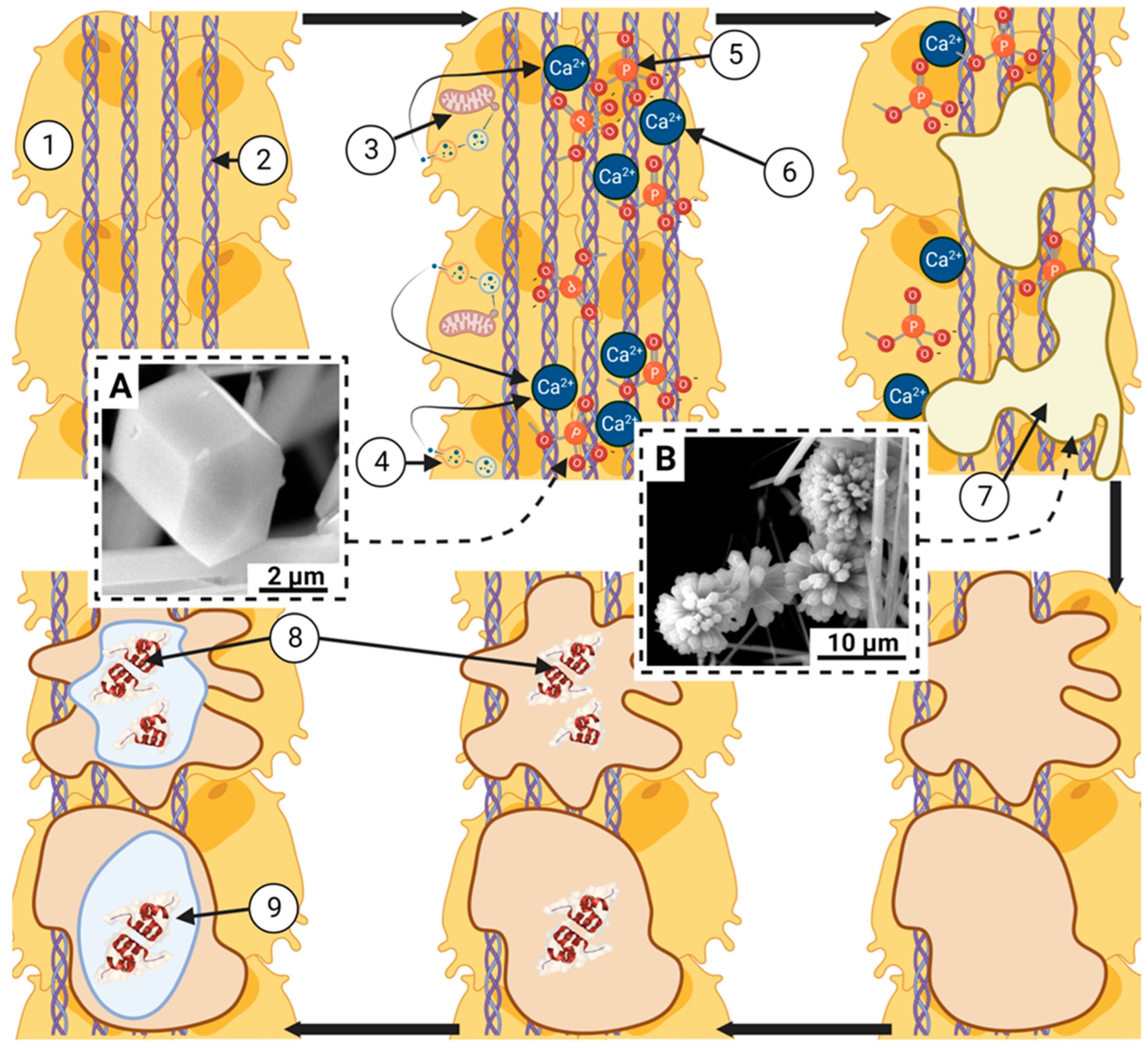

The immediate beginning of the formation of the mineral component of bone tissue is provided by the energy-dependent movement of Ca²⁺ cations and serum phosphate ions into the mitochondria of osteoblasts (Figure 1). When a solubility threshold is reached, micropackages of amorphous calcium phosphate or Posner clusters with the probable formula Ca₉(PO₄)₆ are precipitated, which are thought to be stabilized by an organic component, the so-called "Howard factor." Further release of amorphous calcium phosphate can occur in two ways: by direct transport directly across the mitochondrial membrane or by reverse phagocytosis [9].

The contents of vesicles initially form shapeless accumulations of calcium phosphate in dense association with collagen fibers. In the process of subsequent ion diffusion, rudimentary hydroxyapatite plates are formed, which in contact with each other sharply increase the degree of crystallization [10]. As a result, partly under the influence of noncollagen proteins [11,12,13], lamellar structures 2-4 nanometers thick are formed, the longitudinal axis of which is formed parallel to the axis of collagen fibrils (Figure 1) [6].

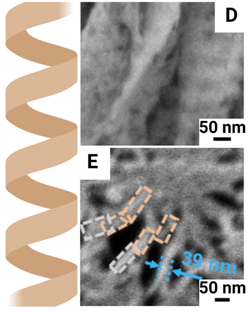

Collagen fibrils act as an organizing component in the formation of growth centers of hydroxyapatite crystals [9,15]. The initiation of hydroxyapatite crystals formation depends on amino acid patterns, in particular, the triplet of amino acids glycine-proline-hydroxyproline, which is the dominant motif of tropocollagen. This process is caused by the formation of ionic bonds between calcium atoms, oxygen atoms of carbonyl groups of the polypeptide backbone and side chains of proline and hydroxyproline [16]. If we consider a quasi-hexagonal model, lysine at position 108, glutamic acid at positions 110, 116, 582, and 815, and arginine at positions 350, 581, and 816 form a stereochemical pocket for optimal binding of calcium ions and phosphate ions [9]. The functionality of non-collagen proteins is largely due to the effect of osteocalcin. This protein plays a guiding role in the process of intrafibrillar appearance of hydroxyapatite crystals in type I collagen fibrils [17,18].

As a rule, bone tissue hydroxyapatite is carbonated with carbonate to some extent. The normal range of carbonate substitution is 2-9% [19]. Substitution by carbonate ions occurs at the positions of phosphate ions (PO₄)^3- (major B-type substitution) and hydroxyl groups OH^- (minor A-type substitution), thereby provoking a change in crystal structure and molar Ca/P ratio [19,20]. In the case of hydroxyl ion substitution, which is characteristic of bone apatite, a state of hydroxyl deficiency is formed, which has different degrees of severity depending on the type of bone tissue [21]. Subsequently, it increases the solubility of bone material [22].

As a consequence of this substitution, the mineral component of bone plays the role of the main depot of calcium, phosphorus, magnesium and a number of other mineral elements; this process has a high regulatory potential for the metabolism of these elements in the whole organism [19,23]. It is quite obvious that substitution by the mentioned elements affects numerous parameters of the crystal lattice. Iron and strontium have a positive effect on the dimensional characteristics of its individual elements, while zinc and magnesium have the opposite effect. For magnesium, zinc and iron a negative effect on the crystallinity of hydroxyapatite was revealed, for strontium - positive [23]. It is also noteworthy that the indicated effect of changing the crystalline microstructure of the mineral component demonstrates a striking heterogeneity in the composition of a single bone [24]. Relatively high strontium content is characteristic of regions with high metabolic activity and newly formed bone structures [25].

The most regular pattern of heterogeneity is the difference of surface and inner layers of hydroxyapatite. The surface layer is in the form of hydrated amorphous calcium phosphate 0.8 [19] or 1-2 nanometers thick [26] and a more crystallized core [19]. Hydroxyapatite is characterized by an extremely flexible microcrystalline structure, suggesting an extremely broad list of elements suitable as substituents. This may account for a wider and more localized range of possible biological properties of native bone hydroxyapatite.

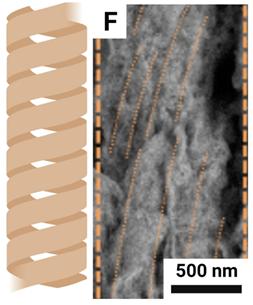

The fundamental reason for the structural strength and high resistance to ionic substituents is the hexagonal organization of hydroxyapatite [19]. However, in some cases, the loss of hexagonal structure and formation of monoclinic organization of the crystal lattice is possible [27], which largely depends on the degree of substitution of chlorine anion Cl^- [28]. Changes in the organization of the crystal lattice of hydroxyapatite are also possible as a result of age-related changes [29]. The observed lability has prompted a search for other constituents of the inorganic phase, such as tricalcium phosphate, dicalcium phosphate dihydrate [19] and octacalcium phosphate [30]. For the latter, no direct evidence has been shown for its presence in bone structure [19], except in pathological conditions [28] under relatively low pH conditions. However, there are studies that confirm the presence of a fixable amount of octacalcium phosphate in bone tissue under normal conditions [10].

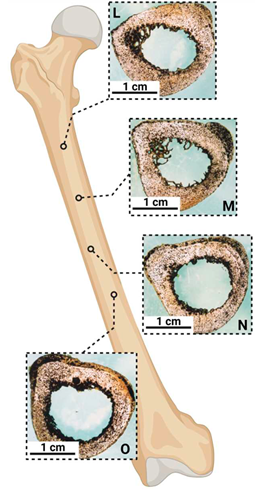

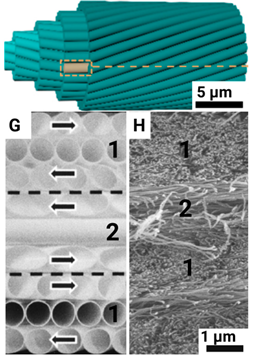

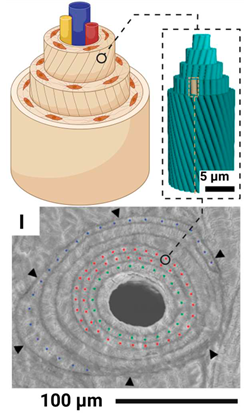

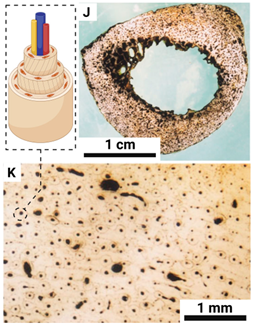

As for the higher-level organization of the mineral component of bone tissue, the formation of lamellar structures of hydroxyapatite is generally accepted [19]. Spirally twisted needle-like crystals of apatite, located within and between collagen fibrils [10,31], merge laterally and are organized in the form of spiral subplates along the loading axis. The defined chiral structure of the latter is the basis for tertiary helical plates. The further formation of the mineral base ordered in time and space with the formation of collagen structures results in a multilevel architecture of the inorganic component of bone [31]. The results of modern studies of the dimensional parameters of each level of organization of the inorganic component of bone are presented in Table 1.

Having analyzed a number of scientific studies of structural, physicochemical and physiological properties of the mineral component of bone tissue, we aim to emphasize the fundamental role of native hydroxyapatite on the scale of the whole organism, defining it as the most valuable and convenient material in bone grafting. The spectrum of features of native hydroxyapatite presented in this section, beginning with the stoichiometric flexibility of the crystal lattice and ending with the complex process of its formation in the living organism, dictates completely new requirements for synthetic analogs of bone hydroxyapatite as a transplantation material. Among them the multilevel character of the organization, formed in close interaction with the organic component, including the cellular environment, stands out.

2. Hydroxyapatite as a bone grafting material

The generally recognized "gold standard" in bone grafting is the use of autologous bone material. Autologous bone grafting has been successfully used in clinical practice for a century [36,37]. This necessitates a comprehensive analysis of the main advantages of using this method in order to form a kind of reference heuristic model in the development and improvement of alternative sources of material for bone grafting. There is also a clear need to analyze the main problems of using autografts in order to use them in the formation of alternative solutions.

Starting from the reference value of bone autografts, we should define the attributes of an "ideal graft". First, it should possess the properties of autogenous bone, which include biocompatibility, osteoconductivity, and osteoinductivity. Second, the graft material should be easy to use, safe, and cost-effective [36].

The key conditions for successful bone tissue regeneration formulated in the "diamond concept" are worth mentioning from the generally accepted positions. Its essence is that successful healing of bone defects requires the presence of viable osteogenic cells or their precursors, a suitable connective tissue matrix, adequate vascularization, and a time- and space-specific profile of growth factors [38].

In this context, it is necessary to emphasize the main properties and the distribution spectrum of their values for bone grafts used in clinical practice:

• The range of values of the structural parameter of the bone implant. Bone grafts have different ability to withstand mechanical loading. For unmodified grafts based on cortical bone a relatively high resistance to mechanical loads is shown in comparison with grafts based on cancellous bone. Thus, the mechanical properties of bone grafts without additional modification directly depend on the properties of the donor site [39].
• Spectrum of osteogenic properties. The ability of the graft to initiate neoosteogenesis [40] due to the preserved pool of graft cells including osteoblast precursors [41] is extremely important. Due to the presence of cellular elements, necessary growth factors and matrix framework, such a graft is able to modulate angiogenesis, adequate perfusion [42,43] and activity of progenitor cells [44].
• Osteoinductive properties. Autologous graft is characterized by the presence of an exhaustive set of growth factors necessary for regeneration, providing proliferative and differentiative potential of progenitor cells [45,46,47].
• Osteoconductive properties. Ability to provide an optimal environment for normal metabolism, proliferation and differentiation of cell populations [48].

The material for autologous bone graft can be spongy or cortical bone. The advantage of the former is relatively high osteoconductive properties due to a significant concentration of osteogenic cells and growth factors. The main disadvantage of this type of graft is its low ability to provide structural support at the early stages of graft integration [36].

It should also be noted that despite all its undeniable advantages over alternative bone grafting strategies, the methodology of graft isolation continues to improve. A prime example of this is the use of femoral medullary bone chips obtained using the Reamer Irrigator Aspirator System (RIA - Synthes^®, Inc. West Chester, USA) [49]. With equivalent rates of graft integration compared to traditional iliac crest harvesting, this method demonstrates a lower risk of chronic pain, infection, and excludes damage to the lateral cutaneous nerve of the femur as a result of compression or contusion [50]. However, the risk of complications such as cortical bone perforation and subsequent bleeding is still high [51].

Against this background, it should be emphasized that the autogenous cortical bone graft is also characterized to a greater extent by osteoconductive properties under the condition of lower biological activity compared to the spongy autologous graft. The next problem is the high duration of revascularization [52,53]. For this reason, vascularized cortical grafting material that provides osteogenic and osteoconductive properties can be used [36]. In this direction, there is also a continuous development of strategies for the allocation of transplant material that ensure a reduction in the risks of donor site pathologies while maintaining the necessary integrative parameters [54]. However, the development of technologies takes place not only within the framework of improving the techniques of obtaining one or another type of autologous grafts separately. Of particular importance are the works in the direction of optimal combination of the presented types of transplant materials, which allows obtaining positive results, including in their clinical use [55,56].

Despite the benchmarks of autologous bone grafting material in the context of its osteogenic, osteoconductive, and osteoinductive properties, the number and variety of studies aimed at finding alternative strategies for graft preparation continue to grow. This is due to the fundamental disadvantages of all methods of obtaining autologous graft material: firstly, the limited volume of potential graft material [57,58]; secondly, the possibility of developing complications of the donor bone site [50,51]. Moreover, when taking autologous grafting material, the risk of bleeding increases, which still remains one of the main problems, including when using the latest methods of bone implant obtaining [51]. Thus, there are studies that confirm a significant incidence of complications both after traditional grafting from the anterior and posterior iliac crest (19.37%) and after using the Reamer Irrigator Aspirator system (6%). The general list of complications included the development of infection, hematoma, seroma, chronic pain, fracture, as well as vascular and nerve damage [59]. In a study conducted by Suda A.J. et al. it was shown that the volume of the removed transplant material has a great influence on the risk of serious complications [60]. Thus, we can say that the main limitation of autologous bone transplantation is the small volume of potential grafting material.

In this context, the development of a number of alternative methods for obtaining transplantation material is extremely important. This series includes obtaining allogenic [61,62,63] and xenogenic transplantation material of natural origin [62,64], as well as the creation of new biomimetic transplantation materials of artificial and bioengineered origin [62,65,66].

3. Native substitutes for autologous bone grafting material: allogeneic and xenogeneic bone grafts

Functionally, the closest of all the listed alternative methods is allogeneic grafting material. The main advantage of this material is its relatively high availability [67]. Therefore, it has been used in clinical practice for reconstruction of extensive bone injuries for many years. Like autogenous graft, allogeneic graft material has a high degree of similarity to the structure of native bone: it has similar mechanical properties, is biocompatible to a certain extent, and ultimately has osteoinductive and osteoconductive properties [63], which are limited [68], probably due to the need for decellularization of the graft material [63]. As noted by some authors, the key problems of this method are the lack of unified decellularization protocols and the potential risk of infectious disease transmission [68].

Conventionally, allogeneic bone grafts can be divided into two main groups. The first group includes various variations of allogeneic bone graft proper - decellularized bone graft of donor origin of one type. The second group includes demineralized bone matrices obtained by acid treatment of allogeneic bone graft in order to isolate bone collagen matrix [69]. It is important to note that there is an extremely wide range of methodological solutions to obtain allogeneic [70,71,72]. This, on the one hand, creates the problem of forming a unified protocol for wide implementation in clinical practice. On the other hand, it gives grounds for a personalized approach, which is actively used in clinical practice.

At the same time, demineralized bone matrix is an allogeneic bone material that was modified in accordance with the general provisions of the Marshall Urist technique [69]. It should be noted that this method, which has already become traditional, has undergone a significant number of modifications since its first use [73]. For example, the preparation of commercial demineralized bone matrix has wide limits of variability among different manufacturers, including the use of different acid solutions, changes in the duration of demineralization, different temperature regimes and methods of decontamination [74,75].

In comparison with autologous grafts, allogeneic transplant material demonstrates some characteristic features. The common property, which directly depends on the main stage of obtaining all allogeneic grafts - decellularization, is the absence of pronounced osteogenic properties [69,76]. Nevertheless, according to the "diamond concept" [38], allogeneic bone grafting material has high osteoconductive and osteoinductive properties.

A certain degree of bone allograft effectiveness in clinical practice is largely due to its osteoconductive properties and high value of mechanical support [69] in bone injuries requiring a large volume of grafting material [77,78]. As in autologous transplantation, the most pronounced osteoconductive properties are characteristic of the allograft of carcellous bone [36]. The variability of the content of osteoconductive agents in the final graft material is largely due to the duration of storage and preparation conditions [79,80].

Taking into account the facts stated in the conclusion of the previous section, we need to focus our attention on clinical practice. As it has already been mentioned, the main indication for the use of allogeneic grafting material is extensive bone tissue damage requiring a significant volume of grafting material [81,82,83]. The time interval of allografting is of particular importance in this context. Since this type of transplant material, despite decellularization [84], has a relatively high frequency of immunogenic rejection [85]. At the same time, in case of extensive bone injuries, including those caused by infectious agents [86], there may be an immune hypersensitivity reaction to an allogeneic graft due to already existing inflammation [69]. Therefore, in clinical practice, the strategy of delayed bone grafting (after 6-8 weeks after the primary surgery) is often used [86,87].

The current trend in the use of allogeneic bone grafting material is the use of cellular bone matrices. The essence of this method is the implantation of allogeneic mesenchymal stem cells into the structure of the osteoconductive and osteoinductive base. The cellular component is obtained by isolating multipotent stromal cells from cadaveric bone marrow, adipose tissue, and chorion tissue [88]. However, some authors speak about the controversial efficiency of their use [89].

A combination of allogeneic and xenogenic bone grafting materials can also be used, where the former performs the role of an osteoinductive agent and the latter performs a mechanical role [90]. The category of xenogenic bone grafts should be noted separately: bovine bone material is often used for their production [91,92,93]. There are data confirming high osteoconductive properties of xenogenic bovine bone material [94], while the independent use of xenogenic bone grafting material, despite the positive postoperative outcome in individual cases [95], demonstrates poor quality of clinical outcome [96,97]. The main negative results of xenotransplantation are fibrous encapsulation of the graft [98] and improper fusion, which is manifested by pain syndrome [99]. Moreover, due to the extremely high duration of xenograft integration (57 weeks) compared to allograft (16 weeks), many researchers have decided that xenografts should not be used independently [96].

Summarizing the data presented in this section, it is worth noting that, on the one hand, the direction of allogeneic transplantation material use is constantly replenished with original methods, including the use of additional categories of transplantation materials. However, on the other hand, in this area there is a noticeable problem with the standardization of the existing methodological base [100]. In clinical practice, this leads to the need to use strategies of personalized medicine, limiting the prevalence of application.

4. Semisynthetic and synthetic bone substitutes

Considering the data presented in the previous sections, we need to pay special attention to the possibility of increased risk of transmission of infectious agents by transplantation of allogeneic [101,102] or xenogeneic [103] grafting materials. It is also necessary to consider the high risk of developing an increased immune response in allogeneic bone grafting [104,105], as well as the negative results of the integration of xenogenic bone grafting material [96,97,98,99]. The presented difficulties in the use of allogenic and xenogenic bone grafts create the need to develop safer, affordable and comparably effective alternatives.

In the sections above, strong evidence has already been presented for the feasibility of using hydroxyapatite as a basis for synthetic compositions and materials that can potentially have all the required properties as an alternative to autologous grafts. This is also supported by the use of hydroxyapatite bioceramics in current clinical practice in solid, granular, powdered, porous and composite forms [106,107,108,109]. The latter form attracts special attention because being native bone tissue, bone autografts are composites [110,111].

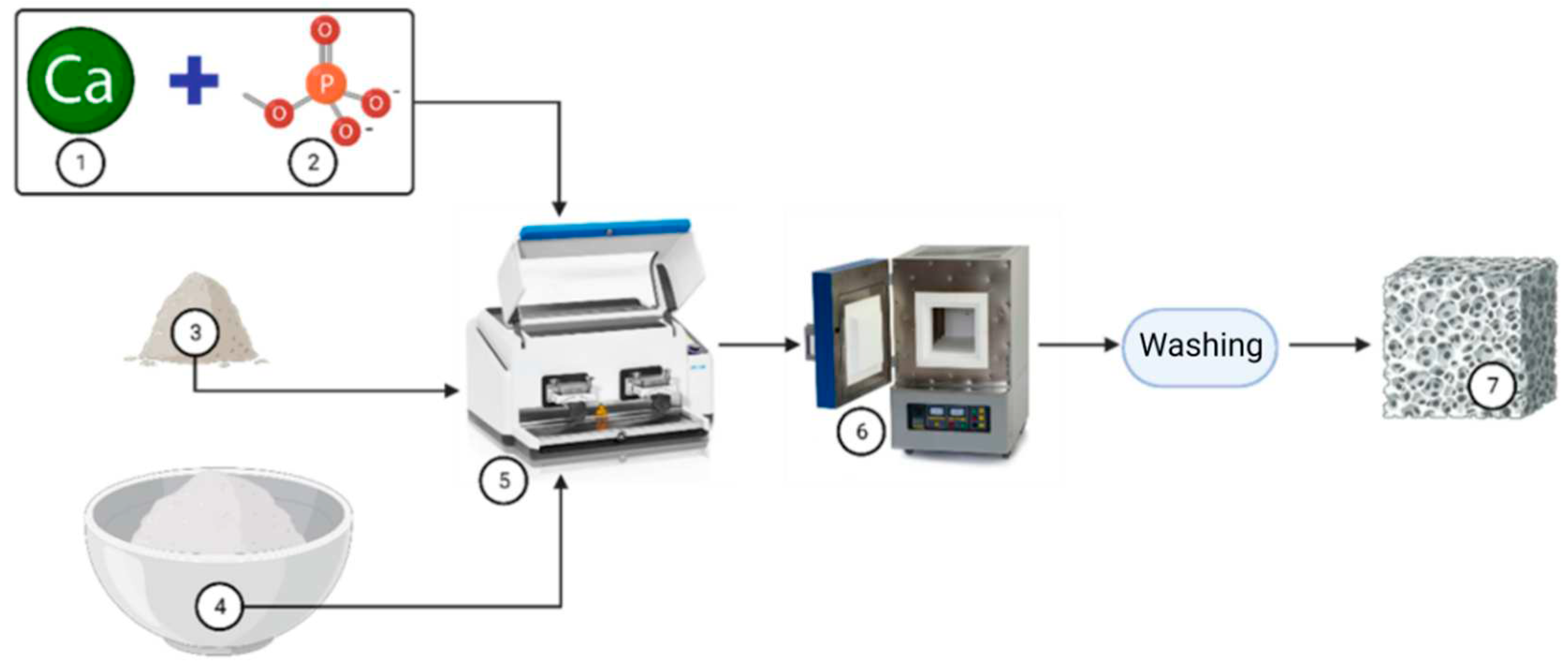

There are two main categories of methods of hydroxyapatite production, dry methods and solvent methods [112]. Dry methods are characterized by the use of mechanical action and high temperatures. The schematic order of this method is shown in Figure 2.

In this process, the precursor is first pulverized and heated at a very high temperature of 1000oC [114]. These techniques do not require the use of solvent [113]. In particular, a mixture of tricalcium phosphate [Ca₃(PO₄)₂ or 3CaO.P₂O₅] and tetracalcium phosphate [Ca₄(PO₄)₂O or 4CaO.P₂O₅] can be used. In general, the solid-phase production of hydroxyapatite results in a well crystallized product [112,115]. The quality of the raw materials obtained in this way is not significantly influenced by processing factors. This creates the basis for large-scale production [116,117]. However, hydroxyapatite obtained by this method often exhibits phase heterogeneity [118]. There is a variation of the solid-phase method that produces more homogeneous hydroxyapatite, the mechanochemical method. However, this modification is not able to sufficiently improve phase heterogeneity [113]. Moreover, hydroxyapatite obtained by this method has low biomimetic properties, which makes it necessary to analyze alternative methods of hydroxyapatite production [119].

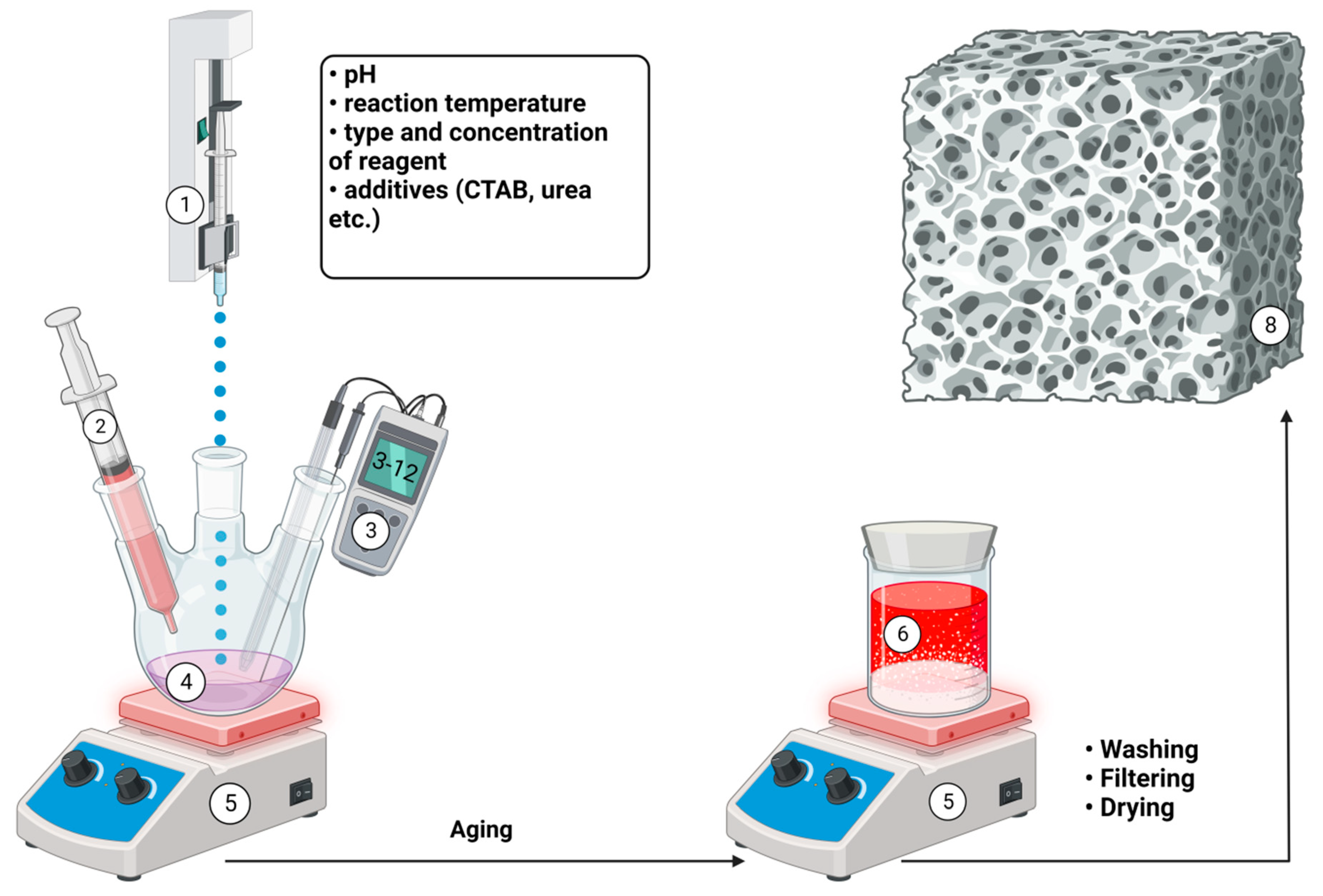

Chemical precipitation method: based on a category of methods for the production of hydroxyapatite using different solvents for chemical precipitation of various sources of calcium (calcium nitrate Ca(NO₃)₂) and phosphate (diammonium dihydrophosphate (NH₄)₂HPO₄) [112] in the presence of a wide variety of substituents [120,121,122,123] in acidic or basic media. The range of conditions for conducting the co-chemical precipitation is highly variable. The pH values vary from 3 to 12 [112,124]. The temperature regime of the reaction has an extremely wide range [112,125]. The schematic algorithm of this method is presented in Figure 3.

In contrast to dry methods, solvent-based technology results in hydroxyapatite particles with a more biomimetic morphology. Equally important is the ability to manipulate particle size and morphology given the relative simplicity of the technology [113]. As a result of this reaction, it is possible to produce spherical and needle-shaped hydroxyapatite nanoparticles [126], which are native forms of bone hydroxyapatite [31]. By this method, it is possible to obtain hydroxyapatites with the desired ionic substitution of the crystal lattice for magnesium [120], strontium and lithium [127], manganese, thereby regulating the degree of carbonization [121], aluminum [122], zinc [127,128], selenium [123], various rare earth metals [129] and a number of other elements, including copper and silver [130].

Along with the use of substitute agents for the components of the hydroxyapatite crystal lattice, the co-chemical deposition method is often used for its synthesis in relatively pure form [131] or in the form of multilevel compositions using additional materials in a variety of ratios and forms. Examples include coatings for substrates made of polymeric [132,133,134], metallic [135,136] or combined compositions [137,138]. Also composite porous micelles [139], composite hydroxyapatite nanoparticles [140] and hydroxyapatite nanotubes [141] or nanorods [142] can be obtained by this method.

Nevertheless, for hydroxyapatite obtained by chemical precipitation method, it is often found that the required stoichiometric parameters are absent. And, in contrast to dry production techniques, the raw materials obtained by chemical precipitation have low crystalline parameters [113]. Thus, as in the previous example, the need for further consideration of alternative methods of obtaining hydroxyapatite becomes obvious.

Electrochemical deposition method: widely used for the synthesis of biomedical coatings and membranes. There are two main categories of electrochemical method performance: electrophoretic process - based on the use of a suspension of ceramic particles; electrolytic process - based on the use of metal salts. The material for this method is aqueous solutions identical to those used in chemical precipitation [143]. This method is characterized by such positive features as the speed of formation of a uniform coating at relatively low temperatures. Electrochemical methods provide good impregnation of hydroxyapatite into the composition of porous substrates and carriers, resulting in the formation of a uniform and durable coating [143,144]. This was greatly facilitated by the introduction of the pulsed electrodeposition method, which reduced the release of hydrogen gas bubbles during the electrochemical reaction [143]. As in the case of chemical deposition, the electrodeposition method is used to create composite structures of hydroxyapatite with a wide variety of morphologies. These include composite coatings, including aluminum-containing coatings [145], for a variety of alloys [146,147,148] including aluminum alloys [149], and for some polymer implants [150]. The mentioned range of morphological diversity also includes hydroxyapatite nanotubes [151] and hydroxyapatite nanoparticles [152]. However, most commonly, nanoparticles, microparticles and other dispersed forms of hydroxyapatite are used as drug delivery agents [129,153,154].

Emulsion method: one of the most effective methods for obtaining nanostructured hydroxyapatite powder formed in a dispersed medium of two immiscible solvents. This medium is stabilized by surfactants. It is most often used as a method for efficient production of composite materials using finished hydroxyapatite particles.

The method of producing the emulsion is largely determined by the concentration and nature of the surfactant introduced [155]. Agglomeration creates a favorable environment to regulate particle growth. Hydrophobic surfactants are subsequently easily removed by calcination [156].

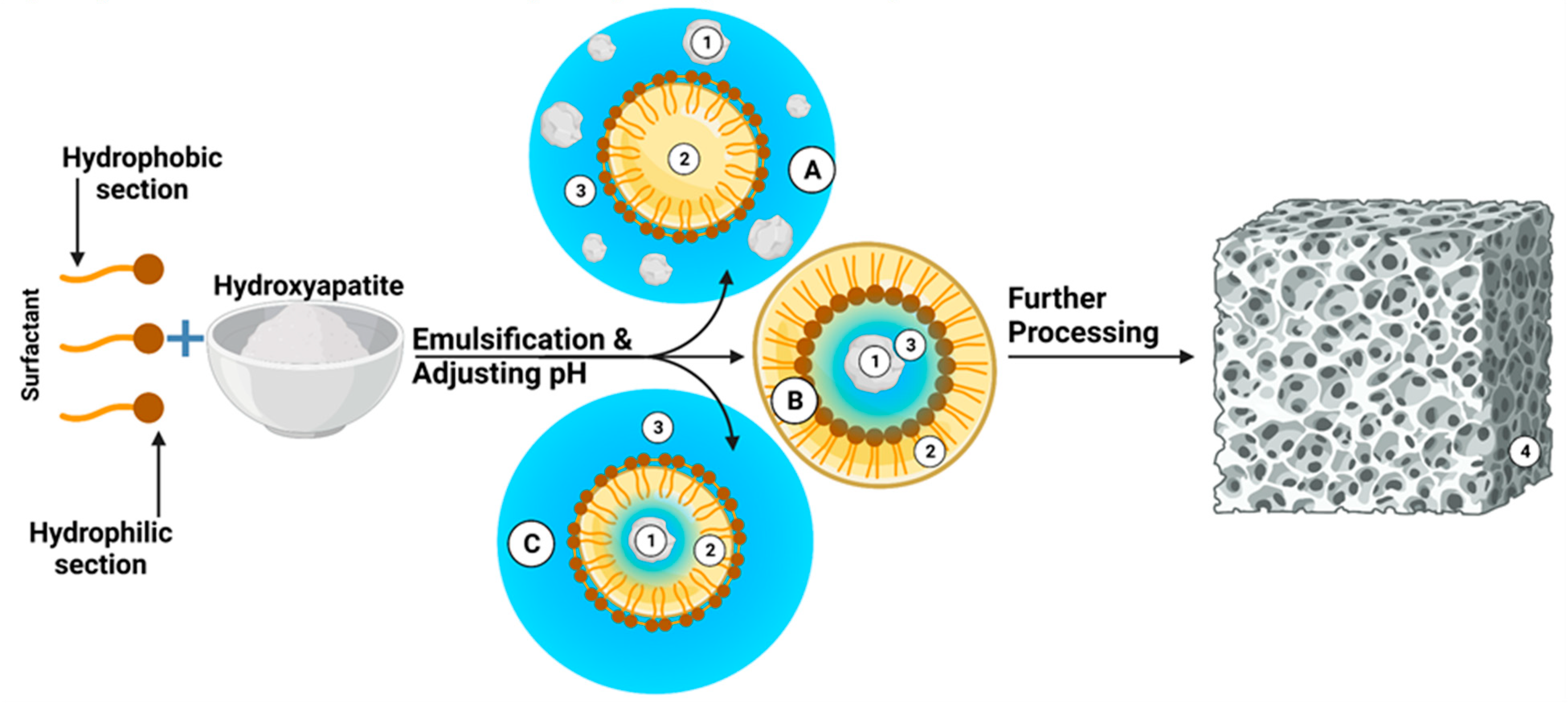

Figure 4. Schematic representation of the algorithm of hydroxyapatite fabrication by emulsion method. 1 - hydroxyapatite particles; 2 - oil phase; 3 - aqueous phase; 4 - transfer material in the form of primary raw material; A - oil encapsulated in aqueous phase containing particles; B - oil encapsulates aqueous phase with hydroxyapatite particle; C - emulsion system where aqueous phase contains oil droplets with encapsulated aqueous medium containing hydroxyapatite particle (adapted from [113]).

Figure 4. Schematic representation of the algorithm of hydroxyapatite fabrication by emulsion method. 1 - hydroxyapatite particles; 2 - oil phase; 3 - aqueous phase; 4 - transfer material in the form of primary raw material; A - oil encapsulated in aqueous phase containing particles; B - oil encapsulates aqueous phase with hydroxyapatite particle; C - emulsion system where aqueous phase contains oil droplets with encapsulated aqueous medium containing hydroxyapatite particle (adapted from [113]).

Its advantage is the strict control of morphogical and dimensional parameters of nanoparticles. Due to this method is often used to create porous materials, acting as a solution to some difficulties in the agglomeration of hydroxyapatite particles. As sources of calcium and phosphate it is possible to use available precursors: calcium nitrate and phosphoric acid. The surfactants used to prepare the emulsions are sodium dioctyl sulfosuccinate, dodecyl phosphate, polyoxyethylene, non-polyphenol ether, polyoxyethylene ether, cetyltrimethyl ammonium bromide and sodium dodecyl sulfate. In addition to the characteristics of the surfactant, the ratio of aqueous and organic phases, pH, temperature regime and the concentration of calcium and phosphate sources have a special influence on the final performance of hydroxyapatite obtained by the claimed method [112].

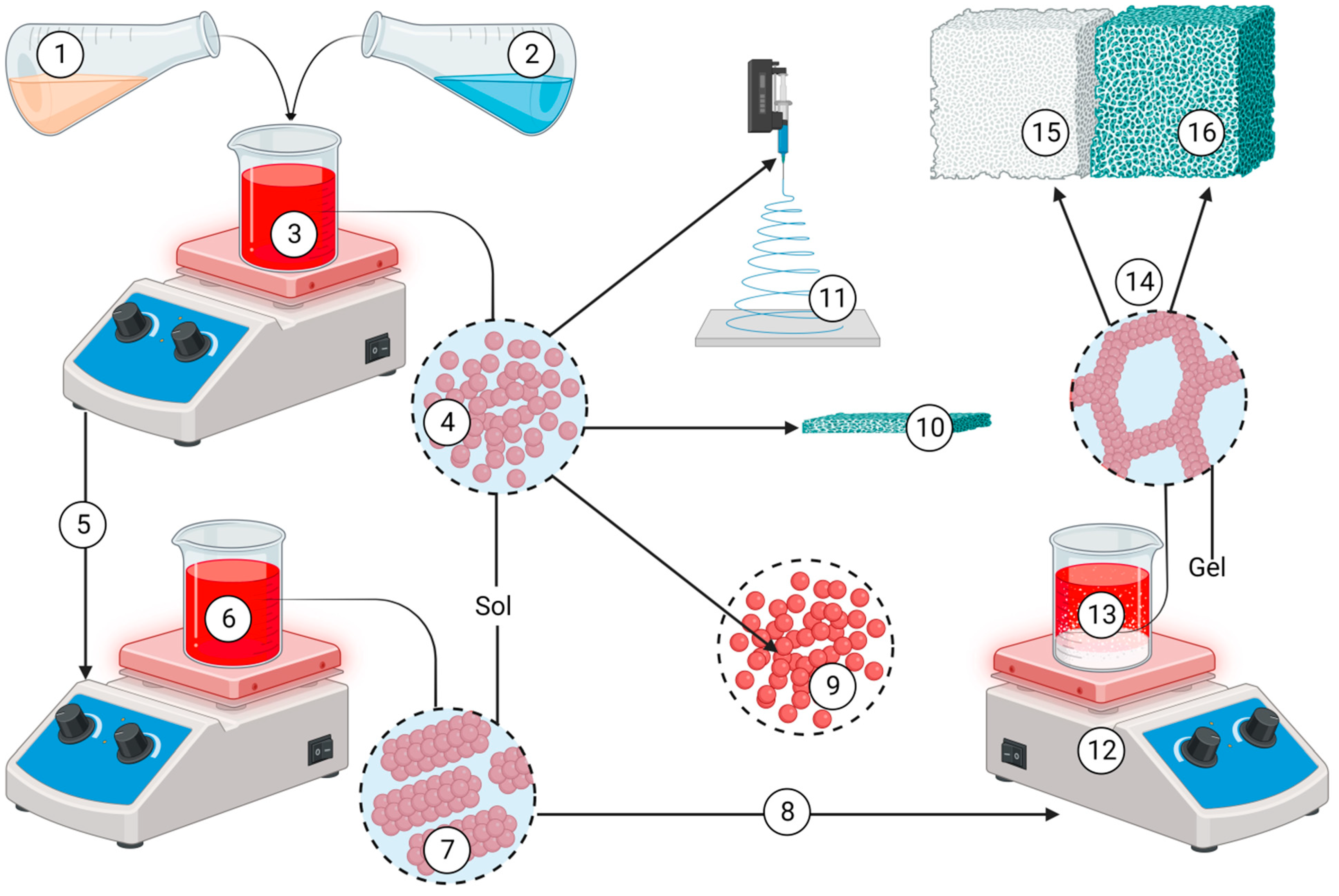

Sol-gel method: This method is one of the most popular methods for obtaining hydroxyapatite from a solution of preferably organometallic precursors [158]. It is convenient for obtaining film coatings [159,160] and aerogel structures of hydroxyapatite [112]. In the most general sense, this process involves hydrolysis of precursors to form micelles associated with templates in aqueous or organic media. This provides high chemical homogeneity of the resulting material [161], suitable stoichiometrically, high available surface area, and minimal dimensional clustering. With all this, this method does not require high temperatures [162]. The results of in vitro studies also confirm the advantage of the material obtained by this method in terms of bioresorbability compared to the results of alternative methods [113]. Despite the unique properties of the materials produced by this method, this method has limitations in terms of scalability. The main reason for this is the high cost and scarcity of alkoxide-based precursors and the need for extremely fine control of the production process. Inadequate control of the production process is often responsible for the formation of secondary phases in the form of CaO, Ca₂P₂O₇, Ca₃(PO₄)₂ and CaCO₃[112].

It is also not uncommon to observe the introduction of combined production technologies involving the use of several methods. Thus, the product of the emulsion method is subjected to high-temperature treatment [156]. High-temperature processing methods such as pyrolysis provide stoichiometrically pure and very crystalline hydroxyapatite powders [113]. This allows its use as a final step in the fabrication of hydroxyapatite material in order to increase the crystallinity of the raw material for graft fabrication [157]. However, this method can also be used as an independent method of hydroxyapatite production. There are two main variations of this technology - the method of pyrolytic spray and the method of pyrolytic spraying. In the first case, a pre-prepared solution of calcium and phosphorus salts is sprayed into a high-temperature furnace. As a result, water evaporates and the remaining particles crystallize to form hydroxyapatite. In pyrolytic spraying, a dense and durable coating of hydroxyapatite is formed on the target surface. In both cases, the morphology and size of the particles directly depend on the similar characteristics of the sprayed and sputtered droplets, which allows controlling these characteristics [113]. The schematic algorithm of this method is presented in Figure 5.

Special attention should be paid to the methods of hydroxyapatite production from biogenic sources, the main examples of which are presented in Table 2. The most popular raw material for this method of hydroxyapatite production is the use of various biological wastes: bovine bone mass [163,164], eggshells [165,166], marine organisms [167,168,169,170] and plant materials. The latter can be used to extract hydroxyapatite per se [171] as a solvent [172,173] or as a source of calcium [174] and as a source of phosphate [175,176]. Moreover, the possibility of using plant-mediated synthesis of nanostructured hydroxyapatite for medical use has been shown [177]. It is important to note that some fungi possess the ability to synthesize nanostructured hydroxyapatite [178]. This may indicate their use as potential agents of hydroxyapatite synthesis for the needs of transplantology.

The main requirement for this type of feedstock is the removal of organic matter, which can be achieved by temperature treatment per se [165] and by using subcritical water [179,180]. The use of alkaline thermal hydrolysis [180] and enzymatic treatment methods [181] and so on are also commonly practiced.

As mentioned in previous sections, the most obvious difference of biogenic hydroxyapatite is the strong stoichiometric diversity. Natural hydroxyapatite has different degrees of substitution in elements such as Na⁺, Zn²⁺, Mg²⁺, K⁺, Si²⁺, Ba²⁺, F-, and CO₃^2- [19,182]. This accounts for the diversity of functions of natural hydroxyapatite as an element of bone tissue. A more detailed description of each function is given in the previous structural sections. Table 2 summarizes the results of recent studies. These data, in addition to the high feasibility of using this raw material, give an idea of the high degree of biomimetic potential of the obtained hydroxyapatite in comparison with the mineral phase of human bone [165]. This is supported by the data that testify in favor of similarity of leading morphological and microarchitectural parameters of treated hydroxyapatite, including agglomeration of hydroxyapatite particles as a result of high-temperature treatment [183]. For example, the specific surface area of synthesized hydroxyapatite is in the range of values typical of native bone tissue [184]. This method results in a material with native porosity [185,186]. This is largely responsible for high indicators of biocompatibility, adhesive and osteogenic activity, which is clearly reflected in modern studies (presented in Table 2).

There is also a whole range of alternative methods for the production of hydroxyapatite using a wide variety of synthetic precursors, these methods are often based on identical mechanisms. Nevertheless, we can say with full confidence that there is no lack of diversity in the methods of synthetic hydroxyapatite production, which are determined by the variety of required characteristics and conditions of application of the final graft. In turn, the diversity inherent in synthetic methods of hydroxyapatite production determines the popularity of its application in research and clinical practice.

5. Interaction between mononuclear phagocytic cells and hydroxyapatite-based transplant material

One of the earliest literature reports of a direct relationship between hydroxyapatite and a distinct, acute, immune response, is a study of aseptic destruction and osteolysis of bone tissue in response to the use of hydroxyapatite as a bone grafting material. The occurrence of this reaction was found to be directly dependent on graft wear particles smaller than 53 μm. The results of the study demonstrate the ability of hydroxyapatite of this size to reduce the number of viable osteoblasts and activate osteoclasts [216]. Apparently, this effect of small-sized hydroxyapatite is characteristic for a wider range of cells and especially for cancer cells. When internalized in them, hydroxyapatite particles suppress their proliferation by inhibiting protein synthesis, blocking the availability of ribosomes for mRNA [217]. As well as the previous example, the data of comparative analysis of synthetic bone substitutes presented in the section "Semisynthetic and synthetic bone substitutes in research and clinical practice" confirm the possibility of using this feature of hydroxyapatite in clinical and research practice.

Less than 10 years later, data were obtained that directly confirm the ability of hydroxyapatite to initiate differentiation of macrophages toward an osteoclast-associated phenotype. Monocytes were characterized by the formation of a flattened phenotype with an irregular cell shape. Monocyte-macrophage cells were characterized by a marked increase in receptor activator of nuclear factor kappa-B ligand (RANKL) expression (modulates osteoclast activity) and formation of peripheral podosome belt [218] - dynamic actin and membrane-bound microdomains formed as an interconnected network of cytoskeletal units, forming a cytoskeletal superstructure in association with the plasma membrane [219].

In the context of literature data that demonstrate the ability of nanostructured hydroxyapatite to inhibit protein synthesis [217], it is extremely interesting that monocytes in the presence of hydroxyapatite showed signs of protein synthesis intensification [239]. At the same time, nanosized hydroxyapatite is able to initiate selective apoptosis of rabbit squamous VX2 tumor cells [220], growth inhibition of melanoma [221] and other types of tumor cells. This is primarily due to disruption of cellular calcium homeostasis and activation of endogenous mitochondrial and activation of external apoptosis stimuli [153].

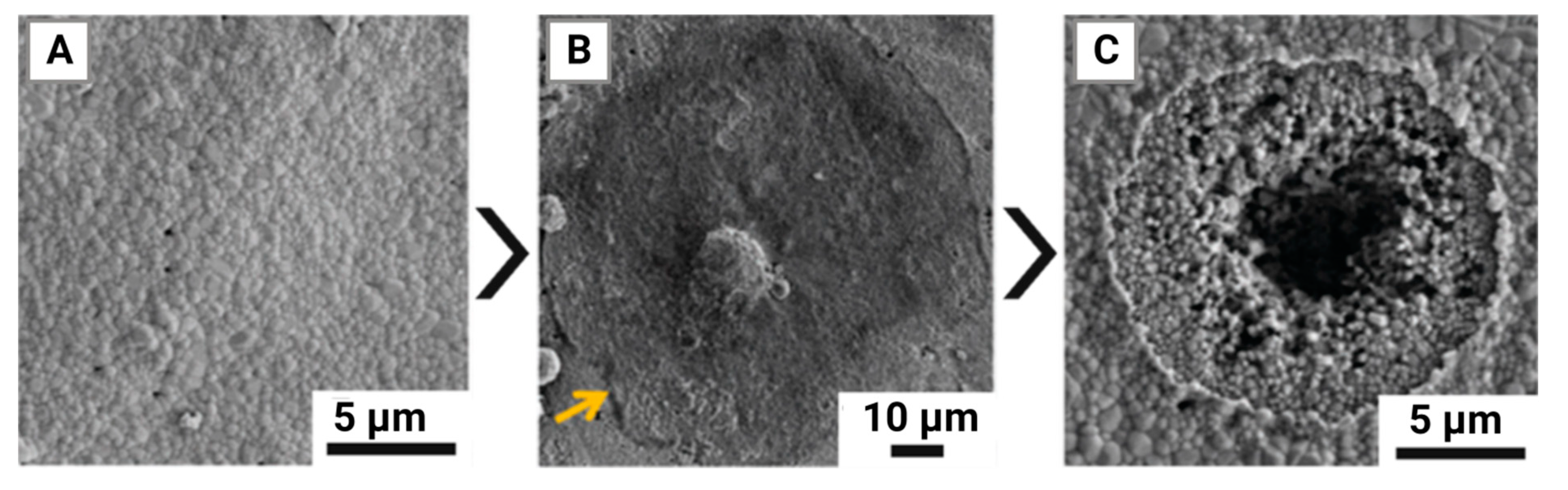

Hydroxyapatite pretreated by partial dissolution and precipitation showed a markedly larger area of TRAP-positive staining (increased osteoclast activity) and increased expression of osteoclast-related genes compared to standard hydroxyapatite. The researchers attribute this difference to the presence of nanoscale hydroxyapatite particles in the treated material, while a homogeneous coarse-grained structure has been shown for standard material [222]. This work demonstrates the critical role of nanostructure and microstructure of hydroxyapatite, which is in good agreement with the fact that a lamellar microstructure is associated with a higher proliferative capacity of cells in the early stages of co-incubation. On the contrary, for hydroxyapatite with needle-shaped nanostructure, a noticeable increase in the number of cells is noted only in the late phases of the experiment. Also, for the former, a greater number of bound macrophages with flattened morphology is noted [223]. The following work extends the understanding of this phenomenon. First, strong evidence was obtained in favor of the effect of hydroxyapatite particle morphology on cytokine production by mouse dendritic cells. The highest rates of interleukin 1β (IL-1β) secretion were detected in response to needle-shaped hydroxyapatite, while the ability to significantly increase IL-1β synthesis was not detected for smooth particles ~100 μm in size. For smaller spherical particles, a significantly lower ability to produce IL-1β by murine macrophages was detected. The maximum expression of IL-1β by murine macrophages was detected in response to needle-shaped hydroxyapatite particles. Expectedly, they also induce significantly higher inflammatory responses upon intraperitoneal injection compared to their spherical counterparts. For mouse peritoneal exudate cells (CPEM) stimulated with ~5 μm needle-like hydroxyapatite particles, higher levels of tumor necrosis factor α (TNF-α) were detected in response to repeated stimulation by heat-inactivated E. coli. All CPEM samples, except those stimulated with smooth hydroxyapatite particles of ~100 μm in size, exhibited reduced interleukin 10 (IL-10) production. All this, coupled with the dynamics of mast cell and resident macrophage infiltration, indicates a less significant inflammatory response for large spherical particles compared to needle particles [224]. Moreover, the authors of some studies draw conclusions about the extremely high importance of transplant morphology for the formation of osteoconductive properties, focusing on the rate of material resorption by TRAP-positive osteoclast-like cells and TRAP-negative multinucleated giant cells [225].

Comparatively more recent studies also confirm the special importance of the nano-level morphology of hydroxyapatite-based grafting material. Artificially engineered microgrooved hydroxyapatite surface structure promotes macrophage attachment and reduced synthesis of pro-inflammatory cytokines TNF-α, IL-1β and interleukin 6 (IL-6) compared to standard porous hydroxyapatite framework by reducing the accumulation of reactive oxygen species through modulation of mitochondrial functions. However, no effect on the nature and dynamics of macrophage polarization was found [226], although more recent studies report such a possibility [5].

On the other hand, upon exposure to nanostructured hydroxyapatite, a marked increase in the secretion of TNF-α and IL-6, as well as adenosine triphosphate, nicotinamideadenine dinucleotide and reactive oxygen species [227], interferon γ (IFN-γ) and cluster of differentiation 107α (CD107α) on cluster of differentiation 8 (CD8)-positive T cells [228] were observed in macrophages, against a background of decreased IL-10 production. In contrast, the microgroove structure promoted the viability of bone marrow mesenchymal stem cells by inhibiting miR-214 by reducing IL-6 [226]. Also, the ability of rod-shaped hydroxyapatite to exert a marked effect on mitochondrial functionality is confirmed by its use as an effective antitumor agent. Hydroxyapatite with the above morphology has notable immunomodulatory [220,229] and proapoptotic properties [220], as the release of cathepsin B and generation of mitochondrial reactive oxygen species are observed upon internalization of nanorod hydroxyapatite [228].

The following literature example is key, as this work particularly demonstrates the difference between the effects of hydroxyapatite morphology under in vivo and in vitro conditions: in the former, we observe a distinctly higher osteoconductive potential of nanostructured hydroxyapatite and a smaller osteoclast area compared to submicron-sized hydroxyapatite; in the second case, despite the highest cell viability rate at the earliest stages of co-culture for the nanostructured hydroxyapatite, a more mature osteoclast morphology and significantly higher expression of osteoclast-associated genes over a medium time distance were detected for the submicron form of hydroxyapatite [205].

Taking into account all the data presented above, including data on ribosomal [217] and mitochondrial [220] mechanism of inhibition of cell development, as well as the ability of nanostructured hydroxyapatite to activate osteoclasts [222], the most important parameter in the response to morphological characterization of the material is a relatively constant and prolonged infiltration of immune cells. This is achievable only in living conditions, which can be indirectly confirmed by the dynamics of infiltration of resident macrophages and mast cells for the small-sized form of hydroxyapatite [224].

6. Conclusion and Future Directions

From the very beginning of this analytical review, a hypothetical possibility of a special character of the relationship between the mineral component of bone tissue and mitochondria was presented. It is quite possible that the direct beginning of bone tissue mineralization is provided by energy-dependent movement of Ca2+ cations and serum phosphate ions into mitochondria of osteoblasts and subsequent deposition of amorphous calcium phosphate micropackages. At the same time, the extremely important role of mitochondria in the metabolism of both synthetic hydroxyapatite in the form of bone grafting material and native bone tissue hydroxyapatite has been proven. On the other hand, the effect of hydroxyapatite on mitochondrial function in the role of key regulators of calcium homeostasis of the cell is extremely appreciated. The semantic coherence of the presented data may indicate the necessity to analyze various disorders of bone tissue mineral component metabolism from the point of view in which mitochondria of osteoblasts, osteocytes and, especially, osteoclasts serve as the key apparatus for its formation.

Also, as a result of this work, numerous literature data have been cited, which form a fairly complete picture of the differences between the results of in vivo and in vitro studies of synthetic hydroxyapatite with a variety of nanoscale morphologies. First of all, we conclude that an adequate evaluation of hydroxyapatite as a grafting material with nano-sized morphology at this stage is possible only under relatively constant and prolonged infiltration of immune cells under the condition of sufficient duration of analysis. These conditions can only be fully achieved by using in vivo studies.

In addition, the key features of hydroxyapatite as a bone grafting material, which include a special character of interaction with monocytes/macrophages, osteoclasts and T-cells of the recipient's body. Moreover, this property can be directly regulated by the nanoscale morphology of the material, provided that its macroscopic structure is preserved. Recently, the ability of hydroxyapatite nanoparticles to influence ribosomes and mitochondria of many cells is of particular interest. Together with satisfactory mechanical properties, high potential for scalability and unification of the production process, this material is the most suitable for the treatment of extensive bone defects of tumor origin.

Thus, this work highlights a potential and relatively original theoretical direction for future research on hydroxyapatite in the role of bone grafting material. We also demonstrate the relatively high value of the results of in vivo studies, which in itself is not original. However, it justifies the need to intensify the development of in vitro research methods towards biomimetic studies.
