Strontium Ferromolybdate/Strontium Molybdate Core-Shell Ceramics—A Nanogranular Magnetic Material Possessing a Natural Core-Shell Structure

1. Introduction

In 1994, a large tunnel magnetoresistance (TMR) of 8 % at 1.2 T and room temperature was obtained in Co-Al-O nanogranular films with a resistivity of about 100 m×cm [1]. These films consist of two phases, that is superparamagnetic, metallic Co granular grains and Al₂O₃ narrow intergrains. In such structures, the electrical conductance is governed by tunneling between Co grains through Al₂O₃ intergrains. Later in 2001, TMR values up to about 14 % at room temperature and 1 T were obtained in nanogranular 32 vol%(Fe_0.51Co_0.49)–(Mg–F) thin films [2]. Here, the (Mg-F) intergrains were in the crystalline MgF₂ state enabling a higher TMR compared to Co-Al-O film with an amorphous structure of the Al-oxide intergrain.

Similar mechanisms occur in Sr₂FeMoO_6- (SFMO) ceramics where the transport properties are dominated by spin-polarized intergrain tunneling through insulating grain boundaries [3]. Under specific synthesis conditions, SFMO ceramics consist of SrMoO₄ (SMO) intergrain energy barriers between conductive bulks of SFMO grains induced by a small oxygen excess during material fabrication [4]. The ease of forming SMO shells around SFMO grains simply by excess oxygen during synthesis makes SFMO an easy-to-fabricate, natural core-shell material.

A consequence of intergranular tunneling in such SFMO/SMO core-shell structures is the large low-field magnetoresistance obtained in SFMO ceramics [5,6,7]. Here, the magnetoresistance is governed by the samples microstructure (especially the grain size and the thickness of the dielectric intergrain layers) [8]. Samples with smaller grain size are preferable as they demonstrate larger magnetoresistance [9].

In a recent study, the intergranular resistivity, tunnel magnetoresistance and magnetic field sensibility of superparamagnetic (SPM) and ferro(ferri)magnetic (FM) granular materials were examined theoretically [10]. Starting with the tunnel resistance of a granular metal network in which the grains are interconnected by insulating barriers, the tunnel magnetoresistance was calculated considering the temperatures dependencies of magnetization, spin polarization, and both the temperature and magnetic flux dependencies of magnetization as well as the tunneling barrier height. However, nanogranular SFMO/SMO core-shell ceramics have not been adequately addressed in [10]. This gap is now closed in this work.

2. Materials and Methods

The citrate-gel technique was used for synthesis of nanogranular SFMO ceramics using ultra-high purity Sr(NO₃)₂, Fe(NO₃)₃•9H₂O, (NH₄)₆Mo₇O₂₄ and citric acid monohydrate C₆H₈O₇H2O as initial reagents. To obtain a colloidal sol, aqueous solutions of Sr(NO₃)₂ and Fe(NO₃)₃•9H₂O were mixed in a molar ratio of Sr/Fe = 2:1. Citric acid was added to the solution in a molar ratio of citric acid/Fe = 6.5:1. After that, an aqueous solution of (NH₄)₆Mo₇O₂₄ was added to the solution of strontium and iron nitrates in a molar ratio Mo/Fe = 1:1. Then, ethylenediamine was added upon constant stirring by means of an IKA C-MAG HS7 magnetic stirrer, until the pH of the solution reached 4. Thereafter, the substance was dried at a temperature of 80 °C. The resulting precipitate was placed in a furnace at a temperature of 100 °C, followed by heating at a rate of 0.4 °C min^-1 up to 200 °C, a dwell time of 18 h, and a cooling-down with the time constant of the furnace. The resulting solid foam which was crushed and then subjected to heat treatment at 500 °C in an oxygen atmosphere under the pressure p(O₂) = 0.21•10⁵ Pa for 10 h. The final SFMO synthesis was carried out in a reducing ambient of a 5%H₂/Ar gas mixture at 900 °C for 4 h in several stages. Single-phase SFMO powders were pressed into tablets with a diameter of 10 mm and a thickness of 3 mm under a pressure of 4 GPa at 530 °C for 1 min. Dielectric SMO shells were formed in these samples on the surface of the SFMO grains by annealing at 530 °C in an Ar flow with a rate of 11 sccm for 5 h. Details of sample fabrication were already described elsewhere [7,11,12].

In the dielectric regime, electrical conduction of granular materials results from transport of electrons and holes by tunneling from one isolated metallic grain to the next. A charge carrier in a granular material contributes to electrical conductivity when an electron is removed from a neutral grain and placed on a neighboring neutral grain. Such a process requires charging energy E_c per grain of [13]:

$$E_c=\frac{e^2}{d}F(w,d),$$

(1)

where e is the electronic charge, d the granular or grain size, w the separation between the grains (e.g. the tunneling barrier width), and F(w,d) a function whose form depends on shape and arrangement of the grains. Assuming the grain size d to be much larger than the barrier width w, E_c is approximately given by [14]:

$$E_c\approx \frac{4e^{2}w}{\epsilon {\epsilon }_0{d}^2},$$

(2)

with ε and ε₀ the dielectric and vacuum permittivities, respectively. Since the charging energy is reciprocal to the grain diameter, charging effects become significant at small grain sizes. In the case of nanogranular SFMO/SMO core-shell ceramics fabricated by the citrate-gel method with d = 75 nm and w = 1.24 nm [7], and assuming ε_SrMoO3 ≈ 10 [15], E_c amounts to a value of E_c ≈ 1.6 meV. This should be compared with a value of E_c ≈ 1 meV obtained after saturation of the insulating SMO phase at grain boundaries in mechanically ball-milled polycrystalline SFMO pellets [16]. Such ball-milled powders possess a grain size of about 100 nm after 6 h of grinding [17], i.e. approximately the same grain size as the considered nanogranular SFMO/SMO core-shell ceramics.

A lnσ versus T^-1/2 plot with σ the electrical conductivity, yields the constant [14,18]

$$C=w\chi E_c,$$

(3)

where in our case wχ is a value in the order of about 2 [19,20]. Using the lnσ versus T^-1/2 plot, we find C ≈ 4.7 meV for zero magnetic field conductivities of nanosgranular SFMO/SMO core-shell ceramics fabricated by the citrate-gel method in the temperature range of 10-50 K [11]. C values of Co-Al-O insulating granular films were 9.48 meV for Co₃₆Al₂₂O₄₂, 2.15 meV for Co₄₆Al₁₉O₃₅, 1.55 meV for Co₅₂Al₂₀O₂₈, and 0.78 meV for Co₅₄Al₂₁O₂₅ [19]. In other insulating granular metal films, the lnσ versus T^-1/2 plot results in much higher C values decreasing with increasing metal fraction from 1.1 eV (0.08%) to 0.13 eV (0.44%) in Ni-SiO₂ composites, from 1.1 eV (0.04%) to 0.20 eV (0.18%) in Pt-SiO₂ composites, and from 120 meV (0.18%) to 4 meV (0.38%) in Au-Al₃O₄ composites [14].

In the next step, we consider a metal network in which the metal grains are interconnected by insulating barriers. The positive-negative pairs of charged grains induced by electron tunneling through the barriers are assumed to be roughly of the same size. In this case, each grain contributes about half of the charging energy E_c resulting in density of charge carriers proportional to exp(-E_c/2kT). Thus, the resistivity caused by tunneling is given by [14,18]:

$${\rho }_T={\rho }_0\exp \left(f\chi w+\frac{E_c}{2kT}\right),$$

(4)

where f is a barrier shape factor with f = 2 for rectangular barriers and f = π/2 for parabolic barriers, χ is the reciprocal localization length of the wave function:

$$\chi =\sqrt{\frac{2m^{*}{V}_0}{{\hslash }^2}},$$

(5)

with m* is the effective electron mass, V₀ the barrier height, ħ is the reduced Planck constant, w the barrier width, k the Boltzmann constant, T the absolute temperature and ρ₀ the bulk resistivity. Note that we are considering sufficiently thin barriers in the order of 1-3 nm where direct tunneling occurs which is not disturbed by localized states in the thin barrier film [21].

Considering a constant parameter C [14,18] and assuming a rectangular barrier (f = 2) the argument of the exponent in Equation (4) becomes

$$f(w)=2\chi w+\frac{C}{2\chi wkT},$$

(6)

which possesses a minimum at [14]:

$$w_{\min }=\frac{1}{2\chi }\sqrt{\frac{C}{kT}}.$$

(7)

Then the corresponding resistivity minimum between two nearest neighbor grains which are equal or nearly equal in size yields [14]:

$${\rho }_{\min }(T)\propto \exp \left[2\sqrt{\frac{C}{kT}}\right],$$

(8)

The value ρ_min(T) governs the temperature dependence of the network resistivity ρ(T) since tunneling occurs via paths which makes the exponential factor of resistivity lowest.

The spin-dependent tunneling through a barrier between two ferromagnetic grains is a function of the angle θ between the grain magnetizations. Neglecting the correlations between magnetic moments of neighboring grains, the average 〈cos θ〉 over all pairs of grains for angles between 0 and π represents the square of the relative magnetization m² = (M/M_s)², i.e. the ratio of magnetization M to the saturation one M_s. Finally, we arrive at an intergrain resistivity amounting to [22]:

$$\rho =\frac{{\rho }_0}{1+m^2{P}^2}\exp \left[2\sqrt{\frac{C}{kT}}\right],$$

(9)

with P the spin polarization. Similarly, the intergrain tunnel magnetoresistance of a network of tunnel junctions whose electrodes are double-perovskite grains with an insulating oxide layer in between is given by [23]:

$$TMR=\frac{\rho (B)}{\rho (0)}-1\approx \frac{1}{1+m{(B,T)}^2{P}^2}-1=-\frac{m{(B,T)}^2{P}^2}{1+m{(B,T)}^2{P}^2},$$

(10)

where ρ(B) is the resistivity for a given magnetic flux density B, m(B,T) the relative magnetization for given values of magnetic flux B and temperature T.

In granular systems with a broad distribution in granule size, it is highly probable that large granules are well separated from each other due to their low density. This is given by the fact that granules are more separated the larger the granule size is. As a result, a number of smaller granules exist separating the large ones. Here, the ordinary tunnelling of an electron from a large granule to a small one increases the charging energy E_c, Equation (2), and suppresses tunnelling by the Coulomb blockade at low temperatures. In this case, higher-order tunnelling comes into play, i.e., the dominant contribution to the tunnelling current now comes from higher-order processes of spin-dependent tunnelling where the carrier is transferred from a charged large granule to the neighbouring neutral large granule through an array of small granules, using co-tunnelling of (n+1) electrons. The TMR is then given by [19]:

$$TMR=\frac{1}{{(1+m^2{P}^2)}^{1+n*}}-1,$$

(11)

with

$$n*=\sqrt{\frac{〈E_c〉}{8\chi *〈w〉kT}}=\sqrt{\frac{D}{T}},$$

(12)

with χ∗ = pχ where p is a constant defined in [19], and n* is a fitting parameter of the higher-order tunneling processes. Note that we have rewritten equation (11) according to the definition of the magnetoresistance in this work given in equation (10). In a granular Co-Al-O system, n*(T→0) takes a value of 1.6, so that one or two small granules intervene between larger ones in the higher-order processes. Higher-order tunneling increases the TMR at low temperatures. On the other hand, higher-order tunneling is negligible at room temperature since here n* tends to zero [10].

For m²P² << 1 equation (10) simplifies to:

$$TMR\approx -\left(1+\sqrt{\frac{D}{T}}\right)\cdot m^2{P}^2,$$

(13)

Both the temperature dependence and the field dependence of the relative magnetization m of FM SFMO were calculated following [24]. For the temperature dependence this yields:

$$m^2(T,B=0)={\displaystyle \sum _i{a}_i}{\left(\frac{T_C-T}{T_C}\right)}^i,$$

(14)

Using m(T) values from [23,25], we obtained a₁ = 1.89, a₂ = -1.97, a₃ = 2.2 and a₄ = -1.14 for the coefficients of Equation (14) [24].

At sufficiently high magnetic fluxes when magnetic interactions may be still neglected, the magnetic flux density dependence of m may be modeled by means of a traditional analysis of the approach of magnetization to saturation [26,27]. As a result, the magnetic flux dependence of the relative magnetization is given by:

$$m(B)=1-{{\displaystyle \sum _i\left(\frac{b_{i/2}}{B}\right)}}^{i/2}+\kappa B,$$

(15)

with i = 1,2,3, 4 for point, line, and plane forces as well as uniform forces throughout an extended volume forces, respectively.

The κB term is often referred to as the so-called paramagnetism-like term [28]. It represents the high field magnetization resulting from an increase in spontaneous magnetization by the application of a field [29]. This term is usually small at temperatures well below the Curie point and may often be neglected [30] (p.325).

Point defects in ceramics and granular materials are concentrated at grain boundaries representing only a small part of the total sample volume. Consequently, the b_1/2/B^1/2 term will be small or even negligible at higher magnetic fluxes. The value of b_1/2 = 0.00085 T^1/2 derived based on data in [31,32], will play a role only at small magnetic fluxes B < 85 mT.

The b₁/B term in equation (15) is referred to as the magnetic hardness [28]. It has been observed to be constant at high magnetic fluxes [33] and was attributed to internal stresses produced by dislocations [26], especially by pairs of dislocations of opposite sign separated by a short distance smaller than the magnetic decay distance [34]. Another theory originates b₁ from the leakage field in ferromagnetic materials [35]. In general, this constant is attributed to inclusions or microstress [30] (p.325). For example, it represents the demagnetizing effects of inhomogeneities such as grain boundaries, dislocations and nonmagnetic inclusions [33].

The b₂/B² term in equation (15) is attributed to crystal anisotropy. Furthermore, it was shown that dislocation pairs of different sign separated by a long distance and surplus dislocations of one sign contribute to this term [34]. The b₂/B² term is dominant for extremely high magnetic fluxes, while the b₁/B term is dominant at intermediate magnetic fluxes [36]. Thus, the b₁/B term is effective only in a limited field range. If one only considers the term b₁/B, for nanogranular SFMO/SMO core-shell ceramics made by means of the citrate gel method [37], the m(B) characteristics is well approximated by b₁ = 0.05 T below 0.1 T, b₁ = 0.085 T in the region 0.3-1 T and b₁ = 0.02 T in the region 1.5 -4 T. On the other hand, the m(B) curve of a similar sample measured in a different setup [38] in this approach yields b₁ ≈ 0.3 T for magnetic fluxes in the range 2-10 T. The values given by the authors of [38] are b₁ = 0.968 T and b₂ = 0.00292 T².

Neglecting the influence of internal strain, a theoretical value of the coefficient of the b₂/B² term, which is attributed to magnetocrystalline anisotropy (MA) is given by [39]:

$$m(B)=1-{{\displaystyle \sum _i\left(\frac{b_{i/2}}{B}\right)}}^{i/2}+\kappa B,$$

(16)

with K₁ the uniaxial anisotropy constant, and n the volumetric density of the formula units (f.u.), that is the inverse of the formula unit volume. Here, the numerical coefficient 8/105 applies to cubic anisotropy of randomly oriented polycrystalline samples. Table 1 compiles the values of b₂^MA calculated using Equation (16) for a saturated magnetization of M_s = 4 µ_B f.u.^-1 and n = 8.086×10²⁷ f.u. m^-3 using different values of the uniaxial anisotropy constant K₁. Note that a wide range of values K₁ lead to a large uncertainly of the coefficient b₂^MA.

The contribution of internal strain (IS) to b₂ is given by [42]:

$$b_2^{IS}=\frac{3}{5}\cdot {\left(\frac{{\lambda }_s〈{\sigma }_i〉}{M_{s}n}\right)}^2,$$

(17)

where λ_s is the coefficient of magnetostriction and σ_i the internal strain. Taking λ_s = 10^-4 [30] (chapter 8), [43] and 〈σ_i〉 = 150 MPa-600 MPa [44], we arrive at b₂^IS = 0.0015-0.0240 T².

The coefficient b₃/B³ of Equation (15) which is determined also by magnetocrystalline anisotropy may be written for cubic anisotropy of randomly oriented polycrystalline samples as [45,46]:

$$b_3^{MA}\approx \frac{8}{105}\cdot \frac{72}{11\cdot 13}\cdot {\left(\frac{K_1}{M_{s}n}\right)}^3\approx 0.03836\cdot {\left(\frac{K_1}{M_{s}n}\right)}^3,$$

(18)

However, this term is negligible compared to the b₂/B² term at magnetic fluxes B > K₁/M_sn (0.1…0.5 T in our case). Since the coefficients b_i are sensitive to point defects (vacancies, antisite positions, impurity ions), line defects (dislocations) and area defects (stacking faults, grain, twin and antiphase boundaries), they are highly dependent on the synthesis conditions of the SFMO ceramics.

For comparison, we consider Fe and Co applying a phenomenological model of the temperature dependence of the relative magnetization given by [47],

$$m(T)={\left[1-{\left(\frac{T}{T_C}\right)}^p\right]}^{\beta },$$

(19)

The corresponding fitting parameters p and β are compiled in Table 2.

In sufficiently small granules, i.e. below a critical size of [10]:

$$d_{cr}^{spm}={\left(\frac{\pi \cdot \ln ({\tau }_m/{\tau }_0)\cdot kT}{6\cdot K(T)}\right)}^{1/3},$$

(20)

the magnetization can randomly flip direction under the influence of temperature. This applies to Fe, Co and SFMO with sizes of ca. 1 nm and 1.7 nm at 4 K as well as sizes of 5-6 nm and 12 nm at 300 K, respectively, In the absence of an external magnetic field, when the time used to measure the magnetization of the nanosized granules is much longer than the typical time between two flips (called Néel relaxation time), the granule magnetization appears to be in average zero. The magnetic behavior resembles a paramagnetic exhibiting an unusual high magnetic susceptibility attributed to a large number of formula units oriented in the same direction within a single magnetic domain. Such a magnetic behavior is known as superparamagnetism. Granular networks of noninteracting superparamagnetic (SPM) granules were modeled already in [10]. The reduced magnetization of SPM granules is determined by the Langevin function L [48]:

$$m=L(\zeta B)=\coth (\zeta B)-1/(\zeta B),$$

(21)

where µ is the total magnetic moment of the granule depending on its size and ζ = µ/kT.

Tunneling spin polarization and the interface magnetization follow the same temperature dependence [49,50]. As a result, based on the theory of spin waves [51], the spin polarization resembles the spontaneous magnetization behavior at low temperatures known as Bloch´s T^3/2 law of variation of saturation moment with temperature near the absolute zero:

$$P(T)=P_0(1-g\cdot T^{3/2}),$$

(22)

Here, P₀ is the spin polarization of ordered SFMO at zero temperature and g is a fitting parameter which in the case of magnetization is generally larger for the surface than for the bulk [49]. It is very sensitive to surface contaminants [52]. For the sake of simplicity, the Bloch´s T^3/2 coefficients g were estimated by means of the Curie temperature T_C:

$$g=T_C^{-3/2}.$$

(23)

They are in satisfactory accordance with previous experimental data of 0.1–0.6×10^-5 for Co/Al₂O₃ [53], 1.9×10^-4 for La_2/3Sr_1/3MnO₃/SrTiO₃, 5.1x10^-5 for La_2/3Sr_1/3MnO₃/LaAlO₃, 1.58x10^-4 for La_2/3Sr_1/3MnO₃/TiO₂ [54], and 1.31x10^-4 derived from the intergranular TMR in Ba_0.8Sr_0.2FeMoO₆ [23].

Now, we take into account that the spin polarization has a similar dependence on the antisite disorder (ASD), that is the fraction of B-site ions, Fe or Mo, on wrong sublattice sites which varies from 0 (corresponding to a complete order) up to 0.5 (describing a completely random Fe-Mo site occupancy) as the magnetization [55]. As a result, the spin polarization P was calculated following [56] by:

$$P(T)=P_0\cdot (1-2ASD)\cdot (1-g\cdot T^{3/2}).$$

(24)

With regard to Equation (10), the magnetic field sensitivity of granular FM materials amounts to:

$$\frac{dTMR}{dB}=-\frac{2m(B,T)P^2\cdot \partial m/\partial B}{{(1+m{(B,T)}^2{P}^2)}^2},$$

(25)

with

$$\frac{\partial m}{\partial B}=m(T,0)\cdot \left[\frac{1}{2}{a}_{1/2}{B}^{-3/2}+a_1{B}^{-2}+2a_2{B}^{-3}+\mathrm{...}\right],$$

(26)

For SPM granules the magnetic field sensitivity yields [10}:

$$\frac{d(TMR)}{dB}=-\frac{2P^{2}dL(\zeta B)/dB}{\left[1+P^{2}L{(\zeta B)}^2\right]}=-\frac{2P^2\zeta \cdot \left[{(\zeta B)}^{-2}-{\sinh }^{-2}(\zeta B)\right]}{{\left\{1+P^2\cdot {\left[\coth (\zeta B)-1/\zeta B\right]}^2\right\}}^2}.$$

(27)

Temperature affects the measuring accuracy of any sensor. Thus, there always remains a small temperature inaccuracy in the considered temperature range despite a number of compensation measures. This inaccuracy is often expressed as temperature coefficient TC. It expresses the relation between a change in the sensing physical property and the change in temperature that causes it. Consequently, it represents the relative change of the sensing physical property with a given change in temperature. Correspondingly, the TC of the TMR is given by:

$$T{C}_{TMR}=\frac{1}{TMR}\cdot \frac{d(TMR)}{dT}.$$

(28)

The particular case of Equation (13) yields a temperature coefficient of the TMR amounting to:

$$T{C}_{TMR}=\frac{1}{TMR}\frac{d(TMR)}{dT}=\frac{D^{1/2}}{2T^{3/2}(1+\sqrt{D/T})}$$

(29)

In the calculations of this work, numerical derivatives of experimental data were evaluated by approximation of experimental curves by quartic polynomials.

3. Results and discussion

Table 3 compiles the parameters used for the calculations in this work.

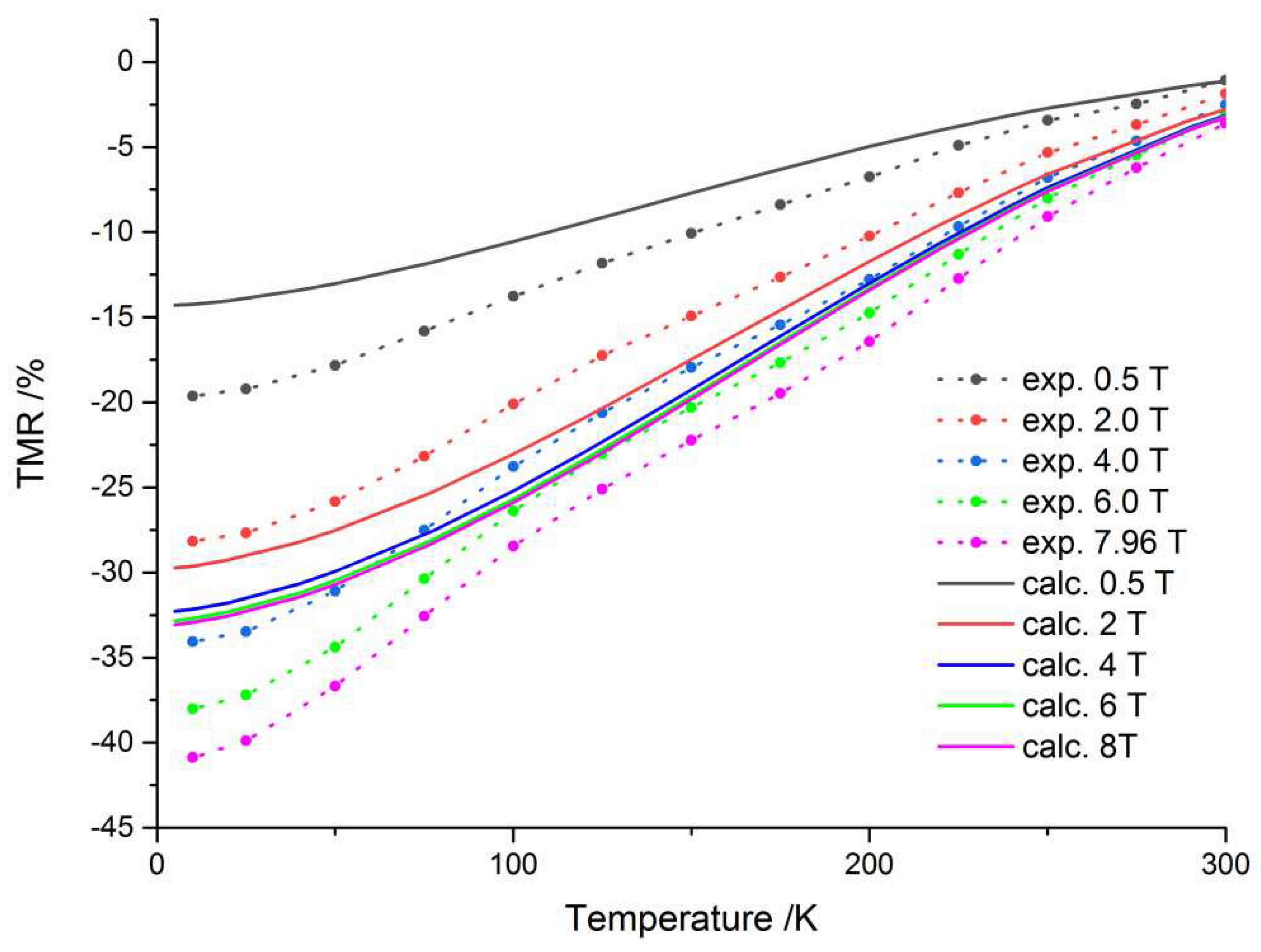

Figure 1 illustrates a comparison of the TMR values, calculated by means of Equation (10), with experimental data of nanogranular SFMO/SMO core-shell ceramics from [11]. While the temperature dependence is well reproduced, the magnetic flux dependence is satisfactorily described only in the middle region of B where the values of the coefficient b_i are most valid. Note that the calculated field dependence of the magnetoresistance strongly depends on the coefficients of Equation (15) which are subject to large uncertainties. As a result, the achieved TMR values are suitable for practical applications.

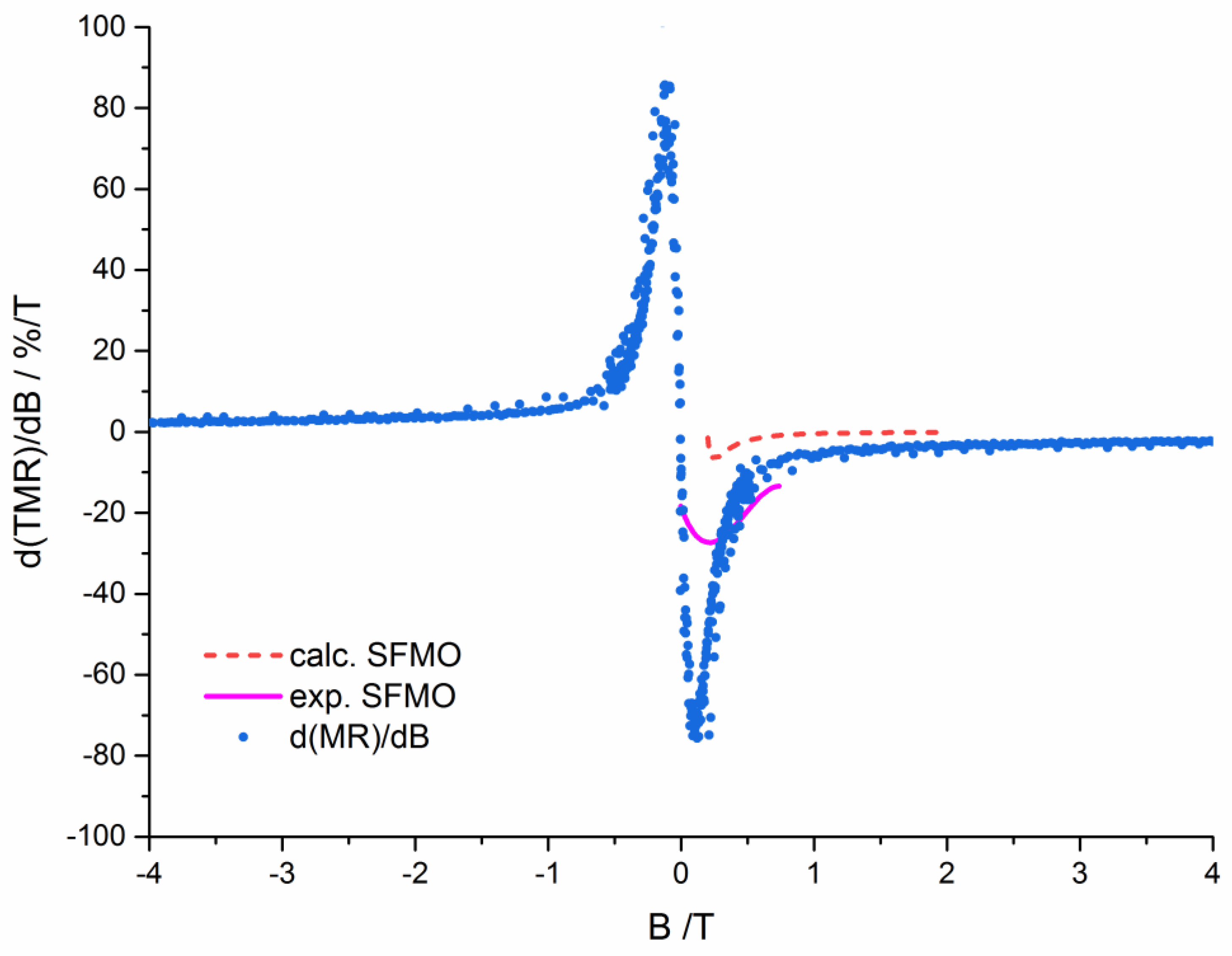

Figure 2 represents the experimental magnetic field sensitivity of FM, nanogranular SFMO/SMO core-shell ceramics. The shown curve is in good qualitative agreement with experimental data of ceramic SFMO annealed in reducing atmosphere at 10 K [60] and with calculations from [10] for nanosized SFMO ceramics using Equation (25).

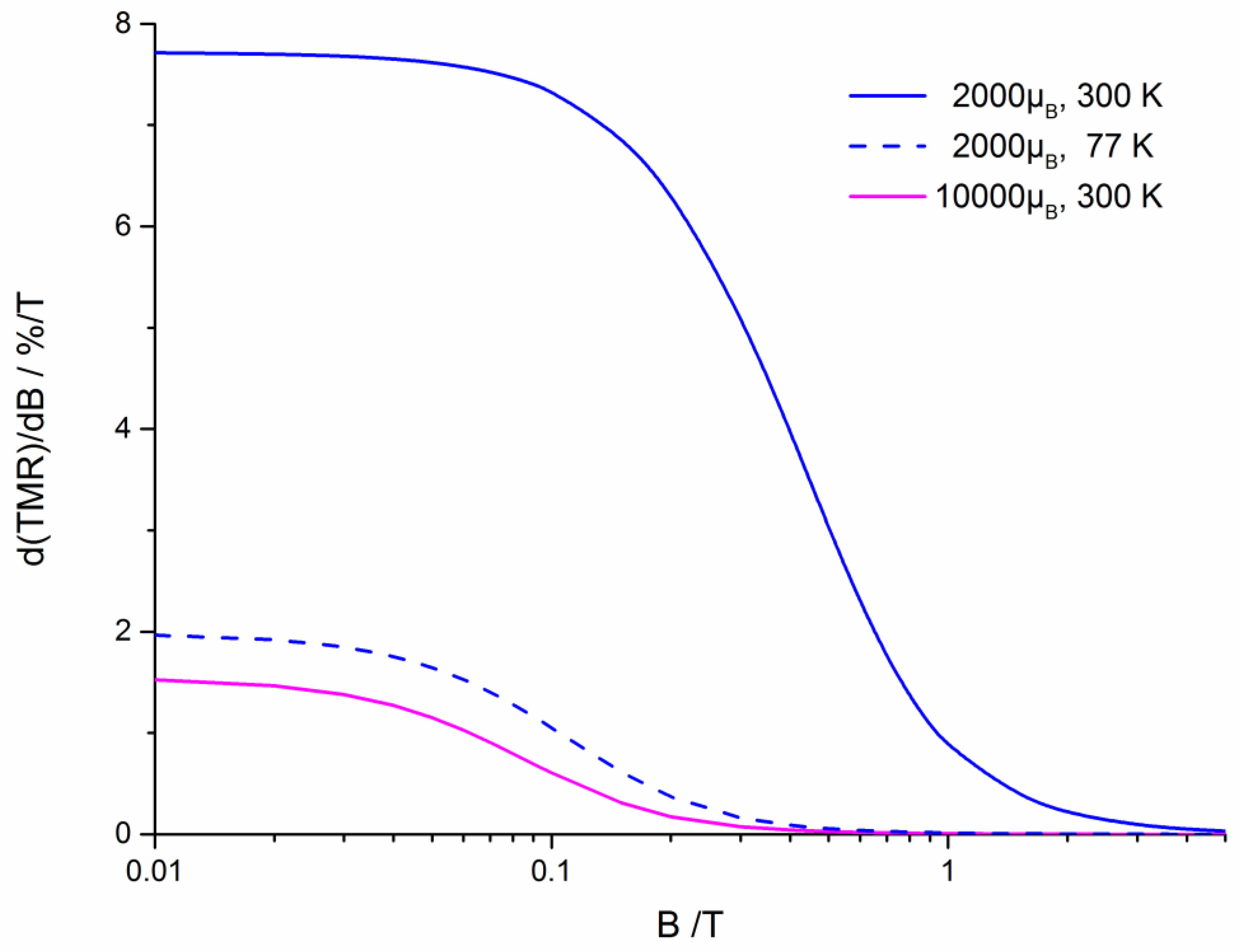

The sharp sensitivity peak illustrates that nanosized SFMO/SMO core-shell granules are not suitable as a magnetic field sensor. For this purpose, superparamagnetic granules should be used. This is illustrated in figure 3 depicting the magnetic field sensitivity of superparamagnetic noninteracting SFMO granules calculated by means of equation (27). Assuming _SFMO = 5.68 kg m^-3 and µ = 4 µB f.u.-1, a total magnetic moment µ = 2000 µ_B corresponds to a granule size of 4 nm while µ = 10000 µB corresponds to a granule size of 6.8 nm Since the spin polarization of SFMO is significantly higher than that of Co and Fe, the magnetic field sensitivity of SFMO will be correspondingly larger. Contrarily to ferromagnetic SFMO granules, superparamagnetic ones provide a nearly constant magnetic field sensitivity at low magnetic fields up to 400 mT what is beneficial for low field magnetic sensor application (Figure 3). The predicted TMR magnetic flux sensitivities for granules with superparamagnetic behavior amount to about 7.7 % T^-1 and 1.5 % T^-1 at room temperature for granules sizes of 6.8 nm and 4 nm, respectively.

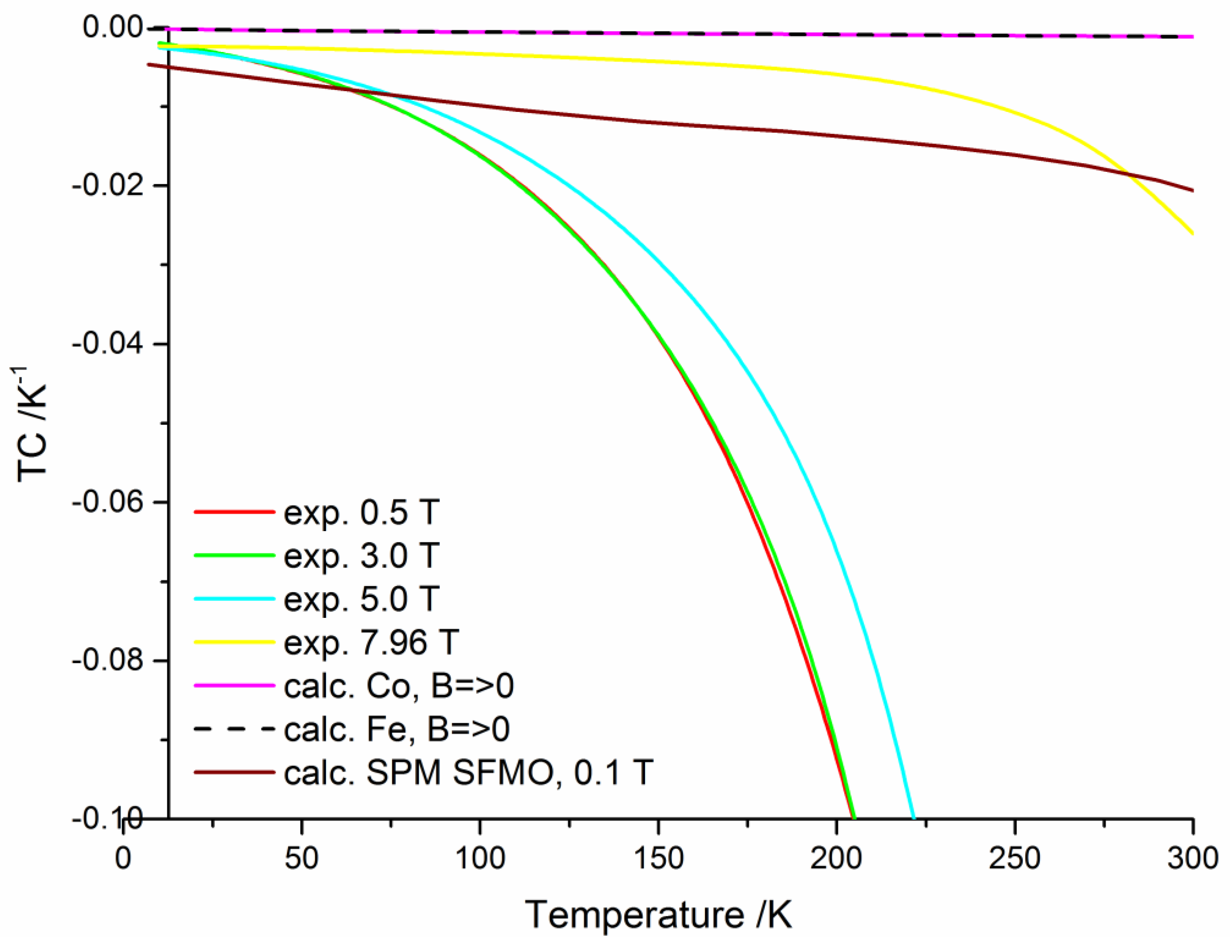

Figure 4 shows the temperature coefficients of nanogranular SFMO/SMO core-shell ceramics deduced from the numerical derivatives of the experimental data in figure 1 in comparison with data of Fe und Co low field values deduced from the numerical derivative of the TMR calculated by means of Equation (10) using Equations (19), (22) and (23) as well as data of superparamagnetic SFMO at 100 mT deduced from the numerical derivative of the TMR calculated by means of equation (10) using Equations (21), (23) and (24). The relative small TC of ferromagnetic Co and Fe is a consequence of their much weaker temperature dependence of the spin polarization attributed to higher Curie temperatures. Since the TC value of SPM SFMO reduces with increasing magnetic flux, superparamagnetic SFMO is superior to ferrimagnetic SFMO/SMO core-shell structures with the exception of very low temperatures. Note that Equation (29) which is valid for small m²P² << 1 yields a positive, decreasing with magnetic flux TCs. In the case of of strongly disordered SFMO, the TC is in the order of 0.1 % K^-1. According to Equation (11), co-tunneling of (n+1) electrons by carrier transfer from a charged large granule to the neighbouring neutral large granule through an array of small granules increases the TC. Considering an acceptable TC in the order of 2 % K^-1, nanogranular SFMO/SMO core shell ceramics are suitable for application only at low temperatures (less than 100 K) or high magnetic flux densities (exceeding 6 T).

4. Conclusions

SFMO nanopowders were synthesized by means of the citrate-gel technique. The presynthesized SFMO nanopowders were first saturated with oxygen at elevated temperatures and subsequently subjected to a higher temperature thermal treatment in a reducing ambient. SFMO/SMO core shell structures were formed in hot-pressed single phase SFMO nanopowders by a third thermal treatment at elevated temperature in a nearly inert atmosphere in the presence of low but sufficient oxygen partial pressure.

The tunnel magnetoresistance of nanogranular, SFMO/SMO core-shell ceramics was modeled yielding values suitable for magnetoresistive sensor application. However, such structures possess a narrow peak of magnetic flux sensibility at about 125 mT hindering practical applications.

For magnetic flux measurement, single domain granules with superparamagnetic behavior should be applied. This provides a nearly constant magnetic field sensitivity at low magnetic flux densities (up to about 50 mT). The predicted TMR magnetic flux sensitivities for granules with superparamagnetic behavior amount to about 7.7 % T^-1 and 1.5 % T^-1 for granules sizes of 6.8 nm and 4 nm, respectively.

A drawback of the TMR in nanogranular, SFMO/SMO core-shell ceramics is the unacceptable large value of the temperature coefficient. Acceptable values of about 2 % K^-1 are obtained only at low temperatures (less than 100 K) or large magnetic flux densities (exceeding 6 T). Therefore, a Wheatstone bridge configuration should be adopted for magnetoresistive sensors to compensate the effect of temperature.
