Improving the Antioxidant Activity, Yield and Hydrocarbon Content of Bio-Oil from Açaí Seeds Pyrolysis by Chemical Activa-Tion: Effect of Temperature and Molarity

1. Introduction

Waste management and its final destination presents considerable challenges for the modern society due to population growth and increasing waste generation, causing not only social but also environmental damage, thus becoming a complex problem to be resolved [1,2]. A class of waste to be considered, due to its physicochemical characteristics and huge volume generated, is lignin-cellulosic biomass, particularly those associated to agro-industrial processes [3], such as Açaí (Euterpe oleracea, Mart.) seeds.

The Açaí plant (Euterpe oleracea, Mart.), is a species of palm that is indigenous to the Amazon region of Brazil [4]. It grows in large numbers in the floodplains of the Amazon estuary [5,6]. The fruits of the Açaí plant have significant economic value for both the agroindustry and for extractive activities conducted by rural communities in the state of Pará in the Brazilian Amazon [7].

When the Açaí pulp and skin are processed with warm water, a thick, purple juice is produced [3,6]. This process also generates a residue, which consists of the Açaí seeds. These seeds are a valuable biomass residue that contains lignin and cellulose and has the potential to be used for energy and fuel production in both solid and liquid forms [8,9,10,11,12]. During the 2016-2017 crop season, Brazil produced approximately 1200-1274 million tons of Açaí fruits, with the state of Pará being the primary producer (94%). This high level of production results in a significant amount of solid waste [7,13].

Pyrolysis is a process of thermo-chemical conversion that can transform biomass into energy and fuel by subjecting it to high temperatures in an inert environment [8,11]. This process produces gaseous byproducts such as CH₄, CO₂, and CO, as well as liquid bio-oil and solid biochar [8,11]. The nature of the biomass, the type of pyrolysis process (analytical pyrolysis, flash pyrolysis, and vacuum pyrolysis), the type of reactor (drop-tube, fixed bed, and fluidized bed), the operating mode (batch, semi-continuous, continuous), and the process parameters (temperature, catalyst, catalyst-to-biomass ratio, gas flow rate, weight hour space velocity, etc.) all affect the yield and properties of the resulting products [14,15,16].

Although research has been conducted on the pyrolysis of residual Açaí seeds [8,11,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31], most of these studies have focused on producing activated carbon/bio-adsorbents [8,17,18,19,20,21,22,23,24,25,26,27,28,29]. These studies have used residual Açaí seeds in their natural state [17,18,19] or activated residual Açaí seeds [8,20,21,22,23,24,25,26,27,28,29,30,31] and have involved chemical activation with NaOH [8,21,27], KOH [20,22,23,24,25,26,27,28,29,30,31], H₃PO₄ [24,26], HNO3 [20,26], or physical activation with CO₂ [28,29]. However, to date, no systematic study has examined simultaneously the effects of temperature and alkali activation of residual Açaí seeds on the yield, chemical composition, acidity, and antioxidant activity of bio-oil, as well as the chemical composition and acidity of the aqueous phase. Investigating these variables, such as temperature and KOH concentration, is essential to understand the behavior and reaction mechanisms of the process and to design an effective process. Due to the complexity of the topic and the wide range of conditions under which the process (chemical activation followed by pyrolysis) can be carried out, technical data from different biomass pyrolysis feedstocks, reactors, and conditions are of fundamental importance in understanding and optimizing the process.

In addition, temperature is one of the key factors influencing the thermochemical decomposition of biomass compounds during the production of bio-oil by pyrolysis. The bio-oil obtained by pyrolysis of Açaí seeds contains hydrocarbons and a oxygenate fraction rich in phenols [31,32], which are of great interest due to their potential applications as sources of antioxidants, nutraceuticals, and preservatives in the food industry [34]. In the food industry, phenolic compounds are recognized for their natural antioxidant properties. Phenolic compounds can eliminate free radicals and inhibit oxidation, thus preventing or delaying oxidative processes in food products [35].

In the last years, there has been a great interest in studying the antioxidant capacity/activity of biomass pyrolysis derived bio-oils from different materials including birch wood [33], coffee silvers kin [34], red pine [35], Colombian spent coffee grounds [36], tobacco, tomato and coffee ground [37], Japanese red pine [38], grape pomace [39], ship wood [40]. However, until the moment, the influence of pyrolysis temperature on antioxidant capacity of bio-oil has been investigated only in a few studies [34,37,39,40]. In addition, no study investigated simultaneously the influence of temperature and chemical activation (molarity) on the antioxidant capacity of pyrolysis bio-oils.

This study aims to investigate the impact of temperature and chemical activation with alkalis on the yield, hydrocarbon content, acidity, and antioxidant activity of bio-oil, as well as the chemical composition and acidity of the aqueous phase. To accomplish this goal, pyrolysis experiments were conducted with residual Açaí seeds at 350, 400, and 450 °C, and 1.0 atmosphere. The residual Açaí seeds were subjected to chemical activation using aqueous solutions of 0.5 M, 1.0 M, and 2.0 M KOH. These experiments will provide the basis to examine the effects of temperature and alkali activation on the optimization of bio-oil yield and hydrocarbon content in order to gain insights into the potential applications of Açaí seed pyrolysis bio-oil.

2. Materials and Methods

2.1. Methodology

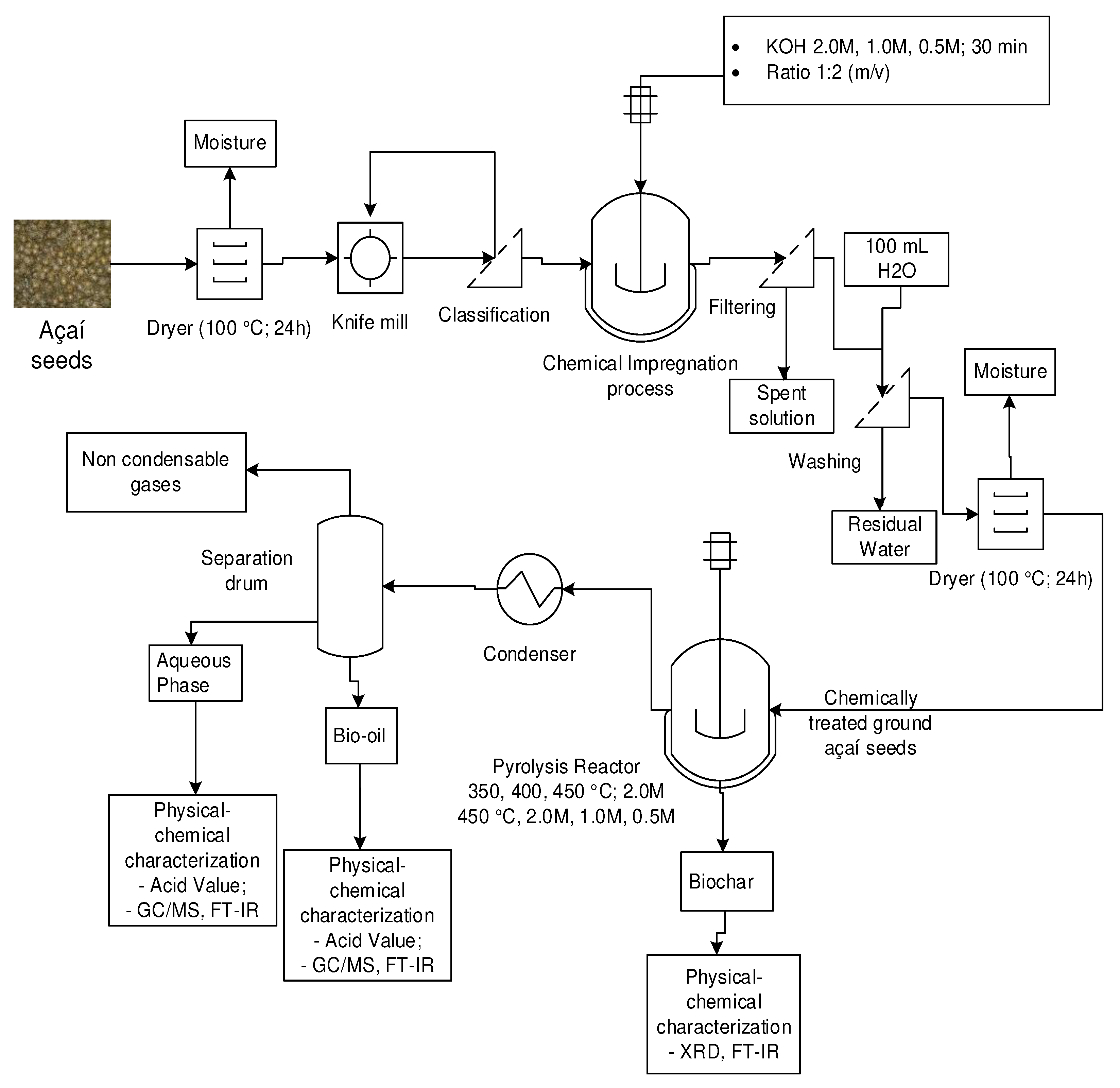

The methodology employed for the production of bio-oil from Açaí seeds through pyrolysis is presented in Figure 1. This process follows a systematic approach, incor-porating various chemical methods and experimental procedures using a fixed bed re-actor at a laboratory scale. Initially, Açaí seeds are collected from local açaí producers, then subjected to drying, milling, and sieving. The resulting powdered biomass is chemically activated with KOH, followed by water washing and drying. The pyrolysis experiments are conducted using a reactor system connected to a condenser and a separating funnel, without the use of a catalyst, while considering the influence of al-kali activation. The AOCS method is employed to measure the acidity of the resulting bio-oil. The TEAC methdod applied to determined the antioxidant capacity of bio-oil. The chemical composition of both the bio-oil and aqueous phase is determined through GC-MS and FT-IR analysis, while the characterization of the biochar is accomplished through XRD techniques.

The applied methodology for producing bio-oil by pyrolysis of Açaí seeds is sum-marized in Figure 1. This process involves a logical sequence of ideas, chemical meth-ods, and procedures to conduct experiments using a fixed bed reactor in laboratory scale. The Açaí seeds are initially collected from the sidewalks and streets, dried, milled, and sieved. The powder biomass is then chemically activated with KOH, washed with water and dried. The experiments are carried out in a pyrolysis reactor coupled to a condenser and a separating funnel without a catalyst, and the effect of alkali activation is analyzed. The AOCS and TEAC methods applied to determine the acidity and antioxidant capacity of bio-oil. The chemical composition of bio-oil and aqueous phase are determined using GC-MS and FT-IR, and the biochar is characterized by XRD.

2.2. Materials

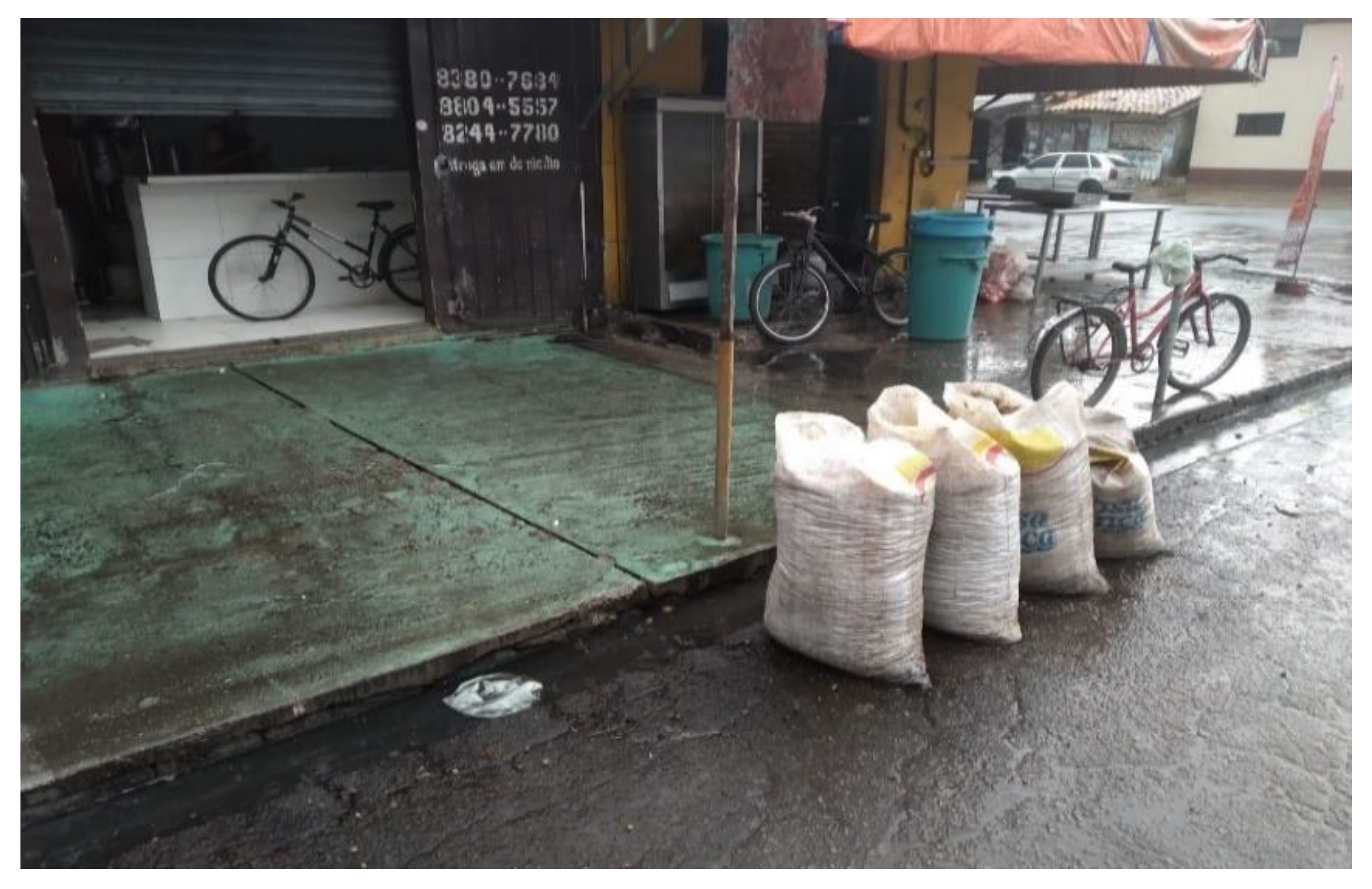

The Açaí seeds (Euterpe oleracea Mart.) that were discarded on the sidewalks and streets by a local Açaí store in the Jurunas District of Belém-Pará-Brazil, were collected and stored in plastic bags. Figure 2 visually displays the Açaí seeds (Euterpe oleracea Mart.) that were found scattered on the sidewalks and streets near the Açaí store in the Jurunas District of Belém-Pará-Brazil.

2.3. Pre-treatnent of Açaí seeds (Euterpe oleracea, Mart.)

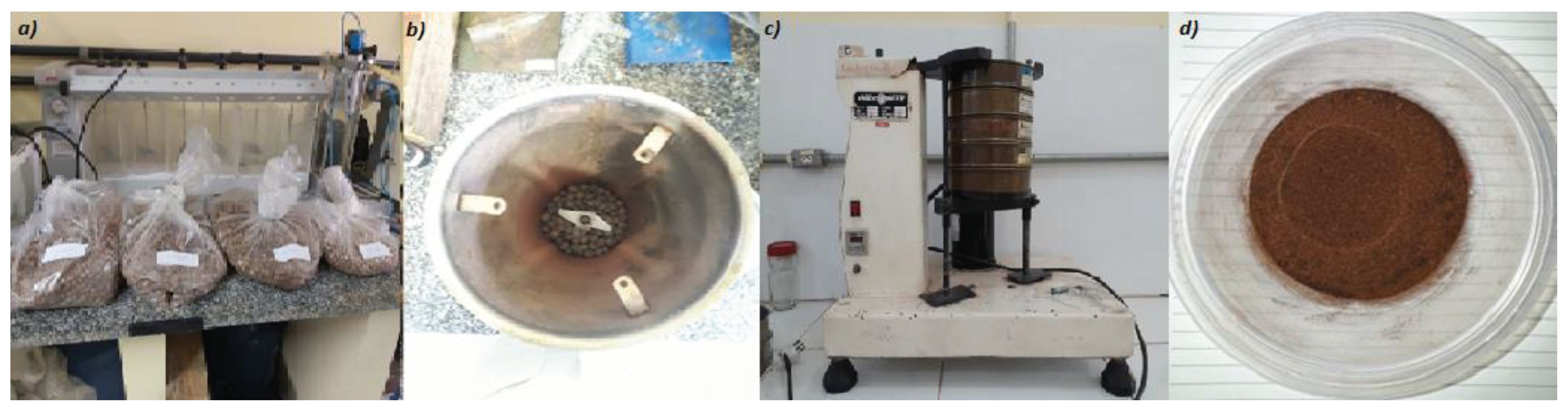

The Seeds of Açaí (Euterpe oleracea, Mart.) were submitted to physical pre-treatments of natural and forced drying, grinding, and sieving. The prepared seeds were subjected chemical treatment using solutions of 0.5 M, 1.0 M, and 2.0 M KOH in order to evaluate the effect of KOH concentration in pyrolysis products and yields, and the procedures described in detail in sections 2.3.1 and 2.3.2.

2.3.1. Physical pre-treatment of Açaí seeds (Euterpe oleracea, Mart.)

The Açaí (Euterpe oleracea, Mart.) seeds were subjected to drying in an oven controlled by an analog device (DeLeo, Porto Alegre-Brazil, Model: DL-SE) at a temperature of 105°C for a duration of 24 hours. Afterwards, the dried seeds were ground using a laboratory knife cutting mill (TRAPP, Brazil, Model: TRF 600). Then, the dried and grinded Açaí seeds were sieved using a set of sieves of 28, 35, 48, 60 Mesh in order to remove the excess fiber material, as well as to decrease the specific particle diameter. The drying, grinding and sieving of Açaí seeds in shown in Figure 3.

2.3.2. Chemical activation of Açaí seeds (Euterpe oleracea, Mart.)

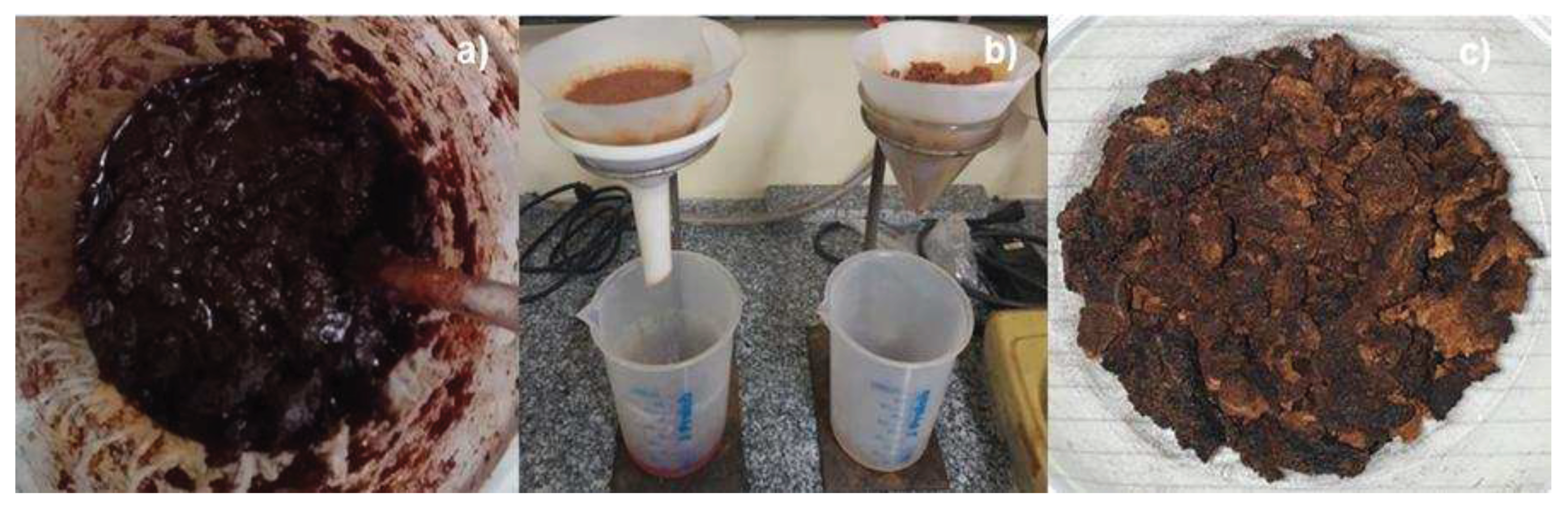

Following the physical pre-treatment outlined in section 2.3.1, the prepared Açaí seeds underwent chemical activation using 0.5 M, 1.0 M, and 2.0 M KOH solutions. The procedure involved the following steps: Approximately 60 g of dried, ground, and sieved Açaí seeds were gently mixed with 120 mL of 0.5 M, 1.0 M, or 2.0 M KOH solutions (1:2 mass/volume ratio) for 30 minutes in a 250 mL Becker. The impregnation process was conducted at room temperature. The formed suspension was then transferred to a paper filter, washed with 120 mL of distilled water, and left to rest for 24 hours, following a previously described method [31]. Subsequently, it was dried at 100 °C ± 5 °C for 24 hours. Finally, the dried and impregnated seeds were ground using a porcelain pestle and mortar. Figure 4 depicts the chemical activation process of Açaí seed fine powders using a 2.0 M KOH solution.

2.4. Centesimal and immediate characterization of Açaí seeds

The Açaí seeds (Euterpe oleracea, Mart.) were previously characterized for moisture, ash, volatiles, and fixed carbon [9,11], as well as for lipids, proteins, fibers, cellulose, hemicellulose, and insoluble lignin [41].

2.5. Experimental apparatus and procedures

2.5.1. Experimental apparatus

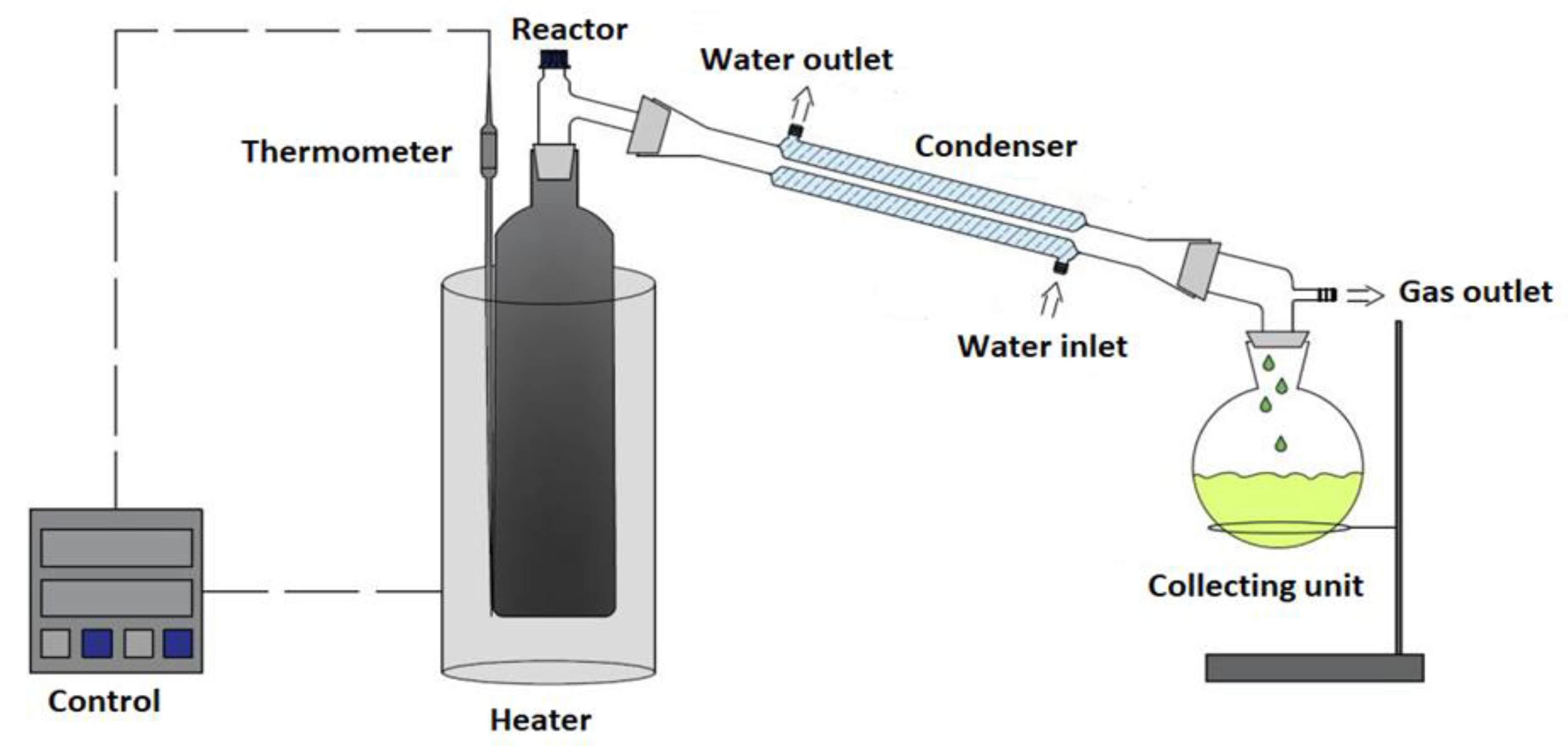

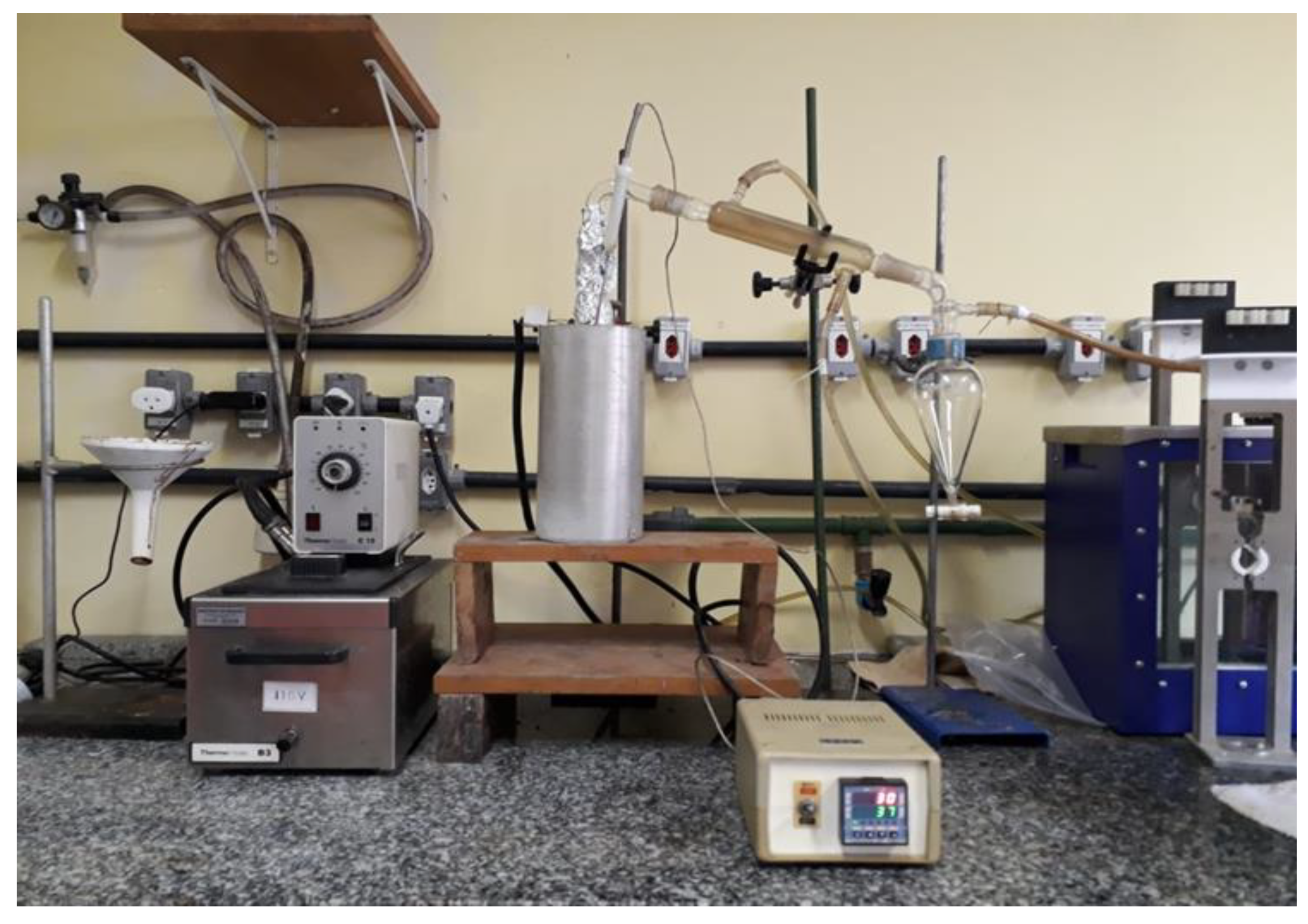

A diagram in Figure 5 shows a simplified setup of a small borosilicate glass reactor used in the laboratory experiments. The system consists of a cylindrical reactor made of borosilicate glass with a diameter of 3.3 cm and a height of 22.8 cm, with a volume of 195 mL. The reactor is placed inside a cylindrical oven with a ceramic heating system of 800 W, and the temperature is controlled by a digital temperature controller. The temperature inside the reactor is measured with a K-type thermocouple. A Liebig condenser is connected to the exit of the glass reactor using a Y-shaped connection, and the liquid products are collected in a 50 mL borosilicate glass flask. The non-condensable gases are sent to the flare system through an opening in the 90° curve, coupled between the Liebig condenser and the glass separating funnel. Figure 6 shows the laboratory scale pyrolysis reactor used in the experiments.

2.5.2. Experimental procedures

By the pyrolysis of chemically activated Açaí seeds, approximately 40.0 g weighed using a semi-analytical balance (Marte Científica e Instrumentação Industrial Ltda, São-Paulo-Brazil, Model: AD330). Then, the chemically activated Açaí seeds placed inside the glass reactor. After connecting the glass reactor to the Liebig condenser, using a Y shaped connection, and the condenser to the separating funnel, the cooling system is turned on and the water temperature was set at 10 °C. Then, the desired heating rate (10 °C/min), and temperature (350, 400, or 450 °C) were set-up. After the desired reactor temperature (set-point temperature) is reached, the reactor set-point temperature is maintained for 30 minutes. The temperature of the reactor was monitored at 10-15 minutes intervals. The weight of the liquid phase (consisting of bio-oil and aqueous phase) and biochar were measured, and the weight of gas was calculated by subtracting the total weight of the liquid and biochar from the total weight of the feedstock. The bio-oil was separated from the aqueous phase through decantation in the separation funnel. The bio-oil was then analyzed for its physical and chemical properties, including acid value.

2.6. Acidity, antioxidant activity and chemical composition

2.6.1. Acidity of liquid fractions

The acid value of the bio-oils and aqueous phases was determined according to the official methods (AOCS Cd 3d-63), as detailed in previous studies [42,43,44,45].

2.6.2. Antioxidant activity of bio-oils

The total antioxidant capacity was determined according to the Trolox® equivalent antioxidant capacity (TEAC) method proposed by Miller et al. [46], and modified by Re et al. [47], being adapted for conditions of temperature, proportions of reagents and reaction time. TEAC is a colorimetric technique based on the reaction between ABTS (Sigma A1888) and potassium persulfate (K₂S₂O₈), producing the ABTS• (cation radical), a green/blue chromophore, with maximum absorbance at 645, 734 and 815 nm. Addition of antioxidants to the cation radical reduces it again to ABTS. The reaction was measured spectrophotometrically by observing the changes in absorbance measured at 734 nm over a time interval of 05 (five) minutes, using a spectrophotometer (Spectrum, Shanghai, China, Model: SP-2000UV). Thus, the extent of discoloration, defined as an index of inhibition of the ABTS• (cation radical), is measured, being equal to the total antioxidant activity of the sample. The TEAC results were expressed in micromoles per liter (µmoles/L). Initially, the AC-ABTS standard curve was constructed by successive dilution of standard Trolox solution (2.5 mM), and each point measured in triplicate to compute a mean absorbance value. Afterwards, 2970 μL of ABTS is read, corresponding to initial time (τ₀). Then, 30 μL of sample (bio-oil) is added. The reading of absorbance is carried out after 05 (five) minutes (τ₅).

2.6.3. Chemical composition of bio-oils and aqueous phase

CG-MS was used to determine the chemical composition of bio-oils and aqueous phases, following the procedures described by Castro et. al. [11]. A 1.0 µL sample was injected in split mode into a gas chromatographer (Agilent Technologies, GC-7890B), equipped with a fused silica capillary column (SLBTM-5ms) coupled to a mass spectrometer (Agilent, MS-5977A). The peak intensity, retention times, and identification of compounds were analyzed based on the NIST mass spectra library. Since no internal standard was used, the concentrations were expressed in area.%. The presence of chemical groups was confirmed by Fourier transform infrared spectroscopy (FT-IR) (BRUKER, Ettlingen-Germany, Model: VERTEX 70v) at the Laboratory of vibrational spectroscopy and high pressure (LEVAP-PPGF/UFPA), and the procedures applied to determine the qualitative FT-IR analysis described elsewhere [48,49,50,51].

2.7. Characterization of hidrochar

2.7.1. XRD analysis

The crystalline and mineralogical analysis of chemically activated Açaí seeds after pyrolysis was conducted using an X-ray diffraction (XRD) technique. The XRD measurements were carried out using a BRUKER D8 ADVANCE diffractometer with Bragg-Brentano geometry, coupled with a LynxEye detector. The analysis was performed at the Laboratory of X-ray Diffraction (PPGF/UFPA), and the equipment used had the following specifications: a generator with a maximum power of 3 kW, a tube voltage of 40 kV, a tube current of 40 mA, and a Cu X-ray tube with Kα1 wavelength of 1.540598 Å. The optical setup of the instrument included fixed divergence, scattering, and receiving slits, with a Kβ filter of Ni and a graphite monochromator. The soller slit was set to 2.5°, and the divergent slit was 0.6 mm. The goniometer used was a vertical model, allowing a scanning range of 5-110° (2θ) with a scanning speed of 0.2°/min (2θ) and an accuracy of ± 0.02°. The XRD data were recorded with an angular step of 0.02° and a scan rate of 0.2°/min at room temperature. The identification of crystalline phases in the chemically activated Açaí seeds was performed following established procedures described in the literature [9,15,16,31,52,53].

2.8. Mass balances by pyrolysis of Açaí seeds

An overall mass balance was done in order to calculate the quantity of gas formed. Basically, the weight of feed, bio-oil, aqueous phase and coke formed are recorded and a global integral mass balance calculation yields the quantity of gas formed by difference [54,55]. A differential mass balance of the considered system is described by the following equation (1):

$$\frac{dM}{dt}={\dot{M}}_i-{\dot{M}}_o$$

(1)

Where ${\dot{M}}_i$ and ${\dot{M}}_o$ are the mass flow rates in and out of the control volume, respectively. Multiplication of equation (1) by dt and integrating, yields:

$${\int }_{t_i}^{t_f}\frac{dM}{dt}dt={\int }_{t_i}^{t_f}{\dot{M}}_{I}dt-{\int }_{t_i}^{t_f}{\dot{M}}_{O}dt$$

(2)

$$M_{t_f}-M_{t_i}={\int }_{t_i}^{t_f}{\dot{M}}_{I}dt-{\int }_{t_i}^{t_f}{\dot{M}}_{O}dt$$

(3)

Where $M_{t_f}$ is the remaining material in the reactor after pyrolysis i.e. the bio-char formed and $M_{t_i}$ corresponds to the feed weight loaded. Since there is no mass being added to the reactor, ${\dot{M}}_I=0$. The mass flowing out of the reactor, ${\dot{M}}_O$, is represented by the vapors formed during the pyrolysis process and condensed or not afterwards as bio-oil, aqueous phase and non-condensable gases. Then, equation (2) becomes:

$$M_{char}-M_{feed}=-\left[{\int }_{t_i}^{t_f}{\dot{M}}_{bio-oil}dt+{\int }_{t_i}^{t_f}{\dot{M}}_{aqueousphase}dt+{\int }_{t_i}^{t_f}{\dot{M}}_{gas}dt\right]$$

(4)

$$M_{feed}-M_{char}={\int }_{t_i}^{t_f}{\dot{M}}_{bio-oil}dt+{\int }_{t_i}^{t_f}{\dot{M}}_{aqueousphase}dt+{\int }_{t_i}^{t_f}{\dot{M}}_{gas}dt$$

(5)

Assuming constant behavior of the flow rates of bio-oil, aqueous phase and gas phases, equation (4) yields the final form of mass balance for the pyrolysis process.

$$M_{feed}-M_{char}-M_{bio-oil}-M_{aqueousphase}=M_{gas}$$

(6)

3. Results

3.1. Characterization of catalyst

3.1.1. XRD analysis

3.1.1.1 Effect of pyrolysis temperature

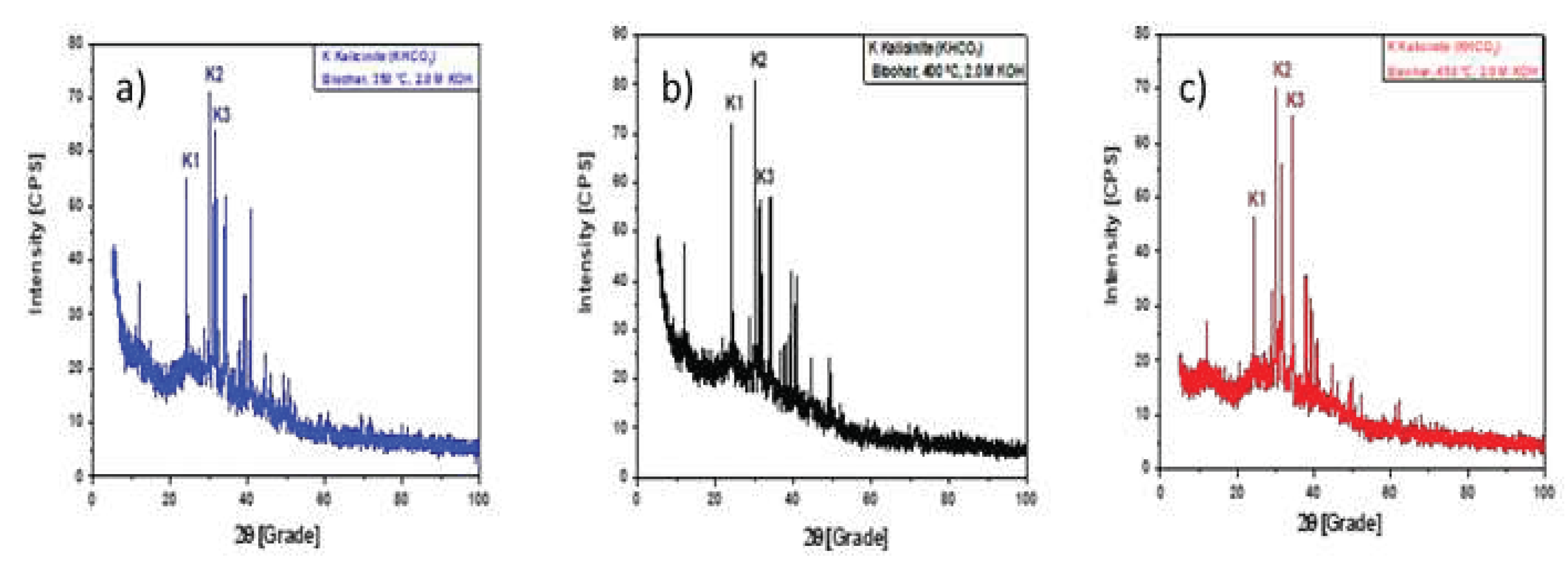

Figure 7 illustrate the XRD of biochar produced by pyrolysis of Açaí seeds at 350 (a), 400 (b), and 450 °C (c), 1.0 atmosphere, activated with 2.0 M KOH, in laboratory scale, respectively. The diffractogram of biochar illustrated in Figure 7 shows the presence of 01 (one) peak (K2) of high intensity on the position 2θ: 30.0 (100%), and 02 (two) peaks of medium intensity, the first (K1) on the position 2θ: 24.2 (66.8%) and the second (K3) on the position 2θ: 40.6 (68.6%), being all the peaks associated to Kalicinite (KHCO₃), the dominant crystalline phase in biochar. The findings from Prakongkep et al. [56], who conducted a study on the chemical properties, elemental analysis, nutrient content, as well as morphological and crystalline characteristics of biochar obtained from the pyrolysis of durian shell at 350 °C on a laboratory scale, align with the results of this study. Prakongkep et al. [56], observed that the dominant crystalline phase identified in the biochar was Kalicinite (KHCO₃).

The diffractogram of biochar illustrated in Figure 7b shows the presence of 02 (two) peaks of high intensity, the first observed on the position 2θ: 24.1 (81.73%), the second on the position 2θ: 30.0 (100%), and 01 (one) peak of medium intensity on the position 2θ: 31.3 (62.2%), being all the peaks associated to Kalicinite (KHCO₃), the dominant crystalline phase in biochar, as reported by Prakongkep et. al. [56]. The diffractogram of biochar illustrated in Figure 7c shows the presence of 03 (three) peaks of high intensity, the first observed on the position 2θ: 30.2 (100.0%), the second on the position 2θ: 31.3 (79.9%), and the third on the position 2θ: 34.2 (92.1%), being all the peaks associated to Kalicinite (KHCO₃), the dominant crystalline phase in biochar, as reported by Prakongkep et. al. [56].

Furthermore, Han Lee and co-workers [57], investigated the XRD patterns of biochar that had been chemically modified using K agents. Despite undergoing thermo-chemical transformations at much higher temperatures (600°C-900°C), they observed similar behavior, which is illustrated by the diffractograms shown in Figures 7. Han Lee et. al. [57], proposed that XRD patterns change with increasing temperature is due to thermal decomposition of KHCO₃ into other oxides, such as K₂O and K₂CO₃, producing CO₂ and H₂O. In a study conducted by Díaz-Terán et al. [58], the chemical activation of lignocellulosic material using KOH was investigated. XRD analysis of the activated material showed the presence of K₂CO₃ at a position of 2θ: 31.0. It was observed that the intensity of the peak increased with temperature, indicating a temperature-dependent effect on the formation of K₂CO₃. Similar results were observed in Figure 7. Díaz-Terán et. al. [58], proposed the possibility of CO₂ formation by reaction of K₂CO₃ with biochar, close to 470 °C, as well as the possibility of formation of K salts that could oxidize and form potassium oxides and even KOH again, so that it is expected that presence of KHCO₃ (Kalicinite) and K₂CO₃ crystalline phases in biochar after pyrolysis of Açaí seeds activated with 2.0 M KOH may show a maximum peak intensity over the diffractogram on the position 2θ.

3.2. Process Analysis

3.2.1. Effect of process temperature

Pyrolysis experiments were conducted on activated Açaí seeds at temperatures of 350, 400, and 450 °C, and a pressure of 1.0 atm, after activation with a 2.0 M KOH solution. These experiments were carried out using a laboratory-scale borosilicate glass reactor. The results showed that the bio-oil yields ranged from 3.19% to 6.79% (wt.), while the aqueous phase yields ranged from 20.34% to 25.57% (wt.). The yields of biochar ranged from 33.40% to 43.37% (wt.), and the gas yields ranged from 31.85% to 34.45% (wt.). These findings are consistent with the bio-oil yields reported by Serrão et al. [30], who conducted a study on the pyrolysis of Açaí seeds in a natural setting, and with the yields reported by Castro et al. [11], who investigated the pyrolysis of Açaí seeds in pilot, bench, and laboratory scales. The bio-char yields obtained in this study are also in agreement with similar data reported in the literature for the pyrolysis of Açaí seeds, whether in their natural state [17,18,19] or chemically activated [8,20,21,22,23,24,25,26,27,28,29,30,31]. It is important to note that the observed increase in bio-oil yield with increasing temperature is attributed to the temperature range being within the range of maximum decomposition, where the original material is primarily decomposed into its initial products. These findings are summarized in Table 1, which presents the yields of the different reaction products.

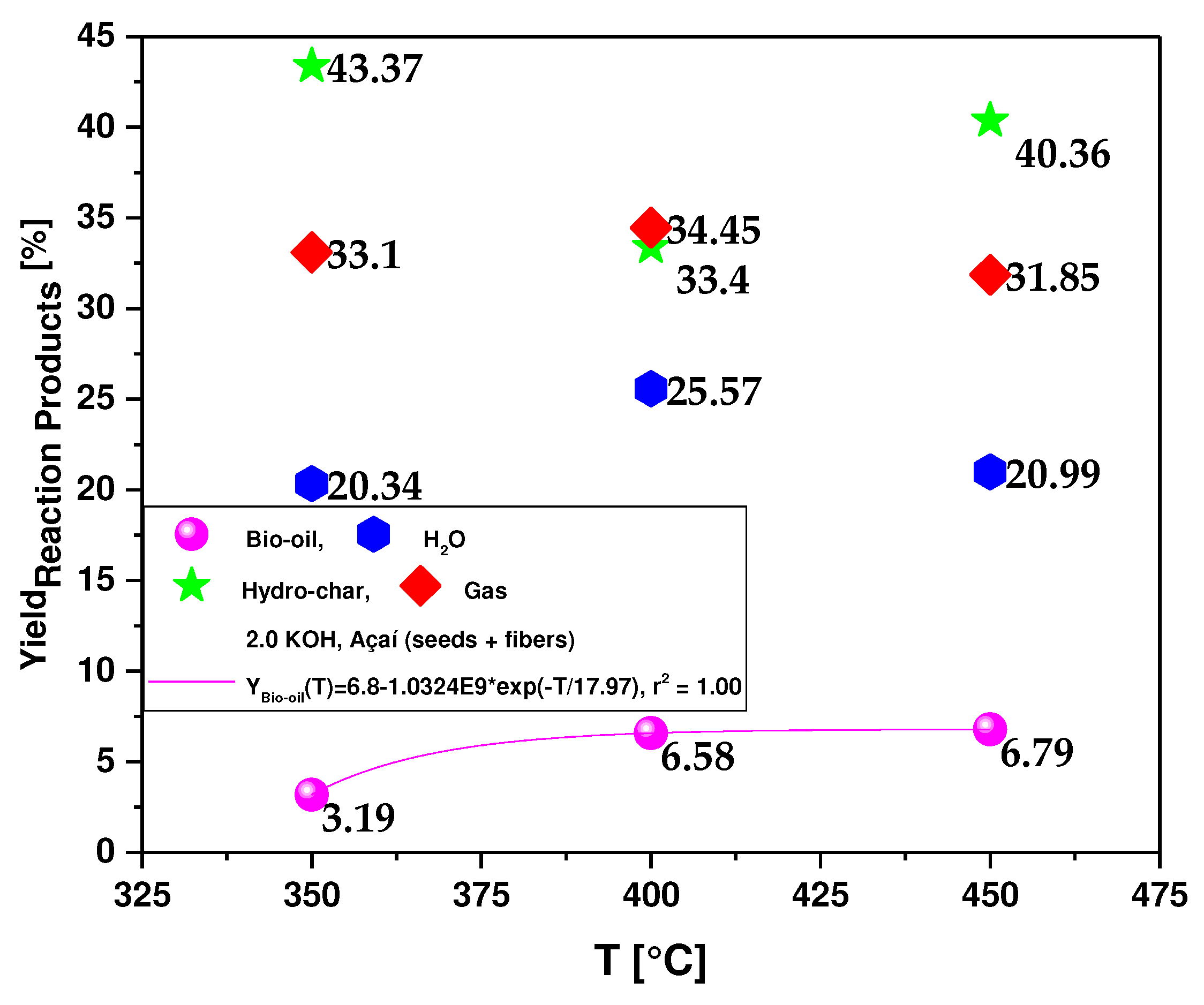

Figure 8 illustrates the yields of different reaction products, namely liquids, solids, H₂O, and gas, obtained from the pyrolysis of activated Açaí seeds in a laboratory-scale borosilicate glass reactor. The pyrolysis was conducted at temperatures of 350, 400, and 450 °C, pressure of 1.0 atm, and the Açaí seeds were activated using a 2.0 M KOH solution. The results demonstrate that the yield of bio-oil increases gradually as the temperature rises, and this trend was well-fitted with a first-order exponential decay model, yielding an r2 value of 1.00. These findings align with the observations made by Serrão et al. [30], who investigated the pyrolysis of Açaí seeds in a natural environment at temperatures of 350, 400, and 450 °C and 1.0 atm on a pilot scale. Their study also reported an increase in bio-oil yield with temperature. Similar studies focusing on biomass pyrolysis have consistently reported an increase in bio-oil yield within the temperature range of 200 to 450 °C [59,60,61,62,63,64,65,66,67,68,69,70].

The data indicate that pyrolysis at 400 °C generates minimum char and maximum gas and water, suggesting that the pyrolysis mechanism is optimized by the reaction temperature of 400 °C when using chemical activation with KOH. The yield of biochar increases with a higher concentration of KOH, indicating a relationship between the mechanisms of gas and water formation and bio-char formation. Previous research on Açaí seed pyrolysis has shown that gas phase yields are associated with bio-char formation [11], and alkaline salts serve as catalysts that affect gas and char reactions.

3.2.1.1. Effect of temperature on the composition of hydrocarbons and oxygenates in bio-oil

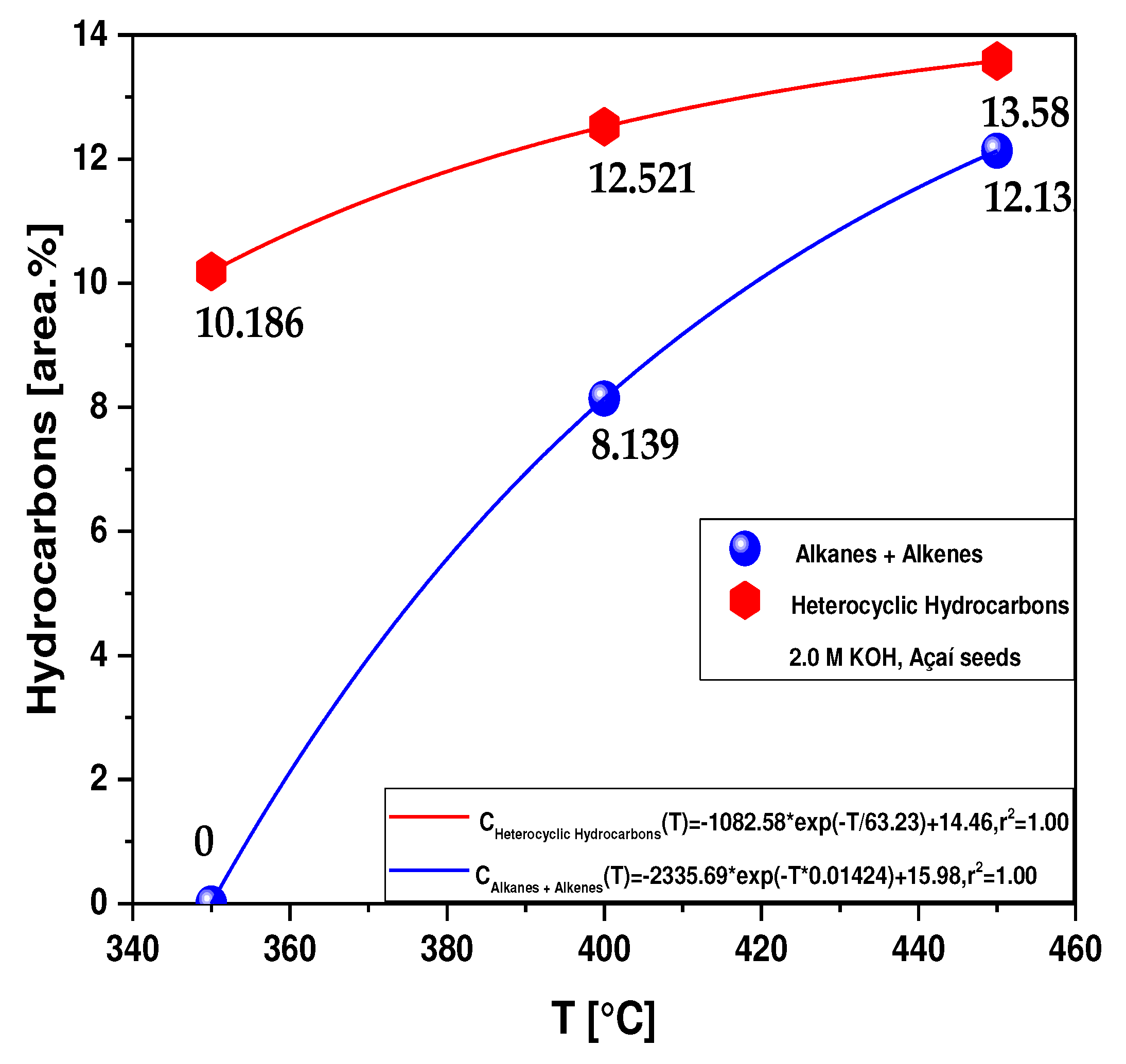

Figure 9 and Figure 10 provide visual representations of the impact of process temperature on the composition of bio-oil derived from the pyrolysis of activated Açaí seeds (Euterpe Oleracea, Mart). The Açaí seeds were chemically activated using a 2.0 M KOH solution, and the pyrolysis experiments were conducted at temperatures of 350, 400, and 450 °C, under a pressure of 1.0 atm, on a laboratory scale. The chemical composition of the liquid fraction of bio-oil was categorized into two main groups: hydrocarbons and oxygenates. Hydrocarbons encompass acyclic saturated/unsaturated hydrocarbons (alkanes + alkenes) as well as heterocyclic hydrocarbons (cycloalkanes + cycloalkenes + aromatics). On the other hand, oxygenates consist of phenols, ketones, and esters. This categorization allows for an assessment of the suitability of the designed process in producing chemical compounds that can serve as effective fuels. It is worth noting that oxygenates, due to their acidic nature, often do not burn efficiently, leading to the accumulation of residues in engines [11]. Therefore, the distinction between hydrocarbons and oxygenates serves as a valuable means of evaluating and comparing different thermochemical conversion processes for their potential fuel applications.

Supplementary Tables S1-S3 present the chemical functions, CAS numbers, sum of peak areas, and retention times of all molecules identified by GC-MS in the bio-oil obtained from the pyrolysis of activated Açaí seeds (Euterpe Oleracea, Mart) with 2.0 M KOH solution at laboratory scale, using 350, 400, and 450 °C and 1.0 atmosphere. The concentration of acyclic saturated/unsaturated hydrocarbons and heterocyclic hydrocarbons increases with temperature, particularly for the concentration of acyclic saturated/unsaturated hydrocarbons, as depicted in Figure 9.

The concentrations of both acyclic saturated/unsaturated hydrocarbons and heterocyclic hydrocarbons in the bio-oil obtained from the pyrolysis of activated Açaí seeds were observed to rise as the process temperature increased. These results were effectively modeled using a first-order exponential growth model, with an r² value of 1.00 for both categories. These findings align with the research conducted by de Sousa et al. [32], who investigated the influence of process temperature on the concentration of hydrocarbons and oxygenates in bio-oil derived from Açaí seeds using a pilot-scale pyrolysis setup. Their study, which examined temperatures of 350, 400, and 450 °C under a pressure of 1.0 atm, demonstrated that the concentration of hydrocarbons increased while the concentration of oxygenates decreased with rising temperature. Additionally, it was observed that the concentrations of alkanes, alkenes, and aromatics in the bio-oil increased with temperature, suggesting that higher pyrolysis temperatures promote the formation of hydrocarbons [32].

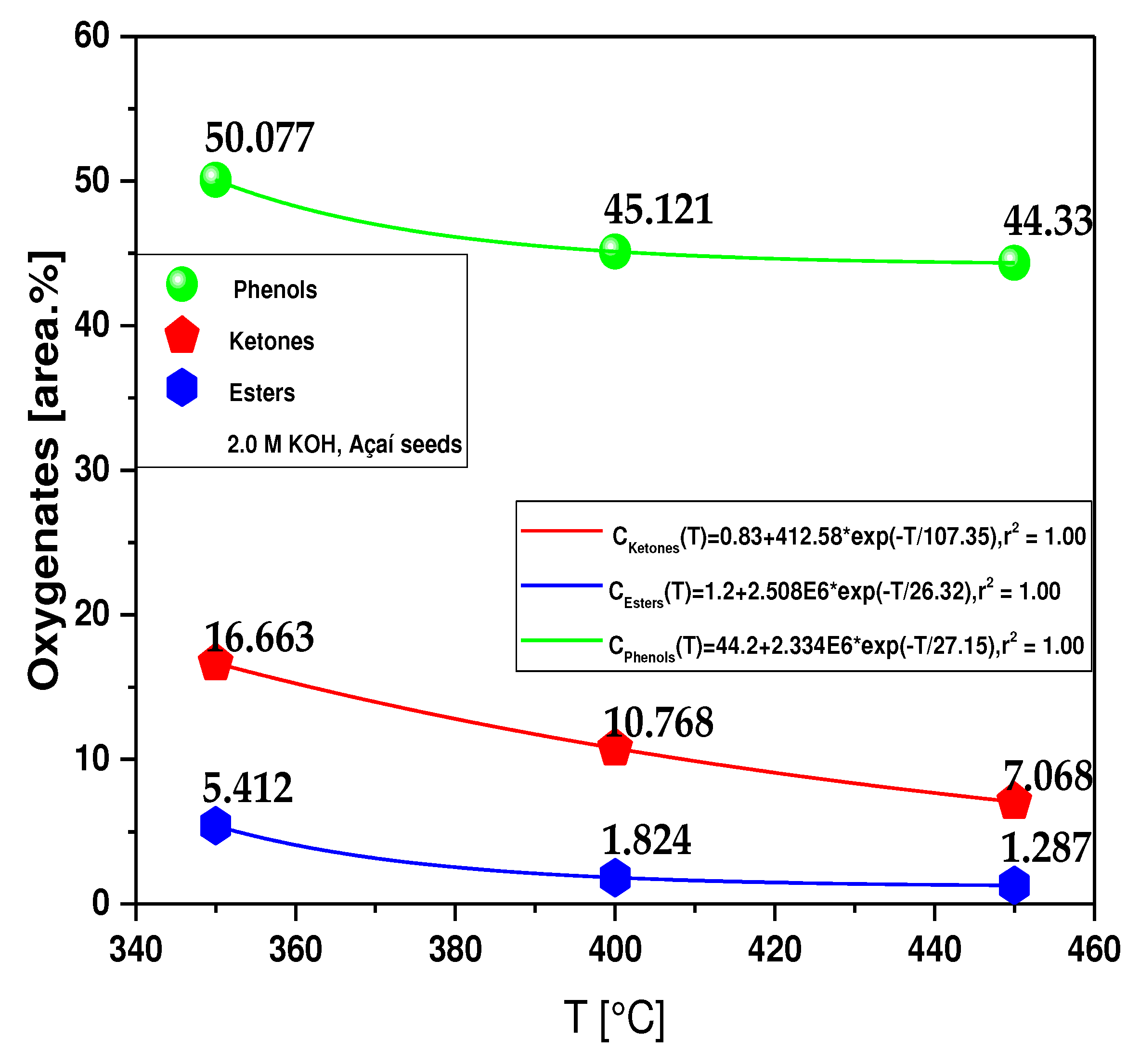

Figure 10 illustrates the concentration of oxygenates in bio-oil. The concentrations of phenols, esters, and ketones decrease with increasing pyrolysis temperature, showing a smooth exponential decay behavior, as shown in Figure 10. The results are according to those reported by de Sousa et. al. [32]. The concentration of oxygenates in bio-oil were correlated with a first order exponential decay model, exhibiting in all the cases root-mean-square error (r²) of 1.00. According to de Sousa et. al. [32], the concentration of cresols, phenols, and ketones decrease with increasing pyrolysis temperature because of deoxygenation reactions converting phenols, esters and ketones into hydrocarbons, carbon monoxide, carbon dioxide and water (decarboxylation and decarbonylation). Mechanism of deoxygenation is not well understood but it seems that reaction rate of deoxygenation is influenced positively by reaction temperature. Studies show that adipic acid (dicarboxylic acid) can be converted to cyclopentanone via deoxygenation reactions and at higher temperatures a considerable amount of cyclo-pentene is formed [15,16].

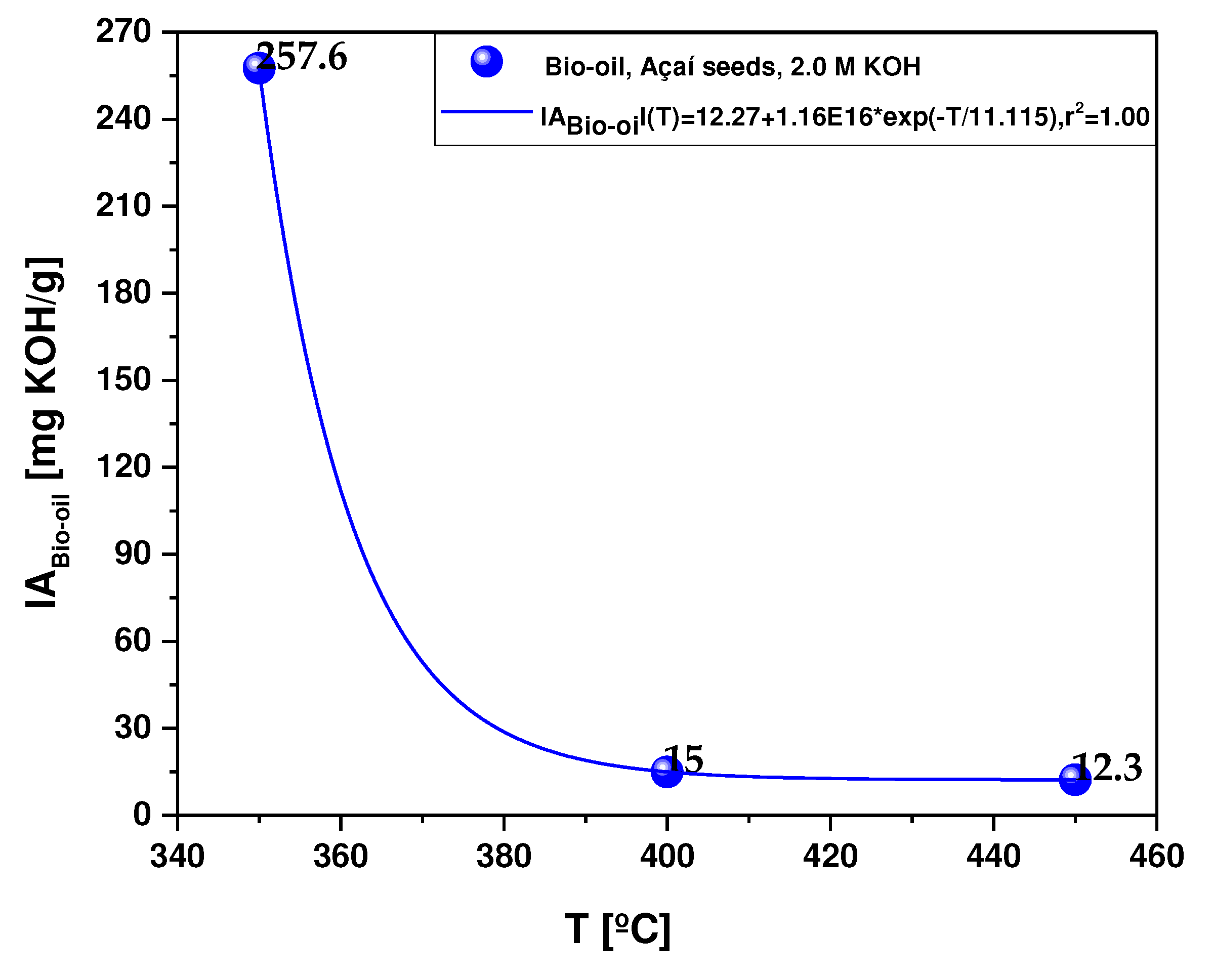

Figure 11 depicts the acid value, which represents the acidity, of the bio-oils obtained from the pyrolysis of activated Açaí seeds. The results reveal a notable reduction in bio-oil acidity as the pyrolysis temperature increases, following a sharp exponential decay trend. The acid value of the bio-oil ranged from 257.6 to 12.3 mgKOH/g and exhibited a strong correlation with a first-order exponential decay model, demonstrating an r² value of 1.00. These findings are in line with the observations presented in Figure 10, suggesting that higher concentrations of oxygenates in the bio-oil contribute to elevated levels of acidity.

3.2.1.2. Effect of temperature on chemical composition of products

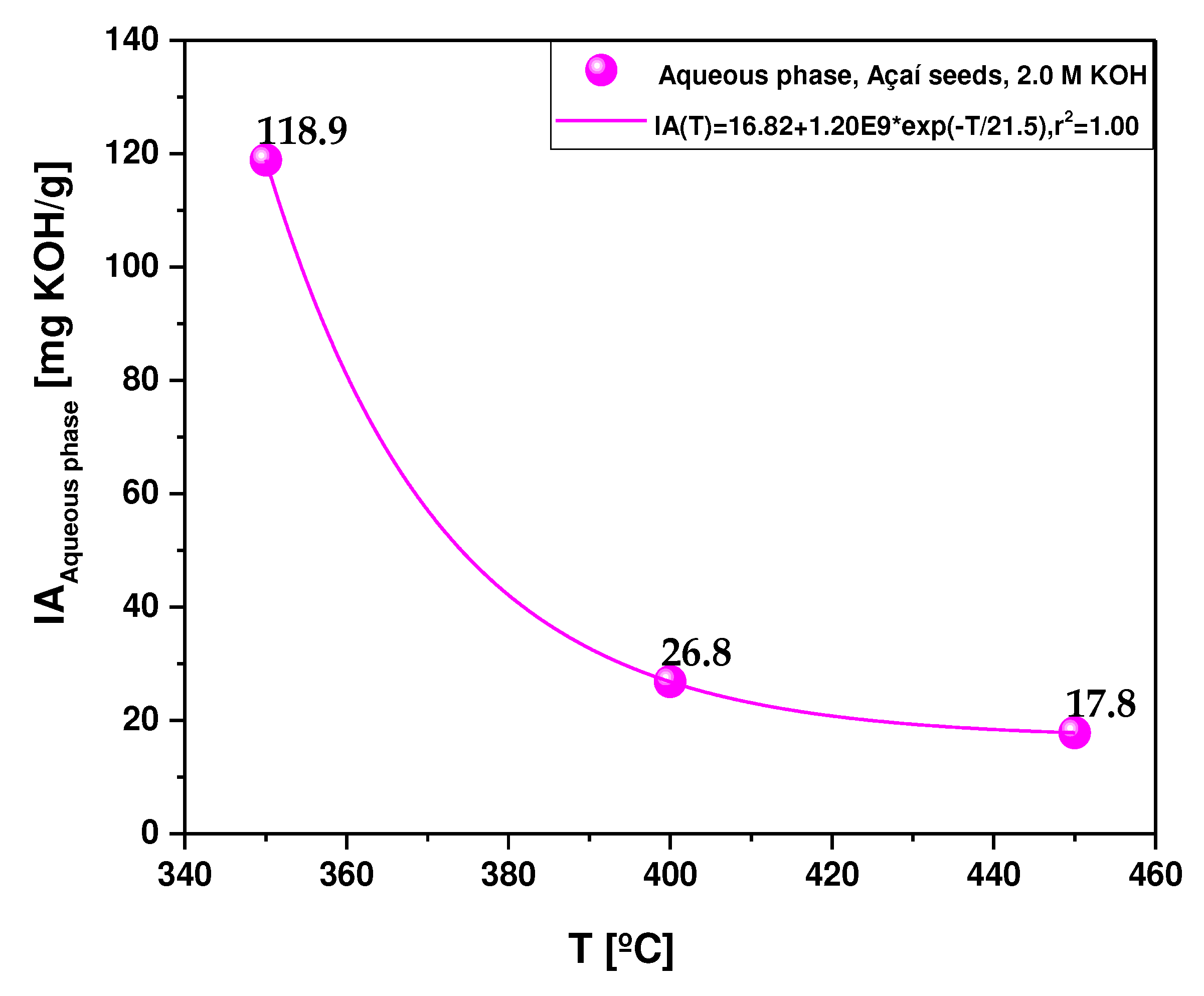

Table 2 presents the chemical composition and acidity of the aqueous phase generated from the pyrolysis of Açaí seeds, and data depicted graphically in Figure 12. The determination of the chemical components and acidity of the aqueous phase was carried out using GC-MS analysis. Supplementary Tables S4-S6 provide detailed information on the chemical functions, sum of peak areas, CAS numbers, and retention times of all identified molecules.

Similar studies reported in the literature have identified the major oxygenate compounds in the aqueous phase as alcohols, carboxylic acids, and ketones, with remaining oxygen compounds such as phenols, aldehydes, and amines grouped under the category of oxygenates. Zhang et al. [71] found carboxylic acids, ketones, phenols, and furans in the aqueous phase produced by sawdust pyrolysis, while Torri and Fabbri [72] identified carboxylic acids, aldehydes, phenols, furans, sugars, and N-compounds in the aqueous phase produced by corn stalk pyrolysis. Similarly, Zhou et al. [73] reported the presence of carboxylic acids, aldehydes, phenols, ketones, furans, furfurals, sugars, and amines in the aqueous phase produced by corn stover pyrolysis.

The contribution of alcohols to the acidity of the aqueous phase is generally considered small or negligible due to their weak acidic nature. However, the α-hydrogen atoms of ketones exhibit acidic properties, which contribute to the overall acidity of the aqueous phase. Additionally, carboxylic acids with low carbon chain lengths are known to have a significant impact on the acidity of the aqueous phase. As the concentration of ketones decreases, it is expected that the acidity of the aqueous phase will also diminish. The acidity of the aqueous phase can be correlated with a first-order exponential decay model, indicating a decrease in acidity with increasing pyrolysis temperature.

3.2.1.3. Effect of temperature on the antioxidant activity of bio-oil

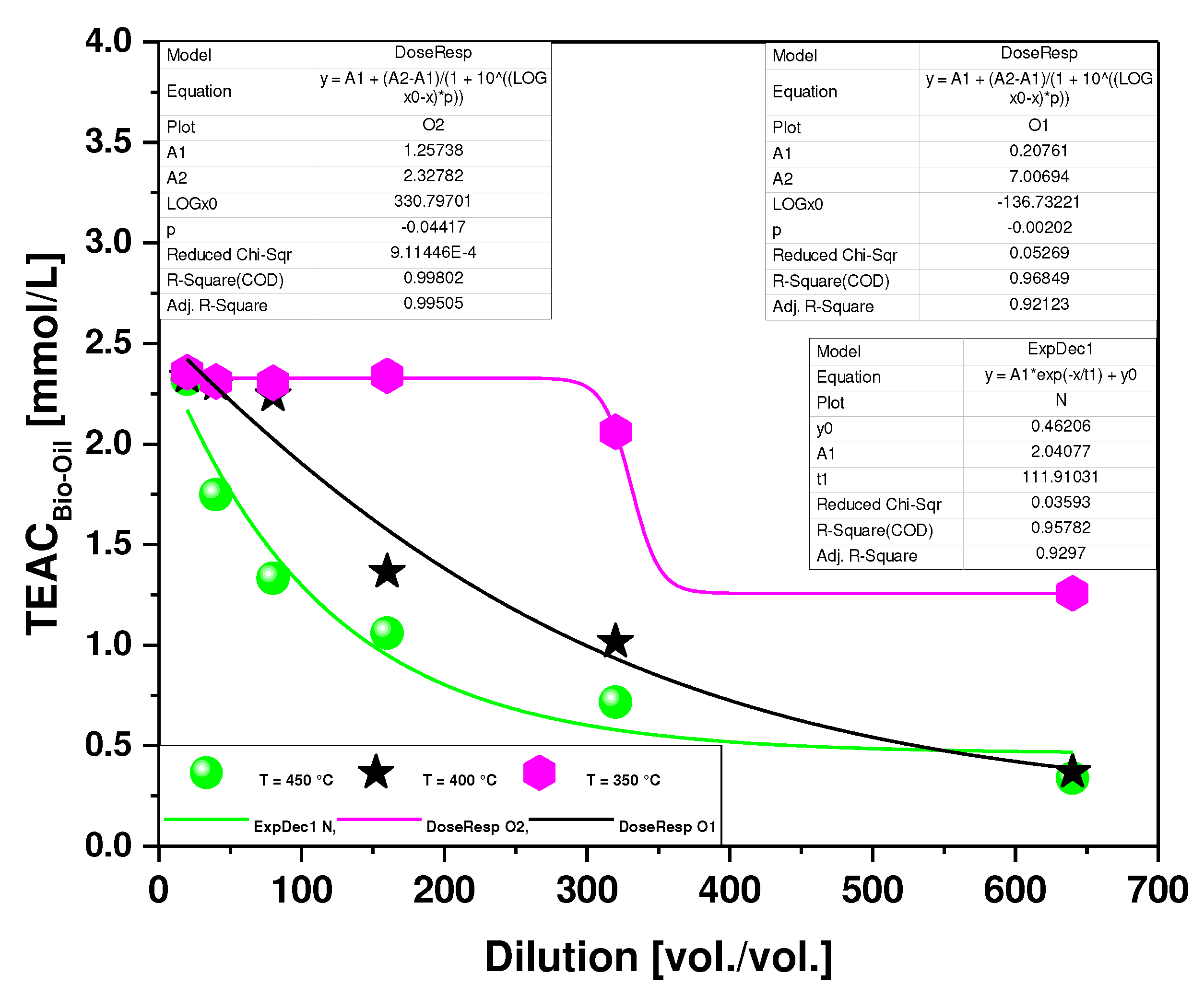

Figure 13 demonstrates the effect of pyrolysis temperatures on the total antioxidant capacity of bio-oil produced by the pyrolysis of Açaí seeds (Euterpe Oleracea, Mart) with 2.0 M KOH solution, 1.0 atmosphere, on a laboratory scale. The effect of temperature on the average antioxidant capacity of pyrolysis bio-oil are shown in Table 3. As previously described, pyrolysis is a complex process involving the thermal degradation of biomass, and reaction conditions, particularly temperature, plays a critical role in determining the chemical composition of the bio-oil [31]. At different pyrolysis temperatures, various intermediate reactions occur, leading to the formation of different chemical compounds within the bio-oil, but also production of a gaseous and a solid phase with different composition and characteristics [9,30,31,32]. The results presented in Table 3 indicate that the strong antioxidant activity of the bio-oil at 350°C may be probably associated with its high concentration of oxygenated compounds at this temperature, particularly phenolic compounds, which accounts for 50.077 (area.%) of total oxygenated compounds, as shown in Figure 10. Recently, Valdez et. al. [31], demonstrated that higher pyrolysis temperatures (450°C) of Açai seeds activated with a 2.0 M KOH solution do not favors the formation of oxygenates in the bio-oil, leading to the formation of hydrocarbons rich bio-oils. On the other hand, lower pyrolysis temperatures (350°C) favor the formation of oxygenates, particularly phenolic compounds, in the Açai seed bio-oil [31]. In this context, phenolic compounds are strongly associated with high antioxidant activity, as described in the literature [74,75,76]. The results are according to similar studies reported by del Pozo et. al. [34], who investigated the effect of temperature on the antioxidant capacity of pyrolysis bio-oil of coffee silver skin, and by del Pozo et al. [39], who investigated the effect of temperature on the antioxidant capacity of pyrolysis bio-oil of grape pomace, showing that higher pyrolysis temperature leads to bio-oils with lower antioxidant capacity.

In general, by thermochemical degradation of biomass, higher temperatures result in the degradation of valuable compounds within the bio-oil, including phenolic com-pounds, while lower temperatures favor not only the formation, but also preserve phenols in bio-oil [31]. Furthermore, bio-oil is the reaction product most abundant in valuable chemical compounds, making it particularly significant for the food, cosmetic and pharmaceutical industries. One of the essential components found in bio-oil are phenolic compounds. These compounds have gained substantial interest due to their potential applications as natural sources of antioxidants, nutraceuticals, and preservatives in the food industry [34,38].

Phenolic compounds possess strong antioxidant properties, which help in neutralizing harmful free radicals and reducing oxidative stress, that can delay or inhibit the oxidation of DNA, proteins, and lipids [75]. As a result, they can extend the shelf life of food products by inhibiting the oxidation of fats and oils, preventing rancidity, and maintaining the overall quality and freshness of the food [74]. In addition, these compounds may confer health benefits beyond basic nutrition when incorporated into the diet. Nutraceuticals derived from phenolic compounds have been associated with various health-promoting effects, such as anti-inflammatory, anticancer, and cardioprotective properties [74,75,76]. Therefore, the temperature at which pyrolysis occurs is a critical parameter that influences both the quantity and quality of the produced bio-oil.

Understanding the impact of pyrolysis temperature is essential to maximize desired compounds, such as phenolic compounds and/or hydrocarbons, and ensure that the bio-oil meets specific industrial and application requirements whether in applications such as biofuels or chemical products with high added value in the food, cosmetics and pharmaceutical industries.

3.2.2. Effect of KOH solution molarity

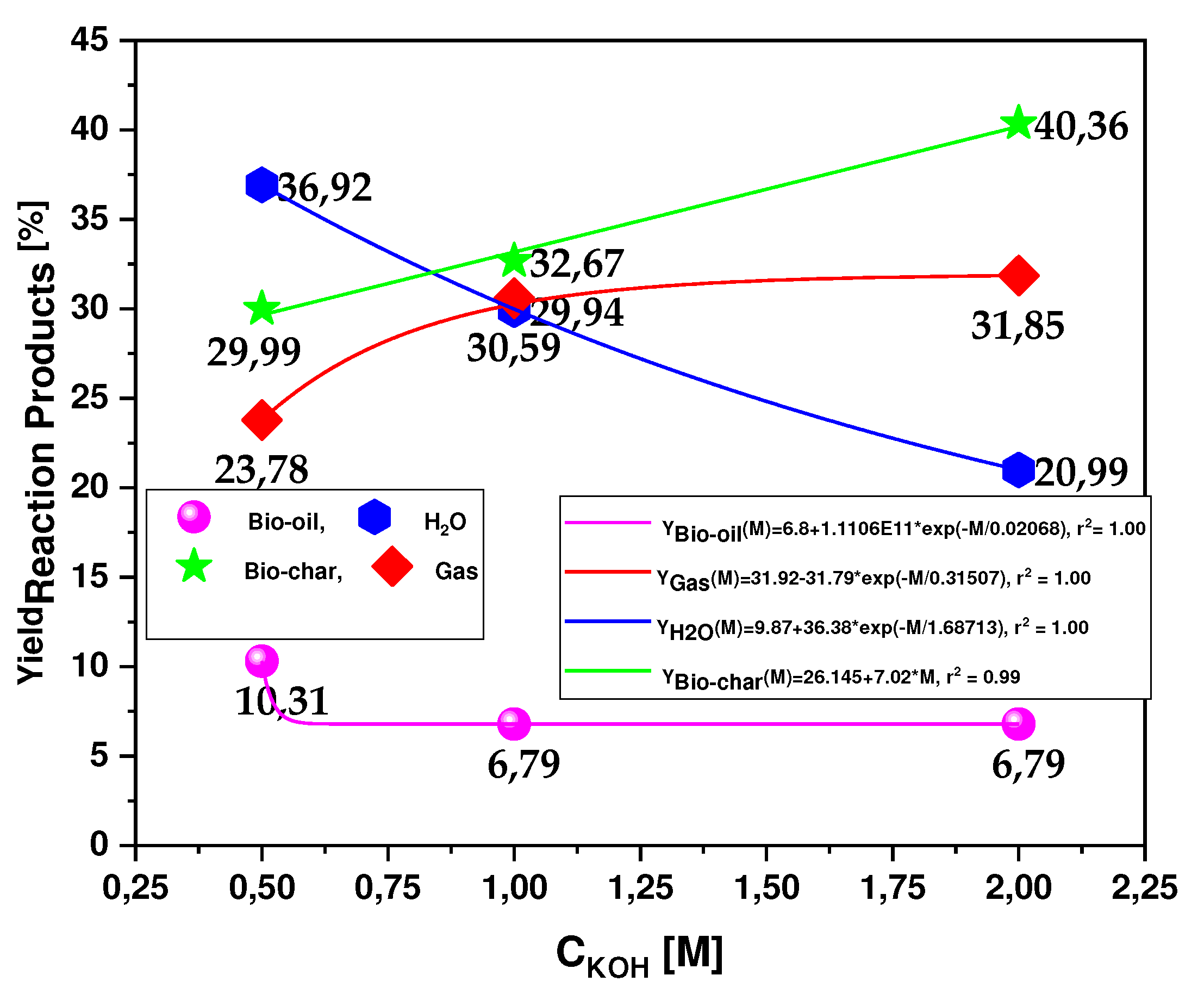

Table 4 illustrates the process parameters, mass balances, yields of reaction products (bio-oil, biochar, H₂O, and gas), and acidity of bio-oils by pyrolysis of activated Açaí seeds at 450 °C, 1.0 atm, activated with 0.5 M, 1.0 M, and 2.0 M KOH.

In laboratory-scale pyrolysis experiments, activated Açaí seeds were subjected to different concentrations of KOH solution (0.5 M, 1.0 M, and 2.0 M) and pyrolyzed at 450 °C and 1.0 atm in a borosilicate glass reactor. The yields of bio-oil, aqueous phase, biochar, and gas were determined and found to range from 6.79% to 10.31%, 20.99% to 36.92%, 29.99% to 40.36%, and 23.78% to 31.85% (wt.), respectively. The bio-oil yields obtained were higher than those reported by Serrão et. al. [30], but similar to those reported by Castro et. al. [11]. The yields of biochar were also consistent with those reported in previous studies of Açaí seed pyrolysis chemically activated with NaOH [8,21,27], KOH [20,22,23,24,25,26,27,28,29,30,31], H₃PO₄ [24,26], and HNO₃ [20,26]. Chemical activation of biomass with alkalis may enhance the bio-oil yield as reported by Wang et. al. [77], as well as promote cracking of long-chain molecules into smaller gas molecules. This effect is attributed to the presence of alkaline and alkaline earth salts, which act as catalysts for the cracking process. The XRD analysis of the biochar indicated the presence of KOH and its salts, which may have contributed to the observed yields. Figure 14 depicts the data in chart form. The yield of biochar increases linearly with increasing solution molarity, and root-mean-square error (r²) of 0.99, while that of gas increases exponentially, and a root-mean-square error (r²) of 1.00, showing that higher molarities favor gas production. The results show that bio-oil yields tend to increase and reach a plateau around 1.0 M, physical-chemical analysis, though, show that acidity is heavily lowered when using 2.0M and higher amounts of water are obtained, indicating that mechanism of basic pre-treatment on biomass pyrolysis further deoxygenates the bio-oil, trapping oxygenates in water and bio-char phases.

3.2.2.1. Effect of molarity in chemical composition of bio-oil

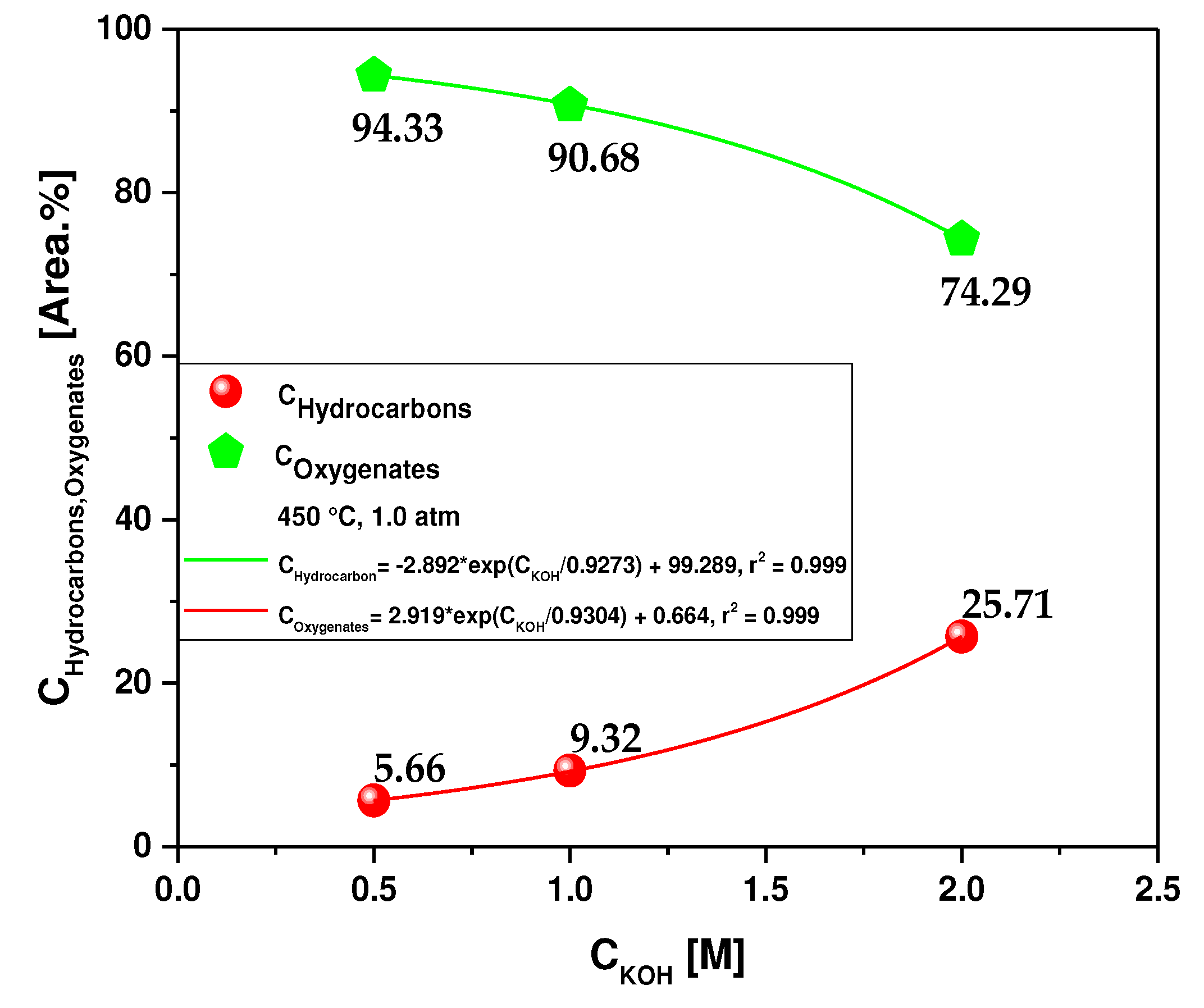

Figure 15 demonstrates the effect of different molarities of KOH solution on the concentration of hydrocarbons and oxygenates in the bio-oil produced by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart) at 450 °C, 1.0 atmosphere, in laboratory scale.

Supplementary Tables S7-S8 display the chemical functions, sum of peak areas, CAS numbers, and retention times of all the molecules identified in the aqueous phase by GC-MS during the pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), activated with 0.5 M and 1.0 M KOH solutions, at 450 °C, 1.0 atmosphere, in laboratory scale. The concentrations of hydrocarbons, including alkanes, alkenes, aromatics, and cyclic hydrocarbons, increase with molarity and follow a first-order exponential growth model, while those of oxygenates, including alcohols, amine, carboxylic acids, phenols, ketones, furans, and others, decrease with molarity and follow a first-order exponential decay model. The results are consistent with those of de Castro [78], who studied the pyrolysis of Açaí seeds at 450 °C, 1.0 atmosphere, activated with 0.5 M, 1.0 M, and 2.0 M NaOH, in pilot scale, respectively, and observed that higher NaOH solution molarities favored the formation of hydrocarbons. Both the hydrocarbons and oxygenates concentrations were found to have a high correlation, as evidenced by their root-mean-square error (r²) values of 0.999.

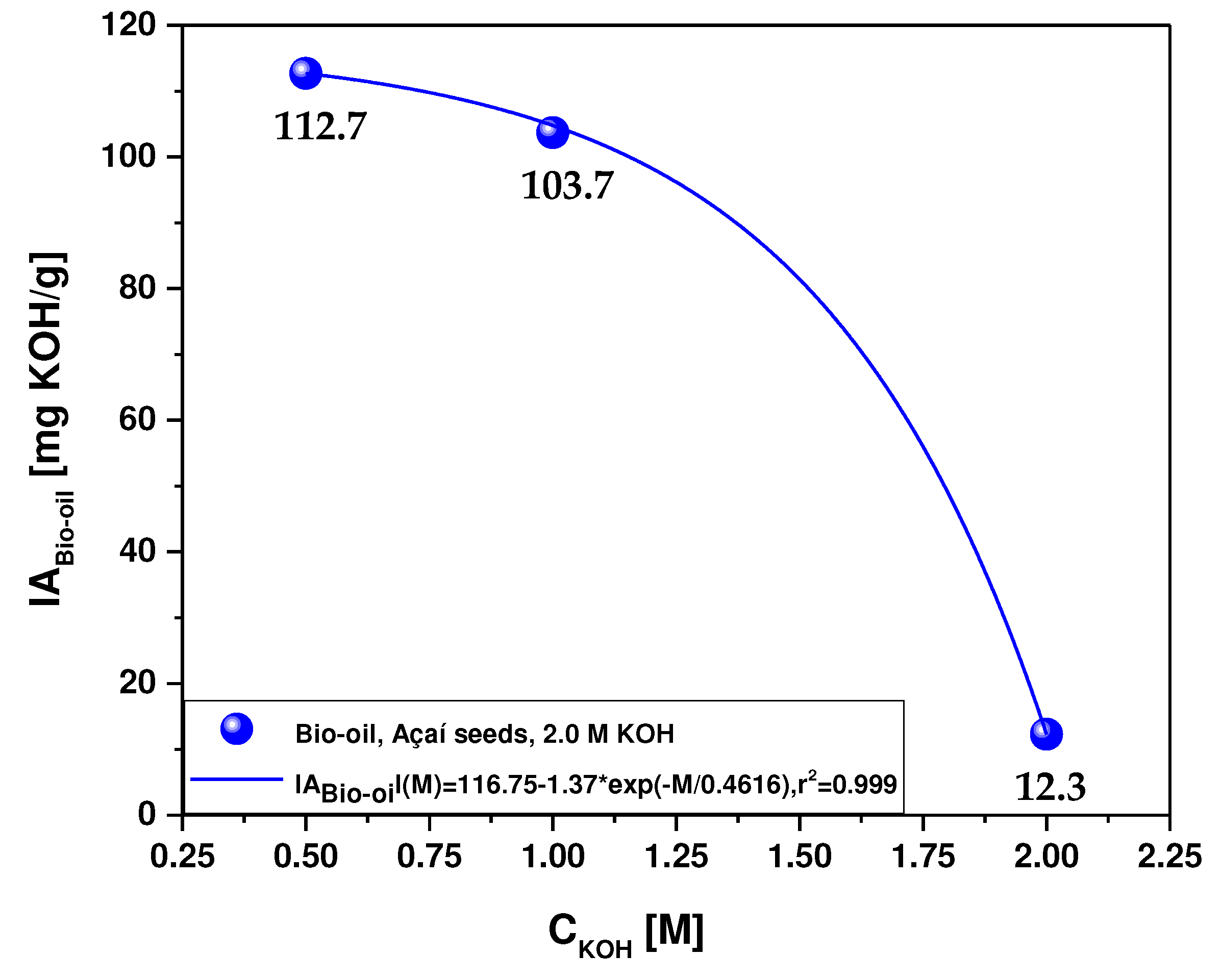

Figure 16 demonstrates the acid value (acidity) of bio-oils obtained from the pyrolysis of Açaí seeds (Euterpe Oleracea, Mart) that were activated with 2.0 M KOH solution at 450 °C and 1.0 atmosphere, as well as activated with 0.5 M, 1.0 M, and 2.0 M KOH solutions in laboratory scale. The data indicates that the acidity of the bio-oil decreases as the molarity of the KOH solution increases, following a sharp exponential decay pattern. The acid value of the bio-oil ranged from 113.7 to 12.3 (mgKOH/g) and can be correlated with a first-order exponential decay model, with an r2 value of 0.999. This finding aligns with the results presented in Figure 14, suggesting that higher concentrations of hydrocarbons in the bio-oil lead to lower acidity.

3.2.2.2. Effect of molarity on antioxidant activity of the bio-oil

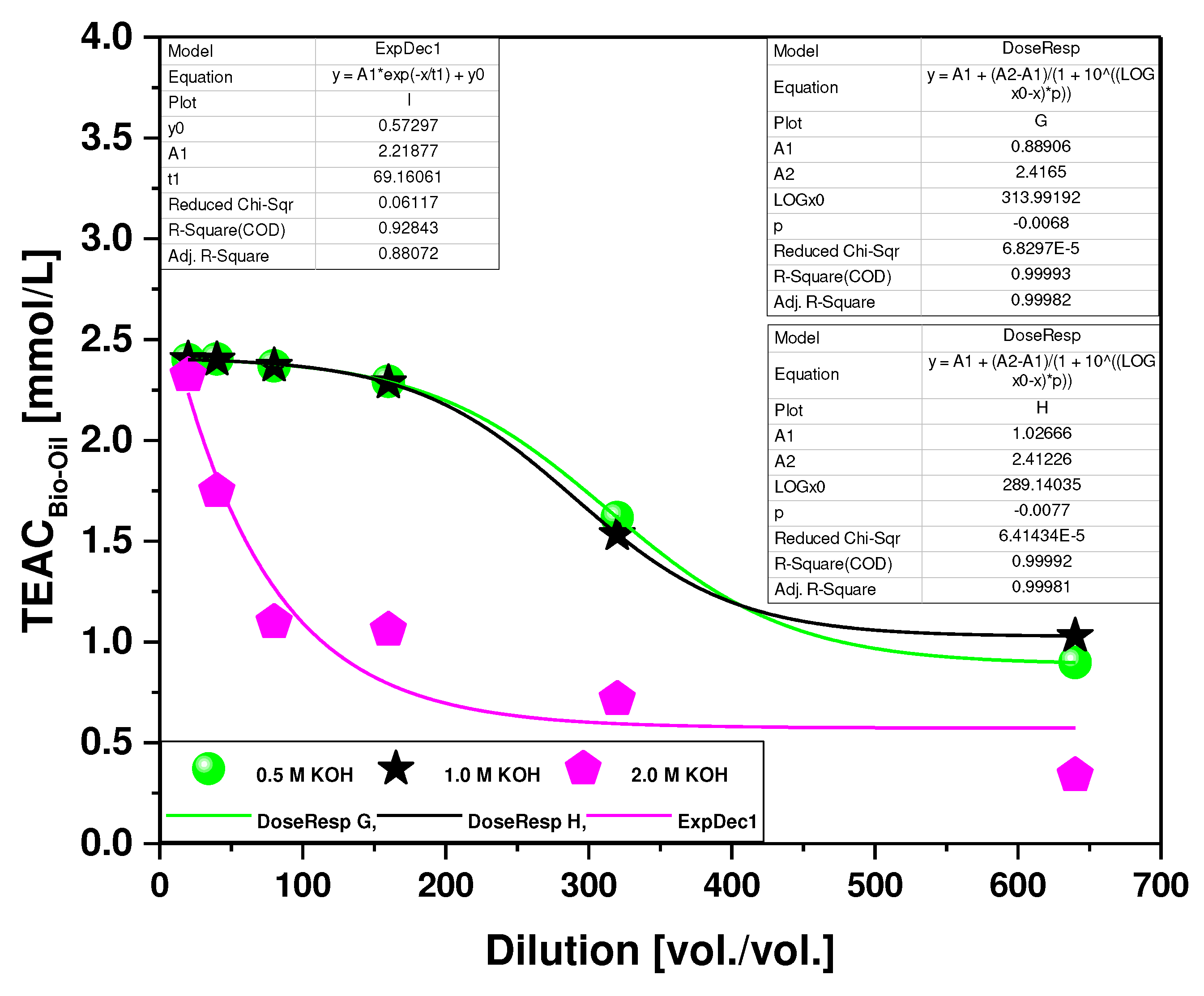

Table 5 shows the antioxidant capacity of bio-oils produced by pyrolysis of Açaí seeds (Euterpe Oleracea, Mart), with different molarity (0.5-2.0 M KOH solution), at 450º C, 1.0 atmosphere, on a laboratory scale, and data depicted graphically in Figure 17. Data clearly show that the bio-oil produced by pyrolysis of 0.5 and 1.0 M of KOH solutions of 450°C exhibited higher antioxidant activity compared to the bio-oils produced at 2.0 M of KOH solution. These findings indicate that the high antioxidant activity of the bio-oil from residual açai seeds found at lower molarities of KOH solution (0.5 and 1.0 M) is associated with an increased formation of oxygenated compounds under these conditions, particularly phenolic compounds, which accounts for 94.33 (area.%) of the oxygenated compounds at this molarities, as shown in Figure 15. In this context, our previous study also demonstrated that alkali activation of residual açai seeds during pyrolysis for bio-oil production altered the yield, content of hydrocarbons and oxygenates, acidity, as well as the chemical composition of the bio-oil [31].

4. Conclusions

The X-ray diffraction (XRD) analysis of biochar derived from the pyrolysis of activated Açaí seeds treated with 2.0 M KOH solution at 350, 400, and 450 °C and 1.0 atm in a laboratory scale indicates that Kalicinite (KHCO3) is the dominant crystalline phase present. The yield of bio-oil increases smoothly as the pyrolysis temperature rises, and this increase can be correlated with a first-order exponential decay model. The concentration of hydrocarbons, particularly acyclic saturated/unsaturated hydrocarbons and heterocyclic hydrocarbons, in the bio-oil also increases with temperature, while the concentration of oxygenates (such as cresols, phenols, and ketones) decreases. This suggests that higher pyrolysis temperatures promote the formation of hydrocarbons while suppressing the formation of oxygenates. The significant reduction in oxygenate concentration leads to a sharp decrease in bio-oil acidity from 257.6 to 12.3 (mgKOH/g) as the temperature increases. The aqueous phase generated during the pyrolysis of activated Açaí seeds contains carboxylic acids, ketones, alcohols, phenols, and other compounds. The acidity of the aqueous phase decreases sharply with temperature, mainly due to the decreased concentration of ketones. The yields of biochar increase linearly with higher molarities of the KOH solution, while the yields of gas and solid phase (biochar) increase exponentially and linearly, respectively, with increasing molarity. Higher molarities of the KOH solution favors the production of gas and bio-char. At 450 °C and 1.0 atm, the concentration of hydrocarbons in the bio-oil increases exponentially with the molarity of the KOH solution, while the concentration of oxygenates decreases exponentially. Moreover, the acidity of the bio-oil decreases sharply with increasing molarity, exhibiting a sharp exponential decay behavior. These findings are consistent with similar studies reported in the literature [71,72,73].
