Modelled Multidecadal Trends of Lightning and (Very) Large Hail in Europe and North America (1950–2021)

1. Introduction

Among all convective hazards, large hail is responsible for the largest economic losses (Gunturi and Tippett 2017). Both in Europe and the United States (U.S.), single events causing losses exceeding 1 billion dollars have been recorded (Chagnon et al. 2009; Púčik et al. 2019) and yearly hail losses are estimated between $8-14 billion (Podlaha et al. 2020). Given these large impacts, research has extensively focused on determining the environments conducive to large hail, mapping its occurrence and, at the same, understanding its relationship with climate change.

Hail observations or reports are collected across several regions of the world by voluntary reporters, weather stations or hail pad networks (Allen et al. 2020). The Storm Prediction Center’s (SPC) Storm Events dataset (Schaefer and Edwards 1999) includes reports starting in the 1950s, while in Europe, hail reports are stored in the European Severe Weather Database (ESWD; Dotzek et al. 2009; Groenemeijer et al. 2017). Although these databases are an important resource for severe weather research, climatologies exclusively based on ground-based observations are strongly influenced by non-meteorological factors (Allen and Tippett 2015) such as population density variations and associated inhomogeneous reporting rates, or erroneously estimated hail sizes (Witt et al. 2018). Across Europe, there is bias of severe weather reporting towards Central Europe (Groenemeijer and Kühne 2014; Taszarek et al. 2020a), while in the U.S. report-based climatologies underestimate hailfall across areas with low population density (Blair et al. 2017) such as the High Plains (Wendt and Jirak 2021). Analyses of long-term changes based on such datasets are strongly affected by changes in non-meteorological factors (Schaefer et al. 2004; Doswell et al. 2015), masking the climatological trend.

Remote sensing techniques can overcome the influence of non-meteorological factors. Cintineo et al. (2012) and Wendt and Jirak (2021) developed objective climatologies of large (≥ 2 cm) and very large (≥ 5 cm) hail using the Maximum Estimated Size of Hail (MESH) showing that radar-based proxies can help estimate hail frequency in low populated regions. Although more objective, such climatologies are limited to regions covered by reliable radar networks. In the U.S., where radars cover almost the entire nation, a country-wide climatology can be established, as was done by Murillo et al. (2021). In contrast, in Europe radar parameters from which hail occurrence can be inferred are not exchanged across borders, so that a comparable radar-based hail climatology cannot be developed. Comparable analyses have therefore been limited to a few countries with adequate radar data availability (Nisi et al. 2018; Fluck et al. 2021). Another limitation of radar data is that the time periods for which they are available is too short to investigate long-term trends.

Satellite-based approaches allow for a globally consistent detection of hailstorms and can be used in countries where hail reporting or radar data are sparse or non-existent. They have allowed stochastic catalogues of hailstorms (Punge et al. 2014) across such regions and global hail climatologies (Cecil and Blankenship 2012; Bang and Cecil 2019) to be developed. But satellite-based hail detection methods are limited by the relatively coarse resolution of most satellite-instrumentation compared to the scale of convective phenomena (Bang and Cecil 2019) and by the fact that storm tops detected in infrared and visible imagery only reveal part of what is happening in the cloud. Overshooting Top (OTs) detection using infrared brightness gradients (Bedka et al. 2010) are on their own not sufficient to infer whether hail reaches the ground, especially in regions where substantial hailstone melting below the wet-bulb zero-degree level is likely (Punge et al. 2017). Furthermore, trend analysis is still complicated or impossible for data of many satellite-based sensors, because of their limited time of operation (Murillo et al. 2021).

Environmental based proxies from atmospheric reanalyses can also be used to develop long-term climatologies and study trends. For instance, high CAPE is associated with the occurrence of severe weather and large hail (Craven and Brooks 2004; Groenemeijer and Van Delden 2007; Allen et al. 2015; Lin and Kumjian 2022) and a connection between strong Deep Layer Shear (DLS), the occurrence of supercell-type storms, and hail ≥ 5 cm has been established (Thompson et al. 2012; Johnson and Sugden 2014; Púčik et al. 2015; Taszarek et al. 2020b; Kumjian et al. 2021). Several other atmospheric parameters have skill in predicting the occurrence of hail (e.g., low height of the melting layer; Mahoney et al. 2012; Dessens et al. 2015) or hail size (e.g., high lifting condensation level; Púčik et al. 2015; Taszarek et al. 2020b). Machine learning and statistical approaches indicate that composite parameters that combine together kinematic and thermodynamic parameters were found to correlate well with the occurrence of large hail (Allen et al. 2015; Czernecki et al. 2019; Gensini et al. 2021). Composite parameters such as the Significant Hail Parameter (SHP; http://www.spc.noaa.gov/exper/mesoanalysis/help/help_sigh.html) and the Large Hail Parameter (LHP; Johnson and Sugden 2014) were used to model hail climatologies and study long-term trends (Tang et al. 2019; Taszarek et al. 2020b). Although composite parameters such as SHP perform well across the U.S., climatologies based on SHP tend to produce worse results across regions where the parameter has not been specifically developed (e.g., Europe; Taszarek et al. 2020b).

More elaborated approaches have been taken by Prein and Holland (2018) and Rädler et al. (2019), who used probability density functions and additive logistic regression models, respectively. Their work was based on data from the ERA-Interim reanalysis (Dee et al. 2011) with spatial and temporal resolutions of 6 hours and 0.75° degrees. The spatial resolution of ERA-Interim limited these authors in modelling accurately the frequency of hail in regions of complex orography, where mesoscale circulations can amplify or suppress hail occurrence (Nisi et al. 2016, Kunz et al. 2017). A challenge of reanalysis-based approaches is to accurately account for the failure of storm development in otherwise favorable conditions for large hail, which, when neglected may lead to overestimation wherever strong convective inhibition commonly occurs. Rädler et al. (2019) therefore treated separately the probability of convective initiation and the probability of large hail given that a storm would develop. Their model resulted in a reasonable depiction of the spatial distribution and annual cycle of hail and predicted that conditions for large hail had become more favorable across Central Europe since 1979, being forced primarily by rising lower-tropospheric moisture and CAPE in response to rising temperatures.

Here we build on the work by Rädler et al. (2019) but make use of full model-level data of the ERA5 reanalysis (Hersbach et al. 2020) at 1 hour and 0.25° resolution. We complement the study from Taszarek et al. (2021b) of convective parameter evolution across Europe and the U.S. since 1979 by using a trained probabilistic logistic model to model the frequency of a specific hazard, i.e., large hail, while simultaneously extending the analysis back to 1950, yielding a 72-year period. Compared to Rädler et al. (2019), who used a very limited number of vertical levels, the ERA5 model-level data used here allow for a much wider choice of derived parameters to be tested as candidate predictors for the model. For instance, we can now test how the vertical distribution of CAPE in the storm affects the probability of large hail, which is interesting given recent findings from Lin and Kumjian (2022) suggesting that (given enough CAPE) hail grows larger with less buoyancy in the low levels. In a similar way, we can test which measure of vertical wind shear has the greatest predictive skill for large hail occurrence. In addition, the improved vertical resolution can be expected to yield more accurate estimates for quantities like low-level moisture, low-level wind shear, and convective inhibition, while the higher spatial resolution of the ERA5 reanalysis data can better reflect the modulation of environmental parameters near orography. Finally, compared to Rädler et al. (2019) we here develop logistic models up to 4 predictors, compared to the 2 used by them.

The three main goals of this study, therefore, are to find better predictors for large hail occurrence, to develop a climatology with higher spatial resolution, and extend the trend analysis further back than has been possible up until now.

4. Modelled lightning and its evolution since 1950

a. Mean distribution

Modelled annual and seasonal lightning distributions from AR-CHaMo are compared to lightning observations across Europe and the U.S. by constraining the modelled data to the period for which lightning observations are available, i.e., 2008-2020 (2010-2020) across Europe (U.S.).

In Europe, the annual mean modelled distribution reflects the observed spatial patterns well (Figure 3). Both the model and the observations highlight maxima across mountainous areas, especially the Alps and the Caucasus. Although coastal areas also stand out as local maxima in the model output, lightning is underestimated across the Balkans and the southern Mediterranean coasts (especially Turkey). The seasonal cycles match well: in winter, the occurrence of convective storms is limited to the south-eastern Mediterranean. During spring, the storm activity picks up over the continent, more rapidly across Eastern Europe and Turkey where a seasonal maximum is present. Lightning is most common during the summer over the continent where a band of lightning activity stretches from the Pyrenees across Central Europe to Russia. Although the model accurately reproduces such spatial feature, it underestimates the activity across parts of south-eastern Europe. Finally, in autumn the peak in the activity shifts to the relatively warm waters of the southern Mediterranean and the surrounding coastal regions where the model underestimates the activity compared to the observations.

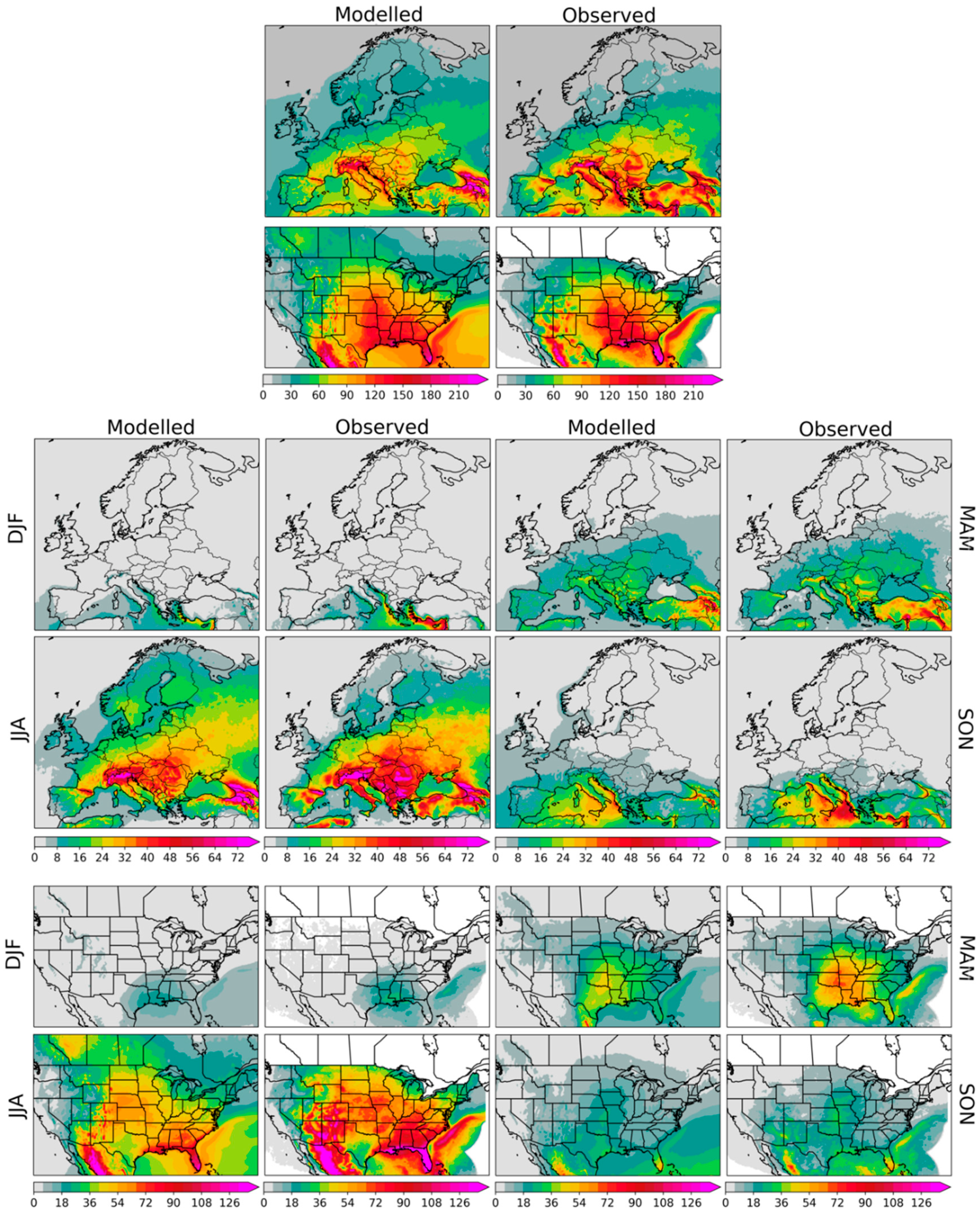

Figure 3. Mean annual and seasonal number of hours with lightning from model and observations. Data refers to the period 2008-2020 across Europe and to the period 2010-2020 across the U.S.

Figure 3. Mean annual and seasonal number of hours with lightning from model and observations. Data refers to the period 2008-2020 across Europe and to the period 2010-2020 across the U.S.

Across the U.S., a maximum in lightning occurrence is modelled across southern Louisiana and Florida, part of a large region with high thunderstorm activity that extends from the Southeast U.S. into the Central Plains. The spatial distribution of lightning is less influenced by orography than in Europe but does play a role in the Southwest, where local maxima correspond to mountain ranges. Along the Gulf of Mexico coast, a sharp land-sea contrast exists with less lightning over sea than over the surrounding land. The model underestimates lightning across the Southeast, Florida, and the mountains of the Southwest. The modelled seasonal cycle reflects the observed one rather well: in winter, the occurrence of convective storms is limited to the Southeast while in Spring it peaks over the southern Great Plains. The occurrence is underestimated during summer when the observed occurrence peaks higher over Florida and the Southwest. A decrease in occurrence is modelled and observed during Autumn.

The modelled and observed seasonal cycle can be compared quantitatively by averaging over the training region (Figure 4). In Europe, the number of hours of lightning matches the observations almost perfectly in all months apart from May, June, and July when the model slightly underestimates the lightning activity (Figure 4a). In the U.S., lightning activity is somewhat underestimated by the model throughout the year (Figure 4d), but the seasonal cycle is modelled well quantitatively.

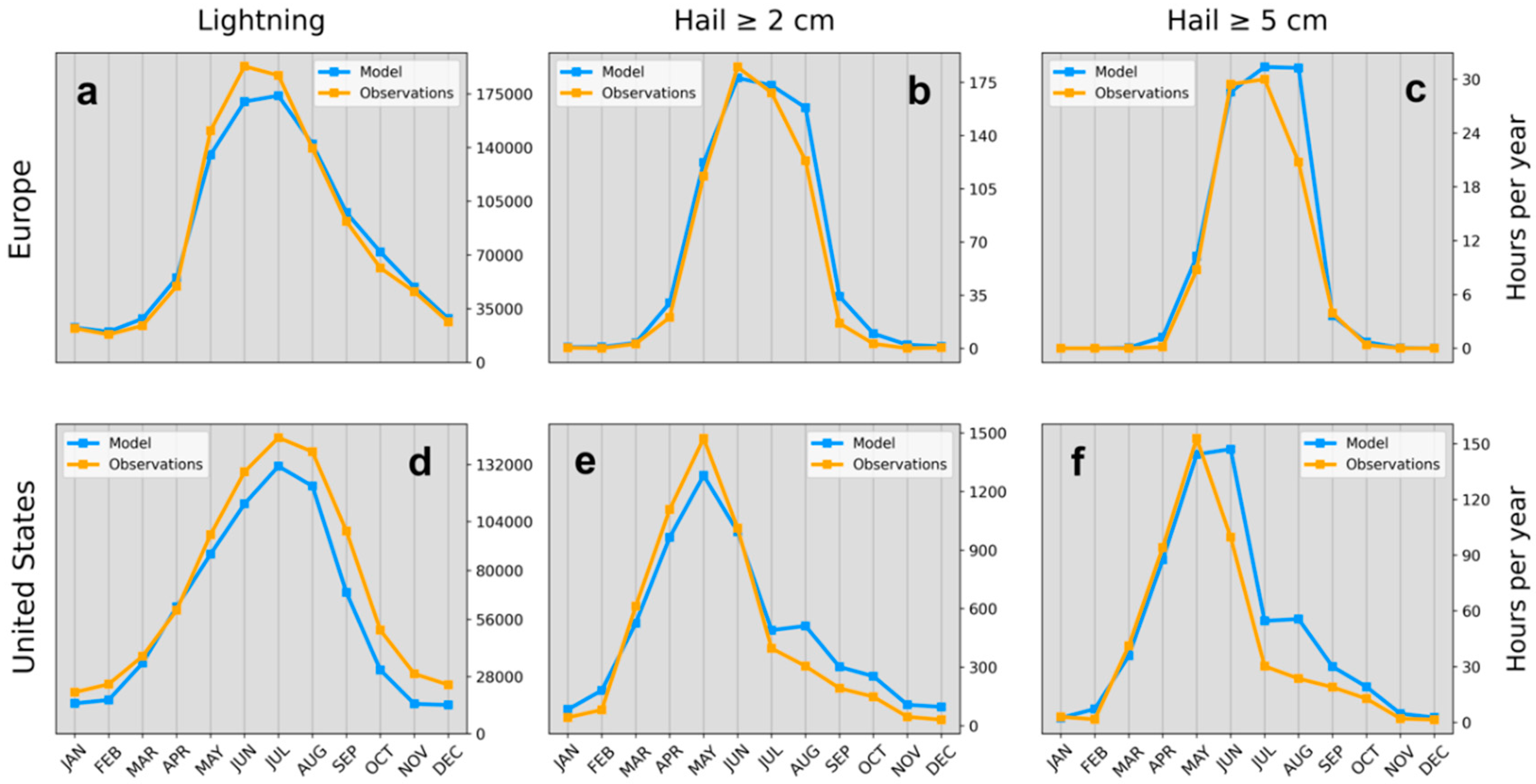

Figure 4. Comparison between modelled and observed seasonal cycles for lightning (a,d), hail ≥ 2 cm (b,e), hail ≥ 5 cm (c,f) across Europe and U.S. training regions.

Figure 4. Comparison between modelled and observed seasonal cycles for lightning (a,d), hail ≥ 2 cm (b,e), hail ≥ 5 cm (c,f) across Europe and U.S. training regions.

b. Long-term trends

AR-CHaMo suggests that the occurrence of thunderstorm environments has significantly increased across most of Europe during the past 72 years (Figure 5). The strongest absolute upward trends are found over the Alpine and Caucasus Mountain ranges with an increase up to 5 hours of lightning more per decade. Scandinavia stands out as the region with the largest relative increases with 2 more hours per decade while the annual mean is 20–25 hours. These increases in lightning occur throughout the year, but especially in the summer. In a belt from Finland to Turkey, small, statistically insignificant changes are modelled. Across parts of Russia, AR-CHaMo indicates a significant decrease in thunderstorms. Some significant trends are also observed in areas with very low absolute values, which are displayed in white. These findings are consistent with Taszarek et al. (2021a), however, their analysis was limited to the period 1979–2021. For direct comparison, figures for the same period are included in Appendix B.

Figure 5. Annual and seasonal trends in lightning hours across Europe and the U.S. between 1950 and 2021. Values are expressed as the change in the number of hours per decade. Trends significant at a 95th percentile level are hatched.

Figure 5. Annual and seasonal trends in lightning hours across Europe and the U.S. between 1950 and 2021. Values are expressed as the change in the number of hours per decade. Trends significant at a 95th percentile level are hatched.

The strongest positive trends in the U.S. occur in the southern states, specifically Florida and the Texas-Louisiana coasts. Although not as strong, upward trends can also be found in the Midwest and across southern Canada, mostly during summer. Conversely, a region of significant negative trends is located across the Colorado Plateau and the Great Basin.

When comparing the trends in Figure 5 with those found by Taszarek et al. (2021b), there are a number of similarities and differences. We do not find any strong negative trends across the southern Great Plains. There are two possible reasons for this: the difference in the definition of favorable thunderstorm environments and the difference of period for which the trends were calculated with Taszarek et al. (2021b)’s analysis starting in 1979. Indeed, when constraining the trend analysis with AR-CHaMo to the period 1979–2021 (Appendix B) similar patterns to Taszarek et al. (2021b) result, i.e., negative trends across most of the southern Great Plains and the Southwest. Nonetheless, some differences between the two approaches remain, especially across the Gulf Coast, probably because of the different lightning proxies used, i.e., AR-CHaMo versus those of Taszarek et al. (2021b).

5. Modelled hail ≥ 2 cm and hail ≥ 5 cm and their evolution since 1950

a. Europe

Hail ≥ 2 cm is most frequent in the Po Valley in northern Italy, averaging to around one event per year (per grid point) while south-western France, eastern and northern Spain also exhibit a relatively high frequency of occurrence (Figure 6). The modelled spatial distribution in Italy accurately reflects that of observed data with a maximum in the northeast (Figure 1b, c), but the maxima in France and Spain are not confirmed by ESWD reports, likely because of the lower reporting rate in those countries (Groenemeijer et al. 2017; Taszarek et al. 2020a). Nonetheless, the spatial distribution across these regions corresponds with that of local hail climatologies based on hail pad network data (Vinet 2001; Merino et al. 2014). Here, the model correctly simulates hail maxima outside of the region where it was trained.

Figure 6. Mean modelled annual and seasonal number of hail hours (hail ≥ 2 cm and hail ≥ 5 cm) between 1950 and 2021 across Europe. Annual and seasonal trends are also shown and expressed as the change in the number of hail hours per decade. Trends significant at a 95th percentile level are hatched.

Figure 6. Mean modelled annual and seasonal number of hail hours (hail ≥ 2 cm and hail ≥ 5 cm) between 1950 and 2021 across Europe. Annual and seasonal trends are also shown and expressed as the change in the number of hail hours per decade. Trends significant at a 95th percentile level are hatched.

Compared to the earlier hail hazard maps from Rädler et al. (2019) based on ERA-Interim, local patterns are much better resolved, especially near complex orography, such as the local maxima across Switzerland and Southern Germany, where the model output is consistent with high resolution climatologies based on radar and observed data (Junghänel et al. 2016; Schrooer et al. 2019). The Atlas region in northern Africa has the highest modelled hail occurrence, which is consistent with the climatology from Punge et al. (2017) that was based on overshooting top detections. The lack of ground-truth observations from this region makes it impossible to verify this prediction but reports of hail ≥ 5 cm are known from this region. For instance, gargantuan hail (Kumjian et al. 2020) with a verified diameter of 17 cm occurred in Libya on the 27th of October 2020 and was reported to the ESWD.

The local maxima of the distribution of hail ≥ 5 cm closely resembles that of hail ≥ 2 cm. Northern Italy and eastern Spain have the highest occurrence in Europe with approximately 1 event every 10 years (per grid box) while northern Africa exhibits the highest frequency overall with about 1 event every five years. Furthermore, northern Africa has the highest ratio of hail ≥ 5 cm to hail ≥ 2 cm environments: one in five hail ≥ 2 cm events involves hailstones with a maximum dimension $\ge$5 cm. This is likely because the environmental conditions that characterise the region, namely steep lapse rates and high LCL favor the genesis of large hailstones (Púčik et al. 2015; Taszarek et al. 2020b; Mulholland et al. 2021).

Hail ≥ 2 cm in Europe occurs mostly in summer, except for parts of the Mediterranean region, such as Turkey, where it is more common in Spring. Although a direct pan-European comparison with observations (Figure 1b, c) is not possible, the modelled climatological spatial distribution is in good agreement with previous studies such as that from Punge et al. (2017), Rädler et al. (2019) and various regional and national climatologies. The modelled seasonal cycles for hail ≥ 2 cm and hail $\ge$5 cm were compared with the observation ones across Central Europe (Figure 4b, c). The model agrees with the observations well especially during Spring and the early summer while a tendency to overestimate the activity is present in August, especially for hail ≥ 5 cm.

The strongest upward and significant trends occur across the Po Valley for both hail ≥ 2 cm and hail ≥ 5 cm, especially in summer, which is in line with Rädler et al. (2019) and Taszarek et al. (2021a). Increases of 0.05–0.08 hours per decade per grid box are modelled, corresponding to a relative increase of approximately 8% per decade. Smaller significant increases are found across France, the Benelux and northern Germany, in Switzerland and Austria, across the north-western Balkans into southern Poland and, further east, across Northeast Turkey and Georgia. Finally, significant positive trends are found in northern Africa during spring and autumn while a decrease in hail activity is modelled in summer. Negative and significant trends are present across the Aegean Sea and parts of western Russia. The trend maps of hail ≥ 2 cm and hail ≥ 5 cm are very similar. The results resemble those of Rädler et al. (2019) in that both studies agree on identifying northern Italy as the region with the strongest positive/significant trends in the occurrence of hail ≥ 2 cm and hail ≥ 5 cm. The largest significant increases of favorable severe thunderstorm environments over northern Italy were also found in Taszarek et al. (2021a).

b. United States

Hail ≥ 2 cm and hail ≥ 5 cm occur more frequently in the U.S. than Europe. A high frequency of occurrence (≥ 2 hours per year) is modelled in the Plains across a region extending from southern Texas northward into Nebraska (Figure 7). While modelled hailfall is less frequent further east, it is still relatively common in states like Wisconsin, Illinois, or Louisiana with an average of 1 hour of hail per year, which is comparable to northern Italy. Compared to hail ≥ 2 cm, hail ≥ 5 cm is more confined to the lee of the Rockies, a feature confirmed by hail observations (Figure 1e, f). For both hail size categories, the maximum in occurrence is in the high Great Plains between south-western Nebraska, north-eastern Colorado, and north-western Kansas. The location of the maximum in occurrence corresponds with that in the MRMS-MESH based climatology from Wendt and Jirak (2021). Remarkable local features in the hail occurrence pattern occur across eastern Colorado where a marked south to north gradient is modelled or around Rapid City in South Dakota, where a local maximum in occurrence can be distinguished (Figure 7). Both features also exist in hail observations (Figure 1e, f).

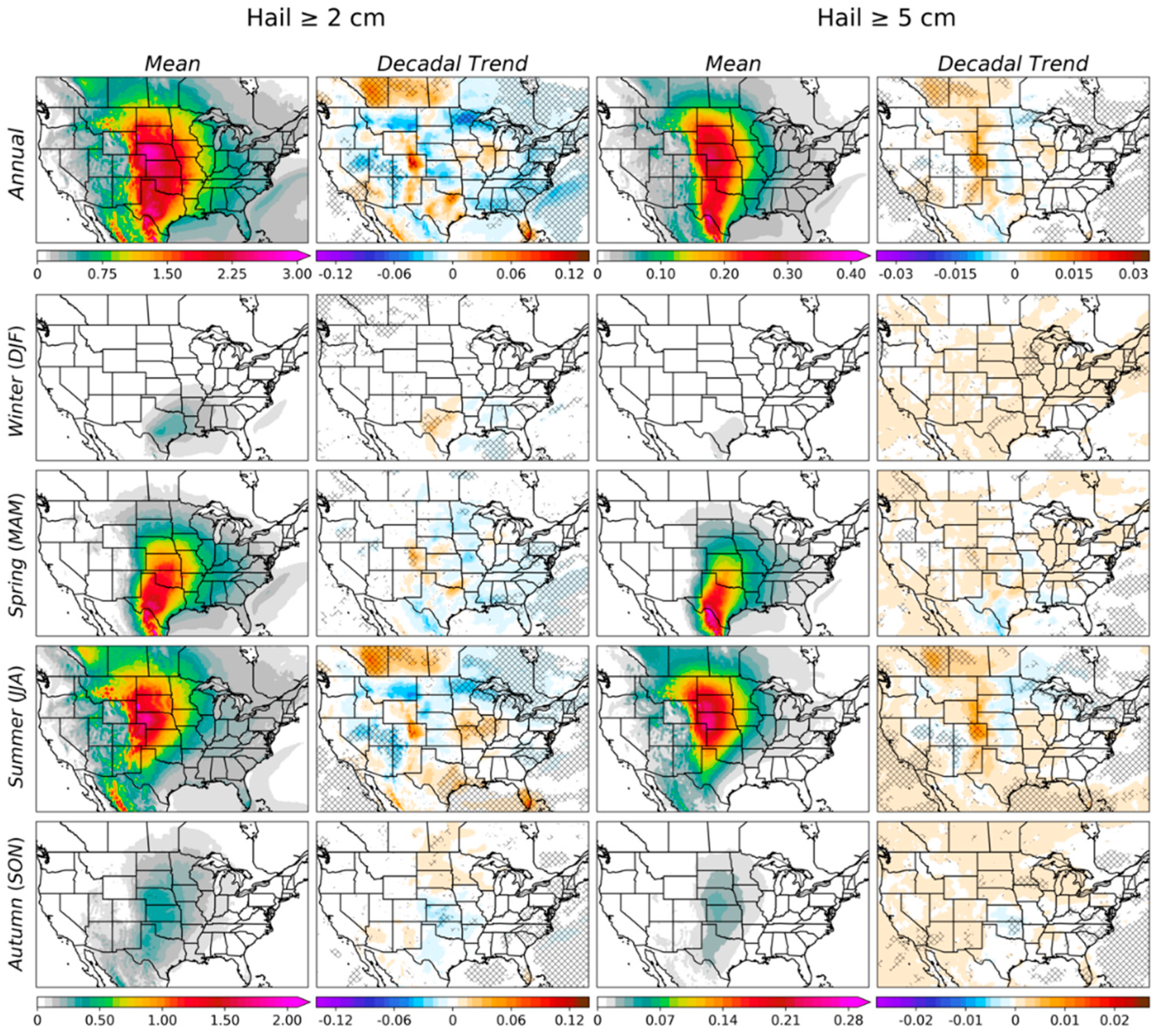

Figure 7. As for Figure 6, but for the U.S. domain.

Figure 7. As for Figure 6, but for the U.S. domain.

Unlike Europe, where most of the hail activity is confined to the summer, hail ≥ 2 cm and hail ≥ 5 cm also occur frequently in spring in the U.S. The model reproduces the observed peak in May followed by a rapid decrease in summer (Figure 4). In spring, hail ≥ 2 cm and hail ≥ 5 cm are most common across the southern Great Plains, in particular in Northeast Mexico, Texas and Oklahoma. During summer, hail activity shifts north to the High Plains into southern Canada (specifically around southern Alberta and Saskatchewan) with a maximum across Western Nebraska and South Dakota. A relatively high occurrence is also found in Northwest Mexico across the Western Sierra Madre Mountains, but this is mostly limited to hail ≤ 5 cm.

In the U.S., there are no large areas with positive (significant) trends comparable to those found in Europe. For hail ≥ 2 cm, modest positive statistically significant trends are present in summer across northern Colorado, southern Florida, and southern Canada with the latter two exhibiting the largest relative increases. Weak increases also occurred over western Texas in winter and north-eastern Colorado in spring. A decrease of hail ≥ 2 cm is modelled across the Southeast as also shown by Brimelow et al. (2017), the upper Midwest, the Colorado Plateau, and the Great Basin. In contrast to hail ≥ 2 cm, hail ≥ 5 cm did not decrease significantly across the Southeast and the upper Midwest. These findings contrast with results from Taszarek et al. (2021b) who identified strong positive and significant trends in 99.9th percentile of SHP and the Supercell Composite Index (SCP) and Tang et al. (2019) who find increases in both the LHP and SHP across much of the Central U.S. since 1979. When constraining the analysis to the period starting in 1979, the modelled trends display a more similar pattern to those studies based on SHIP, LHP and SCP (Appendix B), but the match is not perfect, likely because these parameters, do not take storm initiation into account which AR-CHaMo suggest has become less likely across the Rocky Mountains and the southern High Plains (Figure A2).

6. Evolution of hail and lightning in two hail-prone regions: northern Italy and Oklahoma

A year-by-year comparison from 1950 to 2021 can reveal more details about the nature of the changes across two hail prone areas: northern Italy and central Oklahoma. We do this by using 72 colored stripes whose color represents the percentual departure of each year from the 1950–2021 average, similar to the Warming Stripes by Edward Hawkins (2018) (Figure 8). The modelled frequency of lightning has increased substantially across northern Italy over the last two decades: from 2006 onward, all years except one were above the long-term average. The comparison between observations and model in Figure 9 shows that AR-CHaMo can accurately reproduce the year-to-year variability across the region. The long-term trend (1950–2021) of lightning frequency is +3.4 hours per decade, significant with p-value: < 0.01 using a Wald Test. The rate of increase doubles in the period 1979–2021: +6.8 hours per decade (p-value: < 0.01). Of all predictor parameters, the increase in lightning frequency is most strongly correlated with MU_MIXR (r: 0.80, p-value < 0.01) and MU_LI (r: -0.84, p-value < 0.01) (Appendix C). This confirms that the upward trend in lightning activity is mostly caused by an increase in low-level moisture, leading to increased buoyancy, as reported by Rädler et al. (2019), Taszarek et al. (2021a), and Pilguj et al. (2022).

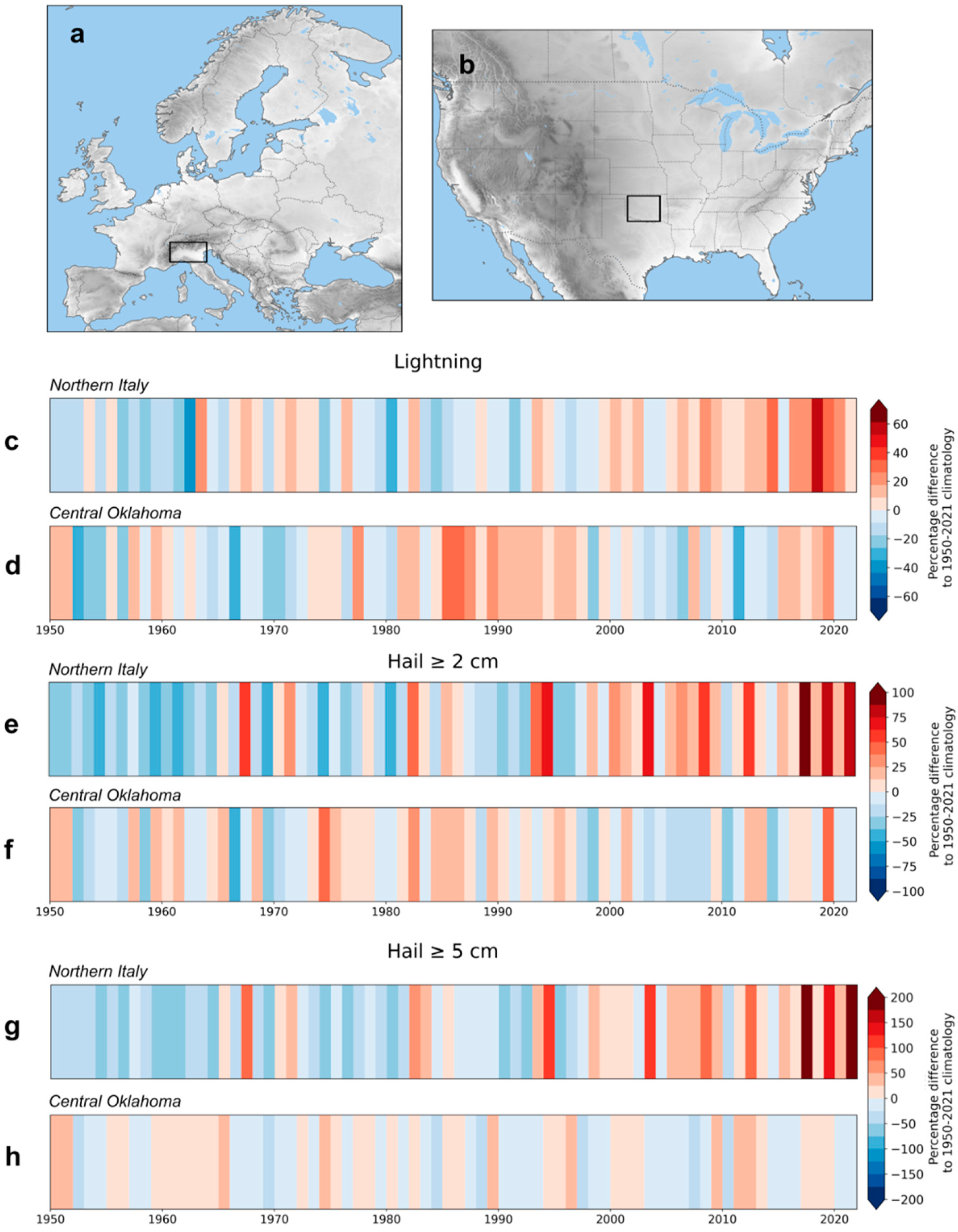

Figure 8. Modelled timeseries of lightning (c,d), hail ≥ 2 cm (e,f), hail ≥ 5 cm (g,h) across (a) northern Italy (44.5°N – 46.5°N , 7.25°E – 12.25°E) and (b) Central Oklahoma (34°N – 37°N, 260°E – 263.5°E) between 1950 and 2021. Colors indicate the area-averaged percentual departure of each hazard from the long-term (1950-2021) average.

Figure 8. Modelled timeseries of lightning (c,d), hail ≥ 2 cm (e,f), hail ≥ 5 cm (g,h) across (a) northern Italy (44.5°N – 46.5°N , 7.25°E – 12.25°E) and (b) Central Oklahoma (34°N – 37°N, 260°E – 263.5°E) between 1950 and 2021. Colors indicate the area-averaged percentual departure of each hazard from the long-term (1950-2021) average.

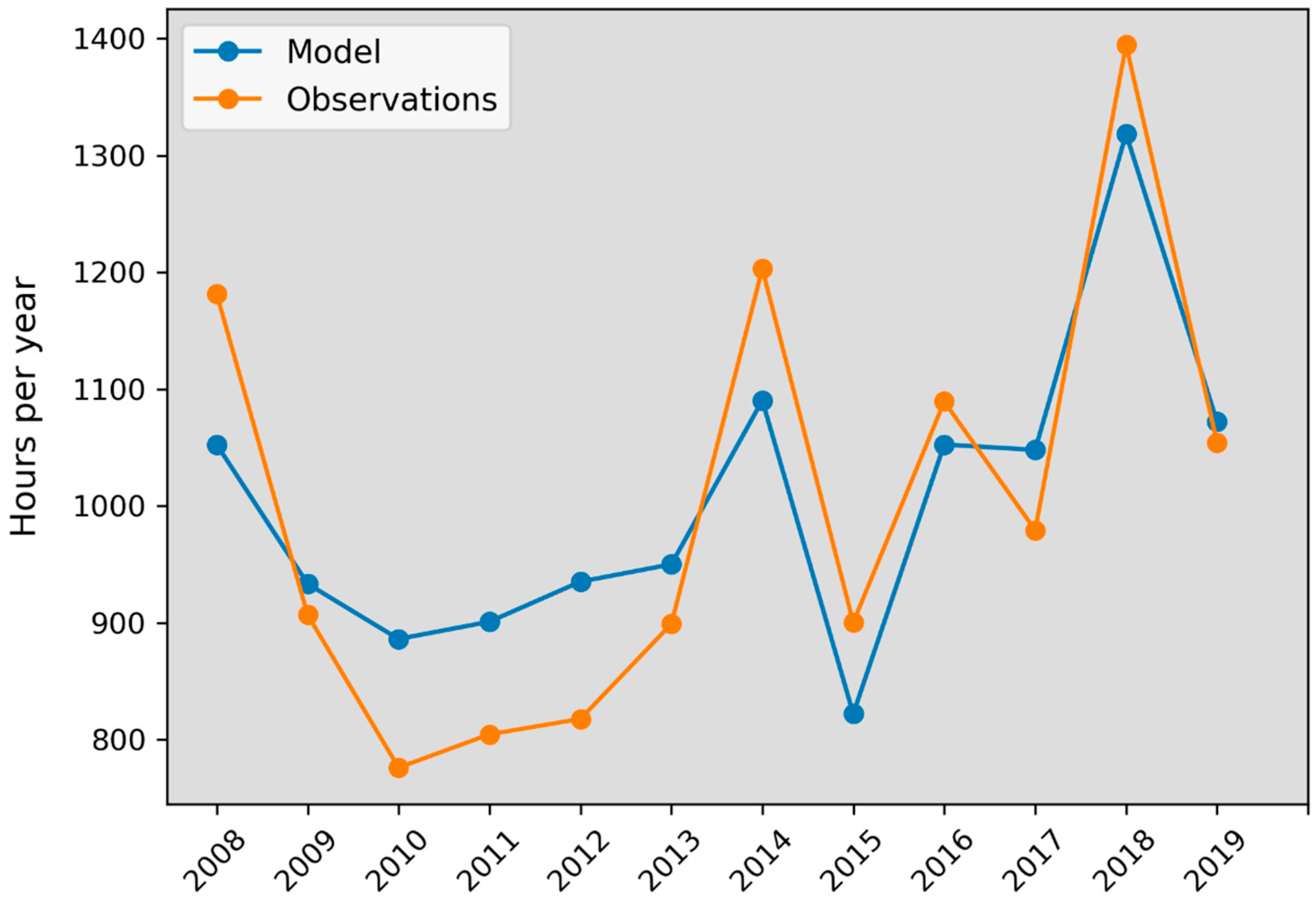

Figure 9. Comparison of modelled (blue) and observed (orange) sum of lightning hours per year across northern Italy (44.5°N – 46.5°N, 7.25°E – 12.25°E).

Figure 9. Comparison of modelled (blue) and observed (orange) sum of lightning hours per year across northern Italy (44.5°N – 46.5°N, 7.25°E – 12.25°E).

Although no significant trend was detected in Oklahoma between 1950 and 2021 (Figure 5), a period with above average activity occurred in the 1980s and the early 1990s, which explains differences in the detected trends between this study (no significant trend detected) and Taszarek et al. 2021a (negative significant trend across the southern Plains) where the trend was calculated since 1979. This is quantitively confirmed by the computed trend which exhibit opposite sign in the two periods: +1.1 hours per decade for 1950–2021 and -3.7 hours per decade for 1979–2021. The period of high activity corresponds well with enhanced signal from convective precipitation (r = 0.88, p-value: < 0.01) and mid-level relative humidity (Appendix C).

The ‘hail stripes’ display a stronger upward trend for hail compared to lightning across northern Italy. This upward trend is particularly steep for hail ≥ 5 cm, especially from 2010 onward when the rate of increase (0.09 annual hours per decade) more than quadrupled compared to the most recent climatological period (1992–2021) average trend (0.02). Across northern Italy, the three most active hail years have all occurred after 2016 and hail ≥ 5 cm is now 3 times more likely than what it used to be in the 1950s.

Inter-annual variability is much stronger for hail ≥ 5 cm (58.5% standard deviation between 1950 and 2021) and hail ≥ 2 cm (34.6 %) than for lightning (15.2 %). Together with an increase in frequency year-to-year variability in hail occurrence has increased with year-to-year variations exceeding 100% (hail ≥ 2 cm) and 200% (hail ≥ 5 cm) after 2016. Differently from northern Italy, no significant trend can be identified for Oklahoma.

We explored the relation between detected trends in lightning, hail ≥ 2 cm and hail ≥ 5 cm and two multi-decadal climate modes of variability, the Pacific Decadal Oscillation (PDO) and the Atlantic Multidecadal Oscillation (AMO). A significant correlation was found between lightning frequency in central Oklahoma and the seven-year running average PDO index (r = 0.75, p-value < 0.01). There is a good correspondence between the positive PDO phase and the above average lightning activity across the region during the 1980s and early 1990s (Figure 10). Hail ≥ 2 cm in Central Oklahoma is also positively correlated with the PDO index (r = 0.60, p-value < 0.01) while a weak negative but insignificant correlation exists between hail ≥ 5 cm and the PDO index (r = -0.22, p-value = 0.08). Compared to Oklahoma, a weaker correlation was found between modelled trends and climate modes of variability in northern Italy e.g., the AMO (r = 0.39 for lightning, 0.35 for hail ≥ 2 cm, 0.40 for hail ≥ 5 cm all with a p-value < 0.01). Here, the sharp increase detected in modelled lightning, hail ≥ 2 cm and hail ≥ 5 cm over the last decade cannot be explained by a strengthening of the positive AMO phase, since this has remained approximately constant in the past two decades. The positive trend in these hazards is rather forced by local changes independent of the AMO, most importantly an increase in low-level moisture (MU_MIXR) and buoyancy in the form of the Most Unstable CAPE above the -10° C isotherm (Appendix C).

Figure 10. Seven year moving-average timeseries of modelled lightning (a,d), hail ≥ 2 cm (b,e), hail ≥ 5 cm occurrence (c,f), AMO Index (g) and PDO Index (h). Hazard time series are shown for (a, b, c) northern Italy (44.5°N – 46.5°N , 7.25°E – 12.25°E) and (d, e, f) Central Oklahoma (34°N – 37°N, 260°E – 263.5°E).

Figure 10. Seven year moving-average timeseries of modelled lightning (a,d), hail ≥ 2 cm (b,e), hail ≥ 5 cm occurrence (c,f), AMO Index (g) and PDO Index (h). Hazard time series are shown for (a, b, c) northern Italy (44.5°N – 46.5°N , 7.25°E – 12.25°E) and (d, e, f) Central Oklahoma (34°N – 37°N, 260°E – 263.5°E).

The annual cycles for three subperiods of equal length 1950–1973, 1974–1997 and 1998–2021 illustrate the seasonal changes during the 1950–2021 period (Figure 11). In each of these subperiods, lightning, hail ≥ 2 cm, and hail ≥ 5 cm have a sharp summer peak in North Italy, while lightning activity across Oklahoma reaches a plateau between May and August. In Oklahoma, the maxima in hail ≥ 2 cm and hail ≥ 5 cm do not directly correspond with that of lightning as it does in Italy: hail ≥ 2 cm and hail ≥ 5 cm are most common during late spring/beginning of summer before progressively decreasing, while lightning activity remains high through late summer.

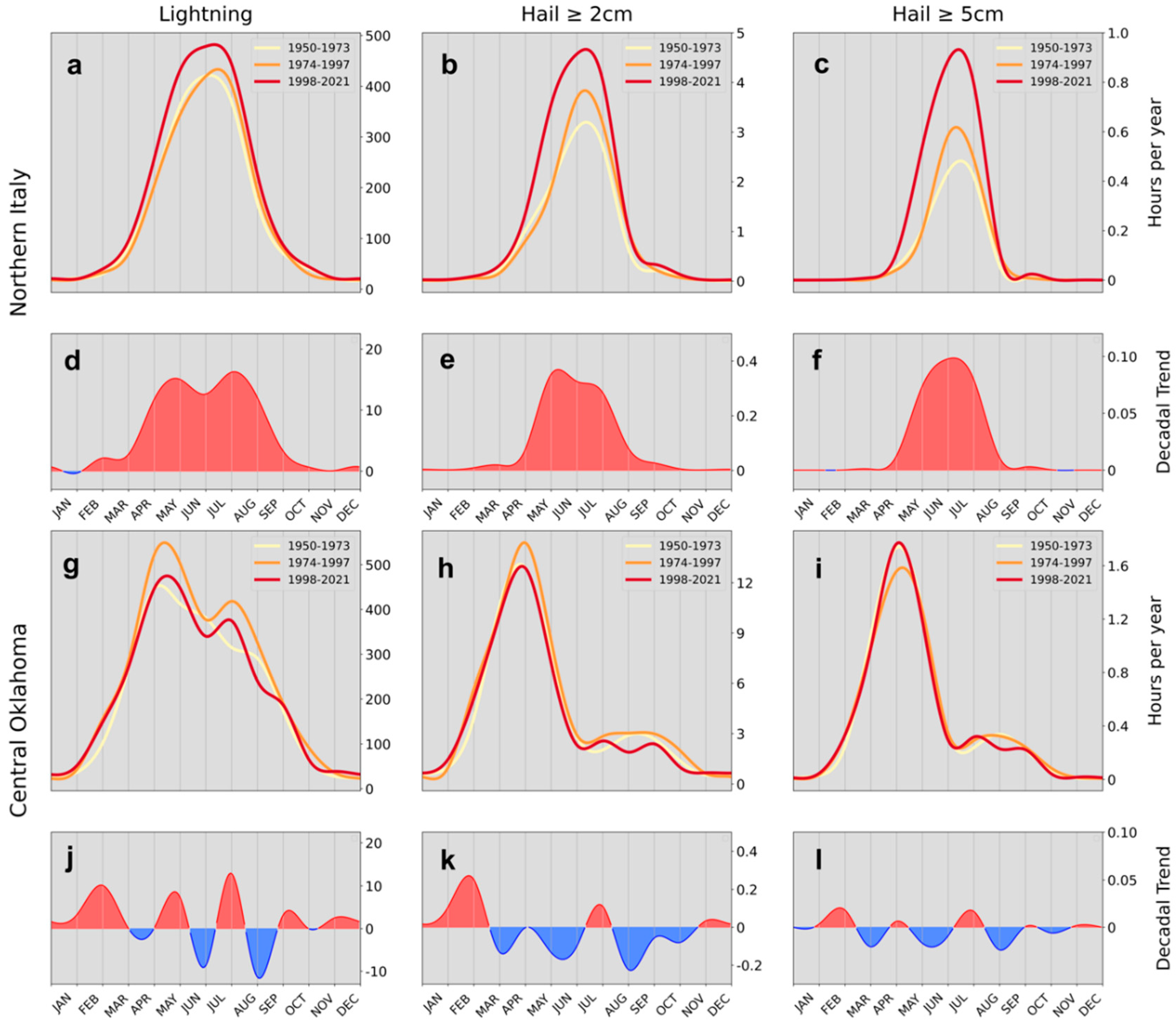

Figure 11. Modelled seasonal cycle of lightning (a,g), hail ≥ 2 cm (b,h), hail ≥ 5 cm (c,i) for three different periods (1950–1973, 1974–1997, 1998–2021 across northern Italy and Central Oklahoma. The mean trends for the three period are also shown for lightning (d,j), hail ≥ 2 cm (e,k) and hail ≥ 5 cm (f,l). Seasonal cycles were smoothed using a B-spline interpolation.

Figure 11. Modelled seasonal cycle of lightning (a,g), hail ≥ 2 cm (b,h), hail ≥ 5 cm (c,i) for three different periods (1950–1973, 1974–1997, 1998–2021 across northern Italy and Central Oklahoma. The mean trends for the three period are also shown for lightning (d,j), hail ≥ 2 cm (e,k) and hail ≥ 5 cm (f,l). Seasonal cycles were smoothed using a B-spline interpolation.

Since 1950, an increase in lightning, hail ≥ 2 cm and hail ≥ 5 cm occurs across northern Italy, especially comparing 1998–2021 to 1974–1997. The sharpest increase is observed for hail ≥ 5 cm. There is also a tendency for lightning and hail to start earlier in the year. May is the month with the strongest percentual increase in the period 1998–2021 (+90 % for hail ≥ 2 cm and +200 % for hail ≥ 5 cm compared to 1950–1997). In contrast to North Italy, the occurrence of lightning, hail ≥ 2 cm and hail ≥ 5 cm in Oklahoma does not see a monotonous increasing pattern. Lightning has become more common during winter, May, and July while its frequency has decreased in June and August. Most of these detected trends are influenced by the period of enhanced lightning activity between the 1980s and 1990s. Seasonal changes in hail ≥ 2 cm and hail ≥ 5 cm in central Oklahoma are small and non-significant.

7. Discussion and conclusion

We developed logistic models for lightning, hail ≥ 2 cm and hail ≥ 5 cm across Europe and the U.S. using hail reports, lightning observations, and atmospheric parameters from the ERA5 reanalysis. Reconstructions of the past (1950–2021) hail and lightning occurrence represent the observed patterns from storm reports, radar and satellite well across Europe (Punge et al. 2017, Taszarek et al. 2020a) and the U.S. (Cintineo et al. 2012; Bang and Cecil 2019; Wendt and Jirak 2021).

That being said, there are several limitations to the approach taken in this study. For example, the models have systematic biases in particular regions and months. For the lightning model, such biases include an underestimation across Turkey, a slight overestimation across northern Europe as well as a general underestimation in summer. These biases may propagate to the modeled hail climatologies. Fundamental sources of error include the fact that the training datasets are limited to specific regions of good reporting rate, especially across Europe, and that the reanalysis contains errors as well. Such a reanalysis error is present across northern Europe, where ERA5 overestimates instability when compared to sounding observations (Pilguj et al. 2022) resulting in an overestimation of the lightning activity (Figure 3).

Another possible source of error is the omission of certain factors that influence the risk of lightning and hail, but which were not reflected by any of the candidate predictors. By taking an approach motivated by ingredients, i.e., known physical prerequisites for severe storms, we have tried to lower the risk of omitting crucial factors. A comparison of severe weather events that were poorly predicted with the models can be carried out to help reveal the missing factors and improve the models further. A particular difficulty is predicting the correct convective mode, since similar environments can produce very different storm types and associated convective hazards (Doswell and Evans 2003).

To trust the reconstructions of lightning and hail occurrence during the reanalysis era, it is necessary to have confidence that the models do not artificially introduce multi-year trends. Such trends may arise when areas in a parameter space with few observations in the training data set are poorly sampled by the model because they rarely occur in the training data set. For the reconstruction of the past climatology since 1950, we expect this to be a minor factor as the regions of parameter space visited in the 2020s differ only slightly from those visited in the 1950s. For applications of the models to extreme future climate projections, this may, however, be an issue to consider.

Regarding model errors, we want to point out that the reconstructions since 1979 do not fully agree with the studies by Tang et al. (2019) and Taszarek et al. (2021b), since they employ forecast parameters like SHP, LHP, or SCP, that do not take convective initiation into account. The most important resulting difference is over the Rocky Mountains and the southern High Plains into Mexico where AR-CHaMo models a decrease in thunderstorms since 1979. The error one would make when considering such parameters accurate proxies for hail would be large in those regions.

Much less difference in the nature and magnitude of the hail trends exists across one particular region: northern Italy. Here, according to AR-CHaMo, large increases in low-level moisture have already led to a very important increase in the occurrence of hail ≥ 5 cm by a factor of 3 since the 1950s.

Besides increasing probability, interannual variability in Europe has increased as well. An important open question is whether these sharp variations in hail activity can be explained in terms of the prevalence of certain atmospheric patterns and, if so, how the probability of large hail or convective initiation is related to the occurrence of specific atmospheric flows? Across the U.S., the underlying reasons behind the 1980s-1990s period of enhanced convective activity are still unknown and should be investigated further.

Apart from multi-year climate studies, the developed models also have potential application in forecasting, of which we do not yet present results here. Such efforts will require recalibration and renewed validation, since numerical weather prediction (NWP) models used in forecasting will have somewhat different climatologies of the predictor parameters than ERA5. The models may prove most useful in the medium-range, i.e., 2–10 days ahead, for which models that explicitly treat convection are not typically run. At such lead times, the use of ensemble forecasts rather than deterministic forecasts can add significant forecast skill. Another extension of the present work is to develop such models for other convective hazards, like tornadoes, severe convective wind gusts, intense convective rainfall and to extend the analysis to global scale.
