CU(II)/Polydopamine-Modified Glass Fiber Separators Towards High-Performance Zinc-Ion Batteries

1. Introduction

The excessive consumption of traditional fossil energy has aggravated the issues of energy shortage and environmental pollution. The exploitation and utilization of clean energy are severely limited by their defects of instability [1,2]. Therefore, developing reliable large-scale energy storage systems (ESSs) with the advantages of low cost, high energy density and high security is of great importance [3,4]. In recent years, aqueous rechargeable batteries, such as monovalent (K, Na) and multivalent (Mg, Ca, Zn, Al) ion batteries, have aroused much attention due to the features of nonflammability and abundant natural reserves [5-8]. Among these battery systems, zinc-ion batteries (ZIBs) are considered to be a good alternative of next-generation batteries due to the advantages of low redox potential (-0.76 V, vs. SHE) and high theoretical capacity (820 mAh g^-1) of Zn anode [8].

Unfortunately, undesirable dendrite growth and uncontrolled side reactions occurring on Zn anode could accelerate the failure of Zn metal battery. During the initial plating process, the random nucleation on Zn surface causes the nonuniform distribution of electric field, and leads to the vertically Zn growth on the protrusions, thus finally forming Zn dendrites [9], which may pierce the separator and cause short circuit of the cell. Moreover, hydrogen evolution causes exhaustion of electrolyte and chemical corrosion produces “dead Zn” which accelerate the failure of the cells [10].

To overcome these problems, many strategies have been developed, such as modifying zinc anode [11-17], implanting electrolyte additives [18-21], and employing polymer or hydrogel-based electrolytes [22-26]. So far, most study are concern about decoration of electrolytes and electrodes, while little research focuses on separators. As a crucial component of batteries, separator could regulate the ion diffusion and optimize the electrochemical kinetics of batteries during the charge-discharge process, which could lead to dendrite-free Zn deposition. The common separators are glass fiber (GF) or filter paper (FP), both of which possess good compatibility with aqueous electrolytes, but they are chemically inactive. Therefore, separators are usually functionalized by chemically engineering or surface modification to improve the cycle stability of ZIBs. For example, Janus separators with good electrolyte wettability and high ionic conductivity can be realized by decorating vertical graphene carpet [27] or Ti₃C₂T_X MXene [28] on one side of commercial GF separator to homogenize interfacial electric field and promote Zn nucleation kinetics. Moreover, the supramolecules with abundant polar groups [29] were also reported to prevent the accumulation of Zn²⁺ and suppress the Zn dendrites by modifying GF separator. In addition, during zinc ion electrodeposition, the cellulose/GO composite separator (CG) [30] achieved ultra-stable dendrite-free anode through crystal orientation regulation.

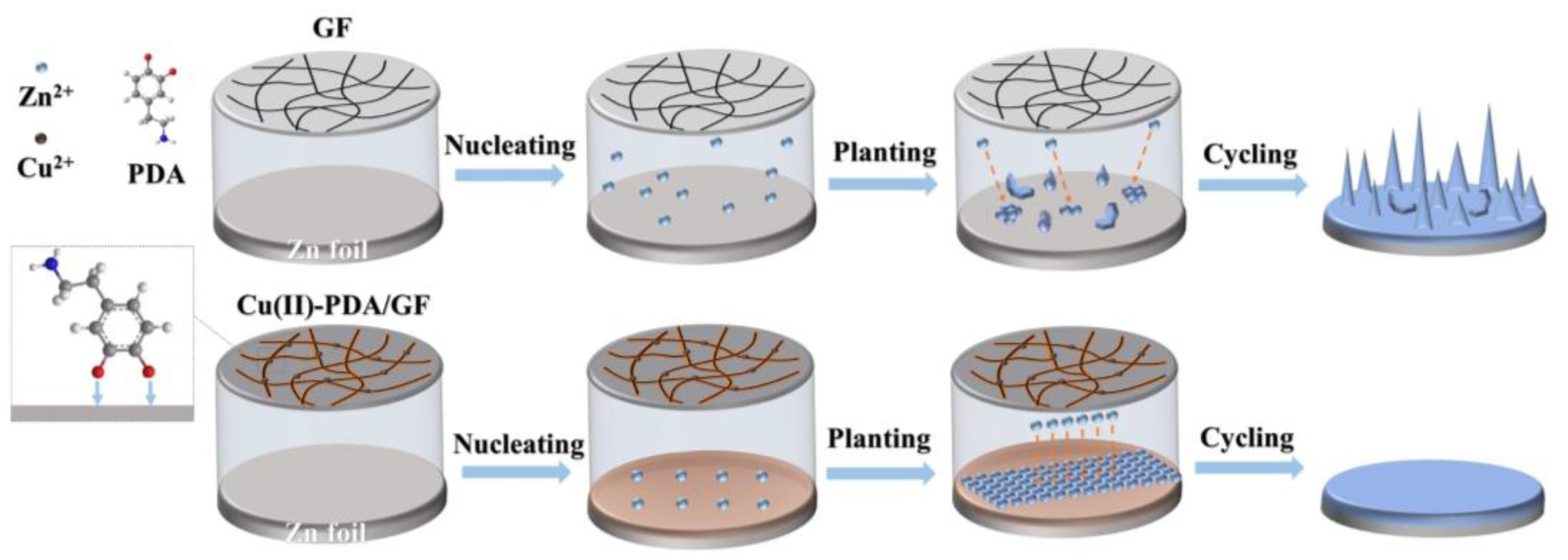

Inspired by above research, we have designed a multifunctional Cu²⁺ doped polydopamine modified GF (Cu(II)-PDA/GF) separator for high-performance ZIBs. Figure 1 schematically illustrates the Zn plating process in the cells with pristine GF and Cu(II)-PDA/GF separators. As shown in Figure 1a, inhomogeneous Zn nucleation takes place at the initial plating stage in the cell with pristine GF separator, which further leads to the growth of disordered Zn dendrites due to the wild 2D Zn²⁺ diffusion at the electrode/electrolyte interface. The as-formed Zn dendrites are inclined to cause the failure and short circuit of cells. In contrast, the abundant zincophilic active sites (amino, imino and hydroxyl) in the Cu(II)-PDA/GF separator could regulate the randomly scattered ion, and result in homogeneously distributed Zn²⁺ flux over the entire Zn anode, which therefore induce uniform Zn plating and lessen the growth of Zn dendrites. Moreover, the extraordinarily strong adhesion is expected to induce intimate interaction between electrodes and GF and relieve the local surface tension of Zn metal [31]. Interestingly, numerous of Cu²⁺ are encapsuled in the PDA modification layer via the metal-ligand band with the functional groups and could be preferentially deposited to form metal Cu layer on Zn anode, which also contributed to the uniform Zn deposition due to the good affinity with Zn atoms [32-34]. Based on above features, Cu(II)-PDA/GF separator enables the Zn metal symmetric cell with long cycle life of 1800 h at 1 mA cm^-2 with the specific capacity of 1 mAh cm^-2. The Zn//V₂O₅ delivers high capacity of 202.3 mAh g^-1 even after 1000 cycles at 2 A g^-1.

2. Materials and Methods

2.1. Fabrication of the Cu(II)-PDA/GF separator:

Typically, 1.2 g of Tris (Ph=8.5) and 0.40 g of dopamine hydrochloride (2 mg·mL^-1) were dissolved in 200 ml of deionized water under vigorous stirring. Then, 0.25 g of CuSO₄·5H₂O and 0.40 ml of H₂O₂ (19.6 mmol·L^-1) were added in above solution and stirred for 10 min. In addition, the GF separator was pre-wetted with absolute ethanol, and then completely submerged in the as-prepared solution for 40 min. Finally, the GF was extracted and washed with deionized water for three times and dried in the vacuum atmosphere at 50 °C for 12 h to obtain modified Cu(II)-PDA/GF separator.

2.2. Characterization:

X-ray powder diffraction (XRD, Bruker-D8 Advance X-ray diffractometer, Cu Kα radiation), energy dispersive X-ray spectroscopy (EDS), and X-ray photoelectron spectroscopy (XPS, Thermo Fisher K-Alpha system) were performed for composition analysis. The scanning electron microscope (SEM, Hitachi SU-8010) were tested for the morphology detection.

2.3. Electrochemical measurements:

The CR2032 coin battery was assembled with 2 M ZnSO₄ as electrolyte and GF or Cu(II)-PDA/GF as separator. The V₂O5 cathode is prepared by mixing V₂O₅, superconducting C and polytetrafluoroethylene (PTFE) binder with a mass ratio of 7:2:1. Afterwards, the viscous material obtained by the above method was pressed into thin sheets with a mass load of ~2.0 mg cm^-2. The battery test system (LAND, CT2001A) is used to test the electrochemical performance of the battery. It was used for cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) tests on the CHI 660e electrochemical station.

3. Results and discussion

Dopamine readily self-polymerizes into PDA nanopolymers via an oxidation process, which can be deposited on the surface of various substrates to form functional coatings due to the super non-covalent/covalent bonding capability of catechol and quinone moieties. Herein, PDA nanopolymers are self-assembled on GF separator to regulate the zincophilic and ion transport properties via dipping GF in DA monomer solution with CuSO₄/H₂O₂ as a trigger [35]. As shown in Figure 2a and S1, after the infiltration process, the color of the GF separator changes from white to brown. SEM images shown in Figure 2a and 2b display that the modified Cu(II)-PDA/GF separator retains its original porous structure, which will facilitate the fast and full infiltration of electrolyte. High magnification SEM image further displays that the surface of GF is uniformly coated by polymeric PDA nanoparticles (Figure 2b). EDS mapping images also exhibit the even distribution of element Si, C, N and Cu, further confirming the successful coating of Cu(II)-doped PDA on GF (Figure 2c).

To investigate the chemical environment of the coating layer, XPS of the freshly prepared Cu(II)-PDA/GF was carried out. As shown in Figure 2d, typical peaks of Cu 2p, O 1s, N 1s, C 1s and Si 2p can be obviously observed from the XPS survey spectra, further verifying the successful modification of GF. The peaks located at 283.9 eV, 285.2 eV and 287.2 eV in the high-resolution XPS spectra of C1s can be indexed to C-H, C-N/C-O and C=O bond, respectively (Figure 2e). And that located at 399.0 eV and 400.3 eV in N 1s spectra is corresponding to the =NR and R₂N-H bond (Figure 2f). Notably, the obvious signals of Cu 2p located at 953 eV, 941.9 eV and 933.4 eV can be attributed to 2p1/2, 2p3/2 and satellite peaks of Cu²⁺ (Figure 2g), indicating that Cu²⁺ is trapped in the PDA layer due to the complexation reaction between Cu²⁺ and catechol groups. The introduction of Cu²⁺ could promote the polymerization of PDA [36]. XPS O1s peaks 533.4 ev, 532.1 ev, 531.2 ev and 530.1 ev correspond to O-H, C-O, C=O and Cu-O, respectively, further indicating the doping of Cu(II) in the PDA coating layer (Figure 2h). Based on above analysis, it can be confirmed that polymeric Cu(II)-PDA layer is successfully constructed on GF separator.

Ionic conductivity is an important indicator for the selection of a separator. EIS test of the stainless steel//stainless steel cells are carried out to evaluate the ion conductivity of pristine GF separator and Cu(II)-PDA/GF separator. As shown in Figure S2, the bulk resistance R_b at the high frequency intercept of the Nyquist plot is 0.97 Ω for Cu(II)-PDA/GF separator and 1.32 Ω for pristine GF. The ionic conductivity is calculated to be 89.01 mS cm^-1 and 65.82 mS cm^-1 for Cu(II)-PDA/GF and pristine GF, respectively, indicating significant improved ion conductivity of the modified GF.

To elucidate the effect of Cu(II)-PDA/GF separator on the electrochemical behavior of Zn anode, morphology evolution of the Zn anode during the deposition process at 1 mA cm^-2 was characterized by SEM. As shown in Figure 3a, messy dendrite growth starts to occur on Zn anode after only 10 min deposition, and it becomes more and more fiercer in the following stage in the cells using pristine GF (Figure 3b and 3c). In contrast, during the whole deposition process in the cell using the Cu(II)-PDA/GF separator, the Zn anode maintains smooth without any obvious bulky protuberance, demonstrating superior effect on the inhibition of dendrite growth (Figure 3d-f). The effect may be attributed to the abundant functional groups on PDA, which could induce the transportation of Zn²⁺ at the electrode/electrolyte interface. Notably, the EDS mapping images (Figure S3) of the Zn anode after 10 min deposition presents even distribution of elements Cu, C, N and O, indicating that the Cu(II)-PDA modification layer endows the separator with good adhesion with Zn anode.

XPS measurements of the Cu(II)-PDA/GF separator and Zn anode before and after1h deposition at the current density of 1 mA cm^-2 in symmetric cells are carried out. As shown in Figure 3g, the intensity of Cu(II) in the Cu(II)-PDA/GF separator sharply decreases after the deposition process. Notably, metal Cu can be obviously detected on the surface of Zn foil, indicating that Cu(II) in the modification layer is transferred into Cu(0) and deposited on Zn anode during the deposition process. It is reported that metallic Cu has a strong Zn binding ability, and can effectively reduce the nucleation overpotential of zinc, thereby promoting uniform deposition of Zn²⁺, and significantly reducing the possibility of tiny protrusions growing into zinc dendrites [37, 38] (Figure 3g). Therefore, it is believed that the resulted Cu(0) also contributes to the uniform Zn deposition in the cells using Cu(II)-PDA/GF separator.

To evaluate the corrosion current density, Tafel measurements were performed. As shown in Figure 3h, the Cu(II)-PDA/GF separator displays much lower corrosion current density (0.4262 mA cm^-2) compared with pristine GF separator (1.1038 mA cm^-2), evidence of reduced corrosion level. To further evaluate the hydrophilic character of the separators, a simple water absorption test was carried out. As shown in Figure 3i and Table S1, the Cu(II)-PDA/GF separator has greater water absorption capacity than pristine GF, indicating improved affinity with electrolyte. The Cu(II)-PDA/GF separator with good hydrophilicity and ionic conductivity is expected to guarantee convenient Zn²⁺ transportation of ZIBs during the charge/discharge process.

To further evaluate the practical application of the as-prepared Cu(II)-PDA/GF separator, CE tests are carried out in Cu//Zn cells. As shown in Figure 4a and S4, the cells with the Cu(II)-PDA/GF separator displays long cycle life of more than 1200 h and high average CE of 99.62% and 99.81% at the current densities of 1 mA cm^-2 and 2 mA cm^-2, respectively. While the cells employing pristine GF separator (Figure 4a) presents the average CE of 96.2% during the initial 150 h and the CE values fluctuate dramatically in the following cycles. The severe fluctuations mainly result from zinc dendritic growth, parasitic side reactions, and the recovery of “dead Zn” that broke away from hydrated zinc hydroxide sulfate.

From the initial Galvanostatic charge-discharge (GCD) curves of Cu//Zn cells, the nucleation overpotential for Zn deposition can be calculated. The lower nucleation overpotential of the cell indicates that the crystal nucleation barrier is smaller, which is favorable for the uniform deposition and exfoliation of zinc. Otherwise, during the nucleation process of crystal, the nucleation overpotential is large, and the resistance becomes larger [10]. As shown in Figure 4b, the nucleation overpotential of the glass fiber separator battery is 46.24 mV, which is higher than that of the Cu(II)-PDA modified glass fiber separator battery (32.15 mV), indicating that the Cu(II)-PDA/GF separator can promote the uniform deposition of zinc ions. The GCD curves of the Cu//Zn battery with the dopamine-modified separator at the 200th and 500th cycles are very consistent, and also very close to the GCD curve at the 50th cycle. The battery exhibited excellent reversibility with a low voltage difference of 36.0 mV (Figure 4c). However, when the blank separator is used, the overlap of the GCD curves is not very good, and at the same time, the voltage gap is comparatively large (Figure S6).

The cyclic life and overall voltage hysteresis of Zn//Zn symmetric cells using 2 M ZnSO₄ as electrolyte is investigated. As shown in Figure 4d, the cell employing Cu(II)-PDA/GF separator exhibits constant voltage profile and delivers favorable cycle life of 1800 h at the current density of 1 mA cm^-2 with the fixed capacity of 1 mAh cm^-2. In contrast, the parallel tested cell with pristine GF suffers quick cell failure after only 95 h due to short-circuiting, which results from the pierce of GF by unrestrained growth of dendrites. Enlarged GCD curves displays decreased voltage hysteresis for the cell with Cu(II)-PDA/GF separator, indicating improved ion transportation ability. The cells using Cu(II)-PDA/GF separator also deliver stable plating/striping of 430 h at increased current density of 2 mA cm^-2 and areal capacity of 2 mAh cm^-2 (Figure S6), and 260 h at an higher current density of 4 mA cm^-2 and 4 mAh cm^-2 (Figure 4e), which are much superior to those suing pristine GF separator.

The morphology evolution of the Zn anode after 50 cycles in the symmetric cells using pristine separator and Cu(II)-PDA/GF separator was characterized by SEM. As shown in Figure 5a and 5b, the cycled Zn anode of the cell with the modified separator presents a relatively flat surface without obvious zinc dendrites, and the SEM images of the cross-section (Figure 5c) also exhibits smooth surface without passivation layer. While the Zn anode in the cell using the pristine separator (Figure 5d and 5e) displays serious zinc dendrite growth, and the surface of Zn anode is full of vertically grown microsheets, which may pierce the separator. SEM image of the cross-section (Figure 5f) also shows a non-uniform corrosion layer. Therefore, it is confirmed that the Cu(II)-PDA/GF separator could inhibit the dendrite growth and chemical corrosion effectively, which can also be confirmed by reduced R_ct in the EIS tests (Figure 5g and 5h). In order to obtain more phase information, XRD patterns of the Zn anodes after 50 cycles in the cells with different separators were measured (Figure 5i). Obviously, characteristic peaks of Zn₄SO₄(OH)₆·5H₂O are visible in the XRD pattern of the Zn anode using pristine GF [39], illustrating that side reactions easily take place on the Zn anode and produce massive by-products during cycling. In contrast, the peak intensity of by-produces is significantly decreased when using Cu(II)-PDA/GF separator, further illustrating that the modified GF separator could effectively prevent the electrode passivation.

In order to evaluate the practical performance of the modified separator, Zn//V₂O₅ full cells were assembled to study the electrochemical performance. The CV curve of the cells with Cu(II)-PDA/GF separator displays two pairs of redox peaks (Figure 6a), indicating that intercalation/deintercalation behavior of Zn ion in V₂O₅ were carried out in two steps. After three cycles, it could be found that the redox peaks overlap well, indicating the superior cycling reversibility of the full cells with Cu(II)-PDA/GF separator.

Rate capability of the full cells are shown in Figure 5b. It can be seen that when the current density gradually increases from 0.2 to 0.5, 1.0 and 2.0, the battery assembled with the Cu(II)-PDA/GF separator decreased from 281.0 to 276.0, 265.3 and 240.6 mAh g^-1, respectively. In contrast, the battery assembled with the pristine separator (Figure 6b) maintained 213.7 mAh g⁻¹ at 0.2 A g⁻¹, and dropped abruptly to 192.4 mAh g⁻¹ at 2 A g^-1. Notably, when the current density was returned from 2 to 0.2 A g⁻¹, the battery with the Cu(II)-PDA/GF separator could provide 258.8 mAh g⁻¹ at the 70th, which is much higher than that using glass fiber separator.

Cycling performance of the cells was tested with constant current charge and discharge density. GCD curves display two pairs of reversible voltage platforms, which are consistent with the CV results (Figure 6c). After 1000 cycles at a current density of 2 A g^-1, the battery assembled with Cu(II)-PDA/GF delivers a high capacity of 202.3 mAh g^-1, which is much higher than that of 146.2 mAh g^-1 using pristine separator (Figure 6d). Moreover, the CE value of the Cu(II)-PDA/GF separator keeps steady and nearly 100% after long term cycling, displaying the significant improvement of the full cell performance.

4. Conclusions

In summary, PDA nano-polymer is self-assembled on the surface of glass fiber via a self-polymerization process to obtain Cu(II)-PDA/GF separator. The modification of PDA effectively improves the zincophile and ion transport of GF separator. Cu(II) doping in the PDA coating layer could be preferentially deposited on Zn anode to induce uniform Zn nucleation. Due to the synergistic effect, side reactions and dendrite growth of Zn anode are effectively depressed. Electrochemical measurements demonstrate that the symmetric cells assembled with Cu(II)-PDA/GF separator could cycle for more than 1800 h at the current density of 1.0 mA cm^-2 with the fixed capacity of 1.0 mAh cm^-2. The Zn//V₂O₅ cells using the modified GF also deliver high specific capacity and good cycling stability of 202.3 mAh g⁻¹ after 1000 cycles at 2.0 A g^-1. This work provides a facile modification method for glass fiber for high-performance ZIBs.
