Comparative Study on Hot Metal Flow Behaviour of Virgin and Rejuvenated Heat Treatment Creep Exhausted P91 Steel

1. Introduction

P91 steel belongs to a family of 9–12% Cr ferritic creep resisting steels [1]. The steel was initially developed in the 1970s for application in steam generators of fast breeder reactors by Oak Ridge National Laboratory [2], [3]. At present P91 steel has wide application in high-temperature and high pressure components such as headers, heat exchangers, water-wall tubing and piping systems of fossil-fuel power plants[4], [5]. The suitability of this steel for these applications is due to its superior thermal mechanical properties. These include high corrosion resistance, good weldability and low thermal expansion [6]. The steel also has toughness and good creep performance at temperatures up to 600 °C and 100,000 hours. This is due to carbides that evolve during tempering heat treatment during production [7], [8].

After prolonged service, the steel experiences internal damage due to microstructural changes from long-term exposure to high temperatures under stress. These microstructure changes cause a detrimental effect on mechanical properties, especially toughness and degradation of creep properties [9,8]. At the end of the design lifetime, the creep-exhausted components are replaced. The high cost of replacing these components has attracted research interest in extending the service life of creep-exhausted components.

Restoration of the microstructure of degraded components has been achieved through various thermal procedures such as heat treatment and hot isostatic pressing [10]. Thermal rejuvenation procedures can modify the material's microstructure, thus improving mechanical properties[11]. Heat treatment schedules may cause grain refinement and re-establishment of the original microstructure. The heat treatment can therefore restore the material properties of service-exhausted components [12]. However, there is scanty information about the effect of rejuvenation heat treatment on metal flow behaviour, especially P91 steel.

In 9–12% Cr ferrite steels, heat treatment is generally by normalising, cooling and tempering processes [13]. Normalising is conducted above the upper critical temperature, Ac₃, and tempering below the lower critical temperature, Ac₁ [14]. Various authors [2], [8], [14]–[17] have applied different normalisation and tempering temperatures for P91 steel within the Ac₃ and Ac₁ requirements. Pandey et. al. [2] reported phase transformation temperatures of P91 as 810℃ to 825°C (Ac₁) and 912℃ to 930°C (Ac₃). According to Abe [18], the Ac₁ was (800 to 830°C) and Ac₃ (890 to 940°C) in P91. The variations in heat treatment temperatures of P91 are due to minor differences in chemical composition (especially Ni + Mn), rate of heating and prior austenite grain boundaries(PAGBs) [17]. American Society of Mechanical Engineers (ASME) [18] recommended austenitisation temperature of 1040 to 1080°C and tempering at 730 to 780°C in P91 pipes.

In 9-12%Cr ferritic steels, creep deformation mechanisms are mainly associated with changes in the microstructure. These microstructure changes cause a reduction in dislocation density, migration of sub-grain boundaries, formation of new secondary phases (Laves and Z-phase) and growth of sub-grain structure [19]. During creep, the sub-grains grow, causing a decrease in the creep strength in 9-12%Cr steels while Laves phase coarsens around M₂₃C₆ carbides along the PAGBs reducing their pinning effect [20]. Hence, reducing the strengthening mechanism.

Heat treatment of P91 steel produces a tempered lath martensite structure with carbides such as M₂₃C₆ (M = Chromium, Iron, Tungsten and Molybdenum) and MX (M =Niobium, Vanadium and X-carbon) [2]. During normalisation, the homogenisation of the microstructure occurs, causing an untampered lath microstructure with a small number of precipitates and a high dislocation density. Tempering causes the precipitation of the M₂₃C₆ carbides along the grain boundaries and MX particles in the matrix [20]. The high dislocation density and M₂₃C₆ precipitates are responsible for the pinning of lath boundaries, while MX precipitates prevent dislocation movement [2], [21]. The heat treatment process, therefore, restores the effects of the creep deformation process and provides a stable microstructure that enables P91 steel to achieve high creep strength [6].

Rejuvenation heat treatment, as mentioned earlier, can be used for complete recovery of material properties and reuse of exhaust components or partial recovery for alternative applications [10]. Should the alternative application require the manufacturing of a new structural part from either processing or machining, it is imperative to understand the response of the effect of rejuvenation heat treatment on creep-exhausted steel to thermomechanical processing parameters. Hence, the study provides the basis for understanding the metal flow pattern during deformation. A comparative study using constitutive models developed from the hot deformation behaviour of steel A and steel B can be used for this analysis [22].

For example, phenomenological constitutive models such as Arrhenius equations are widely used to study the metal flow behaviour of various metals and alloys [23]. Examples of such materials include low-carbon steel [24,25], P92 steel [26], nickel-based super alloys [27], alloys of aluminium [24], and magnesium [28]. The accuracy and reliability of a constitutive model in predicting the flow stress form the basis of studying the material process behaviour [29]. These models act as inputs to Finite Element Method codes. These computer codes assist in the simulation and the optimisation of thermomechanical process parameters. The simulation results depend on the accuracy and dependability of the constitutive models [22], [29].

The objective of the present study was to investigate the flow stress behaviour of steel A and steel B using constitutive equations. The steel B was heat treated by normalisation followed by air cooling, then tempering processes. Isothermal hot deformation tests were then conducted at various strain rates and temperatures to study the flow stress behaviour for the two steels. Experimental flow stress values were used to develop constitutive equations based on the Arrhenius-type equation. These equations were validated using statistical parameters.

2. Materials and Methods

The P91 steels studied had chemical composition (wt%) of Cr-9.189 C-0.1 Mn-0.447 Mo–0.885 V–0.191 Nb-0.076 Ni–0.158 Si-0.254 P-0.02 Cu-0.086. Isothermal compression samples were machined from the two steels to a cylindrical shape of diameter 8mm and height 12 mm. The steel B samples were heat treated by austenitising at 1050°C for 40 minutes, air cooling and tempering at 760°C for 2 hrs, as shown in Figure 1. These are typical heat treatment conditions used during the production process of boiler pipes [16]. Figure 3 (a) and (b) show the optical micrographs of undeformed steel A and steel B. The steel A showed a typical tempered martensitic microstructure with prior austenite grain boundaries (PAGBs) and dispersion of fine precipitates in the matrix. The microstructure of steel B exhibited clear grain boundaries compared to steel A.

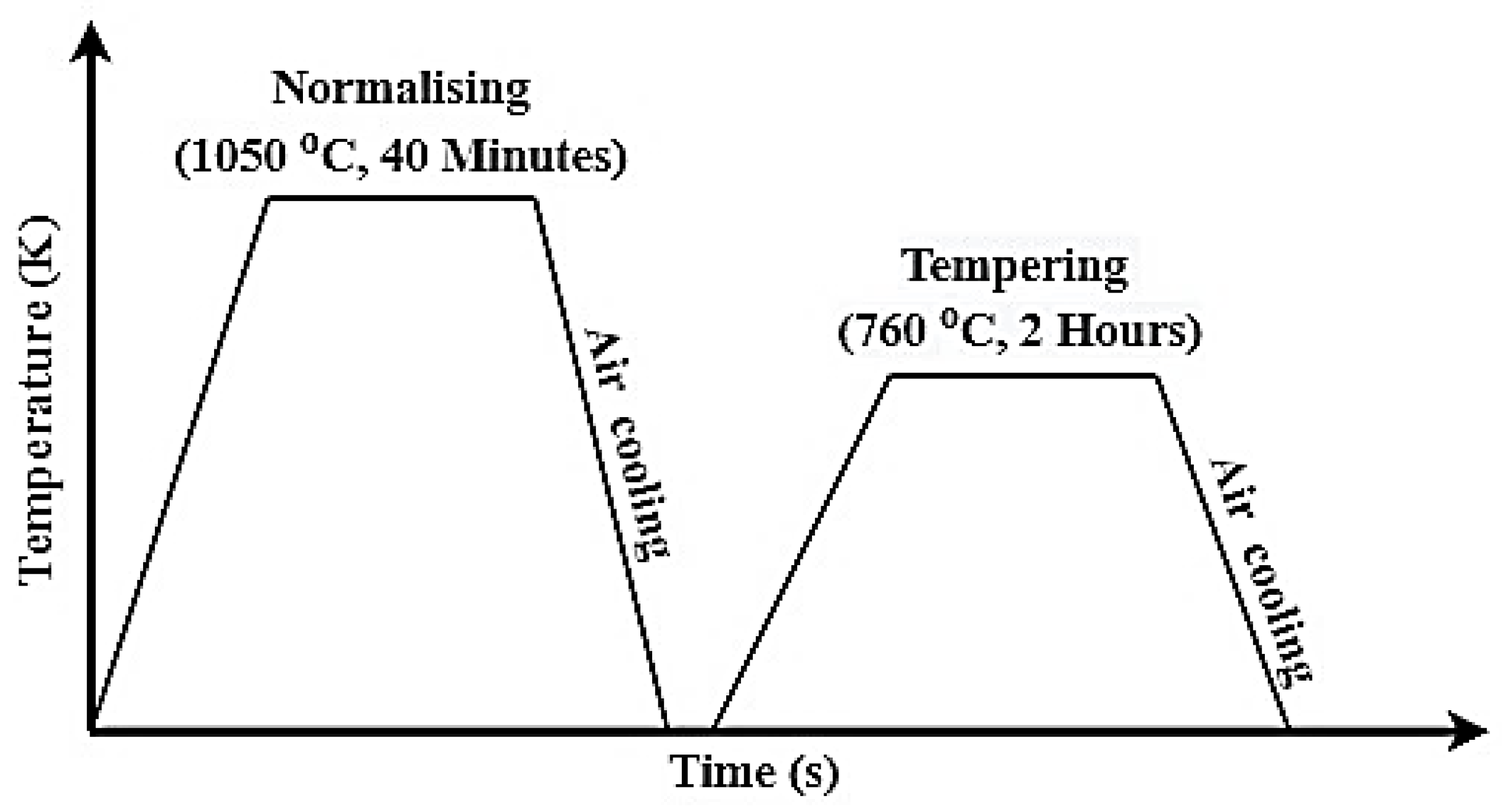

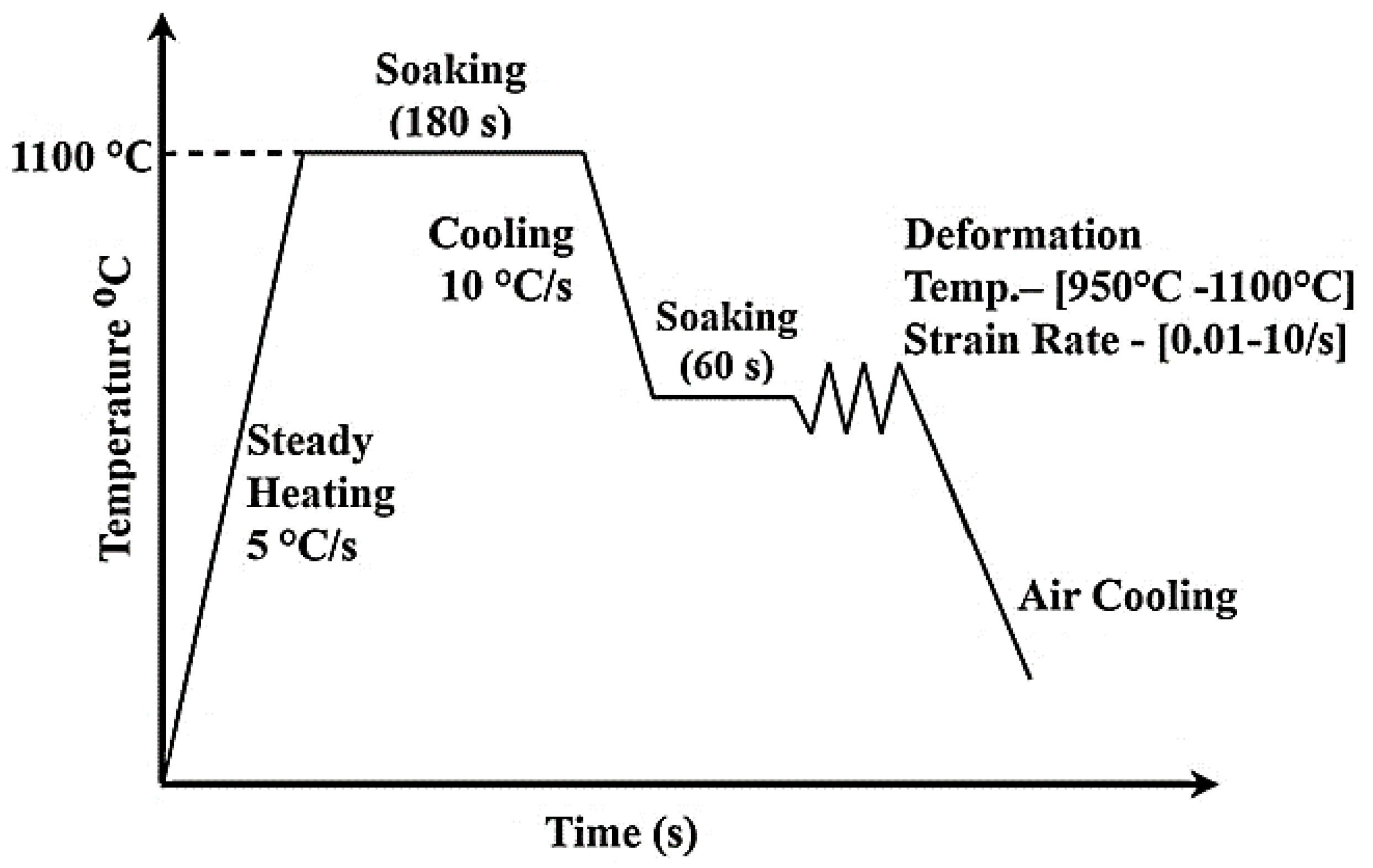

The uniaxial hot compression parameters using Gleeble® 3500 equipment were as follows: deformation temperatures of 900°C, 950°C, 1000°C, and 1050°C and strain rates of 0.01s⁻¹, 0.1s⁻¹, 1s⁻¹, and 10s⁻¹ to a strain of 0.6. Before testing, an R-type thermocouple was welded at the midpoint on the samples to monitor temperature during the deformation process. Figure 2 is a schematic diagram illustrating the thermal deformation process used in this study. All the specimens were heated at 5°C/s to 1100°C and held isothermally for 180s before cooling to the deformation temperature.

The deformed samples were cut along the compression axis for microstructural analysis. The specimen was prepared following the metallographic procedures. Etching was done using Villella’s reagent solution (1g Picric acid + 5 ml HCl + 100 ml ethanol).

Figure 3. The optical micrographs for a) steel A b) steel B.

Figure 3. The optical micrographs for a) steel A b) steel B.

3. Results

3.1. Flow stress-strain curves

Flow stress-strain curves provide information on metal deformation behaviour during forging. Flow stress-strain curves obtained from the uniaxial compression test are affected by the interfacial friction between the tool and the workpiece. Studies have shown that the interfacial friction at the sample/die interface modifies the force required during deformation [30]. At high strain, the friction effect was more significant, causing inhomogeneous deformation. Hence, barrelling of the sample occurs. Therefore, the flow stress-strain curves should be friction corrected before further analysis. [30], [31].

After the hot compression test, the barrelling coefficient was calculated using the sample geometry size. According to Roebuck et al. [32], Equation(1) provides an efficient way of determining the barrelling coefficient, b. The allowable values for barrelling should be within the range of 1 ˂ b ≤ 1.1 [33]. These barrelling range values are negligible [34]. Figure 4 shows plots of uncorrected and friction-corrected flow stress curves for the two P91 steels at a temperature of 950°C and strain rate of 0.01 s⁻¹, 0.1 s⁻¹, 1s⁻¹, and 10s⁻¹. The results show that the measured flow stress values were the highest. This flow stress-strain curve variation can be due to the interfacial friction effect experienced at the test sample and anvil interface.

$$b=\frac{h_f{d}_f^2}{h_o{d}_o^2}$$

(1)

Where, h_o and h_f are initial and final height of the sample and d_o and d_f are the initial and final diameter of the sample.

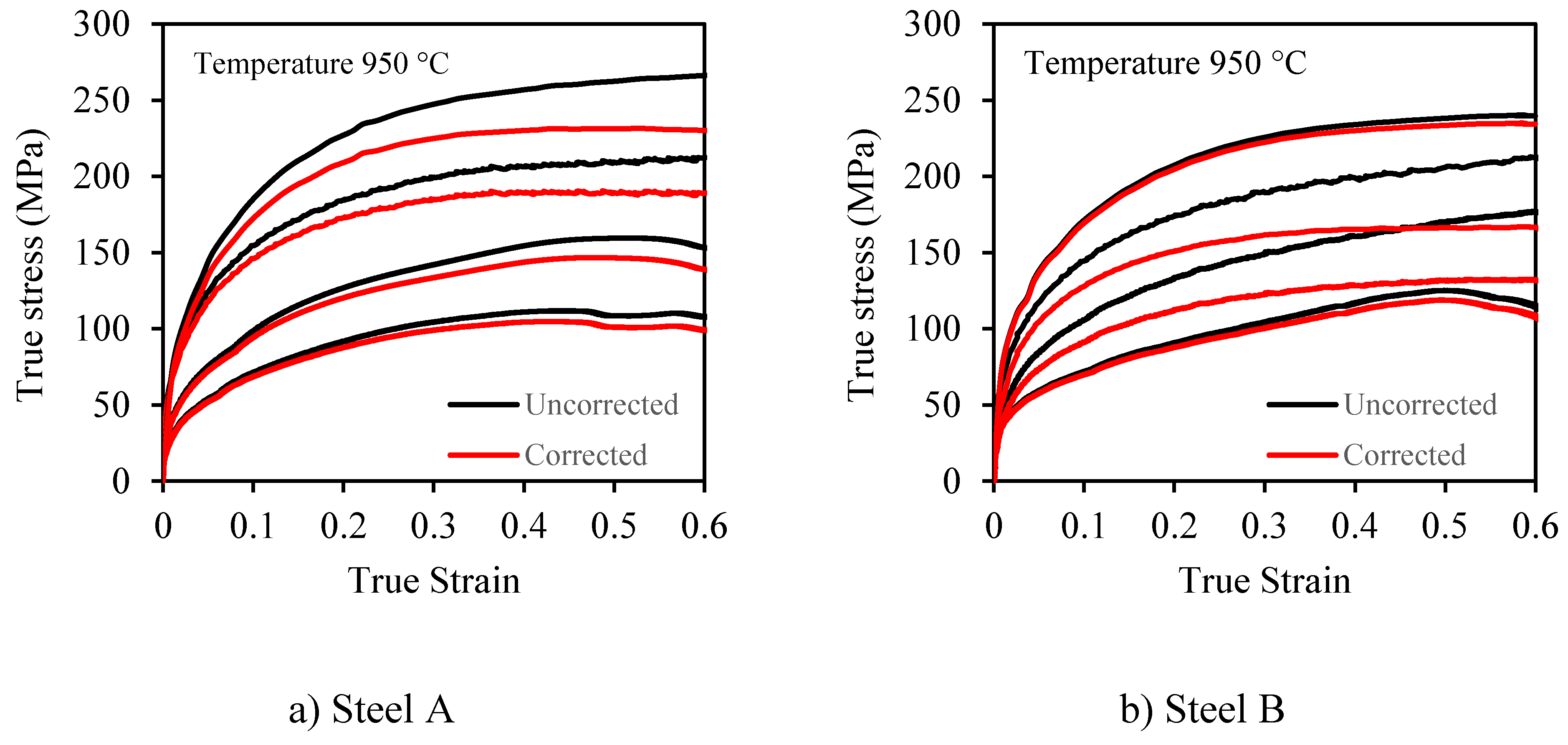

Figure 4. Plots of Uncorrected and Corrected flow stress against True strain.

Figure 4. Plots of Uncorrected and Corrected flow stress against True strain.

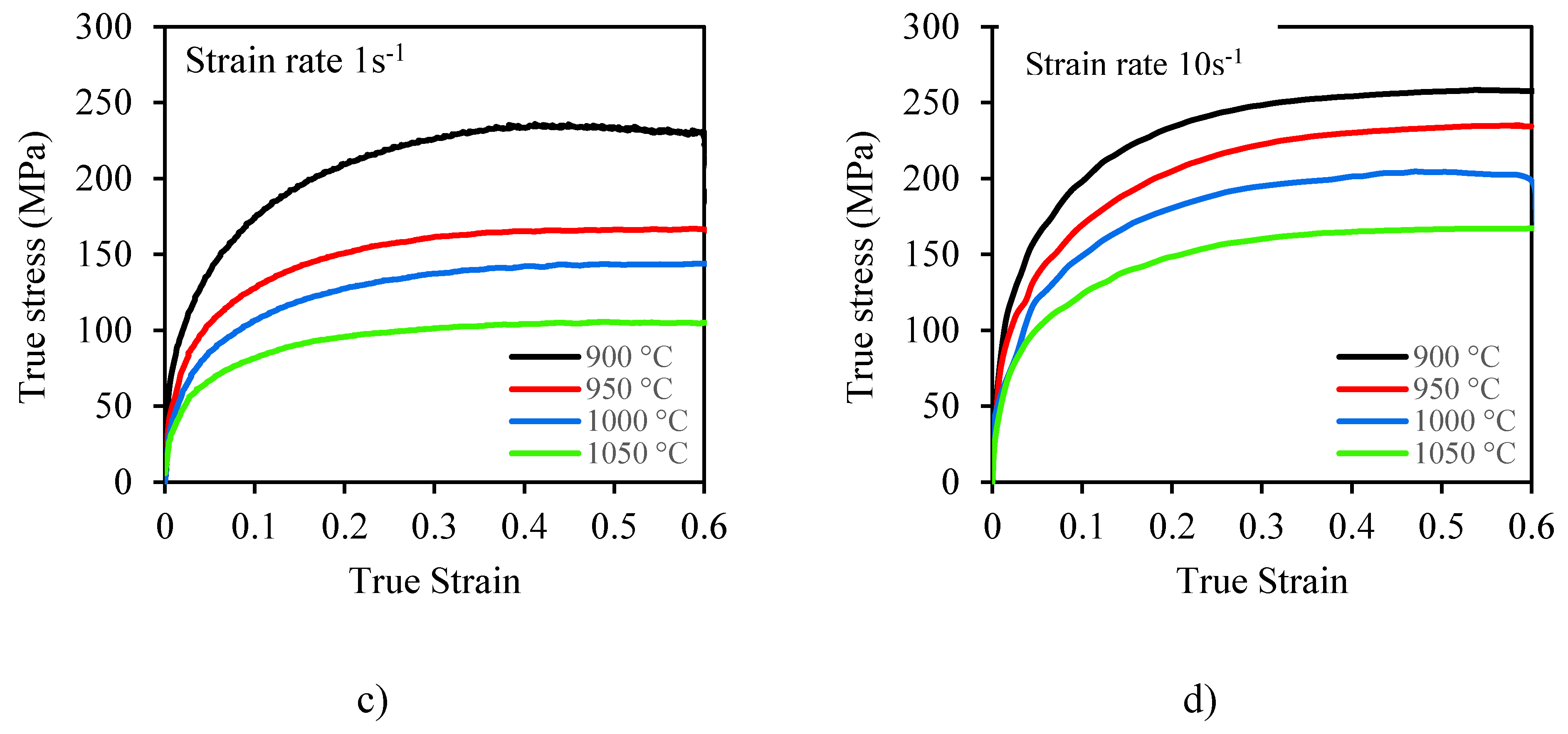

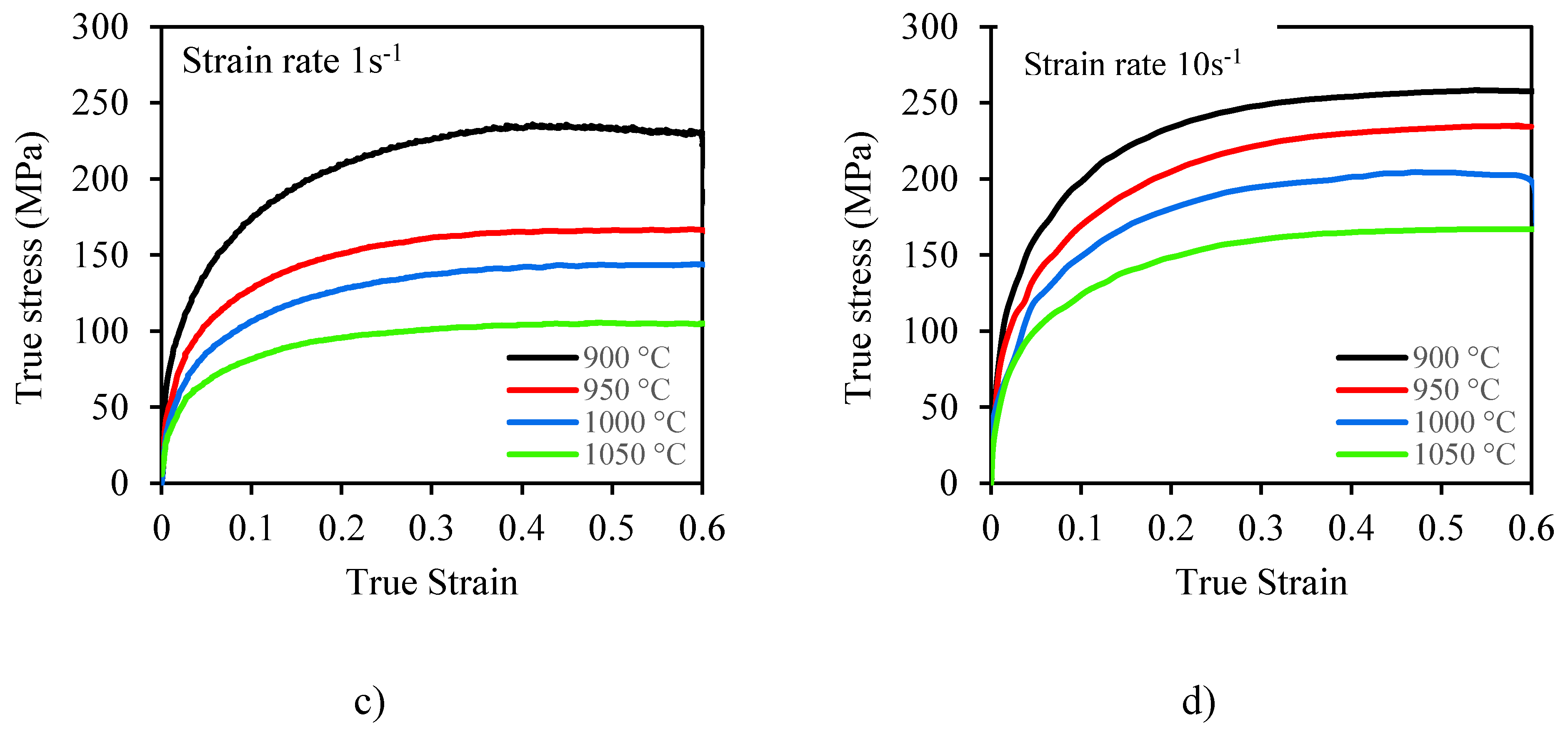

Figure 5 (steel A) and Figure 6 (steel B) shows friction-corrected flow stress-strain curve at various deformation conditions. The flow stress-strain curves show that the flow stress depends on the strain rate and deformation temperature. For a given strain rate, flow stresses decrease with an increase in the deformation temperature of the two steels investigated. These metal flow patterns may be due to the increase in mobility of grain boundaries as deformation temperature increases [35]. At a given temperature, flow stress increase with an increase in the strain rate. The flow stress-strain curves (Figure 5 and Figure 6) show that at the beginning of the deformation process, the flow stress increased rapidly up to a strain of ∼0.2. This characteristic flow behaviour occurs due to the rapid generation of dislocation density resulting in a work-hardening deformation mechanism. [36]. At higher strain (>0.2), most flow stress-strain curves for the two steels reached a steady-state condition. This characteristic behaviour of flow curves indicates a balance between work hardening and softening mechanisms, especially dynamic recovery (DRV for these steels [37]. The flow stress-strain curves for the two steels studied did not exhibit a clear peak and subsequent steady-state flow stress caused by DRX [33], [38]. Therefore, for most deformation conditions, the flow curves had increasing flow stress until the start of the saturation stress (σ_sat) region. The results show that DRV was the softening mechanism. Similar flow stress-strain curves behaviour results are available in the literature for creep resistant steels [39], [40].

3.2. Constitutive model and material constants

Constitutive models accurately predict the flow stress behaviour of metals and alloys during deformation [41]. For example, the Arrhenius equation is widely used to show the relationship between stress, temperature and strain rates during forming [23]. The effect of temperature and strain rate can also be expressed using the temperature-compensated strain rate, the Zener-Hollomon parameter (Z) [42].

$$\dot{\epsilon }=\mathit{Af}\left(\sigma \right)\mathit{exp}\left(\frac{-Q}{RT}\right)$$

(2)

$$Z=\dot{\epsilon }\mathit{exp}\left(\frac{Q}{RT}\right)$$

(3)

Where, σ is flow stress, έ is strain rate, T is absolute temperature (K) and Q is activation energy for hot deformation (kJ/mol), A is a material constant and R is the universal gas constant (8.314 Jmol⁻¹ K⁻¹).

$$Z=\dot{\epsilon }\mathit{exp}\left(\frac{Q}{RT}\right)=f\left(\sigma \right)=A{\sigma }^{n^{\prime }}$$

(4)

$$Z=\dot{\epsilon }\mathit{exp}\left(\frac{Q}{RT}\right)=f\left(\sigma \right)=A\mathit{exp}\left(\beta \sigma \right)$$

(5)

$$Z=\dot{\epsilon }\mathit{exp}\left(\frac{Q}{RT}\right)=f\left(\sigma \right)=A{\left[Sinh\left(\alpha \sigma \right)\right]}^n$$

(6)

The relationship between the Zener-Hollomon parameter and flow stress, is expressed by Equations (4) to (6). The terms in these equations: n’ β, n, and α, are material constants. Equation (4) is the power law applied for low stresses (ασ ˂ 0.8) as it breaks down at higher flow stress. Equation (5) is the exponential law used for higher stress (ασ > 1.2) and breaks down at strain rate under 1s⁻¹ and high temperature. Equation (6) is a hyperbolic sine function equation developed by Sellars and Tegart [43] to be applicable to a wide range of stresses (both high and low). Equations (4)-(6) can also give Equations (7) and (9):

$$\dot{\epsilon }=A{\sigma }^{n^{\prime }}\mathit{exp}\left(\frac{-Q}{RT}\right)$$

(7)

$$\dot{\epsilon }=A\mathit{exp}\left(\beta \sigma \right)\left(\frac{-Q}{RT}\right)$$

(8)

$$\dot{\epsilon }=A{\left[\mathit{sinh}\left(\mathit{\alpha \sigma }\right)\right]}^{n}exp\left(\frac{-Q}{RT}\right)$$

(9)

The constants n’ and β are determined by taking logarithms on both sides of Equations (7) and (8). These are presented as Equations (10) and (11). The plots of ln έ versus ln σ (Equation 10) and ln έ versus σ (Equation 11) are used to calculate the material constants n’ and β respectively. Figure 7 ((a) and (b)) is a representation of the plots based on flow stress data to a true strain of 0.6.

$$\ln \dot{\epsilon }=\ln A+n^{\prime }\ln \sigma -\frac{Q}{RT}$$

(10)

$$\ln \dot{\epsilon }=\ln A+\beta \sigma -\frac{Q}{RT}$$

(11)

The stress multiplier α is an adjustable constant. This α-value is obtained from: α = β/n. The stress exponent, n, and activation energy, Q, are determined by taking logarithms on both sides of Equation (9), which gives Equations (12) and (13). These equations are plotted as ln έ versus ln (sinh (σα)) and ln (sinh (σα)) versus (1000)/T, as shown in Figure 8 (a and b). The average value of the slopes obtained in these plots gives n and S values for calculating the activation energy Q.

$$\frac{1}{n}={\left[\frac{\partial \ln \left[sinh\left(\sigma \sigma \right)\right]}{\partial \left(ln\dot{\epsilon }\right)}\right]}_T$$

(12)

$$Q=RnS=Rn{\left[\frac{\partial \ln \left[sinh\left(\sigma \sigma \right)\right]}{\partial \left(\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$T$}\right.\right)}\right]}_{\epsilon }$$

(13)

The relationship between the flow stress and the Zener-Holloman parameter is, as given in Equation (6). The structure factor (A) is determined by taking logarithms on both sides of Equation (6), as in Equation (14). The A value is the intercept of the best fit line obtained by plotting ln (Z) versus ln (sinh(ασ)), as shown in Figure 9.

$$\ln Z=\ln A+n\ln Sinh\left(\alpha \sigma \right)$$

(14)

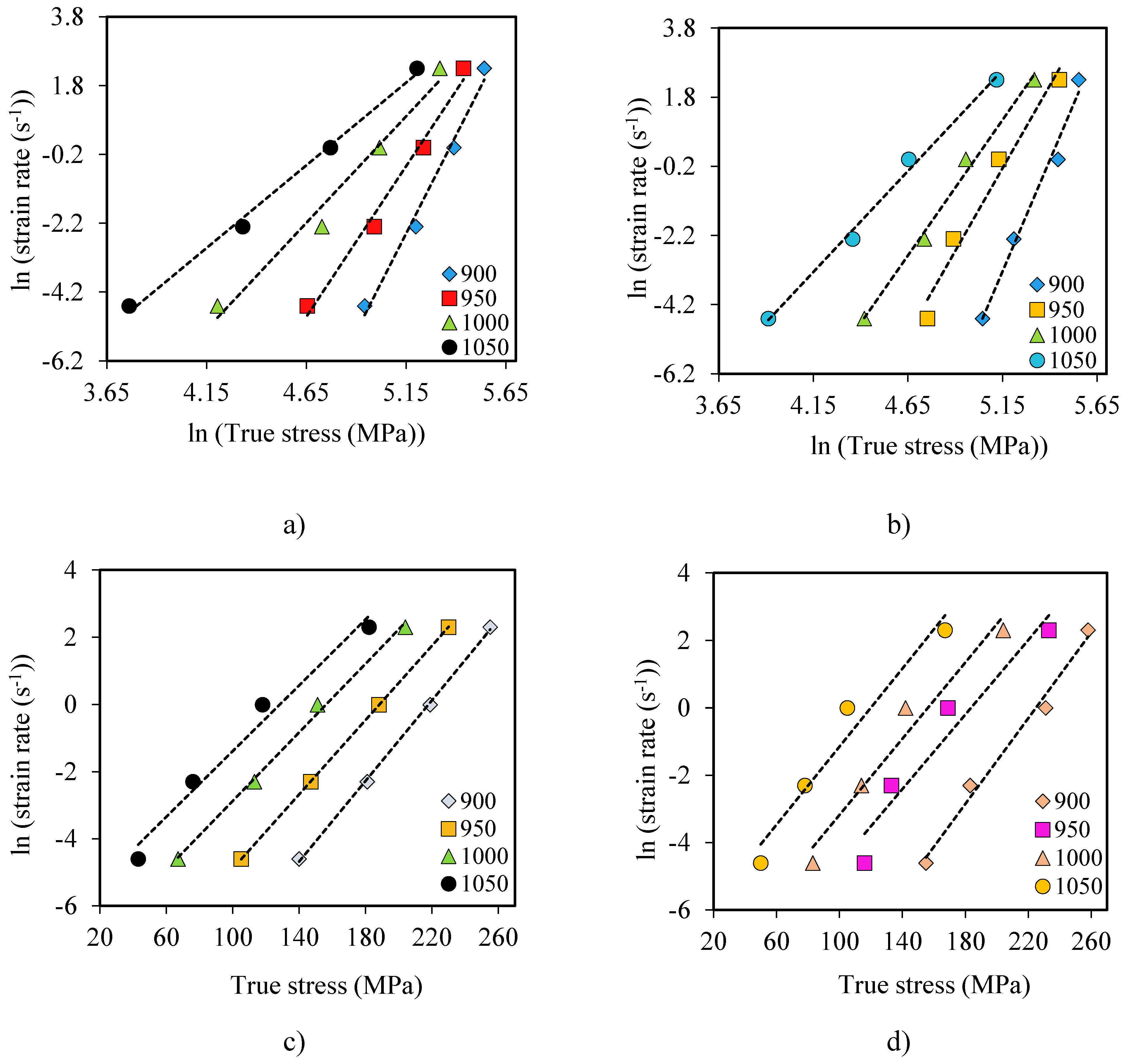

Figure 7. (a and b) Plots of ln (έ) versus ln σ and ln (έ) versus σ for determination of n’ steel A and steel B and (c and d) for determine of β in steel A and steel B.

Figure 7. (a and b) Plots of ln (έ) versus ln σ and ln (έ) versus σ for determination of n’ steel A and steel B and (c and d) for determine of β in steel A and steel B.

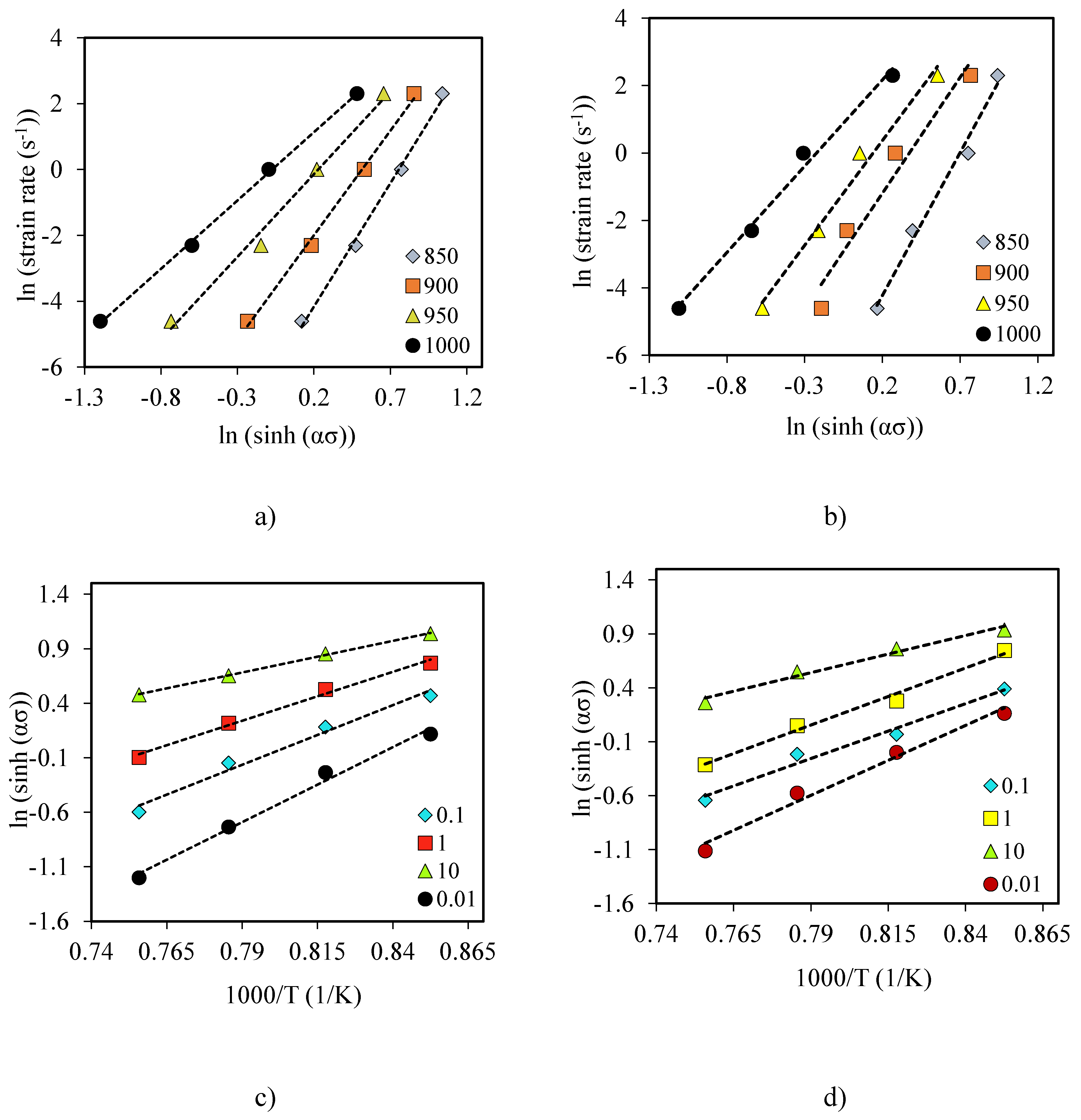

Figure 8. ((a) and (b)) plots of ln έ versus σ and ln (sinh (σα)) for determination of n and ((c) and (d)) are plots of ln (sinh (σα)) versus (1000)/T to determine S value for steel A and steel B respectively.

Figure 8. ((a) and (b)) plots of ln έ versus σ and ln (sinh (σα)) for determination of n and ((c) and (d)) are plots of ln (sinh (σα)) versus (1000)/T to determine S value for steel A and steel B respectively.

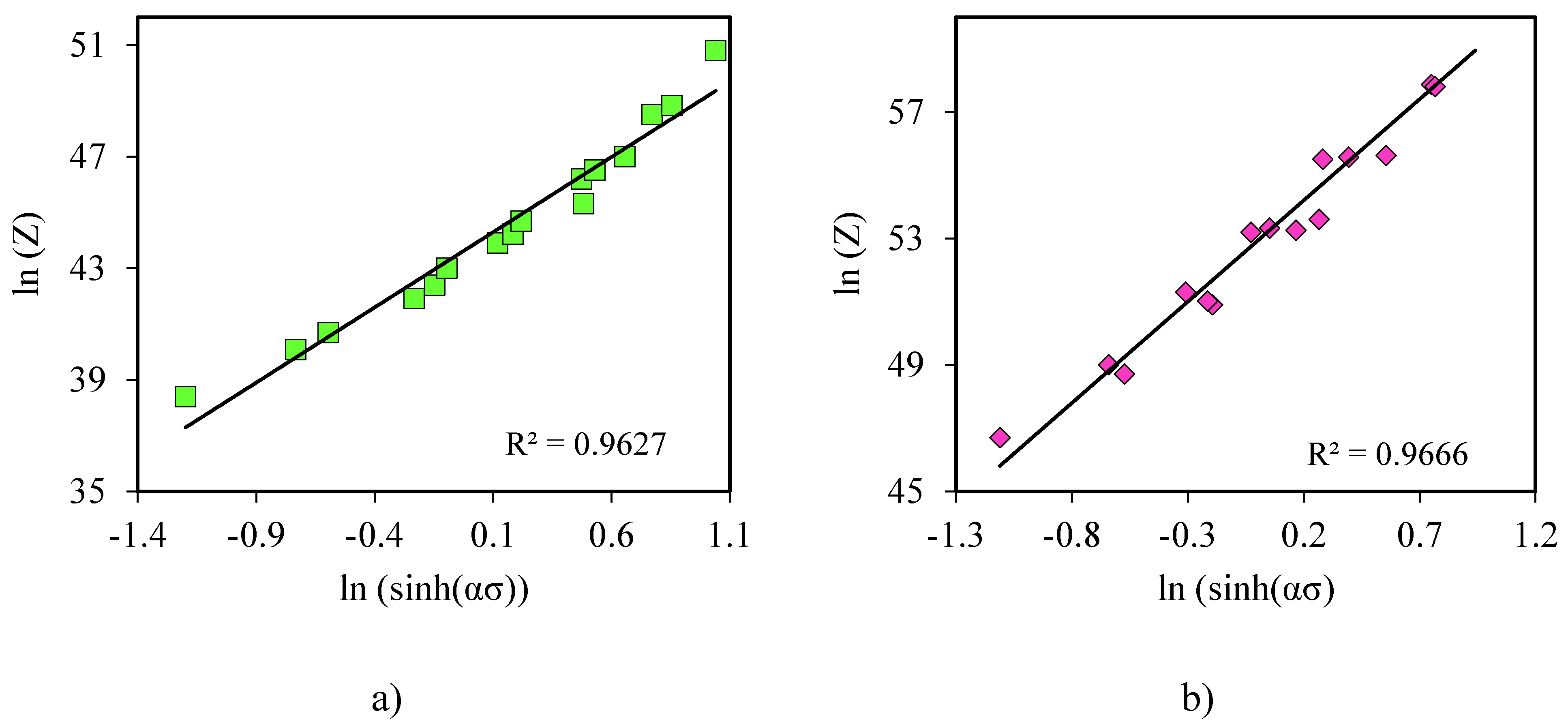

Figure 9. Plots of ln (Z) vs. ln (sinh(ασ)) for a) Steel A and b) for steel B.

Figure 9. Plots of ln (Z) vs. ln (sinh(ασ)) for a) Steel A and b) for steel B.

The calculated material constants for steel A and steel B for the constitutive equations are as given in Table 1.

3.3. Activation energy and stress exponent

Table 1 summarises the material constants n’, β, n, S and activation energy, Q, for the two steels. The stress exponent and activation energy are termed apparent values. The term apparent implies that the constitutive equation does not consider the internal microstructure changes that occur during deformation, thus assuming constant metal flow behaviour. [44], [45]. The stress exponent, n and apparent activation energy, Q, indicate the deformation mechanisms that control the deformation process [46]. The activation energy shows the plastic workability of the material during the deformation process[47]. The difference between apparent and self-diffusion of Fe in austenite provides information on the dominant softening mechanisms during forging [47]. McQueen and Ryan [48] reported that the apparent activation energy is 20% higher than the self-diffusion activation energy when DRX is the dominant mechanism. The presence of precipitates, solutes, inclusions or reinforcements causes the activation energy to be 50% greater than the activation energy for self-diffusion. For high-stacking fault energy materials, the apparent activation energy is equivalent to or close to the activation energy for self-diffusion [38]. The results of this study show that the apparent activation energy for the two steels was: 473.08 kJ/mol (steel A) and 564.48 kJ/mol (steel B). In comparison, Q-value for the steel A was 65% greater than the self-diffusion activation energy of Fe in austenite (284 kJ/mol), while rejuvenated creep-exhaust steel was 98% higher. These results show that the two exhibited low plastic deformability.

The Q-values of the two steels show that the rejuvenated creep-exhausted steel has a higher resistance to deformation. The reason might be an incomplete dissolution of carbides during deformation. The presence of carbides impedes the deformation process by hindering dislocation movement and increases the stress exponent, n [49], [50]. The stress exponent obtained for steel B was 6.67 and for steel A was 5.76. The stress exponent is significantly affected by an increase in flow stress. Steel B that had higher flow stresses than steel A therefore had higher activation energy.

The stress exponent also shows the dynamic softening mechanisms involved during forming[46]. Zhou et al. [51] reported that when dislocation climb controls deformation, the stress exponent is 5, compared to 3 for dislocation glide mechanism controlled deformation. Dislocation climb and glide are dynamic softening mechanism showing that DRV occurred during deformation [52]. In this study, the flow stress-strain curves did not exhibit a clear flow stress peak. However, the flow curves exhibited a steady-state condition at higher strain as shown in Figure 5 and Figure 6. Lower n-values (< 5) show that DRX was the dominant softening mechanism [42]. The stress exponent values shown in Table 1 indicate that both WH+DRV controlled the deformation process. This deformation behaviour occurs in materials having high stacking fault energy, such as creep-resistant steel [53]. The difference between the steels may be due to the deformation conditions and steel chemistry. Higher n-values may be due to precipitates in the matrix, improving solid solution strengthening by pinning dislocation movement [2].

3.4. Constitutive model of flow stresses

From materials constants and activation energy, Equations (15) and (16) are the constitutive models used to predict the flow stress behaviour of steel A and steel B, respectively.

$$\dot{\epsilon }=9.98\times {10}^{18}{\left[Sinh\left(0.0069{\sigma }_{ss}\right)\right]}^{5.755175}\mathrm{e}\mathrm{x}\mathrm{p}\left[\frac{-473.08}{RT}\right]$$

(15)

$$\dot{\epsilon }=9.58\times {10}^{22}{\left[Sinh\left(0.0065{\sigma }_{ss}\right)\right]}^{6.66945}\mathrm{e}\mathrm{x}\mathrm{p}\left[\frac{-564.48}{RT}\right]$$

(16)

Equation (17) shows the relationship between the flow stress and Zener-Hollomon parameter Z for steel A and steel B. The flow stress for the two steels can be obtained using Equations (18) for steel A and (19) for steel B.

$$\sigma =\frac{1}{\alpha }ln\left\{{\left(\frac{Z}{A}\right)}^{1/n}+{\left[{\left(\frac{Z}{A}\right)}^{2/n}+1\right]}^{1/2}\right\}$$

(17)

$${\sigma }_{ss}=\frac{1}{0.0069}ln\left\{{\left(\frac{Z}{9.98\times {10}^{18}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$5.76$}\right.}+{\left[{\left(\frac{Z}{9.98\times {10}^{18}}\right)}^{2/5.76}+1\right]}^{1/2}\right\}$$

(18)

$${\sigma }_{ss}=\frac{1}{0.0065}ln\left\{{\left(\frac{Z}{9.58\times {10}^{22}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$6.66945$}\right.}+{\left[{\left(\frac{Z}{9.58\times {10}^{22}}\right)}^{2/6.67}+1\right]}^{1/2}\right\}$$

(19)

3.5. Verification of constitutive models

The accuracy of constitutive equations (18) and (19) to predict flow stress was evaluated by comparing predicted to experimental data. Figures 10 a) and b) show graphical plots for the two equations obtained at different strain rates and temperatures. The graphs indicate a close correlation between the flow stresses (predicted and experimental) of these two steels investigated.

The accuracy of the developed equations to predict flow stress accurately was analysed using statistical parameters such as Pearson’s correlation coefficient, R and Average Absolute Relative Error (AARE). Pearson’s correlation coefficient, R, ranges between 0 and 1 and is determined using Equation (20) [54]. The proximity of R to 1 signifies a higher capability for the model to predict flow stress and vice versa. The R-value obtained for steel A was 0.97, and steel B was 0.98. The R-value obtained for both materials indicated a good correlation and a higher ability of the models to predict flow stress. These values compare well with the reports of other authors, such as Mwema et al.[55] and Samantaray et al. [22], with an R-value of 0.994.

Pearson’s correlation coefficient, R, is liable to bias towards greater or lower values, hence resulting in misrepresenting the accuracy of the model to predict flow stresses[55]. Using the Average Absolute Relative Error (AARE) complements Pearson’s correlation method and is less subject to bias[56]. AARE analyses errors for each predicted flow stress against experimental value on a case-by-case basis. Therefore, AARE is applied for each deformation condition to realise the statistical efficiency of the models developed. Therefore, AARE offers better reliability and presents unbiased statistical analysis[33]. Equation (21) provides means to calculate AARE as a percentage. A lower percentage value indicates a greater ability to predict flow stresses and vice versa. AARE obtained for the steel A was 7.62%, and for heat-treated creep-exhausted steel was 6.54%. Reports by other authors indicated marginally lower AARE findings for hot deformation of P91. Mwema et al. [55] obtained an AARE of 2.999%, and Samantaray et al. [22] had 5.27%. These variations are due to the differences in hot deformation parameters in the respective studies. The study by Mwema et al. [55] was for hot deformation temperature between 900 °C and 1200 °C and strain rate of 1s⁻¹, 5s⁻¹, 10s⁻¹ and 15s⁻¹. In Samantaray et al. [22], the temperature for hot deformation was between 850 °C and 1100 °C and strain rates of 0.001s⁻¹, 0.1s⁻¹ and 100s⁻¹. Validation by both models thus signified satisfactory levels of confidence in the respective constitutive equations to predict flow stresses.

$$R=\frac{{\sum }_{i=1}^N\left(P_i-P\right)\left(E_i-E\right)}{\sqrt{{\sum }_{i=1}^N{\left(P_i-P\right)}^2}\sqrt{{\sum }_{i=1}^N{\left(E_i-E\right)}^2}}$$

(20)

$$AARE=\frac{1}{N}\sum _{i=1}^N\left|\frac{E_i-P_i}{E_i}\right|\times 100\%$$

(21)

Where E_i is the flow stress from the experiment, Pi is the flow stress predicted from constitutive equations, E and P, are average flow stress values of experimental data E, and the predicted data P. N is the sum of data points.

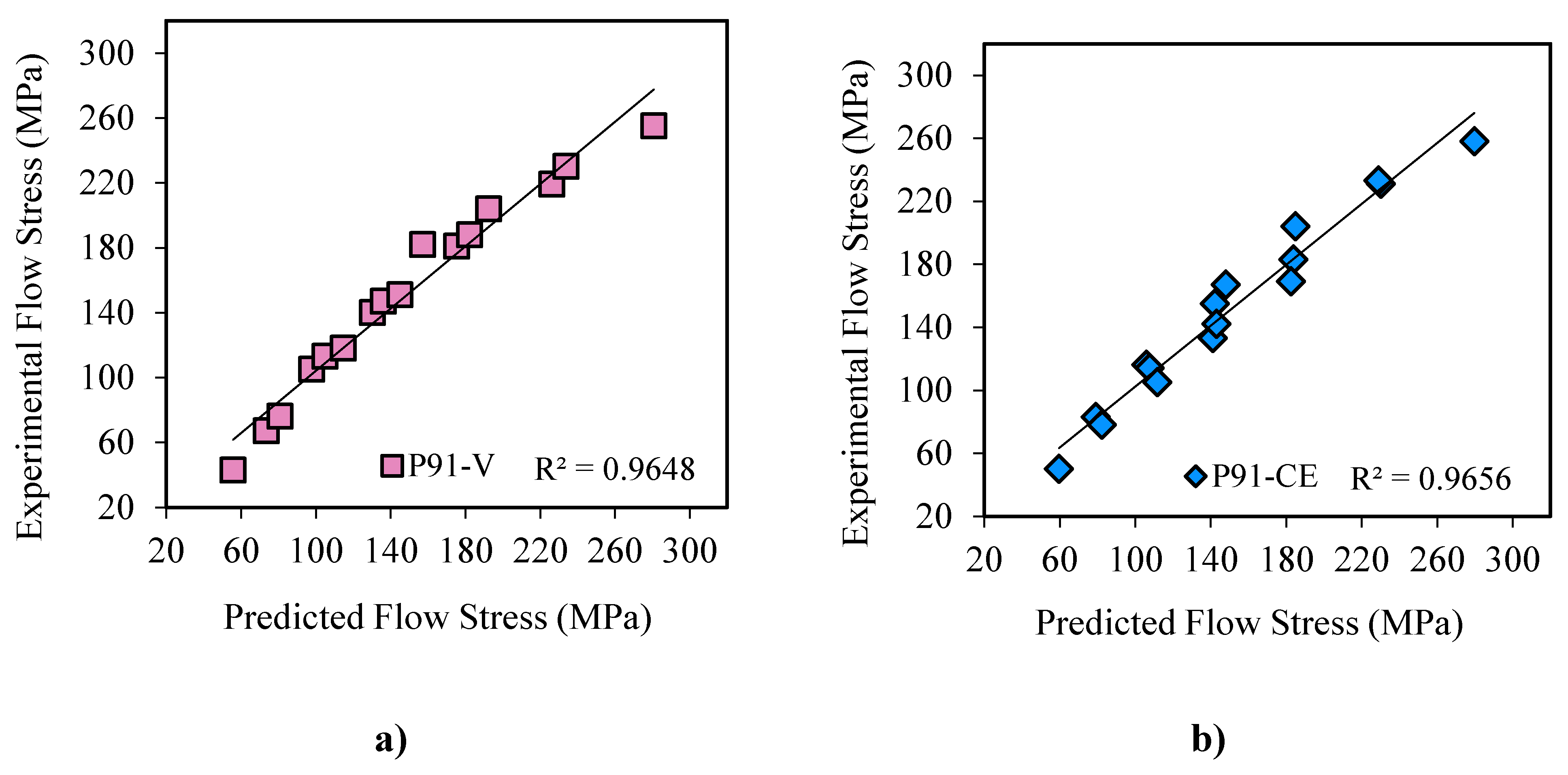

Figure 10. Prediction of flow stress of mathematical models for a) Steel A and b) steel B.

Figure 10. Prediction of flow stress of mathematical models for a) Steel A and b) steel B.

3.6. Comparison of constitutive equations

The mathematical model developed for steel A was used to predict flow stresses of steel B and vice versa. The analysis intended to determine the suitability of having a model that can be applied to predict the flow stresses of either of the two steels investigated. Figure 11a) is a plot of experimental stress versus the calculated flow stress where a model of steel A is used to predict the flow stress of steel B. From the statistical analysis, Pearson’s correlation coefficient, R, was 0.9637, and AARE was 7.19%. Hence there was a good correlation between measured and predicted flow stress. The model for heat-treated creep-exhausted P91 steel was also used to predict flow stress for steel A (Figure 11 b)). The plot shows a good correlation between the measured and predicted flow stresses. Pearson’s correlation coefficient was 0.95, and AARE was 8.36%. From the analysis, the steel A model had a better approximation than steel B model in predicting the flow stress for either P91 steel.

4. Conclusion

In this study, the hot deformation behaviour of P91 steel was studied using a Gleeble® 3500 thermo-simulation machine on steel A and steel B. The deformation conditions were: a temperature range of 900°C to 1050°C and strain rates of 0.01 to 10s⁻¹. The findings are as itemised below:

• The flow stress-strain curves show that the flow stress increased with an increase in strain rate (0.01 s⁻¹ to 10s⁻¹) and decreased with an increase in temperature (900°C to 1050°C) for the two steels. The flow stress-strain curves exhibited a DRV+WH as the deformation mechanism.
• The apparent activation energy of steel A was 473.08 kJ/mol, and for steel B was 564.48 kJ/mol. These Q-values were much higher compared to self-diffusion energy of iron in austenite (270 kJmol⁻¹)
• The mathematical constitutive models for steel A and steel B to strain of 0.6 are as given in Equation (22) and (23).

$$\dot{\epsilon }=9.97885\times {10}^{18}{\left[Sinh\left(0.006916{\sigma }_{ss}\right)\right]}^{5.755175}\left[\frac{-473.0843}{RT}\right]$$

(22)

$$\dot{\epsilon }=9.58432\times {10}^{22}{\left[Sinh\left(0.00647{\sigma }_{ss}\right)\right]}^{6.66945}\left[\frac{-564.4791}{RT}\right]$$

(23)

The constitutive models for steel A and steel B were used to predict flow stresses. The models were then validated using Pearson’s correlation coefficient, R and Average Absolute Relative Error, AARE. For steel A, R was 0.97, and AARE was 7.62%. For heat-treated creep-exhausted P91 steel, R was 0.98, and AARE was 6.54%. These results show a good correlation between experimental and predicted values. The developed models for the two steels can be used interchangeably with acceptable accuracy. Using the model for steel A on steel B, Pearson’s correlation coefficient was 0.96, and AARE was 7.19%. Similarly, using the steel B model on steel A, the R-value was 0.95, and AARE was 8.36%.
