Membrane Cascade Type of «Continuous Membrane Column» for Power Plant Post-Combustion Carbon Dioxide Capture Part 1. Simulation of the Binary Gas Mixture Separation

1. Introduction

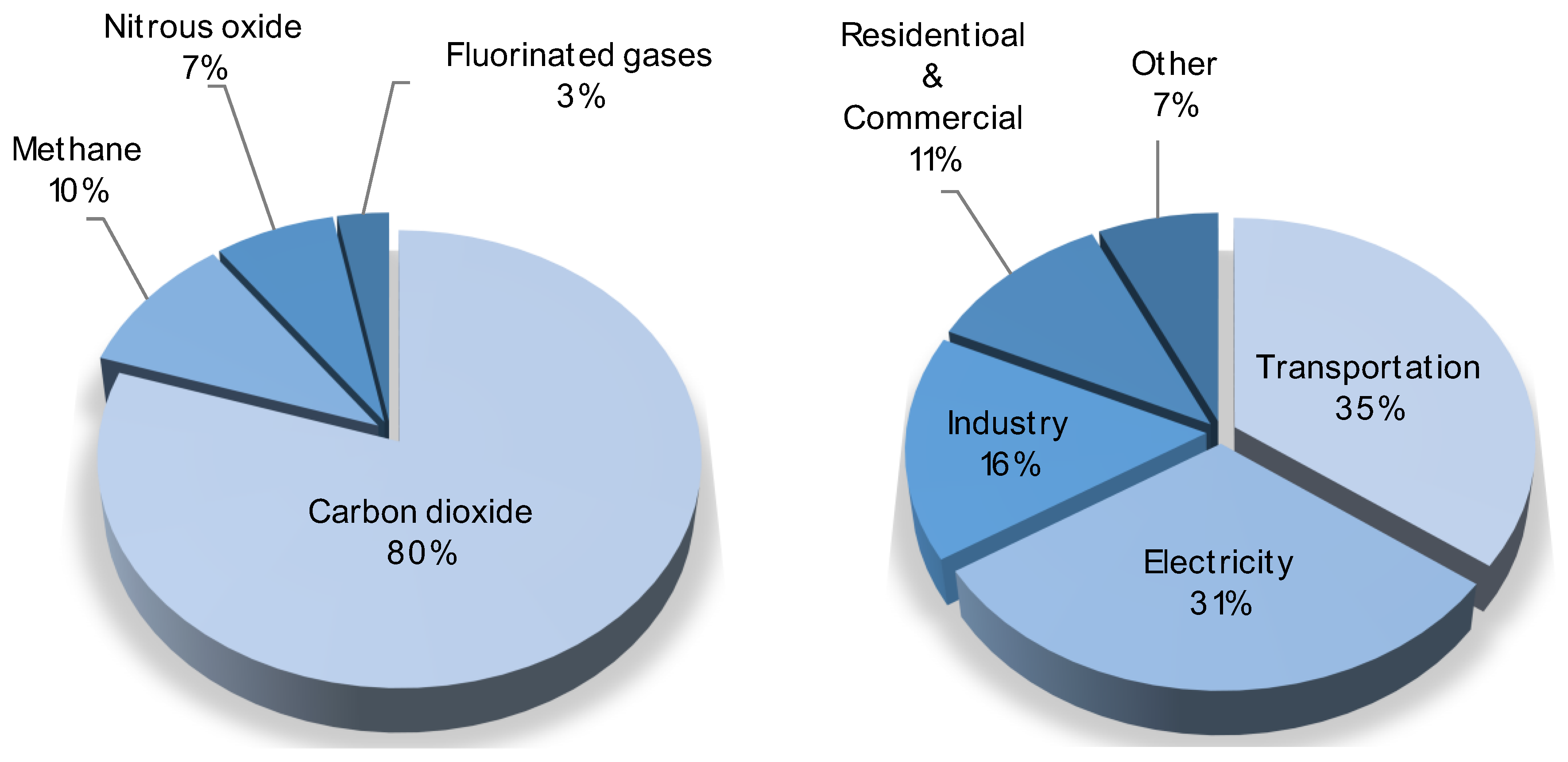

The environment of Earth's planet, at present, is continuously suffering from different anthropogenic impacts which results in dramatic effects, such as air emissions of pollutants, pollution of soil and subsoil, disposal of production and consumption waste, and the major one – global climate change. The main cause of that is emission of greenhouse gases (water vapors, carbon dioxide, methane etc.) generated by global industry. Among them, according to US Environmental Protection Agency the carbon dioxide is the most produced component, meanwhile the 35 % is produced by transportation segment and 31 % is emitted by coal power plants [1] as given on the circle diagrams in Figure 1.

Over the past century, the carbon dioxide concentration in the atmosphere has dramatically increased from 275 to 387 ppm and already led to a tangible increase in temperatures on the planet, namely, the average temperature of the Earth's surface in the 21st century exceeds the same value of the 20th century by 0.8 – 1.2 ˚С. If the build-up of CO₂ continues at current rates, by 2060 it will have passed 560 ppm – more than double the level of pre-industrial times [2]. The developed climate models predict that the established trend will negatively affect the global climate by 2100 [3]. As its source is anthropogenic action, nowadays the CCS project (carbon capture and storage) is a worldwide accepted strategy under that is about 50 operational facilities today. The International Energy Agency estimates that to limit warming to below 2 ºC, 2.8 Gt (billion tons) of CO₂ per year would need to be stored by 2050 [4]. Given that a current large-scale facility captures around one million tons per year, that would suggest over 2000 facilities need to be start up in the next thirty years.

The estimated CO₂ emissions per kWh of the coal-based power plant is 958 g. Given the contribution of 31 % to the overall emission of carbon dioxide made by the electricity industry, coal-powered plants are considered as one of the main emission sources. Nowadays, the amine scrubbing technique [5] is dominating in the acid gases capture industry and is conventionally applied in the flue gases treatment as well as in natural gas sweetening. Besides its indisputable technical capabilities, the preference of chemical absorption is also regarded to the industry’s convenience in utilizing amine technology throughout the past few decades. However, despite the effectiveness of that approach at capturing the CO₂ at its low content at feedstock [6] a number of drawbacks [7], including corrosion of pipelines and equipment, high investment costs, loss of sorbent solution due to its degradation, as well as potential environmental threats. Wherein the most critical is process high energy consumption equal up to the 30 % of power plant produced energy resulting in the CO₂ capture cost of 40–100 $ / ton and rise in electricity price of 50 – 90 % [8,9]. That forces the world’s chemical engineering society to design new energy-efficient processes agreed with modern green chemistry principles [10,11,12,13,14].

In that context, special attention should be paid to membrane-based processes which are able to separate gaseous media at ambient conditions without phase transitions, does not require chemical reagents and heat supply or its removal resulting in energy-efficient gas processing [15,16,17]. A shortlist of recent studies [10,18,19,20,21,22,23,24,25,26,27,28,29] presents promising results on the appliance of membrane-based techniques in the carbon dioxide capture from flue gases. The comprehensive study devoted to the simulation of the CO₂ capture process using two-step vacuum design and two-step counter-flow/sweep design shows, that membrane-based technique allows producing 95 % rich CO₂ recovering 90 % and process cost is 23 $ / ton [10]. A series of studies performed by Zhao et al. [18,19,22,23] presents a complex comparison of a number of membrane cascade designs (covering 14 schemes) for CO₂ capture from flue gases and energy consumption analysis juxtaposed to amine scrubbing. As a result, the two-stage design of a membrane cascade with recycled retentate stream of a second stage was determined as optimal due to the lowest energy consumption on the production of 95 % pure CO₂ with its 95 % recovery.

In the light of the abovementioned facts, the present work deals with a comprehensive study of the CO₂ capture using membrane cascade type of «Continuous Membrane Column», including the determination of optimal membrane material characteristics, the sensitivity study of the process and feasibility study. It was clearly demonstrated that proposed process provides the efficient CO₂ capture, which meets the modern requirements in terms of CO₂ content (≥ 95 mol.%), recovery rate (≥ 90 %) and residual CO₂ concentration (≤ 2 mol.%). Moreover, it was observed, that it is possible to process CO₂ with higher purity up to 99.8 mol.% at the same recovery rate, which allows to use this specific process design in the CO₂ pretreatment operations in the production of high-purity carbon dioxide.

2. Membrane separation unit simulation

To implement a membrane gas separation unit into Aspen Plus simulation environment a specially developed ACM user block was used, which is based on updated hollow fiber membrane model created by Ajayi and Bhattacharyya under the DOE Carbon Capture Simulation Initiative (CCSI) [30]. The model is one-dimensional partial differential equation (PDE)-based, multi-component, and applicable for membrane materials that follow the solution-diffusion permeation. Gas permeances are independent of pressures, concentrations and stage cut. Separation takes place under isothermal conditions. The model predicts the pressure drop in both the shell side and fiber bore side according to the Hagen- Poiseuille equation for a compressible fluid. The feed gas enters the shell side of the hollow fiber membrane and permeates to the fiber’s bore. The one-dimensional permeate and retentate gas plug-flows are assumed to be counter-current to each other. The model provides profiles for component fluxes and concentrations. The gas mixtures in the module are assumed to behave ideally. The operating conditions for membrane module simulations (pressure drop, temperature and flows) are steady-state. The equation-oriented structure enables the user to perform rating or design calculations depending on the variables being specified to satisfy the degrees of freedom.

3. Design of the technological scheme for CO₂ capture

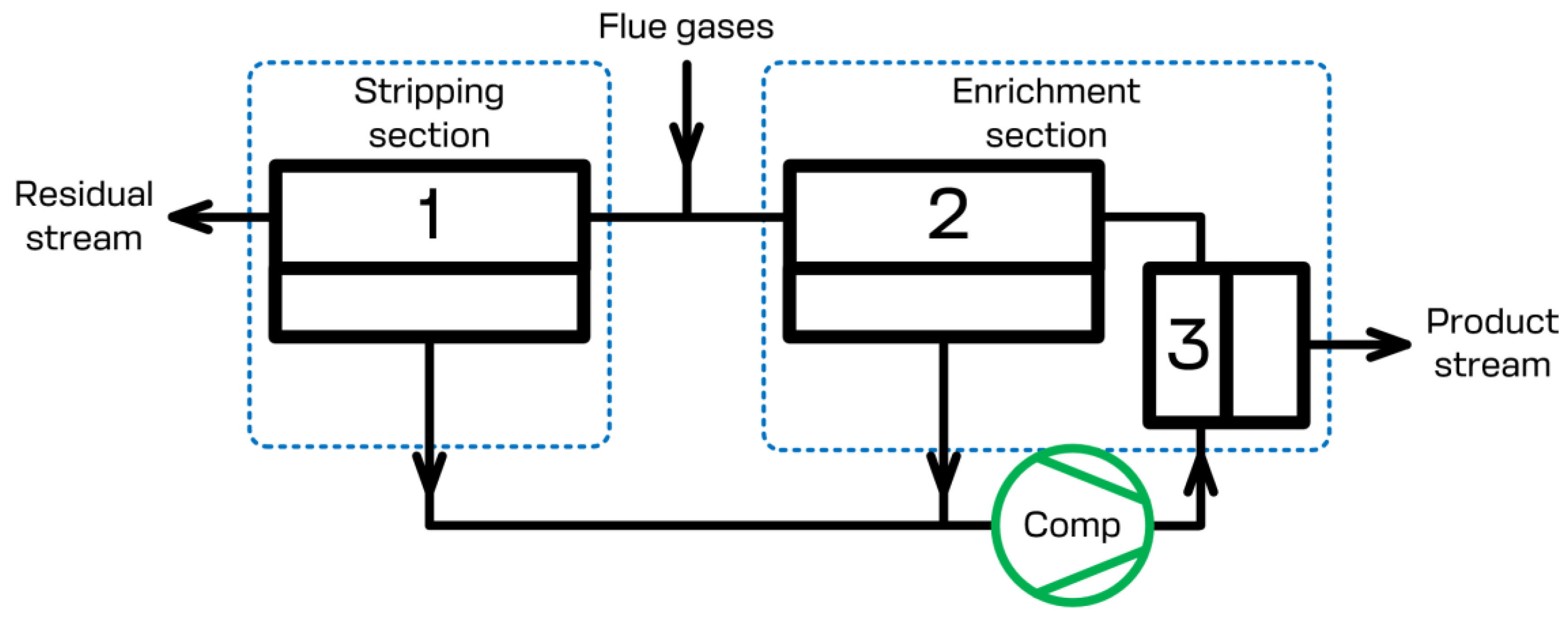

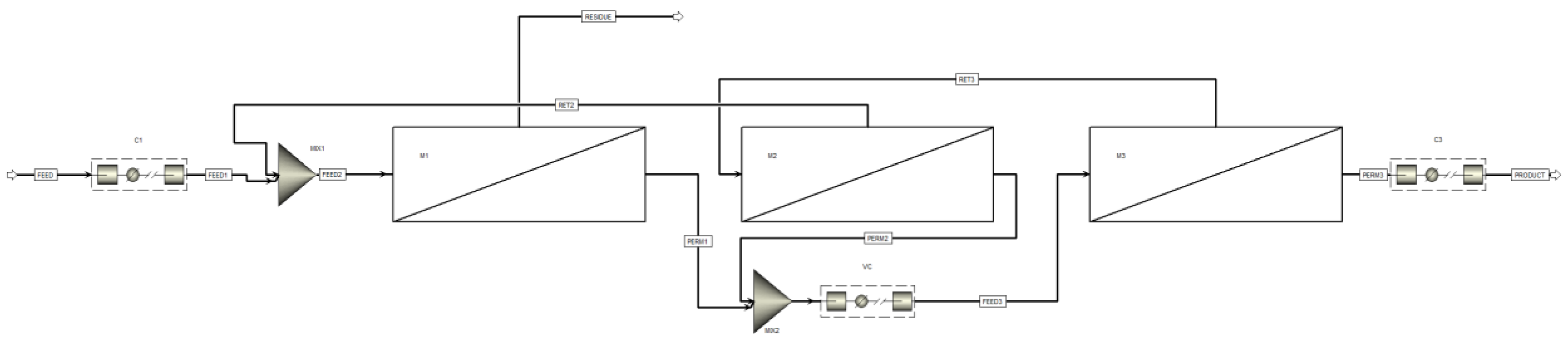

The present study deals with CO₂ capture process using the specially designed membrane cascade type of «Continuous Membrane Column». The principal scheme of that separation unit is given in Figure 2. During the separation process, the flue gases to be separated are continuously fed to the feed inlet placed in between of stripping and enrichment sections of the membrane cascade and being mixed with the gas flow leaving the membrane unit (2) of the enrichment section. The permeate of membrane units 1 and 2 is evacuated using a vacuum pump and being sent further (membrane unit 3) with a compressor. In that way, the stripping section generates the prior concentrate of carbon dioxide on the permeate side of membrane unit 1 and processes the feed stream till the allowed CO₂ level in the residue flow. After the prior concentration of carbon dioxide, the membrane unit 3 provides the finishing purification to the desired level of 95 mol.%, meanwhile the membrane unit 2 saves the CO₂ in the retentate of unit 3 through the enrichment of permeate side of the cascade by carbon dioxide. Therefore, that configuration of the membrane separation device allows to efficiently process the flue gases. The product stream, which is permeate of membrane unit 3, contains not less than 95 mol.% of CO₂. The residual stream, which is retentate of membrane unit 1, contains not more than 2 mol.% of CO₂. And the recovery rate is not less than 90 %. A brief list of simulation parameters is presented in Table 1. It is important to note, that the scheme given in Figure 2, shows the basic elements of the cascade. Depending on the specific process parameters (feed stream pressure and/or temperature) it may be additionally upgraded with compressor units, heat exchangers and other units, such as condensers and etc.

3.1. Influence of membrane selectivity on CO₂ capture efficiency

The membrane CO₂/N₂ selectivity value was determined for further calculations required to achieve the key process characteristics. Carbon dioxide permeability was set at 1 000 GPU based on the parameters used in [10] and commercial availability of membrane with similar permeability - MTR Polaris™. The calculation was performed at the ultimate values of the considered membrane area range in the stripping and enrichment sections of 83 000 and 4 500 m², respectively.

Figure 4 shows the influence of membrane selectivity on the carbon dioxide content in the product and residual streams withdrawn from the enrichment and stripping sections of membrane cascade, respectively. The graphs clearly demonstrate that the selectivity of the membrane has a significant influence on the process efficiency. Therefore, a membrane with a selectivity lower than 12 cannot achieve CO₂ content ≤ 2 mol. % in the residual stream and moreover, a membrane’s selectivity higher than 32 is necessary to produce a CO₂ with purity of 95 mol. % and higher. The calculation results are in good agreement with previous experiments in which a deep purification of a low permeable component and CO₂ capture was investigated [32,33]. With these experiments it was shown that even when using a membrane with a low selectivity (2.5) it is possible to achieve high product purity (99.997 vol.%), which corresponds to a low content of a high permeable impurity. In the case of experimental study of membrane cascade during CO₂ capture it was shown that the use of a membrane with selectivity of 8 does not allow to achieve the required product purity, namely, in the limiting ratio of the withdrawn streams from the membrane cascade sections a CO₂ purity of 91.23 vol.% was achieved. Obtained dependence for the withdrawn gas streams from the membrane cascade is explained by the fact that separation of that mixture even at the low selective membrane provides permeation of most part of carbon dioxide to the permeate side performing the process at a high stage-cut value (> 0.6). At the same time permeate of unit M1 is formed mainly by nitrogen that in its turn does not allow achieving sufficient CO₂ content to create high partial pressure drop in the enrichment section. As a result, the low driving force in the enrichment section prevents CO₂ separation with the required product purity. Increasing the selectivity of the membrane (α(CO₂/N₂) ≥ 32) solves this issue. The results obtained, firstly, are in good agreement with the results presented in [10]; secondly, they demonstrate the possibility to use the gas transport characteristics of the MTR Polaris™ membrane for further calculations of the membrane cascade.

3.2. The effect of the membrane area

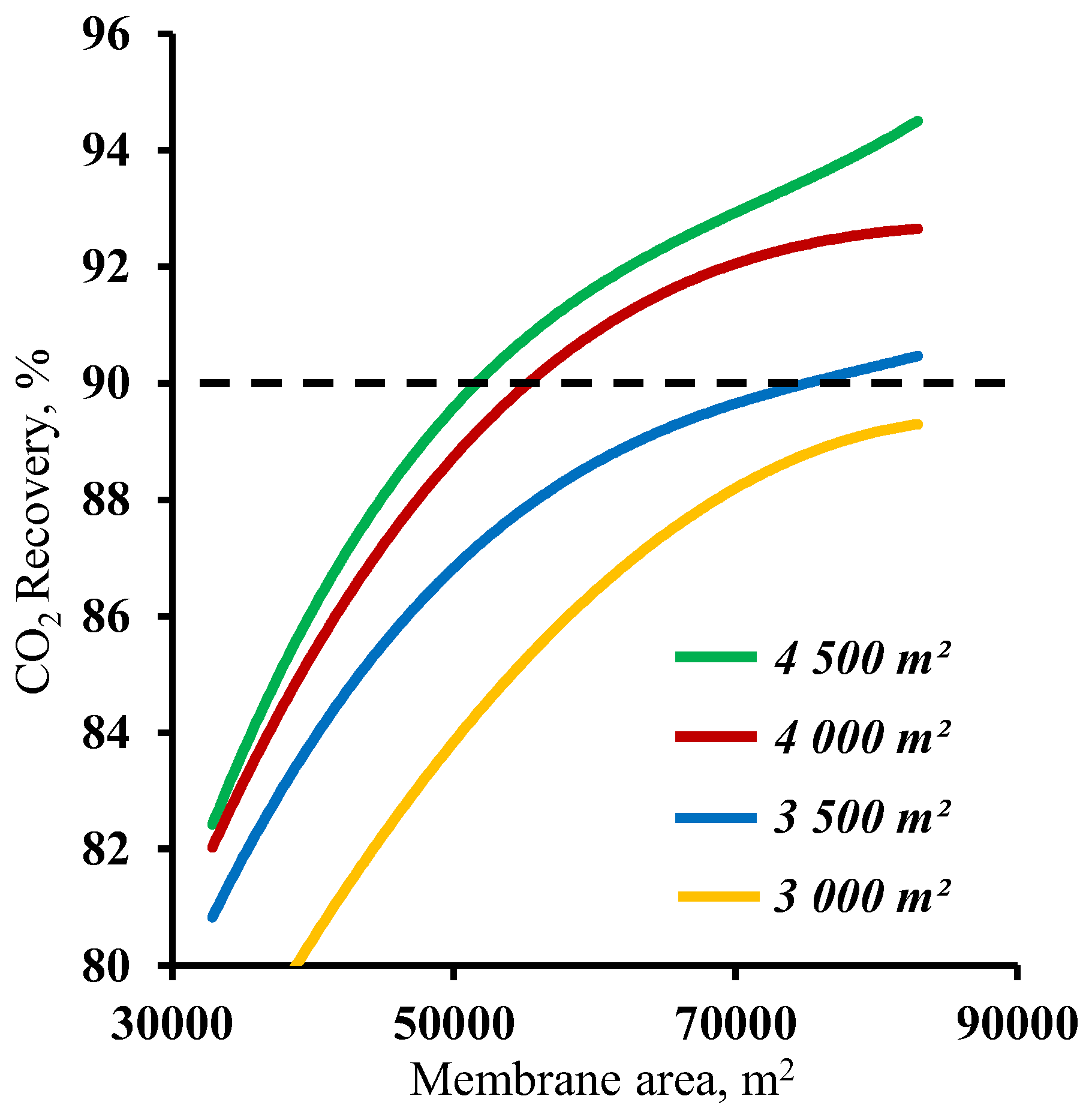

Figure 5 demonstrates the influence of the membrane area in the stripping section on the carbon dioxide recovery rate. The graphs in the figure show that the membrane area has a significant effect on the carbon dioxide recovery rate. The graphs show the mutual influence of the stripping and enrichment section membrane areas on the characteristics of the process. Thus, using a membrane area of 4 500 m² in the enrichment section and ~53 000 m² of membrane area in the stripping section is required to achieve the target CO₂ recovery rate. At the same time, by reducing the membrane area in the enrichment section, the required area in the stripping section area increases by 42.5 % to ~75 400 m². Furthermore, it can be seen that using the 1 500 m² of membrane in the enrichment section does not allow to reach the required CO₂ recovery rate in the considered range of membrane area in the stripping section. The resulting dependencies are explained by the operating principle of the membrane cascade. The stripping section membrane area determines the permeate flow and the carbon dioxide content. The low partial pressure ratio across the membrane due to a relatively low CO₂ content (17 mol. %) in the feed stream requires the processing at a high stage-cut value in the unit M1, which can be provided only by usage of the large area of the membrane at a set feed pressure of 0.15 MPa. As the stream enriched with carbon dioxide (up to 63 mol. %) enters the enrichment section of the membrane cascade, a considerably smaller membrane area is required for its capture and consequently the separation can be performed at a lower stage-cut values. However, even a small reduction of the membrane area in the enrichment section (by 1 000 m²) leads to inefficient capture process of CO₂ and return of its substantial share to the stripping section of the cascade and increase of the required membrane area. Based on the results obtained, it is reasonable to optimise the process flow diagram by changing the membrane area in the enrichment section as a relatively small increase in its area provides significant savings of membrane material area in the stripping section.

In order to determine the range of membrane area values in the enrichment section available for membrane cascade optimisation, the effect of the membrane area in this cascade section was determined at various fixed membrane area values in the stripping section. The results are shown in Figure 6. As can be seen from the graphs, and as noted earlier, increasing the membrane area in the enrichment section provides a significant increase in CO₂ recovery, but this approach is only effective with more than 52 780 m² of membrane area in the stripping section. For smaller membrane areas in the stripping section, increasing the membrane area in the enrichment section does not help to achieve a ≥90% CO₂ recovery rate. This is because the smaller membrane area in the stripping section does not ensure sufficient carbon dioxide enrichment of the stream entering the enrichment section. This in turn does not allow the creation of the necessary partial pressure ratio to recover more than 90% CO₂ in the enrichment section of the membrane cascade, even at high values of the stage-cut provided by increasing the membrane area. Thus, in terms of capital costs, further optimisation is advisable with a membrane area of 52 780 m² in the stripping section.

In order to verify the previously obtained results against another criteria - residual carbon dioxide content in the stripping section retentate stream of ≤ 2 mol %, an analysis of the effect of the membrane area used on this characteristic was performed. Figure 7 shows the dependence of the carbon dioxide content in the residual stream of the stripping section on the membrane area in the stripping section. As in the previous case, it can be seen that both sections of the membrane cascade have an effect on achieving the separation process target characteristic of ≤ 2 mol % CO₂ in the residual stream. In contrast to the previously discussed relationship, here the entire considered range of membrane area in the enrichment section achieves the target value. Again, a small increase (across the entire membrane cascade) of the membrane area in the enrichment section allows the separation process to be performed with a significantly smaller membrane area in the stripping section, namely, implementing the process using 4 500 m² of membrane area in the enrichment section, the required membrane area in the stripping section is ~53 000 m², while reducing the enrichment section to 3 000 m² leads to an increase in the required area in the stripping section to 68 000 m². The explanation of these dependencies boils down to a discussion of earlier results. Here, the CO₂ content of the residual stream from the stripping section is determined by the amount of CO₂ withdrawn as permeate in the unit M1, i.e. the process stage-cut in this unit and the ability to capture the majority of the carbon dioxide in the enrichment section. Thus, it was found that the previously established minimum membrane area in the stripping section fully meets the requirement for the residual CO₂ content in the stripping section retentate stream. In addition, the combined results suggest that the minimum required membrane area in the enrichment section is 4 500 m².

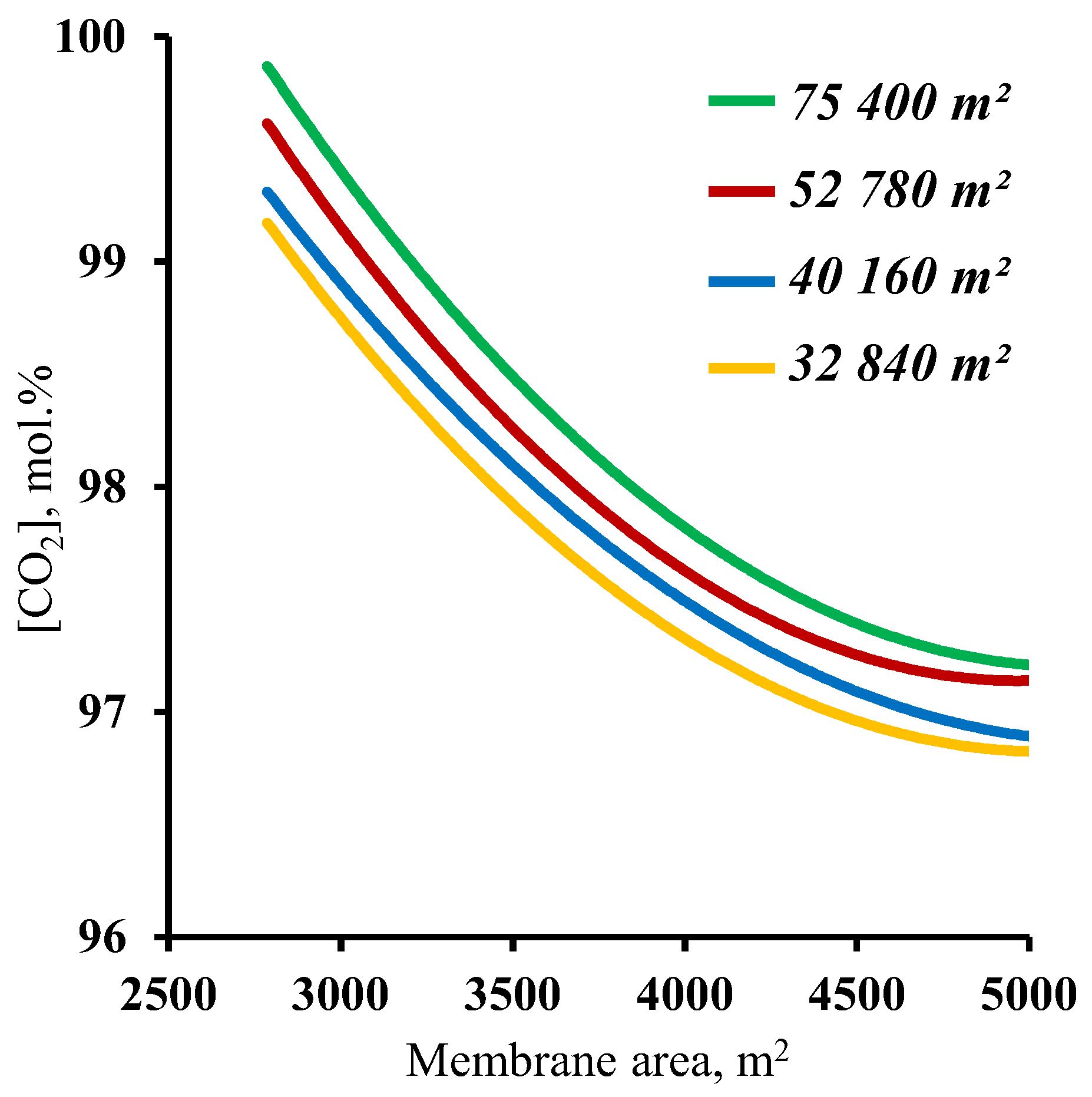

The final step in determining the influence of the membrane area on the process characteristics was an analysis of the effect of this parameter on the purity of the captured carbon dioxide. The results in the form of dependence of purity of the captured CO₂ on the membrane area in the enrichment section are presented in Figure 8. The graphs show that at all combinations of the membrane areas in stripping and enrichment sections the target purity of a product (≥ 95 mol.%) is reached. Such dependencies are explained by the fact that all values of membrane area (from the considered range) allow to concentrate the CO₂ in the stripping section enough for subsequent capture of this component with its content more than 95 mol.% in product stream. In addition, it was found that increasing the membrane area in the enrichment section leads to a decrease in the purity of the captured CO₂. This is related to an increase in the value of the stage-cut value in the M3 module. As the stage-cut value increases, and taking into account a CO₂ recovery rate of >90%, a small amount of nitrogen begins to permeate. On the other hand, as the membrane area in the enrichment section decreases, the purity of the captured CO₂ increases significantly up to 99.82 mol.% for a membrane area of 75 400 m² and up to 99.7 mol.% for a membrane area of 52 780 m² (optimum value) in the stripping section. Such results suggest the possibility of CO₂ capture of the highest grade. Taking into consideration the previously obtained results establishing the values of membrane areas in stripping and enrichment sections equal to 52 780 and 4 500 m² correspondingly based on the product recovery rate, it can be concluded that these parameters are optimal for the process of carbon dioxide capture from CHPP flue gases. Within the scope of the paper, the calculation was performed for the hollow fiber membrane modules.

3.3. Feasibility study for a membrane cascade type of «Continuous Membrane Column» for carbon dioxide capture from CHPP flue gases

As a result of the parametric analysis of the proposed technological scheme of the three-module membrane cascade configuration, the main technological parameters of the process were established (Table 2).

The following formula [10] was used to calculate the cost of CO₂ extraction per ton:

$${\mathrm{C}}_{\mathrm{c}}=\frac{\left(\mathrm{P}\times \mathrm{T}\times \mathrm{E}\right)+(0.2\times \mathrm{C})}{{\mathrm{F}}_{{\mathrm{C}\mathrm{O}}_2}\times \mathrm{T}}$$

(1)

where, C_c is the cost of capture per ton of CO₂, $/ton CO₂; P is the power required for CO₂ capture equipment, kW; T is the CHPP capacity factor (operating time per year), h/year; E is the electricity cost, $/kWh; C is the capital cost of equipment, $; $F_{{CO}_2}$ is the mass flow of captured CO₂, ton/h.

The capital costs of equipment is calculated from the following simplified formula:

$$\mathrm{C}={(\mathrm{A}}_{\mathrm{s}\mathrm{t}\mathrm{r}}+{\mathrm{A}}_{\mathrm{e}\mathrm{n}\mathrm{r}})\times {\mathrm{S}}_{\mathrm{M}}+{\mathrm{S}}_{\mathrm{C}1}+{\mathrm{S}}_{\mathrm{C}2}+{\mathrm{S}}_{\mathrm{V}\mathrm{C}}$$

(2)

where A_str and A_enr are the area of membrane used in the stripping and enrichment sections, respectively, m²; S_M is the cost of 1 m² of membrane, $/m² (~ 50 $/m² based on the MTR Polaris™ membrane manufacturer [10]); S_C1 - cost of compressor unit C1, $; S_C2 - cost of compressor unit C2, $; S_VC - cost of vacuum compressor VC, $.

Compression work is calculated according to the formula:

$$\mathrm{P}={\mathrm{P}}_{\mathrm{C}1}+{\mathrm{P}}_{\mathrm{C}2}+{\mathrm{P}}_{\mathrm{V}\mathrm{C}}$$

(3)

where P_C1, P_C2 and P_VC are the compression work of compressor C1, C2 and vacuum compressor respectively. P_C1, P_C2 and P_VC are each calculated separately according to the formula:

$${\mathrm{P}}_{\mathrm{i}}=\raisebox{1ex}{${\mathrm{L}}_{\mathrm{i}\mathrm{n}}\times \frac{\mathsf{\gamma }}{(\mathsf{\gamma }-1)}\times \frac{\mathrm{R}{\mathrm{T}}_{\mathrm{i}\mathrm{n}}}{{\mathrm{n}}_{\mathrm{v}}}\times \left[{\left(\frac{{\mathrm{P}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}{{\mathrm{P}}_{\mathrm{i}\mathrm{n}}}\right)}^{\frac{\mathsf{\gamma }-1}{\mathsf{\gamma }}}-1\right]$}\!\left/ \!\raisebox{-1ex}{$1000$}\right.$$

(4)

where P_i is compression work, kW; L_in is compressor inlet flow, mol/s; γ is adiabatic expansion coefficient of the gas mixture; R is the universal gas constant; T_in is inlet gas temperature, K; n_v is compressor efficiency; P_out and P_in are compressor inlet and outlet pressures.

The adiabatic expansion coefficient of the gas mixture was calculated as follows:

$$\mathsf{\gamma }=\frac{{{\mathrm{C}}_{\mathrm{p}}^{{\mathrm{C}\mathrm{O}}_2}}_{\mathrm{p}}\times {\mathrm{y}}_{{\mathrm{C}\mathrm{O}}_2}+{{\mathrm{C}}_{\mathrm{p}}^{{\mathrm{N}}_2}}_{\mathrm{p}}\times {\mathrm{y}}_{{\mathrm{N}}_2}}{{{\mathrm{C}}_{\mathrm{v}}^{{\mathrm{C}\mathrm{O}}_2}}_{\mathrm{p}}\times {\mathrm{y}}_{{\mathrm{C}\mathrm{O}}_2}+{{\mathrm{C}}_{\mathrm{v}}^{{\mathrm{N}}_2}}_{\mathrm{p}}\times {\mathrm{y}}_{{\mathrm{N}}_2}}$$

(5)

where C_p and C_v are the heat capacities of the pure components at constant pressure and temperature, respectively; J/(mole K); $y_{{CO}_2}$ and $y_{N_2}$ are the molar fractions of CO₂ and N₂ in the inlet stream, respectively. The heat capacity values of the pure components were obtained from the Aspen™ Properties database.

The efficiencies of the vacuum and compression parts are generally dissimilar. Therefore, a formula has been applied to calculate the efficiency, establishing a correspondence between the efficiency and the pressure ratio at the inlet and outlet of the apparatus stage:

$${\mathrm{n}}_{\mathrm{v}}=0.1058\times \mathrm{l}\mathrm{n}\left(\frac{{\mathrm{P}}_{\mathrm{i}\mathrm{n}}}{{\mathrm{P}}_{\mathrm{o}\mathrm{u}\mathrm{t}}}\right)+0.8746$$

(6)

As a result of the calculation of the compression work, it was found that P_C1 = 360, P_C2 = 900 and P_VC = 1 270 kW. Thus, the total compression work P is 2 530 kW.

The cost of compressor equipment providing a capacity of ~100 m³ min-1 varies over a fairly wide range, so it is reasonable to calculate the cost of this equipment through linking it to its capacity and assuming that 1 kW = $500 [34]. Hence, the cost of each compressor unit is: ~$178 000, $635 700 and $450 600 for C1, VC and C2 respectively. Taking the cost of 1 m² of membrane (including housing costs) to be $50, the capital cost is ~$4 129 350. Thus, assuming a CHPP capacity factor of 7 446 hr year^-1, and an electricity cost of $0.04/kW, the cost of capturing a ton of CO₂ is $31.

4. Conclusions

As a result of the complex study devoted to CO₂ capture process from combined heat power plants using the membrane cascade type of «Continuous Membrane Column» it was found, that this specific design provides an efficient separation. Namely, during the separation of binary N₂/CO₂ mix with 17 mol.% of CO₂, it is possible to capture more than 90 % of carbon dioxide with its purity of 97.2 mol.%, meanwhile the residual content is 1.87 mol.%. That separation occurs on ~57 000 m² of membrane and capture costs are $31 per ton. Taking into account the amine scrubbing CO₂ capture cost range of $40-$100, the proposed membrane cascade design seems to be perspective solution for CO₂ capture. Moreover, it was observed, that it is possible to process CO₂ with higher purity up to 99.8 mol.% at the same recovery rate, which allows to use this specific process design in the CO₂ pretreatment operations in the production of high-purity carbon dioxide. However, there are number of membrane competitive design, which are should be considered choosing the appropriate technological scheme. In further studies, the most perspective designs will be simulated using same mathematical model for adequate comparison of process costs.
