Multistage Adsorption-Elution Process for Efficient Separation and Purification of Dysprosium and Neodymium from Acidic Solution Using Functionalized Resins

1. Introduction

Neodymium (Nd) and dysprosium (Dy) are two critical rare earth elements for fabricating NdFeB permanent magnets, which are the strongest magnetic materials having crucial applications in modern technologies [1,2] including electric vehicles [3], green energy (e.g., wind turbines [4]), and advanced electronics due to their high magnetic strength and energy efficiency [5,6]. Nd provides strong magnetic properties, while Dy enhances thermal stability and resistance to demagnetization at elevated temperatures[7]. The increasing demand for clean energy technologies has significantly emphasized the importance of Nd and Dy, making their efficient recovery and purification, particularly from end-of-life NdFeB magnets and electrical/electronic equipment, vital to ensuring a sustainable supply and reducing dependence on primary resources, given the high contents of REEs in these spent products. Obviously, the available selective separation processes for recovering earth elements are both technologically and chemically challenging due to their similar physical and chemical properties as exhibited in the periodic table [8,9]. Thus, it is crucial to develop efficient selective methods for recovering and reusing these critical metals. Various technological routes are explored: co-precipitation, electrochemical method, membrane technology, biosorption process, conventional solvent extraction, and ion exchange [10,11,12,13,14]. The precipitation process used to separate the REEs involves direct precipitation with hydrogen fluoride or oxalic acid [15,16,17], or double salt precipitation at varying pH values [18,19]. The main restrictions of the precipitation methods are attributed to the high level of chemical consumption and to the high loss of REEs [20,21]. Conventional solvent extraction and ionic liquid solvents (ILS) are commonly used methods, despite existing disadvantages, including high solvent consumption, high waste volumes, limited selectivity under acidic conditions, and hazardous environmental impacts [22,23,24,25,26,27].

Ion exchange processes are solid–liquid separation techniques that employ polymeric resins functionalized with active groups and serving as the solid phase, which can selectively bind specific ionic species usually dissolved in solution [28,29]. Ion exchange offers several advantages over conventional solvent extraction, including superior selectivity and exceptionally high adsorption efficiencies [30], often reaching 99.999%, thereby enabling the production of ultra-high-purity rare earth elements. In addition, ion-exchange systems provide simpler operation and handling, enhanced control over process parameters, reduced environmental footprint, and suitability for small-scale applications [13,31,32]. Different studies have been conducted to improve the selective recovery of REEs from leaching solutions of various secondary resources, based on the fundamental principles of ion exchange for rare-earth separation. Table 1 summarizes the key functional groups on resins investigated in prior studies to enhance the understanding of resin selectivity and efficiency. These works provide an important basis for understanding the present problems and guide the design of more efficient REEs separation and purification strategies. Fila et al. studied the recovery of metal ions (especially rare earth elements and heavy metals) from nickel-metal battery waste using a Diphonix resin functionalized with sulfonic, diphosphonic, and carboxylic multifunctional groups. The results indicate that adsorption was higher with 0.2 M HNO₃, and the affinity of the Diphonix resin for the tested metal ions was determined as La(III) > Pr(III) > Fe(III) > Nd(III) > Ce(III) > Cu(II) > Zn(II) > Co(II) > Ni(II) [33]. In another study, José and Ladeira investigated the recovery of a series of rare earth elements (REEs), including La, Pr, Nd, Sm, Eu, Gd, Dy, and Er, using lewatit® MDS 200H resin functionalized with sulfonic acid groups. The experiments were conducted in a column system at pH 3.5 using a synthetic multi-element solution containing 3000 mg/L REEs, along with 1000 mg/L metal impurities, including Al, Ca, and Mg, and sulfate ions (SO₄²⁻), to simulate an acid mine drainage matrix. The resin achieved REE loading efficiencies of approximately 85%, while the co-loading of metal impurities was limited to about 30%, indicating preferential adsorption of REEs over the accompanying impurities [34]. In another method, the Purolite C150 and Finex CS16GC, both containing sulfonic acid groups, and the Purolite S940 with aminophosphonic functional groups were used by Virolainen et al. to recover REEs from phosphogypsum by combining leaching and adsorption (i.e., resin-in-leach process). where the resin with aminophosphonic functional groups possessed better loading efficiency, reaching 19.2 g of REEs for 1 kg of resin, than the resin bearing sulfonic acid groups with 5.6 g (REEs) / kg (resin) [35].

The effectiveness of solvent-impregnated resins (SIRs) relies on their superior extraction efficiency, making them highly selective sorbents. These SIRs consist of a polymeric matrix uniformly impregnated with liquid ionic extractants, a design that enhances mass transfer and significantly improves separation performance compared with conventional ion-exchange resins and solvent extraction processes. The Cyanex 272-impregnated Amberlite XAD-7 resin, which contains a phosphinic acid group, was used by Inan et al. to investigate the extraction and separation of La, Pr, Nd, Sm, Eu, and Gd from a nitric acid solution; the loaded resin reached capacities of 11.1, 0.56, 1.69, 0.75, 0.10, and 0.25 mg g⁻¹ for La, Pr, Nd, Sm, Eu, and Gd, respectively, at equilibrium. Complete elution was confirmed for Pr (III), Nd (III), Sm (III), and Gd (III), and elution rate of 95.1% was achieved for Eu (III) using 0.1 M HNO₃ [36]. Konvalenko and his workers improved the efficiency of the used solvent-impregnated resin through the treatment of styrene–divinylbenzene copolymer (LPS-500) with mixtures of polydentante extractant (2-diphenylphosphoryl)-4-ethylphenoxy)methyl)diphenylphosphine oxide (L) and an ionic liquid [C4mim]+ [Tf2N]− to recover Nd³⁺ from nitric acid solution, they found the invented SIR containing 40% of mixture of (L) and [C4mim]+ [Tf2N]− with molar ratio of 2:1 exceeded the SIR containing Cyanex 923.

It is notable that the ion-exchange processes provide an effective route for the selective adsorption of rare earth elements (REEs), involving the preferential extraction or targeted adsorption of individual elements or specific groups from leaching solutions of various secondary resources. This approach is of considerable importance in both scientific research and industrial applications. Nevertheless, achieving efficient selective separation remains a significant challenge due to the strong similarities in the chemical and physicochemical properties of REEs. These similarities persist despite minor variations in ionic radii and oxidation states, particularly between light and heavy rare earth elements [3,37]. In addition, the uneven distribution and wide concentration ranges of REEs in leach solutions further complicate the separation process, requiring carefully optimized operating conditions and the use of highly selective functional materials, such as tailored ion-exchange resins. Conventional techniques, including solvent extraction and precipitation, have shown limited capability for purifying individual REEs, whereas ion-exchange processes are increasingly recognized as a more promising and effective alternative[14].

In contrast to many previous studies, this research focuses on exploring the selectivity of functional groups (ligands) on the resins towards a specific rare-earth element (i.e., Dy or Nd) relative to the other element. This study uses Lewatit VP OC 1026 resin functionalized (impregnated) with di-(2-ethylhexyl) phosphoric acid (D2EHPA) to selectively separate dysprosium from a solution where the neodymium concentration is 30 times higher (see section 2.2), employing a multistage adsorption-elution process that mimics distillation. The separation strategy is based on the differential affinity of the selected resin for the rare earth elements, specifically the weaker interaction of neodymium, a light rare earth element (LREE), compared with the stronger adsorption of dysprosium, a heavy rare earth element (HREE). This behavior is primarily attributed to differences in ionic radii across the lanthanide series, where the smaller ionic radii of heavy rare-earth elements result in higher charge density and stronger interactions with functional groups, thereby facilitating selective separation [3,34,36].

Table 1. Summary of selected studies on desorption of REEs and regeneration of exhausted resins for rare earth element recovery.

Function group	Resin	REE recovery process					Performance of the process	Ref
		Target element	operation parameter
			T (◦C)	pH	Time (min)	Elution process
phosphonic and sulphonic functional groups	Purolite S957	La3+, Ce3+, Nd³⁺, Fe3+, Ni2+, Cu2+, Co2+, and Zn2+	Room temp.	0.2 M HNO3	60	The best desorption was at 2.0M of HNO3 or HCl	Purolite S957 showed higher affinity for trivalent ions La3+, Ce3+, Nd³⁺, Fe3+, than for divalent ions Cu2+, Co2+, and Zn2+	[38]
Sulfonic (Na+ form) Sulfonic (H+ form) Bis(2-pyridylmethyl)amine (bis-picolylamine)	Amberlite 200C Na, Amberlite 200C H Dowex M 4195	La3+, Ce3+, Nd³⁺	20 and 60	2.5	120	2.0M of HNO3 or HCl, HNO3 showed better efficiency	Amberlite200C Na, and H, showed very good potential for removal of REEs from acidic solution Dowex M4195 has lower sorption capacity compared to Amberlite towards REEs.	[39]
Sulfonic Acid	Dowex 50WX8	Pr3+, Dy³⁺, and Y3+	Room temp	------	60	58% of pr with 1.0 M citric acid55% Dy with 1.0 M nitric acid56% Y with 1.0 M CH2O3.2H3N	30.0 mg/g for Pr3+, 50 mg/g for Dy³⁺, and 60 mg/g for Y3+.	[40]
Sulfonic groups	Strongly cation resin (SQS-6)	La3+, Nd³⁺	25	4.0	10	HF + HCl	13.8 mg/g for La3+ 12.7 mg/g for Nd³⁺.	[41]
Sulfunic group	D72 Microporous resin	Y3+, Ce3+, La3+, Nd³⁺, Gd3+, and Dy³⁺	25	-------	-------	1.7 mol/L HNO₃ 8.0 mol/L NH₄NO₃ + 0.2 mol/L HNO₃	REE adsorption capacity 001×7= 0.9950 mg/cm3, 005×8=0.7794 mg/cm3, D72=2.4648 mg/cm3.	[42]
Phosphinic acid	Cyanex 272 impregnated Amberlite XAD-7 resin	La3+, Pr3+, Nd³⁺, Sm3+, Eu3+, Gd3+	25	2.4	180	0.01 M HNO3 or 0.01 M HCl	The adsorption was followed Gd > Eu > Sm > Nd > Pr > La	[36]
Carboxylic acid	Acrylic resin (110 resin)	Nd³⁺	25	6.0	3600	3.0 M HCl	308 mg/g the maximum adsorption capacity	[43]
Aminophosphonic And Aminomethylphosph-onic	Amberlite IRC-747 and Lewatit TP-260	La3+, Nd³⁺, Gd3+, Dy³⁺, Er3+, Yb3+, Sc3+, and Y3+	50	----	180	9M & 18Mof H2SO4 or Na2CO3 1M	1.8 mg/g dry resin, the maximum capacity	[21]
Carboxylic acid	(RTPA) Resorcinol-tereph-thalaldehyde	La3+, Nd³⁺, Eu3+, Dy³⁺, Yb3+	25	4.7	60	2.0 M HNO3	Higher than 50 mg/g	[13]

Table 1. Summary of selected studies on desorption of REEs and regeneration of exhausted resins for rare earth element recovery.

Function group	Resin	REE recovery process					Performance of the process	Ref
		Target element	operation parameter
			T (◦C)	pH	Time (min)	Elution process
phosphonic and sulphonic functional groups	Purolite S957	La3+, Ce3+, Nd³⁺, Fe3+, Ni2+, Cu2+, Co2+, and Zn2+	Room temp.	0.2 M HNO3	60	The best desorption was at 2.0M of HNO3 or HCl	Purolite S957 showed higher affinity for trivalent ions La3+, Ce3+, Nd³⁺, Fe3+, than for divalent ions Cu2+, Co2+, and Zn2+	[38]
Sulfonic (Na+ form) Sulfonic (H+ form) Bis(2-pyridylmethyl)amine (bis-picolylamine)	Amberlite 200C Na, Amberlite 200C H Dowex M 4195	La3+, Ce3+, Nd³⁺	20 and 60	2.5	120	2.0M of HNO3 or HCl, HNO3 showed better efficiency	Amberlite200C Na, and H, showed very good potential for removal of REEs from acidic solution Dowex M4195 has lower sorption capacity compared to Amberlite towards REEs.	[39]
Sulfonic Acid	Dowex 50WX8	Pr3+, Dy³⁺, and Y3+	Room temp	------	60	58% of pr with 1.0 M citric acid55% Dy with 1.0 M nitric acid56% Y with 1.0 M CH2O3.2H3N	30.0 mg/g for Pr3+, 50 mg/g for Dy³⁺, and 60 mg/g for Y3+.	[40]
Sulfonic groups	Strongly cation resin (SQS-6)	La3+, Nd³⁺	25	4.0	10	HF + HCl	13.8 mg/g for La3+ 12.7 mg/g for Nd³⁺.	[41]
Sulfunic group	D72 Microporous resin	Y3+, Ce3+, La3+, Nd³⁺, Gd3+, and Dy³⁺	25	-------	-------	1.7 mol/L HNO₃ 8.0 mol/L NH₄NO₃ + 0.2 mol/L HNO₃	REE adsorption capacity 001×7= 0.9950 mg/cm3, 005×8=0.7794 mg/cm3, D72=2.4648 mg/cm3.	[42]
Phosphinic acid	Cyanex 272 impregnated Amberlite XAD-7 resin	La3+, Pr3+, Nd³⁺, Sm3+, Eu3+, Gd3+	25	2.4	180	0.01 M HNO3 or 0.01 M HCl	The adsorption was followed Gd > Eu > Sm > Nd > Pr > La	[36]
Carboxylic acid	Acrylic resin (110 resin)	Nd³⁺	25	6.0	3600	3.0 M HCl	308 mg/g the maximum adsorption capacity	[43]
Aminophosphonic And Aminomethylphosph-onic	Amberlite IRC-747 and Lewatit TP-260	La3+, Nd³⁺, Gd3+, Dy³⁺, Er3+, Yb3+, Sc3+, and Y3+	50	----	180	9M & 18Mof H2SO4 or Na2CO3 1M	1.8 mg/g dry resin, the maximum capacity	[21]
Carboxylic acid	(RTPA) Resorcinol-tereph-thalaldehyde	La3+, Nd³⁺, Eu3+, Dy³⁺, Yb3+	25	4.7	60	2.0 M HNO3	Higher than 50 mg/g	[13]

2. Experiments

2.1. Materials and Instruments

All chemicals used were of Analytical Reagent (A.R.) grade. A neodymium (III) sulfate hydrate solution (6000 mg/L of Nd) was prepared using 99.9% pure neodymium (III) sulfate hydrate (Sigma-Aldrich, Catalogue #: 325813-50G), while dysprosium sulfate (ProChem Inc.) was used to prepare a 200 mg/L of Dy solution. The pH was adjusted using 1 M hydrochloric acid, which was prepared by diluting 37% HCl (Fisher Scientific, Catalogue #: A144S-212). Deionized (DI) water, further purified using a Millipore Milli-Q water purification system, was used to prepare solutions throughout the experiments. The study aims to assess the adsorption efficiency and selectivity of the selected cation exchange resins, which consist of 14 different functional groups, as detailed in Table 2. The collected solution samples were analyzed using Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES). We measured the pH using a Thermo Scientific Orion Star A111 pH meter. A Platform shaker (Promax 2020, Heidolph Instruments GmbH & Co. KG) and Incubator shaker (InnovaR 43, New Brunswick Scientific) were used for adsorption tests.

2.2. Samples Preparation

Three different aqueous solutions were prepared for resin adsorption tests. The first single solution was prepared by dissolving the appropriate amount of dysprosium sulphate (Dy₂(SO₄)₃.8H₂O) in 1000 mL deionized water to yield a solution with around 200 mg/L Dy. And the second single solution was prepared by dissolving the appropriate weight of neodymium (III) sulphate hydrate (Nd₂(SO₄)₃ · xH₂O) to obtain a 1000 mL solution containing about 6000 mg/L of Nd. The third solutions, is a binary solution, was prepared the by dissolving the required amounts of dysprosium sulfate and neodymium (III) sulfate hydrate, resulting in anticipated concentrations. The pH of all solutions was adjusted using 1M hydrochloric acid diluted from 37% HCl using deionized water.

2.3. Resin Preparation

As the first step, all resins used in the experiments were activated to achieve uniformity, remove impurities or preservatives, open active sites, ensure consistent performance, and hydrate or swell the resin. This pre-conditioning involved treating the appropriate amount of resin with 20 ml of 30% (v/v) HCl and shaking on a platform shaker (Promax 2020, Heidolph Instruments GmbH & Co. KG) at 150 rpm for 24 hours, then followed by filtration. The resins were washed with deionized water while being continuously shaken at 150 rpm for 1 hour, then filtered. Finally, the resins were dried to a constant weight at room temperature for later resin adsorption tests.

2.4. Resin Preparation

As the first step, all resins used in the experiments were activated to achieve uniformity, remove impurities or preservatives, open active sites, ensure consistent performance, and hydrate or swell the resin. This pre-conditioning involved treating the appropriate amount of resin with 20 ml of 30% (v/v) HCl and shaking on a platform shaker (Promax 2020, Heidolph Instruments GmbH & Co. KG) at 150 rpm for 24 hours, then followed by filtration. The resins were washed with deionized water while being continuously shaken at 150 rpm for 1 hour, then filtered. Finally, the resins were dried to a constant weight at room temperature for later resin adsorption tests.

2.5. Characterization of the Adsorption Method

Batch adsorption experiments were conducted on single-metal-solutions containing Nd³⁺ or Dy³⁺ to evaluate various resins across 14 functional groups (see Table 2). A most promising resin, Lewatit VP OC 1026, impregnated with di-(2-ethylhexyl) phosphoric acid (D2EHPA), was then tested with a Nd-Dy binary solution, in which the initial pH was adjusted to 0.67 using 1 M HCl. Various resin dosages (0.05, 0.1, 0.15, 0.2, and 0.3 g/mL) were tested, with each sample contacting 20 mL of solution in a 50 mL Erlenmeyer flask under batch conditions. The mixtures were agitated on a reciprocating shaker at 150 rpm for 60 minutes at ambient temperature.

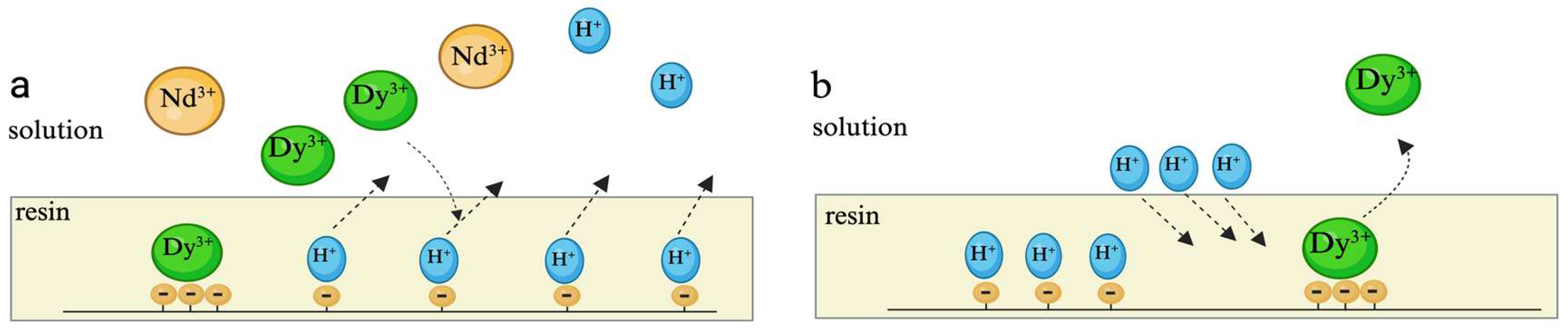

Figure 1(a) and (b) illustrate the adsorption and desorption mechanisms of rare-earth element ions on cation-exchange resins bearing acidic functional groups. The adsorption (ion-exchange) of Nd³⁺ and Dy³⁺ ions onto cation-exchange resins can be represented by the general chemical reactions shown in equations (1) and (2), respectively, in which the protons in the resin’s functional groups are replaced by the trivalent rare-earth cations. Meanwhile, in the desorption step, the REE–loaded resin is treated with a strong acid (e.g., HCl or H₂SO₄), which supplies a high concentration of H⁺ ions. These protons compete with the bound metal ions, reversing the ion-exchange reaction and releasing the adsorbed REEs back into solution.

$${\mathrm{N}\mathrm{d}}_{\left(\mathrm{a}\mathrm{q}\right)}^{3+}+{3\mathrm{R}-\mathrm{X}\mathrm{H}}_{\left(\mathrm{s}\right)}\to {\left(\mathrm{R}-\mathrm{X}\right)}_3{\mathrm{N}\mathrm{d}}_{\left(\mathrm{s}\right)}+{3\mathrm{H}}_{\left(\mathrm{a}\mathrm{q}\right)}^{+}$$

(1)

$${\mathrm{D}\mathrm{y}}_{\left(\mathrm{a}\mathrm{q}\right)}^{3+}+{3\mathrm{R}-\mathrm{X}\mathrm{H}}_{\left(\mathrm{s}\right)}\to {\left(\mathrm{R}-\mathrm{X}\right)}_3{\mathrm{D}\mathrm{y}}_{\left(\mathrm{s}\right)}+{3\mathrm{H}}_{\left(\mathrm{a}\mathrm{q}\right)}^{+}$$

(2)

Considering that the resin (denoted as R–H) contains protonated functional groups and REE³⁺ represents Nd³⁺ and Dy³⁺ ions, the adsorption of rare earth elements primarily proceeds through an ion-exchange mechanism in which protons are replaced by trivalent metal ions. The adsorption efficiency (R%) of Nd³⁺ or Dy³⁺ at equilibrium, as expressed in Equation (3), and the corresponding equilibrium ion-exchange capacity of the resin (mg/g), given in Equation (4), were determined using the following relationships:

$$R\mathrm{\%}=\left(\right(C_0-C_e)/C_0)\ast 100\%$$

(3)

$$q_e=(C_0-C_e)\ast V/m$$

(4)

where ${\mathit{q}}_{\mathit{e}}$denotes the adsorption capacity of the polymeric resin toward Nd³⁺ or Dy³⁺ ions at equilibrium. The parameters ${\mathit{C}}_0$and ${\mathit{C}}_e$represent the initial and equilibrium concentrations of Nd³⁺ or Dy³⁺ ions in the aqueous solution (mg/L), respectively. Furthermore, $\mathit{V}$corresponds to the solution volume (0.02 L here), while $\mathit{m}$represents the mass of the polymeric resin used in the adsorption process (g).

The elution efficiency, representing the recovery percentage of metals in the eluted (or washing) solution, was determined based on the analyzed metal concentrations using a calculation approach similar to that employed for $\mathit{R}\mathrm{\%}$. The calculated elution percentages describe the fraction of metal recovered during the current elution stage.

The prospective purity ($\mathit{p}\mathit{p}\mathrm{\%}$) of Nd³⁺ or Dy³⁺ was determined using Equation (5):

$$pp\mathrm{\%}=\left({\displaystyle \frac{C_1}{C_1+C_2}}\right)\ast 100\mathrm{\%}$$

(5)

where ${\mathit{C}}_1$ and ${\mathit{C}}_2$correspond to the concentrations of metal 1 (e.g., Nd³⁺ or Dy³⁺) and metal 2 (e.g., Nd³⁺ or Dy³⁺), respectively, in the purified solution with a defined volume ${\mathit{V}}_{\mathit{p}}$(0.020 L in this study). The purified Dy or Nd solution could subsequently be concentrated through the resin adsorption–elution process followed by electrowinning.

The metal recovery in the purified solution with volume ${\mathit{V}}_{\mathit{p}}$was calculated according to Equation (6)

$$recovery\mathrm{\%}=\left({\displaystyle \raisebox{1ex}{$C$}\!\left/ \!\raisebox{-1ex}{$C_{start}$}\right.}\right)\ast 100\mathrm{\%}$$

(6)

where $\mathit{C}$ represents the metal concentration in the purified solution, while ${\mathit{C}}_{start}$refers to the initial metal concentration prior to purification within the same solution volume ${\mathit{V}}_{\mathit{p}}$.

3. Results and Discussion

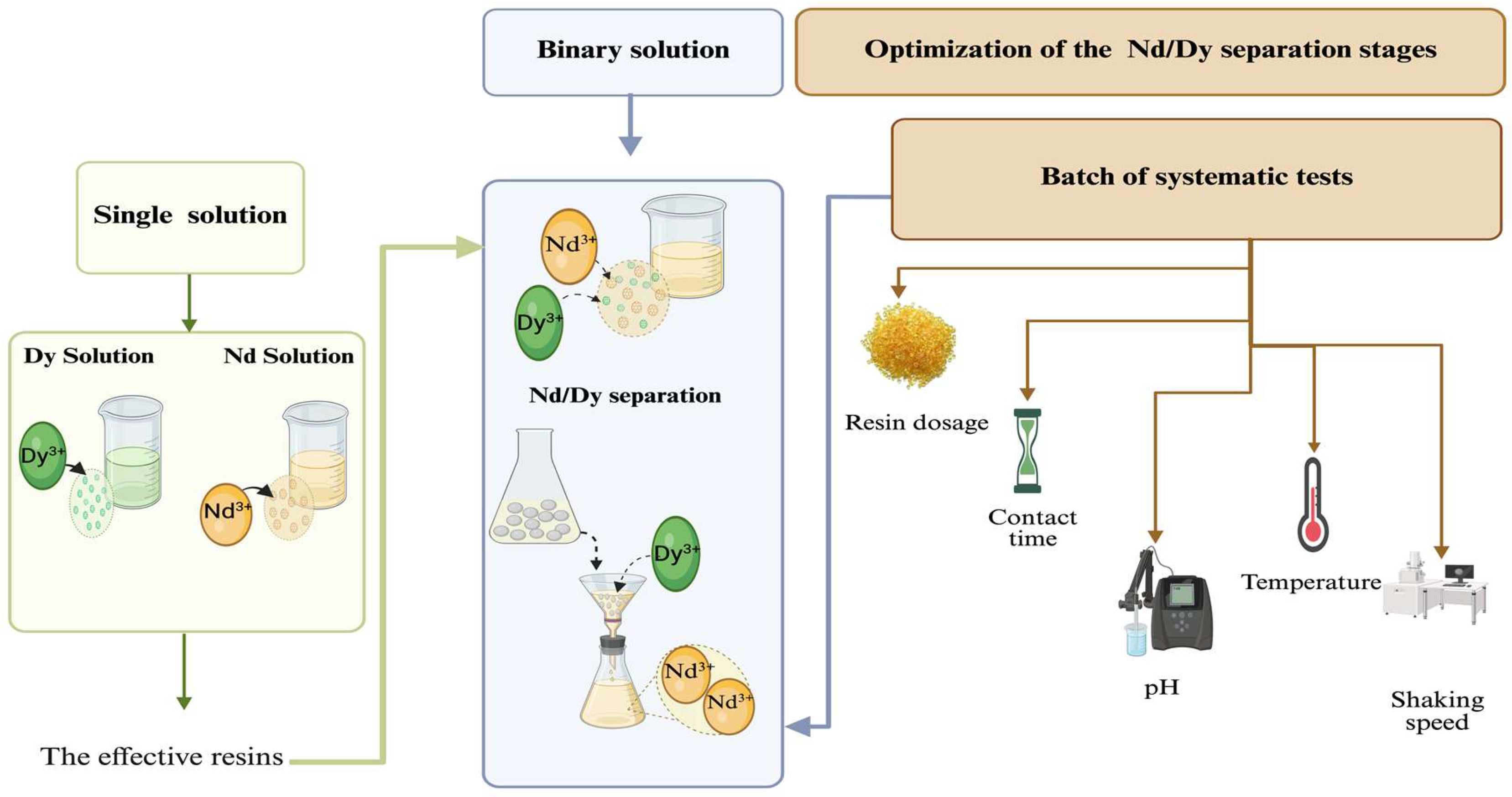

The resin adsorption test arrangements are shown in Figure 2. The first test stage aimed to evaluate the performance of different commercial resins for adsorbing Nd³⁺ and Dy³⁺ ions from single metal solutions. Based on the experiment results, the resins with effective functional groups were selected for subsequent tests. In the second stage, the selected resins were tested for the separation of Nd³⁺ and Dy³⁺ from a binary solution. Finally, the most efficient resins with selective functional groups were evaluated to determine the optimal operating conditions, including resin dosage, solution pH, operating temperature, adsorption time, and shaking speed.

Figure 3. Resin adsorption test protocol for the separation of neodymium and dysprosium.

Figure 3. Resin adsorption test protocol for the separation of neodymium and dysprosium.

3.1. Adsorption Efficiencies for Nd and Dy from Single Metal Solutions Using Various Resins

3.1.1. Explored Resins Bearing Functional Groups with Low Bonding Capacity for Nd and Dy

A thorough investigation was carried out on several resins, including Puromet MTS 9100 with an amidoxime functional group; Lewatit® TP 272 containing bis (2,4,4-trimethylpentyl-) phosphinic acid; Puromet MTS 9300, Purolite S930 PLUS, Lewatit® MonoPlus TP 207, Lewatit® MonoPlus TP 208, and Purolite S930, all bearing iminodiacetic groups; Puromet MTS 9140 and Lewatit MonoPlus TP 214 resins with thiourea groups; SIR-600 containing aluminosilicate; Puromet MTS 9200 having an isothiouronium functional group, and DOWEX™ MAC-3 possessing carboxylic acid groups. All the tested resins demonstrated relatively low adsorption capacities for dysprosium (Dy³⁺) and neodymium (Nd³⁺), with adsorption efficiencies below 15%, as shown in Table 3. Clearly, the limited adsorption capacity indicates that these resins have poor affinity or weaker interactions between their functional groups and the Dy³⁺ and Nd³⁺ ions, restricting their effectiveness in adsorbing these rare earth elements.

3.1.2. Resins Having High Adsorption Efficiencies for Nd or Dy from a Single Metal Solution

Resins with Aminophosphonic Functional Groups

Four resins containing aminophosphonic functional groups, i.e., ResinTech SIR-500, Purolite S950 PLUS, Purolite S940, and Puromet MTS9500, were tested for their ability to adsorb neodymium or dysprosium ions from two separate single metal solutions: one containing neodymium and the other with dysprosium. It can be observed that all resins exhibit a high absorption capacity for dysprosium, which increases with higher resin dosages due to more available active exchange sites.

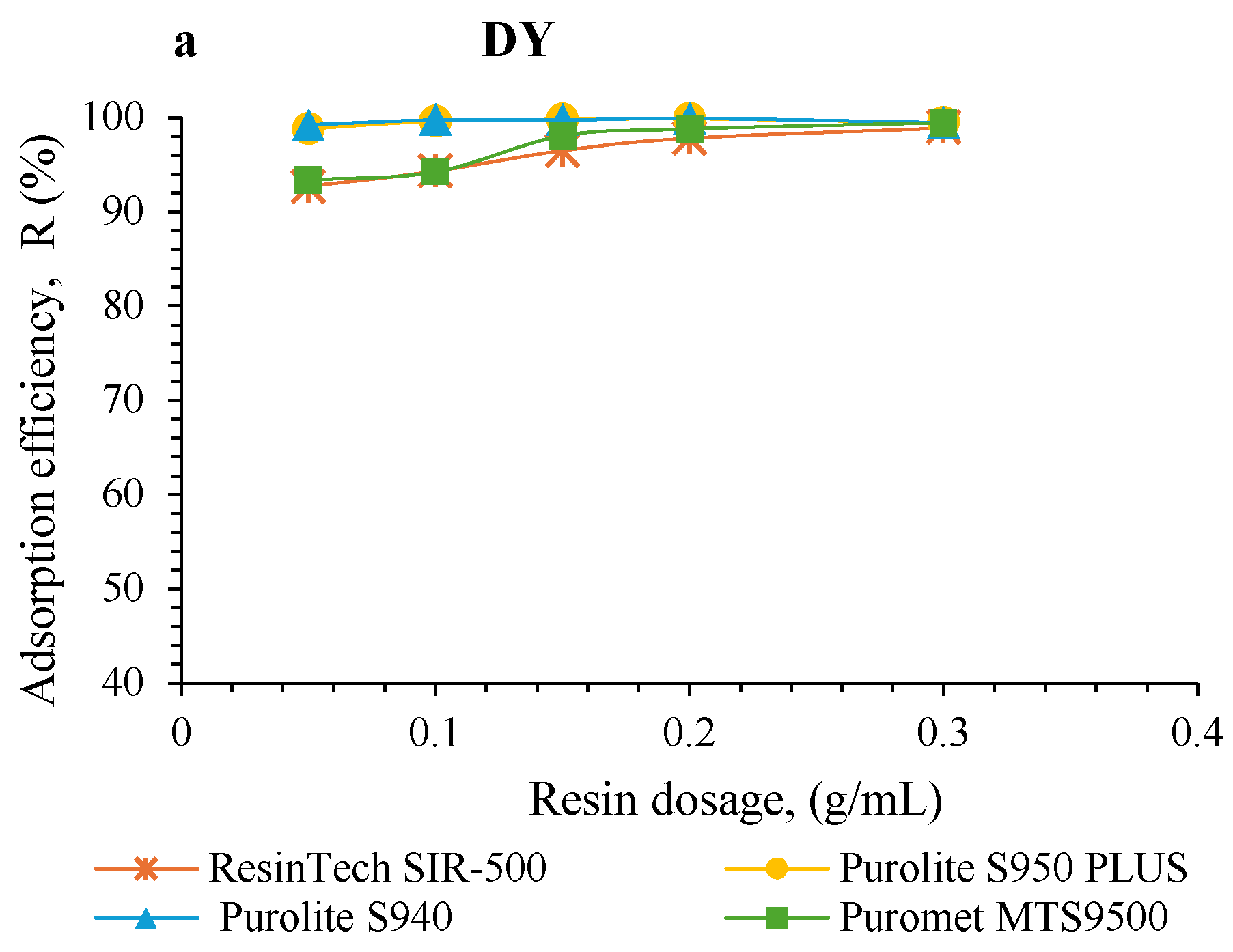

As shown in the Figure 3a, both S950 PLUS and S940 resins demonstrated higher adsorption efficiency for Dy at lower resin dosages compared with MTS9500 and SIR-500. Both S950 PLUS and S940 quickly reached near-maximum efficiency, achieving values close to 99.8% at resin dosage of 0.15 g/mL, and maintained at higher dosages. This plateau indicates early saturation and a strong affinity for Dy³⁺; in contrast, SIR-500 and MTS-9500 showed a relatively gradual increase, starting around 93% at 0.05 g/mL resin dosage and continuing to increase over 99% at the highest resin dosage of 0.3 g/mL. Overall, resins with aminophosphonic functional groups demonstrated a significant adsorption capacity of Dy³⁺ due to their strong affinity for Dy³⁺.

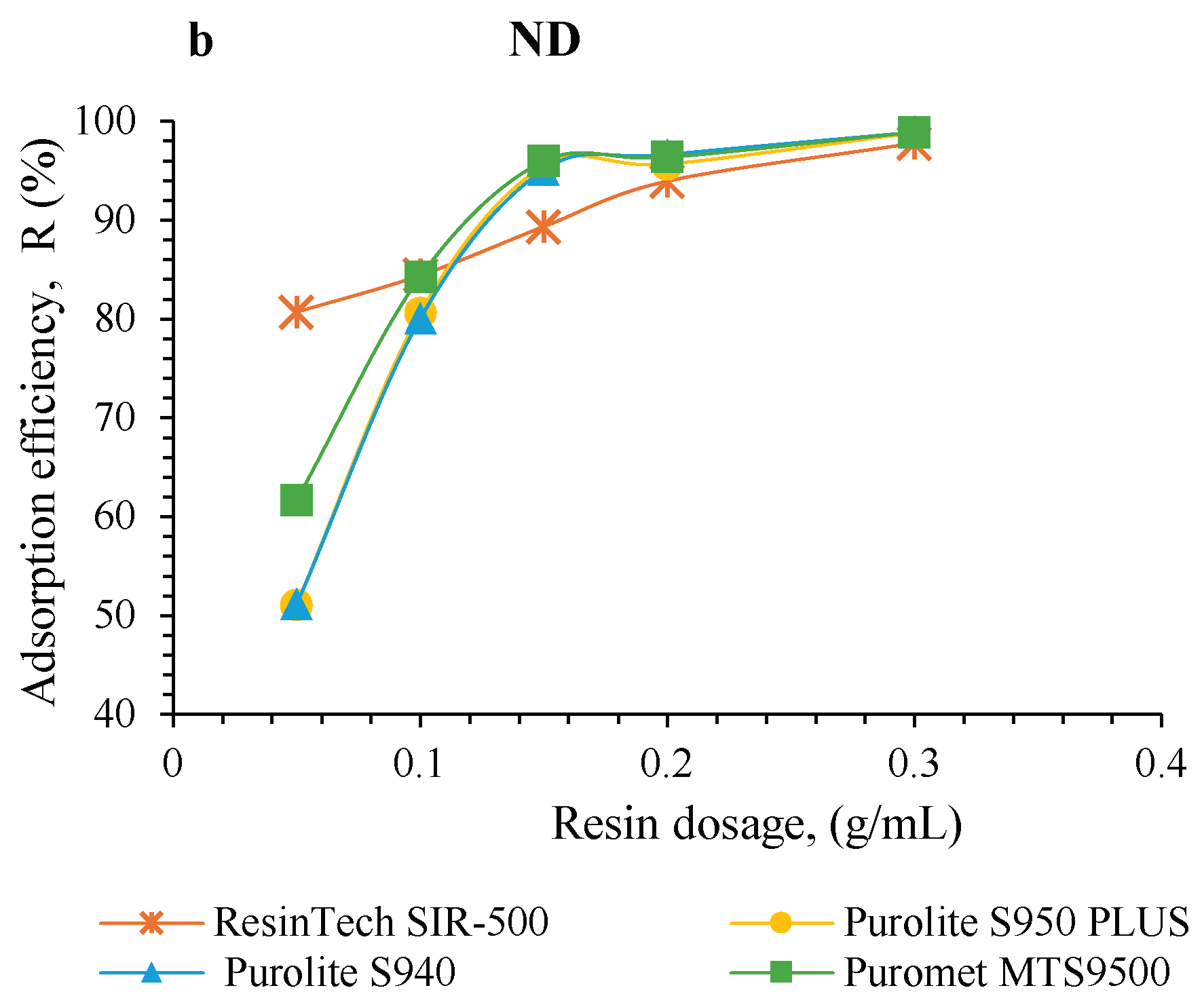

For Nd, the adsorption efficiency increased with resin dosage for all resins as shown in Figure 3b, with some different behavior significantly at low dosages. SIR-500 exhibited the best performance at the initial resin dosage, reaching over 80% compared to S950 PLUS, S940, and MTS-9500. As the dosage increased to 0.15 g/mL, S950 PLUS, S940, and MTS-9500 showed substantial improvement, reaching over 95%, compared to around 89% for SIR-500. This improvement is attributed to the availability of active binding sites, resulting in a strong adsorption for Nd³⁺. At large dosage (0.3 g/mL), all resins obtained high adsorption efficiencies ranging from 97% to 99%. Generally, the aminophosphonic functional group exhibited high adsorption affinity for Nd and Dy.

Resins Containing Sulfonic acid Groups

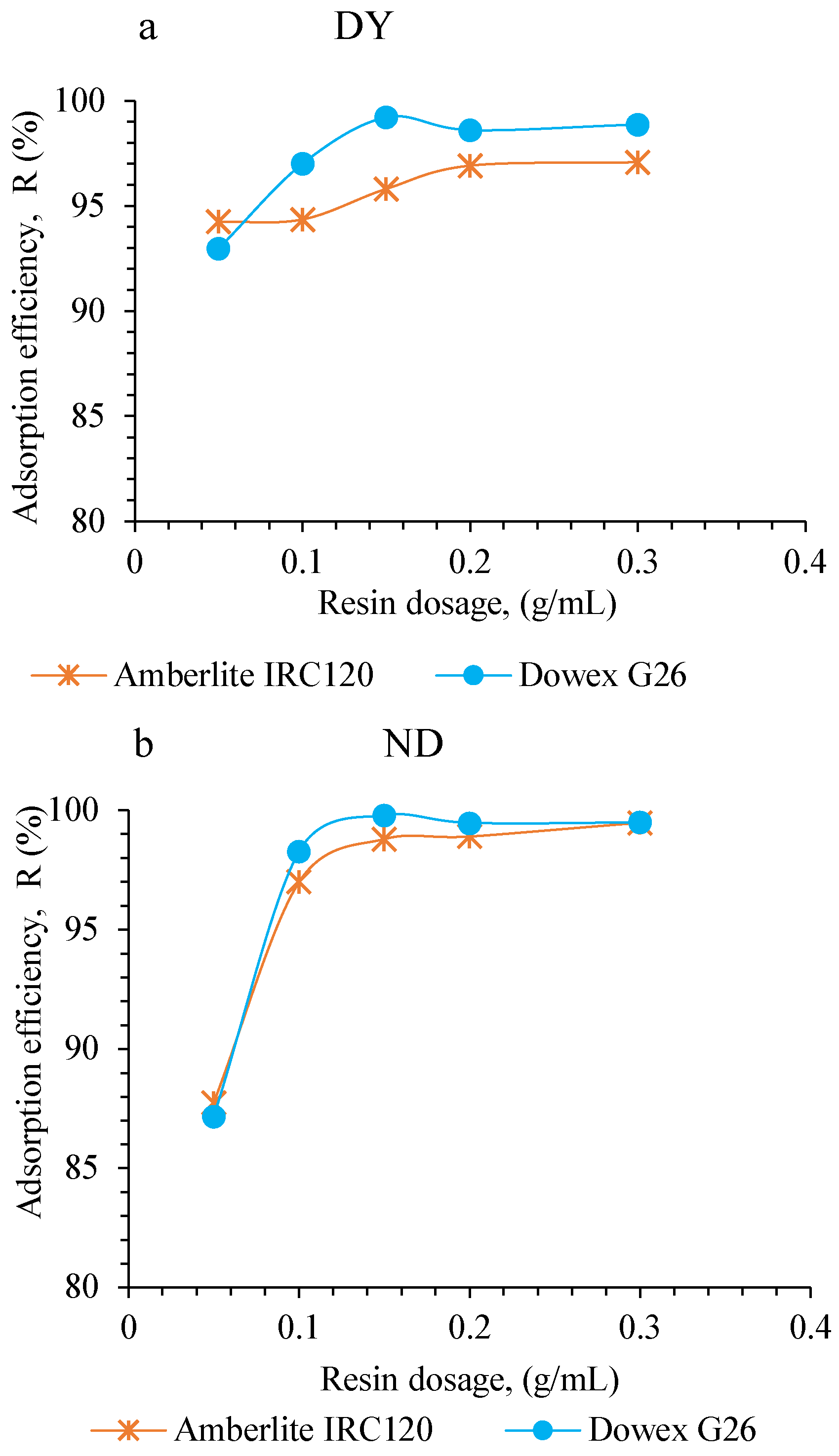

Figure 4 a and b display the adsorption efficiency of Dy³⁺ and Nd³⁺ ions, respectively, from two separate solutions using the ion-exchange resins Amberlite IRC120 and Dowex G26, both containing sulfonic acid groups, at resin dosages ranging from 0.05 to 0.30 g/mL. Both resins show significant adsorption efficiency for Dy, which increases with resin dosage. At a low dosage (0.05 g/mL), both resins have similar efficiency, reaching 94.25% and 92.96%, respectively. At 0.15 g/mL, Dowex G26 reaches adsorption equilibrium at 99.21%, indicating a strong affinity for Dy.

Amberlite IRC120 also gradually improves, reaching adsorption efficiency of 95.81% at the same dosage and continuing to increase at higher dosages (0.3 g/mL), surpassing 97%. Overall, increasing resin dosage improves Dy uptake for both resins.

Figure 4b illustrates how the resin dosage influences Nd³⁺ adsorption efficiency using Amberlite IRC120 and Dowex G26 with sulfonic acid groups. Both resins display similar behaviour across all dosages. At the lowest dose (0.05 g/mL), they reach moderate efficiencies of around 87%. When the dose increases to 0.10 g/mL, efficiency rises sharply to 97–98%, indicating a greater number of active Nd binding sites. Further increasing the dose to 0.15 g/mL raises efficiency to nearly 99% for both resins. This suggests the system is approaching saturation, with most Nd ions having sufficient exchange sites. Beyond 0.20 g/mL, improvements are minimal, with efficiencies stabilizing around 99.4%. This plateau indicates that once enough functional sites are present, adding extra resin does not significantly improve performance. Both Amberlite IRC120 and Dowex G26 show similar patterns, suggesting comparable effectiveness.

Resin with Both Phosphonic and Sulfonic Acid Group

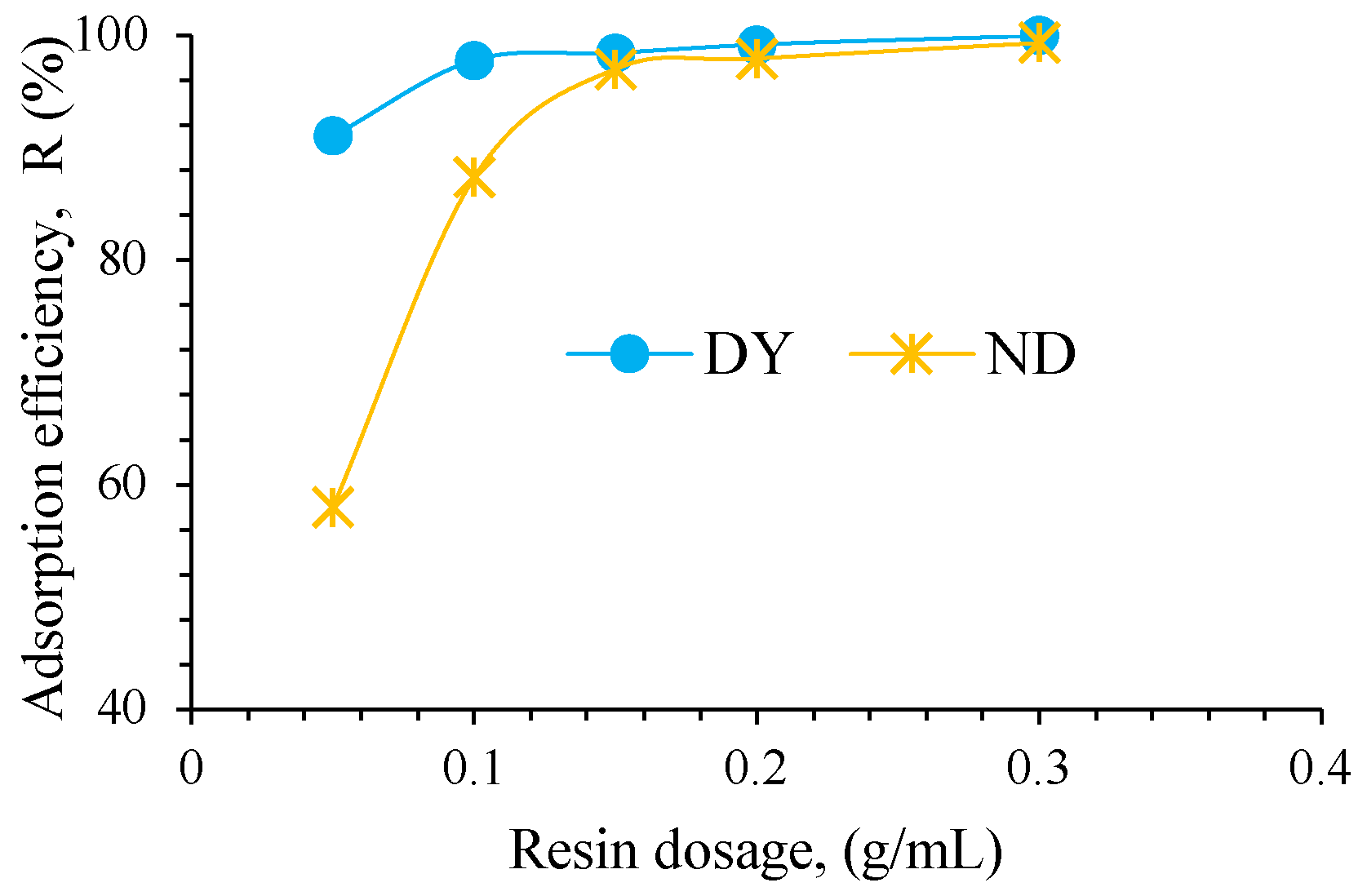

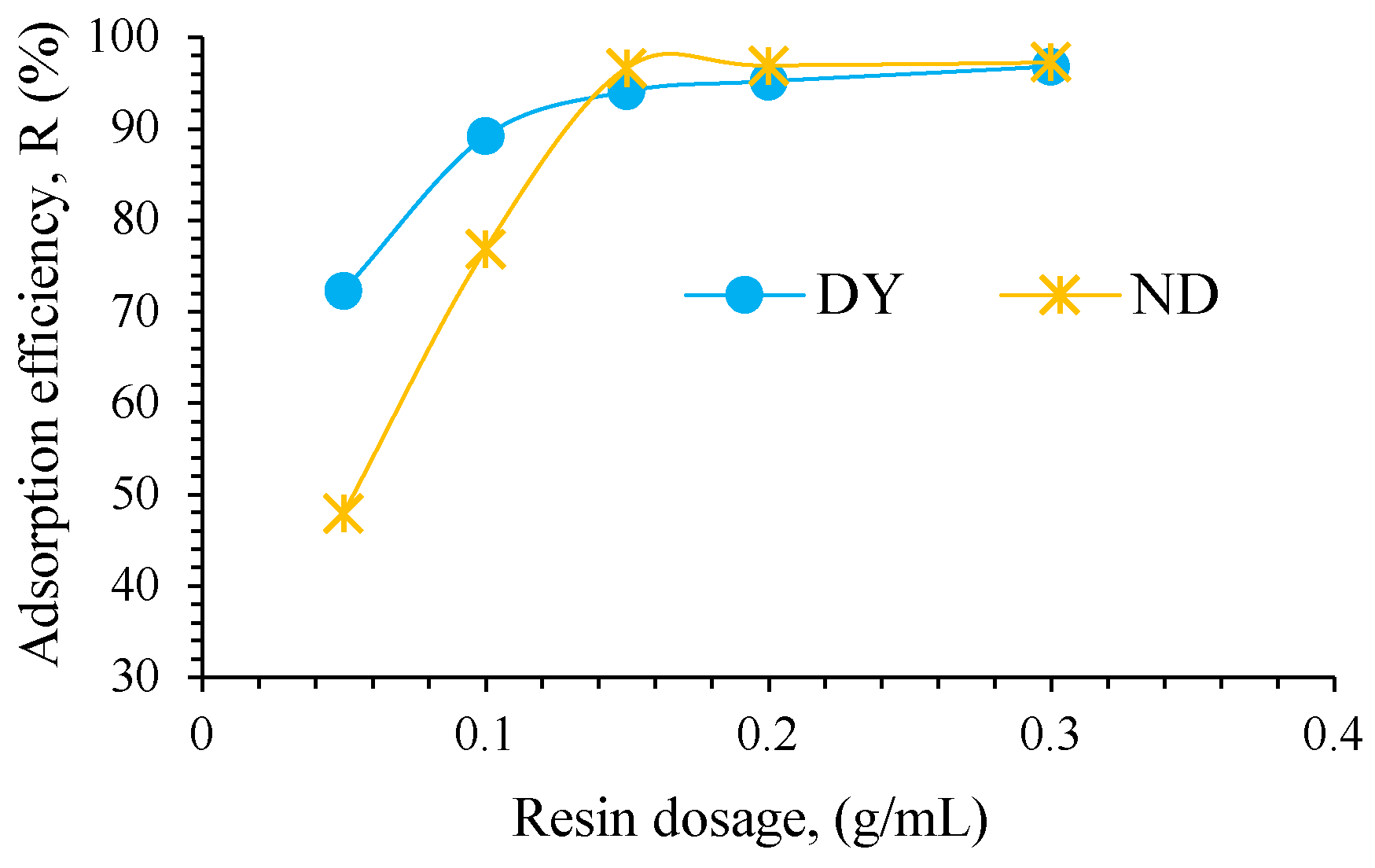

The adsorption efficiency of Purolite MTS9570, containing both phosphonic and sulfonic acid groups, to Nd and Dy ions from aqueous solutions is shown in Figure 5. At the lowest resin dose (0.05 g/mL), the adsorption of Dy reached 95%, indicating a strong initial interaction between Dy ions and the resin. In contrast, the adsorption efficiency of Nd at the smallest dose (0.05 g/mL) is lower, showing an initial value of 80% compared to Dy. However, as the resin dosage increases to 0.1 g/mL, the adsorption efficiency of Nd³⁺ significantly improves, reaching over 97%. Beyond 0.15 g/mL, the adsorption efficiency plateaus for both Nd and Dy reach over 99% at higher resin dosages, suggesting that equilibrium has been reached and additional resin dosage does not significantly improve Dy and Nd adsorption. Clearly, Purolite MTS9570 is highly effective for adsorbing both Dy and Nd ions from aqueous solutions, with slightly better performance for dysprosium adsorption.

Resin Containing Sulphonic Acid/Trimethylamine Groups

The adsorption behaviour of Amberlite IRN-150 resin containing sulfonic acid/trimethylamine groups in the single metal solution of dysprosium (Dy) or neodymium (Nd) ions is illustrated in Figure 6. At a low resin dosage of 0.05 g/mL, the Dy adsorption efficiency is above 72%, while the Nd adsorption value is around 48%. When the resin dosage is increased up to 0.15 g/mL, both Dy and Nd show a significant increase in adsorption efficiency, up to over 94% and 96% for Dy and Nd, respectively. Beyond a dosage of 0.15 g/mL, the adsorption efficiencies of both Dy and Nd maintain plateau values close to 97%, which represents the achievement of the adsorption equilibrium.

Resin with Aminomethylphosphonic Groups

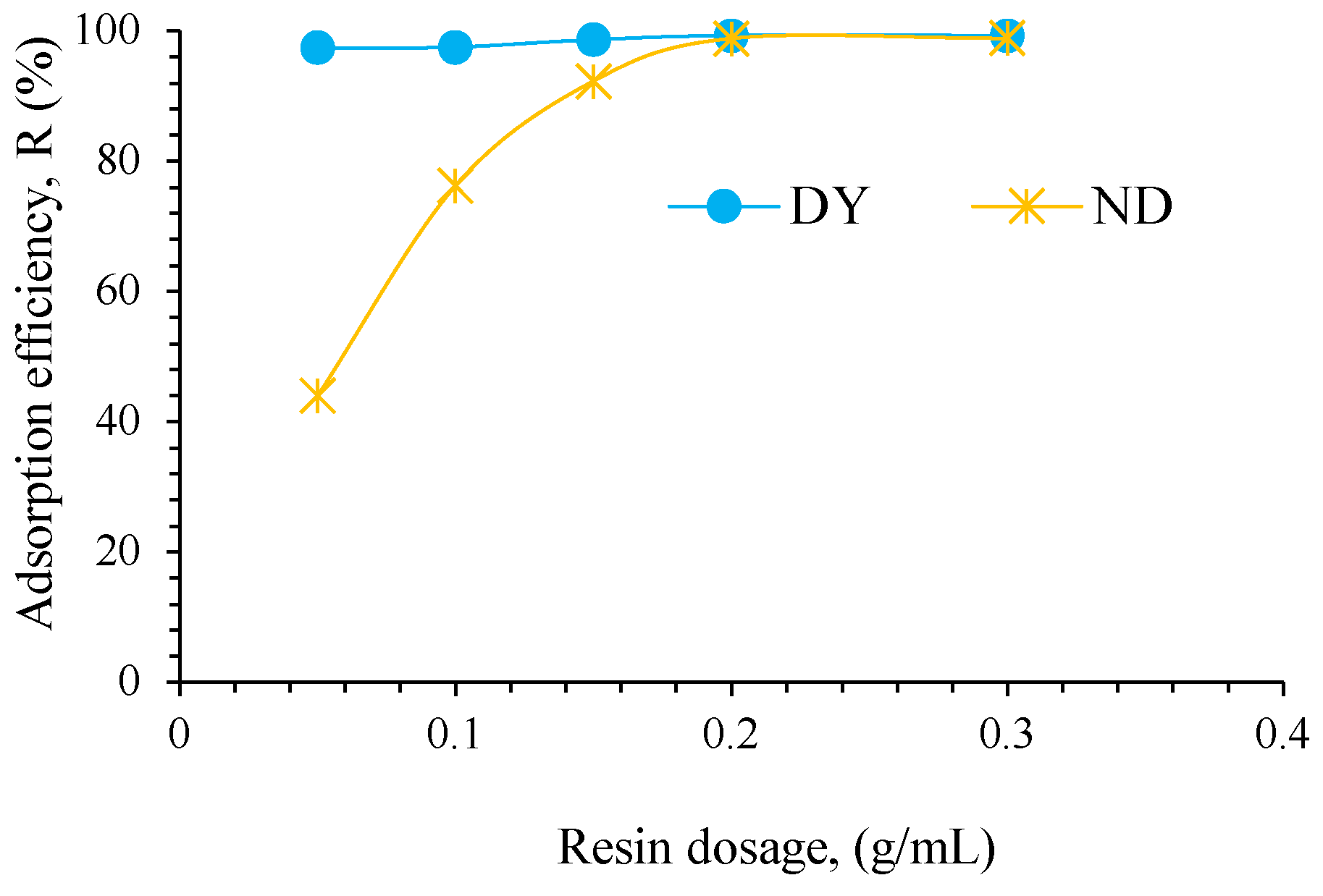

Figure 7 presents the adsorption percentage of neodymium (Nd) and dysprosium (Dy) ions from single aqueous solutions using Lewatit® MDS TP 260 resin containing aminomethylphosphonic group at various resin dosages from 0.05 to 0.30 g/mL.

For Dy, the MDS TP 260 resin has an exceptionally high adsorption efficiency, achieving over 97% adsorption at a low resin dosage of 0.05 g/mL. The adsorption efficiency increases by 2%, reaching nearly 100% at the highest resin dosage. In contrast, the adsorption efficiency of Nd starts at 44% with a resin dosage of 0.05 g/mL, then improves dramatically, rising to nearly 99% with a dosage of 0.2 g/mL, where this rise can be due to the increased availability of active binding sites; beyond this point, the adsorption efficiency stabilizes, reaching equilibrium.

It is noted, as discussed, that the resins with aminomethylphosphonic acid groups, phosphonic and sulfonic acid groups, sulfonic acid groups, aminophosphonic functional groups, and sulfonic acid/trimethylamine groups have a high adsorption efficiency for Dy at low dosages in single solutions, while Nd requires higher resin dosages to achieve similar efficiencies, due to the lower concentration of Dy relative to Nd in single metal solutions.

Resin with Thiol Functional Groups

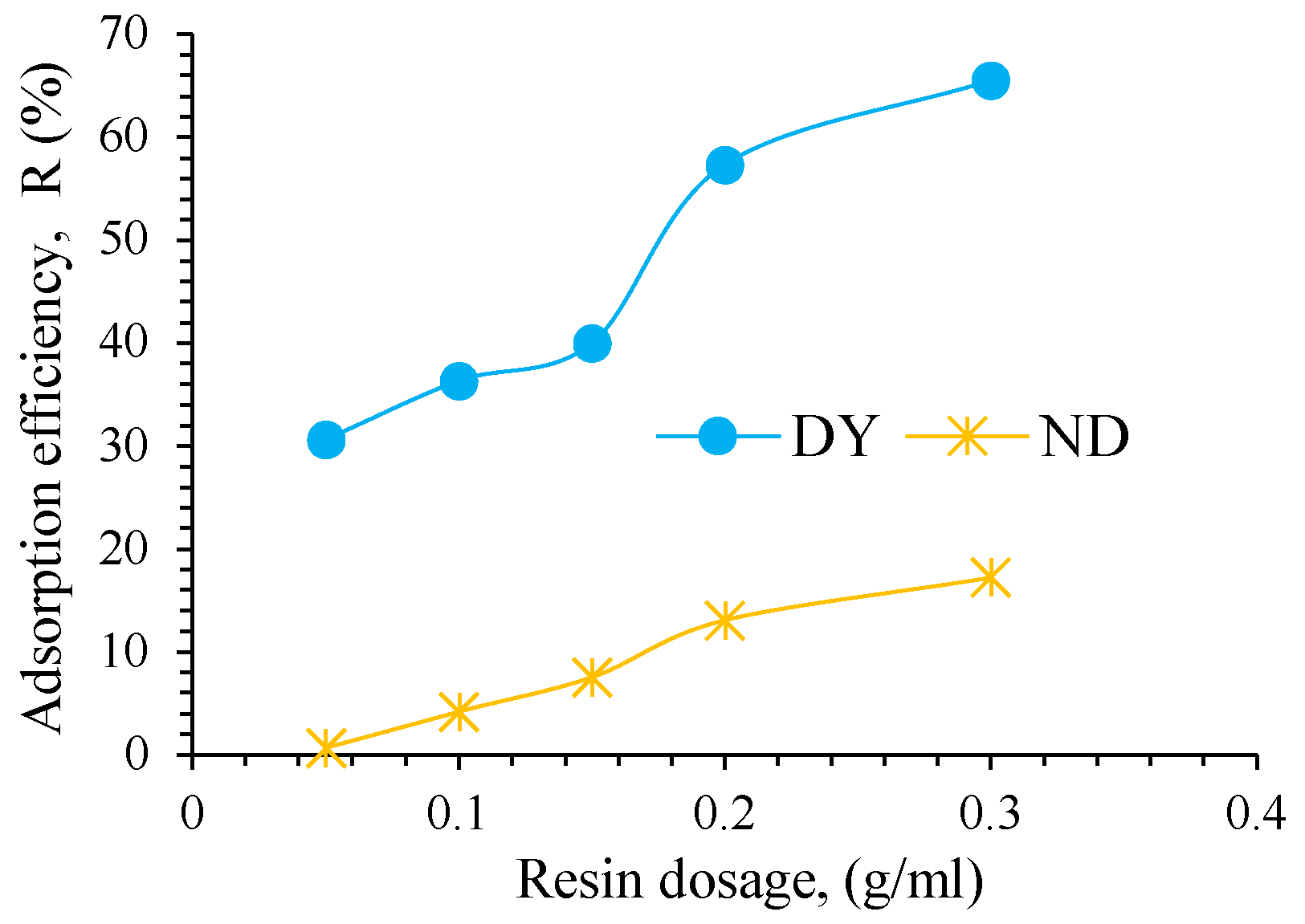

Figure 8 shows the adsorption performance of Puromet MTS9240 resin containing thiol groups for neodymium (Nd) and dysprosium (Dy) ions in single solutions with a varied resin dosage from 0.05 to 0.30 g/mL.

At the lowest dosage tested, Dy adsorption efficiency is modest at about 30%. As resin dosage increases to 0.3 g/mL, Dy adsorption efficiency improves gradually, reaching over 65%. whereas Nd adsorption efficiency started extremely low, close to 0%, and as resin dosage increased to 0.3 g/mL, Nd adsorption efficiency reached only around 18%.

3.2. Resin Adsorption from Nd-Dy Binary Solution

Based on the above experimental findings and our previous study on Nd/Dy separation using Puromet MTX7010 resin impregnated with D2EHPA [14], Puromet MTX7010 resin has demonstrated superior performance, particularly owing to its strong adsorption preference for dysprosium over neodymium. In this work, the effectiveness of D2EHPA as an efficient functional group (ligand) is further evaluated through a comprehensive investigation on the separation and purification of dysprosium and neodymium using another resin impregnated with D2EHPA, i.e., Lewatit® VP OC 1026. The Nd/Dy binary solution was prepared according to the specifications outlined in Section 2.2.

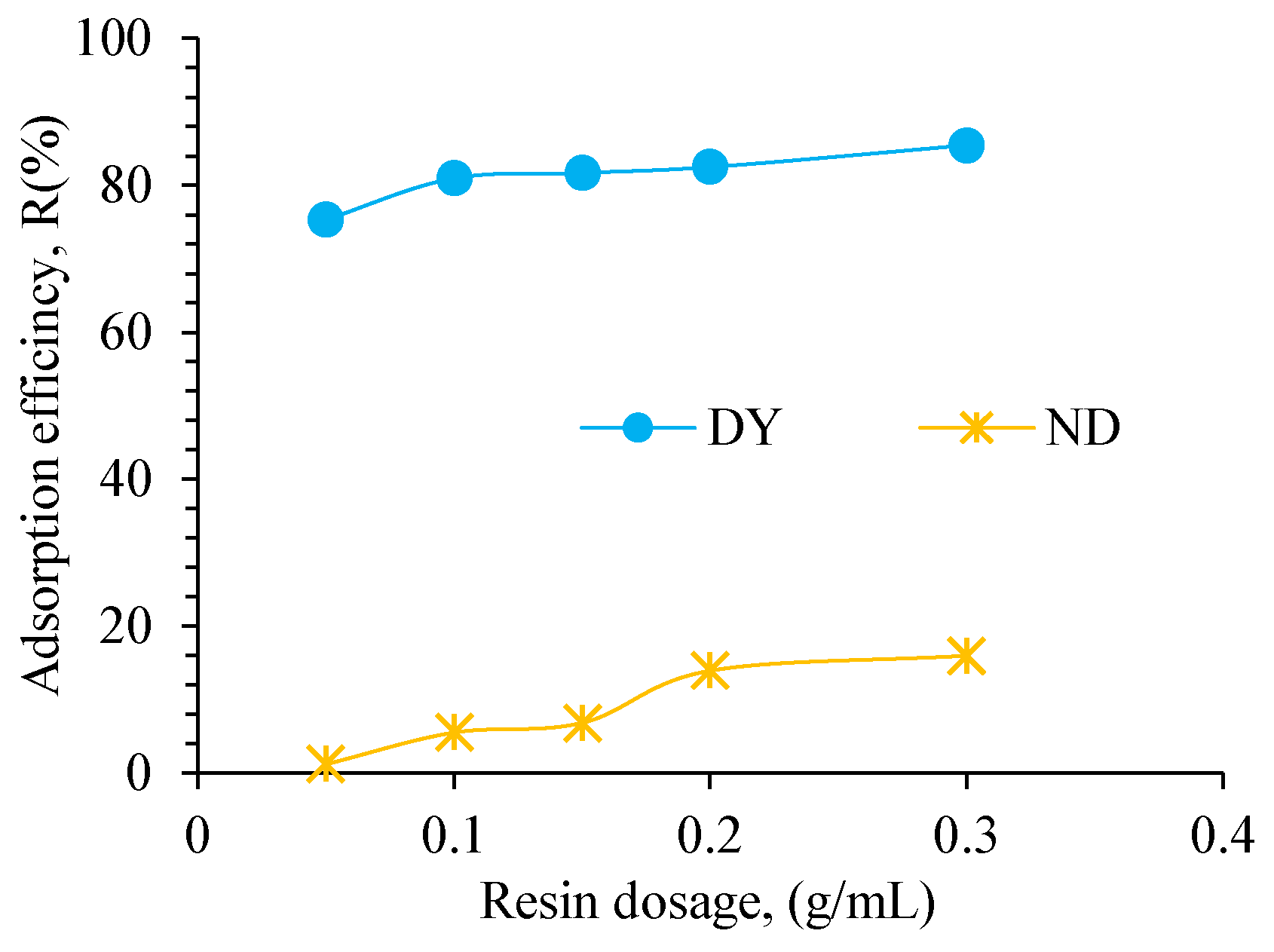

The adsorption tests were conducted using different resin dosages (i.e., 0.05, 0.1, 0.15, 0.2, and 0.3 g/mL) under the conditions of pH 0.67, shaking speed 150 rpm, and contact time 60 minutes at room temperature. As shown in the Figure 9, at 0.05 g/mL resin dosage, the adsorption efficiency of Dy³⁺ exceeds 75%, while Nd³⁺ adsorption efficiency is minimal, less than 2%. This remarkable difference in uptake demonstrates the strong affinity of Lewatit® VP OC 1026 for dysprosium ions. This is likely due to the smaller ionic radius and higher charge density of Dy, which make it more strongly bonded to the resin’s functional groups, consistent with references [3,33,36]. As the resin dosage increases from 0.1 g/mL to 0.3 g/mL, Dy adsorption continues to rise, exceeding 85% at the maximum resin dosage. In contrast, Nd(III) shows substantially lower adsorption efficiency, increasing gradually from 1.24% to 15.99% over the same dosage range. This pattern suggests that the additional resin mass provides more active binding sites, resulting in increased metal ion–resin contact and higher metal uptake, which enables Nd adsorption. In general, the resin demonstrated a high Dy/Nd selectivity ratio. These results demonstrate the potential for effective separation and purification of neodymium and dysprosium by leveraging the resin's selective affinity originated from D2EHPA and by optimizing operational factors such as solution pH, contact time, agitation speed, and temperature.

3.3. Systematic Study to Optimize Operational Parameters Governing the Separation of Nd³⁺ and Dy³⁺

3.3.1. Effect of Contact Time

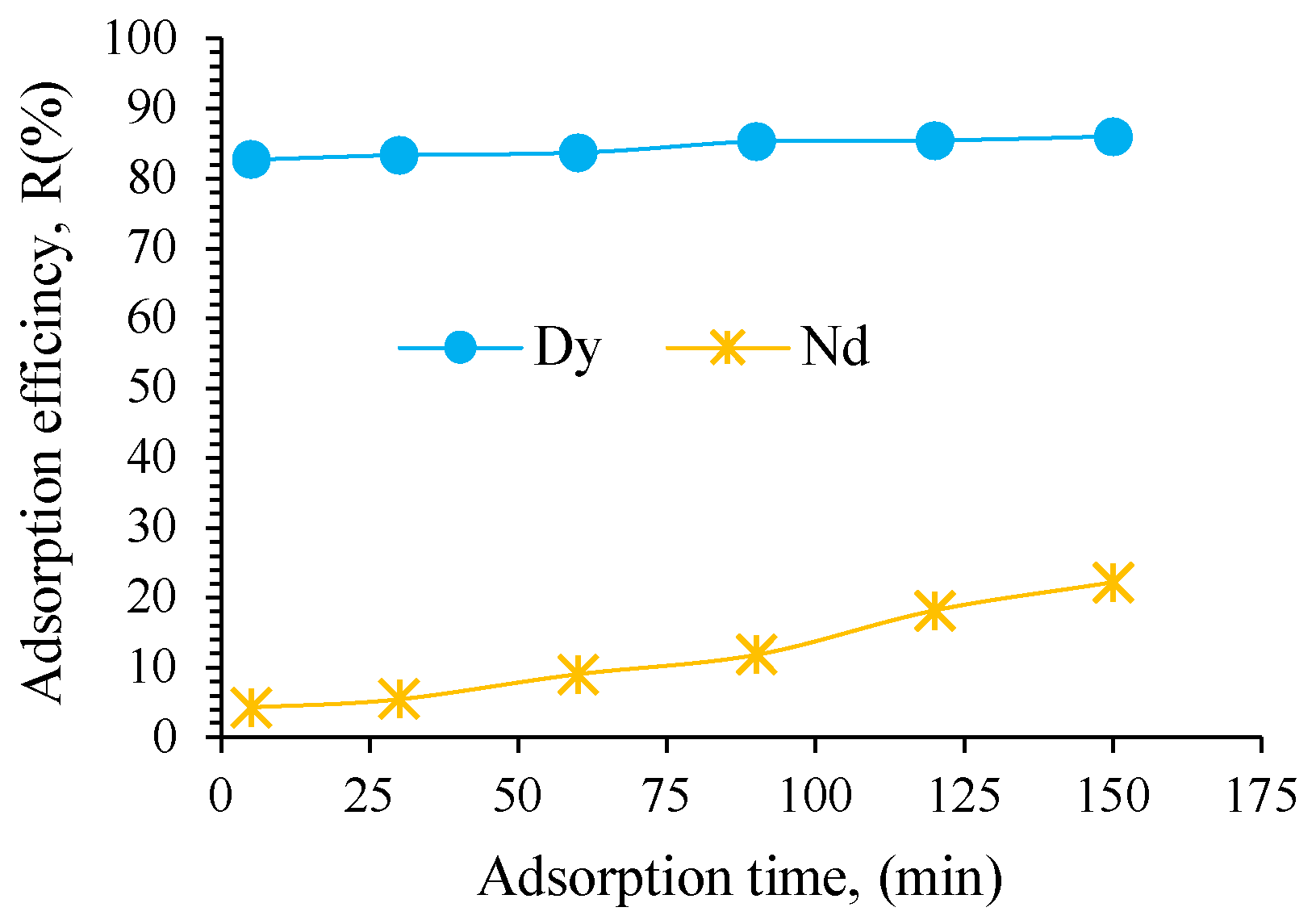

Adsorption tests were conducted over the time range of 5 to 150 min at pH 0.67, resin dosage 0.1 g/mL, and shaking speed 150 rpm under room temperature. As illustrated in Figure 10, a pronounced difference in adsorption efficiency (R%) between Nd and Dy was observed. Dy adsorption efficiency increased sharply within the first 5 minutes, reaching over 82%, followed by a slight increase reaching near 86% after 150 minutes. In contrast, Nd showed a much lower adsorption efficiency of 4.20% at 5 min and reaching nearly 23% after 150 minutes. This behaviour can be attributed to the stronger affinity of D2EHPA on the resin toward Dy³⁺ ions. The preferential adsorption of dysprosium is likely due to its smaller ionic radius (Dy³⁺ ≈ 0.91 Å vs. Nd³⁺ ≈ 0.983 Å) and higher charge density, which enhance electrostatic interactions and promote more stable coordination with the di-(2-ethylhexyl) phosphoric acid (D2EHPA) ligands on the resin[68,69].

3.3.2. Effect of pH

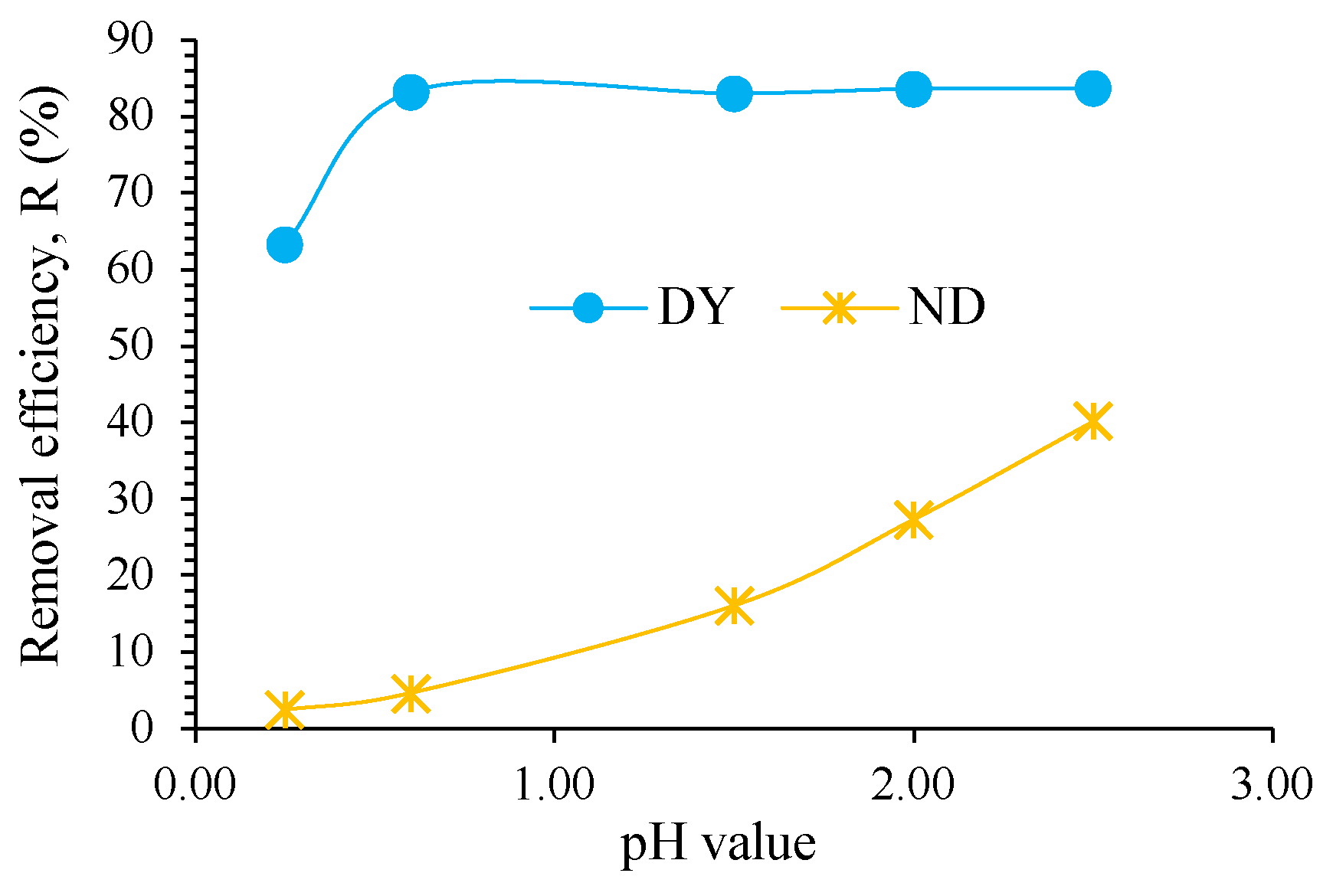

Effect of solution pH on the adsorption efficiency of dysprosium (Dy) and neodymium (Nd) over a pH range of 0.25 to 2.50 was tested at a contact time of 5 min, resin dosage of 0.1 mg/L, and agitation speed of 153 rpm under room temperature. As shown in Figure 11, both elements showed increased adsorption with higher pH, although their responses varied significantly. Dy³⁺ adsorption was already over 63% at pH 0.25, then increased sharply to over 83% at pH 0.6, and plateaued at 83.23% at pH 2.50. This early saturation indicates that Dy³⁺ binding sites are largely occupied even under strongly acidic conditions. In contrast, Nd³⁺ showed much lower adsorption efficiency throughout the tested pH range. The adsorption of Nd³⁺ increased gradually from 2.45% at pH 0.25 to 40.16% at pH 2.50 but remained significantly lower than that of Dy³⁺ at all pH values. The increasing trend suggests that higher pH values activate the dissociation of H⁺ ions from the resin's active sites, thereby enhancing Nd³⁺ uptake. However, the resin still maintained a pronounced preference for Dy³⁺; therefore, the optimal pH is near 0.6, where Dy adsorption exceeds 83% and Nd adsorption remains at 4.6%.

3.3.3. Effect of the Shaking Speed

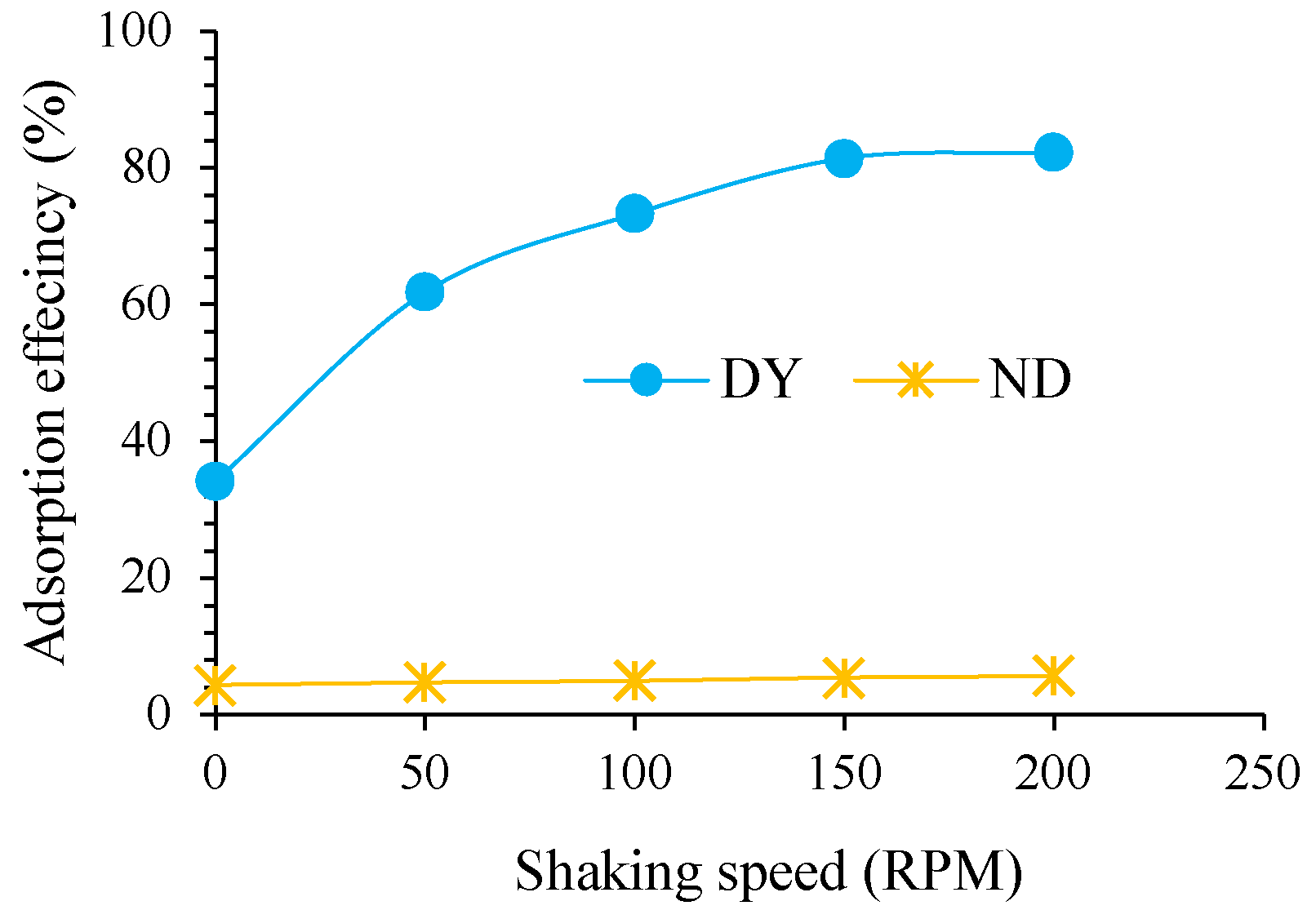

The effect of shaking speed on the adsorption efficiency of Nd³⁺ and Dy³⁺ was investigated at a contact time of 5 min, a resin dosage of 0.1 mg/L, and a solution pH of 0.67 under room temperature. As Figure 12 illustrates, increasing the shaking speed from 0 to 150 rpm significantly enhances Dy³⁺ adsorption, rising from around 35% to over 81%, after which a small improvement is observed up to 200 rpm. This trend indicates that higher agitation speed enhances mass transfer and reduces boundary-layer resistance, thereby facilitating faster transport of Dy³⁺ ions to the resin surface.

In contrast, Nd³⁺ adsorption remains consistently low between 4% and 6% across the entire range of shaking speeds, showing minimal sensitivity to agitation. This suggests that Nd³⁺ has a weaker interaction with D2EHPA on the resin and is not significantly influenced by mass transfer improvements.

3.3.4. Impact of Temperature on the Adsorption Efficiency of Nd³⁺ and Dy³⁺

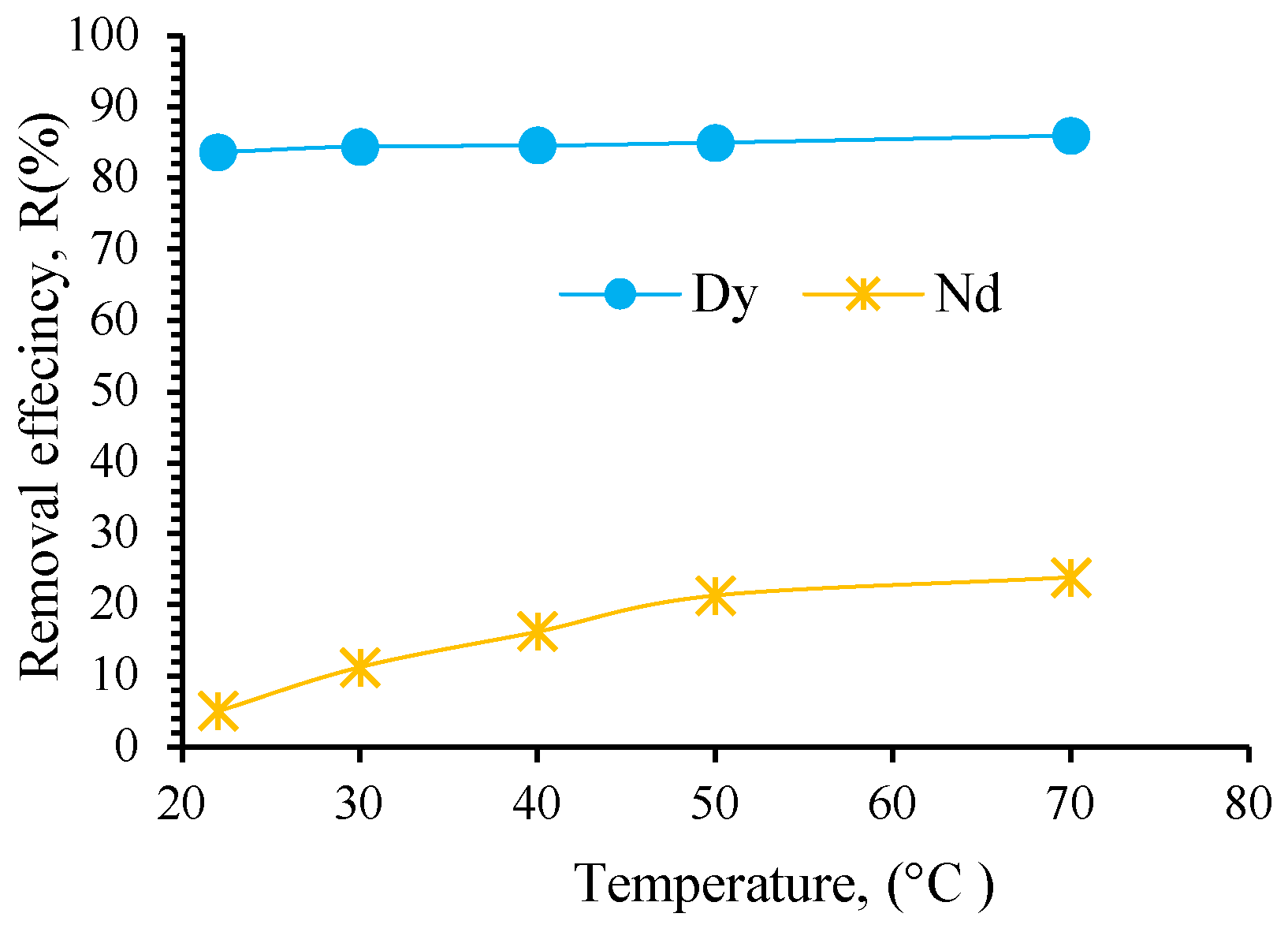

A batch of experiments was conducted at 5 min adsorption time, pH 0.67, 150 rpm agitation, and 0.1 g/mL resin dosage to study the effect of temperature on the adsorption efficiency of Nd³⁺ and Dy³⁺^. As illustrated in Figure 13, Dy³⁺ exhibits consistently high adsorption efficiency across the studied temperature range, increasing slightly from 87.91% at 22 °C to over 89% at 70 °C. In contrast, Nd³⁺ adsorption improved noticeably with temperature, rising from 5.03% at 22 °C to 23.83% at 70 °C.

Generally, temperature has minimal influence on Dy adsorption, and equilibrium is nearly achieved under all tested temperature conditions. The slight increase of neodymium adsorption efficiency with temperature may be due to the activation and the endothermic property of Nd adsorption reaction.

4. Effect of Number of Adsorption Stages and Resin Dosage on Nd/Dy Uptake

As illustrated in the Figure 9, at low resin dosage (i.e., 0.05 g/mL), the adsorption efficiency of Dy³⁺ exceeds 75%, while Nd³⁺ adsorption efficiency is barely below 2%, showcasing high adsorption selectivity of the Lewatit® VP OC 1026 resin to Dy³⁺ ions. However, with the increase of resin dosage, the adsorption selectivity to Dy³⁺decreased due to more active adsorption sites available at the same time. Therefore, it is possible to improve the adsorption selectivity at a high resin dosage by employing a multi-stage adsorption process, i.e., limited resin dosage at each stage, to achieve an ideal separation of Nd³⁺ and Dy³⁺with reasonably high metal recoveries. A series of experiments was conducted with different resin dosages across multiple stages to evaluate the effects of resin dosage and the number of stages on metal adsorption.

Table 4 summarizes the adsorption performance of Lewatit® VP OC 1026 resin to Nd³⁺ and Dy³⁺ at pH 0.67, room temperature, shaking speed 150 rpm, and 5 min contact time under different resin dosage and stage number configurations. The results demonstrate that both parameters (i.e., resin dosage and stage number) play a critical role in determining adsorption efficiency and selectivity.

In the one-stage adsorption system, increasing the resin dosage from 0.05 to 0.1 g/mL enhances Dy³⁺ recovery from 70.42% to 80.58%, due to increased availability of active sites. However, this enhancement is accompanied by a rise in Nd³⁺ adsorption from 3.34% to 5.21%, thereby reducing selectivity.

The effect of multi-stage adsorption is pronounced. At a lower total resin dosage of 0.05 g/mL, the two-stage configuration (0.025–0.025 g/mL) achieves 78.95% Dy³⁺ recovery with minimal Nd³⁺ adsorption of 1.79%, whereas was 70.42% for Dy recovery and 3.34% for Nd³⁺ adsorption under one-stage adsorption, highlighting better selectivity by limited available active sites during adsorption process.

Increasing both the number of stages and total dosage significantly improves Dy³⁺ recovery. For example, the two-stage system (0.05–0.05 g/mL) increases Dy³⁺ removal to 87.95%, while the three-stage configuration (0.05–0.05–0.05 g/mL) further enhances Dy³⁺ removal to 92.90%. However, this improvement is accompanied by a gradual increase in Nd³⁺ adsorption (up to 5.87%), indicating a trade-off between recovery and selectivity.

Similarly, a two-stage high-dosage system (0.1–0.1 g/mL) achieves 90.25% Dy³⁺ removal but results in the highest Nd³⁺ adsorption (6.61%), suggesting that excessive resin dosage reduces selectivity due to increased co-adsorption of Nd³⁺.

Overall, at the same total resin dosage, increasing the number of adsorption stages improves Dy³⁺ adsorption selectivity by allowing more competitive occupation of resin active sites across sequential steps. However, increasing the total resin dosage, particularly at higher levels, promotes non-selective adsorption and reduces separation efficiency. Ideal metal separation could be realized by optimizing the resin dosage and stage number configuration.

5. Influence of Acid Concentration and Multi-Stage Elution

After selective adsorption towards dysprosium, the process proceeds to the desorption (elution) stage, which is the reverse of adsorption. This step is essential for recovering the adsorbed metal ions and regenerating the resin for reuse. It uses eluents, such as acids, under various operating condition [3,14,30].

The elution of Nd and Dy from loaded Lewatit® VP OC 1026 resin was examined using H₂SO₄ at three concentrations (i.e., 10%, 20%, and 30%) in a two-stage eluting process, with each stage lasting 30 minutes, using the resin samples obtained from 0.05-0.05-0.05 g/mL resin three stage adsorption described in Table 4.

As illustrated in Table 5, in the first elution stage, increasing sulfuric acid concentration significantly enhanced metal recovery. Nd elution efficiency increased from 74.73% at 10% sulfuric acid to 90.32% at 30% sulfuric acid concentration, while Dy elution improved from 82.02% to 95.48%, indicating that higher acid concentration effectively disrupts metal-resin interactions.

In the second elution stage, additional recovery of the remaining metals on resin was achieved at this operation. Similar to the first stage elution, higher acid concentration obtained better metal elution efficiency.

Overall, the results demonstrate that elution efficiency increases with acid concentration in both stages, with the first stage responsible for most of the metal recovery and the second stage providing complementary recovery of residual metals. The eluted resin could be cycled to the adsorption process with large percentage of available active sites.

6. Multi-Stage Resin Adsorption-Elution Process Analogous to Distillation for Nd and Dy Separation and Purification

As described in section 2.2, the binary solution contained around 200 mg/L Dy and 6000 mg/L Nd. This substantial concentration disparity between Dy and Nd poses a major challenge to achieving effective purification of Dy, even when highly selective functional groups are employed. According to Table 4, the multi-adsorption process of 0.05-0.05-0.05 g/mL resin dosage achieved a Dy recovery exceeding 92%. Conversely, Nd adsorption efficiency remained below 6%, but due to its higher concentration in the Nd-Dy solution, it still accounted for a higher concentration than Dy in the elution solution. To address this main challenge, a multistage adsorption-elution process analogous to distillation (i.e., the metal loaded on resin is analogous to vapour, and the left solution is analogous to heavy oils) will be employed to achieve high separation and purification efficiency by taking advantage of the strong resin affinity for Dy, given the substantial concentration difference. A batch of experiments was conducted to evaluate the multistage adsorption-elution process for separating neodymium and dysprosium using Lewatit® VP OC 1026 resin under optimized conditions (i.e., pH 0.67, shaking speed 150 rpm, temperature 24 °C, and contact time 5 min) with varying resin dosages. Figure 13 illustrates the entire sequence of three multi-adsorption phases and two elution phases with the initial solution containing 238.843 mg/L Dy and 6246.487 mg/L Nd. The results of Nd and Dy separation and purification via a multistage adsorption-elution process are listed in Table 6.

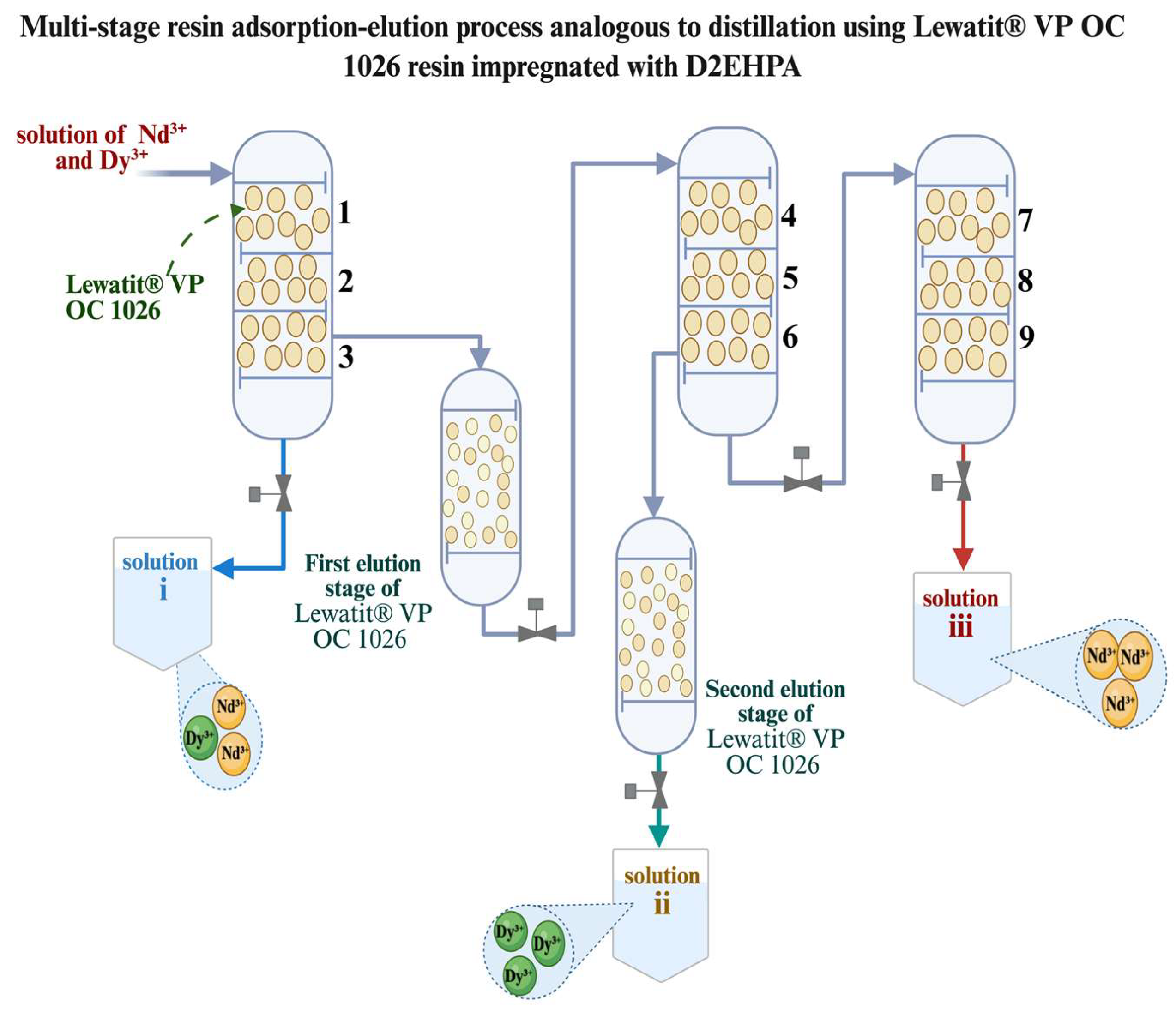

Figure 13. Multi-stage resin adsorption-elution process analogous to distillation.

Figure 13. Multi-stage resin adsorption-elution process analogous to distillation.

During the first adsorption phase (first multi-stage adsorption column) for Nd purification, resin dosage was reduced stepwise, with 0.1 g/mL (2 g) used in stage 1, followed by 0.05 g/mL in stage 2, and 0.025 g/mL in stage 3. The resulting solution-i from the first adsorption phase was analyzed, which contained 5896.01 mg/L Nd and 4.10 mg/L Dy, representing a recovery of 94.40% and a prospective purity of 99.93% for Nd in the solution, as shown in Table 6. These results demonstrate that the multi-stage adsorption configuration, combined with a progressive reduction in resin dosage, effectively enhances the separation of Nd and Dy.

As illustrated in Figure 13, the first elution phase was performed on the resins collected from the adsorption stages 1, 2, and 3 in the first adsorption phase (3.5 g in total) using 20 mL of 30% (v/v) H₂SO₄ for 30 minutes. Then followed by the second adsorption phase for Dy purification, which included adsorption stages 4, 5, and 6, with resin dosages of 0.05 g/mL, 0.015 g/mL, and 0.010 g/mL, respectively. The final solution served as input for the third adsorption phase, including stages 7, 8, and 9 for Nd recovery and purification. The total resin collected (1.5 g) from the second adsorption phase was used in the second elution process for Dy recovery, with the same volume and concentration of H₂SO₄ as in the first elution. The obtained solution-ii was analyzed with 231.94 mg/L Dy and 2.03 mg/L Nd, representing a prospective purity of 99.13% and recovery of 97.45% for Dy. The third adsorption phase consisted of three adsorption stages: 7, 8, and 9, with resin doses of 0.5 g, 0.2 g, and 0.1 g, respectively. The analysis of the final solution-iii, with an Nd concentration of 344.79 mg/L and a Dy concentration of 0.01 mg/L, indicated a prospective purity of Nd above 99.99%.

The proposed process can be extended to further treat solution-i from the first adsorption phase, enabling the production of neodymium with a prospective purity above 99.99%. Likewise, solution-ii may be further refined to yield higher-purity dysprosium. Solution-iii could also be merged with solution-i with a prospective purity over 99.96% and recovery of above 99.90% for Nd. Overall, the multi-stage adsorption–elution strategy, conceptually analogous to distillation, significantly enhances the separation and purification efficiency of rare earth elements despite substantial concentration disparity between them.

7. Conclusions

Selective resins containing various functional groups (ligands) were explored to realize the efficient recovery and purification of neodymium and dysprosium from their mixed solutions via ion exchange processes.

The resins with aminomethylphosphonic acid groups, phosphonic and sulfonic acid groups, sulfonic acid groups, aminophosphonic functional groups, and sulfonic acid/trimethylamine groups have a high adsorption efficiency for Dy at low dosages in single solutions, while Nd requires higher resin dosages to achieve similar efficiencies, due to the lower concentration of Dy relative to Nd in single metal solutions.

It was found that Lewatit VP OC 1026 resin impregnated with di-(2-ethylhexyl) phosphoric acid (D2EHPA) had stronger adsorption preference for Dy ions over Nd ions. Dy adsorption efficiency reached over 82%, whereas Nd adsorption efficiency was barely 4.20% at pH 0.67, resin dosage 0.1 g/mL, and shaking speed 150 rpm under room temperature.

Nd and Dy could be efficiently eluted from the loaded resin using dilute H₂SO₄ solutions, which could ensure resin regeneration and recycling in the process.

At the same total resin dosage, increasing the number of adsorption stages improves metal adsorption selectivity by allowing more competitive occupation of limited active sites on resin across sequential steps. However, increasing the total resin dosage promotes less selective adsorption and reduces separation efficiency. Ideal metal separation could be realized by optimizing the resin dosage and stage number configuration.

By employing a multistage adsorption-elution process analogous to distillation, efficient Dy-Nd separation and purification were realized from their mixed solution, with a prospective purity of 99.13% and recovery of 97.45 % for Dy and a prospective purity over 99.96% and recovery above 99.90% for Nd, despite the large concentration disparity between Dy and Nd where Nd concentration is over 26 times of that of Dy.

The research results demonstrate that efficient recovery and purification of metals from their mixed solutions can be achieved with selective resin adsorption processes analogous to distillation despite large concentration differences of the metals, which presents a novel approach for metal recovery and purification.
