Improving the Adsorption Performance of Eriochrome Black T Using Aluminum Oxide Films as a Nanoadsorbent

1. Introduction

The vast majority of synthetic dyes used in industries such as textiles, leather, paper, and pharmaceuticals represent a critical source of water pollution, primarily due to the inefficiency of current treatment methods in removing them prior to discharge [1,2,3,4,5,6]. According to Akhouairi et al. [7], it is estimated that between 2% and 50% of total dye production is lost in industrial effluents. These substances are characterized as xenobiotic and recalcitrant compounds; their complex aromatic structures grant them high chemical stability, in addition to possessing carcinogenic and mutagenic properties [7,8]. In aquatic ecosystems, their presence obstructs sunlight penetration, which inhibits photosynthetic activity and promotes deleterious anaerobic conditions [9,10,11].

Among anionic azo dyes, Eriochrome Black T (EBT), utilized in analytical chemistry as a complexometric indicator and in the textile industry as a dye [12], exhibits low degradability under conventional treatment processes. It has been reported that concentrations as low as 1 mg·L⁻¹ of this compound in industrial effluents pose severe environmental challenges [13], underscoring the imperative need to implement advanced treatment technologies to mitigate its impact [14].

To be applicable at an industrial scale, these technologies must be cost-effective, highly efficient, and versatile enough to be easily integrated into conventional effluent treatment systems [10,15,16,17,18]. Adsorption technology encompasses all these attributes, enabling the treatment of multiple contaminants with high removal efficiencies [19,20]. Furthermore, during this process, the contaminants accumulate on the adsorbent surface, facilitating their separation from the aqueous phase for subsequent regeneration and reuse [13,21,22].

Although a wide variety of adsorbents exist for dye removal in aqueous solutions, nanomaterials offer innovative properties due to their large specific surface area and high removal efficiency within short periods of time [23]. Among them, polymeric nanocomposites [24], smart materials [25], metal oxides [26], and graphene derivatives [27] stand out. However, the selection of these adsorbents is mainly conditioned by high chemical synthesis costs, the difficulty of post-treatment separation and regeneration, and their low performance in real water matrices [28].

Anodic aluminum oxide (AAO) stands out as an effective nanoadsorbent for the removal of Eriochrome Black T (EBT) dye. Under optimized stirring (500 rpm) and temperature (60 °C) conditions, this material has achieved removal efficiencies of up to 99%, while demonstrating a remarkable capacity for regeneration and reuse with efficiencies exceeding 50% [29]. Its synthesis, based on the electrochemical oxidation of aluminum alloys, represents a simple and low-cost alternative for obtaining nanoporous coatings with a high specific surface area on complex-geometry substrates, making them suitable for implementation as packing material in packed towers [30,31,32,33]. This structural feature offers an outstanding operational advantage over the conventional use of suspended alumina nanoparticles, whose recovery following effluent treatment remains challenging [11,34,35,36].

The adsorbent properties of AAO can be modulated through anodization parameters (such as electrolyte type, temperature, and voltage) or via thermal and chemical post-treatments that alter its morphology and surface chemistry. In this regard, Dwojak et al. [37] reported that AAO films synthesized in oxalic acid exhibit superior performance in EBT removal compared to those obtained in phosphoric or sulfuric acid media. Nonetheless, the specific effect exerted by calcination and controlled chemical etching on the EBT adsorption capacity of these films has not been explored to date.

Calcination at moderate temperatures (400–600 °C) induces dehydration and water desorption, modifying the surface chemistry of the nanoadsorbent, while stabilizing the oxide structure and improving nanopore ordering. Concurrently, alkaline etching drives film dissolution as a function of exposure time, altering the oxide morphology [38]. Since both processes directly impact the material properties, they could modify the adsorption capacity of the AAO.

Therefore, the objective of this work is to evaluate whether the application of post-treatments, such as calcination and alkaline etching, enhances the EBT removal efficiency of AAO nanoadsorbents. To this end, AAO films were synthesized via anodic oxidation from a commercial aluminum alloy (AA1050) and subjected to distinct combinations of post-treatments before characterization. The enhancement in EBT adsorption was evaluated at 500 rpm and 60 °C, and the material behavior at different pH levels, as well as its regeneration and reuse capacity, was systematically assessed.

2. Materials and Methods

2.1. Synthesis of the Nanoporous Anodic Aluminum Oxide

A sheet of aluminum alloy AA1050 (99.5% Al, supplied by AMEX® S.A., Ciudad de Buenos Aires, Argentina) with 0.3 cm thickness, 1 cm wide and 15 cm long was used as a starting material.

The substrate treatment was carried out following the steps reported by Kramer et al. [29], and the same anodization conditions were used (0.3 M oxalic acid as electrolyte at 40°C, 30 V and an anodic oxidation of 1 h).

2.2. AAO Treatments

To enhance the EBT adsorption efficiency, AAO nanostructured films underwent the different treatment combinations described in Table 1.

The samples were calcined in a muffle furnace in ambient air for 4 h with a heating ramp of 10 °C·min^-1. Pore widening was performed by immersing the samples in a 0.5 M NaOH solution at 25 °C for 1 min.

Finally, after each treatment combination, the samples were washed by ultrasonication with distilled water for 5 min.

2.3. Preparation of EBT Solution

The 16 mg·L⁻¹ concentration EBT solution was prepared by dilution from a 400 mg·L⁻¹ stock solution. The exact concentration of the dye was determined using a UV-visible spectrophotometer (Shimadzu UV-1800, Kyoto, Japan) and the calibration curve previously reported by Kramer et al. at 532 nm. [29].

2.4. Characterization of AAO Films

The morphology of the aluminum oxide films, defined by Pore Diameter (PD) and Porosity (P), was determined by scanning electron microscopy (SEM) (SUPRA 40, Carl Zeiss NTS GmbH, Jena, Germany) before and after adsorption, as reported by Kramer et al. [29] and Bruera et al. [31].

FTIR spectra were recorded in the 4000–600 cm⁻¹ region using an IRPrestige-21 spectrophotometer (Shimadzu, Kyoto, Japan) to characterize the surface functional groups.

The crystallinity of the samples was determined using a Rigaku SmartLab® X-ray diffractometer (Cu Kα radiation, λ = 1.5418 Å) at a fixed incidence angle of 1°.

2.5. Adsorption Assays

2.5.1. Preliminary Studies

Triplicate adsorption experiments were conducted at 60 °C and 500 rpm using a magnetic stirring hot plate (DLab, MS-H280-PRO, China). In a typical run, 30 mL of EBT dye solution (16 mg·L⁻¹) was treated in a 100 mL beaker with a spiral-mounted AAO adsorbent (total area: 30 cm²). Dye concentration was monitored by UV-Vis spectrophotometry over a 0–24 h period, and the removal efficiency (%R) was calculated according to Equation (1) [2,34,39].

$$R\left(\%\right)={\displaystyle \frac{C_0-C_t}{C_0}}\times 100$$

(1)

where C₀ is the adsorbate initial concentration (mg·L⁻¹), and C_t is the adsorbate final concentration after time t (mg·L⁻¹).

The effect of pH on the adsorption capacity of the AAO and AAO + 600TT + PW films was evaluated in duplicate by adjusting the pH of the dye solution (16 mg·L⁻¹) within a range of 4.0 to 10.0 (in increments of 2.0 units) via the dropwise addition of 0.1 M HCl and NaOH. The EBT removal efficiency was determined by UV-Vis spectroscopy at 532 nm, using calibration curves previously constructed for each pH value.

Furthermore, the point of zero charge (pH_pzc) of the AAO + 600TT + PW films was determined using the pH drift method [40]. To eliminate dissolved carbon dioxide, a 0.01 M NaCl solution was boiled and then used to prepare 30 mL aliquots, with the initial pH adjusted between 4 and 9. The samples were immersed in each solution and incubated at room temperature for 48 h. Following this period, the final pH(pH_f) was measured. The difference between the final and initial pH (pH_f - pH₀) was then plotted against pH₀. The pH_pzc was identified as the point where the curve intersects the reference line.

2.5.2. Reuse Performance

The reusability of the adsorbent AAO + TT600 + PW was evaluated over four consecutive cycles, determining the removal efficiency (%R) at each stage. Each cycle consisted of an adsorption phase 16 mg·L⁻1 EBT, 500 rpm, 60 °C, 2 h) followed by a regeneration phase via calcination at 600 °C for 1 h.

3. Results

3.1. Characterization of AAO Films

3.1.1. SEM Analysis

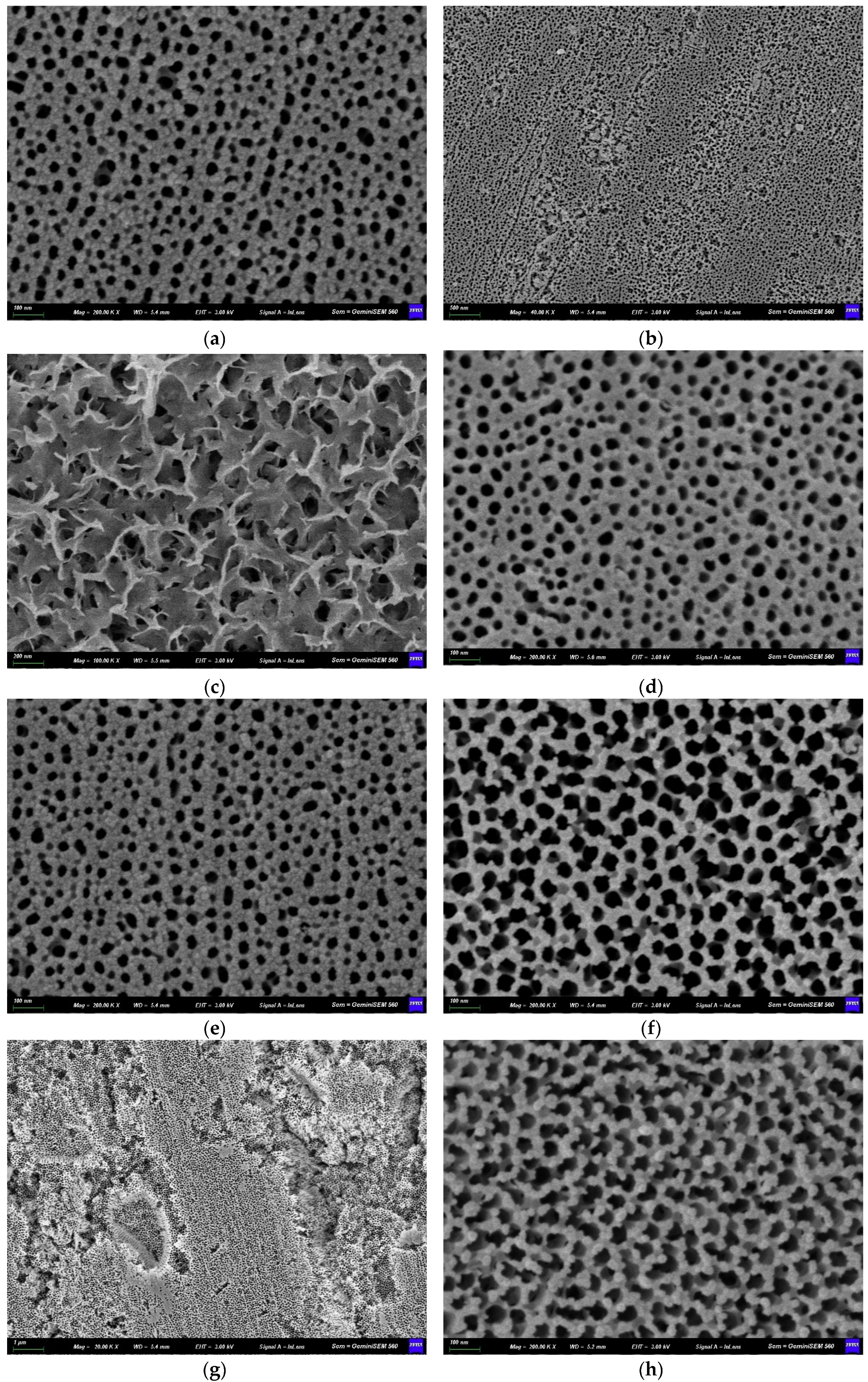

Figure 1 illustrates the morphology of the AAO films anodized in a single step (0.3 M oxalic acid, 40 °C, 30 V), subjected to various treatments. The untreated samples (AAO, Figure 1a-b) exhibited disordered nanopores, which were preferentially oriented along manufacturing defects originating from the lamination process. Furthermore, at low magnification, cracks in the oxide film and poor pore-size homogeneity were observed.

After EBT adsorption, the dye completely coated the oxide surface (Figure 1c).

On the other hand, no significant morphological differences were observed for the AAO samples calcined at 400 and 600 °C for 4 h (Figure 1d and Figure 1e).

The effect of pore widening on the anodized samples, with and without calcination, is shown in Figure 1f-k. Alkaline etching with NaOH for 1 min effectively dissolved the oxide layer and increased pore size. This dissolution was greatest for the uncalcined samples (AAO + W), followed by the calcined samples AAO + 400TT + PW and AAO + 600TT + PW, respectively. In the first case, refined pores with rough terminations and significant oxide layer breaks were observed at low SEM magnifications (Figure 1f and Figure 1g). In contrast, the 400 °C heat treatment applied before pore widening reduced excessive oxide layer dissolution, resulting in a surface free of breaks but with the same characteristics as the AAO + PW samples (Figure 1h and Figure 1i). Finally, the best pore widening was obtained with the samples previously calcined at 600 °C, highlighting a homogeneous surface with smooth, refined pores (Figure 1.j and 1k).

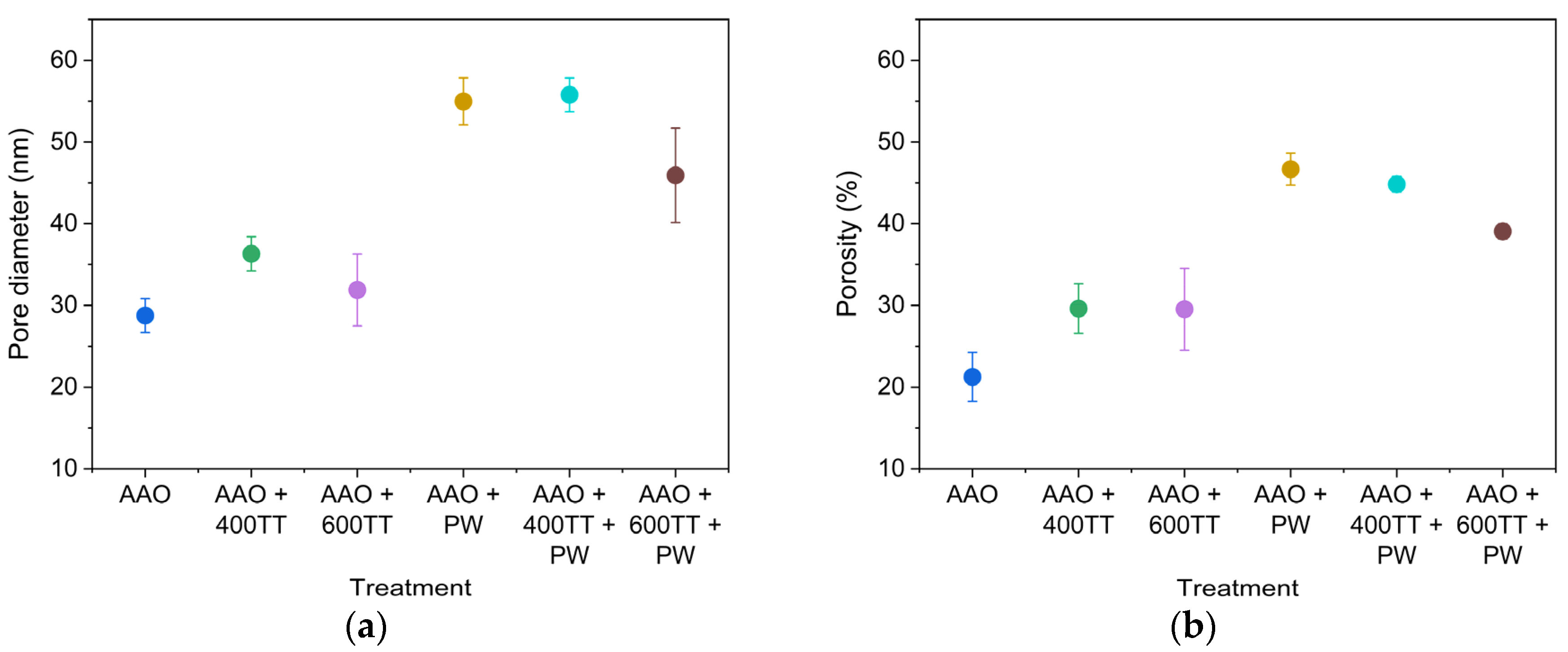

The variation in pore diameter (PD) and porosity (P) of AAO films with different treatments is shown in Figure 2. For untreated samples, and those calcined at 400 and 600 °C, no significant differences in PD were found, with values ​​between 25 and 40 nm (Figure 2a). Pore widening significantly increased PD to values ​​close to 55 nm for the AAO and AAO + 400TT samples. In contrast, for the AAO + 600TT + PW samples, PD was lower (46 ± 6 nm).

As expected, the same trend in PD was observed for P (Figure 2b).

3.1.2. FTIR Analysis

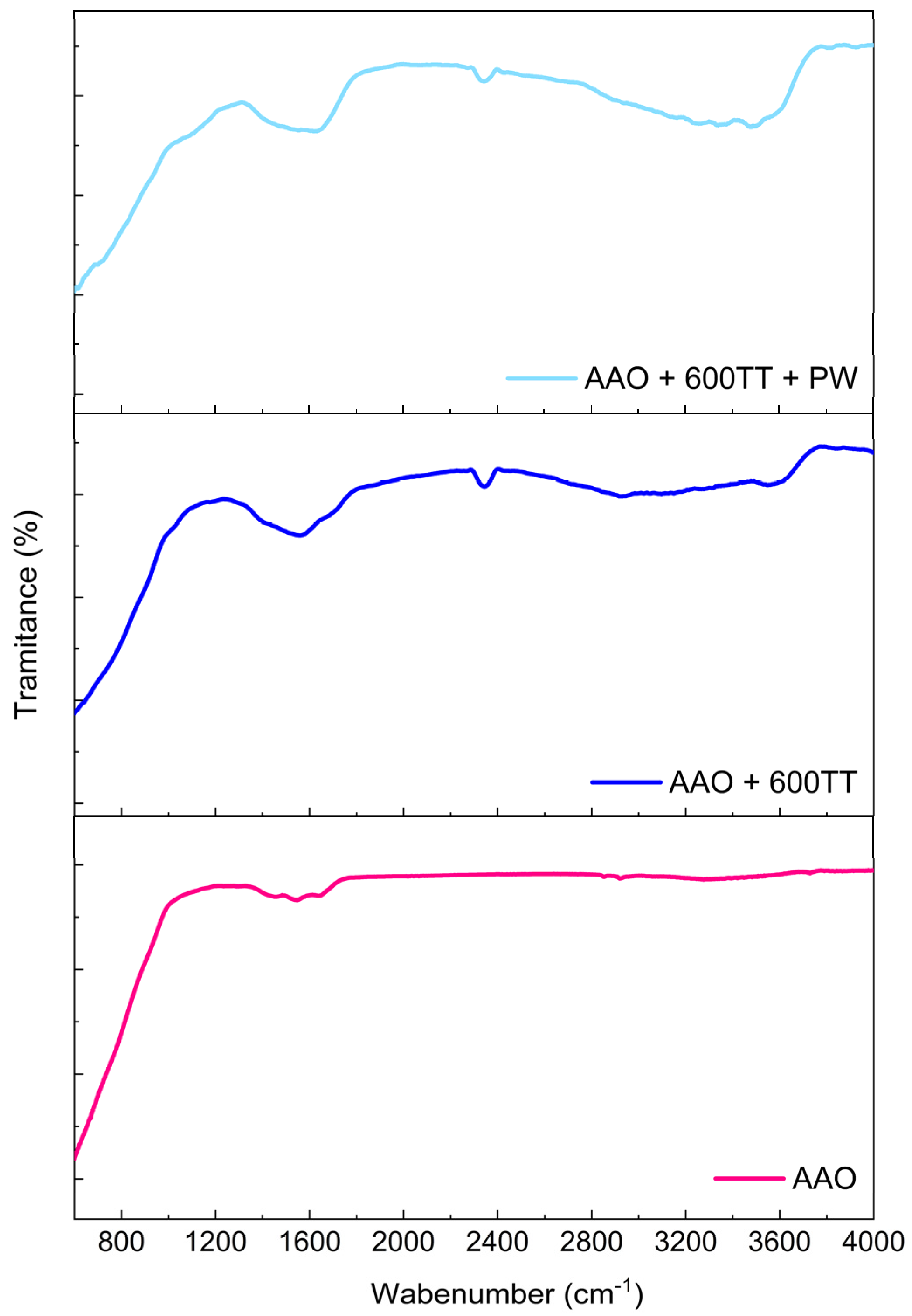

The FTIR spectra obtained for AAO, AAO + 600TT, and AAO + 600TT + PW (Figure 3) show characteristic peaks in the 600–4000 cm⁻¹ range, which define the surface chemical properties of the adsorbents. In all cases, a broad band was observed in the 3000–3700 cm⁻¹ region, characteristic of ν(OH) stretching vibrations associated with the presence of Al-OH bonds, as well as peaks near 1640 cm⁻¹ corresponding to bending vibrations of O-H groups [10,11,36,41,42,43].

The peaks at 2340 cm^-1 in the spectra of AAO + 600TT and AAO + 600TT + PW can be attributed to the presence of adsorbed CO₂, resulting from the weak interaction between the molecule and coordinatively unsaturated tetrahedral Al⁺³ cations, which act as Lewis acid site [43,44].

Likewise, weak peaks can be observed in the 1000-1350 cm^-1 region for the heat-treated samples, associated with the bending of the Al–O–H bond (for AAO + 600TT + PW) and indicating the presence of Al=O bonds (for AAO + 600TT) [45,46].

3.1.3. XRD Analysis

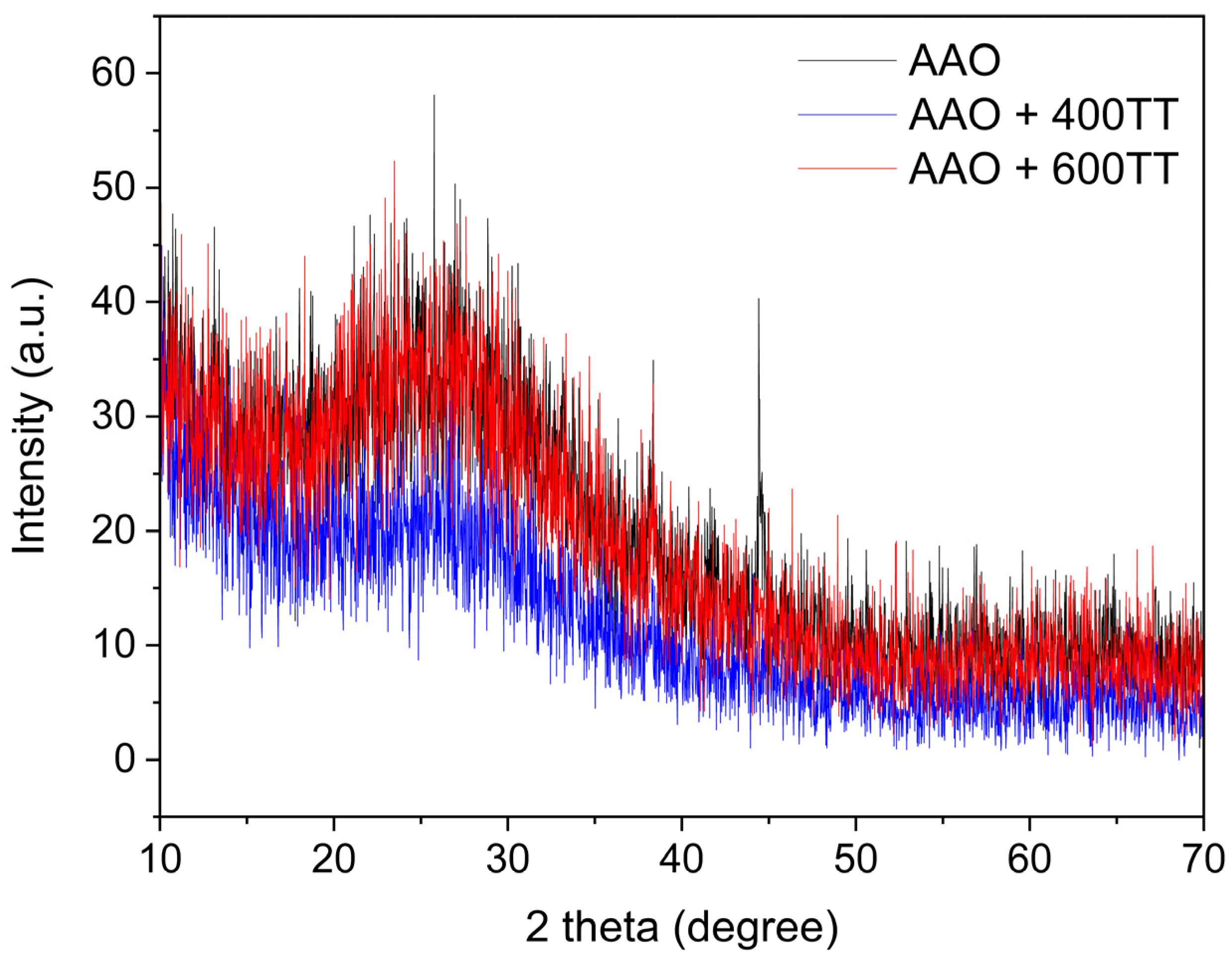

Figure 4 shows the X-ray diffraction (XRD) spectra of the AAO samples with and without annealing. The absence of peaks in the diffractogram of the uncalcined sample indicates an amorphous structure.

3.2. EBT Adsorption

3.2.1. Effect of AAO Treatments

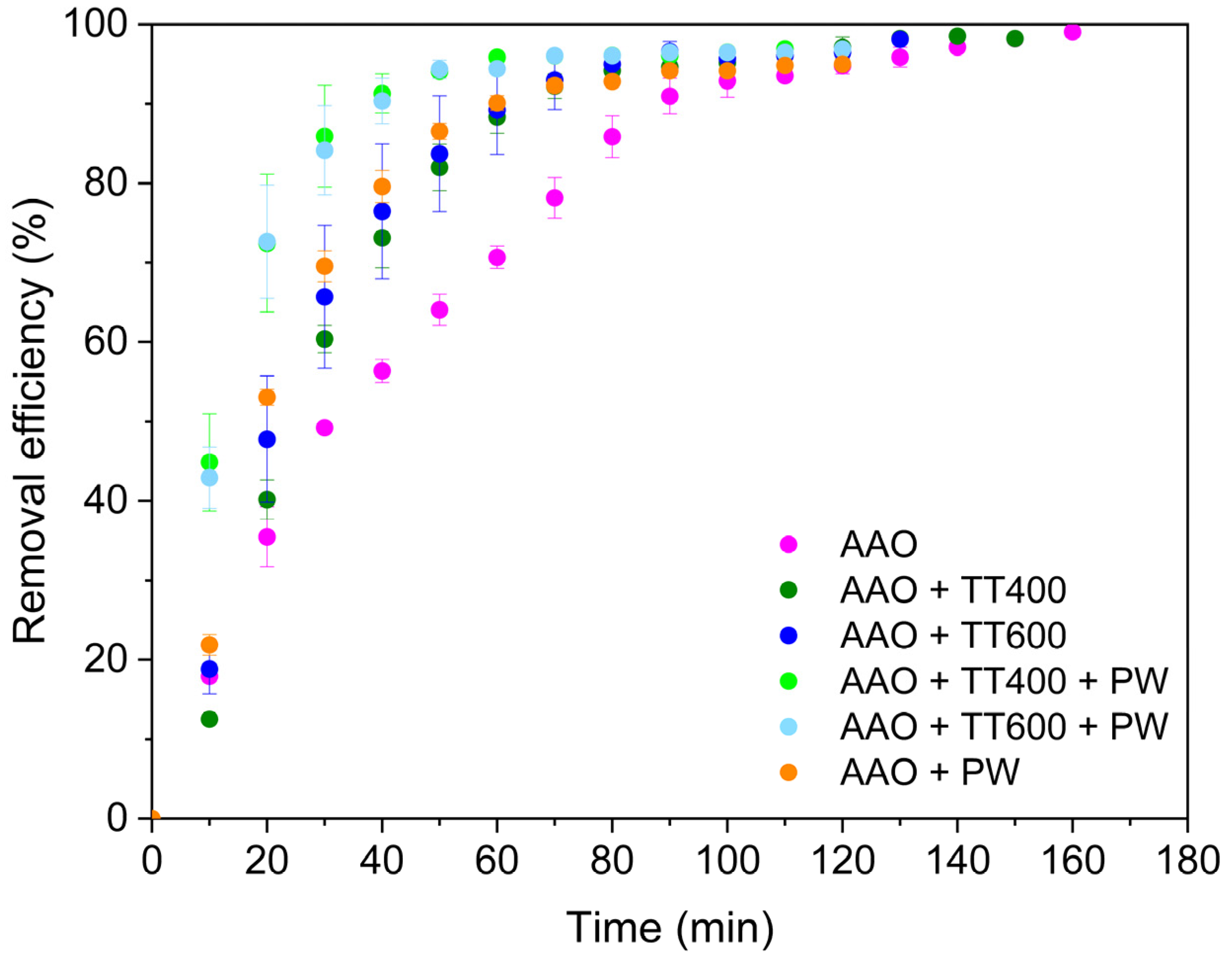

The impact of the treatments applied to the AAO films on EBT adsorption is illustrated in Figure 5. In general, the dye removal efficiency (%R) curves over time exhibited similar behavior across all tested samples, with two distinct zones: a) the high-speed region, characterized by a steep slope where the maximum %R values ​​are rapidly approached, and b) the steady-state region where equilibrium between adsorption and desorption is established and the %R remains constant. Notably, the maximum EBT removal value (100%) was observed at 160 seconds in all cases.

The maximum adsorption performance was achieved with nanoadsorbents subjected to both calcination (400–600 °C) and pore widening (PW), with no significant differences observed between their respective removal curves. The AAO + 400TT + PW and AAO + 600TT + PW samples reached removal efficiencies exceeding 90% after only 60 min of contact. In contrast, individual treatments (calcination or PW alone) showed a notable improvement over the untreated material, reaching values between 80% and 90% after 60 min of testing.

The applied treatments significantly enhanced the AAO adsorption performance, yielding a 38% increase in removal efficiency after 60 min. While total EBT removal requires extended contact times, the treatment successfully shortened the period needed to surpass 90% efficiency to only 1 h.

3.2.2. Effect of pH

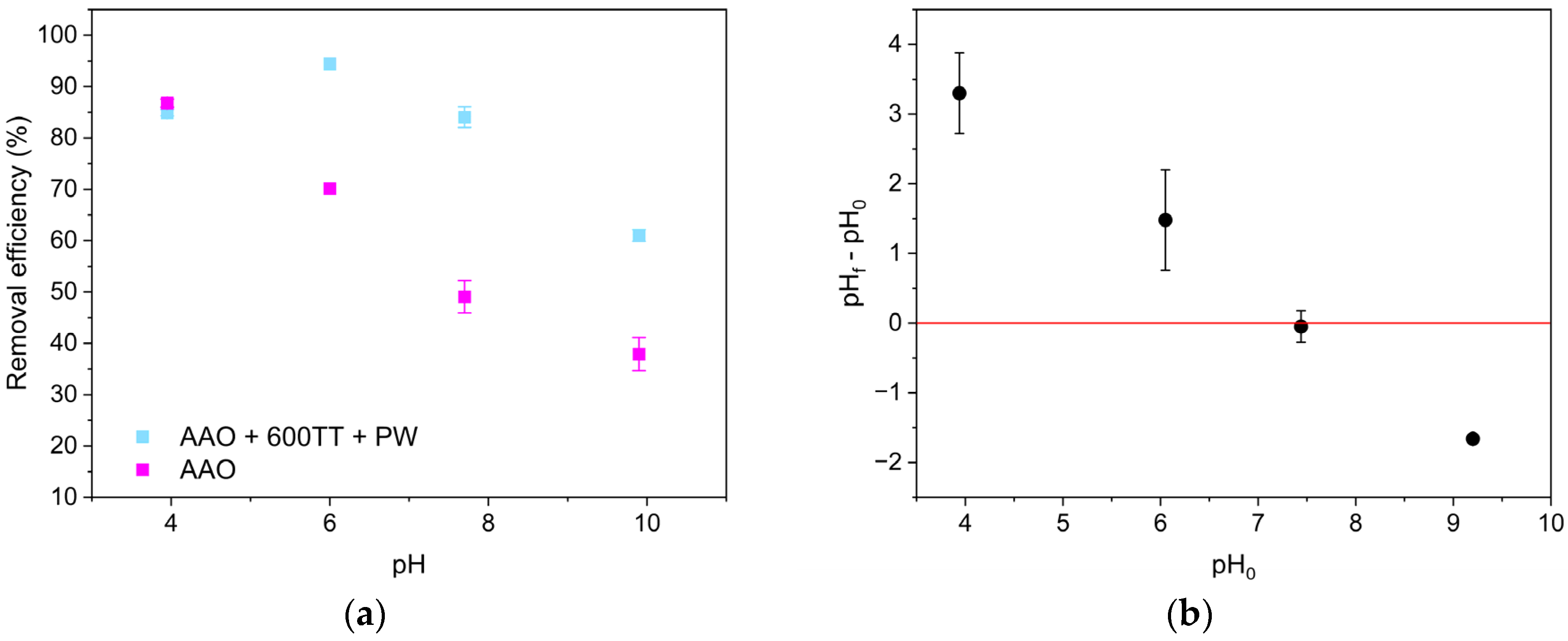

Figure 6a displays the EBT adsorption results at different pH levels using AAO and AAO + 600TT + PW. For the untreated AAO nanoadsorbent, the maximum removal efficiency was achieved under acidic conditions (90% at pH 4) and decreased inversely with increasing pH, reaching the lowest removal percentage at pH 10 (40%). Conversely, the AAO + 600TT + PW films showed maximum EBT removal at pH 6 (95%), with no statistically significant differences between pH 4 and 8 (around 85%). These findings confirm a noticeable enhancement in the adsorption capacity of AAO + 600TT + PW over untreated AAO, evidenced even at pH 10, where EBT removal increased by 20% in absolute terms.

Since the behavior of the AAO + 600TT + PW nanoadsorbent may be related to the surface charge of the oxide, its point of zero charge (pHpzc) was determined. According to Figure 6b, the pHpzc was 7.45. Therefore, at pH < pHpzc, the material surface undergoes protonation, favoring a net positive charge, whereas at pH > pHpzc, deprotonation of the surface groups occurs, leading to a negative charge. These results indicate that physisorption, mediated by electrostatic attractions, plays a decisive role in the process, although it is not the only mechanism involved in removal within this system.

3.2.3. Reusability

The reusability of the nanoadsorbent was evaluated using the treatment combination that exhibited the highest adsorptive efficiency (AAO 600TT + PW).

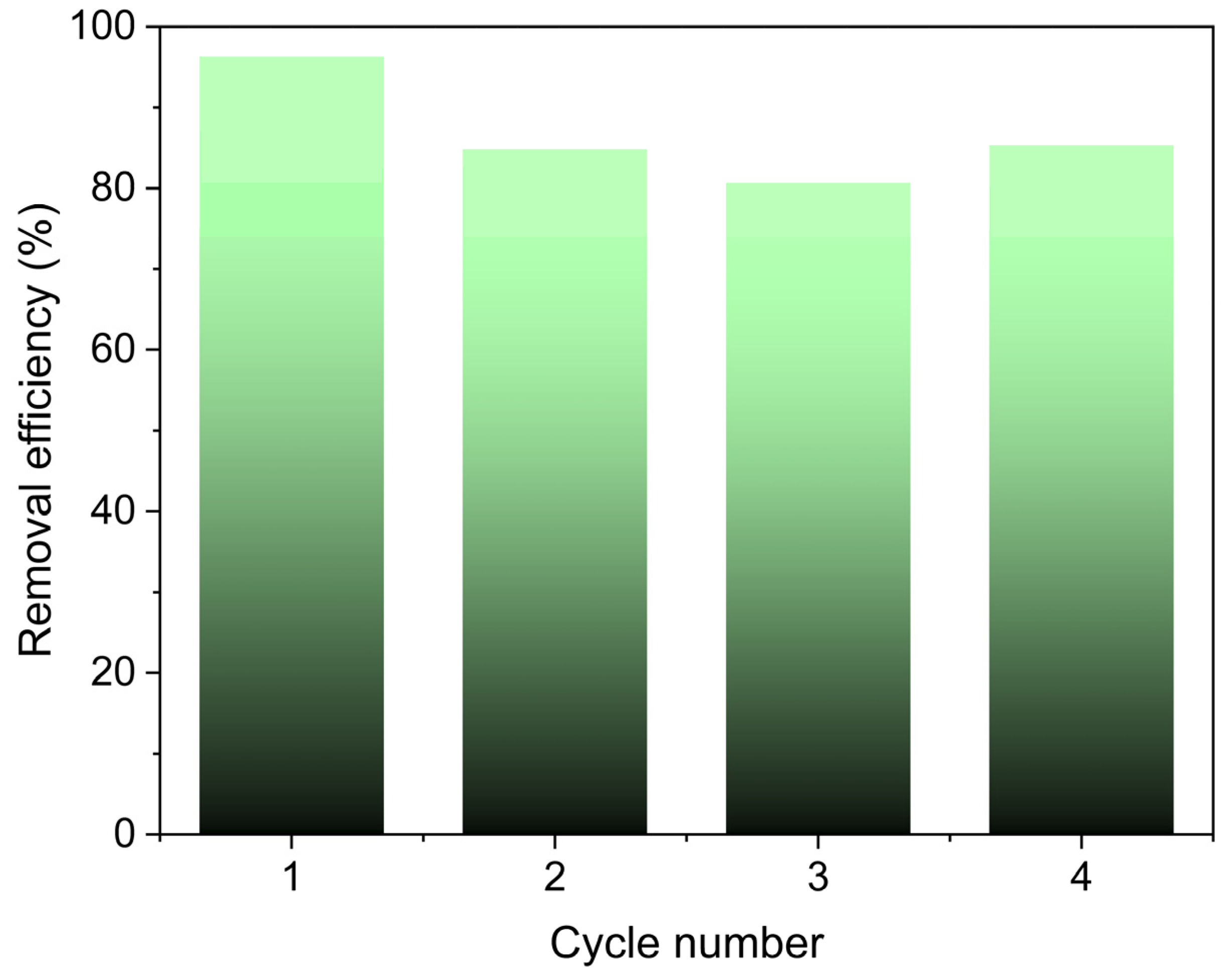

Figure 7 illustrates the results of four adsorption-regeneration cycles, where the EBT removal efficiency was quantified at the end of each stage. The findings indicate that post-adsorption calcination (600 °C, 1 h) effectively regenerated the adsorbent, allowing for its reuse in up to four consecutive cycles for the treatment of EBT-colored solutions, maintaining removal efficiencies above 80%.

4. Discussion

AAO films synthesized in 0.3 M oxalic acid at 40 °C and 30 V exhibited a remarkable enhancement in their adsorption capacity for EBT after undergoing thermal and chemical treatments. To evaluate this performance, the adsorption process was conducted under the identical conditions reported by Kramer et al. [29] (60 °C and 500 rpm). Although near-complete dye decolorization was achieved for all analyzed conditions after 160 min of contact time, the post-anodization treatments reduced the time required to achieve over 80% removal to just 1 h. Compared to the untreated material, this represented a 10% efficiency increase for the samples that were individually calcined or chemically etched, and a 38% increase when calcination was combined with alkaline etching. Furthermore, the complete coverage of the AAO nanopores by the dye molecules was observed in Figure 1b, a phenomenon also reported by Kramer et al. [29] but achieved within a shorter adsorption time (2.7 h).

The adsorption process is governed by factors such as the chemical nature and physical properties of the adsorbent-adsorbate system, the initial adsorbate concentration, the adsorbent dosage, temperature, agitation speed, and solution pH [1,3,13]. In this regard, the enhancements observed in the EBT removal capacity are primarily attributed to the morphological and chemical modifications induced by the post-anodization treatments.

Morphological characterization results (Figure 1) revealed significant differences in pore size, porosity, and homogeneity between the untreated and modified oxide films. Under identical anodic synthesis conditions, the AAO exhibited a pore diameter of 27 nm and a porosity of 21%, values that are consistent with those reported by Kramer et al. [29]

The pore-widening process increased the pore diameter and porosity by 38% for both calcined and uncalcined AAO samples, significantly enhancing the specific surface area of the nanoadsorbent. Consequently, the enhanced EBT adsorption capacity observed for the AAO + 400TT + PW and AAO + 600TT + PW samples can be attributed to the greater availability of active sites for interaction with the dye molecules, as well as an optimal pore diameter that favors molecular diffusion into the interior of the film.

On the other hand, the individual treatments applied to the AAO (either calcination or PW alone) exhibited similar dye removal efficiency profiles over time (Figure 5). The NaOH etching was more aggressive on the samples without prior calcination, inducing delamination, cracking, and a notably more irregular surface (Figure 2f and Figure 2g). This excessive dissolution of the oxide layer could explain why the dye adsorption was lower compared to the results obtained when the combined treatments (calcination + PW) were applied.

According to Chen et al. [47], thermal treatment of the films at low temperatures induces pore wall thickening via the diffusion of aluminum from the substrate and ambient oxygen, which combine to form additional alumina. This structural thickening, evidenced by a decrease in pore diameter, was not discernible for the AAO synthesized via a single-step anodization without pretreatment under the aforementioned conditions (Figure 2a). However, the excessive dissolution of the oxide layer was prevented by applying a prior calcination step to stabilize the material, which is consistent with the findings reported by Kozhukhova et al. [48], yielding the optimal results at 600 °C (Figure 2j and Figure 2k).

The enhanced adsorption capacity cannot be attributed to a structural transition of the aluminum oxide, given that the thermal treatments were conducted at temperatures below those required for the phase change (from amorphous to crystalline).

On the other hand, although modifying the oxide structure is preferentially achieved using H₃PO₄ and, to a lesser extent NaOH solutions [38,49,50], preliminary studies (data not shown) revealed a significant decrease in the EBT adsorption capacity for samples treated with a 5 wt% H₃PO₄ solution. This behavior is attributed to surface deactivation or contamination resulting from the presence of phosphate functional groups. Consequently, controlled treatment with dilute NaOH solutions and short exposure times constitutes a viable alternative to induce pore widening and increase the specific surface area of the film without compromising its EBT removal efficiency.

The FTIR spectroscopic results elucidate with greater clarity the relationship between surface chemistry, the applied treatments, and the enhancement of the adsorption process. The obtained spectra demonstrated an increase in functional groups, specifically those characteristics of the high-frequency region, as a function of the applied modifications. Within the 3000–3700 cm^-1 range, the AAO + 600TT sample exhibited a lower intensity band, demonstrating an -OH absorbance peak decay consistent with severe thermal dehydration. Conversely, for the same range, the AAO + 600TT + PW sample displayed a more defined and intense -OH stretching band, which is directly attributed to the alkaline post-treatment [44,51]. Spectral variations within the 1000–1350 cm^-1 region further propose a chemical evolution of the alumina surface depending on the post-synthesis treatment. For the AAO + 600TT sample, the severe thermal dehydroxylation at 600 °C removes bound water and surface hydroxyls, forcing the formation of stable, terminal Al=O bonds due to the high coordination unsaturation of the aluminum sites [45]. In contrast, for the AAO + 600TT + PW sample, the subsequent chemical etching with 0.5 N NaOH breaks these surface oxo-complexes during the pore-widening process. The alkaline medium and subsequent rinsing re-hydroxylate the newly exposed pore walls, leading to the re-emergence of the Al–O–H bending vibrations in this region. Additionally, the appearance of the peaks in the 2340–2366 cm^-1 region for both the AAO + 600TT and AAO + 600TT + PW spectra is also directly related to the thermal treatment and the extensive dehydroxylation of the material. The removal of chemically bound water and surface -OH groups leave coordinatively unsaturated Al³⁺ ions exposed, which act as high-energy Lewis acid sites capable of interacting and weakly coordinating with CO₂ (either atmospheric or entrapped) [44]. The persistence of these peaks even after the chemical etching with NaOH can be attributed to the nature of the pore-widening process; the dissolution of the oxide walls continually exposes fresh alumina layers, generating new unsaturated Al³⁺ sites along the expanded porous structure that remain available for weak gas coordination.

Consequently, the aforementioned findings demonstrate that the thermal and chemical treatments performed on the AAO modify its surface chemical properties, thereby promoting new physical and chemical interactions when exposed to dye aqueous solutions, and thus enhancing the overall adsorption process.

Based on the above, the enhanced EBT adsorption resulting from the thermal treatment of AAO at 600 °C is primarily driven by modifications in the surface chemistry of the adsorbent. In this case, the adsorbate-adsorbent interaction is promoted by the affinity between the surface Al³⁺ cations (acting as Lewis acids) exposed on the AAO + 600TT sample and the electron-donating groups (Lewis bases) inherent to the EBT molecules. Furthermore, for the AAO + 600TT + PW nanoadsorbent, the improvement in removal efficiency can be attributed to both the Lewis acid-base interactions at the remaining sites and the increase in specific surface area. This latter effect leads to a higher density of functional groups (such as hydroxyl groups) that favor the physisorption mechanism.

Assays conducted at different pH values demonstrated that the adsorption process is governed by the surface chemistry of the adsorbent and the nature of the adsorbate. Within this system, dye removal occurs via a dual mechanism combining physisorption and chemisorption, in agreement with Kramer et al. [29].

Physisorption is primarily driven by electrostatic forces between the pH-dependent AAO surface and the anionic EBT dye. At pH values below the pHpzc, the AAO surface becomes protonated, which favors the electrostatic attraction of EBT. Conversely, at pH values above the pHpzc, surface deprotonation induces negative charges, resulting in electrostatic repulsion with the dye [11,33]. This behavior accounts for the decrease in EBT removal efficiency observed under alkaline pH conditions for both the AAO and AAO + 600TT + PW nanoadsorbents. Furthermore, it confirms that physisorption is the predominant mechanism for the untreated AAO.

Additionally, the medium's pH alters the chemical structure of the EBT. Under alkaline conditions, EBT acts as a Lewis base due to the deprotonation of its neighboring phenolic hydroxyl groups, generating negatively charged oxygen atoms and lone electron pairs. Moreover, the high-electron-density –SO₃H; –N=N–; –NO₂ groups act as donor sites capable of coordinating cations [52]. Concurrently, the AAO surface exhibits a Lewis acid character because the exposed aluminum atoms (coordinatively unsaturated Al⁺³ sites) possess vacant orbitals capable of accepting electrons [53,54]. This supports the occurrence of the chemisorption mechanism within the global EBT adsorption process onto AAO, alongside the aforementioned physisorption pathway.

Finally, the higher EBT removal capacity displayed by the AAO + 600TT + PW sample compared to the untreated AAO within the pH range of 6–10 (Figure 6) is attributed to the increase in specific surface area induced by the alkaline etching. This treatment enhances the exposure of Al⁺³ sites available for chemisorption, thereby shifting this mechanism to become dominant over physisorption under these conditions [52].

The reusability of the AAO + 600TT + PW nanoadsorbent was demonstrated over four consecutive cycles, maintaining dye removal efficiencies above 85%. Adsorbent regeneration via post-adsorption calcination at 600 °C for 1 h successfully preserved the adsorption capacity of the material in subsequent runs. This performance contrasts with alternative regeneration methods, such as utilizing dilute NaOH solutions as an eluent for dye desorption [29,33]. The 10% decrease in removal efficiency observed from the second cycle onward can be attributed to the effect of successive calcinations, which structurally and chemically alter the oxide film [37].

5. Conclusions

A substantial enhancement in the Eriochrome Black T (EBT) adsorption capacity was achieved by subjecting anodic aluminum oxide (AAO) to combined thermal and chemical post-treatments, yielding removal efficiencies exceeding 90% within 60 min. These findings establish a critical baseline for evaluating the performance of this adsorbent in real water matrices and provide essential insights for scaling up the process toward its integration into full-scale wastewater treatment systems.
