Experimental Analysis of Motion Response, Mooring Loads, and Failure Redundancy of an Eight-Point System for the OCTABUOY Platform

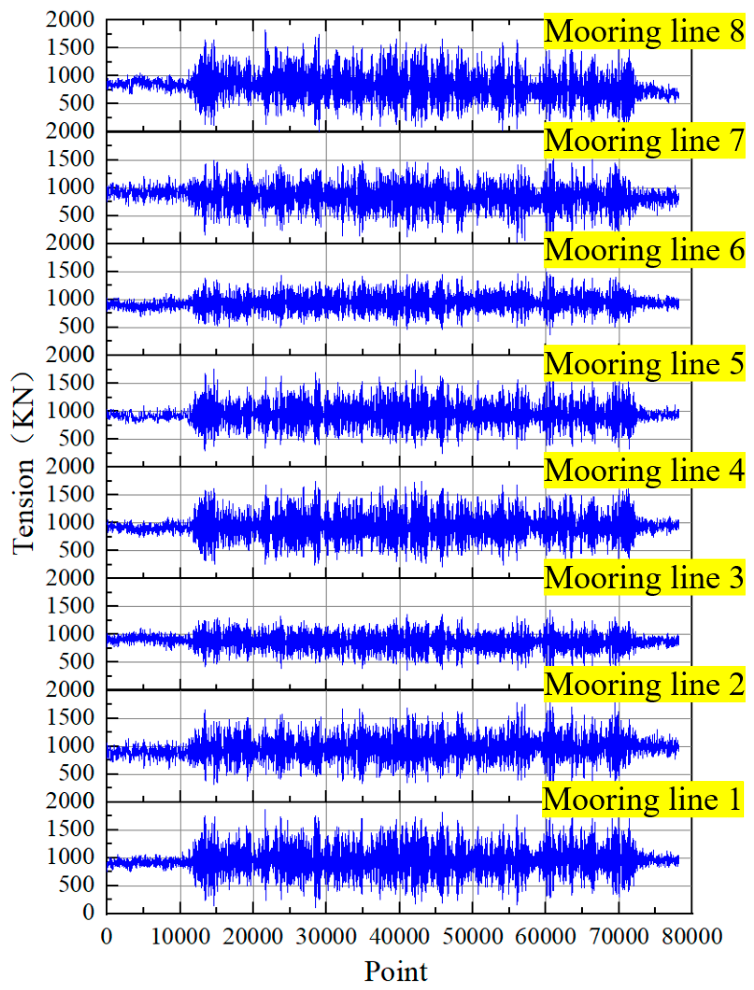

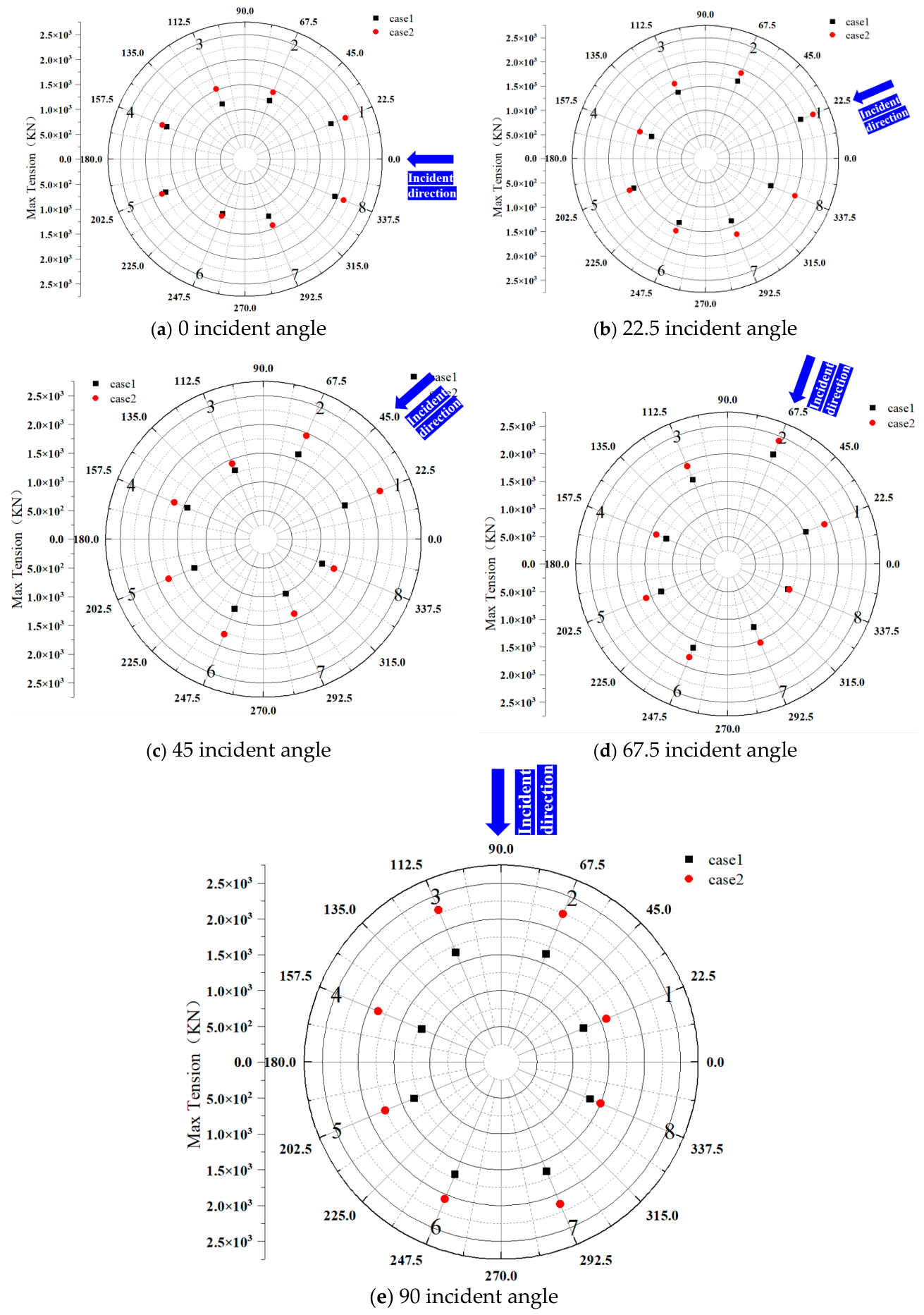

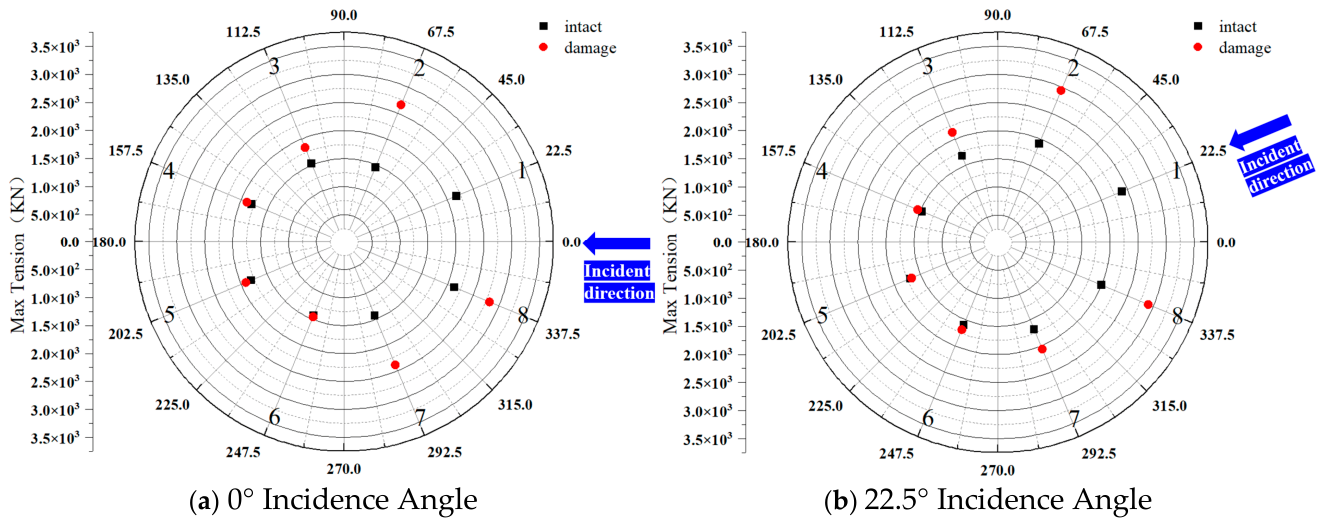

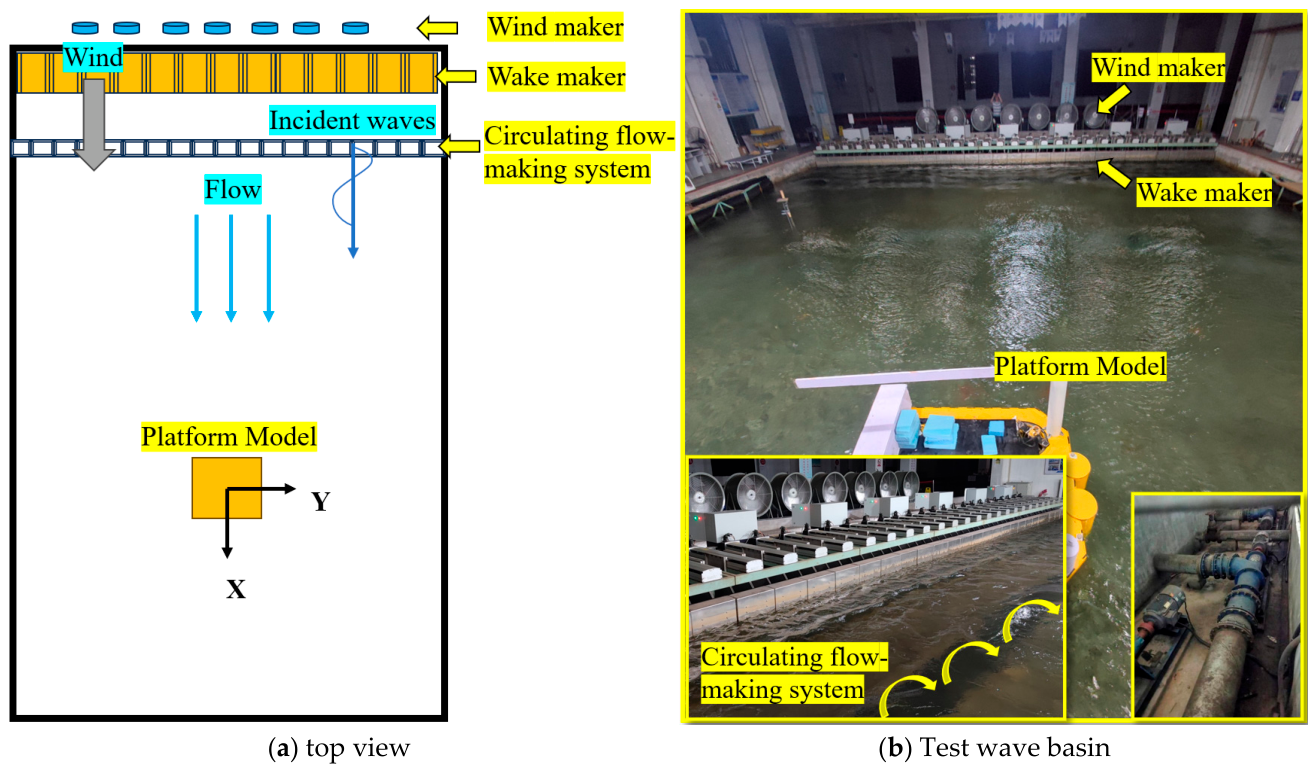

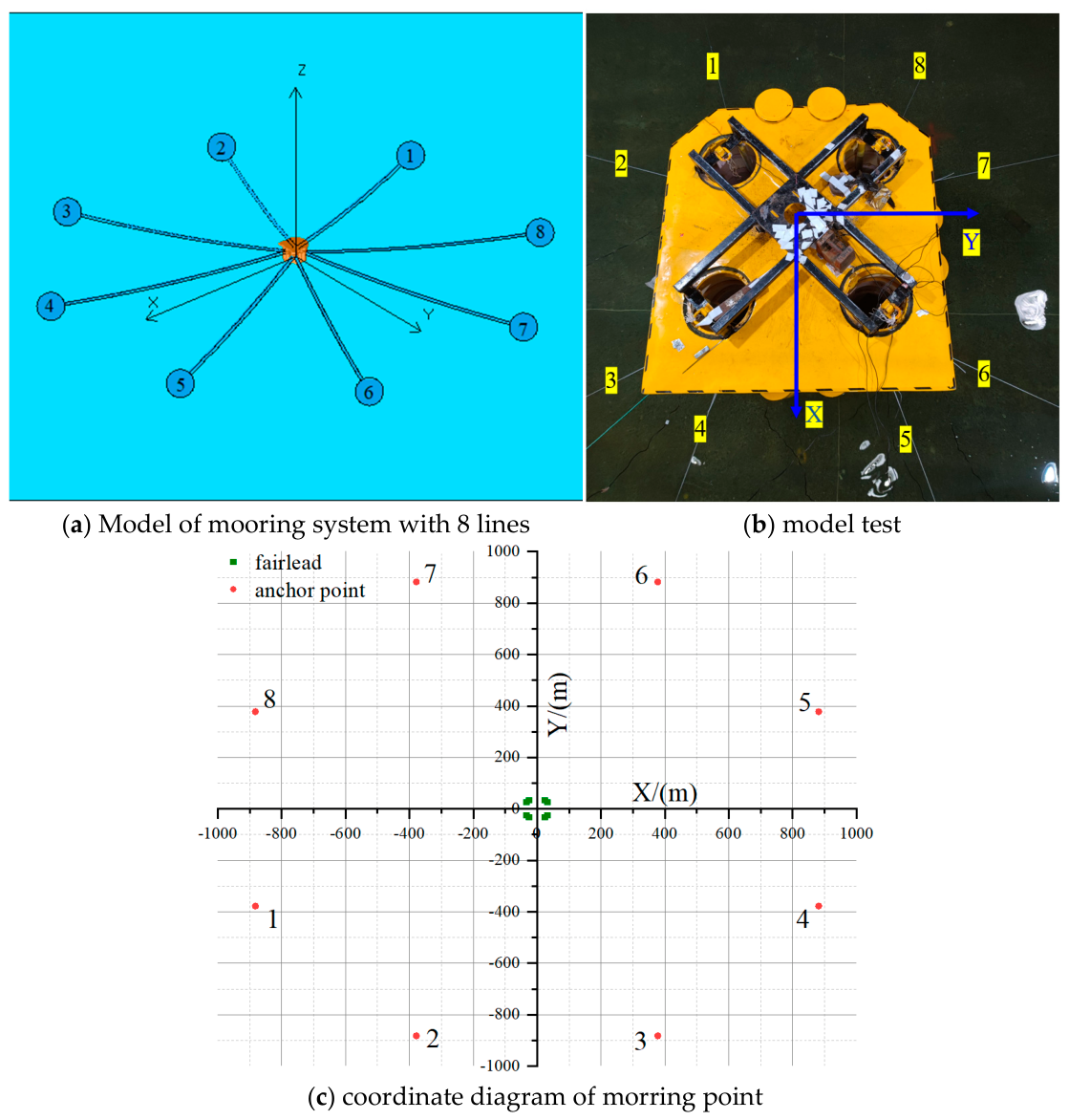

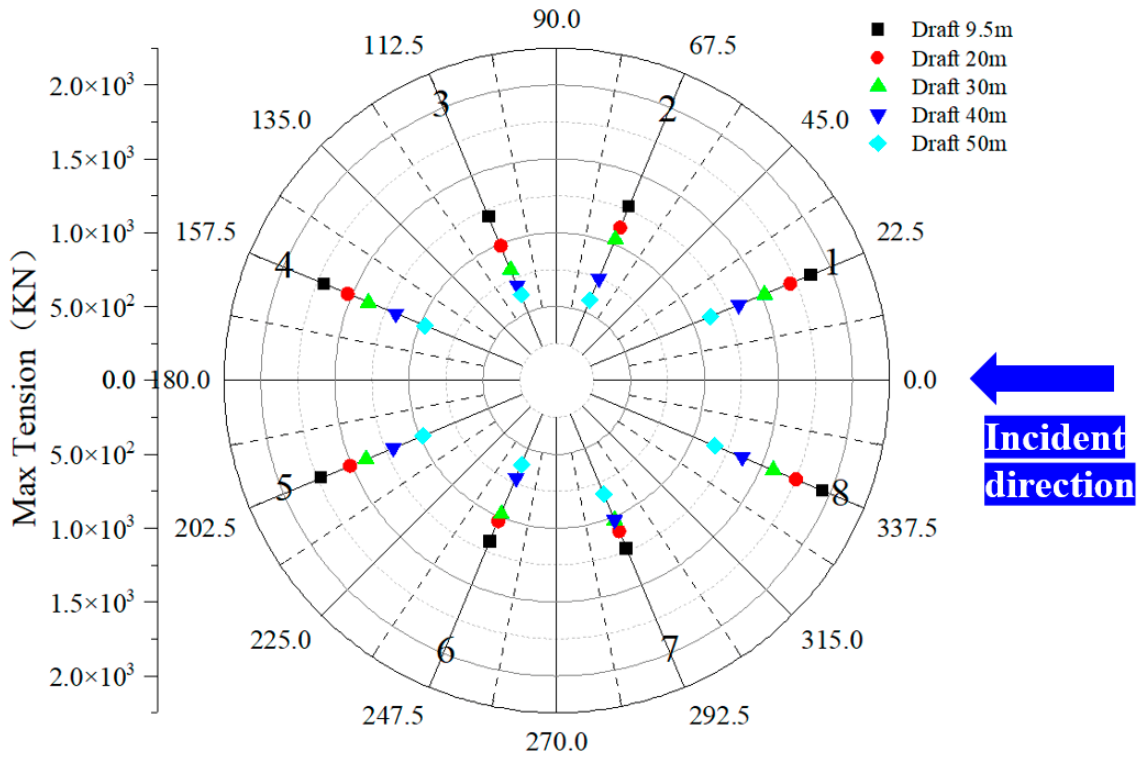

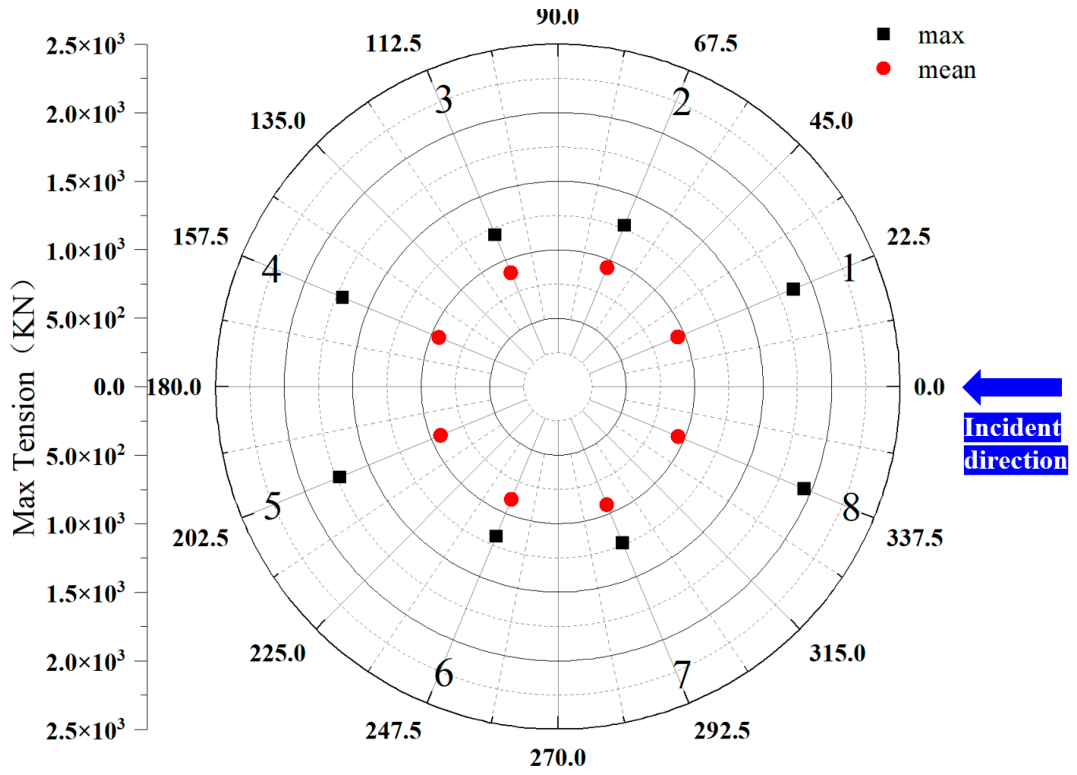

To ensure the operational safety of the OCTABUOY platform used for offshore wind turbine installation in shallow waters, an eight-point symmetric mooring system was designed based on its octagonal structural configuration. The system provides high horizontal stiffness and balanced load distribution, enhancing stability under complex environmental conditions.Physical model tests were conducted under combined wind, wave, and current loading, considering multiple wave directions, environmental cases, and five draft conditions. The mooring tensions and six-degree-of-freedom motions were systematically analyzed to evaluate system performance and safety.Results show that the proposed mooring system effectively limits platform motions and maintains stable load-sharing characteristics. The minimum safety factor under the most unfavorable condition exceeds the design requirement. In addition, the system demonstrates good redundancy: after single-line failure, remaining mooring lines redistribute loads without progressive collapse. Draft and wave incident angle significantly influence peak tensions and motion responses, with smaller drafts and oblique wave directions producing relatively higher loads.The experimental results confirm the reliability and safety margin of the eight-point mooring system and provide practical guidance for the engineering application and operational assessment of the OCTABUOY platform in shallow-water wind installation projects..
