Submitted:
02 May 2026
Posted:
05 May 2026
You are already at the latest version
Abstract
Keywords:
1. Introduction
2. Why Biology Is an Appropriate Model

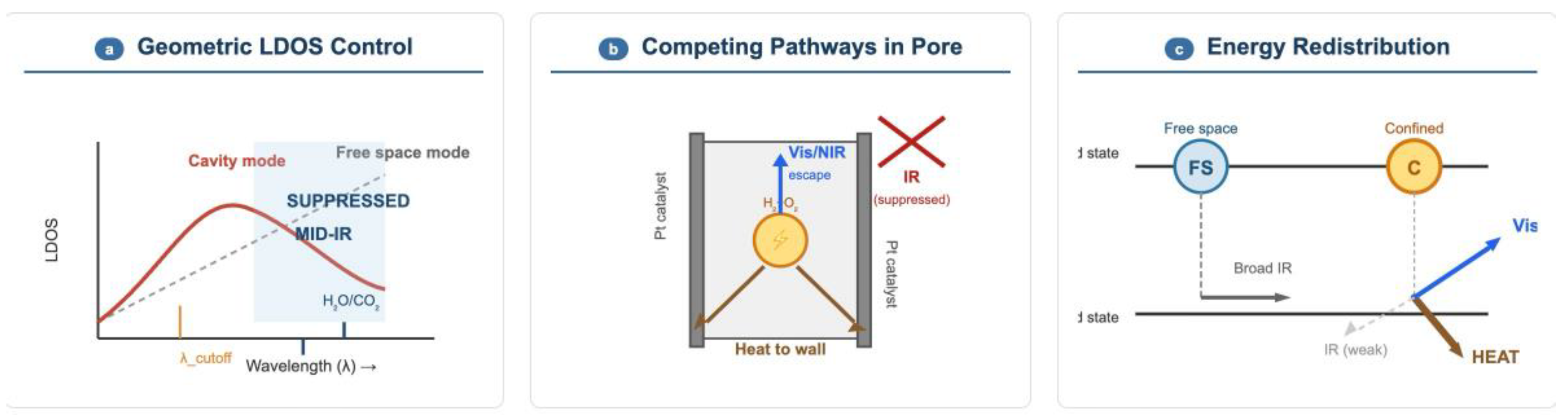

3. Nanocavity Interaction and Redistribution of Rovibrational Emission
3.1. Theoretical Framework
3.2. Waveguide Cutoff as a Guide for Free-Space Escape
3.3. Engineering Relevance
| Platform | D (nm) | λparallel ≈1.31D (nm) | λperp ≈1.71D (nm) | Implication for mid-IR free-space escape |
| Metallic cavity array | 400 | 524 | 684 | TE11 cutoff at 684 nm: all mid-IR propagating modes are cut off → free-space axial emission strongly suppressed. |
| Pt-coated APA pore | 300 | 393 | 513 | Even stronger suppression of axial propagation; wall-coupled energy transfer favoured. |
4. Experimental Basis and Quantitative Indicators

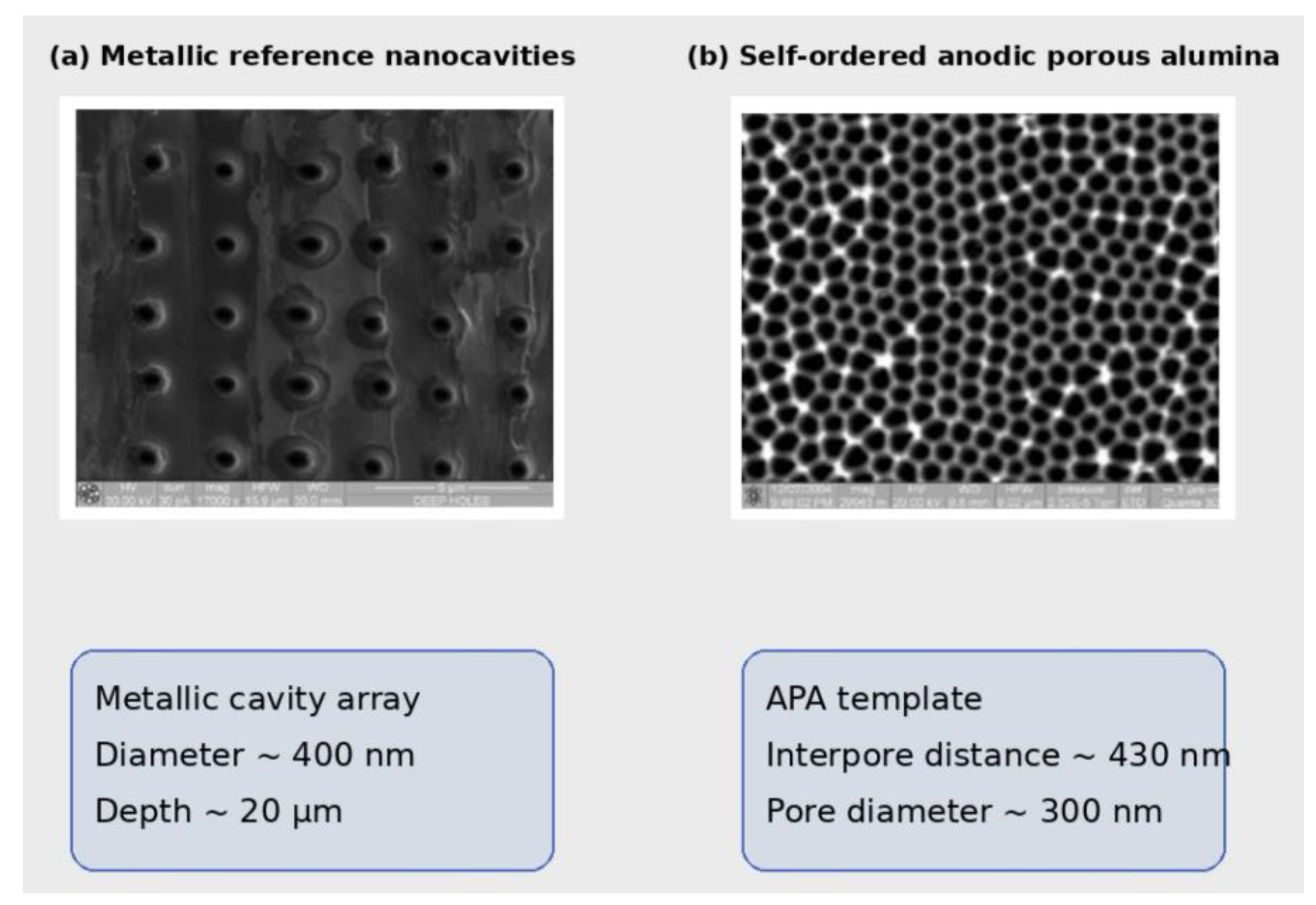

4.1. Experimental Platform

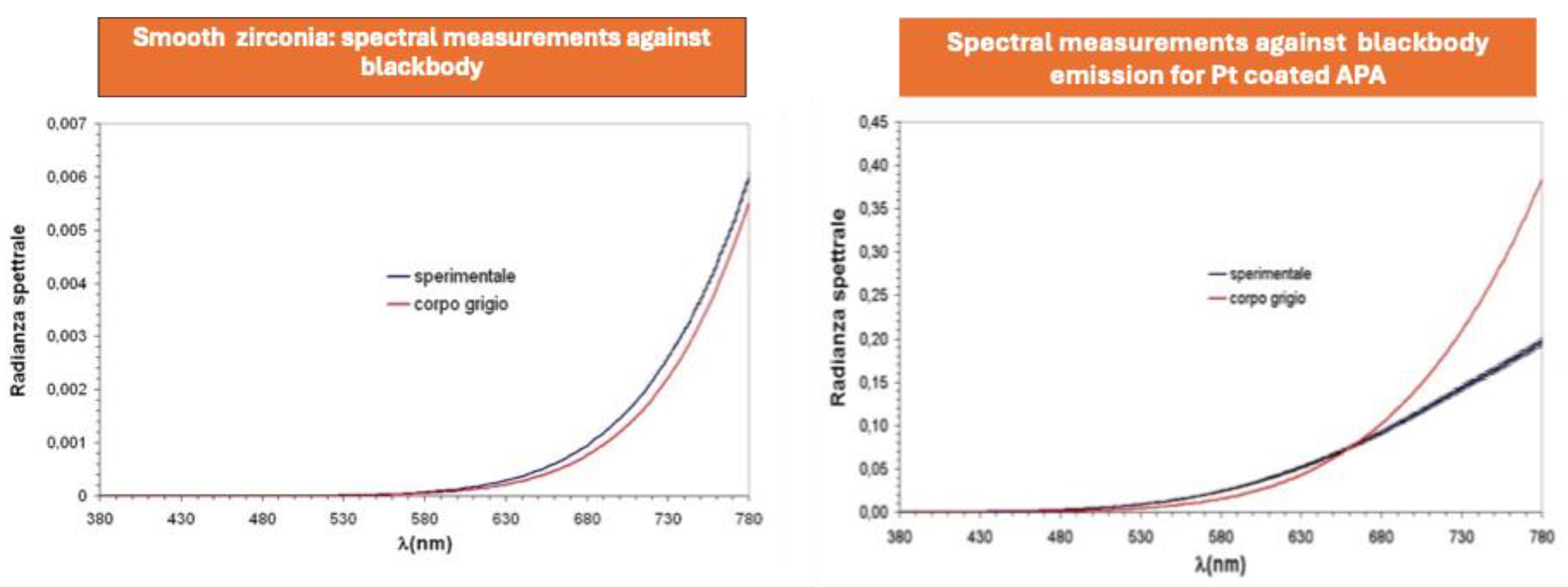

4.2. Approximate Quantitative Indicators from Visible/NIR Spectra
| Sample | Pointwise deviation in measured window | Integrated 680-780 nm radiance / grey-body fit | Crossover behaviour | Interpretation |
| Smooth zirconia | +25% at 680 nm, +17% at 730 nm, +9% at 780 nm | ≈ 1.15 | No strong inversion relative to fit in the red tail | Reference remains comparatively close to grey-body behaviour within the experimental window. |
| Pt-coated APA | –15% at 660 nm, –34% at 730 nm, –45% at 780 nm | ≈ 0.67 | Experimental and fitted curves approach near 660-680 nm, then diverge strongly | Ordered Pt-coated nanocavity sample shows a much stronger long-wavelength depression in the measured window. |
4.3. Scope and Limitations
5. Targeted FDTD Assessment of Mid-Infrared Radiative-Channel Redistribution
5.1. What Was Measured Experimentally and What Was simulated
5.2. Model Assumptions and Numerical Setup

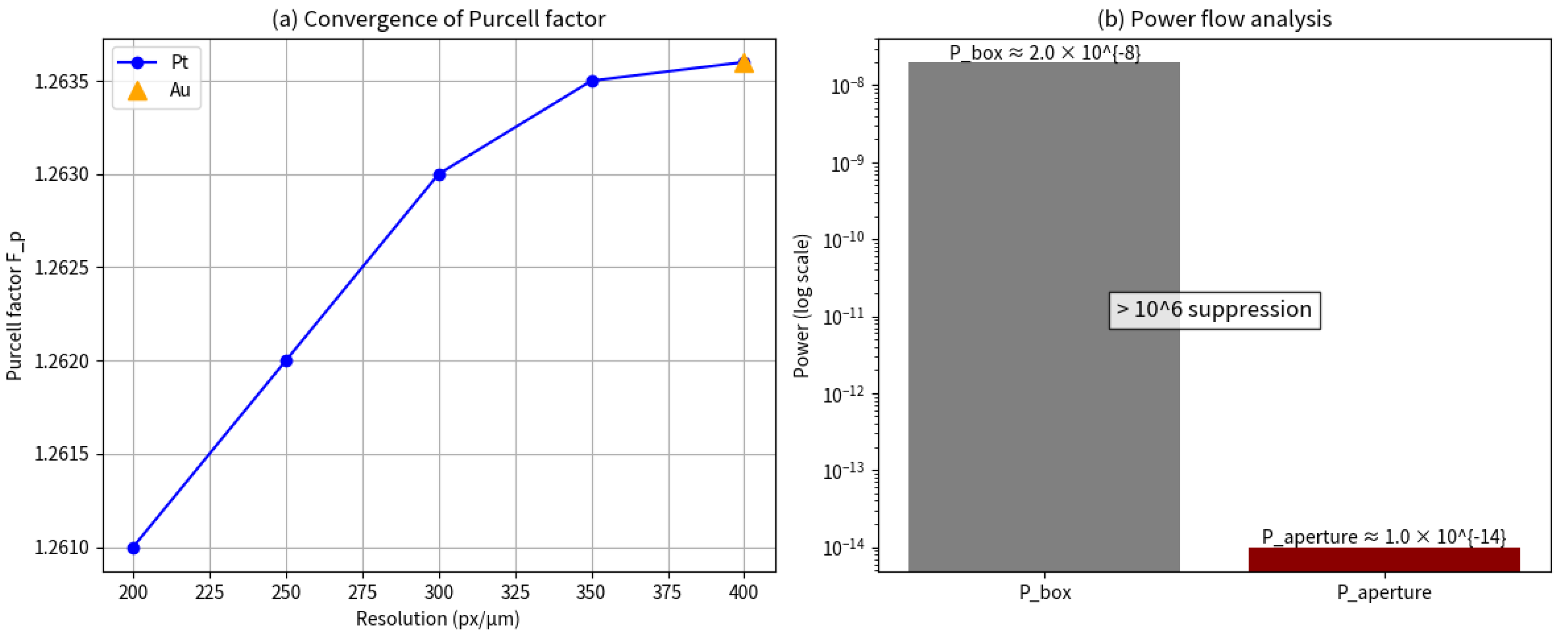

5.3. Results
- The LDOS-based Purcell factor stabilises at Fp ≈ 1.26 (≈ +26%) at 400 px/μm, with negligible change between 300 and 400 px/μm.
- The Au cross-check yields the same value within numerical precision (difference < 0.0001), confirming that the effect is purely geometric in the deep-Drude mid-infrared regime.
- ∙ Within the present monitor configuration, the box-integrated power enhancement is larger than the LDOS enhancement, while the recorded aperture power remains more than six orders of magnitude smaller than the box-integrated signal.
5.4. Interpretation and Scientific Scope

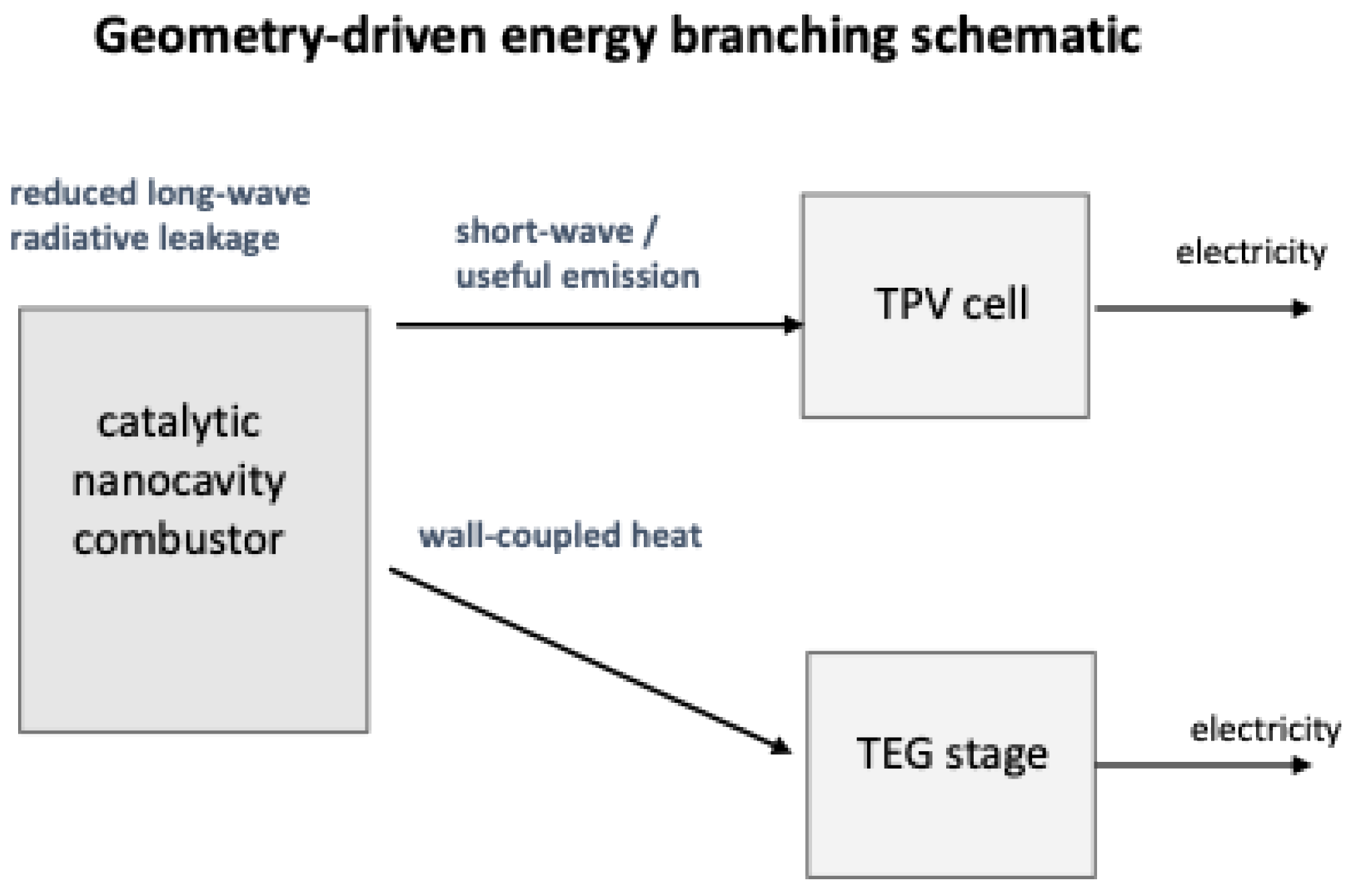

6. Relevance for Selective Energy Conversion
7. Validation Roadmap Toward Selective Energy-Conversion Devices
8. Conclusions
Acknowledgments
| Acronym | Meaning | Acronym | Meaning |
| APA | Anodic Porous Alumina | NOₓ | Nitrogen Oxides |
| FDTD | Finite-Difference Time-Domain | Pt | Platinum |
| IR | Infrared | RCWA | Rigorous Coupled-Wave Analysis |
| LDOS | Local Density of Optical States | TEG | Thermoelectric Generator |
| NIR | Near-Infrared | TPV | Thermophotovoltaic |
| PML | Perfectly Matched Layer | Vis/NIR | Visible/Near-Infrared |
References
- Bykov, V.P. Spontaneous emission in a periodic structure. Sov. Phys. JETP 1972, 35(2), 269–273. [Google Scholar]
- Yablonovitch, E. Inhibited spontaneous emission in solid-state physics and electronics. Phys. Rev. Lett. 1987, 58(20), 2059–2062. [Google Scholar] [CrossRef]
- John, S. Strong localization of photons in certain disordered dielectric superlattices. Phys. Rev. Lett. 1987, 58(23), 2486–2489. [Google Scholar] [CrossRef]
- Optical Processes in Microcavities; Chang, R.K., Campillo, A.J., Eds.; World Scientific: Singapore, 1996. [Google Scholar] [CrossRef]
- Mitchell, P. Coupling of phosphorylation to electron and hydrogen transfer by a chemiosmotic type of mechanism. Nature 1961, 191, 144–148. [Google Scholar] [CrossRef]
- Bar-Peled, L.; Kory, N. Principles and functions of metabolic compartmentalization. Nat. Metab. 2022, 4(10), 1232–1244. [Google Scholar] [CrossRef]
- Flori, S.; Jouneau, P.H.; Bailleul, B.; Gallet, B.; Estrozi, L.F.; Schober, A.; et al. Plastid thylakoid architecture optimizes photosynthesis in diatoms. Nat. Commun. 2017, 8, 15885. [Google Scholar] [CrossRef] [PubMed]
- Trimmer, B.A.; Aprille, J.R.; Dudzinski, D.M.; Lagace, C.J.; Lewis, S.M.; Michel, T.; et al. Nitric oxide and the control of firefly flashing. Science 2001, 292(5526), 2486–2488. [Google Scholar] [CrossRef]
- Kim, J.J.; Lee, Y.; Kim, H.G.; Choi, K.J.; Kweon, H.S.; Park, S.; Jeong, K.H. Biologically inspired LED lens from cuticular nanostructures of firefly lantern. Proc. Natl. Acad. Sci. U S A 2012, 109(46), 18674–18678. [Google Scholar] [CrossRef] [PubMed]
- Bay, A.; Cloetens, P.; Suhonen, H.; Vigneron, J.P. Improved light extraction in the bioluminescent lantern of a Photuris firefly (Lampyridae). Opt. Express 2013, 21(1), 764–780. [Google Scholar] [CrossRef]
- Hu, H.W.; Carson, G.A.; Granick, S. Relaxation time of confined liquids under shear. Phys. Rev. Lett. 1991, 66(21), 2758–2761. [Google Scholar] [CrossRef]
- Cui, S.T.; McCabe, C.; Cummings, P.T.; Cochran, H.D. Molecular dynamics study of the nanorheology of n-dodecane confined between planar surfaces. J. Chem. Phys. 2003, 118(19), 8941–8944. [Google Scholar] [CrossRef]
- Fernandez-Pello, A.C. Micropower generation using combustion: issues and approaches. Proc. Combust. Inst. 2002, 29(1), 883–899. [Google Scholar] [CrossRef]
- Ju, Y.; Maruta, K. Microscale combustion: technology development and fundamental research. Prog. Energy Combust. Sci. 2011, 37(6), 669–715. [Google Scholar] [CrossRef]
- Maruta, K. Micro and mesoscale combustion. Proc. Combust. Inst. 2011, 33(1), 125–150. [Google Scholar] [CrossRef]
- Ahn, J.; Eastwood, C.; Sitzki, L.; Ronney, P.D. Gas-phase and catalytic combustion in heat-recirculating burners. Proc. Combust. Inst. 2005, 30(2), 2463–2472. [Google Scholar] [CrossRef]
- Pullini, D.; Repetto, P.; Bernard, S.; Doskolovich, L.; Perlo, P. Rigorous calculations and fabrication by self-assembly techniques of 2D subwavelength structures of gold for photonic applications. Appl. Opt. 2005, 44(24), 5127–5130. [Google Scholar] [CrossRef] [PubMed]
- Stura, E.; Bruzzese, D.; Valerio, F.; Grasso, V.; Perlo, P.; Nicolini, C. Anodic porous alumina as mechanical stability enhancer for LDL-cholesterol sensitive electrodes. Biosens. Bioelectron. 2007, 23(5), 655–660. [Google Scholar] [CrossRef]
- Gordon, I.E.; Rothman, L.S.; Hill, C.; Kochanov, R.V.; Tan, Y.; Bernath, P.F.; et al. The HITRAN2016 molecular spectroscopic database. J. Quant. Spectrosc. Radiat. Transf. 2017, 203, 3–69. [Google Scholar] [CrossRef]
- Li, W.; Fan, S. Nanophotonic control of thermal radiation for energy applications [Invited]. Opt. Express 2018, 26(12), 15995–16021. [Google Scholar] [CrossRef]
- Baranov, D.G.; Xiao, Y.; Nechepurenko, I.A.; Krasnok, A.; Alù, A.; Kats, M.A. Nanophotonic engineering of far-field thermal emitters. Nat. Mater. 2019, 18(9), 920–930. [Google Scholar] [CrossRef] [PubMed]
- Gentillon, P.; Singh, S.; Lakshman, S.; Lanzini, A.; Santarelli, M.; Torchio, M.F. A comprehensive experimental characterisation of a novel porous media combustion-based thermophotovoltaic system with controlled emission. Appl. Energy 2019, 254, 113721. [Google Scholar] [CrossRef]
- Sakakibara, R.; Stelmakh, V.; Chan, W.R.; Ghebrebrhan, M.; Joannopoulos, J.D.; Soljačić, M.; Čelanović, I. Practical emitters for thermophotovoltaics: a review. J. Photonics Energy 2019, 9(3), 032713. [Google Scholar] [CrossRef]
- Qian, Z.; Shan, L.; Zhang, X.; Liu, Q.; Ma, Y.; Gong, Q. Spontaneous emission in micro- or nanophotonic structures. PhotoniX 2021, 2, 21. [Google Scholar] [CrossRef]
- LaPotin, A.; Schulte, K.L.; Steiner, M.A.; Buznitsky, K.; Kelsall, C.C.; Friedman, D.J.; et al. Thermophotovoltaic efficiency of 40%. Nature 2022, 604(7905), 287–291. [Google Scholar] [CrossRef]
- Chen, S.; Guo, Y.; Pan, Q.; Shuai, Y. A review on current development of thermophotovoltaic technology in heat recovery. Int. J. Extrem Manuf. 2024, 6(2), 022009. [Google Scholar] [CrossRef]
- Federici, J.A.; Norton, D.G.; Bruggemann, T.; Voit, K.W.; Wetzel, E.D.; Vlachos, D.G. Catalytic microcombustors with integrated thermoelectric elements for portable power production. J. Power Sources 2006, 161(2), 1469–1478. [Google Scholar] [CrossRef]
- Ismail, A.K.; Abdullah, M.Z.; Zubair, M.; Ahmad, Z.A.; Jamaludin, A.R.; Mustafa, K.F.; Abdullah, M.N. Application of porous medium burner with micro cogeneration system. Energy 2013, 50, 131–142. [Google Scholar] [CrossRef]
- Grommet, A.B.; Feller, M.; Klajn, R. Chemical reactivity under nanoconfinement. Nat. Nanotechnol. 2020, 15(4), 256–271. [Google Scholar] [CrossRef] [PubMed]
- Dong, B.; Pei, Y.; Mansour, N.; Lu, X.; Yang, K.; Huang, W.; Fang, N. Deciphering nanoconfinement effects on molecular orientation and reaction intermediate by single molecule imaging. Nat. Commun. 2019, 10, 4815. [Google Scholar] [CrossRef] [PubMed]
- McCormack, K.L.; Li, J.; Yoklavich, T.J.; Xia, Y. A review of fluids under nanoconfinement: Reactivity, geomechanics, phase transitions, and flow. Phys. Fluids 2024, 36(9), 091301. [Google Scholar] [CrossRef]
- Wang, M.; Zhou, C.; Akter, N.; Tysoe, W.T.; Boscoboinik, J.A.; Lu, D. Mechanism of the accelerated water formation reaction under interfacial confinement. ACS Catal. 2020, 10(11), 6119–6128. [Google Scholar] [CrossRef]
- Yao, K.; Kong, G.; Zhang, D.; Zhou, H.; Zheng, Y. Bioinspired photonic materials for advanced thermal management. Chem. Soc. Rev. 2025. [Google Scholar] [CrossRef]
- Zhang, Y.; Tian, Q.; Zheng, S.; Yan, M.; Zhang, M. Coherent control of thermal radiation with nanophotonics. Adv. Photonics Res. 2025, 6(10), 2500019. [Google Scholar] [CrossRef]
- Wang, H.; Xu, Z.; Wang, C.; Hou, Z.; Bian, M.; Zhuang, N.; Tao, H.; Wang, Y.; Tang, X. Optimized design and application performance analysis of heat recovery hybrid system for radioisotope thermophotovoltaic based on thermoelectric heat dissipation. Appl. Energy 2024, 355, 122259. [Google Scholar] [CrossRef]
- Itoh, H.; Yanagishita, T. Anodic porous alumina membranes with chemical stability improved by atomic layer deposition coating of TiO2. ECS J. Solid State Sci. Technol. 2024, 13, 023002. [Google Scholar] [CrossRef]
- Roelli, P.; Hu, H.; Verhagen, E.; Reich, S. Nanocavities for molecular optomechanics: their fundamental description and applications. ACS Photonics 2024, 11(11), 4486–4501. [Google Scholar] [CrossRef] [PubMed]
- Garner, S.M.; Li, X.; Hammes-Schiffer, S. Simulation of vibronic strong coupling and cavity-modified hydrogen tunneling dynamics. J. Chem. Phys. 2025, 163(13), 134113. [Google Scholar] [CrossRef] [PubMed]
- Oskooi, A.F.; Roundy, D.; Ibanescu, M.; Bermel, P.; Joannopoulos, J.D.; Johnson, S.G. Meep: a flexible free-software package for electromagnetic simulations by the FDTD method. Comput Phys. Commun. 2010, 181(3), 687–702. [Google Scholar] [CrossRef]



| Quantity | Value | Interpretation |
| LDOSvac (reference) | 634.0 | Normalisation |
| LDOScav | 801.2 | Enhanced total LDOS |
| Purcell factor Fp (LDOS) | 1.26 | +26% total LDOS enhancement |
| Purcell factor Fp (box) | ≈ 2.8 | Additional redistribution into flux surfaces |
| Ratio Pbox / Paperture | > 106 | Extreme suppression of free-space axial emission |
| Assumed suppression of 2–15 µm relative band (radiative escape) | Relative TPV spectral efficiency vs. baseline | η_spec for λ_g ≈ 1.8 µm |
| 0% | 1.00 | 0.29 |
| 10% | 1.15 | 0.33 |
| 30% | 1.23 | 0.36 |
| 50% | 1.34 | 0.39 |
