Effects of Mineral Raw Materials on Melting-Crystallization Properties and Microstructure of Fluorine-Free Mold Flux for High-Titanium Steel Continuous Casting

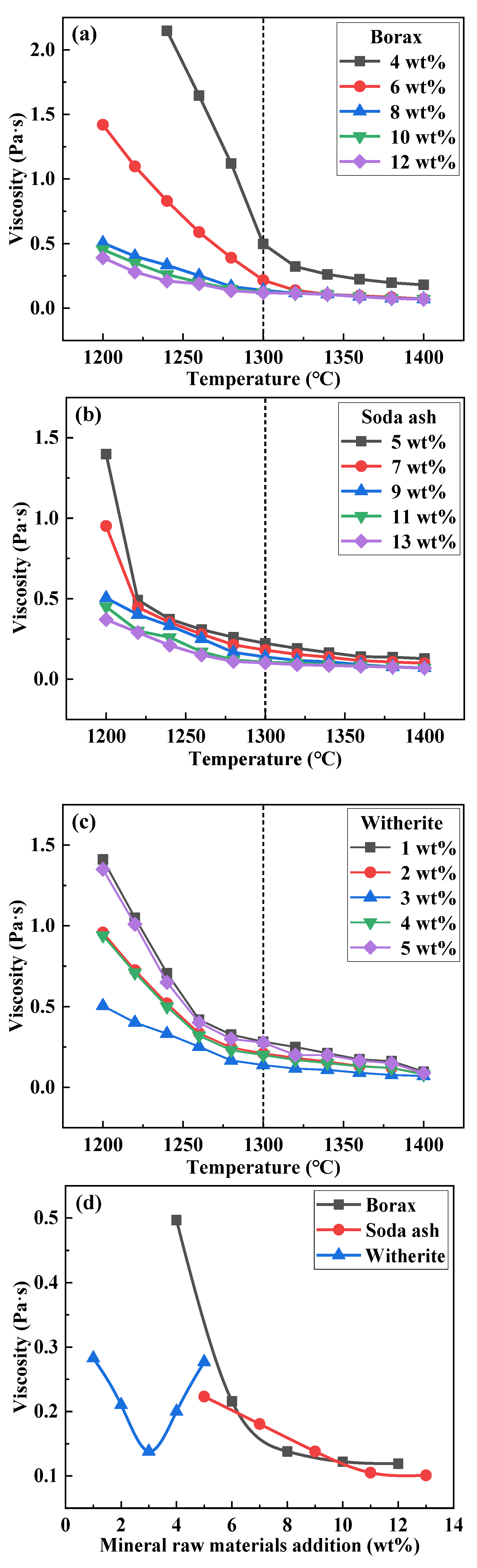

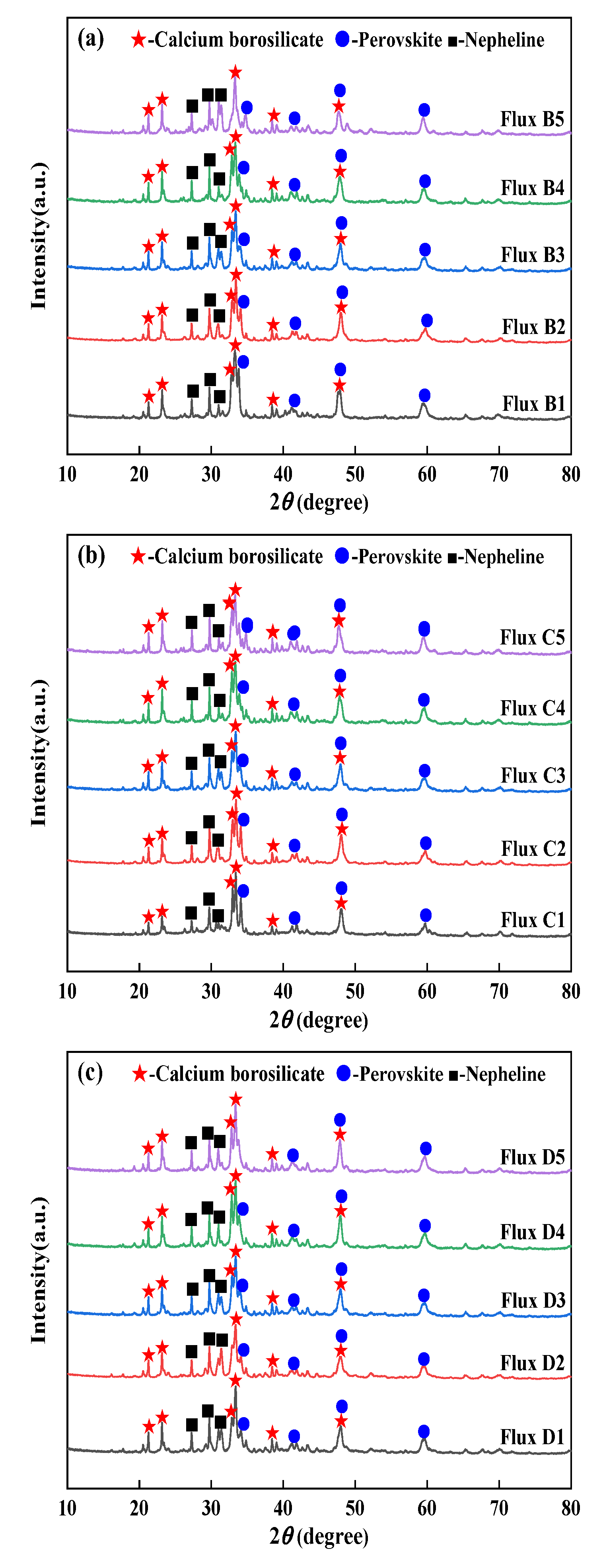

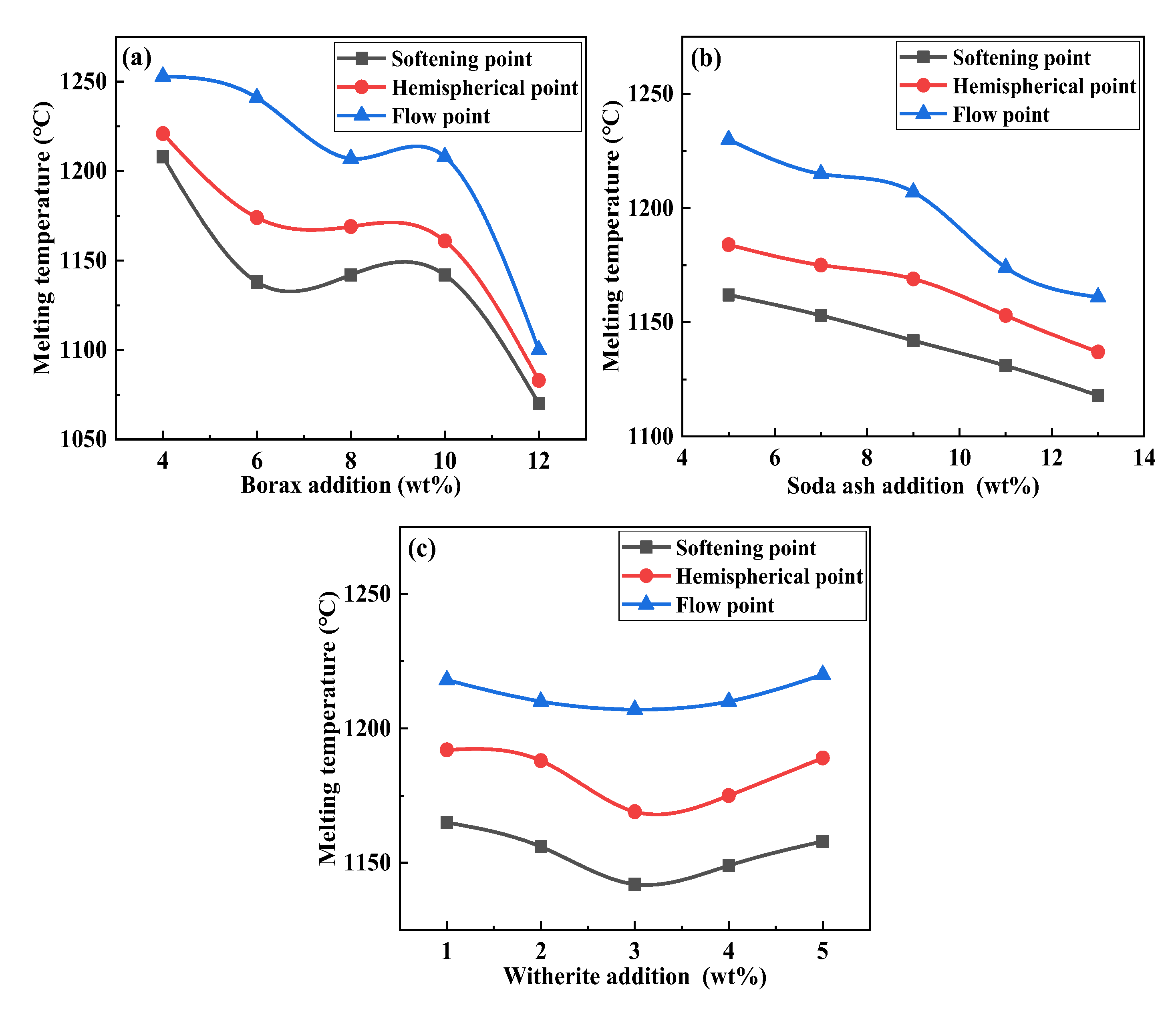

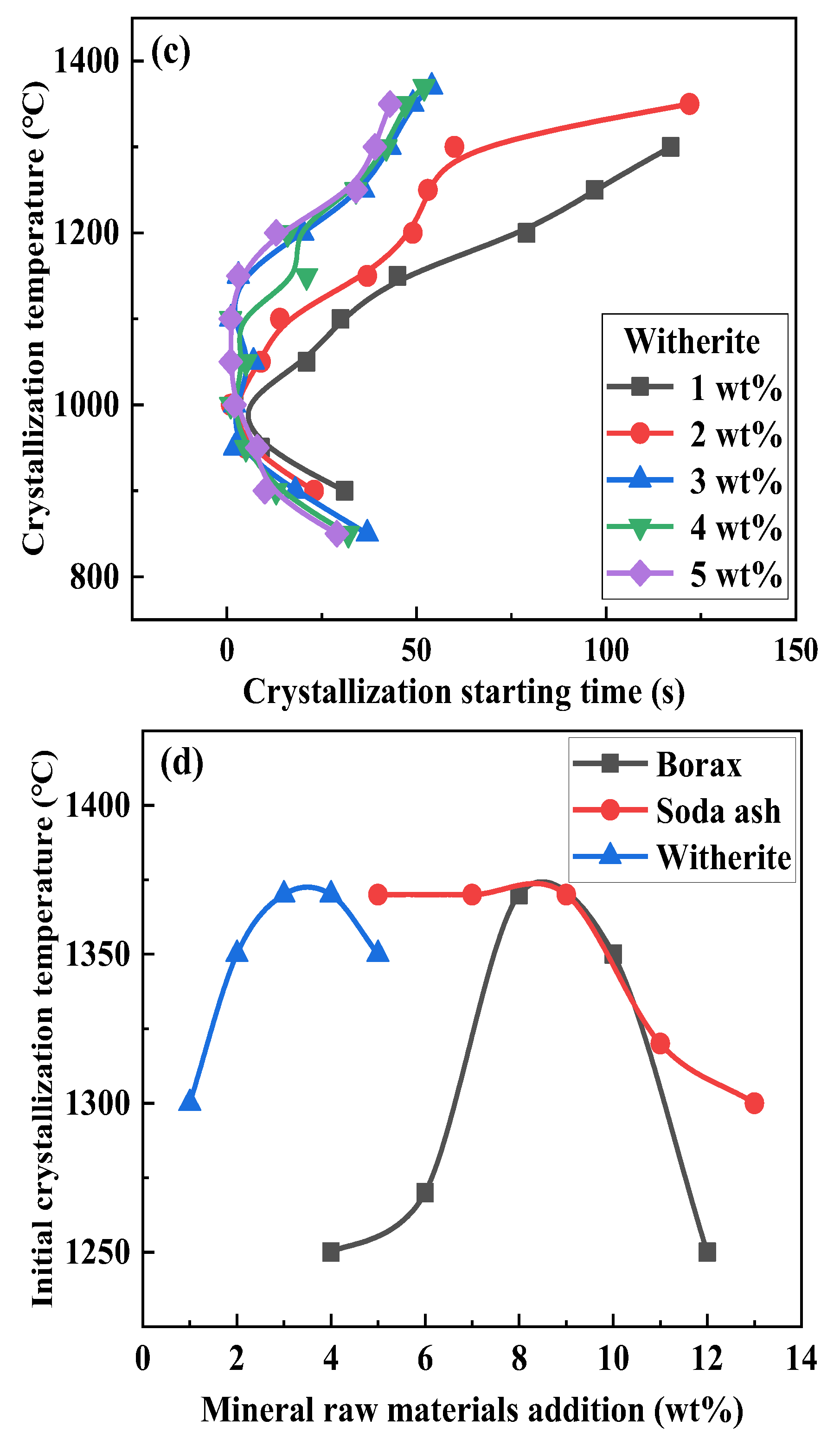

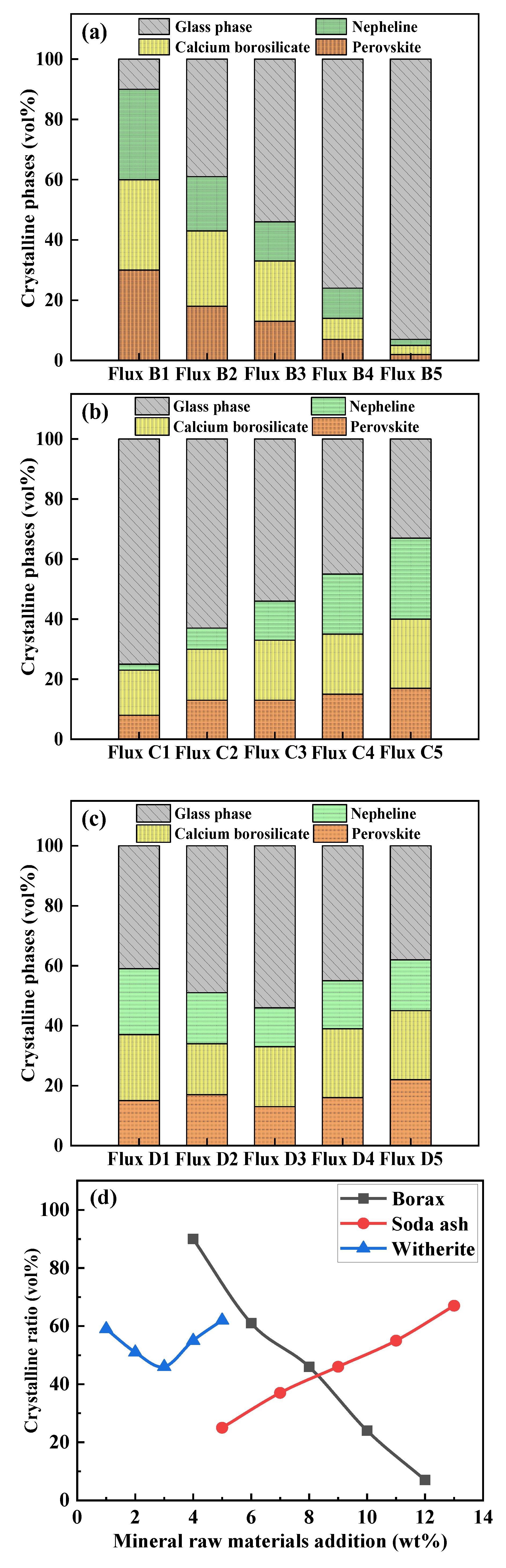

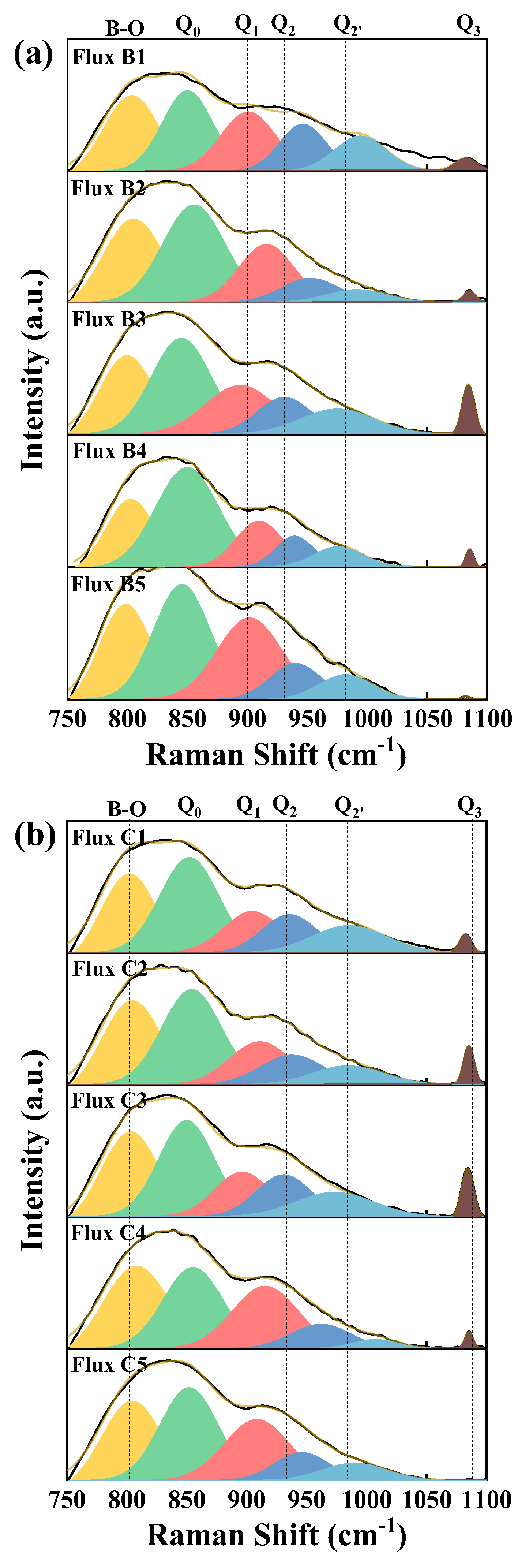

During the continuous casting of high-titanium steel, traditional fluorine-containing mold fluxes are prone to causing fluoride contamination, equipment corrosion, and intensified slag-metal interface reactions. There is an urgent need to develop highly adaptable fluorine-free mold flux systems. In this study, titanium-containing blast furnace slag was used as the primary base material, while borax, soda ash, and witherite were selected as fluoride-substituting mineral raw materials. The effects of these mineral raw materials on the melting properties, crystallization behavior, crystalline phases, and microstructure of fluorine-free mold fluxes were systematically investigated, and an optimized mold flux design suitable for continuous casting of high-titanium steel was further developed. The results indicate that borax significantly reduces the melting temperature and viscosity and markedly suppresses the growth of crystalline phases such as calcium borosilicate, nepheline, and perovskite by weakening the polymerization degree of the silicate network, thereby substantially decreasing the crystallization ability of the mold flux. Soda ash primarily acts as a strong fluxing and network-depolymerizing agent, promoting the formation of low-polymerized structural units. It also enhances the tendency toward ordered atomic arrangement, thereby markedly increasing nepheline precipitation and the overall crystallization ratio. Witherite exerts a relatively mild effect on slag structure and phase evolution; its moderate addition helps synergistically reduce the melting point, viscosity, and crystallization ratio, thereby supporting performance stability. The optimized fluorine-free mold flux, designed on the basis of these findings, maintains a suitable initial crystallization temperature and critical crystallization cooling rate while exhibiting lower melting temperature, viscosity, and crystallization ratio than conventional fluorine-bearing flux. Moreover, the introduction of TiO2 reduces the chemical potential difference between Ti in the molten steel and the fluorine-free mold flux, thereby slowing down the rate of slag-metal interface reactions and improving compositional stability. The research results provide a theoretical basis for the industrial design of environmentally friendly mold fluxes for high-titanium steel and for improving billet quality.
