Carboxymethyl Cellulose Sodium for Selective Depression of Fine-Grained Apatite from Chlorite and Biotite and Its Particle Size Effect

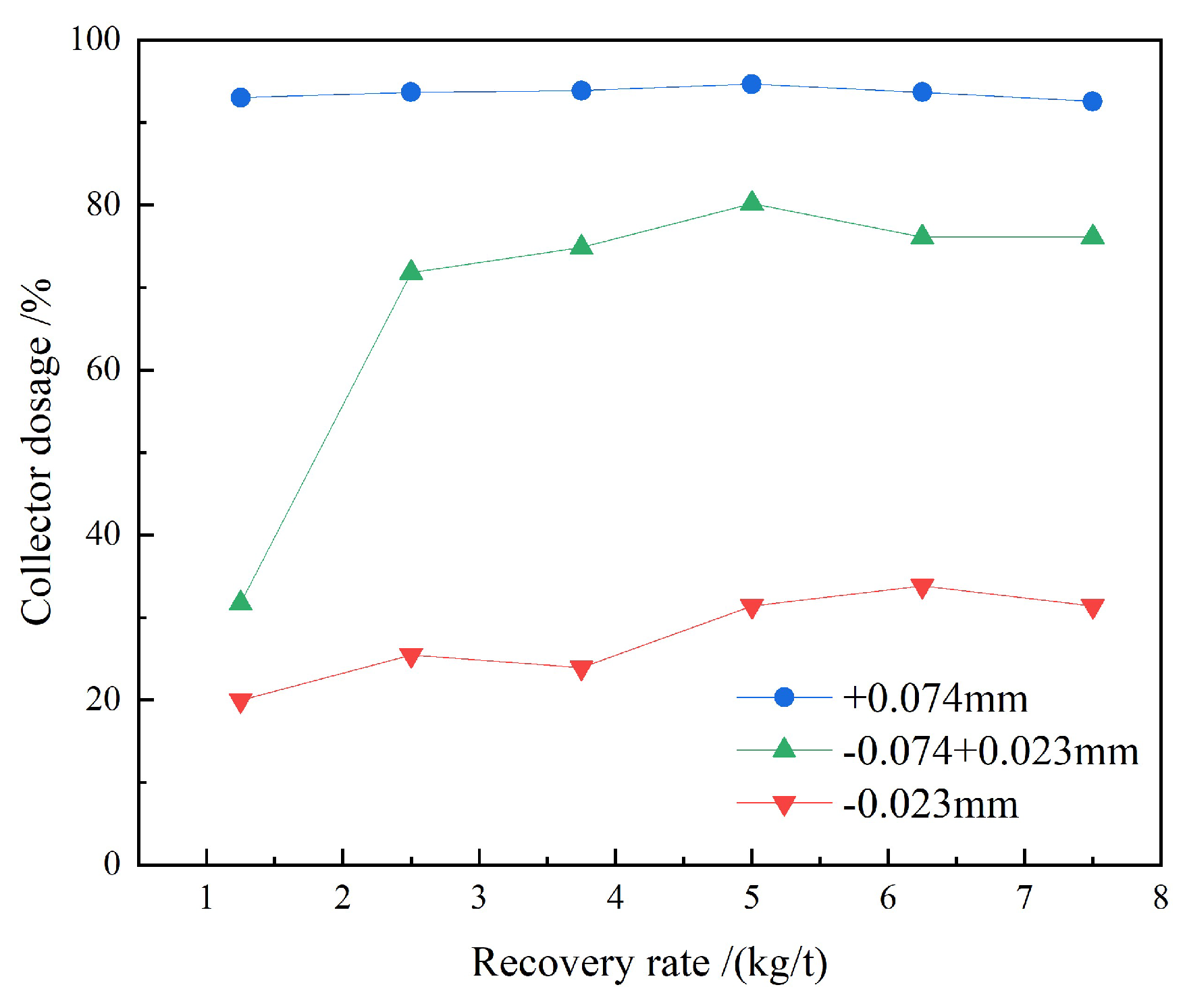

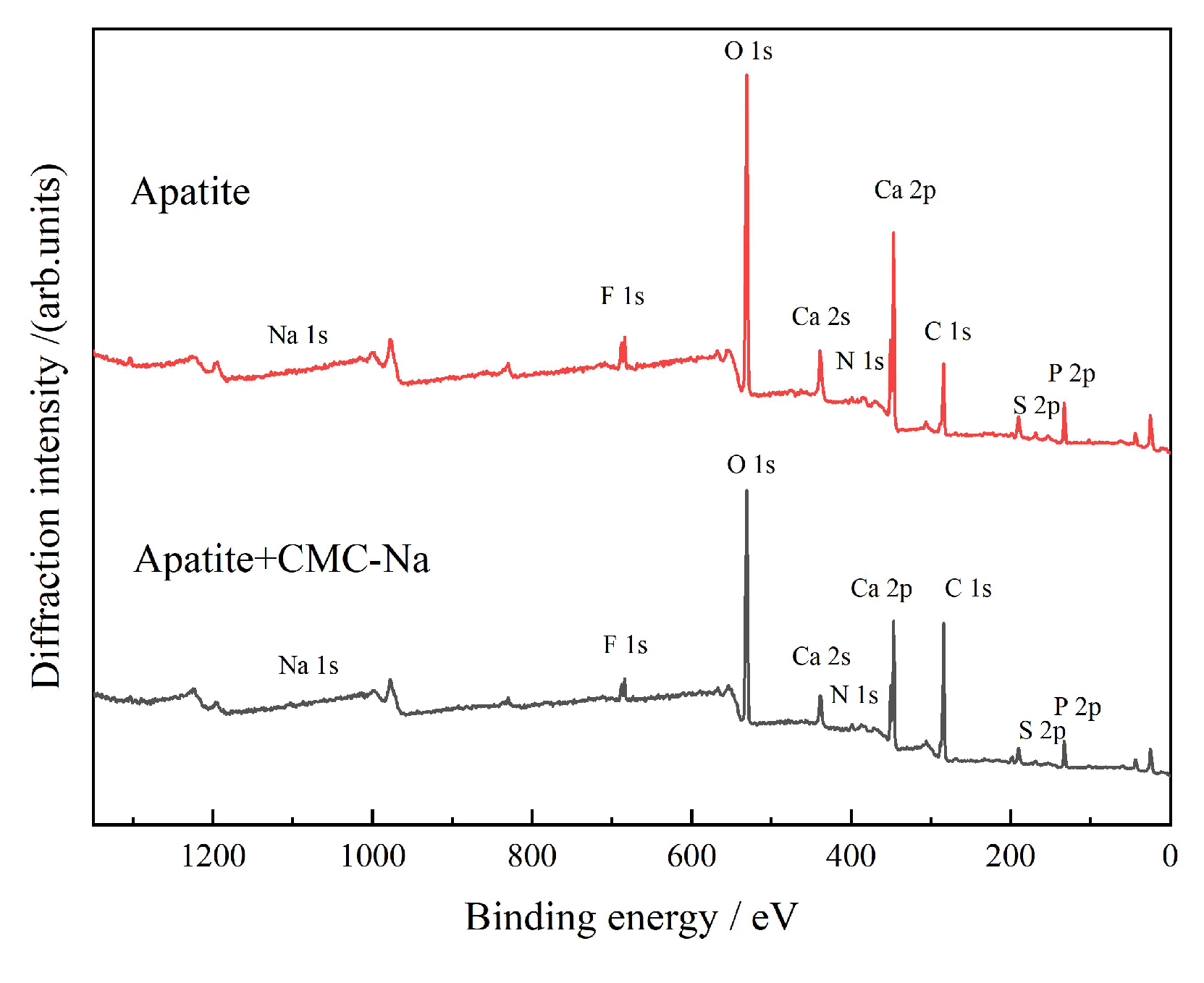

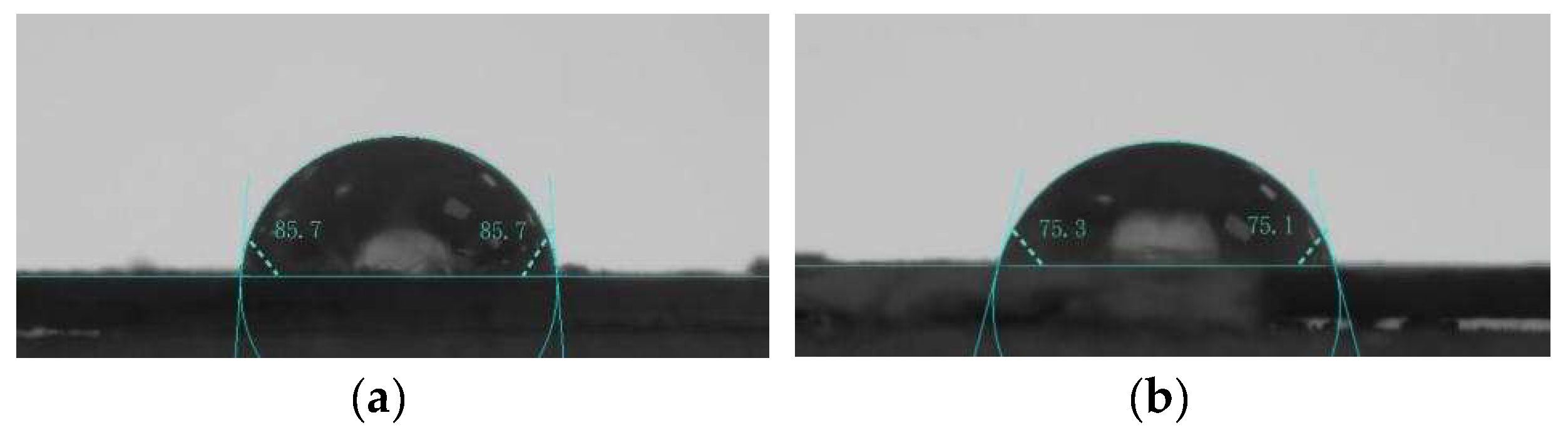

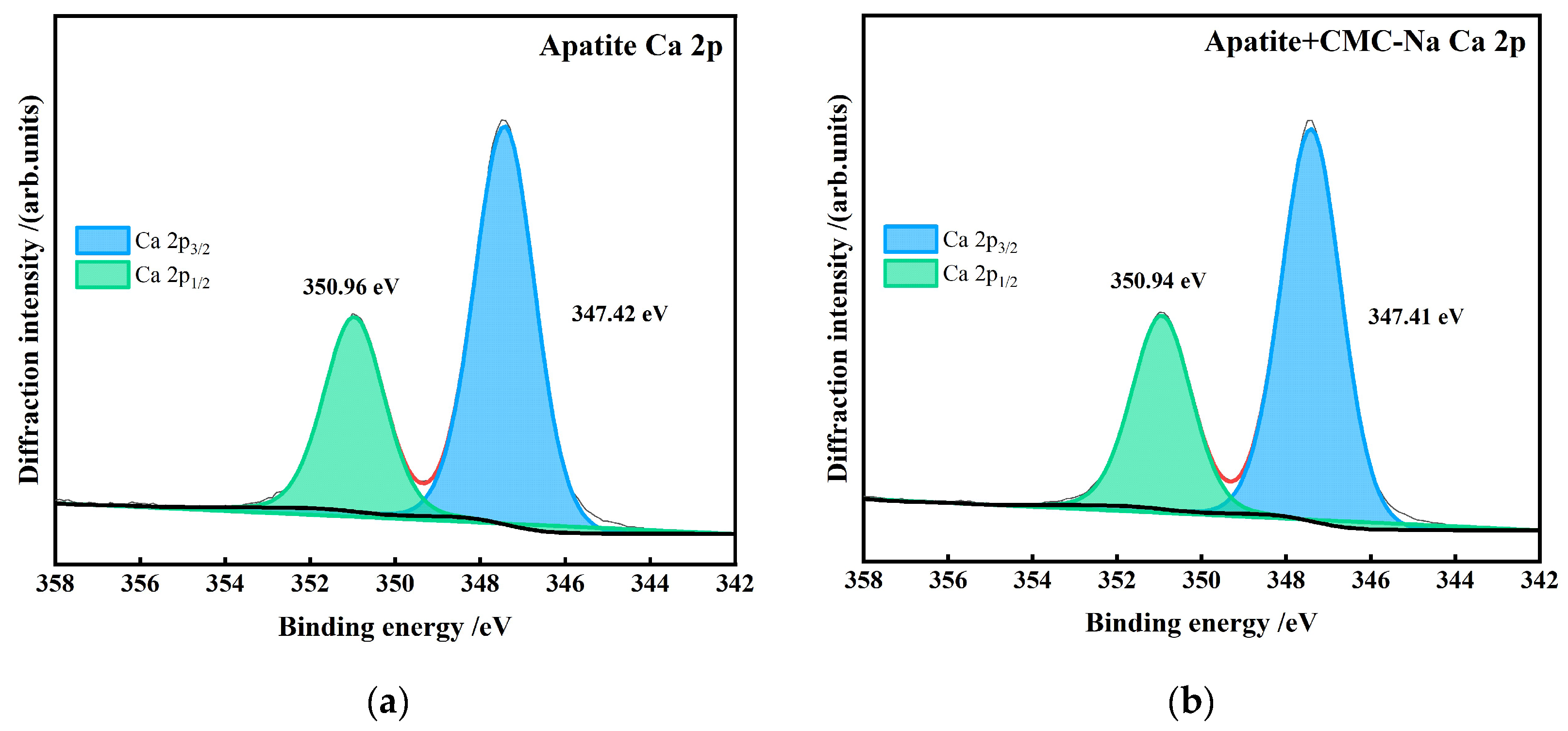

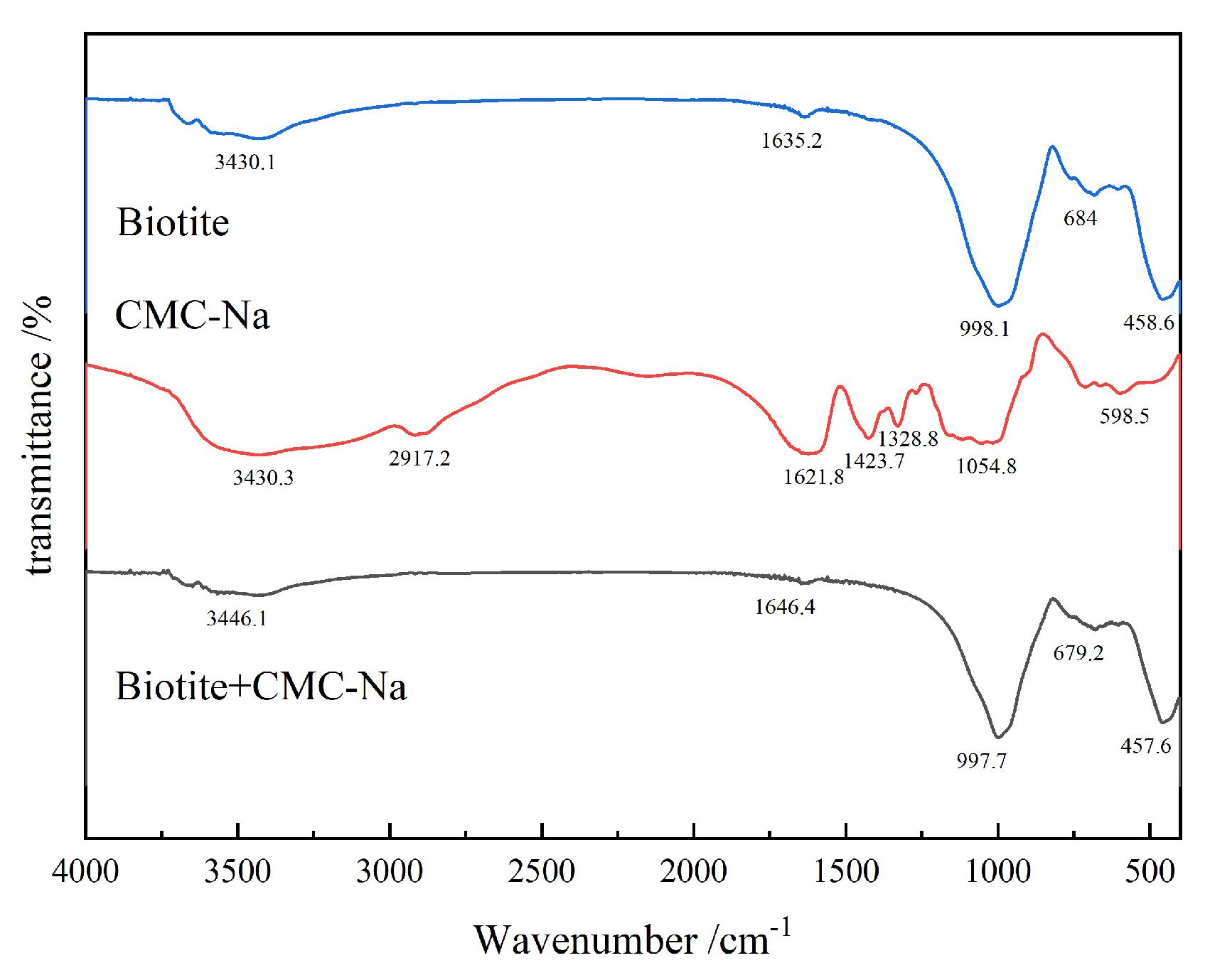

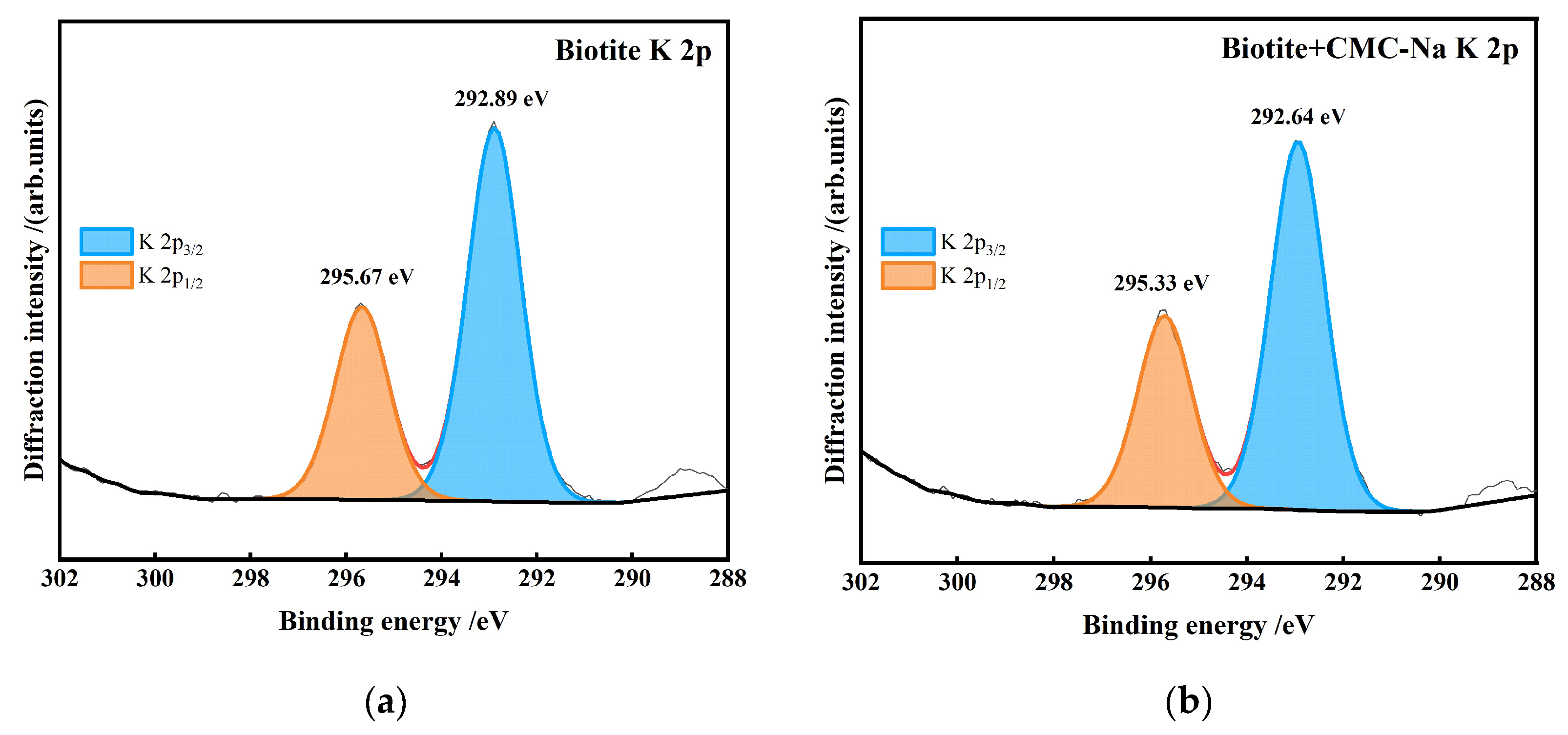

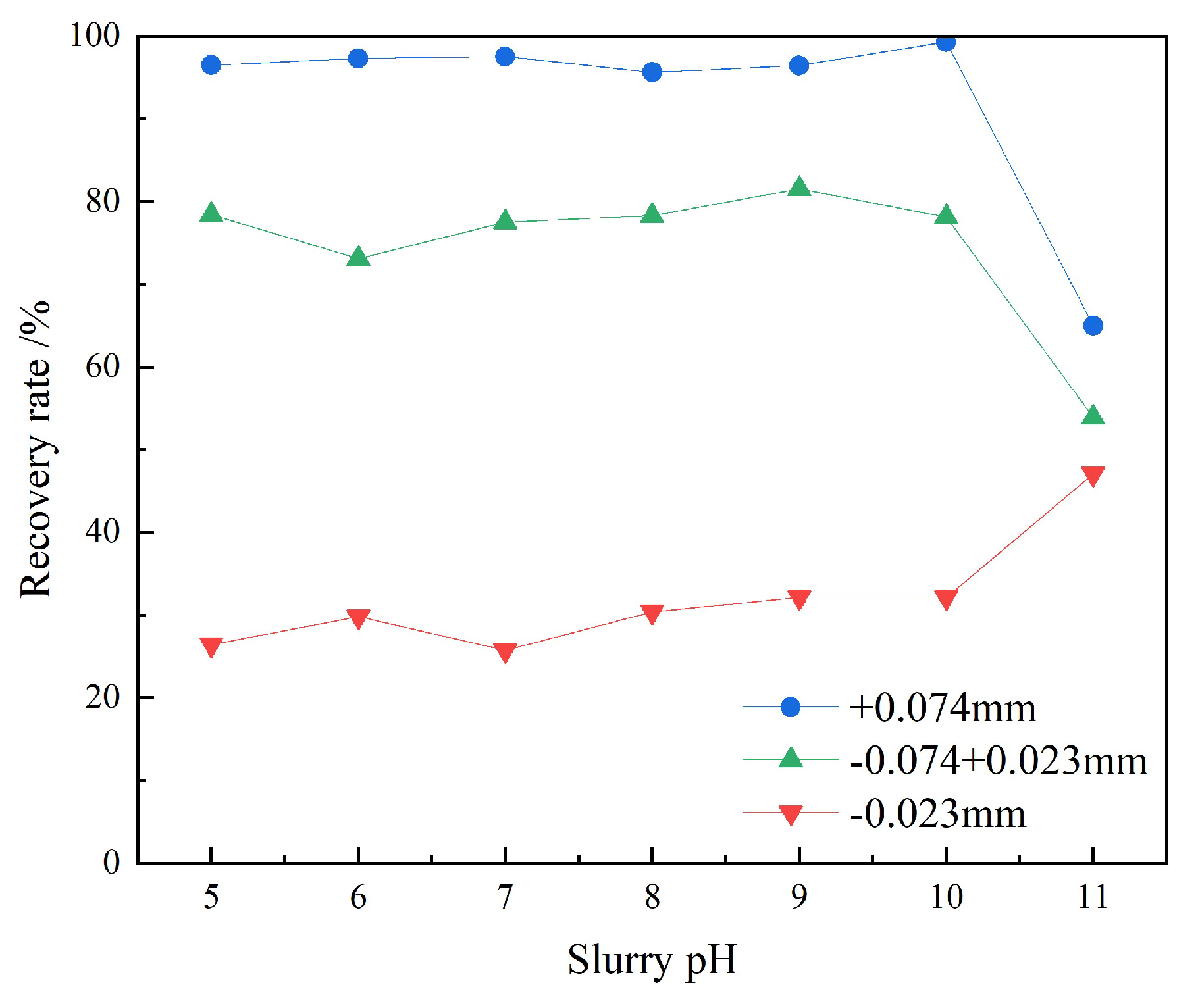

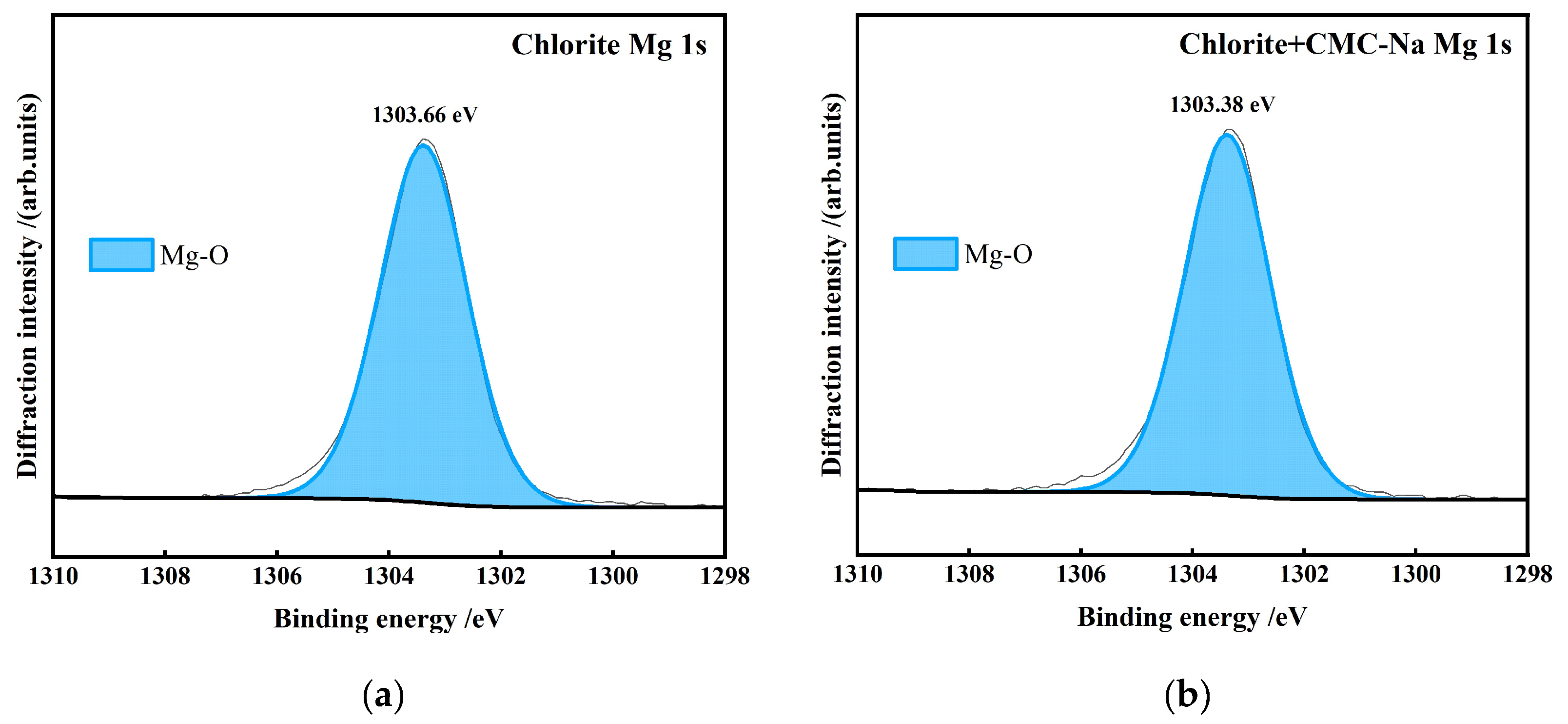

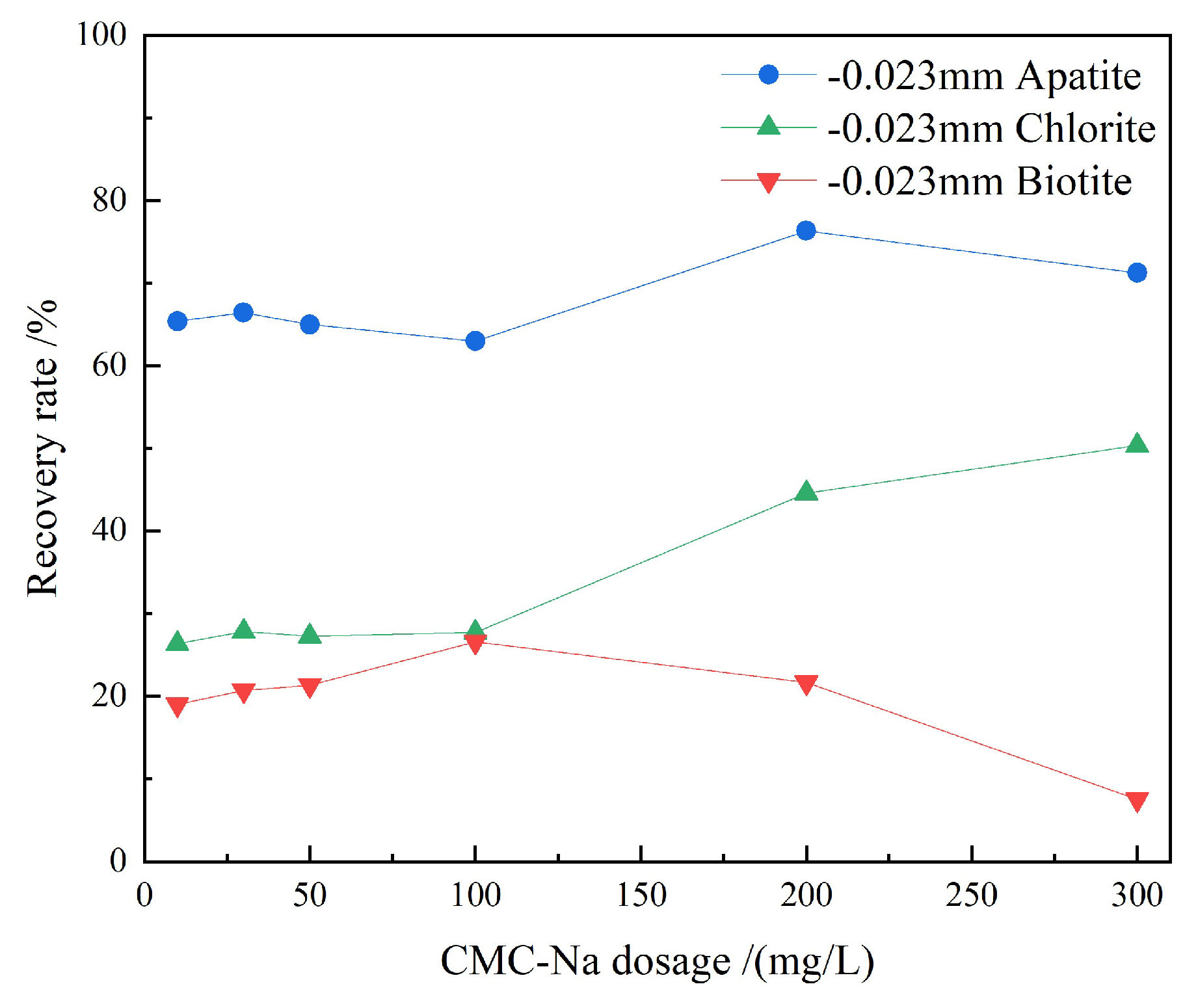

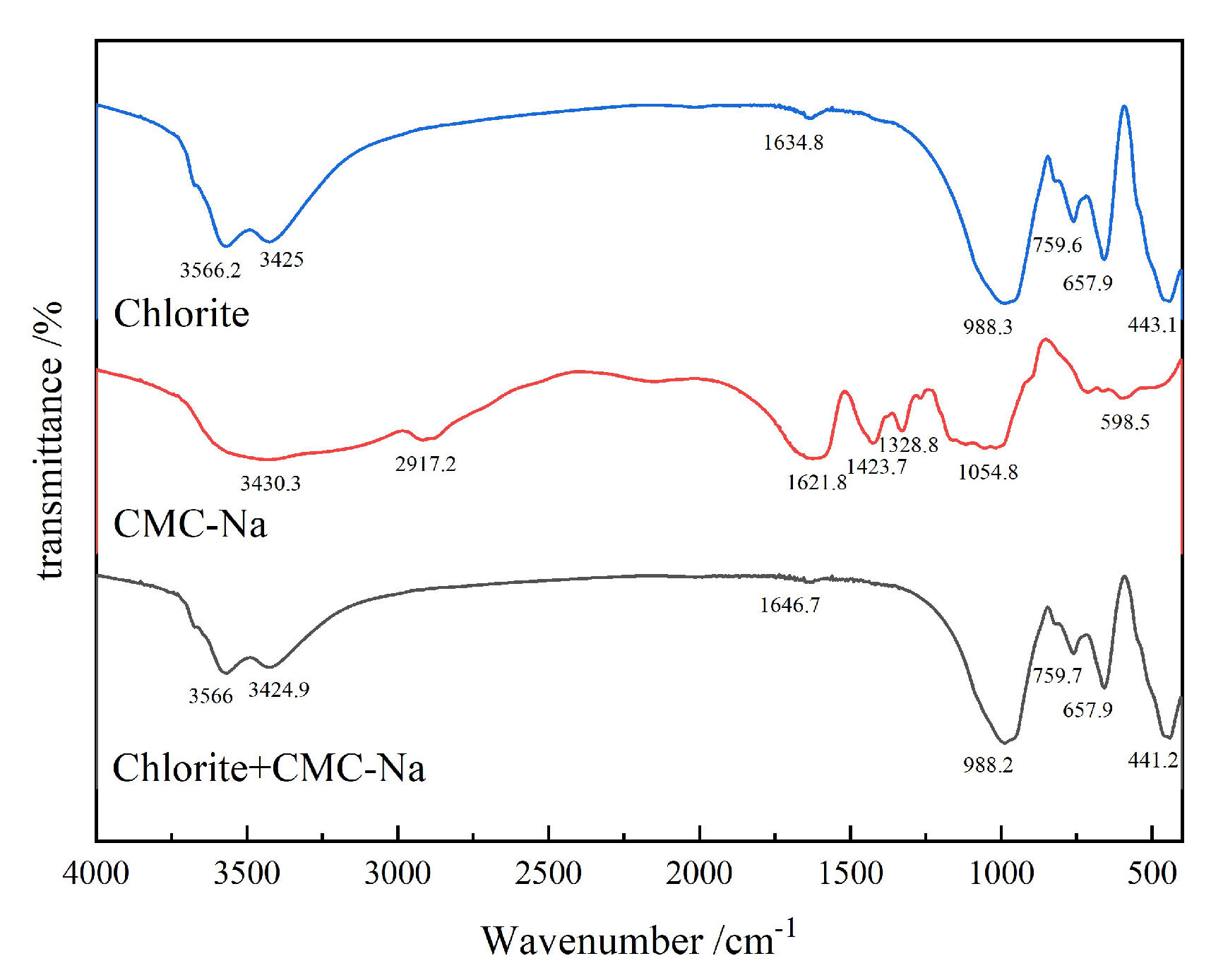

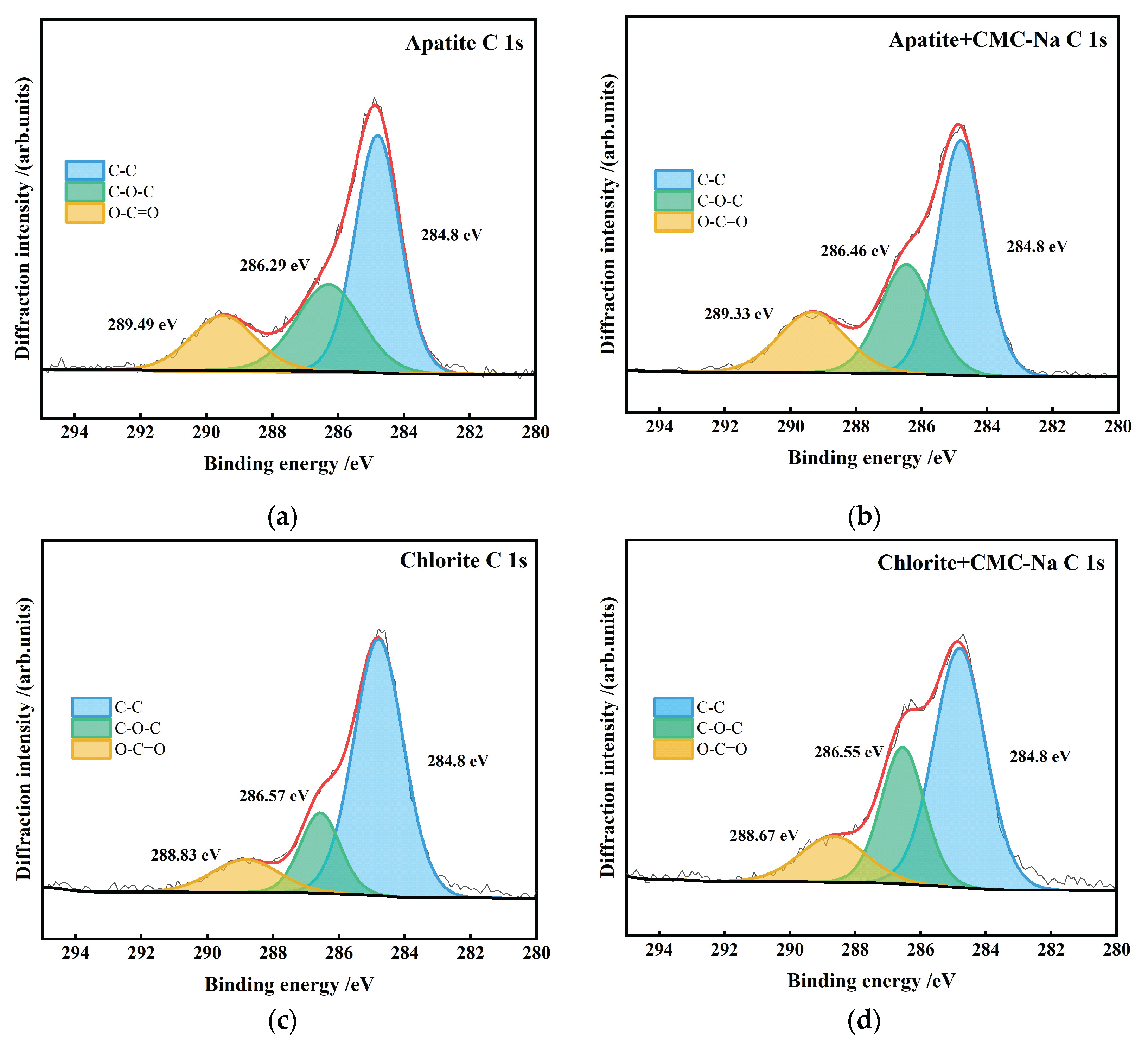

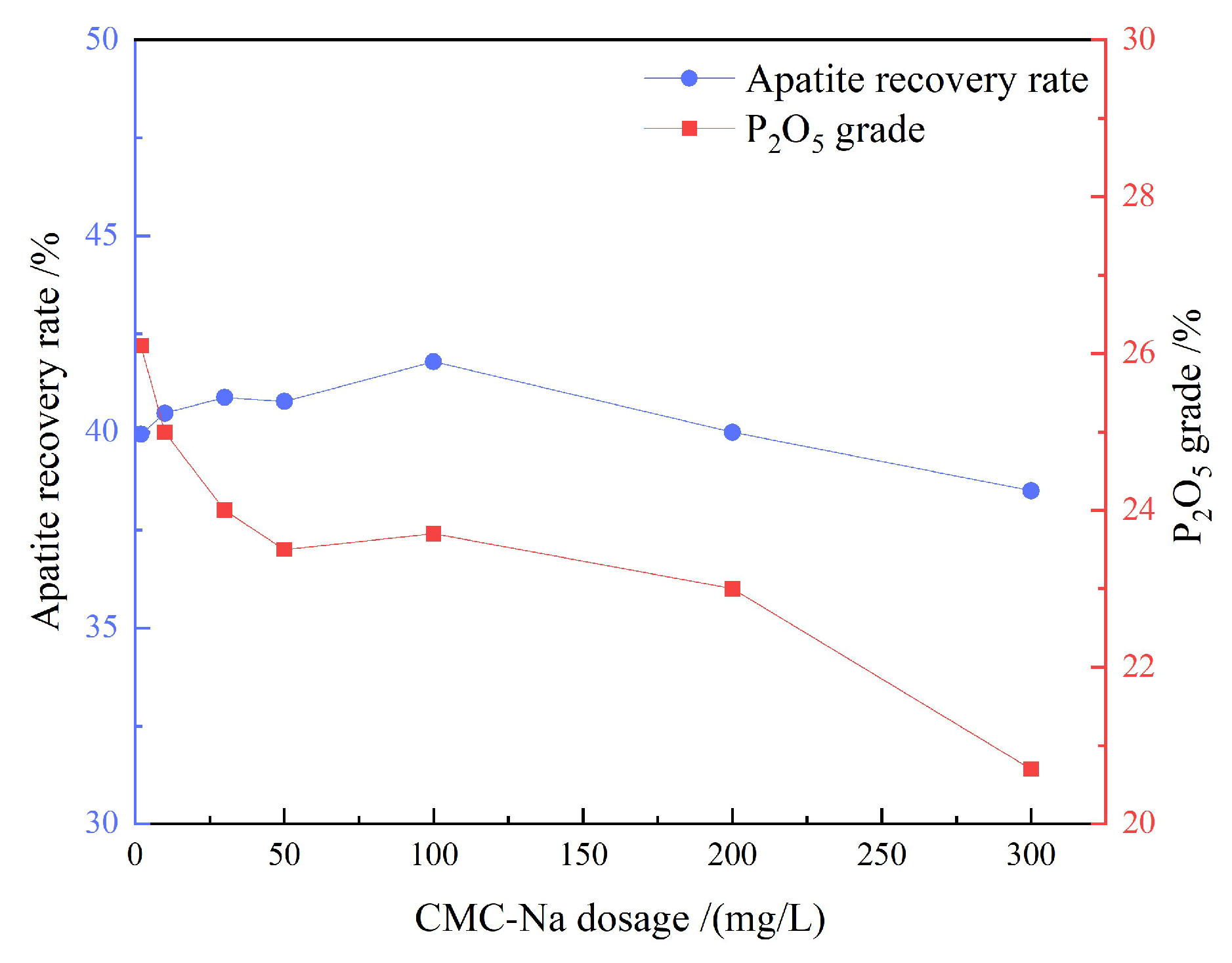

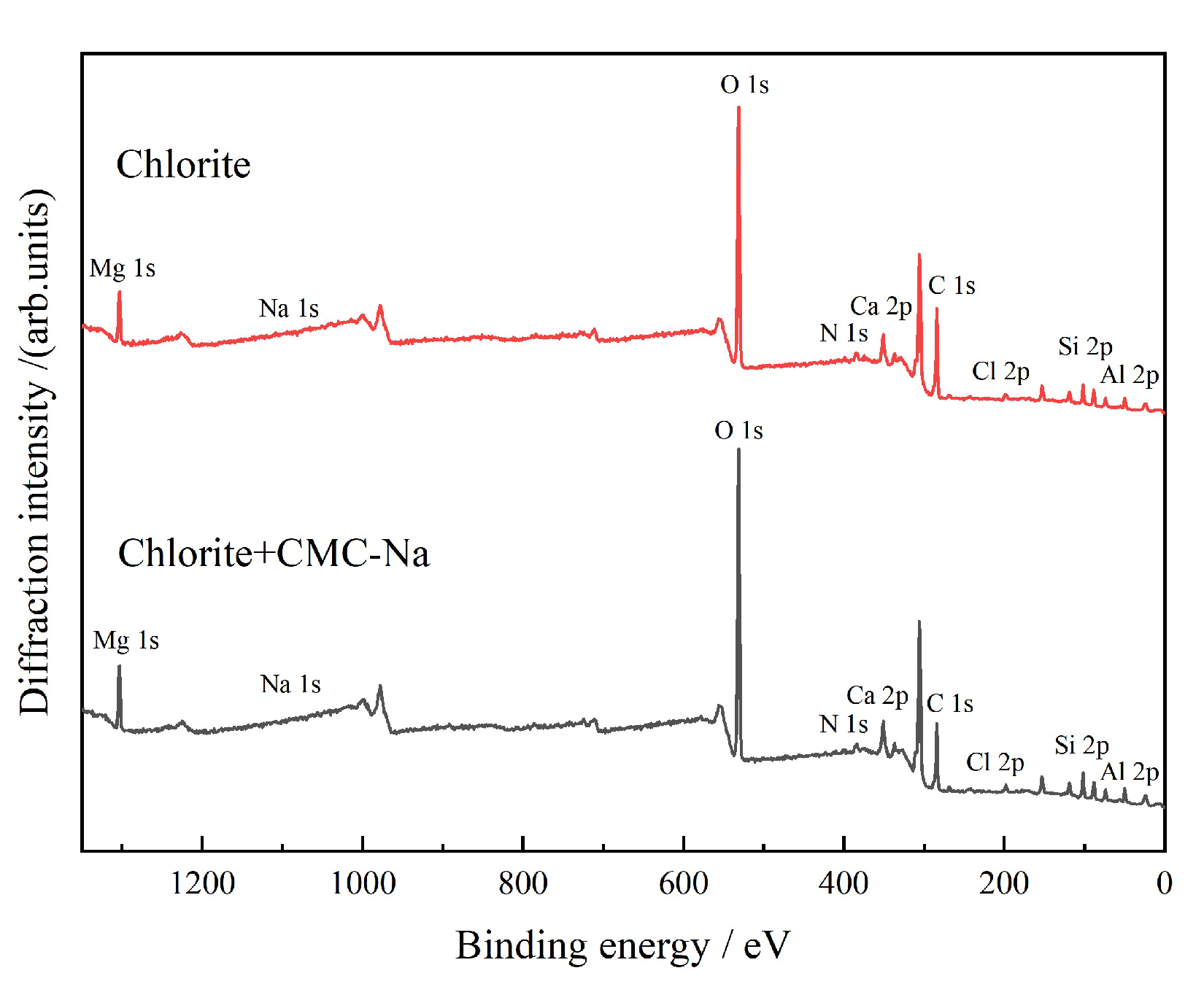

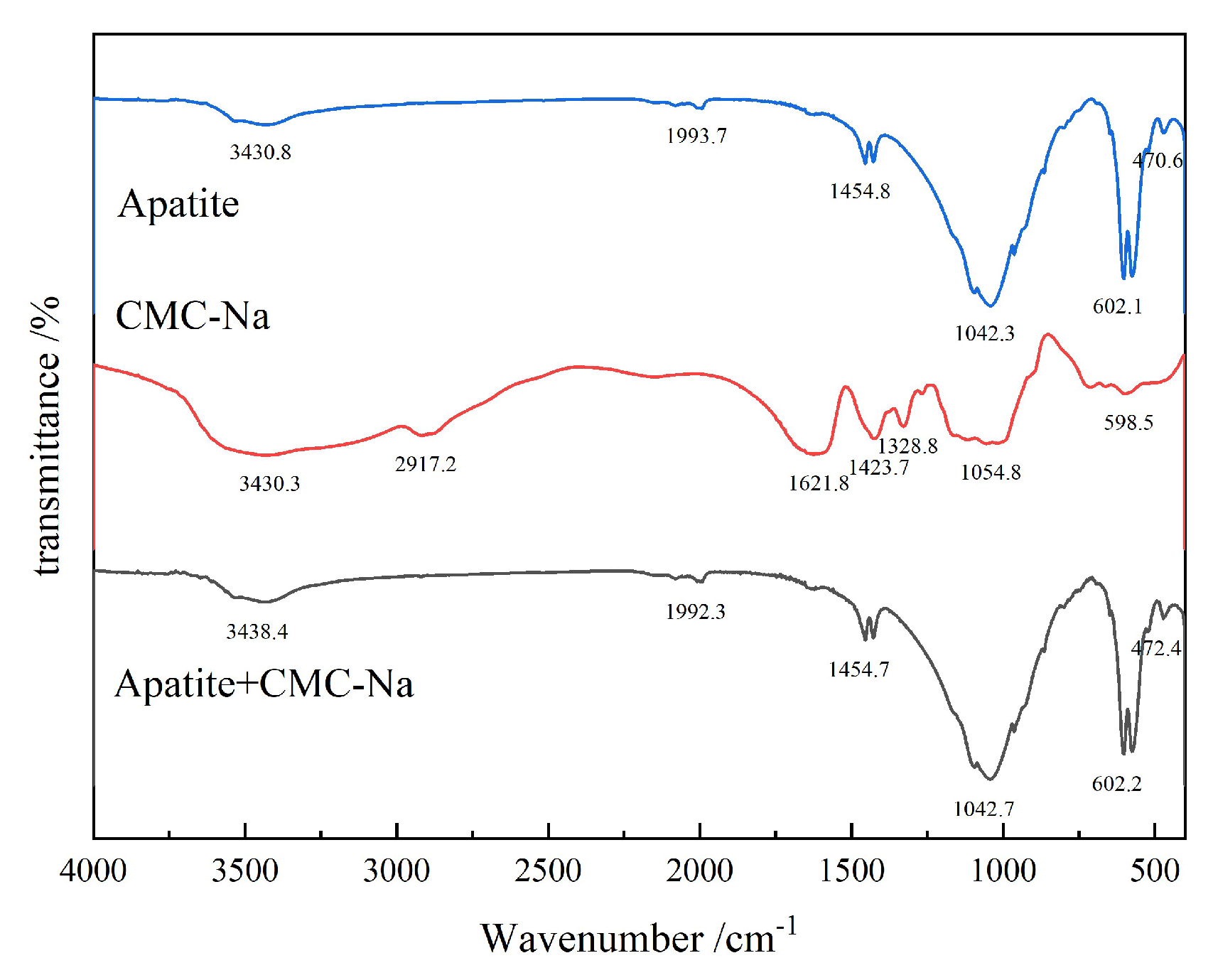

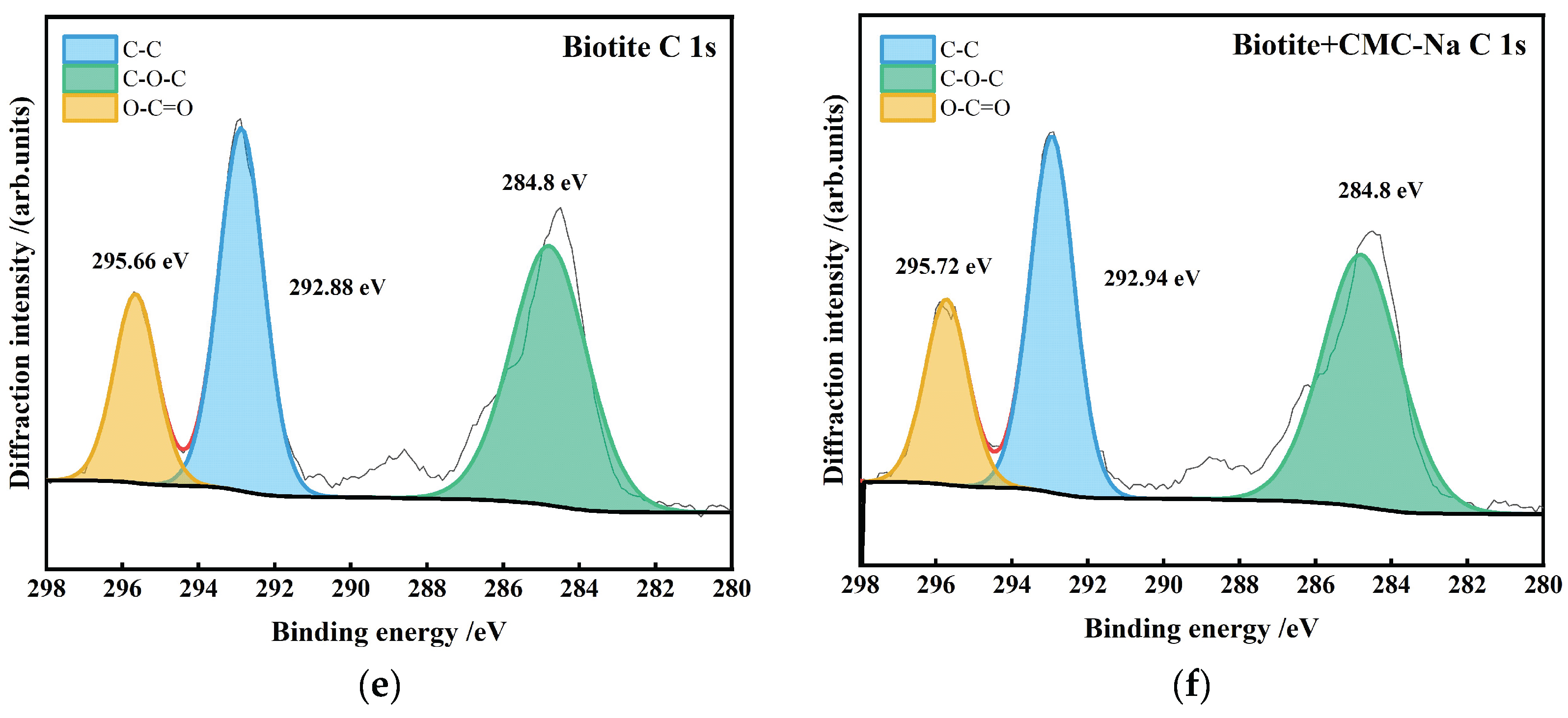

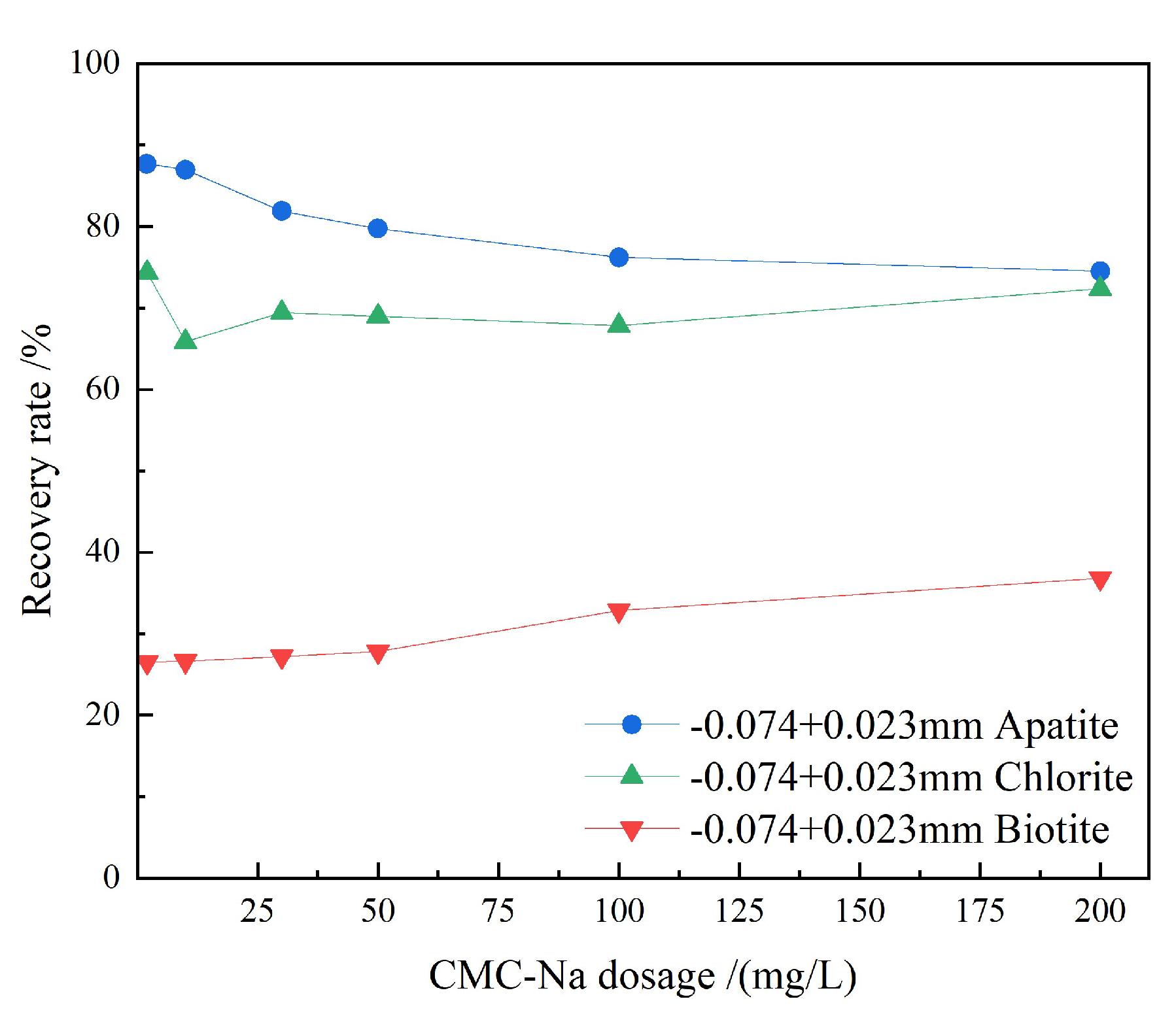

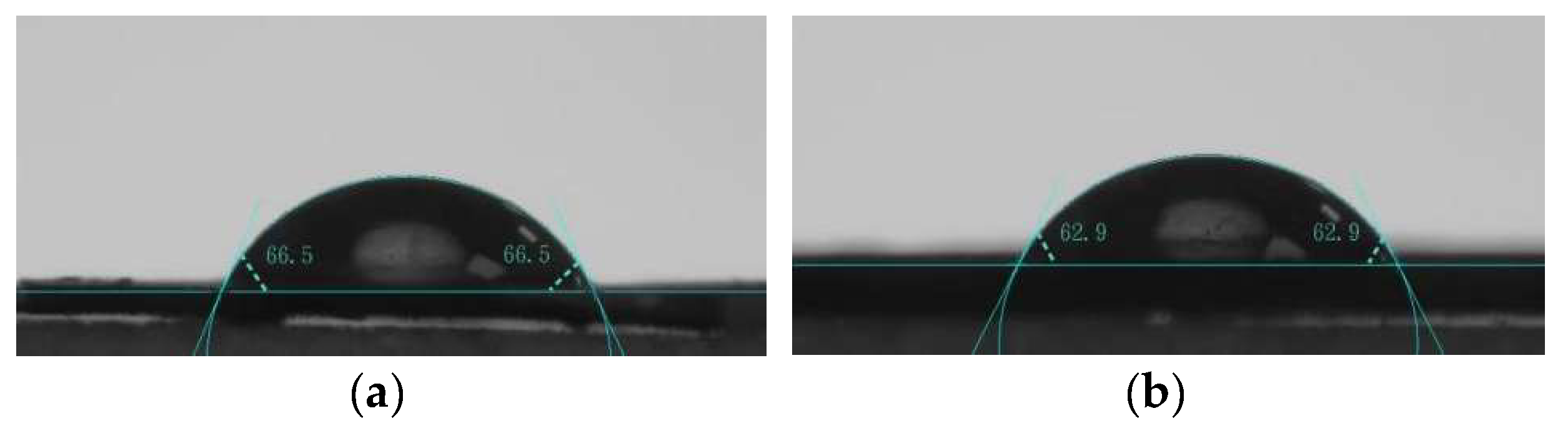

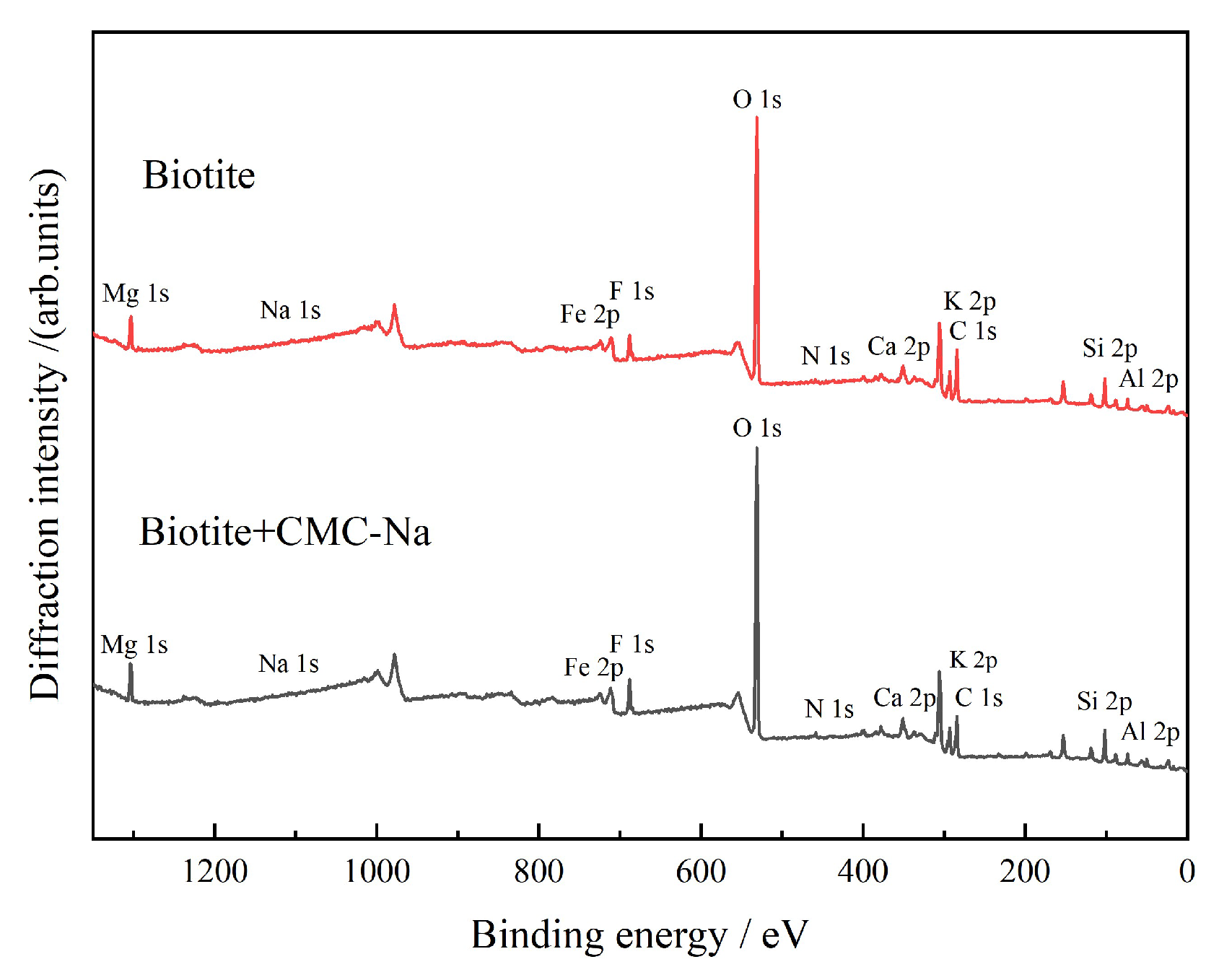

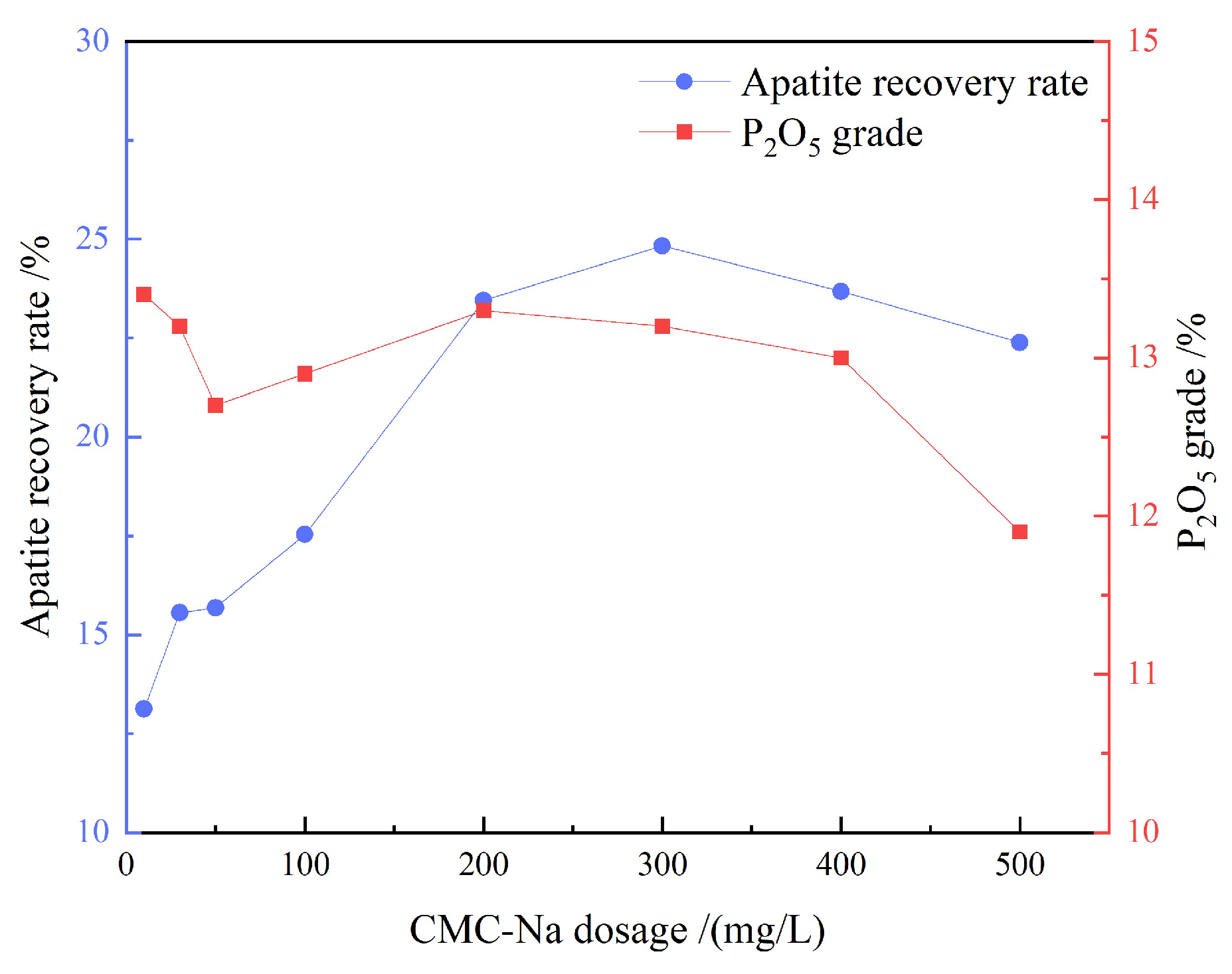

To address the challenge of separating fine-grained apatite from layered silicate gangue minerals (chlorite and biotite) in medium-low grade collophanite ores, this study systematically investigated the effect of carboxymethyl cellulose sodium (CMC-Na) as a selective depressant on flotation behavior of different particle size fractions and its underlying mechanism. Pure mineral and artificial mixed ore flotation experiments demonstrated that at pH 9 and collector dosage of 5 kg/t, CMC-Na enabled selective separation of apatite from gangue minerals, with optimal dosage showing significant particle size effects: for the -0.5+0.074 mm fraction, effective separation was achieved with collector alone; for the -0.074+0.023 mm fraction, the optimal CMC-Na dosage was 10~100 mg/L, yielding 87% apatite recovery for pure minerals and 41.8% recovery with 23.7% P₂O₅ grade for mixed ores; for the -0.023 mm fine fraction, the optimal dosage was 30~300 mg/L, achieving 24.8% recovery and 13.2% grade. Mechanism studies revealed that CMC-Na significantly enhanced the hydrophilicity of chlorite and biotite, enlarging their surface property differences with apatite. FTIR and XPS analyses indicated that CMC-Na adsorbed on biotite via ion exchange with interlayer K⁺ and coordination with octahedral Fe²⁺/Mg²⁺, and on chlorite through chemical coordination with octahedral Mg²⁺, whereas only weak physical adsorption occurred on apatite surface Ca²⁺. The adsorption strength followed the order: biotite > chlorite > apatite. This study provides an effective reagent scheme and theoretical basis for flotation separation of fine-grained phosphate ores.
