Search for New Complex Sequences for the Implementation of an Aviation Group Interaction System of Small-Sized Airborne Radars

1. Introduction

Currently, M-sequences are widely used in radar systems [1,2], where they generate probing signals. These signals improve the accuracy of distance measurement to objects and ensure reliable detection by distinguishing the useful echo signal from noise. In communication systems, they serve to encode data in order to provide reliable synchronization between transmitting and receiving communication equipment. M-sequences also play an important role in the design of multi-position onboard control systems used in remote sensing aviation equipment [3,4,5,6,7,8,9,10,11].

In order to form radar situational awareness using networks of small aerial vehicles equipped with compact on-board radar stations (CORS), it is necessary for each station to emit a unique phase-coded probing signal. This requirement arises from the need for unambiguous identification of CORS emission sources in a common radio channel and accurate determination of the reflection of signals from corresponding transmitting-receiving positions in the system.

High levels of side lobes (SL) in the autocorrelation function (ACF) can negatively affect the proper functioning of CORS detection systems [12,13,14]. Therefore, the current task is to find new complex sequences that have lower SL levels in the normalized autocorrelation function (NACF) while maintaining the same structure for the positions of positive and negative elements as traditional M-sequences. This reduction in the side lobe levels of NACF is achieved by searching for new complex values in the sequence structure by replacing the traditional symmetric alphabet of positive and negative ones with an asymmetric one.

The goal of this study is to search for new complex M-sequences where the SL of the NACF are lower than those of the traditional M-sequences, but with the same structure of positive and negative element positions. This reduction in side lobes is achieved by finding new complex values in the sequence structure through replacing the conventional symmetric alphabet of positive and negative ones with an asymmetric one.

To achieve the stated goal, the paper considers two cases of element substitution in the traditional sequence. In the first case, only the negative one is replaced with the sought-after complex number. In the second case, both the negative and positive ones in the M-sequence structure are replaced. Within this study, it is necessary to analyze how the SL of the NACF change and identify the complex values at which the side lobes of the NACF will be minimized for the new complex M-sequences.

Numerical methods are employed to search for complex values of sequences for both cases. Computer experiments are conducted to evaluate the SL of the NACF. These experiments are based on the analysis of the expressions obtained that describe how each side lobe of the NACF changes as a function of the complex value assigned to the code element. Furthermore, phase modulation of the signal with the generated complex sequence is studied, and the correlation properties of the resulting signals are analyzed.

In Section 2, the aperiodic and periodic ACFs of traditional M-sequences are analyzed. The process for deriving expressions for the lobes is presented, from which graphs describing the sidelobe levels as a function of the introduced parameter are built for both the aperiodic and periodic ACFs in further research.

In Section 3, dependencies of the side lobe levels of the periodic and aperiodic NACFs of the complex M-sequences are studied in relation to the new alphabet: {1; –exp(φi)} in the first case, and {exp(φ1i); –exp(φ2i)} in the second case. The values of the parameter φ vary in the range from 0° to 360°. Graphs illustrating the dependencies of the side lobes of the NACF on the parameter φ are provided. The minimal possible level of the side lobes of the NACF for the investigated M-sequences is identified.

In Section 4, phase modulation of the probing signal with the generated complex M-sequences is carried out. Graphs of the NACF of the resulting signal are constructed. The minimum side lobe level of the NACF for the signal, corresponding to the minimum side lobe level of the complex M-sequence, is found, confirming proper phase modulation of the probing signal.

In Section 5, the obtained results are discussed, further development recommendations are formulated, and areas for further application of the results in various fields are identified.

In Section 6, the findings of the research are summarized, and the scientific and technical novelty of the results is highlighted.

2. Autocorrelation Function of the M-Sequences

One of the reasons for the demand for M-sequences in radar systems is their correlation characteristics [15,16,17,18,19]. When selecting sequences, preference is often given to those with the lowest SL in the NACF. For M-sequences, the maximum value of the ACF occurs only at a zero shift, while for any other shifts, the correlation approaches zero.

The ACF of the sequence x(n) is denoted as R(k) and is computed using expression (1) for the periodic ACF (PACF) of sequences, and expression (2) for the aperiodic ACF (AACF) [20].

It should be noted that for constructing a multi-position CORS system, code-modulated signals are used, both when selecting the probing signal and when selecting the synchronizing signal used in the frame preamble, which is necessary for organizing communication channels between the group of CORS, as well as for their management [21,22,23,24,25,26].

Therefore, both the properties of the AACF and PACF need to be studied. The AACF should be analyzed for implementing earth’s surface probing modes, including group modes where modulated signals are used. The PACF should be studied when organizing communication channels between elements of the group, i.e., when combining several CORS into an interacting group.

For the PACF calculation:

R_p(k) = ∑x(n)*x(n+k),

(1)

where n varies from 0 to N-1, and x(n+k) is the sequence element shifted by k positions. If the sequence element with index n+k goes beyond the sequence length, periodic continuation of the sequence is used.

For the calculation of the AACF:

R_a(k) = ∑x(n)*x(n+k),

(2)

where k varies from 0 to N-1, and n varies from 0 to N-k-1. In this case, the summation is performed only over those n indices for which n+k remains within the sequence length N.

In general form, the process of obtaining expressions describing the sidelobes of the AACF and PACF is presented in Table 1 and Table 2, respectively. This example is presented for an M-sequence of length N = 4. The number of sidelobes of the ACF can be calculated using expression (3):

(N-1)/2

(3)

For convenience, each sidelobe of the ACF is assigned an index m, with the main lobe having index 0, and the SL having indices –3, –2, –1, 1, 2, 3. As seen from Table 1 and Table 2, there is a relationship between the analytical expressions for the main lobe and the SL of the ACF, which can be expressed using equation (4):

r_p(m) = r(m) + r(m – N),

(4)

where m is the index of the autocorrelation function lobe. rp(m) is the value of the m-th SL of the PACF, r(m) is the value of the m-th SL of the AACF, and N is the sequence length.

In this context, the CORS hardware is subject to specific requirements related to the choice of the probing signal, for which the levels of the SL of the AACF are directly influenced by the specifics of the task being solved [27,28,29]. For earth’s surface probing modes, the analysis of the AACF is of paramount importance. Its key advantage is a well-defined main lobe at zero shift combined with the minimal SL levels, which ensures high resolution in the range coordinate.

For ensuring interference-resistant data exchange in wireless communication channels between CORS positions, the PACF should be analyzed. The PACF analysis will improve the survivability and fault tolerance of the data exchange system within the interacting group of CORS [30].

Thus, the analysis of the AACF properties is necessary for implementing group probing signal modes, while the corresponding analysis of the PACF is necessary for implementing communication channels. This will allow the creation of multi-position radar systems optimally combining location and information exchange functions within the interacting group. Such a combination will expand the functional capabilities of individual CORS units, and therefore, the search for new signal-code constructions, both for probing and data exchange, is a modern and relevant task.

3. Search for New Complex M-Sequences

When studying M-sequences, it is necessary to minimize the level of SL of the NACF. This can be achieved by searching for new values in its code structure [31]. This study proposes replacing the elements of the existing traditional symmetric alphabet {1; –1} in the M-sequence structure with an asymmetric alphabet that can consist of both real and complex values. In complex form, the exponential form of the code elements is used in the form exp(φi), where φ is the angle of the unit vector on the complex plane. φ can also be used as the initial phase for phase modulation of elementary pulses when forming a signal-code structure [32,33,34,35,36].

Next, traditional M-sequences of length N = 7, 15, 31, 63, 127, 255, 511 are examined as an example (see Table 3) illustrating the process of modifying code values to a complex version, using four M-sequences (two M-sequences of length 7 and 15). Table 3 lists the generator polynomials [37,38,39] and the traditional sequences generated from them with a symmetric alphabet consisting of -1 and +1.

In [40], optimal replacements of negative ones with the real element “a” in the structures of M-sequences of length N = 15, 31, 63, 127, 255, 511 were determined. Below, two options for changing the traditional alphabet {1; –1} of M-sequences to: {1; –exp(φi)} and {exp(φ1i); –exp(φ2i)}, respectively, will be considered.

3.1. Replacing One Negative Element in the Alphabet of Traditional M-Sequences with a Complex Value

In the first variant, the negative 1 in the code structure is replaced with a complex value – «–exp(φi)», while the positive 1 remains in its place without changing its value. An example of such a replacement of the alphabet of sequences from Table 3 is presented in Table 4.

Next, it is necessary to find the optimal value of φ at which the SL of the NACF level is lowest. That is, to search for and determine the specific φ value from the 0-360° range at which the SL will have the minimum level. Graphical representation of the SL levels of the aperiodic NACF of M-sequences from Table 4 with the alphabet {1; –exp(φi)} is shown in Figure 1. The horizontal axis shows the value of φ from the range 0-360°, the vertical axis shows the value of SL of the NACF in decibels.

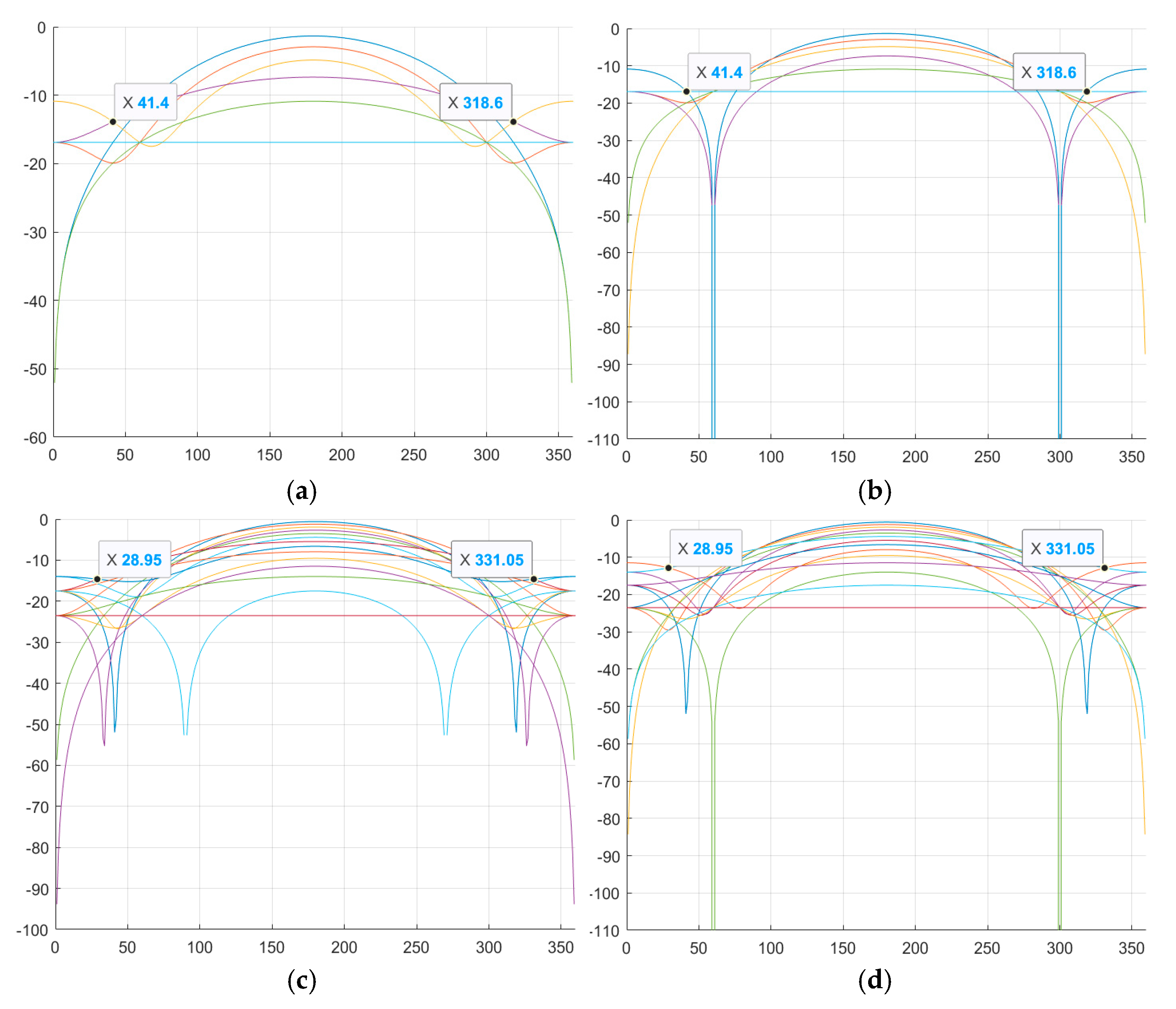

As can be seen from Figure 1, for M-sequences of the same length, the optimal values of φ are the same initial phases: φ1 = 41.4° and φ2 = 318.6° for N = 7, φ1 = 28.95° and φ2 = 331.05° for N = 15. Figure 2 shows a comparison of the aperiodic NACF with traditional M-sequences. The horizontal axis shows the indices of the m petals, and the vertical axis shows the values of the petal levels of the NACF of the sequences in decibels.

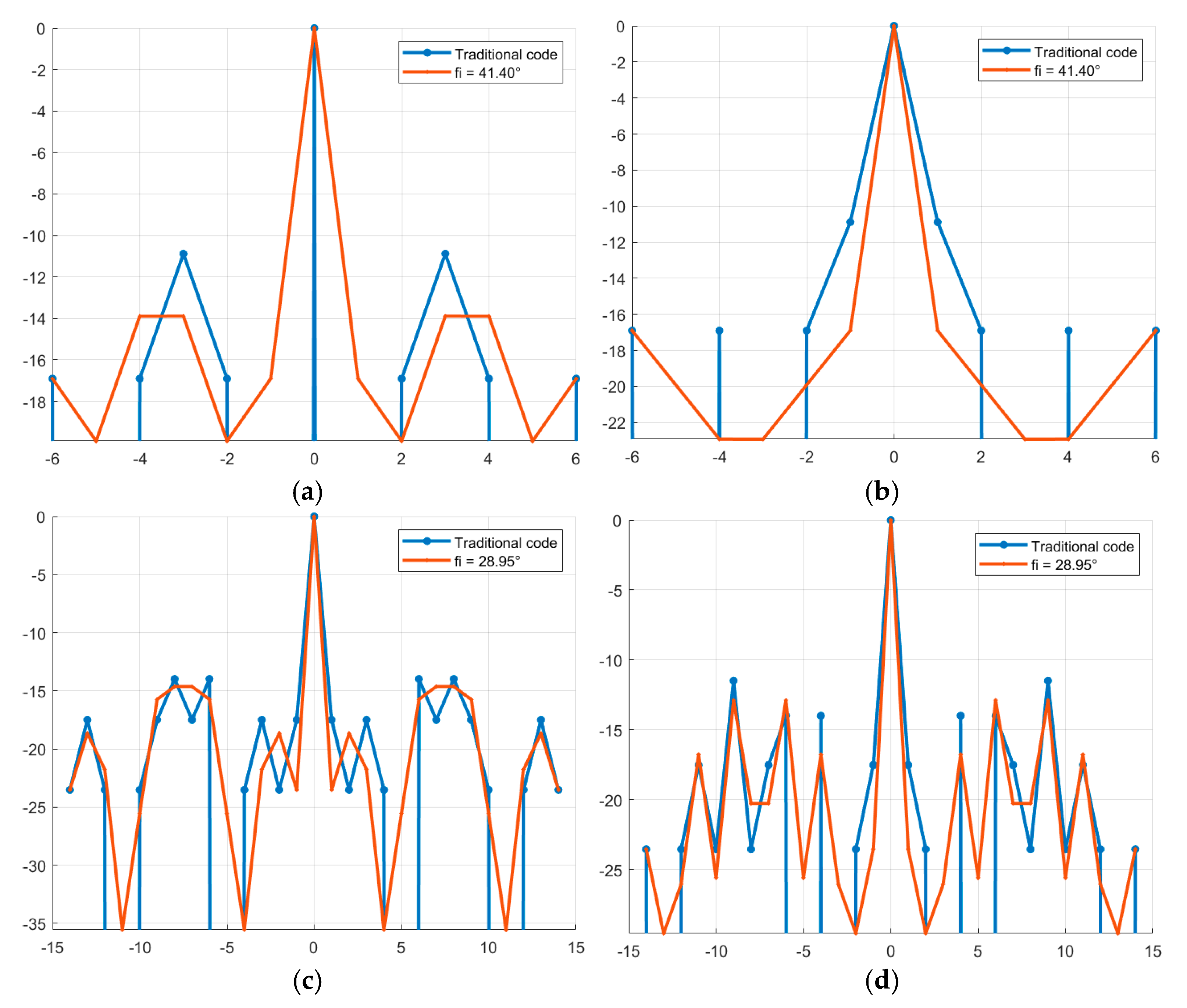

As can be seen from the graphs in Figure 2, certain values of the parameter φ make it possible to reduce the SL of the NACF of traditional M-sequences. Thus, for the traditional M-sequence of length 7, the SL of the NACF level is –10.88, and for the obtained complex M-sequences, the SL of the NACF level is –15.39, therefore, the difference between the values is 4.51. For M-sequences of length 15, the difference between the values is 1.02 (–12.73 for the traditional sequence and –13.75 for the complex one). Similar to the studies carried out above for the aperiodic NACF, Figure 3 shows the change in the SL of the NACF level of the periodic M-sequence. Similar to Figure 1, on the horizontal axis of Figure 3 displays the value of φ, on the vertical line – the value of the SL of the NACF in decibels.

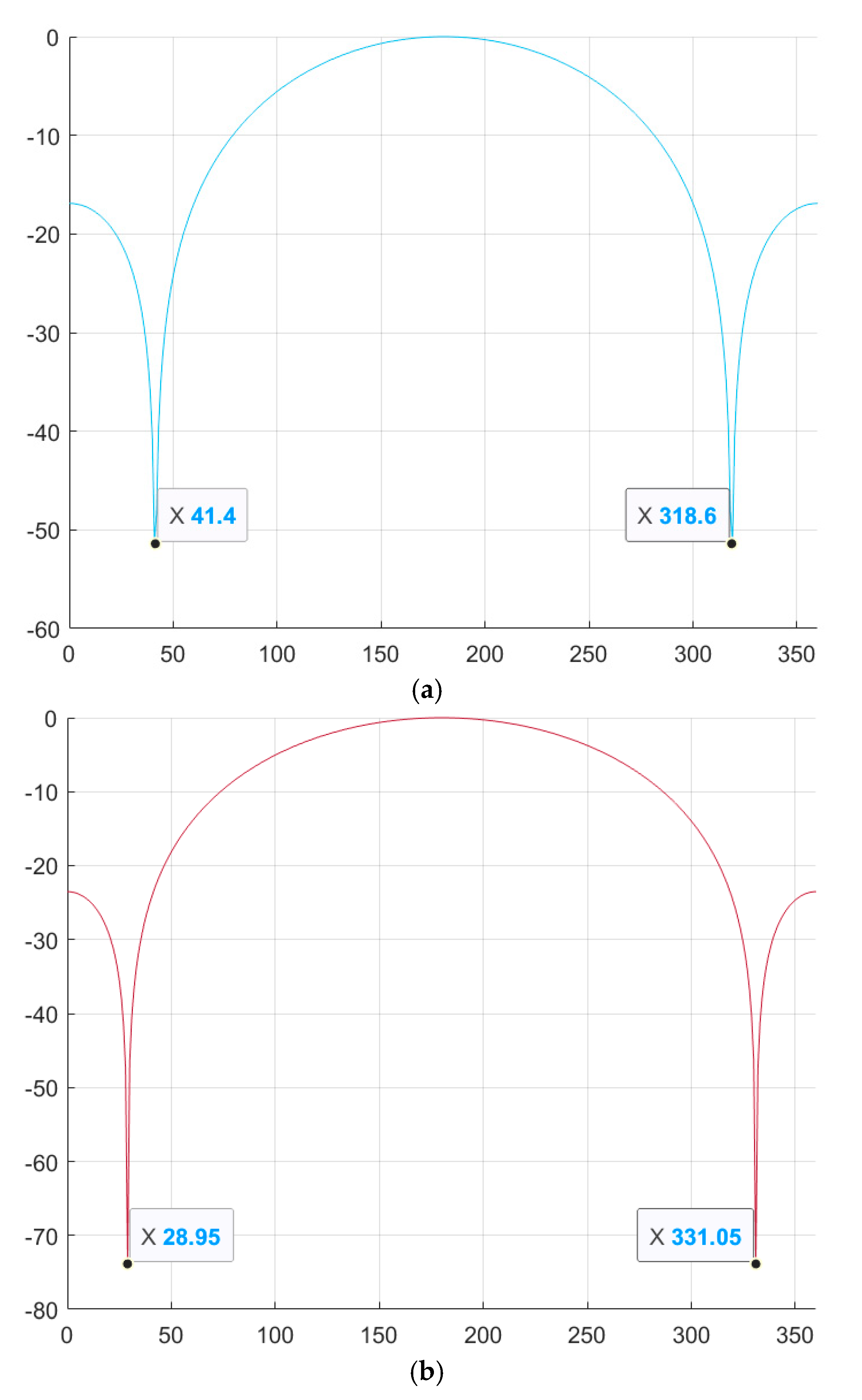

As can be seen from Figure 3, for the periodic NACF, the optimal values are φ1 = 41.4° and φ2 = 318.6° for the M-sequence with length N = 7 and φ1 = 28.95° and φ2 = 331.05° for the M-sequence with length N = 15. Thus, the optimal values for the periodic NACF coincide with the optimal values for the aperiodic NACF. Figure 4 shows a comparison of the BL level of the periodic NACF of the traditional and complex M-sequences.

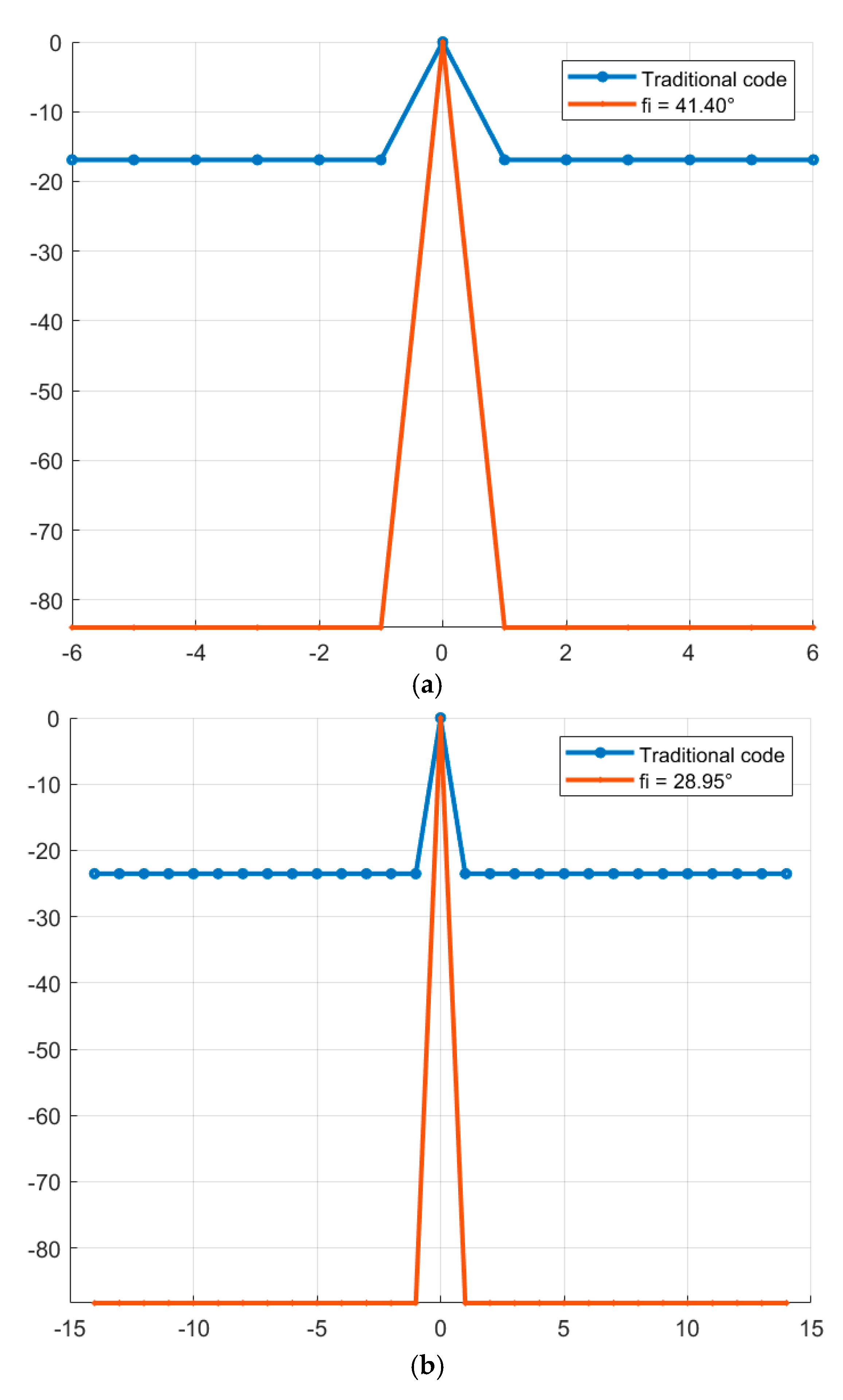

As can be seen from Figure 4, complex M-sequences can significantly reduce the level of SL of the NACF. For the traditional M-sequence of length N = 7, the SL of the NACF level is –16.90, and for the obtained complex M-sequences, the SL of the NACF level is –112.04, therefore, the difference between the values is 95.14. For M-sequences of length N = 15, the difference between the values is 69.77 (the SL of the NACF level is –23.52 for the traditional sequence and –93.29 for the complex one).

3.2. Replacing Two Elements in the Alphabet of Traditional M-Sequences with Complex Values

The second variant of replacing the alphabet of M-sequences replaces the positive 1 with «–exp(φ₁i)» and the negative 1 with «exp(φ₂i)». An example of replacing the alphabet of the previously discussed sequences is presented in Table 5.

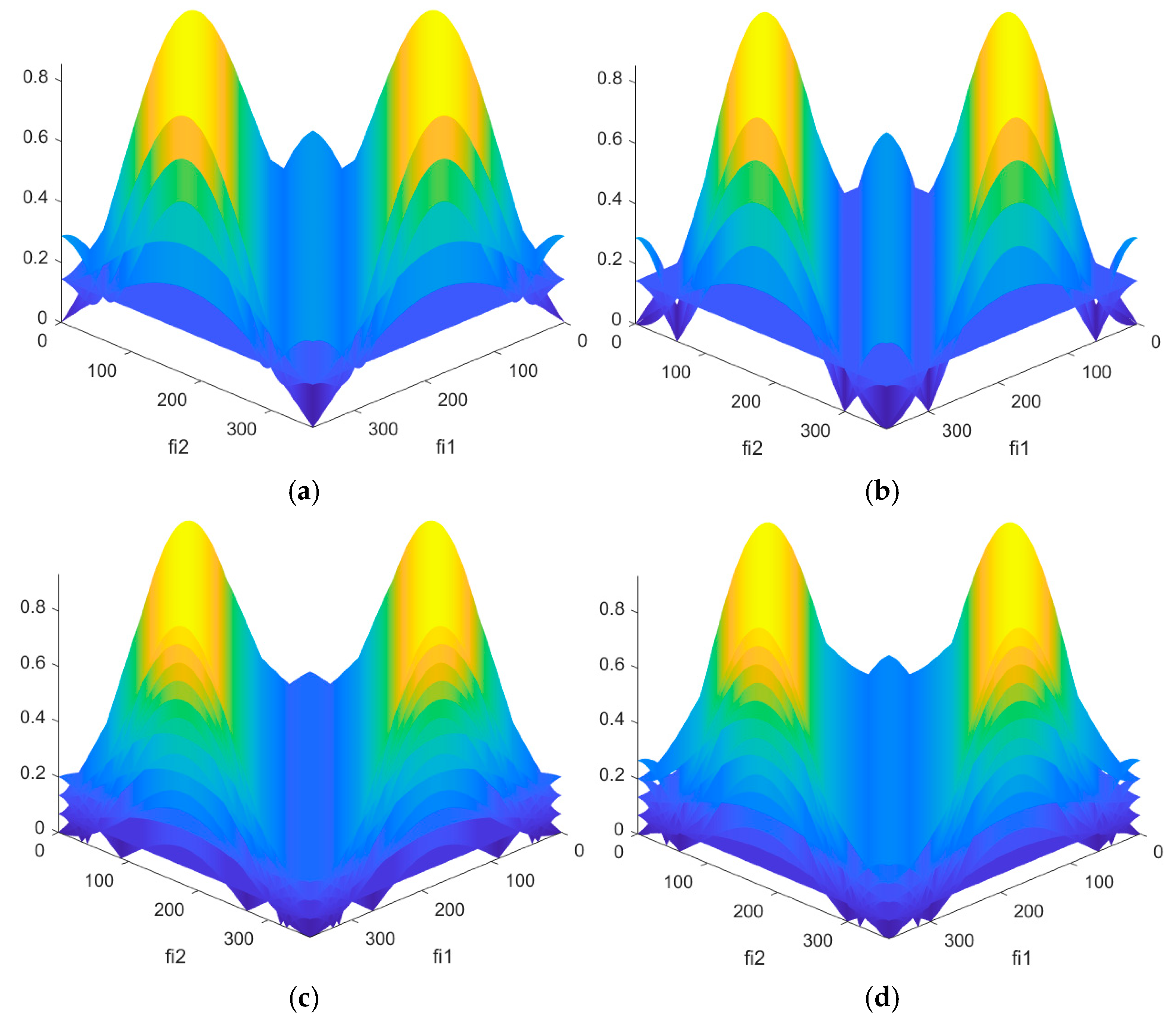

Similar to the variant with the replacement of one alphabet element, it is necessary to determine the optimal values of the pair {φ₁ φ₂} from the range 0-360°, at which the SL of the NACF level is the lowest. A graphical representation of the SL of the NACF level for M-sequences is shown in Figure 5. The vertical axis shows the values of the SL of the NACF for φ₁ and φ₂.

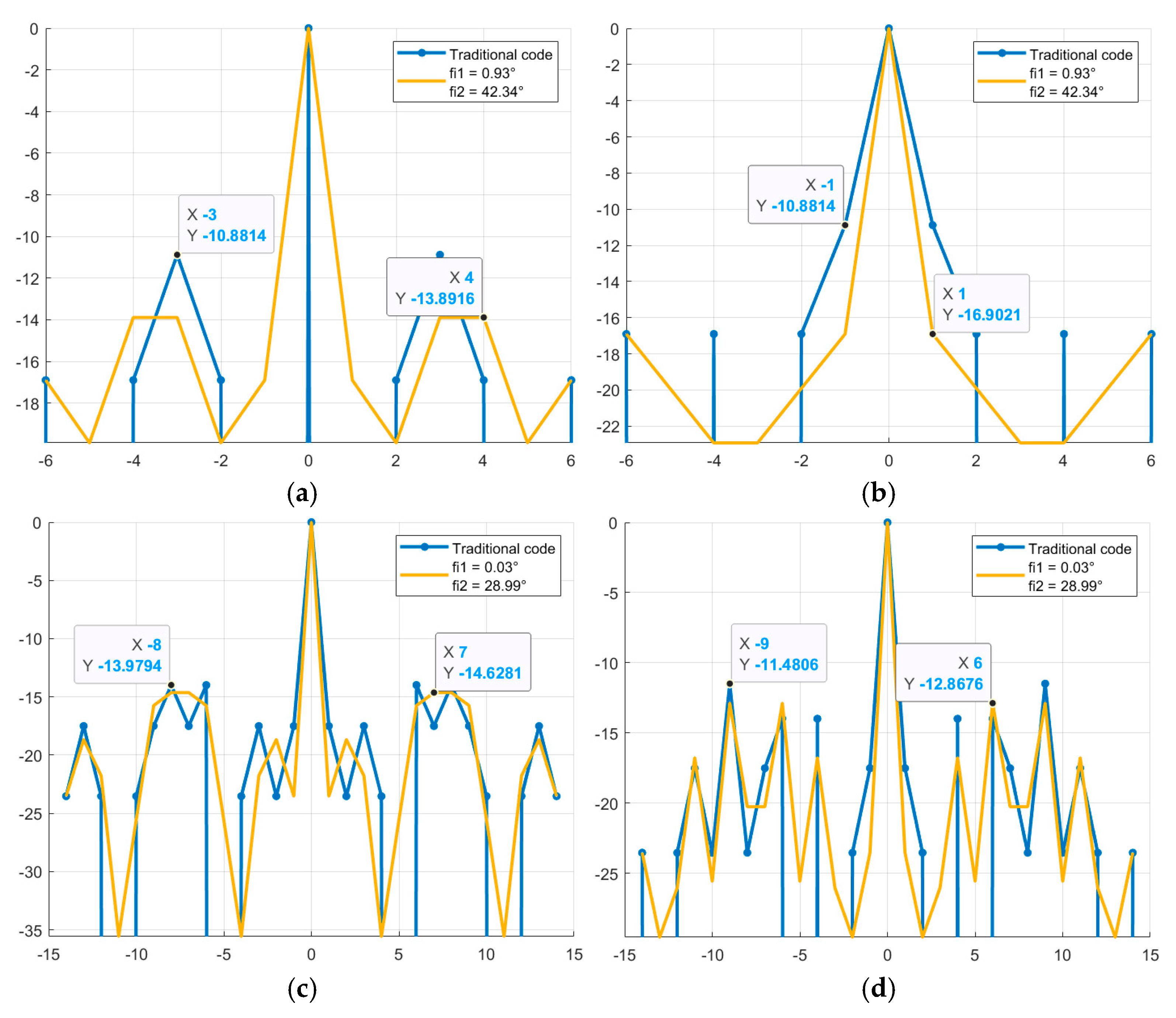

When replacing two elements from the M-sequence alphabet, the optimal values of φ₁ and φ₂ are significantly greater than when replacing a single element. Thus, for M-sequences of length N = 7, the number of pairs { φ₁, φ₂} exceeds 700. An important pattern is observed: for all the resulting optimal pairs {φ₁, φ₂}, the difference between their values is, on average, 42, i.e., |φ₁ – φ₂| ≈ 42. To check the reduction of the SL of the NACF, the first found pairs {φ₁ φ₂} are used (Figure 6).

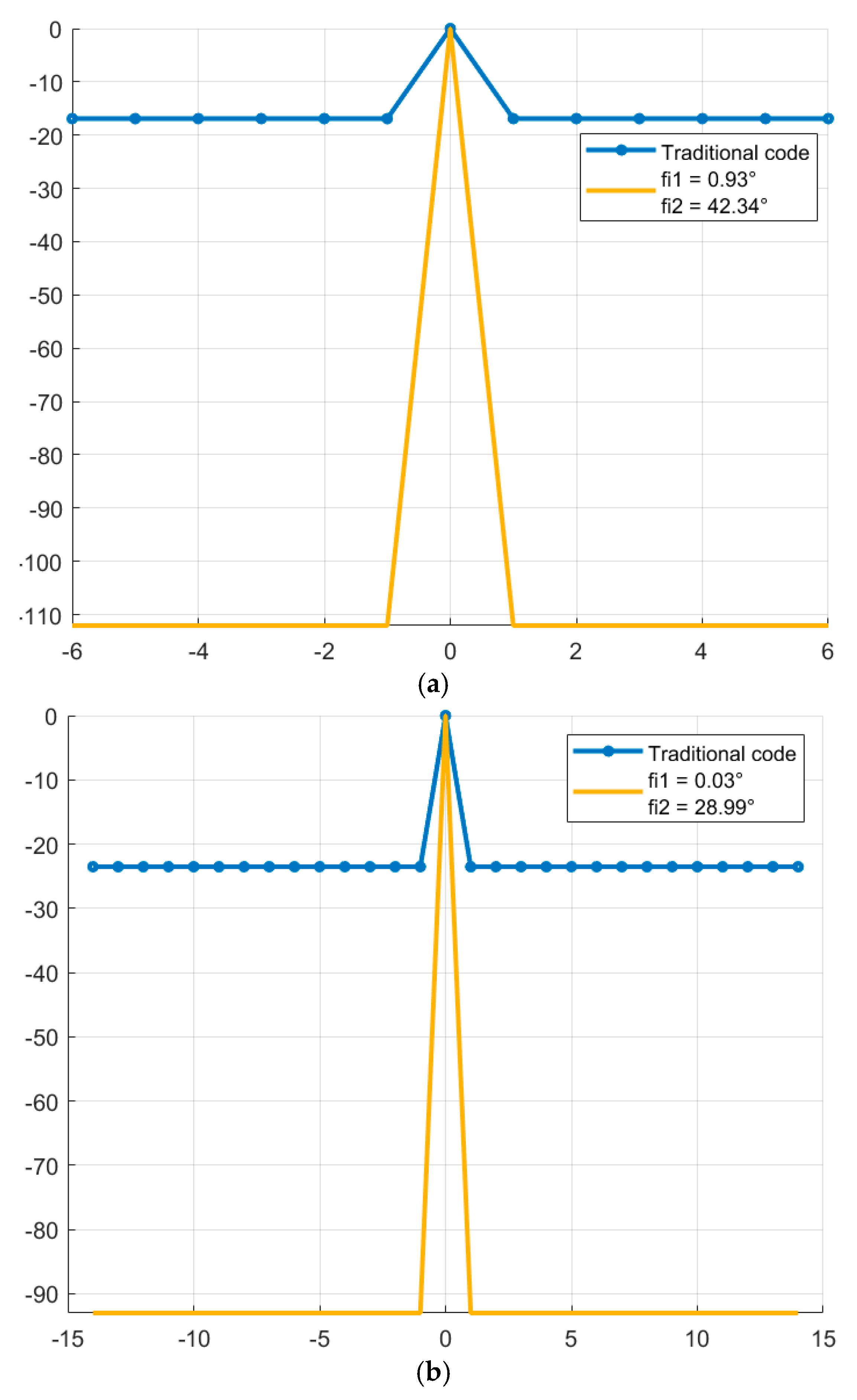

Figure 7 shows a comparison of the SL of the periodic NACF of a traditional and complex M-sequence, depending on two parameters.

As can be seen from the study, the reduction in the SL of the NACF of M-sequences when replacing either one or two alphabet elements occurs by approximately the same values, which is also confirmed by the experimental results presented in Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7. Below is the average reduction in the SL level for M-sequences of length N = 31, 63, 127, 255, 511. Table 6 presents the studied M-sequences whose length exceeds 15, and Table 7 presents the reduction in the SL level of the NACF for all sequences.

An analysis of the numerical results in Table 7 shows that using certain complex M-sequences, it was possible to reduce the SL level of the normalized aperiodic and periodic ACF compared to the same level obtained using traditional representations of this code.

Therefore, for example, the greatest decrease in the maximum SL for the normalized AACF was 4.51 dB, while for the normalized PACF it was 95.14 dB for an M-sequence of length N = 7. With an increase in the length of the M-sequence, the level of SL of the NACF decreases, which will increase the probability of correct signal detection for a given probability of false alarm, that is, against the background of internal noise of the receiving device. Based on this, it should be concluded that it is advisable to use new complex element values to modify M-sequences.

4. Phase Modulation of a Signal by Complex M-Sequences

In modern SSARS, one of the main requirements is to increase the range resolution. For this purpose, complex broad-spectrum probing signals are used in practice, which improves the accuracy and reliability of range estimation to ground targets [41,42,43,44,45,46].

The choice of signal modulation type is also important, as it affects the range resolution when detecting ground targets.

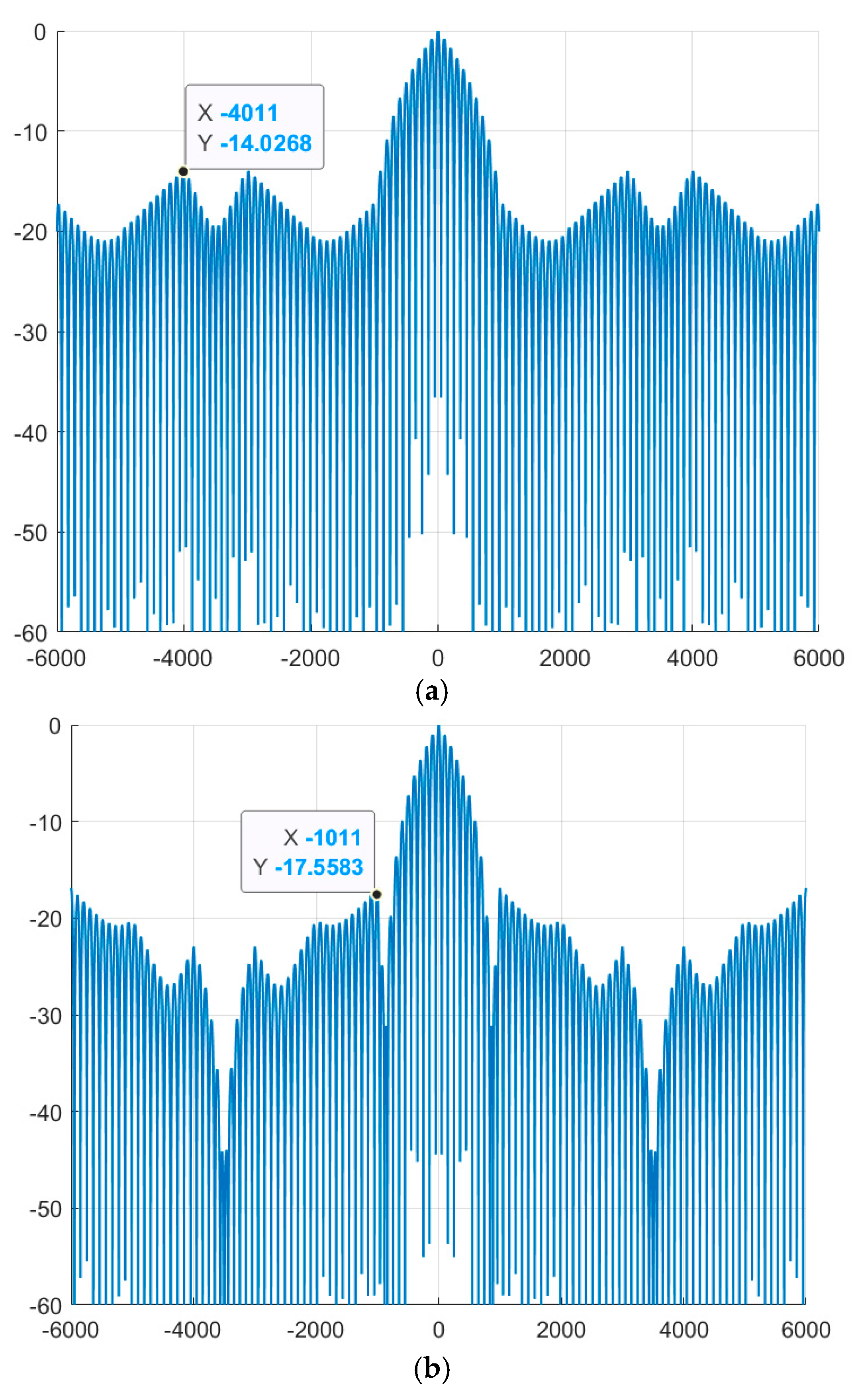

Next, we consider the process of generating and analyzing the correlation properties of signals phase-modulated by new complex M-sequences. The previously obtained initial phase values φ of the new sequences make it possible to generate phase-modulated signals with lower levels of SL of the NACF compared to traditional ones. As an example (Figure 8), complex M-sequences of length N = 7 with the alphabet {1; –exp(φi)} are used for signal modulation. The vertical axis shows the values of the SL of the NACF of the signals, and the horizontal axis shows the time samples.

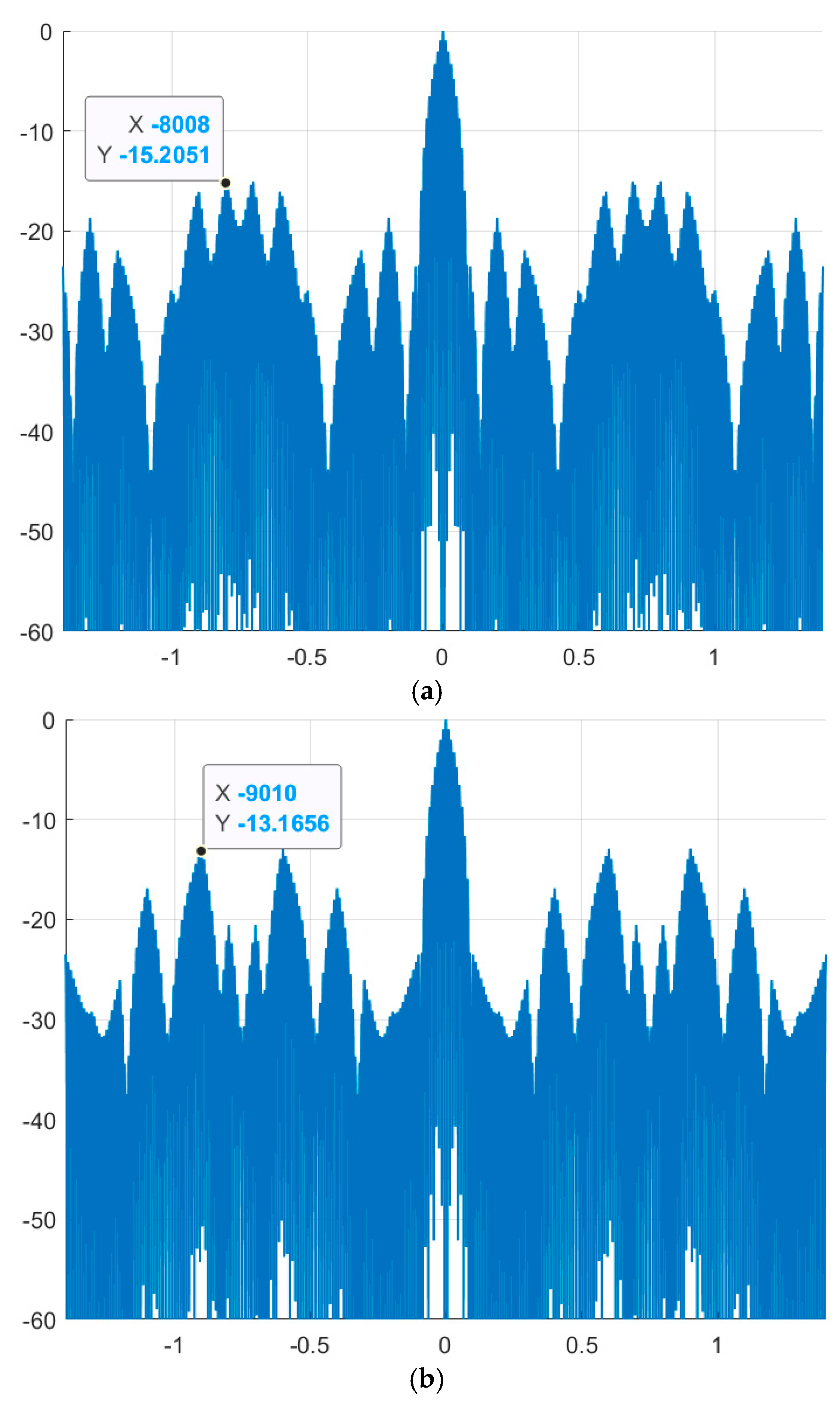

Similar to Figure 8, complex M-sequences of length N = 15 with the alphabet {1; – exp(φi)} are considered below (Figure 9).

Comparing Figure 2 and Figure 8, and 9, it is clear that the maximum level of the SL of the aperiodic NACF of the complex M-sequence and the phase-modulated signal based on it coincide within the computational error, indicating that the signals were generated correctly.

4. Discussion

In addition to low SL of the periodic and aperiodic ACF of complex M-sequences, it is also possible to achieve a fairly low level of the cross-correlation function (CCF) of complex M-sequences. In this regard, future research aims to find values of φ that would ensure not only low levels of sidelobes of the normalized autocorrelation function, but also the required low level of cross-correlation lobes between several M-sequences of the same length, but formed by different generator polynomials. A key requirement is maintaining a balance between these parameters to ensure the possibility of using multiple signals in a single radar channel. Therefore, further research may be directed toward searching for marked signal-code structures modulated simultaneously by several parameters (e.g., phase, frequency, and amplitude). In this case, the search should be carried out taking into account that these signal-code structures should have a low level of SL of the ACF and at the same time have a lobe level of the CCF, which will be lower than that of the ACF. Such an improvement can be used to implement an aviation swarm system of group interaction with SSARS.

The approach presented in this paper for finding new values for M-sequence constructions can also be used as a direction for further research. This approach can be applied to finding new values for other types of sequences, such as pseudorandom sequences, both binary and with a larger number of parameters in their alphabet.

In addition to communications, radar, and radio navigation, these signals can be used to implement group interactions between land-, sea-, and underwater-based swarms. Further research can be aimed at modifying the code structure to ensure both low SL of the NACF and low mutual interference in a single channel.

5. Conclusions

The study resulted in an assessment of the properties of the autocorrelation functions of complex M-sequences, including an analysis of their periodic and aperiodic components. An approach based on replacing the traditional sequence alphabet with an asymmetric complex one was developed, which significantly reduced the level of sidelobes in the autocorrelation function.

The practical significance of the obtained results lies in their application to improving the quality of airborne radar and communication systems, where minimizing the level of SL of the NACF is a key requirement. The newly discovered complex M-sequences demonstrated high efficiency in computer experiments, which will further enable the generation of signal-code structures used in group systems for airborne monitoring of the earth’s surface.

Thus, the use of complex M-sequences and signals modulated by them confirmed the improvement of their correlation properties by searching for new values in the structure of the M-sequence by replacing the traditional alphabet {1; –1} with an asymmetric complex one.

The obtained results are intended to stimulate research in the field of changing the algorithms for generating and processing signals, increasing the reliability of detecting a useful signal in conditions of interference in radar channels when implementing a swarm of SSARS, united in an interacting group.
