Using Steganography and Artificial Neural Network for Data Forensic Validation and Counter Image Deepfakes

1. Introduction

In recent times, researchers have been extensively investigating steganography techniques and their applications in various contexts. With the growing concept of smart cities worldwide, researchers are combining steganography techniques with artificial intelligence to enhance the security of these frameworks [1,2]. Steganography is the practice of hiding information in a cover medium and is sometimes referred to as hiding in plain sight. Instead of watermarking the cover media, steganography embeds and hides data in the actual cover media by modifying the media data bit structure [2,3].

Data security becomes paramount when introducing aspects of IoT, because it involves numerous systems that communicate over a network and share a significant amount of data. IoT devices primarily exchange data over the Internet using various network protocols. Unauthorized interceptors can manipulate these network communication protocols and access the data that’s being shared between the IoT systems. Some of this data may contain sensitive and private details, such as health records and customer information. As a result, data should be protected as far as possible, equally as IoT adoption gradually increases over time [3].

The increased expansion of IoT devices has led to a significant increase in data generation across various fields, including smart cities, industrial automation, and healthcare. While this growth is positive, it also presents a substantial challenge in terms of cyber/data security, as well as authenticity [3,4]. Cybercriminals are using artificial intelligence to mimic the operation of IoT systems, which raises a challenge to trust in the digital sphere. Furthermore, advances such as Generative AI (GenAI) can be used to create deepfakes which carry similar data as generated by smart IoT devices (i.e., image files, videos, audio, etc.). As a result, there is a need for more research on how digital trust can be maintained in today’s era, where IoT and AI models are being rapidly adopted [4,5,6].

In IoT systems, integrating techniques such as image steganography and artificial neural networks can be implemented to enhance digital authenticity and trust [5,6]. These integrations will enable proactive IoT data forensic validation, ensuring that the data shared between IoT devices is authentic and not generated by AI (i.e., deepfakes, etc.) [2]. Furthermore, these measures will ensure that unauthorized interception of IoT data is rapidly detected and mitigated. Use cases can be in the form of secure real-time intelligent surveillance systems that use image steganography and ANNs for data forensic validation [2,3,4,5].

This study focuses on the integration of image steganography and ANN to enable IoT data forensic validation and hence counter deepfakes. This method creates a two-layer security framework; the image steganography component embeds and hides data within an image, while the ANN will be used to validate the decrypted embedded data and detect any data inconsistencies. The interaction of these components enables data security and authenticity; hence, attackers will find it difficult to successfully intercept, manipulate, or use deepfakes to forge data in an undetectable manner [2,4,5,6].

Contribution of this study: Image steganography embeds and hides data using techniques such as the least significant bit (LSB) insertion, which alters the least significant bit of pixel values to hide data [1,2]. The discrete cosine transform (DCT) enables embedding data in the frequency domain of the cover media, thereby making it more robust against compression [2]. Further to the DCT, the discrete wavelet transforms (DWT) technique embeds data into different frequency bands, enabling multi-resolution analysis [3]. These embedding techniques will be used to conceal validation codes/metadata within the pixels of the smart camera images, enabling forensic validation of the pictures and secure data transmission. An ANN model will be trained to recognize patterns and detect anomalies in the IoT device images. The incoming data from the smart camera device is compared against the learned patterns for anomaly detection and alteration. Through the use of the ANN model, only validated data is accepted; therefore, the method enhances the security of IoT camera systems.

This paper is organized into six sections. Section 2 outlines previous similar state-of-the-art works and summarizes the contribution of this study in line with the identified study gaps. Section 3 presents the proposed methodology, which includes the proposed embedding scheme. In Section 4, the system model and assumptions are discussed. Section 5 presents the experimental evaluation results and discussion of findings. Finally, Section 6 concludes the work and outlines the ideas of future related work.

2. Related Works

The researchers in [2] introduced the components of privacy and authenticity in IoT networks by using a weighted pixel classification image steganography. The work focused on improving performance variables, including embedding capacity, imperceptibility, and the security of the transmitted information. Although this state-of-the-art study yielded better PSNR values, ensuring imperceptibility, compared to other methods, there remains a risk of data tampering due to the lack of data forensic validation for authenticity. The proposed framework presented in this paper aims to close the identified gap and ensure integration with ANN for data forensic validation, in addition to other performance parameters, as per the findings in [2].

The work presented in [3] focused on addressing the challenges arising from the significant advancement of IoT, specifically in the healthcare sector. Some of the difficulties identified in the study are the security and integrity of medical data in healthcare service applications. [3] proposed a dual security model for securing diagnostic text data in medical images. The proposed model integrated steganographic algorithms, such as the 2-D discrete wavelet transform at one level (2D-DWT-1L) and the 2-D discrete wavelet transform at two levels (2D-DWT-2L), with encryption schemes. The schemes included the Advanced Encryption Standard and the Rivest, Shamir & Adleman algorithms. While this study demonstrated improved results compared to other state-of-the-art methods, it didn’t include aspects of integration with ANNs for data forensic validation. Hence, our study proposes a framework that integrates ANNs to enable automated data forensic validation.

Another related previous study is presented in [7]. This study presents a novel steganography method that utilizes the singular value decomposition (SVD) and the tunable Q-factor wavelet transformation (TQWT). It applies the TQWT to distinguish the cover signal into discrete frequency sub-bands. They use the SVD to decompose the high-frequency sub-band coefficients into individual values. This novel technique demonstrated improved patient information security and confidentiality, representing a substantial development in steganography studies. Although the state-of-the-art research in [7] presents valuable findings, the gap identified is that it focuses more on the healthcare application and does not include aspects of ANNs to counter deepfakes and forensic data validation. Hence, the study presented in this paper aims to address the identified gap and enhance its contributions.

[8] presents work examining several steganographic techniques for safe data concealing. Some of the methods included are image steganography masking schemes, as well as the LSB-1, 2, and 3 methods. In study [9], researchers employed encrypted secret messages to determine an advanced steganography algorithm. At the encoding side, the encryption process includes a stego-key before embedding the data. This stego key ensures that, in the event of unauthorized interception, the attacker will not be able to decrypt the secret messages, thereby providing the confidentiality of the information. The study in [9] also focused more on imperceptibility aspects and did not include any elements of authenticity or data forensic validation on the receiver side. From the gap analysis, both novel studies in [8] and [9] did not integrate aspects of ANNs into the steganography methods they proposed, nor did they investigate the data forensic validation aspects. Hence, there is a need to explore the identified gap and develop more robust steganography systems.

3. Proposed Scheme and Methodology

This section discusses the methodology of the study and the proposed scheme background.

In this study, we propose a discrete cosine transform-least significant bit (DCT-LSB) method with a 2-bit resolution (DCT-LSB-2) for steganography systems. The technique is applied forwardly on the sender side of the system for encryption and embedding the secret data bits within the cover image. And a reverse DCT-LSB-2 is used at the receiver side for decryption and recovery of the hidden information. The hidden information can be a validation code embedded within the pixels of the image captured by the smart camera device (i.e., an IP camera). It can be used as a forensic validation criterion on the receiver side. The successful data forensic validation of the code within the pixels of the image will mean acceptance. The ANN will be located on the receiver side and will perform the reverse DCT-LSB-2 operation, then validate whether the decrypted data matches the criteria of the initial embedded validation code.

The discrete cosine transform-least significant bit 2 method (proposed) utilizes the ASCII method to analyze the image consecutively captured by the IoT device, converting it into decimal and binary forms [1,2]. Before encryption is initiated, the algorithm verifies the image dimensions and the size of the secret data. The IoT camera captured image is partitioned into RGB (Red, Green, Blue), and the two least significant bits of each image pixel are replaced with pairs of the hidden information bits (bit substitution). This method alters coefficients in the transform domain and randomly embeds the private information in the image pixels, thereby reducing the chances of steganalysis, distortion, and cross-detection. The algorithm runs till all the bits of the hidden information are inserted into the image pixels. As a result, before the captured image is transmitted from the IoT device (i.e., IP camera), the secret data is embedded (as previously stated, this data can be a validation code that will be used at the receiver side by the ANN for authenticity acceptance) [7,8,9,10,11,12].

The formulae for calculating the DCT coefficients for a single 8 × 8 block of image pixels is:

$${\mathrm{D}\mathrm{C}\mathrm{T}}_{\mathrm{x}\mathrm{y}}={\displaystyle \frac{1}{4}}{\mathrm{H}}_{\mathrm{x}}{\mathrm{H}}_{\mathrm{y}}{\sum }_{\mathrm{p}=0}^7{\sum }_{\mathrm{q}=0}^7{\mathrm{F}}_{\mathrm{p}\mathrm{q}}\ast \cos \left[{\displaystyle \frac{\left(2\mathrm{p}+1\right)\mathrm{x}\mathsf{\pi }}{16}}\right]\ast \cos \left[{\displaystyle \frac{\left(2\mathrm{q}+1\right)\mathrm{y}\mathsf{\pi }}{16}}\right]$$

(1)

Where:

$${\mathrm{H}}_{\mathrm{x}}, {\mathrm{H}}_{\mathrm{y}} = {\displaystyle \raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$\sqrt{2}$}\right.} \mathrm{when} \mathrm{x}, \mathrm{y} =0$$

(2)

H_x, H_y = 1 otherwise

(3)

x and y are the horizontal and vertical special frequencies for the integers 0 ≤ x, y < 8.

$${{\mathrm{F}}^{\mathrm{Q}}}_{\mathrm{pq}}=\mathrm{r}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{d}\left({\displaystyle \frac{{\mathrm{F}}_{\mathrm{p}\mathrm{q}}}{{\mathrm{Q}}_{\mathrm{p}\mathrm{q}}}}\right)$$

(4)

F_pq is the pixel value of the cover image at location coordinates (p, q).

Q_pq is a quantization table with 8 × 8 (64) elements.

To evaluate the performance of the proposed method, key parameters such as the peak signal-to-noise ratio (PSNR), mean square error (MSE), and structural similarity index (SSIM) will be utilized. The secret information for experimental purposes will be a static validation code consisting of numerical values, text characters, and special characters. The ANN model will be pre-trained to verify the decoded validation code and confirm that the received image is authentic, has not been tampered with, and is not AI-generated (deepfake).

The structural similarity index is used to quantify the similarity between two images. It considers multiple aspects of the human visual system and quantifies the apparent quality of images. Three key features of the image are compared: structure, luminance, and contrast. The result produces a value between -1 and 1, where a negative value means dissimilarity, 0 means no similarity, and a value of 1 indicates perfect similarity. Hence, higher SSIM values denote greater similarity between images [2,3,4,5].

The formulae for calculating the SSIM, MSE, Embedding Rate, and PSNR are given below [1,2,3,4,5,6,7,8,9,10]:

$$\mathrm{S}\mathrm{S}\mathrm{I}\mathrm{M}\left(\mathrm{x},\mathrm{y}\right)={\displaystyle \frac{(2{\mathsf{\mu }}_{\mathrm{x}}{\mathsf{\mu }}_{\mathrm{y}}+{\mathrm{C}}_1)(2{\mathsf{\sigma }}_{\mathrm{x}\mathrm{y}}+{\mathrm{C}}_2)}{({{\mathsf{\mu }}^2}_{\mathrm{x}}+{{\mathsf{\mu }}^2}_{\mathrm{y}}+{\mathrm{C}}_1)({{\mathsf{\sigma }}^2}_{\mathrm{x}}+{{\mathsf{\sigma }}^2}_{\mathrm{y}}+{\mathrm{C}}_2)}}$$

(5)

Where ${\mu }_x and {\mu }_y$ are the average luminance of the cover image (without any hidden data) and the stego image (with data embedded in the image pixels). ${\sigma }_{xy}$ is the covariance of the pixel intensities between the cover image and the stego image. $C_1$ and $C_2$ are added constants to prevent instability when the denominators are close to zero. ${{\sigma }^2}_x$ and ${{\sigma }^2}_y$ are the variances of the pixel intensities of the cover image and the stego image.

$$\mathrm{M}\mathrm{S}\mathrm{E}={\displaystyle \frac{1}{\mathrm{M}\mathrm{N}}}{\sum }_{\mathrm{i}=1}^{\mathrm{M}}{\sum }_{\mathrm{j}=1}^{\mathrm{N}}{({\mathrm{x}}_{\mathrm{i}\mathrm{j}}-{\mathrm{y}}_{\mathrm{i}\mathrm{j}})}^2$$

(6)

Where M is the number of rows of the cover image, N is the number of columns of the cover image, $x_{ij}$ is the pixel value from the cover image, and $y_{ij}$ is the pixel value from the stego image.

$$\mathrm{E}\mathrm{m}\mathrm{b}\mathrm{e}\mathrm{d}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g} \mathrm{R}\mathrm{a}\mathrm{t}\mathrm{e}={\displaystyle \frac{\mathrm{N}}{\mathrm{H}\ast \mathrm{W}}}$$

(7)

Where N is the number of secret hidden data bits, H is the cover image height, and W is the cover image width.

$$\mathrm{P}\mathrm{S}\mathrm{N}\mathrm{R}={10\log }_{10}\left({\displaystyle \raisebox{1ex}{${\mathrm{R}}^2$}\!\left/ \!\raisebox{-1ex}{$\mathrm{M}\mathrm{S}\mathrm{E}$}\right.}\right)$$

(8)

Where R is the maximum possible pixel value of an 8-bit image (255) and MSE is the value of mean square error.

$$Byte length={\displaystyle \frac{Total number of bits}{8}}$$

(9)

Byte length represents the calculation of bytes for a total number of bits in a piece of data.

4. System Model and Assumptions

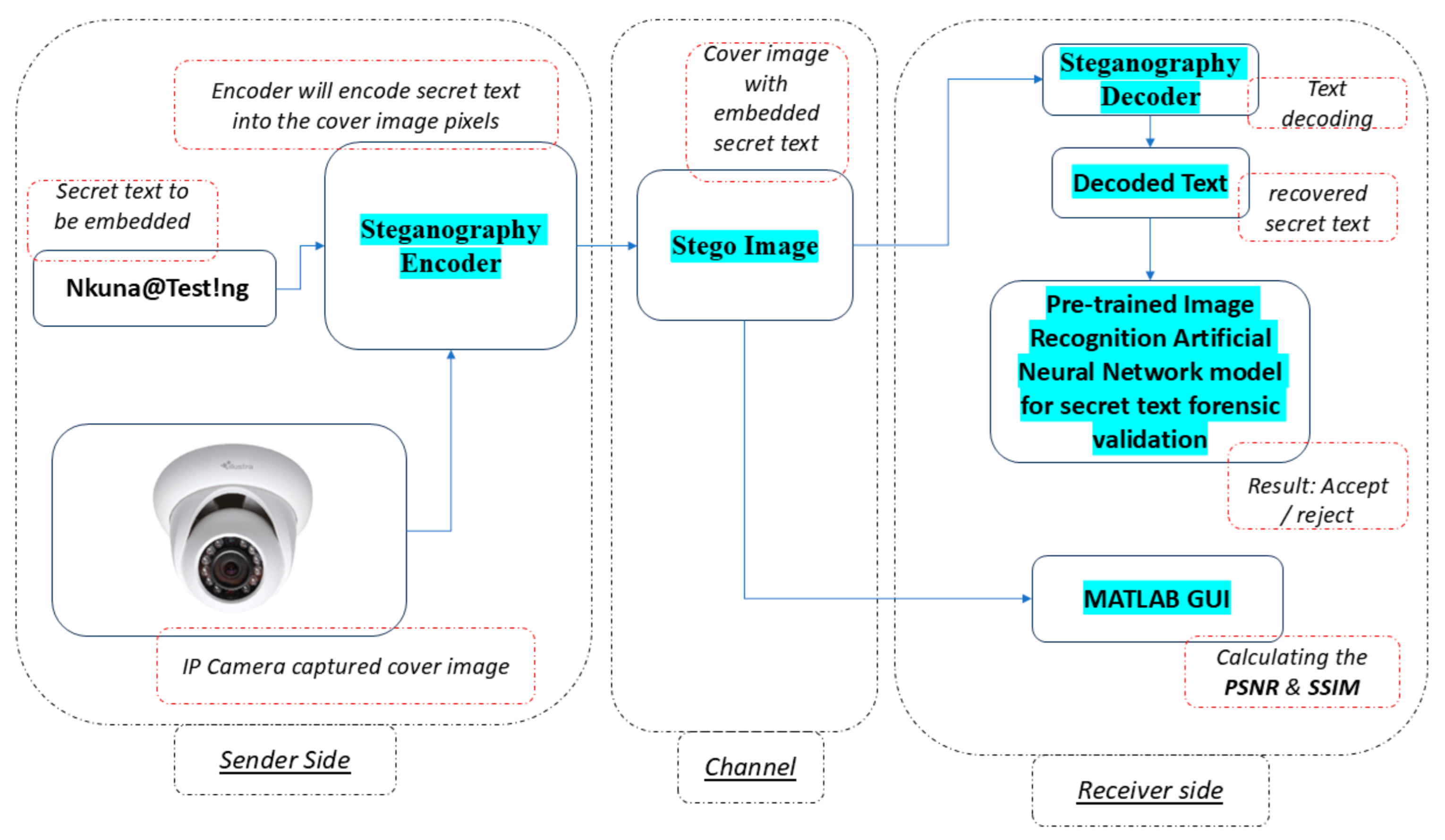

In this section, the system model is presented and assumptions are discussed. Figure 1 below illustrates the proposed system model.

The IP camera will capture the cover image and parse it to the steganography encoder system (where the embedding of the secret text will occur). The encoding algorithm that will be tested is the proposed DCT-LSB-2 scheme. Once the hidden text is successfully encoded into the cover image pixels, the encoder produces a stego image as output. The stego image will be transmitted through a communication channel to the receiver’s side, where the embedded secret text will be decoded and fed into the pre-trained ANN for validation. The stego decoder system will use a reverse DCT-LSB-2 algorithm to decode/decrypt the secret text. The recovered text will serve as an input to the pre-trained ANN model for data forensic validation. If the text matches the original secret text, the ANN model will return an ‘accept’ message, indicating successful authentication. This means that the image captured by the IP camera has not been tampered with and is therefore valid.

However, suppose the ANN model detects that the decoded secret text does not match the pre-trained text. In that case, it will return a ‘reject’ message, indicating that the received image file is not from an authorized device, has been intercepted, and may be a deepfake image file, which means that the IP camera has been compromised. An unsuccessful verification indicates that an unauthorized interception of the images sent from the IP camera has occurred. The ANN can be configured to send notification alerts for any unsuccessful authentication attempt, allowing responsible individuals to remediate the breach.

To ensure the robustness of the stego system, MATLAB tool is used to calculate the PSNR and SSIM between the original cover image and the stego image, thereby maximizing imperceptibility. Using these parameters, the risk of steganalysis and unauthorized detection of image alterations will be minimized. Hence, increasing the robustness of the whole system. The PSNR and SSIM results obtained through the proposed method will be compared to those achieved in related previous state-of-the-art schemes from the literature.

5. Results and Discussion

This section presents the results obtained during the experimentation of the system model indicated in Figure 1. The results are divided into four sub-sections: the data forensic validation portion, which looks at the authenticity of the decoded secret text (also referred to as the validation code), and the second, third, and fourth sub-sections focuses on the robustness of the proposed encoding scheme by comparison of the obtained PSNR, MSE & SSIM results between the proposed framework and previous results obtained from the related novel studies.

5.1. Determining the Authenticity of the Encoded & Decoded Secret Text for Data Forensic Validation on the Sender and Receiver Side

5.1.1. Encoding

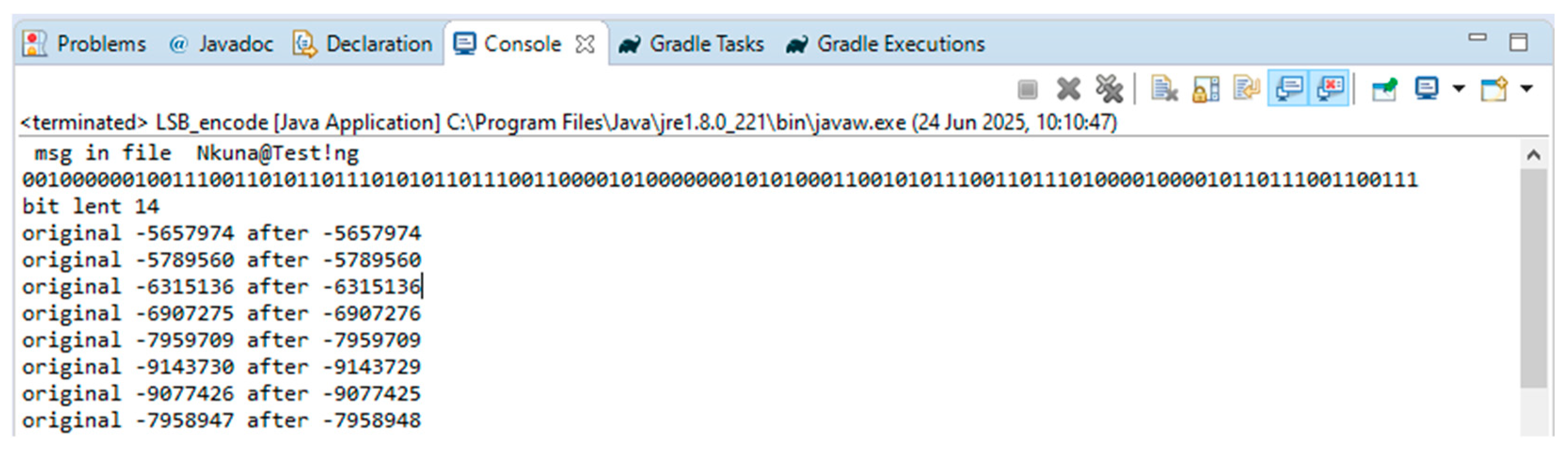

The encoding algorithm was executed, and the following Java console shows the output obtained.

The validation code “Nkuna@Test!ng” contains a total of 112 data bits as indicated in Figure 2. Using Formula (9), the byte length of the validation code is calculated to be 14 bytes. The output in Figure 2 also shows that a total of 4 least significant bits were altered in the corresponding pixel locations of the cover (original) image during the encoding process on the sender’s side, and the validation code was successfully embedded within the cover image.

5.1.2. Decoding

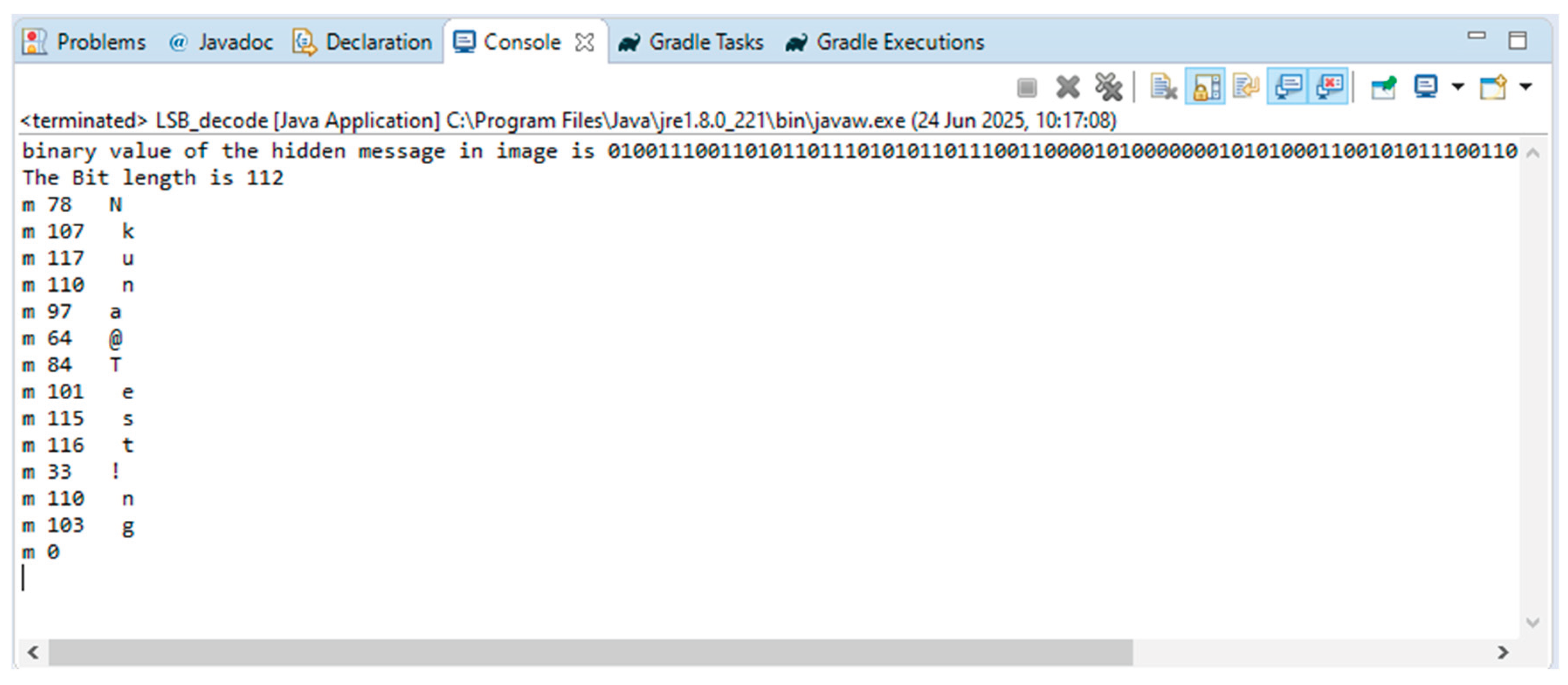

The decoding algorithm was also executed on the receiver side, and the following results were obtained from the Java console.

The results presented in Figure 3 above indicate that, according to the system model in Figure 1, the original validation code encoded into the image was successfully decoded on the receiver side. This demonstrates that the proposed framework achieves a successful data recovery, and this output (validation code) will then be fed into a pre-trained ANN for automated data forensic validation.

5.2. Experimental Evaluation Results Obtained in Determining PSNR, SSIM, and MSE for the Proposed Framework, with a Cover Image Size of 259 × 194 Pixels

This subsection presents the experimental results obtained from the execution of the proposed model.

From the experimental evaluation and analysis results presented in Table 1, the average PSNR for the proposed framework with a payload of up to 100,000 bits is 42.44 dB. This aligns with theoretical knowledge to limit steganalysis and maximize stego image quality [2,3,4,5]. The average SSIM for the system, as per the parameters in Table 1, is 0.9927, which aligns with theoretical expectations to maximize system robustness and resilience.

5.3. Determining the Level of Robustness of the Proposed DCT-LSB-2 Framework and the Previous State-of-the-Art Models, Considering Similar Cover Image Sizes

The proposed framework yields competitive PSNR results compared to the novel work presented in [13,14,15] (see Table 2 bellow). This allows the system to exhibit no physical modification properties on the stego image, thereby increasing the robustness of the stegosystem. The novel work presented in [13,15] did not indicate the corresponding payload associated with the PSNR values presented.

The results in Table 3 indicate that the proposed framework achieves competitive and, at times, improved PSNR performance compared to the state-of-the-art results presented in [2]. The work in [2] is limited to embedding rates between 0.05 and 0.9 bpp, whereas the proposed framework is evaluated for an embedding rate of up to 1.869 bpp (as shown in Table 1). The proposed framework exhibits stable PSNR values across varying embedding rates, demonstrating system stability and resilience compared to [2].

According to the results in Table 4, the proposed framework demonstrates highly competitive SSIM performance compared to the state-of-the-art work presented in [2]. The results in [2] were obtained using image sizes of 512 × 512 pixels. In contrast, the proposed framework was evaluated using a smaller image size of 259 × 194 pixels (hence the slight difference in the SSIM values). The proposed model can be further assessed using the same image size as in [2] to increase the SSIM values even higher, thereby enhancing imperceptibility, resilience and robustness.

5.4. Comparison of the PSNR and SSIM Parameters Between the Proposed Framework and the Work Presented in [16]

The results in Table 5 indicate an improved PSNR performance of the proposed framework compared to the state-of-the-art PVD_Red method presented in [16]. The proposed DCT-LSB-2 scheme also demonstrates competitive SSIM performance compared to results in [16], indicating a strong imperceptibility property of the stegosystem.

6. Conclusions and Recommendations

This paper proposes a two-layered secure steganography-ANN system that combines an image steganography framework with an artificial neural network for robust and resilient IoT systems. The proposed DCT-LSB-2 method demonstrated improved and competitive performance compared to previous state-of-the-art methods, indicating successful evaluation and potential for further investigation to enhance application and performance using higher pixel size cover images. The DCT-LSB-2 method achieved an average SSIM of 0.9927 across the entire range of embedding capacity values, from 0.00 bpp (minimum) to 1.988 bpp (maximum), as specified by the evaluation parameters presented in Table 1. The proposed framework demonstrated stable PSNR performance throughout the evaluation with different payloads (in kB), indicating a resilient system with varying secret/validation code sizes. The proposed system further demonstrates complete and robust encoding and decoding capabilities, enabling the full recovery of validation codes for data forensic validation and thus satisfying the objectives and scope of this work.

Future work will involve evaluating the model using higher pixel size images of various color gradients and color distributions to further enhance the scheme’s resilience and robustness. Another aspect is the application of convolutional neural networks (CNNs) rather than the current artificial neural networks (ANNs) in evaluating the proposed framework and examining how it will respond to this approach [17,18,19,20,21,22].
