Excitation Pulse Influence on the Accuracy and Robustness of Equivalent Circuit Model Parameter Identification for Li-Ion Batteries

1. Introduction

Accurate estimation of state of charge (SoC) and state of health (SoH) is crucial for the efficient and safe operation of lithium-ion (Li-ion) batteries in applications such as electric vehicles, portable electronics, aviation, and stationary energy storage systems [1]. Battery Management Systems (BMS) rely on mathematical models to estimate the battery state. An accurate digital Li-ion cell model is also a useful tool for battery pack design and engineering as it can significantly accelerate the design process by enabling virtual experiments and testing. The choice of the most suitable model faces a fundamental trade-off between the model accuracy and its complexity and computational burden, as many applications imply real-time simulations relying on limited on-board computational resources. From a practical perspective, there is another factor – how difficult it is to identify all the required model parameters.

There are three main types of Li-ion battery models: electrochemical models, equivalent circuit models, and data-driven models. The electrochemical models implement an ab initio approach by explicitly taking into account physicochemical processes taking place within an electrochemical cell operation (ions diffusion, charge transfer, reaction kinetics) [2,3]. Such models enable deep analysis of the design-performance relationships and therefore are useful for research and development at the cell level. However, the computational complexity of such models makes them hardly applicable for BMS use and battery pack engineering (since it involves simulations of dozens and hundreds of cells) [4].

Equivalent circuit models (ECM) and data-driven models both use an empirical approach, aiming to predict battery behavior without explicitly modeling the internal processes. The relatively new and promising data-driven models are based on machine learning methods and, potentially, are able to capture complex non-linear dependencies between the input and output signals of the system [5,6]. However, the data-driven models are quite complex to tune and run, usually require an extensive training data set, and may fail badly outside the conditions phase space covered by the training set. Therefore, relatively simple ECMs are the most widely used in BMS and battery design applications.

An ECM describes the Li-ion cell as an electric circuit consisting of few components. A Thevenin model is one of the most commonly used ECMs. It consists of a voltage source (open-circuit voltage, OCV), a series ohmic resistance (R0), and a number of resistance-capacitor (RC) pairs that model dynamic polarization [1,7] (see Figure 1). The order of the ECM defines the number of the included RC-circuits. A relatively simple model design provides several advantages: ease of implementation, low computational load and physical intuitiveness. The latter means that the parameters of the circuit components can be correlated to the physical parameters of a real electrochemical cell (e.g., electrode surface resistance and ion diffusion coefficients).

Cell voltage relaxation in response to a sudden current change results from multiple dynamic processes with different time scales, such as electric double layer charging, electrolyte diffusion, and solid-phase diffusion [8]. A 1st-order ECM effectively captures the main dynamic characteristics of the battery response requiring minimal computational efforts, while only one time-constant identification is required. This model is widely used in industrial applications due to its reliability and ease of parameterization [9]. However, it is inherently unable to provide high accuracy. A second-order Thevenin model enables a more accurate approximation of the cell voltage dynamics by separating fast (high-frequency) and slow (low-frequency) transient processes. The first RC circuit is often associated with the electric double layer charging process, and the second one — with the solid-phase diffusion [8,10,11]. Therefore, the second-order models are assumed to be significantly more accurate than the first-order models while maintaining acceptable computational complexity.

Higher-order ECMs (3rd and above) can hypothetically provide even higher accuracy. However, a comparison study has shown that the 2nd-order ECM yields the lowest error [7]. The possible reason is that the identification of the additional parameters describing the extra RC pairs makes the results unstable because of the risk of overfitting and difficulties in separating processes with similar time constants. A critical problem highlighted in [12] is the ambiguity in parameter identification: the same voltage transient response can be approximated with equal accuracy by several different sets of ECM parameters. That makes the results of high-order ECM parameterization highly dependent on the chosen algorithm and initial approximations, and consequently, unpredictable and poorly interpretable. Thus, the high-order ECMs are impractical for most applications.

The accuracy of any ECM model critically depends on the correct identification of its parameters (R0, R1, C1, R2, C2), which, in turn, non-linearly depend on the cell state of charge, operation temperature, and state of health [10,13]. The most common and practical approach to ECM parameterization is based on the analysis of the voltage response to rectangular current pulses, for example, tests using the Hybrid Pulse Power Characterization (HPPC) technique [14]. There are different ways to extract the model parameters from the cell voltage response to the test pulse. Some authors employ simple analytical equations [10], while most researchers employ fitting procedures based on least squares algorithms that iteratively adjust the parameters to minimize the difference between the measured voltage and the model prediction. A lot of efforts were made in order to develop advance parameters identification algorithms. Specifically, researchers had suggested several methods to separate the fast and slow dynamics contributions [12,15,16].

Although first and second order ECMs are widely used and there are many studies focused on parameter identification algorithms, the literature still lacks a systematic investigation of how the characteristics of the test pulse (i.e., amplitude and duration) affect the reliability of the parameterization process and, consequently, the accuracy of the model. Numerous studies employing pulse excitation techniques (such as HPPC, GITT, DST) for the model parameterization groundlessly select the durations of the test pulse and the following relaxation phase. There is a wide scatter of the test pulse duration values: 10 s [17,18,19], 18 s [20], 20 s [21], 30 s [22], 45 s [12], 60 s [22], 90 s [12,23], 180 s [12,23,24], 360 s [12,23,25], 720 s [26] and 900 s [27]. The length of the post-pulse relaxation segment processed by the parameter identification algorithm is also scattered widely or is not even stated clearly in many sources. Few studies have taken effort to compare different test pulses. However, they are limited to a very small number of combinations of test conditions (e.g., four [28] and five [23]).

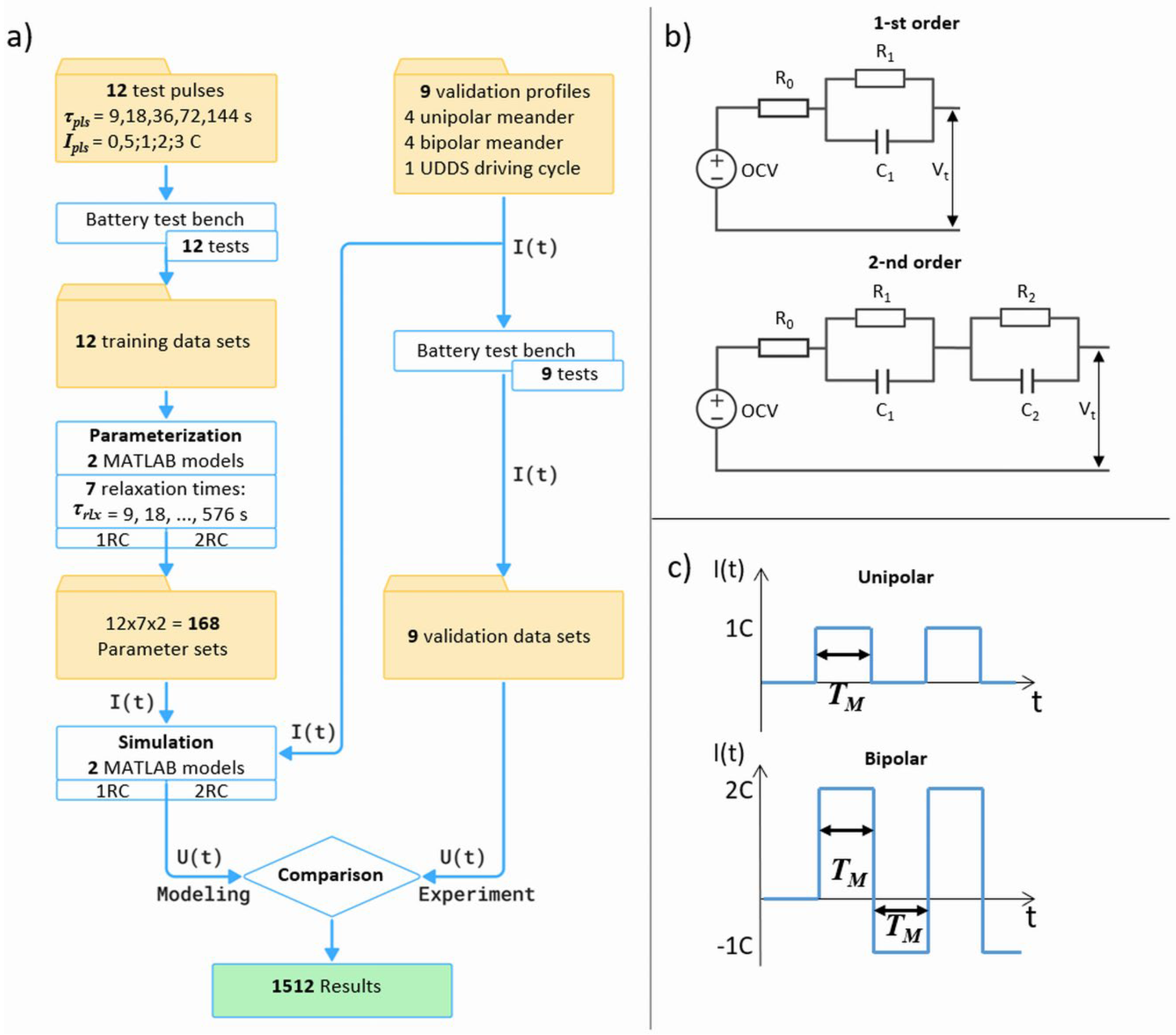

The goal of the current study is to systematically investigate the impact of the test pulse characteristics and the length of the processed relaxation data segment on the accuracy of the Thevenin model conditioned by the identified set of parameters. The general workflow is illustrated in Figure 1a. The ECM parametrization was performed using 12 experimental data sets based on test pulses characterized by different combinations of pulse duration τ_pls and pulse current I_pls. Two models were parametrized for each data set: 1RC and 2RC (see Figure 1b). For a specific test pulse and a selected model, 7 parameter sets were obtained by varying the length of the relaxation data segment (τ_rlx) processed by the parameter fitting algorithm. That yielded 12×2×7 = 168 parameter sets. In contrast to the available literature data the extended number of parametrization condition combinations enabled us to perform a systematic search for the optimal one. The accuracy of the models was estimated for each parameter set using 9 different validation profiles, so that the final analysis is based on a total of 1512 individual results. It was found that the optimal test pulse characteristics depend on the cell operation regime. Nevertheless, some general trends were deduced which favor a longer test pulse duration. By simultaneously tuning the test pulse and relaxation data segment length we were able to reach an excellent accuracy of both the 1st and 2nd order ECMs when validated against a realistic current profile typical for the electric vehicle application.

2. Methods

2.1. Measurements Setup and Procedure

The experimental measurements were performed using a Neware CT-4008Tn-5V12A-S1 test station on a 3500 mAh LG INR18650 MJ1 Li-ion cell. The procedure started with an initial capacity verification cycle to precisely determine the reference capacity. Subsequently, the open circuit voltage (OCV) versus state of charge (SoC) relationship was characterized using two methods: a low-rate (C/20) full cycle and an incremental step discharge test (5% SoC steps) with prolonged relaxation periods to record the equilibrium voltage at each point. According to the low-rate discharge measurements, the cell capacity is 3.36 ± 0.01 Ah, therefore, later on the current value of 1C is equal to 3.36 A.

Following the OCV-SoC calibration, dynamic pulse tests were performed within a mid-range SoC window (55-45%) to generate data for parameterization of battery models. Finally, to validate the models under realistic conditions, variational tests were performed according to 9 different current profiles. All experiments were carried out in a controlled temperature environment of 27 ± 3 °C.

2.2. Parametrization Procedure

Based on the literature data, two equivalent circuit models were selected for the study, which are first-order (‘1RC’) and second-order (‘2RC’) Thevenin models, as depicted in Figure 1b. Beside OCV-SoC dependence, these models require the identification of 3 and 5 SoC-dependent parameters, respectively. Namely: serial resistance R₀, polarization resistances R₁ and R₂, RC-circuit time constants τ₁, τ₂. In all cases, these parameters were identified by processing the cell voltage response to the test pulses. The identification was performed for three SoC values: 55%, 50% and 45%. It is well known that the Li-ion battery OCV demonstrates most rapid changes near the fully charged and discharged states. Therefore, model parametrization within high and low SoC ranges requires more SoC points. However, in real-life scenario batteries operates in the middle SoC range most of the time. Thus, we focused on the middle SoC range in order to reduce the number of experiments and avoid sharp parameter changes typical for high and low SoC while investigating the fundamental trends. A table-based Thevenin Li-ion cell model implemented in the MATLAB Simscape software package was used to simulate cell operation. A set of MATLAB scripts were developed by the authors to perform model parameters fitting and model validation. The parameter identification was carried out by minimizing the cell voltage root mean square error (RMSE) using a non-linear least squares algorithm.

The experimental data segment used for parameter identification consisted of a current test pulse (duration τ_pls) and the initial segment (duration τ_rlx) of the following relaxation period, so the total duration of the processed experimental data segment was τ_pls + τ_rlx. It should be noted, that the overall relaxation period length was 3 hours in order to ensure that the cell had reached the equilibrium state before exerting the next test pulse. However, the relaxation data were cut to τ_rlx before the parameter identification. This limitation was imposed as even small voltage error at an hour-timescale can overshadow the contribution of the transient processes of interest to the total RMSE value, which is the target value of the minimization algorithm. The impact of the relaxation data cutoff on the parameterization results was studied by varying τ_rlx in the range 9, 18, 36, 72, 144, 288 and 576 s.

2.3. Test Pulse Set

In the current study, two parameters of a test pulse were varied: test pulse duration τ_pls and test pulse current amplitude I_pls. The complete set of the total of 12 combinations considered is presented in Table 1. The current amplitudes are expressed in C-rates, where 1C corresponds to 3.36 A according to the measured cell capacity. The widely used approach to the battery ECM parameterization implies that the parameters are identified locally with respect to the SoC. Therefore, the test pulse duration and current are limited by the requirement for a small SoC change. The combinations [144 s / 0.5C] and [72 s / 1C] yield a change in SoC 2% that was considered a reasonable upper limit.

2.4. Validation Profiles

For validation of the obtained ECM parameter sets, we used a total of 9 validation current profiles including 8 meander-like profiles and one profile based on the Urban Dynamometer Driving Schedule (UDDS) driving cycle [29]. The shapes of the meander-like validation profiles are presented in Figure 1c. The meander period (T_M) was set to 3, 10, 30 and 180 seconds in order to represent battery operation modes characterized by different power consumption time scale. These profiles are labeled below as ‘M03’, ‘M10’, ‘M30’ and ‘M180’ respectively. The mean current value was equal to 0.5C, so that the average discharge rates are the same for all meander-like validation profiles. However, 4 profiles are unipolar, i.e., include only negative (discharge) current pulses and rest periods, while the other 4 profiles are bipolar, i.e., consist of alternating negative and positive (charge) current pulses. The bipolar profiles represent energy recuperation typical for electric vehicle applications and energy buffering operation mode typical for the grid applications. The ninth UDDS-based validation profile models the electric vehicle battery current demand profile. In contrast to the meander-like profiles, it has irregular shape close to the real-world scenario. It should be noted that the average discharge rate of the UDDS profile is 0.1C. Therefore, the model error values yielded by the UDDS profile validation should not be compared directly to the error values yielded by the meander profiles validation.

2.5. Udds Profile Adaptation

To convert the Urban Dynamometer Driving Schedule (UDDS) speed profile into a battery current profile, a model of an electric vehicle powertrain described in works [30,31] was implemented using AMEsim software. This approach takes into account the vehicle’s dynamic characteristics, including various resistive forces: aerodynamic drag, rolling resistance, inertia force, and gravitational component on slopes. The UDDS speed profile (Figure 2a) [29] served as an input signal for the electric vehicle model. The power required to maintain the specified speed at the wheels was calculated by the mechanical part of the model and passed to the power conversion part of the model (electric motor, inverter, etc.), which yielded battery power consumption $P_{batt}$. The battery current was calculated as $I_{batt}=P_{batt}/U_{batt}$, where $U_{batt}$ is the battery voltage. The $U_{batt}$ was set as a constant to simplify the calculations at this stage (nominal cell voltage 3.63 V). For the main ECM simulations, the current profile was used instead of the power profile because the cycler controller software worked directly with the current values. The current values were scaled to a single cell.

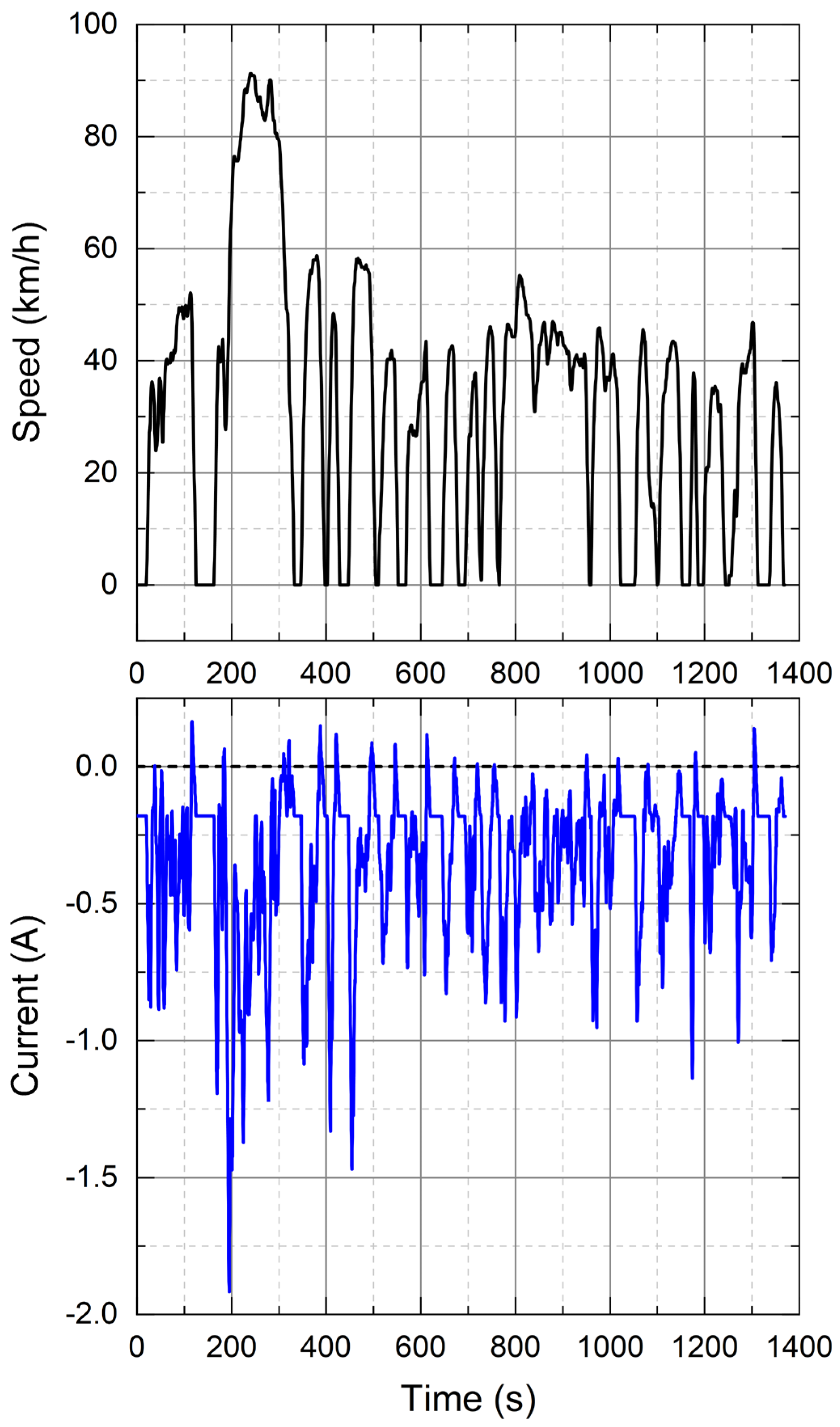

The obtained current profile (Figure 2b) preserves all characteristic features of the original UDDS driving cycle: acceleration phases, steady driving, braking, and recuperation (charging current). This ensures an adequate assessment of the ECM performance under conditions close to real electric vehicle operation.

3. Results and Discussion

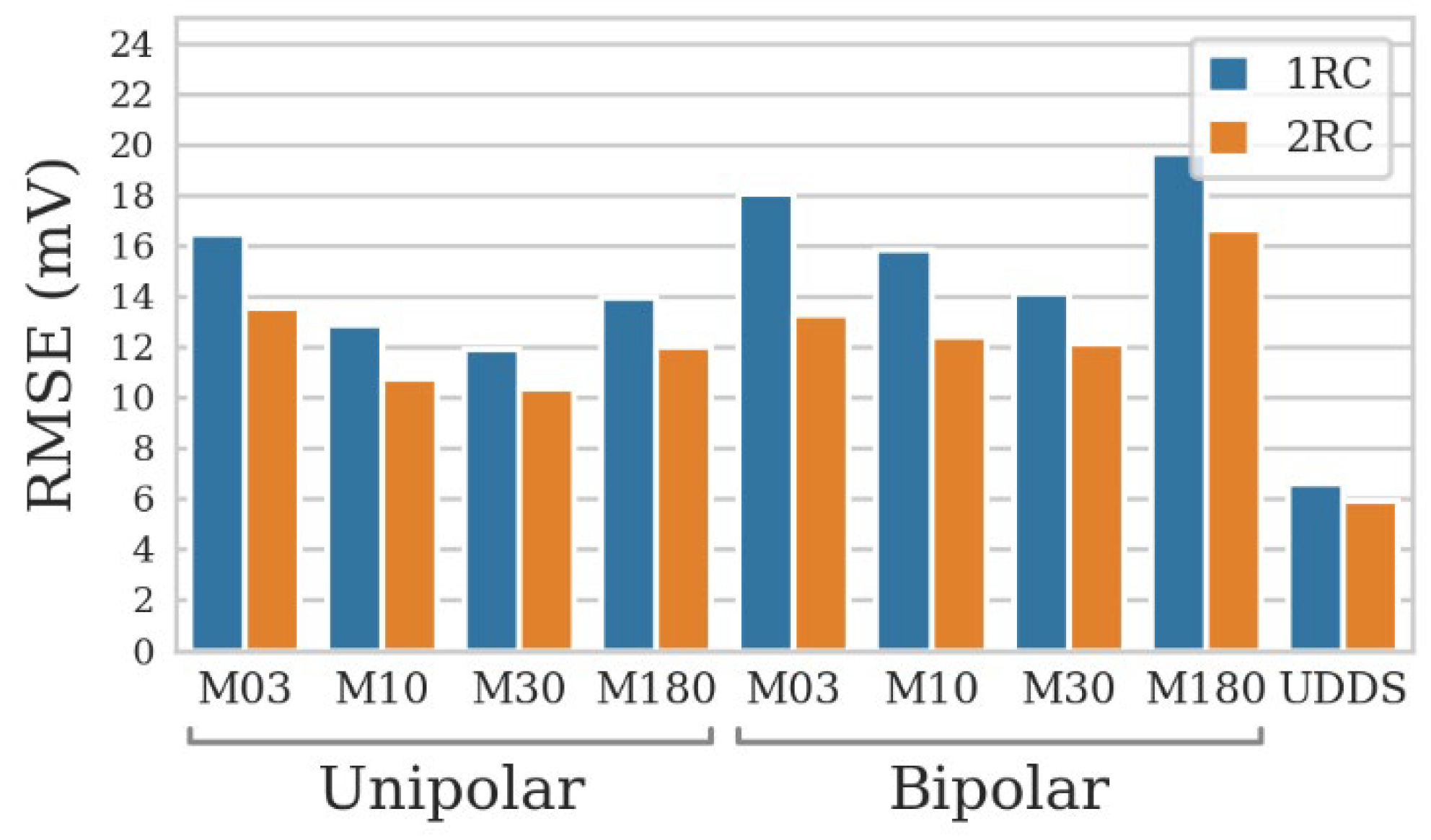

We begin by assessing the impact of the order of the Thevenin model. As was discussed in the Introduction section, most of the literature sources agree that the second-order ECM is an optimal choice, which provides reasonable accuracy while avoiding high computational costs and problems associated with simultaneous identification of a large number of model parameters. However, direct comparison of models is tricky, because the ECM accuracy heavily depends on the quality of the parameter set used, while different order models require different parameter sets. Therefore, Figure 3-ino shows the RMSE values for the 1RC and 2RC models averaged over all parameter sets obtained for different τ_pls, I_pls, τ_rlx. The 2RC model does yield a smaller average error for every validation case. However, the difference is not crucial. The average relative reduction in the RMSE values ranges from 10% (UDDS) to 26% (M03 bipolar validation profile).

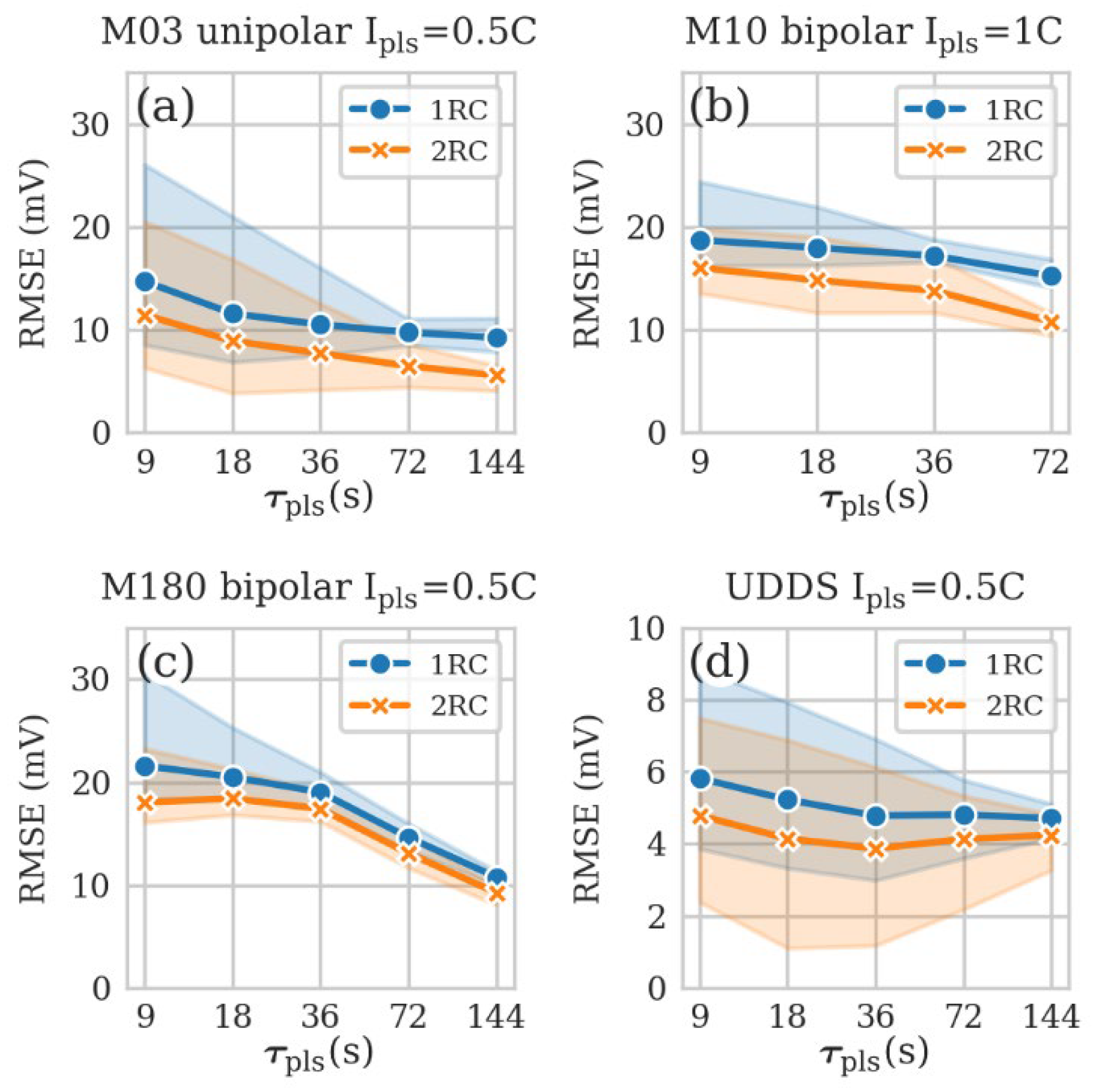

Moreover, the 1RC model based on the optimal parameter set can be more accurate than the 2RC model based on an arbitrary chosen parametrization protocol. For example, Figure 4 shows the spread of the RMSE values for some validation cases. The semitransparent areas depict the error range across the considered relaxation data cutoff values τ_rlx, the lower edge reflects the best accuracy, the points reflect the average value (calculated across different τ_rlx under fixed τ_pls value). Although the minimum possible RMSE value is obtained using the second-order model, the areas associated with the 1RC and 2RC models overlap significantly. The same is true for all the other validation cases. Thus, the higher ECM order per se does not guarantee the accuracy superior to the lower order models if the parameterization procedure was not chosen carefully.

It should be noted, that regardless of the number of RC-circuits ECM remains a linear system with respect to current-voltage response, while a real battery is only close to linearity to some extent. Therefore, the amplitude of the exciting current pulse may affect the values of the identified model parameters. Figure 5 illustrates the dependence of the model error on the amplitude of the test pulse used for the model parameterization. Two types of error values are shown: the minimum RMSE value across the parameter sets with different τ_rlx and the mean value across the same sets. In most of the cases, the 0.5C test pulses yield noticeably more accurate parameter sets than the higher amplitude test pulses (M180 bipolar being the only exception). This result is quite interesting, as the amplitudes of the meander-like current profiles used for the validation were 1C and 2C for the unipolar and bipolar profiles, respectively. The Thevenin model is inherently unable to reproduce the non-linear effects, but in order to correctly capture the linear portion of the battery response one should set moderate amplitude of the test pulses. (However, the voltage response must be much greater than the instrumental noise, therefore, we discourage the use of test pulses extremely low-amplitude test pulses.) In the following, our analysis will be limited to parameter sets based only on 0.5C test pulses (I_pls ≈ 0.5C).

Although the Thevenin models usually contain more than one RC-circuit to describe several transient processes with different characteristic times, it is implied that the excitation and relaxation phases of those processes are symmetric with respect to time as the capacitors charging and discharging rates are governed by the same time constant. Battery voltage polarization is the result of several complex physical processes, including lithium intercalation and diffusion within the electrode material. Taking into account that the reaction rate constants and solid-phase diffusion coefficients depend on local lithium concentration [32], there is no guarantee that the characteristic times of the excitation and relaxation phases are exactly the same.

Some researchers suggest to identify the ECM parameters solely on the basis of either the cell voltage dynamics during the excitation phase [10] or the voltage relaxation following the current pulse [23], while others utilize both the pulse and the relaxation data segments [12]. In the current study, we vary the impact of the excitation and relaxation phases on the values of the identified parameters by choosing different combinations of τ_pls, and τ_rlx. The calculated RMSE values for the parameter sets obtained using 0.5C current pulses are presented in Figure 6 as a set of heatmaps. Each heatmap covers all combinations of test pulse durations τ_pls and relaxation data cutoff values τ_rlx validated using one of the nine current profiles.

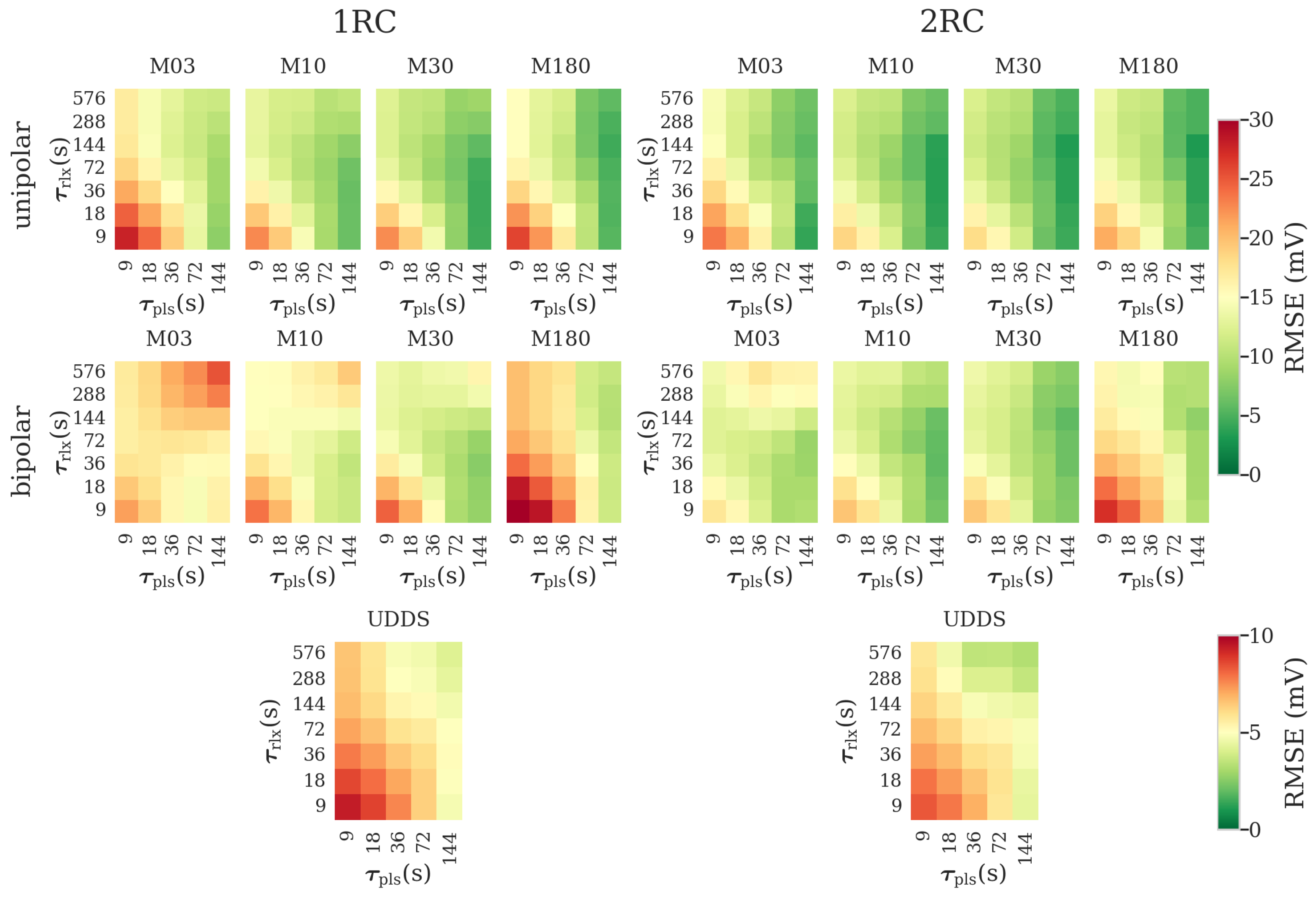

The shortest pulse duration (τ_pls = 9 s) supplemented by the shortest relaxation segment (τ_rlx = 9 s) results in a large error value in all validation cases. However, it is hard to deduce a universal recommendation for choosing the optimal parameter set. The heatmaps in Figure 6 show that the trends with respect to varying τ_pls, and τ_rlx depend on the validation profile used to estimate the error. Therefore, the optimal model parameterization protocol would depend on the presumptive battery operation regime.

Generally, increasing the duration of the test pulse helps to improve the accuracy. For many validation profiles, the best parameter sets are obtained using the longest τ_pls = 144 s. This value is very different from the test pulse duration of about 10 – 30 s commonly used for ECM parameterization according to the literature. The long test pulse duration is especially beneficial for the M30 and M180 validation profiles. Thus, if the battery operation regime implies a constant, slowly changing, or infrequently changing current profile, the test pulse duration should be set to about 2 minutes or longer. With respect to the relaxation data cut-off, the optimal τ_rlx is within the range of 36 to 144 s for most of the meander-like profiles. Higher τ_rlx values decrease the accuracy of the model.

In case of UDDS validation profiles, the optimal conditions are shifted to a shorter τ_pls (18 - 36 s) and longer relaxation segment length τ_rlx = 576. In order to verify that the τ_rlx = 576 yields the best possible results, additional parameter sets were generated using even larger relaxation cut-off times: 1152 and 2304 seconds. These parameter sets indeed turned out to be slightly less accurate. Thus, both in the case of meander-like and UDDS validation profiles, there is a certain limit to which increasing the relaxation data segment can improve the model accuracy.

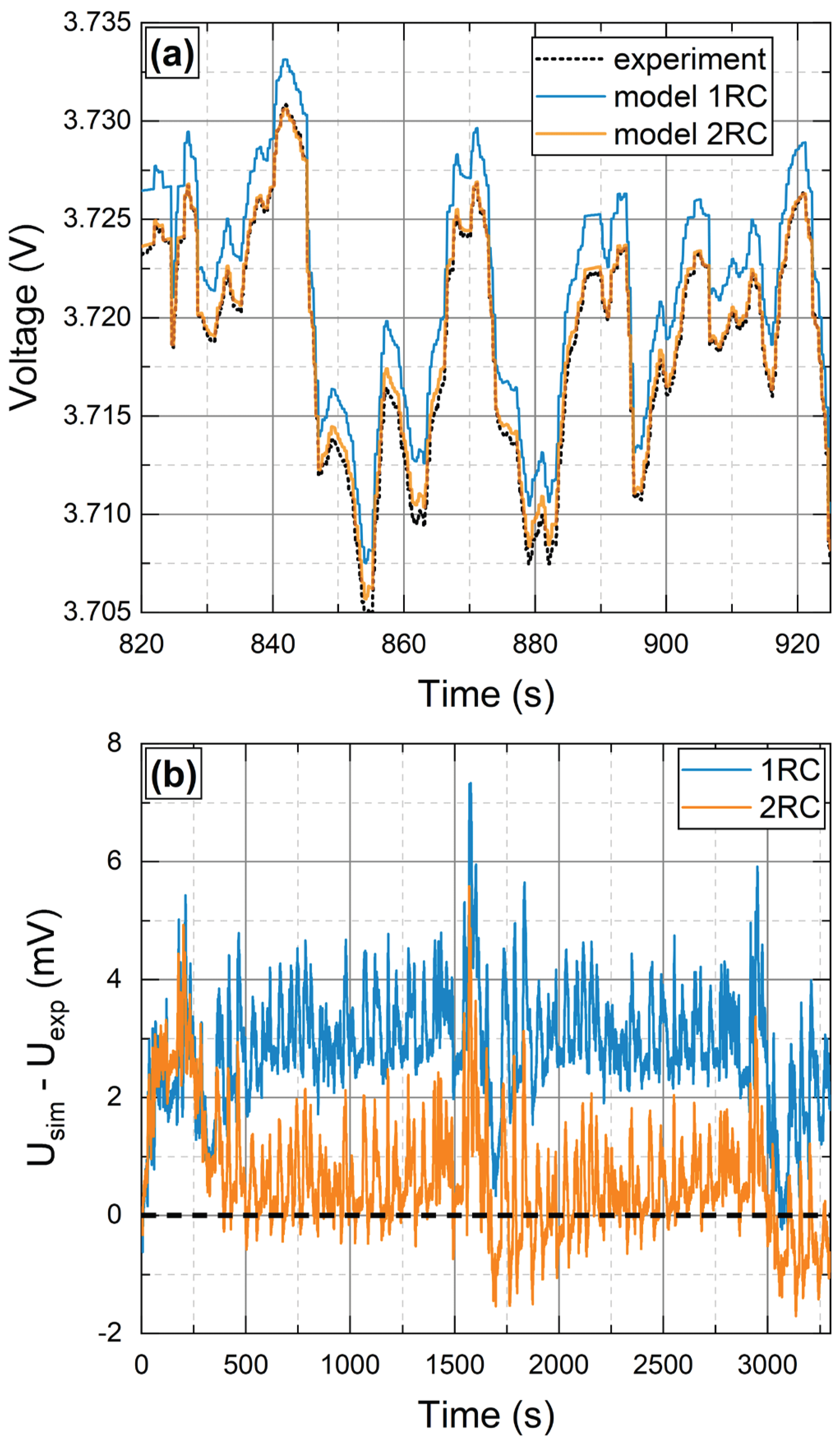

Finally, Figure 7 demonstrates the accuracy of the first- and second-order models that rely on the best set of parameters (τ_pls = 36 s, τ_rlx = 576 s, I_pls = 0.5C) obtained for the UDDS validation profile. 1RC: RMSE – 3.0 mV, maximum absolute error – 7.3 mV; 2RC: RMSE – 1.2 mV, maximum absolute error – 5.6 mV. Note that the RMSE values averaged over all the parameter sets obtained are 6.8 mV (1RC) and 6.5~mV (2RC), so that the errors were reduced by 56% and 82%, respectively. Taking into account that a typical OCV slope of an NMC battery within the mid-SoC region is about 8-10 mV per 1% SoC, the parameterized model can be used to trace the battery SoC with excellent precision.

5. Conclusions

This systematic study demonstrates that the test pulse duration, amplitude, and relaxation data cutoff significantly influence the accuracy of parameterized equivalent circuit models. In certain cases, the optimal parameter set yields up to 82% lower RMSE than the error value averaged across all the parameter sets obtained. Consequently, the simplest first-order Thevenin model based on optimal parameterization protocol can be more accurate than the second-order ECM parameterized using an arbitrarily chosen test pulse. It was concluded that the moderate test pulse amplitude (0.5 C) is preferable, as the higher current values intensify the non-linear portion of the cell voltage response, which can not be described by the considered ECM. The optimal combination of the test pulse duration and the relaxation data cut-off depends on the particular validation profile, i.e., battery operation regime. However, if a thorough optimization of the parameter identification protocol is out of the question due to practical limitations, we suggest that setting both the pulse duration and the relaxation data cutoff to about 2 minutes should be a good ‘blind guise’ according to most of our validation tests. Finally, by selecting the optimal parameter set, we were able to reach remarkably low model error (RMSE = 1.2 mV) for a current profile close to a real-life electric vehicle battery operation regime.
