Self-Recalibration of Prussian Blue Based (Bio)Sensors Enabling Their Prolonged Operation Time Upon Continuous Monitoring

1. Introduction

In recent years, there has been a notable increase in reports on self-calibrated biosensors, particularly in context of continuous glucose monitoring (CGM) [1,2,3]. Beyond glucose, wearable systems have been developed for real-time monitoring of pH, concentrations of ions (K⁺, Na⁺, Cl¯), lactate, uric acid [4], essential amino acids, and some other analytes in various biological fluids [5,6]. One of the primary challenges is permanent requirement for calibration, as the sensor sensitivity tends to decline over time [7]. Typical periodic calibration of CGM device involves frequent fingertip blood glucose measurements [8]. However, constant recalibration against a standard would be unnecessary if the sensor autocalibration is enabled. Consequently, several approaches nave been introduced to regulate sensor sensitivity during operation, including the self-calibration algorithms [9], compensation methods [10], self-cleaning mechanisms to prevent electrode fouling [11], and multi-parametric calibration [1].

Self-calibration can utilize multiple sensors to measure blank current (in the absence of analyte) [12] or other control signals or parameters such as pH [13,14], concentration of electrolytes [15], dissolved oxygen [16], and others. Sensors may be equipped with dynamic calibration algorithm such as sparse identification of nonlinear dynamics (SINDy), which provide the model-predicted output for identification and validation of the experiments [9]. Autorecalibration via dual-mode sensing in optical glucose monitoring systems involves detection of undesirable degradation of the sensing layer using two strongly correlated signals (absorbance and fluorescence), which are used to correct the calibration curve without requiring external calibration [10]. Self-calibration using pre-stored calibrant solutions embedded in the chip during manufacturing has been demonstrated in microfluidic paper-based device for colorimetric glucose and lactate detection [17]. An electrochemical CGM sensor developed by Medtronic Ltd. supports a self-calibration algorithm based on electrochemical impedance spectroscopy, due to the relation between double-layer capacitance, charge-transfer resistance, and sensor sensitivity [2,18]. Additionally, system combines outputs from multiple dynamic models to provide a final glucose concentration along with a confidence level.

One of the most well-known components of electrochemical enzymatic biosensors is Prussian blue (PB), which was discovered as an electrocatalyst for H₂O₂ reduction in the 1990s [19]. PB-based biosensors offer reliable detection of sweat glucose for continuous diabetes monitoring [20], as well as sweat lactate measurement during on-body hypoxia monitoring in sportsmen training [21]. The correlation between blood and sweat metabolite levels proves the diagnostic value of continuous sweat analysis [20,22]. In addition to glucose and lactate, hydrogen peroxide itself is also considered an important biomarker associated with oxidative stress. Conditions such as asthma, chronic obstructive pulmonary disease, lung cancer, and even post-COVID-19 syndrome can be monitored through exhaled breath aerosol analysis using PB-based sensors [23,24]. Wearable sensors for real-time hydrogen peroxide detection in exhaled breath are also of particular interest [25].

Among the major advances of PB-based (bio)sensors over Pt-based ones are their practical insensitivity to reductants able to generate false-positive signals significantly overstating real glucose levels, and their resistivity to poisoning by certain components in biological liquids, like sweat [26]. However, the solubilization of Prussian blue by hydroxide ions, which are formed during the catalytic cycle [27], leads to inevitable loss of sensitivity. In order to extend sensor lifetime two main strategies were employed, namely sensor stabilization through protective coatings [21] or the use of composite materials, such as mixed metal hexacyanoferrates [28,29,30].

Upon continuous monitoring the (bio)sensor lifetime is limited by its operational stability under the hardest conditions possible. Since Prussian Blue is redox electrocatalyst being electroactive itself, its activity onto the electrode surface can be independently evaluated using dynamic voltametric method. Herewith we report that periodic run of square wave voltammograms upon continuous chronoamperometric monitoring by Prussian Blue based (bio)sensors enables their self-recalibration, dramatically prolonging the operation time.

2. Materials and Methods

2.1. Materials

Experiments were carried out with Milli-Q water (18.2 MΩ·cm) at room temperature. The following reagents were used: hydrogen peroxide H₂O₂ (30% solution), iron (III) hexacyanoferrate K₃[Fe(CN)₆], potassium chloride KCl, iron (III) chloride FeCl₃, chitosan with various molecular weight (Sigma Aldrich, USA), perfluorosulfonated ionomer (PFSI) MF4 SK (Plastpolymer, Russia). All compounds were of analytical grade or chemically pure and used without additional purification. Glucose oxidase (GOx, EC1.1.3.4) from Aspergillus niger was used in the form of a lyophilized protein with a declared activity of 248 U/mg. (Sigma Aldrich, USA) Lactate oxidase (LOx, EC1.1.3.2) from Pediococcus species (Sorachim, Switzerland) was used in the form of a lyophilized protein with a declared activity of 109 U/mg. All compounds were of analytical grade or chemically pure and used without additional purification. Planar screen-printed electrode structures containing carbon working electrode (Ø = 1.8 mm), carbon auxiliary and silver reference electrodes were fabricated by Rusens (Russia).

2.2. Instrumentation

Electrochemical measurements were carried out using a Palmsens potentiostats (PalmSens BV, The Netherlands) with the PSTrace software.

2.3. Methods

2.3.1. Synthesis of Prussian Blue

Sensors were manufactured using interphase synthesis or electrochemical synthesis of Prussian blue (PB) described earlier. Briefly, interfacial modification of planar sensors with PB included casting a droplet of of K₃[Fe(CN)₆] and FeCl₃ mixture in 0.1 M KCl, 0.1 M HCl with further reduction with H₂O₂. Deposition was initiated with addition of H₂O₂ and proceeded for 20-45 minutes at room temperature. Following deposition, the mixture was washed off with water. The PB layer was then activated via cyclic voltammetry in a 0.1 M KCl and 0.1 M HCl solution within a potential range of -0.05 V to +0.35 V vs. Ag|AgCl at a scan rate of 40 mV·s⁻¹ until a stable voltammogram was obtained. Finally, the sensors were heated at 100 °C for one hour.

Electrochemical deposition of PB on screen-printed electrodes was conducted by recording cyclic voltammograms in a potential range of +0.40 V to +0.75 V vs. Ag|AgCl. at a scan rate of 20–40 mV·s⁻¹ in an equimolar mixture of K₃[Fe(CN)₆] and FeCl₃ in 0.1 M KCl, 0.1 M HCl. The PB film thickness was controlled by varying the number of cycles. Activation of the coatings was performed utilizing the same protocol as that employed for the interphase synthesis. The surface concentration of electroactive PB (Г_PB) was calculated from the peak area on the voltammogram using PS Trace software.

2.3.2. Preparation of Glucose Biosensors

Biosensors were made with suspending glucose oxidase aqueous solution (10 mg/mL) in isopropanol containing perfluorosulfonated ionomer (0.3%). The final concentration of the enzyme was 1.5 mg/mL. The resulting mixture (2 μL) was deposited onto the Prussian Blue modified working electrode and dried at room temperature. After this procedure, the biosensors were kept at 4 ^◦C in sealed packaging.

2.3.3. Preparation of Lactate Biosensors

Biosensors were made with suspending lactate oxidase aqueous solution (10 mg/mL) in aqueous solution of chitosan (0.05%). The final concentration of the enzyme was 1.5 mg/mL. The resulting mixture (2 μL) was deposited onto the Prussian Blue modified working electrode and dried at room temperature. After this procedure, the biosensors were kept at 4 ^◦C in sealed packaging.

2.4. Electrochemical Measurements

The (bio)sensor response was measured at room temperature using chronoamperometry in batch regime under constant stirring. Measurements were conducted at E_dc = 0.0 V vs. Ag|AgCl in a 0.05 M phosphate buffer with 0.1 M KCl at pH 6.0.

For recalibration square-wave voltammograms (SWV) were periodically recorded in the same phosphate buffer within a potential range of -0.05 V to +0.35 V vs. Ag|AgCl, with an amplitude of 10–50 mV, and a frequency of 1–4 Hz. The intervals between these SWV runs, during which chronoamperometry was performed, lasted between 100 and 600 seconds.

3. Results and Discussion

Calibration of Prussian blue-based sensors during continuous monitoring is based on the dependence of sensor response to hydrogen peroxide on the surface concentration of electrocatalyst. Sensors were manufactured using interphase synthesis or electrochemical synthesis of Prussian blue. The last one allows controlling the surface concentration of PB (Г_PB) on the working electrode by selecting the number of cycles in cyclic voltammetry. Г_PB was calculated from the peak area of the transition “Prussian white”—“Prussian blue” in the CV recorded during sensor activation. Sensors with concentration of PB from 0.02 to 6.67 nmol·cm^-2 were obtained.

In average the sensitivity of the sensors was 471 ± 8 mA·M^-1·cm^-2, the working range was 3 orders of magnitude (1·10^-6 to 1·10^-3 M), which is in good agreement with the previous studies. However, the stability of peroxide sensors (t₉₀, time of preservation of 90% of the initial response) does not exceed 5 minutes if surface concentration of PB is 1.5–2 nmol·cm^-2. As mentioned, Prussian Blue suffers from solubilization by hydroxyl ion produced in course of H₂O₂ reduction. Hence, for continuous monitoring the sensor and biosensor lifetimes would be limited by the duration of 90% stability in the analyte solutions. Nevertheless, even after 50% loss of sensitivities the (bio)sensors are expected to be suitable for further operation, to prolong the lifetimes it is necessary to carry out calibration keeping the (bio)sensors in the analyzed solution.

3.1. Prussian Blue Surface Concentration Control Using Square Wave Voltammetry

Since Prussian Blue possesses intrinsic electroactivity, such calibration is possible by dynamic voltammetry. Among the latter the square-wave voltammetry seems to be less sensitive to the presence of catalytic reactions. In contrast to cyclic voltammetry catalytic reactions has virtually no effect on SWV [31], which makes this method suitable for controlling concentration of electrocatalyst in the presence of the analyte. The forward and backward currents of the reversible transition Prussian Blue/Prussian White are recorded during square wave voltammetry. The presence of hydrogen peroxide affects both current components of voltammogram, but their superposition remains stable (Figure S1). Indeed, the potential and the height of the peak in the SWV less depends on hydrogen peroxide concentration. Furthermore, the peak current on the square wave voltammogram changes within 10-15% upon changing hydrogen peroxide concentration within three orders of magnitude (Figure S2). Therefore, it can be considered that the peak height on the SWV depends mainly on the remaining surface concentration of PB if recorded during chronoamperometry.

The parameters of the SWV, the frequency and amplitude were optimized. Figure S3 shows the dependences of the peak height in the SWV on the surface concentration of PB at frequencies of 1 and 4 Hz and an amplitude from 10 to 50 mV. Linear increase in the peak current is observed up to 2–3.5 nmol·cm^-2. Upper limit of the linear range slightly decreases with an increase in frequency, but the sensitivity (the slope of the linear section) and the speed of recording the SWV become significantly higher. For instance, at a frequency of 4 Hz, the I_peak increases by 3-5 times compared to 1 Hz. Moreover, the sensitivity increases with increasing amplitude up to 40 mV, above which it practically does not change. However, it was found that increasing the amplitude above 20 mV is undesirable, since it has a negative effect on the printed reference electrode. Recording the SWV at a frequency of 1 Hz takes about 2 minutes, and at a frequency of 4 Hz—half a minute, which is a significant difference for the long-term monitoring. Hence, the following SWV conditions were chosen for further experiments: frequency 4 Hz, amplitude 20 mV.

3.2. Recording Square Wave Voltammograms During Chronoamperometric Analysis

The idea of sensor calibration during chronoamperometric analysis is based on periodical run of the square wave voltammetry and recalculating the sensor sensitivity using peak current of voltammogram. Accordingly, in course of chronoamperometric analysis the SW voltammograms have been periodically recorded. It was found out, that recording SWV does not affect the stability of the chronoamperometric response. Serial chronoamperograms recorded for a certain period of time (100s) in 1mM H₂O₂ solution and the corresponding square wave voltammograms are presented in (Figure S4). It is seen that with each repetition current decreases in both chronoamperograms and square wave voltammograms (Figure 1).

The current on the SWV starts to decrease immediately in course of the experiment, whereas chronoamperometric response is stable while the peak on the voltammogram decreases by 50-60% (Figure 1). The 90% of the initial response of sensor is maintained for approximately 5 minutes, which is typical for PB films (1.5 nmol·cm^-2). In contrast to it SWV peak current decreases by 50%. during these 5 minutes. For thicker PB films the 90% of the initial response of sensor is maintained for 20 minutes for a (3.3 nmol·cm^-2). The obtained data on the stability of the sensors is in good agreement with previously reported data, which also indicates the absence of the effect of the SWV measurements on the chronoamperometric stability of the sensor signal. Generally, SWV peak current decreases by 10% in 1–5 minutes and by 50% in 5–15 minutes. This mismatch of time profiles shown in Figure 1 hampers the direct calculation of sensor response from SWV data.

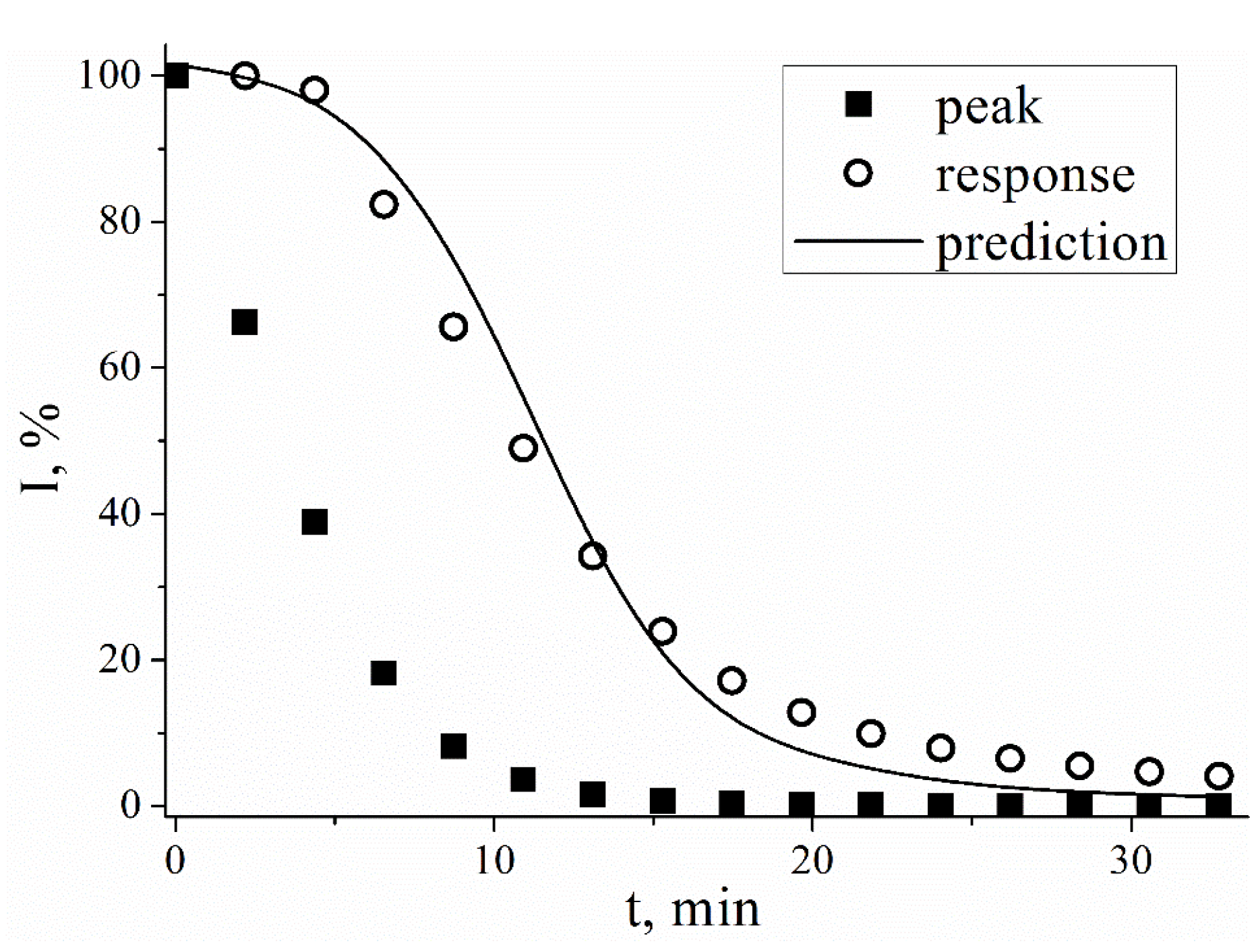

Figure 1. Relative values of current measured chronoamperometrically (E = 0.0 V), and peak current in SWV (dE = 20mV, Estep = 3mV, f = 4Hz) for PB-modified electrodes in 1mM H₂O₂ solution, 0.05M PBS, 0.1M KCl, pH 6.0.

Figure 1. Relative values of current measured chronoamperometrically (E = 0.0 V), and peak current in SWV (dE = 20mV, Estep = 3mV, f = 4Hz) for PB-modified electrodes in 1mM H₂O₂ solution, 0.05M PBS, 0.1M KCl, pH 6.0.

3.3. Peroxide Sensors Calibration Model

In a wide range of PB concentrations, the dependence of the peak current in the SWV on the surface concentration of PB may be described by a hyperbolic function (Figure S5). The limiting peak current in the SWV is achieved at the surface concentration of PB (3-4 nmol·cm^-2). Similarly, the surface concentration of PB on the electrode surface affects the sensor’s amperometric response (Figure S6). This was demonstrated by measuring the initial response of sensors with different amount of PB in chronoamperometry mode upon adding the same concentration of hydrogen peroxide (1mM). It was found that plotting amperometric response of Prussian Blue-based sensors to hydrogen peroxide vs. the surface concentration of electrocatalyst on the electrode surface results in a curve with a saturation point (Figure S6). Consequently, surface concentration of PB limits the sensitivity of peroxide sensors, which depends on the concentration of electrocatalyst on the electrode surface in a hyperbolic way.

To describe the obtained dependencies, one can turn to the equation of enzymatic kinetics (Michaelis-Menten) in an excess of enzyme:

$$v={\displaystyle \frac{k_2·{\left[E\right]}_0{\left[S\right]}_0}{K_s+{\left[E\right]}_0}},$$

(1)

where v is the reaction rate, [E]₀ is the enzyme concentration, [S]₀ is the substrate concentration, Ks is the equilibrium constant of the reaction of the enzyme-substrate complex formation, k₂ is the rate constant of the irreversible reaction. k₂∙[S]₀ is equal to the maximum reaction rate.

Since the measured current is a kinetic parameter, it is possible to transform equation (1) into an electrochemical analogue by replacing the reaction rate with the current:

$$I={\displaystyle \frac{I_{\mathrm{ }max}·{\Gamma }_{PB}}{K+{\Gamma }_{PB}}},$$

(2)

Response profiles of sensors towards addition of standard solutions of hydrogen peroxide to the final concentration of 0.05–1 mM also depends on the concentration of PB on the electrode surface in a hyperbolic way (Figure S6). The free term in the denominator of the hyperbolic equation, K, which was found to be 0.22 ± 0.05 nmol·cm^-2, does not depend on the concentration of H₂O₂.

The plateau may be attributed to complete surface coverage (Figure S7). It was shown by microscopy and impedance spectroscopy that a uniform coating on the electrode surface is formed if concentration of Prussian blue is above 1.0 nmol·cm^-2 [32]. Approximating the dependence of response or film continuity (%) on Г_PB with similar hyperbolic functions (Figure S7) results in the free term in denominator equal to 0.3 ± 0.05 nmol·cm^-2, which coincides within the error with the obtained K (0.22 ± 0.05 nmol·cm^-2). Consequently, the hyperbolic form of the dependence of the sensor response on the concentration of electroactive material is due to the different surface coverage.

In a wide range of PB concentrations, the dependence of the I_peak in the SWV on the surface concentration of PB may be described by a hyperbolic function (Figure 2). Since the peak height on the square wave voltammogram is proportional to the surface concentration of Prussian blue the chronoamperometric response was plotted as a function of the corresponding peak current on the SWV. Similarly to above, the hyperbolic function was used for approximation:

$$I_{response}={\displaystyle \frac{I_{response,max}·I_{peak}}{K^{\prime }+I_{peak}}},$$

(3)

where K’ is an empirical parameter in μA∙cm^-2 which includes the proportionality coefficient between the peak height and the surface concentration of PB. Using summarized data points for several sensors it is possible to determine K’= 59 ± 16 μA∙cm^-2. This allows calculating of the theoretical response of the sensor based on the peak current on the SWV (line in Figure 1). It is seen that the experimental and calculated current values are in good agreement throughout the experiment, however, the error increases in coarse of the response decrease.

Figure 2. Current response plotted as a function of peak height in SWV, 6 sensors modified with PB (1 to 5 nmol·cm^-2) in a solution of 1 mM H₂O₂, 0.05 M phosphate buffer, 0.1 M KCl, pH 6.0, 0.0 V vs. Ag/AgCl.

Figure 2. Current response plotted as a function of peak height in SWV, 6 sensors modified with PB (1 to 5 nmol·cm^-2) in a solution of 1 mM H₂O₂, 0.05 M phosphate buffer, 0.1 M KCl, pH 6.0, 0.0 V vs. Ag/AgCl.

Metrological processing of the obtained results has shown that the theoretical calculation of sensor response within the deviation of less than 10% is possible until the sensitivity drops by 70-80% (Figure S8). Therefore, the stability of peroxide sensors may be extended by recalibrating of the sensor sensitivity during monitoring.

To assess the accuracy of the model, the parameters of the root mean square error of prediction (RMSEP) and Pearson’s R coefficient were calculated. RMSEP was calculated as follows:

$$RMSEP=\sqrt{{\displaystyle \frac{\sum {(j_{response}-j_{calc})}^2}{n}}},$$

(4)

where j_response is the current measured during the experiment, j_calc is the current calculated using eq.3 and n is the number of points. For the proposed model the RMSEP was found to be 10 μA∙cm^-2 (5%). Plotting of j_response versus j_calc results in a linear function with the slope of 1.07 ± 0.04 and the Pearson coefficient of 0.992, which proves the accuracy of the model (Figure S9).

3.4. Application of Calibration Model to Oxidase-Based Biosensors

The achieved success in self-recalibration of the transducer (Prussian Blue) raised an interest in carrying out self-recalibration of the corresponding biosensors. Biosensors usually contain a polymer membrane for enzyme immobilization, so the applicability of the proposed calibration method for glucose and lactate biosensors was checked. Perfluorosulfonated ionomer for glucose oxidase and chitosan for lactate oxidase were used as matrices for enzyme immobilization. It should be noted that the application of membrane does not affect the position and shape of the SWV peak (Figure S10). Moreover, periodic recording of the SWV does not affect the stability of the chronoamperometric response (Figure S11).

However, the hyperbolic model suitable for peroxide sensors is less accurate if used for biosensors. To describe the degradation of biosensors, its analogue, the Hill equation with an additional parameter n was introduced:

$$I_{\mathrm{r}\mathrm{e}\mathrm{s}\mathrm{p}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{e}}={\displaystyle \frac{I_{\mathrm{r}\mathrm{e}\mathrm{s}\mathrm{p}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{e},\mathrm{ }max}·I_{\mathrm{p}\mathrm{e}\mathrm{a}\mathrm{k}}^n}{K_H^n+I_{\mathrm{p}\mathrm{e}\mathrm{a}\mathrm{k}}^n}}$$

(5)

where K_H and n are empirical parameters.

A comparison of two fitting models revealed that for the hyperbolic model the determination coefficient R² is less than 0.985, and for the model based on the Hill equation, it exceeds 0.999 (Figure S12). Therefore, the Hill equation is preferable to calculate the theoretical response of the biosensors.

For glucose biosensors approximation by the Hill equation results in the average R² = 0.998 ± 0.002 (Figure S13). The free term in the denominator of the Hill equation KH slightly depends on the surface concentration of PB, but the average value of this parameter (0.20 mA∙cm^-2) is 3-fold higher compared to the peroxide sensor. Parameter n characterizes the deviation of the model from the hyperbolic equation. The presence of enzymatic membrane leads to decrease in n values (less than 1.0). This deviation from the hyperbolic model may be attributed to the enzyme inactivation and leaching from the membrane, as well as membrane damage by peroxide or other products of reaction. Despite the parameters n and K_H are dependent on the concentration of PB in biosensors (Figure S14), it is possible to define them and then use for the sensor recalibration.

Thus, current responses for glucose and lactate biosensors were calculated from corresponding peak currents on SWV using the predetermined parameters n and K_H (Figure S15). The same accuracy criteria of response calculation were used for biosensors. For glucose biosensors RMSEP was slightly higher, 7% (2.4 μA∙cm^-2), and the Pearson coefficient (0.998) and the slope of the linear dependence (0.97 ± 0.03) of the calculated response on the measured one are satisfactory. The results of approximation by an analogue of the Hill equation obtained for lactate biosensors, are similar to previously obtained criteria of model accuracy (Figure S16): RMSEP is 7% (3.1 μA∙cm^-2), Pearson’s coefficient is R = 0.994, the slope of the linear dependence of the predicted response on the measured one is 0.97 ± 0.02.

It was shown that the parameters discussed depend on the nature of polymer membrane, used for enzyme immobilization. The molecular weight of chitosan affects the values of n and K_H in the analogue of the Hill equation (Figure S17). Parameter K_H exceeds 0.20 mA∙cm^-2 if chitosan of higher molecular weight is used. In case of chitosan with low molecular weight the parameter n tends to 1, indicating a negligible effect of polymer membrane on sensor performance. The value of n close to 1 indicates that hyperbolic equation of the Michaelis-Menten type may be used. However, the operational stability of lactate biosensors based on chitosan of medium or high molecular weight is higher.

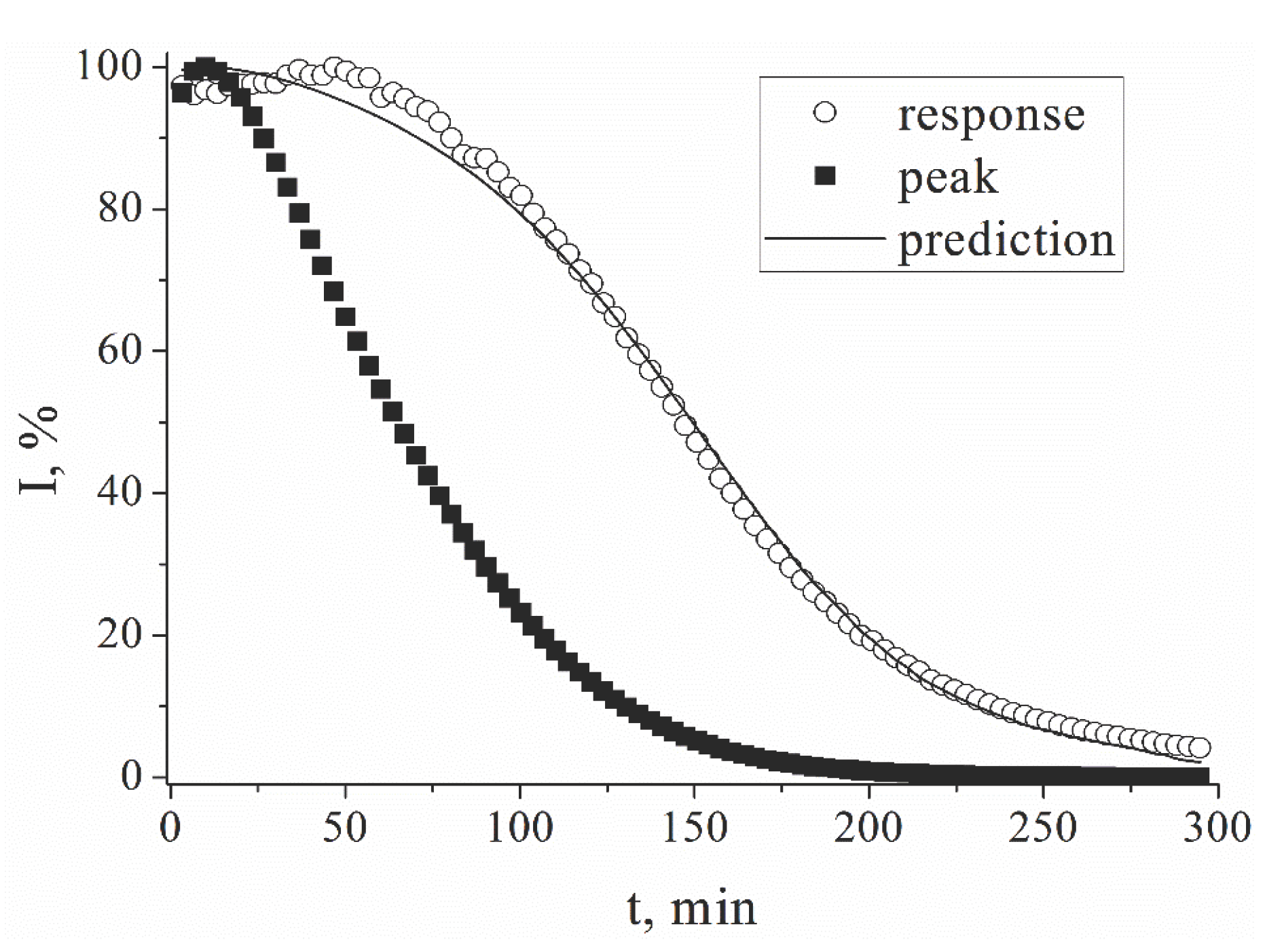

Figure 3. Relative values of current measured chronoamperometrically (E = 0.0 V), and peak current in SWV (dE = 20 mV, Estep = 3 mV, f = 4 Hz) for lactate biosensor in 1mM lactate solution, 0.05M PBS, 0.1M KCl, pH 6.0.

Figure 3. Relative values of current measured chronoamperometrically (E = 0.0 V), and peak current in SWV (dE = 20 mV, Estep = 3 mV, f = 4 Hz) for lactate biosensor in 1mM lactate solution, 0.05M PBS, 0.1M KCl, pH 6.0.

The initial response of lactate biosensor based on chitosan is preserved within 90% only for one hour in 1mM lactate solution. Periodic recording of square voltammograms and recalculation of current allows extending the operation time of the biosensor. Using the ratio of the calculated and measured currents for sensitivity correction, the sensor service life can be increased to 3.5 hours.

It is common to investigate biosensor stability in solutions with extremely high concentration of substrate. In such conditions the operational stability of peroxide sensors, glucose and lactate biosensors were improved by 2.5, 5 and 2.7 times correspondingly. In Table 1 data on the increase of the service life of sensors and biosensors under the most severe conditions is summarized. Since the conditions of analysis can be different, it is more appropriate to estimate the degree of the initial response loss, at which the calculation error does not exceed 10%. It was found that sensors and biosensors can be used until 75-90% of sensitivity is lost, which can provide a service life of several days.

5. Conclusions

By alternating electrochemical techniques and analyzing multiple parameters, a recalibration model for (bio)sensors was developed. We conclude that response correction using PB electroactivity as parameter related to sensor sensitivity provides for the sensor prolonged operation time. In contrast to cyclic voltammetry, square wave voltammetry was proved to be an appropriate additional signaling method avoiding influence of catalysis. The presented approach is universal for electroactive materials, for which loss in sensitivity is due to any degradation of the sensing layer on the electrode surface. The proposed model is useful in continuous monitoring since PB is widely used as enzymatic biosensor basics.
