Reducing Pressure Pulsation and Noise in Micro-Hydraulic Systems of Machine Equipment

1. Introduction

Despite increasing competition from electric and pneumatic drives, hydraulic systems continue to play a crucial role in modern engineering. Their application remains particularly strong in technological and mobile machinery [1], as well as in marine technologies [2] and aircraft [3], where reliability, compactness, and high power density are essential. In recent years, the scope of hydraulic applications has expanded beyond traditional large-scale systems. Miniaturized hydraulic drive solutions, often referred to as micro-hydraulics or small-scale hydraulics, are gaining increasing attention. These systems are increasingly integrated into compact devices and specialized applications [4], where they provide unique advantages such as the ability to transmit significant power within a limited space, precise motion control, and robustness under demanding operating conditions.

The development of such small hydraulic systems (with examples of micro-hydraulics in machines and equipment shown in Figure 1) is being driven by advancements in materials, manufacturing techniques, and microfabrication technologies. This opens new possibilities for their use in fields such as medical equipment [5], mobile and rescue equipment [6], and industrial portable tools [7], where the combination of high power output and miniaturization is becoming increasingly important.

The current development of micro-hydraulics, similar to standard hydraulic technology, is linked to the proliferation of electronics and automation systems in mechanical engineering. The main advantage of hydraulic drive and lubrication systems is their extensive capability to control both the speed and power of the consumers [8]. The introduction of modern multi-level electronic systems into hydraulic systems has enabled smoother control and a significant reduction in emitted noise [9]. Additional work is currently underway to optimize the design of micro-hydraulic system components [4]. This mainly involves two directions: minimizing weight, which requires reducing overall dimensions, and reducing noise emissions. In addition, several recent research studies have analyzed the influence of design and operating parameters in micro-hydraulic systems [10,11,12,13,14]. Their introduction has significantly contributed to the adoption of central lubrication systems, as these rely on the transport of small fluid volumes. In the case of micro-hydraulic drive systems, their key advantage is the ability to transmit high power. The introduction of modern, sophisticated electronic systems into hydraulic systems has resulted in smoother control and reduced noise emissions.

However, the problem of hydraulic system noise persists, while permissible noise levels are gradually being reduced [15]. This problem is also present in micro-hydraulic systems, where noise level reduction is required by laws and regulations. Noise level is a key factor in assessing the performance and quality of machinery and equipment. With regard to noise control, the European Union’s Machinery Directive 2006/42/EC [16] requires that machines be designed and manufactured to minimize noise hazards to the lowest achievable level, in accordance with technological advancements and feasible noise-reduction methods, particularly at the source of emission. This principle is further reinforced by Directive 2000/14/EC [17], which sets limits on the permissible sound power levels of machines that emit noise into the environment.

The main sources of noise in hydraulic systems are fluid flow phenomena (e.g., cavitation) and pressure shocks [18]. Percussive pressure changes can be either impulsive (e.g., caused by water hammer or a sudden change in load on a hydraulic receiver) or periodic (e.g., resulting from pressure pulsation). Additionally, the interaction between mechanical vibrations and pressure pulsations in micro-hydraulic systems can be interpreted in two ways. In the first case, pressure pulsations in the fluid generate vibrations in system components, such as micro-lines or micro-valves [19]. In the second case, the situation is reversed – mechanical vibrations of system elements lead to pressure pulsations, which in turn actuate the control elements of micro-valves, such as distributor slides or poppet lifts [20]. In such systems, variations in fluid pressure are largely attributed to pulsations in the output of the working fluid [21], which arise from the kinematic characteristics of the displacement components of the micro-pump [22]. These output pulsations result in a periodically varying pressure distribution across the micro-hydraulic system, typically following a harmonic pattern and generating noise in the application. The frequency of this pressure pulsation matches the frequency of the pump’s output fluctuation [23,24] and additionally excites mechanical vibrations in elements such as hydraulic lines and valves, which ultimately generate most of the noise in hydraulic applications.

Excessive noise and vibration generated by machines and equipment can have harmful impacts on both the environment and humans [25]. For the human body, the most critical range is within the low-frequency spectrum, especially at frequencies below 100 Hz [26,27]. These challenges highlight the importance of research aimed at reducing noise and vibration in micro-hydraulic systems, particularly because such technologies are often used in close proximity to workers during continuous operation. The present research paper focuses on effective methods for reducing pressure pulsation amplitudes through the use of pressure pulsation dampers in micro-hydraulic systems. The conceptual and theoretical considerations were supported by experimental verification.

2. Causes of Uneven Performance of Positive Displacement Pumps

A characteristic feature of positive displacement pumps is the cyclic nature of their operation. During the rotation of the pump drive shaft, each positive displacement element completes a suction and discharge cycle. This results in an uneven transfer of fluid from the suction space to the discharge space of the pump [28,29,30]. Another phenomenon contributing to the non-uniformity of the flow rate is the often-varying speed of the fluid-displacing element. To determine the magnitude of performance pulsations, a performance non-uniformity coefficient has been introduced, which is described in detail in the literature [31,32,33]:

$${\delta }_p={\displaystyle \frac{Q_{max}-Q_{min}}{Q_{avr}}},$$

(1)

where: Q_max – maximum instantaneous capacity; Q_min – minimum instantaneous capacity; Q_avr – average capacity.

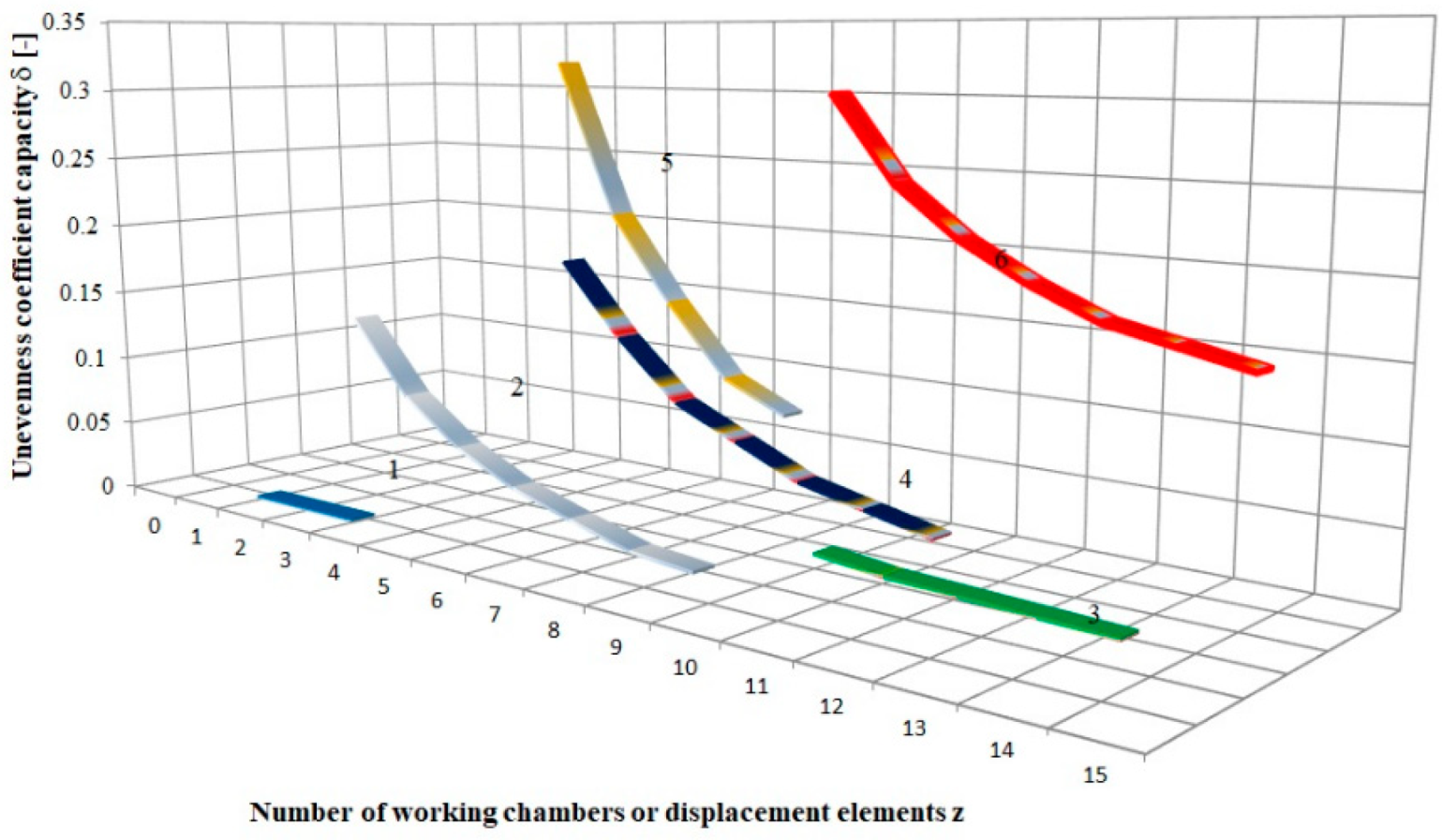

A comparison of capacity irregularities for different types of hydraulic pumps is shown in Figure 2 below.

The analysis of the graph above shows that piston pumps with an even number of displacement elements are characterized by a higher coefficient than pumps with an odd number of displacement elements. In addition, screw pumps, piston pumps with an odd number of pistons, and gear pumps with internal gears are characterized by the lowest values of the capacity pulsation coefficient. As shown in Equation (1), the capacity non-uniformity coefficient assumes constant numerical values for the pump under consideration. As a result, performance pulsations cannot be analyzed in either the time or frequency domain.

Depending on the type of positive displacement pump (design variant), suitable mathematical models of instantaneous capacity are used to describe pump capacity pulsations as a cause of pressure pulsation. Common types of pumps include vane pumps, gear pumps, and axial or radial piston pumps. The instantaneous capacity of a single-acting vane pump, accounting for vane thickness, can be expressed as [35]:

$$\begin{gathered} Q=\left[r_l-{\displaystyle \frac{e}{2}}·\left(1+cos{\phi }_l\right)\right]·{\omega }_l·b_l·e·\left(1-cos{\phi }_l\right)-e·{\omega }_l·b_l·s_l \\ ·\left\{sin{\phi }_l+sin\left({\phi }_l+{\alpha }_l\right)+...+sin\left[{\phi }_l+\left({\displaystyle \frac{z_l}{2}}-1\right)·{\alpha }_l\right]\right\}, \end{gathered}$$

(2)

where: r_l – stator turning radius; s_l – blade thickness; b_l – blade width; z_l – number of blades; α_l – centre angle of blade spacing in the rotor; ω_l – angular velocity of the pump shaft.

The mathematical model described by Eq. (2) was implemented in the MATLAB environment using the Simulink package. To perform a computer simulation of the instantaneous capacity of the vane pump, the technical documentation of the V3-63 pump, manufactured by Fabryka Elementów Hydrauliki Ponar-Wadowice S.A., was used [36]. The simulation model makes it possible to obtain the time profile of the pump’s efficiency for user-defined design parameters (i.e., stator turning radius, blade width and thickness, number of blades) and operational parameters (i.e., drive shaft rotational speed, eccentricity value), and to record the results in the workspace for further analysis. Based on Eq. (2) and the performed simulation, the instantaneous capacity waveform of the V3-63 vane pump is obtained, as shown in Figure 3(a). Figure 3(b) presents the amplitude–frequency spectrum of the capacity pulsation.

The frequency values of the individual harmonic components of the spectrum are given by the following relationship:

$$f_K={\displaystyle \frac{n_p·z_l·K}{60}},$$

(3)

where: n_p – pump shaft speed (rpm); K – consecutive component number (= 1...K_i).

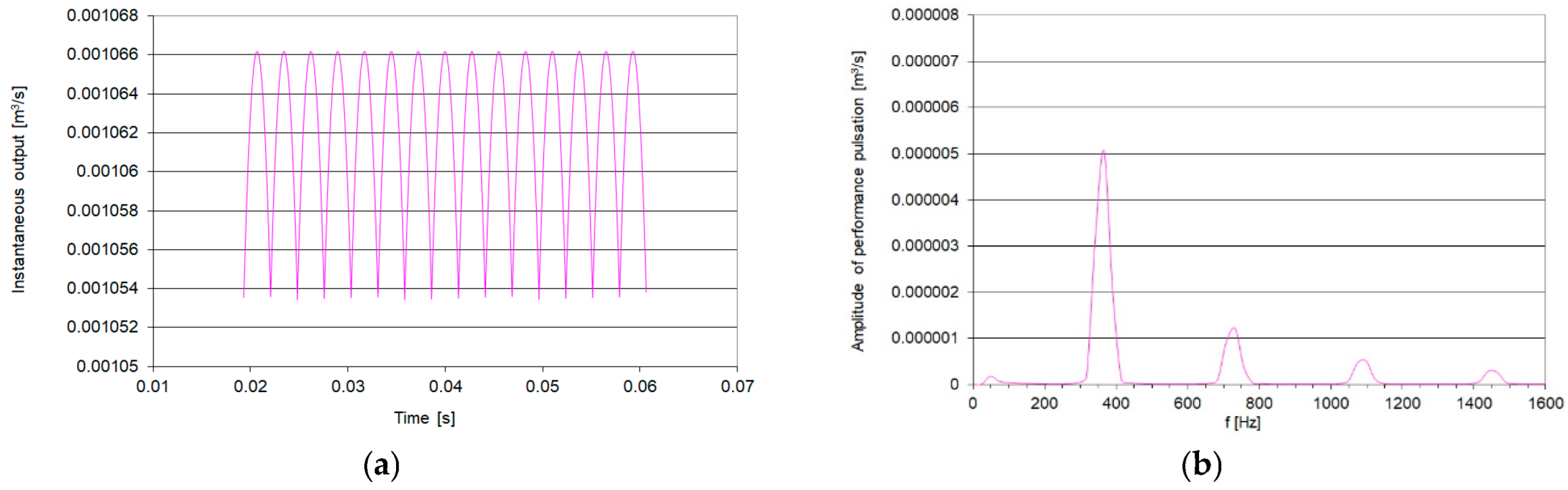

The pump under consideration has 15 vanes (z_l), and the pump shaft speed is 1450 rpm. As can be seen in Figure 3(b), the first component of the spectrum (K = 1) occurs at a frequency of f₁ = 362 Hz. Subsequent components are integer multiples of this frequency. Furthermore, due to the impedance of the hydraulic system, capacity pulsations generate pressure pulsations at corresponding frequencies.

The pressure pulsation spectrum also includes harmonics at lower frequencies. Hydraulic valves used in systems installed in mobile machinery or transport vehicles are subjected to external mechanical vibrations. The frequency range of these vibrations is wide, starting from a few hertz. The natural frequencies of the control elements of hydraulic valves fall within this range. Compared to conventional hydraulic valves, micro-hydraulic valves exhibit higher natural frequencies. If the frequencies of external mechanical vibrations are close to the natural frequencies of a hydraulic valve’s control element (e.g., spool, poppet, ball) and the direction of these vibrations coincides with the movement direction of the control element (e.g., spool movement within the valve body), vibrations of this element may be excited, leading to the appearance of additional harmonics in the pressure pulsation spectrum. Figure 4 shows the amplitude–frequency spectrum of pressure pulsations in a hydraulic system subjected to external mechanical vibration applied to a single-stage relief valve. The valve body was subjected to vibrations with frequencies ranging from 10 to 40 Hz.

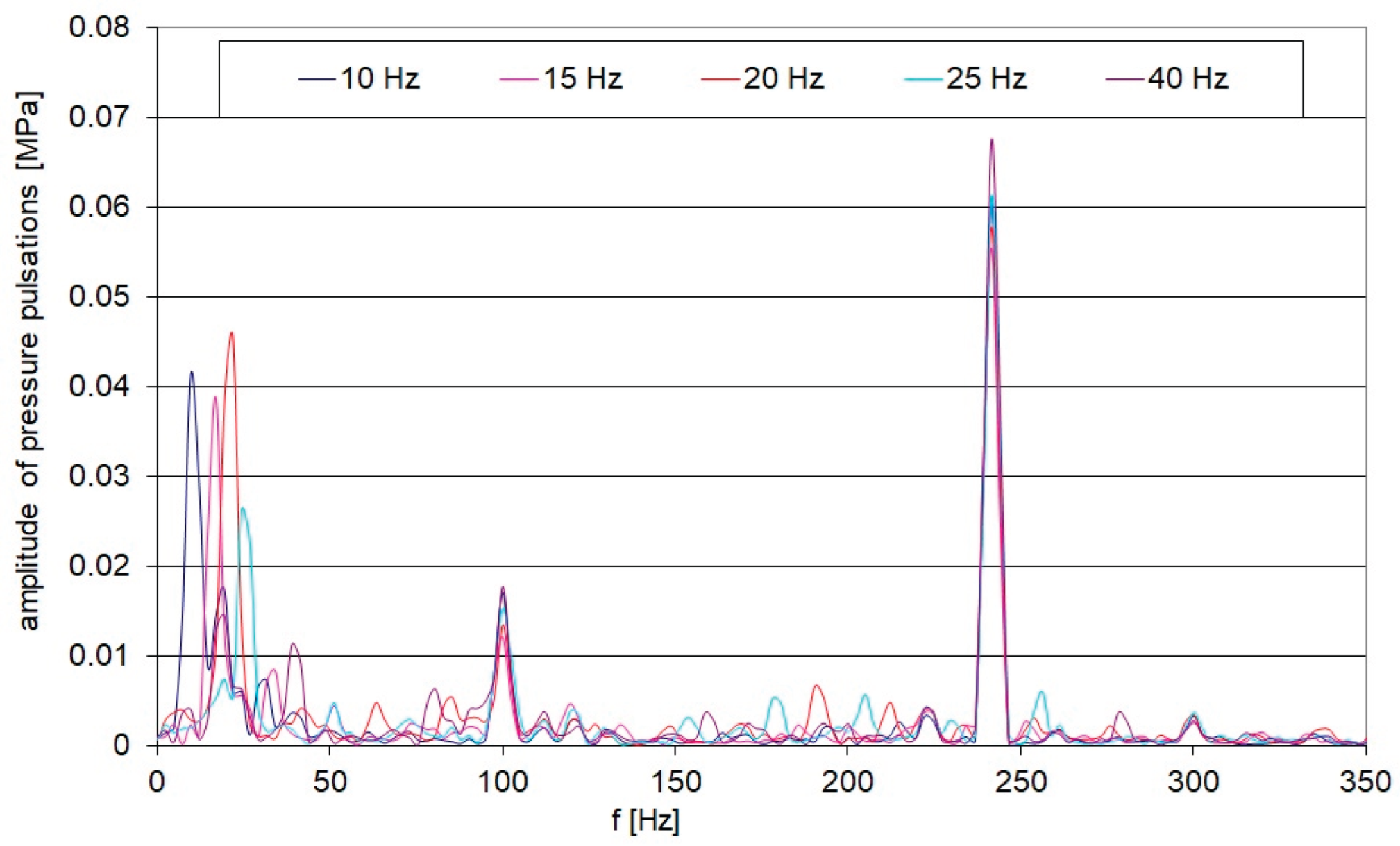

In the spectrum shown in Figure 4, the dominant harmonic component is the pressure pulsation resulting from the displacement pump’s capacity pulsation and the hydraulic system’s impedance. In this spectrum, harmonic components appear at lower frequencies, corresponding to the external mechanical vibrations acting on the relief valve body. These pulsations propagate through the hydraulic hoses and fluid to distant parts of the hydraulic system, causing vibration excitation and noise generation. Reducing the amplitudes of pressure pulsations decreases the excitations acting on hydraulic system components, thereby reducing the vibrations and noise generated by the hydraulic or micro-hydraulic system.

3. Application of a Spiral Passive Damper in a Micro-Hydraulic System

To reduce the amplitude of pressure pulsations, a passive branch-type damper can be used. In addition, to reduce the space occupied by the damper, it may be designed in a spiral shape. This type of damper has a selective effect, i.e., it is effective at a specific pressure pulsation frequency. The effectiveness of the damper is determined by its length: the lower the frequency to be damped, the longer the damper must be. The construction of a spiral branch damper consists of a spiral pipe of sufficient length and radius of curvature, connected perpendicularly to the main pipe and sealed at the end. The basis for determining the length of the spiral pipe, which forms the spiral damper, is a hydraulic transmission line model described by distributed parameters. The following equation presents a matrix transition function in operator form, taking into account the pressure p and flow rate Q at both ends of the hydraulic transmission line (the start and end of the damper), expressed as [33,37,38,39]:

$$\left[\begin{array}{c}{p}_1\\ Q_1\end{array}\right]=\left[\begin{array}{cc}cosh\left(L·\mathsf{\Gamma }\left(s\right)\right)& Z_c\left(s\right)·sinh\left(L·\mathsf{\Gamma }\left(s\right)\right)\\ Z_c^{-1}\left(s\right)·sinh\left(L·\mathsf{\Gamma }\left(s\right)\right)& cosh\left(L·\mathsf{\Gamma }\left(s\right)\right)\end{array}\right]\left[\begin{array}{c}{p}_2\\ Q_2\end{array}\right],$$

(4)

where: p₁ – pressure at the inlet of the spiral damper; p₂ – pressure at the outlet of the spiral damper; Q₁ – flow rate at the inlet of the spiral damper; Q₂ – flow rate at the outlet of the spiral damper; L – length of the spiral damper.

Since the damper is a pipe closed at the end, Q₂ = 0 is assumed. Multiplying the matrix expressions yields Eq. (4), which defines the initial impedance of the damper as the ratio of the pressure amplitude at the inlet to the amplitude of the flow pulsation at the inlet, taking into account the quasi-estimated friction loss model [33]:

$$Z_D={\displaystyle \frac{p_1}{Q_1}}={\displaystyle \frac{cosh\left(L·\mathsf{\Gamma }\left(s\right)\right)·p_2}{Z_c^{-1}\left(s\right)·sinh\left(L·\mathsf{\Gamma }\left(s\right)\right)·p_2}}={\displaystyle \frac{\sqrt{\frac{E_{zs}·(R_s·\pi ·r^2+{\rho }_0·s)}{{\pi }^2*r^4*s}}}{tgh\left(L·\sqrt{\frac{R_s·\pi ·r^2·s+{\rho }_0·s^2)}{E_{zs}}}\right)}};$$

(5)

$$R_s=\left({\displaystyle \frac{8·\mu }{\pi ·r^4}}\right)·\left[1+\left({\displaystyle \frac{Re·r}{64·\pi ·R}}\right)·\left(\mathrm{0,131}+\mathrm{1,847}·{\left({\displaystyle \frac{r}{R}}\right)}^{\mathrm{3,5}}\right)\right].$$

(6)

The solution of the spiral damper’s mathematical model involves determining the minimum impedance value as a function of its length for a given forcing frequency (the frequency of the pressure pulsation to be damped). The effectiveness of the designed damper also depends on the friction loss model used to determine its initial impedance. Given the typical number of pump displacement elements and the average drive shaft speed, the first harmonic component of the performance pulsation spectrum, equal to 120 Hz, was used for the calculation. The following data were used to determine the initial impedance modulus: fundamental pump harmonic f₁ = 120 Hz, pipe diameter d = 4 mm, and HLP22 hydraulic oil. Figure 5 shows the initial impedance for the quasi-stationary linear (branch) damper model and the quasi-stationary spiral damper model.

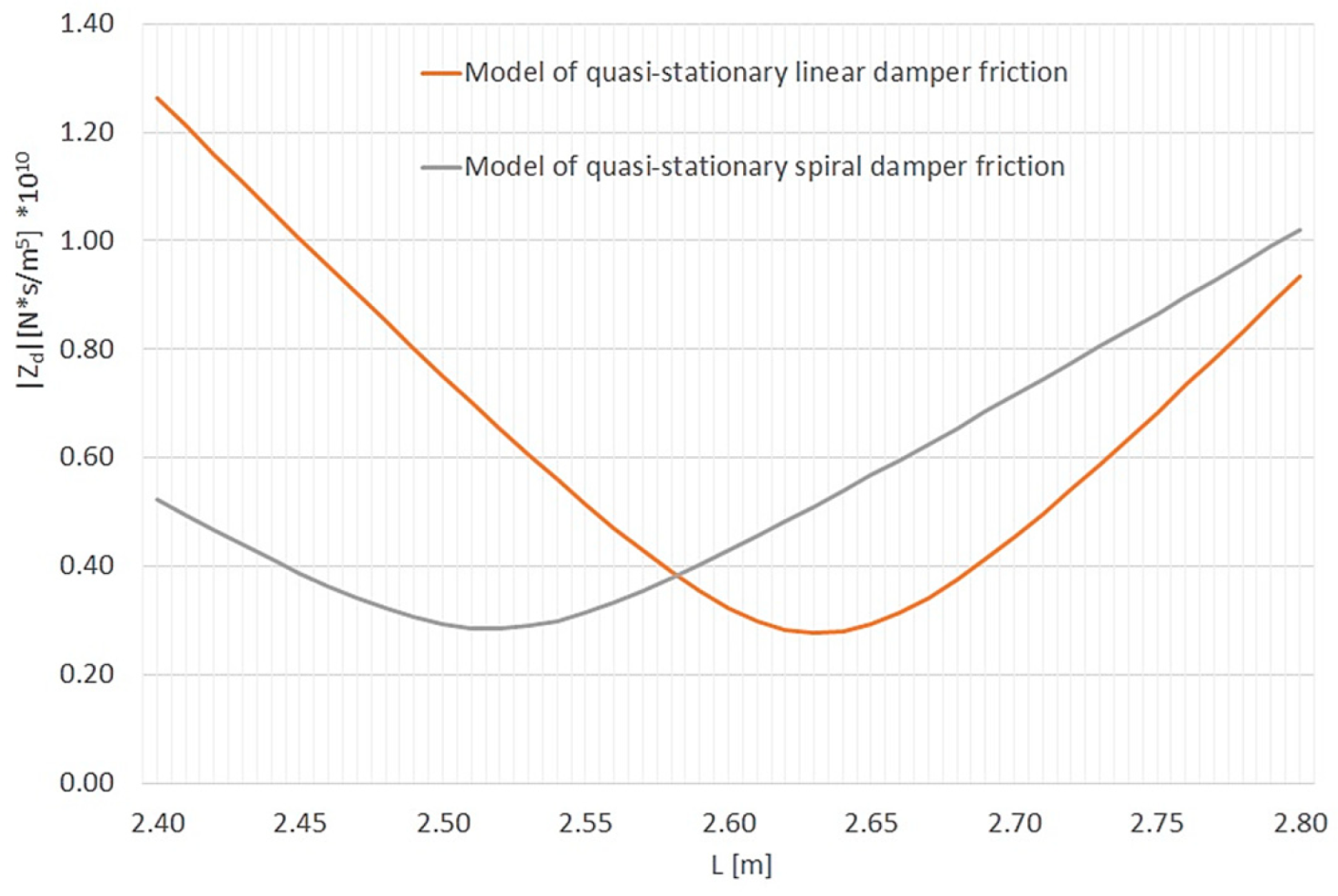

Figure 5 shows that the spiral damper is shorter than the linear damper. For an excitation frequency of 120 Hz, the impedance minimum of the spiral damper occurs at a length of approximately 2.53 m, while for the linear damper it occurs at approximately 2.64 m.

4. Experimental Verification of the Effectiveness of the Spiral Damper

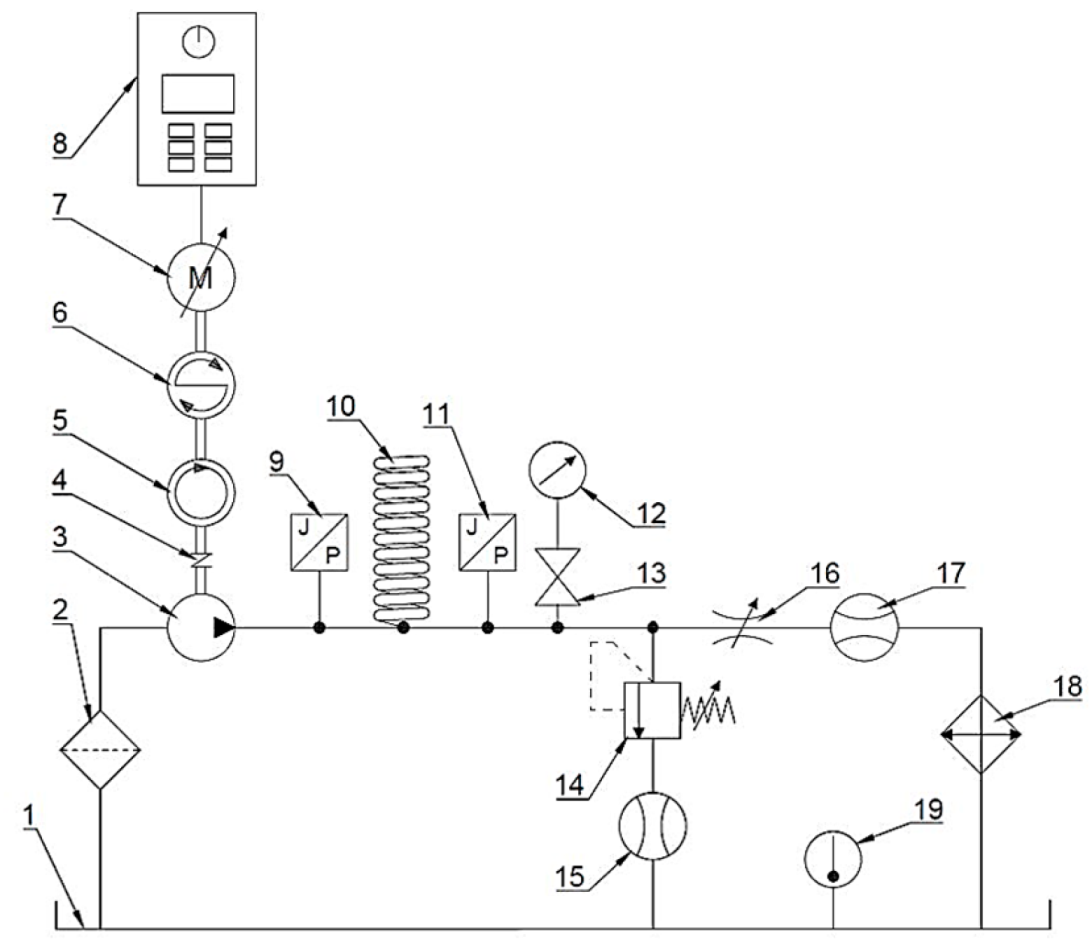

To confirm the previous considerations regarding the effectiveness of the spiral damper, experimental tests were carried out on a specially designed and manufactured micro-hydraulic test rig (a schematic of the test stand is shown in Figure 6).

The source of the pressurised fluid flow is the positive displacement pump (3) WPH PZ3-0.6. The pump has 14 teeth on both the active and passive wheels, with a unit capacity of cm³/rev. To ensure adequate suction conditions, the tank (1) is installed above the pump (3). The pump’s rotary shaft speed was monitored using a tachometer (5). A pressure pulsation sensor (9) was installed on the hydraulic line downstream of the displacement pump, followed by the damper under test (10) and another pressure pulsation sensor (11) immediately downstream. A pressure gauge (12) was used to monitor average pressure. During data recording, the system’s connection to the manometer was cut off using a shut-off valve (13). The measuring system was equipped with a safety valve (14) and a flow meter (15), which was used to monitor the opening of the safety valve. The system pressure was set using a throttle valve (16). The flow rate was measured using a flow meter (17). A cooler (18) with a controller and a fan driven by an electric motor was used to stabilize the temperature of the working fluid. The motor (7) driving the displacement pump was connected to a control cabinet (8). This allowed the measuring system to adjust the pump speed.

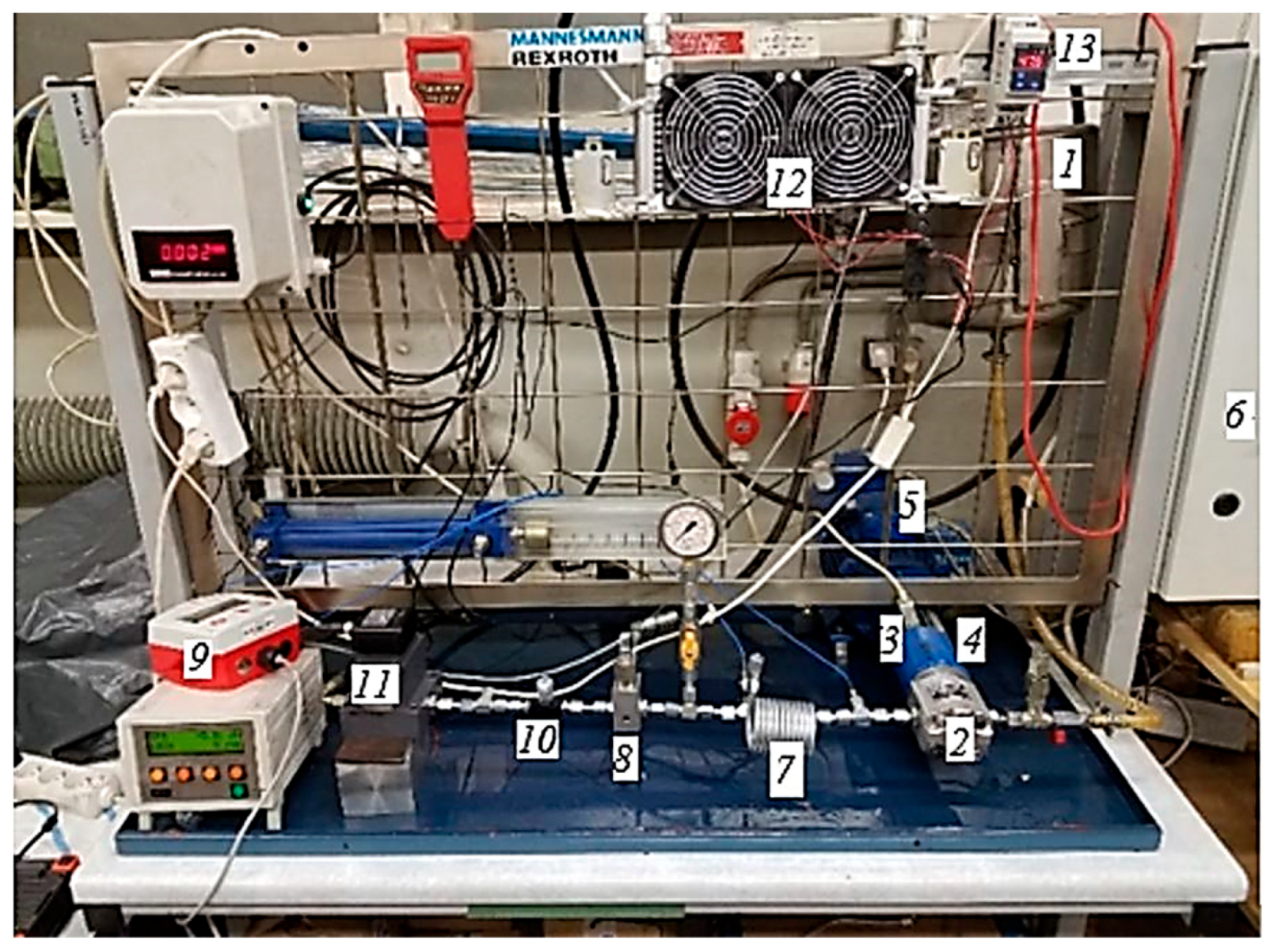

Figure 7 shows the measuring station (test stand) where the verification measurements were carried out.

Measurements were carried out using Piezotronics 105C23 piezoelectric PCB pressure sensors. The signal collected by the sensors was sent to a Dewesoft measurement card, where analogue-to-digital conversion and data acquisition were performed. Data processing was performed in the Microsoft Excel environment. The length of the spiral damper was varied from 2370 mm to 2860 mm in steps of 10 mm. The test bench was filled with HLP 22 oil, with a density of ρ = 865 kg/m³. Characteristic data of the damper pipe: inner radius r = 2 mm; bend radius of the spiral R = 27 mm. Figure 8 shows an example of measurements obtained for a system without a damper, recorded downstream of the blinded location of the anticipated damper.

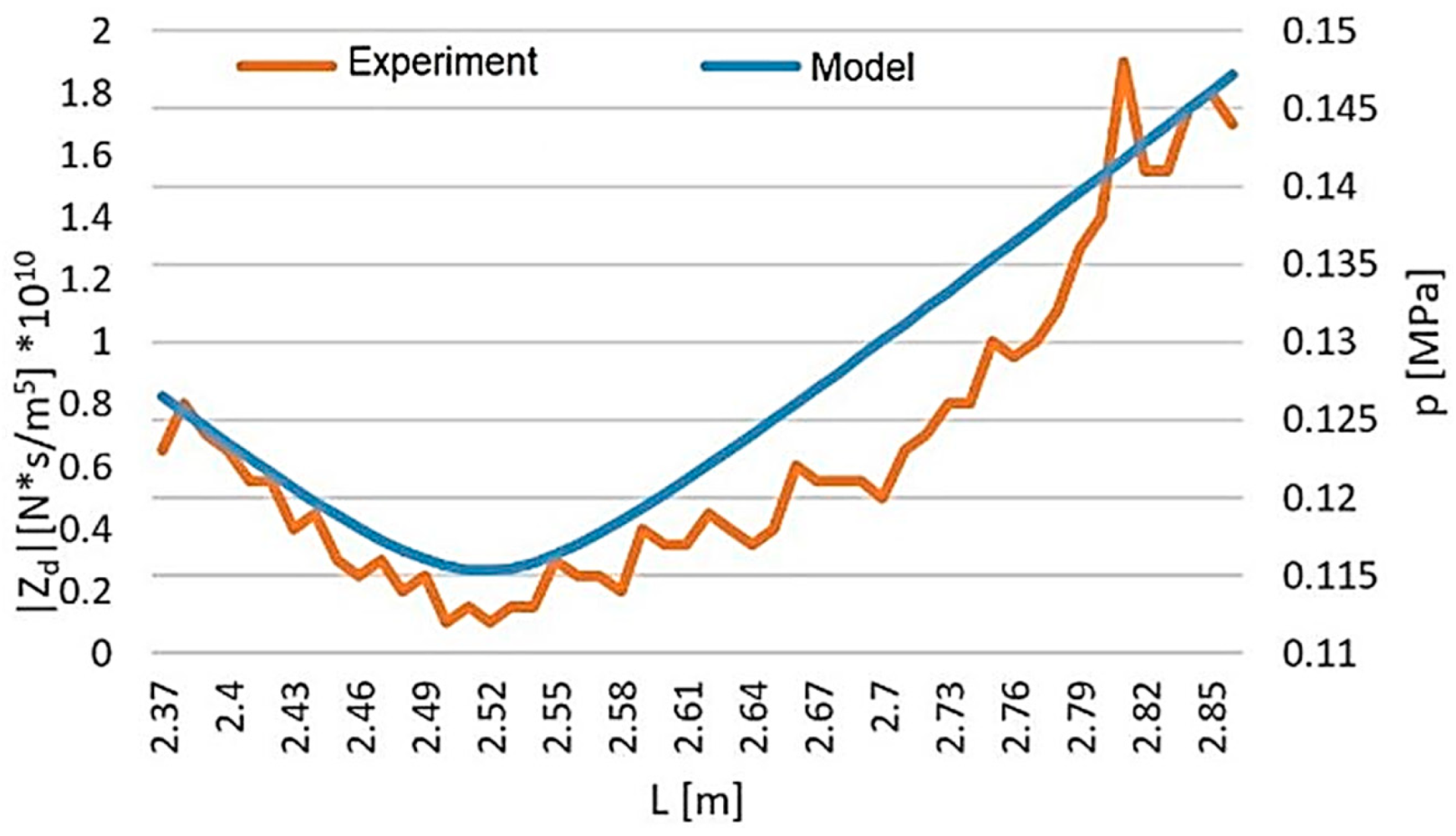

Figure 9 shows a comparison between the impedance model of a spiral damper and the measured pressure pulsations for the damper as a function of its length.

Figure 9 shows that changing the damper length for a given excitation frequency alters the damper’s impedance. For a given excitation frequency, it is possible to select a damper length that provides maximum effectiveness.

5. Reduction of Pressure Pulsations Over a Wide Frequency Range

As indicated, a passive branch-type damper is effective at the selected forcing frequency. However, the pressure pulsation spectrum may contain both low- and high-frequency harmonics. In such cases, a broadband damper can be used to reduce pressure pulsations across a wide frequency range [40]. A broadband damper combines a passive branch damper with an active damper. The branch damper, with length L, reduces pressure pulsation amplitudes at higher frequencies, while the active damper reduces them at lower frequencies. The branch passive damper operates on the principle of reflection and interference between the incident and reflected waves. The active damper operates on the principle of absorbing the incoming wave. It consists of a hydropneumatic accumulator and a piston moving within a cylinder. A schematic of the broadband damper is shown in Figure 10.

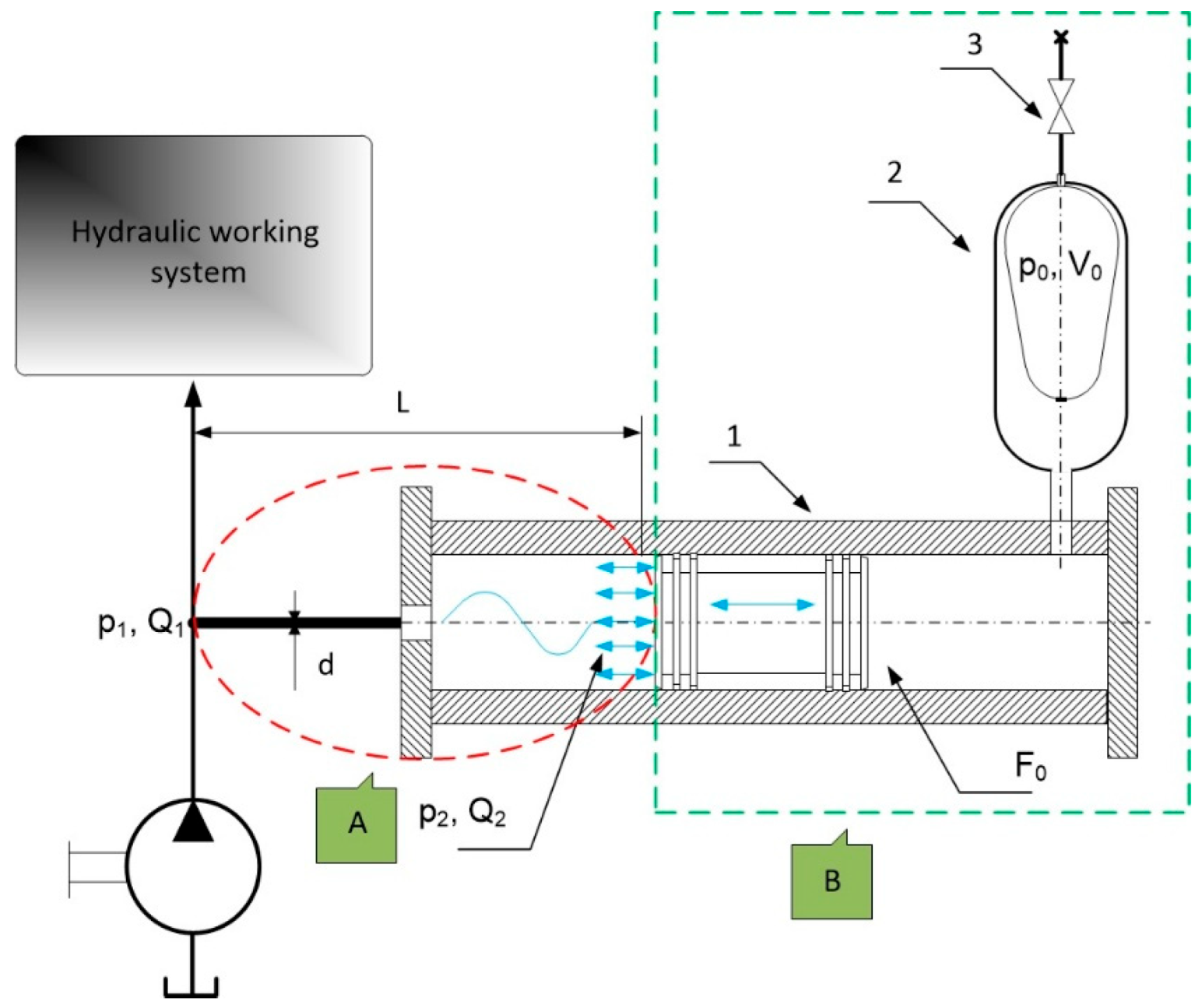

The passive damper (part A in Figure 10), which is part of the broadband damper, is most effective when its initial impedance reaches a minimum, analogous to the spiral damper. On the other hand, the active damper (part B in Figure 10), which forms part of the broadband damper, is most effective when its natural frequency equals the forcing frequency (the frequency of the pressure pulsation to be suppressed). The selection of active damper parameters reduces to ensuring that the resonant frequency of the piston–hydropneumatic spring system equals the pressure pulsation frequency f_w to be suppressed. The resonant frequency of the active damper is given by the following relation [37,40]:

$$\omega =\sqrt{{\displaystyle \frac{n{F}_0^2{p}_k^2}{p_0{V}_0{m}_{zr}}}},$$

(7)

where: n – the polytropic exponent; F₀ – active surface area of the piston; p_k – value of the pressure in the system; p₀ – value of the initial pressure of the gas in the accumulator; V₀ – initial volume of the gas in the accumulator; m_zr – reduced mass of the oscillating system.

6. Experimental Verification of the Effectiveness of a Broadband Damper

Experimental verification of the effectiveness of the proposed broadband damper solution was conducted on a real object: the lifting mechanism of a wheel loader boom with a micro-hydraulic system (see Figure 11). For this purpose, the system was placed in an acoustic diffusion chamber. A comparative acoustic study was carried out on the system without a damper and with a damper.

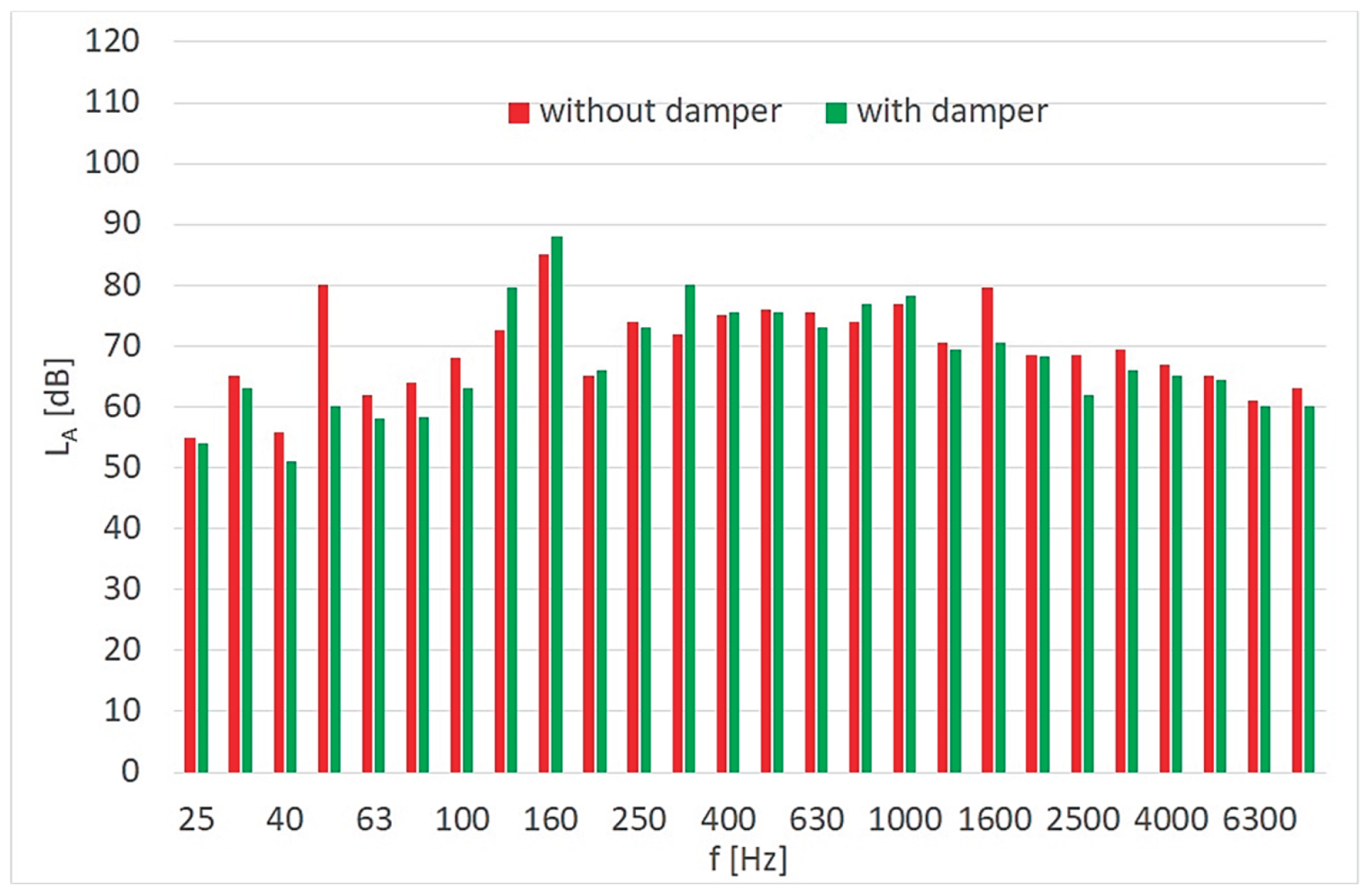

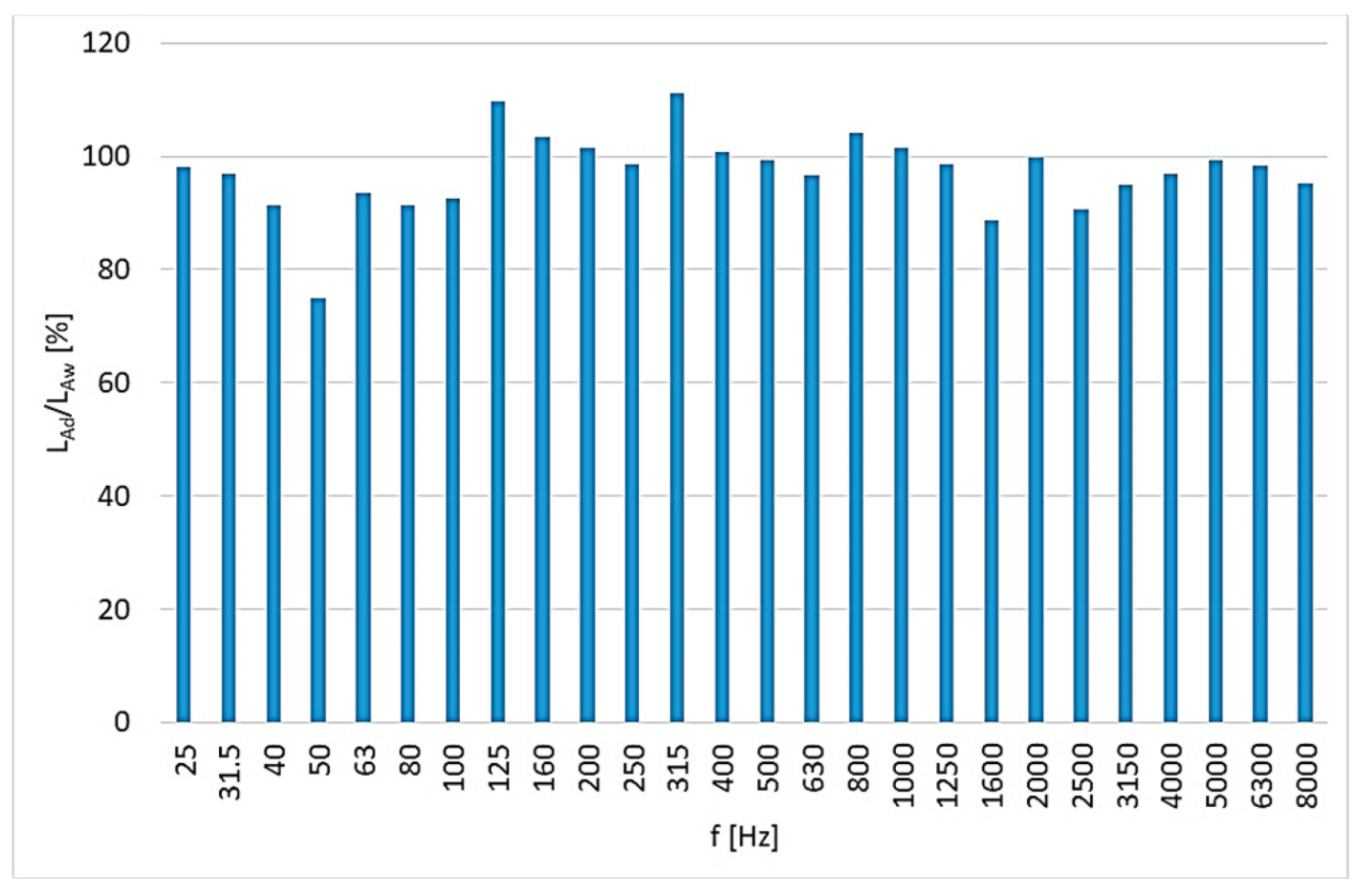

The corrected sound pressure level was recorded for the system during boom lifting at a fixed pump drive shaft speed. Two series of measurements were carried out under identical conditions: one with a damper and one without. Figure 12 shows the results of the acoustic measurements.

The results shown in Figure 12 indicate that, for most frequencies in the spectrum, noise reduction was achieved through the use of a pressure pulsation damper. The greatest noise reduction in the tested hydraulic system was observed at low frequencies of approximately 50 Hz (Figure 13). The reduction efficiency of the corrected sound pressure level L_A is defined as the ratio of the amplitude L_Ad (system with damper) to the amplitude L_Aw (system without damper) at the selected frequency.

Experimental studies have shown that the proposed broadband damper is effective over a wide frequency range and functions as an acoustic filter. The experimental results confirm that the broadband damper significantly attenuates pressure pulsations across a wide frequency range in the micro-hydraulic system. Notably, the most pronounced noise reduction occurred at lower frequencies near 50 Hz, validating the damper’s design objectives. These findings demonstrate the damper’s practical effectiveness and highlight its potential for improving acoustic performance in similar hydraulic applications.

7. Conclusions

The paper points out that an operating micro-hydraulic system is a source of vibration and noise across a wide frequency range. The main cause of noise in hydraulic systems is impact pressure variations of the working fluid, either impulsive or harmonic. Pressure pulsations can be caused by displacement pump capacity fluctuations and by external mechanical vibrations acting on hydraulic valves. The resulting pressure pulsation is characterized by a wide frequency range. The problem of noise is also significant in micro-hydraulic systems. In these systems, the limited amount of available space presents an additional constraint. A passive spiral branch damper is proposed for use in micro-hydraulic systems. The form of the initial impedance function of the damper, which determines its effectiveness, is presented. This damper has a selective effect while occupying much less space than a straight-axis damper A broadband damper, consisting of a branch (straight-axis) passive damper and an active damper, was used for pressure pulsation and noise reduction over a wide frequency range A condition for the effective operation of the active damper is defined. The conceptual and theoretical considerations were experimentally verified.
