Exploration of Stability Judgments: From Multimodal LLMs to Human Insights

1. Introduction

Multimodal large language models (MLLMs) have recently emerged as powerful systems that integrate text and image understanding [1,2,3,4]. However, despite their impressive abilities, in processing visual and textual information, current MLLMs face notable limitations in tasks that require physical reasoning and spatial understanding. Prior work has demonstrated that these models face remarkable challenges in intuitive physics tasks, such as reasoning about object permanence [5,6], structural stability [7], physical simulation [8] and causal interactions [9]. Human-derived evaluation is essential for capturing the nuanced physical reasoning that automated metrics often miss. Nevertheless, our earlier work [7], while revealing these model limitations, overlooked such human benchmarks and relied only on a narrow set of models.

Our earlier work evaluated a set of MLLMs on stability-related tasks within a procedural game environment. The work evaluated the performance of MLLMs of different parameter sizes, including both open-source and closed-source models. However, it was limited to a few models and did not include human performance. The research from [10,11] provides an insight that higher parameter counts lead to significantly improved understanding and capabilities in language models. These observations highlight the need for a broader investigation of both model capabilities and design factors. By evaluating both high-parameter and low-parameter MLLMs, this research aims to unpack scaling effects on physical understanding.

The importance of incorporating human judgment in AI evaluation has become increasingly recognized as automated metrics often struggle to align reliably with human assessment [12], especially for complex multimodal tasks [13,14]. Human evaluation serves as the gold standard for assessing model performance because it provides contextual understanding, ethical considerations, and nuanced judgment that automated systems may overlook. A study by Stein et al. [15], showed that human evaluations can uncover model capabilities and limitations not captured by conventional metrics, particularly in tasks requiring subjective interpretation or complex reasoning.

Hence, this paper extends our previous work [7] on evaluating stability reasoning in MLLMs. We conducted an exploratory study to examine how models and humans judge stability across binary, comparative, and predictive tasks in procedural game environments. This paper provides the following key contributions:

• Inspired by our previous study, we deliver an updated empirical benchmark comparing Open-weight MLLMs and human participants on stability judgment tasks.
• We conducted a user study protocol that systematically captures human qualitative and quantitative reasoning for these phenomena.
• We analyze scaling effects of MLLM performance in physics tasks, providing critical insights for future model development.
• This work explores the nature and extent of the physical understanding of MLLMs, informs the design of future benchmarks, and encourages further multidisciplinary research in the domain.

2. Related Work

MLLMs have emerged as transformative tools in artificial intelligence, demonstrating remarkable capabilities in understanding and reasoning across diverse modalities, including text, images, audio, and video. These models represent a significant advancement beyond traditional unimodal approaches by integrating powerful large language models (LLMs) with various modality encoders, positioning LLMs as the "brain" while treating visual [16] and other sensory encoders [17,18] as specialized organs. The potential of MLLMs to emulate human-like cognitive abilities has rekindled interest across multiple domains, from robotic control [19,20] to scientific reasoning [21], marking a potential pathway toward achieving artificial general intelligence.

Our previous research [7] investigated MLLMs’ physical reasoning capabilities using the Science Birds platform, an Angry Birds inspired physics simulation. This work evaluated binary and comparative stability assessment along with forward simulation through visual and textual inputs. The findings demonstrated quantifiable accuracy in visual reasoning tasks while revealing significant performance variations based on model architecture and input modality. The study highlighted multimodal integration’s importance for accurate physical inference while exposing substantial limitations in structured visual reasoning tasks requiring deep understanding of stability principles and object interaction dynamics.

The role of human evaluation extends beyond performance assessment to encompass fairness, ethics, empathy, and inclusivity. Study from Stein et al. [15] showed that human judgment can reveal model capabilities and limitations often overlooked by automated evaluation metric. Benchmarks such as HumaniBench [22] highlight that even state-of-the-art MLLMs often struggle to balance accuracy with human-aligned principles. This underscores the necessity of human evaluation in guiding model development toward outcomes that are both technically sound and socially responsible.

3. Methodology

3.1. Tasks

Physics-based games provide rich environments for artificial intelligence (AI) research because they combine well-defined rules with complex dynamic interactions. Among them, Angry Birds has become a widely used testbed, as its gameplay integrates complex mechanics such as gravity, collision, and balance. In this environment, level design requires careful attention to stability, since structures must remain intact and playable under the game’s physics engine. Within this context, two key challenges remain. The first is generating levels that achieve controllable similarity to reference designs while maintaining diversity, and the second is investigating the ability of language models to handle stability-related scenarios in physics-driven environments.

The design of the three tasks in our previous work [7] and this study was motivated by the need to evaluate MLLMs at different levels of physical reasoning, while ensuring comparability with our previous work. First, the binary task provides a foundational measure, as determining whether a given structure is stable or unstable represents the most direct form of physical judgment. The comparison task, the second one, extends this evaluation by introducing a relative dimension, requiring the model to assess multiple input structures and identify the one that differs in stability, either the single stable structure among unstable ones or the single unstable structure among stable ones. To increase variability and difficulty, the number of candidate options varies between two, three, and four.

The third one is the prediction task that further increases complexity by requiring the model to anticipate future states of a structure after a specified time, thereby testing the model’s capacity for temporal reasoning rather than static evaluation. It contains three subtasks: “diff_block”, where options differ in block quantity; “diff_level”, where arrangements vary despite equal block counts; and “diff_id”, where structures appear identical but differ in block identifiers. These subtasks collectively probe the model’s ability to simulate structural dynamics under variations in quantity, arrangement, and identity, thus providing a comprehensive test of temporal reasoning. By integrating these tasks, we establish a robust benchmark that highlights the limits and potentials of multimodal reasoning, fostering deeper exploration of language models’ physical reasoning capabilities.

3.2. Model Selection

To extend the original evaluation, six additional open-weight MLLMs were incorporated in this study, i.e., Gemma3-12B [3], Gemma3-27B [3], LLaVA-13B[4], LLaVA-34B [4], Qwen2.5VL-32B [2], and Qwen2.5VL-72B (Q4) [2]. These models were selected to provide a more comprehensive assessment of multimodal reasoning capabilities, particularly for physical stability tasks. The selection criteria were based on the models’ relevance to the previously evaluated series with parameters below 8B, ensuring continuity and comparability with the earlier experiments.

Among the selected models, Qwen2.5VL-72B was evaluated using the Q4 quantization format due to computational resource constraints, allowing efficient inference without significantly affecting performance. By including models across different architectures and parameter scales, this extended evaluation investigates whether larger models or specific architectures demonstrate improved reasoning about physical stability tasks. The subsequent analysis maintains the same experimental framework used in the original study, providing a consistent basis for comparison across all models.

3.3. Human Benchmarking

To establish a human benchmark, a survey was conducted using the same set of physical stability tasks presented to MLLMs in the preceding study. These tasks encompassed three categories: Binary (Task 1), Comparison (Task 2), and Prediction (Task 3). The selection of these categories aimed to capture a comprehensive range of reasoning capabilities relevant to physical stability, ensuring consistency with the tasks evaluated by the MLLMs.

Recognizing the potential for participant fatigue, the survey was designed to mitigate this factor by limiting the number of questions and not utilizing the entire dataset. This approach was intended to maintain participant engagement and ensure the reliability of responses. Additionally, to facilitate human understanding and reasoning, only the image modality was employed in the survey. The use of textual representations, such as XML or JSON formats, was excluded due to their complexity and the challenge they pose for human participants in interpreting physical environments effectively.

To further enhance the reliability of the responses, an additional question was incorporated into Task 1 as a duplicate. This strategy aimed to identify inconsistencies in participants’ answers, which could indicate a lack of careful consideration or engagement with the survey. By comparing responses to original and duplicate questions, we confirmed that participants gave answers with purposefulness, ensuring reliability in the collected data.

To compare human performance with MLLM predictions, we employed two-stage bootstrap resampling to generate empirical distributions of mean accuracy for each task. This approach estimates confidence intervals and captures variability without assuming normality. Comparing these distributions with MLLM scores allows robust, non-parametric testing of statistically meaningful differences in reasoning performance.

4. Results and Discussion

The evaluation results reveal meaningful differences between human participants and MLLMs, alongside notable variability in model performance across the range of tasks.

4.1. Experiment

The tasks presented to human participants were derived from the same set of tasks: Binary, Comparison, and Prediction tasks. To facilitate participant judgement, and as outlined in the Section 3.3 section, only the image modality was employed, excluding complex textual representations such as XML or JSON. This design allows humans to focus on visual stability cues while maintaining alignment with the multimodal evaluation of the models.

In constructing the survey questions for each task, we adopted a principle similar to zero-shot prompt engineering, ensuring that the questions were kept deliberately basic and direct to minimize ambiguity while capturing essential reasoning about physical stability. Given that the dataset includes both stable and unstable structures, questions were evenly sampled from these two categories to provide a balanced assessment. A strict rule was applied to maintain challenge and consistency across all tasks. Each question structure contained exactly twelve blocks. Candidate questions were first filtered based on this rule and subsequently selected at random to ensure variety.

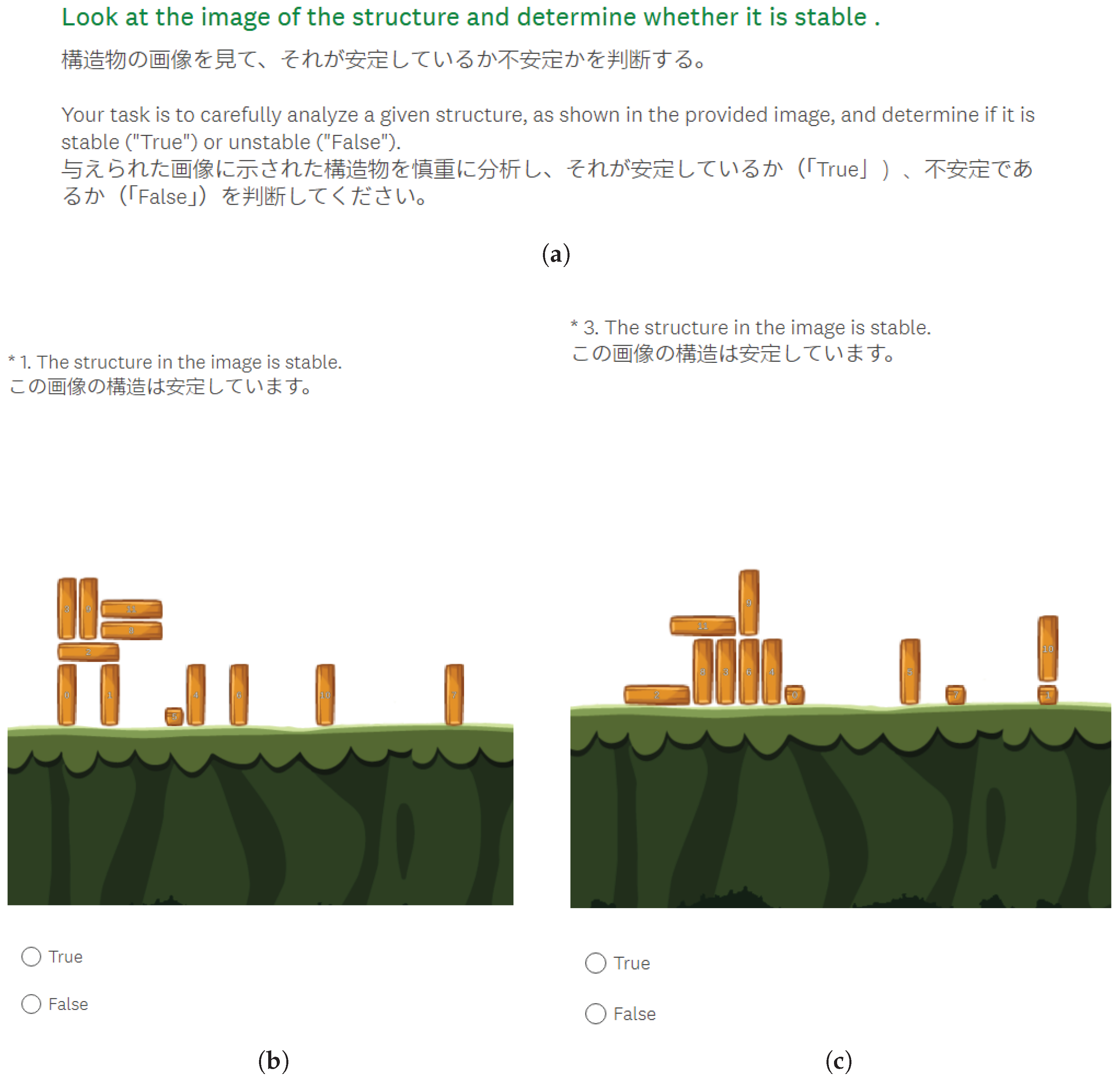

Task 1 consisted of 10 questions, evenly split between five stable and five unstable structures. The corresponding instruction and example questions are illustrated in Figure 1, where panel (a) shows the instruction provided to participants, and panels (b) and (c) present sample questions depicting a stable and an unstable structure, respectively. Task 2 followed a similar set, also comprising 10 questions balanced across stable and unstable conditions, but with the addition of a four-option multiple-choice format based on images. Task 3 was designed to cover three distinct subtasks (“diff_block”, “diff_id”, and “diff_level”), selecting five questions for each subtask, resulting in a total of 15 questions. This careful selection process ensures that the experimental design is both challenging and representative of the dataset, enabling meaningful evaluation of human performance relative to multimodal models. The example instructions and questions for Tasks 2 and 3 are provided in the repository.

4.2. Performance of Multimodal Models

Building on the experimental framework, this subsection presents the results of MLLMs evaluated on the three tasks. Namely, we analyze model accuracy, error patterns, and the influence of architecture and parameter scale across them. These results reveal the strengths and limitations of the models’ reasoning capabilities and set the stage for a comparison with human performance.

The results in Table 1 reveal several notable patterns in the performance of MLLMs across tasks and modalities. Consistent with our previous study [7], most models show a gradual decline in accuracy when shifting from Task 1 to Task 3, indicating that longer contexts and more complex reasoning demands continue to challenge current architectures. At the same time, the overall mean performance of most models has increased compared to the previous study, suggesting that scaling contributes to performance gains. An exception is LLaVa-34B, which did not follow this trend. Qwen2.5VL 72B achieved the highest overall performance among the models evaluated in this study. In particular, it surpassed both GPT-4o and GPT-4.1 mini from the previous study in the XML modality of Task 3, reaching an accuracy of 0.91. This advantage aligns with the claims in the Qwen2.5VL technical report [2], which highlights the model’s strength in handling text-rich scenarios.

Furthermore, a clear parameter-scaling effect is observed within the Qwen2.5-VL family. Both the 32B and 72B variants demonstrate measurable improvements, highlighting the importance of scaling in supporting more robust multimodal reasoning. In contrast, LLaVA-34B exhibited the lowest overall accuracy, with a particularly severe drop in Task 3 JSON format, suggesting potential deficiencies in structured data exposure during training. These results underscore that while larger parameter counts enhance general multimodal reasoning, training strategies and modality-specific data coverage remain equally critical. Overall, the findings highlight the need for further research into the physical reasoning abilities of MLLMs, showing that performance depends not only on model size but also on the interaction between modality, task complexity, and training objectives.

To further assess model robustness, we examined the number of invalid responses across tasks, modalities, and models, as shown in Table 2. Overall, invalid responses were most frequent in the JSON modality, far exceeding those observed for image and XML. This pattern was most evident in LLaVa-34B, which recorded the highest number of invalid responses in Task 2 and Task 3. These findings indicate that structured formats such as JSON pose challenges for some large-parameter models, likely due to uneven training data exposure.

A secondary observation is that invalid response rates show diverse patterns across models and modalities, rather than a consistent decline with increasing parameter size. For instance, Gemma3 demonstrates a clear decrease in invalid responses across modalities and tasks, suggesting improved reliability within this family. In contrast, LLaVa-34B performs substantially worse under the JSON modality despite its larger size in Task 2 and Task 3, highlighting that scale alone does not guarantee robustness. Across tasks, invalid responses were least frequent in Task 1 and most frequent in Task 3, indicating that more complex tasks exacerbate validity issues. These findings underscore the importance of evaluating not only accuracy but also response validity, since invalid outputs can distort performance comparisons across tasks and modalities.

4.3. Comparison with Human Judgments

To contextualize model performance, we compared MLLM outputs with judgments from 14 human participants collected through the user study. Participants completed the same tasks under the constraints outlined in the Section 3.3 and Section 4.1 subsection: image-only modality, balanced stable and unstable structures, and random selection of candidate questions. Their responses serve as a benchmark to evaluate the degree of alignment between human and model reasoning.

As described in the Section 3.3, a duplicate question was included in Task 1 to assess response reliability. This mechanism ensured that participants were attentive and engaged with the survey. All 14 participants provided consistent answers for the duplicate question, confirming the reliability of the human responses.

Table 3 presents the performance of humans and selected MLLMs on the stability reasoning tasks. For model comparison, we included the highest-scoring model from the current investigation, Qwen2.5VL-72B, and the highest-scoring model from the previous study, GPT-4o, to provide a representative benchmark. Though MLLMs were originally evaluated on all 300 levels across modalities, we also report their performance on the same 35 image-based items to enable fair comparison with human participants. Human participants achieved high accuracy across tasks, with particularly strong performance on stable structures in Task 1 (0.86) and Task 2 (0.90).

In contrast, the models showed more variability. GPT-4o performed perfectly on stable structures in Task 1 but failed on unstable structures, resulting in an overall accuracy of 0.50. Qwen2.5VL-72B showed a more balanced performance between stable and unstable conditions in Task 1 (0.40 and 0.60, respectively), but its overall accuracy remained lower than human participants across most subtasks. For Task 2, which involved multiple-choice options, human accuracy remained relatively high (0.83), whereas both models struggled to consistently identify unstable structures, highlighting the difficulty of integrating visual cues under more complex formats. In Task 3, humans maintained strong performance on “diff_block” and “diff_level” subtasks, but lower accuracy on “diff_id” subtasks (0.60), reflecting subtle challenges in recognizing structural identity differences. Interestingly, GPT-4o achieved higher accuracy than humans on the “diff_id” subtask, suggesting that the model can sometimes detect small visual details more consistently than human participants. Nevertheless, the models exhibited inconsistent performance across other subtasks, indicating that current MLLMs still face significant limitations in capturing nuanced human-like reasoning for physical stability.

To assess the statistical significance of differences between human participants and MLLMs at the subtask level, we employed a two-stage bootstrap approach suitable for two independent groups. This method considers participant variability and the limited number of questions (items) in each task, ensuring reliable estimates despite the small sample size. The procedure was applied consistently across all three tasks. Task 1 and Task 2 each consisted of 10 questions, evenly divided between stable and unstable structures, while Task 3 comprised 15 questions partitioned into three subtasks (“diff_block”, “diff_id”, “diff_level”). Each scenario was analyzed separately to ensure that bootstrap estimates accurately capture performance differences at a fine-grained level.

Human participant responses were represented as matrices of size 14 × number of questions per task, whereas model outputs were represented as 12 × number of questions and treated as fixed for bootstrap resampling. Notably, the set of 12 models (Group B) consisted of both the MLLMs evaluated in this study and those reported in prior work, providing a broader comparative perspective. This approach enabled a direct and fair comparison between humans and models for each subtask while capturing the uncertainty arising from both question-level and participant-level variability.

Table 4 summarizes the bootstrap results comparing human participants (Group A) and MLLMs (Group B) across three tasks and their subtasks. Group A and Group B means represent the average accuracy of humans and models, respectively, while the Observed difference (A–B) reflects the accuracy gap between the two groups. In Task 1, humans achieved significantly higher accuracy than models for both stable (0.59, p = 0.001) and unstable (0.22, p = 0.039) subtasks, demonstrating stronger physical reasoning in identifying stability. In Task 2, humans again outperformed models, with differences of 0.62 (p < 0.001) for stable and 0.51 (p < 0.001) for unstable subtasks. This confirms that human participants apply more reliable reasoning when evaluating relative stability across multiple structures.

In Task 3, the results were more varied. Humans showed clear advantages in “diff_block” (0.63, p < 0.001) and “diff_level” (0.55, p = 0.001), indicating stronger reasoning when assessing the consequences of structural changes. In “diff_id”, the difference (0.23) was not statistically significant (p = 0.167), suggesting that MLLMs performed closer to humans when the task relied on recognizing object identity. It is worth noting that several subtasks report p-values of 0.000. These should be interpreted as p < 0.001, reflecting extremely small values below the reporting threshold and providing strong evidence of significant differences. Overall, humans consistently demonstrated superior physical reasoning across most tasks, while MLLMs exhibited comparable performance only in the binary classification task, where all models showed similar reasoning ability when responding to basic and direct stability questions.

5. Additional Analysis

To gain deeper insight into the reasoning patterns observed in the main results, this section presents a finer-grained analysis of performance at the subtask level. By examining the models’ responses in detail, we aim to uncover patterns that may not be evident in overall accuracy metrics, including strengths, weaknesses, and subtle differences in how tasks are approached. This analysis complements the previous Results and Discussion section by providing a more nuanced understanding of stability reasoning across tasks and subtasks.

This subsection explores the performance of MLLMs on individual subtasks within each main task category. By analyzing these subtasks, we identify specific areas where models succeed or fail. This provides insight into how parameter scale and visual reasoning capabilities influence performance on fine-grained physical reasoning problems.

Table 5 showing performance across different modality inputs (image, JSON, XML) and varying levels of choice complexity (two, three, or four options). Across all models, the setting with two options yielded the highest accuracy, while performance steadily decreased as the number of options increased. This trend mirrors findings from the previous work [7] with smaller-parameter models, reinforcing the interpretation that increased complexity or longer context reduces the models’ ability to perform reliable physical reasoning task.

Within this broader trend, the Qwen2.5VL series displayed distinctive behavior across tasks and modalities. In Task 2, Qwen2.5VL models performed best with the image modality under the two-option setting, reaching scores of 0.62 for Qwen2.5VL 72B and 0.57 for Qwen2.5VL 32B. However, in Task 3, the same series achieved notably higher accuracy with the XML modality, suggesting that symbolic input formats may provide an advantage for prediction tasks. Another highlight comes from the four-option setting. While Qwen2.5VL models struggled with four options multiple choices in Task 2, they showed competitive results in task 3 under the same number of options. This apparent contradiction suggests that Qwen models are particularly adept at prediction-style reasoning but remain sensitive to context complexity in comparison-style tasks.

In contrast, models from the Gemma3 and LLaVA families demonstrated more consistent performance across modalities and option settings. While their scores were generally lower than Qwen2.5VL on certain subtasks, this stability may reflect a different balance between visual and symbolic reasoning strategies. Overall, these results suggest that, while all models face challenges as task complexity increases, they adopt different pathways for handling modality and option variations.

Extending the analysis from the comparison task, Table 6 presents the models’ performance on the prediction task, providing further evidence of the uneven strengths of MLLMs across modalities and task types. A notable weakness is observed in LLaVA-32B, which records the lowest accuracy in the JSON modality. Its performance falls below 0.1 despite having a larger parameter count than LLaVA-13B. Interestingly, the smaller variant of LLaVA achieves more balanced results across all modalities. This finding suggests that scaling alone does not guarantee improved reasoning ability, particularly when certain data types are underrepresented in training. This highlights the importance of both architectural scaling and training data diversity, echoing recent observations in multimodal benchmark studies where training coverage plays a decisive role in performance consistency.

In contrast, Qwen2.5-VL demonstrates a clear advantage in handling structured XML input, with accuracy rising markedly as parameter size increases. The 32B variant already achieves a mean accuracy of 0.80 in XML, while the 72B version reaches 0.89, which not only surpasses other models in this evaluation but also exceeds the GPT-4o and GPT-4.1 mini results reported in our earlier study. This strong performance in XML is particularly significant given that the format requires integrating both structural understanding and reasoning over symbolic content, reinforcing prior findings that Qwen2.5-VL is more adept in text-rich modalities. Moreover, the progressive gains across the 32B and 72B models suggest that parameter scaling contributes directly to more sophisticated handling of physically grounded tasks in structured representations.

Overall, these findings demonstrate that current multimodal LLMs are not uniformly competent across modalities. JSON remains a persistent weakness for some architectures, whereas XML emerges as a relative strength for models such as Qwen2.5-VL. This divergence indicates that advancing the field of physical reasoning with MLLMs requires not only scaling model capacity but also refining modality-specific training strategies. In particular, the strong results of Qwen2.5-VL in structured tasks provide a compelling case for further research on how model design and training can bridge the gap between perceptual input and symbolic reasoning, a challenge that remains central to developing models with deeper physical understanding.

6. Limitation

Although this extended study aimed to enhance generalizability compared to the initial work, several constraints remain. The selection of models was deliberately limited to families used in the previous work [7], ensuring consistency in comparison but narrowing the scope of analysis. This restriction may limit the generalizability of our findings in this study, as models outside these families could display different reasoning patterns. A broader pooling of models across architectures and training approaches would provide a more comprehensive perspective.

Resource limitations also played an important role in shaping the scope of our investigation. While larger-parameter models were included to extend the previous work, the maximum scale reached was 72B parameters using Q4 quantization. This setting provided valuable insight into scaling behavior, but does not fully capture the performance of uncompressed high-capacity models. Consequently, conclusions about scaling trends must be interpreted with caution, as they may not hold when considering models with higher precision or even larger parameter counts.

Finally, the human benchmarking component and prompting strategies introduce additional limitations. The number of human participants was relatively small, which restricts the statistical power of comparisons. At the same time, the prompting strategies applied to models were intentionally simple, focusing on zero-shot, null-shot, and CoT approaches. While this provides a consistent and transparent baseline, it may underestimate the capabilities of MLLMs when optimized prompting or fine-tuning is employed. Future research should therefore expand both the participant pool and the range of prompting strategies to gain a fuller understanding of the reasoning potential of MLLMs.

7. Conclusions

This study presents an extended investigation of physical reasoning in multimodal LLMs, building upon our previous work. By including additional models and comparing their performance with human participants, this extended version provides a broader perspective on model capabilities. Compared to the original study, we observed both continuity and new insights. Although GPT models maintained high overall scores, human participants consistently outperformed all models across tasks, highlighting the limitations of current MLLMs in physical reasoning.

Across all tasks, GPT-4o demonstrated strong performance in the image modality, showing robust reasoning capabilities in both comparison and prediction subtasks. The Qwen2.5VL series also performed competitively with commercial models, achieving the highest scores in this extended study for certain tasks. Using simpler tasks, such as Task 1, all models showed balanced performance across modalities, suggesting that MLLMs have the potential to grasp fundamental aspects of physical reasoning. Some surprising results emerged as well; for Task 3 under the XML modality, Qwen2.5VL models outperformed GPT variants from the previous study, indicating that structured inputs can enhance reasoning outcomes.

These findings suggest that more advanced prompting strategies or tasks designed to closely engage reasoning approaches may further unlock the capabilities of MLLMs. Expanding the human participant pool would also provide a more robust benchmark and contribute valuable insights into the comparative evaluation of models. Overall, this study highlights the strengths and limitations of current MLLMs while pointing to promising directions for future research in understanding physical reasoning.
