Synthesis of a Luminescent Aluminum-Based MOF for Selective Iron(III) Ion Sensing

1. Introduction

The development of sensors and materials that respond selectively to specific analytes is progressing for improved sensitivity, selectivity and the range of detectable substances. These advancements are being driven by the need for more precise, reliable, and efficient analyte detection systems across various scientific and industrial fields. A particularly important area within the realm of sensing is photoluminescence sensing. The photoluminescent response can be classified as either positive or negative. In a positive response, known as photoluminescence enhancement or a “turn-on” reaction, the material’s light emission increases when it encounters the analyte [1,2,3,4]. Conversely, in a negative response, referred to as photoluminescence quenching or a “turn-off” reaction, the material’s emission is diminished or entirely suppressed in the presence of the analyte [5]. This dual capability makes photoluminescent sensors highly versatile and valuable in a wide range of applications, from environmental monitoring to biomedical diagnostics. [6,7,8,9,10].

Iron is a critical element in both biological and industrial contexts and exemplifies the importance of precise analyte detection. In biological systems, iron plays a vital role in various physiological processes, including oxygen transport, DNA synthesis, and electron transport within cells [11]. However, both iron deficiency and iron overload can lead to severe health complications, such as Anaemia in the case of deficiency, or tissue damage and organ failure in cases of iron overload. Therefore, accurate quantification of iron in biological samples is crucial for effective medical diagnosis and treatment [12,13].

From industrial processes large quantities of iron and other metals can be released into rivers, soil, and air, posing serious environmental and health risks. This necessitates stringent regulatory measures to monitor and limit the concentration of iron and other potentially harmful metals in the environment [14].

Metal-organic frameworks (MOFs) are emerging as powerful tools in the field of sensing. MOFs are porous structures formed through the coordination of metal ions with bridging organic linkers [15]. MOFs possess highly tuneable properties, making them suitable for a wide array of applications including photoluminescence sensing [16,17,18,19]. As photoluminescent sensors, MOFs have demonstrated exceptional sensitivity, capable of detecting a wide range of metal ions [20,21,22]. In this study, we introduce an aluminium metal-organic framework related to DUT-5 (Al(OH)(1,1’-biphenyl]-4,4’-dicarboxylate) [23], but synthesized using 2-(naphthalen-2-ylamino)-[1,1’-biphenyl]-4,4’-dicarboxylic acid (H₂BP-Naph) (Scheme 1) [24]. The napthalene-2-ylamino luminophore group and hence this newly developed MOF Al-BP-Naph exhibits photoluminescent properties and experiences luminescence quenching in the presence of metal ions, most notably Fe³⁺. We have investigated the quenching selectivity and concentration dependence for a potential sensing application of Al-BP-Naph. In line with related investigations in the literature the MOF was applied as a N,N-dimethylformamide (DMF) dispersion because of the DMF properties with regards to polarity for metal-salt solubility and transparency in the UV-Vis region, due to its high refractive index (1.43) which minimizes the mismatch between the optical medium (quartz cuvettes) and the sample [25].

2. Materials and Methods

Methyl-3-amino-4-bromobenzoate, 2-bromonaphthalene (98 %) and 4-(methoxycarbonyl)phenyl)boronic acid (99.87 %) were purchased from BLDpharm, tetrakis(triphenylphosphine)palladium(0) (99 %) and tri-tert-butyl phosphine (98%) from Sigma-Aldrich and used as received. Aluminum nitrate nonahydrate 98% was obtained from Roth All solvents were bought from commercial suppliers with a minimum purity of 99.8% and used as received.

The ultrasonic device is a 2.8 L ultrasonic cleaner from Avantor (Avantor, Bruchsal, Germany). The oven a UNP 200-800 universal oven from Memmert (Memmert, Büchenbach, Germany). Fourier transform infrared spectroscopic measurements were done using a Bruker Tensor 37 (Bruker AXS, Karlsruhe, Germany) with KBr pellets in the range between 4000-500 cm^-1. For the N₂ and CO₂ sorption analysis a Quantachrome Autosorb-IQ-MP (Quantachrome, Boynton Beach, FL, USA) was used. The samples were degassed for 24 h at 170 °C before the gas sorption measurements. The N₂ sorption isotherms were collected at 77 K. The results were interpreted with the BET equation. The CO₂ sorption temperatures were 293 and 273 K. The temperatures were held by virtue of a thermostated water bath (293 and 283 K) or with Dewar filled with liquid N₂ (77 K).

Thermogravimetric analysis was performed with a TG Tarsus 209 F3 (Netzsch, Selb, Germany). The samples were analyzed under synthetic air with a heating rate of 10 K/min from 25-1000 °C. Powder X-ray diffraction patterns were recorded using a Bruker D2 phaser benchtop diffractometer from Bruker (Bruker AXS, Karlsruhe, Germany) with Cu-Kα radiation, λ = 1.54182 Å at 300 W, 30 kV, 10 mA. Nuclear magnetic resonance (¹H-NMR) spectra were collected with a Bruker Avance III-600-I (Bruker, Karlsruhe, Germany). The chemical shifts are given in ppm and referenced to the residual proton signal of the solvent versus TMS (CDCl₃: 7.26 ppm, DMSO-d6: 2.50 ppm). The excitation and photoluminescence spectra were measured with a FS5 Spektrofluorometer from Edingburgh Instruments (Edinburgh, Scotland) with a 150 W CW ozon-free xenon arc lamp as light source.

2.1. Synthesis of Dimethyl-2-amino-[1,1’-biphenyl]-4,4’-dicarboxylate [26]

In a three-neck 250 mL round-bottom flask (4-(methoxycarbonyl)phenyl)boronic acid (40 mmol, 7.198 g) was mixed with methyl-3-amino-4-bromobenzoate (40 mmol, 9.204 g), tetrakis(triphenylphosphine)palladium (0) (1.8 mmol, 2.1 g) and potassium carbonate (180 mmol, 25 g) in 1,4-dioxane (160 mL) and water (40 mL). A clear solution was obtained in the flask when the mixture was refluxed at 100 °C for 24 h. The reaction was monitored via thin layer chromatography (TLC) and after completion the reaction mixture was allowed to cool to room temperature, and the contents of the flask were filtered and the resulting phase was extracted with 3 x 30 mL ethyl acetate. After separation the organic phase was dried over magnesium sulphate for 15 mins. The salt was then filtered, and the organic phase was concentrated using a rotary evaporator. The resulting red solid was dried overnight using a high vacuum oven at 60 °C. The crude product was purified by column chromatography using n-hexane: ethyl acetate (2:1 v:v) as eluent resulting in the formation of white needle-like crystals. Yield = 6.7 g, 58 %. ¹H-NMR spectrum in Figure S1.

2.2. Synthesis of Dimethyl-2-(naphthalen-2-ylamino)-[1,1’-biphenyl]-4,4’-dicarboxylate

In a two-neck 100 mL round-bottom flask 2-bromonaphthalene (3.8 mmol, 0.787 g, 1 eq) was dissolved in 40 mL of degassed dry toluene, and to this solution 5 mol% each of palladium acetate (0.042 g) and tri-tert-butyl phosphine (0.05 mL) were added. This mixture was stirred under nitrogen for 10 min until the solution changed to a dark red color. After the color change, dimethyl-2-amino-[1,1’-biphenyl]-4,4’-dicarboxylate (4.5 mmol, 1.3 g, 1.2 eq) was further dissolved in 40 mL of toluene along with potassium carbonate (8 mmol, 1.1 g, 10 eq). The mixture was allowed to reflux at 111 °C for 24 h under thin-layer chromatography (TLC) monitoring. After cooling to room temperature, the contents were filtered, and the remaining solids were washed with ethyl acetate (3 x 50 mL). Afterwards the ethyl acetate solution was washed with deionized water three times with 50 mL each. After separation the organic phase, consisting of toluene and ethyl acetate, was dried over MgSO₄ for 15 min, then concentrated using a rotary evaporator. The crude product was purified using flash column chromatography on silica gel 40-63 µm - Silicycle with a (v:v) 2:1 or 3:1 eluent of cyclohexane:ethylacetate. The yield of the isolated yellow powder was 0.78 g, 50%. IR spectrum Figure S11, ¹H-NMR Figure S2.

The up-scaled reaction of this compound was done as follows: In a two-neck 1 L round-bottom flask, 2-bromonaphthalene (24.7 mmol, 5.116 g, 1 eq) was dissolved in 260 mL of degassed dry toluene. To this solution, 5 mol% each of palladium acetate (0.273 g) and tri-tert-butylphosphine (0.325 mL) were added. The mixture was stirred under nitrogen for 10 minutes until the solution turned dark red. After the color change, dimethyl-2-amino-[1,1’-biphenyl]-4,4’-dicarboxylate (29.25 mmol, 8.45 g, 1.2 eq) was dissolved in another 260 mL of toluene, along with potassium carbonate (52 mmol, 7.15 g, 10 eq). The reaction mixture was then refluxed at 111 °C for 24 hours, under TLC monitoring. After cooling to room temperature, the contents were filtered, and the remaining solids were washed with ethyl acetate (3 × 100 mL). The combined organic phase was then washed with deionized water (3 × 100 mL). The organic layer (toluene + ethyl acetate) was dried over MgSO₄ for 15 minutes, then concentrated using a rotary evaporator. The crude product was purified by flash column chromatography on silica gel (40–63 µm, Silicycle), using a 2:1 or 3:1 v/v mixture of cyclohexane:ethyl acetate as eluent. The isolated product was obtained as a yellow powder. The yield was 5.3 g, 50 %. The IR and ¹H-NMR spectrum were identical to those in Figure S11 and Figure S2.

2.3. Synthesis of 2-(naphthalen-2-ylamino)-[1,1’-biphenyl]-4,4’-dicarboxylic acid

In a 100 mL round bottom flask dimethyl-2-(naphthalen-2-ylamino)-[1,1’-biphenyl]-4,4’-dicarboxylate (3.0 g, 7.0 mmol) was dissolved in 40 mL of THF. To this solution 40 mL of NaOH (1 mol L^–1) solution was added and refluxed for 24 h at 100 °C. After cooling down to room temperature, THF was removed using a rotary evaporator. To the aqueous phase 40 mL of a 0.1 mol L^–1 HCl solution was added. The yellow solid was filtered and dried under vacuum at 80 °C. Yield = 2.49g, 95 %. IR spectrum Figure S11, ¹H-NMR Figure S3.

2.4. Synthesis of the Al-BP-Naph

2-(Naphthalen-2-ylamino)-[1,1’-biphenyl]-4,4’-dicarboxylic acid (0.2 mmol, 0.076 g) and aluminium nitrate nonahydrate (0.2 mmol, 0.075 g) were dissolved in 6 mL of DMF with the assistance of the ultrasound device. The reaction mixture was heated to 110 °C over 1 h, held at this temperature for 24 h and allowed to cool to room temperature within 1 h. The precipitated powder was separated by centrifugation and subsequently washed with 40 mL of DMF via a treatment at 80 °C for 24 in a flask with occasional mild stirring to avoid mechanical deterioration of the product. The product was separated by centrifugation and dried at 70 °C for 24 h using a vacuum oven (1x10^-3 bar). The yield after the washing and drying was 119 mg, 80%.

2.5. Quenching Experiments

To evaluate the quenching selectivity and sensitivity of Al-BP-Naph, suspensions were prepared in DMF at concentrations of 1 g L⁻¹ for selectivity studies and 0.1 g L⁻¹ for sensitivity measurements. In the selectivity experiments, various metal nitrate solutions (c = 0.1 mol L⁻¹) were employed from which 100 µL were added to the 3.0 mL of the Al-BP-Naph DMF suspension to give a metal ion concentration of 0.003 mol L⁻¹. In the sensitivity experiments, the concentration of the added iron(III) nitrate solution was 0.001 mol L^–¹ from which 10 µL aliquots were added to the Al-BP-Naph suspension

For each measurement, 3.0 mL of the Al-BP-Naph suspension was transferred into a thoroughly cleaned quartz cuvette. The initial emission intensity of the suspension was recorded as a reference (blank) prior to the incremental addition of the analytes in steps of 10, 25 or more µL in the sensitivity experiments. All experiments were conducted under identical conditions to ensure maximum reproducibility and comparability of results.

3. Results

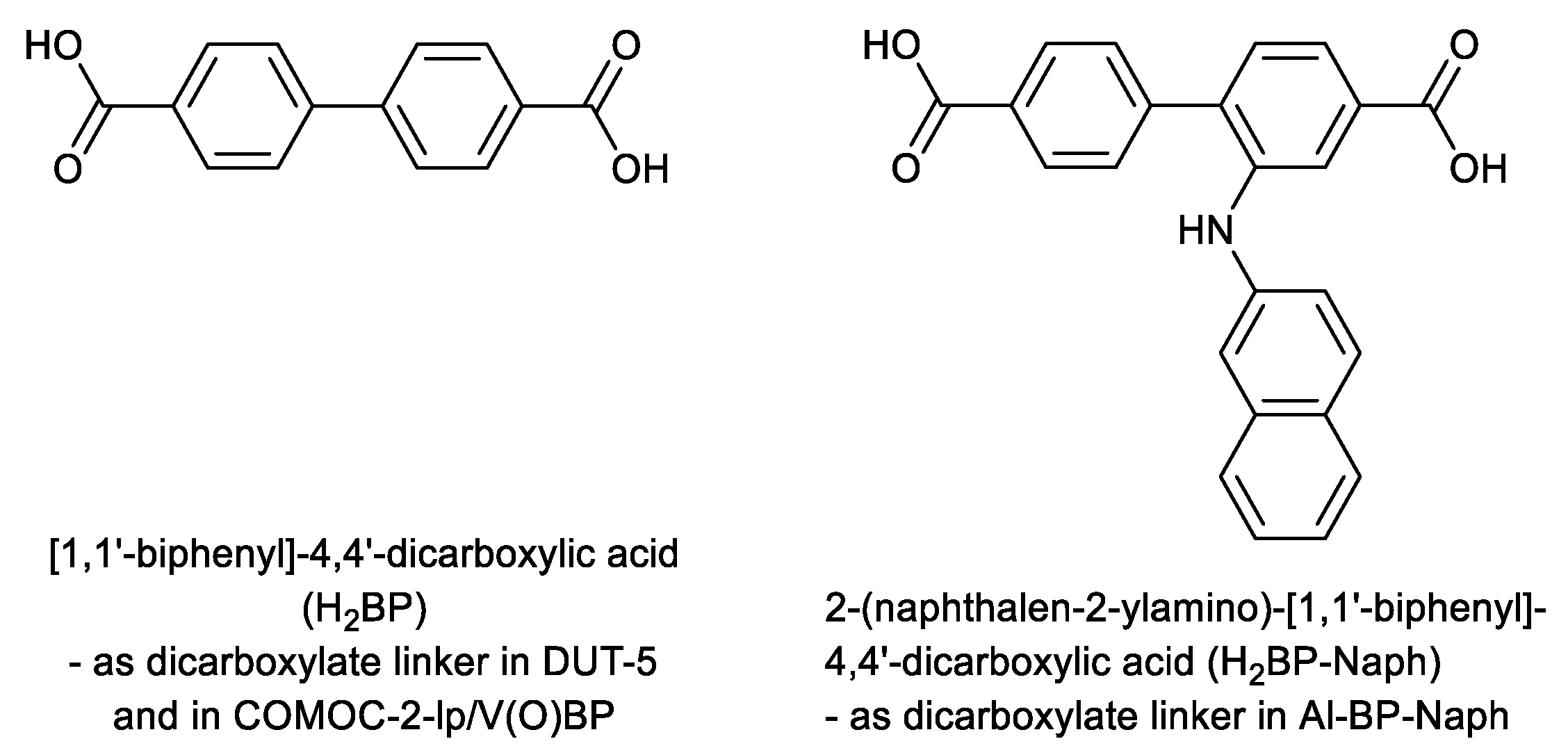

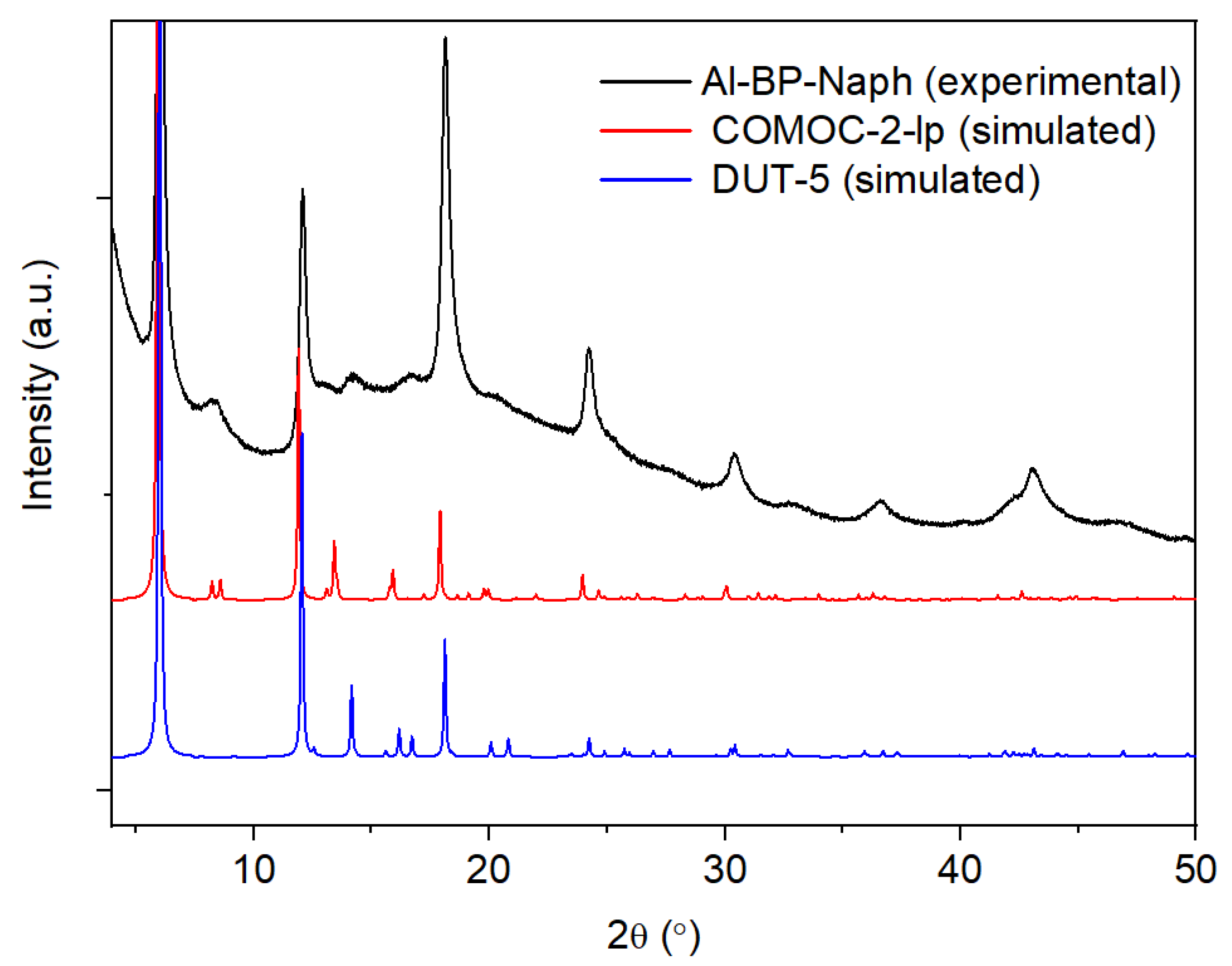

The MOF compound Al-BP-Naph was synthesized from 2-(naphthalen-2-ylamino)-[1,1’-biphenyl]-4,4’-dicarboxylic acid and aluminium nitrate nonahydrate in DMF. The structural analogy of the synthesized material Al-BP-Naph to the MOFs DUT-5 [23] and the related COMOC-2-lp/V(O)BP [27] was confirmed by powder X-ray powder diffraction (PXRD) studies (Figure 1). The material is generally crystalline with a well-defined short-to-medium range periodicity, however there are also indications of compromised crystallinity witnessed by a relatively high background. It is worth noting in this context that aluminium MOFs tend to form products with at least partially compromised crystallinity due to low reversibility of the crystallization process. This is also the reason, why Al-MOFs are often hard to obtain in single crystalline form for diffraction studies, which is also the case here.

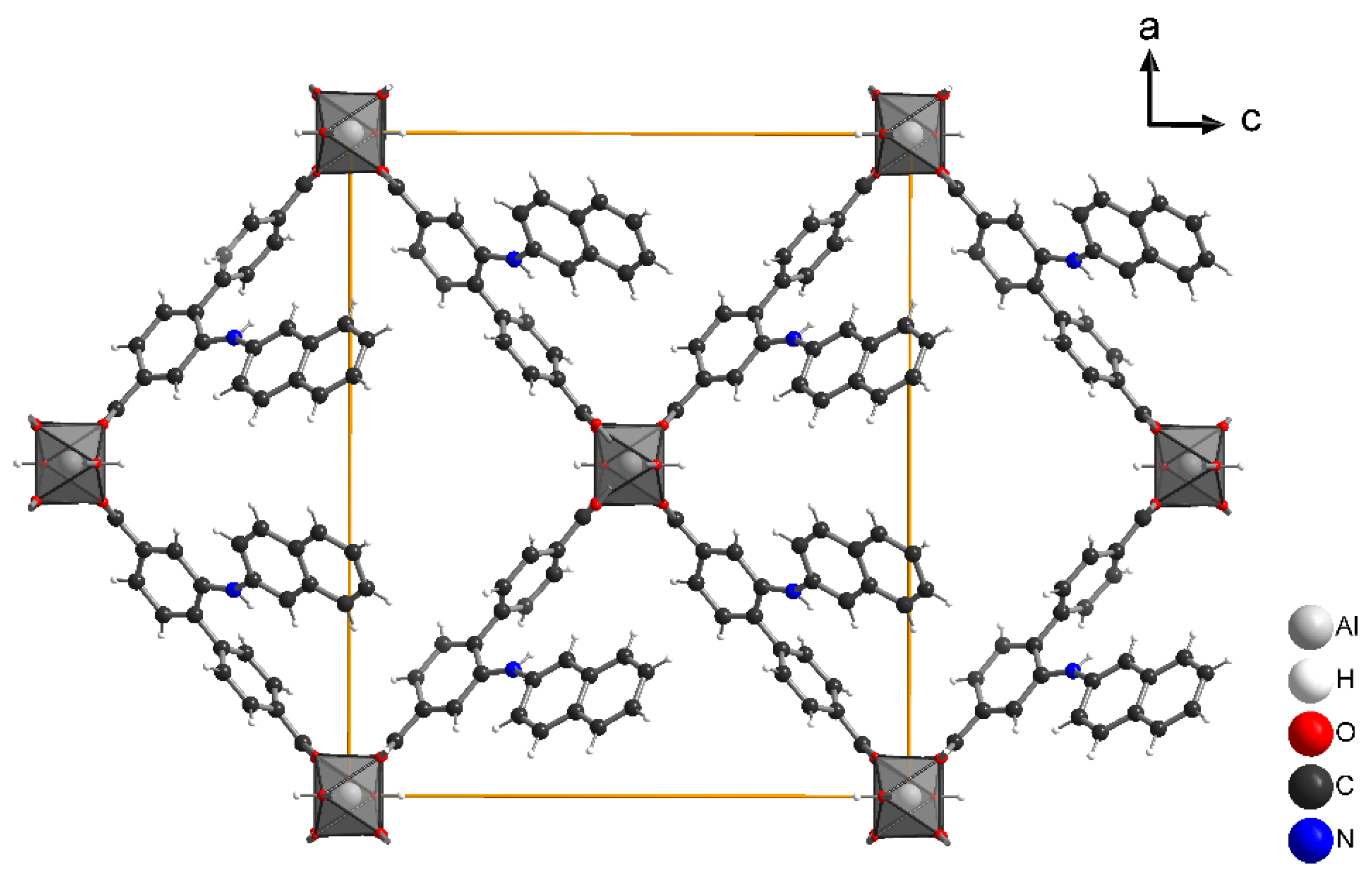

The indicators of somewhat lowered crystallinity are also expected as manifestations of structural flexibility. The latter is immanent in the “wine-rack” type MIL-53 structure (Figure 2), which can potentially adapt a continuous range of geometries within the Imma space group, which was assumed to be the same as in the case of COMOC-2-lp/V(O)BPDC and DUT-5 (see Figure S4 to Figure S9 and Table S1) [23,27].

The cell parameters vary slightly for the three compounds which represent the open form of the MIL-53-type structure. Despite the same length of the ligand, the discussed slight flexibility of the framework, associated with the hinge-like movement of the ligands related to the secondary building unit (see Figure S8 for the cell overlap of Al-BP-Naph and COMOC-2-lp), can lead to a difference in the length of the a and c axis (cf. Figure 2; elongation of c when a becomes shorter and vice versa).

The low crystallinity can be further attributed to the disorder and amorphosity introduced into the lattice by the naphthylamino group attached to the side of the linker. The presence of this pendant group creates significant variability in the crystal structure because its orientation within the pore framework can occur to both sides of the linker (Figure 2). This lack of ordering leads to inconsistencies in the diffraction pattern, making it difficult to determine the precise structural details without a further Le Bail fit that will be discussed in the supplementary information [27].

Furthermore, the stability of the Al-BP-Naph material after being exposed to ambient air conditions at RT for 7 days and after activation for adsorption measurements was positively verified by PXRD (Figure S7), in-line with the usual high stability of the MIL-53(Al)-type materials. Al-BP-Naph retained its crystallinity under these conditions which is important for practical applications where prolonged exposure to ambient conditions is expected. However, its structural integrity was largely lost when heated to 90 °C for 24 h (Figure S10).

Thermogravimetric analysis (TGA) in Figure S12 of the dried MOF with the molecular formula [Al(OH)(BP-Naph)] = (AlC₂₄H₁₆NO₅) (revealed an initial mass loss of 10% between 60 °C and 160 °C, which is attributed to the release of residual ethanol and DMF solvents used during synthesis and trapped within the porous structure. Following this mass loss, a plateau is observed until approximately 400–500 °C, where a significant mass loss of 77% occurs, corresponding to the thermal decomposition of the organic linker (BP-Naph). When the contribution of the solvent loss is excluded and the mass at 225 °C is rescaled to 100%, the mass loss around 1000 °C becomes 88%, which matches the theoretical linker content (89.7%) of C₂₄H₁₅NO₄ in AlC₂₄H₁₆NO₅. The corrected residual mass at 1000 °C becomes 11.7% which agrees with the expected amount of Al₂O₃ (theor. 11.98% for 6.34 wt% of Al). Since the analysis was conducted under a synthetic air atmosphere, it is reasonable to assume that all aluminium present in the framework was fully converted to Al₂O₃.

IR spectroscopy in Figure S11 shows a shift in the C=O stretching mode between the linker and the MOF indicating the coordination of the carboxylate group to the metal and also demonstrating the near absence of the non-deprotonated linker pore-filling impurity, which is typical for such compounds.

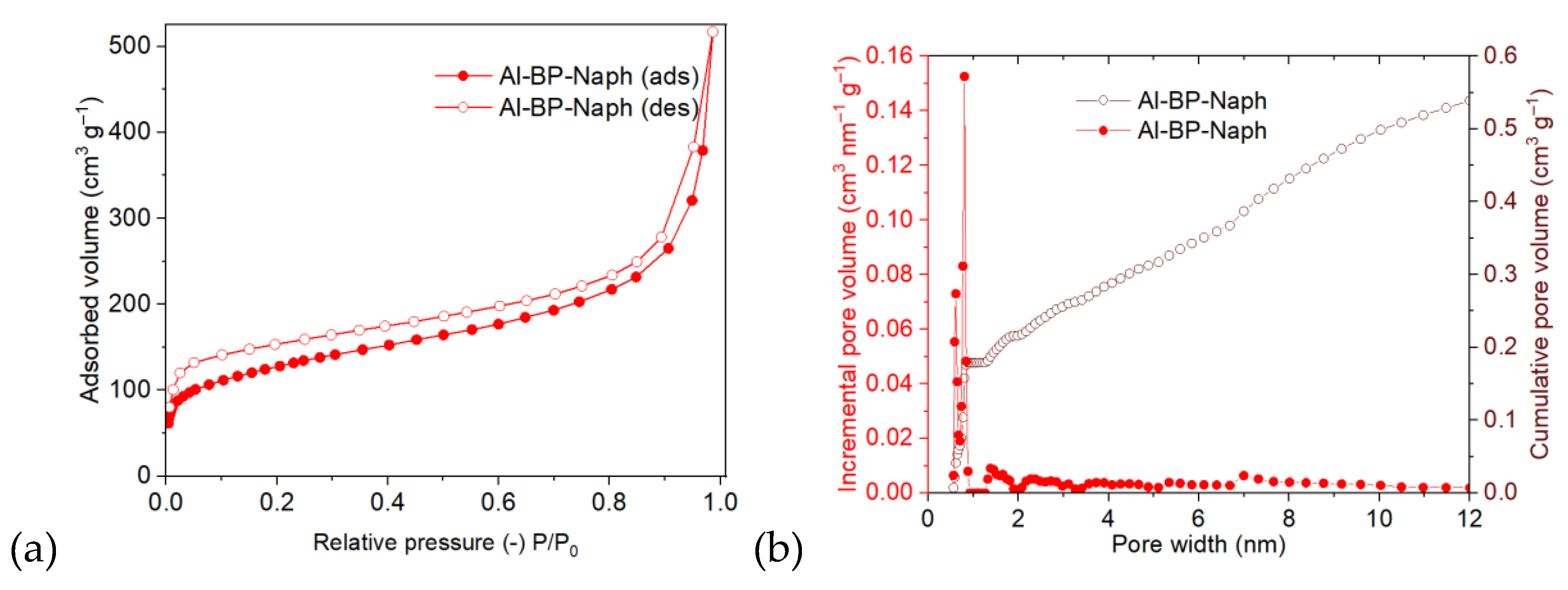

The surface area and porosity of Al-BP-Naph was analyzed through N₂ adsorption studies at 77 K. The adsorption isotherm of Al-BP-Naph is a combination of type I at lower and type II at higher relative pressures (Figure 3a). The steep uptake at low P/P₀ is indicative of a microporous material giving the type I isotherm. Type II isotherms stem from the physisorption on nonporous or macroporous adsorbents, here from the inter-particle condensation. The composite type I and II isotherms often have an H4 hysteresis loop, which is also observed with aggregated crystals of zeolites, some mesoporous zeolites, and micro-mesoporous carbons [28]. From the adsorption branch a BET surface area of approximately 456 m² g^-1 was calculated (over a pressure range of P/P₀ = 0.04-0.1 with a correlation coefficient R² of 0.999 and a BET constant C of 183.9, Figure. S10). The total pore volume was found to be 0.546 cm³ g^–1, with a micropore volume of 0.215 cm³ g^-1. For DUT-5 the surface area is 1413-1467 m² g^–1 and the pore volume ~0.71 cm³ g^-1 [29,30]. The pore size distribution from NLDFT calculations indicates a fraction of 40% of micropores (< 2 nm) and 60% mesopores (2-50 nm) (Figure 3b).

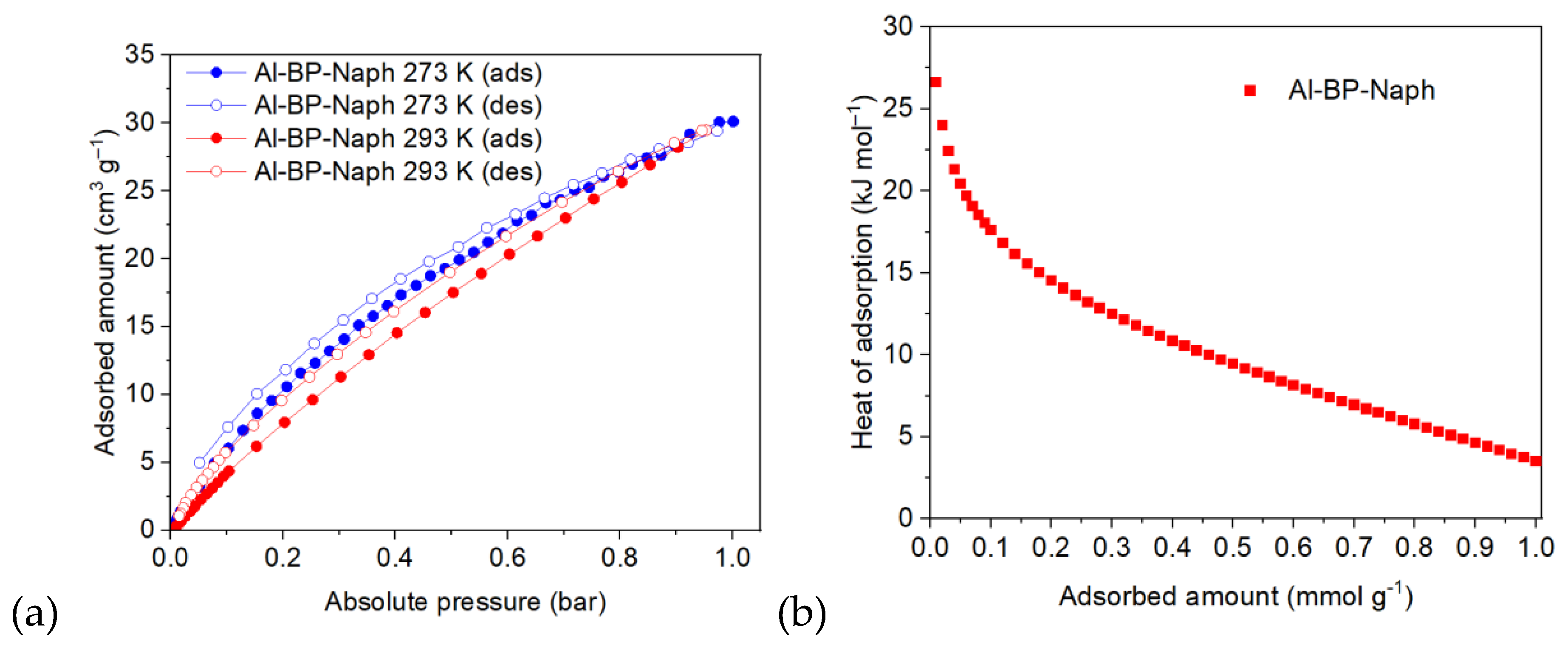

CO₂ adsorption of Al-BP-Naph was examined at 273 K and 293 K with uptakes of 30.1 cm³ g^-1 and 29.4 cm³ g^-1, respectively. This CO₂ uptake is similar to the biphenyl-based MOFs of the same structure such as DUT-5 (36.2 cm³ g^-1 at 298 K) [29] and COMOC-2 (19.0 cm³ g^-1) [31]. From the uptake at the two temperatures the isosteric heat of adsorption near zero coverage was computed to 26 kJ mol^–1 (Figure 4b), and this value drops with increasing uptake at 1 mmol g^–1 to about 3.5 kJ mol^–1, which is below the heat of liquefaction of CO₂ [32] (see Section S6 for details). The heat of adsorption or the affinity for CO₂ diminishes with increasing uptake, as the higher-binding energy sites become increasingly occupied [33,34]. This isosteric heat of adsorption near zero coverage for CO₂ is similar to the values of UiO-67-(NH₂)₂- [35] and COMOC-2 [31] with around 30 kJ mol⁻¹ and to other MOFs with a biphenyl linker (Table S3) [36,37,38].

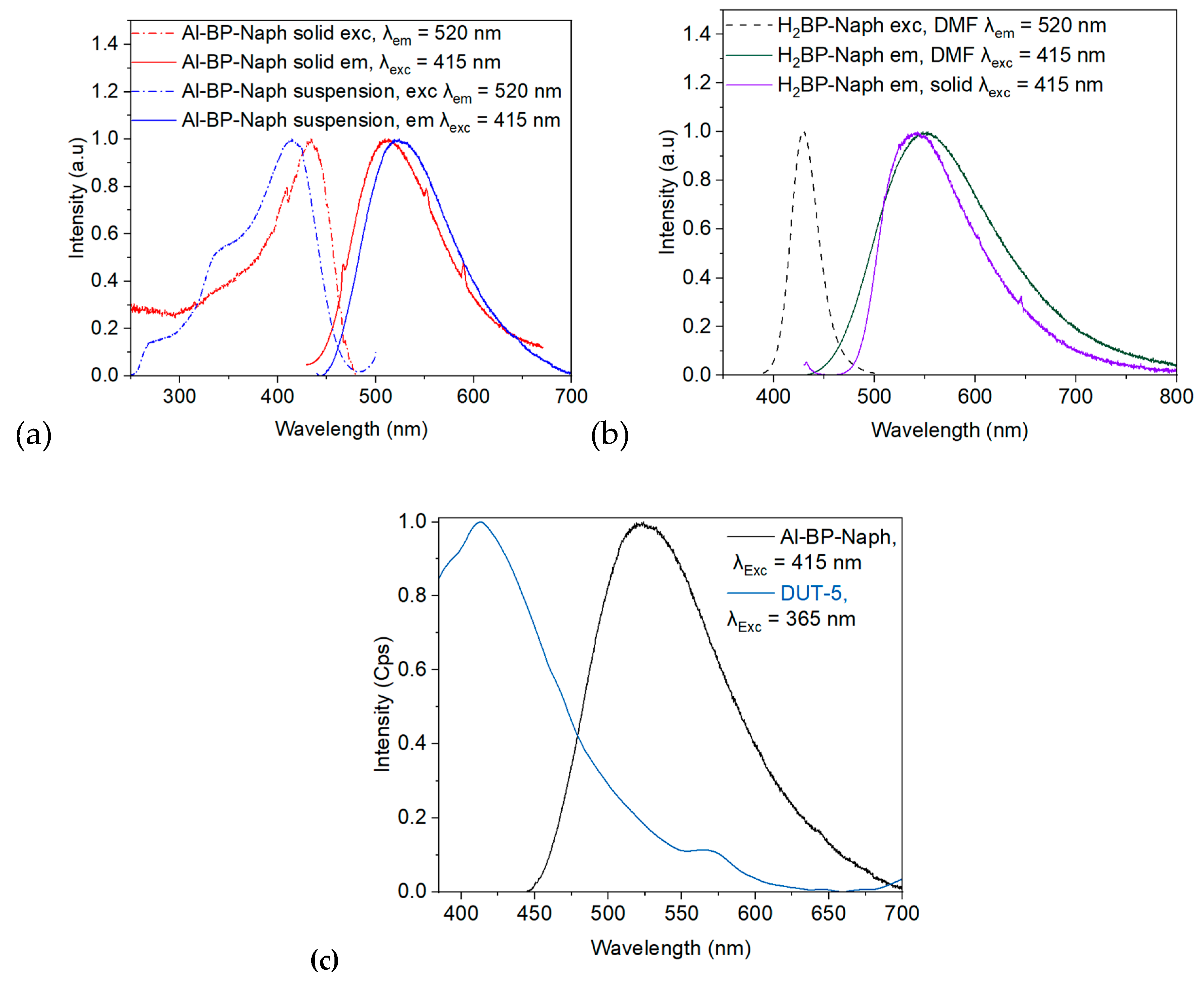

The newly synthesized Al-based metal–organic framework (Al-BP-Naph) incorporates a naphthyl-substituted biphenyl linker bearing a naphthylamino functionality, which acts as a separate luminophore and enhances the framework’s luminescence. Al-BP-Naph exhibits intrinsic photoluminescence, with an emission maximum observed in DMF suspension at 520 nm (Figure 5). A slight solvatochromic shift is noted compared to the emission of the dry solid-state (510 nm), which is attributed to interactions between the naphthyl group in the MOF framework and the adsorbed solvent molecules that modulate the electronic environment and optical behavior, as it is also seen for the free linker H₂PB-Naph when comparing the solid-state and its DMF solution (Figure S15).

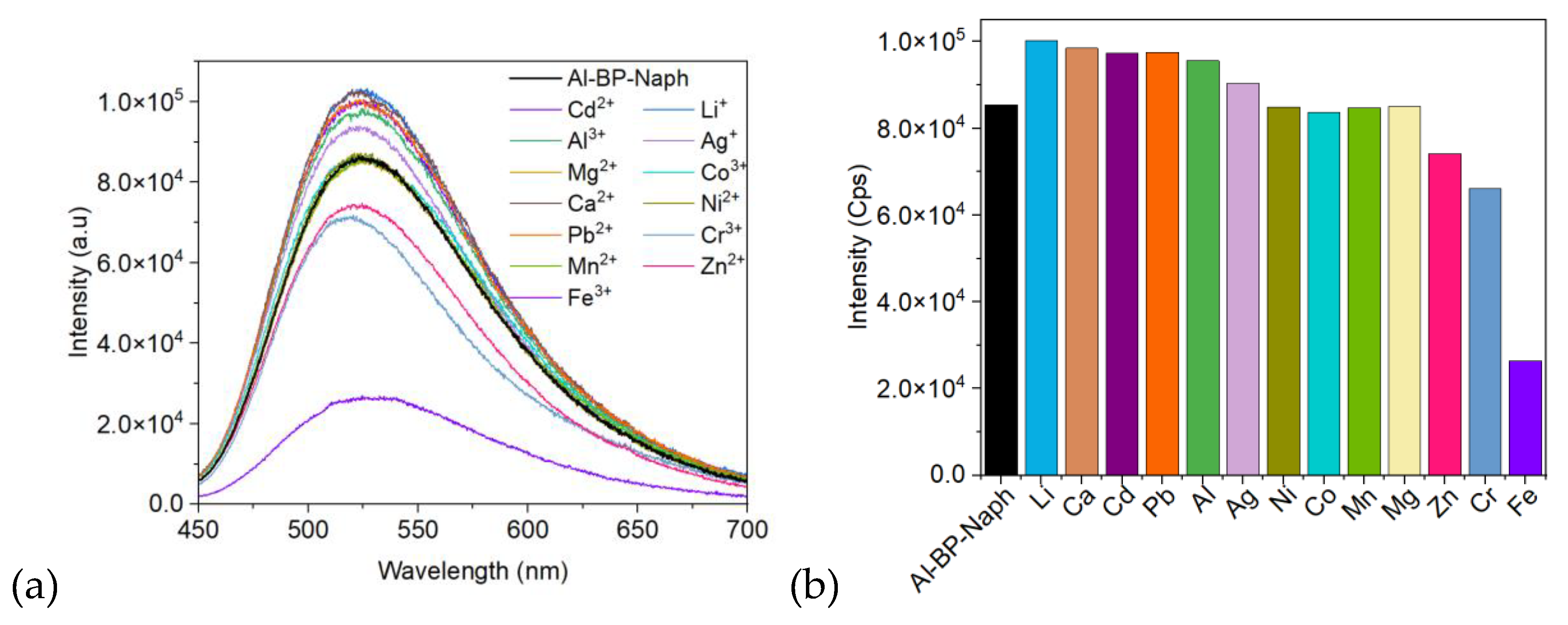

The emission of Al-BP-Naph was tested towards the presence of metal ions in the DMF dispersion of the MOF and found to lead to various degrees of quenching of the emission intensity at 520 nm when the suspension was excited with 415 nm light. Fe³⁺ ions (c = 0.001 mol L^–1, added as Fe(NO₃)₃) result in strong emission quenching by about 75%. The metal ions Cr³⁺ and Zn²⁺ quench by only 22% and 13%, respectively, whereas the metal ions Mg²⁺, Mn²⁺, Co³⁺, and Ni²⁺ leave the emission intensity unchanged and, in contrast, the ions Ag⁺, Al³⁺, Pb²⁺, Cd²⁺, Ca²⁺ and Li⁺ even enhance the luminescence by about 10-20% (all at a concentration of 0.1 mol L^–1) (Figure 6).

As it was found that the emission of Al-BP-Naph is particularly quenched by Fe³⁺ ions (Figure 6), an increase in Fe³⁺ concentration led to a progressive quenching of the emission and was quantitatively analyzed using the Stern-Volmer equation (1), which revealed a relatively high Stern-Volmer constant of 0.09·10⁵ L mol^–1 (Figure 7b). This high constant indicates that Fe³⁺ is an effective quencher of the luminescence of Al-BP-Naph.

I₀/I – 1 = K_SV Q

(1)

where

I₀: Luminescence intensity of pristine Al-BP-Naph in DMF suspension.

I: Luminescence intensity of Al-BP-Naph in the presence of Fe(III) ions in DMF

K_SV: Stern-Volmer constant

Q: Concentration of the quenching Fe³⁺ ions

The proposed mechanism for the observed quenching effect is suggested to involve competitive absorption of the energy required for the excitation of the MOF. In this scenario, the energy intended to excite the MOF is instead absorbed by another species—in this case, the cation from the metal nitrate that is in direct contact with the MOF structure. The quenching effect observed in the presence of iron ions can be attributed to the overlap between the absorption spectrum of Fe³⁺ ions, which typically spans the wavelength range of 200 to 400 nm [34], and the excitation spectrum of Al-BP-Naph in DMF suspension (Figure S18). This spectral overlap results in a significant portion of the excitation energy being absorbed by the iron ions rather than by the MOF itself. Consequently, this absorption by Fe³⁺ ions lead to a reduction in the energy available for exciting the MOF, which in turn causes a pronounced quenching of the emission in the suspension. In contrast, the absorption spectra of other metal nitrates, which were also tested, showed less overlap with the MOF excitation region (Figure. S18), suggesting a reduced ability to interfere with the MOF’s excitation process. These findings lend further credence that iron nitrate uniquely quenches the MOF’s fluorescence via this competitive absorption mechanism.

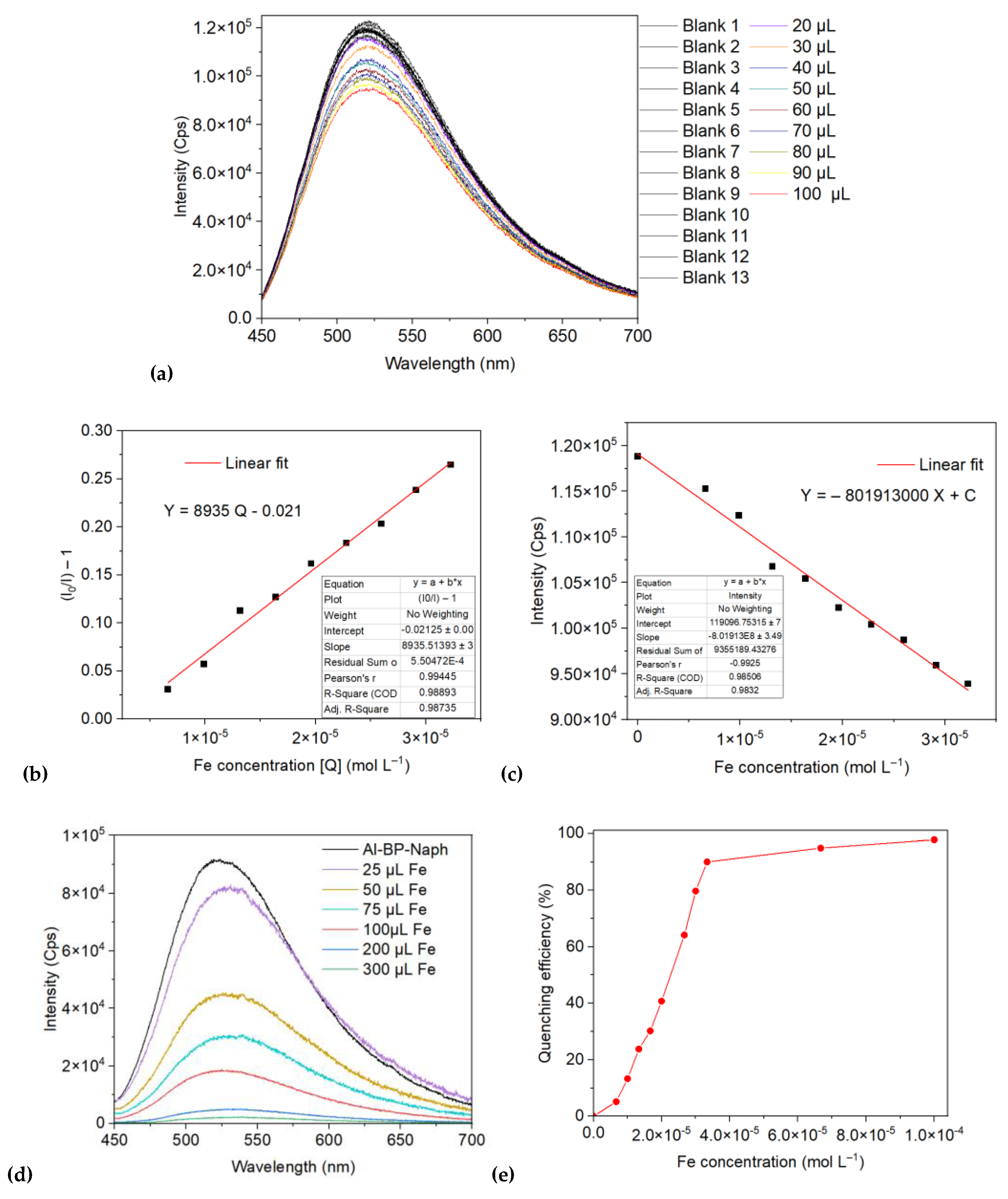

The luminescence intensity at 520 nm displayed a negative linear correlation with Fe³⁺ concentration within the range of 6.6·10^–6 to 3.2·10^–5 mol L^–1, with a correlation coefficient (R²) greater than 0.98, as illustrated in Figure 7b and c. This strong linear relationship allows for precise quantification of Fe³⁺ concentrations. The Stern-Volmer quenching constant (K_SV) calculated from these measurements reached a value of 0.09·10⁵ L mol^-1, which underscores the high efficiency of iron ions in quenching the luminescence of the MOF. The quenching efficiency was calculated using the formula (I₀/I – 1) x 100% where I₀ and I are the values of the luminescence intensity of pristine Al-BP-Naph and Fe³⁺ loaded Al-BP-Naph, respectively, indicating that Al-BP-Naph showed a high sensitivity in sensing fluorescence quenching. The quenching efficiency was close to 100% when the added volume of the Fe³⁺ solution reached 300 µL (giving a Fe³⁺ concentration of 10^–4 mol L^–1 in the Al-BP-Naph suspension) (Figure 7d,e).

Additionally, the limit of detection (LOD) for iron(III) nitrate was determined as low as about 6 µmol L^–1. This was calculated using the equation LOD = 3 σ/k, where σ represents the standard deviation of the 13 blank measurements (Table S4) and k denotes the slope of the fitting line of fluorescence intensity versus analyte ion concentration in Figure 7c. This low detection limit demonstrates the exceptional sensitivity of Al-BP-Naph and capability for detecting very small concentrations of iron ions in solution. The limit of detection of Al-BP-Naph is lower than in many other MOFs in the field of iron detection such as CdBPTC, Ni-MOF, Zn-MOF and Cd-MOF with LODs of 17, 15, 28 and 57 µmol L^–1 respectively [16,39,40]. A detailed comparison can be seen in Table 1. The limit of quantification was also calculated with the equation LOQ = 10 σ/k with a value of 19 µmol L^–1. The MOF Al-BP-Naph presented in this work shows one of the best results when it comes to the limit of detection for Fe³⁺.

The slight luminescence enhancement that is observed with Ag⁺, Al³⁺, Pb²⁺, Cd²⁺, Ca²⁺ and Li⁺ (Figure 6a) can be a result of the adsorption of these cations on the surface of Al-BP-Naph, perhaps through interaction between naphthyl-π system and the cations causing a slight shift in the dielectric naphthyl environment enhancing in turn the radiative pathways of electron relaxation [41,42,43].

4. Conclusions

In this work, we present a luminescence sensor based on a functionalized MOF with a MIL-53 or DUT-5 topology bearing a naphthylamino chromophor group on the linker. Al-BP-Naph exhibits a surface area of 465 m² g^-1 and a total pore volume of 0.546 cm³ g^–1, with a zero-coverage isosteric heat of CO₂ adsorption of 26 kJ mol⁻¹. The MOF displays exceptional luminescence sensitivity for the detection of Fe³⁺ ions with a rapid turn-off response and a remarkably high Stern-Volmer constant of 9000 L mol⁻¹. Our findings indicate that Fe³⁺ in solution competes for the excitation energy required for the luminescence of Al-BP-Naph, effectively quenching the MOF’s emission through a competitive energy absorption mechanism. This quenching effect is highly selective, as no significant response was observed for other metal ions.

Furthermore, the calculated limit of detection (LOD) of 5.6·10^–6 mol L^-1 highlights its potential as a highly efficient iron nitrate sensor. These combined results establish Al-BP-Naph as a promising candidate for practical applications in luminescent Fe³⁺ sensing.
