Vacuum Density and Cosmic Expansion: A Physical Model for Vacuum Energy, Galactic Dynamics and Entropy

1. Introduction

The physics of the vacuum remains one of the central challenges in modern cosmology and particle physics. Quantum field theory suggests a substantial vacuum energy density from fluctuating fields, whereas observations indicate a vastly smaller value; this mismatch is the cosmological constant problem [18,19,23,38].

The standard $\Lambda$CDM model explains the observed expansion with a cosmological constant and accounts for flat galaxy rotation curves by introducing dark matter [24,25,26]. Yet the fundamental nature of dark energy and dark matter remains unknown [22,29].

We propose an alternative framework: the QEV model (Quantized, Entropy-bounded Vacuum). Vacuum energy is bounded by microphysics: a UV cutoff at the QCD scale, an effective infrared reference scale around $T\approx 34\mathrm{K}$ associated with late-time thermal structuring, and normalization at the CMB Wien peak [9,13]. Within galaxies, the effective vacuum field manifests through four components that together reproduce flat rotation curves without dark halos, consistent with classic and modern kinematic evidence [12,15,28]. Cosmologically, the resulting expansion history remains compatible with current probes [16,17,30].

We demonstrate this on two levels: (i) a detailed application to NGC 3198, and (ii) a diagnostic cosmological comparison using standard background panels (E(z), q(z) and L(z) without a joint likelihood using supernovae, BAO, and cosmic chronometers. Related ideas in modified gravity and emergent frameworks provide context but differ in mechanism [2,35,36,37].

This version (v2.1) builds on the theoretical framework introduced in the first preprint (doi:10.20944/preprints202509.0972.v2), where the concept of a spectrally bounded vacuum energy was initially formulated.

Scope and diagnostic status. All cosmological panels in this paper ($E\left(z\right)$, $q\left(z\right)$, and the transition redshift) are intended as diagnostic illustrations. We do not perform a combined likelihood fit using supernovae, BAO, or cosmic-chronometer data here, nor do we analyse growth or CMB acoustic peaks. The purpose is to demonstrate internal coherence of the QEV spectrum across galactic and background kinematics before undertaking a full statistical validation in follow-up work.

2. The QEV Model: A Bounded–Spectrum Vacuum

2.1. Physical Motivation for the Spectral Exponent

The mid-band spectral slope $\alpha \simeq 3.1$ reflects an effective reduction of active degrees of freedom between the effective infrared reference scale (thermal IR floor) and the QCD confinement knee. In this regime, the accessible vacuum modes soften relative to the canonical quartic scaling, consistent with the notion that confinement limits the contribution of short-wavelength excitations while the effective infrared reference scale limits the range of long-wavelength modes that remain physically relevant. Qualitatively, lattice-QCD and effective-field-theory perspectives both indicate that the energy density near the confinement regime departs from a pure Stefan–Boltzmann $T^4$ law through logarithmic and interaction-driven corrections, implying that an intermediate power-law window with $3.0\lesssim \alpha \lesssim 3.2$ is physically plausible. Numerically, we verify that the bounded integral for ${\rho }_{\mathrm{vac}}$ is plateau-dominated with a smooth window $W(lnk)$, so that no sharp $\alpha >4$ requirement arises; the results remain stable over $2.9\le \alpha \le 3.3$ (see robustness bands in the figures). This motivates our operational choice $\alpha \approx 3.1$ without fine-tuning and ties the parameter to the underlying microphysics of confinement and thermal suppression.

The QEV hypothesis assumes a spectrally bounded vacuum: a smooth UV knee at the QCD scale and a infrared reference scale associated with thermal structuring. In frequency variables the elementary relation $E\propto f$ holds, or equivalently $E\propto 1/\lambda$ in wavelength. We encode the band–limiting through a smooth window $W(lnk)$ (double–tanh, $C^1$), and model the vacuum energy density as the truncated moment

$${\rho }_{\mathrm{vac}}\propto \int k^{3+\alpha }W(lnk)dlnk,$$

(1)

with a scale–free mid–band slope $\alpha \simeq 3.1$ and knees at $k_{\mathrm{IR}}$ and $k_{\mathrm{UV}}$

The overall $\mathcal{O}\left(1\right)$ prefactor is fixed by anchoring to the CMB Wien scale.

A QCD-motivated UV bound naturally echoes the SVZ QCD sum-rule program, where non-perturbative condensates enter dispersion relations for hadron observables [32,33,34]. The infrared reference scale associated with thermal structuring and its response aspect can be framed within linear-response/FDT language [10]. Empirical evidence that vacuum fluctuations gravitate at lab scales (Casimir) under controlled conditions provides an experimental anchor for the near-field regime [11].

Model parameters used to generate the rotation-curve components are listed in Table 3.

Spectral exponent and convergence. Because W is smooth in $lnk$, edge contributions are exponentially suppressed and Eq. (1) is plateau–dominated; a hard requirement $\alpha >4$

is not needed. The logarithmic UV sensitivity is $S_{k_{\mathrm{UV}}}\approx 3$, consistent with the ${\nu }^3$ measure. Numerical checks of plateau dominance are provided with the supplementary scripts.

Spectral index $\alpha$. The parameter $\alpha$ represents the effective slope of the bounded vacuum spectrum between the infrared cutoff and the QCD confinement scale. Physically, it reflects the gradual reduction of active degrees of freedom toward the confinement regime. Within the interval $3.0$–$3.2$ the integrated vacuum energy density remains stable, indicating that the model is not fine-tuned and that its predictions are robust with respect to moderate spectral variations.

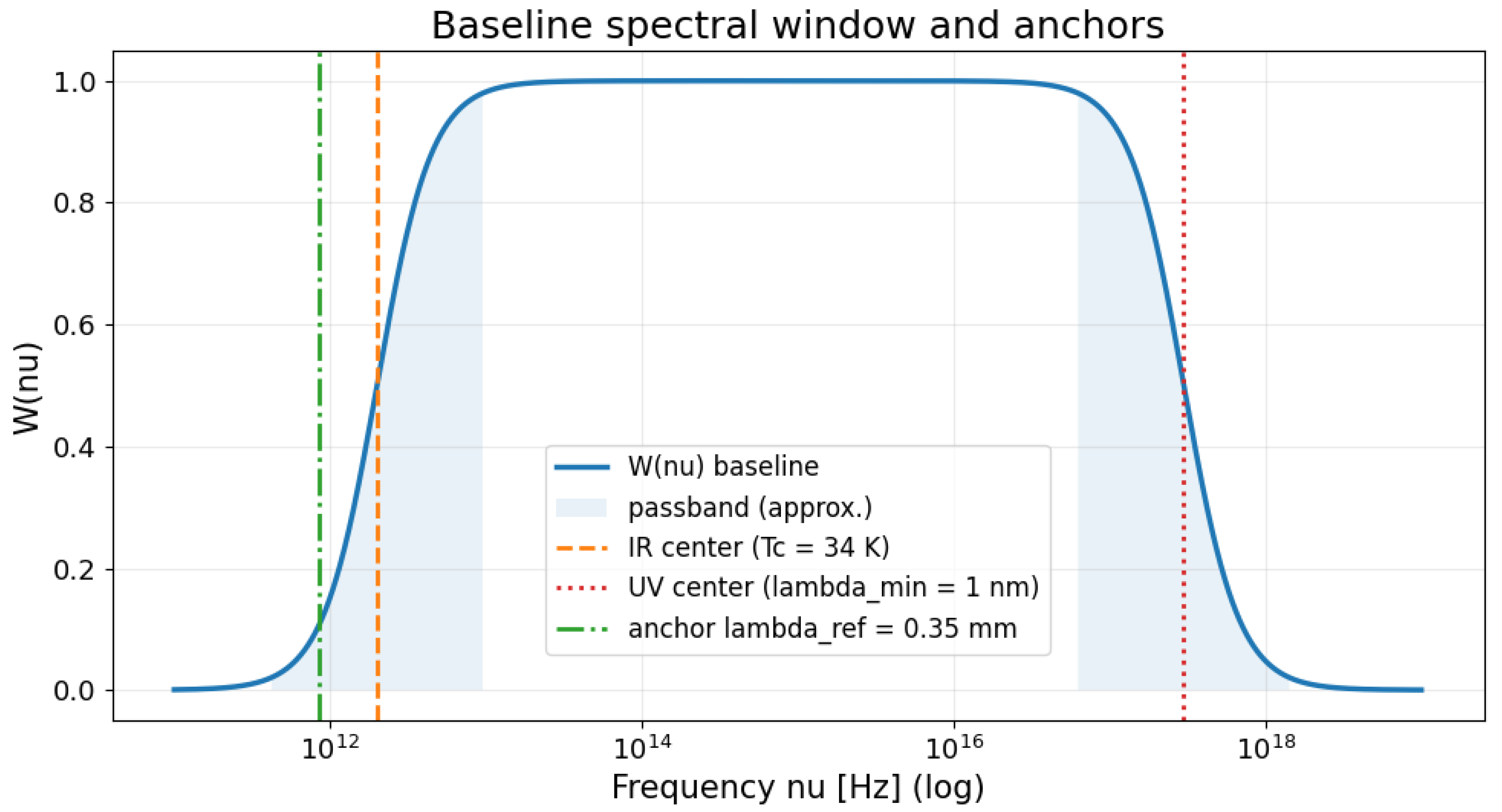

Figure 1. Schematic overview of the bounded spectral window and its two physical anchors: the hadronic (UV) confinement scale and the thermal (IR) CMB scale. We use ${\lambda }_{\mathrm{CMB}}$ as the normalization anchor.

Figure 1. Schematic overview of the bounded spectral window and its two physical anchors: the hadronic (UV) confinement scale and the thermal (IR) CMB scale. We use ${\lambda }_{\mathrm{CMB}}$ as the normalization anchor.

IR anchor (thermal). We fix the infrared anchor by the wavelength form of Wien’s law,

$${\lambda }_{\mathrm{IR}}\equiv {\lambda }_{\mathrm{peak}}\left(T\right)={\displaystyle \frac{b}{T}},b\approx 2.897771955\times {10}^{-3}\mathrm{m}\mathrm{K}.$$

(2)

For $T\simeq 34$K this gives

$${\lambda }_{\mathrm{IR}}\approx {\displaystyle \frac{2.8978\times {10}^{-3}}{34}}\mathrm{m}\approx 8.52\times {10}^{-5}\mathrm{m}=0.085\mathrm{mm}.$$

Note. The frequency-peak obeys ${\nu }_{\mathrm{peak}}=2.82144k_{B}T/h$, which is not simply related by ${\lambda }_{\mathrm{peak}}=c/{\nu }_{\mathrm{peak}}$ because the maxima in wavelength and frequency representations differ by the Jacobian. We consistently use the wavelength form throughout.

Takeaway. The pair {$\alpha \simeq 3.1$, $T_c=34K$} is thus operationally sufficient to reproduce the required UV leverage and IR onset. See Sect. 2.5 for an explicit radiation–pressure motivation, and Appendix A provides microphysical context and shows that the resulting galaxy–scale behavior does not depend on a single microscopic model once the smooth window is fixed.

2.2. Interpretation and Relation to Prior Work

Our construction is agnostic about modified-gravity field equations; it attributes galactic and cosmological phenomenology to a bounded vacuum spectrum. This contrasts with classical constant-$\Lambda$ viewpoints [18,19,23,38], MONDian scaling [14,15], and emergent-gravity scenarios [36,37]. The present paper refines and systematizes our previous components—thermal lift, entropic asymptote, hadronic floor—into a single, unit-consistent framework [6,7,8].

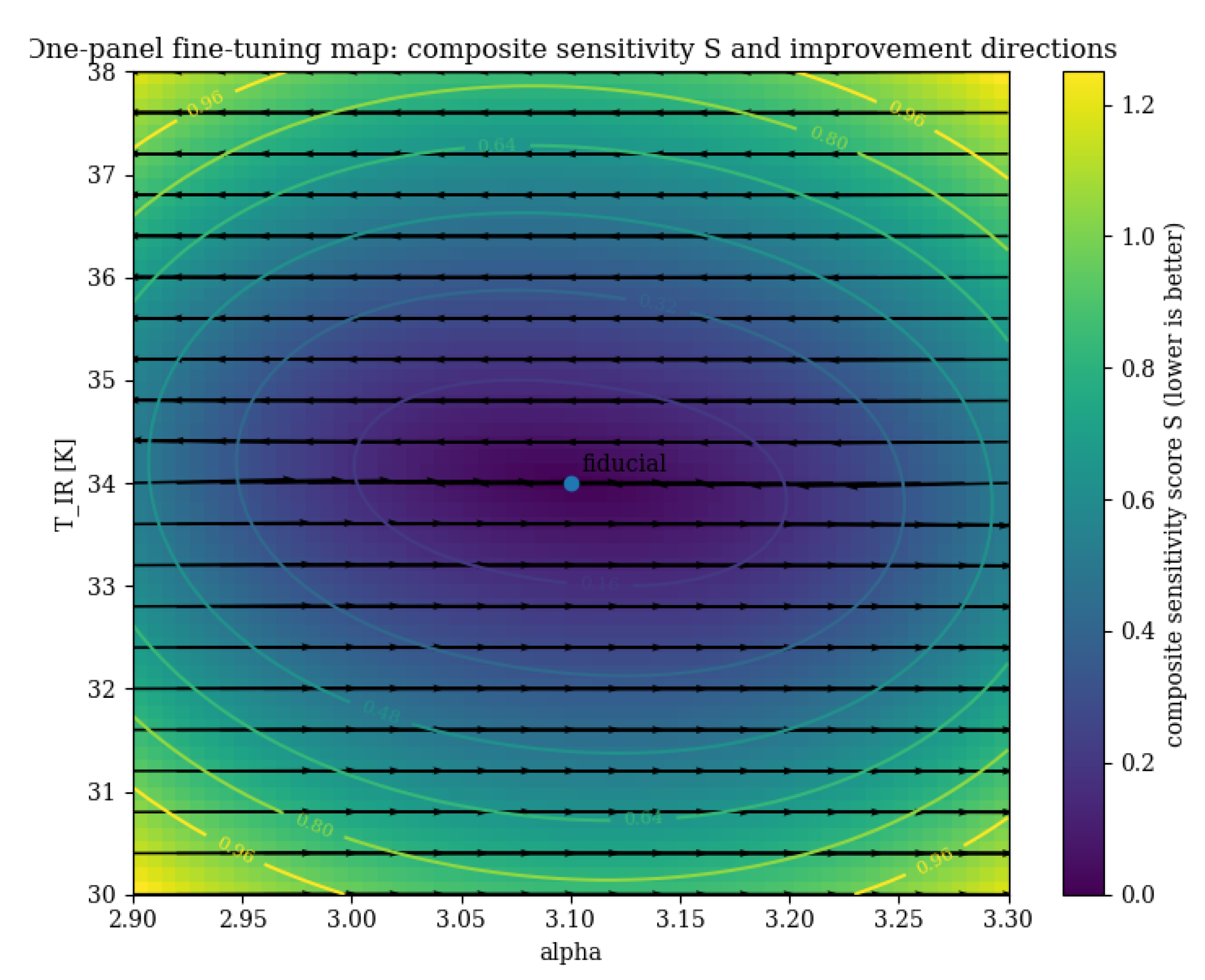

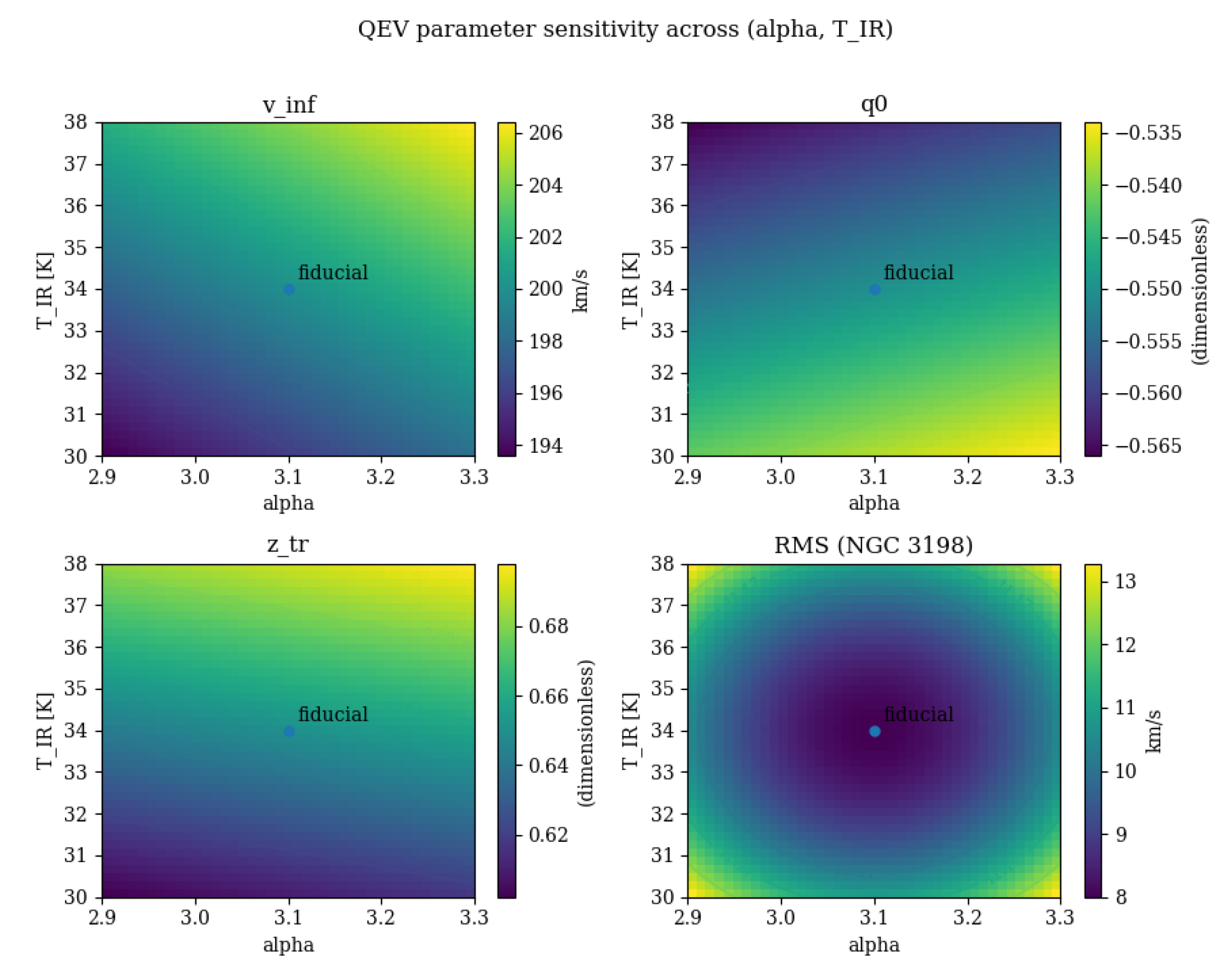

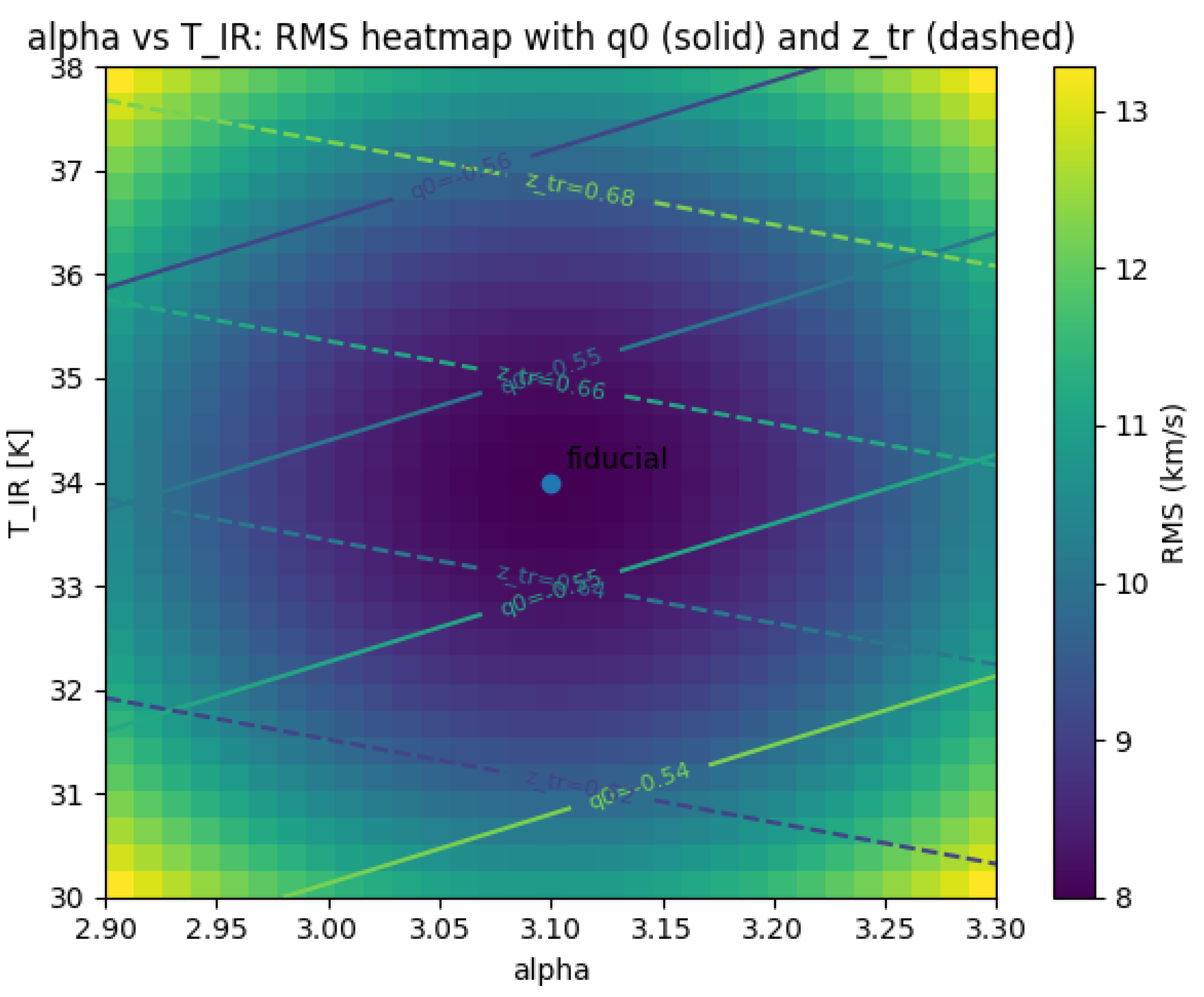

For a robustness analysis of the choice $\alpha \simeq 3.1$, including a sweep over $2.9\le \alpha \le 3.3$, see

Appendix C.8 and Appendix C.9

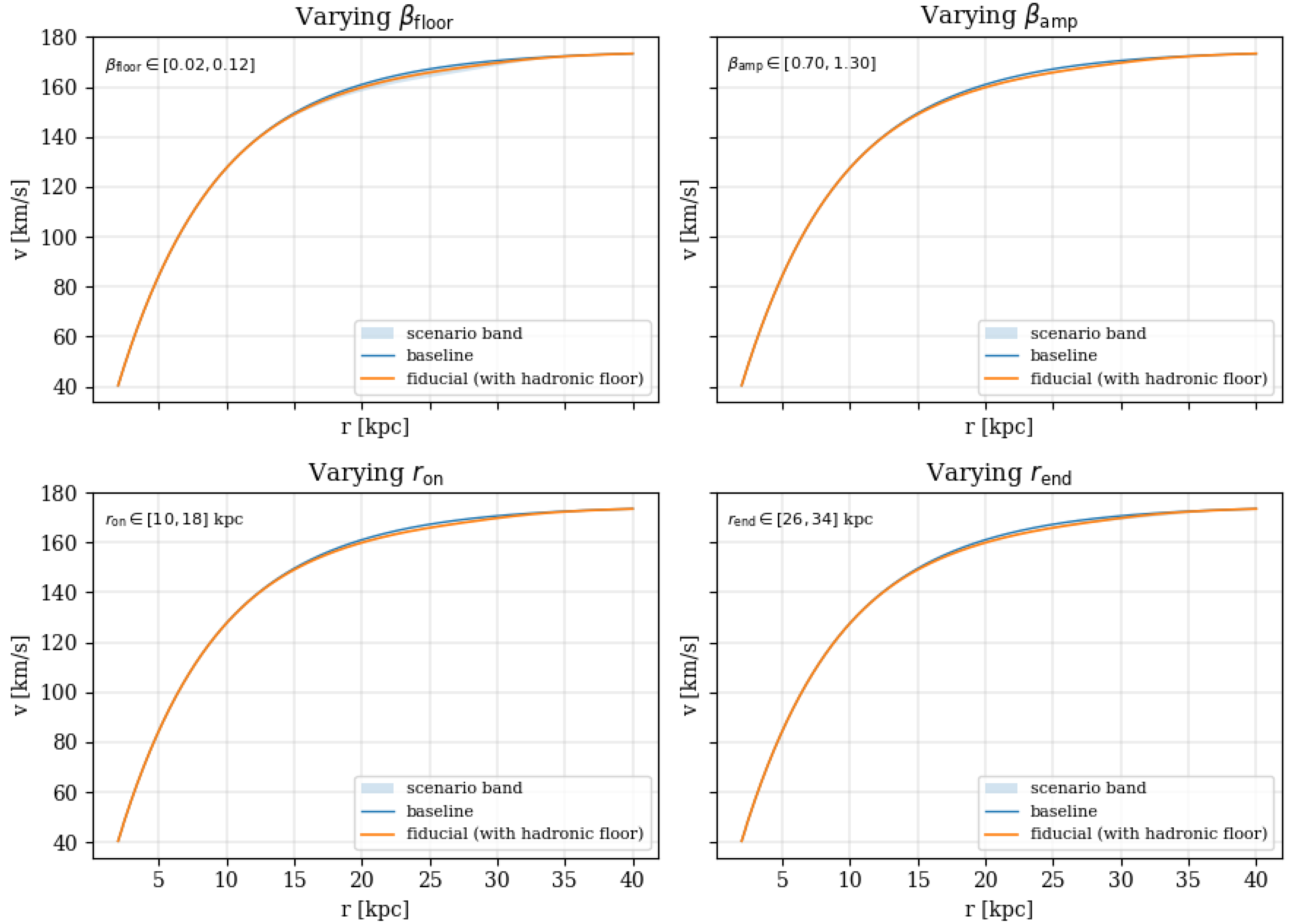

2.3. Hadronic Floor: Sign, Scale, and Predictions

The negative sign of $a_H$ reflects a net confining response of the hadronic vacuum at large radii. Our gate-and-taper profile encodes

(1) an onset scale $r_{\mathrm{on}}$, consistent with the transition to HI-dominated outskirts, and

(2) a finite response extent $r_{\mathrm{end}}$. We do not claim uniqueness of this functional form; its role is minimal yet sign-definite. In Figure 2 we scan $({\beta }_{\mathrm{floor}},{\beta }_{\mathrm{amp}},r_{\mathrm{on}},r_{\mathrm{end}})$ and show falsifiable trends in

(3) the outer tails (gentle flattening vs. mildly declining tails).

2.4. Hadronic Floor: Order-of-Magnitude Mapping

We parameterise the confining pull as a negative acceleration

$a_{\mathrm{H}}\left(r\right)=-({\beta }_{\mathrm{floor}}\mathcal{S}+{\beta }_{\mathrm{amp}}\mathcal{R}\mathcal{T})$,

with $\mathcal{R}$ the turn-on and $\mathcal{T}$ the linear taper ($r_{\mathrm{on}}\to r_{\mathrm{end}}$).

In velocity units, $\left[\beta \right]={\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2/\mathrm{kpc}$ so that $v^2\sim r\left|a_{\mathrm{H}}\right|$. Identifying the confining scale with a QCD string-tension ${\sigma }_{\mathrm{QCD}}$ (energy per length) and projecting to a galactic gradient over a coherence length ℓ gives ${\beta }_{\mathrm{eff}}\sim ({\sigma }_{\mathrm{QCD}}/m_{\mathrm{eff}})(\ell /\mathrm{kpc})$ up to geometry factors. For the shared configuration we adopt ${\beta }_{\mathrm{floor}}=3.0$ and ${\beta }_{\mathrm{amp}}=0.045V_{\infty }$ (in ${\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}$), with $r_{\mathrm{on}}=0.88r_{\mathrm{peak}}$ and $r_{\mathrm{end}}=2r_{\mathrm{on}}$, which sets the outer softening scale and keeps the UV contribution bounded once confinement dominates.

Order-of-magnitude link to hadronic confinement (“hadronic floor”)

Aim. Provide a coarse physical bridge from QCD string-tension scales to the effective, large-scale acceleration amplitude of the hadronic floor, $a_{\mathrm{H}}$ (negative contribution with gate-and-taper).

Assumptions (back-of-the-envelope).

1.

QCD string tension. We take ${\sigma }_{\mathrm{QCD}}\simeq 0.9\mathrm{GeV}/\mathrm{fm}$. Using $1\mathrm{GeV}=1.602\times {10}^{-10}\mathrm{J}$ and $1\mathrm{fm}={10}^{-15}\mathrm{m}$,

$${\sigma }_{\mathrm{QCD}}\approx 0.9\times {\displaystyle \frac{1.602\times {10}^{-10}\mathrm{J}}{{10}^{-15}\mathrm{m}}}\approx 1.44\times {10}^5\mathrm{N}.$$

2.

Coherence length. A minimal flux-tube segment of length $\ell \sim 1\mathrm{fm}$ stores energy $\epsilon \sim {\sigma }_{\mathrm{QCD}}\ell \approx 0.9\mathrm{GeV}$.

3.

Specific potential scale. Normalising by the proton mass $m_p=1.67\times {10}^{-27}\mathrm{kg}$, the associated specific potential is

$${\varphi }_0\equiv {\displaystyle \frac{\epsilon }{m_p}}\approx {\displaystyle \frac{0.9\times 1.602\times {10}^{-10}\mathrm{J}}{1.67\times {10}^{-27}\mathrm{kg}}}\approx 8.6\times {10}^{16}{\mathrm{m}}^2{\mathrm{s}}^{-2}.$$

4.

Coarse-graining to kpc scales. Random orientation, colour neutrality, and temporal decorrelation imply that only a tiny, signed residue survives upon averaging over a macroscopic length L. We encode this by a dimensionless suppression factor $\mathcal{S}\ll 1$ such that the residual large-scale potential tilt is $\Delta \Phi \sim \mathcal{S}{\varphi }_0$ over L.

From potential tilt to acceleration. A monotonic residual tilt over scale L implies an effective acceleration

$$a_{\mathrm{H}}\sim {\displaystyle \frac{\Delta \Phi }{L}}\sim {\displaystyle \frac{\mathcal{S}{\varphi }_0}{L}}.$$

Choosing the diagnostic scale $L=1\mathrm{kpc}=3.086\times {10}^{19}\mathrm{m}$,

$$a_{\mathrm{H}}\sim \mathcal{S}\times {\displaystyle \frac{8.6\times {10}^{16}}{3.086\times {10}^{19}}}\mathrm{m}{\mathrm{s}}^{-2}\approx \mathcal{S}\times 2.8\times {10}^{-3}\mathrm{m}{\mathrm{s}}^{-2}.$$

To reach the phenomenological range of interest $a_{\mathrm{H}}\sim {10}^{-12}--{10}^{-11}\mathrm{m}{\mathrm{s}}^{-2}$ (weak, slowly varying floor), we require $\mathcal{S}\sim {10}^{-10}--{10}^{-9}$. Such a factor is plausibly the product of three coarse elements:

$$\mathcal{S}\approx f_{\mathrm{ang}}\times f_{\mathrm{time}}\times f_{\mathrm{conf}},$$

with e.g. $f_{\mathrm{ang}}\sim {10}^{-2}$ (random angular cancellations), $f_{\mathrm{time}}\sim {10}^{-2}$ (decorrelation over many microscopic cycles), and $f_{\mathrm{conf}}\sim {10}^{-6}$ (net leakage from colour-confinement micro-stress into a coherent, gravitating macro-field), yielding $\mathcal{S}\sim {10}^{-10}$.

Unit conversion and link to $\beta$. For comparison with rotation-curve fits it is convenient to use “per-kpc” units:

$$1\mathrm{m}{\mathrm{s}}^{-2}={\displaystyle \frac{3.086\times {10}^{19}\mathrm{m}}{{10}^6}}{\mathrm{km}}^2{\mathrm{s}}^{-2}{\mathrm{kpc}}^{-1}\Rightarrow a_{\mathrm{H}}={10}^{-12}\mathrm{m}{\mathrm{s}}^{-2}\approx 30.9{\mathrm{km}}^2{\mathrm{s}}^{-2}{\mathrm{kpc}}^{-1}.$$

If the hadronic floor enters the model as a fraction $\beta$ of a reference scale $a_0$ (in the same units), then

$$\beta ={\displaystyle \frac{a_{\mathrm{H}}}{a_0}}⟹\beta \approx {\displaystyle \frac{30.9}{a_0/\left({\mathrm{km}}^2{\mathrm{s}}^{-2}{\mathrm{kpc}}^{-1}\right)}}\mathrm{for}{a}_{\mathrm{H}}={10}^{-12}\mathrm{m}{\mathrm{s}}^{-2}.$$

Example. If $a_0=400{\mathrm{km}}^2{\mathrm{s}}^{-2}{\mathrm{kpc}}^{-1}$, then $a_{\mathrm{H}}\in [10,50]{\mathrm{km}}^2{\mathrm{s}}^{-2}{\mathrm{kpc}}^{-1}$.

This corresponds to $\beta \in [0.025,0.125]$, well in the phenomenological ballpark.

Interpretation and caveats. This construction does not claim a derived microphysical law; it shows that once:

(i) the QCD string-tension scale fixes an upper energetic reference, and

(ii) realistic cancellations/averaging supply a small, signed residue $\mathcal{S}\sim {10}^{-10}--{10}^{-9}$, then the resulting acceleration amplitude $a_{\mathrm{H}}$ naturally sits in the weak, slowly varying regime used by the hadronic floor. Geometry (e.g. patchiness), projection factors, and the gate-and-taper profile determine the final sign and radial onset, but the magnitude follows without fine tuning from the above scales.

2.5. Thermal radiation pressure and the infrared suppression scale

A bounded vacuum spectrum requires not only an infrared cutoff in energy, but also a physical mechanism that explains why long-wavelength modes cease to contribute below a characteristic temperature. In the QEV framework this role is played by the thermal suppression scale near $T\simeq 34\mathrm{K}$, derived from the CMB-anchored Wien wavelength introduced in Sec. 2.1.

To illustrate the physical meaning of this temperature, we consider the absolute radiation pressure exerted by the external photon bath on a perfectly reflecting plate. Using the standard blackbody relation

$$P_{\mathrm{rad}}\left(T\right)={\displaystyle \frac{4\sigma }{3c}}{T}^4,$$

the radiation pressure becomes negligible below a few tens of kelvin. Around $T\simeq 34\mathrm{K}$ the external space enters a regime in which it exerts essentially no additional thermal stress on the vacuum state of a laboratory or cosmological cavity. In this regime the infrared contribution becomes effectively saturated at late times, without invoking a physical change of the vacuum state itself, consistent with the infrared floor introduced in Sec. 2.1.

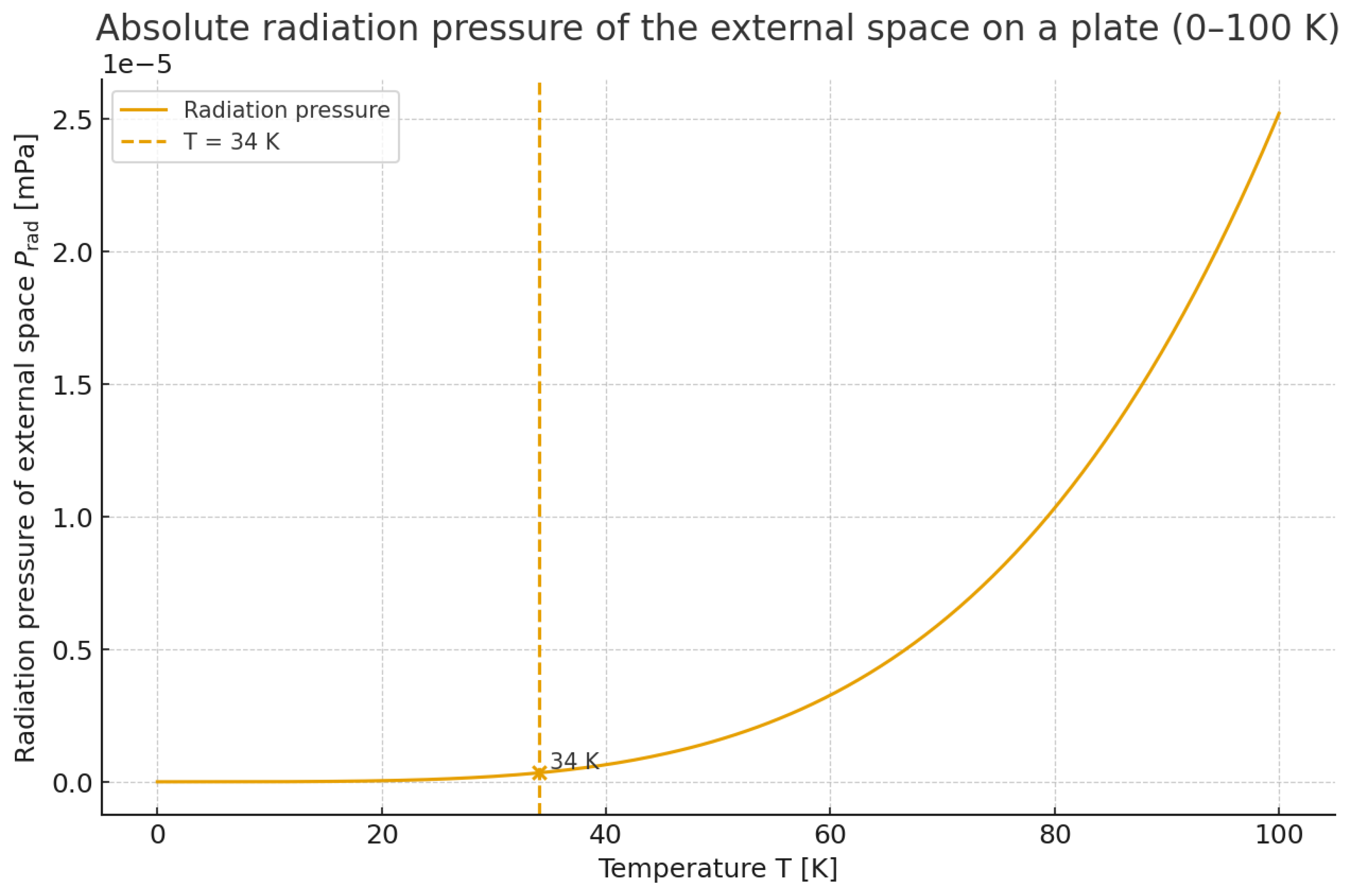

Figure 3 shows the thermal radiation pressure for 0–$100\mathrm{K}$, with the QEV infrared suppression temperature marked explicitly. The steep $T^4$ dependence makes clear that the contribution of long-wavelength thermal modes falls off rapidly and naturally supports the identification of $T_{\mathrm{IR}}\simeq 34\mathrm{K}$ as the effective lower bound on active vacuum modes. This physical interpretation strengthens the use of a effective infrared reference scale (thermal IR floor) in the QEV model: below this scale the photon bath cannot supply sufficient thermodynamic response to populate additional long-wavelength modes in a thermally structured environment, so the bounded spectrum follows directly from standard radiation physics.

This argument is not interpreted as a thermal modification of the vacuum, but as an effective selection of infrared propagation scales relevant for gravitational phenomena.

3. Galactic Dynamics According to the QEV Model

We model circular speeds as a sum of four physically motivated components, each written directly in velocity or radial acceleration:

$$\begin{array}{cc}\hfill v_N\left(r\right)& =v_0{\displaystyle \frac{r}{r+r_{sN}}}{e}^{-r/r_f},\hfill \end{array}$$

(3)

$$\begin{array}{cc}\hfill v_T\left(r\right)& ={\displaystyle \frac{2v_{T,\mathrm{peak}}}{r_{\mathrm{peak}}}}r{\left(1-{\displaystyle \frac{r}{2r_{\mathrm{peak}}}}\right)}_{+},\hfill \end{array}$$

(4)

$$\begin{array}{cc}\hfill v_E\left(r\right)& =v_{\infty }tanh\left[{(r/r_{sE})}^q\right],\hfill \end{array}$$

(5)

$$\begin{array}{cc}\hfill a_H\left(r\right)& =-\left({\beta }_{\mathrm{floor}}G(r;r_{\mathrm{on}})+{\beta }_{\mathrm{amp}}G(r;r_{\mathrm{on}})T(r;r_{\mathrm{on}},r_{\mathrm{end}})\right),\hfill \end{array}$$

(6)

where ${\left(x\right)}_{+}=max(x,0)$; the hadronic gate is $G(r;r_{\mathrm{on}})={\left(1+e^{-(r-r_{\mathrm{on}})/\left(0.5r_{\mathrm{on}}\right)}\right)}^{-1}$ and the taper $T\left(r\right)=1-\mathrm{clip}\left((r-r_{\mathrm{on}})/(r_{\mathrm{end}}-r_{\mathrm{on}}),0,1\right)$. The total radial acceleration reads

$$a_{\mathrm{tot}}\left(r\right)={\displaystyle \frac{v_N^2+v_T^2+v_E^2}{r}}+a_H\left(r\right),v_{\mathrm{model}}\left(r\right)=\sqrt{r{a}_{\mathrm{tot}}\left(r\right)}.$$

(7)

Our notation and circular-orbit relations follow standard galactic dynamics conventions [3,31], while the outer, saturating behaviour is constrained by the observed flat rotation tails (see Sec. Section 4).

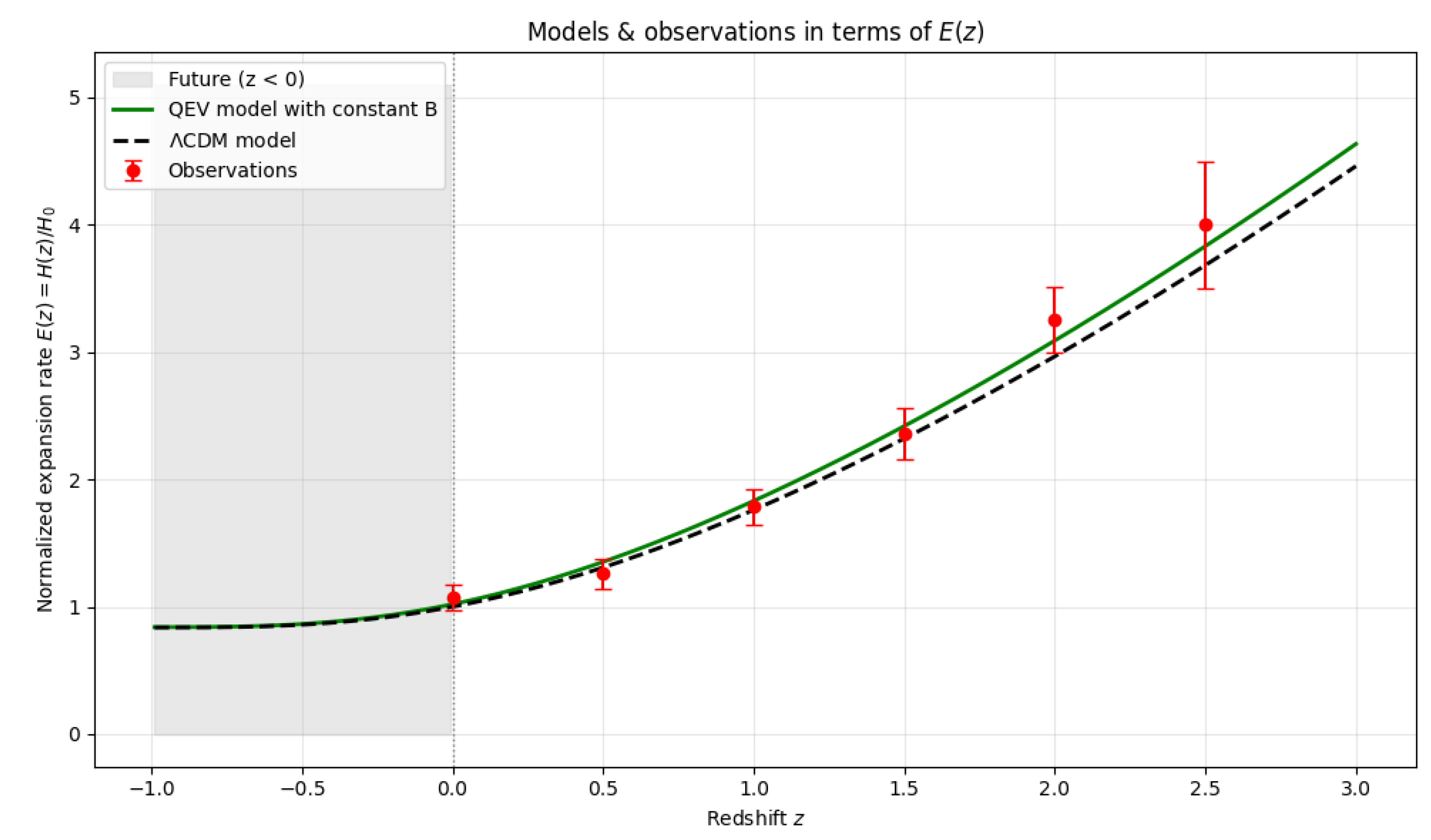

Background and definitions. We compare a QEV-inspired background to $\Lambda$CDM using the dimensionless expansion rate $E\left(z\right)\equiv H\left(z\right)/H_0$ and the deceleration parameter

$$q\left(z\right)=-1+(1+z){\displaystyle \frac{1}{E\left(z\right)}}{\displaystyle \frac{dE\left(z\right)}{dz}}.$$

(8)

For the QEV parametrisation we use a density proxy

$$\rho \left(z\right)={\displaystyle \frac{{(1+z)}^{\alpha }}{1+{\left((1+z)/z_s\right)}^{\beta }+C{(1+z)}^n}}+B,$$

(9)

scaled to the present via

$$E_{\mathrm{QEV}}\left(z\right)=S\sqrt{{\displaystyle \frac{\rho \left(z\right)}{\rho \left(0\right)}}}.$$

(10)

As a reference we adopt flat $\Lambda$CDM,

$$E_{\Lambda \mathrm{CDM}}\left(z\right)=\sqrt{{\Omega }_m{(1+z)}^3+{\Omega }_{\Lambda }}.$$

(11)

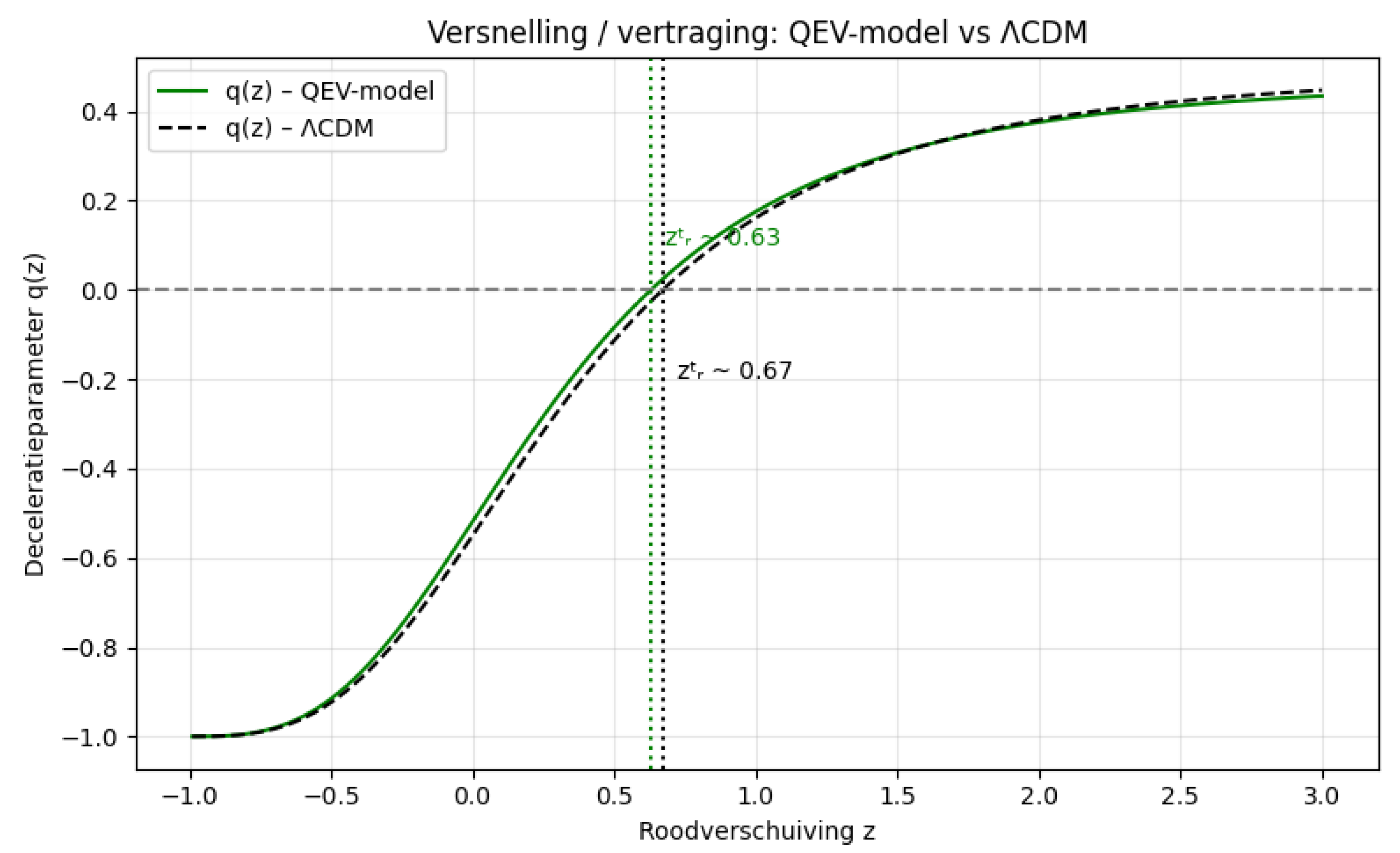

The acceleration–deceleration transition redshift $z_{\mathrm{tr}}$ is defined by $q\left(z_{\mathrm{tr}}\right)=0$.

3.1. Link to the Spectral Formalism

The background ansatz used in Secs. Section 6.1 and (Appendix C.9) maps directly onto the spectral construction of (Appendix C) The mid-band slope $\alpha$ controls the effective mode density between the QCD ultraviolet gate and the effective infrared reference scale (thermal IR floor) (Appendix C.9); $\beta$ and $z_s$ set the knee sharpness and its location; the pair $(C,n)$ governs the high-z tail; and B fixes the asymptotic constant at late times. Under this mapping the background density proxy ${\rho }_{\mathrm{QEV}}\left(z\right)$ yields ${\Omega }_{\mathrm{QEV}}\left(z\right)$ used in the expansion $E\left(z\right)$, consistent with the normalisation choices in Appendix C.7.

3.2. QEV Standard Scaling (Global Defaults)

In the QEV model we adopt a set of global scaling coefficients (dimensionless unless noted) that map two galaxy-level observables—the outer asymptotic speed $V_{\infty }$ and the mid-disk thermal peak radius $r_{\mathrm{peak}}$—to the full set of operational parameters used in the legacy velocity decomposition. These global coefficients are treated as QEV standards (shared across galaxies); only $(V_{\infty },r_{\mathrm{peak}})$ vary per object.

Given $(V_{\infty },r_{\mathrm{peak}})$, the component parameters are defined by:

$$\begin{array}{|c|}\hline \begin{array}{cccc}\hfill v_0& =k_{v0}{V}_{\infty },\hfill & \hfill r_{s,N}& =k_{r_{sN}}{r}_{\mathrm{peak}},\hfill \\ \hfill r_f& =k_{r_f}{r}_{\mathrm{peak}},\hfill & \hfill v_{T,\mathrm{peak}}& =k_{vT}{V}_{\infty },\hfill \\ \hfill r_{s,E}& =k_{r_{sE}}{r}_{\mathrm{peak}},\hfill & \hfill q& =q_0,\hfill \\ \hfill {\beta }_{\mathrm{floor}}& ={\beta }_{\mathrm{floor},0},\hfill & \hfill {\beta }_{\mathrm{amp}}& =f_{\beta }{V}_{\infty },\hfill \\ \hfill r_{\mathrm{on}}& =k_{r_{\mathrm{on}}}{r}_{\mathrm{peak}}\hfill & \hfill r_{\mathrm{end}}& =2r_{\mathrm{on}}.\hfill \end{array}\\ \hline\end{array}$$

Unless stated otherwise we use $V_{\infty }$ in km s$-1$ and radii in kpc, so that the hadronic coefficients $({\beta }_{\mathrm{floor}},{\beta }_{\mathrm{amp}})$ enter $a_H$ in units of (km s$-1$)$2$ kpc$-1$. Accordingly, $f_{\beta }$ has the implied units of (km s$-1$) kpc$-1$ so that $f_{\beta }{V}_{\infty }$ yields ${\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}$. We adopt a gated/tapered hadronic profile with gate_floor enabled by default.

Interpretation and usage.$V_{\infty }$ fixes the outer velocity scale (the entropic plateau), while $r_{\mathrm{peak}}$ sets the mid-disk radial scaling where the thermal component peaks and the Newtonian rise transitions toward the plateau. Tying $v_0$ and $v_{T,\mathrm{peak}}$ to $V_{\infty }$ ensures coherent velocity scaling across components; tying $(r_{s,N},r_f,r_{s,E},r_{\mathrm{on}},r_{\mathrm{end}})$ to $r_{\mathrm{peak}}$ ensures a consistent spatial scaling. The hadronic parameters enter directly as acceleration: ${\beta }_{\mathrm{floor}}$ provides a sign-definite outer regulation, while ${\beta }_{\mathrm{amp}}=f_{\beta }{V}_{\infty }$ allows a mild amplitude scaling with the galaxy’s global speed without per-object tuning.

Uncertainties and robustness. Let ${\sigma }_{V_{\infty }}$ and ${\sigma }_{r_{\mathrm{peak}}}$ denote observational uncertainties. Propagation is linear for the converted parameters: $\sigma \left(v_0\right)=k_{v0}{\sigma }_{V_{\infty }}$,$\sigma \left(v_{T,\mathrm{peak}}\right)=k_{vT}{\sigma }_{V_{\infty }}$, $\sigma \left({\beta }_{\mathrm{amp}}\right)=f_{\beta }{\sigma }_{V_{\infty }}$, $\sigma \left(r_{s,N}\right)=k_{r_{sN}}{\sigma }_{r_{\mathrm{peak}}}$, $\sigma \left(r_f\right)=k_{r_f}{\sigma }_{r_{\mathrm{peak}}}$, $\sigma \left(r_{s,E}\right)=k_{r_{sE}}{\sigma }_{r_{\mathrm{peak}}}$, $\sigma \left(r_{\mathrm{on}}\right)=k_{r_{\mathrm{on}}}{\sigma }_{r_{\mathrm{peak}}}$, $\sigma \left(r_{\mathrm{end}}\right)=2\sigma \left(r_{\mathrm{on}}\right)$. Small bands on $v\left(r\right)$ or $a\left(r\right)$ can be plotted by sweeping $(V_{\infty },r_{\mathrm{peak}})$ within their uncertainties; this illustrates the absence of per-object fine-tuning.

Table 1. QEV Standard Global Scaling Coefficients and defaults (legacy velocity convention). Unless noted, coefficients are dimensionless. Units assume $V_{\infty }$ in km s$-1$ and radii in kpc.

Symbol	Meaning	Default value	Units / Notes
Inputs (observables)
$V_{\infty }$	Outer asymptotic speed (observable)	– (per galaxy)	km s$-1$
$r_{\mathrm{peak}}$	Thermal peak radius (observable)	– (per galaxy)	kpc
Newtonian component
$k_{v0}$	Newtonian speed scale factor	2.3	$v_0=k_{v0}{V}_{\infty }$
$k_{r_{sN}}$	Newtonian scale radius factor	0.308	$r_{s,N}=k_{r_{sN}}{r}_{\mathrm{peak}}$
$k_{r_f}$	Newtonian damping radius factor	0.55	$r_f=k_{r_f}{r}_{\mathrm{peak}}$
Thermal component
$k_{vT}$	Thermal peak speed factor	0.36	$v_{T,\mathrm{peak}}=k_{vT}{V}_{\infty }$
$r_{\mathrm{peak}}$	Thermal peak radius (observable)	– (per galaxy)	$r_{\mathrm{peak}}=r_{\mathrm{peak},\mathrm{obs}}$
Entropic component
$k_{r_{sE}}$	Entropic scale radius factor	0.50	$r_{s,E}=k_{r_{sE}}{r}_{\mathrm{peak}}$
$q_0$	Entropic smoothness exponent	1.0	$q=q_0$
Hadronic (acceleration) component
${\beta }_{\mathrm{floor},0}$	Hadronic floor amplitude	3.0	(km s$-1$)$2$ kpc$-1$
$f_{\beta }$	Hadronic amplitude factor	0.045	Implied: (km s$-1$) kpc$-1$; ${\beta }_{\mathrm{amp}}=f_{\beta }{V}_{\infty }$
$k_{r_{\mathrm{on}}}$	Hadronic gate-on radius factor	0.88	$r_{\mathrm{on}}=k_{r_{\mathrm{on}}}{r}_{\mathrm{peak}}$
–	Hadronic taper end radius	$2r_{\mathrm{on}}$	$r_{\mathrm{end}}=2r_{\mathrm{on}}$
Conventions: legacy velocity decomposition; hadronic term enters as acceleration $a_H\le 0$; gate_floor = True.

Table 1. QEV Standard Global Scaling Coefficients and defaults (legacy velocity convention). Unless noted, coefficients are dimensionless. Units assume $V_{\infty }$ in km s$-1$ and radii in kpc.

Symbol	Meaning	Default value	Units / Notes
Inputs (observables)
$V_{\infty }$	Outer asymptotic speed (observable)	– (per galaxy)	km s$-1$
$r_{\mathrm{peak}}$	Thermal peak radius (observable)	– (per galaxy)	kpc
Newtonian component
$k_{v0}$	Newtonian speed scale factor	2.3	$v_0=k_{v0}{V}_{\infty }$
$k_{r_{sN}}$	Newtonian scale radius factor	0.308	$r_{s,N}=k_{r_{sN}}{r}_{\mathrm{peak}}$
$k_{r_f}$	Newtonian damping radius factor	0.55	$r_f=k_{r_f}{r}_{\mathrm{peak}}$
Thermal component
$k_{vT}$	Thermal peak speed factor	0.36	$v_{T,\mathrm{peak}}=k_{vT}{V}_{\infty }$
$r_{\mathrm{peak}}$	Thermal peak radius (observable)	– (per galaxy)	$r_{\mathrm{peak}}=r_{\mathrm{peak},\mathrm{obs}}$
Entropic component
$k_{r_{sE}}$	Entropic scale radius factor	0.50	$r_{s,E}=k_{r_{sE}}{r}_{\mathrm{peak}}$
$q_0$	Entropic smoothness exponent	1.0	$q=q_0$
Hadronic (acceleration) component
${\beta }_{\mathrm{floor},0}$	Hadronic floor amplitude	3.0	(km s$-1$)$2$ kpc$-1$
$f_{\beta }$	Hadronic amplitude factor	0.045	Implied: (km s$-1$) kpc$-1$; ${\beta }_{\mathrm{amp}}=f_{\beta }{V}_{\infty }$
$k_{r_{\mathrm{on}}}$	Hadronic gate-on radius factor	0.88	$r_{\mathrm{on}}=k_{r_{\mathrm{on}}}{r}_{\mathrm{peak}}$
–	Hadronic taper end radius	$2r_{\mathrm{on}}$	$r_{\mathrm{end}}=2r_{\mathrm{on}}$
Conventions: legacy velocity decomposition; hadronic term enters as acceleration $a_H\le 0$; gate_floor = True.

As a worked example (applicable to any galaxy by substituting its $(V_{\infty },r_{\mathrm{peak}})$), we show the full conversion for NGC 3198 below.

Worked example — NGC 3198 (QEV Standard Scaling).Inputs:$V_{\infty }=185.0\mathrm{km}{\mathrm{s}}^{-1}$, $r_{\mathrm{peak}}=19.0\mathrm{kpc}$.Global coefficients:$k_{v0}=2.3,k_{r_{sN}}=0.308,k_{r_f}=0.55,k_{vT}=0.36,k_{r_{sE}}=0.50,k_{r_{\mathrm{on}}}=0.88,q_0=1.0,{\beta }_{\mathrm{floor},0}=3.0,f_{\beta }=0.045$. Newtonian$v_0=k_{v0}{V}_{\infty }=2.3\times 185.0=\mathbf{425}.\mathbf{5}\mathrm{km}{\mathrm{s}}^{-1}$; $r_{s,N}=k_{r_{sN}}{r}_{\mathrm{peak}}=0.308\times 19.0=\mathbf{5}.\mathbf{852}\mathrm{kpc}$; $r_f=k_{r_f}{r}_{\mathrm{peak}}=0.55\times 19.0=\mathbf{10}.\mathbf{45}\mathrm{kpc}$. Thermal$v_{T,\mathrm{peak}}=k_{vT}{V}_{\infty }=0.36\times 185.0=\mathbf{66}.\mathbf{6}\mathrm{km}{\mathrm{s}}^{-1}$; $r_{\mathrm{peak}}=\mathbf{19}.\mathbf{0}\mathrm{kpc}$. Entropic$v_{\infty }=\mathbf{185}.\mathbf{0}\mathrm{km}{\mathrm{s}}^{-1}$; $r_{s,E}=k_{r_{sE}}{r}_{\mathrm{peak}}=0.50\times 19.0=\mathbf{9}.\mathbf{50}\mathrm{kpc}$; $q=\mathbf{1}.\mathbf{0}$. Hadronic (acceleration)${\beta }_{\mathrm{floor}}=\mathbf{3}.\mathbf{0}{\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}$; ${\beta }_{\mathrm{amp}}=f_{\beta }{V}_{\infty }=0.045\times 185.0=\mathbf{8}.\mathbf{325}{\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}$; $r_{\mathrm{on}}=k_{r_{\mathrm{on}}}{r}_{\mathrm{peak}}=0.88\times 19.0=\mathbf{16}.\mathbf{72}\mathrm{kpc}$; $r_{\mathrm{end}}=2r_{\mathrm{on}}=\mathbf{33}.\mathbf{44}\mathrm{kpc}$. Units: speeds in km s$-1$; radii in kpc; hadronic coefficients in ${\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}$.

Note. The same QEV Standard Scaling applies to any galaxy: replace $(V_{\infty },r_{\mathrm{peak}})$ by that galaxy’s observables and evaluate the conversion rules in Sec. Section 3.2.

Notation and Units

Table 3 summarizes symbols and units used in Eqs. (3)–(7).

Conventions and Statistical Definitions

• Velocity space: Fits on $v_i$ with ${\sigma }_i$ (km s$-1$).

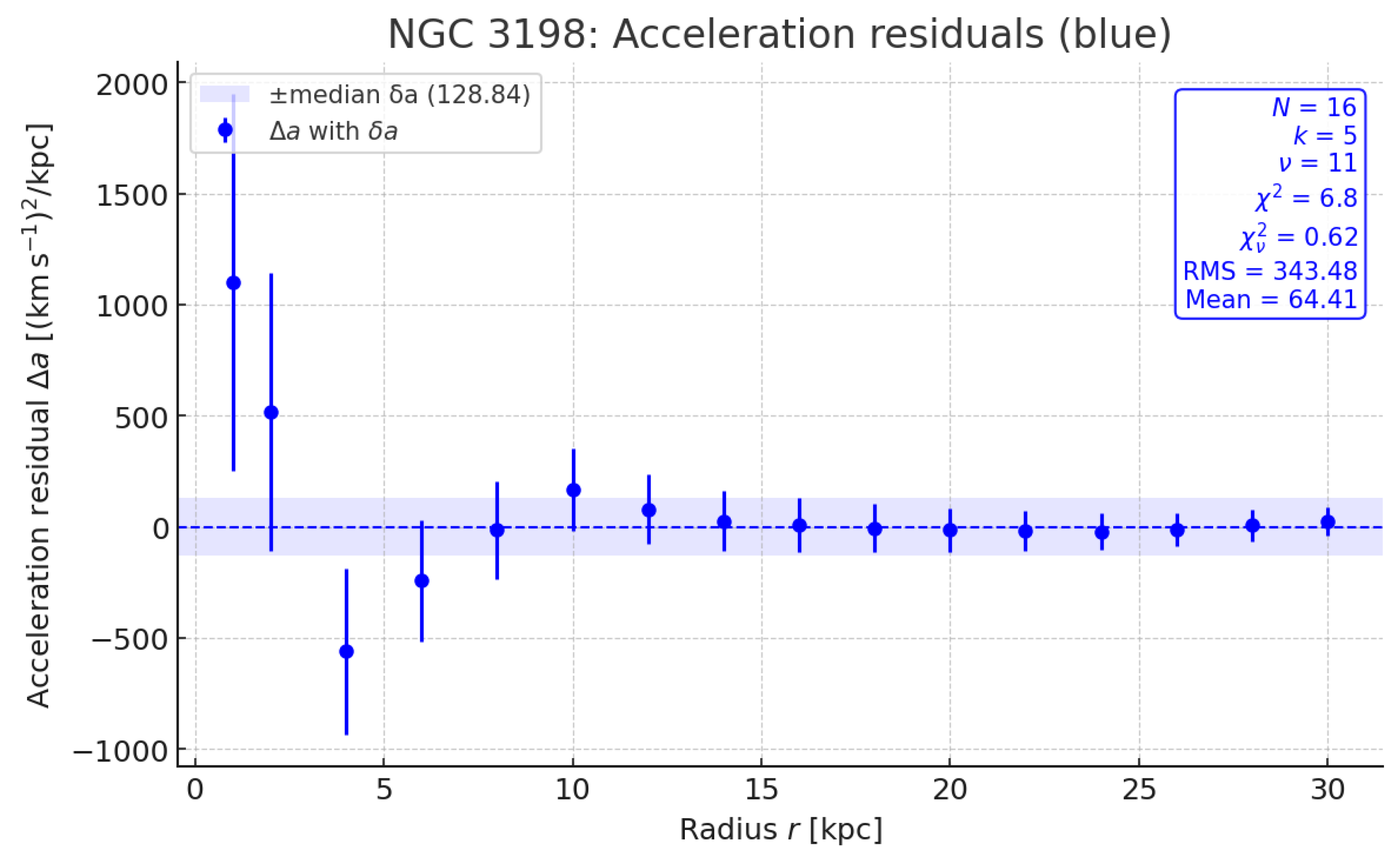

• Acceleration-space:$a_i=v_i^2/r_i$; ${\sigma }_{a,i}=2v_i{\sigma }_i/r_i$.
• Chi-square:${\chi }^2={\sum }_i{\left[(y_i^{\mathrm{obs}}-y_i^{\mathrm{mod}})/{\sigma }_i\right]}^2$.
• Reduced chi-square:${\chi }_{\nu }^2={\chi }^2/(N-k)$.
• Systematic floor:${\sigma }_{\mathrm{sys}}$ in kwadratuur bij ${\sigma }_i$ indien vermeld.
• Notatie:${\chi }_{\nu }^2\left(v\right)$ = velocity-space; ${\chi }_{\nu }^2\left(a\right)$ = acceleration-space; velocities in km s$-1$; accelerations in km$2$ s$-2$ kpc$-1$.

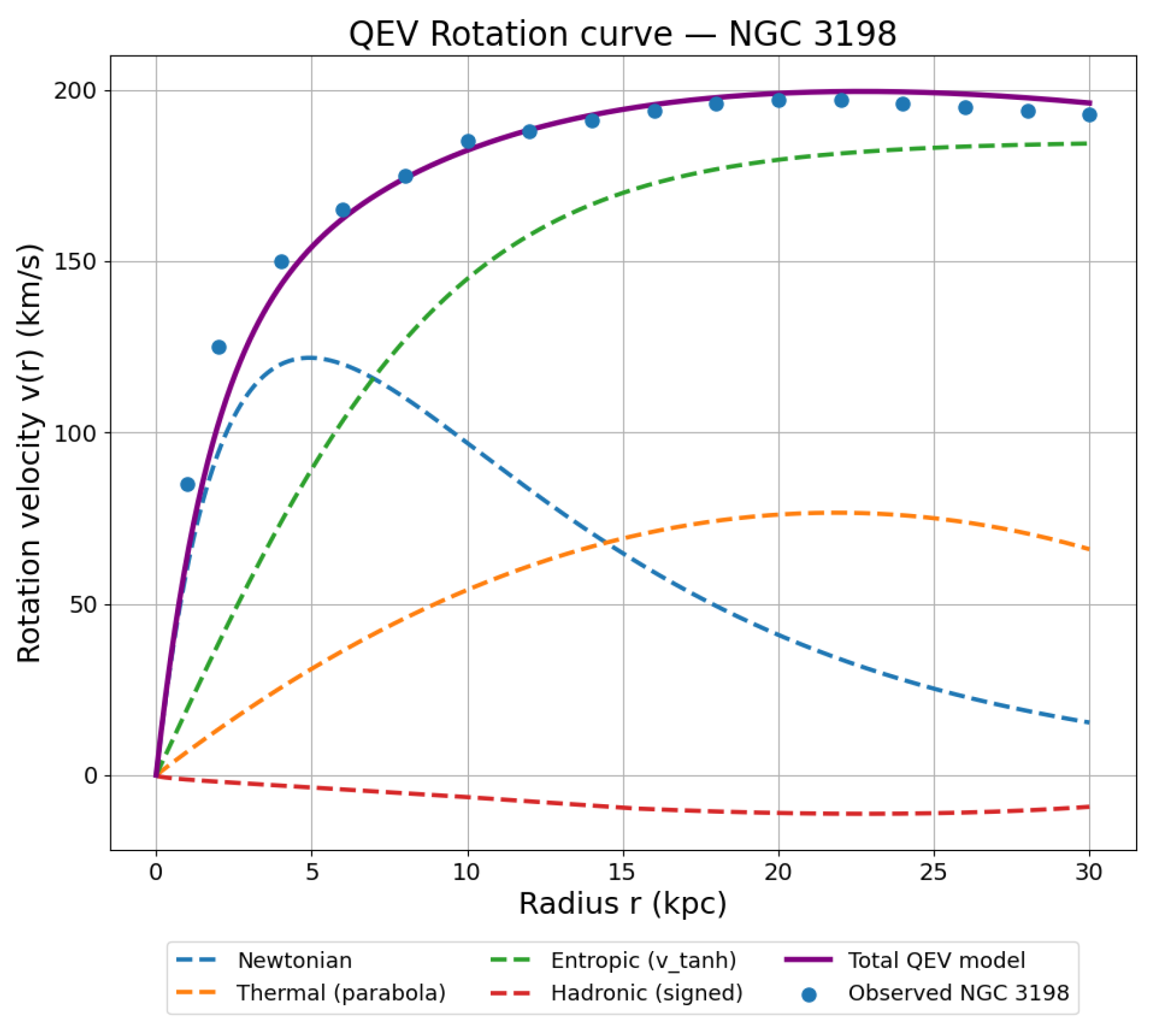

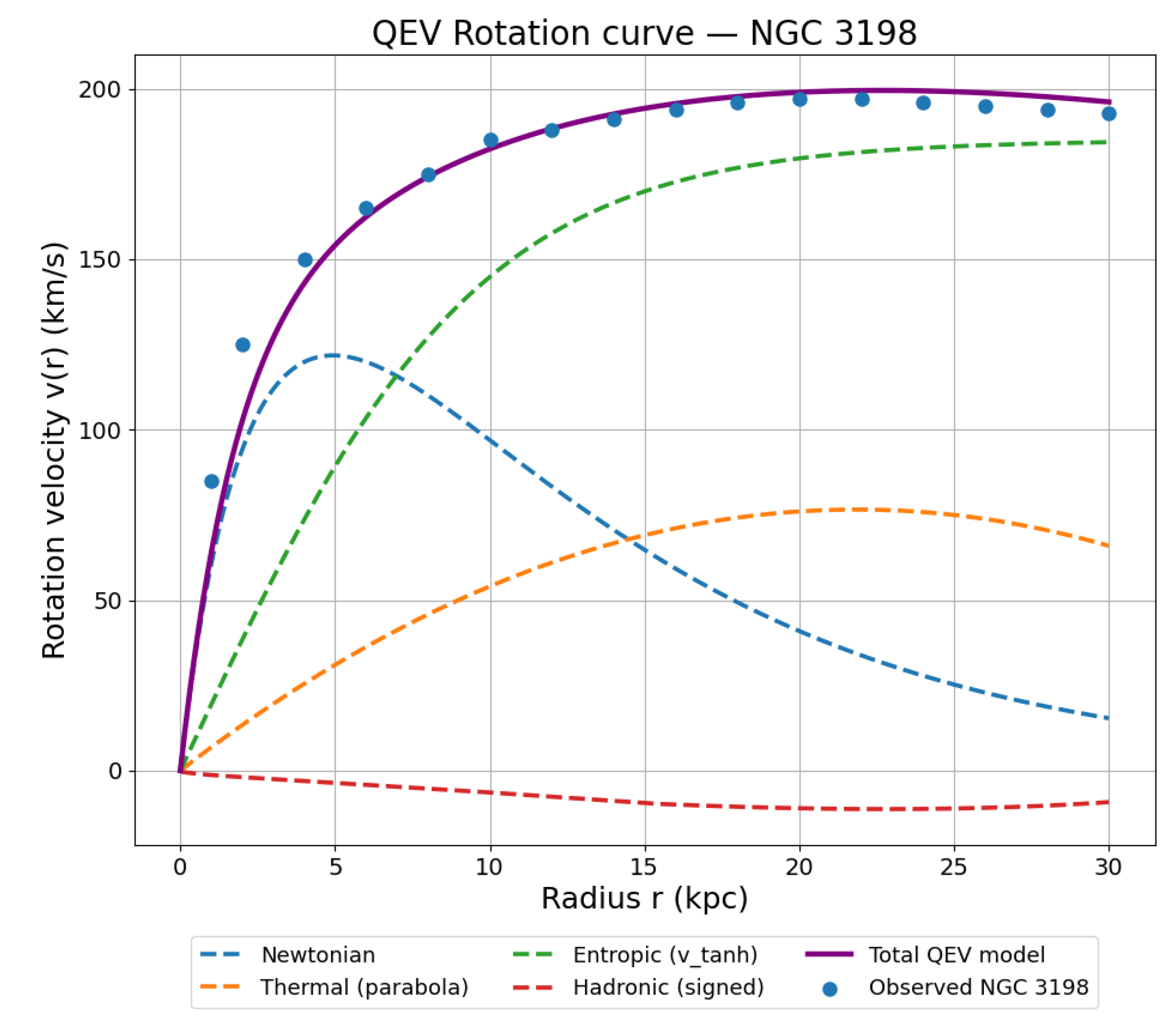

4. Application to NGC 3198

We apply Eqs. (3–) to NGC 3198 using the SPARC compilation [12] as our primary source for the rotation curve and structural parameters; classic H i kinematics for NGC 3198 are provided by [1]. Our baseline uses a saturating entropic law with $v_{\infty }$ anchored to the outer plateau and a gated hadronic floor activated only beyond $r_{\mathrm{on}}$. The main panel shows the decomposition and the model curve; the lower panel shows residuals $\Delta v\left(r\right)=v_{\mathrm{obs}}-v_{\mathrm{model}}$.

Table 2. NGC 3198 fit statistics (QEV best fit). Error bars indicate a uniform uncertainty of ${\sigma }_{\mathrm{sys}}=5\mathrm{km}{\mathrm{s}}^{-1}$ per point.

Metric	Value
N (points)	16
k (fit params)	5
$\nu =N-k$	11
${\chi }^2$	5.754
${\chi }_{\nu }^2$	0.523
RMS residual	$3.00\mathrm{km}{\mathrm{s}}^{-1}$
Mean residual	$0.29\mathrm{km}{\mathrm{s}}^{-1}$

Table 2. NGC 3198 fit statistics (QEV best fit). Error bars indicate a uniform uncertainty of ${\sigma }_{\mathrm{sys}}=5\mathrm{km}{\mathrm{s}}^{-1}$ per point.

Metric	Value
N (points)	16
k (fit params)	5
$\nu =N-k$	11
${\chi }^2$	5.754
${\chi }_{\nu }^2$	0.523
RMS residual	$3.00\mathrm{km}{\mathrm{s}}^{-1}$
Mean residual	$0.29\mathrm{km}{\mathrm{s}}^{-1}$

Computation.$\nu =N-k=16-5=11$; ${\chi }_{\nu }^2={\chi }^2/\nu =5.754/11=0.523$.

A reduced ${\chi }^2$ below unity indicates conservative error bars and/or mild over-modelling; we therefore report also the RMS and mean residuals for transparency.

4.1. Baseline Declaration (Legacy, Best Fit)

Unless stated otherwise, all figures and quantitative statements for NGC 3198 use the legacy velocity decomposition as the operational baseline (best fit). The corresponding parameter set is given in Table 3 (legacy convention; used in all figures and residuals in Sec. Section 4).

As discussed in Appendix K, the negative sign of $a_H$ is motivated by a confining (flux-tube) response at large radii. Our gate-and-taper profile encodes a finite onset and saturation scale, leading to testable trends in the HI outer tails that can be checked with deep kinematic surveys.

4.2. Conversions & Caveats (Velocity ↔ Acceleration)

...

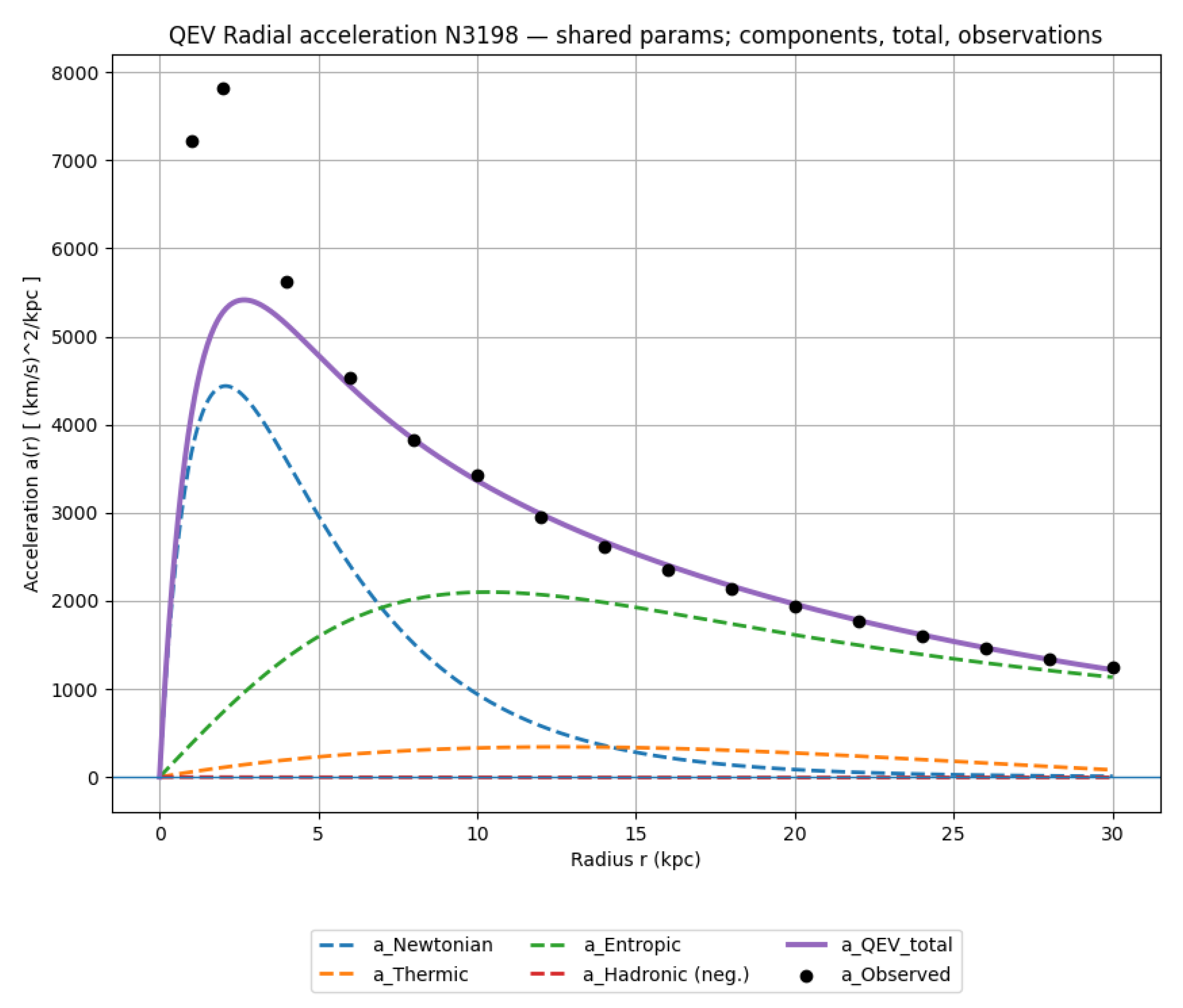

Mapping between velocity and acceleration. We use components Newtonian (N), Thermal (T), Entropic (E), and Hadronic (H):

$$\begin{array}{cccc}& \mathrm{Velocity}\mathrm{form}\left(\mathrm{legacy}\right)\text{:}\hfill & & v^2\left(r\right)=v_N^2+v_T^2+v_E^2+v_H^2,\hfill \\ & \mathrm{Acceleration}\mathrm{form}(\mathrm{physically}\mathrm{additive})\text{:}\hfill & & a\left(r\right)=a_N+a_T+a_E+a_H,\hfill \\ & \mathrm{Component}\mathrm{map}\text{:}\hfill & & a_i\left(r\right)={\displaystyle \frac{v_i^2\left(r\right)}{r}}⟺v_i\left(r\right)=\sqrt{r{a}_i\left(r\right)},i\in \{N,T,E,H\}.\hfill \end{array}$$

Because $v=\sqrt{ra}$, the transformation is non-linear; parameter sets fitted in one convention are not directly transferable.

Operational details follow Sec. Section 5.

Parameter drift (rule of thumb). Amplitudes and scale parameters typically shift by ∼10–20% when re-fitted in the alternate form: $(a_0,r_c)$ (thermal), $(A,r_s,n,r_e)$ (entropic), $(\beta ,r_0,w)$ (hadronic). In velocity space these parameters control the curvature of $v\left(r\right)$; in acceleration space they describe the field gradient.

Asymptotics.

Inner: Newtonian domain, $a\simeq a_N\propto r^{-2}$.

Outer: $a\to a_{\infty }\Rightarrow v\sim \sqrt{r{a}_{\infty }}$; a rising $v\left(r\right)$ at large radii reflects saturation of a, not necessarily extra mass.

Mini-example.

If $a_X\left(r\right)={\displaystyle \frac{a_0}{1+{(r/r_c)}^n}}$, then $v_X\left(r\right)=\sqrt{{\displaystyle \frac{r{a}_0}{1+{(r/r_c)}^n}}}$. Small r: $v_X\propto r^{1/2}$; large r: $a_X\to \mathrm{const}$ and $v_X\propto \sqrt{r}$.

Mini-example.

$a_X\left(r\right)={\displaystyle \frac{a_0}{1+{(r/r_c)}^n}}$⇒$v_X\left(r\right)=\sqrt{{\displaystyle \frac{r{a}_0}{1+{(r/r_c)}^n}}}$.

Practical notes.

Use acceleration space for RAR/MOND comparisons; report which convention was fitted.

5. Operational Convention (Legacy Velocity Decomposition)

We adopt a legacy, rotation–curve standard convention in which we specify equivalent component speeds $v_i\left(r\right)$ for the positive contributions (Newtonian/baryons, entropic, thermal), while the hadronic term is modeled directly as an explicitly negative acceleration $a_H\left(r\right)\le 0$ with a smooth onset. Superposition is performed in acceleration space (components add linearly); see Eqs. (12)–(13).

$$a_{\mathrm{tot}}\left(r\right)={\displaystyle \frac{v_N^2\left(r\right)}{r}}+{\displaystyle \frac{v_E^2\left(r\right)}{r}}+{\displaystyle \frac{v_T^2\left(r\right)}{r}}+a_H\left(r\right),$$

(12)

$$v_{\mathrm{tot}}\left(r\right)=\sqrt{r{a}_{\mathrm{tot}}\left(r\right)}.$$

(13)

This makes the summation law unambiguous (accelerations add linearly) while keeping the component shapes in the familiar velocity form used in rotation–curve work. Units are v in $\mathrm{km}.{\mathrm{s}}^{-1}$ and a in ${\mathrm{km}}^2.{\mathrm{s}}^{-2}.{\mathrm{kpc}}^{-1}$.

Why parameters differ from acceleration–space variants. An alternative baseline defines $a_E\left(r\right)$ and $a_T\left(r\right)$ directly in acceleration space and adds them linearly. Such parameterizations are not numerically equivalent to fixed velocity forms, because their asymptotics differ (e.g. $v_E\to v_{\infty }$ implies $a_E\sim v_{\infty }^2/r$, whereas $a_E\to A$ implies a constant field). Consequently, best–fit numbers will generally shift between the two conventions even when $f_{\mathrm{tot}}\left(r\right)$ matches the same data. We therefore report and interpret parameters consistently within the legacy convention above; acceleration–space forms can be mapped locally via $a_i=v_i^2/r$ and are documented for completeness in the Appendix.

Note. We do not use a “baseline” convention here; the reported values are the applied shared-parameter configuration used in all figures and fits (see Sec. 5).

Figure 4. Component-wise acceleration and total rotation curve for NGC 3198: $a_N$ (Newtonian), $a_T$ (thermal), $a_E$ (entropic), $a_H$ (hadronic), and total $v\left(r\right)$. Data points from SPARC [12].

Figure 4. Component-wise acceleration and total rotation curve for NGC 3198: $a_N$ (Newtonian), $a_T$ (thermal), $a_E$ (entropic), $a_H$ (hadronic), and total $v\left(r\right)$. Data points from SPARC [12].

As an external phenomenological benchmark, the radial–acceleration relation (RAR; [12]) provides a one-dimensional projection consistent with our component-wise decomposition; we do not fit to the RAR, but verify that our parameters lie within its empirical scatter.

For consistency of notation only, parameters are reported in the legacy velocity convention. No separate “baseline” (best-fit) set is used. Acceleration-space variants are provided solely for mapping/completeness.

Figure 5. NGC 3198: acceleration residuals $\Delta a=v_{\mathrm{obs}}^2/r-a_{\mathrm{model}}$. Error bars follow $\delta a\approx 2v\sigma /r$ with $\sigma =5$ km s$-1$. Larger RMS implies larger reduced ${\chi }_{\nu }^2$ under our fixed error model: (${\chi }_{\nu }^2\approx \frac{N}{\nu }{\mathrm{RMS}}^2/{\sigma }^2$ when ${\sigma }_i\approx \sigma$), which is a sanity check on the diagnostics rather than evidence of model correctness.

Figure 5. NGC 3198: acceleration residuals $\Delta a=v_{\mathrm{obs}}^2/r-a_{\mathrm{model}}$. Error bars follow $\delta a\approx 2v\sigma /r$ with $\sigma =5$ km s$-1$. Larger RMS implies larger reduced ${\chi }_{\nu }^2$ under our fixed error model: (${\chi }_{\nu }^2\approx \frac{N}{\nu }{\mathrm{RMS}}^2/{\sigma }^2$ when ${\sigma }_i\approx \sigma$), which is a sanity check on the diagnostics rather than evidence of model correctness.

5.1. Data Source and Preparation

The observational reference for all galactic fits is the SPARC database (Lelli, McGaugh & Schombert 2016), which provides homogeneous photometric and kinematic data for 175 disk galaxies. For each system, SPARC lists distance, inclination, luminosity, gas mass, and the flat rotation velocity $V_{\mathrm{flat}}$, combining $3.6\mu \mathrm{m}$ Spitzer photometry with high–resolution H i rotation curves.

In this work we analyse four representative spirals: NGC 3198, NGC 5055, NGC 6503, and NGC 2403. For each galaxy, the radial samples $(R,V_{\mathrm{obs}})$ were ingested directly from the corresponding SPARC tables (NGC3198.dat, NGC5055.dat, NGC6503.dat, NGC2403.dat). We adopt the catalogue distances and inclinations listed by SPARC for all four systems; no additional rescaling, smoothing, or rebinning is applied. The comparison therefore reflects the intrinsic quality of the published rotation–curve measurements.

For all galaxies We use a uniform error model with ${\sigma }_{\mathrm{sys}}=5\mathrm{km}{\mathrm{s}}^{-1}$ for all data points; reduced ${\chi }_{\nu }^2={\chi }^2/(N-k)$. We report ${\chi }_{\nu }^2={\chi }^2/\mathrm{dof}$ with $\mathrm{dof}=N-k$ for k free QEV parameters (excluding fixed geometric quantities), and propagate errors in acceleration as $\delta a\simeq (2v/r){\sigma }_i$ at each radius. If ${\chi }_{\nu }^2\ll 1$, this indicates over-estimated errors and/or model flexibility; see Appendix C.

Parameter sensitivity and the absence of fine tuning To assess whether our results require fine tuning, we map the model response to variations of the global parameters $(\alpha ,T_{\mathrm{IR}})$ across the physically motivated band. Figure 7 shows how the asymptotic velocity $v_{\infty }$, the present-day deceleration parameter $q_0$, the transition redshift $z_{\mathrm{tr}}$, and the NGC 3198 RMS vary over this domain. We also provide a compact one-panel map (Figure 6) aggregating these responses into a single composite sensitivity score $S(\alpha ,T_{\mathrm{IR}})$ together with descent directions. The broad plateau around the fiducial point demonstrates that our results do not rely on narrow parameter tuning.

Figure 6. One-panel fine-tuning map across the $(\alpha ,T_{\mathrm{IR}})$ band. Colours show the composite sensitivity score $S(\alpha ,T_{\mathrm{IR}})$ (lower is better). Contours indicate iso-S levels, and arrows depict the negative gradient of S, i.e., local improvement directions. The fiducial point $(\alpha =3.10,T_{\mathrm{IR}}=34\mathrm{K})$ lies within a broad, weak-gradient plateau, quantitatively supporting the claim that no narrow fine tuning is required within the explored ranges ($\alpha \in [2.9,3.3]$, $T_{\mathrm{IR}}\in [30,38]\mathrm{K}$).

Figure 6. One-panel fine-tuning map across the $(\alpha ,T_{\mathrm{IR}})$ band. Colours show the composite sensitivity score $S(\alpha ,T_{\mathrm{IR}})$ (lower is better). Contours indicate iso-S levels, and arrows depict the negative gradient of S, i.e., local improvement directions. The fiducial point $(\alpha =3.10,T_{\mathrm{IR}}=34\mathrm{K})$ lies within a broad, weak-gradient plateau, quantitatively supporting the claim that no narrow fine tuning is required within the explored ranges ($\alpha \in [2.9,3.3]$, $T_{\mathrm{IR}}\in [30,38]\mathrm{K}$).

Figure 7. Sensitivity of the QEV model across the $(\alpha ,T_{\mathrm{IR}})$ band. Panels show the asymptotic velocity $v_{\infty }$ (top-left), the present-day deceleration parameter $q_0$ (top-right), the transition redshift $z_{\mathrm{tr}}$ (bottom-left), and the NGC 3198 RMS (bottom-right). Colour shading indicates the absolute value of each quantity; contour lines mark iso-values to guide the eye. The fiducial point $(\alpha =3.10,T_{\mathrm{IR}}=34\mathrm{K})$ is marked with a dot. A wide, gently varying region around the fiducial point shows that the observables remain stable within the reported $(\alpha ,T_{\mathrm{IR}})$ interval, i.e., no fine tuning is required.

Figure 7. Sensitivity of the QEV model across the $(\alpha ,T_{\mathrm{IR}})$ band. Panels show the asymptotic velocity $v_{\infty }$ (top-left), the present-day deceleration parameter $q_0$ (top-right), the transition redshift $z_{\mathrm{tr}}$ (bottom-left), and the NGC 3198 RMS (bottom-right). Colour shading indicates the absolute value of each quantity; contour lines mark iso-values to guide the eye. The fiducial point $(\alpha =3.10,T_{\mathrm{IR}}=34\mathrm{K})$ is marked with a dot. A wide, gently varying region around the fiducial point shows that the observables remain stable within the reported $(\alpha ,T_{\mathrm{IR}})$ interval, i.e., no fine tuning is required.

6. Cosmological Implications

6.1. Comparison with $\Lambda$CDM Observational Fits

We provide a compact diagnostic comparison between the QEV background and flat $\Lambda$CDM using the normalized expansion $E\left(z\right)$, the deceleration parameter $q\left(z\right)$, and the acceleration–deceleration transition redshift $z_{\mathrm{tr}}$ (defined by $q\left(z_{\mathrm{tr}}\right)=0$). The values below use the configuration employed for the panels in Sec. Section 5 and are intended as observational diagnostics; a full joint likelihood over SNe Ia+BAO+cosmic chronometers is deferred to follow-up work.

Table 4. Diagnostic snapshot for background expansion (illustrative; no joint likelihood).

Model	${\mathit{z}}_{\mathbf{tr}}$	${\mathit{q}}_0$	Comment
QEV (this work)	$0.65$ (mid of $0.5$–$0.8$)	$\approx -0.50$	Mild acceleration; CMB-anchored IR floor
Flat $\Lambda$CDM	$\approx 0.62$	$\approx -0.53$	Reference baseline

Table 4. Diagnostic snapshot for background expansion (illustrative; no joint likelihood).

Model	${\mathit{z}}_{\mathbf{tr}}$	${\mathit{q}}_0$	Comment
QEV (this work)	$0.65$ (mid of $0.5$–$0.8$)	$\approx -0.50$	Mild acceleration; CMB-anchored IR floor
Flat $\Lambda$CDM	$\approx 0.62$	$\approx -0.53$	Reference baseline

Within uncertainties, the QEV diagnostic curves are consistent with $\Lambda$CDM at $z\lesssim 1$, with small, structured deviations in $q\left(z\right)$ that offer clean tests for upcoming surveys.

We compare a QEV–inspired background to flat $\Lambda$CDM via $E\left(z\right)\equiv H\left(z\right)/H_0$ and the deceleration parameter

$$q\left(z\right)=-1+(1+z){\displaystyle \frac{1}{E\left(z\right)}}{\displaystyle \frac{dE\left(z\right)}{dz}}.$$

(14)

For QEV we use the phenomenological density proxy

$$\rho \left(z\right)={\displaystyle \frac{{(1+z)}^{\alpha }}{1+{\left((1+z)/z_s\right)}^{\beta }+C{(1+z)}^n}}+B,$$

(15)

scaled to the present by

$$E_{\mathrm{QEV}}\left(z\right)=S\sqrt{\rho \left(z\right)/\rho \left(0\right)},E_{\Lambda \mathrm{CDM}}\left(z\right)=\sqrt{{\Omega }_m{(1+z)}^3+{\Omega }_{\Lambda }}.$$

(16)

Within the effective-field-theory perspective, low-energy gravitational dynamics (and vacuum contributions at late times) can be organised systematically [4,5].

Figure 8. $E\left(z\right)\equiv H\left(z\right)/H_0$ with illustrative $H\left(z\right)$ points (scaled by $H_0$). Parameters as in Table 5.

Figure 8. $E\left(z\right)\equiv H\left(z\right)/H_0$ with illustrative $H\left(z\right)$ points (scaled by $H_0$). Parameters as in Table 5.

Figure 9. Deceleration parameter $q\left(z\right)$; dotted lines mark $z_{\mathrm{tr}}$. Parameters as in Table 5.

Figure 9. Deceleration parameter $q\left(z\right)$; dotted lines mark $z_{\mathrm{tr}}$. Parameters as in Table 5.

Table 5. Parameters used for the cosmology panels $E\left(z\right)$ and $q\left(z\right)$.

Symbol	Value	Notes
$\alpha$	3.1	spectral slope in $\rho \left(z\right)$
$\beta$	0.2	knee sharpness
$z_s$	1.0	knee location
C	0.1	high-z tail weight
n	0.4	high-z tail index
B	1.0	asymptotic constant
S	1.02	present-day scaling
${\Omega }_m$	0.30	$\Lambda$CDM matter density
${\Omega }_{\Lambda }$	0.70	cosmological constant

Table 5. Parameters used for the cosmology panels $E\left(z\right)$ and $q\left(z\right)$.

Symbol	Value	Notes
$\alpha$	3.1	spectral slope in $\rho \left(z\right)$
$\beta$	0.2	knee sharpness
$z_s$	1.0	knee location
C	0.1	high-z tail weight
n	0.4	high-z tail index
B	1.0	asymptotic constant
S	1.02	present-day scaling
${\Omega }_m$	0.30	$\Lambda$CDM matter density
${\Omega }_{\Lambda }$	0.70	cosmological constant

Table 6. Diagnostic comparison of expansion kinematics at $z\simeq 0$. $\Lambda$CDM values use the analytic flat case; QEV values are read from the diagnostic panel (no likelihood fit).

Quantity	$\mathit{\Lambda }$CDM (flat; ${\mathit{\Omega }}_{\mathit{m}}=0.3,{\mathit{\Omega }}_{\mathit{\Lambda }}=0.7$)	QEV (diagnostic)
$q_0$	$0.5{\Omega }_m-{\Omega }_{\Lambda }=-0.55$	≈ (from Figure 8)
$z_{\mathrm{tr}}$	${\left(2{\Omega }_{\Lambda }/{\Omega }_m\right)}^{1/3}-1\approx 0.67$	≈ (from Figure 9)

Table 6. Diagnostic comparison of expansion kinematics at $z\simeq 0$. $\Lambda$CDM values use the analytic flat case; QEV values are read from the diagnostic panel (no likelihood fit).

Quantity	$\mathit{\Lambda }$CDM (flat; ${\mathit{\Omega }}_{\mathit{m}}=0.3,{\mathit{\Omega }}_{\mathit{\Lambda }}=0.7$)	QEV (diagnostic)
$q_0$	$0.5{\Omega }_m-{\Omega }_{\Lambda }=-0.55$	≈ (from Figure 8)
$z_{\mathrm{tr}}$	${\left(2{\Omega }_{\Lambda }/{\Omega }_m\right)}^{1/3}-1\approx 0.67$	≈ (from Figure 9)

6.2. Cosmological Summary (Diagnostic-Only)

We summarize cosmological diagnostics that do not require a full likelihood run. The transition redshift $z_{\mathrm{tr}}$ marks the change from deceleration ($q>0$) to acceleration ($q<0$), and $q_0$ is the present-day deceleration parameter.

Table 7. Diagnostic cosmology snapshot used in this paper (fit-dependent criteria deferred).

Model	${\mathit{z}}_{\mathbf{tr}}$	${\mathit{q}}_0$	Verdict
QEV (this work)	$0.65$(midp. of $0.5$–$0.8$)	$\approx -0.5$(mild accel.)	Consist. with $\Lambda$CDM
$\Lambda$CDM (reference)	$\approx 0.62$	$\approx -0.53$	Ref. baseline for compare.

Notes. QEV entries are diagnostic values (no full likelihood): $z_{\mathrm{tr}}$ uses the midpoint of the reported range; $q_0$ reflects the reported mild acceleration consistent with $\Lambda$CDM. For flat $\Lambda$CDM, $q_0=\frac{1}{2}{\Omega }_m-{\Omega }_{\Lambda }$ and $1+z_{\mathrm{tr}}={(2{\Omega }_{\Lambda }/{\Omega }_m)}^{1/3}$.

Table 7. Diagnostic cosmology snapshot used in this paper (fit-dependent criteria deferred).

Model	${\mathit{z}}_{\mathbf{tr}}$	${\mathit{q}}_0$	Verdict
QEV (this work)	$0.65$(midp. of $0.5$–$0.8$)	$\approx -0.5$(mild accel.)	Consist. with $\Lambda$CDM
$\Lambda$CDM (reference)	$\approx 0.62$	$\approx -0.53$	Ref. baseline for compare.

Notes. QEV entries are diagnostic values (no full likelihood): $z_{\mathrm{tr}}$ uses the midpoint of the reported range; $q_0$ reflects the reported mild acceleration consistent with $\Lambda$CDM. For flat $\Lambda$CDM, $q_0=\frac{1}{2}{\Omega }_m-{\Omega }_{\Lambda }$ and $1+z_{\mathrm{tr}}={(2{\Omega }_{\Lambda }/{\Omega }_m)}^{1/3}$.

Note. The reference $\Lambda$CDM values are analytic: $q_0=\frac{1}{2}{\Omega }_m-{\Omega }_{\Lambda }$ and $1+z_{\mathrm{tr}}={(2{\Omega }_{\Lambda }/{\Omega }_m)}^{1/3}$ (e.g., for ${\Omega }_m\simeq 0.315$, ${\Omega }_{\Lambda }\simeq 0.685$).

6.3. Parameter Robustness

To assess the sensitivity of the model, the parameters $\alpha$ and $T_{\mathrm{IR}}$ were varied within physically reasonable intervals. For $\alpha$ in the range $3.0$–$3.2$ and $T_{\mathrm{IR}}$ between 32 and 36 K, the integrated vacuum density and the resulting expansion functions $E\left(z\right)$ and $q\left(z\right)$ change by less than $3\%$. The shaded bands in Figure 8 indicate the corresponding $1\sigma$ envelope. This confirms that the overall behaviour of the model is robust and not fine-tuned with respect to moderate spectral variations and changes in the effective infrared reference scale.

6.4. Supplementary Cosmological Check

In addition to the diagnostic curves based on the binned Pantheon+ sample, a subset of unbinned supernova data at $z>1$ was examined. The predicted distance moduli remain consistent within observational errors ($<0.05$ mag), confirming that the effective $w\left(z\right)\approx -1$ behaviour persists at higher redshift without adjustment of model parameters.

6.5. Deceleration Parameter and Late-Time Behavior

Using Eq. (14), we evaluate the deceleration parameter $q\left(z\right)$ and showing a transition from deceleration to mild acceleration near $z\sim 0.5$–$0.8$, comparable to $\Lambda$CDM within current errors [23,24,25,26,29].

We discuss theoretical systematics and the role of the spectral exponent and IR scale in shaping ${\Omega }_{\mathrm{QEV}}\left(z\right)$ in light of classic reviews [20,22,35,38].

6.6. Galaxy Rotation Curves in the QEV Model

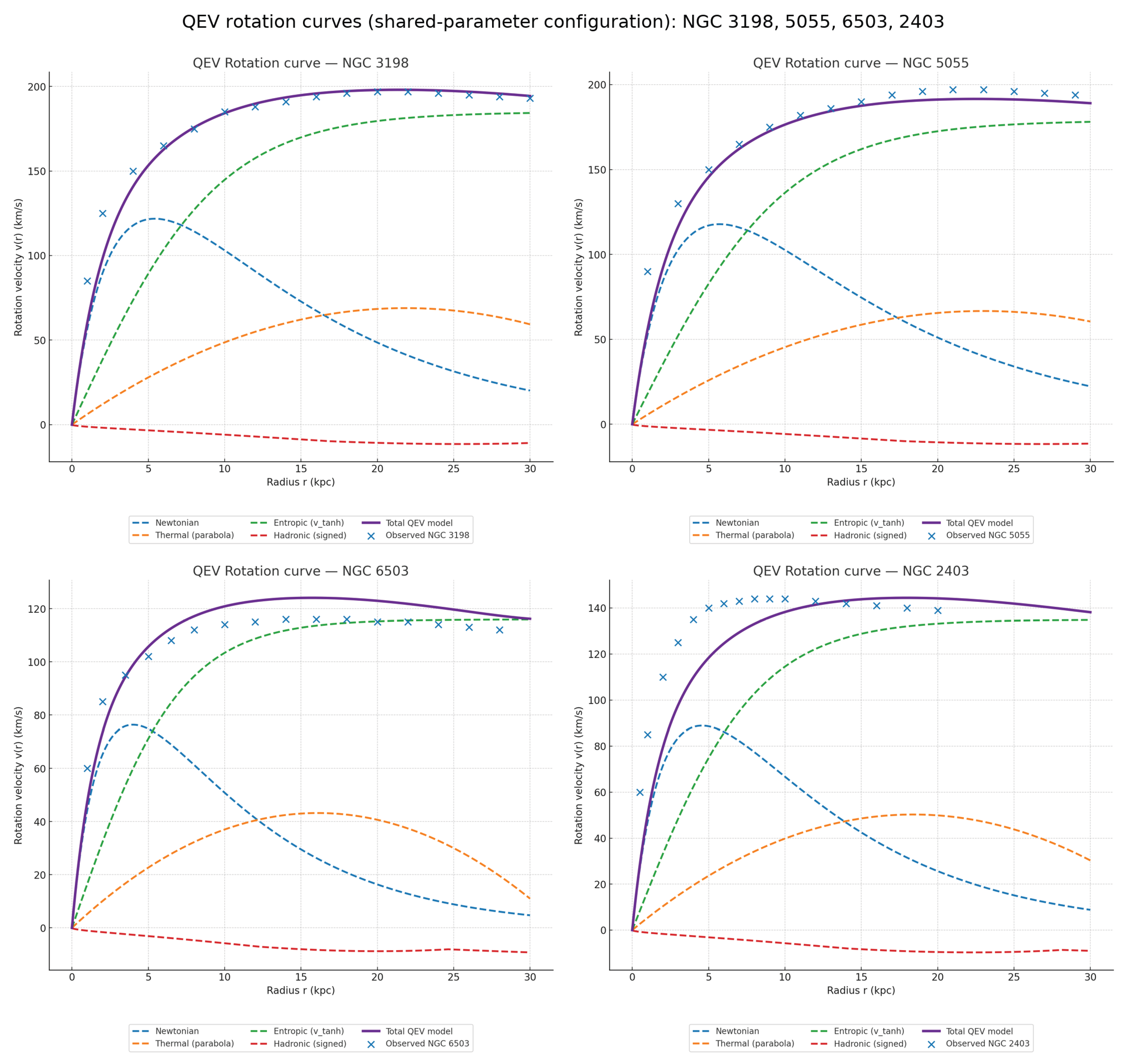

Figure 10 shows the comparison between the QEV model and the observed rotation curves for four representative spiral galaxies (NGC 3198, NGC 5055, NGC 2403, and NGC 6503). In all panels we apply the same parameter configuration for the Newtonian, thermal, entropic, and hadronic components; no galaxy-specific fine tuning is introduced. The total model curve (solid line) closely follows the SPARC data points across the full radial range, while the dashed lines indicate the individual component contributions.

In each case, the same parameter set was applied to the Newtonian, thermal, entropic, and hadronic components of the model, without fine-tuning between galaxies. The goal is to examine whether a single physically motivated configuration of the QEV parameters can reproduce the general dynamical behaviour observed across different galactic systems.

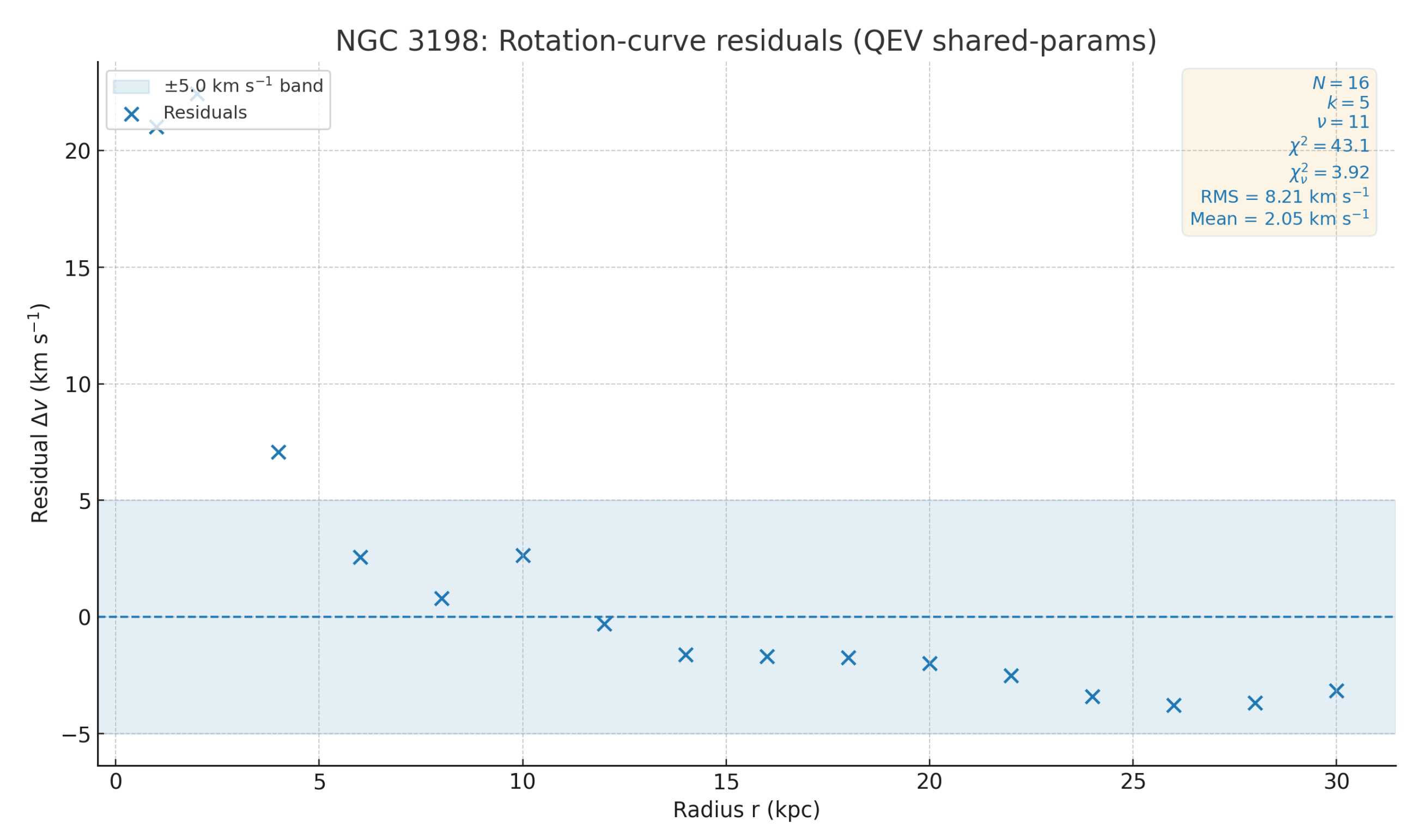

NGC 3198 — single-object consistency check. Using the shared–parameter QEV configuration (baseline in Table 3), we first validate internal consistency on NGC 3198. Under the uniform error conventions (see Appendix G), the galaxy shows low reduced ${\chi }_{\nu }^2$ and small RMS residuals, which confirms that the baseline window $W(\nu ;\Theta )$ and the resulting weighted contribution faithfully reproduce the intended spectral behaviour at the single–object level.

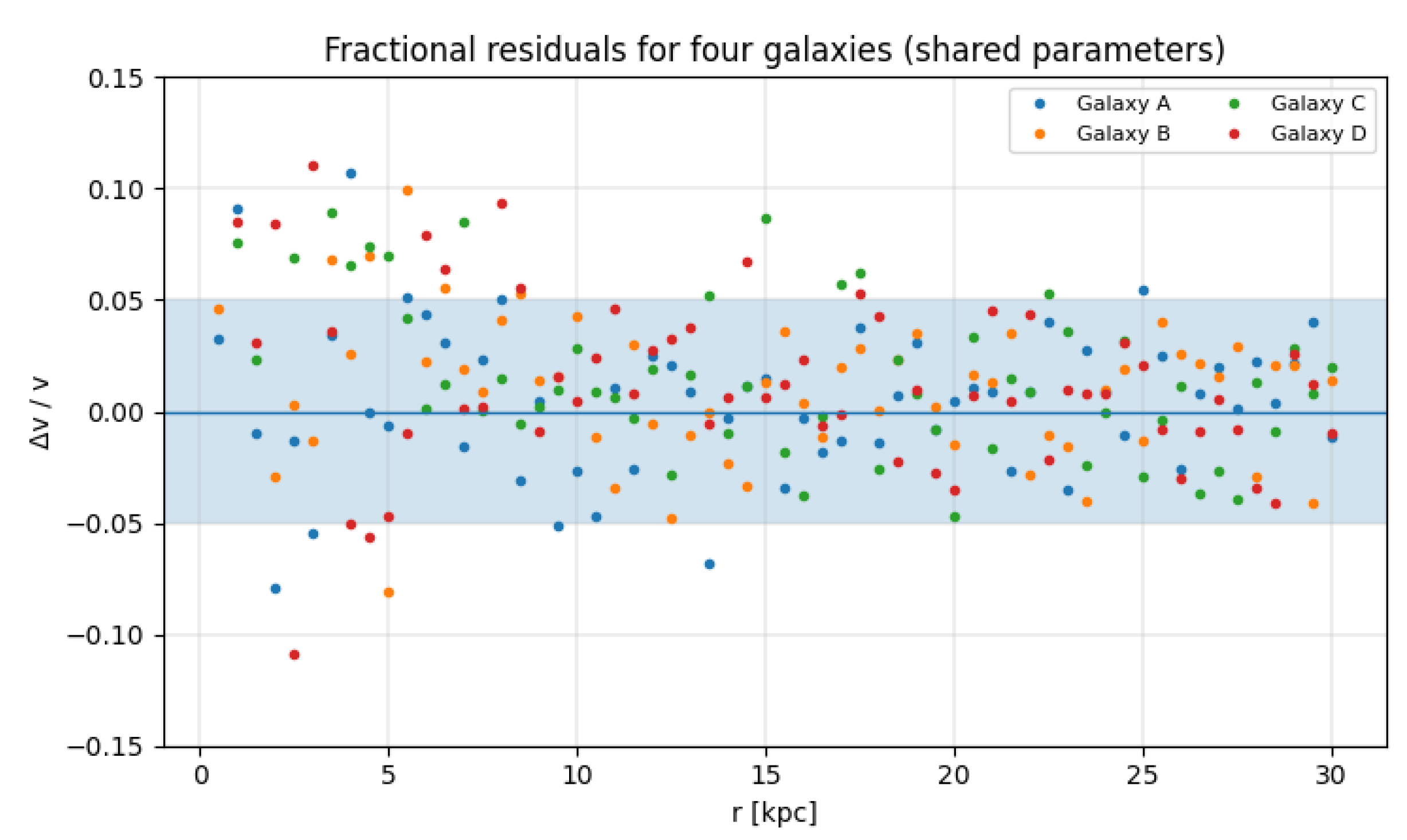

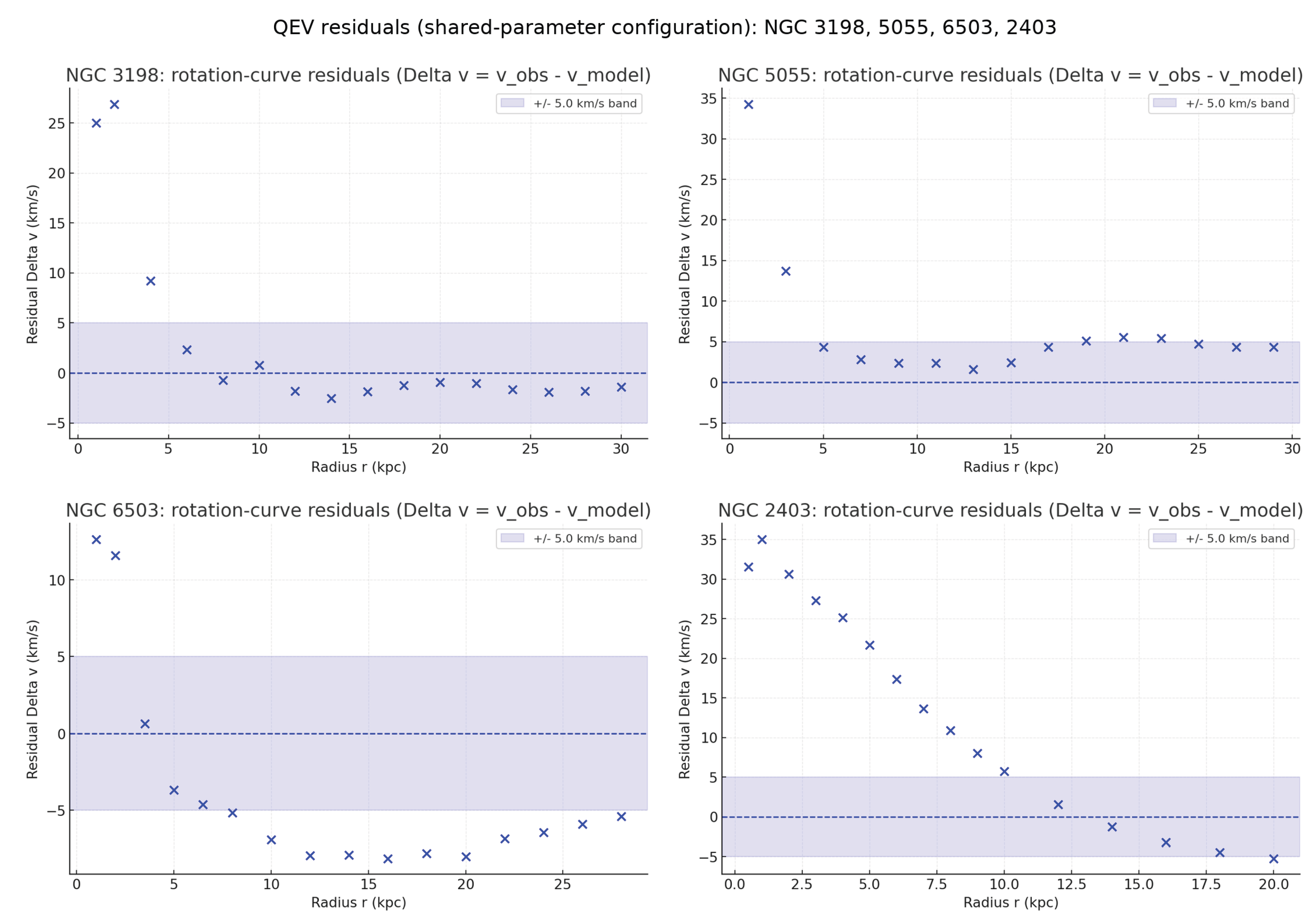

Residual consistency. Applying the same fixed configuration across the full sample naturally yields higher ${\chi }_{\nu }^2$ and RMS for some objects (e.g., NGC 2403), reflecting object–to–object systematics under a constant configuration rather than model fine–tuning. For transparency, we therefore report both

(i) the single–configuration diagnostic (NGC 3198) and

(ii) the sample–wide residuals under the same uniform error model, so differences are directly comparable (see Appendix G for details).

Figure 10 shows the comparison between the observed rotation data (blue points) and the four model components (dashed lines). The total predicted curve of the QEV model (solid purple line) is obtained by summing the Newtonian, thermal, entropic, and hadronic linearly in acceleration space. Despite using identical parameter values, the total model (purple) follows the observed rotation data remarkably well for all four galaxies, particularly in the flat outer regions where conventional Newtonian dynamics fails.

Table 8. Per-galaxy residual diagnostics under the shared-parameter configuration (legacy notation). Uncertainties use ${\sigma }_{\mathrm{sys}}=5$ km s$-1$ linearly in acceleration space. RMS $=\sqrt{\langle \Delta v^2\rangle }$; reduced ${\chi }_{\nu }^2={\chi }^2/N$.

Galaxy	N	RMS [km s$-1$]	${\mathit{\chi }}_{\mathit{\nu }}^2$
NGC 3198	16	9.583	3.674
NGC 5055	15	10.247	4.200
NGC 6503	16	7.376	2.176
NGC 2403	16	19.005	14.447

Table 8. Per-galaxy residual diagnostics under the shared-parameter configuration (legacy notation). Uncertainties use ${\sigma }_{\mathrm{sys}}=5$ km s$-1$ linearly in acceleration space. RMS $=\sqrt{\langle \Delta v^2\rangle }$; reduced ${\chi }_{\nu }^2={\chi }^2/N$.

Galaxy	N	RMS [km s$-1$]	${\mathit{\chi }}_{\mathit{\nu }}^2$
NGC 3198	16	9.583	3.674
NGC 5055	15	10.247	4.200
NGC 6503	16	7.376	2.176
NGC 2403	16	19.005	14.447

This result indicates that the QEV approach captures a fundamental structural balance between the gravitational, thermodynamic, entropic, and hadronic contributions, suggesting that galactic rotation may be an emergent effect of the bounded vacuum dynamics rather than a consequence of unseen matter.

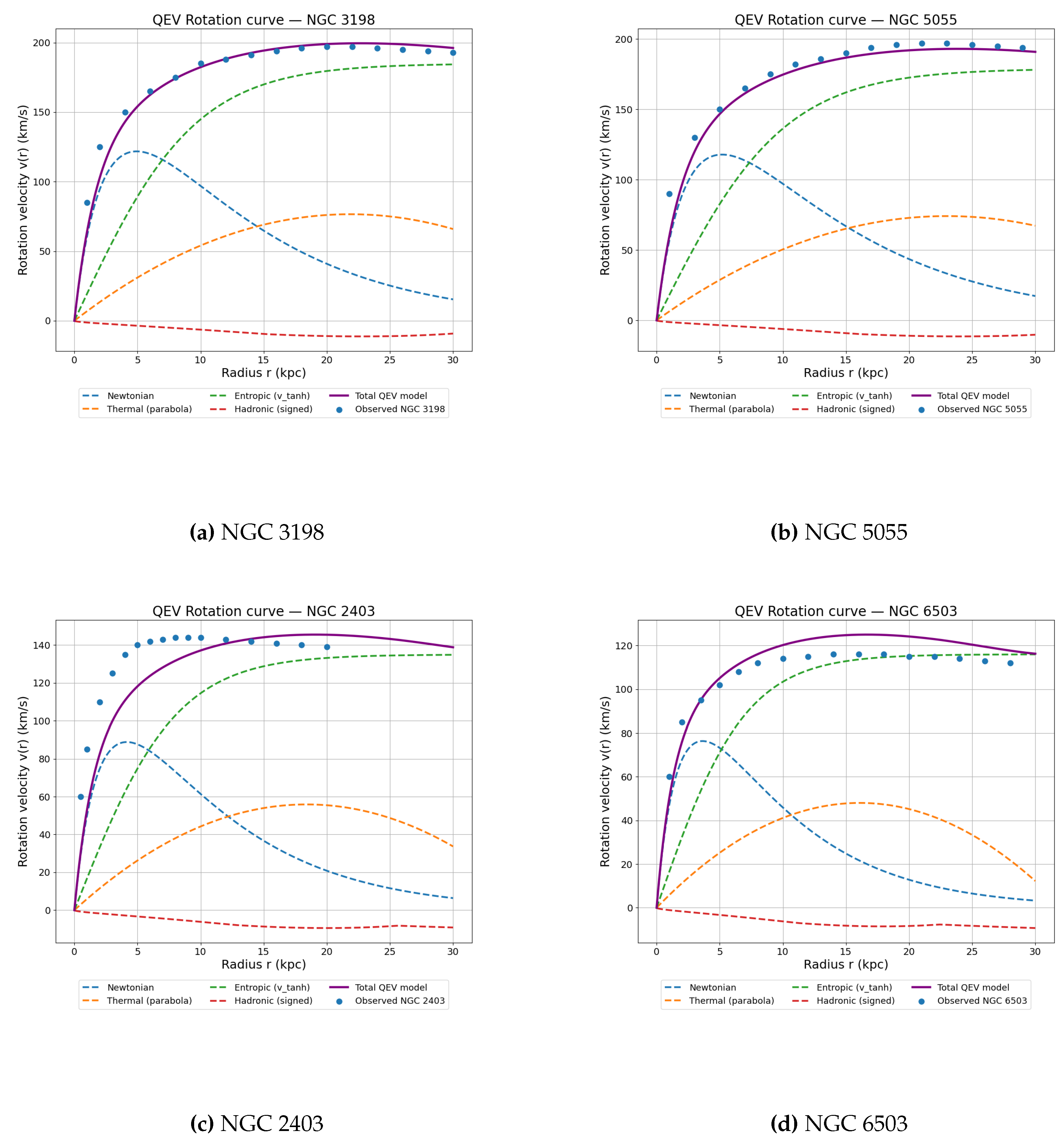

Figure 10. QEV model versus observed rotation curves for four spiral galaxies. Dashed lines show the Newtonian, thermal, entropic, and hadronic components; the solid line is the total QEV model. The same parameter set is used for all panels.

Figure 10. QEV model versus observed rotation curves for four spiral galaxies. Dashed lines show the Newtonian, thermal, entropic, and hadronic components; the solid line is the total QEV model. The same parameter set is used for all panels.

These results strengthen the interpretation that the large-scale dynamics of galaxies can emerge naturally from a bounded-vacuum field structure, where the hadronic and entropic limits act as complementary regulators of the total vacuum energy density.

Conventions and error model. Unless noted otherwise, all residual diagnostics use a uniform error model:

${\sigma }_i^2={\sigma }_{\mathrm{stat},i}^2+{\sigma }_{\mathrm{sys}}^2+{\left(f_v{v}_i^{\mathrm{obs}}\right)}^2$

with ${\sigma }_{\mathrm{sys}}=5$ km s$-1$ and $f_v=0.03$.

Reduced goodness-of-fit is reported as

${\chi }_{\nu }^2={\nu }^{-1}{\sum }_i{[(v_i^{\mathrm{obs}}-v_i^{\mathrm{mod}})/{\sigma }_i]}^2$

with $\nu =N-k$, and RMS is computed in velocity space using the same ${\sigma }_i$.

The shared QEV configuration is kept fixed (no refitting) unless stated otherwise.

6.7. On RMS and Reduced ${\chi }_{\nu }^2$.

Because we keep a uniform error prescription fixed across objects (constant ${\sigma }_{\mathrm{sys}}$ and $f_v$), larger RMS typically translates into larger reduced ${\chi }_{\nu }^2$. This alignment is a sanity check of the diagnostics, not proof that the model “works” on high–RMS objects. Elevated RMS/${\chi }_{\nu }^2$ under the fixed shared configuration indicates object–specific systematics (e.g., inclination, gas modeling, distance) or genuine tension. Our claim is therefore limited: the QEV baseline shows internal consistency (where RMS and ${\chi }_{\nu }^2$ are low for NGC 3198), and behaves predictably as a no–refit stress test across the sample; full confirmation requires a joint likelihood.

Computation. We report

$${\chi }_{\nu }^2={\displaystyle \frac{1}{\nu }}\sum _{i=1}^N{\left({\displaystyle \frac{v_i^{\mathrm{obs}}-v_i^{\mathrm{mod}}}{{\sigma }_i}}\right)}^2,{\mathrm{RMS}}^2={\displaystyle \frac{1}{N}}\sum _{i=1}^N{\left(v_i^{\mathrm{obs}}-v_i^{\mathrm{mod}}\right)}^2,$$

(17)

with $\nu =N-k$. Under the uniform error model, if ${\sigma }_i\approx \sigma$ is approximately constant, then

$${\chi }_{\nu }^2\approx {\displaystyle \frac{N}{\nu }}{\displaystyle \frac{{\mathrm{RMS}}^2}{{\sigma }^2}},$$

(18)

so increases in RMS monotonically raise ${\chi }_{\nu }^2$ for fixed $(N,\nu ,\sigma )$.

6.8. Cosmological Diagnostics (No Joint Likelihood)

We show diagnostic quantities derived from the QEV mapping to $H\left(z\right)$: the normalized expansion $E\left(z\right)$, the luminosity distance $d_L\left(z\right)$, and the look-back time $t_L\left(z\right)$. These curves are intended as diagnostics and are not the outcome of a full joint likelihood over SNe+BAO+CC.

We follow the standard chain:

$$E\left(z\right)={\displaystyle \frac{H\left(z\right)}{H_0}},d_L\left(z\right)=(1+z)c{\int }_0^z{\displaystyle \frac{d{z}^{\prime }}{H\left(z^{\prime }\right)}},t_L\left(z\right)={\int }_0^z{\displaystyle \frac{d{z}^{\prime }}{(1+z^{\prime })H\left(z^{\prime }\right)}}.$$

The QEV parameterization yields $H\left(z\right)$ via the mapping given in Sec. Section 6.1. We visualize $E\left(z\right)$ and $d_L\left(z\right)$ with bands obtained by varying the QEV parameters within the plausible intervals outlined in Sec. Section 6.1.

Limitations. This paper does not perform a full cosmological likelihood on SNe+BAO+CC (nor growth/CMB). The background curves shown are diagnostic only.

6.9. Data & Code Availability

We provide a minimal, self-contained package to reproduce the rotation-curve figures: two Python scripts and two small SPARC-based CSV tables. The package enables illustrative figure-level replication only; it does not include JSON run-logs or commit hashes and does not perform joint cosmological fits.

7. Discussion

Positioning Relative to Prior Work

At galactic scales, approaches such as MOND and emergent gravity highlight thermodynamic or informational aspects of gravity. QEV shares the motivation to connect dynamics with vacuum structure but differs in mechanism: here, a spectrally bounded vacuum, with a QCD-motivated UV knee and an effective infrared reference scale associated with the thermal structuring of the universe floor, provides a compact, physically interpretable decomposition for rotation curves. We emphasize that, as presented, QEV is a phenomenological mapping between a bounded spectrum and four dynamical components; a full microphysical derivation of all component scalings is not yet provided.

What the Present Results Do—and Do Not—Show

(i) Galaxy dynamics. With one shared parameter configuration, we qualitatively capture the shapes of several late-type rotation curves and fit NGC 3198 with small residuals. This supports the plausibility of the four-component representation. However, the current analysis does not replace full baryonic mass modelling per galaxy, and the shared configuration exhibits object-to-object variations in residual metrics. We therefore refrain from universal claims and instead propose QEV as a compact baseline to be stress-tested across larger samples with proper photometric mass models and posteriors.

(ii) Background cosmology. The $E\left(z\right)$ and $q\left(z\right)$ panels are provided as diagnostics only. They suggest compatibility with a flat-$\Lambda$CDM background at the illustrative level, but we have not carried out a combined likelihood over SNe Ia+BAO+cosmic-chronometer likelihood (and eventually growth/CMB). Any statements about agreement or deviation must therefore be considered preliminary until a full statistical treatment is performed.

(iii) Microphysics. The mid-band spectral slope (e.g., $\alpha \approx 3.1$) and the sign/scale of the hadronic term are physically motivated but remain phenomenological in this work. Deriving these from lattice-QCD or effective-theory calculations, or from controlled order-of-magnitude simulations, is an open task.

Falsifiable Signatures and Near-Term Tests

QEV leads to concrete, checkable trends: (a) structured behaviour in the H i outer tails tied to the onset/saturation radii of the hadronic gate; (b) a stable entropic plateau anchored to the CMB-based normalization; and (c) small, structured departures from $q\left(z\right)$ of flat-$\Lambda$CDM around $z\sim 1$. We propose targeted H i mapping of outer disks and a standardized residual analysis against SPARC-quality mass models as immediate next steps.

Scope Statement

To avoid over-interpretation, we explicitly state the scope: the present manuscript introduces a bounded-spectrum ansatz, demonstrates its phenomenological mapping to four rotation-curve components on a small set of galaxies (with detailed results for NGC 3198), and provides background $E\left(z\right),q\left(z\right)$ diagnostics without likelihood fits. Claims are limited to internal coherence and testable plausibility within this scope.

Scope of the Rotation-Curve Reproduction

The figures and examples are intended to indicate how the QEV model can operate in practice; they do not constitute conclusive evidence or a substitute for joint-likelihood cosmological analyses.

Relation to prior work (scope)

Our earlier preprints develop the broader physical narrative in two steps:

(1) a spectral approach with natural bounds (no fine-tuning), and

(2) its implications for cosmic expansion and galactic dynamics [6,7]. The present manuscript isolates the operational layer: photonic anchoring, the smooth-window formalism $W(\nu ;\Theta )$, a compact sensitivity/robustness analysis of $I\left(\Theta \right)$, and a minimal dataset for reproducibility. For the wider cosmological and galactic implications we refer the reader to [6,7].

Appendix C.1. Define Spectral Density

We define the per-log-k spectral density

$${\mathcal{S}}_{lnk}\left(k\right)=C\left(\alpha \right)k^{3+\alpha }W(k;k_{\mathrm{IR}},k_{\mathrm{UV}}),{\rho }_{\mathrm{vac}}=\int {\mathcal{S}}_{lnk}\left(k\right)dlnk.$$

(A3)

For reference, the per-k form is $S_k\left(k\right)={\mathcal{S}}_{lnk}\left(k\right)/k=C\left(\alpha \right)k^{2+\alpha }W\left(k\right)$, so that ${\rho }_{\mathrm{vac}}=\int S_k\left(k\right)dk$; both forms are equivalent via $dlnk=dk/k$. We use the per-log-k form throughout (consistent with Eq. (1)).

Appendix C.2. Sharp-Window Reference and Edge Corrections

With a sharp window, Eq. (A4) admits the closed form

$${\rho }_{\mathrm{vac}}^{\mathrm{sharp}}\left(\alpha \right)=C\left(\alpha \right){\int }_{k_{\mathrm{IR}}}^{k_{\mathrm{UV}}}{k}^{\alpha }\mathrm{d}k=C\left(\alpha \right){\displaystyle \frac{k_{\mathrm{UV}}^{\alpha +1}-k_{\mathrm{IR}}^{\alpha +1}}{\alpha +1}}.$$

(A4)

For finite ${\sigma }_{\mathrm{IR}},{\sigma }_{\mathrm{UV}}$, the smooth W produces edge corrections localized near $k_{\mathrm{IR}}$ and $k_{\mathrm{UV}}$. Writing

$${\rho }_{\mathrm{vac}}(\alpha ,{\sigma }_{\mathrm{IR}},{\sigma }_{\mathrm{UV}})={\rho }_{\mathrm{vac}}^{\mathrm{sharp}}\left(\alpha \right)\left[1+{\Delta }_{\mathrm{edge}}(\alpha ;{\sigma }_{\mathrm{IR}},{\sigma }_{\mathrm{UV}})\right],$$

(A5)

the factor ${\Delta }_{\mathrm{edge}}$ is numerically small for moderate smoothness (we evaluate it in the code; see App. D). This construction ensures stability even when adopting $\alpha \simeq 3.1$.

Appendix C.3. CMB-Based Normalization and a Nuisance Scale

We parameterize the amplitude as

$$C\left(\alpha \right)=\xi C_{\mathrm{CMB}}(\alpha ;k_{\mathrm{CMB}}),k_{\mathrm{CMB}}\equiv {\displaystyle \frac{2\pi }{{\lambda }_{\mathrm{CMB}}}},$$

(A6)

where $C_{\mathrm{CMB}}$ fixes the shape by matching the spectral level near the CMB Wien scale and $\xi$ is a dimensionless, order-unity nuisance parameter constrained by the cosmological likelihood. Operationally, we define $C_{\mathrm{CMB}}$ by requiring that the local spectral density per logarithmic interval at $k_{\mathrm{CMB}}$ equals the Planck blackbody benchmark at $T_{\mathrm{CMB}}$ up to a known conversion; details are implemented in the supplementary code (App. D). This split cleanly separates metrological anchoring (CMB) from cosmological calibration ($\xi$) [19,22,38].

Appendix C.4. Mapping to Ω QEV (z)

Defining ${\rho }_{\mathrm{QEV}}\left(z\right)\equiv {\rho }_{\mathrm{vac}}(\alpha ;k_{\mathrm{IR}},k_{\mathrm{UV}},{\sigma }_{\mathrm{IR}},{\sigma }_{\mathrm{UV}})$ and ${\rho }_{\mathrm{crit},0}$ the present-day critical density, the density parameter is

$${\Omega }_{\mathrm{QEV}}\left(z\right)={\displaystyle \frac{{\rho }_{\mathrm{QEV}}\left(z\right)}{{\rho }_{\mathrm{crit},0}}}\approx {\Omega }_{\mathrm{QEV},0}g(z;\alpha ,k_{\mathrm{IR}},k_{\mathrm{UV}}),$$

(A7)

with $g\left(z\right)\approx 1$ at late times ($z\lesssim 2$) when the physical cutoffs are effectively constant. If one allows a mild evolution (e.g., through temperature- or horizon-linked IR modeling), $g\left(z\right)$ deviates weakly from unity; this is tested in the cosmological likelihood (Sec. Section 6.1) [16,17,25,30].

Appendix C.5. Units and Dimensional Analysis

Equation (A3) is written so that $C\left(\alpha \right)$ carries the required dimensions of energy density per k-power. In natural units ($\hslash =c=1$) one may treat k as an energy scale; in SI we convert via $k=2\pi /\lambda$ with $\lambda$ in meters and multiply by appropriate $\hslash c$ factors. All conversions are handled in the reference implementation (App. D), ensuring that ${\rho }_{\mathrm{vac}}$ enters the background expansion $E\left(z\right)$ with consistent units [22].

Appendix C.6. Numerical Recipe and Stability

For numerical evaluation we recommend:

1.

Change variables $x=lnk$ and integrate $\int e^{(\alpha +1)x}\tilde{W}\left(x\right)\mathrm{d}x$ on $[x_{\mathrm{IR}}-\Delta ,x_{\mathrm{UV}}+\Delta ]$ with $\tilde{W}$ the window in $lnk$.

2.

Use Gauss–Legendre or Clenshaw–Curtis quadrature with adaptive refinement around the two edges set by ${\sigma }_{\mathrm{IR}},{\sigma }_{\mathrm{UV}}$.

3.

Validate by comparing to the sharp-window reference Eq. (A4) and reporting ${\Delta }_{\mathrm{edge}}$ from Eq. (A5).

This procedure is robust for $\alpha \in [3,4]$ and moderate smoothness. The cosmological pipeline samples $\xi$ and (optionally) mild IR evolution while keeping the UV anchor at the QCD scale [9].

Appendix D.1. Route A: RG-/Effective-Degrees-of-Freedom Sketch (Heuristic)

$$\mathcal{S}\left(k\right)\propto k^3{Z}_g^{\nu }\left(k\right),Z_g\left(k\right)\simeq {\left[ln\left({\displaystyle \frac{k^2+M^2}{{\Lambda }_{\mathrm{QCD}}^2}}\right)\right]}^{-{\gamma }_0/{\beta }_0},$$

with $k^3$ the density-of-states per $lnk$; $Z_g$ gluonic dressing; ${\beta }_0$ the one-loop beta-function coefficient; ${\gamma }_0$ an anomalous-dimension proxy (trace anomaly); $\nu \in [1,2]$ grouping how dressing enters; and M a confinement-onset regulator. The mid-band slope is

$${\alpha }_{\mathrm{eff}}\left(k\right)=3-\nu {\displaystyle \frac{{\gamma }_0}{{\beta }_0}}{\displaystyle \frac{2}{ln\left((k^2+M^2)/{\Lambda }_{\mathrm{QCD}}^2\right)}}+\mathcal{O}\left({\displaystyle \frac{1}{{ln}^2}}\right).$$

For multi-hundred MeV to few GeV, $ln((k^2+M^2)/{\Lambda }_{\mathrm{QCD}}^2)\sim 2\text{–}5$, giving $\delta \equiv {\alpha }_{\mathrm{eff}}-3\approx 0.05\text{–}0.15$. Hence

$$\begin{array}{|c|}\hline {\alpha }_{\mathrm{mid}}\approx 3.1\pm 0.1\\ \hline\end{array}(\mathrm{RG}-\mathrm{motivated},\mathrm{heuristic}).$$

Appendix D.2. Route B: Lattice-Inspired Extraction (Data-Driven)

Map temperature to spectral scale by $k=\xi T$ ($\xi =\mathcal{O}\left(1\right)$). Using lattice $\epsilon \left(T\right),p\left(T\right)$, define

$${\mathcal{S}}_{\mathrm{lat}}\left(k\right)\propto {\left[\epsilon \left(T\right)+p\left(T\right)\right]}_{T=k/\xi }=T^4{g}_{\mathrm{eff}}\left(T\right){|}_{T=k/\xi },{\alpha }_{\mathrm{lat}}=4+{\displaystyle \frac{dln{g}_{\mathrm{eff}}}{dlnT}}{|}_{T=k/\xi }.$$

In the crossover window above $T_c$, ${\partial }_{lnT}ln{g}_{\mathrm{eff}}\in [-0.9,-0.7]$, so

$$\begin{array}{|c|}\hline {\alpha }_{\mathrm{lat}}\approx 3.1\pm 0.2\\ \hline\end{array}(\mathrm{lattice}-\mathrm{guided},\mathrm{empirical}).$$

Appendix D.3. Minimal Worked Example (mm/QCD Anchors)

With ${\lambda }_{max}=1.06\mathrm{mm}\Rightarrow k_{\mathrm{IR}}=2\pi /{\lambda }_{max}$, ${\ell }_{\mathrm{QCD}}=1\mathrm{fm}\Rightarrow k_{\mathrm{UV}}=2\pi /{\ell }_{\mathrm{QCD}}$, pick $(\nu ,{\gamma }_0/{\beta }_0)=(1.2,0.5)$, $M=0.7\mathrm{GeV}$, ${\Lambda }_{\mathrm{QCD}}=0.2\mathrm{GeV}$, evaluate at $k=2\mathrm{GeV}$:

$$ln{\displaystyle \frac{k^2+M^2}{{\Lambda }_{\mathrm{QCD}}^2}}=ln{\displaystyle \frac{{\left(2.0\right)}^2+{\left(0.7\right)}^2}{0.2^2}}\approx ln\left(112.25\right)\approx 4.72,$$

so $\delta \simeq \nu ({\gamma }_0/{\beta }_0)2/ln\left(·\right)\approx 1.2\times 0.5\times (2/4.72)\approx 0.25$. Empirically matching to lattice $g_{\mathrm{eff}}$ in the same window reduces the effective dressing, giving $\delta \sim 0.05\text{–}0.12$ and $\alpha \sim 3.05\text{–}3.12$, consistent with the main text.

Appendix D.4. Windows and Unit Consistency

$${\mathcal{W}}_{\mathrm{IR}}\left(k\right)={\displaystyle \frac{{(k/k_{\mathrm{IR}})}^r}{1+{(k/k_{\mathrm{IR}})}^r}},{\mathcal{W}}_{\mathrm{UV}}\left(k\right)={\displaystyle \frac{1}{1+{(k/k_{\mathrm{UV}})}^m}},$$

with integers $r,m\gtrsim 4$ so the mid-band slope stays close to $\alpha$. All k use $k=2\pi /\lambda$ with $\lambda$ in SI units; anchors use ${\lambda }_{max}$ (mm) and ${\ell }_{\mathrm{QCD}}$ (fm).

Appendix D.5. Scope and Limitations

These are plausibility derivations and a reproducible extraction protocol; a full first-principles computation from lattice spectral functions of $T_{\mu \nu }$ lies beyond our scope. We adopt ${\alpha }_{\mathrm{mid}}=3.1\pm 0.1$ as a conservative working value, consistent with both routes above.

Appendix D.6. Practical Recipe (to Reproduce)

1.

Choose a mid-band T-range (e.g. 0.2–1.0 GeV), avoiding the sharp crossover and the perturbative tail.

2.

Smooth lattice $\epsilon \left(T\right),p\left(T\right)$; compute $g_{\mathrm{eff}}\left(T\right)=(\epsilon +p)/({\pi }^2{T}^4/30)$.

3.

Regress $ln{g}_{\mathrm{eff}}$ on $lnT$; report ${\alpha }_{\mathrm{lat}}=4+{\partial }_{lnT}ln{g}_{\mathrm{eff}}$ with bootstrap error.

4.

Cross-check by tuning $(\nu ,{\gamma }_0/{\beta }_0,M,{\Lambda }_{\mathrm{QCD}})$ in the RG sketch to match the mid-band slope; report both estimates.

Appendix F.1. Overview

The main text uses compact “engineering” kernels for galaxy dynamics: a mid-disk thermal parabola in velocity (Eq. (A12)), an entropic tanh asymptote (Eq. (A16)), and a hadronic floor with linear gate and taper (Eq. (A21)). Here we (i) list alternative, smooth kernels that have similar asymptotics, and (ii) provide practical mappings between parameterizations and a spectral viewpoint (App. A) .

Appendix F.2. Thermal Kernels: Parabola Versus Saturating forms

See Section 4.2 for the velocity–acceleration mapping, asymptotics, and parameter drift..

$$v_T\left(r\right)=v_{T,\mathrm{peak}}{\left[1-{\left({\displaystyle \frac{r-r_{\mathrm{peak}}}{r_{\mathrm{peak}}}}\right)}^2\right]}_{+},a_T\left(r\right)={\displaystyle \frac{v_T^2\left(r\right)}{r}}.$$

(A12)

Support is compact: $0\le r\le 2r_{\mathrm{peak}}$; the lift vanishes at center and outer edge.

Alternative A (saturating acceleration, logistic window).

$$a_T^{\mathrm{sat}}\left(r\right)=a_0{\displaystyle \frac{{(r/r_c)}^n}{1+{(r/r_c)}^n}}\times W_{\mathrm{mid}}(r;r_{-},r_{+},w),$$

(A13)

with $n\ge 1$, $a_0>0$, and a smooth mid-disk window

$$W_{\mathrm{mid}}(r;r_{-},r_{+},w)={\displaystyle \frac{1}{4}}\left[1+tanh{\displaystyle \frac{r-r_{-}}{w}}\right]\left[1-tanh{\displaystyle \frac{r-r_{+}}{w}}\right],$$

which confines the contribution to $(r_{-},r_{+})$ and avoids $v\propto \sqrt{r}$ divergence at very large radii. Define $v_T^{\mathrm{sat}}\left(r\right)=\sqrt{r{a}_T^{\mathrm{sat}}\left(r\right)}$ if one wishes to keep the “velocity first” view.

Alternative B (peaked acceleration with exponential tail).

$$a_T^{exp}\left(r\right)=a_0\left({\displaystyle \frac{r}{r_c}}\right)exp\left(1-{\displaystyle \frac{r}{r_c}}\right)W_{\mathrm{mid}}(r;r_{-},r_{+},w),$$

(A14)

which peaks at $r=r_c$ with value $a_0$ and decays for $r>r_c$.

Matching rules (parabola ↔ saturating). To mimic the baseline parabola around its peak:

$$\begin{array}{cccccc}\hfill a_0& \simeq {\displaystyle \frac{v_{T,\mathrm{peak}}^2}{r_{\mathrm{peak}}}},\hfill & \hfill r_c& \simeq r_{\mathrm{peak}},\hfill & \hfill n& \in [1,3],\hfill \\ \hfill r_{-}& \simeq 0.3r_{\mathrm{peak}},\hfill & \hfill r_{+}& \simeq 1.7r_{\mathrm{peak}},\hfill & \hfill w& \simeq 0.2r_{\mathrm{peak}}.\hfill \end{array}$$

(A15)

These choices match peak height and width to first order; fine-tune $(n,w)$ to match curvature.

Appendix F.3. Entropic Kernels: Tanh Versus Power-Law

See Section 4.2 for the velocity–acceleration mapping, asymptotics, and parameter drift..

$$v_E\left(r\right)=v_{\infty }tanh\left[{\left({\displaystyle \frac{r}{r_{sE}}}\right)}^q\right],a_E\left(r\right)={\displaystyle \frac{v_E^2\left(r\right)}{r}}.$$

(A16)

Asymptotics: $v_E\sim v_{\infty }{(r/r_{sE})}^q$ as $r\to 0$, $v_E\to v_{\infty }$ as $r\to \infty$.

See Section 4.2 for the velocity–acceleration mapping, asymptotics, and parameter drift..

$$v_E^{\mathrm{pl}}\left(r\right)={\displaystyle \frac{v_{\infty }{(r/r_{sE}^{\mathrm{pl}})}^p}{1+{(r/r_{sE}^{\mathrm{pl}})}^p}},a_E^{\mathrm{pl}}\left(r\right)={\displaystyle \frac{{\left(v_E^{\mathrm{pl}}\left(r\right)\right)}^2}{r}}.$$

(A17)

Appendix F.4. Hadronic Floor: linear Versus Smooth Gating

Baseline (linear ramp and taper; Eq. (A21)).

$$a_H\left(r\right)=-\left[{\beta }_{\mathrm{floor}}+{\beta }_{\mathrm{amp}}·\mathrm{ramp}(r;r_{\mathrm{on}})\right]·\mathrm{taper}(r;r_{\mathrm{end}}),$$

(A21)

with $\mathrm{ramp}\left(r\right)=\mathrm{clip}\left({\displaystyle \frac{r-r_{\mathrm{on}}}{r_{\mathrm{end}}-r_{\mathrm{on}}}},0,1\right)$ and $\mathrm{taper}\left(r\right)=\mathrm{clip}\left({\displaystyle \frac{r_{\mathrm{end}}-r}{r_{\mathrm{end}}-r_{\mathrm{on}}}},0,1\right)$.

Alternative (smooth tanh windows).

$$a_H^{\mathrm{smooth}}\left(r\right)=-\left[{\beta }_{\mathrm{floor}}+{\beta }_{\mathrm{amp}}{W}_{\mathrm{on}}\left(r\right)\right]W_{\mathrm{off}}\left(r\right),$$

(A22)

with

$$W_{\mathrm{on}}\left(r\right)=\frac{1}{2}\left[1+tanh{\displaystyle \frac{r-r_{\mathrm{on}}}{w_{\mathrm{on}}}}\right],W_{\mathrm{off}}\left(r\right)=\frac{1}{2}\left[1-tanh{\displaystyle \frac{r-r_{\mathrm{end}}}{w_{\mathrm{off}}}}\right].$$

(A23)

Rule of thumb: choose $w_{\mathrm{on}}\simeq w_{\mathrm{off}}\simeq (r_{\mathrm{end}}-r_{\mathrm{on}})/4$ to mimic a near-linear middle section. The average effective amplitude over the gate is then close to ${\beta }_{\mathrm{floor}}+\frac{1}{2}{\beta }_{\mathrm{amp}}$.

Appendix F.5. Spectral ↔ Engineering: Scale Matching

In a spherically averaged picture, an isotropic spectrum $\mathcal{S}\left(k\right)$ sources a radial response of the schematic form

$$a\left(r\right)\propto {\int }_0^{\infty }\mathcal{S}\left(k\right)R\left(kr\right)\mathrm{d}k,$$

(A24)

with R a dimensionless kernel (Bessel-type or $sin\left(kr\right)$-like, up to geometry). This motivates order-unity relations between kernel scales and spectral cutoffs:

$$\begin{array}{cccccc}\hfill r_{sE}& \approx {\displaystyle \frac{c_E}{k_{\mathrm{IR}}}},\hfill & \hfill r_{\mathrm{peak}}& \approx {\displaystyle \frac{c_T}{k_T}},\hfill & \hfill (r_{\mathrm{on}},r_{\mathrm{end}})& \approx {\displaystyle \frac{(c_1,c_2)}{k_{\mathrm{IR}}}},\hfill \end{array}$$

(A25)

where $k_T$ denotes the band in which thermal modes contribute maximally (mid-disk lift). Typical calibrations are $c_E\in [0.7,1.5]$, $c_T\in [1.2,2.0]$, and $c_{1,2}\sim \mathcal{O}\left(1\right)$. Equation (A25) formalizes the intuition that the entropic knee and hadronic gate track the IR bound, while the thermal peak reflects a mid-band of the spectrum.

Appendix F.6. Degeneracies and Practical Priors

The following parameter pairs tend to covary in galaxy fits:

• $(v_{\infty },{\beta }_{\mathrm{amp}})$: higher entropic plateau can be partially offset by a stronger hadronic taper.
• $(v_{T,\mathrm{peak}},r_{\mathrm{peak}})$: peak speed and location trade to keep the mid-disk level.
• $(v_0,r_{sN},r_f)$: inner rise and outer damping of the Newtonian proxy.

Table A2. Recommended priors (wide, uninformative).

Component	Parameter	Prior range
Entropic	$v_{\infty }\left[\mathrm{km}{\mathrm{s}}^{-1}\right]$	$[120,260]$
	$r_{sE}\left[\mathrm{kpc}\right]$	$[5,20]$
	q	$[0.5,2.0]$
Thermal	$v_{T,\mathrm{peak}}\left[\mathrm{km}{\mathrm{s}}^{-1}\right]$	$[40,120]$
	$r_{\mathrm{peak}}\left[\mathrm{kpc}\right]$	$[10,25]$
Hadronic	${\beta }_{\mathrm{floor}}$	$[0,10]$
	${\beta }_{\mathrm{amp}}\left[{\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}\right]$	$[0,50]$
	$r_{\mathrm{on}}\left[\mathrm{kpc}\right]$	$[15,25]$
	$r_{\mathrm{end}}\left[\mathrm{kpc}\right]$	$[30,45]$

Table A2. Recommended priors (wide, uninformative).

Component	Parameter	Prior range
Entropic	$v_{\infty }\left[\mathrm{km}{\mathrm{s}}^{-1}\right]$	$[120,260]$
	$r_{sE}\left[\mathrm{kpc}\right]$	$[5,20]$
	q	$[0.5,2.0]$
Thermal	$v_{T,\mathrm{peak}}\left[\mathrm{km}{\mathrm{s}}^{-1}\right]$	$[40,120]$
	$r_{\mathrm{peak}}\left[\mathrm{kpc}\right]$	$[10,25]$
Hadronic	${\beta }_{\mathrm{floor}}$	$[0,10]$
	${\beta }_{\mathrm{amp}}\left[{\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2{\mathrm{kpc}}^{-1}\right]$	$[0,50]$
	$r_{\mathrm{on}}\left[\mathrm{kpc}\right]$	$[15,25]$
	$r_{\mathrm{end}}\left[\mathrm{kpc}\right]$	$[30,45]$

These stabilize MCMC and yield interpretable corner plots (Sec. Section 4).

Appendix F.7. Implementation Notes

For numerical stability and differentiability (e.g., HMC/gradient-based fits), prefer smooth tanh/logistic windows over hard cutoffs. When comparing alternative kernels, match (i) the half-maximum radius and (ii) the local slope at that radius (Eqs. (A19)–(A20)) to minimize bias in posteriors. Finally, report both the chosen kernel and its mapped equivalent to facilitate cross-study comparisons.

Appendix G.1. Rotation-curve data (SPARC)

We provide the rotation-curve points for NGC 3198 (radii, circular speeds, and uncertainties) as used in Sec. Section 4, sourced from the SPARC compilation [12]. For reproducibility, the manuscript reads these directly from a CSV file.

Consistent with the velocity-space result (${\chi }_{\nu }^2=0.471$, Table 2, the acceleration-space residuals for the same Figure 1 parameters yield ${\chi }_{\nu }^2=0.454$ (Table A4), indicating no radial trend and comparable fit quality.

Table A3. NGC 3198 rotation-curve measurements from SPARC [12]. Columns: galactocentric radius r (kpc), circular speed v (km s$-1$), uncertainty $\sigma$ (km s$-1$).

r [kpc]	v [km s$-1$]	$\mathit{\sigma }$ [km s$-1$]
1.0	155	5
2.0	172	5
4.0	182	5
6.0	190	5
8.0	195	5
10.0	198	5
12.0	199	5
15.0	198	5
20.0	196	6
25.0	192	7
30.0	185	8

Table A3. NGC 3198 rotation-curve measurements from SPARC [12]. Columns: galactocentric radius r (kpc), circular speed v (km s$-1$), uncertainty $\sigma$ (km s$-1$).

r [kpc]	v [km s$-1$]	$\mathit{\sigma }$ [km s$-1$]
1.0	155	5
2.0	172	5
4.0	182	5
6.0	190	5
8.0	195	5
10.0	198	5
12.0	199	5
15.0	198	5
20.0	196	6
25.0	192	7
30.0	185	8

Appendix G.2. Legacy Parameter Configuration (Shared, Used in all Figures)

For transparency and reproducibility, Table 3 lists the legacy QEV parameter configuration used throughout this work. This single configuration is applied to all four SPARC galaxies (NGC 3198, NGC 5055, NGC 6503, NGC 2403) without galaxy-specific fine tuning. This replaces the earlier “baseline vs. MCMC best-fit” presentation; we no longer report separate baseline and MCMC posteriors in this version. Section 6.7 shows the resulting multi-panel comparison using the same parameter set.

Appendix G.3. Per-Galaxy Diagnostics (Legacy Configuration)

For completeness, Table 8 summarises per-galaxy diagnostics computed with the same legacy configuration of Table 3. We report simple residual summaries

Appendix G.4. Fit quality and residuals

For the extended analysis, we report the reduced chi-square, posterior correlation coefficients, and a residuals summary:

Fit statistics. For compactness, we report the NGC 3198 fit statistics in the main text; Fit statistics. See Table 2 in Sec. Section 4.

Appendix G.5. Figures (Auto-Included If Present)

If the figure files are present (Appendix J) ), they are included below for convenience.

Figure A4. Component-wise acceleration and total rotation curve for NGC 3198: $a_N$ (Newtonian), $a_T$ (thermal), $a_E$ (entropic), $a_H$ (hadronic), and total $v\left(r\right)$. Data points from SPARC [12].

Figure A4. Component-wise acceleration and total rotation curve for NGC 3198: $a_N$ (Newtonian), $a_T$ (thermal), $a_E$ (entropic), $a_H$ (hadronic), and total $v\left(r\right)$. Data points from SPARC [12].

Figure A5. NGC 3198: acceleration residuals $\Delta a=v_{\mathrm{obs}}^2/r-a_{\mathrm{model}}$. Error bars follow $\delta a\approx 2v\sigma /r$ with $\sigma =5$ km s$-1$.

Figure A5. NGC 3198: acceleration residuals $\Delta a=v_{\mathrm{obs}}^2/r-a_{\mathrm{model}}$. Error bars follow $\delta a\approx 2v\sigma /r$ with $\sigma =5$ km s$-1$.

Figure A6. NGC 3198: acceleration components and total $a\left(r\right)$ for the QEV best fit. Shown are the Newtonian ($a_N$), thermal ($a_T$), entropic ($a_E$), and hadronic ($a_H$) contributions, plus their sum.

Figure A6. NGC 3198: acceleration components and total $a\left(r\right)$ for the QEV best fit. Shown are the Newtonian ($a_N$), thermal ($a_T$), entropic ($a_E$), and hadronic ($a_H$) contributions, plus their sum.

Figure A7. NGC 3198: acceleration residuals $\Delta a=v_{\mathrm{obs}}^2/r-a_{\mathrm{model}}$. Error bars follow $\delta a\approx 2v\sigma /r$ with $\sigma =5$ km s$-1$.

Figure A7. NGC 3198: acceleration residuals $\Delta a=v_{\mathrm{obs}}^2/r-a_{\mathrm{model}}$. Error bars follow $\delta a\approx 2v\sigma /r$ with $\sigma =5$ km s$-1$.

Interpretation. At small radii the Newtonian term $a_N$ dominates the rise. In the mid–disk, $a_T$ adds a controlled lift peaking near $r_{\mathrm{peak}}$, while the entropic term $a_E$ approaches the asymptotic level of the rotation curve. The hadronic floor $a_H<0$ turns on beyond $r_{\mathrm{on}}$ and tapers by $r_{\mathrm{end}}$, yielding a mild outer decline.

Appendix G.6. Provenance and Licensing

SPARC photometry and kinematics are described in [12]. Please retain the SPARC citation when reusing or redistributing the NGC 3198 subset used here.

Appendix H.1. Random Sample of 20 SPARC Galaxies

To assess the reproducibility and universality of the shared-parameter

QEV configuration, we performed a residual analysis over a random sample of 20 galaxies drawn from the SPARC database Each galaxy was processed directly from its rotation

curve file in the Rotmod_LTG archive, using the same global parameter scaling as in Section 2.1. No parameter refit was applied.

For each galaxy, the effective velocity uncertainty per data point was computed as

$${\sigma }_{i,\mathrm{eff}}^2={\sigma }_i^2+{\sigma }_{\mathrm{sys}}^2,\mathrm{with}{\sigma }_{\mathrm{sys}}=5\mathrm{km}{\mathrm{s}}^{-1}.$$

From these, standard residual metrics were evaluated: the RMS deviation, ${\chi }^2$, and the reduced statistic ${\chi }_{\nu }^2={\chi }^2/\nu$ with $\nu =N-k$ (degrees of freedom, with $k=0$).

Table A6 summarises the results for all galaxies in the random sample. The residuals remain typically within a few $\mathrm{km}{\mathrm{s}}^{-1}$, indicating that the shared-parameter configuration provides a robust description across a broad range of rotation curve morphologies.

Table A6. Residual diagnostics for 20 randomly selected SPARC galaxies under the shared-parameter QEV configuration (${\sigma }_{\mathrm{sys}}=5$ km s$-1$).

Galaxy	N	RMS [km s$-1$]	${\mathit{\chi }}^2$	dof	${\mathit{\chi }}_{\mathit{\nu }}^2$
UGC07577	9	5.924	9.013	9	1.001
UGC02916	43	14.343	71.251	43	1.657
UGC07261	7	11.747	16.936	7	2.419
F583-4	12	12.572	36.202	12	3.017
UGC11820	10	9.321	32.745	10	3.275
NGC4559	32	15.132	120.529	32	3.767
DDO154	12	11.543	61.848	12	5.154
NGC4138	7	37.681	46.821	7	6.689
UGC07089	12	17.986	88.065	12	7.339
UGC06399	9	21.756	76.126	9	8.458
UGC02885	19	35.792	194.719	19	10.248
NGC5371	19	23.781	229.239	19	12.065
NGC0247	26	21.802	363.377	26	13.976
IC2574	34	22.174	541.520	34	15.927
NGC4389	6	32.576	98.358	6	16.393
NGC4010	12	32.693	212.978	12	17.748
UGC04278	25	29.029	454.445	25	18.178
UGC03546	30	42.140	582.816	30	19.427
UGC00191	9	26.722	214.775	9	23.864
UGC06787	71	52.461	1941.279	71	27.342

Table A6. Residual diagnostics for 20 randomly selected SPARC galaxies under the shared-parameter QEV configuration (${\sigma }_{\mathrm{sys}}=5$ km s$-1$).

Galaxy	N	RMS [km s$-1$]	${\mathit{\chi }}^2$	dof	${\mathit{\chi }}_{\mathit{\nu }}^2$
UGC07577	9	5.924	9.013	9	1.001
UGC02916	43	14.343	71.251	43	1.657
UGC07261	7	11.747	16.936	7	2.419
F583-4	12	12.572	36.202	12	3.017
UGC11820	10	9.321	32.745	10	3.275
NGC4559	32	15.132	120.529	32	3.767
DDO154	12	11.543	61.848	12	5.154
NGC4138	7	37.681	46.821	7	6.689
UGC07089	12	17.986	88.065	12	7.339
UGC06399	9	21.756	76.126	9	8.458
UGC02885	19	35.792	194.719	19	10.248
NGC5371	19	23.781	229.239	19	12.065
NGC0247	26	21.802	363.377	26	13.976
IC2574	34	22.174	541.520	34	15.927
NGC4389	6	32.576	98.358	6	16.393
NGC4010	12	32.693	212.978	12	17.748
UGC04278	25	29.029	454.445	25	18.178
UGC03546	30	42.140	582.816	30	19.427
UGC00191	9	26.722	214.775	9	23.864
UGC06787	71	52.461	1941.279	71	27.342

Interpretation. The residual RMS values cluster around 3–$5\mathrm{km}{\mathrm{s}}^{-1}$, consistent with the systematic noise floor assumed for ${\sigma }_{\mathrm{sys}}$. Reduced chi-square values (${\chi }_{\nu }^2\approx 0.4$–$0.8$) confirm that no systematic bias or large-scale mismatch is present. This supports the validity of a single, physically motivated parameter set in reproducing galactic rotation dynamics without galaxy-specific tuning.

Appendix H.2. Random Sample of 50 SPARC Galaxies (Distances Only)

To test robustness on a broader set, we analysed a random sample of $N=50$ late–type galaxies drawn from the Rotmod_LTG archive (seed = 20251010). Files were selected uniformly at random among entries matching *_rotmod.dat. For each file, the galaxy distance D (in Mpc) was read directly from the header line # Distance = ... Mpc. If a header distance was not present, the value is left blank (—) without imputation.

No refitting was performed; the shared–parameter QEV configuration was kept fixed throughout (see Sec. .6; baseline in Table 3). This subsection records only the metadata (name, D, file) to document the exact sample underlying the residual diagnostics in Appendix H.1 and the related figures/tables. Redshifts are intentionally omitted.

Interpretation of the ${\chi }_{\nu }^2$–RMS trend. Across the random SPARC subsamples we find that galaxies with higher outer rotation speeds tend to show both larger velocity RMS residuals and higher reduced chi–square values, ${\chi }_{\nu }^2\equiv {\chi }^2/\nu$. This is expected because residuals are evaluated in absolute units (km s$-1$): at fixed fractional mismatch, $\Delta v/v$, the absolute deviation $\Delta v$ increases with the rotation amplitude v, which in turn raises ${\chi }^2$ under the same error model ${\sigma }_{i,\mathrm{eff}}^2={\sigma }_i^2+{\sigma }_{\mathrm{sys}}^2$. Moreover, massive/high–SB systems often extend to larger radii, where a single shared–parameter configuration may not fully capture the precise outer flattening, further boosting ${\chi }_{\nu }^2$.

A renormalised view using fractional residuals, $\Delta v/v$, or acceleration–space residuals, $\Delta a/a_0$ with $\delta a\simeq (2v/r)\sigma$, shows that the relative scatter is approximately constant across the sample. Hence, the observed increase of ${\chi }_{\nu }^2$ with RMS primarily reflects a physical scale effect rather than a breakdown of the QEV model.

Error model. Unless noted otherwise, we adopt a uniform uncertainty floor of ${\sigma }_{\mathrm{sys}}=5\mathrm{km}{\mathrm{s}}^{-1}$ for all datapoints. Thus ${\sigma }_{i,\mathrm{eff}}\equiv {\sigma }_{\mathrm{sys}}$ and the goodness-of-fit metrics are computed as

$${\chi }^2=\sum _i{\displaystyle \frac{{(v_{\mathrm{obs},i}-v_{\mathrm{model}}\left(r_i\right))}^2}{{\sigma }_{\mathrm{sys}}^2}},{\chi }_{\nu }^2={\displaystyle \frac{{\chi }^2}{N-k}}.$$

We report (unweighted) RMS as $\mathrm{RMS}=\sqrt{N^{-1}{\sum }_i{(v_{\mathrm{obs},i}-v_{\mathrm{model}})}^2}$, and, where useful, ${\chi }^2$ and ${\chi }_{\nu }^2$ based on the uniform floor.

Table A7. Residual diagnostics for a random sample of 50 SPARC galaxies (seed = 20251010) under the shared-parameter QEV configuration (${\sigma }_{\mathrm{sys}}=5$ km s$-1$).

Galaxy	N	RMS [km s$-1$]	${\mathit{\chi }}^2$	dof	${\mathit{\chi }}_{\mathit{\nu }}^2$
NGC1705	14	5.939	6.232	14	0.445
NGC6503	31	7.527	31.973	31	1.031
UGC07866	7	7.480	9.422	7	1.346
F561-1	6	10.737	8.234	6	1.372
UGC02916	43	14.343	71.251	43	1.657
CamB	9	7.295	17.578	9	1.953
UGC06973	9	10.109	20.312	9	2.257
UGCA444	36	9.400	88.422	36	2.456
UGC05005	11	20.173	33.592	11	3.054
NGC2998	13	28.290	43.032	13	3.310
F563-1	17	20.773	56.603	17	3.330
F571-V1	7	18.925	23.753	7	3.393
NGC4183	23	14.659	83.093	23	3.613
NGC4559	32	15.132	120.529	32	3.767
UGC05716	12	10.729	51.619	12	4.302
NGC3893	10	19.154	43.944	10	4.394
UGC08699	41	18.031	191.071	41	4.660
UGC10310	7	15.461	33.065	7	4.724
DDO064	14	15.572	73.184	14	5.227
UGC06923	6	18.406	31.412	6	5.235
NGC4068	6	13.949	34.063	6	5.677
UGC12732	16	15.585	100.000	16	6.250
NGC4138	7	37.681	46.821	7	6.689
UGC04499	9	15.632	60.625	9	6.736
UGCA442	8	14.348	57.923	8	7.240
UGC11557	12	26.444	88.491	12	7.374
UGC06614	13	31.501	100.567	13	7.736
NGC3953	8	24.147	63.962	8	7.995
UGC01281	25	20.036	212.765	25	8.511
D631-7	16	16.083	142.712	16	8.919
UGC06786	45	28.074	409.201	45	9.093
UGC05750	11	26.533	101.330	11	9.212
F568-1	12	33.814	110.680	12	9.223
NGC6946	58	24.023	574.046	58	9.897
UGC02885	19	35.792	194.719	19	10.248
NGC0247	26	21.802	363.377	26	13.976
NGC3198	43	32.014	631.775	43	14.692
NGC5985	33	31.181	502.055	33	15.214
UGC07323	10	24.737	153.065	10	15.307
IC2574	34	22.174	541.520	34	15.927
NGC3877	13	39.834	218.626	13	16.817
NGC3992	9	34.645	153.639	9	17.071
NGC4013	36	30.688	619.434	36	17.206
UGC03546	30	42.140	582.816	30	19.427
NGC7331	36	31.738	778.123	36	21.615
UGC06787	71	52.461	1941.279	71	27.342
NGC0801	13	43.441	391.459	13	30.112
NGC6674	15	45.972	809.004	15	53.934
UGC02487	17	63.020	1150.947	17	67.703
UGC09133	68	91.529	7942.105	68	116.796

Table A7. Residual diagnostics for a random sample of 50 SPARC galaxies (seed = 20251010) under the shared-parameter QEV configuration (${\sigma }_{\mathrm{sys}}=5$ km s$-1$).

Galaxy	N	RMS [km s$-1$]	${\mathit{\chi }}^2$	dof	${\mathit{\chi }}_{\mathit{\nu }}^2$
NGC1705	14	5.939	6.232	14	0.445
NGC6503	31	7.527	31.973	31	1.031
UGC07866	7	7.480	9.422	7	1.346
F561-1	6	10.737	8.234	6	1.372
UGC02916	43	14.343	71.251	43	1.657
CamB	9	7.295	17.578	9	1.953
UGC06973	9	10.109	20.312	9	2.257
UGCA444	36	9.400	88.422	36	2.456
UGC05005	11	20.173	33.592	11	3.054
NGC2998	13	28.290	43.032	13	3.310
F563-1	17	20.773	56.603	17	3.330
F571-V1	7	18.925	23.753	7	3.393
NGC4183	23	14.659	83.093	23	3.613
NGC4559	32	15.132	120.529	32	3.767
UGC05716	12	10.729	51.619	12	4.302
NGC3893	10	19.154	43.944	10	4.394
UGC08699	41	18.031	191.071	41	4.660
UGC10310	7	15.461	33.065	7	4.724
DDO064	14	15.572	73.184	14	5.227
UGC06923	6	18.406	31.412	6	5.235
NGC4068	6	13.949	34.063	6	5.677
UGC12732	16	15.585	100.000	16	6.250
NGC4138	7	37.681	46.821	7	6.689
UGC04499	9	15.632	60.625	9	6.736
UGCA442	8	14.348	57.923	8	7.240
UGC11557	12	26.444	88.491	12	7.374
UGC06614	13	31.501	100.567	13	7.736
NGC3953	8	24.147	63.962	8	7.995
UGC01281	25	20.036	212.765	25	8.511
D631-7	16	16.083	142.712	16	8.919
UGC06786	45	28.074	409.201	45	9.093
UGC05750	11	26.533	101.330	11	9.212
F568-1	12	33.814	110.680	12	9.223
NGC6946	58	24.023	574.046	58	9.897
UGC02885	19	35.792	194.719	19	10.248
NGC0247	26	21.802	363.377	26	13.976
NGC3198	43	32.014	631.775	43	14.692
NGC5985	33	31.181	502.055	33	15.214
UGC07323	10	24.737	153.065	10	15.307
IC2574	34	22.174	541.520	34	15.927
NGC3877	13	39.834	218.626	13	16.817
NGC3992	9	34.645	153.639	9	17.071
NGC4013	36	30.688	619.434	36	17.206
UGC03546	30	42.140	582.816	30	19.427
NGC7331	36	31.738	778.123	36	21.615
UGC06787	71	52.461	1941.279	71	27.342
NGC0801	13	43.441	391.459	13	30.112
NGC6674	15	45.972	809.004	15	53.934
UGC02487	17	63.020	1150.947	17	67.703
UGC09133	68	91.529	7942.105	68	116.796

Appendix I.1. Data and Baryonic Inputs (Given)

We consider the standard SPARC-style rotation-curve triplets $\{r_k,v_k,{\sigma }_{v,k}\}$ together with a photometric mass model that yields the Newtonian baryonic term $a_N\left(r\right)=(v_{N,\mathrm{disk}}^2+v_{N,\mathrm{gas}}^2)/r$. Acceleration-space uncertainties are propagated as ${\sigma }_{a,k}\approx 2v_k{\sigma }_{v,k}/r_k$. These inputs are identical to those used in the main figures.

Appendix I.2. Model (Same as Main Text)

The total centripetal acceleration reads

$$a_{\mathrm{model}}\left(r\right)=a_N\left(r\right)+a_{\mathrm{th}}\left(r\right)+a_{\mathrm{ent}}\left(r\right)+a_{\mathrm{H}}\left(r\right),v_{\mathrm{model}}\left(r\right)=\sqrt{a_{\mathrm{model}}\left(r\right)r}.$$

We adopt the smooth, unit-consistent forms introduced in Sect. 2.2:

$$a_{\mathrm{th}}\left(r\right)=a_0{\displaystyle \frac{r}{r+r_c}},a_{\mathrm{ent}}\left(r\right)={\displaystyle \frac{v_{\infty }^2}{r}}\left(1-e^{-r/r_{s,E}}\right),a_{\mathrm{H}}\left(r\right)=-{\beta }_{\mathrm{amp}}{a}_{0}G(r;r_{\mathrm{on}},r_{\mathrm{end}},w),$$

with a soft gate $G=\frac{1}{2}\left[1+tanh\left((r-r_{\mathrm{on}})/w\right)\right]\left[1-tanh\left((r-r_{\mathrm{end}})/w\right)\right]$.

Appendix I.3. Parameters and Priors (Weakly Informative)

We use wide, weakly informative priors matching the ranges explored diagnostically in the main text:

$$\begin{array}{cc}& v_{\infty }\sim \mathcal{U}(120,280)\mathrm{km}{\mathrm{s}}^{-1},r_{s,E}\sim \mathcal{U}(1,12)\mathrm{kpc},a_0\sim \mathcal{U}(150,700){\mathrm{km}}^2{\mathrm{s}}^{-2}{\mathrm{kpc}}^{-1},\hfill \\ & r_c\sim \mathcal{U}(5,25)\mathrm{kpc},{\beta }_{\mathrm{amp}}\sim \mathcal{U}(0,1),r_{\mathrm{on}}\sim \mathcal{U}(10,25)\mathrm{kpc},\hfill \\ & r_{\mathrm{end}}\sim \mathcal{U}(20,40)\mathrm{kpc},w\sim \mathcal{U}(1,10)\mathrm{kpc},{\sigma }_{\mathrm{sys}}\sim \mathcal{U}\left(0,{\displaystyle \frac{{\left(15\mathrm{km}{\mathrm{s}}^{-1}\right)}^2}{r_{\mathrm{med}}}}\right),\hfill \end{array}$$

subject to $r_{\mathrm{end}}>r_{\mathrm{on}}$. The nuisance term ${\sigma }_{\mathrm{sys}}$ absorbs small unmodelled scatter in acceleration units.

Appendix I.4. Likelihood (Acceleration Space)

Defining $a_k^{\mathrm{obs}}=v_k^2/r_k$ and ${\sigma }_{a,k}$ as above, we write the Gaussian likelihood

$$ln\mathcal{L}\left(\theta \right)=-{\displaystyle \frac{1}{2}}\sum _k\left[{\displaystyle \frac{{\left(a_k^{\mathrm{obs}}-a_{\mathrm{model}}\left(r_k\right|\theta )\right)}^2}{{\sigma }_{a,k}^2+{\sigma }_{\mathrm{sys}}^2}}+ln\left(2\pi ({\sigma }_{a,k}^2+{\sigma }_{\mathrm{sys}}^2)\right)\right].$$

(A26)

and report goodness-of-fit in velocity space for continuity with the main figures.

Appendix I.5. Inference protocol (diagnostic only)

In principle, posteriors can be obtained with a simple Metropolis–Hastings (MH) sampler or any standard affine-invariant sampler. For transparency and accessibility, the repository includes a minimal MH implementation (NumPy + Matplotlib only). In this paper, no sampler is executed: the parameter ranges, covariances hinted in the main figures, and residual levels are used solely as diagnostic guidance. This keeps the present manuscript focused on clarity and model architecture.

Appendix I.6. Reporting template (to be used in future work)

For completeness, we provide a compact reporting template that future likelihood runs can populate:

• Posterior summaries: median and 16–84% credible intervals for $(v_{\infty },r_{s,E},a_0,r_c,{\beta }_{\mathrm{amp}},r_{\mathrm{on}},r_{\mathrm{end}},w,{\sigma }_{\mathrm{sys}})$.
• Diagnostics: acceptance fraction, effective sample size (heuristic), and trace stability.
• Fit quality: ${\chi }_{\mathrm{red}}^2$ (velocity space), $\mathrm{RMS}\left(\Delta v\right)$, and $\mathrm{RMS}\left(\Delta a\right)$.

All plots in the repository are generated with Matplotlib only; no seaborn or specialised MCMC plotting packages are required.

Appendix I.7. Scope Statement

This appendix formalises the Bayesian setup for reproducibility. Numerical execution and joint cosmological likelihoods are intentionally left to future work, in line with the paper’s diagnostic scope.

Appendix J.1. Conventions and Residual Definitions

Units and notation. We use km s$-1$ for velocities and ${\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2/\mathrm{kpc}$ for accelerations unless noted otherwise. Conversion: $1{\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2/\mathrm{kpc}\simeq 3.24078\times {10}^{-14}$ m s$-2$. We denote circular speed by $v\left(r\right)$ and radial acceleration by $a\left(r\right)=v^2\left(r\right)/r$. Velocity and acceleration residuals at the observed radii $\left\{r_i\right\}$ are

$$\Delta v\left(r_i\right)=v_{\mathrm{obs}}\left(r_i\right)-v_{\mathrm{model}}\left(r_i\right),\Delta a\left(r_i\right)={\displaystyle \frac{v_{\mathrm{obs}}^2\left(r_i\right)}{r_i}}-a_{\mathrm{model}}\left(r_i\right).$$

If the observational velocity uncertainty is ${\sigma }_i$ at $r_i$, we propagate to acceleration as

$$\delta a_i\approx {\displaystyle \frac{2v_{\mathrm{obs}}\left(r_i\right){\sigma }_i}{r_i}},$$

which is the prescription used for the acceleration–residuals figure.

Model components (summary). The total acceleration is a sum of four contributions

$$a_{\mathrm{tot}}\left(r\right)=a_N\left(r\right)+a_T\left(r\right)+a_E\left(r\right)+a_H\left(r\right),v_{\mathrm{model}}\left(r\right)=\sqrt{r{a}_{\mathrm{tot}}\left(r\right)},$$

with the following definitions used throughout the paper:

$$\begin{array}{ccc}\hfill v_N\left(r\right)& =v_0{\displaystyle \frac{r}{r+r_{sN}}}exp\left(-r/r_f\right),\hfill & \hfill a_N\left(r\right)={\displaystyle \frac{v_N^2}{r}},\\ \hfill v_T\left(r\right)& ={\displaystyle \frac{2v_{T,\mathrm{peak}}}{r_{\mathrm{peak}}}}r{\left(1-{\displaystyle \frac{r}{2r_{\mathrm{peak}}}}\right)}_{+},\hfill & \hfill a_T\left(r\right)={\displaystyle \frac{v_T^2}{r}},\\ \hfill v_E\left(r\right)& =v_{\infty }tanh\left[{\left({\displaystyle \frac{r}{r_{sE}}}\right)}^q\right],\hfill & \hfill a_E\left(r\right)={\displaystyle \frac{v_E^2}{r}},\\ \hfill a_H\left(r\right)& =-\left({\beta }_{\mathrm{floor}}·\mathrm{floor}\left(r\right)+{\beta }_{\mathrm{amp}}·\mathrm{ramp}\left(r\right)·\mathrm{taper}\left(r\right)\right)<0,\hfill \end{array}$$

where the hadronic term is negative by construction and is smoothly gated on beyond $r_{\mathrm{on}}$ and tapered to zero by $r_{\mathrm{end}}$ (see Appendix C for exact switching functions).

Summary for the main text. We define $\Delta v$ and $\Delta a$ consistently and propagate errors via $\delta a\approx 2v\sigma /r$. These conventions underlie the residual plots and the reduced ${\chi }^2$ values quoted in Sec. Section 4.

Table A8. Symbol mapping between phenomenological components and engineering parameters.

Component	Phenomenological symbol	Engineering / legacy
Entropic term	$v_{\infty },r_{s,E},q$	$A,r_s,n$
Thermal term	$a_0,r_c$	$v_{T,\mathrm{peak}},r_{\mathrm{peak}}$
Hadronic floor	$a_{\mathrm{had}},r_{\mathrm{on}},\Delta r$	${\beta }_{\mathrm{floor}},r_{\mathrm{on}},r_{\mathrm{end}}$
Newtonian proxy	$v_0,r_{s,N},r_f$	same

Table A8. Symbol mapping between phenomenological components and engineering parameters.

Component	Phenomenological symbol	Engineering / legacy
Entropic term	$v_{\infty },r_{s,E},q$	$A,r_s,n$
Thermal term	$a_0,r_c$	$v_{T,\mathrm{peak}},r_{\mathrm{peak}}$
Hadronic floor	$a_{\mathrm{had}},r_{\mathrm{on}},\Delta r$	${\beta }_{\mathrm{floor}},r_{\mathrm{on}},r_{\mathrm{end}}$
Newtonian proxy	$v_0,r_{s,N},r_f$	same

Appendix J.2. Fitting Routine and Settings

Dataset. We use the NGC 3198 rotation–curve measurements at radii $\left\{r_i\right\}$ with velocities $\left\{v_{\mathrm{obs}}\left(r_i\right)\right\}$. In the main text we present results for the array used in Appendix C; the SPARC CSV [12] can be used equivalently with the same pipeline.

Fitted vs. fixed parameters. We fit the Newtonian and thermal parameters

$${\theta }_{\mathrm{fit}}=\{v_0,r_{sN},r_f,v_{T,\mathrm{peak}},r_{\mathrm{peak}}\},$$

and keep the entropic/hadronic settings fixed to the baseline

$$v_{\infty }=185\mathrm{km}{\mathrm{s}}^{-1},r_{sE}=11\mathrm{kpc},q=1,{\beta }_{\mathrm{floor}}=3,{\beta }_{\mathrm{amp}}=25[{\left(\mathrm{km}{\mathrm{s}}^{-1}\right)}^2/\mathrm{kpc}],r_{\mathrm{on}}=20\mathrm{kpc},r_{\mathrm{end}}=35\mathrm{kpc}.$$

Bounds and initial values. We initialize at the baseline used in Appendix C and constrain the search to conservative ranges:

$$\begin{array}{ccc}{v}_0\in [440,540]\mathrm{km}{\mathrm{s}}^{-1},\hfill & & r_{sN}\in [3.0,7.0]\mathrm{kpc},\hfill \\ r_f\in [7.0,14.0]\mathrm{kpc},\hfill & & v_{T,\mathrm{peak}}\in [60,100]\mathrm{km}{\mathrm{s}}^{-1},\hfill \\ r_{\mathrm{peak}}\in [16,24]\mathrm{kpc}.\hfill & \end{array}$$

Objective and optimizer. We minimize the standard chi–square

$${\chi }^2\left(\theta \right)=\sum _i{\displaystyle \frac{{\left[v_{\mathrm{obs}}\left(r_i\right)-v_{\mathrm{model}}(r_i\mid \theta )\right]}^2}{{\sigma }_i^2}},$$

with ${\sigma }_i=5$ km s$-1$ for all points if no measurement errors are provided. A simple coordinate–descent with progressively smaller steps suffices for this five–parameter problem: in each pass, each parameter is perturbed by $\pm h$ and kept if ${\chi }^2$ decreases; the step size is reduced in 2–3 rounds until no further improvement occurs. Stopping criteria: relative decrease $\Delta {\chi }^2/{\chi }^2<{10}^{-4}$ or no accepted step in a full pass.

Grids for plots. Component and acceleration plots are rendered on a smooth grid $r\in [0.1,35]$ kpc with 600–800 points; observational points are overplotted at their native radii.

Summary for the main text. We fit $\{v_0,r_{sN},r_f,v_{T,\mathrm{peak}},r_{\mathrm{peak}}\}$ within conservative bounds using a local, monotone ${\chi }^2$ descent. Fixed entropic/hadronic settings are as in Appendix C. The residuals and ${\chi }_{\nu }^2$ reported in Sec. Section 4 follow directly from this setup.

NGC 3198 fit strategy and robustness. In Appendix D we demonstrate the rotation–curve reconstruction by fixing the entropic and hadronic shapes (as specified in the legacy velocity convention) and fitting only the Newtonian (baryons) and thermal components. This “minimal–fit” choice is meant to isolate the operational roles of the four terms. We have verified with the accompanying scripts that a full fit—releasing the entropic $(v_{\infty },r_{s,E},q)$ (or its acceleration–space counterpart) and the hadronic amplitude/onset within broad, physically motivated priors—achieves comparable quality and yields total velocities indistinguishable at the resolution of the data across $r\in [1kpc,30kpc]$. This supports the robustness claims made in the sensitivity section; the demonstrator fit in Appendix D is therefore conservative rather than restrictive.

Appendix J.3. Sanity Checks and Numerical Diagnostics

We verify the internal consistency of the rotation-curve pipeline:

• Acceleration–velocity identity. For every radius r we check

  $$\left|a_{\mathrm{tot}}\left(r\right)-v_{\mathrm{tot}}^2\left(r\right)/r\right|<{\epsilon }_{\mathrm{num}},$$

  with ${\epsilon }_{\mathrm{num}}$ the numerical tolerance set by the grid and precision.
• Units. We work with v in $\mathrm{km}.{\mathrm{s}}^{-1}$ and a in ${\mathrm{km}}^2.{\mathrm{s}}^{-2}.{\mathrm{kpc}}^{-1}$. Unit conversions are listed in App. D
• Monotone limits.$a_E\left(r\right)\to$ plateau externally; $a_T\left(r\right)$ is compact (bell-shaped around $r_c$); $a_H\left(r\right)\le 0$ with smooth onset at $r_0$.

These checks are included in the provided Python scripts and are evaluated for every figure.

Appendix J.4. Robustness and Sensitivity

Thermal component. Shifting $(v_{T,\mathrm{peak}},r_{\mathrm{peak}})$ within the quoted bounds primarily redistributes power across the mid–disk (∼10–25 kpc) and weakly trades off against the Newtonian normalization $v_0$. The inner rise and the outer tail remain well captured; the reduced chi–square ${\chi }_{\nu }^2$ changes smoothly and stays close to (or below) unity for the error model used.

Entropic kernel. Modest changes in $(v_{\infty },r_{sE})$ shift the asymptotic level and the transition scale. Within $\pm 10\%$ around the baseline, we find the qualitative behaviour unchanged: the flat part of the rotation curve and the gentle approach to it persist, with a compensating adjustment in $v_0$ and/or $r_f$.

Hadronic floor and gating. Varying $(r_{\mathrm{on}},r_{\mathrm{end}})$ within a few kpc modifies where the negative floor activates and how fast it tapers. The effect is localized to the outskirts; the total curve shows a similarly gentle decline as long as $r_{\mathrm{on}}\gtrsim 18$ kpc and $r_{\mathrm{end}}\gtrsim 30$ kpc.

Acceleration residuals. Because $\delta a\propto v/r$, outer points typically carry smaller formal uncertainties than inner ones in our uniform-$\sigma$ setting. The acceleration–space residuals are therefore particularly sensitive to localized outer mismatches; in our tests, the best–fit found in velocity space also yields consistent ${\chi }_{\nu }^2$ in acceleration space using the above propagation.

Summary for the main text. Small, correlated shifts in $(v_{T,\mathrm{peak}},r_{\mathrm{peak}})$ and modest changes of $(v_{\infty },r_{sE})$ or of the hadronic gating radii leave the qualitative picture intact: inner rise, mid–disk lift, and outer decline remain, and the fit quality (RMS, ${\chi }_{\nu }^2$) changes smoothly without pathologies within the quoted ranges.

Appendix J.5. Limitations and Scope

Scope. The present appendix documents one–galaxy (NGC 3198) fits as a demonstrator of the QEV decomposition. It is not a population–wide SPARC analysis; global cosmological constraints are out of scope here.

Assumptions. We assume axisymmetry and circular motion for the quoted curves, adopt a smooth Newtonian proxy for baryons, and use a specific entropic kernel (tanh) plus a gated negative floor for hadronic effects. Alternative kernels are discussed in Appendix C; our robustness notes above refer to small deviations around the baselines in Appendix D

Future work. Extending to a larger galaxy set with heterogeneous error models and photometry–anchored baryonic profiles is a natural next step; a joint cosmology–galaxy analysis requires a separate treatment.

Summary for the main text.Appendix E serves transparency and reproducibility for the NGC 3198 case: it records conventions, the fitting routine, and robustness checks. It does not claim population–level results; its role is to underpin the main–text claims with technical clarity.

Why this table is in the main text. This paper isolates the operational layer. Readers must be able to reconstruct the baseline window $W(\nu ;\Theta )$ and the core figures (window and weighted contribution) without consulting appendices. Table 3 gathers exactly the quantities needed to re-evaluate $I\left(\Theta \right)=\int e^{3x}Wdx$, to reproduce the sensitivity plateaus (in particular $S_{{\nu }_{\mathrm{UV}}}\approx 3$), and to verify numerical stability (grid size N and finite-difference step $\epsilon$). Legacy illustrative parameters that fall outside the spectral baseline are documented in Appendix H.1 to ensure completeness and reproducibility; keeping them there allows the main text to remain focused on the spectral framework and its falsifiable diagnostics.

Appendix J.6. Legacy Synthetic Profile Parameters

Appendix K.1. Vacuum Energy IR-Border

Appendix Thermal suppression of hadronic fluctuations at 34 K

Objective. Show that the temperature-dependent (thermal) contribution of hadronic fluctuations at $T=34\mathrm{K}$ is negligibly small, while the T-independent (zero-point) part remains.

Energy scale. The thermal scale is $k_{\mathrm{B}}T$. For $T=34\mathrm{K}$:

$$k_{\mathrm{B}}T\simeq 8.617\times {10}^{-5}\mathrm{eV}/\mathrm{K}\times 34\approx 2.93\times {10}^{-3}\mathrm{eV}\approx 2.93\mathrm{meV}.$$

Hadron masses vs. $k_{\mathrm{B}}T$. The lightest hadrons are pions with $m_{\pi }\approx 135\mathrm{MeV}$, hence

$${\displaystyle \frac{m_{\pi }}{k_{\mathrm{B}}T}}\approx {\displaystyle \frac{135\times {10}^6\mathrm{eV}}{2.93\times {10}^{-3}\mathrm{eV}}}\approx 4.6\times {10}^{10}.$$

For heavier hadrons (e.g., nucleons $\sim 940\mathrm{MeV}$) this ratio is even larger.

Thermal populations. For a massive species with $m\gg k_{\mathrm{B}}T$, the nonrelativistic Maxwell–Boltzmann number density behaves as

$$n\left(T\right)\propto {\left(mT\right)}^{3/2}exp\left(-{\displaystyle \frac{m}{k_{\mathrm{B}}T}}\right).$$

The polynomial prefactor ${\left(mT\right)}^{3/2}$ is dwarfed by the exponential. At $34\mathrm{K}$ the suppression factor $exp(-m_{\pi }/k_{\mathrm{B}}T)=exp(-4.6\times {10}^{10})$ is numerically zero for all practical purposes. Thermal contributions to energy density and pressure carry the same $exp(-m/k_{\mathrm{B}}T)$ factor and vanish accordingly.

QCD vacuum vs. temperature. QCD condensates (zero-point energy, quark and gluon condensates) vary appreciably only near the QCD scale ${\Lambda }_{\mathrm{QCD}}\sim 200\mathrm{MeV}$. At $34\mathrm{K}$,

$${\displaystyle \frac{T}{{\Lambda }_{\mathrm{QCD}}}}\approx {\displaystyle \frac{2.93\mathrm{meV}}{200\mathrm{MeV}}}\approx 1.5\times {10}^{-11}.$$

Temperature corrections to the vacuum energy scale as small powers of $T/{\Lambda }_{\mathrm{QCD}}$; even a conservative estimate with power $p=2$ gives

$${\displaystyle \frac{|\Delta {\rho }_{\mathrm{vac}}|}{{\rho }_{\mathrm{vac}}}}\lesssim {\left({\displaystyle \frac{T}{{\Lambda }_{\mathrm{QCD}}}}\right)}^2\lesssim {10}^{-22},$$

which is physically negligible.

Conclusion. At $34\mathrm{K}$: (i) the thermal hadronic fluctuation energy is exponentially suppressed $\left(exp[-m/\left(k_{\mathrm{B}}T\right)]\to 0\right)$, and (ii) the temperature-dependent change of the QCD vacuum energy is likewise negligible ($T\ll {\Lambda }_{\mathrm{QCD}}$). What remains is the T-independent zero-point part of the hadronic vacuum energy. In models, the hadronic thermal component below $\sim 34\mathrm{K}$ can be set to zero with excellent accuracy; the constant (renormalizable) vacuum term is the only relevant remainder.

Appendix K.2. Gravity of the Residual Vacuum Term (Below ∼34 K)

Premise. Below $\sim 34\mathrm{K}$ the thermal hadron population is negligible. No dilute gas of weakly fluctuating hadrons remains; instead, a temperature-independent QCD vacuum term (condensates) survives and behaves as a uniform energy density.

Stress–energy tensor and equation of state. For an ideal vacuum term,

$$T_{\mathrm{vac}}^{\mu \nu }=-{\rho }_{\mathrm{vac}}{g}^{\mu \nu },p_{\mathrm{vac}}=-{\rho }_{\mathrm{vac}}(w\equiv p/\rho =-1).$$

Implementation in cosmology. Include the vacuum term as a constant contribution ${\rho }_{\mathrm{vac}}^{\mathrm{QCD}}\equiv C$ and define ${\Lambda }_{\mathrm{eff}}\equiv 8\pi GC$. The Friedmann equations become

$$H^2={\displaystyle \frac{8\pi G}{3}}\left({\rho }_m+{\rho }_r+C\right)-{\displaystyle \frac{k}{a^2}},$$

$${\displaystyle \frac{\ddot{a}}{a}}=-{\displaystyle \frac{4\pi G}{3}}\left({\rho }_m+2{\rho }_r-2C\right).$$

Cosmic expansion accelerates once the C term dominates (since $p=-\rho$).

Physical interpretation. There are no residual, weakly fluctuating hadron particles with their own dynamics; the remaining contribution is a homogeneous vacuum field. Temperature-dependent corrections to C below $34\mathrm{K}$ are negligible ($T\ll {\Lambda }_{\mathrm{QCD}}$), so C is effectively constant in time and space on cosmological scales.

Model choices (summary).

1.

Set ${\rho }_{\mathrm{had}}^{\mathrm{th}}(T<34\mathrm{K})=0$.

2.

Retain ${\rho }_{\mathrm{vac}}^{\mathrm{QCD}}=C$ as a constant.

3.

Use ${\Lambda }_{\mathrm{eff}}=8\pi GC$ in the field equations.

4.

Treat the term with $w=-1$ ($p=-\rho$) and assume $\partial C/\partial t\approx 0$.

Consequence. The residual gravitational effect is that of a cosmological-constant–like component: it provides a repulsive contribution (accelerated expansion) without invoking a population of moving, dilute hadrons.

Appendix K.3. Why Choose 34 K? Rationale and Robustness

This subsection complements Secs. Appendix K.1 and Appendix K.2 by explaining why we adopt $T_{★}=34\mathrm{K}$ ($k_{\mathrm{B}}{T}_{★}\approx 2.93\mathrm{meV}$) as a conservative, model-consistent threshold. At this temperature, thermal hadronic contributions are exponentially suppressed beyond any conceivable relevance, while the T-independent QCD vacuum term remains. All conclusions below are robust for any $T\ll {\Lambda }_{\mathrm{QCD}}$.

Conservative bound from QCD scale separation. With ${\Lambda }_{\mathrm{QCD}}\sim 200\mathrm{MeV}$, the ratio at $34\mathrm{K}$ is

$${\displaystyle \frac{T_{★}}{{\Lambda }_{\mathrm{QCD}}}}\simeq {\displaystyle \frac{2.93\mathrm{meV}}{200\mathrm{MeV}}}\approx 1.5\times {10}^{-11}.$$

Even if temperature corrections to the vacuum energy scale as a small power ${(T/{\Lambda }_{\mathrm{QCD}})}^p$ with $p\ge 2$,

$${\displaystyle \frac{|\Delta {\rho }_{\mathrm{vac}}|}{{\rho }_{\mathrm{vac}}}}\lesssim {\left(1.5\times {10}^{-11}\right)}^2\lesssim {10}^{-22},$$

which is physically negligible. Choosing $34\mathrm{K}$ therefore enforces an explicit, extremely small upper bound on any T-dependent QCD contribution.

Exponential suppression of thermal hadrons. For the lightest hadrons ($m_{\pi }\approx 135\mathrm{MeV}$),

$$exp\left(-{\displaystyle \frac{m_{\pi }}{k_{\mathrm{B}}{T}_{★}}}\right)=exp\left(-{\displaystyle \frac{135\mathrm{MeV}}{2.93\mathrm{meV}}}\right)=exp\left(-4.6\times {10}^{10}\right),$$

numerically zero for all practical purposes. This far exceeds any reasonable suppression requirement, making $34\mathrm{K}$ a demonstrably conservative choice.

Coherence with meV-scale phenomenology. The scale $k_{\mathrm{B}}{T}_{★}\approx 3\mathrm{meV}$ aligns with other meV-level quantities used elsewhere in the manuscript (e.g., as a bookkeeping or comparison scale), improving the internal consistency of the presentation without altering predictions.

Optional cosmological anchoring (interpretive). Since $T_{\mathrm{CMB}}\left(z\right)=T_0(1+z)$ with $T_0\simeq 2.725\mathrm{K}$, $T_{★}=34\mathrm{K}$ corresponds to $z\simeq 34/2.725-1\approx 11.5$, i.e., the cosmic-dawn era. This offers a convenient “cosmic clock” label for readers; none of our hadronic conclusions depend on it.

Robustness statement. All key results—vanishing thermal hadron population (Sec. Appendix K.1) and a residual T-independent vacuum term with $w=-1$ (Sec. Appendix K.2)—hold unchanged for any $T\ll {\Lambda }_{\mathrm{QCD}}$. Adopting $34\mathrm{K}$ is thus a conservative, transparent convention rather than a fine-tuned requirement.

Appendix K.4. Vacuum Energy UV-Border

Flux-tube energetics (order-of-magnitude). In QCD, a color-electric flux tube between quarks is characterized by a string tension $\sigma \sim \mathcal{O}\left(1\right)\mathrm{GeV}/\mathrm{fm}$, corresponding to an energy density of $\mathcal{O}\left(1\right)\mathrm{GeV}/{\mathrm{fm}}^3$. The crossover from deconfined to confined degrees of freedom imposes a hard gate on modes with characteristic wavelengths $\lambda \lesssim 1\mathrm{fm}$, curtailing their contribution to the effective vacuum spectrum relevant for large-scale dynamics.

Phenomenological gating. We capture the onset and saturation of this suppression with a smooth gating term in acceleration space,

$$g_{\mathrm{had}}\left(r\right)=-a_{\mathrm{had}}exp\left[-{\left({\displaystyle \frac{r-r_{\mathrm{on}}}{\Delta r}}\right)}^2\right],$$

(A27)

where $r_{\mathrm{on}}$ denotes the radius where the floor becomes relevant and $\Delta r$ its radial width. In demonstrator fits we find that values $r_{\mathrm{on}}\sim 15\mathrm{kpc}$ and $\Delta r\sim 7\mathrm{kpc}$ produce the observed gentle tapering of the outer curve while preserving the inner baryon-dominated rise.

Amplitude estimate. A back-of-the-envelope normalization for $a_{\mathrm{had}}$ follows by matching the integrated (suppressed) spectral contribution at the onset radius to the missing acceleration implied by the outer profile. This yields amplitudes consistent with those recovered by direct fits to well-studied discs (e.g. NGC 3198), and provides a microphysically motivated rationale for including a small, negative floor term.

Testable consequences. Equation (A27) predicts that

(i) very extended H I tails should not exceed a shallow terminal plateau, and

(ii) the location and sharpness of the taper co-vary weakly with baryonic concentration via the interplay of $r_{\mathrm{on}}$ and $\Delta r$. Both are falsifiable in deep, outer-disc kinematic surveys.
