GUI-Based ECG Viewer for R-Wave Correction and Fast Updating of R-R Interval Time Series

2. Design

2.1. Programming Language and Drawing Library

The computational core of the system was implemented in Fortran (FTN95 compiler, Silverfrost Ltd., Manchester, UK), and the DISLIN graphics library was used for drawing. Fortran was chosen because of its high numerical computation performance and compatibility with existing code assets. DISLIN provides versatile two- and three-dimensional graphics functions as well as bitmap output, making it suitable for waveform visualization and interactive drawing.

For the development environment, the Fortran editor on Windows (Plato IDE, version 4.3.0, Silverfrost Ltd., Manchester, UK) was used to describe both numerical processing and GUI logic. DISLIN (version 10.0, Dislin Software, Göttingen, Germany) was employed for graphics, and the linkage to DISLIN was performed through dynamic linking. In Plato IDE, diss32.lib was added as the link library, enabling calls to DISLIN functions. At runtime, disdll.dll, diss32.dll, and the FTN95 runtime library salflibc.dll were placed in the same directory, allowing graphics functions to be accessed via dynamic linking. The specifications of the PC and display used in this study are summarized in Table 1.

2.2. Viewer Design and Operation

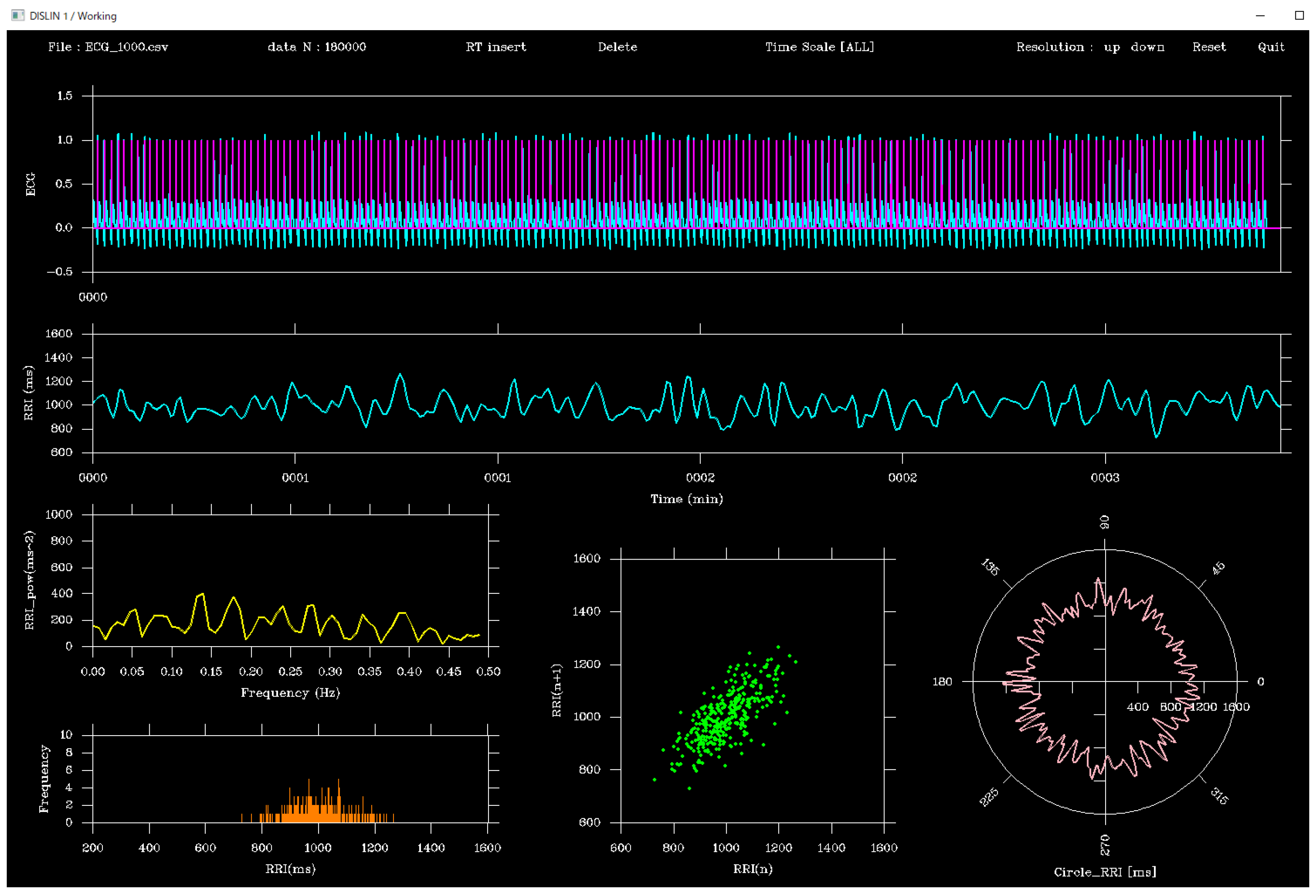

The viewer was designed using the DISLIN functions CALL CURVE and CALL BARS, as illustrated in Figure 1. First, the CALL METAFL(‘XWIN’) function was used to define a graphical output window, with the window size set to approximately 465 mm (H) × 310 mm (V). The screen layout was organized as follows:

(a)Top panel: ECG waveform (cyan) and peak flags (magenta)

(b)Middle panel: RRI time series (cyan)

(c)Bottom panel: From left to right, the power spectral density function of the RRI time series (yellow), histogram (orange), Lorenz plot (green), and polar plot (peach, circular waveform)

The four analyses were mathematically defined as follows:

Power spectral density (PSD): estimated using the fast Fourier transform (FFT) of the RRI time series r(n):

$$P\left(f\right)={\displaystyle \frac{1}{N}}{\left|{\sum }_{n=0}^{N-1}r\left(n\right)e^{-2\pi fn/N}\right|}^2$$

(1)

Histogram: distribution of RRI values r(n), represented as frequency counts within bins:

$$h\left(k\right)={\sum }_{n=0}^{N-1}\delta \left(r\left(n\right)\in bi{n}_k\right)$$

(2)

Lorenz plot: scatter plot of successive RRIs: (r_n, r_n+1)

Polar plot: circular mapping of RRIs:

$${(r}_n,{\theta }_n),{ \theta }_n=2\pi (n/N)$$

(3)

In addition, a toolbar was placed at the top of the screen. The toolbar contained the following buttons: Insert, Delete, Resolution: up, Resolution: down, Reset, and Quit, which could be operated using the left mouse button. Right-clicking was disabled.

2.2.1. Time-Scale Adjustment

Clicking the Resolution: up button shortened the time scale of the ECG display, e.g., 60 sec → 30 sec → 10 sec, down to a minimum of 1 sec. Conversely, the Resolution: down button extended the scale, e.g., 120 sec → 180 sec → 300 sec, up to a maximum of approximately 1 hour at a sampling frequency of 1000 Hz.

These operations affected only the time scale of the ECG graph, without influencing other plots. Clicking outside the toolbar advanced the time axis by one time-scale unit. Similarly, pressing the numeric keypad “6” or the right arrow key advanced the display by half a time scale unit, while the Backspace key moved back one unit and the numeric keypad “4” or left arrow key moved back by half a unit. Clicking Reset restored the full-length ECG display.

2.2.2. Insert Function

Clicking the Insert button activated insertion mode, indicated by the button turning yellow. In this mode, clicking within the ECG graph frame or pressing the Enter key displayed a vertical line (flag), and the corresponding time was recorded. Clicks or key presses outside the frame were ignored. This function allowed the user to add flags at arbitrary time points simply by positioning the mouse cursor and clicking. Clicking Insert again terminated the mode.

2.2.3. Delete Function

The Delete function removed a flag and its associated time, using an operation similar to the Insert function. By clicking or pressing Enter just before the target flag, the flag and its recorded time were deleted. The deletion interval was fixed at 0.2 sec, independent of sampling frequency. This feature was useful for removing misdetected peaks caused by P or T waves.

2.3. Operational Flowchart and Algorithm

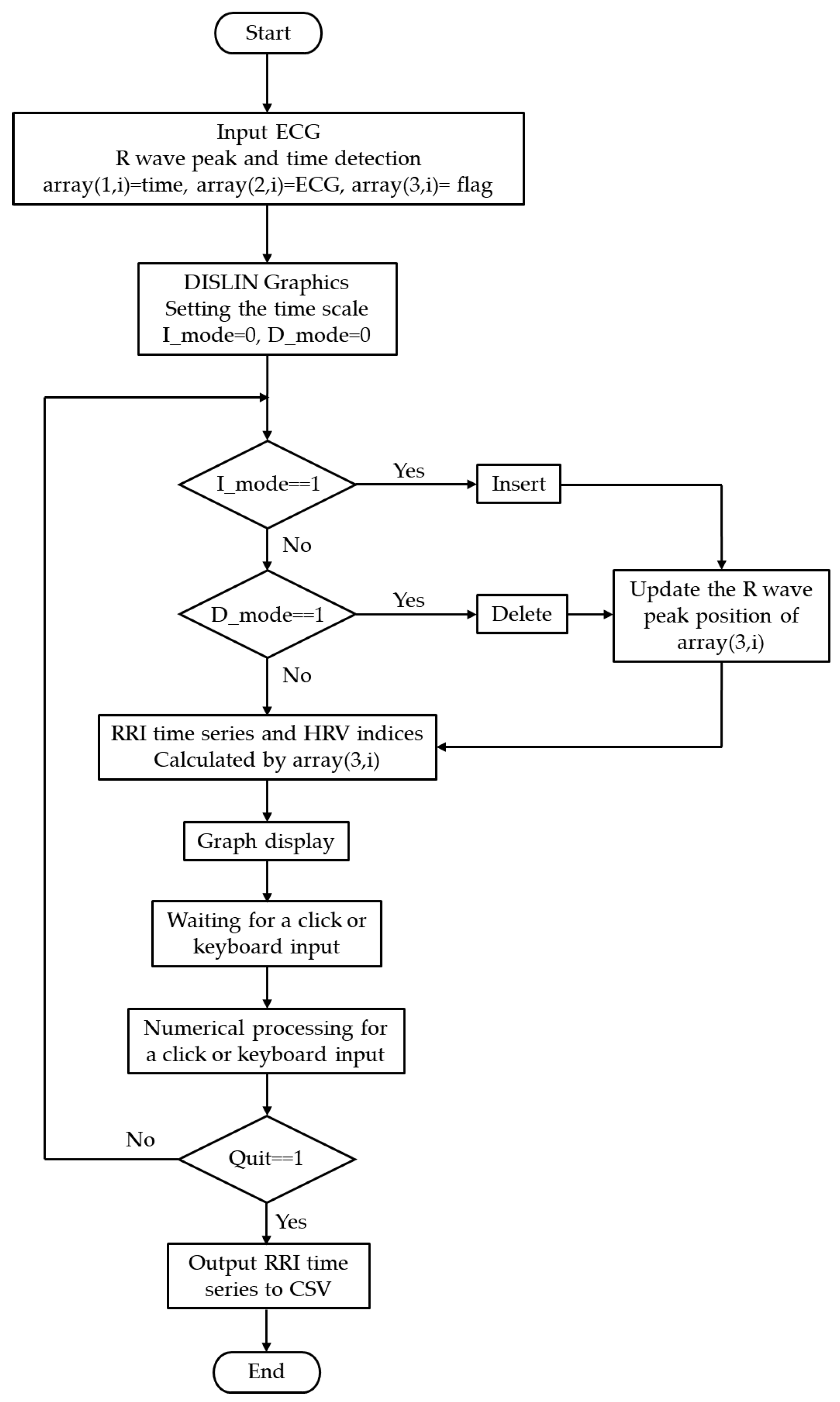

The processing flow of the system is illustrated in Figure 2. After acquisition, ECG data were converted into a three-column two-dimensional array, *array(3, ), storing measurement time, ECG values, and peak information as follows:

(a) array(1, i): Measurement time (in seconds or sampling index). For example, at a sampling frequency of 1000 Hz, values such as 0.001 sec, 0.002 sec, 0.003 sec, … were stored.

(b) array(2, i): Sampled ECG waveform (raw data).

(c) array(3, i): Flag indicating whether an R-wave peak was detected (1 for peak, 0 otherwise).

The RRI is calculated by extracting the measurement times corresponding to array(3, i) = 1 and computing the time differences between consecutive peaks. With this structure, when the user interactively inserts or deletes an R-wave peak, only the corresponding flag value in array(3, i) is updated, while the raw ECG data remain unchanged. After editing, the RRI is recalculated from the updated array(3, i), interpolated using a spline function, and other graphs (RRI time series, power spectrum, Lorenz plot, histogram, and polar plot) are updated rapidly. This non-destructive raw-data approach with flag updates preserves data integrity and enables lightweight, fast updates. Thus, error correction and temporal adjustments can be performed intuitively and safely.

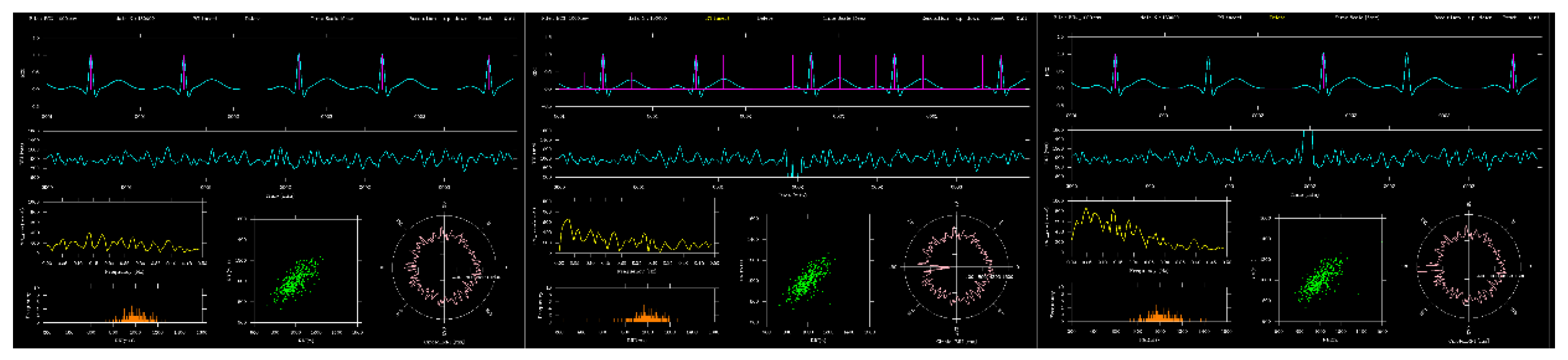

Figure 3 compared the ECG before and after editing for a 5 sec segment around 2 minutes. In insert mode, the P and T wave times for this segment were extracted, whereas in delete mode, three R waves at the same time were removed. Compared with the unedited version, the RRI time series and other graphs changed accordingly.

After displaying the graphs, the system waited for user input, responding interactively to mouse clicks and keyboard commands. To convert mouse-click positions on the screen into time information, the following equation (Equation (4)) was defined:

$$Tpos =x1 +{\displaystyle \frac{Time scale\times \left(NX-Xleft\right) }{Xright -Xleft}}$$

(4)

Here, x1 is the starting time of the currently displayed ECG (sec), Time scale is the display length (sec), NX is the mouse-click X coordinate (in pixels), Xleft is the X coordinate of the left ECG axis, and Xright is the X coordinate of the right ECG axis. This transformation ensured that any mouse click on the screen could be mapped precisely to the corresponding time in the ECG time series, allowing accurate addition or deletion of R-wave peaks.

2.4. ECG Simulation Data for Accuracy Evaluation

Because R-wave correction in the GUI was performed by converting screen coordinates to time, errors could arise depending on the accuracy of this transformation. Such errors were expected to depend on the ECG sampling frequency and the time scale used for display. To evaluate the accuracy of the system, a synthetic ECG dynamic model with known parameters was employed, and the RRI calculation error introduced by GUI-based operation was quantified. The synthetic ECG model was constructed by approximating the P, Q, R, S, and T waves using Gaussian functions. The equation for the model is shown in Equation (5) [27]. For each wave k, peak amplitude (A_k), peak time offset (t_k), and standard deviation (σ_k) were specified. Each parameter was varied randomly within ±10% of its reference value, reproducing beat-to-beat morphological variability. Reference values are listed in Table 2.

$$\mathit{E}\mathit{C}\mathit{G}\left(\mathit{t}\right)={\sum }_{\mathit{k}∊\left\{\mathit{P},\mathit{Q},\mathit{R},\mathit{S},\mathit{T}\right\}}{\mathit{A}}_{\mathit{k}}·\mathit{e}\mathit{x}\mathit{p}\left\{-{\displaystyle \frac{{\left(\mathit{t}-{\mathit{t}}_{\mathit{k}}\right)}^2}{2{\mathit{\sigma }}_{\mathit{k}}^2}}\right\}$$

(5)

Simulation data were generated at sampling frequencies of 125 Hz, 250 Hz, 500 Hz, and 1000 Hz, with cycle lengths set to approximately 1 sec, yielding 180 sec of synthetic ECG signals. RRI values were calculated from each signal and defined as the gold standard. Then, across 12 conditions (four sampling frequencies × three time scales: 2 sec, 5 sec, and 10 sec), the author manually clicked on R-wave peaks using the mouse cursor, and relative errors between the GUI-derived RRI and the gold standard were computed using Equation (6). In this validation, the 180-s ECG contained approximately 180 R-wave peaks. All peaks were manually clicked to detect RR intervals, and 180 relative errors were calculated for each condition. The mean and standard deviation of these errors were then obtained.

$$\mathrm{R}\mathrm{e}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{e} \mathrm{e}\mathrm{r}\mathrm{r}\mathrm{o}\mathrm{r}={\displaystyle \frac{\left|{GUI}_{RRI}-{simulation}_{RRI}\right|}{{simulation}_{RRI}}}\times 100 \left(\%\right)$$

(6)

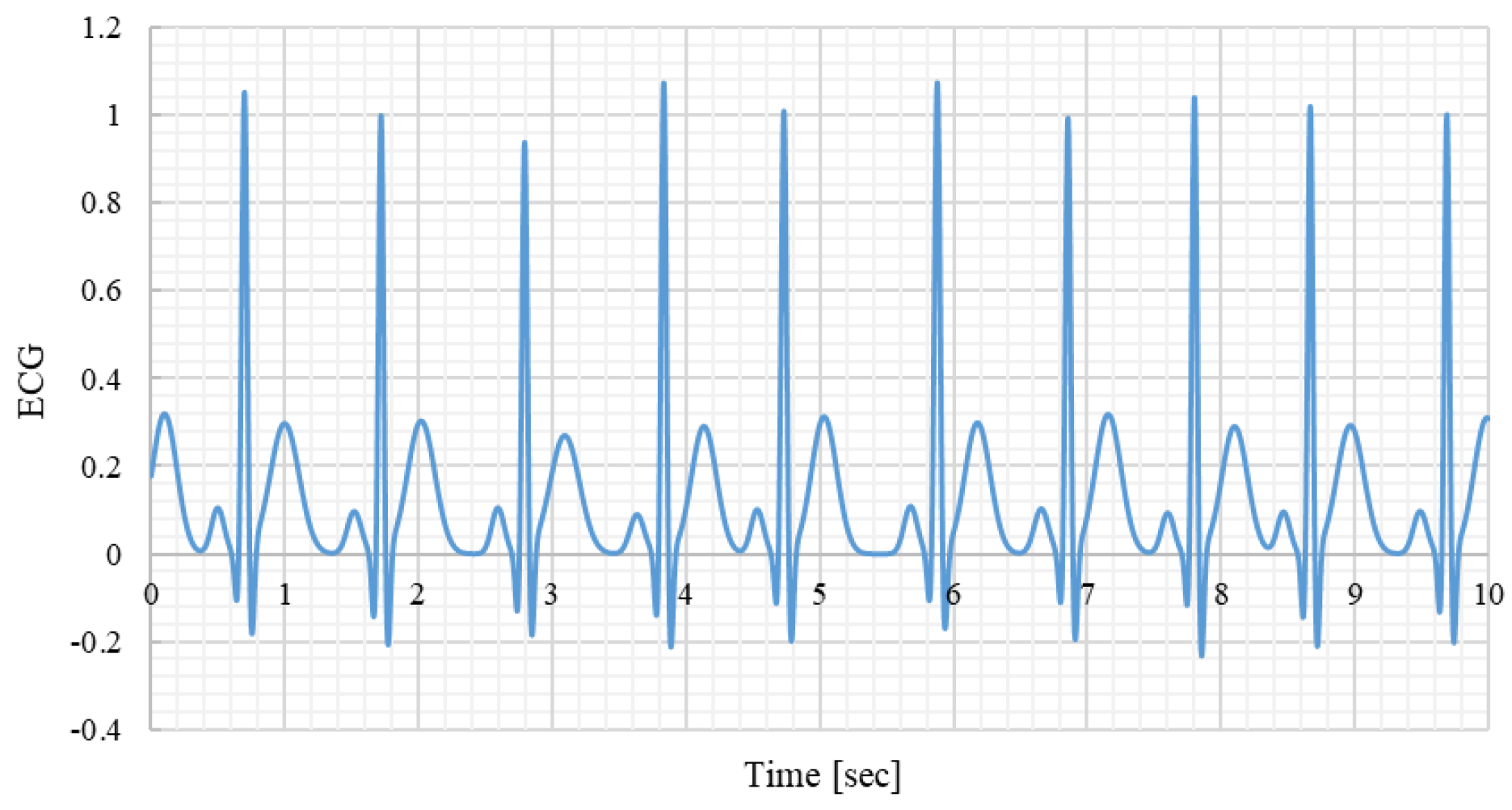

Figure 4. Example of a synthetic ECG signal. Sampling frequency 1000Hz.

Figure 4. Example of a synthetic ECG signal. Sampling frequency 1000Hz.

Additionally, to evaluate system responsiveness, the processing time between using Insert/Delete and updating the graphical display (see Figure 2 flowchart) was measured using the Fortran CALL CPU_TIME function. For each condition (four sampling frequencies × two modes), 30 clicks were performed, and the mean response time was calculated.

3. Results

Table 3 summarizes the mean and standard deviation of simulated RRI and GUI-derived RRI for each sampling frequency. The results showed that across all sampling frequencies, the mean and standard deviation of GUI-derived RRI were nearly identical to those of the simulated RRI, regardless of the time scale. Table 4 shows the relative error between GUI-derived and simulated RRI for different sampling frequencies and time scales. The smallest relative error was 0.146 ± 0.264% at 1000 Hz with a time scale of 2 sec, while the largest error was 0.694 ± 0.601% at 125 Hz with a time scale of 10 sec. The smallest standard deviation was ±0.132% at 1000 Hz with a time scale of 10 sec. Table 5 presents the mean and standard deviation of operation response times for Insert and Delete modes across different sampling frequencies. The mean response time for Insert ranged from 25 to 29 msec, while that for Delete ranged from 24 to 30 msec. The standard deviation of response times ranged from 8 to 17 msec for Insert and from 8 to 14 msec for Delete.

4. Discussion

The GUI-based ECG viewer developed in this study is characterized by its ability to intuitively and immediately correct R-wave misdetections, distinguishing it from conventional software. For example, Kubios HRV covers a wide range of indices required for heart rate variability analysis and is widely used in both clinical and research settings; however, its R-peak correction functionality is limited [22]. RR-APET, a Python-based tool, allows GUI-driven R-peak editing and batch processing, but it is not fully optimized for real-time RRI updates [23]. ECGdeli is a powerful MATLAB-based tool for ECG visualization and fiducial point detection [24], and tools such as CEPS [25] and PhysioZoo [26] provide specialized functions for complexity analysis and mammalian HRV analysis, respectively. However, all of these tools primarily focus on analysis capabilities, and their GUI interfaces offer limited functionality for interactive and immediate correction of misdetections. More recently, attempts have been made to benchmark HRV analysis toolboxes [28,29], and LightWAVE [30] allows waveform and annotation editing in a browser environment, yet the functionality required in educational or short-term experimental settings—namely, simple correction of misdetections with simultaneous immediate updates of the RRI series and analysis results—is still insufficient. Our system is unique in this regard, as it allows the correction of R-wave misdetections through the GUI while instantly updating the RRI time series, making it particularly useful for short-term experiments and educational settings.

From an engineering perspective, the system achieves both high accuracy and immediate responsiveness. The relative error of RRI calculated after GUI-based correction was found to be less than 0.7%, demonstrating that manual corrections can be incorporated without compromising reliability. As shown in Table 4, relative error is minimally affected by the sampling frequency but is sensitive to the Time scale setting. This is because a longer Time scale compresses the waveform per beat, making it difficult to accurately click the R-peak with a mouse, whereas a shorter Time scale enlarges the waveform, facilitating visual peak identification and reducing relative error. Therefore, appropriate Time scale settings are important for achieving high correction accuracy via GUI operation. Notably, at 125 Hz with a 2 s time scale, the relative error was smallest on average (0.146%), but the standard deviation was relatively large (±0.264%). This suggests that with coarse sampling, even a slight deviation in mouse clicking leads to substantial variability, since each sample point corresponds to a relatively large time step (8 ms). Conversely, at 1000 Hz with a 2 s time scale, the relative error showed the smallest standard deviation (±0.132%). This is because the temporal resolution is high (1 ms per sample), so even if the mouse click deviates by one sample, the resulting error remains small. Furthermore, as shown in Table 5, the time required to update the RRI after correction is approximately 20–30 ms and remains stable regardless of the sampling frequency or Time scale. This update time includes not only RRI recalculation but also updates of four graphs based on the RRI time series: power spectral density, Lorenz plot, histogram, and polar plot. Despite the relatively high computational load of these analyses, the total processing time remains within 20–30 ms, highlighting the system’s fast responsiveness, which offers significant advantages for research and clinical applications by providing immediate feedback.

The implementation of the system in Fortran is also an important strength in terms of processing speed. Fortran is a compiled language specialized for numerical computation, providing faster execution compared to interpreted languages such as Python or MATLAB. It is widely used in fields such as fluid dynamics, high-speed mathematical model development, and aerospace engineering [31,32,33], and its long-standing track record in high-performance computing (HPC) and numerical analysis is well recognized in academia. For example, its compiled array-based optimization structures and explicit memory access directives can achieve several- to hundreds-fold speed improvements compared to Python [34]. Moreover, Fortran supports High Performance Fortran (HPF) for HPC, enabling efficient parallelization using FORALL constructs and PURE procedures [35]. In this system, the GUI and computational modules are closely integrated, and although the entire waveform is recalculated each time, high responsiveness is still achieved. Thus, the Fortran implementation represents a rational design choice emphasizing both performance and responsiveness.

Overall, the results indicate that the system combines low error, low latency, and high efficiency, making it applicable not only for short-term experiments in research settings but also for arrhythmia correction in clinical practice and waveform comprehension in educational contexts. It should also be noted that the present study focused mainly on the development and validation of the R-wave correction algorithm. Broader aspects of usability, such as interface layout, toolbar design, and user experience, were not considered. Future work should therefore include systematic evaluation of user-friendliness and improvements in GUI design to enhance accessibility and practical utility in both clinical and educational environments.

5. Conclusions

In this study, we developed a GUI-based ECG viewer with an embedded algorithm for intuitive R-wave correction. The system enabled immediate updates of the RRI time series and related analyses, with correction errors below 0.7% and update times of 20–30 ms. These results demonstrate reliable real-time feedback suitable for both research and educational applications.

Beyond R-wave correction, a notable strength of the system is its ability to manually extract arbitrary waveform landmarks, such as P-wave onset or T-wave peak. This flexibility extends its applicability to various purposes, including precise measurement of QT and PR intervals, creation of gold-standard datasets for algorithm validation, and educational use where students can interactively annotate different ECG components.

Therefore, the proposed system not only enhances efficiency and accuracy in bio signal processing but also holds promise as a versatile tool bridging research, clinical, and educational applications.
