CFD Simulation of High Gas Flow Rate in Large-Scale Rotating Packed Beds

1. Introduction

Packed columns are widely used gas-liquid contactors in industrial applications such as distillation, absorption, desorption, and extraction, playing a crucial role in many commercial chemical processes. Their significant share of the tower equipment market is attributed to advantages such as low pressure drop, high efficiency, and excellent control sensitivity. But one of the main drawbacks of the packed columns is their large size which makes their application limited particularly when the space limitation is a concern. Recently, rotating packed bed (RPB) has gained many attentions due to its potential to intensify the gas-liquid processes. Because of the rotation, RPBs can make very thin liquid film or small droplets even in micro scale and decrease the mass transfer resistance of liquid phase. Consequently, RPBs need smaller volume in comparison to conventional packed columns to achieve the same efficiency. While numerous recent studies have sought to clarify the complex turbulent gas-liquid interactions in RPBs, still further research is needed to address their limitations, particularly for large-scale applications.

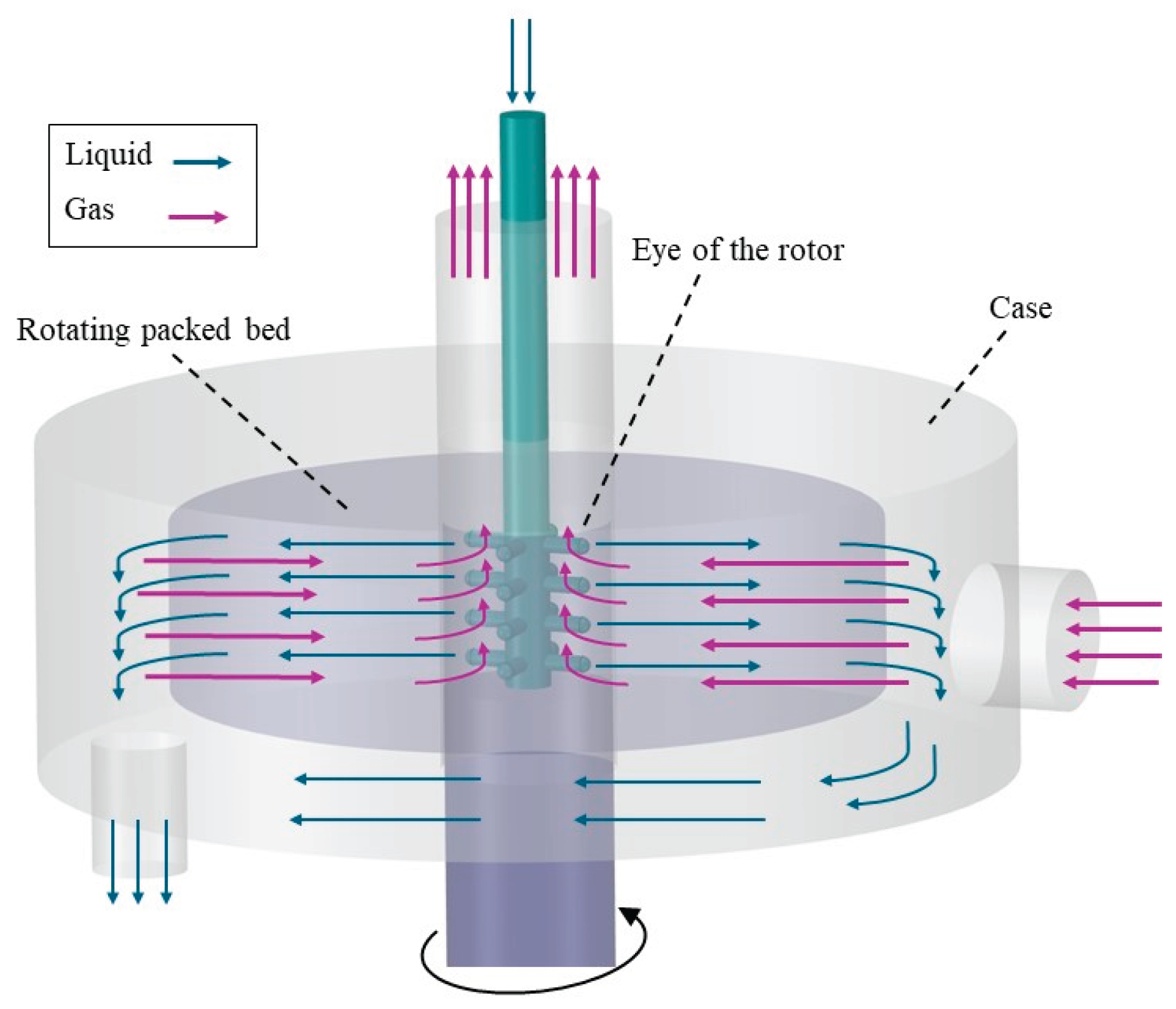

A conventional RPB includes three main parts: the eye of the rotor where the liquid injectors and gas outlet are postured, rotating packed bed and the case of RPB. Figure 1 illustrates the design of a counter current flow RPB. Liquid is injected from inner to outer zone of RPB and is collected in the case and exits from the liquid outlet. Gas enters from outer region of RPB and flows in counter current direction of liquid phase and after interaction with liquid under high centrifugal force, leaves the RPB from eye of the rotor. A hydrodynamic study of gas-liquid flow in RPBs can provide valuable insights into the underlying mechanisms. Pressure drop and flooding point can define the process limitation of RPB. Most of gas-liquid contactors use gas blower to overcome the pressure drop and an estimation of the pressure drop can define the energy requirement of the blower. Flooding point defines the capacity of RPB contactor as working close to the flooding point is recommended for RPB like conventional packed bed [1]. For design purpose, the height of RPB is defined by estimation of the flooding velocity. RPB should operate close but below the flooding point and the height is calculated according to this limitation [2].

1.1. Previous Experimental and Modelling Studies of Pressure Drop in RPBs

Various researchers have studied pressure drop in RPBs. Generally, pressure drop in RPB can be affected by three different sections: eye of the rotor, rotating bed and the stationary housing. The pressure drop in the stationary housing of RPB can be considered negligible in comparison to two other sections [3,4]. Hendry et al. [5] ran an experiment to measure the pressure at different points of an RPB and identified the pressure drop in each section. Their results demonstrated that the primary pressure drop takes place within the rotating bed, with the rotor eye exhibiting a substantially higher pressure drop compared to the stationary housing.

The effect of gas and liquid flows on pressure drop in RPB was discussed by many researchers. Keyvani and Gardner [6]found that counter current liquid flow in a rotating bed can decrease the pressure drop. While some researchers have suggested that the effect of liquid flow on pressure drop is minimal [7], Zheng et al. [3] explained that the reduction in pressure drop due to liquid flow could be attributed to the gas flow changing from tangential to radial direction in the eye of the rotor, caused by the radial injection of liquid into the bed. Liu et al. [8] showed that the pressure drop in RPB is mainly affected by the gas flow rate. Sandilya et al. [4] defined the pressure drop in the rotating bed as a combination of centrifugal drop, frictional loss and pressure drop because of the gas momentum gain in the rotor. Their results indicated that the contribution of momentum gain to the overall pressure drop was negligible compared to the effects of centrifugal pressure drop and frictional loss. They also observed no significant difference between wet and dry pressure drop in the RPB.

Researchers have also proposed various semi-empirical correlations for predicting pressure drop in Rotating Packed Beds (RPBs). Although a wide range of such correlations exist in the literature, most have been developed based on lab-scale experimental setups. For instance, Liu et al. [8] proposed semiempirical correlations for dry and wet pressure drop in RPB with rectangular and elliptic cylindrical packings. They used a rotor featuring an inner radius of 4.5 cm, an outer radius of 7 cm, and a height of 2.5 cm, with plastic grains employed as the packing medium. They developed a correlation containing seven fitting parameters, derived based on both gas and rotational Reynolds numbers. Although this correlation accurately fitted the experimental data, its applicability to industrial scale RPBs is limited due to several factors. Firstly, the RPB used in their experiments was significantly smaller than typical industrial-scale units. Secondly, the packing material—plastic grains—differed from conventional RPB packing such as wire mesh. Thirdly, the use of seven fitting parameters complicates the interpretation of how individual resistance mechanisms contribute to the total pressure drop. Zheng et al. [3] utilized a rotor with metal foam packing, having an outer diameter of 0.3 m, and developed a pressure drop model for the RPB by solving mass and momentum balance equations. Although the model provides a detailed representation, it was formulated based on a small-scale RPB and requires the solution of differential equations, which restricts its ease of application, especially in large-scale or industrial scenarios. Neumann et al. [9] proposed a modified correlation for friction loss in RPBs. To determine the regression parameters of the model, rotors with different sizes and packing configurations were utilized. Their findings indicated that the regression parameters are dependent on both the rotor size and the type of packing material. Based on previous research findings, it can be concluded that using correlations derived from lab-scale RPBs to estimate pressure drop in large-scale systems may lead to significant inaccuracies. Therefore, it is necessary to develop new correlations tailored to specific ranges of rotor sizes to ensure reliable predictions.

1.2. Application of CFD Simulation in RPB Analysis

Advancements in CFD technology have made CFD simulation a valuable tool for addressing the limitations of experimental methods, showing their effectiveness in studying gas-liquid flow dynamics [10]. Although the packing geometry is highly complex, various researchers have attempted to model gas and liquid flow in RPBs through a range of simplifications. 2D approach is the most used simplification for RPB simulation. In this approach, the effect of upper and lower walls of RPB is neglected and a 2D geometry is considered. For example, a wire mesh packing is represented as vertical wires, enabling the use of a 2D geometry for analysis. Zhang et al. [11] investigated the liquid maldistribution in RPBs using 2D CFD simulation and showed that 2D simulation effectively captures the primary flow characteristics in RPBs and offer significant computational savings over 3D simulations. Liu et al. [12] applied computed tomography (CT) to acquire an image of nickel foam packing and used the image to produce a 2D geometry of the packing for CFD simulation. They successfully simulated the liquid distribution in an RPB equipped with metal foam packing, and their results showed good agreement with high-speed camera imaging experiments. Some 3D CFD simulations are also available in the literature [10,13,14,15]. Previous studies have demonstrated that performing a 3D simulation of actual wire mesh packing significantly increases the computational cost. For example, Chen et al. [14] conducted a 3D simulation of gas flow in a lab-scale rotating packed bed. With inner and outer diameters of 4 cm and 7.6 cm, respectively, the simulation required over 35 million grid cells to achieve high accuracy. Similarly, Liu et al. [13] performed a 3D simulation of an RPB, with an inner diameter of 14.5 cm and an outer diameter of 32 cm, employing about 93 million grid cells in the packing area to simulate gas flow in rotating wire mesh packing.

Porous media approach is another possible simplification of the problem that can remarkably decrease the cost of CFD investigation. In this approach, the packing zone of the RPB is regarded as a porous media with uniform porosity and the interaction forces between gas, liquid and solid are imported in the momentum equation as a source term. Some drag force models are available for RPBs, but their validity depends heavily on factors such as packing type, bed porosity, and flow Reynolds number, as the model constants are typically derived from specific experimental datasets. [16]. Recently some authors have applied the porous media approach to investigate fluid flow and mass transfer in RPBs. Lu et al. [17] have proposed a new multiphase drag model for porous media approach that could improve the result of previous models particularly for wire mesh packing. Zhang et al. [18] proposed three new multiphase drag force models based on the porous media assumption for wire mesh packing and demonstrated that these models are applicable to counter-current gas-liquid flow in RPBs. Their results indicated that the modeling error was less than 30%. They also claimed that the model is suitable for calculation of the pressure drop in RPB with wire mesh packing. Zhang et al. [19] developed an Eulerian porous media model by a new form of the porous resistance for 3D simulation of gas-liquid flow in RPB. Lu et al. [20] utilized a newly developed porous media model to conduct a 2D simulation of CO₂ absorption using monoethanolamine (MEA) at varying concentrations. Zhang et al. [21] applied the porous medium approach to simulate the CO₂ post-combustion capture in RPB. They developed a full 3D Eulerian porous medium model for RPB based on a pilot-scale system and validated the results using available experimental data. However, they also noted that additional validation may be necessary when applying the model to different RPB configurations. Llerena-Chavez and Larachi [22] derived a CFD-based Ergun-type semi-empirical correlation for pressure drop in RPB. They considered the packing section as a uniform porous media and conducted a 3D CFD simulation of turbulent flow in RPB. Three case studies were considered based on the experimental works of Zheng et al. [3], Sandilya et al. [4] and Liu et al. [8], and the simulation results were validated against their respective data. However, since the CFD simulations were restricted to rotors with characteristics matching those in the referenced studies, the applicability of the developed correlation is limited to RPBs with comparable scales and packing configurations.

In Summary, the review of prior research on pressure drop in RPBs underscores a lack of focus on large-scale systems. Existing correlations, primarily developed from lab-scale studies, may not yield accurate predictions when applied to industrial-scale RPBs, as their regression parameters can be sensitive to rotor dimensions and packing characteristics. Studies consistently showed that gas flow is the primary contributor to pressure drop, while the effect of liquid flow is generally minimal. Given the scarcity of experimental data for large-scale RPBs, CFD simulation offers a valuable alternative for exploring gas flow behavior in such systems.

In this research, high velocity gas flow in large-scale RPB is investigated by CFD simulation. As the drag force models available in the literature are based on lab-scale experimental data, it was not possible to trust them for simulation of large-scale system. As a result, the porous media approach was deemed inappropriate for the current investigation. The wire mesh packing, widely regarded as the standard packing in RPBs, was chosen and its geometric details were incorporated into the simulation to accurately capture the gas flow dynamics. To minimize computational expense, a two-dimensional domain was utilized for the simulations. Initially, the simulation was run for a lab-scale RPB according to the available experimental data to check the validity of the result. Then the geometry of the packing was scaled up without changing the structure of the small-scale geometry. The pressure drop was calculated for different operating conditions in two different packing geometries. Finally, the parameters of an existing semi-empirical correlation were updated to improve its applicability to large-scale RPBs.

2. Geometry and Mesh Generation

There are some investigations available in the literature which have considered the detailed geometries of the packing in RPB instead of porous media approach. However, the geometries used in their models significantly deviated from those typical of industrial-scale RPBs, limiting their direct applicability for large-scale applications. The packing should have high porosity while benefits from high specific surface area to improve the efficiency of the gas-liquid contactor. To accurately model wire mesh packing for industrial RPB applications, a large number of wires must be included, which significantly increases the complexity of geometry and mesh generation. The 3D simulation of gas flow in the large-scale RPB studied in this research required an estimated hundreds of millions of grid cells, making the computation highly expensive. Even a thin slice of the 3D geometry, containing a single row of wires in the radial direction, demanded over one hundred million grid cells. Since such a thin slice was unlikely to produce results close to reality, a 2D simulation was chosen instead, allowing for the inclusion of more wires and better capturing their effects on gas flow. For 2D assumption, it is not possible to consider the horizontal wires in the geometry. To generate a geometry with characteristics as close as possible to the real industrial packed bed, thickness and number of vertical wires were calculated to have the same porosity and specific surface area as the real geometry. Equations (1) and (2) were solved together to calculate n_w and R_w which are number and radius of the wires, respectively.

$$\mathbf{1}-\mathit{\epsilon }={\displaystyle \frac{{\mathit{n}}_{\mathit{w}}{\mathit{R}}_{\mathit{w}}^{\mathbf{2}}}{\left({\mathit{R}}_{\mathit{o}}^{\mathbf{2}}-{\mathit{R}}_{\mathit{i}}^{\mathbf{2}}\right)}}$$

(1)

$${\mathit{a}}_{\mathit{p}}={\displaystyle \frac{\mathbf{2}{\mathit{n}}_{\mathit{w}}{\mathit{R}}_{\mathit{w}}}{\left({\mathit{R}}_{\mathit{o}}^{\mathbf{2}}-{\mathit{R}}_{\mathit{i}}^{\mathbf{2}}\right)}}$$

(2)

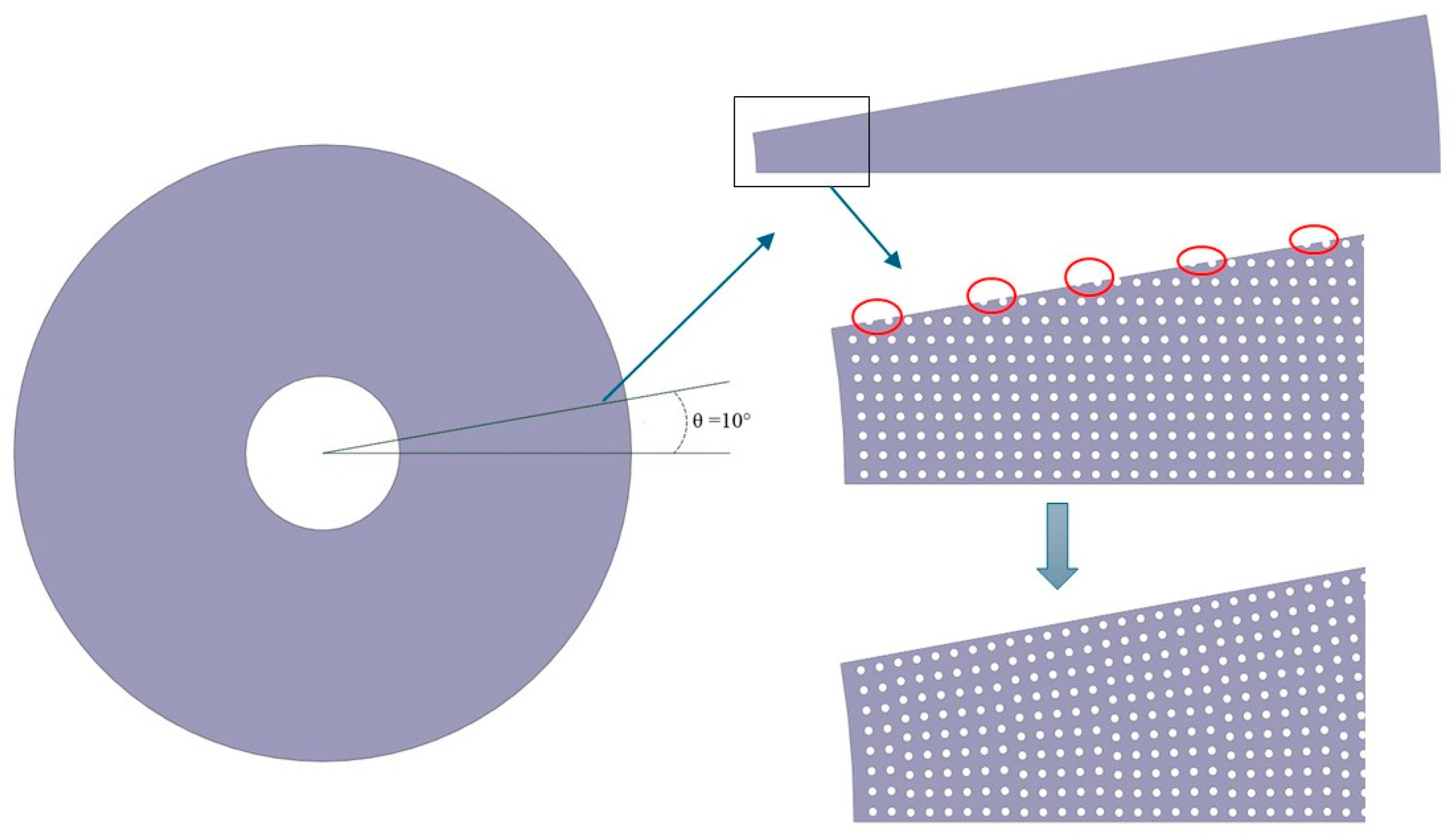

For example, a rotating bed with an inner radius of 0.2 m, an outer radius of 0.5 m, a porosity of 0.91, and a specific surface area of 1440 m²/m³ would require approximately 1.2 million vertical wires, each with a diameter of 0.25 mm. To simplify the geometry and reduce simulation costs, the 2D geometry was divided into 36 slices, and only a 10-degree segment of the annulus was considered for the simulation. Figure 2 illustrates the simplification of the geometry. To maintain homogeneous porosity in the bed, the pitch of the wires was set equal for all the wires. As shown in the figure, to simplify the geometry to a 10-degree segment, the distance between the wires in each row was adjusted to enable the use of periodic boundary conditions. This adjustment, however, resulted in less than 1% variation in the domain porosity. The geometry was generated using Ansys SpaceClaim 2023 R1, and a Python script was written within the software to define the position of each wire in the domain. Finally, the geometry was meshed using an unstructured grid, with a boundary mesh applied near the wire walls to enhance calculation accuracy in the wall-adjacent regions. Figure 3 shows the meshed geometry used for the simulation.

3. Simulation Method

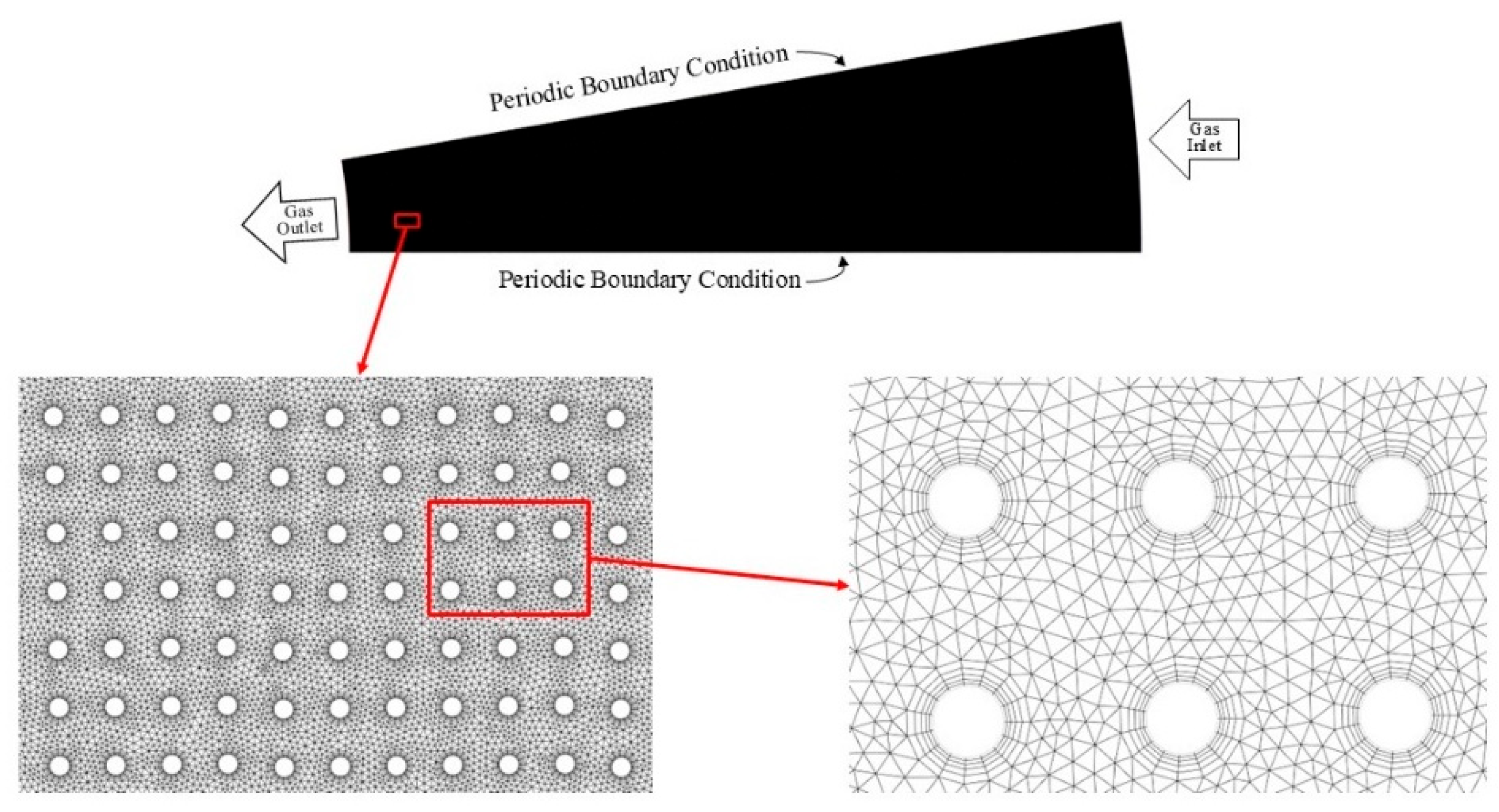

CFD simulation was run using Ansys Fluent 2023 R1 to investigate the gas flow in a rotating packed bed. Velocity inlet boundary condition was set for the gas inlet to the rotating bed and periodic boundary conditions were applied as can be seen in Figure 3. Because the outlet pressure of the rotating bed was not known, the outflow boundary condition was considered in the eye of the rotor which allows the software to calculate it according to the inlet condition.

The SIMPLE algorithm was employed to resolve the pressure-velocity coupling. The second-order upwind scheme was employed for the discretization of the momentum equation, offering greater accuracy for triangular grids compared to the first-order upwind scheme. Presto was selected for pressure discretization that is suitable for high-speed rotating flows. The Realizable k-ε model has been extensively validated for a wide range of flow conditions, including rotational flows, boundary layers with strong adverse pressure gradients, flow separation, and recirculating flows. Previous studies have further confirmed its effectiveness in accurately simulating turbulent flow within RPBs [13,14,15]. Therefore, in this research, the turbulent gas flow within the rotating bed was represented using the Realizable k-ε model. The rotational motion was addressed through the rotating reference frame method. The turbulent kinetic energy and turbulent dissipation rate equations were discretized using the first-order upwind scheme, which enhances solution convergence while maintaining acceptable accuracy. The 2D unsteady-state simulation was initially run with a time step of 10^-6 and as the simulation progressed, the time step was incrementally increased. For near-wall modelling of the gas flow, the enhanced wall treatment method was employed and y⁺ for all the simulations was checked to be around 1 and less than 5. The mesh independency of the calculation was confirmed by comparing the pressure drop results across different grid densities. This comparison ensured that further increasing the number of grids results in less than 5% variation in the calculated pressure drop.

4. Validation of the Simulation Result

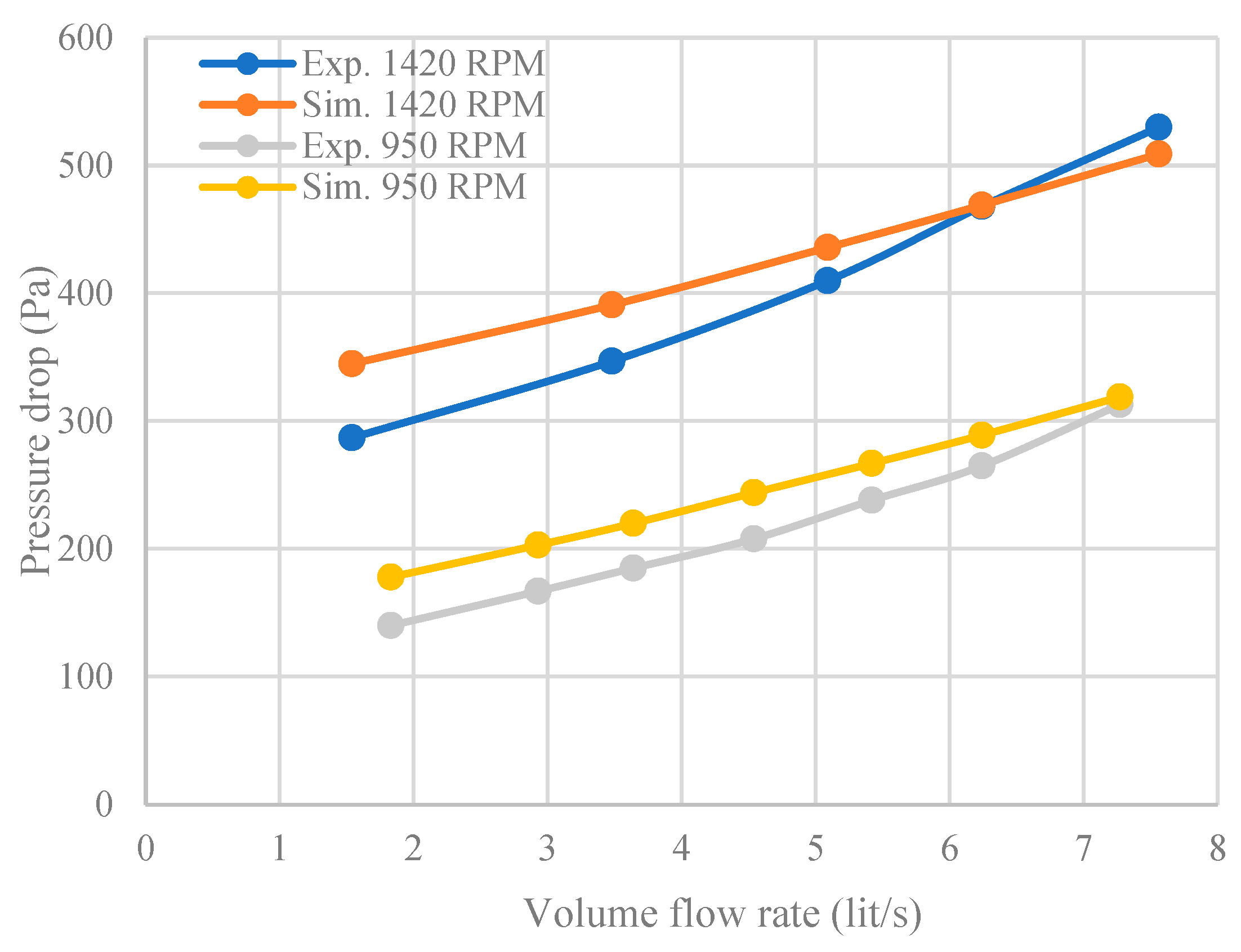

The simulation was first conducted based on existing experimental data from the literature. Pressure drop in a rotating bed with wire mesh packing has been reported by Sandilya et al. [4]. They ran an experimental analysis of the pressure drop in a rotating bed with internal diameter of 6 cm and external diameter of 31 cm. The porosity and specific surface area of the packing were 0.91 and 2196 m²/m³. As the inner diameter of this rotor is small, liquid injection in the eye of the rotor may have negligible effect on the total pressure drop. So, the main pressure drop is affected by the rotating bed and the validation of simulation result with this experimental data can demonstrate the validation of calculation in the rotating bed as the pressure drop in the eye and main case of the rotor is not considered in the current work. Figure 4 shows the comparison of the simulation result with experimental data for pressure drop variation with gas flow rate and rotating speed. As can be seen in this figure, simulation result is in good agreement with experimental data particularly for higher gas flow rates. The maximum deviation between the simulation results and experimental data was 27% and 20% for rotating speeds of 950 and 1420 RPM, respectively. However, this discrepancy decreased as the gas flow rate increased. The model predicted a slightly lower slope for the variation of pressure drop with increasing gas flow rate, leading to the crossing of the simulation and experimental lines in Figure 4. Overall, it can be concluded that the simulation results are more reliable at higher gas flow rates compared to lower flow rates.

5. Large-Scale RPB Simulation

Two different rotating beds were considered for simulation of the gas flow in large-scale RPBs. Table 1 explains the characteristics of each case study. The total number of vertical wires, denoted as n_w, is divided by 36 to determine the number of vertical wires in the 2D segment used for the simulation. For each case study, the gas inlet velocity ranged from 4 to 10 m/s, while the rotating speed varied between 700 and 1500 RPM. Atmospheric air was selected as the working gas flowing through the RPB. The number of grids applied for simulation of case 1 and 2 were 7023050 and 4863787, respectively.

6. Result and Discussion

6.1. Dry Pressure Drop in the Case and Eye of the Rotor

To investigate the effect of gas flow within the housing of the rotating bed, an additional simulation was conducted by incorporating two free zones representing the casing and the gas outlet. The primary objective of this research is to estimate the pressure drop within the packing zone. However, to ensure that the pressure drop in the RPB’s case is negligible compared to that in the rotating bed, the gas flow within the housing was also simulated. Figure 5 shows the variation of pressure in the case and eye of the rotor in comparison with the rotating bed. As shown in the figure, the pressure drops in the casing and rotor eye are significantly lower than in the rotating bed, supporting the assumption that pressure losses in these regions are negligible. In the rotor casing, the gas flow is primarily radial before reaching the rotating bed. However, upon entering the rotor eye, the gas experiences high centrifugal acceleration and possesses significant angular velocity. As it moves toward the outlet, the angular velocity increases due to the Coriolis effect. Consequently, the centrifugal pressure drop in the rotor eye is substantially greater than in the casing, which explains the higher pressure loss observed in the eye region, as illustrated in Figure 5.

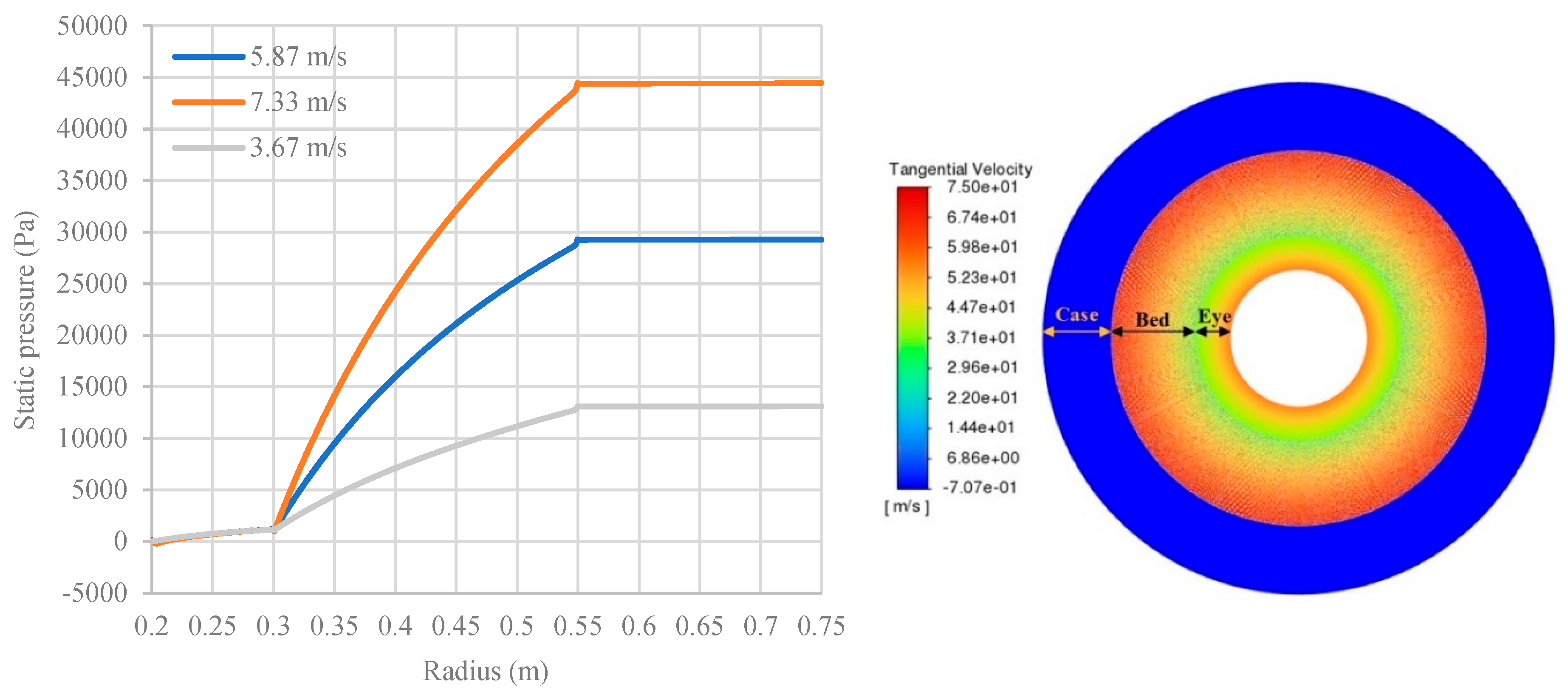

Figure 5 also presents the variation of tangential velocity within the RPB. While the tangential velocity is nearly zero in the rotor casing, it increases significantly after the gas interacts with the initial rows of wire mesh packing. In the rotating bed there is the Coriolis force because of the converging flow which tends to increase the gas angular velocity. But in the meantime, there is also the drag force applied by wire packing in the reverse direction that resists against the fluid motion with higher velocity. As a result, the gas flows within the rotating bed closely matches the rotating speed of the bed. Consequently, as the gas flows through the bed, its angular velocity decreases. In contrast, within the eye of the rotor, the absence of drag force allows the Coriolis effect to increase the angular velocity of the gas as it moves towards the outlet.

In a real RPB design, the gas flow in the eye of the rotor is more complicated because of a 90º bend of the outlet pipe and the liquid distributor. However, due to the 2D approach of the simulation it was not feasible to consider the real geometry and only the Coriolis effect on the pressure drop was approximated.

6.2. Dry Pressure Drop in the Rotating Bed

In a rotating packed bed, the pressure drop is typically attributed to three primary factors: the pressure difference generated by centrifugal force, frictional loss, and the pressure reduction associated with the momentum gain of the converging flow [23]. To evaluate the impact of each resistance on the overall pressure drop, simulations were conducted on three distinct bed configurations: a rotating packed bed, a stationary bed, and an empty bed. When the specific surface area of the packing is high, frictional loss may become significant, making it the dominant factor in the overall pressure drop. However, increasing the rotational speed can further emphasize the influence of centrifugal forces on the pressure drop. Figure 6 presents a comparison of the pressure variations in the gas flow across three different bed configurations. The figure demonstrates that the pressure variation in the gas flow through an empty bed, influenced solely by momentum gain due to converging flow, is minimal compared to the variations in the packed bed. For instance, at a rotational speed of 1100 RPM, the contribution of momentum gains accounts for less than 1% of the total pressure drop, whereas frictional and centrifugal pressure drops contribute approximately 92.3% and 7%, respectively. These findings clearly indicate that frictional losses are the dominant factor contributing to flow resistance within the rotating packed bed, while the influence of momentum gain is negligible.

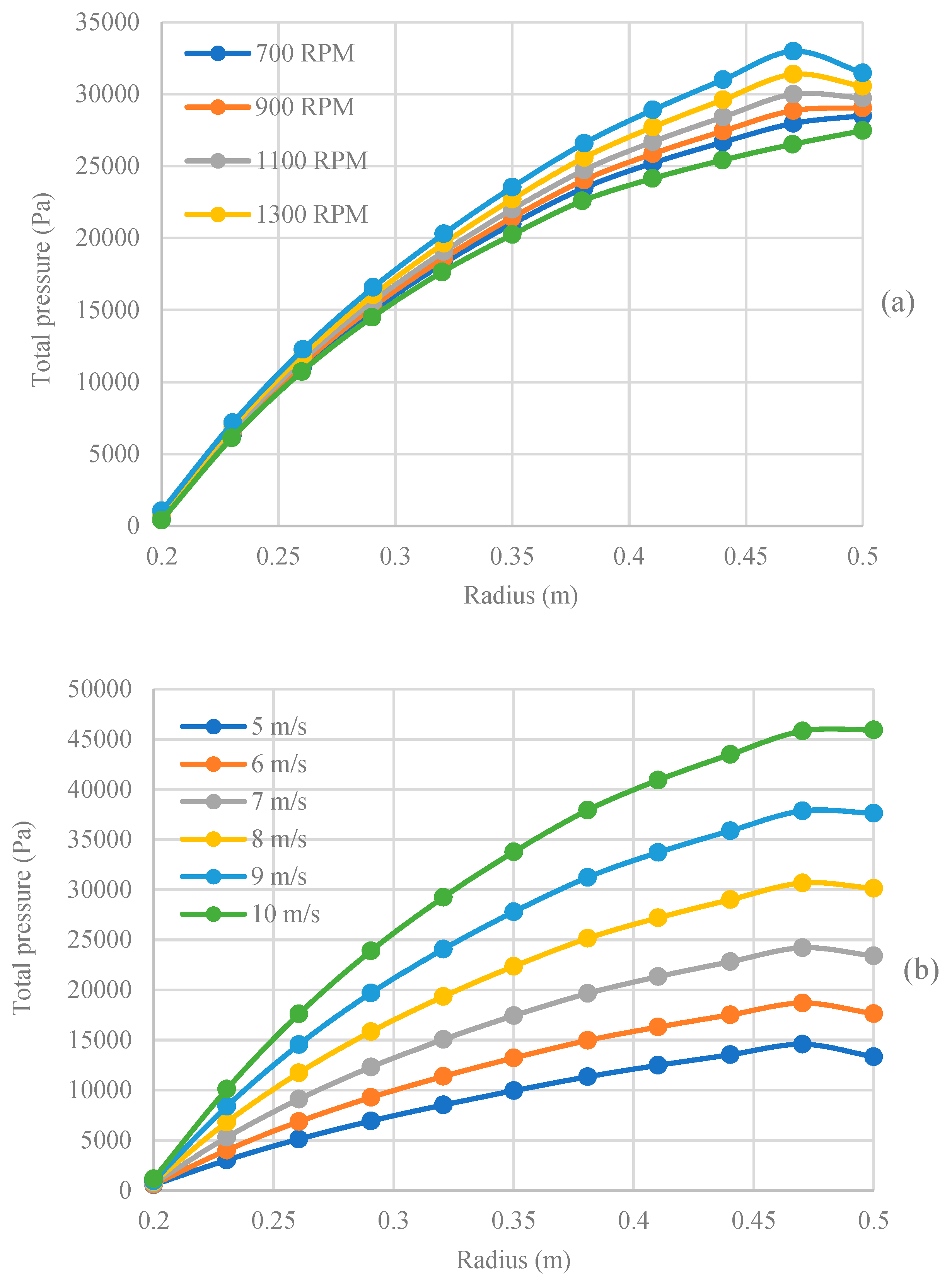

As the gas enters the rotating bed, it interacts with the first rows of wires, leading to a boost in kinetic energy and an increase in dynamic pressure. Figure 7a compares the variation of the total pressure by increasing the rotating speed. When the rotating speed exceeds 900 RPM, the total pressure experiences a peak near the gas inlet. At these high rotating speeds, the gas rapidly gains kinetic energy as it interacts with the wires. This increase in kinetic energy results in a significant rise in dynamic pressure that surpasses the pressure losses typically associated with the flow resistance within the rotating bed. So, total pressure variation in the high-speed rotating bed reaches a maximum after interaction with wire. Variation of the total pressure by increasing the inlet velocity is also illustrated in Figure 7b. As can be seen in this figure, the peak in total pressure is disappeared by increasing the inlet velocity. When the inlet velocity is 10 m/s, the gas enters the bed with significant kinetic energy. This energy does not increase substantially through interaction with the wires, leading to a situation where the dynamic pressure does not rise sufficiently to overcome the pressure loss within the bed. Therefore, the increase of velocity inlet minimizes the total pressure peak.

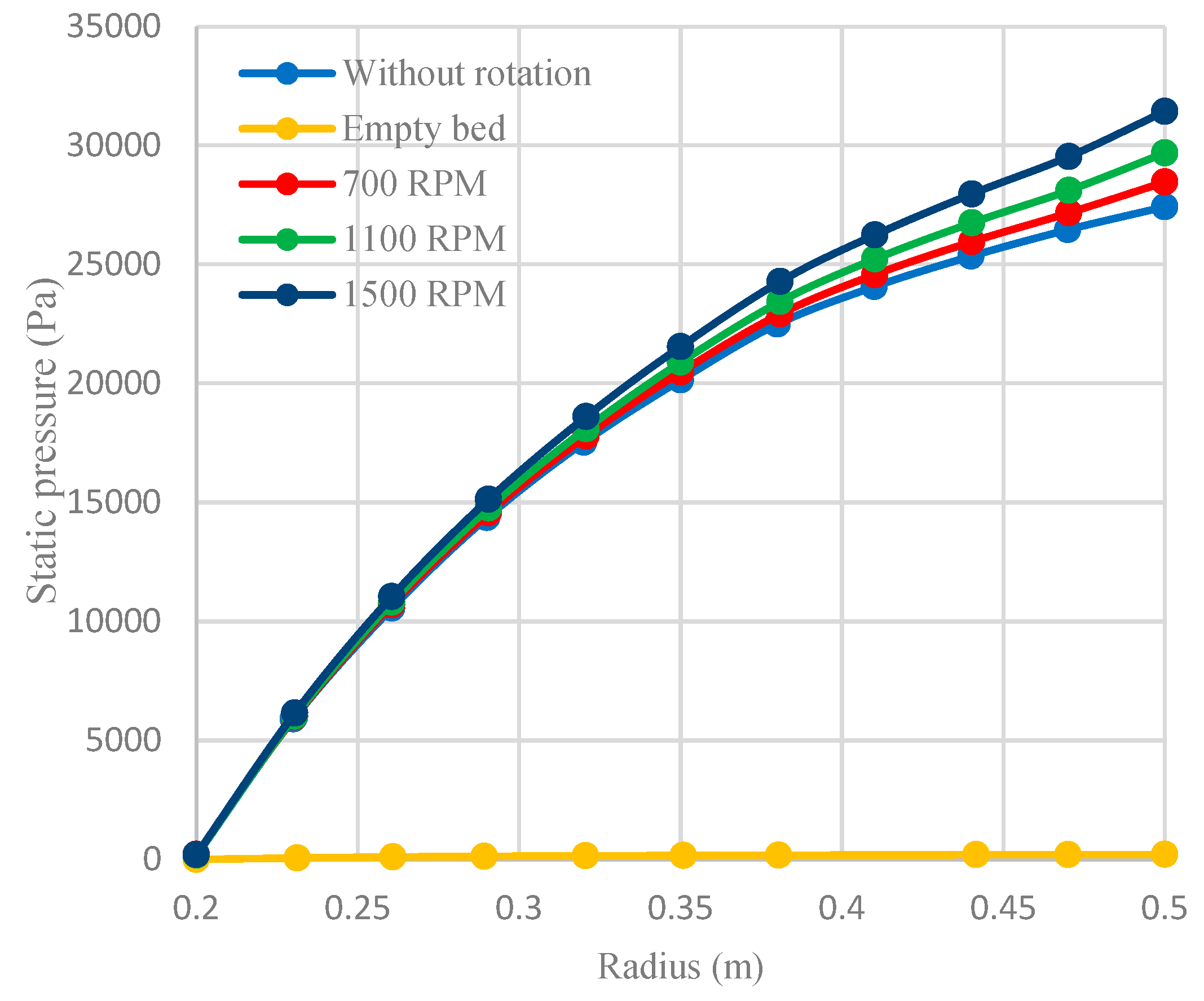

Under the opposing effects of Coriolis and drag forces, the gas flow matches the velocity of the rotating bed. In a stationary packed bed, gas velocity typically increases from the inlet to the outlet due to the converging flow. In contrast, within a rotating bed, the gas velocity reaches its peak shortly after interacting with the initial rows of rotating wires. An increase in bed radius leads to greater centrifugal acceleration, resulting in higher angular velocity of the gas near the inlet region, where the radius is at its maximum. Since the rotational effects significantly outweigh the momentum gain from the converging flow, the gas velocity decreases as it moves from the larger-radius section of the bed toward the rotor eye in the RPB.

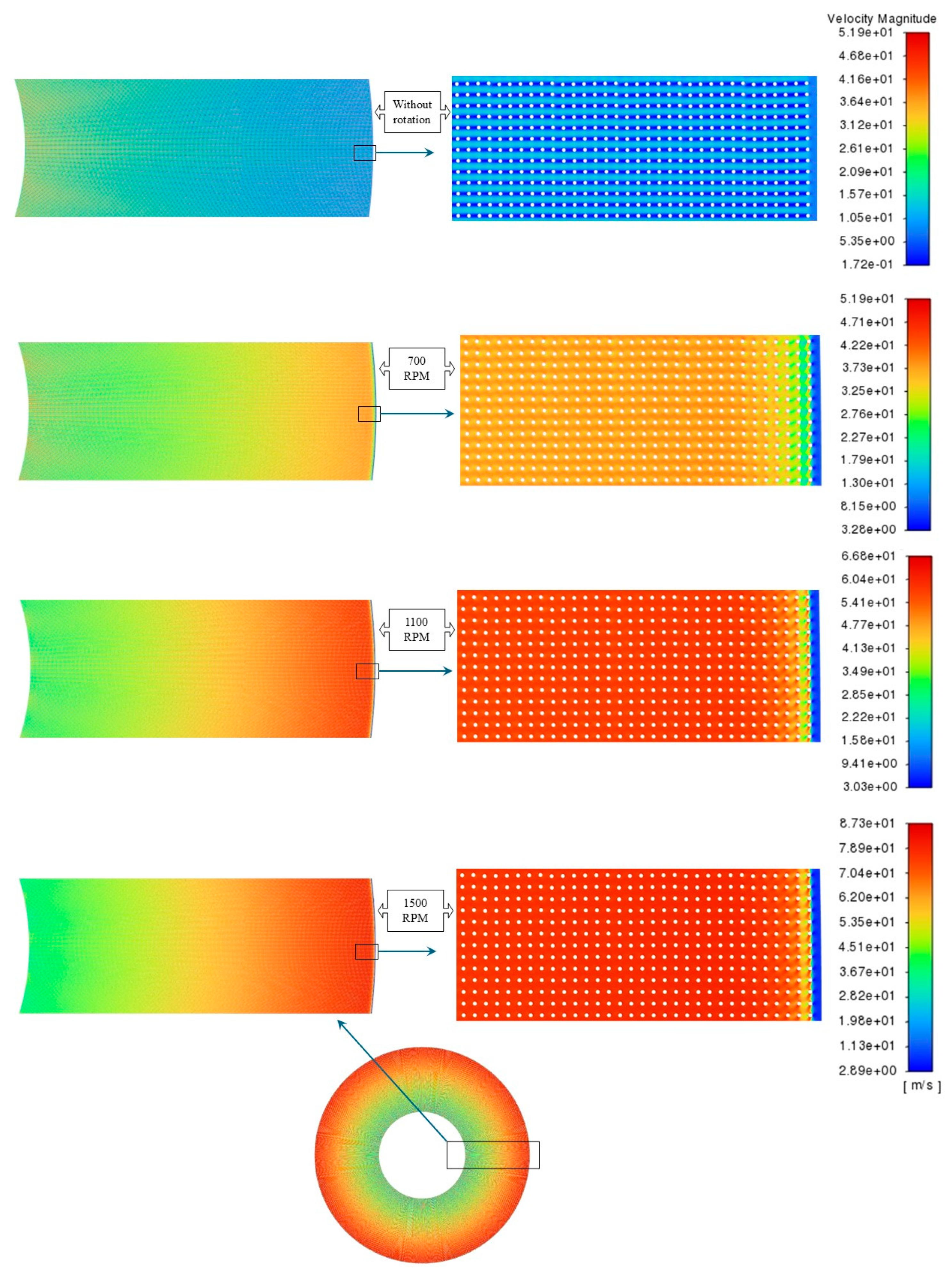

Figure 8 illustrates the variation of velocity in the rotating beds in comparison to a stationary bed. As can be seen from the figure, by increasing the rotating speed the maximum gas velocity shifts closer to the gas inlet, in contrast to the stationary bed, where the maximum velocity occurs in the gas outlet. The rotating speed also has a remarkable effect on the maximum velocity magnitude of the gas as it rises from 52 to 87 m/s by increasing the rotating speed from 700 to 1500 RPM.

Earlier studies have established that the gas flow within a rotating bed primarily follows an angular pattern [13]. Researchers have also indicated that the radial injection of the liquid in the eye of the rotor can destroy the angular pattern of the gas flow, and this effect leads to a decrease in pressure drop which is directly related to the angular velocity of the system [3,23]. The simulation result of this study shows that in a large-scale RPB, when high-velocity gas is injected radially, it may follow a near radial pattern, particularly near the gas outlet where the bed's radius is reduced and centrifugal acceleration is less than the inlet zone. Figure 9 illustrates the gas flow vectors passing multiple circles in the rotating bed with various rotating speeds and inlet velocities. According to this figure, when the gas inlet velocity is 5 m/s, the flow pattern is more angular near the gas inlet while increasing the inlet velocity changes the slop of the vectors and the flow pattern is less angular dominated. The vectors near the gas outlets are under lower centrifugal acceleration because the radius of the bed is smaller and consequently the flow is less angular dominated. Particularly when the inlet velocity is 10m/s and the rotating speed is 700, the flow is significantly radial in comparison with other operating conditions. Comparison of the maximum velocity magnitude in Figure 9 demonstrates that the maximum velocity of the bed does not change considerably by increasing the inlet velocity and it is mainly affected by the rotating speed.

6.3. CFD-Aided Pressure Drop Correlation

To enable the use of CFD results in future RPB modelling, a correlation for pressure drop was fitted to the CFD result. This correlation provides a simplified mathematical expression that relates the key variables affecting pressure drop within the RPB, such as rotational speed, gas flow rate, and bed geometry. By fitting the correlation to the CFD results, the model captures the complex interactions within the RPB, offering a practical tool for predicting pressure drops under various operational conditions. The correlation can aid in the design and optimization of RPB systems by providing a quick and reliable method for estimating pressure losses. Table 2 shows the simulation result for pressure drop in RPB with characteristics of case 1 and 2.

Given the negligible influence of momentum gain from the converging flow in the RPB (Figure 6), the pressure drop was attributed to a combination of frictional resistance and centrifugal force as suggested in previous works. Mackowiak’s correlation [24], applicable to both random and structured packings, was used as a base to evaluate frictional pressure drop in static bed. This correlation, derived from the extended channel model for predicting pressure drop in dry packed beds, is expressed as follows:

$${\displaystyle \frac{\Delta P_f}{R_o-R_i}}={\Psi }_0\left(1-\phi \right){\displaystyle \frac{1-\epsilon }{{\epsilon }^3}}{\displaystyle \frac{F_g^2}{d_{p}K}}$$

(3)

where K represents the wall factor, which equals 1 for structured packing. In the original work [24], the resistance factor was defined by following correlation:

$${\Psi }_0={\displaystyle \frac{725.6}{R{e}_g}}+3.203$$

(4)

Re_g is the modified Reynolds number of the gaseous phase described by:

$$R{e}_g={\displaystyle \frac{d_p{F}_g\sqrt{{\rho }_g}}{\left(1-\epsilon \right){\mu }_g}}$$

(5)

$$d_p={\displaystyle \frac{6\left(1-\epsilon \right)}{a_p}}$$

(6)

The gas capacity factor, F_g = u_g $\sqrt{{\rho }_g}$is defined by radially averaging the gas velocity u_g across the packing as follows [9]:

$$F_g={\displaystyle \frac{Q_g}{2\pi H\left(R_o-R_i\right)}}\ln \left({\displaystyle \frac{R_o}{R_i}}\right)\sqrt{{\rho }_g}$$

(7)

φ on Eq. (3) in the original paper was defined as a form factor, although it was used as a fitting numerical parameter. For example, Neumann et al. [9] were the first applied Eq. (3) to rotating packed beds, reporting φ values of 0.32 and 0.35 for two distinct wire mesh packing configurations.

The term

$$f={\Psi }_0\left(1-\phi \right)$$

(8)

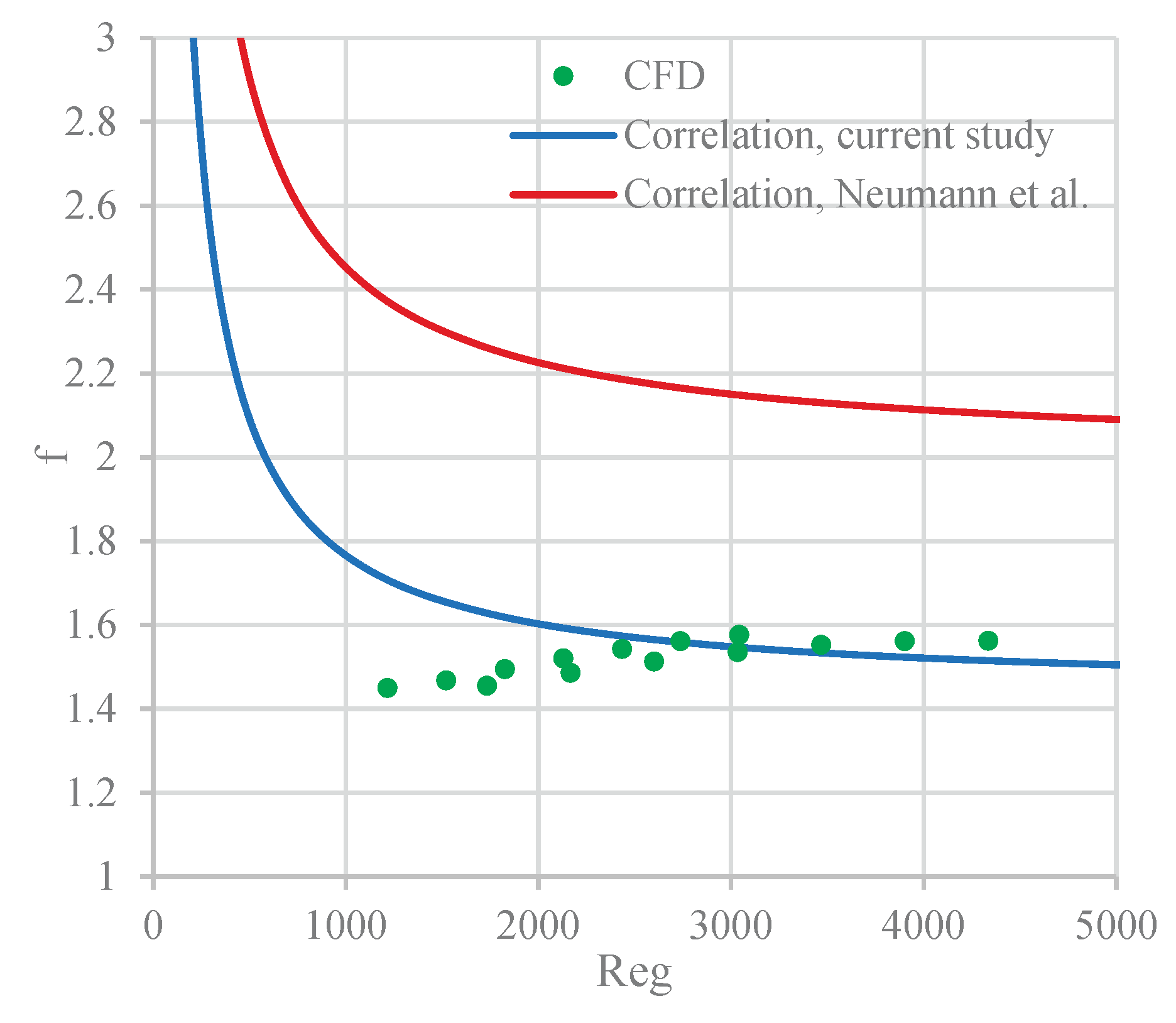

in Eq. (3) is an overall friction factor coefficient. Figure 10 illustrates how this coefficient varies with the Reynolds number for our simulation. The figure clearly shows that the calculated friction factor remains essentially constant with increasing Reynolds number, which is expected since the system operates within the inertial flow regime at high Reynolds numbers. Calculated friction factors can still be represented by a numerical expression of the type used by Neumann et al. [9], Eq. (4), even for our case. This is due to fact that for high Reynolds numbers, let say larger than 1000, ${\Psi }_0$ is essentially independent of Re_g. However, unlike the original suggestion, the fitting value of the parameter φ had to be adjusted to 0.55, most likely due to differences in rotor size and packing characteristics.

The pressure drop due to centrifugal force is commonly evaluated through the following correlation:

$$\Delta P_c={\displaystyle \frac{A}{2}}{\rho }_g{\omega }^2\left(R_o^2-R_i^2\right)$$

(9)

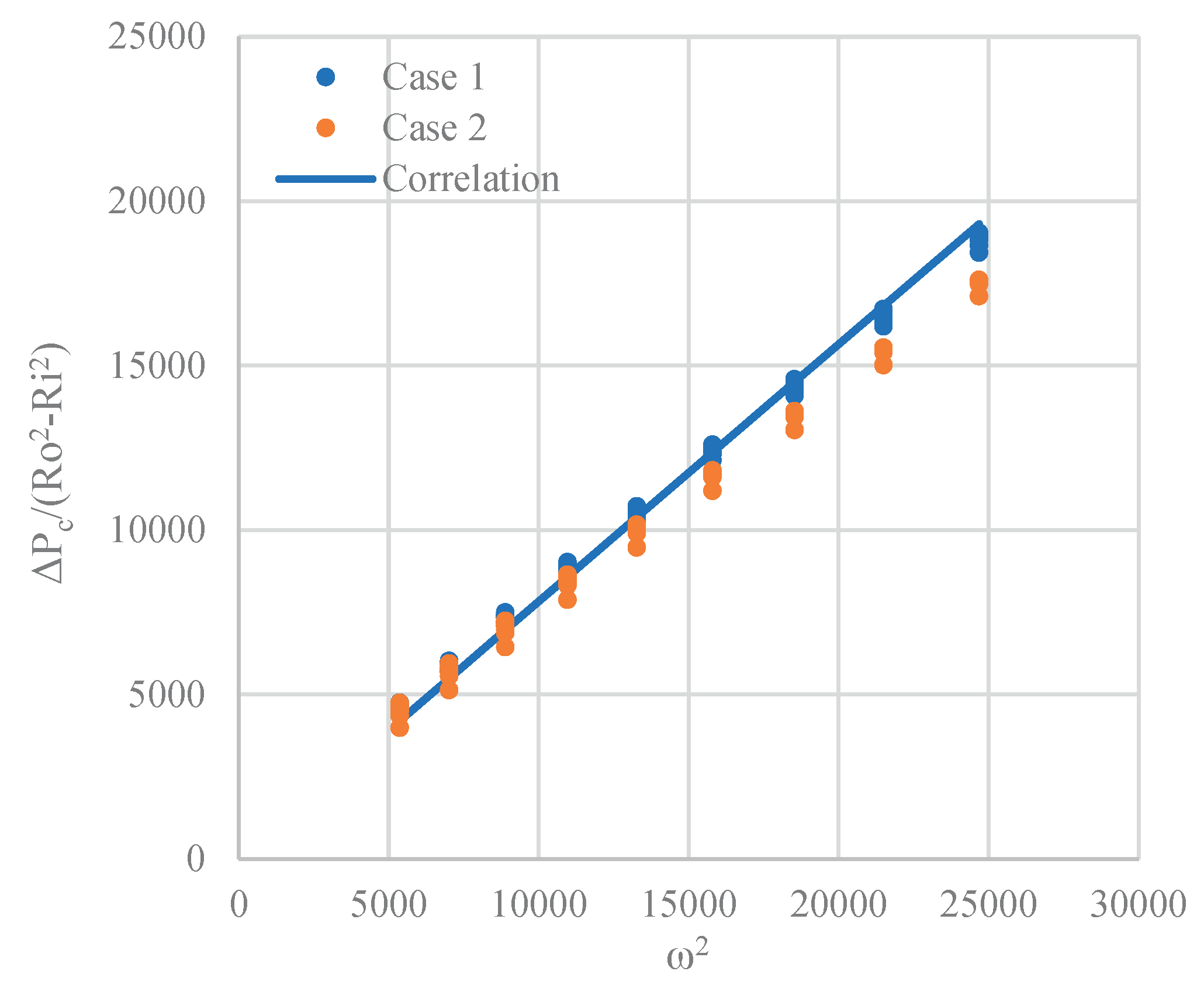

which indicates a linear relationship between $\Delta P_c and {\omega }^2$. From our numerical results the pressure drop due to centrifugal force was estimated by subtracting the static bed pressure drop from the overall pressure drop. Figure 11 fully supports the prediction of Eq. (9), with only a marginal difference in the slope between the two cases studied, difference which can be attributed to the bed characteristics. An average value of parameter A equal to 1.28 was adopted to adequately represent both case studies. Neumann et al. [9] previously reported this parameter within the range of 0.85–0.89. Again, the difference in PBR size and flow regime can be invocated to justify the discrepancy.

On summary, the pressure drop in the RPB is described using a CFD-based correlation that accounts for both frictional and centrifugal effects, as follows:

$$\Delta P={\Psi }_0\left(1-0.55\right){\displaystyle \frac{1-\epsilon }{{\epsilon }^3}}{\displaystyle \frac{F_g^2}{d_p}}\left(R_o-R_i\right)+{\displaystyle \frac{1.28}{2}}{\rho }_g{\omega }^2\left(R_o^2-R_i^2\right)$$

(10)

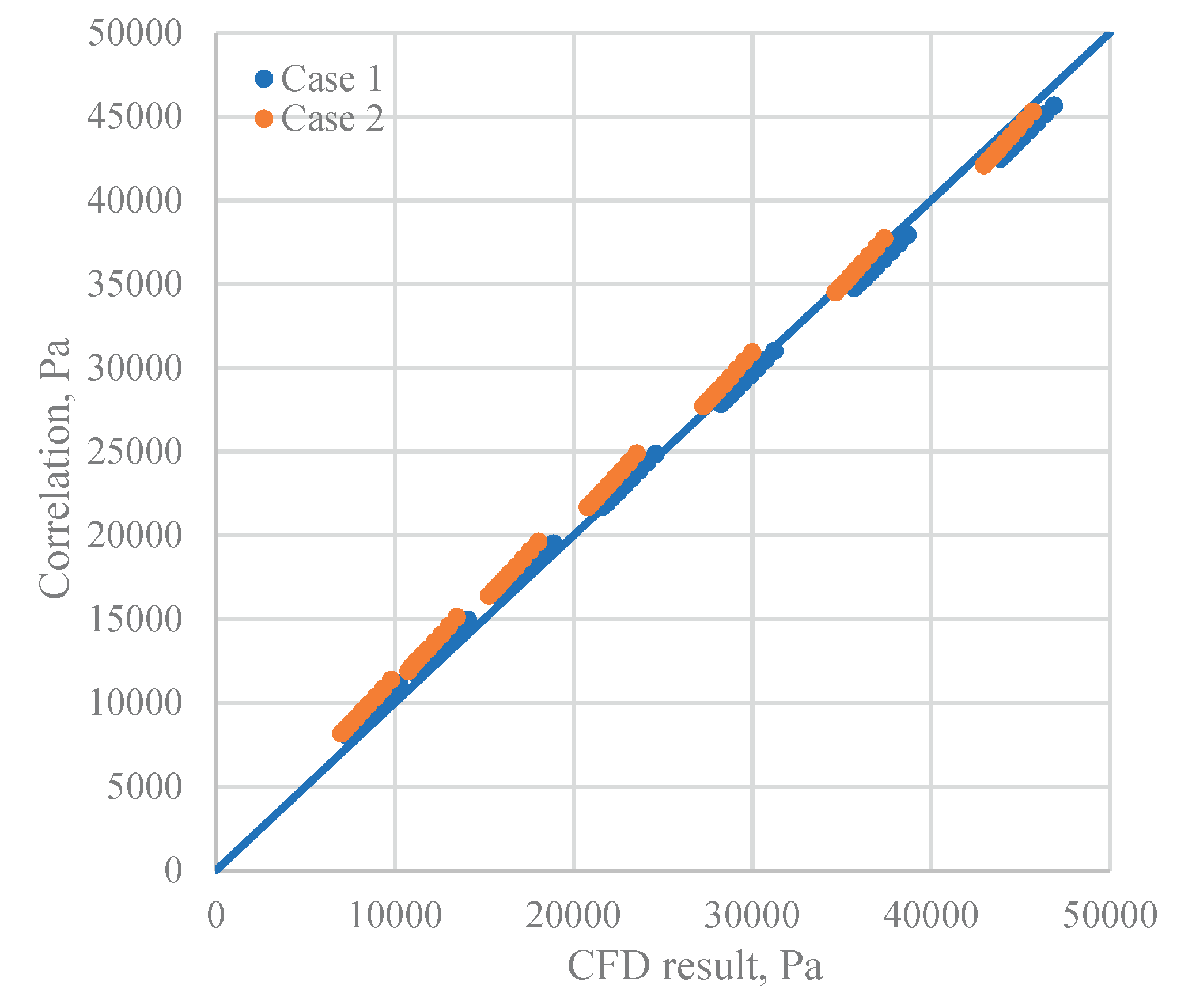

Figure 12 presents a comparison between CFD results and the proposed correlation for the total pressure drop in a rotating packed bed. As shown in the figure, there is an excellent agreement across various case studies and operating conditions. It is important to highlight that the correlation was derived based on CFD simulation results, incorporating specific simplifications to minimize computational costs. Firstly, the geometry did not exactly replicate conventional wire mesh packings containing both vertical and horizontal wires; rather, it may be more applicable to packings composed solely of vertical wires. However, despite not accounting for the effect of packing shape, the correlation can still provide a reasonable estimation of the pressure drop in rotating beds with porosity and specific surface area within the studied range.

7. Conclusion

In this research, high gas flow in large-scale RPB was investigated using CFD simulation. Considering the lack of experimental data for pressure drop in large-scale RPBs, the simulation result was validated with available lab-scale experimental data in the literature and then the geometry was scaled up. Simulation results indicated that the dry pressure drops in the case and eye of the rotor are remarkably lower than the pressure drop in the rotating bed. Therefore, the work was followed by only considering the rotating bed as the simulation case study. The CFD results also explained that the overall pressure drop was mainly affected by friction loss while the effect of centrifugal pressure drop was not negligible. Moreover, when the gas flow rate was high the simulation results showed a near radial pattern of the gas leaving the rotating bed. A two-parameter semi-empirical correlation was finally fitted to the CFD results to model the pressure drop in a rotating bed. This correlation is intended to aid future research on industrial-scale RPBs, particularly under operating conditions similar to those investigated in this study.
