Influence of Adjusted Melt Pool Geometries on Residual Stress in 316L LPBF-Processes

1. Introduction

Laser Powder Bed Fusion (LPBF), also known as Selective Laser Melting (SLM), is a relatively young but rapidly advancing additive manufacturing technology. It is particularly notable for its high design flexibility and fine resolution. In this process, a metal powder is uniformly distributed over a build platform and selectively melted by a focused laser beam. As the material solidifies, the component is constructed incrementally in a layer-by-layer fashion. LPBF enables the production of near fully dense metallic parts, often achieving relative densities greater than 99%. During fabrication, the laser fully melts the powder, generating a localized melt pool that solidifies rapidly. [1,2,3].

The localized heat input and the selective melting and solidification behavior lead to high temperature gradients and high cooling rates, which are characteristic of the LPBF process. It has been established that the cooling rates reach a magnitude of 10⁶ K/s during the process [4].

Resulting from these cooling rates residual stresses (RS) arise. Residual stresses are internal stresses remaining in a material at rest and constant temperature. They are classified into three types based on the scale at which they self-balance. Type I stresses act on a macroscopic scale across the entire component and can cause deformation when equilibrium is disturbed. Type II stresses exist at the grain or phase level, while Type III stresses occur within individual grains. Types I and II are primarily responsible for process-induced distortions, with Type I being macroscopic and Types II and III considered microscopic [5,6].

When isotropic materials are subjected to uniform heating, they undergo uniform expansion and subsequently return to their original state upon cooling. In the event of thermal expansion or contraction being restricted by external forces or localized heating, such as that occurring during local melting of material in the LPBF Process, internal stresses will develop. The surrounding cooler material exerts a constraint on the heated zone, resulting in thermally induced residual stresses that persist after cooling [5,7].

The consequences of these residual stresses manifesting can be process failure, part distortion and the necessity of post-process heat treatment.

In addition to that, a subsequent welding process may not be feasible due to the potential reduction in yield strength caused by reheating, which can lead to plastic deformations. The extent of these adverse outcomes is contingent on the material employed. The coefficient of thermal expansion and the heat conductivity are of significance, as are the material’s mechanical properties. In case of the 316L stainless steel under consideration in this study a comparably high coefficient of thermal expansion of 16 10^-6 K^-1 and a heat conductivity of 15 W/mK leads to a good weldability in general but relatively high susceptibility to the formation of RS in comparison to other steal materials [8].

Consequently, a number of investigations have been conducted with a view to reducing or mitigating RS in LPBF parts manufactured from 316L. Different strategies can be applied to reduce residual stresses in the LPBF process:

Preheating

Kaess et al. numerically showed that increasing preheating temperatures lead to decreased distortion in manufactured cantilevers, with a significant reduction observed from 300 °C. This finding was corroborated by Waqar et al., whose finite element analysis confirmed that residual stresses in the component’s center decreased with rising preheating temperatures, nearly disappearing at 400 °C. However, Waqar et al. also noted an increase in residual stresses at the edges with higher preheating temperatures, observing a uniform stress reduction across the component at 200 °C [9,10].

Beyond stress and distortion, preheating also improves material properties. Zhang et al. found that preheating at 150 °C reduced clamping surface deformation of tensile specimens from 15 % to 7 % and increased specimen density from 98.6 % (room temperature) to 99.4 %. Furthermore, preheating at 150 °C significantly improved tensile strength from 501.1 ± 8.3 MPa to 594.9 ± 35.2 MPa and elastic modulus from 151.5 ± 13.1 GPa to 194.8 ± 14.8 GPa. Similarly, Kruth et al. reported that a preheating temperature of 180 °C reduced cantilever deflection by 10 % compared to non-preheated samples [11,12].

Post Process Heat Treatment:

Numerous studies confirm the effectiveness of post-process heat treatment in significantly reducing residual stress in Laser Powder Bed Fusion (LPBF) components.

Research by Chao et al. demonstrated substantial reductions in residual stresses: up to 65 % after two hours at 650 °C, 24 % at 400 °C for four hours, and approximately 90 % at 1100 °C for five minutes. These findings are strongly supported by Cruz et al., who reported similar reductions: 23 % at 400 °C (four hours), 63.5 % at 650 °C (two hours), and 92.4 % at 1100 °C (five minutes) [13,14].

However, the degree of stress reduction varies with temperature and duration. Sprengel et al. noted that a four-hour treatment at 450 °C provided minimal benefit for residual stress reduction in LPBF 316L. In contrast, higher temperatures yielded better results: a one-hour treatment at 800 °C reduced stresses by up to 75 %, and at 900 °C, this increased to 86 %. Williams et al. also showed that annealing at 700 °C for two hours effectively reduced residual stresses by 10 % in vertical samples and 40 % in horizontal samples [15,16].

In addition to stress relief, heat treatment can also refine material properties. Tascioglu et al. found that treatments at 600 °C, 850 °C, and 1100 °C (for two hours each) progressively reduced microhardness and significantly increased component density, with porosity dropping from 0.43 % to as low as 0.08 % at 1100 °C [17].

Energy Input

The relationship between energy input parameters and residual stress in Laser Powder Bed Fusion (LPBF) is complex, with studies showing mixed results. Several investigations, including those by Liu et al., Yakout et al., and Jagatheeshkumar et al., suggest that higher energy input leads to increased residual stresses and distortion. This is often attributed to larger melt pools causing more material contraction [18,19,20].

However, other research contradicts this. Wu et al. and Malý et al. found that higher energy input can reduce distortion. Simson et al. found no direct correlation between energy input and residual stresses in their 316L samples, provided a high density was achieved [21,22].

Importantly, the same energy input can be achieved with different parameter combinations, leading to varying outcomes [5,23,24,25,26].

Studies by Munsch and Ali et al. [5,25] on Ti6Al4V highlight that slower processes (low laser power and slow scanning speed) are more effective at reducing residual stresses and distortion due to lower temperature gradients. Munsch specifically noted that slow scanning speeds significantly improve distortion, while laser power had a minor effect. This emphasis on slow scanning speed is supported by Xiao et al. [27].

Scan Pattern

Different scan strategies significantly affect residual stresses and distortion in Laser Powder Bed Fusion (LPBF) parts, though findings on previous research are often complex and sometimes conflicting. It’s well-established that shorter scan vectors are advantageous for reducing residual stresses [12,18,24,28], and the greatest residual stresses frequently occur parallel to the scan vector, with lower stresses perpendicular to it [12,18,21,29,30]. Consequently, checkerboard exposure is often considered advantageous compared to line or stripe exposures along the largest component dimension [12,24,29]. However, the comparison between a line strategy with 90 ° scan vector rotation between successive layers and checkerboard strategies is more controversial. Robinson et al. [29,30] and Ali et al. [25] found that the alternating line strategy resulted in lower distortions than tested checkerboard strategies for titanium alloys, with Robinson et al. suggesting a superposition of tensile and compressive stresses might reduce maximum stress. Conversely, Zaeh and Branner [31] concluded that checkerboard exposure caused lower residual stresses compared to an XY alternating line strategy for 1.2709 material.

Regarding the optimal checkerboard field size, results vary. Kruth et al. [12] found no significant differences in distortion for 316L bridge geometries with 1x1 mm, 5x5 mm, and 10x10 mm field sizes. In contrast, Wu et al. [21] observed reduced tensile stresses for 3x3 mm panels compared to 5x5 mm. Lu et al. [32] investigated 2x2 mm, 3x3 mm, 5x5 mm, and 7x7 mm for Inconel-718, finding the lowest residual stresses for 2x2 mm, followed by 5x5 mm and 7x7 mm, though 2x2 mm also had the highest porosity and cracks, suggesting 5x5 mm might be advantageous. Hajnys et al. [33], also concluded that a 5x5 mm checkerboard size is advantageous for residual stress reduction in 316L (comparing 3x3 mm, 5x5 mm, 7x7 mm, and 10x10 mm).

The initial angle of scan vectors is another influencing factor. Kruth et al. and Wu et al. found that an initial angle of 45° relative to the largest component dimension in checkerboard strategies led to lower distortions than a 0 ° initial angle, attributed to the main stress direction not aligning with the component’s largest dimension. [12,21].

A particular aspect has received relatively little attention in previous research on reducing residual stresses in the LPBF process. Evidence has been found in a number of sources that the shape and geometry of the melt pool also have an effect. The purpose of this paper is to address the following question:

• Can a deeper melt pool (introduced by a bigger layer thickness) be beneficial for the residual stresses? Or is a wider melt pool (introduced by a larger hatch spacing) more advantageous when reducing RS ?

Studies show a trend that increasing layer thickness generally reduces residual stresses in LPBF. Mercelis and Kruth [34] found residual stress increases with more layers, while Anderson et al. [35], Kruth et al. [12], and Ali et al. [25]. all demonstrated reduced stresses or distortion with thicker layers (e.g., 90 µm vs. 30 µm; 60 µm vs. 30 µm; 75 µm vs. 25 µm). Mugwagwa et al. [24] also observed less distortion with 45 µm compared to 30 µm, though they noted a density decrease with thicker layers. Ali et al. [25] attributed lower stresses to reduced cooling rates and temperature gradients, also finding that thicker layers resulted in deeper melt pools and, in their case, slightly decreased yield strength and elongation.

The influence of laser spot diameter and consequently the size of the hatch distance on residual stresses is less defined. While Larimian et al. [36] reported improved mechanical properties with larger spot diameters at constant volume energy density, Yang et al. [37] found density and hardness decreased due to increased porosity with larger spots (0.1 mm to 0.4 mm at AISI 420 samples), where parameters weren’t adjusted to maintain constant energy density. Weaver et al. [38] confirmed larger spot diameters lead to wider, flatter melt pools. Overall, while a larger spot creates a different melt pool geometry, no clear trend on its direct influence on residual stresses can be determined from the current literature, unlike the clear effect of layer thickness.

Conclusion of the State of the Art

Following a thorough examination of the current state of the art, the following conclusions can be drawn:

• The issue of RS resulting from the LPBF process on 316L stainless steel remains a significant challenge that is being addressed by some scientists. This assertion is especially valid in the context of components of increasing size and machinability in relation to downstream welding processes.
• It is evident that the most effective method of preheating is not always technically feasible for various process-related reasons. These include cycle times, powder adhesion, and increased recalibration effort due to constant expansion and shrinkage of machine elements.
• It is evident that there are already certain parameter-based approaches to reduce RS within the LPBF process. A number of these have already been the subject of extensive research.
• There remains a gap in the detailed understanding of how the geometry of the melt pool (in terms of both depth and width) affects internal stresses.

2. Materials and Methods

In order to explicitly investigate the influence of the melt pool geometry on the resulting residual stresses, a test setup was chosen that correlates set LPBF parameters with the resulting distortion of dual cantilevers produced with these parameters. This gives the opportunity to find a qualitative answer to the question of which parameter set-up is advantageous when reducing RS. The samples are also examined metallographically using accompanying density cubes in order to isolate the disturbance variables relevant to warping (e.g., low density). The purpose of these associated investigations is to ensure that the process window is not violated during the stress minimization experiment.

All specimen are produced with a LPBF System of the manufacturer Aconity3D. The Aconity MIDI+ system is a flexibly configurable LPBF system. Depending on the system configuration, it is possible to vary the laser spot diameter between 70 µm and 500 µm. The smallest possible layer thickness is 10 µm. In the preheating area, the installation space can be preheated to up to 500 °C. The available laser power is up to 1200 W. Due to the 3D-scanners different spot diameter sizes can be achieved ranging from 70 µm up to 500 µm. The Aconity MIDI+ machine is a highly versatile instrument that can be configured in a multitude of different combinations of hardware components. The configuration used in this work had a building chamber dimension of Ø 170 mm *H 200 mm. The used single mode laser had max. Laser Power of 1000 W and a wavelength of 1070 nm. Nitrogen was used as shielding gas. The 316L powder employed had a particle size distribution (PSD) of −45/+15 µm, ensuring that a maximum of 5 % of particles were either larger than 45 µm or smaller than 15 µm.

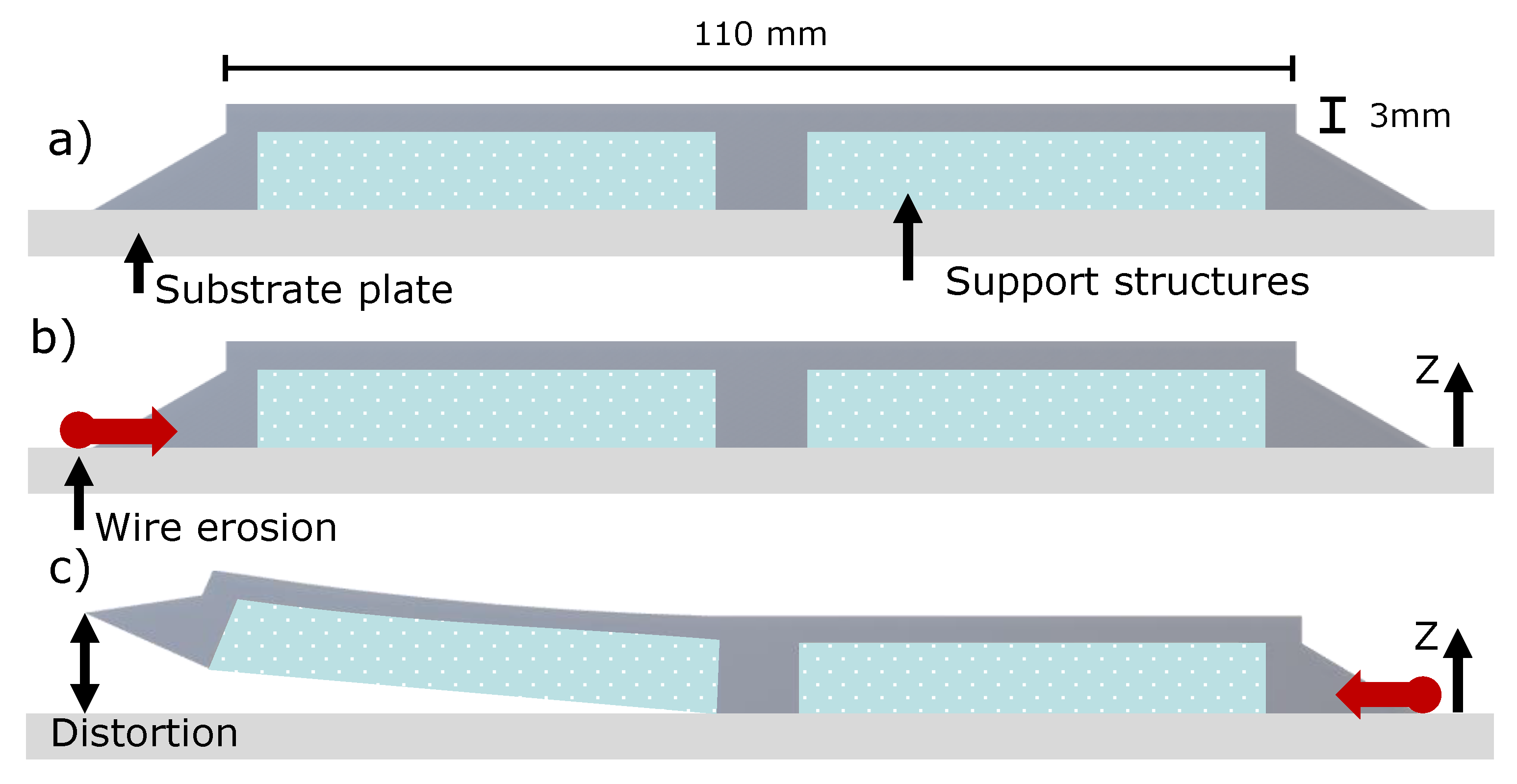

A double cantilever, also known as a dual cantilever or twin cantilever, is utilized as the sample geometry. This particular geometry is frequently used in contemporary visualization techniques for distortions [39]. The configuration of the cantilever is depicted in Figure 1, illustrating the arrangement of cantilevers on both sides of a base body, supported by building platform supports. It is important to note that due to the occurrence of shrinkage in the lower layers of the cantilever, an additional support structure in the form of a triangular block is necessary on both sides.

A 3 mm bar height was determined based on several previous measurement series. This presents conflict of goals between achieving clear distortion visibility and minimizing susceptibility to stress cracks. Should a stress crack occur, the sample or the dual cantilever arm becomes unusable for evaluation due to stress release from plastic deformation.

To investigate the distortion caused by residual stress in cantilevers after they are wire eroded from the building platform. a 3D striped light scanner is used. It is a method also seen in different previous publications Buchbinder et al. [39]

The 3D scanner works by projecting a stripe pattern onto the object. Cameras then capture the distortion, and 3D coordinates are calculated via triangulation. Different lens sets allow for various measuring fields. The specific system used is a Comet 6 from Steinbichler (now Carl Zeiss Optotechnik GmbH), which has a measuring volume of 274 mm x 193 mm x 160 mm and a maximum length measurement deviation of 0.03 mm.

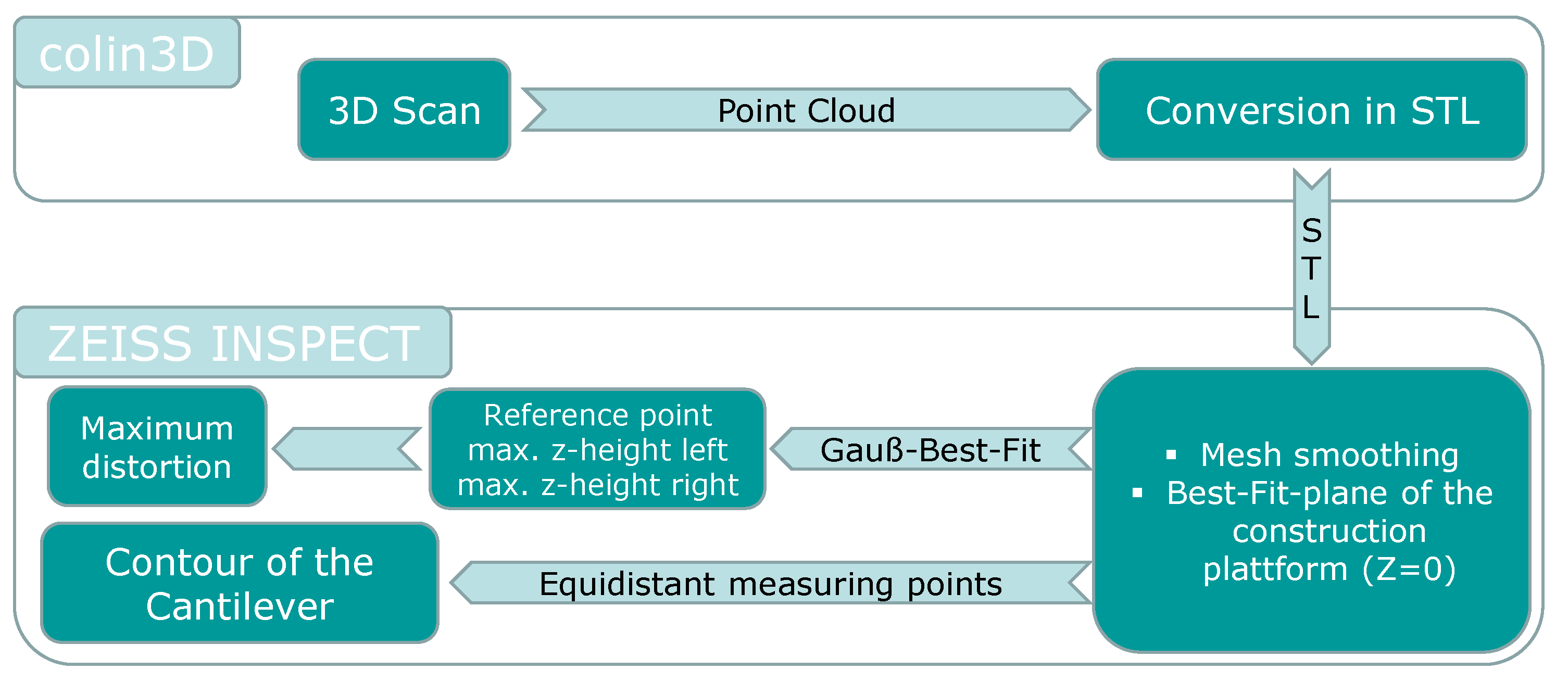

After scanning, the data is exported to Colin-3D software and then analyzed in ZEISS IN-SPECT software (formerly GOM Inspect). The full digital process is outlined in Figure 2.

First, the raw 3D scan data is cleaned to remove artifacts like powder adhesions. Then, a reference plane is established on the build platform using a Gaussian best-fit method. This plane serves as the baseline for all subsequent measurements. To visualize the cantilever’s contour, equidistant measurement points are used to create a measurement curve in the assembly direction. The maximum displacements of the cantilever are determined by applying a Gauss Best-Fit to specific measurement points. These points are generated on both the base body and the cantilever’s sides when viewed from above. Figure 3 illustrates these generated elements for distortion analysis and course representation.

After analysis in ZEISS INSPECT software, the measurement results, specifically the maximum distortion and cantilever curves, are exported to a spreadsheet. This allows for easy viewing and comparison with other test results.

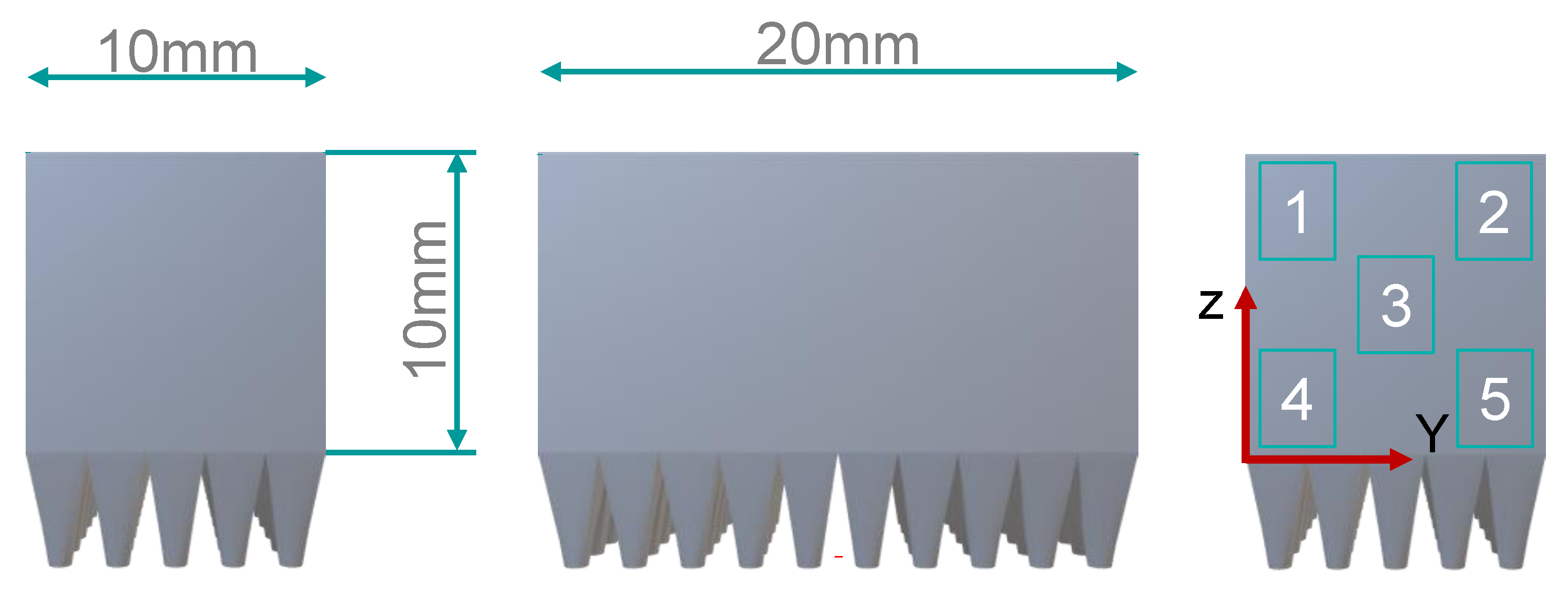

The relative density of the parameters utilized is determined by the fabrication of density cubes measuring 10 mm x 10 mm x 20 mm from the specified parameters and build jobs (Figure 4). Subsequent to the construction stage, the full-volume bodies can be effectively separated, cut, embedded and ground in order to facilitate density measurement in the subsequent step using a microscope.

The density cubes are separated from the build platform, then further cut along their YZ-plane with an Abrasiment 2 separating machine. The cut cubes are cold-embedded in their YZ-plane using VariKEM 200. Following embedding, the samples undergo a wet-grinding process through several grit levels (80 to 1200) and are finally polished with a 3 µm suspension using a Rotopol-22 machine.

For analysis, five bright-field images are taken of each sample at 50x magnification using an Olympus BX41M LED light microscope. On these grayscale images, defect-free material appears bright, while defects (like pores, cracks, and bonding defects) appear dark. This contrast allows for software-supported binarization using ImageJ (version 1.53k) to categorize material as either defect-free or defective. Finally, the average of the five measurement sections is calculated to determine the relative density, which is then used in conjunction with other examinations.

3. Experiments and Results

The selected parameters for the first measuring series are given in Table 1. In order to vary the melt pool depth, the layer height was altered between a set-up of 30 µm and a set-up of 60 µm. To ensure that the scan-tracks are fully melted and welded, it is necessary to make adjustments to the energy input. In order to ensure that the process window is not exceeded the volumetric energy density was maintained at a constant level. In addition, a meticulous density examination of all parameters was conducted to determine the presence of any potential deficiencies in fusion errors between the scan tracks or between the layers. The width of the melt pool was modified by manipulating the spot diameter, which in turn necessitated an adjustment to the hatch spacing between the scan vectors. The present study concentrated on the significance of guaranteeing that the resulting VED remains consistent across all components when the parameters are varied. This approach is imperative for ensuring the comparability of distortion results. It is also imperative to ensure that the parameter selection does not leave a suitable process window, particularly in terms of component density.

In completed build-jobs, the influence of the selected parameters on the shape of the melt pool could be highlighted. In accordance with the state of the art, wider melt pools were formed as the spot diameter increased, and the same applies to the effect of the layer thickness on the melt pool depth. The following Figure 5 illustrates etched micrographs with the varying dimensions of the melt pools. It is evident that the implementation of the designated scanning strategy (involving a 67 ° rotation of the scanning vectors in each layer) has resulted in the inability to measure the melting traces. However, the discernible trend remains identifiable.

The layer thickness of 30 µm is displayed in the top row of micrographs, and the layer thickness of 60 µm is shown in the bottom row. The laser spot diameter used increases from left to right in the micrographs.

For each measuring point of the test series, a corresponding density cube is produced and analysed. It is imperative that the usable process window is not overlooked. The subsequent graph illustrates the initial density results.

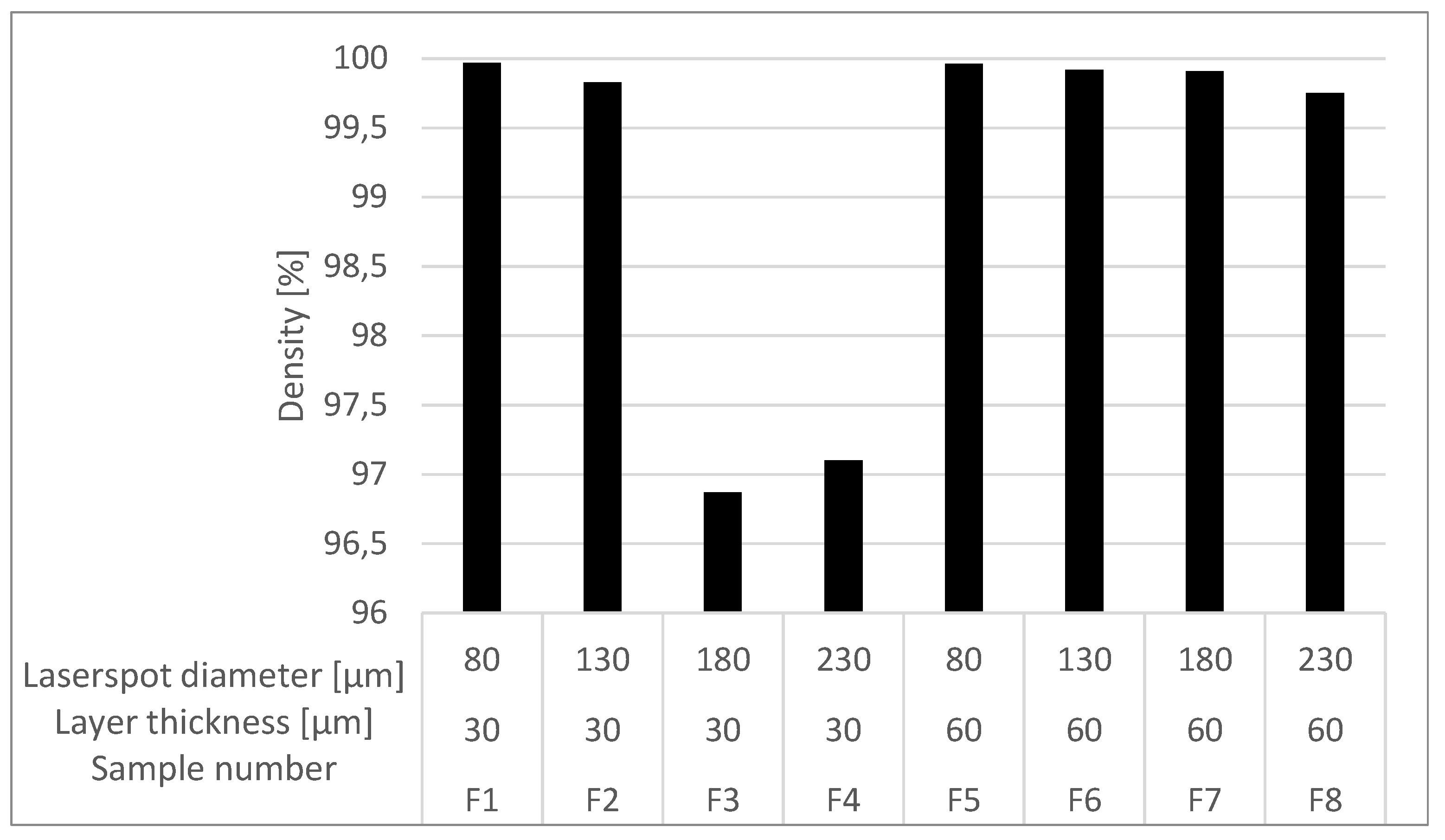

In the initial test series F a wide variation in component density was observed. The accompanying diagram Figure 6 illustrates these densities, showing that samples three and four (D_s=30 µm, d_spot=180 µm and D_s=30 µm, d_spot=230 µm, respectively) exhibited high porosity and failed to meet the minimum density requirement.

Consequently, a subsequent build job was initiated in order to facilitate a renewed analysis of the influence of the spot diameter. In this build job, the laser spot diameter was also varied at a layer thickness of 30 µm. However, a superior composition of laser power and scan speed was utilised in order to meet the density threshold. The parameters selected for Test Series FR are delineated in Table 2.

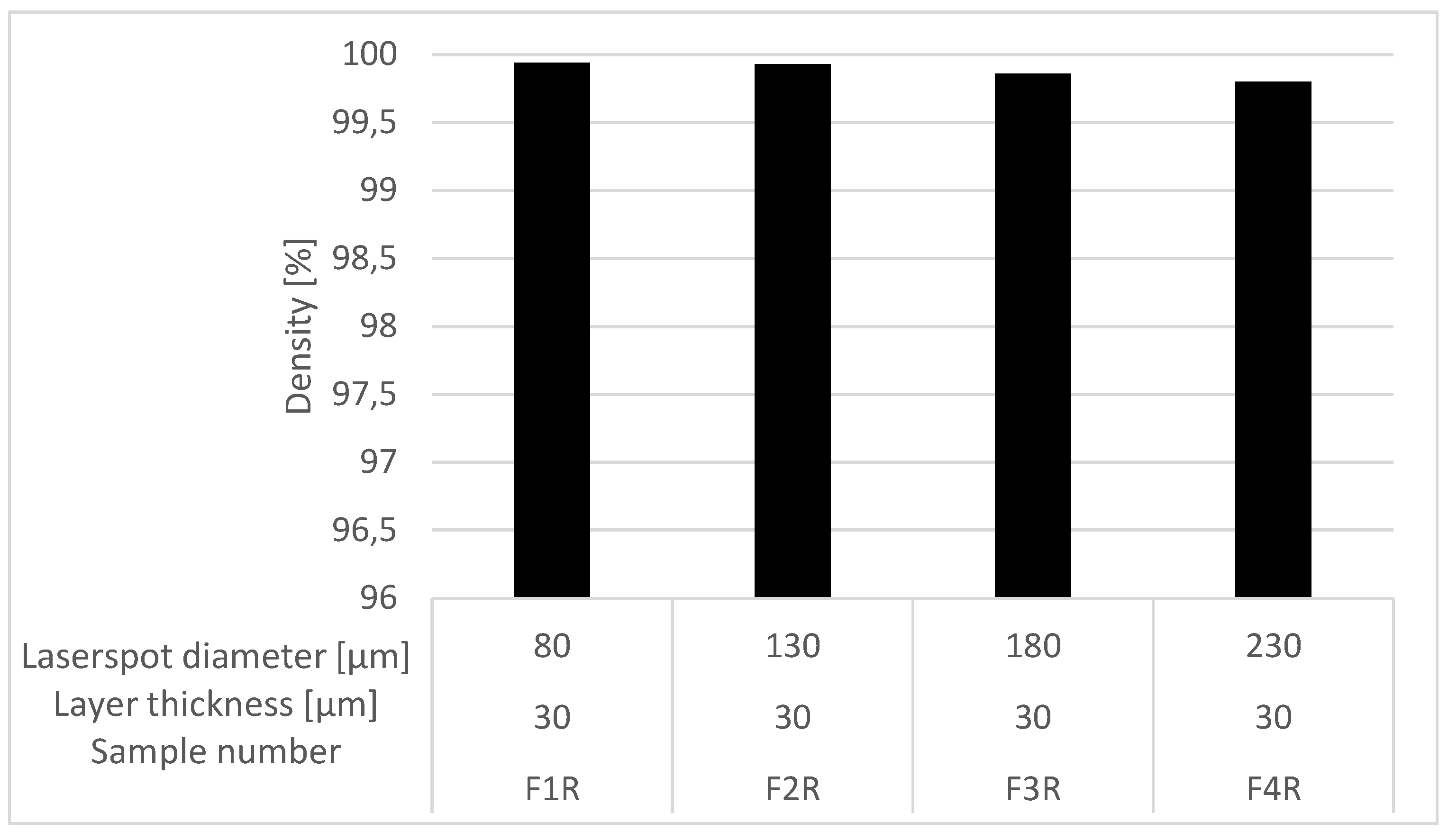

The following graph Figure 7 illustrates the densities of the components from the additional build job (FR). It is evident that the component densities achieved undergo a slight decrease as the spot diameter increases. Apart from this tendency, sufficiently high component densities were achieved for all components.

Following the adjustment to the parameters, a set of parameters is now available for comparison that is fully comparable. This set of parameters allows for the isolation of layer height and track distance. In this particular context, it is imperative to acknowledge the significance of the archiving of dense specimens. This, in conjunction with the etched visualisation of the weld tracks (e.g., Figure 5), provides evidence that the parameters actually produced either wider or deeper melt pools. It is therefore possible to utilize them for the purpose of investigating the premises.

The maximum cantilever distortions from test series F and test series FR are presented in Figure 8. Consistent with their previously noted lower component densities, samples F3 and F4 are hypothesized to exhibit substantially greater distortion if their density were appropriately elevated. Sample F8 is expected to follow a similar pattern.

To illustrate the effect of layer height, Figure 8 shows a direct comparison of individual distortions for the same spot diameter on its left side. Increasing the layer height has a positive effect on the reduction of distortion. The comparison of the other spot diameters with regard to the influence of the layer thickness is not meaningful due to the different densities. Doubling the layer thickness from 30 µm to 60 µm results in a distortion reduction of approximately 6 % at a spot diameter of 80 µm. The reduction here is the same as in the work of Kruth et al. [12] At the larger spot diameter this reduction is lower at 3.4 %.

In consideration of the posed research question, derived from the existing state of the art, it is imperative to distinguish the influence of either a wider melt pool or a deeper weld pool on the resulting residual stresses. The relevant parameters can therefore be isolated as follows:

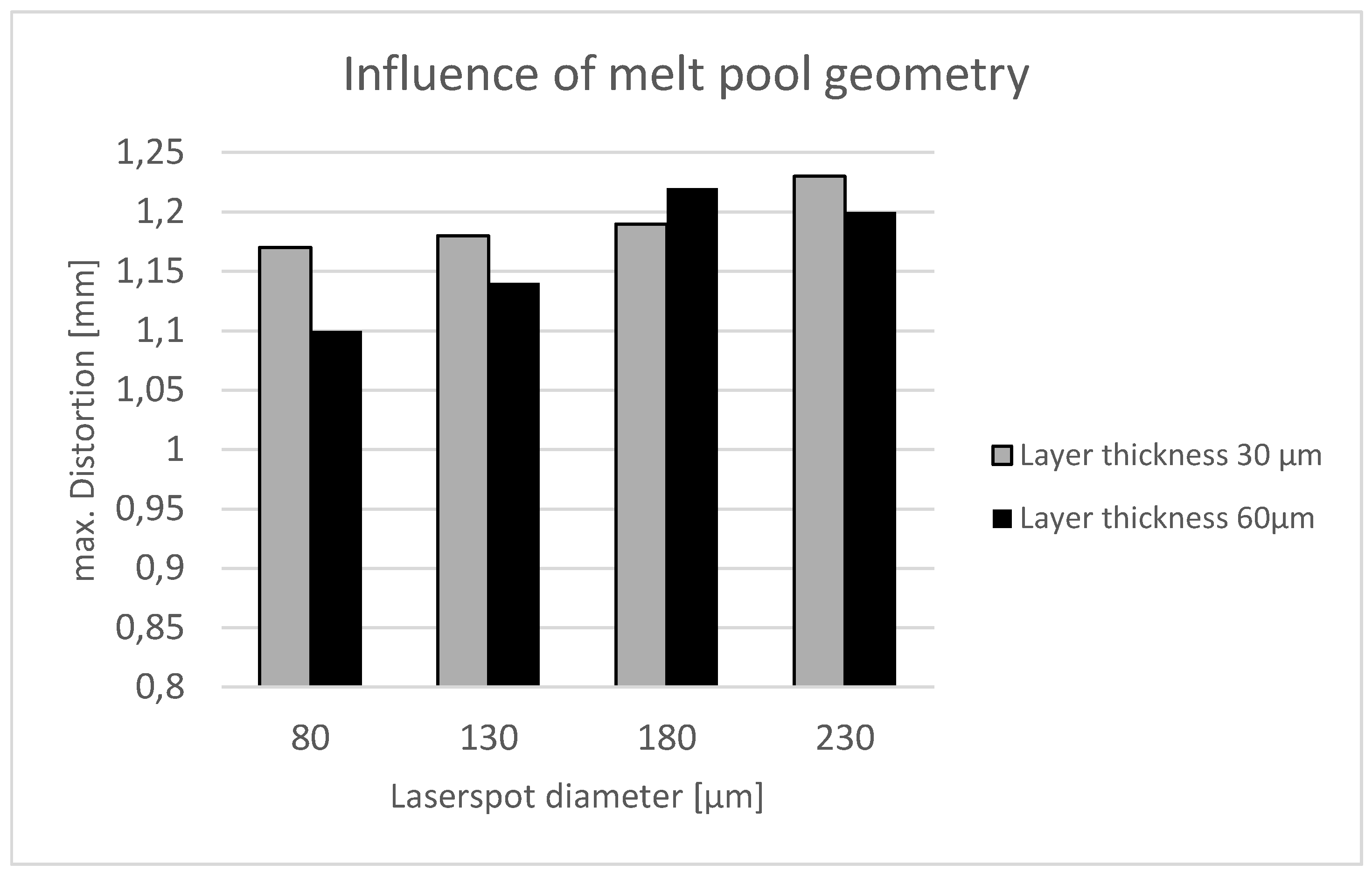

The results of the direct comparison are given in Figure 9. They demonstrate that increasing the layer height contributes to reduced distortion. For instance, with an 80 µm spot diameter, a 6 % reduction in distortion was observed when the layer thickness was doubled from 30 µm to 60 µm. This assertion is at least valid for the most spot diameter sizes. In the case of the 180 µm spot diameter, the 60 µm specimen exhibited slightly more distortion than the 30 µm specimen. This is the sole measurement point which demonstrated this phenomenon. Concerning the spot diameter, a discernible tendency is evident. It is observed that an increase in both the spot diameter and consequently the hatch spacing results in a corresponding rise in the maximum distortion of the cantilever. By reducing the spot diameter from 230 µm to 80 µm, the distortion can be reduced by about 9 %.

4. Discussion

Despite the LPBF process being extensively utilized and its capacity for application to numerous materials, the resulting internal stresses continue to present a significant challenge. This applies to materials that are susceptible to deformation and stress fractures, but also to standard materials such as 316L stainless steel. This is especially evident in scenarios where components are becoming increasingly larger in size, or when printed parts require further processing without incurring distortion, through the utilization of additional heat-inducing processes such as welding. Consequently, researchers are perpetually investigating diverse methodologies for the reduction or avoidance of the residual stresses that are the consequence of this process. The present article provides a thorough overview of the state of the art in these process-inherent avoidance techniques. Another parameter that has not received much attention to date is examined in more detail and systematically here. The central question guiding this study is to ascertain the influence that a modified melt pool geometry exerts on the subsequent formation of residual stress.

In order to solve this question dual cantilevers were built and analyzed using 3D scanning. The aim was to facilitate the drawing of conclusions regarding the resulting internal stresses, with these conclusions being based on the distortion that occurred. It is possible to make qualitative statements regarding the potential influence of a wider or deeper melt pool on internal stresses.

The results on the influence of the layer thickness on the process-related residual stresses are in line with the state of the art investigations [12]. These also showed a reduction in residual stresses of 6 % by doubling the layer height. From the agreement with the state of the art it can be concluded that a deeper melt pool has a positive effect on the residual stresses. The assumption that an increased laser spot diameter would have a reducing effect on distortion in the LPBF could not be confirmed. The results obtained show an inverse relationship between the spot diameter and the level of residual stresses. The smaller the laser spot diameter, the lower the distortion. From this it can be concluded that a larger melt pool has a negative effect on the residual stresses in the process.

In order to provide a classification of the findings obtained in this study according to the current state of the art, it can be concluded that the increasing trend of cost-effectiveness and larger build volumes, in conjunction with greater layer thicknesses and larger track widths, has a negative effect on the resulting residual stresses in 316 L. When compared with all strategies for the avoidance of residual stresses, the targeted adjustment of certain melt pool geometries is certainly not the most effective. It has been demonstrated that the reduction potential is approximately 6-9 %, which is significantly lower than the efficiency of preheating. However, the description of this value is the missing piece in the complete description of LPBF parameters with the lowest possible residual stress. Consequently, in subsequent iterations of the process window design for processes with minimal residual stress, it is imperative to allocate consideration to the melt pool geometry and its concomitant deteriorating effects.
