Emergence of Wave-Particle Duality and Uncertainty Principle: Causal Lattice-Spacetime Field Theory without Vacuum Catastrophe

2.1. Position and Lattice Shift Operators

In a discretized spacetime lattice, coordinates are represented by the integer multiples of the lattice constant. We first consider a 2D lattice spacetime, and we define two conjugate pairs of coordinate operators$\mathit{X},\mathit{T}$ , and a displacement operator ${\mathit{D}}_x,{\mathit{D}}_t$ along the spatial and temporal axes as

$\mathit{X}f\left(x;t\right)=xf\left(x;t\right),{\mathit{D}}_{x}f\left(x;t\right)=f\left(x+L;t\right)$ $\mathit{T}f\left(xz;t\right)=tf\left(x;t\right),{\mathit{D}}_{t}f\left(x;t\right)=f\left(x;t+T\right)$ (1A)

where L and T are the fundamental length and time units of the lattice spacetime, one obtais $\mathit{X}{\mathit{D}}_{x}f\left(x,;t\right)=\mathit{X}f\left(x+L,;t\right)=\left(x+L,\right)f\left(x+L,;t\right),$and ${\mathit{D}}_x\mathit{X}f\left(x,t\right)=x{\mathit{D}}_{x}f\left(x+L,;t\right)=xf\left(x+L,z;t\right).$Thus, one obtains the following commutation relation $\left[\mathit{X}.{\mathit{D}}_x\right]=L{\mathit{D}}_x$. Likewise, one obtains the following commutation relation for time as $\left[\mathit{T}.{\mathit{D}}_t\right]=T{\mathit{D}}_t$. The unit length and time are related by the speed of light, i.e., L = cT. In 4D spacetime, one obtains the following commutation relations

$\left[\mathit{X},{\mathit{D}}_x\right]=L{\mathit{D}}_x,\left[\mathit{T},{\mathit{D}}_t\right]=T{\mathit{D}}_t$ (2)

or, in normalized operator form, concerning the unit lattice constant. The above commutation relation is related to Heisenberg’s uncertainty principle [19] in continuum spacetime by relating the momentum operator ${\mathit{P}}_x\equiv -i\hslash \partial /\partial x$ to the spatial displacement operator ${\mathit{D}}_x$. Because $\stackrel{̑}{\mathit{X}}$ and ${\stackrel{̑}{\mathit{D}}}_x$ are non-commutative, they cannot be scalars and can be represented by a matrix. Consequently, the function $f\left(x;t\right)$ It cannot be a scalar function. To the lowest order of representation, one can use a 2 by 2 matrix for these operators and $f\left(x;t\right)$ as a 2 by 1 vector function, which is isomorphic to a complex-valued function. Thus, spacetime quantization automatically leads to the necessity of a complex wave function, and equivalently, the natural emergence of wave-particle duality without ad hoc proposition by de Broglie’s matter-wave hypothesis as the foundation of Schrodinger wave mechanics or Heisenberg’s matrix mechanics.

2.2. Lattice Shift Operator as a Unitary Transformation

We define the displacement operator as a unitary operator generating finite spatial translations D = exp(i LP /ħ) and P = (ħ/iL)ln(D), using the Baker–Campbell–Hausdorff (BCH) identity. this gives D X D⁻¹ = X + L

D⁻¹ X D = X – L . (3)

This mirrors the canonical momentum relation [P, X] = -iħ, but implemented via finite translations on the lattice.

2.3. Uncertainty Relation

Define dimensionless position X̂ = X / L. Now, using the conjugation relation:

D⁻¹ X̂ D = X̂ - 1. (4)

We define the dimensionless momentum operator as the antisymmetric generator of lattice translations:

P̂ = (i / 2) [D⁻¹ X̂ D - D X̂ D⁻¹] . (5)

This leads to canonical commutation relations:

[X̂, P̂] = i. (6)

2.4. Absence of Zero-Point Vacuum Energy and Vacuum Catastrophe

We now define the annihilation and creation operators analogous to standard QFT based on dimensionless position and momentum operators as

a = (1/√2)(X̂ + i P̂), a^† = (1/√2)(X̂ - i P̂) (7)

These satisfy the canonical algebra [a, a^†] = 1. By defining H = ħω N, with the number operator N = a^† a and N|n⟩ = n |n⟩, one obtains

N|0⟩ = a^† a |0⟩= 0, (8)

because a|0⟩ = 0.

In the lattice spacetime formulation, the field Hamiltonian does not rely on the concept of a harmonic oscillator. In contrast, in standard QFT, the field Hamiltonian is based on the harmonic oscillator formalism to describe field amplitude oscillations, which includes the zero-point term intrinsic to the harmonic oscillator model. One has

H = (1/2)(P² + ω²X²) = ħω(a^†a + 1/2). (9)

The +1/2 term arises from the symmetric ordering of X and P and assumes an underlying harmonic oscillator structure.

However, in our lattice spacetime framework, H = a^†a. This Hamiltonian is purely a counting operator. Since there is no vacuum fluctuation and no oscillator-based dynamics, the ground state energy is strictly zero H|0⟩ = 0. This eliminates the concept of zero-point energy and avoids ultraviolet divergences and the vacuum catastrophe.

In standard QFT, zero-point energy arises because the Hamiltonian is quantized from classical harmonic oscillators and involves symmetric ordering of non-commuting operators. In the lattice model, no such oscillator structure exists. Therefore, there is no need for symmetric ordering, and the Hamiltonian H = ħωN leads naturally to a zero vacuum energy state. The position and momentum-like operators emerge from discrete symmetries, and the zero-point energy is naturally excluded, providing a divergence-free and geometrically grounded foundation for quantum theory.

In this framework, we propose that the discreteness of spacetime—manifested through a causal lattice with finite length and time intervals—is not merely a mathematical artifact or regularization scheme, but the true physical origin of all quantum behavior.

This interpretation offers a natural explanation for the rrise of Planck’s quantized energy: Instead of being imposed by harmonic oscillator eigenmodes or boundary conditions, energy quantization arises directly from discrete time evolution.

That is, the quantified frequency condition E = ħω emerges because T = 2π/ω is itself discretized.

Now, we discuss the role in Heisenberg’s uncertainty principle [19]: Arising from the non-commutativity of discrete operators, such as [X, D] = L·D, it implies ΔX · ΔP ≥ ħ/2 without the need for operator postulates or canonical quantization. In this view, Planck’s constant ħ is not a mysterious universal constant but a direct reflection of the underlying geometric structure of quantized spacetime itself.

In analogy to the conventional quantum theory in continuum spacetime, we can define the creation, annihilation, and occupation number operators a = (1/√2)(X̂ + i P̂), a^† = (1/√2)(X̂ - i P̂), $\stackrel{̑}{\mathit{N}}={\stackrel{̑}{a}}^{+}\stackrel{̑}{a},\mathit{H}=\stackrel{̑}{\mathit{N}}\hslash \omega ,$ one obtains $\left[\stackrel{̑}{a},{\stackrel{̑}{a}}^{+}\right]=1.$ Since $\stackrel{̑}{a}\left|0\right.⟩=0$ for the vacuum state $\left|0\right.⟩$, and$\mathit{H}\left|0\right.⟩=\hslash \omega {\stackrel{̑}{a}}^{+}\stackrel{̑}{a}\left|0\right.⟩=0$, where $\omega =2\pi /T$. To generalize this result by including y and z-directions.

One concludes the vacuum state has no zero-point energy, i.e., $E_{vac}=0$ This result, based on the lattice spacetime, is drastically different from the standard continuum model with $E_{vac}=\hslash \omega /2\ne 0,$where the creation and annihilation operators are defined as the position and annihilation operators of a harmonic oscillator. The absence of zero-point vacuum energy has a very important implication that leads to no vacuum catastrophe, no ultraviolet divergence and no singularities. All differential equations and integral equations must be replaced by difference and summation equations at very small time and space scales.

2.5. Displacement Operators and Global Causality in Lattice Spacetime

In conventional quantum theory, the position and momentum operators can be represented by two non-commutative infinite-dimensional matrices in the Hilbert space. In addition, momentum operators along different spatial axes are commutative. However, such a representation is inconsistent with causality due to the finite light’s speed. In this work, we focus on the global causal structure of the discretized lattice spacetime. In conventional special relativity, the invariant interval is given by x² + y² + z² - c² t² = constant, which ensures Lorentz invariance and global causality. We shall show that the Lorentz invariance as a causality constraint leads to a non-commutative quaternionic representation for the momentum operators.

To mirror this structure in our lattice model, we associate the spatial displacement operators with quaternionic basis elements D_x ∼ e₁, D_y ∼ e₂, D_z ∼ e₃, where e₁, e₂, and e₃ are the standard imaginary units of the quaternion algebra, satisfying eᵢ eⱼ = -δᵢⱼ + εᵢⱼₖ eₖ.The temporal displacement is assigned the imaginary scalar: D_t = i c, where i is the complex unit and c is the speed of light. This assignment ensures the Euclidean form of the invariant becomes x² + y² + z² + (i c t)² = constant.

This formalism captures the geometric essence of global causality without invoking the full operator structure needed to encode micro-causal dynamics. The quaternionic assignment for space offers a clean and compact representation of 3D spatial structure, while the imaginary scalar time direction preserves commutativity and allows the use of Euclidean invariants.We emphasize that this formulation deliberately avoids the more involved algebra of non-commuting operators and time-as-generator structures (e.g., γ⁰ or e₄). Those aspects, including their implications for micro-causality, mass generation, and symmetry breaking, will be treated in a separate report.

Here, our main focus is to show that even at the global level, discretized lattice spacetime naturally supports a quaternionic interpretation of spatial displacement and accommodates the causal structure of special relativity through an imaginary time axis. This sets the foundation for the deeper algebraic structures that emerge when local interactions and internal symmetries are included.

2.6. Violation of the Massless Klein-Gordon Equation and U(1) Symmetry on the Lattice

In the continuum, the massless Klein–Gordon (KL) equation [16,17] for a scalar field, or Higgs field [18], is given by

□φ = (∂²/∂t² - ∇²) φ = 0, which leads to the dispersion relation E² = p₁² + p₂² + p₃². On a discrete lattice, we replace derivatives with second-order finite difference operators:

δₜ² φ(n₀) = [φ(n₀+1) + φ(n₀−1) − 2φ(n₀)] / T²,

δᵢ² φ(nᵢ) = [φ(nᵢ+1) + φ(nᵢ−1) − 2φ(nᵢ)] / L². (4A)

Assuming a discrete plane-wave solution, φ(n) = exp[i(p · n − E·n₀)], the modified dispersion relation becomes

(4/T²) sin²(ET/2) = ∑₁³ (4/L²) sin²(pᵢL/2). (4B)

This differs fundamentally from the continuum relation. The equality E² = p² no longer holds unless ET → 0 and pL → 0. For finite lattice units T and L, and energy-momentum values as multiples of the inverse lattice spacing, we generically find E² − p² ≠ 0. Thus, in lattice spacetime, the massless KL equation in continuum spacetime becomes a KL equation for a massive scalar boson, i.e., the massless boson acquires a mass, not through the Higgs mechanism [18] but due to U(1)-symmetry breaking due to the lattice structure of the spacetime.

Simply put, the Klein–Gordon equation is violated at the fundamental level in causal lattice spacetime. As a result, one concludes:

The global U(1) symmetry for massless scalar fields is broken.

The local U(1) symmetry associated with electromagnetic and fermion fields is also broken, leading to natural mass generation without requiring a scalar Higgs field or spontaneous symmetry breaking.

These conclusions underscore how spacetime discretization alone suffices to explain particle masses and symmetry breaking — a major departure from the conventional Higgs paradigm. In short, based on the causal lattice spacetime framework, we show that the Klein-Gordon equation for a scalar Higgs field is violated at the fundamental level in lattice spacetime. In addition to the global U(1)-symmetry breaking, one can also prove a breaking of the local U(1)-symmetry for Maxwell’s electromagnetic field and a Dirac fermion field, which leads naturally to mass acquisition without the Higgs mechanism. Details will be presented elsewhere.

2.7. Comparison between Continuous and Lattice Spacetime

The following table compares key aspects of the standard quantum harmonic oscillator formalism in continuum quantum field theory (QFT) with the proposed lattice spacetime framework. This highlights how our model resolves foundational issues through a finite, discrete, and causal structure.

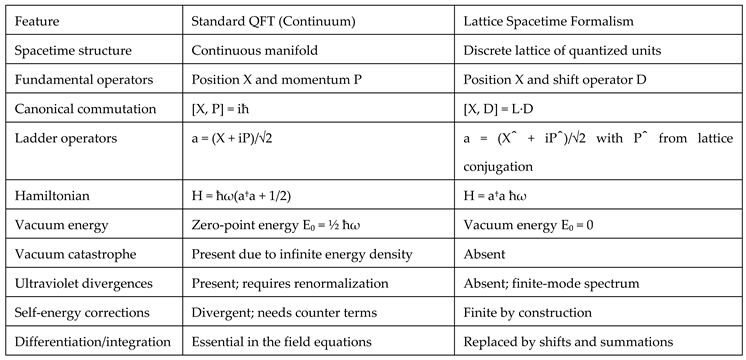

Table 1. Comparison of quantum field theories based on continuous vs. lattice spacetime.

Table 1. Comparison of quantum field theories based on continuous vs. lattice spacetime.
