Enhanced Diffraction and Spectroscopic Insight into Layer-Structured Bi6Fe2Ti3O18 Ceramics

1. Introduction

Bismuth titanate (Bi₄Ti₃O₁₂), a bismuth-layered structured ferroelectric material first discovered by B. Aurivillius [1], has found extensive use in electronics, particularly in capacitors, transducers, non-volatile memory devices, and high-temperature piezoelectric sensors. Enhancing its properties through modification with bismuth ferrite (BiFeO₃) offers promising new functionalities. By combining these two compounds—each with distinct physical properties—novel materials with enhanced multifunctionality can be developed. As reported in previous (now classical) studies [2,3] materials in the Bi₄Ti₃O₁₂–BiFeO₃ system exhibit ferroelectric, semiconducting, and ferromagnetic behaviors, making them attractive candidates for next-generation information processing and storage technologies. These Bi-containing Aurivillius-type oxides typically adopt a layered perovskite-related structure and conform to a general formula: Bi_m+1Fe_m−3Ti₃O_3m+3. Their unique structure, composed of alternating bismuth oxide and perovskite-like layers, has garnered increasing interest in recent years.

Aurivillius [1] identified this family of oxides, characterized by alternating layers of (Bi₂O₂)²⁺ and (A_m−1B_mO_3m−1)²⁻ stacked along the pseudotetragonal c-axis. The A-site can accommodate mono-, di-, or trivalent ions, or their mixtures, while the B-site includes Ti⁴⁺, Nb⁵⁺, Mo⁶⁺, W⁶⁺, and Fe³⁺. In the perovskite blocks, B-site ions are surrounded by oxygen octahedra that form linear O–B–O chains, with A-site ions fitting into the framework created by the BO₆ octahedra. These perovskite slabs consist of m octahedral layers, where m can be an integer or fractional value. Adjacent layers are offset by a₀/√2 in the [110] direction (where a₀ is the lattice constant of the ideal perovskite cell).

Structural symmetry imposes constraints on polarization behavior depending on m [4,5]. When m is even, polarization is confined to the a–b plane; however, with an odd number of layers, a component of polarization can develop along the c-axis, nearly perpendicular to the layering. This has significant implications for device applications, as fewer allowed directions for spontaneous polarization often result in lower remanent polarization in many film orientations. Nevertheless, Aurivillius-type bismuth-based titanium oxide (Bi₄Ti₃O₁₂) remains of great interest for integrated circuit memory and high-temperature piezoelectric sensor applications, exhibiting excellent electrical and electro-optic properties [6]. The compositional and structural tunability of bismuth oxide layered perovskites —through ionic substitution and octahedral distortions—allows fine control over their electrical behavior [7]. Ferroelectricity in these structures is closely linked to distortions in the coordination polyhedra of one or more cations.

This study focuses on the promising Aurivillius-phase material Bi₆Fe₂Ti₃O₁₈ (BFTO), chosen for its high dielectric transition temperature (Curie temperature T=805°C) and its second-order magnetoelectric effect [8,9,10]. The aim is to synthesize BFTO ceramics via the mixed oxide method and conduct detailed structural and spectroscopic characterization. The compound fits the general formula Bi_m+1Fe_m−3Ti₃O_3m+3 with m=5, corresponding to five perovskite-like layers per slab. The main investigative tools employed were electron backscatter diffraction (EBSD) and broadband dielectric spectroscopy (BBDS) [11].

Due to their high structural flexibility and the ability to exhibit both electric dipole and magnetic ordering at room temperature, Aurivillius-phase materials are compelling candidates for single-phase, room-temperature multiferroics. Recent reviews [e.g., [12]] have explored the characteristics of these layered structures and advances in their synthesis, yet BFTO has received comparatively little attention. To our knowledge, no EBSD investigations of BFTO have been reported.

EBSD enables detailed analysis of crystalline orientation and structure. A stationary electron beam interacts with a tilted crystal sample, producing a diffraction pattern characteristic of the local crystal structure [13]. These patterns can reveal phase distributions, grain boundaries, and crystal quality. Proper sample preparation—particularly a deformation-free surface—is essential for obtaining high-quality EBSD patterns. By scanning the beam over a grid across a polycrystalline sample, orientation maps can be constructed, providing insight into grain morphology and texture. This enables a comprehensive, quantitative description of the material's microstructure.

In addition to EBSD, this study utilizes a frequency-domain representation of the Kohlrausch–Williams–Watts (KWW) function [14,15,16] to analyze electrical relaxation. Immittance spectra were evaluated using complex impedance, [17,18] providing a detailed view of the dielectric response.

2. Materials and Methods

Ceramic samples of Bi₆Fe₂Ti₃O₁₈ were synthesized via the conventional solid-state reaction method. Stoichiometric amounts of high-purity (99.9%, Aldrich Chemicals Co.) reagent-grade oxides—Bi₂O₃, Fe₂O₃, and TiO₂—were accurately weighed and thoroughly mixed using an agate mortar and pestle to ensure homogeneous blending. The solid-state reaction proceeded according to the following reaction: 3Bi₂O₃+Fe₂O₃+3TiO₂ → 2Bi₆Fe₂Ti₃O₁₈.

Thermal analysis of the powder mixture was conducted to optimize the heat treatment parameters. It was found from experimental data that layer-structured Aurivillius phases in the BFTO system appear at 600°C [19] and they form within the temperature range 650°C - 700°C [11].

The powder mixture was compacted into pellets at a uniaxial pressure of 300 MPa using a stainless steel die (10 mm in diameter), yielding disc-shaped green bodies approximately 10 mm in diameter and 1 mm thick. These compacts were placed in an alumina crucible and calcined in air at 750°C for 10 hours to promote the formation of the desired phase. Final densification was achieved via hot pressing at 850°C for 3 hours under a pressure of 20 MPa.

The crystalline structure of the sintered ceramics was analyzed at room temperature using X-ray diffraction (XRD) with a PANalytical X’Pert Pro diffractometer operating in θ–2θ geometry and employing Cu Kα radiation. Data were collected over a 2θ range of 8.0042°–89.9962° with a continuous scan and a step size of Δ2θ = 0.008°. Diffraction patterns were evaluated using the X’Pert HighScore Plus (PANalytical B.V.) [20]. and Match! (Crystal Impact) software packages [21,22]. Structural identification was supported by the latest entries from the COD/AMCSD [23], ICSD [24], and ICDD [25] crystallographic databases.

Microstructural and compositional analyses were carried out using a Thermo Scientific Apreo 2S field emission scanning electron microscope (SEM) equipped with EDAX Octane Elect energy-disspersive X-ray spectroscopy detector (EDS, EDAX, Ametek) on carbon coated surface. The sample was mechanically polished (finished with colloidal silica) to achieve a scratch- and deformation-free surface suitable for EBSD measurements.

Electron backscatter diffraction (EBSD) was employed to examine the microstructural and crystallographic orientation of the samples. In EBSD, a stationary electron beam interacts with a tilted crystalline surface, generating Kikuchi patterns that are characteristic of the local crystal structure and orientation. These patterns are used to determine grain orientation, differentiate between phases, assess grain boundaries, and evaluate local crystalline quality. EBSD measurements were performed using a Apreo 2S (Thermo Scientific) scanning electron microscope (SEM) equipped with an EDAX Velocity EBSD camera. Data were collected at an accelerating voltage of (15 kV) and a step size of (0.03 μm) using APEX EBSD software. The acquired EBSD data were processed using EDAX OIM Analysis™ software. providing advanced interpretation and visualization.

For dielectric measurements, the sintered BFTO ceramic discs were polished on both sides and coated with silver paste to form parallel-plate metal–insulator–metal (MIM) capacitor structures. Impedance spectroscopy (IS) measurements [17,26] were carried out over a frequency range from 100 mHz to 10 MHz and a temperature range from –120°C to +200°C. The measurements were conducted using the Alpha-A High Performance Frequency Analyzer (Novocontrol Technologies GmbH & Co. KG, Montabaur, Germany) coupled with a Quatro Cryosystem for precise temperature control. Prior to measurement, the system was cooled using liquid nitrogen. An AC perturbation voltage of 10 mV was applied, and impedance spectra were recorded during the heating cycle. To ensure thermal equilibrium, data were acquired 15 minutes after each target temperature was reached. The temperature increment between measurements was ΔT=5°C. The WinDATA software (Novocontrol) was used for data acquisition, visualization, and processing. To verify the reliability of the impedance data, the Kramers–Kronig test was applied using the B. Boukamp software [27]. This served as a consistency check between the real and imaginary components of the spectra.

Modeling of the experimental impedance data was conducted using both mathematical functions [15] and equivalent circuit models. A key objective was to achieve close agreement between measured and modeled data with a minimal number of fitting parameters, acknowledging that some parameters may lack direct physicochemical meaning. The analysis was performed in the complex impedance formalisms. Nyquist plots (complex impedance diagrams) were fitted using the circular fitting method, while the imaginary components of impedance were modeled using the modified Kohlrausch–Williams–Watts (KWW) function [28,29]. Furthermore, impedance behavior was interpreted using electrical equivalent circuits.

3. Results and Discussion

3.1. X-Ray Phase and Structural Analysis

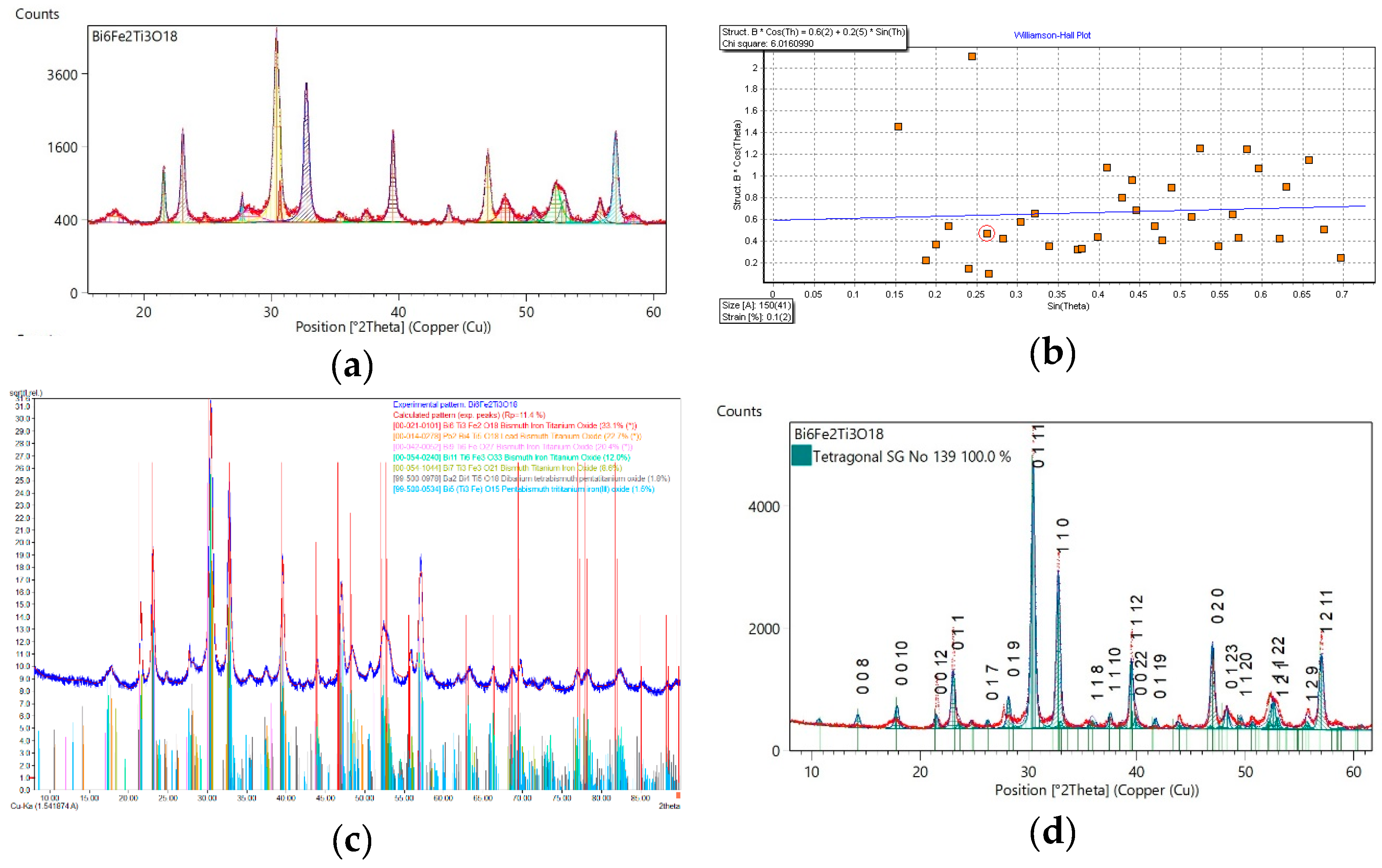

The crystal structure of powdered ceramics of Bi₆Fe₂Ti₃O₁₈ composition were studied by X-ray diffraction method at room temperature. X-ray diffraction pattern is shown in Figure 1.

Line profile of X ray diffraction pattern was analysed with assumption of the Pseudo Voigt profile function. The following parameters of fitting were achieved: R_expected = 4.44%; R_profile= 3.25%, R_{weighted profile} = 4.20%, and GOF=0.947. It was found that average crystallite size was 150 Å and average crystallite (rms) strain was 0.1%.

The phase analysis showed that X-ray diffraction pattern of Bi₆Fe₂Ti₃O₁₈ ceramics contained, apart from the major (parent) Bi₆Fe₂Ti₃O₁₈ phase, diffraction peaks of bismuth-based layer-structured Aurivillius phases with the number of layers m in the slab other than m=5. The Aurivillius phases retrieved from the X-ray data bases exhibited the orthorhombic structure with space group numbers: 35, 36 and 42.

It Is worth noting that the parent structure for m=5 layers described by Aurivillius [30] was found to adopt the tetragonal structure (I4/mmm, Space Group No 139). Therefore, this structure was adopted to search for the unit cell. The following lattice parameters were obtained: a₀=b₀=3.8625Å, c₀=49.585Å. The refined average crystallite size was 156Å and average crystallite (rms) strain was 0.41%. Parameters of the Rietveld refinement were as follows: R_expected = 4.47%; R_profile= 9.45%, R_{weighted profile} = 12.02%, and GOF=8.49.

3.2. EBSD Sudies of

Electron backscatter diffraction (EBSD), the primary tool for lattice orientation determinations, was utilized in the present studies to understand the complex microstructures in the Aurivillius type layer-structured bismuth titanium oxides. Data obtained in EBSD mapping were analyzed using EDAX OIM Analysis™ software and the results are shown in Figure 2, Figure 3, Figure 4 and Figure 5.

All the EBSD data analysis was performed using the EDAX OIM Analysis™.

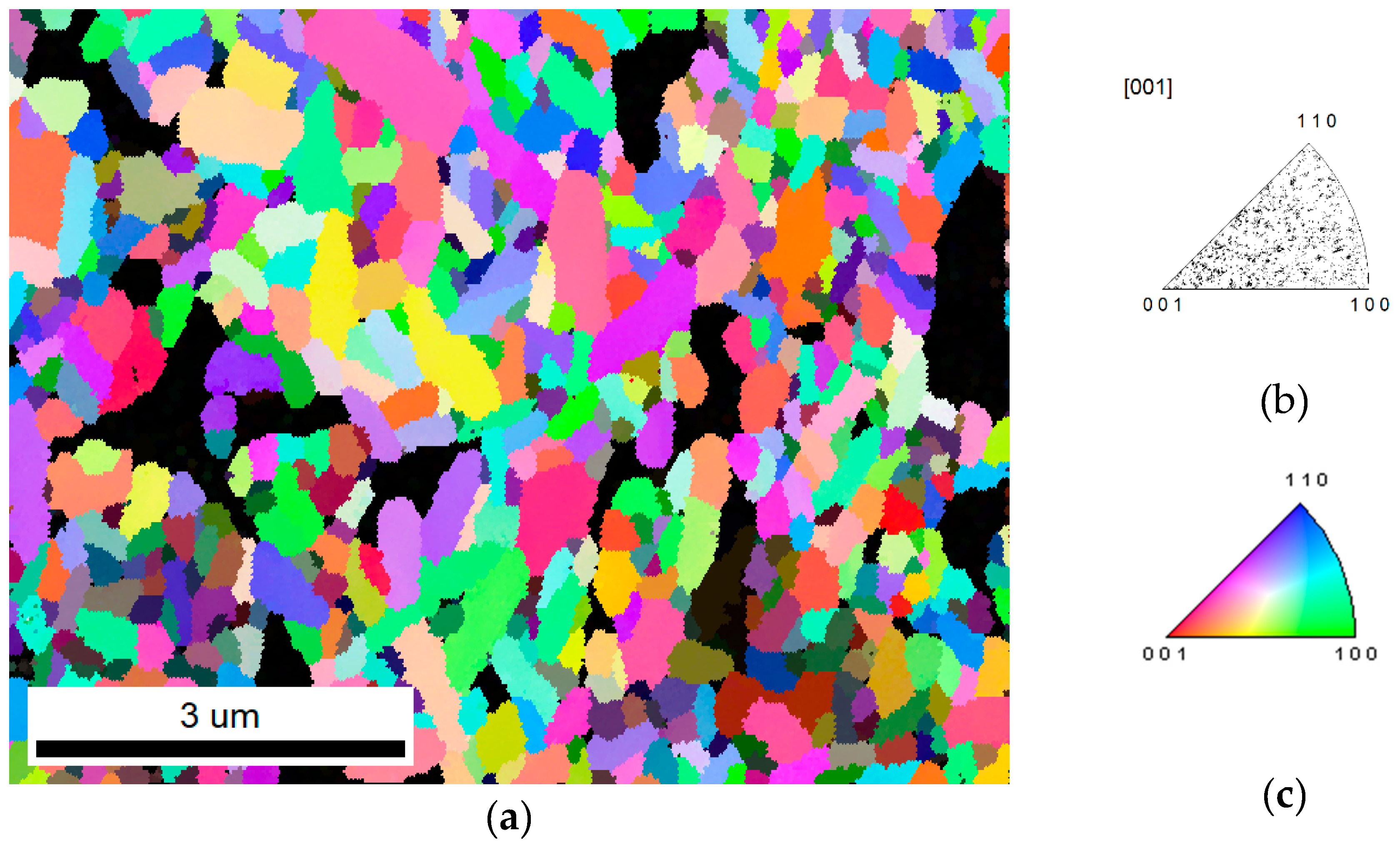

Figure 2(a) presents an inverse pole figure map obtained using the electron backscatter diffraction (EBSD), which reveals crystallographic orientation in Aurivillius type layer-structured bismuth titanium oxides. The orientation of the grains is represented by a color-coded legend (as shown in Figure 2(c)), which corresponds to specific crystallographic directions according to the standard inverse pole figure key. The black regions, visible in the map, correspond to non-indexed areas, indicating voids within the microstructure (e.g. pores) or regions with insufficient diffraction data due to the surface quality or geometrical factors.

Figure 2(b) shows the orientation distribution with respect to the sample normal direction [001]. The presented distribution does not exhibit significant clustering, suggesting the absence of a strong preferred crystallographic orientation along this direction.

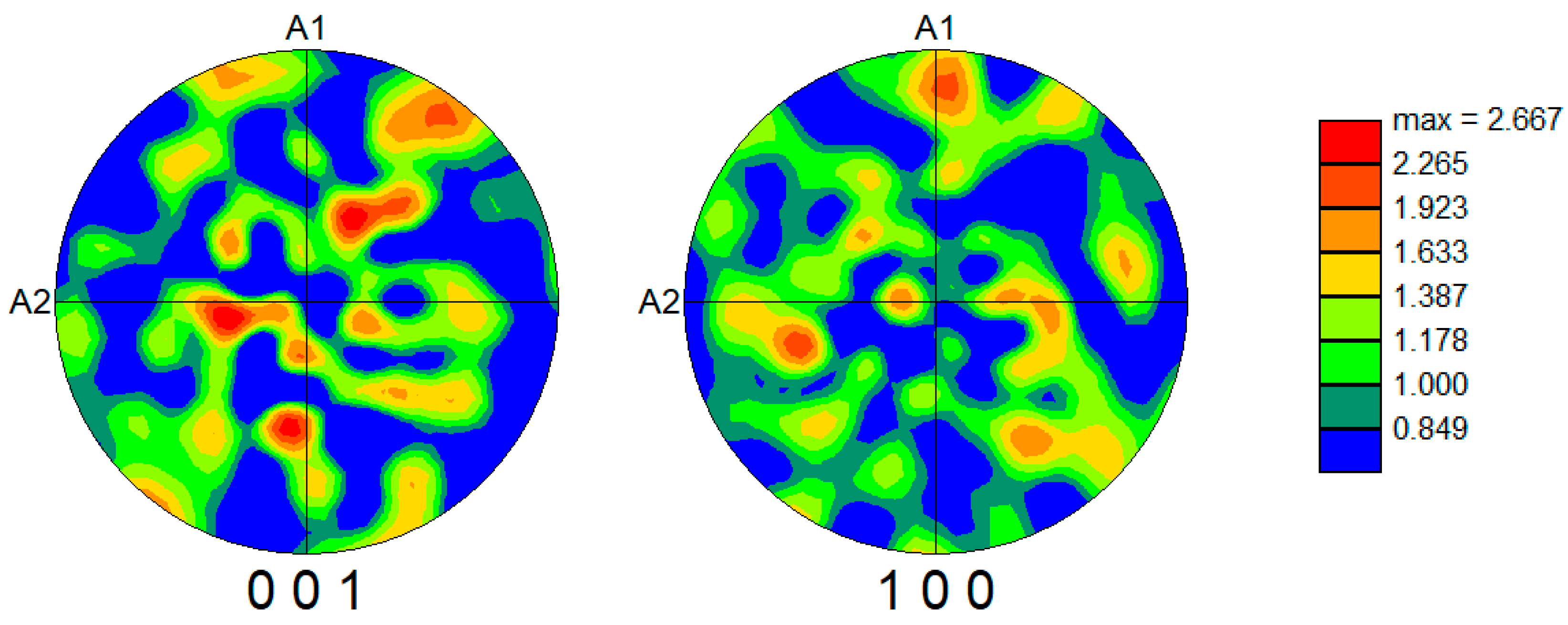

Further insight into the material texture is provided by the pole figures shown in Figure 3, which correspond to the {001} and {100} crystallographic planes. The color intensity represents the multiple of uniform distribution (m.u.d.), a quantitative measure indicating how much the observed orientation distribution deviates from a random texture. While there is some variation in intensity, the multiple of uniform distribution value is ~2.67, it indicates the presence of a weak texture.

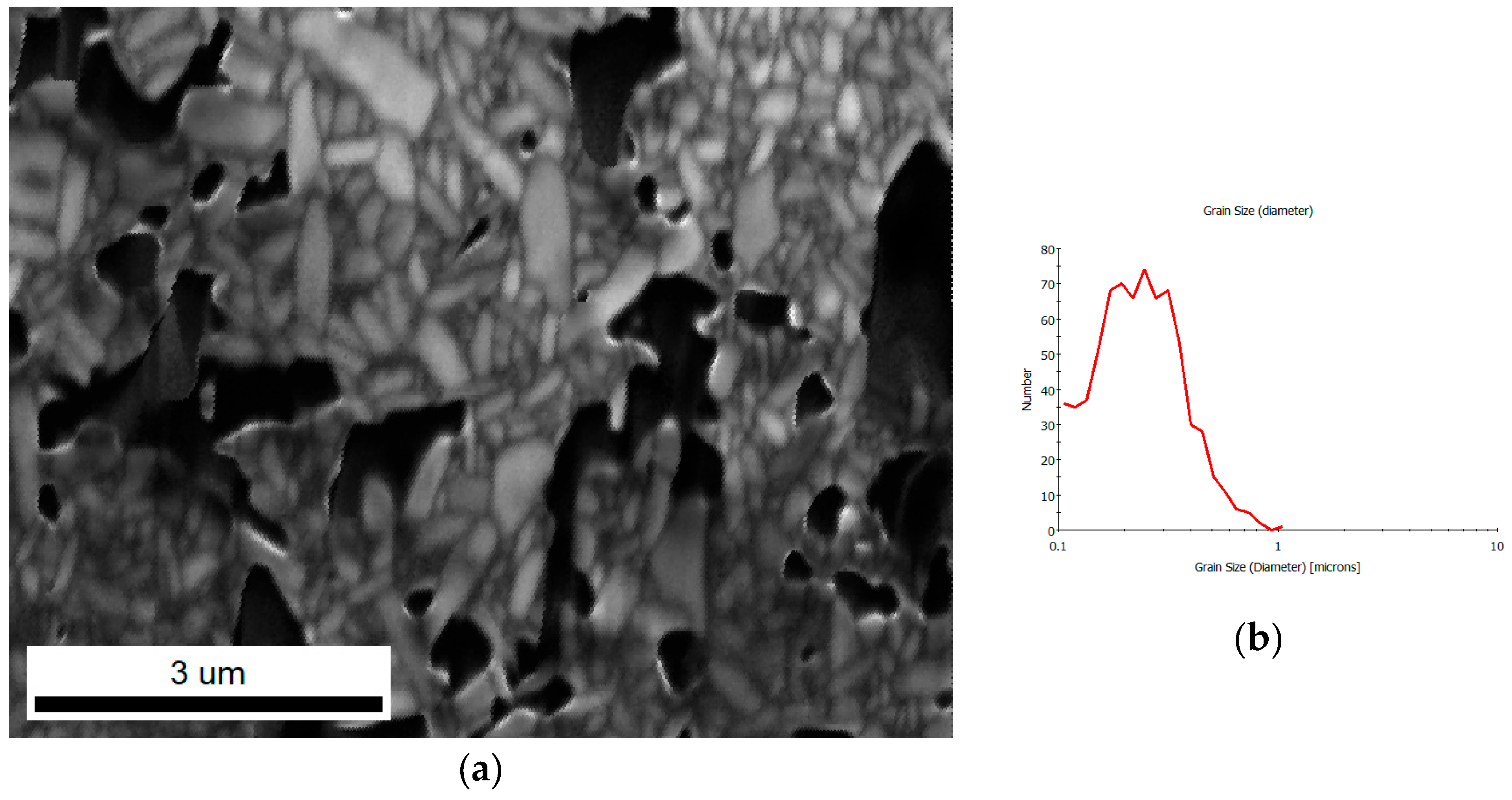

Image quality (IQ) maps are a grayscale representation, where pixel intensities correspond to the quality of Kikuchi diffraction patterns. Bright regions indicate high quality patterns, usually obtained from well-crystallized and correctly prepared (well-polished and strain-free) surface, while darker regions suggest poor diffraction quality caused by strain occurrence, crystallographic disorder or porosity. Figure 4(a) presents IQ map for Bi₆Fe₂Ti₃O₁₈ ceramics. The grain boundaries are clearly visible and black regions, in this case, correspond to pores. The microstructure shows a relatively fine grains of polycrystalline ceramic material, some with elongated shape. It correlates with the grain size distribution plot (Figure 4(b)), where grain diameter is shown in relation to the number of grains. The peaks around the 0.3 to 0.4 µm indicate that most of the grains are about the size of this range. For sizes above 0.6 µm number of grains significantly decreases.

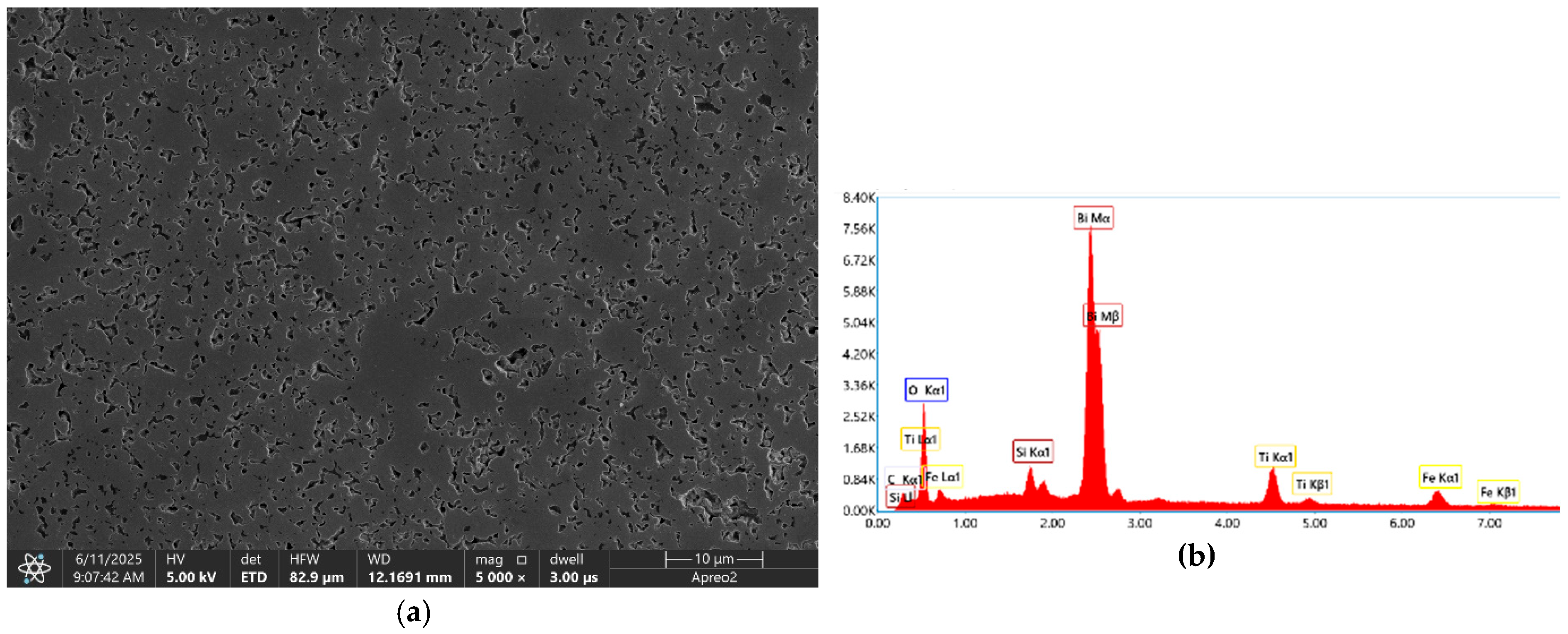

In order to complement the microstructural observations, SEM (scanning electron microscope) image of a bigger area was introduced as Figure 5(a). Observations were made using secondary electron (SE) mode in high vacuum mode. Presented image reveals a relatively high porosity of Bi₆Fe₂Ti₃O₁₈ material. Energy-dispersive X-ray spectroscopy (EDS) confirmed the chemical composition stability. The presence of the silicon in the spectrum can be explained by residues of silica in pores after the polishing process. The carbon presence is explained by sample’s surface coating.

3.3. Dielectric Spectroscopy Measurements of Ceramics

Impedance spectroscopy (IS) is a specific technique that can be considered a subset of Broadband dielectric spectroscopy (BBDS). While broadband dielectric spectroscopy covers a wide frequency range from 10⁻⁶ to 10¹² Hz and includes various methods for studying the dielectric properties of materials [31], impedance spectroscopy specifically focuses on measuring the impedance of a material as a function of frequency [17,25].

Knowing the quality of the measured impedance data is essential for a proper analysis. The Kramers – Kronig (K-K) relations are very useful for data validation. The calculations necessary for performing the K-K test were accomplished with a computer program [26] according to the methodology described in scientific publications [e.g., [32]]. This confirmed the high quality of the experimental measurements performed, which fully justified the need for further mathematical analysis of the impedance data.

In an ideal case, the results of impedance spectroscopy measurements over a wide range of frequencies can be presented by semicircles in a complex Z”-Z’ plane (Nyquist plot). Each semicircle represents the contribution of a particular process (electrodes and contacts, grain boundaries, grains interior) to the total impedance of the sample.

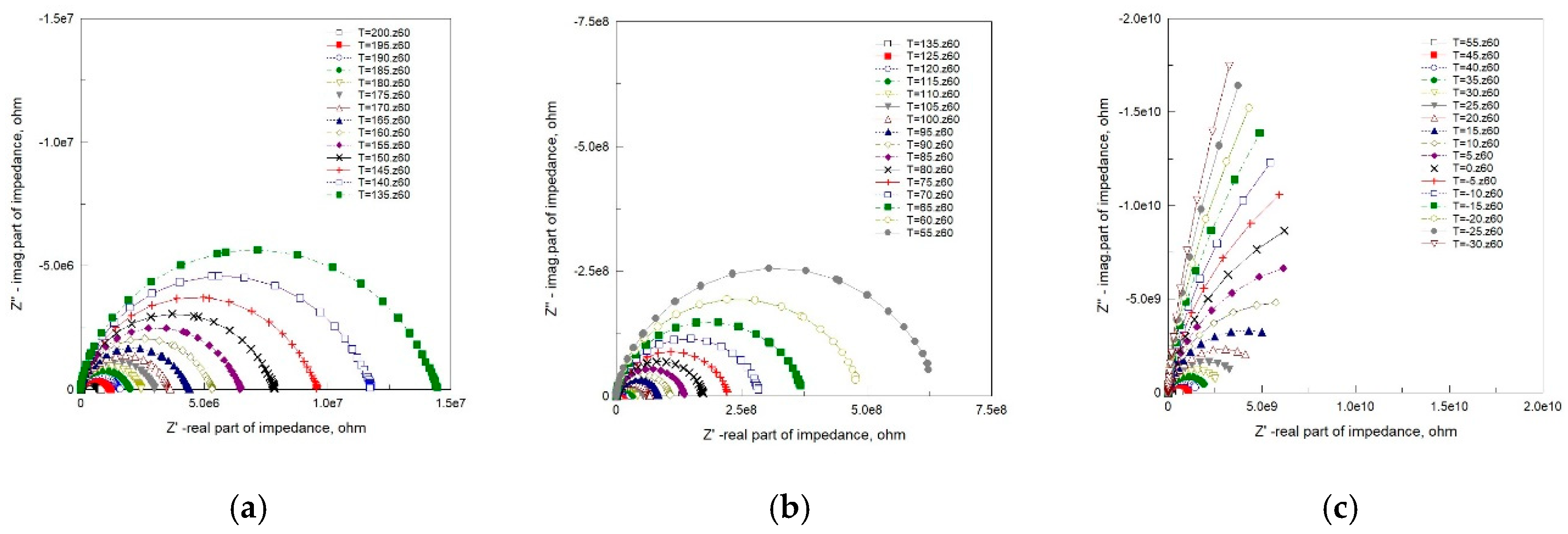

Nyquist plots for Bi₆Fe₂Ti₃O₁₈ ceramics within the temperature range from – 30°C to +200°C are shown in Figure 6.

One can see from Figure 6 that the measured values of two components of complex impedance: resistance (real part, Z’) and reactance (imaginary part, Z”) presented in the form of Nyquist plots rarely take the shape of perfect semicircles (while the isotropic scale is preserved on both axes). They are often described as depressed or deformed semicircles, with their centre lying below the x-axis (Figure 6a,b). At low temperatures, the deviation from the semicircular shape is substantial (Figure 6c). This phenomenon, called non-Debye relaxation, is attributed to the distribution of Debye relaxations with different time constants.

The Debye response is given by:

$$Z^{\ast }\left(\omega \right)=Z_{\infty }+\left(Z_S-Z_{\infty }\right){\displaystyle \frac{1}{1+j\omega \tau }},$$

(1)

where Z_s and Z_∞ stand for the static and high frequency limiting values of the impedance, respectively. Equation 1 can be generalized to obtain the Cole–Cole equation [33]:

$$Z^{\ast }\left(\omega \right)=Z_{\infty }+\left(Z_S-Z_{\infty }\right){\displaystyle \frac{1}{1+{\left(j\omega \tau \right)}^{\alpha }}};0<\alpha \le 1,$$

(2)

which is identical to the Debye case when α=1 and broader the lower the exponent α is. The Cole-Cole equation mathematically expressed distribution of relaxations with different time constants.

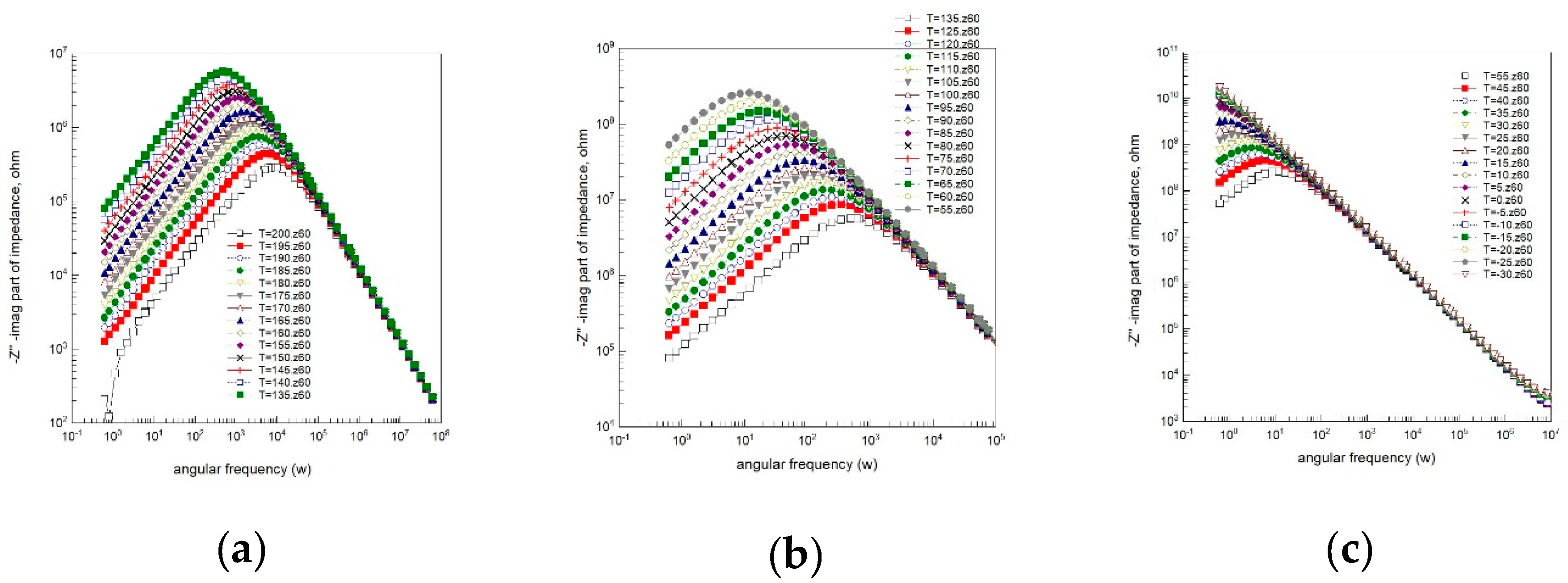

Spectroscopic plots of the imaginary part of complex impedance (Z”) are depicted in Figure 7. This representation is characterized by a peak, signifying the presence of a dielectric relaxation in the sample. The observed peak provides insights into the dynamics and behaviour of the relaxation mechanism, allowing for a more detailed analysis of the dielectric response within the material.

Figure 7 shows the variation of imaginary part of impedance with angular frequency at different temperatures. The peaks are broader than the ideal Debye curve and asymmetric. As temperature increases, the peak frequency shifts to higher values. The asymmetric Z” plot is suggestive of stretched exponential character of relaxation times of the material.

A number of empirical relaxation functions have been used to describe imaginary part of general response function Z”(ω). Common for the functions mentioned above, is that they are characterized by power laws far away from intermediate frequencies around the peak frequency ω_p . When viewed versus a logarithmic frequency scale as abscissa (like in Figure 7) the slopes at high and low frequency limits of Debye plot is 1 and -1 at low ω and at high ω, respectively. For the Cole–Cole equation the slopes are α and -α at low and high angular frequency, respectively.

To model the behaviour of the imaginary component of the impedance the alternative equation for the susceptibility functions was used [15]. A three-parameter formula for relaxation in the frequency domain given by equation:

$${\displaystyle \frac{Z"}{Z{"}_{\max }}}={\displaystyle \frac{1}{\left(1-b\right)+\frac{b}{1+b}\left[b\left({\omega }_{\max }/\omega \right)+{\left(\omega /{\omega }_{\max }\right)}^b\right]}};0<b\le 1,$$

(3)

was applied to the analysis of the normalized amplitude (scaled) imaginary part of the impedance Z''/Z”_max(ω). In Equation 3 Z” represents the current value of the imaginary part of the complex impedance, Z”_max and ω_max define the height and position of the peak, and "b" is an internally independent shape parameter for high frequencies.

The KWW equation describing the relaxation function φ(t) [27,28] is expressed as follows:

$$\phi \left(t\right)=f\exp \left[-{\left({\displaystyle \frac{t}{\tau }}\right)}^{\beta }\right];0<\beta \le 1,$$

(4)

where β is the stretching parameter, τ is the relaxation time, and f is a measure of the fraction of the experimental quantity being investigated (the amplitude parameter) that is relaxed via the α-relaxation.

The relationships providing a bridge between the parameters used in the analysis of the frequency domain representation (Equation 3) and the parameters characterizing the time-domain relaxation function (Equation 4) are given by:

$$b\approx \beta ,Z_{\max }^{"}\approx {\displaystyle \frac{f}{2}}\beta ,{\omega }_{\max }\approx {\displaystyle \frac{1}{\tau }}{\displaystyle \frac{1}{\sqrt{\frac{1}{\beta }\Gamma \left(\frac{1}{\beta }\right)}}}$$

(4)

where Γ is the gamma function [34]. These relationships facilitate the translation of findings between time and frequency domains, aiding in understanding of the relaxation behaviour within the material [35].

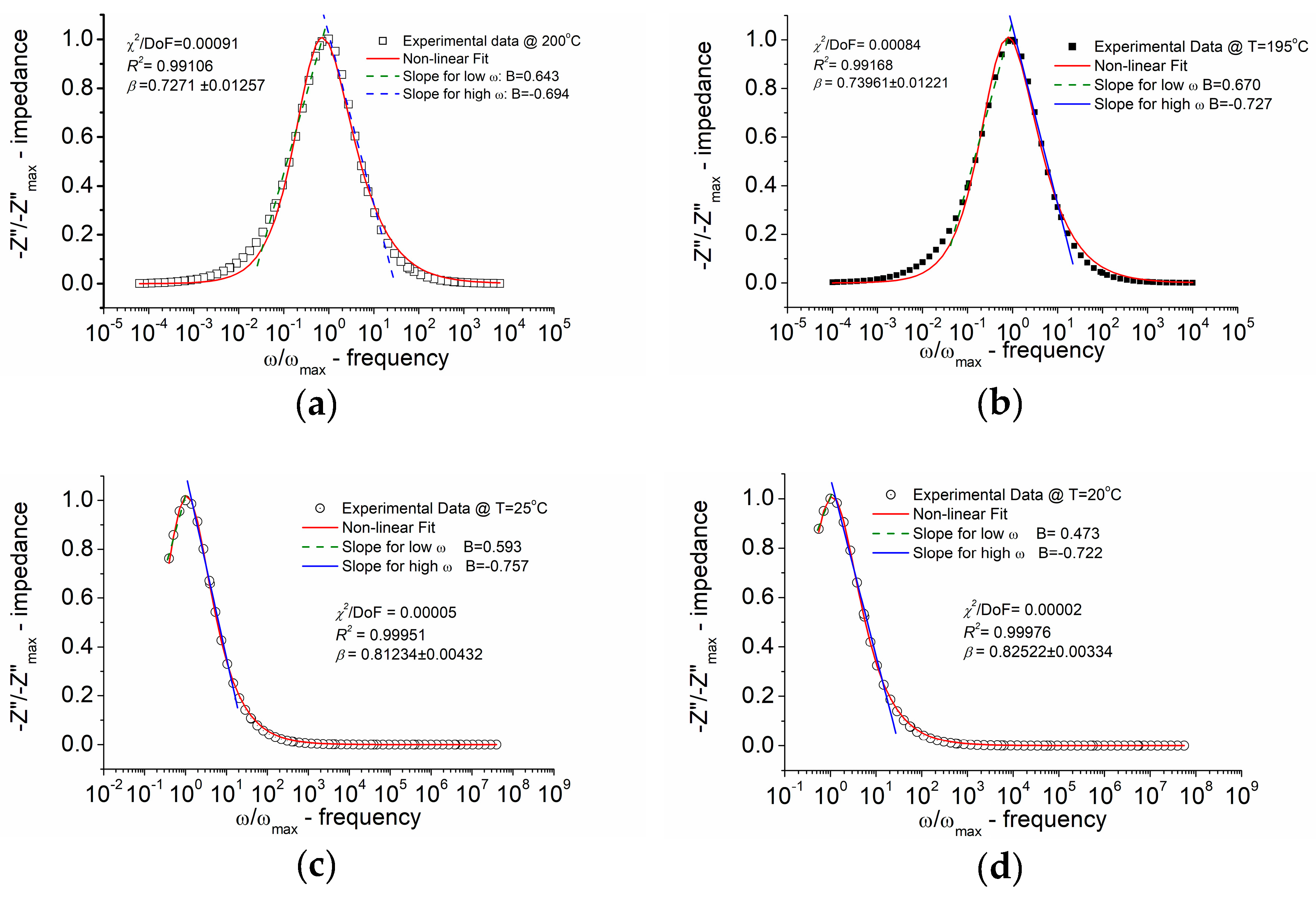

The outcomes of modelling the normalized (in amplitude) imaginary part of impedance (Z”/Z”_max) with normalized frequency (ω/ω_max) for Bi₆Fe₂Ti₃O₁₈ ceramics at different temperatures, carried out according to the function exhibiting the skewed shape given by Equation 3 (modified KWW formula), are depicted in Figure 8.

The visual examination of Figure 8 reveals that the experimental data align well with the model. Quality factor R² is 0.991-0.999.

5. Conclusions

By means of the mixed oxide method Bi₆Fe₂Ti₃O₁₈ (BFTO) compound was synthesized from stoichiometric amounts of Bi₂O₃, TiO₂, and Fe₂O₃ powders. The heat treatment parameters were deduced from the thermal analysis. Uniaxial hot-pressing was utilized for final densification and sintering of BFTO ceramic. X-ray diffraction at room temperature, revealed a tetragonal symmetry (I4/mmm, Space Group No 139) for BFTO ceramics sintered at 850°C. The following lattice parameters were obtained: a₀=b₀=3.8625Å, c₀=49.585Å. The refined average crystallite size was 156Å and average crystallite (rms) strain was 0.41%.

Electron backscatter diffraction provided detailed insight into the crystallographic orientation and microstructure. The orientation map showed a random distribution of grain orientations and also in the pole figure there was no significant clustering in the orientation distribution relative to the sample normal direction [001]. Pole figures for the {001} and {100} planes confirmed this observation, showing low value of intensity maxima. This proves the absence of a strong texturization. Microstructure observations (SEM) made on a relatively big area, showed the presence of porosity. Image quality maps revealed a fine-grained microstructure and black areas, which in this case, were the result of porosity. The EDS analysis confirmed the occurrence of the expected chemical composition. Carbon and silicon presence in the spectrum was an effect of preparation process – silica residues in pores after polishing and carbon coating for SEM observations.

Broadband dielectric spectroscopy was employed to study the dielectric response of BFTO ceramics over a frequency range of 10 mHz to 10 MHz and a temperature range of –30°C to +200°C. Impedance data obtained from BBDS measurements in a form of the normalized (in amplitude) imaginary part of impedance (Z”/Z”_max) with normalized frequency (ω/ω_max) for Bi₆Fe₂Ti₃O₁₈ ceramics were modeled using the Kohlrausch–Williams–Watts (KWW) function. The three-parameter alternative equation for the susceptibility functions was used together with the relationships providing a bridge between the frequency domain representation and the time-domain relaxation function. It was found that the quality factor for the fittings R² was 0.991-0.999.

The identification of non-Debye-type relaxation phenomena was possible, as evidenced by the analysis of the stretching parameter β of the KWW function, within temperatures from 20°C to 200°C. Despite the BBDS measurements were performed for temperatures lower than 20°C it was found that the relaxation peak on spectroscopic dependence of imaginary part of impedance shifted to the lower frequency and “disappeared” from the measuring frequency window. It was found that the β parameter of the KWW function ranged from ~0.72 to 0.82 within the temperature range from 200°C to 20°C (in the impedance formalism). A lower β value indicates a more stretched relaxation function.
