2D Fuel Assembly Study for a Supercritical-Water Cooled Small Modular Reactor

1. Introduction

Nowadays, the energy industry is worldwide facing difficult challenges as from one side there is the necessity to reduce carbon emissions, in contrast, with an always-growing demand for reliable and sustainable energy production. A growing consensus there is for nuclear energy being an important player in this context, mainly due to its capacity to generate large amounts of low-carbon electricity [1].

Among the various nuclear technologies, the Small Modular Reactors (SMRs) have the potential to mitigate issues commonly associated with more conventional nuclear power plants, such as high financial risks, long construction durations, and complex regulatory requirements. SMRs are designed to be compact and scalable to be deployed in many different places, ranging from remote regions to urban areas. Such characteristics make the SMRs a promising option for addressing a broad spectrum of energy demands, from the electricity supply to providing heat for industry or district heating, seawater desalination, and hydrogen production [2,3,4].

Many types of SMRs are currently under development, however, SuperCritical Water Reactors (SCWRs), one of the six technologies identified and selected by the Generation IV International Forum [5], are unique for their distinctive benefits and innovative design [6,7]. SCWRs are operated at higher temperatures and pressures than traditional water-cooled reactors, using supercritical water both as coolant and working fluid. The superior thermodynamic properties of supercritical water make it possible to substantially improve the thermal efficiency of the nuclear reactor, leading to better fuel management and lower waste production. A conceptual study of a new type of SuperCritical Water Small Modular Reactor (SCW-SMR) has been the object of the Joint European Canadian Chinese development of Small Modular Reactor Technology project (ECC-SMART), funded by the Euratom Research and Training programme 2019-2020 [8].

Careful use of nuclear fuel has always been one of the major concerns of the nuclear industry to obtain more efficient and longer-lasting nuclear reactors. Among the different solutions adopted to accomplish such a goal, the use of burnable absorbers (indeed a quite old idea [9], and references therein) plays an important role. Burnable absorbers are materials deliberately introduced in the reactor core that absorb neutrons during the reactor operation and are transmuted into nuclides with generally a much lower absorption cross-section, in that sense they are hence burnable. The disappearance of absorbing elements from the core is equivalent to a positive reactivity introduction which counterbalances the natural reactivity reduction due to the fuel consumption. There are many advantages related to the use of burnable absorbers. They allow for an extension of the burnup of the fuel, a more uniform neutron flux distribution in the core, and a reduction of the operational burden on the reactor control system (due to the reduced reactivity inventory) [9,10]. Burnable absorbers can be integrated with the nuclear fuel (e.g. mixed, inserted, or as a coating) or loaded within the reactor core structures [11,12,13,14]. A comprehensive review of burnable absorbers is given in [14].

To ensure safety, nuclear reactors must be operated so that the peak local power does not exceed the maximum allowable value. If not properly controlled, inherent power distribution variations inside the reactor can hinder the efficient utilization of nuclear fuel. A high power peaking factor — defined as the ratio of the maximum power density to its average value — requires the reactor to operate at a lower power level to keep the hottest point within acceptable limits. For instance, a power peaking factor of 2.0 limits the reactor to 50% of the power achievable with a perfectly flat power distribution. Various techniques have been developed to flatten the power distribution and thus reduce the power peaking factor. Among them are fuel enrichment zoning, burnable poison-loaded fuel pins, and power-shaping control rods.

This study focuses on a 2D optimization of the current fuel assembly conceptual design for the SCW-SMR of the ECC-SMART project. In particular, various types of burnable absorbers, including erbium, boron-based compounds, and gadolinium, will be considered to reduce the reactivity inventory and then alleviate the necessary worth of the control rod system. Thus, to ensure a long-lasting effect, the study will prioritize lumped burnable absorbers rather than a homogeneous mixture within the fuel or other assembly components. Additionally, an appropriate fuel enrichment zoning strategy will be discussed to flatten the power distribution within the assembly and reduce the pin-power peaking factor throughout the entire burnup cycle.

2. The SCW-SMR Fuel Assembly

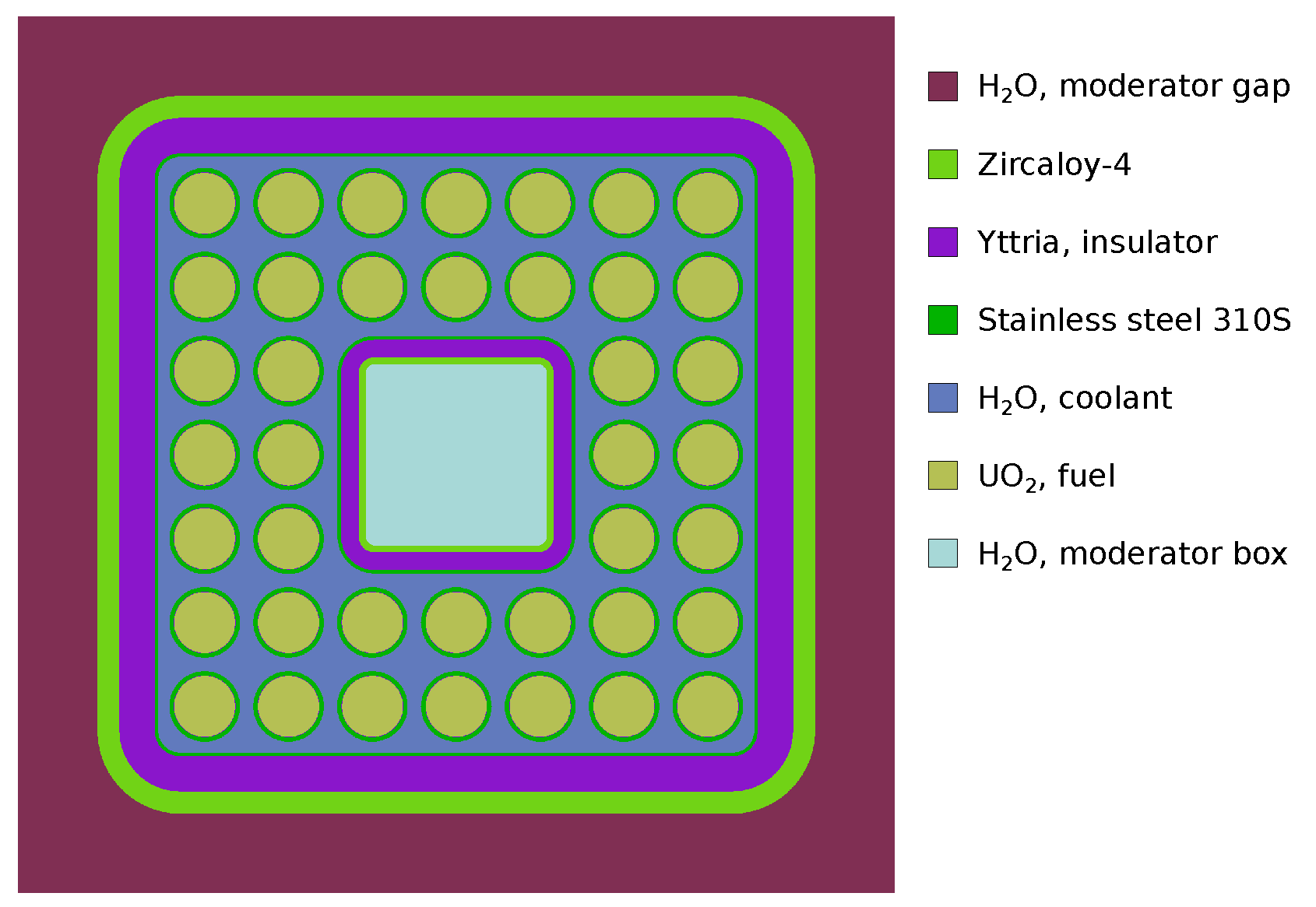

The fuel-assembly reference layout of the supercritical-water small modular reactor, studied in the framework of the ECC-SMART project, is shown in Figure 1. The fuel assembly is a 7×7 lattice with a pitch of 9.5 mm, containing 40 fuel rods with a radius of 3.45 mm. A previous work [15] has shown that a core based on UO₂ with a uranium enrichment of 5.0% cannot achieve a refuelling/shuffling time of at least two years (one of the objectives of the ECC-SMART project). The same work has shown that such a length of the fuel cycle can instead be obtained adopting a suitable distribution of assemblies characterized by three different average enrichments, namely 5.0%, 7.4%, and 10.0%. In view of that, the fuel of the reference assembly for the present study is UO₂ with a ²³⁵U enrichment of 7.5% by weight, a density of 10.3 g·cm⁻³, and a temperature of 1054.2 K. As reported in [16], the reactor in his preliminary design has a power of 290 MW and operates at a core inlet pressure of 25 MPa. The reactor core is characterized by seven horizontal heat-up stages, necessary to reduce the peak coolant temperatures (a coolant mixing is foreseen at the end of each stage before entering the next one). The maximum linear heat rate is limited by the fuel and cladding peak temperatures, which should not exceed their respective maximum tolerable values. The maximum assembly average linear heat rate, in the first three heat-up stages, is equal to 7.2 kW·cm⁻¹ and is taken as reference for the present study.

The fuel cladding is made of stainless steel 310S and has an inner and outer radius of 3.5 and 4.0 mm, respectively. The fuel assembly is of closed type (BWR-like) with the moderator flowing both outside, through the 18 mm thick gap among them, and inside, within a central square water box. The wall of the fuel assembly has a sandwich-like structure that, starting from the outside, is made by a 2.5 mm thick layer of zircaloy-4, followed by a 4.0 mm thick layer of yttria (the insulator) and then by a 0.4 mm thick layer of stainless steel 310S. The central water box has the same sandwich-like structure as the assembly wall but in the opposite order, in such a way that the 310S stainless steel fully bounds the coolant flowing inside the assembly. The thicknesses in the case of the water box are 0.4 mm, 2.0 mm, and 0.8 mm for the 310S, yttria, and zircaloy-4, respectively. The outer side of the assembly is 81.3 mm, while the outer side of the water box is 20.5 mm. The temperature and density of the coolant are 659.2 K and 0.330 g·cm⁻³, while 555.1 K and 0.775 g·cm⁻³ for the outside moderator and 572.3 K and 0.746 g·cm⁻³ for the inside moderator. The stainless steel 310S has the same temperature as the coolant, while the other materials are assumed at the same temperature as the moderators. The above values of densities and temperatures have been obtained by coupled simulations between the neutronic Monte Carlo code Serpent [17] and the thermal-hydraulic system code RELAP/SCDAPSIM [18].

3. Burnable Absorbers

3.1. Simplified Analytical Model

The model described hereafter does not aim to be rigorous but to provide a simple analytical tool to estimate the effect on the multiplication factor of different lumped burnable absorbers positioned inside a fuel assembly. Such a tool can anyway help to circumscribe the set of successive Monte Carlo simulations necessary for a detailed analysis. Thus, some simplifications will be mandatorily introduced. Similar treatment can be found in [14,19,20].

Inside a lumped thermal neutron absorber the neutron flux is depressed so that the nuclides towards the center of the absorber are exposed to a lower neutron flux than those at its surface. A measure of such depression is represented by the self-shielding factor, defined as the ratio between the average thermal neutron flux in the absorber and the average thermal neutron flux that would be at the same place without it. The self-shielding factor, $g\left(t\right)$, depends on the time, since the absorption macroscopic cross section changes with the absorber burnout and thus the flux depression inside of it changes too. In any approximation of the monokinetic Boltzmann transport equation, the self-shielding factor of a lumped absorber in a homogeneous medium can be represented by the following power series [9,21,22],

$$g\left(t\right)={\left[1+\sum _{n=1}^{\infty }{a}_n{\left[2t_d{\Sigma }_a\left(t\right)\right]}^n\right]}^{-1}\approx {\left[1+2a_1{t}_d{\Sigma }_a\left(t\right)\right]}^{-1}$$

(1)

where the $a_n$ are coefficients dependent on the composition and geometry of the medium around the absorber, $t_d$ is the absorber thickness (e.g. the radius in the case of a cylindrical rod) and ${\Sigma }_a\left(t\right)$ is the time-dependent macroscopic absorption cross-section of the absorber. As reported by [9], by increasing the index n, the coefficients $a_n$ rapidly vanish, thus justifying the approximation of the power series by its first term only.

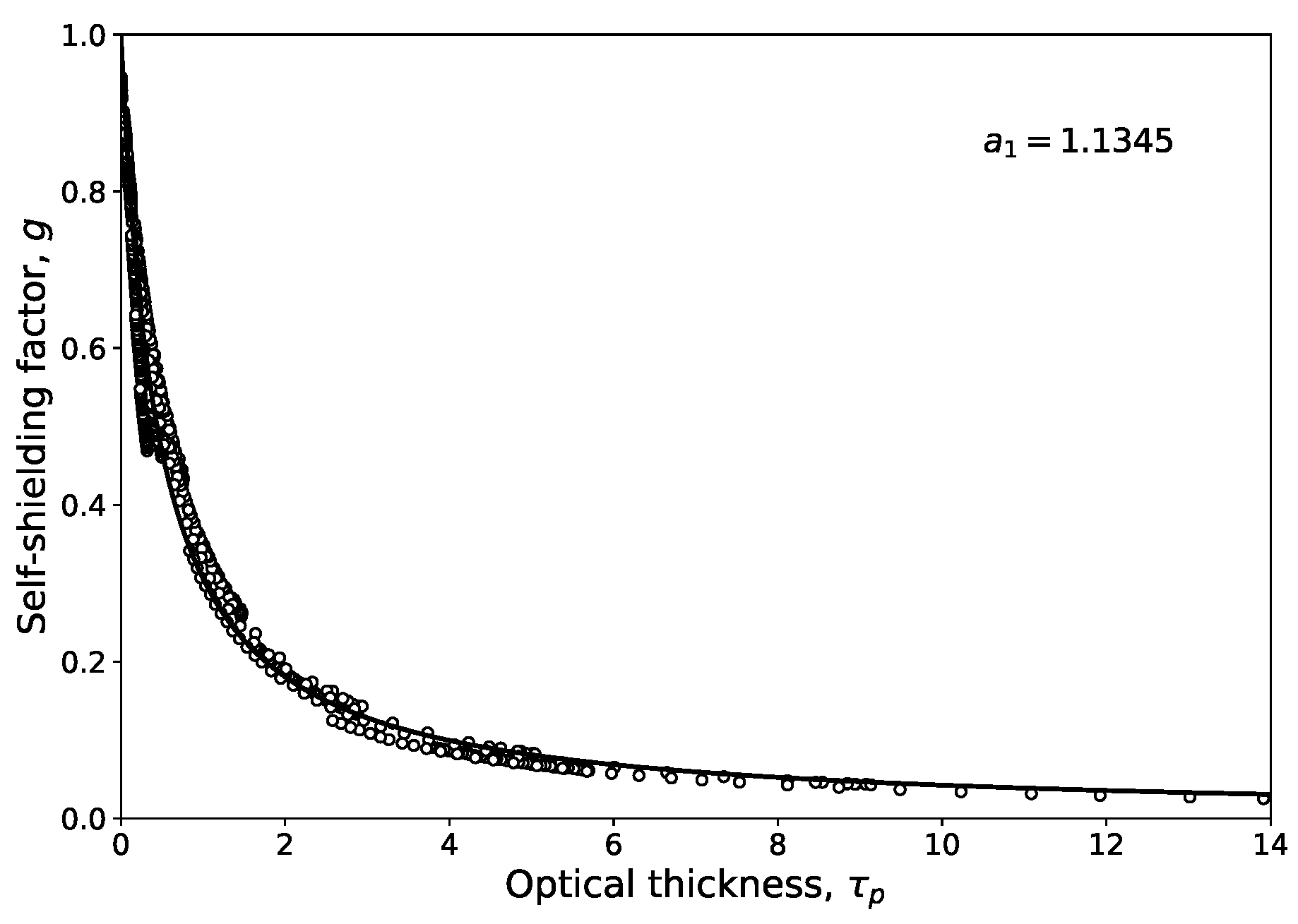

The same form of the self-shielding factor is reported by [23], here a factor $C=2a_1$ is introduced in the approximate form of Equation (1) and determined by fitting the calculated values of the self-shielding factor as a function of the optical thickness of the neutron absorber, ${\tau }_p=t_d{\Sigma }_a\left(t\right)$. According to that approach, simple depletion simulations have been performed with the Monte Carlo code OpenMC [24] to estimate the self-shielding factors of different absorbing rods of various radii, surrounded by an infinitely extending water moderator. The self-shielding factor is thus given by the ratio between the average neutron flux inside the absorbing rod and the moderator. Fitting the OpenMC results, we get for the constant $a_1$ appearing in Equation (1) the value of 1.1345. Figure 2 shows the OpenMC self-shielding factors as a function of the absorber’s optical thickness and the fitting function (solid line) shaped according to Equation (1).

To account for the self-shielding phenomenon of an absorber, use can be made of a time-dependent shielded macroscopic absorption cross section, ${\widehat{\Sigma }}_a\left(t\right)$, defined as

$${\widehat{\Sigma }}_a\left(t\right)=g\left(t\right){\Sigma }_a\left(t\right).$$

(2)

Let’s start by considering two distinct thermal-neutron absorbers, the ²³⁵U of the fuel and a burnable absorber or poison. In the following, the quantities referring to these two absorbers will be characterized by the index 25 (i.e. the last digit of Z by 10 plus the last digit of A1) and P, respectively.

The variation with time of the ²³⁵U atom density, $N_{25}\left(t\right)$, is given by

$${\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_{25}\left(t\right)=-{\widehat{\Sigma }}_a^{25}\left(t\right){\varphi }_{th}^F\left(t\right)=-N_{25}\left(t\right)g_F\left(t\right){\sigma }_a^{25}{\varphi }_{th}^F\left(t\right),$$

(3)

with $g_F\left(t\right)$ and ${\sigma }_a^{25}$ the time-dependent self-shielding factor of the fuel and the ²³⁵U microscopic absorption cross-section for thermal neutrons, respectively, while ${\varphi }_{th}^F\left(t\right)$ is the total thermal neutron flux inside the fuel.

The assumption of a constant reactor power provides the following relation

$$N_{25}\left(0\right)g_F\left(0\right){\sigma }_f^{25}{\varphi }_{th}^F\left(0\right)·E_f=N_{25}\left(t\right)g_F\left(t\right){\sigma }_f^{25}{\varphi }_{th}^F\left(t\right)·E_f,$$

(4)

where ${\sigma }_f^{25}$ is the thermal microscopic fission cross-section of the fuel and $E_f$ is the energy released per fission. Equation (4) allows obtaining the time-dependent neutron flux

$${\varphi }_{th}^F\left(t\right)={\displaystyle \frac{N_{25}\left(0\right)}{N_{25}\left(t\right)}}{\displaystyle \frac{g_F\left(0\right)}{g_F\left(t\right)}}{\varphi }_{th}^F\left(0\right),$$

(5)

where $N_{25}\left(0\right)$ and ${\varphi }_{th}^F\left(0\right)$ are, respectively, the initial ($t=0$) atom density of the fuel and neutron flux, both assumed as given.

The fuel self-shielding factor is supposed to depend only on the presence of ²³⁵U2 and, according to Equation (1), is given by

$$g_F\left(t\right)={\displaystyle \frac{1}{1+{\gamma }_F{N}_{25}\left(t\right)}},$$

(6)

with

$${\gamma }_F=2a_1{r}_F{\sigma }_a^{25},$$

(7)

where $r_F$ is the radius of the fuel rod.

In turn, Equation (5) allows writing Equation (3) in the following form

$${\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_{25}\left(t\right)=-N_{25}\left(0\right)g_F\left(0\right){\sigma }_a^{25}{\varphi }_{th}^F\left(0\right),$$

(8)

which, once integrated, provides

$$N_{25}\left(t\right)=N_{25}\left(0\right)\left[1-{\beta }_{25}t\right],$$

(9)

where ${\beta }_{25}=g_F\left(0\right){\sigma }_a^{25}{\varphi }_{th}^F\left(0\right)$.

In analogy with Equation (3), the variation with time of the atom density of the burnable poison is given by

$${\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_P\left(t\right)=-{\widehat{\Sigma }}_a^P\left(t\right){\varphi }_{th}^P\left(t\right)=-N_P\left(t\right)g_P\left(t\right){\sigma }_a^P{\varphi }_{th}^F\left(t\right){\displaystyle \frac{{\overline{\varphi }}_{th}^P}{{\overline{\varphi }}_{th}^F}}.$$

(10)

In the above equation, $g_P\left(t\right)$ and ${\sigma }_a^P$ are, respectively, the burnable absorber time-dependent self-shielding factor and microscopic absorption cross-section for thermal neutrons. The factors ${\overline{\varphi }}_{th}^P$ and ${\overline{\varphi }}_{th}^F$ are the average thermal flux at the place of the burnable absorber and the fuel. Thus, their ratio, assumed time-independent for simplicity, accounts for the different thermal neutron fluxes to which the burnable absorber and the fuel are exposed. According to Equation (1), the burnable poison self-shielding factor is given by

$$g_P\left(t\right)={\displaystyle \frac{1}{1+{\gamma }_P{N}_P\left(t\right)}},$$

(11)

with

$${\gamma }_P=2a_1{r}_P{\sigma }_a^P,$$

(12)

where $r_P$ is the radius of the poison (here assumed, as for the fuel, in the shape of a cylindrical rod).

Equation (10), after introducing Equations (5), (6), (9) and (11), reduces to

$${\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_P\left(t\right)=-{\displaystyle \frac{{\beta }_P{N}_P\left(t\right)}{1+{\gamma }_P{N}_P\left(t\right)}}\left[{\gamma }_F{N}_{25}\left(0\right)+{\displaystyle \frac{1}{\left[1-{\beta }_{25}t\right]}}\right],$$

(13)

with ${\beta }_P=g_F\left(0\right){\sigma }_a^P{\varphi }_{th}^F\left(0\right)·{\overline{\varphi }}_{th}^P/{\overline{\varphi }}_{th}^F$, and it can be rearranged in the following form

$$\begin{array}{c}\hfill {\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}ln{N}_P\left(t\right)=-{\gamma }_P{\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_P\left(t\right)-{\beta }_P\left[{\gamma }_F{N}_{25}\left(0\right)+{\displaystyle \frac{1}{\left[1-{\beta }_{25}t\right]}}\right].\end{array}$$

(14)

Integrating Equation (14), it follows

$$\begin{array}{c}\hfill ln{N}_P\left(t\right)=-{\gamma }_P{N}_P\left(t\right)-{\beta }_P{\gamma }_F{N}_{25}\left(0\right)t+{\displaystyle \frac{{\beta }_P}{{\beta }_{25}}}ln\left(1-{\beta }_{25}t\right()+C_0.\end{array}$$

(15)

The constant $C_0$ is determined by considering that for $t=0$ the atom density of the poison is given and equal to $N_P\left(0\right)$. Thus, from Equation (15) it follows

$$\begin{array}{c}\hfill C_0=ln{N}_P\left(0\right)+{\gamma }_P{N}_P\left(0\right).\end{array}$$

(16)

Including Equation (16) into Equation (15), we get

$$ln{N}_P\left(t\right)=ln{N}_P\left(0\right)+{\gamma }_P{N}_P\left(0\right)-{\gamma }_P{N}_P\left(t\right)-{\beta }_P{\gamma }_F{N}_{25}\left(0\right)t+{\displaystyle \frac{{\beta }_P}{{\beta }_{25}}}ln\left(1-{\beta }_{25}t\right),$$

(17)

from which it follows

$$\begin{array}{c}\hfill N_P\left(t\right)=N_P\left(0\right)e^{-{\gamma }_P{N}_P\left(t\right)}{e}^{\left[{\gamma }_P{N}_P\left(0\right)-{\beta }_P{\gamma }_F{N}_{25}\left(0\right)t\right]}{\left(1-{\beta }_{25}t\right)}^{{\displaystyle \frac{{\beta }_P}{{\beta }_{25}}}},\end{array}$$

(18)

or, equivalently,

$$\begin{array}{c}\hfill {\gamma }_P{N}_P\left(t\right)e^{{\gamma }_P{N}_P\left(t\right)}={\gamma }_P{N}_P\left(0\right)e^{\left[{\gamma }_P{N}_P\left(0\right)-{\beta }_P{\gamma }_F{N}_{25}\left(0\right)t\right]}{\left(1-{\beta }_{25}t\right)}^{{\displaystyle \frac{{\beta }_P}{{\beta }_{25}}}}.\end{array}$$

(19)

The above equation has the form $w{e}^w=\lambda$, and holds if and only if $w=W_0\left(\lambda \right)$, with $W_0$ the principal branch of Lambert W-function.

The time-dependent atom density of the burnable poison is finally given by

$$N_P\left(t\right)={\displaystyle \frac{1}{{\gamma }_P}}{W}_0\left({\gamma }_P{N}_P\left(0\right)e^{{\gamma }_P{N}_P\left(0\right)}{e}^{-{\beta }_P{\gamma }_F{N}_{25}\left(0\right)t}{\left(1-{\beta }_{25}t\right)}^{{\displaystyle \frac{{\beta }_P}{{\beta }_{25}}}}\right).$$

(20)

However, the neutron absorption by ²³⁸U produces ²³⁹Pu and, through successive further absorptions, ²⁴¹Pu. Both are fissile nuclides and thus have an impact on the time behaviour of the multiplication factor. Moreover, with the burnup, the fission reactions induce the appearance of new absorbing nuclides in the fuel, due to the accumulation of the fission products. To take into account these phenomena, while keeping the spirit of a simple analytical approach, the variation of the time-dependent ²³⁹Pu concentration, $N_{49}\left(t\right)$ (according to the notation introduced above), can be approximated as

$$\begin{array}{cc}\hfill {\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_{49}\left(t\right)& =\left[N_{28}{\sigma }_a^{28}+\left({ϵ}_{25}{\nu }_{25}{N}_{25}\left(t\right){\sigma }_f^{25}+{ϵ}_{49}{\nu }_{49}{N}_{49}\left(t\right){\sigma }_f^{49}\right)\left(1-p\right)p_a^{28}-N_{49}\left(t\right){\sigma }_a^{49}\right]\hfill \\ \hfill & ·g_F\left(t\right){\varphi }_{th}^F\left(t\right)\hfill \end{array}$$

(21)

where, other than the parameters with obvious notation, p and $p_a^{28}$ are, respectively, the probability for a neutron to survive the resonance absorption (i.e. the p of the four-factor formula) and the probability to be absorbed by ²³⁸U, during the slowing down. Moreover, the ²³⁸U density, $N_{28}$, has been assumed constant with time.

Thanks to Equations (5), (6) and (9), and the initial condition that no ²³⁹Pu is present at $t=0$, the solution of Equation (21) is

$$N_{49}\left(t\right)={\displaystyle \frac{b_0}{{\sigma }_a^{25}+c_0}}\left[x_{25}{\left(t\right)}^{-{\displaystyle \frac{c_0}{{\sigma }_a^{25}}}}-x_{25}\left(t\right)\right]-{\displaystyle \frac{a_0}{c_0}}\left[1-x_{25}{\left(t\right)}^{-{\displaystyle \frac{c_0}{{\sigma }_a^{25}}}}\right],$$

where

$$x_{25}\left(t\right)={\displaystyle \frac{N_{25}\left(t\right)}{N_{25}\left(0\right)}},$$

(22)

$$a_0=N_{28}{\sigma }_a^{28},$$

(23)

$$b_0={ϵ}_{25}{\nu }_{25}{N}_{25}\left(0\right){\sigma }_f^{25}\left(1-p\right)p_a^{28},$$

(24)

$$c_0={ϵ}_{49}{\nu }_{49}{\sigma }_f^{49}\left(1-p\right)p_a^{28}-{\sigma }_a^{49}.$$

(25)

The variations with time of the ²⁴⁰Pu and ²⁴¹Pu atom densities, $N_{40}\left(t\right)$ and $N_{41}\left(t\right)$ respectively, are approximated by the two following differential equations:

$$\begin{array}{cc}\hfill {\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_{40}\left(t\right)& =N_{49}\left(t\right)\left({\sigma }_c^{49}{g}_F\left(t\right)+{\sigma }_{c,fn}^{49}{\chi }_r\right){\varphi }_{th}^F\left(t\right)-N_{40}\left(t\right)\left({\sigma }_a^{40}{g}_F\left(t\right)+{\sigma }_{a,fn}^{40}{\chi }_r\right){\varphi }_{th}^F\left(t\right),\hfill \end{array}$$

(26)

$$\begin{array}{cc}\hfill {\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_{41}\left(t\right)& =N_{40}\left(t\right)\left({\sigma }_c^{40}{g}_F\left(t\right)+{\sigma }_{c,fn}^{40}{\chi }_r\right){\varphi }_{th}^F\left(t\right)-N_{41}\left(t\right)\left({\sigma }_a^{41}{g}_F\left(t\right)+{\sigma }_{a,fn}^{41}{\chi }_r\right){\varphi }_{th}^F\left(t\right),\hfill \end{array}$$

(27)

where ${\sigma }_{c,fn}$ and ${\sigma }_{a,fn}$ are, respectively, the fast capture and absorption microscopic cross-sections, and ${\chi }_r$ is instead the fast-to-thermal flux ratio, which, for the sake of simplicity, is assumed as time-independent. As before, solving Equations (26) and (27) with the initial condition $N_{40}\left(0\right)=N_{41}\left(0\right)=0$, we get

$$N_{40}\left(t\right)=m_1{x}_{25}{\left(t\right)}^{e_1}-m_2{x}_{25}\left(t\right)-m_3+\left(m_2+m_3-m_1\right)x_{25}{\left(t\right)}^{e_2},$$

(28)

$$N_{41}\left(t\right)=\left({\sigma }_c^{40}+{\sigma }_{c,fn}^{40}{\chi }_r\right)\left[n_1{x}_{25}{\left(t\right)}^{e_1}-n_2{x}_{25}\left(t\right)-n_3\phantom{x_{25}{\left(t\right)}^{e_2}}-n_4{x}_{25}{\left(t\right)}^{e_2}+n_5{x}_{25}{\left(t\right)}^{e_3}\right],$$

(29)

where

$$e_1=-{\displaystyle \frac{c_0}{{\sigma }_a^{25}}},$$

(30)

$$e_2={\displaystyle \frac{{\sigma }_a^{40}+{\sigma }_{a,fn}^{40}{\chi }_r}{{\sigma }_a^{25}}},$$

(31)

$$e_3={\displaystyle \frac{{\sigma }_a^{41}+{\sigma }_{a,fn}^{41}{\chi }_r}{{\sigma }_a^{25}}},$$

(32)

$$m_1={\displaystyle \frac{{\sigma }_c^{49}+{\sigma }_{c,fn}^{49}{\chi }_r}{{\sigma }_a^{40}+{\sigma }_{a,fn}^{40}{\chi }_r+c_0}},$$

(33)

$$m_2={\displaystyle \frac{b_0\left({\sigma }_c^{49}+{\sigma }_{c,fn}^{49}{\chi }_r\right)}{\left({\sigma }_a^{25}+c_0\right)\left({\sigma }_a^{40}+{\sigma }_{a,fn}^{40}{\chi }_r-{\sigma }_a^{25}\right)}},$$

(34)

$$m_3={\displaystyle \frac{a_0\left({\sigma }_c^{49}+{\sigma }_{c,fn}^{49}{\chi }_r\right)}{c_0\left({\sigma }_a^{40}+{\sigma }_{a,fn}^{40}{\chi }_r\right)}},$$

(35)

$$n_1={\displaystyle \frac{m_1}{{\sigma }_a^{41}+{\sigma }_{a,fn}^{41}{\chi }_r+c_0}},$$

(36)

$$n_2={\displaystyle \frac{m_2}{{\sigma }_a^{41}+{\sigma }_{a,fn}^{41}{\chi }_r-{\sigma }_a^{25}}},$$

(37)

$$n_3={\displaystyle \frac{m_3}{{\sigma }_a^{41}+{\sigma }_{a,fn}^{41}{\chi }_r}},$$

(38)

$$n_4={\displaystyle \frac{m_1-m_2-m_3}{{\sigma }_a^{41}+{\sigma }_{a,fn}^{41}{\chi }_r-{\sigma }_a^{40}+{\sigma }_{a,fn}^{40}{\chi }_r}},$$

(39)

$$n_5=n_4-n_1+n_2+n_3.$$

(40)

To take into account the accumulation of the fission products we can instead use the following equation

$$\begin{array}{cc}\hfill {\displaystyle \frac{\mathrm{d}}{\mathrm{d}t}}{N}_{fp}\left(t\right)& =2N_{25}\left(t\right)g_F\left(t\right){\sigma }_f^{25}{\varphi }_{th}^F\left(t\right)+2N_{49}\left(t\right)g_F\left(t\right){\sigma }_f^{49}{\varphi }_{th}^F\left(t\right)-N_{fp}\left(t\right)g_F\left(t\right){\sigma }_a^{fp}{\varphi }_{th}^F\left(t\right),\hfill \end{array}$$

(41)

where $N_{fp}\left(t\right)$ and ${\sigma }_a^{fp}$ are the atom density and the Maxwellian-averaged thermal absorption cross section of the fission products, respectively.

Taking advantage of Equations (5), (6), (9) and (22), imposing that $N_{fp}\left(0\right)=0$, if follows

$$N_{fp}\left(t\right)=-u_1{x}_{25}\left(t\right)+u_2{x}_{25}{\left(t\right)}^{e_1}-u_3+u_4{x}_{25}{\left(t\right)}^{e_4},$$

(42)

where

$$e_4={\displaystyle \frac{{\sigma }_a^{fp}}{{\sigma }_a^{25}}},$$

(43)

$$u_1={\displaystyle \frac{1}{{\sigma }_a^{25}-{\sigma }_a^{fp}}}\left(N_{25}\left(0\right){\sigma }_f^{25}-{\displaystyle \frac{b_0{\sigma }_f^{49}}{{\sigma }_a^{25}+c_0}}\right),$$

(44)

$$u_2={\displaystyle \frac{1}{{\sigma }_a^{fp}+c_0}}\left({\displaystyle \frac{b_0}{{\sigma }_a^{25}+c_0}}+{\displaystyle \frac{a_0}{c_0}}\right){\sigma }_f^{49},$$

(45)

$$u_3={\displaystyle \frac{a_0}{c_0}}{\displaystyle \frac{{\sigma }_f^{49}}{{\sigma }_a^{fp}}},$$

(46)

$$u_4=u_1-u_2+u_3,$$

(47)

with $e_1$, $a_0$, $b_0$ and $c_0$ as by Equations (30), (23), (24) and (25), respectively.

To assess the influence on the multiplication factor of the variation with time of fuel and poison atom densities, let us consider a homogenized fuel assembly with full reflective boundary conditions (i.e. an infinite lattice of identical fuel assemblies).

The time-dependent infinite multiplication factor, $k_{\infty }$, is given by the well-known four-factor formula

$$k_{\infty }\left(t\right)=ϵpf\left(t\right)\eta \left(t\right)=ϵp{\displaystyle \frac{\nu {\tilde{\Sigma }}_f\left(t\right)}{{\tilde{\Sigma }}_a\left(t\right)}},$$

(48)

where ${\tilde{\Sigma }}_f\left(t\right)$ and ${\tilde{\Sigma }}_a\left(t\right)$ are the time-dependent, Maxwellian-averaged, and homogenized, fission and absorption cross sections (for the sake of simplicity, it is assumed that the fast fission factor, $ϵ$, and the resonance absorption escape probability, p, are both time-independent). In the case of a reactor without burnable absorbers, it is

$${\tilde{\Sigma }}_a\left(t\right)={\widehat{\Sigma }}_a^F\left(t\right){\displaystyle \frac{V_F}{V}}{\displaystyle \frac{{\overline{\varphi }}_{th}^F}{{\overline{\varphi }}_{th}}}+{\widehat{\Sigma }}_a^{NF},$$

(49)

where the first term on the r.h.s., ${\widehat{\Sigma }}_a^F\left(t\right)$, is the time-dependent shielded macroscopic absorption cross section of the fuel, weighted by both volumes ($V_F$ is the volume of the fuel, V the volume of the assembly) and fluxes (${\overline{\varphi }}_{th}^F$ and ${\overline{\varphi }}_{th}$ are the average thermal neutron flux in the fuel and the assembly, respectively), and ${\widehat{\Sigma }}_a^{NF}$ is, instead, the sum of the homogenized macroscopic cross sections of all the other components of the system, similarly weighted and assumed time-independent. By incidence, we can notice how the fuel self-shielding factor, given by Equation (6), can now be evaluated considering not only the ²³⁵U but also all the other nuclides that appear in the fuel during the burnup.

When a burnable poison is added to the system, the homogenized macroscopic absorption cross section in Equation (48) takes instead the following form

$${\tilde{\Sigma }}_a\left(t\right)={\widehat{\Sigma }}_a^F\left(t\right){\displaystyle \frac{V_F}{V}}{\displaystyle \frac{{\overline{\varphi }}_{th}^F}{{\overline{\varphi }}_{th}}}+{\widehat{\Sigma }}_a^P\left(t\right){\displaystyle \frac{V_P}{V}}{\displaystyle \frac{{\overline{\varphi }}_{th}^P}{{\overline{\varphi }}_{th}}}+{\widehat{\Sigma }}_a^{NF},$$

(50)

where the second term on the r.h.s.is the time-dependent shielded macroscopic absorption cross section of the poison weighted by volumes and fluxes as discussed above.

Introducing Equation (49) or (50) into Equation (48) allows estimating the evolution with time of the multiplication factor for the case without or with the presence of the burnable absorber, respectively.

Given the assembly geometry and composition, a single dedicated Monte Carlo simulation, without any burnable absorber, allows obtaining all the parameters necessary to apply this model and thus to start a preliminary analysis of the behavior of different kinds and amounts of burnable absorbers. Moreover, such a simulation can estimate the contribution of the saturated concentration of ¹³⁵Xe and ¹⁴⁹Sm to the fuel macroscopic absorption cross-section in Equations (49) and (50).

3.2. Burnable Absorbers for the SCW-SMR Fuel Assembly - Analytical Study

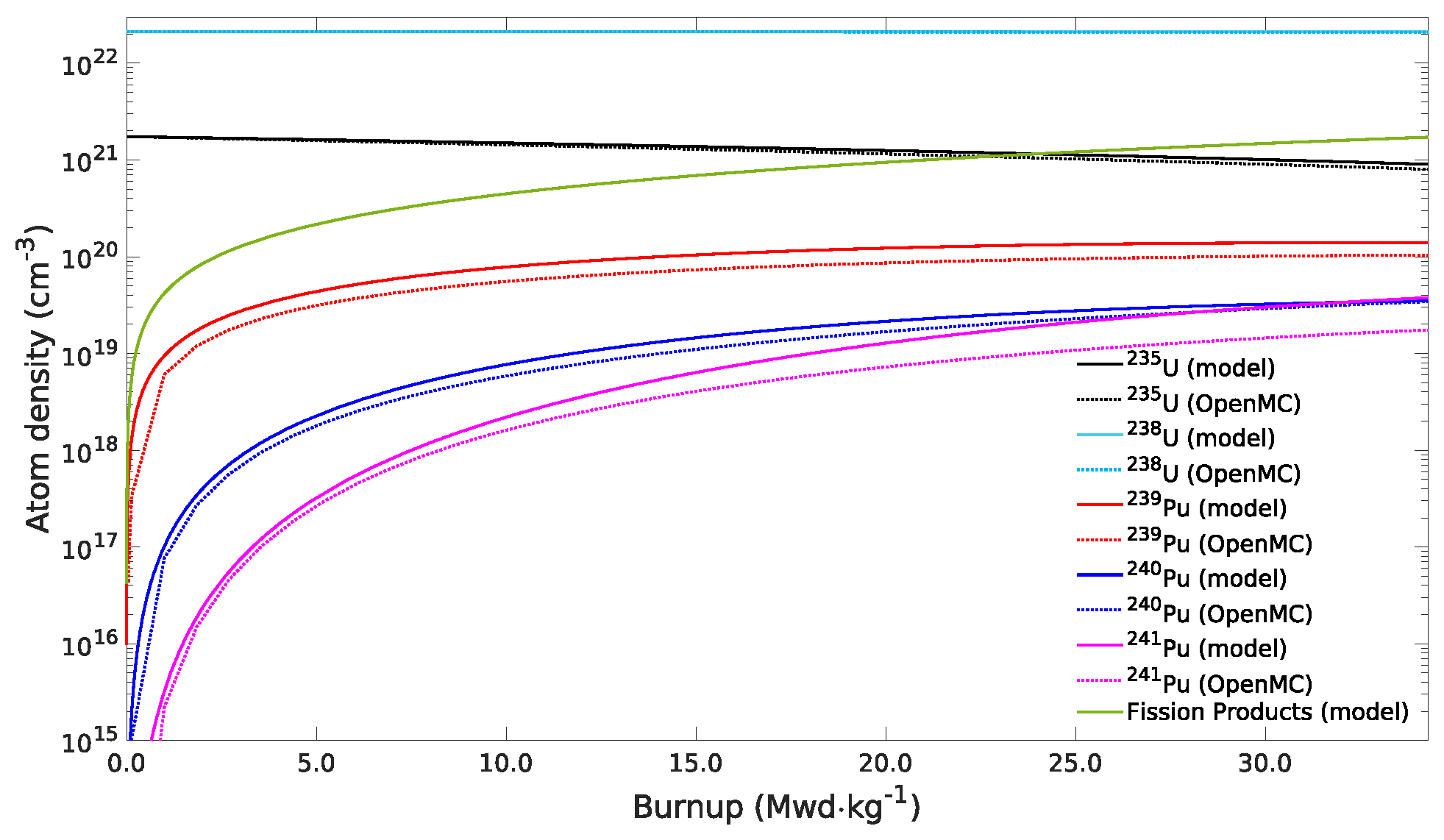

To provide a preliminary validation of the simplified analytical model described in the previous section, an OpenMC depletion simulation of the SCW-SMR fuel assembly (see Section 2) has been performed to obtain the time-dependent concentrations of the nuclides there considered. As shown by Figure 3, the results provided by the model are quite in agreement with those given by the much more accurate Monte Carlo simulation. The model shows a slight overestimation, at any burnup, of the concentrations of ²³⁹Pu and ²⁴⁰Pu, while for ²⁴¹Pu there is an overestimation that starting from a burnup of 5 MWd·kg⁻¹ increases with it. Computing time is of the order of few seconds for the analytical model respect to the 1200 s used by OpenMC.

In the following sections, three different burnable poisons, characterized by an absorption cross-section similar, larger, and much larger than that of the fuel, will be considered to study the evolution of the assembly infinite multiplication factor $k_{\infty }$ (see Equation (48)), as a function of the fuel burnup. Moreover, in order to define the ratio ${\overline{\varphi }}_{th}^P/{\overline{\varphi }}_{th}^F$ which appears in the parameter ${\beta }_P$ of Equation (20), the lumped burnable absorbers are supposed to be positioned inside the yttria insulator of the assembly wall (see again Figure 1).

3.2.1. Erbium

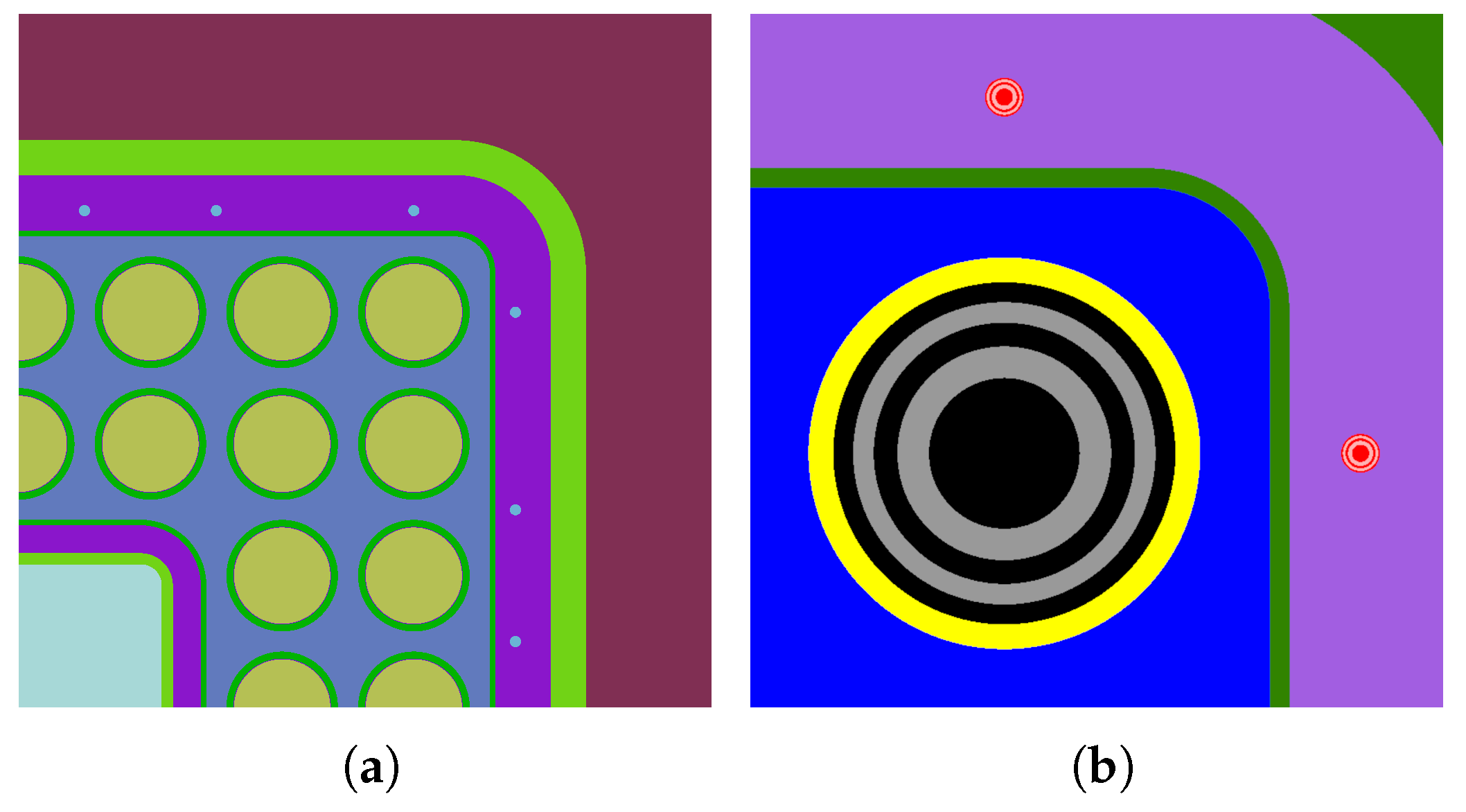

Let us assume that the assembly of Figure 1 contains some cylindrical rods made of erbium (with natural isotopic composition) in the yttria region of the outer assembly wall. Taking the initial total mass of Er equal to a specific fraction of the total fuel mass, increasing the number of Er rods requires a reduction of their radius, thus allowing consideration for a lower self-shielding.

Figure 4 shows the variation of the assembly infinite multiplication factor as a function of the fuel burnup, for different radii of the absorbing rods and two values of the Er initial total mass, namely 1.5% and 2.5% of the fuel mass. As expected, the burnable absorber reduces the initial inventory of reactivity. Increasing the burnup, and then the consumption of fuel and absorber, the assembly reactivity shows first a small increment before to decrease with a rate lower than in the case without absorber. Nonetheless, it appears not possible to completely burn the Er poison, as in all the cases the multiplication factor falls below 1.0 before the burnup of 40.2 MWd·kg⁻¹, achievable without the addition of the burnable absorber. This behaviour is due to the comparable absorption cross-section of ¹⁶⁷Er and ²³⁵U which makes their burning rate similar. As pointed out in [27], a relevant characteristic of Er is that its addition enhances the negative of the fuel temperature coefficient, thanks to the large resonance lying at the upper edge of the thermal energy range, see Figure 5.

3.2.2. Boron Carbide

The second burnable absorber considered is boron carbide, B₄C, with boron natural isotopic composition. As for the case of erbium, with a fixed total initial mass of the absorber, increasing the number of burnable rods allows considering lumped absorbers with reduced radius and hence lower self-shielding.

Figure 6 shows the variation of the multiplication factor as a function of the fuel burnup for different radii of the absorber rods, starting with an initial total mass of B₄C equal to 0.15% and 0.20% of that of the fuel. Using B₄C introduces a reactivity swing, visible with almost any considered radius of the rods. According to the simplified analytical model, the radius that shows the smaller reactivity variation, up to a burnup value of 25-30 MWd·kg⁻¹, should approximately be in the range between 0.3 and 0.4 mm. Since the absorption cross-section of ¹⁰B is sensibly greater than that of the fuel, it appears that, for all the presented cases (if exception is made for the larger radius with the higher amount of B₄C), the burnable absorber is fully consumed, as the reactivity, above a certain burnup, approaches and follows the curve of the case of no poison.

3.2.3. Gadolinium

The last burnable absorber of this analysis is gadolinium, Gd, also in this case with natural isotopic composition. Gd has two isotopes with high absorption cross section for thermal neutrons, namely the ¹⁵⁵Gd and ¹⁵⁷Gd. However, since the developed analytical model here derived allows considering a single absorbing nuclide, an average thermal absorption cross-section has been defined by weighting those of ¹⁵⁵Gd and ¹⁵⁷Gd on their respective atom density. The result is a Gd burnable absorber characterized by a maxwellian-averaged microscopic absorption cross-section of 60606 b and an atom density of $9.21·{10}^{21}$ cm⁻³.

The change of the assembly multiplication factor as a function of the fuel burnup, for different radii of the Gd rods, is shown in Figure 7, considering a total initial mass of the absorber equal to 0.1% and 0.5% of the total mass of the fuel. Due to its large absorption cross-section, the burnout rate of the Gd is much faster than that of the fuel. According to Figure 7, the Gd rods will be entirely burned before a burnup of 8.0 and 17.0 MWd·kg⁻¹, for the two fractions of absorber considered: the multiplication factor, in all the cases, soon approaches and follows the no-poison curve. Due to such a high consumption rate, if Gd is not lumped into relatively thick rods it seems more appropriate to control reactivity variations on a short time scale, like those induced by the accumulation of saturable fission products which naturally follows the startup of the reactor or the burning of a fresh fuel assembly.

3.3. Burnable Absorbers for the SCW-SMR Fuel Assembly - Monte Carlo Study

All the simulations of the present section have been performed on a Cluster of the University of Pisa Green Data Center using 9 or 12 nodes with 18 and 22 CPUs each, respectively, installing OpenMC in a Debian 12 based Singularity container integrated with the PBS job scheduler.

According to the results of the analytical study shown in the previous section, simulations with the OpenMC Monte Carlo code of the SCW-SMR fuel assembly have been done considering 24 rods of burnable absorbers placed within the yttria insulator of the assembly outer wall, as shown in Figure 8a. Moreover, to account for the self-shielding effect and allow for a non-uniform consumption, the fuel and burnable absorbers have been subdivided into five regions with the same volume, as shown in Figure 8b. All the depletion simulations have been performed using, for each timesteps, 50 batches, 5 of which inactive, of ${10}^5$ neutrons each (enough to have a maximum error on the multiplication factor lower than 60 pcm for all the burnup steps). In particular, the neutrons of the first batch have been generated sampling their position uniformly within the volume of the fuel rods and their energy according to the Watt fission energy spectrum. The number of burnup time steps and their main characteristics are summarized in Table 1.

As previously stated, according to the analytical model of Section 3.1, the maximum burnup for the SCW-SMR fuel assembly, without burnable absorbers, is equal to 40.9 MWd·kg⁻¹. A value that differs only by 2.2% (i.e.≈ 19.3 days) respect to the 40.0 MWd·kg⁻¹ obtained with OpenMC.

3.3.1. Erbium

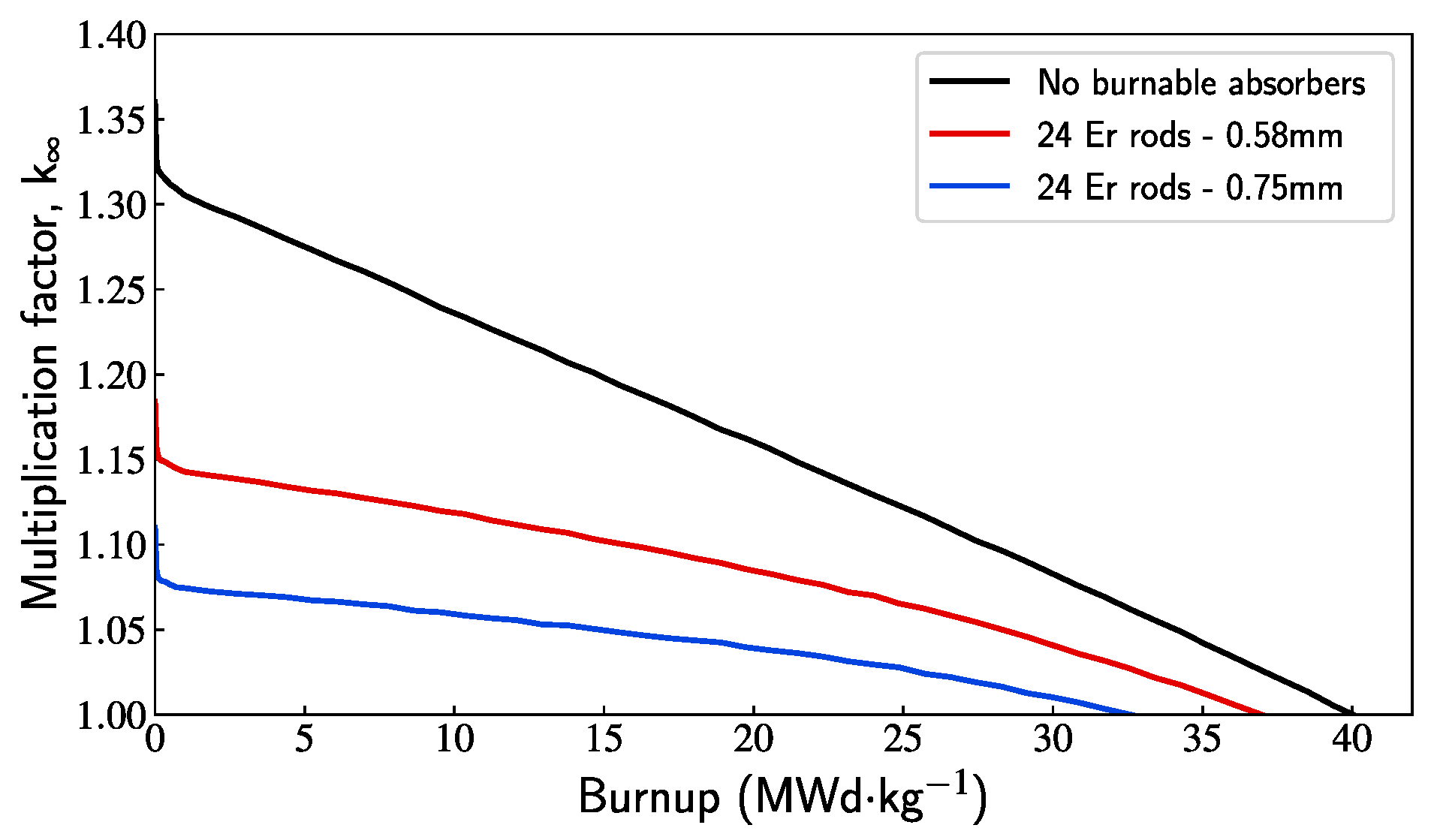

The effect of 24 rods of Er (natural isotopic composition) with radius of 0.58 or 0.75 mm on the multiplication factor as a function of the fuel burnup is shown in Figure 9. Both cases exhibit similar behavior to those shown in Figure 4. The maximum burnup given by the analytical model in Section 3.1 is 39.0 and 37.2 MWd·kg⁻¹ for the smaller and larger rod radius here considered. These two values differ from those obtained by OpenMC, which are 37.0 and 32.6 MWd·kg⁻¹, by 5.4% and 14.1%, respectively. Monte Carlo simulations confirm the challenge of completely burning the Er rods as the multiplication factor curves, in both scenarios, always fall below 1.0 before that of no burnable absorbers.

3.3.2. Boron Carbide

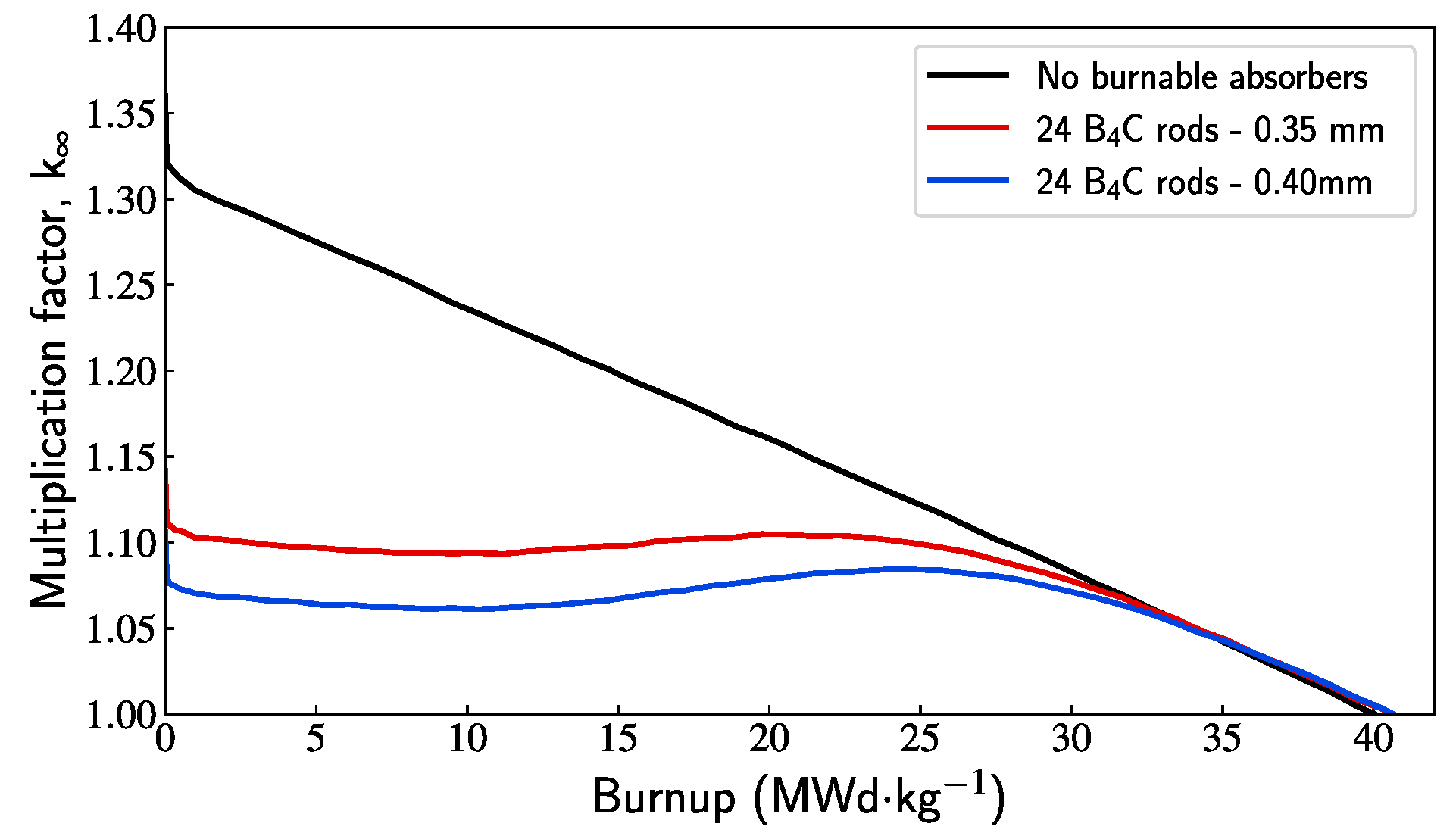

Figure 10 shows the expected behavior of the multiplication factor when the 24 rods are made of B₄C (with B natural isotopic composition), and have a radius of 0.35 and 0.40 mm. As predicted also by the analytical model (see Figure 6), the multiplication factor shows a swing, although from the Monte Carlo simulations it appears slightly less pronounced. Additionally, thanks to the large absorption cross section of ¹⁰B, the burnable absorber is entirely consumed and there is no reduction in the maximum achievable burnup. Rather, the maximum burnup seems slightly increased, as a consequence of a small pin-power flattening action exerted by the 24 B₄C rods (although we can argue about the statistical significance of such a difference). The initial excess reactivity is remarkably reduced and the multiplication factor, in the case of 0.35 mm radius, remains quite constant up to a burnup of about 25.0 MWd·kg⁻¹, thus allowing to substantially reduce the movements of the reactor control rod system.

Figure 10. Assembly multiplication factor as a function of burnup. The effect of two sets of 24 B₄C rods (0.35 and 0.40 mm radius, respectively) as burnable absorber in the yttria insulator is compared with the case without burnable absorbers. Errors of the multiplication factor range between 25 and 53 pcm.

Figure 10. Assembly multiplication factor as a function of burnup. The effect of two sets of 24 B₄C rods (0.35 and 0.40 mm radius, respectively) as burnable absorber in the yttria insulator is compared with the case without burnable absorbers. Errors of the multiplication factor range between 25 and 53 pcm.

Figure 11. Assembly multiplication factor as a function of burnup. The effect of two sets of 24 Er rods (0.16 and 0.36 mm radius, respectively) as burnable absorber in the yttria insulator is compared with the case without burnable absorbers. Errors of the multiplication factor range between 25 and 55 pcm.

Figure 11. Assembly multiplication factor as a function of burnup. The effect of two sets of 24 Er rods (0.16 and 0.36 mm radius, respectively) as burnable absorber in the yttria insulator is compared with the case without burnable absorbers. Errors of the multiplication factor range between 25 and 55 pcm.

3.3.3. Gadolinium

As last example, let us assume 24 rods with a 0.16 or 0.36 mm radius made of Gd with natural isotopic composition. Among the materials considered, Gd is the one with the highest absorption cross-sections. Having two absorbing nuclides, ¹⁵⁵Gd and ¹⁵⁷Gd, it required a special treatment in order to be considered by the analytical model of Section 3.1 (see also Section 3.2.3). As such it is not surprising that the agreement with the Monte Carlo simulations is, in this case, less good. As already found in Section 3.2.3, although the Monte Carlo simulations show a flatter initial distribution respect to the analytical results, the effect of the burnable absorbers is now limited to a shorter interval of burnup (or, equivalently, time), as both multiplication factor curves soon align and then follow that of no burnable absorbers.

4. Assembly Pin-Power Peaking Factor

The results of the previous section, suggest that using 24 B₄C rods with radius of 0.35 mm inside the yttria insulator of the outer assembly wall allows obtaining an assembly infinite multiplication factor that remains quite constant over a large range of burnup (see Figure 10). Such an assembly configuration will now be adopted to start optimizing the pin power distribution through a suitable fuel enrichment zoning aiming to obtain a pin-power peaking factor that remains limited (i.e. as close as possible to unity) for the whole length of the burnup cycle. The so configured fuel assembly, with a homogeneous enrichment in ²³⁵U equal to 7.5%, has a pin-power distribution as shown in Figure 12, where in correspondence of each pin position is reported the ratio between the pin power and the average value over all the assembly pins. Accordingly, the maximum value corresponds to the pin-power peaking factor and for fresh fuel is equal to 1.32. However, increasing the fuel burnup, the power distribution naturally tends to flatten and the pin-power peaking factor reduces to 1.23 at 20.0 MWd·kg⁻¹ and, finally, to 1.08 at the end of the fuel cycle (40.0 MWd·kg⁻¹). Nevertheless, for a large fraction of the cycle the pin-power peaking factor remains quite high, thus preventing an efficient use of the fuel.

To flatten the assembly power profile since the beginning of the fuel burnup, we can differentiate the fuel enrichment increasing its value in the positions where the pin power is lower than the average assembly value, and decreasing it vice versa. Such an enrichment zoning study has been performed with the constraints of keeping the average assembly enrichment as close as possible to 7.5% and limiting the maximum number of different fuel enrichments to six. Figure 13 shows the fuel enrichment distribution obtained at the end of this study. The ²³⁵U enrichment ranges from 5.3% to 8.7% with an average value of 7.52%.

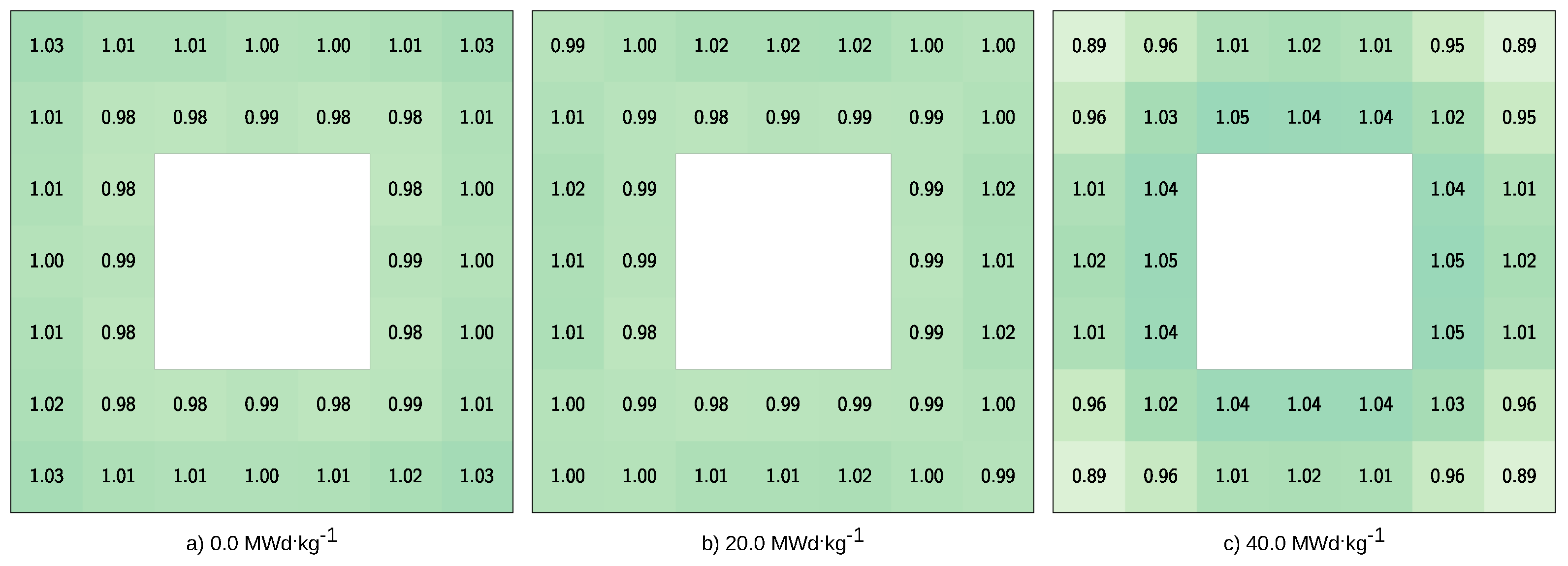

Figure 14 shows the pin-power distribution obtained with the new enrichments for the same three levels of burnup already considered in Figure 12. The pin-power peaking factor for fresh fuel is now substantially lower and equal to 1.03, it becomes 1.02 for a burnup of 20.0 MWd·kg⁻¹ and reaches 1.05 for the final burnup of 40.0 MWd·kg⁻¹.

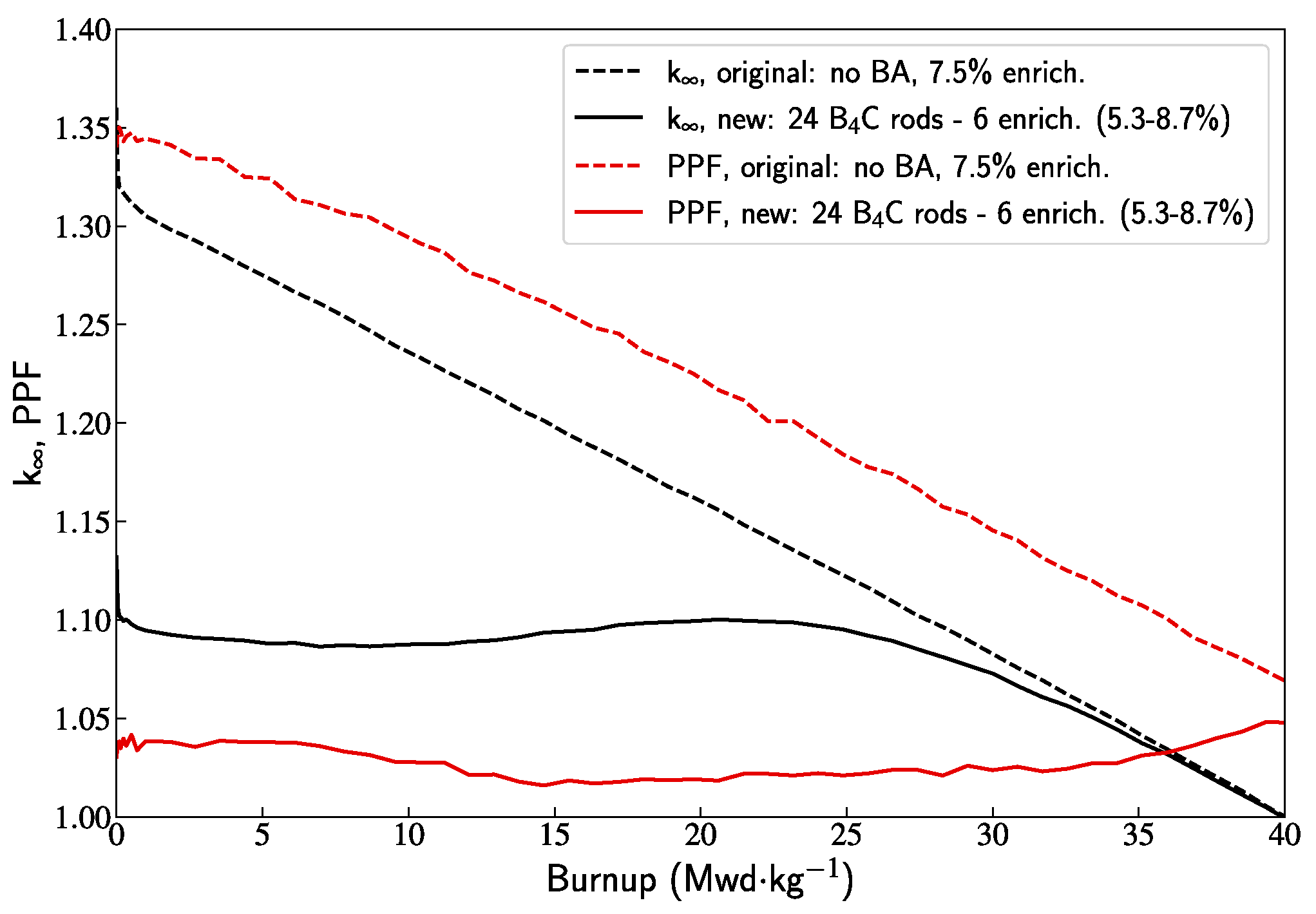

Finally, to summarize the improvement in the performance of the ECC-SMART fuel assembly, Figure 15 shows both the reactivity inventory and the pin-power peaking factor as a function of the burnup for the original and new assembly layout. It is manifest that the latter, although somehow limited by being obtained with a 2D-only analysis, allows for much more efficient use of the fuel and a much easier reactor operation during the fuel cycle.

5. Conclusion

The ECC-SMART project, funded in the framework of the Euratom Research and Training programme 2019-2020, aimed at the conceptual study of a small-modular supercritical-water cooled reactor. The chosen reference layout of the fuel assembly is similar to that of a typical BWR and contains 40 fuel rods with uniform ²³⁵U enrichment originally assumed equal to 5.0%. However, a previous study has shown that with such an enrichment it is not possible to fulfil the requirement of an at least two-year long fuel cycle. Thus, for the present study, the starting homogeneous enrichment of the assembly has been increased to 7.5%. This work aimed to identify possible strategies at the assembly level to reduce the reactivity inventory and homogenize the power distribution of the fuel pins. To accomplish that, the use of burnable absorbers and an appropriate enrichment zoning was investigated. A simplified analytical model has been derived to quickly estimate the effect of different lumped burnable absorbers placed inside the fuel assembly. To confirm the analytical results, Monte Carlo simulations with the OpenMC code were performed on a few selected cases. The use of 24 B₄C rods with a radius of only 0.35 mm, almost uniformly distributed inside the outer yttria insulator, has shown to be effective in order to reduce the multiplication factor, $k_{\infty }$, from the value of 1.32, with no absorbers, to the value of 1.11, and to keep it quite constant up to a burnup of about 25.0 MWd·kg⁻¹. Although a uniform enrichment of 7.5% would allow for an assembly burnup cycle as long as 885.0 days, the pin-power distribution is quite uneven and produces a pin-power peaking factor of 1.32 at the beginning of the cycle. Despite the natural flattening of the assembly power distribution with the fuel burnup, the pin-power peaking factor remains too high for a large fraction of the fuel cycle. Adopting six different enrichments ranging from 5.3% to 8.7% while keeping the assembly average value to 7.5%, the pin-power peaking factor at the beginning of the cycle can be drastically reduced to a value as low as 1.03, and kept almost constant through the entire burnup cycle.

Although the present work shows promising results, they need to be confirmed by full core simulations where the B₄C burnable absorber rods and the enrichment zoning are applied to all the reactor’s assemblies. Such a study is ongoing, and the results will be presented in a future publication.
