Numerical Investigation of the Optimal Structure for Dynamic Plasmonic Colors Generated via Photothermal Deformation of Metal Semi-Shell Structures

1. Introduction

Ultraviolet light, toxicity concerns, and the challenge of coloring submicron areas pose significant obstacles in the field of coloration. Although photonic crystals and dielectric multilayers have been explored to address these problems, they face limitations, such as low reflectance and a restricted range of color variation. Metallic nanostructures are considered to be promising solutions to these challenges. For example, periodic nanodiscs and nanoholes can produce stable colors with a high spatial resolution over extended periods; however, these colors cannot be modified after fabrication. Various methods can dynamically change structural color, including polarizing [1,2], electrifying [3,4], heating [5,6], triggering chemical reactions [7], and applying mechanical techniques [8]. Each approach has distinct advantages over the conventional coloration methods. However, they face several limitations, including the requirement for electron beam lithography, which is complicated and limited to small areas [1,7], reliance on electricity [3,4], requirement of stress and deformation [8], and restricted color range [5,6].

Previous studies have demonstrated that dynamic plasmonic coloring utilizing a metal semi-shell structure facilitates the efficient and cost-effective processing of large areas and exhibits the potential to achieve a broad color gamut [9]. In this study, the reflection spectra were computed using the discrete dipole approximation (DDA) for various diameters and densities of the nanospheres, thicknesses of the metal semi-shells, and shapes of the capping angles of the metal semi-shells. The color-gamut area was defined as the polygonal region on the chromaticity diagram delineated by multiple coordinates derived from the reflection spectra. The color-gamut area is influenced by both the density of the nanospheres and the thickness of the semi-shell. Before depositing the semi-shell, the thickness that maximizes the color-gamut area, which depends on the density of the nanospheres, must be estimated. The chromaticity coordinates were determined via time-consuming DDA calculations performed for each combination of the nanosphere diameter, density, semi-shell thickness, and capping angle of the semi-shell. For example, calculations for a nanosphere with diameters, densities, semi-shell thicknesses, and capping angles of 100 nm, 19.8 µm⁻², 20 nm, and 90°, respectively, required 23 h and 25 min when using DDSCAT7.3.3 [10] software on an Intel Core i7-8700 3.2 GHz processor. To reduce the computational time, estimating the semi-shell thickness that optimizes the color-gamut area for specific values of nanosphere diameter and density is advantageous.

This study demonstrates that the semi-shell thickness that maximizes the gamut area for a given nanosphere diameter and density is strongly correlated with both the diameter and density.

2. Materials and Methods

The calculations included the incident angle, polarization, wavelength, nanostructure material and shape, chromaticity coordinates, and the evaluation index by area on a chromaticity diagram. The metal semi-shell structures considered in this study are typically fabricated by immersing a substrate in a liquid containing dispersed nanospheres, which allows the nanospheres to adhere to the substrate and then deposit metal onto the nanospheres.

2.1. Materials and Structure

The core material was fused silica, which was chosen because of its heat resistance and widespread availability. Aluminum was selected as the substrate material because of its cost-effectiveness and widespread availability. Silver was used as the deposition material to achieve the broadest color gamut, as demonstrated in previous studies [9]. The refractive indices of fused silica, aluminum, and silver were obtained from literature [11,12,13]. The diameters of the nanospheres were 50, 75, and 100 nm, and the substrate thickness was 40 nm. The deposition thicknesses and densities are listed in Table 1. The capping angles of the semi-shells varied by 30°, 40°, 45°, 50°, 55°, 60°, 65°, 70°, 80°, and 90°.

2.2. Reflectance Spectrum

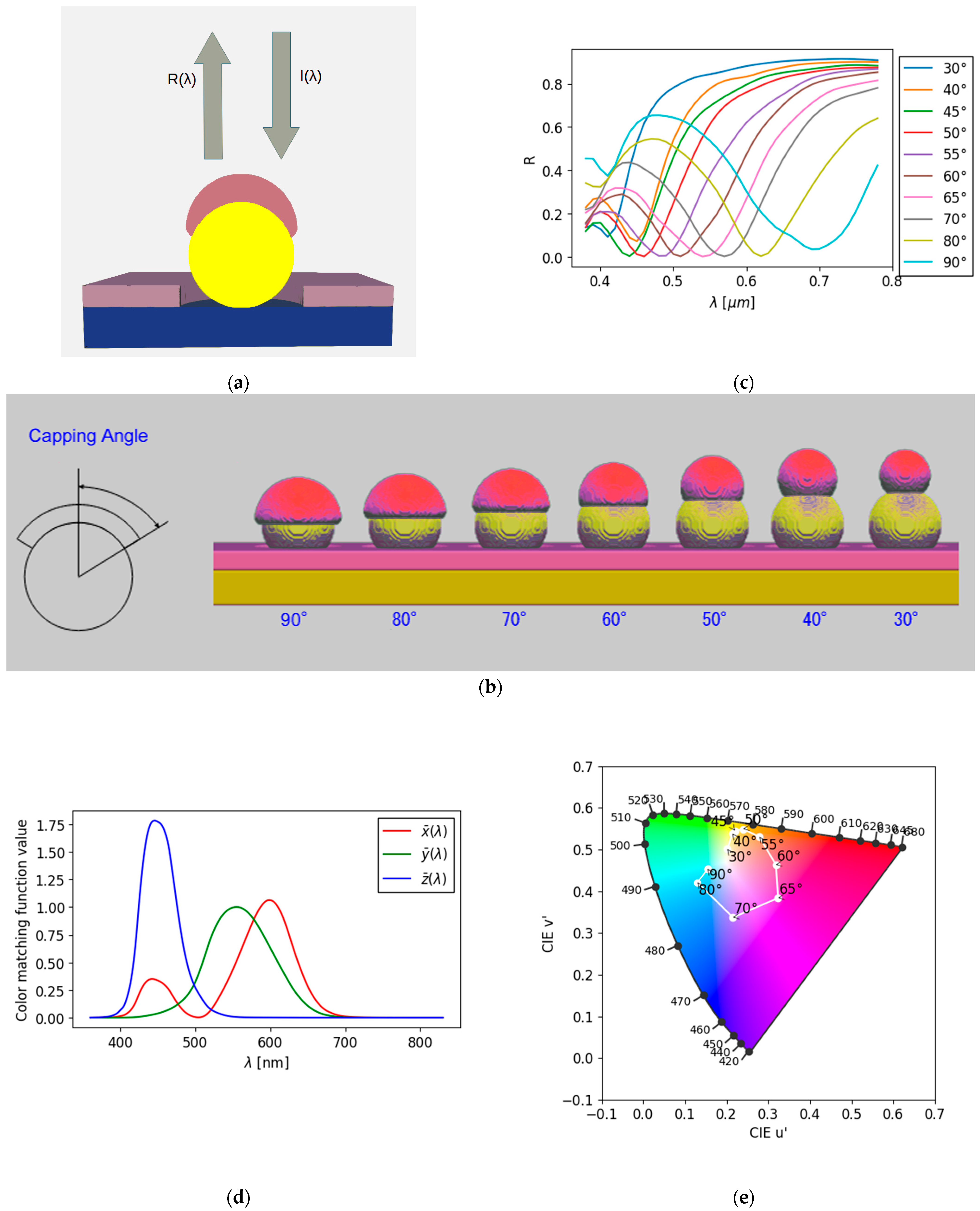

Figure 1(a) illustrates the reflection of incident light from a nanostructure composed of a substrate, nanospheres, and a metal semi-shell. The deformation of the shell owing to laser-induced local heating was simulated at various irradiation intensities. Upon laser irradiation, the metal semi-shell underwent local heating, leading to melting and deformation driven by surface tension [14]. The capping angle varied from 90° to 30° (Figure 1(b)). The reflectance spectra were calculated using the DDA method with DDSCAT 7.3.3 software [10]. The wavelength varied from 380 to 780 nm in increments of 10 nm. The refractive index of the surrounding medium was set as 1.0, and two orthogonal incident polarizations, each at an incidence angle of 0°, were applied to the nanostructures. The resulting reflection spectra are shown in Figure 1(c).

2.3. Calculation Condition

For the DDA calculations, the dipole spacing was set to 2 nm. The densities of the nanostructures are listed in Table 1. Because the nanoparticles were placed closer to the substrate than to their neighboring nanoparticles, the plasmon coupling between the nanoparticles and the substrate was stronger than that between the nanoparticles themselves [15]. Consequently, the absorption characteristics of the periodic structure closely resembled those of a random structure.

2.4. Gamut Area in Commission Internationale de l’Éclairage (CIE) Luv Color Space

The tristimulus values, XYZ, of the light were calculated from the reflectance spectrum R(λ) at each capping angle, CIE standard light source D65 spectrum I(λ), and isochromatic function of the CIE 1931, 2° colorimetric standard observer [16,17], which represents the average human color perception over a 2° visual field, as expressed by Equation (1):

$$\begin{array}{c}\left[\begin{array}{c}X\\ Y\\ Z\end{array}\right]={\displaystyle \frac{1}{k}}{\int }_{\lambda }\left[\begin{array}{c}\overline{x}\left(\lambda \right)\\ \overline{y}\left(\lambda \right)\\ \stackrel{`}{\overline{x}}\left(\lambda \right)\end{array}\right]I\left(\lambda \right)R\left(\lambda \right)d\lambda \\ k={\int }_{\lambda }\overline{y}\left(\lambda \right)I\left(\lambda \right)d\lambda \end{array}.$$

(1)

Here, $\overline{x}\left(\lambda \right), \overline{y}\left(\lambda \right),$ and $\overline{z}\left(\lambda \right)$ are the CIE 1931 color-matching functions of a 2° observer (Figure 1(d)) [18]. The values in the CIE XYZ color space were then converted to the CIE Luv color space (Figure 1(e)), as follows [19]:

$$\begin{array}{c}u\prime ={\displaystyle \frac{4X}{X+15Y+3Z}}\\ v\prime ={\displaystyle \frac{9Y}{X+15Y+3Z}}\end{array}.$$

(2)

The area S enclosed by the coordinate points derived from the reflectance spectra of all capping angles in the CIE Luv color space, calculated using Equation (3), was adopted as the evaluation criterion [20].

$$S={\displaystyle \frac{1}{2}}\left|\sum \left(u{\prime }_j-u{\prime }_{j+1}\right)\cdot \left(v{\prime }_j+v{\prime }_{j+1}\right)\right|$$

(3)

3. Results

3.1. Gamut Areas in the CIE Luv Chromaticity Diagram

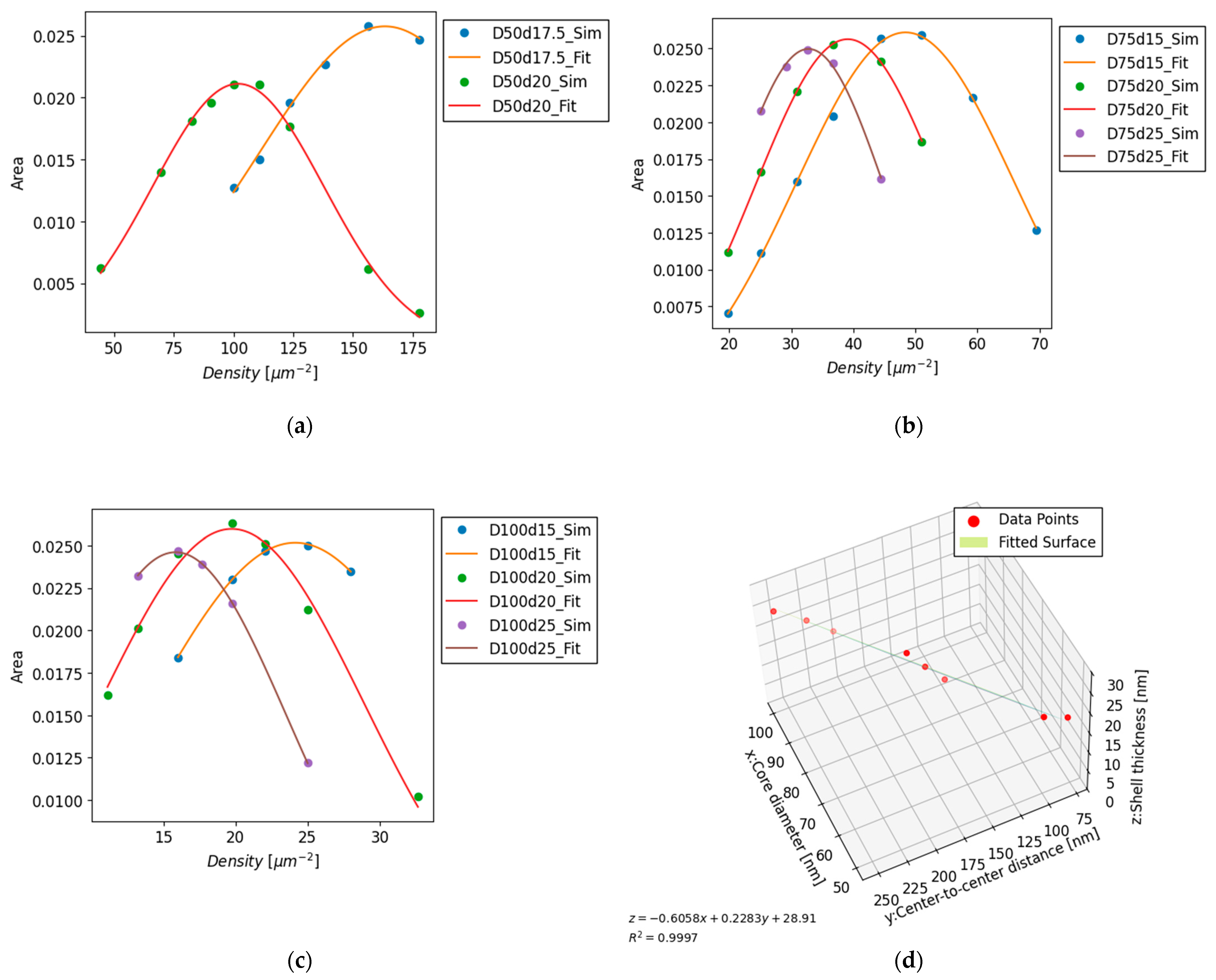

Figure 2(a)–(c) show the gamut areas in the CIE Luv chromaticity diagrams. The x-axis represents the density, whereas the y-axis depicts the color-gamut area within the CIE Luv color space. The values following the capital letter “D” in the legend correspond to the nanosphere diameter in nanometers (nm), whereas those following the lowercase letter “d” indicate the shell thickness in nanometers (nm). For each nanosphere diameter and shell thickness, the color-gamut area was maximized at a specific density.

3.2. Density of the Maximum Gamut Area for Each Core Diameter and Shell Thickness

The color-gamut area corresponding to each nanosphere and shell thickness was fitted using a Gaussian function. The central values of the resulting Gaussian functions are listed in Table 2. This central value was identified as the point at which the color-gamut area reached its maximum value. These data points were approximated using the equation for a plane (4):

$$z=ax+by+c.$$

(4)

The following coefficients and determination coefficient were obtained:

$$\mathrm{a}=-0.6058, \mathrm{b}=0.2283, \mathrm{c}=28.91, {\mathrm{R}}^2=0.9997.$$

(5)

The data were sufficiently approximated by a plane, as illustrated in Figure 2(d).

Table 2. Best density for each nanostructure.

Core diameter [nm]	Shell thickness [nm]	Density [µm−2]	Center-to-center distance [nm]
50	17.5	163.325 ± 2.064	78.2
50	20	101.986 ± 0.663	99.0
75	15	48.396 ± 0.173	143.7
75	20	39.089 ± 0.048	159.9
75	25	32.759 ± 0.160	174.7
100	15	24.141 ± 0.053	203.5
100	20	19.734 ± 0.198	225.1
100	25	15.838 ± 0.052	251.3

Table 2. Best density for each nanostructure.

Core diameter [nm]	Shell thickness [nm]	Density [µm−2]	Center-to-center distance [nm]
50	17.5	163.325 ± 2.064	78.2
50	20	101.986 ± 0.663	99.0
75	15	48.396 ± 0.173	143.7
75	20	39.089 ± 0.048	159.9
75	25	32.759 ± 0.160	174.7
100	15	24.141 ± 0.053	203.5
100	20	19.734 ± 0.198	225.1
100	25	15.838 ± 0.052	251.3

4. Discussion

4.1. Validation of the Approximation Formula

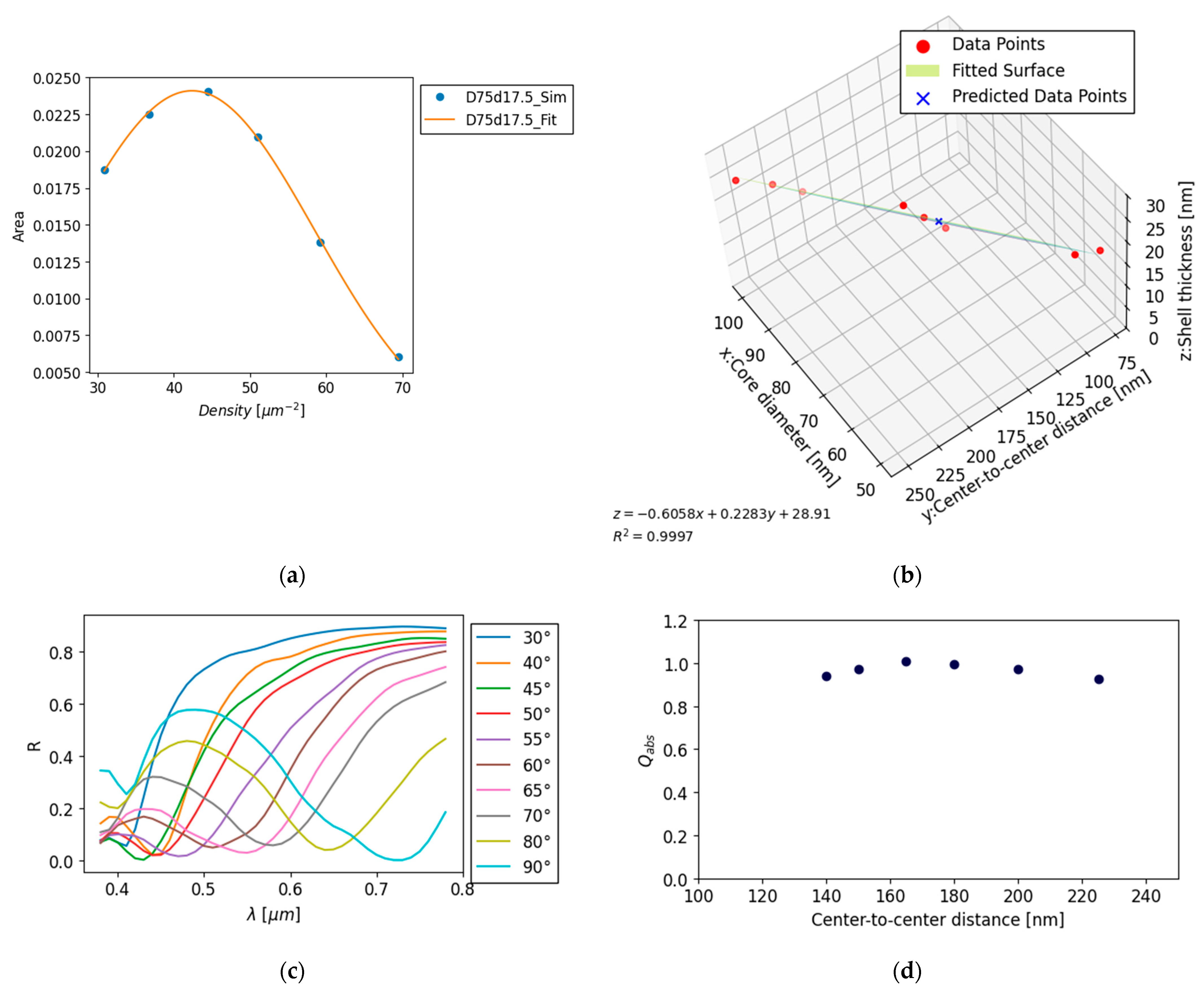

In the case of a core diameter of 75 nm and density of 45.0 µm⁻², which corresponds to a center-to-center distance of 149.0 nm, the maximum gamut area obtained using the approximate formula (4) was 17.5 nm in semi-shell thickness. Figure 3(a) illustrates the calculated gamut area for a core diameter of 75 nm and a semi-shell thickness of 17.5 nm. Additionally, the figure demonstrates that the densities at which the gamut area reached its peak are almost identical. Moreover, as summarized in Table 3 and illustrated in Figure 3(b), point (75, 149.0, 17.5) lies closer to the fitted plane than the data points used to construct the plane. This proximity confirms the validity of the estimation.

4.2. Structure that Maximizes the Gamut Area

To expand the gamut area, the reflectance trough values appearing at each capping angle must be as close as possible to zero. For example, Figure 3(b) shows the reflectance spectra at each capping angle for a core diameter of 75 nm, semi-shell thickness of 20 nm, and center-to-center distance of 140 nm. At a capping angle of 70°, a reflectance trough appears at a wavelength of 0.58 µm. Figure 3(c) shows the relationship between the center-to-center distance and the absorption efficiency Q_abs for a core diameter of 75 nm, shell thickness of 20 nm, and capping angle of 70°. The decrease in Q_abs with increasing distance can be explained by the decrease in the absorption efficiency per unit area owing to a decrease in the nanostructure density. However, the decrease in Q_abs with increasing distance can be explained by the fact that when the nanostructures are too close together, the absorption due to plasmon resonance broadens [21], and the reflectivity does not decrease to zero. At this distance, which is significantly smaller than the wavelength of light, the red and blue shifts in the light absorption peak resulting from the plasmon coupling between the nanoparticles become more prominent, depending on the polarization direction of the incident light. Because the present calculations were based on unpolarized light, both red and blue shifts were obtained. The extent of broadening of the absorption peak increased with decreasing distance. As the absorption peak broadened, the reflectance trough became shallower and the chromaticity coordinates approached white, thereby reducing the area occupied in the chromaticity diagram.

5. Conclusions

In this study, we propose a method for estimating the optimum thickness of the metal deposited in advance to widen the color gamut of plasmonic colors produced by nanostructures. These nanostructures are fabricated by dipping a substrate in a liquid containing dispersed nanospheres, which causes them to adhere to the substrate and then depositing the metal on top of them. The color-gamut area is influenced by both the density of the nanospheres and the thickness of the semi-shell. The deformation of the shell owing to laser-induced local heating was simulated at various irradiation intensities. The results showed that the semi-shell thickness that maximized the gamut area for a given nanosphere diameter and density was strongly correlated with both the diameter and density. To reduce computational time, it is advantageous to estimate the semi-shell thickness that optimizes the color-gamut area for specific values of nanosphere diameter and density. The proposed estimation of the optimal nanostructure should enable efficient fabrication of dynamic plasmonic color materials. Further research is required to validate the proposed approach.
