Spatio-Temporary Variations of Grassland Carrying Capacity Derived from Remote Sensing NPP in Mongolia

1. Introduction

Grassland ecosystems, covering nearly 50% of the global terrestrial surface, are naturally distributed across all continents except Antarctica. [1,2,3,4]. Grasslands deliver essential ecosystem services, support rich biodiversity, and underpin the livelihoods of millions globally. [5,6,7]. Since the middle of the 20th century, grassland ecosystems have been subject to major environmental pressures due to climate change and intensive and extensive human activities [8]. Studying the relationship between grassland productivity and livestock production is important for ensuring the balance of forage and livestock, proper use of ecological safety and grassland[9,10,11]. The grassland carrying capacity (GCC) is defined as the maximum livestock number that the grassland resources of a given area can support sustainably [12]. There have been many studies on GCC in vast arid and semi-arid areas[13,14]. These studies have suggested that overgrazing is the main factor affecting grassland [15].

Impact factor analysis revealed the influence of livestock number contributed the most to the acceleration of over-exploitation of grassland in Mongolia [16]. Significant attention has been directed toward maintaining the balance between grassland productivity and livestock number. Vegetation productivity is a key indicator of grassland health and also serves as a fundamental parameter in calculating GCC [17,18,19]. The human impacts, such as overgrazing, agricultural expansion, forest utilization, and land cover changes, may contribute to grassland degradation [20,21,22]. Additionally, recent studies using remote sensing data have shown that climate change, including global warming and changes in precipitation regimes, has a significant impact on plant growth in grasslands[23,24,25]. GCC is primarily calculated based on forage biomass, with Mongolia relying on labor-intensive ground-based observations to measure aboveground biomass. Utilizing remote sensing data for estimating biomass and net primary productivity (NPP) offers significant advantages for future applications. Nevertheless, it remains essential for evaluating spatio-temporal patio-temporal variability of GCC in Mongolia.

Remote sensing via satellites was initiated in the late 1950s and further advanced during the early 1960s, with the first satellites launched in the early 1970s to collect data on Earth's surface and its resources [26,27]. Satellite-based vegetation data, such as NPP and NDVI, are widely used in grassland studies because of their advantages of frequent temporal coverage, global scale applicability, and cost-effectiveness [28,29]. Aboveground biomass (AGB) is closely related to NPP, making satellite-based NPP models valuable tools for estimating standing biomass. Once this process (due to the rigorous requirements for data verification and quality assessment, which are time-intensive and labor-intensive) is completed, a new phase can be initiated to compare the outputs of the NPP model with ground-based observations. Biomass estimation is particularly significant in dry and semi-arid regions, which are highly susceptible to environmental change [30,31,32,33,34]. Estimating GCC in the administrative unit level and vegetation zones is essential for effective livestock number management, ensuring the sustainable livelihoods of herders, and developing strategies for sustainable development. In this study, based on remote sensing data products, we estimate the GCC of Mongolia in the vegetation zone level. The main objectives were to; 1) explore the temporal and spatial variation of NPP and its relation to climate factors across Mongolia; 2) estimate the correlation between multi-year average GLASS NPP and MODIS NPP products and their comparison to field studies; 3) quantitatively determine whether current livestock grazing levels exceed the theoretical GCC.

2. Materials and Methods

2.1. Study Area

Mongolia is a landlocked nation situated between China to the south and Russia to the north. Its land area is 1564000 km², The location of Mongolia is between 40^o 30^'-52^o 10' of north latitude and 87^o 44'-119^o 58' of east latitude. The four distinct seasons: spring, summer, autumn, and winter, vary significantly in characteristics (National Statistic Book, 2018). Most part of Mongolia has a dry and cool continental monsoon climate. Mean annual precipitation is approximately 230 mm, of which 85-90% falls in summer months [11]. The natural zones mainly include alpine meadows and tundra, mountain taiga, forest steppe, high mountain, steppe, semi-desert, desert and water body [35] (Figure 1). As of the end of 2020 year, grassland and forest respectively account for 73.4% and 9.2% of the total land area in Mongolia, the remaining 17.4% of land belongs to urban land (0.5%), road and network (0.3%), water body (0.4%), and other land cover [36]. The Mongolian vast steppes have preserved the tradition of nomadic pastoralism for a long history. (Shagdar, 2002). As of 2020, there are population of 3.2 million, and 67068486 head of livestock number (114411412.7 sheep unit, SU).

2.2. Data Sources

Remote sensing products used in this study include: land surface temperature (LST), precipitation, Moderate Resolution Imaging Spectroradiometer (MODIS) MOD17 (GPP, NPP), and Global LAnd Surface Satellite (GLASS (GPP, NPP) data from 1982 to 2020. We obtained the statistics of all livestock number, grassland area and classification of vegetation zones from the Agency of Land Administration and Management, Geodesy and Cartography and National Statistics Committee of Mongolia (www.1212.mn). The administrative unit is used as a soum border.

2.2.1. Climate Data

Climate has an important effect on grassland quality. Excessive temperature increases harm plant growth while Precipitation has a positive effect on grassland productivity in particular, playing a greater role in grassland productivity [37,38,39]. LST serves as a reliable proxy for surface energy balance, as it reflects critical land surface processes across both regional and global scales [40]. In this study, LST data are obtained from MOD11C3, downloaded from the National Aeronautics and Space Administration (NASA) (https://lpdaac.usgs.gov/products/). MODIS/Terra LST Monthly L3 Version 041 with a resolution of 0.05 degrees (MOD11C3) was used. Monthly average precipitation data from 1982 to 2020 were downloaded from www.cds.climate.copernicus.eu. The dataset has a spatial resolution of 0.1x0.1 and has been rescaled to 0.05°x0.05°.

2.2.2. GLASS and MODIS Products

The GLASS GPP and NPP products were developed by Nana et al., (2023), and these data are available online at their website (http://www.glass. umd.edu/). This study used the annual NPP products with 0.05◦ spatial resolution. NPP, is the reduction of GPP after autotrophic respiration, i.e., the net carbon gain by plants [41]. Therefore, NPP derived from satellite data is usually used to evaluate the responses of ecological processes to global change [42].

The MODIS GPP and NPP products can be estimated under different time and climate conditions and are consistent with field measurements of NPP [41]. Moreover, the NPP/GPP ratio remained stable regardless of variations in carbon availability and temperature for both herbaceous and woody vegetation [43,44]. NPP is a useful product to accurately measure plant growth [45,46]. This study used the 500m*500m annual NPP products of GLASS (http://www.glass.umd.edu/index.html). The GLASS NPP products are long-term products, while MODIS NPP have high spatial resolution and are continuous over a wide area since 2000.

2.2.3. Field Data

In 2019, we collected 295 ground biomass samples along a 900 km stretch of railway in Mongolia, between latitudes 43°N and 50°N. Samples were taken both inside the railway’s protective fence and from adjacent areas outside the fence. The sampling locations encompassed various grassland types, including forest steppe, steppe, semi desert and desert regions (Figure 1).

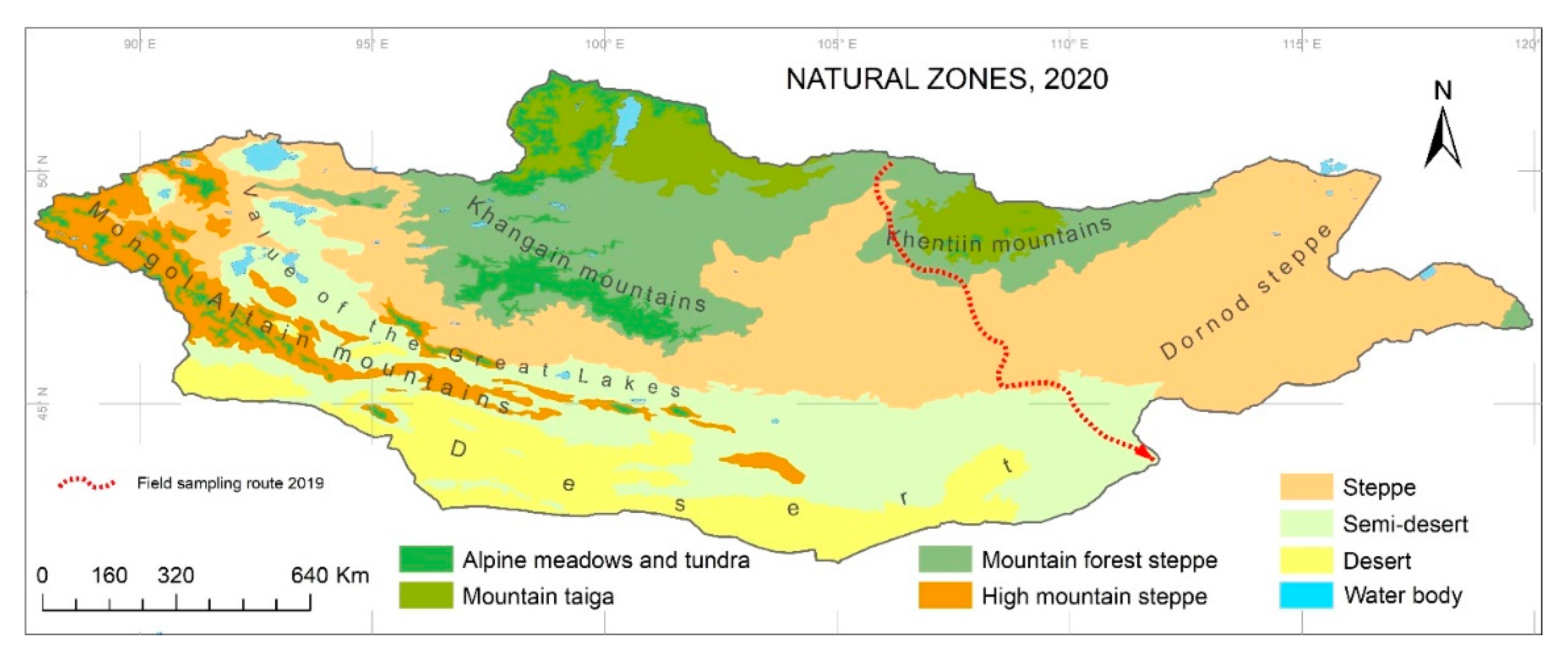

2.2.4. Vegetation Zone

There is a spatial variability in GCC across vegetation zones. The vegetation in the territory of Mongolia was first classified in 1950 by the Soviet scientist A.A. Yunatov and later in 1979 by Yunatov and Dashnyam who made the 1:1500000 scale of the vegetation map of the Mongolia. In this study, we used the vegetation categories of Mongolia from[47], including high mountain, forest steppe, steppe, desert steppe and desert zones. The vegetation zone level is separated by the soum border. Within these zones, annual vegetation biomass production and the daily grass biomass consumption per livestock are calculated differently

2.3. Methodology

We represented multi-year average grassland biomass data estimated from GLASS NPP and MODIS NPP products, while data of grazing duration, daily forage intake per sheep and grassland area were from the Agency for Land Administration, Geodesy and Cartography and the coefficients for converting livestock to sheep unit (SU) were from [48].

2.3.1. Estimate of GCC

GCC means the livestock number that grazes the in grassland for a certain duration that does not negatively impact grassland vegetation increase, development and regeneration [49]. When current livestock number exceed theoretical grazing capacity, plant productivity declines, soil erosion increases, and ecosystem stability is compromised. To assess forage sufficiency, supply, and grazing capacity, livestock number are converted to sheep units. In consideration of the large variations in live weight and production among livestock number (camel, goat, horse, sheep and cattle), they were converted to the sheep unit (SU) using conversion factors: 5.0 for camel (Ca), 0.9 for goat (G), 7.0 for horse (H), 1.0 for sheep (S), and 6.0 for cattle (Co) [50]. Thus, the actual total livestock number (N_SU) is calculated with (Eq. 1). Sheep unit (SU) was used to standardize grazing demand of biomass in dry weight among different herbivore species. The daily forage intake per sheep unit varies according to vegetation zone, ecological region, and season, with estimates of 1.7 kg/d in forest steppe zones, 1.5 kg/d in high mountain zones, 1.6 kg/d in steppe zones and 1.3 kg/d in desert steppe and desert zones.

$$N_{\mathrm{S}\mathrm{U}}=\left(H*7\right)+{(C}_a*6)+\left(C_o*5\right)+\left(S*1\right)+\left(G*0.9\right)$$

(1)

This study examines vegetation changes in Mongolia over the past 38 years from 1982 to 2020, using remote sensing products. GCC is usually estimated based on grass production derived from the remote sensing NPP data of grassland. Predicted aboveground biomass (AGB) was estimated from the GLASS NPP and MODIS NPP products[26,51]. Previous studies on AGB derived from GLASS data have demonstrated that this approach achieves reliable accuracy for analyzing vegetation growth trends and biomass fluctuations and evaluating carrying capacity across various spatial extents [32,52,53]. [52]reported that MODIS NPP data are already validated and extensively applied in ecosystem productivity assessments and carbon flux analyses, and used in examining large-scale environmental transformations. MODIS and GLASS data processing and mapping modeling were implemented in PyCharm and ArcGIS. Therefore, in this study, we estimated grassland biomass by utilizing GLASS and MODIS NPP products. Subsequently, the GCC is calculated using (Eq. 2):

$$GCC={\displaystyle \frac{AGB*A}{int*D}}$$

(2)

where AGB (kg·ha⁻¹·yr⁻¹) is the annual aboveground biomas, A (m²) is the grassland area for each vegetation zone, Int is the daily biomass intake of one standard sheep unit (kg/d). D is the number of grazing days (d) and is set to the whole year of grazing in Mongolia. AGB in each vegetation zone and in each soum was calculated. It is calculated using the conversion coefficient (f_c) from NPP to biomass. The AGB utilization factor is based only on available biomass.

The imbalance between the number of livestock and GCC results in what is sometimes termed ‘‘GCCe’’ i.e., when the requirements of livestock number seriously exceed the GCC and lead to the destruction of vegetation, soil erosion, and pasture degradation. The GCC excess (${GCC}_e$) is defined as the ratio of the livestock number and GCC in each vegetation zone (Eq. 3) [54,55,56].

$${GCC}_e={\displaystyle \frac{LN}{GCC}}*100\%$$

(3)

where ${GCC}_e$ is the grassland carrying capacity excess (%), LN is total livestock number in sheep unit (SU). The ${GCC}_e$ indicates the grazing conditions as follows: ${GCC}_e$ <0.5 (0-50%), reserve of grassland; ${GCC}_e$ = 0.5-1 (50-100%), light grazing; ${GCC}_e$ = 1.0-3.0 (100-300%), moderate grazing; ${GCC}_e$ 3.0-5.0 (300%-500%), overgrazing; and ${GCC}_e$ > 5.0 (500%), extremely overgrazing [48,57].

2.3.2. Correlation Analysis of the NPP and Climate Variables

In this study, the Pearson correlation coefficient was computed at the pixel level to quantify the strength and direction of the linear relationship between net primary productivity (NPP) and climate variables across Mongolia during the study period (1982–2020), as defined in (Eq. 4). This statistical measure assesses the degree of association between two continuous variables.

$$r_{x,y}={\displaystyle \frac{\sum _{i=1}^n(x_i-\overline{x})(y_i-\overline{y})}{1\sqrt{\sum _{i=1}^n{\left(x_i-\overline{x}\right)}^2}{\sum }_{i=1}^n{\left(y_i-\overline{y}\right)}^2}}$$

(4)

where $r_{x,y}$, is the correlation coefficient, $n=38$, represents the number of years (1982–2020),$x_i$ and $y_i$ are the annual NPP and climate variable values in year $i$, and $\overline{x}$ and $\overline{y}$ denote their respective long-term means. A positive $r_{x,y}$ indicates a direct relationship, a negative value indicates an inverse relationship, and a value of zero denotes no linear association [58].

2.3.3. Estimate of AGB:

Biomass estimation based on NPP indicates the total organic matter produced within an ecosystem over a defined period. This is derived by deducting autotrophic respiration (R) from GPP as shown in (Eq. 5). Estimating aboveground biomass plays a fundamental role in evaluating grassland carrying capacity and is applicable across different global ecosystems. When directly converting NPP to biomass, some regions apply a straight forward conversion factor of 0.475, while in others, the conversion coeficient varies depending on geographic zone, plant species, climate, and environmental conditions [11,51,59,60,61,62] (Eq. 6). In this study, we applied a f_c of 0.57 for forest and high mountain zones, 0.65 for steppe zones, and 0.67 for desert and desert-steppe zones, based on the biomass estimation framework for each vegetation zone approved by the Government of Mongolia in 2019.

(5)

$$AGB=NPP/f_c$$

(6)

2.3.4. Biomass Field Sample Data

Biomass calculations were performed according to the methodology outlined in Section 2.3.2. The accuracy of the 2019 NPP predictions was evaluated by calculating the annual average NPP for that year, following the evaluation procedure described earlier. Then in the field survey, collected samples were averaged according to each corresponding MODIS pixel, and biomass was calculated. For permanent vegetation, the above-ground biomass was harvested from 1 m² quadrats, dried, and weighed. The geographic coordinates of each plot were recorded using a GPS device.

2.3.5. Mann-Kendall Trend Test

To evaluate temporal changes in biomass derived from remote sensing data, the Mann-Kendall (MK) trend test was applied. This non-parametric method identifies monotonic trends, with values ranging from −1 (indicating a strong negative trend) to +1 (indicating a strong positive trend). The rate of change for each pixel was computed using Sen’s slope estimator, which quantifies the trend magnitude assuming a linear progression. Significance levels were set at 0.01 (strong), 0.05 (medium), and 0.1 (low) [58,63,64].

3. Results

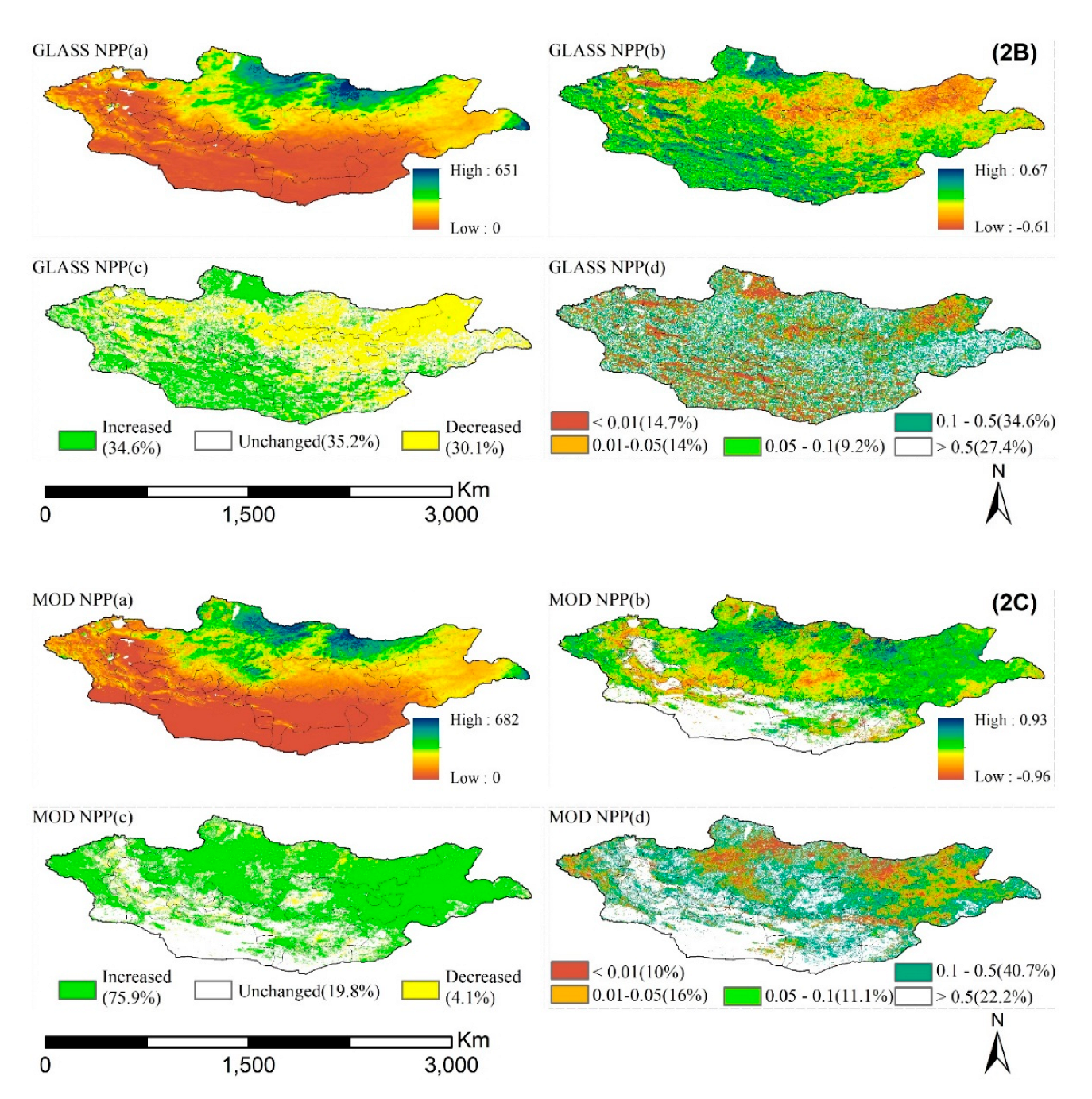

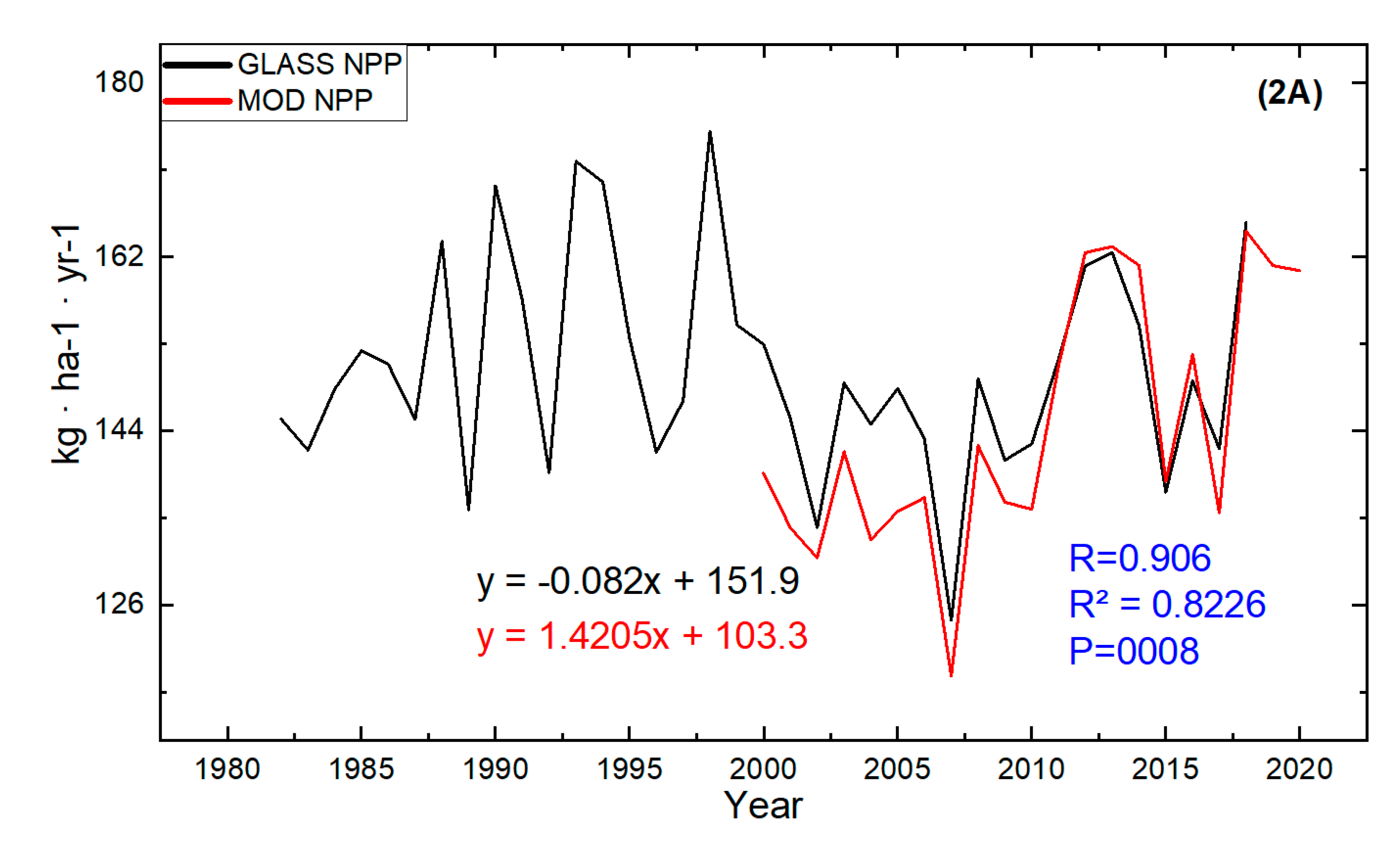

3.1. Comparison GLASS and MODIS Products and Their Spatiotemporal Variations

Both MODIS NPP and GLASS NPP products were used for assessing status or dynamic of grassland vegetation in time and space scales in Mongolia. GLASS products differed from MODIS products in spatial and temporal resolutions. In terms of the correlation coefficient (R) and coefficient of determination (R²) of the two products since 2000 is highly correlated (R = 0.82, R² = 0.90 NPP, p < 0.001). The trend of GLASS NPP products decreased, while the MODIS NPP products showed an increasing trend in Mongolian territory (Figure 2A–C). The long-term average growth exhibited spatial discrepancy between the GLASS and MODIS products. This may be due to the differences in temporal and spatial resolution of these satellite products.

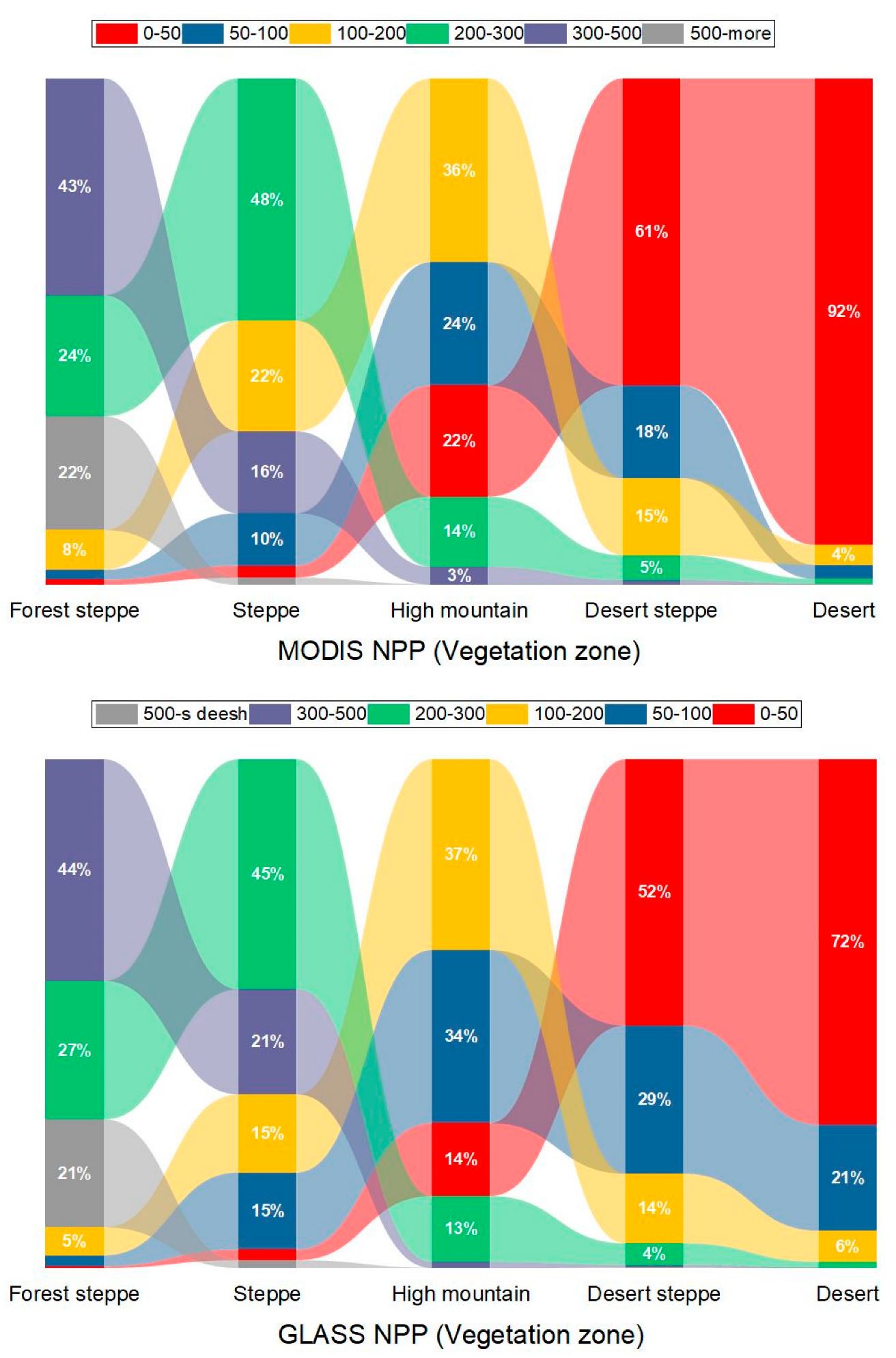

Table 1 shows the Multi-year average NPP increase for different vegetation zones in Mongolia. It was higher in forest-steppe regions and lower in desert and desert steppe regions. During the study period, the increase in multi-year average grassland biomass (GLASS NPP) was 0.56 kg·ha⁻¹·yr⁻¹, while MODIS NPP increased annually on average by 1.0 kg·ha⁻¹·yr⁻¹. These rates of biomass increase varied across different regions of Mongolia. For the GLASS product, notable significant variations were observed primarily in the northern forest-steppe zone, as well as in the southern and southwestern regions of Mongolia, which include desert, desert steppe, and high mountain vegetation zones. Within these areas, a distinct greening trend was evident in the southern and western regions, whereas significant vegetation decline was observed in the eastern and central parts of the country. For the MODIS product, a significant increase in vegetation growth was observed in most parts of Mongolia, particularly in the northern and eastern regions.

The long-term average aboveground biomass (AGB) generally decreased from north to south. The northern forest-steppe region had the highest AGB of 682 kg·ha⁻¹·yr⁻¹, while the southern desert and semi-desert steppe regions had the lowest AGB of 0.0 kg·ha⁻¹·yr⁻¹, with more than 70% of the total area yielding 0–50 kg·ha⁻¹·yr⁻¹ of biomass (Figure 3).

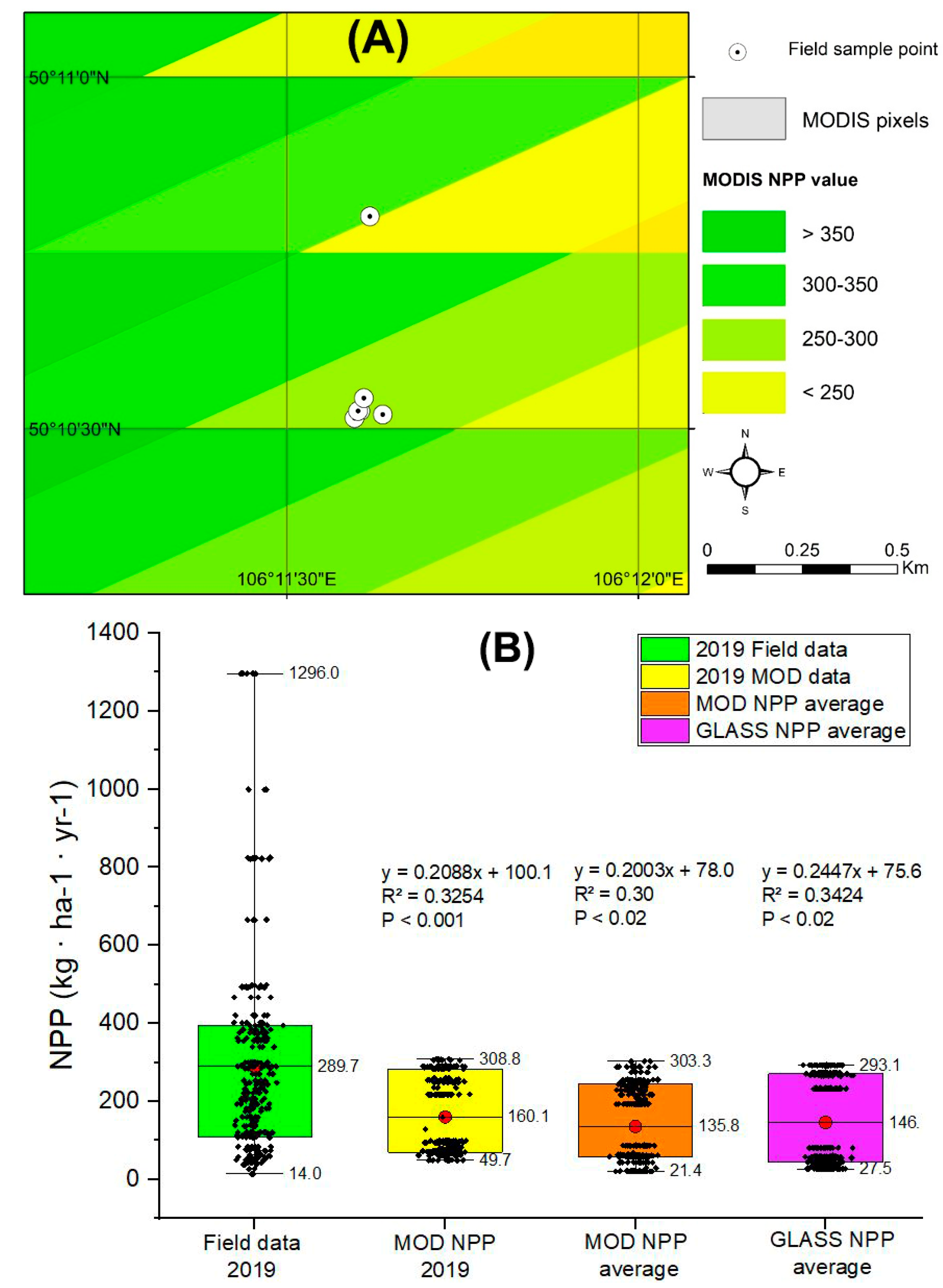

3.2. Validation of Aboveground Biomass.

Figure 3 illustrates the significant regional variations in NPP across Mongolian grasslands. The most productive grasslands, with NPP values of 651 kg·ha⁻¹·yr⁻¹ (GLASS) and 682 kg·ha⁻¹·yr⁻¹ (MODIS) of dry biomass per hectare, are found in the northern and eastern parts of Mongolia. In contrast, the western and southern regions, which consist of dry mountains, deserts, and semi-desert steppes, exhibited lower productivity, with NPP values reaching as low as 0 kg·ha⁻¹·yr⁻¹ in some areas. MODIS NPP data from 2019 indicate that the specific plot where field biomass was measured showed a field biomass value (289 kg·ha⁻¹·yr⁻¹) that was 44% higher than the average NPP (160 kg·ha⁻¹·yr⁻¹) of the associated heterogeneous MODIS pixel (comparison R²=0.32, R=0.57, P<0.001). The field sample's 2019 analysis was determined to be 53% higher than the multi-year average GLASS NPP pixel and 49% higher than the multi-year average MODIS NPP pixel (Figure 4).

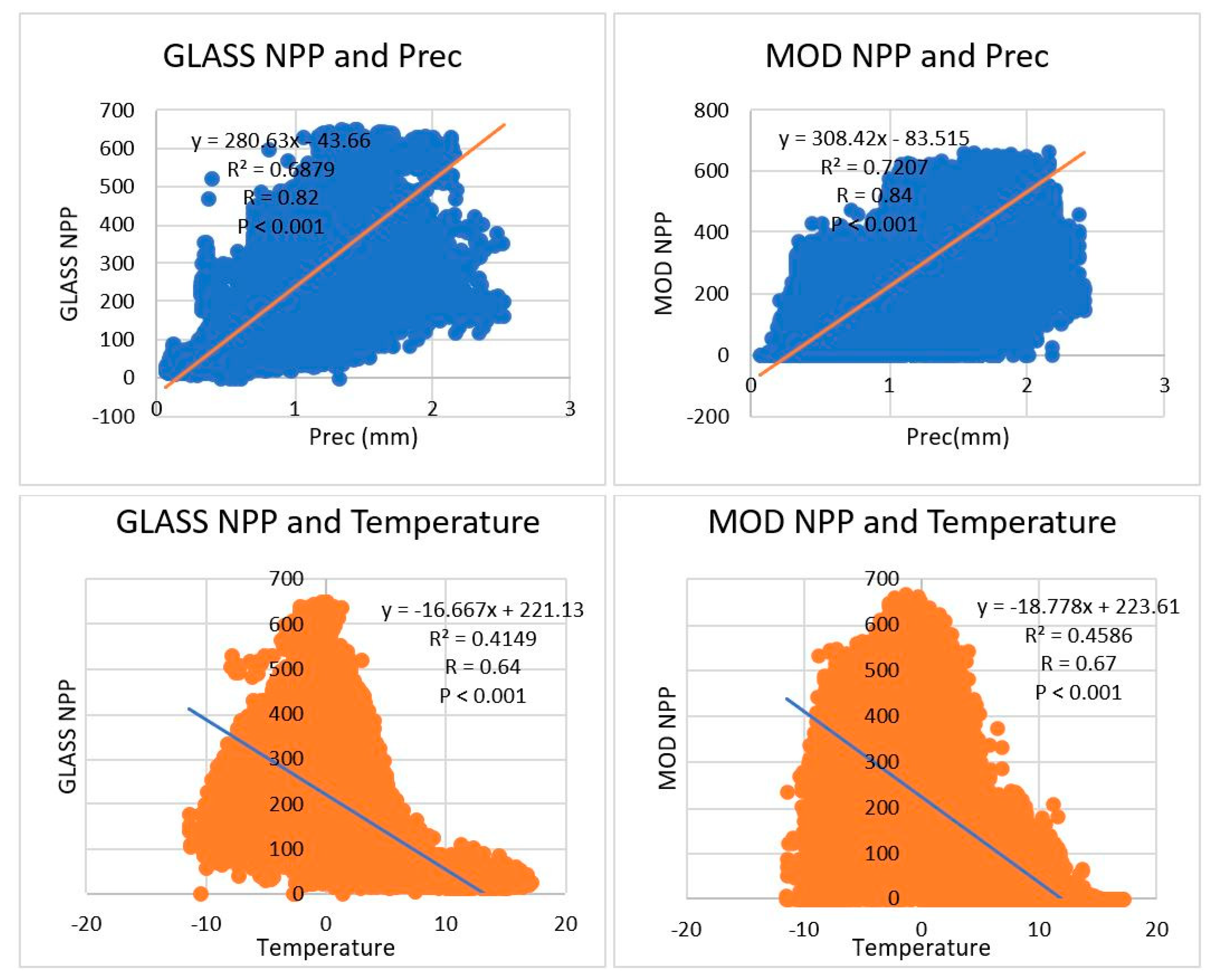

3.3. Influences of Climate Factors on Grassland Productivity

The climatic variables in Mongolia from 1982 to 2020 exhibited various trends based on the multi-year averages. Over the past 38 years, the slope of the precipitation trend decreased by -0.0054 mm/year (R² = 0.34, p=0.01), while temperature has increased by 0.0478 ℃/year (R² = 0.28, p=0.01). At the national scale in Mongolia, the relationship between precipitation and grassland productivity is positive, with a correlation coefficient exceeding 0.80, while the relationship between grassland productivity and temperature is negative, with a coefficient smaller than -0.60 (Figure 5). The above analysis clearly indicates that both precipitation and temperature influence NPP, with precipitation exerting a more pronounced impact compared to temperature.

3.4. Multi-Year Trends of Livestock Number

Statistical records show that Mongolia’s livestock population, primarily consisting of five main (sheep, goat, cattle, horse and camel) domestic species reached 67,603,539 SU. Between 1982 and 2020, it exhibited an average annual growth of 1,620,819 SU, with a moderate upward trend (R² = 0.5798). Among them, horses were the most numerous, accounting for 26.9%; the numbers of cattle, goats, and sheeps accounted for 26.7%, 17.3%, and 25.8%, respectively and camels were the least numerous, with only 3%. The livestock number in Mongolia has consistently increased nearly 2.2 times from 50,767.4 SU in 1982 to 114,411.3 SU in 2020.

Spatially, significant variations in livestock distribution were observed across vegetation zones. The forest-steppe zone experienced the largest increase, with 27,248,735 SU (42%), while the desert zone saw the smallest increase, with 3,467,634 SU (5%). The livestock number was 8,582,882 SU (13%) in high mountain zone, 16,431,843 SU (25%) in the steppe zone, and 9,360,832 SU (14%) in the desert-steppe zone, respectively. The increase in Mongolia's livestock number has intensified the utilization of grassland resources. The multi-year average increase in livestock numbers ranged from a minimum of 25,000 to a maximum of 600,000.

Only 6-7% of Mongolia's total land area had the capacity to support more than 300,000 SU (Table 2). These regions demonstrated a high potential for grazing, offering substantial grassland resources that can sustain more herds without exceeding the theoretical GCC.

3.5. Spatiotemporal Variations of GCC

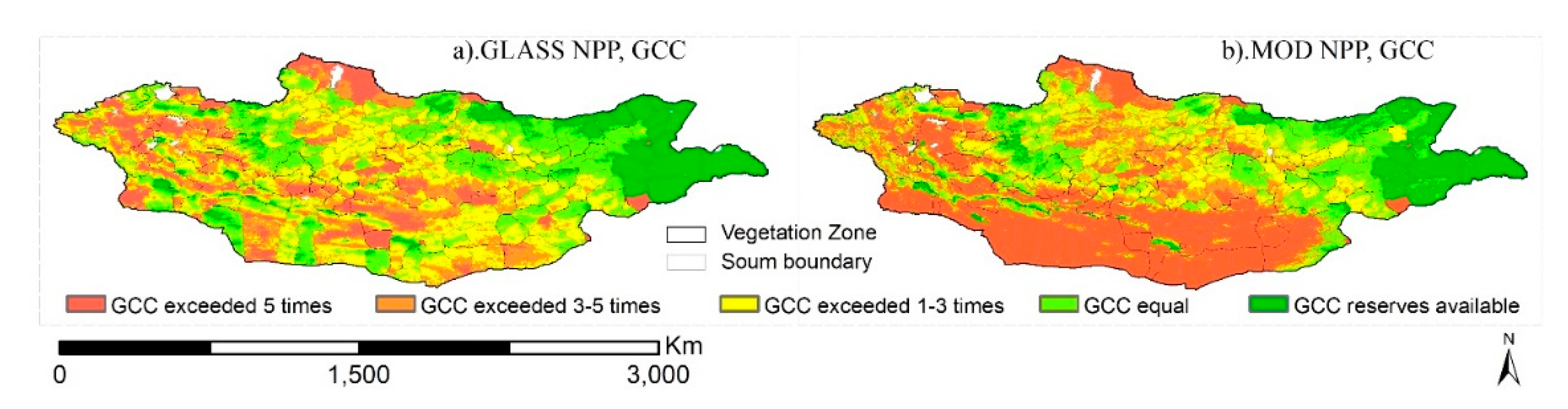

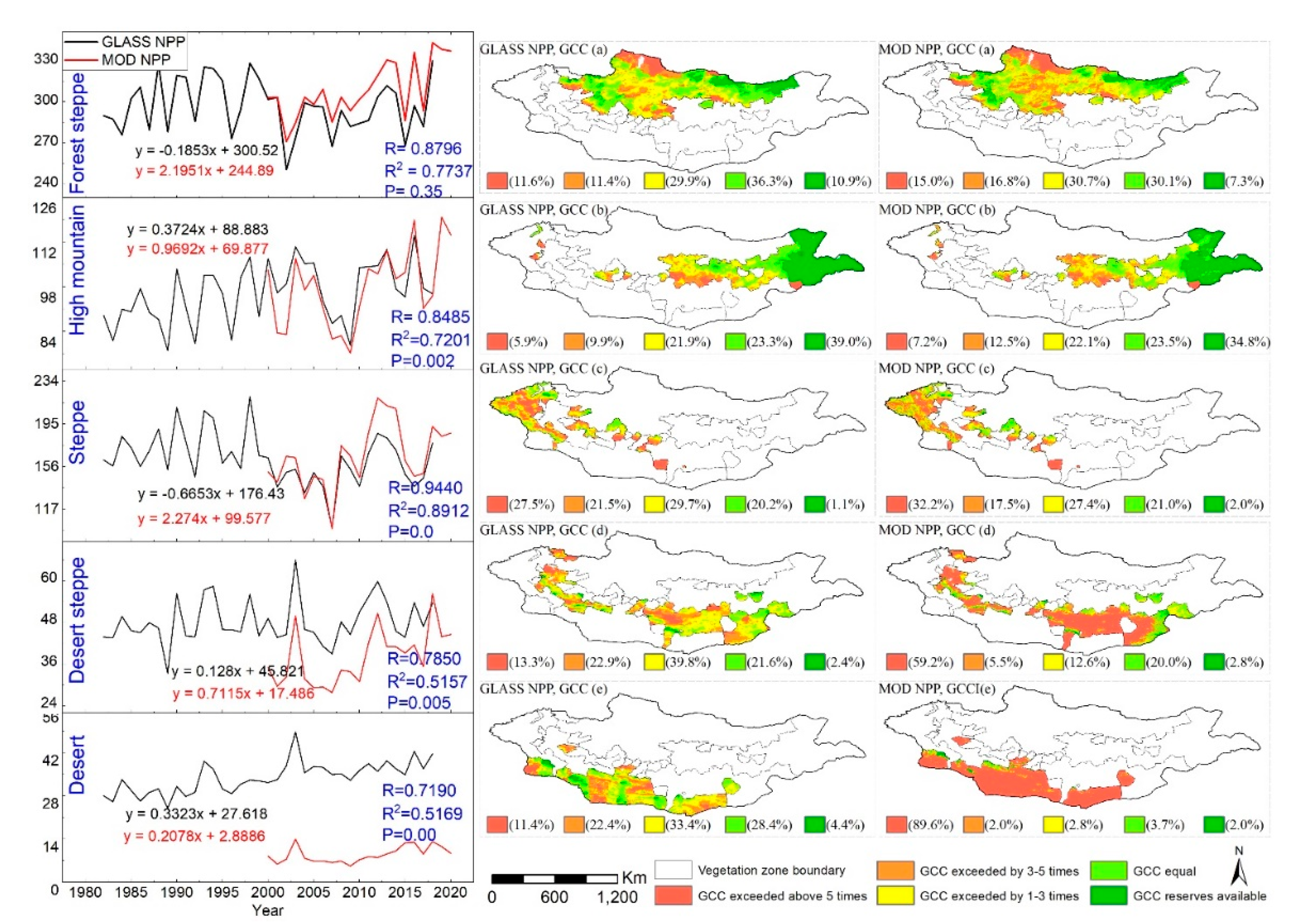

The MODIS NPP and GLASS NPP products facilitate a detailed spatial and temporal analysis of forage availability across various regions. There was a significant variability in grazing capacity across Mongolia’s diverse vegetation zone. Our studies have quantified the extent to which grazing intensity surpasses theoretical GCC in various regions. The spatial patterns of current grassland use, based on estimated GCC and GCCe, indicate that grasslands in eastern Mongolia are sustainable. In contrast, GCC in the central and western regions exhibits significant spatial variability. The steppe and forest-steppe areas have the highest GCC, whereas the desert and semi-desert regions display much lower GCC, primarily due to lower NPP and limited forage availability (Figure 6). This disparity can result from variations in climatic and vegetative environments across the two areas. Although grazing capacity has been exceeded in most regions of Mongolia, some areas remain below their theoretical GCC, particularly in the eastern region. This suggests that these grasslands have the potential to support a larger livestock number.

The GCC estimated from the GLASS product indicates that 40.7% of the grassland (reserve and light grazing grassland) was sustainable, while the GCC derived from the MODIS product shows that 31.9% of the area is sustainable grassland (Table 3, Figure 7).

4. Discussion

4.1. Comparison of GLASS and MODIS Products and Their Biomass

Remote sensing data has been proved to advance the monitoring of biomass and NPP of ecosystem. The precision of the biomass calculation method relies primarily on the NPP estimation error [64,65,66]. The GLASS NPP product was validated with field measurements in 2010 and 2011, and the error was found to be less than 15% [67]. It is reported that MODIS NPP data are already validated and extensively applied in estimating vegetation biomass at both global and regional scales, as well as in studies of carbon cycling and climate change. (e.g., [32,53,68]). There are several models developed to estimate aboveground biomass (AGB) during July–August on the Mongolian Plateau. Validation results demonstrated satisfactory performance, with R² and RMSE values of 0.68 and 76.9 g/m², respectively 0.68 and 76.9 g/m² [11,69]. [33] found that the relationship between GLASS NPP and field measurements was between R=0.60-0.80. While validation outcomes varied across studies depending on data sources and methodologies, they demonstrated consistent agreement within acceptable margins of error [11]. These research results were comparable to the NPP and AGB observations, indicating that they can be effectively utilized for analyzing changes in grassland productivity and GCC variations in Mongolia. The significant variation in precipitation and temperature, along with the geographically unique environment and different natural zones, further complicates the relationship between NPP and biomass calculation [70].

Our study found that the agreement between field studies and RS products is 45-55 percent, with low consistency in terms of R² and RMSE. Moreover, incorrect biomass estimates could lead to inaccurate assessments of grassland carrying capacity. Therefore, using plant growth periods for calculations is considered a more reliable approach [12,71].

4.2. Influence of Climate Factors on Grassland Productivity

Grassland productivity is influenced by through the interaction of precipitation and temperature, with a stronger correlation observed when both factors are considered together rather than individually. This suggests that while precipitation promotes grassland growth, high temperatures impose a limiting effect. Productivity was inversely related to temperature and positively related to precipitation, with lower NPP occurring during hot-dry intervals and higher during cool-wet periods [38,72]. To be brief, precipitation is higher in the northern forest-steppe region of Mongolia and lower in the desert and arid steppe regions, temperature exhibits the opposite pattern. Our findings also confirm a negative relationship between temperature and grassland NPP (or GPP), as well as a positive relationship between precipitation and NPP (or GPP). Research conducted in Mongolia highlights that precipitation is the only factor demonstrating a significant positive correlation with NPP in grassland [73]. The findings of this research aligned with those of previous investigations into the connections among precipitation, temperature, and NPP. Additional information is available in e.g, [11,74].

4.3. Influences of Livestock Number Size on GCC

Livestock number are the primary factor influencing GCC and livestock number have increased across Mongolia [48]. The livestock number is far beyond theoretical GCC, and subsequently the plant growth is strongly restricted across the country. Increase in livestock number potentially influence changes in the GCC in national level and vegetation zones. Immediate measures should prioritize both herd reduction and optimized grassland productivity to restore ecological balance [75,76]. However, these patterns are not consistent in different vegetation zones. A large livestock number on grassland does not necessarily indicate that the grazing capacity is exceeded. In the forest-steppe region, high precipitation enhances vegetation growth, thereby providing sufficient forage for livestock. Furthermore, the recent decline in vegetation productivity, especially in the transitional zone between grasslands and the Gobi desert in Mongolia, is primarily attributed to rising livestock populations and intensified grazing pressure [77]. Over the study period, widespread livestock mortality occurred across Mongolia's vast territory due to the occurrence of severe summer drought and winter dzud (extreme weather) events of 1999–2000, 2000–2001, 2001–2002 and 2009–2010. These events caused significant economic losses, leading to a substantial decrease in livestock number [48,78]. Addressing the imbalance between livestock density and GCC is essential for sustaining grassland productivity and preventing exceedance of GCC.

4.4. Regional GCC and Grazing Management

Grassland NPP is a key indicator of biomass and one of the main factors limiting and affecting GCC [73,79]. Our findings indicate that in the eastern regions of Mongolia, particularly in the steppe zones, grassland resources are generally sufficient. In contrast, the desert steppe and desert zones often face significant grassland shortage. Excessive grazing in transitional zones may result in the contraction of grassland areas and the expansion of the Gobi desert, subsequently reducing vegetation productivity and grassland degradation [74]. These regional differences in GCC reflect the variability in grassland productivity and livestock densities across Mongolia and highlight the need for focal interventions in overgrazed areas. The widespread overgrazing, particularly in the central and western regions, underscores the pressing need for policies focused on reducing livestock number and implementing effective grassland management strategies. Additionally, the combination of summer droughts and excessive livestock increase has led to a significant reduction in grassland biomass. As a result, more than half of Mongolia's land area is currently experiencing overgrazing, with the GCC being exceeded in many regions [48,80].

The extent to which grassland forage is utilized significantly influences its availability and is generally defined to promote sustainable resource management and avoid ecological deterioration [17,81] generally recommended maintaining a forage utilization rate of 50% to preserve grassland health [82,83] advised limiting the forage utilization rate to 30%. Similarly, [9,84] concluded that utilizing 25% of the forage production is advisable to ensure sustainable forage availability reduce shortage and prevent grassland degradation [11]. These results may change depending on the remote sensing data and field survey validation. Furthermore, in regions with plenty grassland resources, additional livestock could be grazed, while in overgrazed areas, livestock number should be reduced to ensure sustainable grassland management. However, there remains room for improving the precision of GCC assessments in the future.

5. Conclusions

Based on MODIS NPP and GLASS NPP and climate and livestock datasets, this study estimated the multi-year average GCC in Mongolia from 1982 to 2020. It explored the spatiotemporal patterns of GCC and examined the main factors influencing these patterns within the context of vegetation zonation. Our analysis reveals pronounced spatial disparities in GCC and grazing resources, influenced by vegetation conditions, livestock number, and climate change. Approximately 30-40% of Mongolia's total territory is sustainable in terms of GCC, and only 7% of the area capable of supporting over 300,000 SU. From a vegetation zone perspective, the steppe zone contains the largest areas with adequate grazing capacity, whereas the desert and desert-steppe zones have the lowest grazing capacity. These findings demonstrate that dynamic, evidence-based stewardship is essential for mitigating overgrazing impacts and safeguarding Mongolia's pastoral ecosystems. Finally, the assessment using both MOD NPP and GLASS NPP can provide a comprehensive understanding of the GCC across Mongolia.
