Mo Single Atoms Modified Ru Nanoparticles Assemblies for Hydrogen Evolution Reaction in Seawater Electrocatalysis

1. Introduction

As the emergence of low-carbon circular economy globally, hydrogen produced by water splitting is increasingly gaining attention in society. Hydrogen energy is widely regarded as an optimal medium for energy hoarding and distribution in the future, while also serving as a crucial chemical feedstock in modern industrial processes. However, due to the scarcity of freshwater resources and energy consumption associated with seawater purification, hydrogen evolution reaction (HER) may not achieve ideal effect in freshwater.

Electrocatalytic seawater splitting for hydrogen generation can not only avoid the consumption in relation to freshwater supplies in the world, but also improve the utilization rate of seawater resources. Due to its ample reserves and widespread availability, seawater is considered a latent feedstock for electrolysis, which results in the popularization with the purpose of producing hydrogen via seawater electrolysis [1]. In terms of catalyst section, Pt-based catalysts are considered to be effective electrocatalysts for HER, but large-scale commercialization of Pt-based catalysts faces the problem of high cost. To date, Ru-based catalysts have been regarded as one of the most up-and-coming and cheapest replacements to Pt-based catalysts for HER implementations, owing to Ru–H bond strength comparable to that of Pt–H bonds [2,3,4,5,6]. However, there are numerous challenges in producing hydrogen by seawater electrolysis, such as the agglomeration of Ru atoms in Ru-based catalysts and the attack of metal ions in seawater. Given the substantial binding energy of Ru atoms, irreversible agglomeration of Ru atoms occurs in the actual catalytic process, which leads to the unsatisfactory stability of Ru-based catalysts [7]. Furthermore, a large number of Cl^– and insoluble precipitates from Ca²⁺ and Mg²⁺ in seawater tend to poison catalysts, thereby reducing both HER activity and durability of catalysts [8,9,10]. Moreover, The innate poor conductivity of seawater and the sophisticated nature of seawater framework are not conducive to HER kinetics and poses challenges to understanding the reaction process and mechanism of seawater electrolysis [11,12]. These obstacles have contributed to the relatively slow progression of seawater electrolysis towards industrialization.

In this work, Mo single atoms modified Ru nanoparticles assemblies (Mo–Ru NPAs) supported on N-incorporated graphene (defined as MoRu-NG) are fabricated via hydrothermal and chemical vapor deposition (CVD) methods. MoRu-NG with Ru–O–Mo–N–C configuration delivers outstanding HER catalytic efficiency and stability, which surpasses those of commercial Pt/C and other reported electrocatalysts. Electron interaction exists between O and Ru sites in MoRu-NG, tuning the electronic structure of active sites to peak state and increasing the stability of O-bridged Ru-Mo structure, which facilitates HER activity and stability. Specifically, the p-band center of O sites within MoO₄²⁻ exhibits a more significant overlap with the d-band center of Ru sites, thereby improving HER activity and stability. Furthermore, O, O’-bidentate ligands in Mo–Ru NPAs are formed after the introduction of Mo single atoms (SAs), which can shorten Ru–Ru bond length in Ru nanoparticles (NPs), increasing Ru metallic bond intensity and further promoting HER stability. Importantly, the existence of Ru atoms in Mo–Ru NPAs introduces abundant acid sites of Lewis that replenish hydroxyl radicals in order to induce a negative charge accumulation, which can resist Cl^– attack in seawater. Meanwhile, these acid sites intensely bind to hydroxide ions, which prevents the pH values of seawater from rising locally, and thus inhibits the deposit formation of metal ions in the seawater [13,14]. In MoRu-NG, the characteristic Ru–O–Mo–N–C architecture with pronounced electron-pair bonds functions as a robust and top-notch catalytic structure toward HER in pH-universal seawater electrolysis.

2. Experimental

2.1. Preparation of MoRu-NG Composite

The precursors, namely (NH₄)₆Mo₇O₂₄·4H₂O and RuCl₃·3H₂O, were added to aqueous suspension of GO to form a homogeneous solution. Subsequently, the resulting mixture was transferred to a Teflon-lined autoclave and heated at 180°C for 12 hours. After the heating process, the as-prepared product underwent freeze-drying, which resulted in the formation of spongy column. Sponge column of p-RGO with RuMo₃ groups was obtained by freeze drying of the product after hydrothermal synthesis. Last, the composite was reacted with NH₃/Ar at 800°C in CVD apparatus to obtain MoRu-NG.

2.2. Preparation of Mo-NG and Ru-NG Composites

(NH₄)₆Mo₇O₂₄·4H₂O and RuCl₃·3H₂O precursors were added to two copies of aqueous suspension of GO to form two copies of homogeneous solution, respectively. Following the same steps as 2.1, Mo-NG and Ru-NG catalysts were obtained.

2.3. Preparation of A-MR、B-MR and C-MR Composites

Following the same steps as 2.1, A-MR、B-MR and C-MR catalysts were obtained via different atomic mass ratios.

Details are shown in the Table S1.

2.4. Materials Characterization

A JEOL-JSM-7001F SEM and JEOL 2100 field emission gun TEM were used to examine the morphology. AC HAADF-STEM images and EDS elemental mappings were carried out by a Cs-corrected FEI Titan G2 60-300 equipped with a Super-X EDS detector and operated at 300 kV. Chemical compositions and elemental oxidation states were checked by XPS spectra (PHI-5702). Raman spectra were recorded on a confocal micro-Raman spectrometer (Horiba Jobin Yvon, LabRAM HR Evolution, λ = 532 nm). N₂ adsorption–desorption isotherms were measured by a Quantachrome autosorb iQ2 analyzer. The specific area was obtained using the BET method. The pore size was calculated by the Barret-Joyner-Halenda (BJH) method. Water and air bubble CA were recorded using a DSA100 contact angle analyzer (Kruss, Germany). FT-IR spectra was collected on a Thermo Nicolet. Room-temperature EPR spectra were obtained using an EMXPLUS10/12 paramagnetic resonance spectrometer.

3. Result

3.1. Synthesis of MoRu-NG

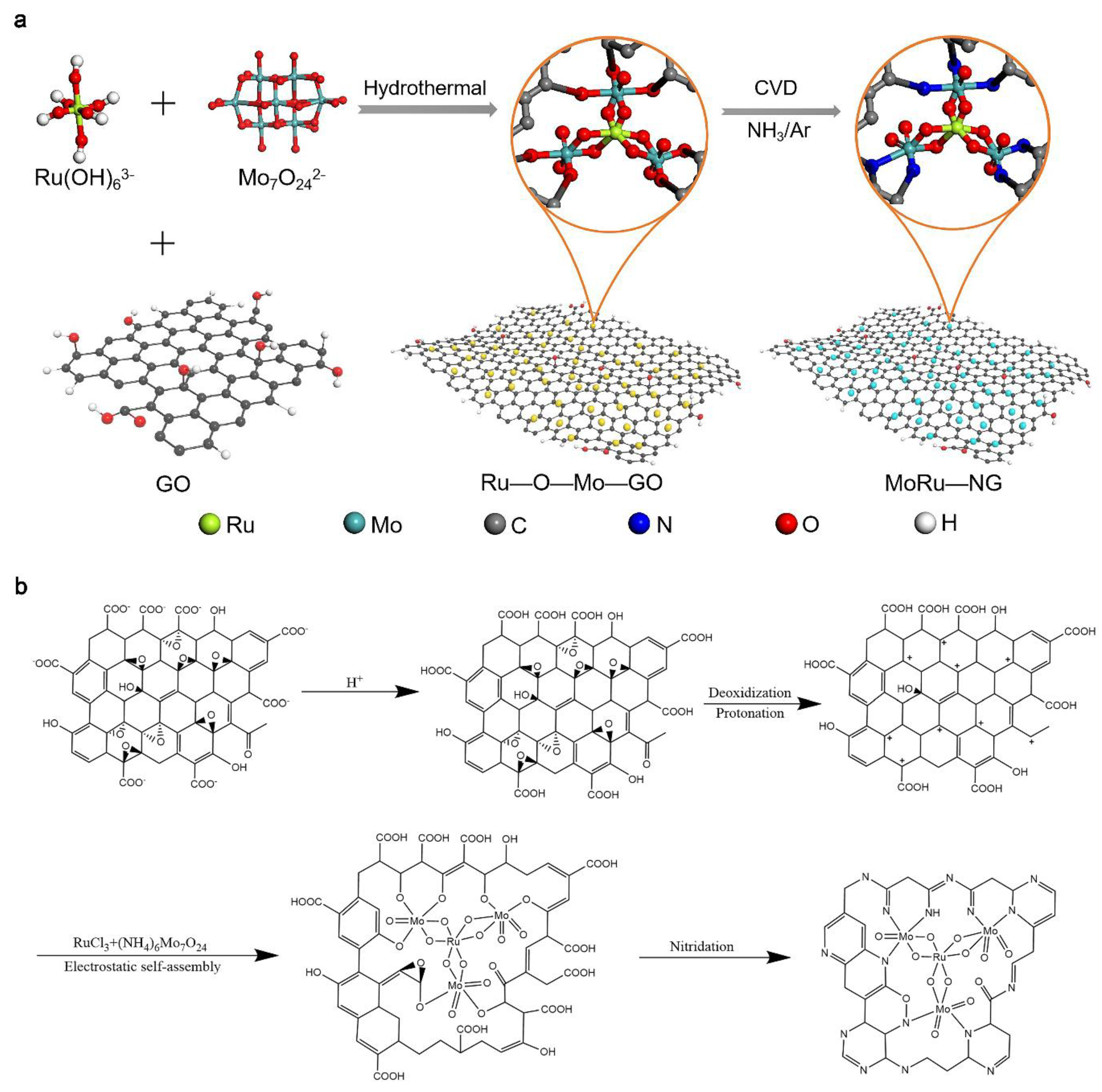

MoRu-NG electrocatalysts were synthesized through the following steps, as portrayed in the schematic representation (Figure 1a). The first step was to prepare a precursor solution using sonication Ru salt (as Ru source), molybdate (as Mo source), and graphene oxide in water. After thorough mixing, the precursor solution underwent hydrothermal treatment, in which RuMo₃ groups were anchored onto partially reduced GO (p-RGO), leading to the formation of Ru–O–Mo–N–C structure. After this step, freeze-drying was applied to the mixture to reduce p-RGO sheet restacking and the mixture was generated by CVD treatment in the NH₃/Ar atmosphere at 800°C.

The formation mechanism of MoRu-NG electrocatalysts was based on the electrostatic self-assembly that produce intensive coupling function between Mo and Ru atoms [15,16] (Figure 1b). Particularly, RuCl₃·3H₂O and (NH₄)₆Mo₇O₂₄·4H₂O were blended with the GO suspension inside an ultrasonic bath where the pH value ranges from 6.1 to 6.3. After that, in the course of the hydrothermal process, protonation took place for the carboxyl anions. Then the elimination of protonated carbonyl and epoxy groups on graphene oxide appeared as well as the delocalized π-electron system and H⁺ underwent protonation to obtain positively charged p-RGO [17]. The p-band center of O sites in MoO₄^2– exhibited a more pronounced overlap with the d-band center of Ru sites, which enhanced Ru–O–Mo covalency [18]. Initially, Ru³⁺ formed aquo ligands ( [Ru(H₂O)₆]³⁺) in deionized water, which then underwent hydrolysis to produce [Ru(OH)₆]^3– under high-temperature and mild acidic conditions. In a mild acidic solution simultaneously, protonation facilitated the transformation of the Mo(VI) oxo species in the MoO₄²⁻ segment. Mo(VI) oxo species firstly changed into Mo hydroxo species and ultimately evolved into Mo aquo ligands [MoO₄(H₂O)₂]²⁻ [19]. [MoO₄(H₂O)₂]^2– replaced two hydroxyl bonds in [Ru(OH)₆]^3– to formed [Ru(MoO₄)₃(H₂O)₆]^3– (RuMo₃) groups with O-bridged Ru-Mo structure, where [MoO₄(H₂O)₂]^2– acts as O,O’-bidentate ligands [20]. As a result of the vigorous coupling between negatively charged RuMo₃ groups [15,20] and positively charged protonated p-RGO sheets, O-coordinated RuMo₃ groups could be electrostatically attracted onto p-RGO sheets [21,22]. During CVD process, nitrogen doping and p-RGO underwent additional reduction simultaneously, resulting in the formation of RuMo₃ groups anchored within p-RGO sheets, which subsequently constructed Ru–O–Mo–N–C structure. For the purpose of comparison, a sequence of composite materials with various mass percentage of Mo atoms relative to Ru atoms, together with Mo species and Ru species supported on NG severally (denoted as Mo-NG and Ru-NG, respectively), were also synthesized (Table S1).

The reason why MoRu-NG successful synthesis is that the interaction of coordination nature between Ru and Mo species, as well as the electronegative difference between protonated p-RGO sheets and RuMo₃ groups during hydrothermal process with mild acidic solution. In MoRu-NG, Ru centers possess suitable hydrogen adsorption energy and special electronic structure, which has a pivotal function in improving HER activity. Additionally, the introduction of O, O’-bidentate ligand promotes HER stability in increasing Ru metallic bond intensity [23,24].

3.2. Structural Characterization of MoRu-NG

The crystalline phase and morphology of MoRu-NG were initially investigated by X-ray diffraction (XRD), high-resolution transmission electron microscopy (HR-TEM), high-angle annular dark-field scanning TEM (HAADF-STEM), and aberration-corrected high-angle annular dark-field scanning TEM (AC HAADF-STEM).

In XRD patterns, the typical diffraction peaks of MoRu-NG reveal the presence of Ru crystalline (PDF#06-0663) phase, indicating the successful formation of Ru crystals after thermal nitridation. Additionally, no peaks related to Mo species are observed, which suggests that Mo species exist as an amorphous phase after the nitridation reaction under thermal conditions (Figure 2a). Notably, the diffraction peaks of MoRu-NG exhibit negative shifts relative to that of Ru/NG (selected areas in Figure 2a), indicating lattice expansion occurs after the introduction of Mo SAs. In addition, the XRD patterns of A-MR and C-MR also exhibit the successful formation of Ru crystals, similar to that of MoRu-NG (Figure S1). As demonstrated by HR-TEM images (Figure 2b, Figure S2), Mo–Ru NPAs are homogeneous dispersion in NG sheets. In Figure 2b and Figure S3, Mo–Ru NPAs and Ru NPs with about 1.5 nm and 3.2 nm particle sizes are formed in NG sheets, respectively. This observation indicates that Mo SAs in Mo–Ru NPAs can effectively suppress the particle size of Ru-NG, leading to higher specific surface area and stronger electrical conductivity [25]. As depicted in the HR-TEM image at relatively high magnification, the lattice fringes of Mo–Ru NPAs are clear and the interplanar distance of 0.26 nm can be correlated with the (100) facets of Mo–Ru NPAs (Figure 2c). Additionally, the HR-TEM images of Mo-NG and Ru-NG display the state of amorphous phase and the crystal face distance of 0.24 nm corresponds to the (100) planes of Ru crystals, respectively (Figure S4). Moreover, lattice distortion and edge dislocation can be observed in white circles and yellow T-shape marks (Figure 2c, inset), respectively [26]. The results illustrate that introducing Mo SAs increases the specific surface area values and further exposes more active sites, improving the conductivity of MoRu-NG. After introducing Mo SAs into Ru crystal lattices, the crystal face spacing of MoRu-NG is larger than that of Ru-NG, which indicates that lattice expansion appears in MoRu-NG, consistent with the results of XRD.

The AC HAADF-STEM images exhibit that Mo–Ru NPAs are distributed on NG sheets, validating the interaction and electronic coupling of Mo and Ru atoms (Figure 2d and Figure 2e). The energy-dispersive x-ray spectroscopy (EDS) mapping analysis indicates the well-distributed presence of C, N, O, Mo, and Ru elements (Figure 2f). The TEM-element energy dispersive spectroscopy (EDS) mapping analysis reveals that the Ru and Mo content in the synthesized Mo–Ru NPAs is close to 0.41 atom % and 0.69 atom %, respectively (Figure S5, Table S2). These findings demonstrate that densely packed Mo–Ru NPAs are effectively fabricated on NG sheets via the two methods.

To gain insights into the valence states of MoRu-NG, x-ray photoelectron spectroscopy (XPS) was carried out. The XPS survey spectrum of MoRu-NG confirms the characteristic peaks of Ru, Mo, C, N, and O species in agreement with the EDS elemental mapping (Figure S6, Figure 2f). The Mo 3d spectra of MoRu-NG exhibit three pairs of peaks, manifesting Mo(VI), Mo(V), and Mo–N species [27] (Figure 3a). For Ru 3p spectra of MoRu-NG, Ru species display two pairs of peaks that correspond to Ru(0) and Ru(IV), respectively [28], indicating the existence of Ru crystals on MoRu-NG surface (Figure 3b). Compared to control samples, positive displacements of 0.3 and 0.4 eV are observed on Mo(V) and Ru(0) in MoRu-NG, respectively, which demonstrates the diminution of electron density around Mo–Ru NPAs and the formation of M–O/M–N bonds (M refers to Mo/Ru). As revealed in Figure 3c, the deconvoluted peaks around 531.0 and 530.3 eV are assigned to Mo–O and Ru–O bonds [29,30,31], respectively; and the Mo–O and Ru–O bonds in MoRu-NG exhibit 0.3 eV shift toward higher binding energy relative to those of Mo-NG and Ru-NG. These results confirm that Mo–Ru NPAs are O-coordinated within MoRu-NG, indicating that the formation of Ru–O–Mo structure redistributes the Ru d-orbital electron density and affects the Mo electron cloud distribution.

Moreover, the comparison samples with various mass percentage of Mo atoms relative to Ru atoms were also characterized via XPS measurements. For Mo 3d and Ru 3p spectra, the varying mass percentage of Mo atoms relative to Ru atoms catalyzes an electron migration at a specific Mo loading (Figure S7 and S8). For N 1s spectrum, pyridinic N (398.3 eV), pyrrolic N (399.8 eV), graphitic N (401.7 eV), and N–O (404.3 eV) species can be clearly visible in all catalysts while Mo-N (394.6 eV) only appears in MoRu-NG and Mo-NG, demonstrating Mo atoms coordinating with N atoms (Figure 3d). Compared to Mo-NG, a negative shift of 0.6 eV is observed on Mo–N in MoRu-NG, exhibiting electron density increase around Mo–N bonds, confirming that electron transfer exists between Mo–Ru NPAs and NG sheets. For O 1s and N 1s spectra, N–O bonds disappear while Mo loading gradually increases to the certain values, representing that excessive Mo loading effects the formation of N–O bonds (Figure S9 and S10). Meanwhile, the C 1s spectra are resolved into four characteristic peaks, corresponding to C–C (284.8 eV), C–N (285.6 eV), C–O (286.4 eV), and O=C–O (287.3 eV) species (Figure S11 and S12), which represents that N atoms have a coordination relationship with C atoms. Distinctly, the metal centers in MoRu-NG are O-coordinated, while Mo SAs in Mo–Ru NPAs are anchored in NG with Mo–N–C structure.

The electron paramilitary resonance spectroscopy (EPR) was used to solve MoRu-NG surface defects (Figure 3e). The signals of g = 2.17 and g = 2.13 are assigned to the resonance on conduction electrons in MoRu-NG [32]. MoRu-NG and Mo-NG both display the EPR signals at g = 1.95 (Mo–N species [33]), g = 1.89 and g = 2.07 (Mo⁵⁺ species [34]), followed by g = 2.01 (oxygen vacancies), suggesting that MoRu-NG has higher concentration about O_v, Mo⁵⁺ and Mo–N species than that of Mo-NG. Moreover, the reference samples with heterogeneous mass percentage of Mo atoms relative to Ru atoms display analogous EPR spectra compared with MoRu-NG in the Figure S13. As Mo loading increases gradually, the signal intensity is more and more obvious, demonstrating that the concentration of free radicals is related to Mo loading. In order to identify the varieties of chemical groups, Fourier transform infrared spectroscopy (FT-IR) was conducted. The FT-IR spectra of MoRu-NG include the vibration of C–OH, O=C=O, C=C and C–N groups in Figure 3f. Compared with MoRu-NG, the control samples with various atom mass ratios exhibit similar characteristic bands (Figure S14). As exhibited in Raman spectra, the intensity ratio of D band to G band (ID/IG) for MoRu-NG (1.15) is higher than those of Mo-NG (1.05) and Ru-NG (1.06) (Figure 3g). This result indicates that structural defect is introduced into MoRu-NG via synergistic effect between Mo and Ru atoms. In addition, ID/IG for MoRu-NG (1.15) is higher than those of A-MR (1.05) and C-MR (1.02), which demonstrates that adjusting atom mass ratio to appropriate values can introduce more structural defects (Figure S15).

Moreover, MoRu-NG affords a higher air contact angle (CA, 164.4°) and water contact angle (CA, 115.7°) than those of Mo-NG and Ru-NG, signifying the hydrophobic, which promotes the diffusion of hydrogen gas (Figure 3I, Figure S16 and S17). Furthermore, the Brunauer-Emmett-Teller (BET) surface areas of MoRu-NG, Mo-NG and Ru-NG are 504.7, 237.1 and 150 m² g^–1, respectively, and the main pore size of MoRu-NG is centered at 1.6 nm (Figure 3h, Figure S18 and S19). The results suggest that introducing Mo SAs into Ru crystals can effectively inhibit the agglomeration of Ru atoms during CVD process. Inserting Mo atoms into Ru lattices generates a considerable amount of holes and defects, which contributes to the adsorption of reactant molecules and increases the number of accessible active sites [35].

In this work, RuMo₃ groups are synthesized with Ru–O–Mo configuration through facile self-assembly of Mo species and Ru species, followed by CVD procedure. Usually, SAs about transition metals are spread over N-doped carbon support as M–N–C structures (M refers to transition metals). Therefore, Mo SAs in RuMo₃ groups were dispersed on N-doped carbon support with the form of Mo–N–C in the CVD procedure [36,37]. In MoRu-NG, O, O’-bidentate ligands and chelation function between Mo and Ru atoms provide the possibility to modulate electronic structure, thereby improving electrocatalytic activity and stability.

3.3. Electrocatalytic HER Performance

The electrocatalytic hydrogen evolution reaction (HER) performance of MoRu-NG was explored in 0.5 M H₂SO₄, 1.0 M KOH, and 1.0 M PBS seawater solutions by utilizing a three-electrode configuration. For the purpose of comparison, Mo-NG, Ru-NG, NG, and commercial Pt/C were also tested. In this study, all the potentials are based on a reversible hydrogen electrode (RHE), and it should be noted that all the data obtained are without IR compensation.

In 0.5 M H₂SO₄ seawater solution, MoRu-NG has the ability to provide a geometric current density of –10 mA cm^–2 at an extraordinarily low overpotential of 53 mV (η₁₀ = 53 mV) (Figure 4a). This overpotential is significantly lower than those of NG (>300 mV), Mo-NG (292 mV), and Ru-NG (153 mV), as well as other counterparts (Figure S20), suggesting that MoRu-NG serves as a first rate HER catalyst. In order to acquire more profound knowledge about the reaction kinetics of MoRu-NG, the Tafel slope was scrutinized. In 0.5 M H₂SO₄ seawater solution, MoRu-NG delivers a small Tafel slope of 30 mV dec^–1, which is far lower than those of NG (183 mV dec^–1), Mo-NG (162 mV dec^–1), Ru-NG (139 mV dec^–1), and other counterparts, as well as close to that of the benchmark Pt/C (30 mV dec^–1) (Figure 4b, Figure S20). The results reflect that MoRu-NG has the top-level HER kinetic process in accordance with the Volmer-Tafel mechanism, where the surface recombination step belongs to the rate-limiting step. Compared to Mo-NG, Ru-NG, NG and Pt/C, MoRu-NG shows the best activity, featuring high current density at low overpotential in 1.0 M KOH seawater solution (Figure 4c). MoRu-NG merely requires overpotentials of 28 mV to reach –10 mA cm^–2, which is lower than those of Mo-NG (290 mV), Ru-NG (270 mV), NG (>300mV), and other catalysts of different atom mass ratios, as well as even better than that of the state-of-the-art Pt/C (37 mV) (Figure S20). In a corresponding fashion, the reaction kinetics within MoRu-NG undergoes a great leap forward, which is demonstrated by the unusually low Tafel slope of 37 mV dec⁻¹ observed in the 1.0 M KOH seawater solution (Figure 4d). The Tafel slope (37 mV dec^–1) of MoRu-NG is superior to those of Mo-NG (128 mV dec^–1), Ru-NG (133 mV dec^–1), NG (140 mV dec^–1), and other catalysts of different atom mass ratios, as well as close to that of the commercial Pt/C (34 mV dec^–1) (Figure S20). In 1.0 M KOH seawater solution, such a low Tafel slope of MoRu-NG suggests that the introduction of Mo SAs favors the generation of H* from H₂O. In 1.0 M PBS seawater solution, MoRu-NG shows the optimal activity, characterized by high current density even at low overpotential and small Tafel slope compared to Mo-NG, Ru-NG, NG and Pt/C (Figure S21).

In addition, the technology of double-layer electrochemical capacity (C_dl) at different scanning rates by cyclic voltammetry (CV) was applied. In 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, MoRu-NG has the C_dl values of 18.3 and 11.8 mF cm^–2, respectively. These values are higher than those of Mo-NG (15.8 and 8.3 mF cm^–2) and Ru-NG (12.3 and 10.8 mF cm^–2) (Figure 4e and Figure 4f, Figure S22). The result suggests that the chelation function between Mo and Ru atoms can subjoin active surface areas of catalysts. Another point is that the C_dl values for MoRu-NG (18.3, 11.8 mF cm^–2) are higher than those of NG (7.61, 5.2 mF cm^–2), A-MR (15.8, 6.0 mF cm^–2) and C-MR (11.2, 9.0 mF cm^–2) in 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, respectively (Figure S23 and S24). This result demonstrates that deficient and overly high Mo loading both reduce the number of accessible active sites, indicating that electrochemical activity depends on rational Mo content [38,39]. By using pure water to formulate acidic and basic solution, the polarization curves along with their respective Tafel plots of MoRu-NG are shown in the Figure S25. In the same way, MoRu-NG has the C_dl values of 13.2 and 9.6 mF cm^–2 in 0.5 M H₂SO₄ and 1.0 M KOH pure water solutions, respectively, which are similar to that of MoRu-NG in acidic and alkaline seawater solutions (Figure S26). The results explain that MoRu-NG can resist poison and erosion about anions and cations in seawater compared with pure water [40], which can prevent the wastage of fresh water and enhance the utilization efficiency of seawater.

To research the intrinsic catalytic activity, the electrochemical surface area (ECSA) determined by deriving the electrochemical double-layer capacitance (C_dl) was measured. The ECSA of MoRu-NG, Mo-NG and Ru-NG are 457.5, 395.0, and 307.5 cm² in 0.5 M H₂SO₄ seawater solution, and 295.0, 207.5, and 270.0 cm² in 1.0 M KOH seawater solutions, respectively. Additionally, to exclude the effect of surface area and compare the inherent HER activity, geometric current density (j) was normalized by ECSA (j_ECSA) in the pH-universal seawater [41,42]. As shown in Figure S27, MoRu-NG gives the j_ECSA values of 110.0 and 341.7 μA cm^–2 at η = 100 mV, which are evidently higher than those of Mo-NG (2.7, 4.2 μA cm^–2) and Ru-NG (14.1, 1.8 μA cm^–2) in 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, respectively. The outcome reveals that MoRu-NG possesses better intrinsic HER activity than those of Mo-NG and Ru-NG in 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, respectively. For the sake of an uncomplicated comparison, the η₁₀ and Tafel slope values of MoRu-NG are further compared with other recently reported Mo or Ru based metal electrocatalysts (Figure S28 and S29, Table S3 and S4). The small η₁₀ and Tafel slope of MoRu-NG are competitive with these electrocatalysts, such as Ni₂P/MoS₂/N:CNT [43] and CoRu-1 [44] and other catalysts [45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60], suggesting that MoRu-NG is a top HER electrocatalyst in the pH-universal seawater.

In addition, in order to obtain more in-depth understanding of the intrinsic catalytic activity, the turnover frequency (TOF) per active site was determined. Thus, the number of active sites was titrated from integrated charge of anodic CV cycles at phosphate buffer solution (pH = 7) [61] (Figure S30). Evidently, MoRu-NG affords the highest TOF values of 3.85 and 7.8 H₂ s^–1 at η = 100 mV, significantly surpassing those of Mo-NG (0.15 and 0.12 H₂ s^–1) and Ru-NG (0.76 and 0.09 H₂ s^–1) in 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, respectively (Figure 4g). These results demonstrate that MoRu-NG delivers significantly enhanced catalytic hydrogen production capacity compared to Mo-NG and Ru-NG. This superior catalytic performance in HER can be ascribed to the distinctive Ru–O–Mo–N–C configuration [62]. This configuration gives rise to a unique electronic structure and improves electrical conductivity [63]. Additionally, electrochemical impedance spectroscopy (EIS) technique was also carried out. Among them, MoRu-NG yields small charge-transfer resistance (R_ct) (3 and 5 ohms) in 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, which are much lower than those of Mo-NG (9 and 7 ohms), and Ru-NG (6 and 7 ohms), respectively (Figure S31). MoRu-NG exhibits lower R_ct than those of Mo-NG and Ru-NG, indicating that the atom doping of foreign metal facilitates electron transport at the electrode or electrolyte interface. The chemical coupling between Mo and Ru atoms provides an interconnected conductive network to enhance the electrical conductivity between Mo–Ru NPAs and NG sheets [64].

The following researches results are about stability and durability of MoRu-NG electrocatalysts. As illustrated in Figure S32, the polarization curve of MoRu-NG exhibits minimal discrepancies compared with the initial curve after 10,000 even 50,000 CV cycles in 0.5 M H₂SO₄ seawater solution. This is the case even after 10,000 or, remarkably, 50,000 cyclic voltammetry (CV) cycles in 1.0 M KOH seawater solution (Figure S33). Furthermore, several long-term potential stability tests were conducted on MoRu-NG using galvanostatic measurement at current densities of –100, –200, and –300 mA cm^–2 under room temperature (25°C) (Figure 4g). After 100,000 s of operation at j = –100, –200, and –300 mA cm^–2, the potentials of MoRu-NG only increase by 24, 20, and 33 mV in 0.5 M H₂SO₄ seawater solution, and 14, 10, and 42 mV in 1.0 M KOH seawater solution, respectively. In contrast, the potentials of Pt/C catalysts at j = –100 mA cm^–2 increase by 142 and 110 mV in 0.5 M H₂SO₄ and 1.0 M KOH seawater solutions, respectively. These outcomes demonstrate that MoRu-NG has exceptional stability and durability in acidic and alkaline electrolytes. In XRD patterns, the typical diffraction peaks of MoRu-NG still reveal Ru crystalline (PDF#06-0663) phase after electrochemical cycling (Figure S34). And beyond that, TEM characterization displays that Mo–Ru NPAs in MoRu-NG still maintain fine nanoparticle state after electrochemical cycling (Figure S35). In addition, chemical valence states of Mo and Ru species remain almost unchanged, further signifying the robustness of MoRu-NG catalysts in the electrocatalytic HER process (Figure S36 and S37). The structure of O, O’-bidentate ligands in MoRu-NG shortens Ru–Ru bond length and provides stronger Ru metallic bonds to enhance the electrocatalytic stability [20]. In this work, the excellent physicochemical stability of MoRu-NG is attributed to the particular coordination structure between Mo and Ru atoms in NG sheets through electrostatic self-assembly [65,66].

3.4. Mechanism of HER and Schematic Representation of Seawater Electrocatalysis.

MoRu-NG has higher HER kinetic process than other electrocatalysts through the Volmer-Tafel mechanism. In fact, HER occur based on the Volmer-Heyrovsky mechanism or the Volmer-Tafel mechanism, while the evolutionary steps of HER are similar in both alkaline and acidic media (Figure 5a). For both acidic and alkaline conditions, the first step of HER is the Volmer reaction, which produces H* intermediates on MoRu-NG. In this work, Ru sites on MoRu-NG were chosen as active metal sites and potential adsorption sites for H* intermediates. The second step is the Rate Determination step (RDS), belonging to the surface recombination step, which indicates that the process of RDS depends on the activity of catalysts. Consequently, Pt-based catalysts undergo the Tafel reaction in order to adsorb double H* intermediates to produce H₂, while MoRu-NG as the transition metal catalyst typically reacts with H₂O (in alkaline conditions) or H⁺ (in acidic conditions) to produce H₂. Schematic representation of seawater electrocatalysis is shown in the Figure 5b. In the actual overall seawater splitting test, the assembled MoRu-NG || RuO₂ system exhibits better performance than the commercial Pt/C || RuO₂ electrode pair (Figure S38). It is evident that the assembled MoRu-NG || RuO₂ system requires lower voltages to achieve the required current density compared to the commercial electrode sets, demonstrating that the catalyst has the high activity for full seawater splitting. Meanwhile, the assembled MoRu-NG electrode pairs can also operate stably for 100,000s at current density of 300 mA cm^–2, which indicates its good durability for full seawater splitting (Figure S39).
