Water Sustainability Criteria to Regulate the Proliferation of Pig Farms on a Karst Aquifer

1. Introduction

Globally, growing population and rising economies are leading to an increasing demand for animal-based foods. Pigmeat is currently the most consumed meat globally, even exceeding the consumption of poultry meat [1]. This is also ascribed to by a series of policies and trade agreements aimed at liberalizing economies and increase production, however, it has also carried severe implications for the environment [2,3].

Livestock industry demands huge amounts of land and water resources to produce feed crops. For instance, it is known that it consumes a third of the total volume of water used in agriculture [4], and a fifth of the virtual water used in agriculture [4]. In pig farms, while the direct annual consumption of water is anticipated to be relatively small in comparison to that of human freshwater use [5,6], a large portion of the detrimental water impacts relate to poor management of the animal excreta, which contain large amounts of undigested organic matter and mineral nutrients [7,8]. Thus, the poor management of the excreta has serious impacts on water quality as it contributes to pollution and eutrophication of surface waters, groundwater, and coastal marine ecosystems [9]. It is therefore recognised that in areas of the world experiencing an intense water stress, industrialised pig production may exacerbate water scarcity [10].

The degradation of water quality due to pig manure is a significant environmental concern [11]. The primary pollutants associated with pig manure include nitrogen (N) and phosphorus (P), which in excess lead to eutrophication of water bodies, resulting in harmful algal blooms and deterioration of aquatic ecosystems [12,13]. This in turn, may also lead to the loss of human health and biodiversity [14,15,16,17].

In some countries, pig farming is one of the leading contributors to water pollution, primarily due to the high nutrient load from manure [18]. The intensive production techniques employed in pig farming often result in slurry management practices that fail to adequately treat waste before it is applied to land or discharged into water bodies [19]. This situation is aggravated by the fact that many farms lack effective waste management systems, leading to nutrient runoff during rainfall events [20]. Therefore, to improve the overall sustainability of pig farming operations it is necessary to control nutrient loads to the environment and to implement effective manure management strategies [21].

Mexico ranking seventh among the top pig producing countries in the planet [22], has seen a relocation of pig farming operations from the centre to southern states where there are richer feed resources and large environmental capacity. Indeed, in the Mexican state of Yucatan where the largest Mexican karst aquifer is located, there is a registered exponential expansion of pig farms in several municipalities. However, in several communities of the state this intensive pig farming has raised local opposition due to the environmental concerns associated to both the number of pig farms and their waste management strategy [23,24,25]. In addition, the Yucatan aquifer characterised by its karst geology, is particularly vulnerable to contamination from agricultural practices, including pig farming. Therefore, concerns are focused on water contamination primarily due to the management of pig manure. Indeed, recent studies in the region have indicated that the continuous disposal of untreated wastewater and the application of nitrogen-rich fertilizers contribute to elevated nitrate concentrations in groundwater, often exceeding permissible limits for human consumption [26,27,28].

The Yucatan aquifer is in an unsustainable state of water contamination due to the direct release of pollutants into the environment [26]; the absence of suitable treatment systems in pig farms may make the situation worse. Thus, it is imperative to implement appropriate management techniques and public policies that safeguard the aquifer and promote water sustainability in municipalities where pig farming is occurring. It is essential to develop an evidence-based set of regulations to control pig farming in Yucatan, since the region’s extensive pig farming operations greatly contribute to water contamination.

This study establishes evidence-based criteria to reduce aquifer contamination and enhance water sustainability in Yucatan’s pig farming sector. A water sustainability framework is utilised to govern the formation of new pig farms throughout all municipalities in the state, identifying which municipalities are appropriate for such operations and which are restricted from further pig farm expansion. This analysis employs a census of pig population in intensive farms and a high-quality dataset, augmented by data gathered from an extensive field campaign conducted in 2022. Additionally, we determine a sustainable limit to the pig population per hectare in relation to water pollution at the municipal level, employing the concepts of water pollution levels [29] and grey water footprint [30]. This initiative seeks to govern a substantial economic activity inside the state to safeguard water quality and foster a healthy environment.

2. Study area and Methodology

2.1. Study Area Location

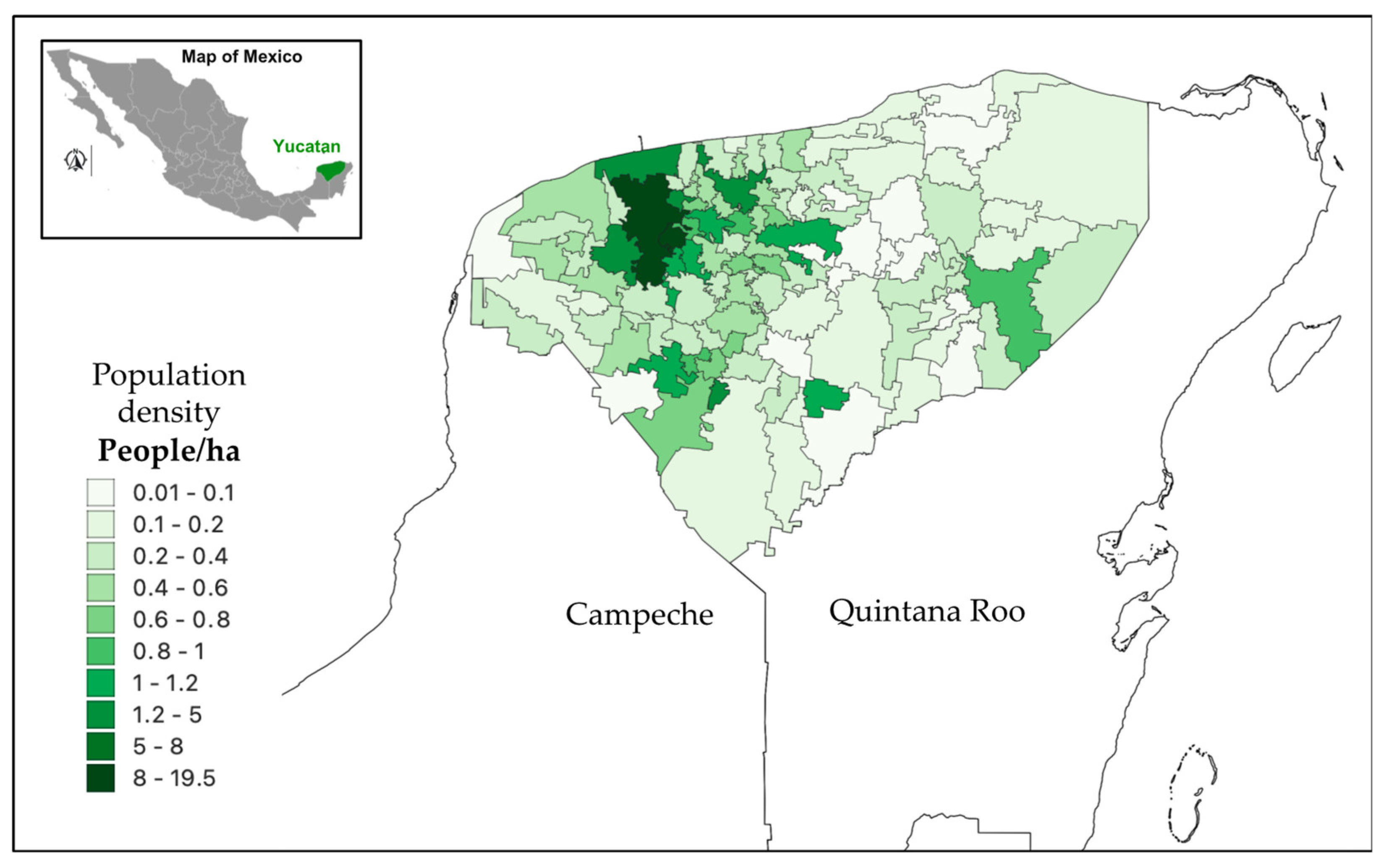

The Mexican state of Yucatan is situated in the northern region of the Yucatan Peninsula and consists of 106 municipalities, with a population of 2,320,898, which accounts for 1.8% of the national populace. As per [31], the urban population of the state constitutes 89% of the total, and the rural population accounts for merely 14%. The most populous municipalities are the capital, Mérida, with 995,129 inhabitants, followed by Kanasín with 141,939, Valladolid with 85,460, and Tizimín with 80,672 inhabitants, respectively. Figure 1 displays a map illustrating the population density of the state at the municipal level. The political boundary of municipalities is depicted, with the colour scale representing population density per hectare for each municipality. The region with the highest population density is located in municipalities surrounding the city of Merida indicated.by the darkest green.

In Yucatan, the primary supply of freshwater for the population and all economic activities in the state is groundwater, derived from the aquifer of the Yucatan Peninsula, in the absence of surface flows. This aquifer is the largest karst system in Mexico, distinguished by its high permeability and exceptional geological and hydrological characteristics. This encompasses a sophisticated system of subterranean conduits and chambers, featuring multiple sinkholes referred to as “cenotes,” which constitute the Ring of Cenotes [32,33]. These factors contribute to complex flow dynamics, including potential flow reversals and interactions between fresh and saline waters near the coast, along with the high hydraulic conductivity, these features highlight the aquifer’s vulnerability to contamination and the need for careful management.

The Yucatan Peninsula aquifer is an unconfined aquifer situated under karstified limestone formations, covering an area of roughly 124,409 km². The aquifer rests above a stratum of brackish water that stretches from the seashore to several tens of km inland [34]. The maximum depths are situated to the east of the aquifer, at 30 m, and diminish towards the coastline. In the urban vicinity of Merida, the depth varies from 4 to 8 meters. The water families comprise a blend of groundwater and marine water, wherein freshwater mixes with seawater. The aquifer’s waters are primarily bicarbonate-calcium (HCO3-Ca), while those of the salt wedge are characterised by chlorinated-sodium (Cl-Na).

Infiltration inside the Yucatan aquifer is critical and serves as its primary source of recharge. Given the karstic characteristics of the region and the development of secondary permeability due to the dissolution of limestone, the rainwater that permeates the aquifer system and the water-rock interactions, which involve mineral dissolution, influence the water’s properties, leading to elevated concentrations of Ca, Mg, and bicarbonates that may occasionally surpass the acceptable hardness thresholds for water supply [35]. The aforementioned qualities render the Yucatan aquifer particularly susceptible to groundwater contamination (wells and cenotes), exacerbated by economic activities such as agriculture and cattle farming, which serve as sources of pollution.

At the same time, the Yucatan aquifer is the largest reservoir of fresh water in Mexico as according to official data from the National Water Commission, it has a natural recharge of 21,813 hm3/yr with an annual availability of 2,386.82 hm3/yr [36]. However, it is particularly vulnerable to contamination from agricultural practices, including pig farming. Figure 2 illustrates the geographical distribution of the Yucatan aquifer, which comprises three southern states of Mexico: Campeche, Yucatan, and Quintana Roo. Additionally, sinkholes connected with the ring of Cenotes are indicated (marked by the green dots). The white arrows in the figure depict the main direction of the regional groundwater flow [34]. The entire state of Yucatan is encompassed by the aquifer.

2.2. Pig farms in Yucatan

The state of Yucatan ranks as the third-largest national producer of pork, resulting in a proliferation of pig farms around the region, varying in scale from tiny operations to large-scale facilities housing over 30,000 pigs each. However, until the year 2023 there was no Federal or state record regarding the number and scale of pig farms installed. Furthermore, recent studies indicate that the substantial volumes of wastewater generated by their operations are inadequately treated, resulting in water pollution and environmental damage [37]. This has sparked an increasing movement against industrial pig farms in Yucatan, motivated by social and environmental concerns [38]. The main objection stems from the intention to preserve the aquifer and advocate for sustainable agricultural practices.

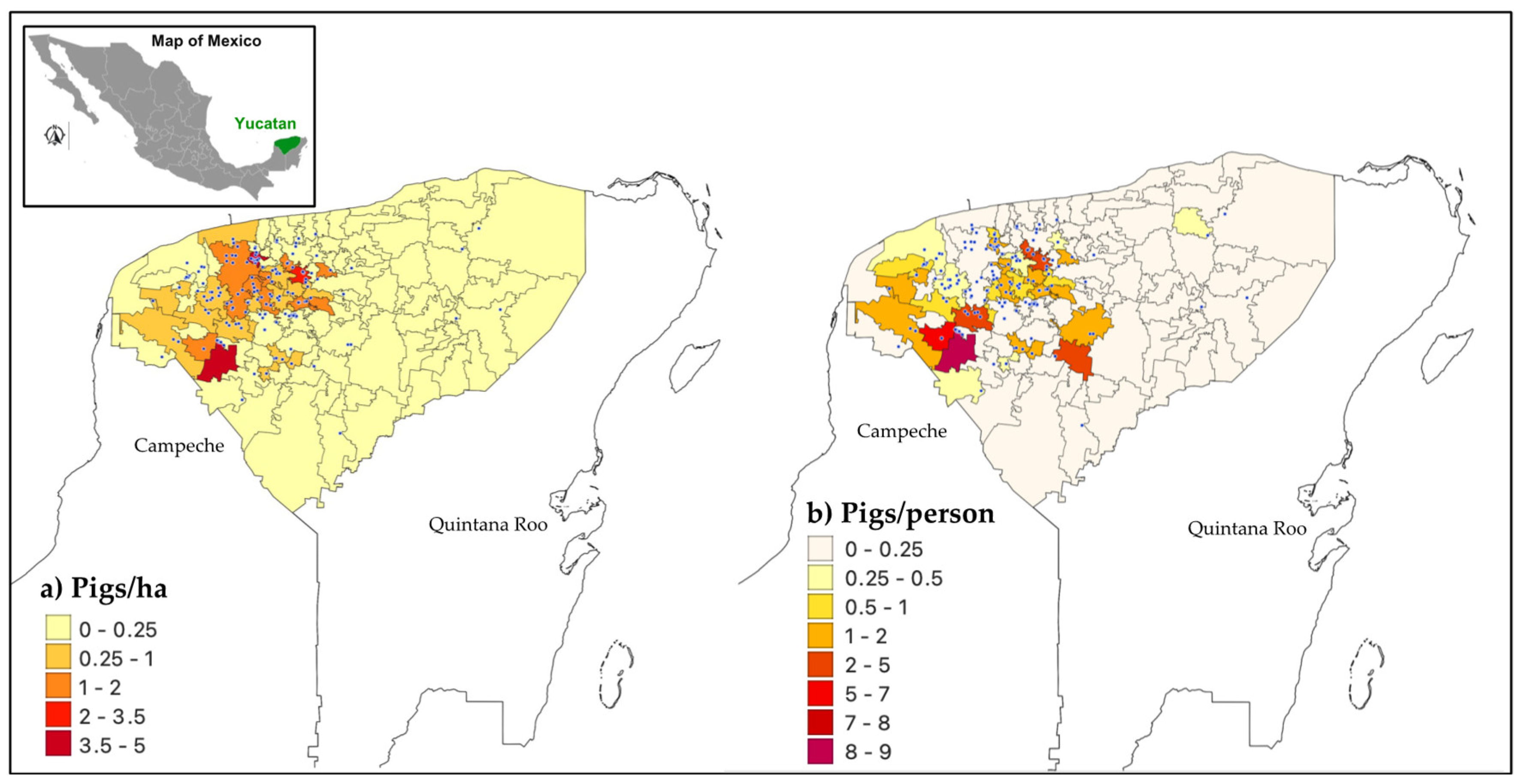

Consequently, the Secretariat of Environment and Natural Resources of the Federal Government of Mexico, resolved to conduct a census on the quantity of farms and pigs per farm at the local level. This provides an initial assessment of the geographical extent of this activity on the state and its impact on aquifer contamination [39]. Results from this work identified as much as 506 geographical locations in the state with pig farms. The census detailing the number of pigs per farm was developed in partnership with the state’s swine production sector, identifying 120 active pig farms with varying pig populations. Figure 3a Illustrates the geographical distribution of pig farms throughout the Yucatan state, marked by red dots. For clarity, the political division of municipalities is also depicted; the colour scale represents pig density per hectare and municipality. In addition, Figure 3b presents the geographical location of pig farms alongside the pig density per capita in each municipality of Yucatan. According to this database in 2023, the total number of pigs in the Yucatan state is 584,702.

2.2. Methodology

This study employs an integrated approach that involves acquiring water quality measurements from selected wells and cenotes to assess the current water quality in the state. Additionally, in collaboration with representatives from the state’s swine sector, 10 distinct industrial farms are chosen for an analysis of their water discharge. This was conducted to assess the sector`s compliance with environmental regulations. Finally, utilising the pig population record in Yucatan, we provide an estimation of nitrogen grey water footprint for this sector by municipality, together with the corresponding water pollution levels. This is done to establish a classification that facilitates the determination of water sustainability thresholds, which define the suitability for the establishment of new pig farms in each municipality within the state.

2.2.1. Measurements of Water Quality in Wells and Cenotes

This section presents the results of groundwater quality in the state of Yucatan, considering samples taken in wells and cenotes in the state and with particular emphasis on the physicochemical and microbiological parameters. The selection of wells and cenotes sampled in this study was conducted with the following considerations: Static water level, flow orientation (radial, directed towards the coast) and proximity to swine operations (taking into account the population of pigs housed);The chosen 22 water wells and 19 cenotes are extensively scattered, encompassing regions that vary according to their level of exposure to human activity. Specifically: Non-affected, semi-urban regions with pig industry presence, urban regions, urban regions with pig industry presence, and coastal regions. The diverse selection of sites provides a distinct characterisation, distinguishing locations influenced by the pig industry, as well as urban, semi-urban, and remote regions.

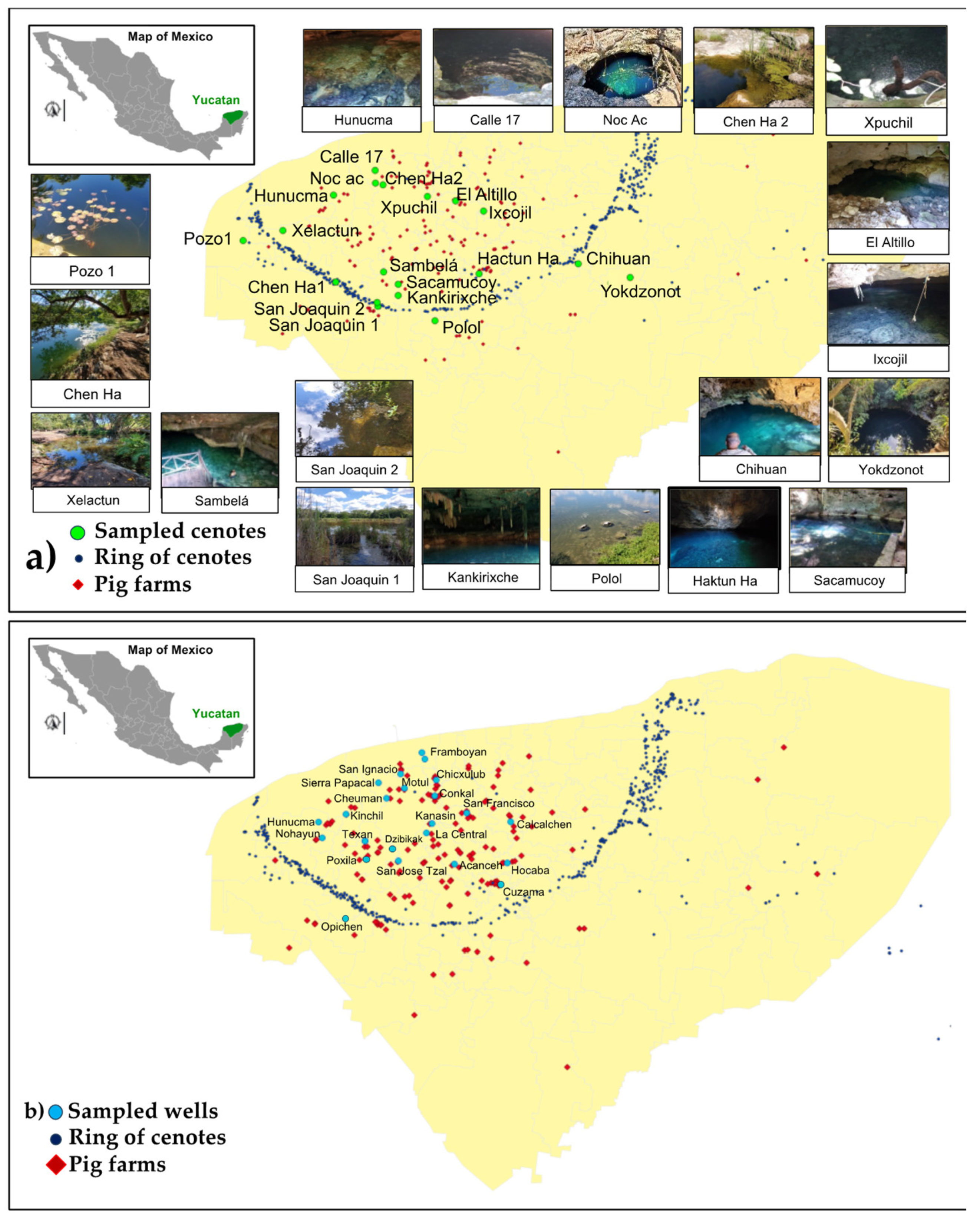

Figure 4a illustrates selected cenotes for the field sampling of water quality (green dots), alongside with the cenotes belonging to the Ring of cenotes system (blue dots) and the location of nearby pig farms in the region (red diamonds). Photographic evidence of the cenotes is also depicted.

The sampled cenotes are categorised according to the orientation of regional flows, six are situated in the northwest zone (Pozo1, Hunucma, Calle 17, Noc ac and Chen Ha2), three in the east zone (Xpuchil, El Altillo and Ixcojil), six in the south zone (Chen Ha1, San Joaquin 2, San Joaquin 2, Sambela, Sacamucoy, and), and four in a designated reference zone (Polol, Hactun ha, Chihuan, Yokdzonot) where the influence of pig farms is less significant. On the other hand, Figure 4b presents the geographical location of wells revised for water quality (light blue dots), alongside with the cenotes belonging to the Ring of cenotes system (blue dots) and the location of nearby pig farms in the region (red diamonds).

All samples were collected and analysed at the water quality laboratory of the Mexican Institute of Water Technology, accredited by the Mexican Accreditation Entity, A.C. (EMA) and approved by the National Water Commission (CONAGUA) with number CNA-GCA-1928, in compliance with the stipulations of Standard NMX-EC-17025:2018, which verifies that the laboratory and its personnel fulfil the technical competence criteria for delivering technically valid test results. The analysed parameters for the water samples from the 22 wells and 19 cenotes included pH, electrical conductivity, dissolved oxygen, temperature and NO₃ among others.

2.2.2. Monitoring of Wastewater Effluents in Industrial Pig Farming

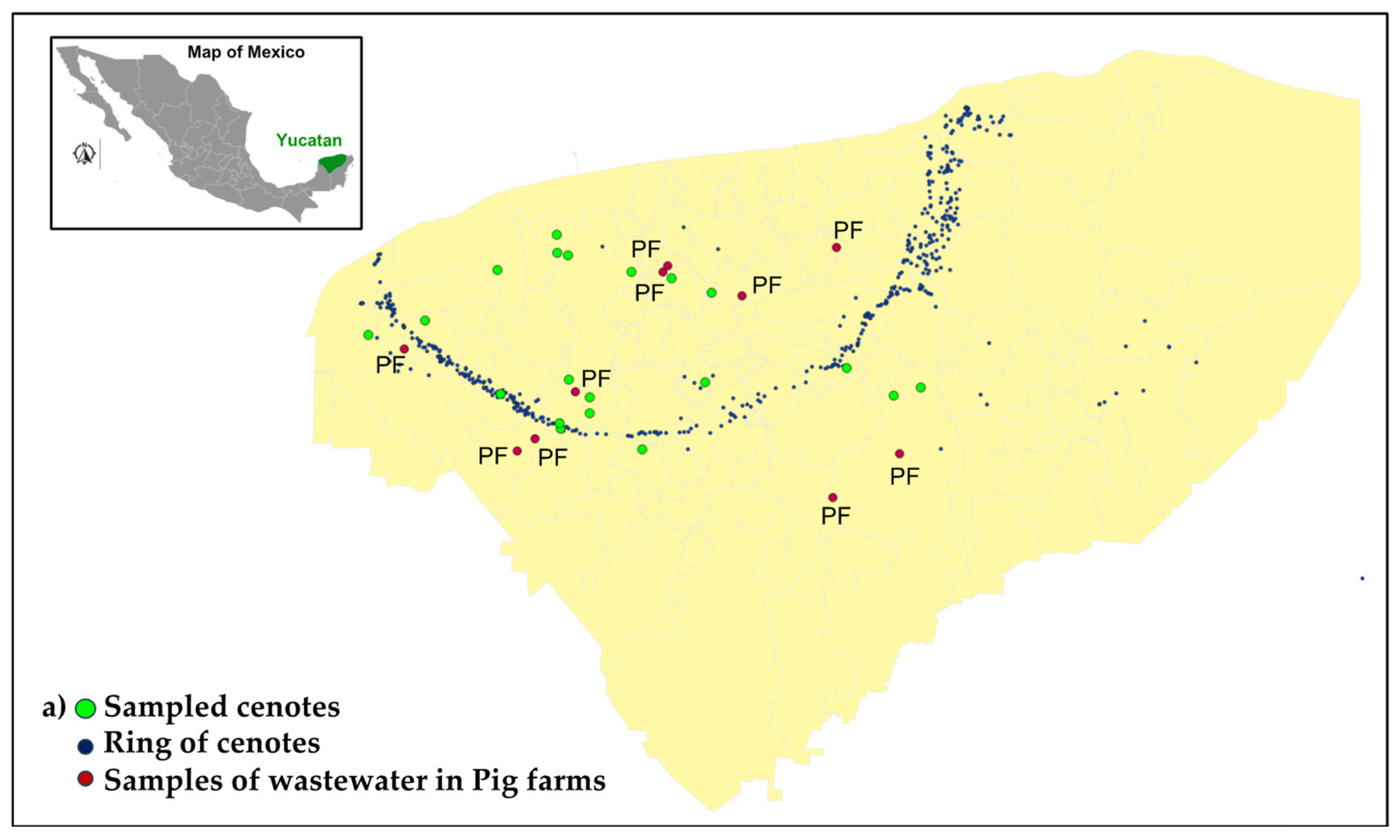

In partnership with the Secretariat of Sustainable Development of Yucatan and the state’s swine sector, ten pig farms engaged in breeding, weaning, fattening, or complete cycles with operational treatment systems were selected to assess their wastewater discharge and compliance to environmental regulations.

Some of the selected farms are situated near environmentally sensitive areas, such as Ramsar sites, whereas others are located at a considerable distance from these vulnerable regions. Table 1 presents the farms that consented to participate in this exercise, along with additional information regarding farm type, discharge volume and the number of treatment systems employed. The sampling of all pig farms occurred in October 2022.

A comprehensive examination of the wastewater treatment system was performed at each farm. The tour was led by representatives from the environmental sector alongside personnel from the farm being visited. A questionnaire was distributed to collect data on the farm and the treatment system. Samples were obtained from four locations within the treatment system during the visit. These were: 1. Pumping station for raw water; 2. Effluent from the anaerobic biodigester. 3. Effluent from the stabilisation lagoon or lagoon system; 4. Outlet from the water disinfection unit (final effluent or discharge).

The wastewater treatment systems employed by the ten participating farms predominantly adhere to this treatment sequence, exhibiting minor variations. Certain farms incorporate processing units for the separation of suspended solids, employing mechanised methods (e.g., drums or rotating screens) or hydraulic systems (i.e., solid separation tanks). All treatment facilities analysed incorporate the four stages of treatment relevant to sampling. Wastewater samples were collected instantaneously, as wastewater is delivered in pulses. More precisely, flow occurs during the washing (flushing) of pig excreta rather than being continuous throughout the day. Each sump has sufficient storage capacity to hold the washings (flushes) produced during roughly 24 hours of pig farm operation, thus functioning as a homogenisation tank. Figure 5 illustrates the geographical distribution of selected pig farms within the state of Yucatan (brown dots), alongside sampled cenotes (green dots) and cenotes belonging to the Ring of Cenotes system (blue dots).

At each sampled location, the parameters stated in the environmental norm [39] were analysed, these are: temperature, pH, total suspended particles, fats and oils, and chemical oxygen demand (COD), total nitrogen, total phosphorus, real colour, toxicity and E. coli.

The samples were taken and preserved in compliance with the relevant Mexican Standards (NMX) for water analysis. The samples were also analysed at accredited Water Quality laboratory of the Mexican Institute of Water Technology.

2.2.3. Nitrogen Grey Water Footprint and Water Pollution Level Linked to Pig Farms at the Municipality Level

The main environmental concern associated with pig farms in Yucatan is the pollution of the karst aquifer. The increasing number of pig farms in the state, has caused social concerns regarding water quality degradation, highlighting the necessity to regulate this activity to safeguard the aquifer’s water quality. An adult pig generates, based on its size and weight, between four and ten times the waste produced by an adult human [40], prompting careful consideration of this activity.

Many nations worldwide have implemented governmental policies to promote the advancement of ecologically sustainable business practices for this industry. The focus concerning pig farms is on setting pollution criteria, particularly with the nitrogen and phosphorus concentrations in animal manure [41,42]. The levels of nitrogen and phosphorus in aquatic ecosystems are identified as one of the nine planetary boundaries that require our attention to achieve environmental sustainability [43].

According to [44] it is possible to define the anthropogenic loads of nitrogen and phosphorus to the environment through the concept of grey water footprint (GWF), namely:

GWF = Load / (C_max – C_nat) (eq.1)

where Load represents the nitrogen generated in pig manure, measured in kg/yr, while C_nat =1.5 mg/l indicates the natural nitrogen concentration in the Yucatan aquifer, particularly in regions with minimal anthropogenic impact (estimated from the average nitrogen concentration of 20 pristine cenotes).

[42] estimates the average nitrogen load at 18 kg/year per pig. Pig manure contains nitrogen, phosphate, and potassium; nevertheless, nitrogen has the greatest contaminant load. Thus, the grey water footprint methodology in this research is developed utilising data related to this pollutant.

On the other hand, the Water Pollution Level (WPL) can be defined as the ratio of nitrogen load to the natural flow of the water aquifer. Given the absence of surface flows in Yucatan, this flow corresponds to the natural recharge value for the aquifer, thus:

WPL= GWF / R_MU (eq.2)

where R_MU is represents the unitary recharge per municipality in the state of Yucatan. The official data indicates that the yearly aquifer recharge is 21,813 hm3/yr. Assuming the aquifer covers a surface area of 124,409 km², the state’s unitary recharge is R_U = 175,336 m³/km². Multiplying this unitary value by the area of each municipality in square kilometers will yield the R_MU, which enables the evaluation of water renewal capacity at the municipal level.

Consequently, if WPL>1, it indicates that the municipality is experiencing a condition of water unsustainability due to the manure load from pigs raised inside its boundaries. This suggest that the aquifer’s water renewal capacity has been exceeded, resulting in the accumulation of nitrogen and degradation of water quality.

As it is shown in (eq.1) to evaluate the degree of water contamination at the municipal level, it is essential to establish a maximum nitrogen concentration threshold for the aquifer and the state’s cenotes (C_max). [45] provided for nitrogen in rivers a C_max value of 3.0 mg/l. In this study results this proposed value and another one more permissive (C_max = 10 mg/l) to see the sensitivity of the results to this variable.

3. Results and Discussion

This section will present the findings regarding water quality measurements in wells and cenotes, providing a summary of the current condition of water quality in the aquifer. Furthermore, findings from the analysis of wastewater discharges from selected pig farms will be presented to determine the industry’s adherence to environmental regulations. Additionally, the nitrogen grey water footprint and water contamination levels by municipality will be provided. Ultimately, thresholds for water sustainability that determine the suitability for establishing additional pig farms in each municipality within the state will be presented.

3.1. Water Quality in Wells and Cenotes

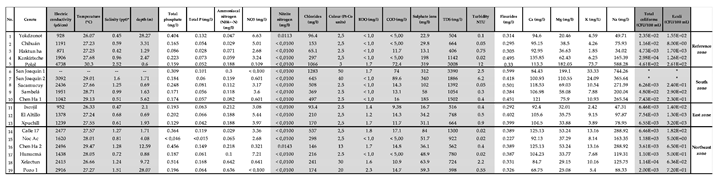

Results for the main parameters measured in the 22 wells are shown in Table 2. Specifically for pH, electric conductivity, dissolved oxygen and temperature. The pH measurements for the sampled wells range from 5.8 to 8.2 UpH, with an average of 7.1 UpH, demonstrating that these values are within the acceptable range.

Electrical conductivity (EC) measures the concentration of dissolved salts or ionic activity in a solution, indicating its capacity to conduct electricity, which varies with temperature and is intrinsically associated with the characteristics of the dissolved materials. EC is recognised as a surrogate for total dissolved solids (TDS) [46,47]. The conversion factor for waters within the Yucatan aquifer may vary between 0.50 to 0.75 due to its karstic characteristics. In this study we employ a standard conversion factor of 0.71 frequently utilised in research [48,49]. The EC values reported for selected wells very from 744 to 3,908 (µS/cm) corresponding to a TDS range of 528 to 2,775 ppm. Elevated levels of electrical conductivity are observed in wells situated southwest of Merida and near the coast, indicating a significant presence of dissolved salts in these regions. Conversely, in wells situated to the east of Merida, values decrease significantly.

On the other hand, levels of dissolved oxygen in the groundwater of Yucatan are primarily determined by the region’s karst geology, the mixing of different water sources, and the hydrological dynamics influenced by rainfall and climatic events. The solubility of oxygen in freshwater ranges from 14.6 mg/L at 0°C to roughly 7 mg/L at 35°C under 1 atm pressure. In saline conditions, the solubility of oxygen is diminished. This explains why wells situated near the coast and north of Merida exhibit low dissolved oxygen levels.

In the evaluation of water quality in the 19 selected cenotes, we examined in situ field parameters including electrical conductivity EC, temperature, and salinity, as well as physicochemical parameters such as chlorides, biochemical oxygen demand BOD, chemical oxygen demand COD, sulphate ions, total dissolved solids TDS, and turbidity.

The analysis examined the presence of minerals including fluorides, Ca, Mg, K, and Na, along with microbiological parameters such as total coliforms and Escherichia coli. We also quantified variables such as fats and oils and active chemicals in Methylene Blue; however, the recorded values were below the method’s quantification limit and are therefore not reported.

In consideration of their presence in pig manure, we also quantified nitrite nitrogen, ammoniacal nitrogen, and total phosphorus, comparing the recorded values with those specified in the National Water Commission’s water quality criteria for the safeguarding of aquatic life. Table 3 provides a summary of all reported values for these parameters in all cenotes.

Figure 6 presents the reported values across all cenotes, panel a) geographical distribution, panel b) results for ammoniacal nitrogen, panel c) results for nitrite nitrogen and panel d) results for total phosphorus. In particular, the three shown results are pertinent to swine farming and water pollution in the aquifer due to pig manure. It is demonstrated that the northeast zone where regional groundwater flows has the most degraded water quality.

Figure 6b presents the data concerning the concentrations of ammoniacal nitrogen in the cenotes, with the red horizontal line denoting the concentration threshold established by the official water quality guidelines of Mexican regulations (0.06 mg/l) for the preservation of aquatic life. The five bars located to the left in the illustration depict the values observed in a region with minimal anthropogenic impact. The levels of ammoniacal nitrogen in these locations are low and generally comply to the norms. However, this does not apply to the other cenotes situated in areas with a large concentration of pig farms. In these areas, most cenotes show concentrations above the stated limit, indicating an issue of ammoniacal nitrogen contamination. The cenotes experiencing the most significant contamination are situated in the northwest region, where contamination levels exceed permissible limits by up to tenfold. This phenomenon is attributed to the aquifer’s regional flow, which predominantly directs northward, facilitating the transport of contaminants in that direction.

The observed concentrations of ammoniacal nitrogen are not solely attributable to pig farms; they are likely also affected by municipal wastewater discharges, particularly from the city of Merida. However, the existence of industrial pig farms exacerbates the contamination of the aquifer and necessitates regulation and oversight.

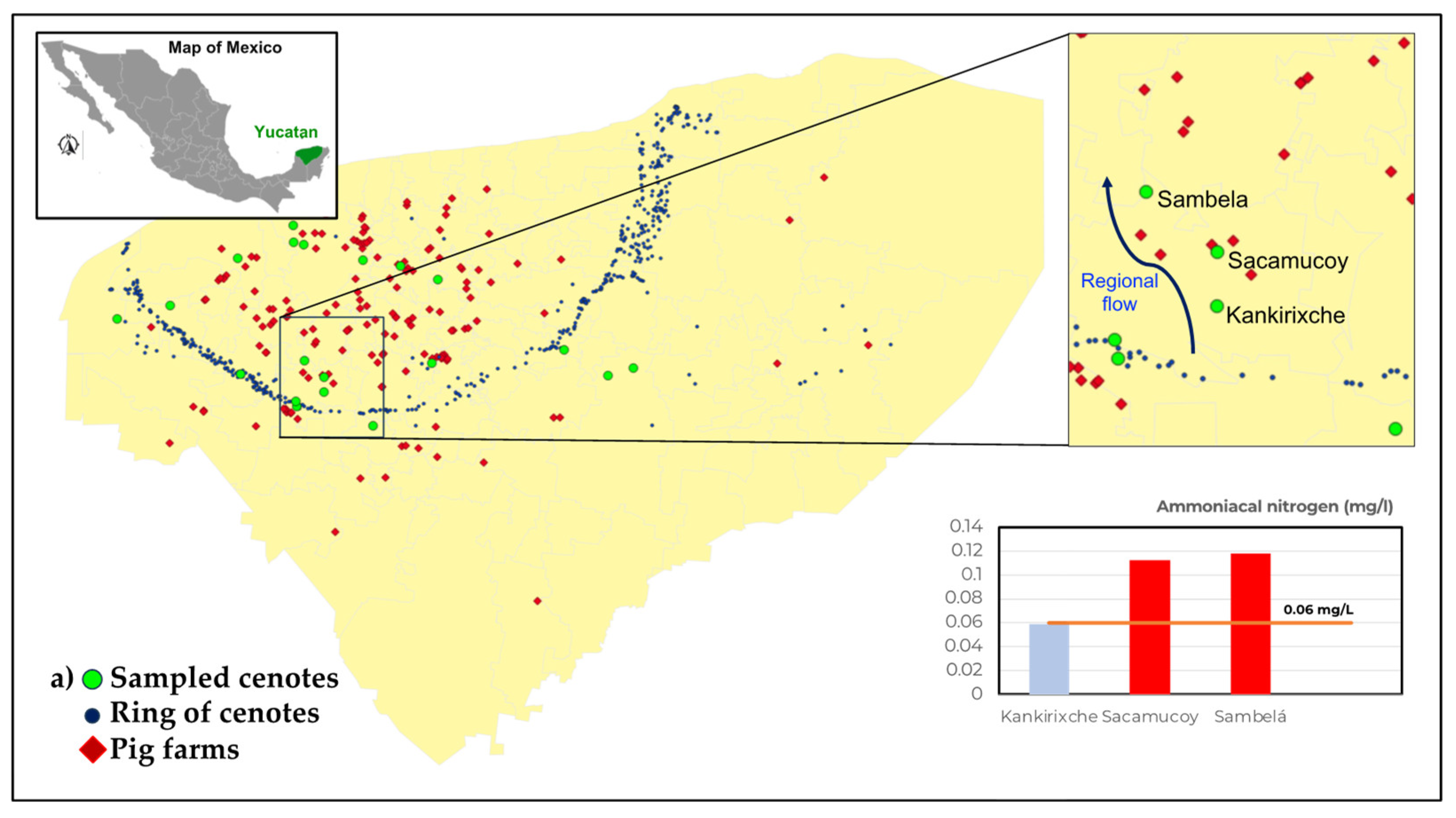

To evaluate the impact of pig farms on ammoniacal nitrogen concentration, cenotes were situated upstream and downstream of the major flow direction in the aquifer, considering the regional subterranean flow. Figure 7 illustrates the results with a detailed view of the geographical region of interest, highlighting the locations of the pig farms, the sampled cenotes, and the prevailing regional flow direction (i.e., north). The inner panel of this figure illustrates that the concentration of ammoniacal nitrogen in the Kankirixche cenote, situated upstream of five pig farms housing over 2000 pigs each, adheres to environmental regulations. In contrast, the concentrations downstream of the farms fail to meet environmental standards, exceeding permissible limits by more than 1.5 times. This result suggests that industrial pig farms contribute to increased pollution.

Conversely, Figure 6c illustrates the quantities of nitrates measured in the same cenotes; the horizontal red line depicts the permissible limit (5.0 mg/L) set forth in the water quality recommendations for urban public supply sources. The findings demonstrate that nitrate concentrations predominantly adhere to environmental regulations, attributable to the assimilation of nitrates in cenotes with hydrophilous and riparian vegetation, which then re-enter the food chain. Thus, in this instance, there is no discernible dominant zone for the element’s existence.

Figure 6d provides the data for total phosphorus concentrations, with the horizontal red line denoting the regulatory allowed limit for the protection of aquatic life for this chemical (0.05 mg/l). Results reveal that nearly all cenotes surpass the stated limit, indicating a regional issue of excessive phosphorus in the aquifer that requires attention.

The results in this section concerning samples from wells and cenotes show a diffuse contamination process. Cenotes specifically show signs of pollution from fresh organic waste, mainly derived from diffuse sources of animal effluent, such as pig farms, leading to a prevalence of ammoniacal nitrogen. In summary, the intensive pig farming practices in the Yucatan Peninsula contribute significantly to water contamination through nutrient runoff.

3.2. Wastewater Effluents in Industrial Pig Farms

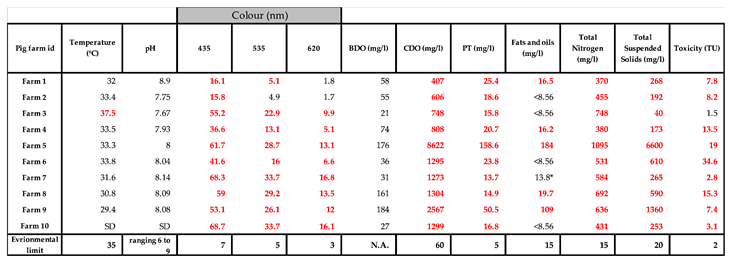

To ascertain whether the wastewater effluents from large pig farms comply with the pollutant limits specified in Mexican environmental rules, ten farms were selected in collaboration with the state`s pig sector, employing a comparable treatment train of four treatment steps. Wastewater samples were collected instantaneously, rather than being aggregated over time. At each sampled location, the parameters of the norm, including spectral analysis, toxicity, E. coli levels, and helminth eggs, were assessed.

The wastewater treatment systems in the verified pig farms typically include a pumping station, a biodigester system with retention times of approximately 30 days, a lagoon system, and a disinfection system. Table 4 presents the results collected from the 10 examined farms, encompassing the discharge volume, the pig population, and the number of treatment systems on each farm. The table displays values compliant with environmental regulations in black figures, while those in red signify failure to comply. As it is shown, the effluents from pig farms comply with environmental regulations only regarding temperature, pH, and, in most instances, Fats and Oils. The permissible limits for COD are exceeded by a factor of 7 to 144, while total nitrogen limits are exceeded by a factor of 24 to 1000. Furthermore, parameters including Total Phosphorus, Total Suspended Solids, and Toxicity are also above environmental regulations. All analysed effluents do not comply with official standards, thereby contributing to regional water pollution.

The non-compliance with environmental regulations concerning water quality in the sampled cenotes and wells, along with the data from pig farm effluents, highlights the critical need to manage and regulate the establishment of more pig farms in Yucatan. Moreover, the urgent obligation to rehabilitate wastewater treatment systems of revised pig farms is evident.

3.3. Nitrogen Grey Water Footprint and Water Pollution Level Linked to Pig Farms at the Municipality Level

To preserve the Yucatan aquifer and promote water sustainability within the swine industry, evidence-based criteria are suggested for the establishment of new pig farms in the state. We utilised the municipal-level census of pig farms to calculate the grey water footprint of nitrogen associated with the pig population, while also assessing the water pollution level at the municipal level.

Calculating the nitrogen grey water footprint of pig manure was the first step in determining the water pollution level (WPL) generated by pig farms at the municipal level. To determine the amount of nitrogen produced by pigs in each municipality (Load in equation 1), we multiply the average yearly nitrogen production of 18 kg per pig [42] by the number of pigs in each municipality. The nitrogen content in pig manure may fluctuate based on the type and size of pigs on a farm; however, this average value is utilised to produce an initial estimate, serving as an indicator of pig farms’ contribution to groundwater pollution per municipality.

After establishing the nitrogen load, it is essential to determine the maximum concentration value of this element in the aquifer (C_max in equation 1). We subsequently evaluated two values for this concentration, the first being the value suggested by [45] with C_max = 3.0 mg/l, which is double the natural concentration established in this work. However, because there are more livestock operations in the state that contribute to the nitrogen load in the groundwater, a different calculation was taken into consideration with a C_max=10 mg/l. This revised estimate accounts for additional nitrogen contributions to the aquifer from other livestock activities. Thus, once the Load and C_max are established, it is possible to determine the grey water footprint of nitrogen attributable to swine activities at the municipal level over the entire state.

To determine the water pollution level per municipality, we utilise equation 2 with the nitrogen GWF estimated and the unitary recharge. The flow variable is calculated for each municipality in the state of Yucatan by multiplying the unitary recharge for the aquifer (total recharge/area of the state) by the area of each municipality. This is given that there are no surface flows in the state. Naturally, the municipalities with the most pigs will also have the largest nitrogen grey water footprint. Water renewal capacity in the aquifer is determined by the water pollution level; if WPL < 1, pig farming activities remain within sustainable water limits; if WPL > 1, they are unsustainable, leading to nutrient overload and nitrogen accumulation that deteriorates water quality.

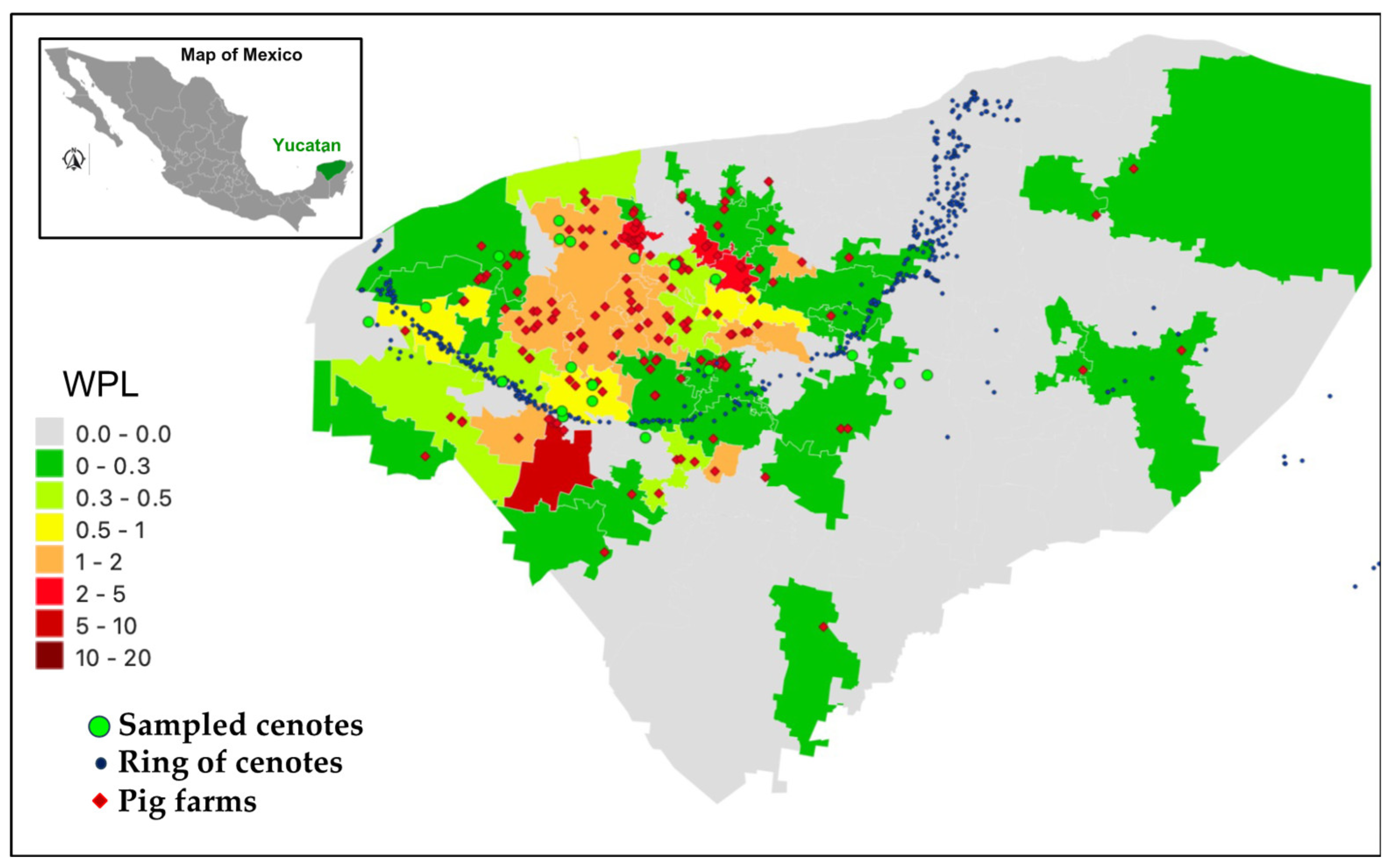

Figure 8 illustrates the findings for WPL across 51 municipalities with pig farms, based on a C_max = 3.0 mg/l. Municipalities practicing sustainable pig farming are illustrated by green (WPL<0.3), light green (0.3<WPL<0.5) and yellow colours (0.5<WPL<1), whereas those where pig farming surpasses the aquifer’s water renewal capacity are indicated orange (1< WPL < 2), red (2 < WPL < 5), dark red (5 < WPL < 10) and burgundy (WPL >10). Municipalities with no presence of pig farms are shown in gray. Findings reveal that 26 municipalities within the state, among the 51 engaged in this industry, encounter very critical conditions regarding the water sustainability of the Yucatan aquifer, specifically those with WPL >2.0. In this municipalities, nitrogen produced by pigs clearly exceeds the water renewal capacity, thereby compromising water quality in the aquifer. Moreover, four municipalities are identified as requiring urgent attention, with 2 < WPL <1. Lastly, 21 municipalities exhibit a WPL < 1, which indicates conditions of water sustainability.

Conversely, Figure 9 illustrates the outcomes for C_max = 10 mg/l, indicating municipalities with sustainable swine activity in green (WPL<0.3), light green (0.3<WPL<0.5) and yellow (0.5<WPL<1), while those where swine activity surpasses the aquifer’s water renewal capacity are marked in orange (1< WPL < 2), red (2 < WPL < 5) and dark red (5 < WPL < 10). The results indicate reduced values in the estimated WPL for the 51 municipalities within the state that have swine industry operations. Despite taking into account for an increased C_max value, it is possible to identify communities exhibiting a water contamination level (WPL > 1) that suggests the unsustainability of this activity for the Yucatan aquifer.

These findings reveal that four municipalities in the state, out of the 51 engaged in this industrial activity, exhibit severely critical conditions for the water sustainability of the Yucatan aquifer, indicated by a WPL>2. The findings suggest that for these four municipalities, the authorisation of permits for the establishment of this economic activity in the area should be stopped, since it surpasses the nitrogen assimilation capacity of the aquifer by at least double. Conversely, 11 municipalities requiring immediate care are recognised with values ranging 1< WPL <2 (orange), while 36 municipalities fall within the sustainable thresholds for this economic activity (WPL < 1).

3.4. Criteria for Sustainable Growth in the Swine Industry

Once the WPL per municipality has been obtained it becomes feasible to identify municipalities necessitating urgent intervention and those where pig farming can occur without posing a contamination risk to the aquifer.

Authors have proposed sustainability restrictions for the pig industry to facilitate environmental conservation and water quality preservation [50]. In China, a nation characterised by substantial pork consumption and production, the idea of grey water footprint is increasingly employed to delineate this threshold [51]. In European nations like the Netherlands and Denmark, recognised as significant pork exporters, the establishment of these limits is deemed urgent from an environmental perspective. Recent studies advocate for the utilisation of the number of pigs per hectare at the municipal level, which is a crucial parameter to consider [52,53].

This study provides a couple of indicators to assess the water sustainability of the pig industry at the municipal level. The two metrics are the density of pigs per hectare and the water pollution level WPL. The sustainable thresholds for the parameters Pigs/ha and WPL are established to ensure that the aquifer’s water renewal capacity is not surpassed, specifically WPL < 1.1 and Pigs/ha = 1.0. These standards were established in collaboration with federal and state governments to regulate the expansion of a significant economic activity while preserving the aquifer’s water quality. In municipalities where WPL >2, the recommendations include reducing pig density, halting permits for new pig farms, and assessing the adequacy of wastewater treatment facilities at existing farms. In municipalities where 1.1<WPL<2.0, it is necessary to upgrade wastewater treatment facilities to meet environmental standards. Furthermore, it was resolved that in towns with high population density, such as Merida and Kanasin, permits for the establishment of new pig farms will be halted.

5. Conclusions

This study presented a comprehensive approach to establish water sustainability criteria for the establishment of new pig farms in the most important karst aquifer in Mexico. This involved analysing pig farm data and pig populations at the municipal level throughout the state, along with obtaining water quality measurements from specified wells and cenotes to assess the current water quality. Furthermore, to assess the adherence of pig farms to environmental regulations in the state, we evaluated the effluents of 10 selected pig farms with the swine sector. Finally, to ascertain the water sustainability of this activity, we estimated nitrogen grey water footprint and water pollution levels for this sector per municipality.

It was shown that water quality in cenotes indicated an issue of ammoniacal nitrogen pollution, with the most significant contamination in the northwest region, where contamination levels exceed permissible limits by up to tenfold. This phenomenon was related to the aquifer’s regional flow, which predominantly directs northward, facilitating the transport of contaminants in that direction. It was demonstrated that the existence of industrial pig farms exacerbates the contamination of the aquifer and needs regulation. In relation to phosphorous, results revealed that nearly all cenotes surpass the stated limit, indicating a regional issue of excessive phosphorus in the aquifer that requires attention. Therefore, a diffuse contamination process was verified. Cenotes specifically show signs of pollution from fresh organic waste, mainly derived from diffuse sources of animal effluent, such as pig farms, leading to a prevalence of ammoniacal nitrogen. In summary, the intensive pig farming practices in the Yucatan Peninsula contribute significantly to water contamination through nutrient runoff.

The non-compliance with environmental standards regarding pig farm effluents was demonstrated, resulting in the direct release of pollutants into the environment. This underscored the urgent necessity to control and regulate the establishment of more pig farms in Yucatan. Furthermore, the imperative to rehabilitate wastewater treatment systems in pig farms is clear.

This study provided a couple of evidence-based indicators to determine water sustainability of the pig industry at the municipal level. These are the density of pigs per hectare and the water pollution level WPL. The sustainable thresholds for the parameters Pigs/ha and WPL were established to ensure that the aquifer’s water renewal capacity is not surpassed, specifically WPL < 1.1 and Pigs/ha = 1.0. Notably, these standards were established in collaboration with federal and state governments to regulate the expansion of a significant economic activity while preserving the aquifer’s water quality. These actions comprise better management practices to balance economic benefits with environmental preservation.

It should be noted that this type of investigation has not been undertaken in Mexico; thus, it is expected that the guidelines will be beneficial to other state authorities responsible for controlling this economic activity.
