Mechanical Characterization and Modeling of GF Reinforced PA Built by AM

1. Introduction

The Additive Manufacturing (AM) techniques are gaining an ever growing attention in many engineering applications due to their advantages in terms of endless possibilities to generate new designs impossible with other technologies, and – more recently – even with advantages in terms of reduction of cost and material waste [1]. Among the numerous AM techniques, the material extrusion (ME, ASTM F2792 – 12) is particularly interesting for plastics [2]: mostly known as Fused Filament Fabrication (FFF) or with the trademark name Fused Deposition Modeling™ (FDM, Stratasys, Inc.) is based on the deposition of a fused wire of a polymeric material on a plate and then, layer by layer, on the construction of the component by progressive addition of material [3]. Besides the low cost of this technology, a main advantage of FFF lies in the way the material is used, that is by melting a thermoplastic, which allows extensive choices in terms of basic raw materials [4], charged composites [5], but also multifunctional metamaterials [6] and sensorial [7,8].

The properties of components obtained by AM depend on a lot of different parameters, obviously the first being the nature of the material [4], others related to the processing parameters [9], and their combinations. Many researches were devoted, in fact, to examine the process parameters for several well-known plastics such as the widely spread PLA [10,11,12], ABS [13,14,15,16], PC [16], and ASA [17]. Moreover the adhesion to the plate and between the layer is critical for the quality of FFF parts: this has been studied for example for ABS [18] and PC [18] also considering the effect of temperature.

Processing parameters, and their influence, are many and several studies were done; among the others, the main parameters of influence include the infill density and infill patterns [11,17], the layers thickness [12,14,17] and the layers gap [13]. Many papers consider the various parameters for an optimization, a review is given in [19]

The infill pattern plays an important role and, even with simple linear pattern, it has demonstrated that the way the filament is deposited can have a significant influence on stiffness and strength of components built by FFF. An analysis of the influence of the orientation of the fused wire was carried out by many authors, among them Wu et al. with PEEK and ABS [14], Somireddy et al. [20] Ahn et al. [13] Alaimo et al. [21] Croccolo et al. for ABS [15], Rajpurohit et al. [22] Lanzotti et al. [10] Dai et al. [23] and Yilmaz et al. [24] with PLA, Avalle et al. with PETG and PA12 [25].

Therefore, since a typical infill is by stacked layers of parallel filaments it is natural to compare this type of structured arrangement equivalent to the stack of a classical laminated composite. The layered structure built by FFF can therefore be studied with methods used for composites since decades that form the so-called Classical Lamination Theory (CLT). The CLT is a homogenization method developed in the 20th century [26,27,28] to predict the mechanical behavior of layered composites made assembling layers of reinforced polymeric matrix with various stacking, thicknesses, and fiber orientations. The idea, proposed some year ago by Casavola et al. [29] and then used to characterize the behavior of layered FFF specimens or components by several authors and with different materials and different stacking. Somireddy et al. [20] used the technique to study ABS cross-ply stacking at 0°, 45°, and 90° angles, and similarly with PLA in [22,24]; Musenich et al. [8] considered the analysis of a conductive filament obtained by charging PLA with carbon nano-particles; Alaimo et al. [21] considered more orientation but aligned filaments in all layers. Nasirov et al. [30] compared the results from the CLT with a finite element model finding a good correlation between the models.

The analysis of the strength of layered specimens built by FFF can be carried out by using the failure criteria of composite materials. The study is more complex since the failure of composites relies on several failure criteria proposed since the mid-20th century. In [25] Avalle et al. used the Tsai-Hill [31,32] and Tsai-Wu [33,34] criteria to model the failure of PETG and PA12. Musenich et al. [8] similarly considered the PLA charged material with the Tsai-Wu failure criterion. Both found a good correlation with the experimental results.

In this work the results from experimental tests on layered specimens made of a fiber-reinforced polyamide are reported and analyzed. The specimens were built layered by FFF using a symmetric angle-ply configuration with variable orientations of the fibers. The experimental results clearly show the strong influence of fiber orientation on both stiffness and strength. The adoption of the CLT and of different failure criteria shows applicability of the method to forecast the mechanical properties of components built by FFF. The mechanical properties in terms of layer stiffness and strength could be identified for this purpose.

2. Materials and Methods

2.1. Mechanical Behavior of a Lamina and Laminate

Most composite materials are made of a stack of unidirectional or woven laminae. The mechanical behavior of a single lamina is typically orthotopic along the fiber direction. The relation between stress and strain in the x-y lamina plane is described by the well-known relation [26,27,28]:

$$\left\{\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{yy}\\ {\gamma }_{xy}\end{array}\right\}=\left[\begin{array}{ccc}{S}_{xx}& S_{xy}& 0\\ S_{xy}& S_{yy}& 0\\ 0& 0& S_{ss}\end{array}\right]\left\{\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{yy}\\ {\sigma }_{xy}\end{array}\right\}$$

(1)

Where the terms Q_ij are related to the material constants with by the following classical relation:

$$\left\{\begin{array}{c}\begin{array}{c}{S}_{xx}={\displaystyle \frac{1}{E_{xx}}}\\ S_{xy}=-{\displaystyle \frac{{\nu }_{xy}}{E_{xx}}}=-{\displaystyle \frac{{\nu }_{yx}}{E_{yy}}}\\ S_{yy}={\displaystyle \frac{1}{E_{yy}}}\end{array}\\ S_{ss}={\displaystyle \frac{1}{G_{xy}}}\end{array}\right.$$

(2)

With E_xx, E_yy, ν_xy and G_xy the elastic modulus along the fiber direction, the elastic modulus in the transverse direction, the coefficient of transverse contraction, and the tangential modulus respectively.

The inverse relation is given in Eq. (3) as follows:

$$\left\{\begin{array}{c}{\sigma }_{xx}\\ {\sigma }_{yy}\\ {\tau }_{xy}\end{array}\right\}=\left[\begin{array}{ccc}{Q}_{xx}& Q_{xy}& 0\\ Q_{xy}& Q_{yy}& 0\\ 0& 0& Q_{ss}\end{array}\right]\left\{\begin{array}{c}{\epsilon }_{xx}\\ {\epsilon }_{yy}\\ {\gamma }_{xy}\end{array}\right\}$$

(3)

Since the laminae are not generally stacked aligned along a single direction, their behavior in a generic reference system, common to all the stacked laminae, is anisotropic. By means of simple trigonometric transformations the stress-strain relations in a generic common direction 1-2 are:

$$\left\{\begin{array}{c}{\sigma }_1\\ {\sigma }_2\\ {\tau }_{12}\end{array}\right\}=\left[\begin{array}{ccc}{Q}_{11}& Q_{12}& Q_{16}\\ Q_{12}& Q_{22}& Q_{26}\\ Q_{16}& Q_{26}& Q_{66}\end{array}\right]\left\{\begin{array}{c}{\epsilon }_1\\ {\epsilon }_2\\ {\gamma }_{12}\end{array}\right\}$$

(4)

The mechanical behavior of a laminate is, in the simplest approach, obtained from the Kirchoff-Love hypothesis: restricting to the in-plane, membrane, behavior, the relations between the laminate stress and the in-plane strain are:

$$\left\{\begin{array}{c}{\sigma }_1\\ {\sigma }_2\\ {\tau }_{12}\end{array}\right\}={\displaystyle \frac{1}{t}}\left[\begin{array}{ccc}{A}_{11}& A_{12}& A_{16}\\ A_{12}& A_{22}& A_{26}\\ A_{16}& A_{26}& A_{66}\end{array}\right]\left\{\begin{array}{c}{\epsilon }_1\\ {\epsilon }_2\\ {\gamma }_{12}\end{array}\right\}$$

(5)

With t the thickness of the laminate, sum of the individual thickness of the stacked layers. The laminate constitutive equations are obtained from the summation of the contribution of each single lamina to the total stiffness:

$$A_{ij}=\sum _{k=1}^n\left(z_k-z_{k-1}\right)Q_{ij,k}$$

(6)

With n the number of layers, z_k and z_k-1 the top and bottom layer distance from the midsection of the laminate of the k-th layer, and Q_ij,k the ij stiffness coefficient of the k-th layer. In the case of a symmetric laminate the terms A₁₆ and A₂₆ are zero due to cancellation of the contributions from the symmetric layers.

When subjecting a specimen to simple tension the stress-strain relations allow to compute the apparent elastic modulus of the laminate. In turn, since the laminate mechanical constants derive from the contribution of the stacked layers, it would be possible to identify the layers mechanical properties, as from Eq. 2.

When subjecting a laminate specimen to pure tensile, and avoiding spurious in-plane shear deformation with symmetric stacking, two cases can occur: in the case of uniaxial deformation (UD), the global, laminate, stress-strain relation is as follows (directly derived from Eq. 5):

$$\left\{\begin{array}{c}{\sigma }_1\\ {\sigma }_2\\ {\tau }_{12}\end{array}\right\}={\displaystyle \frac{1}{t}}\left[\begin{array}{ccc}{A}_{11}& A_{12}& A_{16}\\ A_{12}& A_{22}& A_{26}\\ A_{16}& A_{26}& A_{66}\end{array}\right]\left\{\begin{array}{c}{\epsilon }_1\\ 0\\ 0\end{array}\right\}$$

(7)

The apparent elastic modulus will be simply:

$${\sigma }_1={\displaystyle \frac{1}{t}}{A}_{11}{\epsilon }_1 \to E_{app,UD}={\displaystyle \frac{A_{11}}{t}}$$

(8)

In the case of uniaxial stress (US) instead, the stress-strain relation is:

$$\left\{\begin{array}{c}{\sigma }_1\\ 0\\ 0\end{array}\right\}={\displaystyle \frac{1}{t}}\left[\begin{array}{ccc}{A}_{11}& A_{12}& A_{16}\\ A_{12}& A_{22}& A_{26}\\ A_{16}& A_{26}& A_{66}\end{array}\right]\left\{\begin{array}{c}{\epsilon }_1\\ {\epsilon }_2\\ {\gamma }_{12}\end{array}\right\}$$

(9)

The apparent elastic modulus will be simply:

$${\sigma }_1={\displaystyle \frac{1}{t}}\left(A_{11}-{\displaystyle \frac{A_{12}^2}{A_{22}}}\right){\epsilon }_1 \to E_{app,US}={\displaystyle \frac{1}{t}}\left(A_{11}-{\displaystyle \frac{A_{12}^2}{A_{22}}}\right)$$

(10)

Standard tensile tests according to ISO 527-1 [35] or ASTM D 638 [36] are better considered in a state of uniaxial stress, therefore Eq. (10) will be used to show that a layered structure obtained by material extrusion with FFF behaves like a laminated composite, and – consequently – to identify the elastic properties of the layers. Identification will be carried out by testing symmetric angle-ply specimen with different orientations of the layer and with a non-linear regression analysis of the apparent modulus with variable moduli as in Eq. (2).

2.2. Mechanical Strength of a Lamina and Laminate

Failure of polymeric and composite materials is way more complex than in metals due to both the non-linear behavior and anisotropy. Although the anisotropic behavior of metals is sometimes recognized, the effects of anisotropy are considered negligible, thus bringing relatively simple failure criteria such as the well-known one by Von Mises. An extension of the Von Mises criteria is due to Hill [37], which is also the basis for some failure criteria for composites. First of all, the Tsai-Hill [31,32] criterion is a validated method, used for decades, to model the failure of composites in multiaxial loading. The Tsai-Hill criterion states that failure does not occur in a layer when the following condition is met:

$${\left({\displaystyle \frac{{\sigma }_{xx}}{X}}\right)}^2-{\displaystyle \frac{{\sigma }_{xx}{\sigma }_{yy}}{X^2}}+{\left({\displaystyle \frac{{\sigma }_{yy}}{Y}}\right)}^2+{\left({\displaystyle \frac{{\sigma }_{xy}}{S}}\right)}^2\le 1$$

(11)

Where X, Y and S are the strength of each layer along the fiber direction x, in the transverse direction y, and in shear. The Tsai-Hill criterion has several limitations, first there is no distinction between tension and compression.

In the case of uniaxial loading in the 1 direction, the uniaxial stress σ₁ should be limited to:

$${\displaystyle \frac{{\sigma }_1^2{\cos }^4\theta }{X^2}}-{\displaystyle \frac{{\sigma }_1^2{\cos }^2\theta {\sin }^2\theta }{X^2}}+{\displaystyle \frac{{\sigma }_1^2{\sin }^4\theta }{Y^2}}+{\displaystyle \frac{{\sigma }_1^2{\cos }^2\theta {\sin }^2\theta }{S^2}}\le 1$$

(12)

Which can be simplified as:

$${\sigma }_1^2\left({\displaystyle \frac{{\cos }^4\theta }{X^2}}-{\displaystyle \frac{{\cos }^2\theta {\sin }^2\theta }{X^2}}+{\displaystyle \frac{{\sin }^4\theta }{Y^2}}+{\displaystyle \frac{{\cos }^2\theta {\sin }^2\theta }{S^2}}\right)\le 1$$

(13)

As for the elastic properties, the strength coefficients can be identified with a non-linear regression analysis of the uniaxial strength of layered symmetric angle-ply specimen with different orientations:

$${\sigma }_1\le {\displaystyle \frac{1}{\sqrt{\frac{{\cos }^4\theta }{X^2}-\frac{{\cos }^2\theta {\sin }^2\theta }{X^2}+\frac{{\sin }^4\theta }{Y^2}+\frac{{\cos }^2\theta {\sin }^2\theta }{S^2}}}}=S_1$$

(14)

Further development of this criterion led to the Tsai-Wu criterion [33,34,38] which allows to distinguish between failure in tension and in compression:

$${\displaystyle \frac{{\sigma }_x^2}{X_t{X}_c}}-{2F}_{xy}^{*}{\displaystyle \frac{{\sigma }_x{\sigma }_y}{\sqrt{X_t{X}_c{Y}_t{Y}_c}}}+{\displaystyle \frac{{\sigma }_y^2}{Y_t{Y}_c}}+{\left({\displaystyle \frac{{\sigma }_{xy}}{S}}\right)}^2+{\displaystyle \frac{\left(X_c-X_t\right){\sigma }_x}{X_t{X}_c}}+{\displaystyle \frac{\left(Y_c-Y_t\right){\sigma }_y}{Y_t{Y}_c}}\le 1$$

(15)

Where X_t and X_c are the strength in tension and compression respectively of each layer along the fiber direction, Y_t and Y_c the strength in tension and compression respectively along the fiber direction, and S the shear strength, F^*_xy a correlation coefficient. The Tsai-Wu criterion is more suitable for composite materials for which are known to have different strengths in tension rather than in compression.

In the case of uniaxial loading in the 1 direction, the condition is then:

$$\begin{gathered} {\displaystyle \frac{{\sigma }_1^2{\mathit{cos}}^4\theta }{X_t{X}_c}}-{2F}_{xy}^{*}{\displaystyle \frac{{\sigma }_1^2{\mathit{cos}}^2\theta {\mathit{sin}}^2\theta }{\sqrt{X_t{X}_c{Y}_t{Y}_c}}}+{\displaystyle \frac{{\sigma }_1^2{\mathit{sin}}^4\theta }{Y_t{Y}_c}}+{\displaystyle \frac{{\sigma }_1^2{\mathit{cos}}^2\theta {\mathit{sin}}^2\theta }{S^2}}+{\displaystyle \frac{\left(X_c-X_t\right){\sigma }_1^2{\mathit{cos}}^4\theta }{X_t{X}_c}} \\ +{\displaystyle \frac{\left(Y_c-Y_t\right){\sigma }_1^2{\mathit{sin}}^2\theta }{Y_t{Y}_c}}\le 1 \end{gathered}$$

(16)

The strength S₁ of each layer subject to unidirectional loading is then:

$$\begin{array}{l}{\sigma }_1\\ \le {\displaystyle \frac{1}{\sqrt{\frac{{\mathit{cos}}^4\theta }{X_t{X}_c}-{2F}_{xy}^{*}\frac{{\mathit{cos}}^2\theta {\mathit{sin}}^2\theta }{\sqrt{X_t{X}_c{Y}_t{Y}_c}}+\frac{{\mathit{sin}}^4\theta }{Y_t{Y}_c}+\frac{{\mathit{cos}}^2\theta {\mathit{sin}}^2\theta }{S^2}+\frac{\left(X_c-X_t\right){\mathit{cos}}^4\theta }{X_t{X}_c}+\frac{\left(Y_c-Y_t\right){\mathit{sin}}^2\theta }{Y_t{Y}_c}}}}\\ =S_1\end{array}$$

(17)

However, both these criteria do not allow to distinguish between different failure mode: it is well known that in composite materials failure can happen in several modes due to the heterogeneity of the components. Some typical failure modes are fiber failure in tension along the fiber direction, matrix cracking along the transverse direction, fiber buckling in compression along the fiber direction, shear failure of the matrix, and delamination. To take into account these differences, several criteria have been proposed: most proposes a combination between failure mode of the fiber and of the matrix. One of the first criteria is due to Hashin [39,40] and stated as:

$$\left\{\begin{array}{cc}{\left({\displaystyle \frac{{\sigma }_{xy}}{S}}\right)}^2+{\left({\displaystyle \frac{{\sigma }_y}{Y_T}}\right)}^2\le 1& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ {\left({\displaystyle \frac{{\sigma }_x}{X_t}}\right)}^2+{\left({\displaystyle \frac{{\sigma }_{xy}}{S}}\right)}^2\le 1& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(18)

In unidirectional loading, the criterion becomes:

$$\left\{\begin{array}{cc}{{\left({\displaystyle \frac{{\sigma }_1{\mathit{sin}}^2\theta }{Y_T}}\right)}^2+\left({\displaystyle \frac{{\sigma }_1\mathit{sin}\theta \mathit{cos}\theta }{S_{12}}}\right)}^2\le 1& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ {\left({\displaystyle \frac{{\sigma }_1{\mathit{cos}}^2\theta }{X_T}}\right)}^2+{\left({\displaystyle \frac{{\sigma }_1\mathit{sin}\theta \mathit{cos}\theta }{S_{12}}}\right)}^2\le 1& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(19)

Which allows to identify the layer strength in the unidirectional loading of each layer as:

$$\left\{\begin{array}{cc}{\sigma }_1\le {\displaystyle \frac{Y_{t}S}{\sqrt{S^2{\mathit{sin}}^4\theta +Y_T^2{\mathit{sin}}^2\theta {\mathit{cos}}^2\theta }}}=S_{1,MF}& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ {\sigma }_1\le {\displaystyle \frac{X_{t}S}{\sqrt{S^2{\mathit{cos}}^4\theta +X_T^2{\mathit{sin}}^2\theta {\mathit{cos}}^2\theta }}}=S_{1,FF}& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(14)

Further development of this criterion is due to Christensen [41] which introduces differentiation between failure in tension and in compression:

$$\left\{\begin{array}{cc}\left({\displaystyle \frac{1}{Y_t}}+{\displaystyle \frac{1}{Y_c}}\right){\sigma }_y+{\displaystyle \frac{1}{Y_t{Y}_c}}{\sigma }_y^2+{\displaystyle \frac{{\sigma }_{xy}^2}{S^2}}\le 1& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ \left({\displaystyle \frac{1}{X_t}}+{\displaystyle \frac{1}{X_c}}\right){\sigma }_x+{\displaystyle \frac{1}{X_t{X}_c}}{\sigma }_x^2\le 1& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(21)

In unidirectional loading, the criterion becomes:

$$\left\{\begin{array}{cc}\left({\displaystyle \frac{1}{Y_t}}+{\displaystyle \frac{1}{Y_c}}\right){\sigma }_1{\mathit{sin}}^2\theta +{\displaystyle \frac{1}{Y_t{Y}_c}}{\sigma }_1^2{\mathit{sin}}^4\theta +{\displaystyle \frac{{\sigma }_1^2{\mathit{sin}}^2\theta {\mathit{cos}}^2\theta }{S^2}}\le 1& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ \left({\displaystyle \frac{1}{X_t}}+{\displaystyle \frac{1}{X_c}}\right){\sigma }_1{\mathit{cos}}^2\theta +{\displaystyle \frac{1}{X_t{X}_c}}{\sigma }_1^2{\mathit{cos}}^4\theta \le 1& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r}\mathrm{f} \mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(22)

A similar approach was used to define several other criteria even more complex in terms of governing parameters. Among those criteria, the simpler LaRC05 model [42,43] is worth mentioning:

$$\left\{\begin{array}{cc}{\left({\displaystyle \frac{{\sigma }_{xy}}{S+{\eta }_T{\sigma }_y}}\right)}^2+{\left({\displaystyle \frac{{\sigma }_y}{Y_T}}\right)}^2\le 1& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ {\displaystyle \frac{{\sigma }_x}{X_t}}\le 1& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(18)

In unidirectional loading, the criterion becomes:

$$\left\{\begin{array}{cc}{\left({\displaystyle \frac{{\sigma }_1\mathit{sin}\theta \mathit{cos}\theta }{S_{12}+{\eta }_T{\sigma }_1{\mathit{sin}}^2\theta }}\right)}^2+{\left({\displaystyle \frac{{\sigma }_1{\mathit{sin}}^2\theta }{Y_T}}\right)}^2\le 1& \mathrm{m}\mathrm{a}\mathrm{t}\mathrm{r}\mathrm{i}\mathrm{x} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\\ \left({\displaystyle \frac{1}{X_t}}\right){\sigma }_1{\mathit{cos}}^2\theta \le 1& \mathrm{f}\mathrm{i}\mathrm{b}\mathrm{e}\mathrm{r} \mathrm{f}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{u}\mathrm{r}\mathrm{e}\end{array}\right.$$

(19)

2.3. Manufacturing of Layered Composites by AM

Experimental results to apply the proposed models and identify the material properties were obtained from tensile tests on layered composites built by AM. The tensile tests specimens were built with a Mark Two™ (MarkForged^®, Waltham, MA) printer able to deposit layers of continuous fibers of various types (glass, carbon, aramid) in a polyamide matrix. The deposition of the polymeric matrix and of the fiber is possible thanks to the use of two extruders, one for the matrix and the second for the fiber, and an automated blade to cut the fiber at the end of each composite layer.

The specimens were prepared for printing by using the dedicated proprietary slicing software Eiger™. The slicer starts by importing the geometry saved in an STL file, then it allows to define the layer sequence. In particular, it allows to define the number and sequence of composite layers and, for each layer, to define the orientation of the fiber (at least for the basic pattern of fiber parallel and aligned in a single direction).

The STL file containing the geometry of the specimens was created with an automated script in OpenSCAD (https://www.openscad.org) a free software for creating solid CA models with a scripting language. The script allows to generate very quickly and efficiently the geometry of tensile specimens parametrically. In the current work, a standard geometry as in the ISO 527-1 or ASTM D 638 was not used due to restrictions related to the used printer. The classical larger specimens (like ISO 527-2, types 1A or 1B, [44]) are too bulky, expensive and time consuming, whereas with the smaller specimens (such as ISO 527-2 5A or 5B) it is impossible to obtain a deposition of the fiber compatible with the objectives of the current research (there are technical limitations due the deposition of the fiber into smaller spaces, for example due to the curvature of the filament, as it is evident from Figure 1).

All the samples were 3D printed by alternating layers of continuous glass fiber (from MarkForged^®) with layers of the polyamide reinforced Onyx™ (also from MarkForged^®; reinforcement is made of carbon microfibers). Basic properties of the two materials are in Table 1. Recently, some papers were published about fiber-reinforced Onyx. In [45,46] carbon-fiber specimens and components were studied; in [47] Kevlar reinforced Onyx samples were characterized; in [48] Yun et al. examined the failure of fiberglass reinforced Onyx, showing in particular the influence of the number of layers on the strength in tension.

The fiber deposition was done to obtain a symmetric balanced angle-ply structure according to a [±θ]_4s layering scheme, being θ the angle between the longitudinal axial direction of the specimen and the fiber direction. The angle θ = 0 (Figure 1(b)) corresponds to the fibers aligned to the longitudinal specimen axis, whereas for θ = 90° the fibers are perpendicular to that axis (Figure 1(f)). Symmetry was chosen to avoid unwanted coupling of in-plane and bending behavior; the balanced angle-ply arrangement was chosen to obtain a globally orthotropic structure to avoid coupling of tension with shear behavior. The number of layers was the minimum to obtain a sufficiently homogenized structure.

3. Results

3.1. Experimental Plan

The aim of the current work was to show that the classical lamination theory and the failure criteria used for composite materials can be used to describe the mechanical behavior and strength of layered components obtained by filament deposition. Additionally, these theories can be used to identify the elastic properties of the layers and their strength. These theories and data could be used for the design of components made by filament deposition.

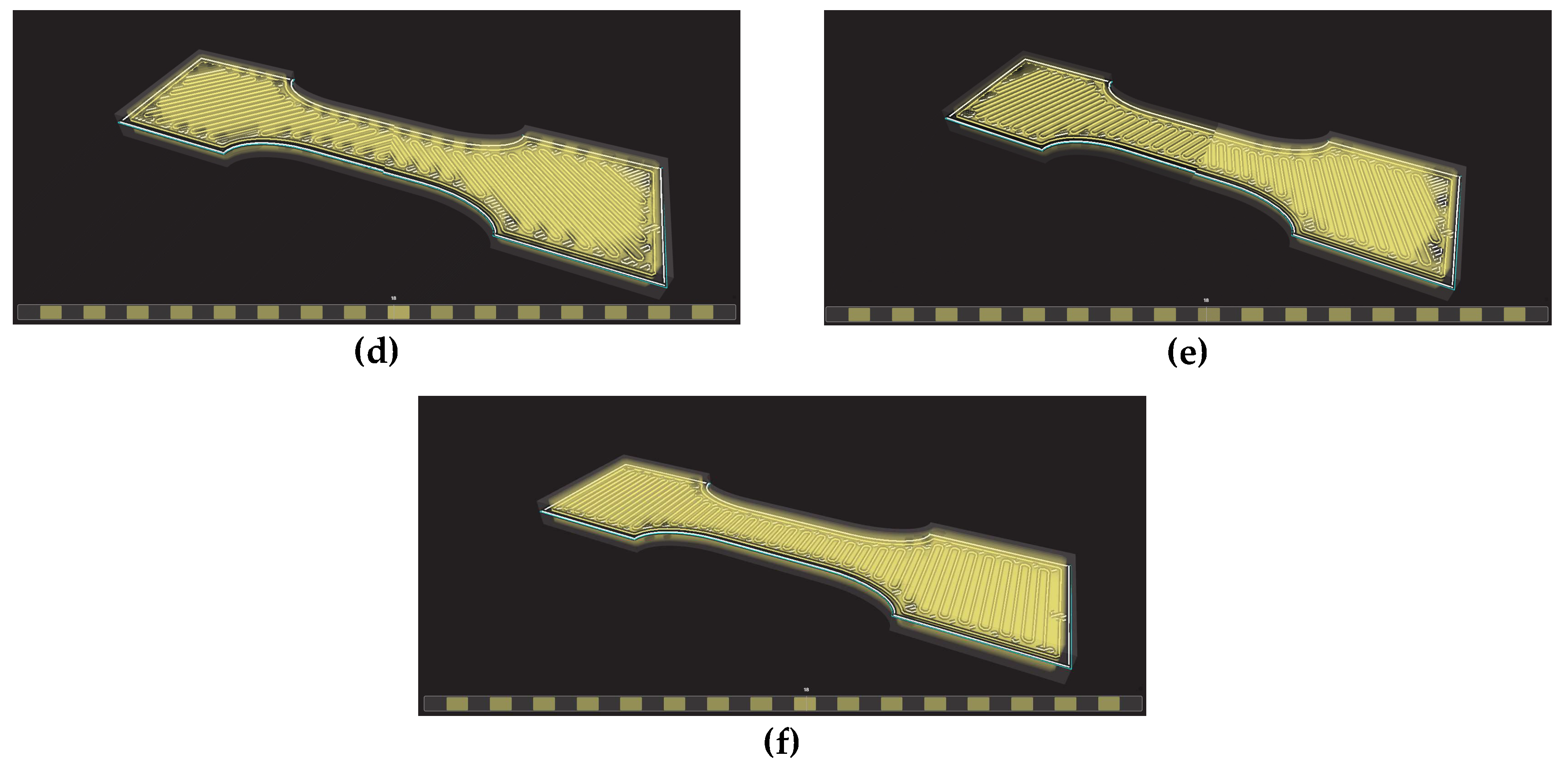

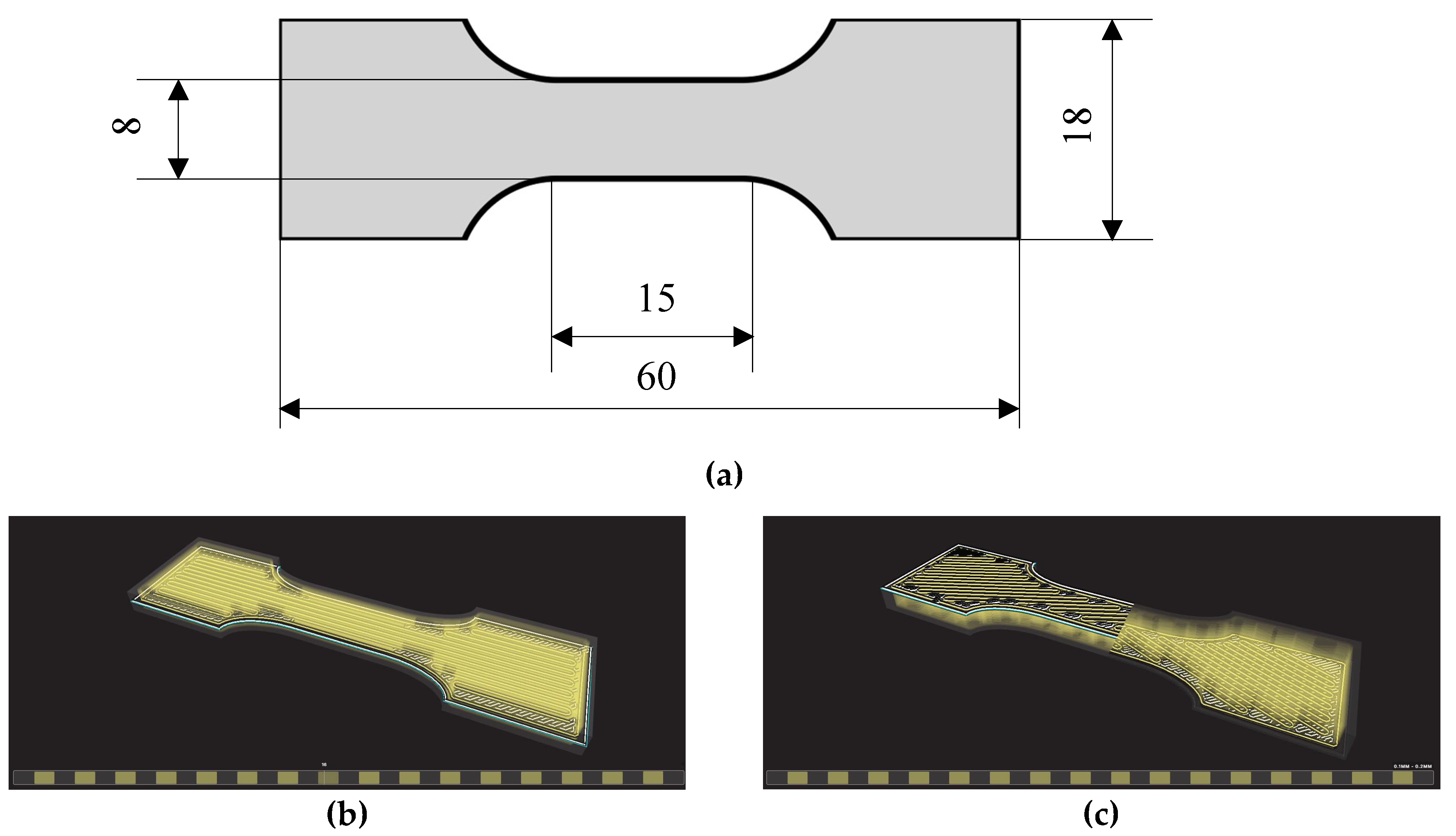

To this aim, samples according to Figure 1 were manufactured with the Mark Two printer with a number of different orientations as show in Table 2.

Note that [±θ]_4s correspond to the following sequence (Figure 1(b)): [+θ/−θ/+θ/−θ/+θ/−θ/+θ/−θ/−θ/+θ/−θ/+θ/−θ/+θ/−θ/+θ]. The cases when θ = 0 or θ = 90° correspond to unidirectional laminates with fiber aligned or perpendicular to the specimen longitudinal axis respectively.

Other building or lamination parameters were not changed, being not of interest for the current work. In practice, the default, standard, printing parameters of the machine were used.

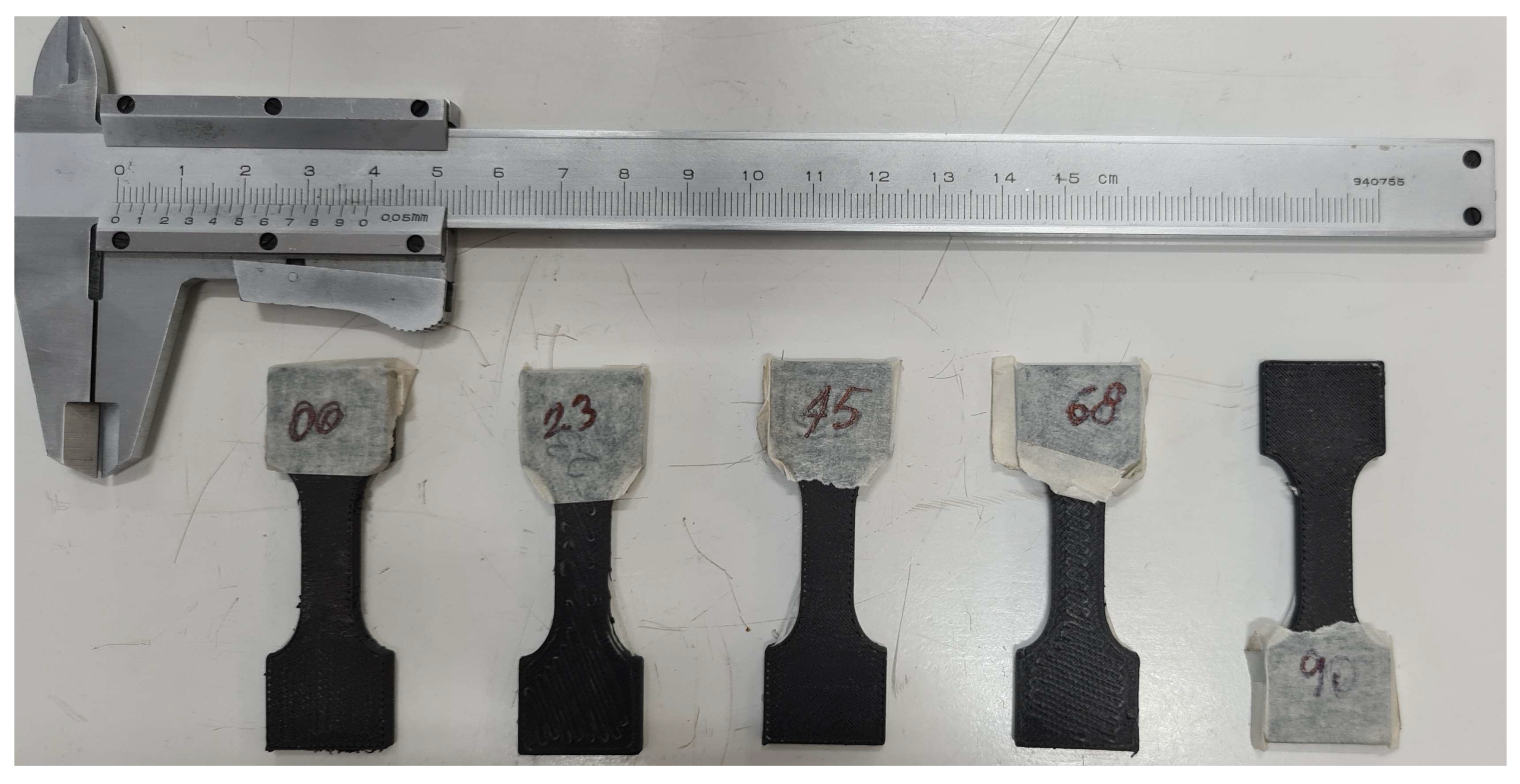

Figure 2 shows one sample for each lamination of Table 2.

3.2. Experimental Results

Tensile tests according to ISO 527 were performed with a Zwich Z010 Pro Line universal material testing machine with simple wedge grips. The tests were conducted at a constant speed of 0.5 mm/s until rupture. Force-displacement curves were measured with a 10 kN load cell and a displacement transducer, and recorded by means of the control unit of the machine and the testXpert™ III testing software from Zwick.

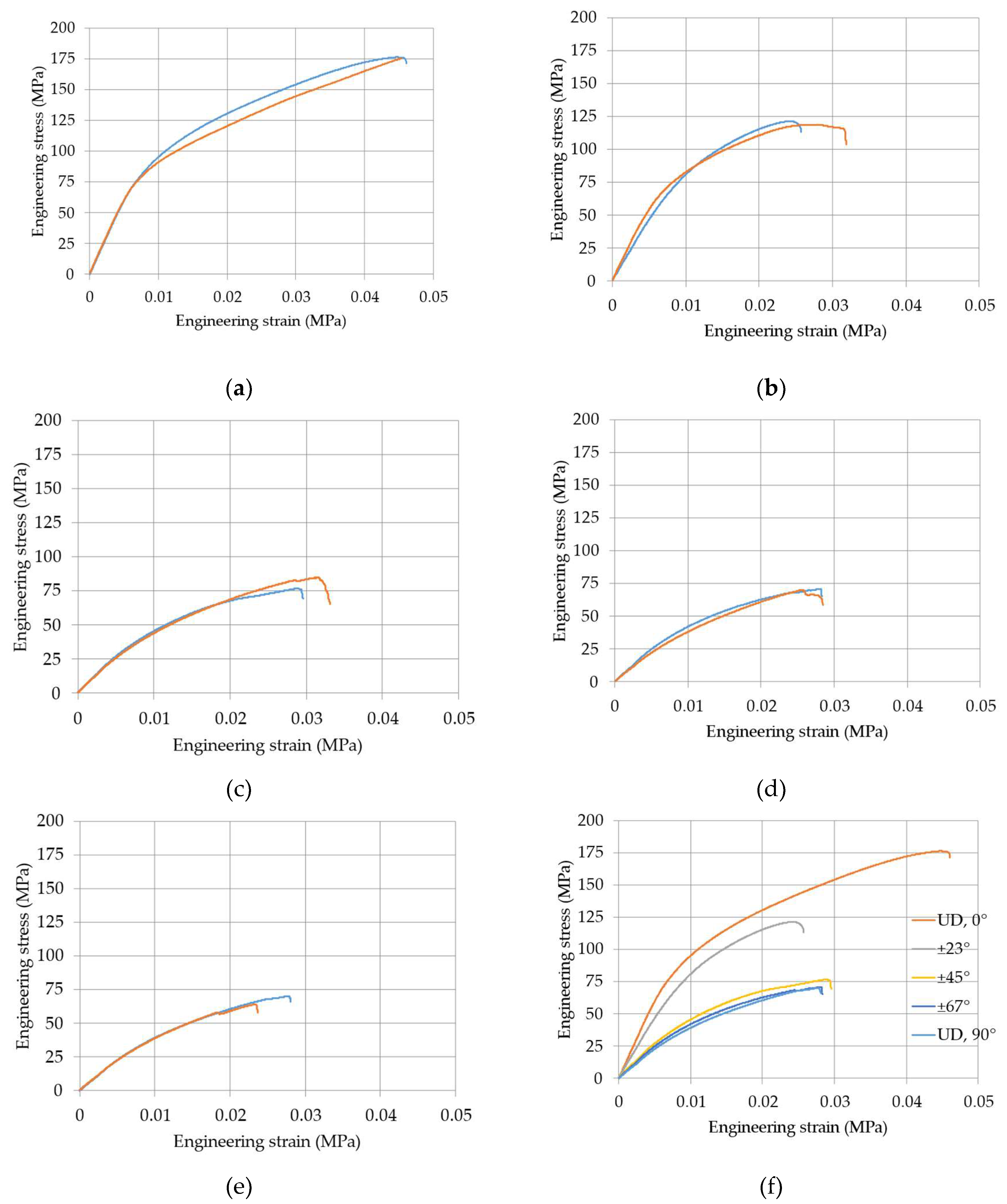

In Figure 3 a curve for each lamination of the tested samples is reported.

In general, the strength of the laminates decreases with the orientation of the fibers increasing from zero (Figure 3(f)), that is less aligned with the longitudinal direction. The elongation at failure decreases as well, even if more scatter was measured as is quite normal with this result. The tests were sufficiently repeatable (Figure 3(a)-(e)) in terms of maximum stress, strain, and overall stress-strain behavior. In all cases, the maximum strain remains rather small, always less than 5%: the composite material remains sufficiently brittle so that failure criteria for composite materials are likely to be valid and applicable.

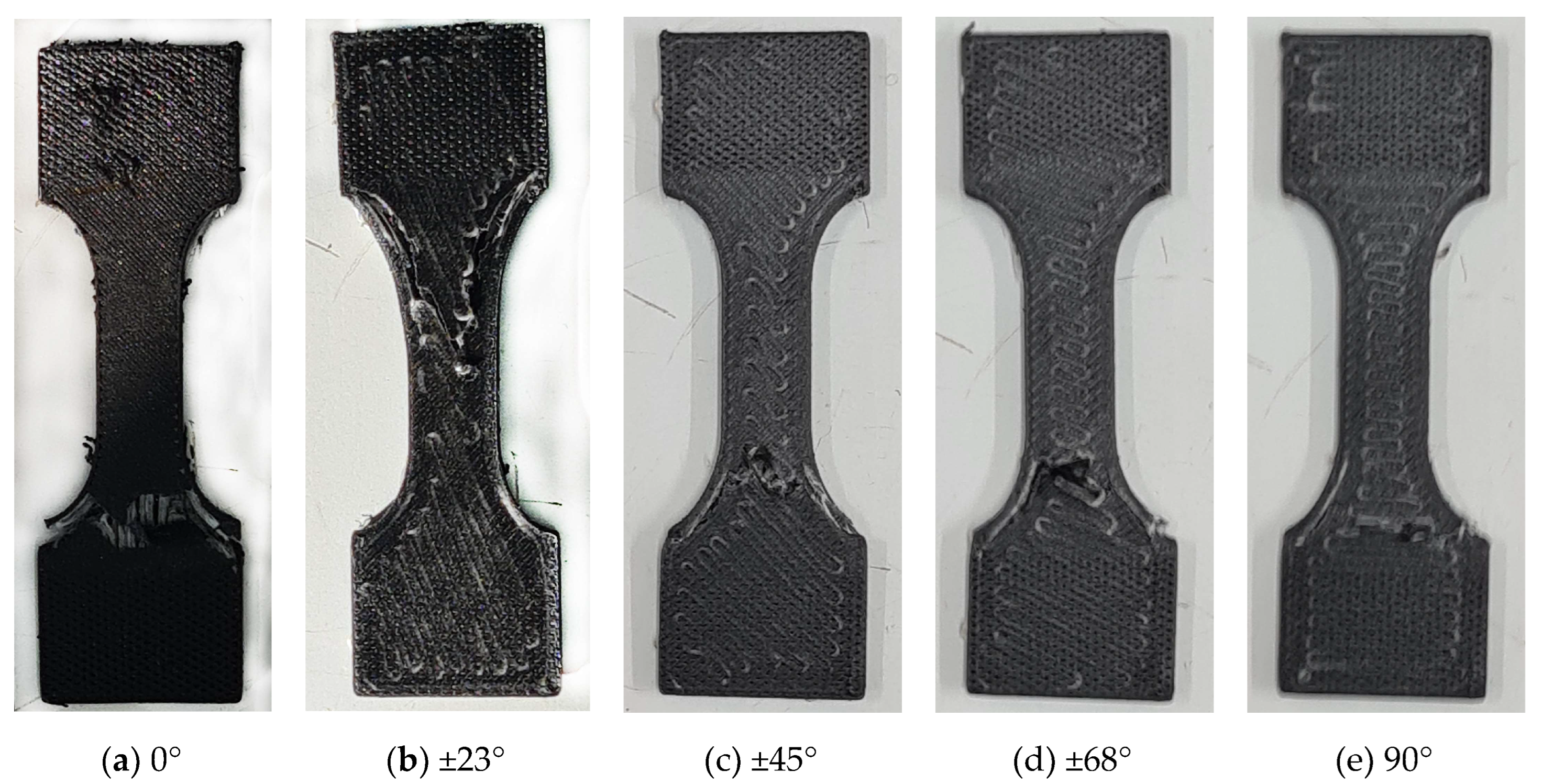

In Figure 4 some broken samples after the tensile tests are shown. The type of failure is not really obvious, and it is presumably a combination of fiber failure and matrix cracking. This will be confirmed in the following analysis of the failure criteria.

3.2. Identification of the Model Parameters

3.2.1. Evaluation of the Elastic Properties

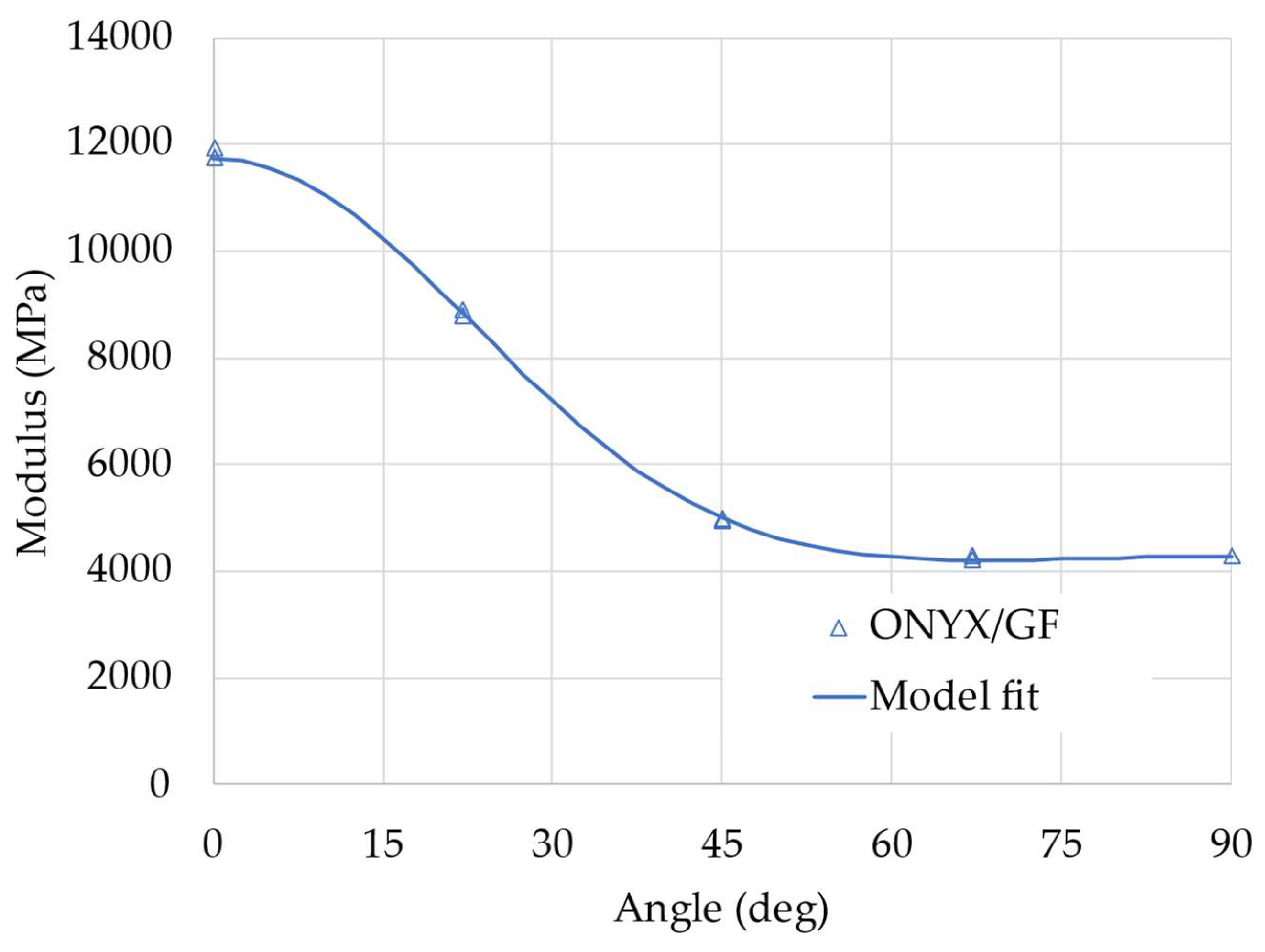

The apparent elastic modulus of the samples with different fiber orientations depends on the elastic properties of the layers and on the angle, following the relations described by Equations (1)-(9) and (10). The layers elastic properties can be then estimated with a non-linear regression analysis by minimizing the square error between the experimental values of the apparent modulus and the value calculated by the model (from equation 10). Results from this analysis are reported in Figure 5: the curve represents the non-linear fit of the model, showing a very good correlation with the experimental data.

The identified elastic properties of the layers are reported in Table 3. It is important to compare the measured properties with the values of the elastic moduli of the Onyx and the glass fiber declared by the manufacturer (2.4 GPa and 21 GPa respectively): the layers, made of a combination of the two materials, have elastic moduli along the two directions which are between the elastic moduli of their components. This is an expected result, also justified by using classical micromechanical models for composite materials, such as for example the rule of mixture (RoM). It is not easy in this case to apply such micromechanical models, since the exact layer composition, that is the fraction of matric and fiber, is not known or easily evaluated. Moreover, models like the RoM only give a rough approximation of the moduli which would not be particularly useful.

3.2.2. Analysis of the Strength and Identification of a Suitable Failure Model

The strength of the tested samples has been studied to identify the strength properties of the layers with a similar non-linear regression analysis. For the strength, however, an additional problem regards the many applicable failure models, as described in Section 2.2. The models which have been applied to the experimental data are:

• TsaiWu
• Christensen
• LaRC05
• Hashin

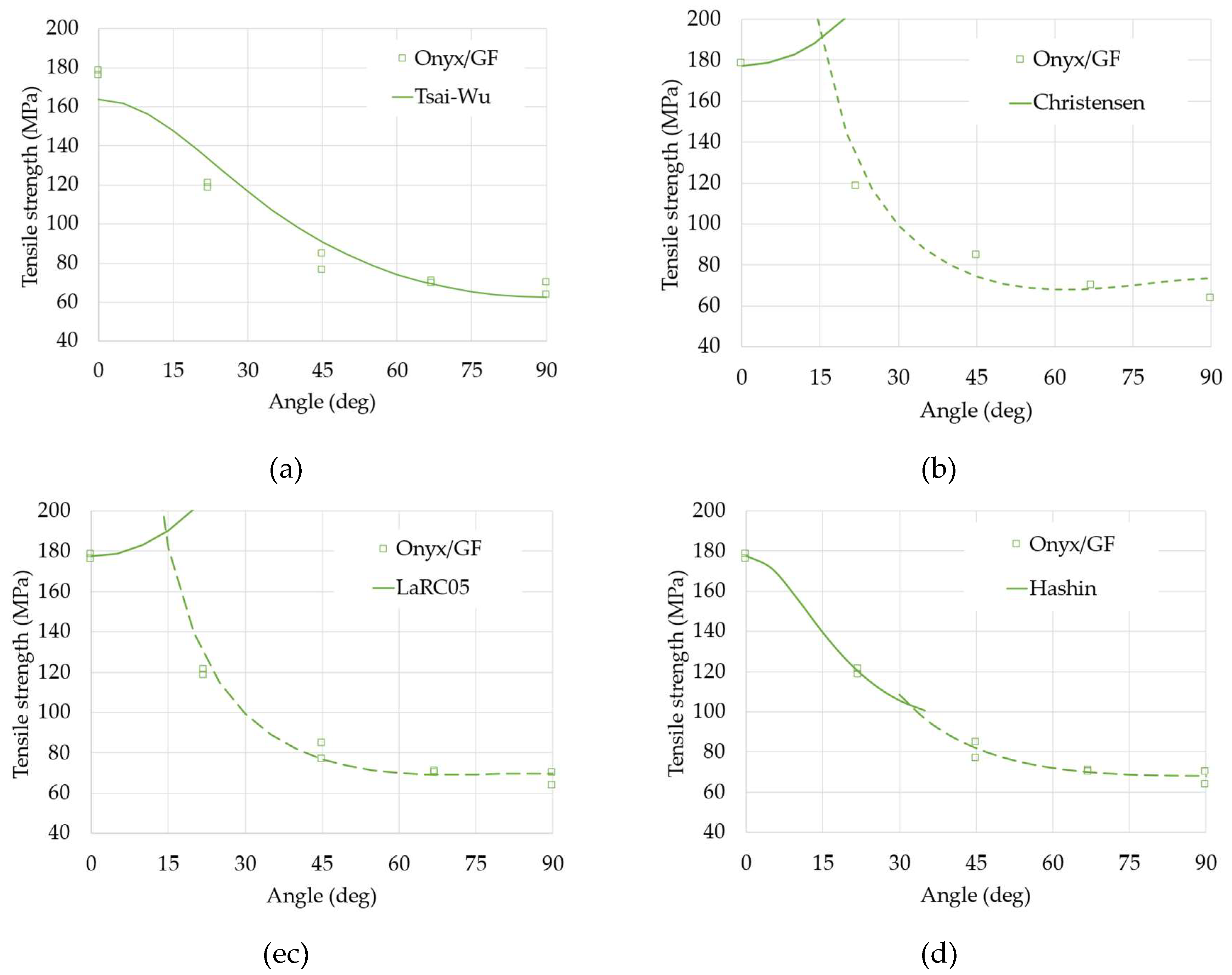

The fit of the four models to the experimental data is shown in Figure 6.

The Tsai-Wu criterion, although relatively simple, seems to give a sufficient approximation of the results especially for the greatest values of orientation: that model does not distinguish between types of failure and, therefore, is not able to fully describe the phenomena involved. On the other end, the failure criteria from Christensen and the LaRC05 model, are also not completely satisfactory; even if both criteria distinguish between types of failure of the fibers (continuous lines) and of the matrix (dashed lines). The better fit, in this case, seems the Hashin criterion (the squared error is minimum for this model). The Hashin criterion too distinguishes between the two types of failure but uses a completely different formulation, energetically based for both cases, that apparently better represents the combination of failure modes observed from the samples tested.

The identified values of the strength parameters are reported in Table 4. If compared to the strength of the Onyx matrix and glass fiber (40 MPa and 590 MPa, respectively) the identified values seem sufficiently reasonable. Both the strength in the longitudinal and transverse direction of the layers lies between the values of fiber and matrix, as again it is predicted from classical model as the RoM previously mentioned.

5. Conclusions

The mechanical behavior of a composite material obtained by an AM technique was studied in this work. Some papers have been recently published showing applicability of the models used for classical composite materials to structures obtained by means of the FFF technique. However, most papers restrict the analysis to the stiffness and to simple lamination schemes not always accurate nor complete for the analysis (few angles, asymmetric specimens, etc.).

In this paper an innovative type of material for FFF has been tested considering the effect of different laminations, in particular showing the influence of the fiber orientation. To this aim specimens of polyamide (Onix) reinforced with continuous glass fibers were analyzed. The experimental analysis was performed on symmetric angle-ply layered samples. The experimental results showed the strong influence of the orientation angle, due to the high orthotropy of the base material.

The experimental results were then analyzed using the classical lamination theory to estimate the stiffness of the composite material specimen and using several failure criteria to estimate the strength properties. The models fit with good accuracy the experimental results and allow to identify the material properties of the layer. Among the various failure criteria considered, all sufficiently apt to describe the failure of the considered material, the Hashin criterion gives the better fit with very good accuracy for any orientation angle.

The proposed method is promising as a design tool to estimate the mechanical properties of FFF materials for future applications when high stiffness and strength is required in AM components.
