Investigation Study of Efficiency Water Heating System in Wool Washing Process by Using Parabolic Trough Solar System

1. Introduction

The textile industry, particularly in the transformation of wool, holds a pivotal role in light manufacturing processes. Wool undergoes several stages of processing to become a usable product, with the washing phase being among the most critical steps. This phase significantly influences the quality of the final wool product. Among the various methods employed for wool washing, the use of pools has emerged as one of the most widespread techniques. However, this method demands considerable amounts of water and energy, particularly for heating, which poses substantial challenges in terms of both resource consumption and environmental impact. The effluents generated during the process, despite being largely of natural origin, contribute significantly to potential pollution burdens in an industrial context. The heavy reliance on fossil fuels exacerbates these challenges, making the process highly energy-intensive and environmentally unsustainable. Consequently, European regulations strictly oversee wool washing operations that exceed 500 kg/day to ensure compliance with sustainability and environmental standards [1].

Given these challenges, there is a growing emphasis on integrating sustainable practices and renewable energy solutions into wool processing. Various studies have contributed to this area, exploring innovative techniques and energy-efficient solutions. For instance, Sekine et al. conducted experiments on thermal stratification in water pools, providing insights into heat transfer mechanisms that are crucial for industrial applications [2]. Singh et al. extended this understanding by characterizing heat and mass transfer under low-pressure conditions, which have implications for efficient thermal management [3]. Mokhtar et al. demonstrated the application of solar energy systems for water heating, achieving remarkable thermal performance through the use of linear Fresnel receivers [4]. Famiglietti and Lecuona introduced an innovative solar thermal system designed to directly provide heat to industrial processes, eliminating the need for liquid heat transfer fluids and thereby simplifying installation and maintenance [5]. Additionally, Nunayon and Akanmu highlighted the feasibility of solar water heating systems for commercial purposes, showcasing their ability to achieve high water temperatures with minimal environmental impact [6]. Optimization studies, such as those conducted by Ma et al., utilized advanced algorithms to reduce energy consumption in water heating systems [7], while Li et al. successfully combined solar and geothermal heating technologies, significantly improving energy efficiency and reducing dependence on fossil fuels [8].

In the context of wool processing, there has been substantial research aimed at mitigating environmental impacts through the adoption of sustainable practices. For instance, Vade et al. examined the carbon emissions associated with wet wool processing and advocated for integrating renewable energy sources to minimize these emissions [9]. Popescu et al. reviewed enzymatic and non-traditional methods for wool cleaning, emphasizing techniques that reduce chemical usage while maintaining fiber quality [10]. Kherdekar et al. explored the use of natural cleaning agents in combination with ultrasound technology, demonstrating significant improvements in scouring efficiency, reduced water and chemical consumption, and enhanced fiber properties [11]. Similarly, Bozaci et al. investigated the application of plant-derived biosurfactants for eco-friendly wool cleaning, achieving reduced chemical oxygen demand (COD) in effluents without compromising wool quality [12]. The potential for energy-efficient wool processing has also been explored through the use of thermally optimized materials. Bansal et al. highlighted the thermal retention properties of bricks, suggesting their applicability in designing energy-efficient washing systems [13], while Anselmi et al. demonstrated that integrating enzymatic detergents and lowering water temperatures can reduce water consumption and pollution levels significantly [14].

Renewable energy has emerged as a transformative solution in wool processing, with studies showcasing its potential to reduce environmental footprints while enhancing operational efficiency. Farhana et al. reported that integrating solar thermal systems into washing processes could reduce energy consumption by up to 50%, aligning with circular economy principles such as water recycling and by-product recovery [15]. Danaci et al. highlighted the thermal insulation properties of wool-based materials, suggesting their application in designing systems that optimize energy use during wool washing [16]. These innovations underscore the importance of combining renewable energy with sustainable materials to enhance the efficiency and environmental performance of wool processing.

This study aims to contribute to these efforts by exploring the use of small parabolic trough solar concentrators system installed on factory rooftops to generate industrial heat for wool processing. The proposed system is designed to support key operations such as washing wool at approximately 70°C, followed by drying and pressing the wool into cubes for export. By harnessing concentrated solar energy, the project seeks to address the thermal needs of the wool industry while reducing its reliance on fossil fuels. The study focuses on the potential of solar concentrators to improve the energy efficiency of wool processing, minimize environmental impacts, and improves the industry toward a more sustainable future. Traditional wool scouring processes, which typically involve hot aqueous detergent solutions at 60–65°C, can benefit significantly from this approach, offering an opportunity to enhance sustainability without compromising operational effectiveness. Through the integration of renewable energy technologies, this research aims to set a benchmark for innovative and eco-friendly practices in the wool processing industry.

2. Materials and Methods

Materials and Methods section provides a comprehensive description of the solar-powered system implemented for the wool washing process, detailing the structural components, operational principles, and thermal management strategies. The focus is on the integration of cylindrical-parabolic mirrors, absorber tubes, and a closed-loop heat transfer system designed to achieve optimal temperature control and energy efficiency, ensuring the sustainability of the process.

2.1. Structure of the Solar System for Wool Washing Process

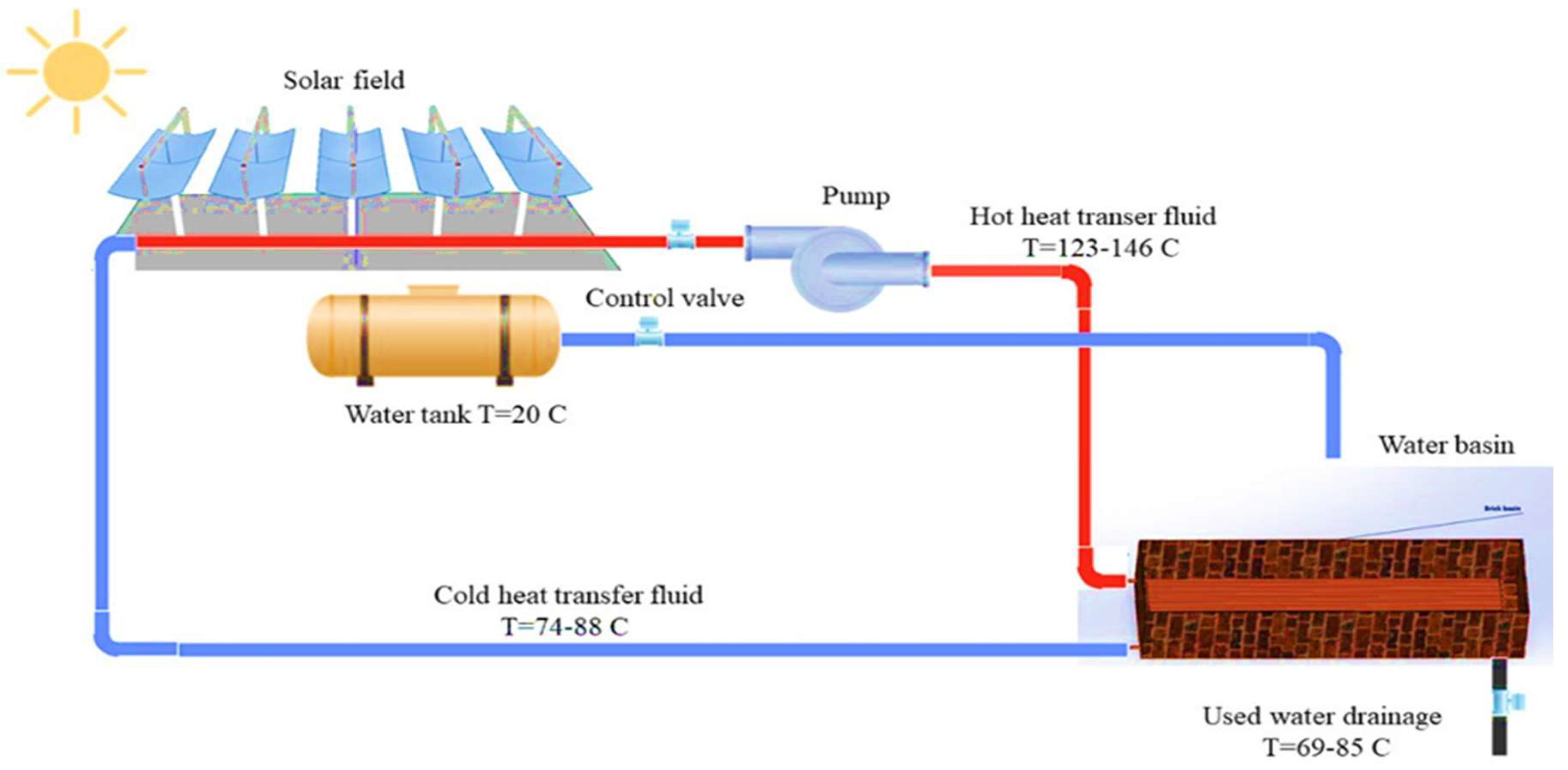

The system consists of a solar field responsible for generating heat via cylindrical-parabolic mirrors and absorber tubes designed to capture maximum radiation [18,19]. A heat transfer fluid circulates through these tubes, heating up to approximately 146°C before being centralized and transported to the water pool. The cylindrical-parabolic mirror/receiver assembly follows the Sun's movement. A variable-speed pump is used to control the maximum and minimum temperatures based on the water temperature required for wool washing. The heat transfer fluid heats the water in the pool to a temperature between 69°C and 85°C. The oil circulates in a closed loop, transferring the heat received from the solar field to the water pool and returning to the field at a temperature between 74°C and 88°C. A large water tank is used to fill the brick-constructed water pool, which includes a drainage valve to be emptied after each wool washing cycle. Figure 1 illustrates the operating principle of the system.

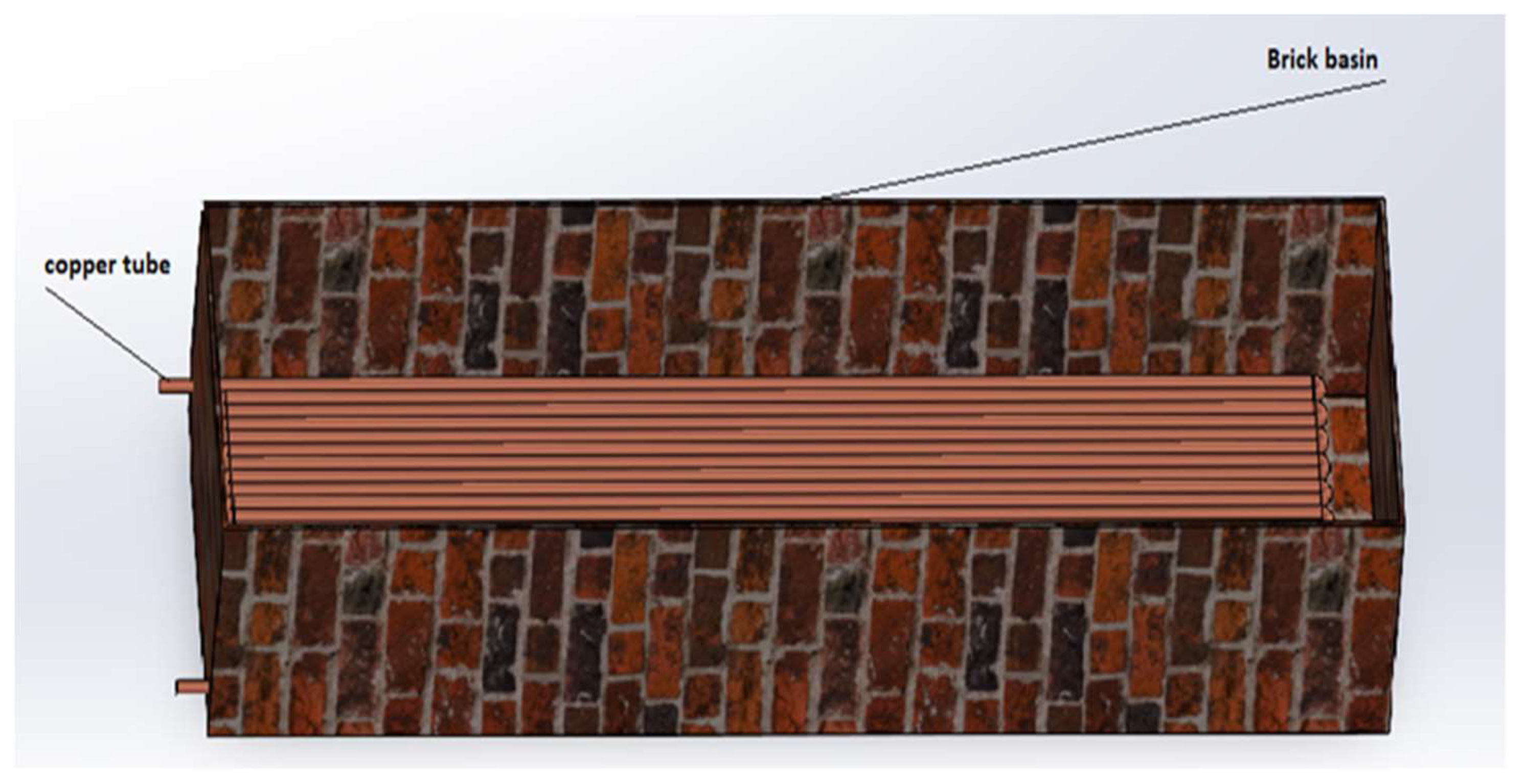

2.2. Heating System Design

To ensure a large quantity of wool washing per day in an industrial factory. In addition, the project is primarily linked to a socio-economic solution, the system designed with pool based on the practical requirements of the factory. In which the pool has 5m of length, 4m of width and 0.8m of height for total volume of 5m³. The heat transfer fluid tube is made of copper to ensure efficient heat exchange. Figure 2 illustrates the design of the pool and the heat transfer fluid tubes.

2.3. Thermodynamic Properties of Used Oils

To define the perfect heat fluid that reach the goal, a list of fluids has been chosen and tested in the solar heating system proposed. These fluids are recommended in literature as:

a)

Thermia B is designed to resist thermal decomposition when used within its recommended temperature range. Beyond this range, degradation, carbonization, or deposit formation may occur. The thermodynamic properties of Thermia B are provided by [17].

b)

Heat Transfer oil 32 has extended thermal stability for bulk oil temperatures of up to 300°C in closed heat transfer systems. However, when exposed to air in open systems, its operating temperature should not exceed 180°C. The thermodynamic properties of Heat Transfer oil 32 are provided by [18].

c)

Therminol vp1 is a popular heat transfer fluid used in various industrial applications, particularly in high-temperature heat transfer systems. The thermodynamic properties of Therminol vp1 are provided by [19].

d)

Biphasic oil (Syltherm 800) is a highly stable and durable silicone-based fluid designed for high-temperature operation in the liquid phase. It has a low fouling potential and can often remain in service for 10 years or more. The thermodynamic properties of Syltherm 800 are provided by [20].

Table 1. Thermodynamic Properties of used oils at 100°C [17-20].

Oils	Thermia B	Heat transfer oil 32	Biphasic oil	Therminol vp1
Density (kg/m3)	805	817	881.68	999
Specific heat capacity (kj/kg.k)	2.400	2.3	1.711	1.775
Thermal conductivity (W/m.k)	0.129	0.11	0.1237	0.1277
Kinematic viscosity (mm2/s)	5.1	5	3.86	0.986
Initial boiling point (°C)	350	210	385	257

Table 1. Thermodynamic Properties of used oils at 100°C [17-20].

Oils	Thermia B	Heat transfer oil 32	Biphasic oil	Therminol vp1
Density (kg/m3)	805	817	881.68	999
Specific heat capacity (kj/kg.k)	2.400	2.3	1.711	1.775
Thermal conductivity (W/m.k)	0.129	0.11	0.1237	0.1277
Kinematic viscosity (mm2/s)	5.1	5	3.86	0.986
Initial boiling point (°C)	350	210	385	257

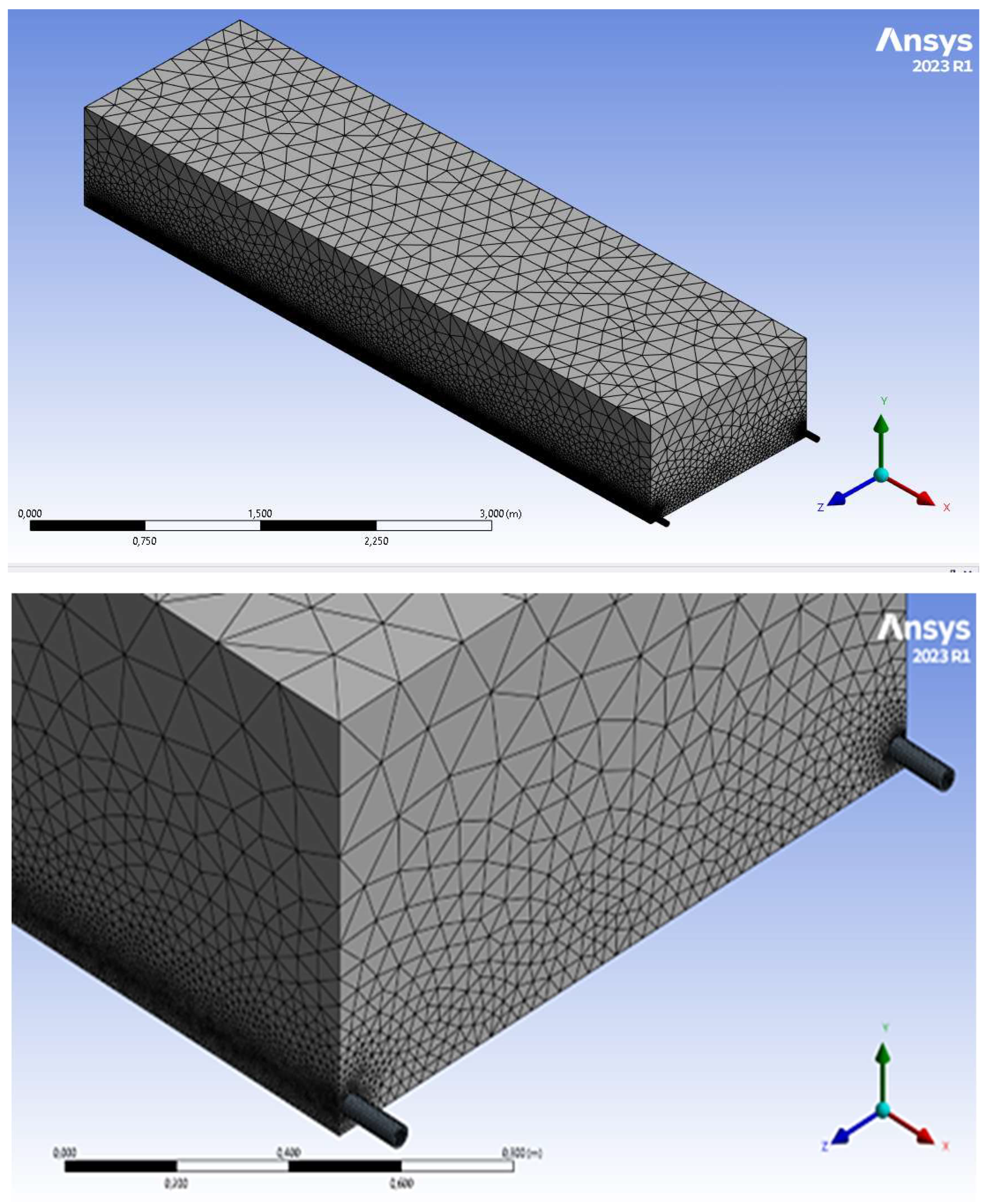

3. Meshing and Mathematical Modeling

Computational Fluid Dynamics (CFD) tools are increasingly involved in the design and optimization processes of industrial applications. Due to their satisfactory accuracy and robustness. The second-order discretization’s, commonly adopted in most commercial and open-source CFD software, remain the dominant option. Several mesh configurations have been considered, such as including mini elements and Taylor-Hood elements. Figure 3 presents the adopted mesh configuration for the studied case with 3578908 nodes. It’s selected after several mesh configuration taken 882 000 nodes, 1172000 nodes and 2488604 nodes.

To solve problem by using of CFD based on mathematical model combined by the conservation of mass, momentum, and energy in time-averaged tensor notation, which presented as below:

• Continuity equation [21]:

  $${\displaystyle \frac{\partial \overline{u_i}}{\partial x_i}}=0$$

  (1)
• Momentum equation [21]:

  $$\rho \overline{u_j}{\displaystyle \frac{\partial \overline{u_i}}{\partial x_i}}={\displaystyle \frac{\partial \overline{p}}{\partial x_i}}+{\displaystyle \frac{\partial }{\partial x_j}}\left[\mu {\displaystyle \frac{\partial \overline{u_i}}{\partial x_j}}-\rho \overline{\acute{u_i}\overline{\acute{u_j}}}\right]+\rho g_i$$

  (2)
• Energy equation [24]:

  $$\rho \overline{u_j}{\displaystyle \frac{\partial \overline{T}}{\partial x_j}}={\displaystyle \frac{1}{c_p}}{\displaystyle \frac{\partial }{\partial x_j}}\left[k{\displaystyle \frac{\partial \overline{T}}{\partial x_j}}-\rho c_p\overline{\acute{T}}\overline{\acute{u_j}}\right]$$

  (3)

The change in flow direction after exiting the pipe generates turbulence in the oil flow, significantly impacting heat transfer. Therefore, turbulence modeling plays an important a crucial role. In this context, the k-ε turbulence model is used, with the standard wall function for near-wall analysis. The boundary layer problem is not resolved on the mesh. A detailed description of this model and its implementation in ANSYS CFX is provided by Launder and Spalding (1972) and ANSYS (2009) [22,23].

The turbulent kinetic energy (Kt) and the dissipation rate of turbulent kinetic energy (ε) are defined as follows:

• Turbulent kinetic energy (Kt) [21]:

  $$\rho \overline{u_j}{\displaystyle \frac{\partial \overline{k_t}}{\partial x_t}}={\displaystyle \frac{\partial }{\partial x_j}}\left[\left(\mu +{\displaystyle \frac{{\mu }_t}{{\sigma }_{kt}}}\right){\displaystyle \frac{\partial \overline{k_t}}{\partial x_j}}\right]+P_{kt}+G_{kt}+\rho {\epsilon }_t$$

  (4)
• Turbulent kinetic energy dissipation (ε) [21]:

  $$\rho u_j{\displaystyle \frac{\partial {\epsilon }_t}{\partial x_j}}={\displaystyle \frac{\partial }{\partial x_j}}\left[\left(\mu +{\displaystyle \frac{{\mu }_t}{{\sigma }_{\epsilon t}}}\right){\displaystyle \frac{\partial \overline{{\epsilon }_t}}{\partial x_j}}\right]+c_{1{\epsilon }_t}{\displaystyle \frac{{\epsilon }_t}{k}}\left[P_{kt}+c_{3\epsilon t}{G}_{kt}\right]- c_{2{\epsilon }_t}\rho {\displaystyle \frac{{\epsilon }_t^2}{k_t}}$$

  (5)
  The mean Nusselt number is defined as [21]:

  $$N{u}_m={\displaystyle \frac{d}{\lambda }}{\displaystyle \frac{q}{\left(T_w-T_f\right)}}$$

  (6)
  The Reynolds number is given by [21]:

  $$R_e={\displaystyle \frac{\rho \upsilon D}{\mu }}$$

  (7)

4. Results and Discussion

The CFD results obtained by ANSYS CFX simulation generally show the outperform of the parabolic trough solar micro-plant than natural gas systems. Also, the uses of synthetic oils gave an effective effect on the temperature values and distribution. The new design washing pool in which the pool reinforced by steel layer provides best thermal conductivity. These output data can be summarized in:

4.1. The Effect of Water Pool Design on Temperature

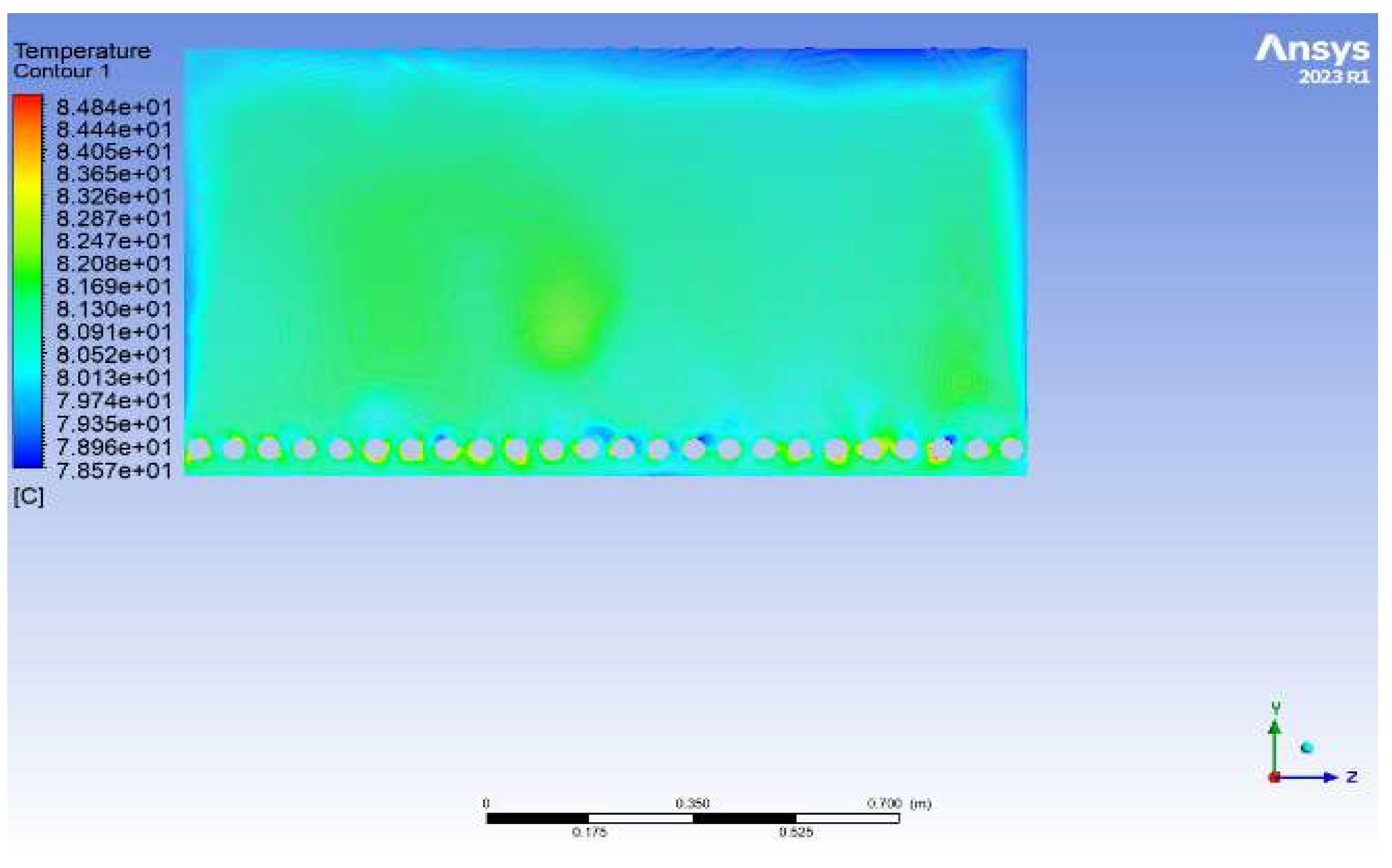

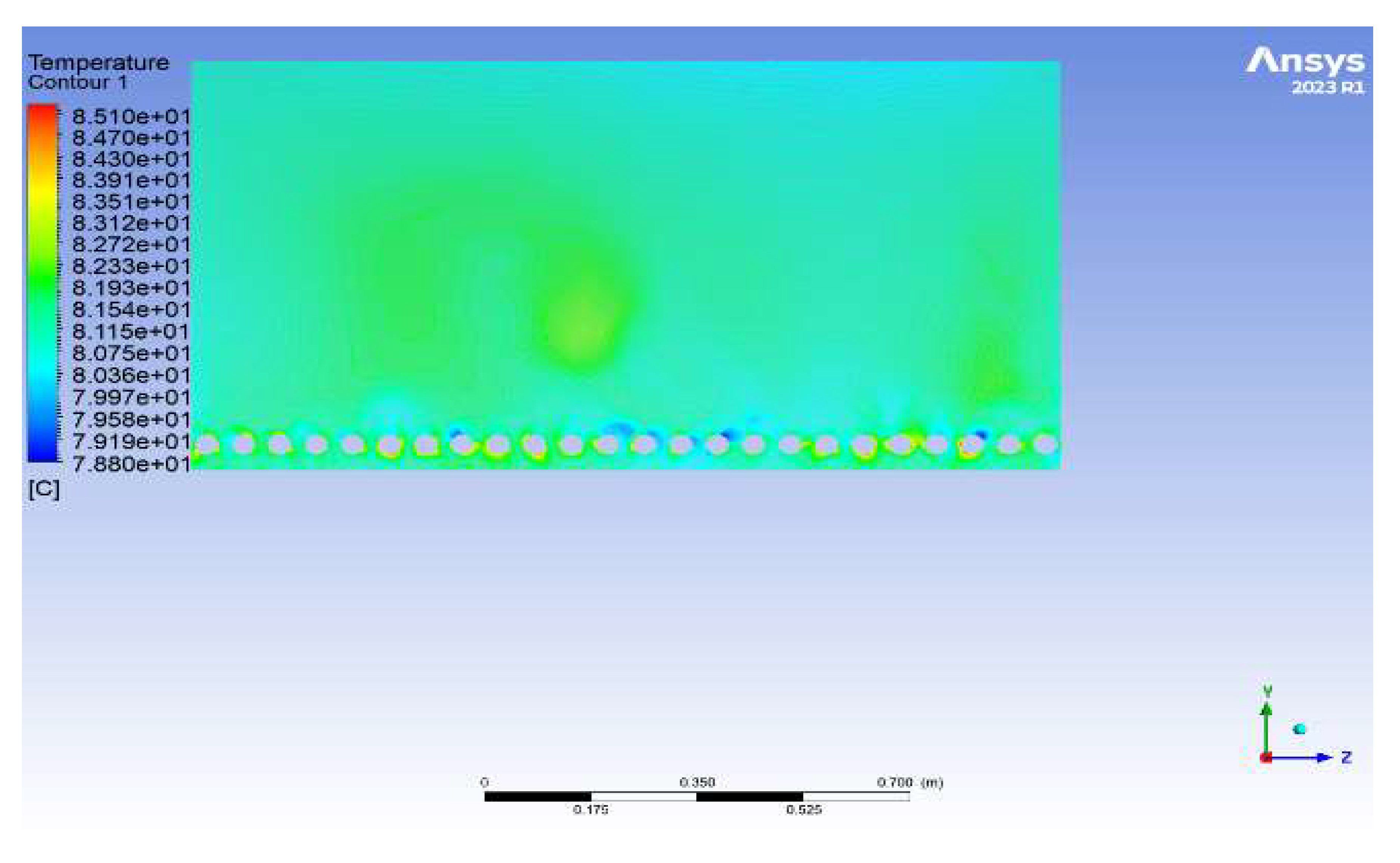

In Figure 4a, the water temperature in the pool with an internal steel layer appears slightly more uniform, with smaller variations. In which, the water temperature varied approximately from 78.57°C to 84.84°C. Also, in the brick pool without steel layer show a slightly different distribution, it varied from 78.80°C to 85.10°C as shown in Figure 4b, with more clearly distributions, especially in the central and lower regions. Where the heat is distributed more evenly in the steel reinforced pool for high thermal conductivity of steel than brick. This likely explains why temperatures are more consistent in the steel-lined pool. In which it seems to offer better thermal distribution, with more uniform temperatures and more efficient heat distribution. But, the brick with its lower thermal conductivity, exhibits greater temperature gradients, that means the heat diffuses less efficiently, creating areas with either higher or lower temperatures. may indicate that while brick insulates better, it does not distribute heat as effectively as steel. This could lead to more pronounced temperature differences in the water over time. In summary, uses of steel appear to outperform brick in terms of thermal conductivity and uniform heat distribution, while brick, despite being more insulating, may cause localized heat accumulation.

4.2. The Temperature of Different Oils Inside Copper Tubes

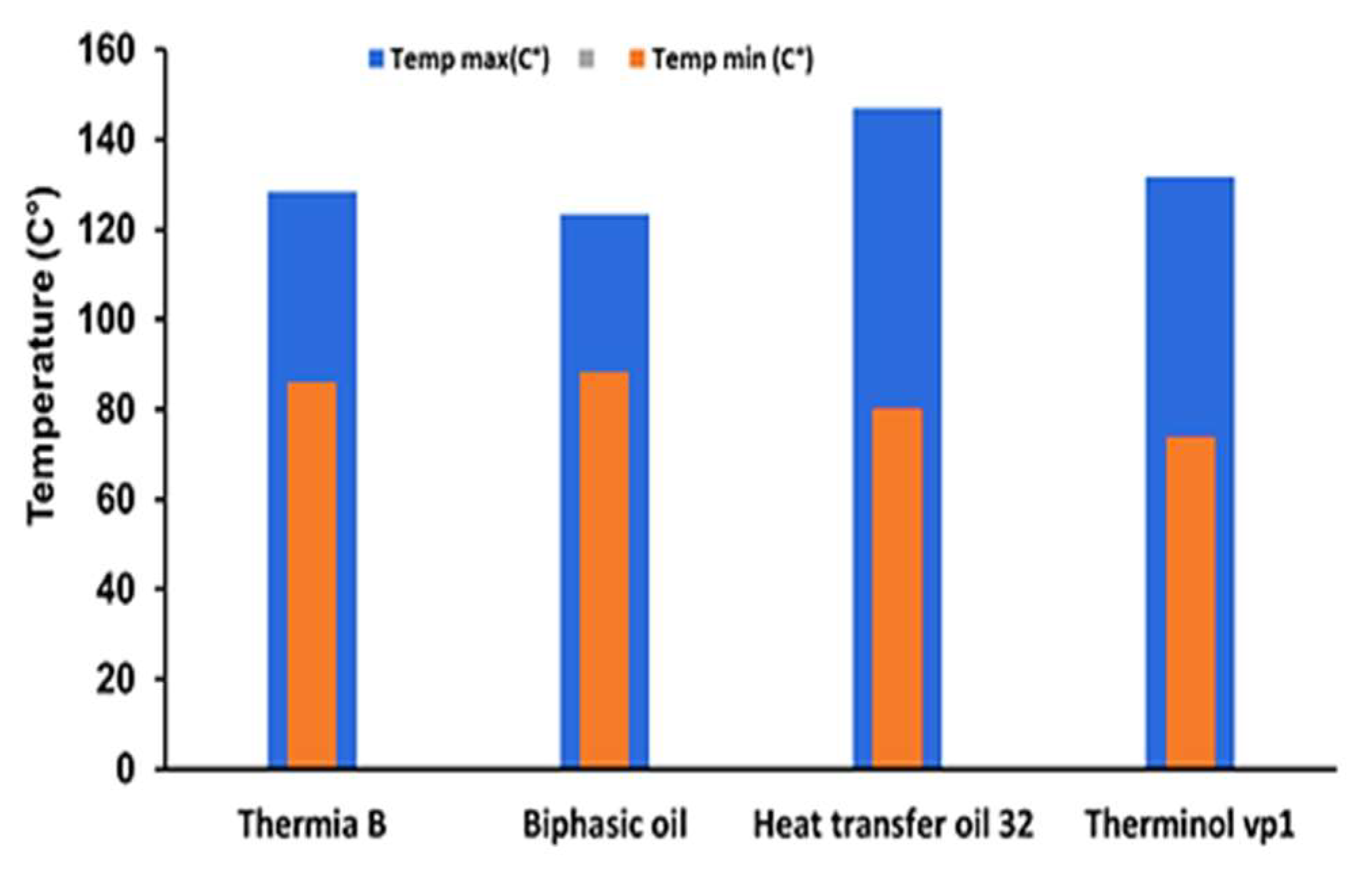

The numerical simulation results shown in Figure 5 presents for heat transfer variation inside copper tubes. it demonstrates significant differences between the oils used. These variations are primarily due to the physical and thermodynamic properties of each oil, such as viscosity, heat capacity, and thermal conductivity. These parameters strongly influence the velocity of oil particles and their ability to transfer heat effectively to the surrounding medium. Where:

a)

Heat transfer oil 32: reaches a maximum temperature of 146.9°C in specific regions of the tubes. However, most areas in the tubes exhibit temperatures around 123°C, as evidenced by the prevalence of green zones in Figure 6. This uneven heat distribution can be attributed to the oil's relatively high viscosity, which slows particle velocity and limits uniform heat diffusion within the tube. Despite achieving a higher maximum temperature than other oils, the overall heat transfer efficiency of Heat transfer oil 32 appears reduced, as only a small portion of the tube reaches this elevated temperature. This may indicate inefficiency in transferring heat to the water in the water pool compared to oils with more uniform temperature distribution (Figure 5a).

b)

Biphasic oil: achieves a maximum temperature of 123.5°C, close to the average temperature observed in different regions of the tubes. This indicates moderate heat transfer with average efficiency for heating the water pool. The heat distribution is more uniform than in Heat transfer oil 32 but less consistent than in Thermia B. Biphasic oil may offer a compromise between thermal efficiency and temperature stability, but its performance remains inferior to oils like Thermia B in terms of achieving a homogeneous thermal distribution (Figure 5b).

c)

Thermia B: has a maximum temperature of 128.3°C, slightly lower than Heat transfer oil 32. However, the distribution of temperature within the tubes is much more uniform, with extensive red zones indicating high temperatures over a larger portion of the tubes. This homogeneity suggests a better capacity for consistently transferring heat to the water pool, maximizing thermal efficiency. Thermia B's ability to maintain a uniform distribution of high temperatures makes it more suitable for applications requiring consistent efficiency in heating large volumes of water or fluids (Figure 5c).

d)

Therminol vp1: reaches a maximum temperature of 131.7°C, observed only at isolated points in the tubes. The majority of the tubes remains on lower temperature range, between 92°C and 100°C. This suggests a limited ability of the oil to maintain high temperatures over a significant portion of the tubes, reducing its effectiveness in heating the water pool. The lack of widespread high temperatures may be due to high viscosity or lower specific heat capacity, limiting the amount of heat the oil can transport and distribute. This makes it less effective for applications requiring uniform and efficient heat transfer (Figure 5d).

An uneven temperature distribution in the tubes, as seen with Heat transfer oil 32 and Therminol vp1, limits the overall thermal transfer efficiency. When certain areas of the tube remain at relatively low temperatures, heat transfer to the water is reduced, directly affecting the overall heating system performance. In contrast, an oil like Thermia B, with a broad distribution of high temperatures, ensures more consistent and efficient heat transfer.

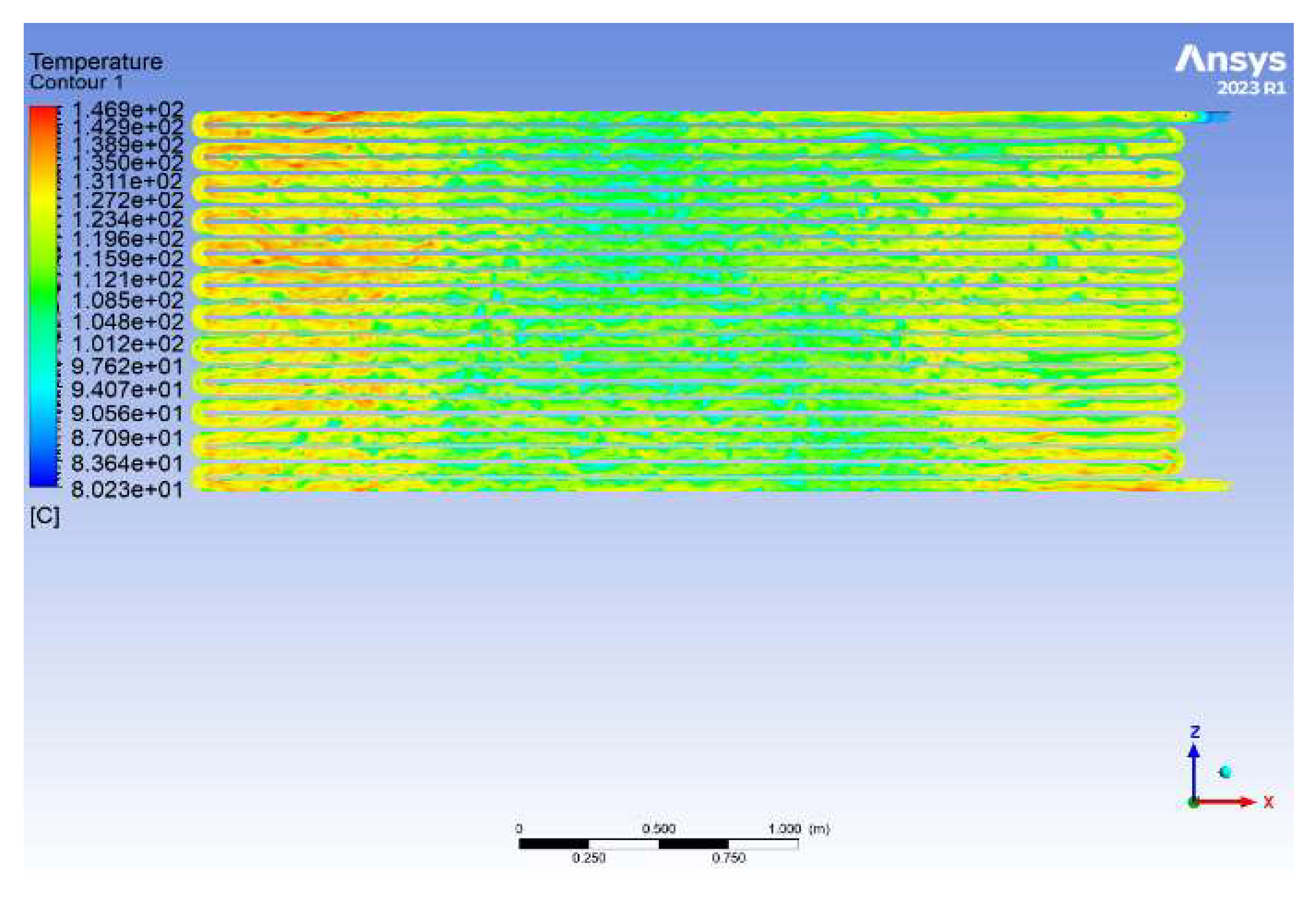

Figure 5. Distribution of oils temperature inside copper tubes, (a) Heat transfer oil 32.

Figure 5. Distribution of oils temperature inside copper tubes, (a) Heat transfer oil 32.

Figure 5. Distribution of oils temperature inside copper tubes, (b) Biphasic oil,.

Figure 5. Distribution of oils temperature inside copper tubes, (b) Biphasic oil,.

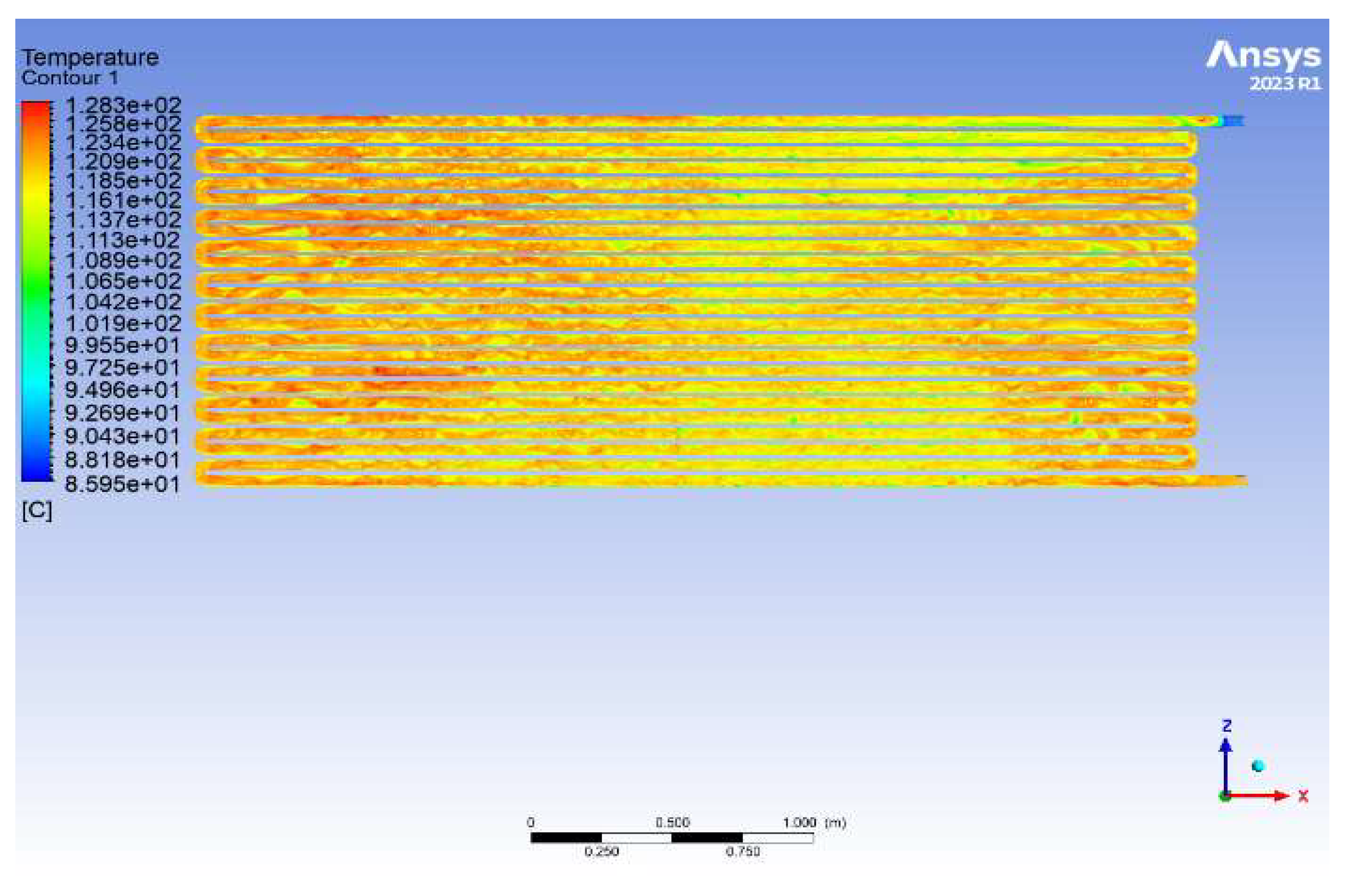

Figure 5. Distribution of oils temperature inside copper tubes, (c) Thermia B.

Figure 5. Distribution of oils temperature inside copper tubes, (c) Thermia B.

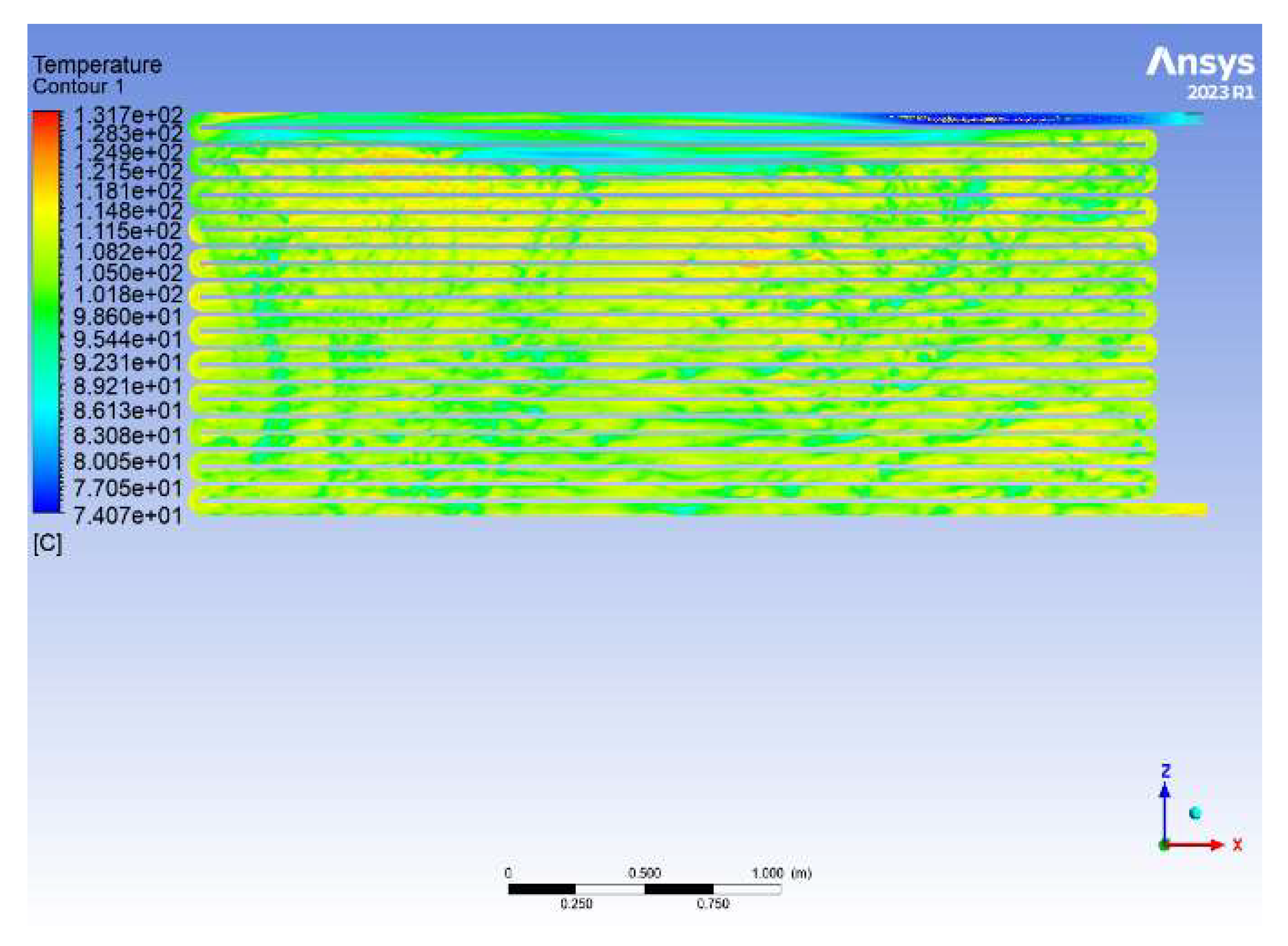

Figure 5. Distribution of oils temperature inside copper tubes, (d) Therminol vp1.

Figure 5. Distribution of oils temperature inside copper tubes, (d) Therminol vp1.

From the Figure 6 that shows the evolution of oils temperature in tubes widthly direction. The results indicate that Thermia B is the most efficient oil for ensuring homogeneous and effective heat transfer in copper tubes because have a shortest range of variation in temperature values [24]. That means the uniformity distribution provided by this oil in term of temperature and heat transfer ratio. This is what makes it is therefore preferable for industrial applications requiring uniform heating, such as solar heating systems or thermal processes demanding consistent efficiency. Conversely, Heat Transfer Oil 32 and THERMINOL VP1, while capable of achieving high maximum temperatures, suffer from uneven heat distribution (Figure 7), which limits their effectiveness. Biphasic Oil offers a middle ground with average performance and may be suitable for less demanding applications in terms of thermal efficiency [25].

Figure 6. Withly variation of oils temperature inside tube.

Figure 6. Withly variation of oils temperature inside tube.

4.3. Influence of Synthetic Oil Type on Water Temperature

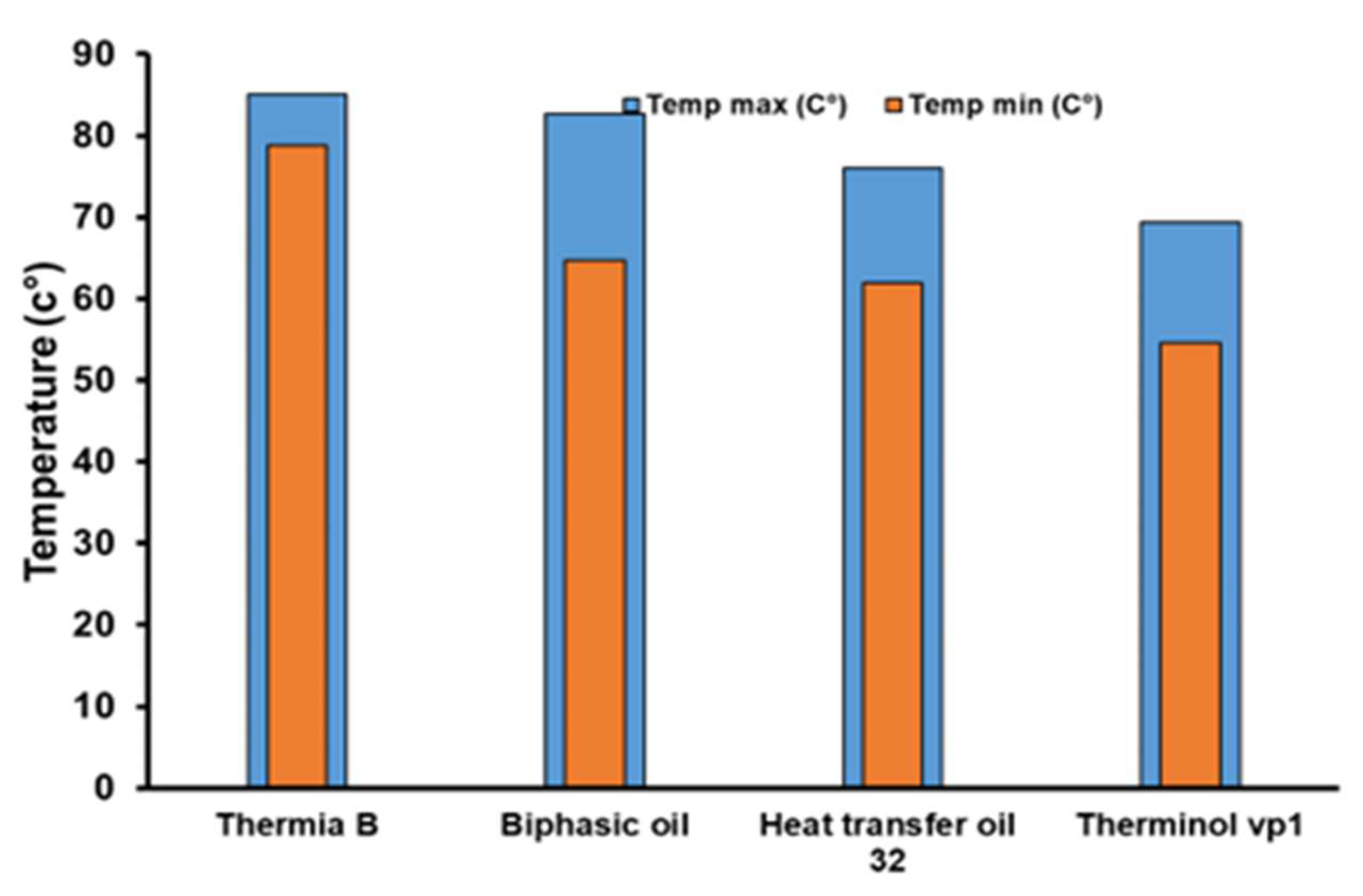

In the steel reinforced pool, four synthetic oils used in heat transfer such as Heat transfer oil 32, Biphasic oil, Thermia B and Therminol vp1. its and exanimated their effect on the water thermal distribution in the washing pool in which the oil tubes are immersed. The parameters measured such as the oil temperature, water temperature, and heat transfer efficiency. it also considered some factors such as the contact surface between the tubes and water, as well as fluid circulation. From the Figure 7, The results of each oil show that:

a)

Heat transfer oil 32: showed intermediate performance, with water temperatures varying between 61°C and 76°C. While partially meeting the requirements, its efficiency is limited by its lower heat transfer capacity, likely due to higher viscosity, which impedes circulation and, consequently, heat transfer (Figure 8a).

b)

Biphasic oil: also gave demonstrated good results, where the within range water temperatures was between 64°C and 82°C. Its biphasic design helps maintain a stable temperature, avoiding thermal fluctuations that could impair the wool washing process. This stabilizing characteristic is especially critical for applications requiring constant temperatures (Figure 8b).

c)

Thermia B: stood out for its superior performance, achieving water temperatures up to 85°C, with a low value observed of temperature equals 78°C. This performance can be attributed to its chemical formulation, which optimizes thermal conduction, enabling efficient heat transfer from the tubes to the water pool (Figure 8c).

d)

Therminol vp1: exhibited the weakest performance, with temperatures ranging between 54°C and 69°C. The limitations of this oil can be attributed to its low thermal conductivity and unsuitable viscosity, reducing its effectiveness as a heat transfer fluid in this study's context (Figure 8d).

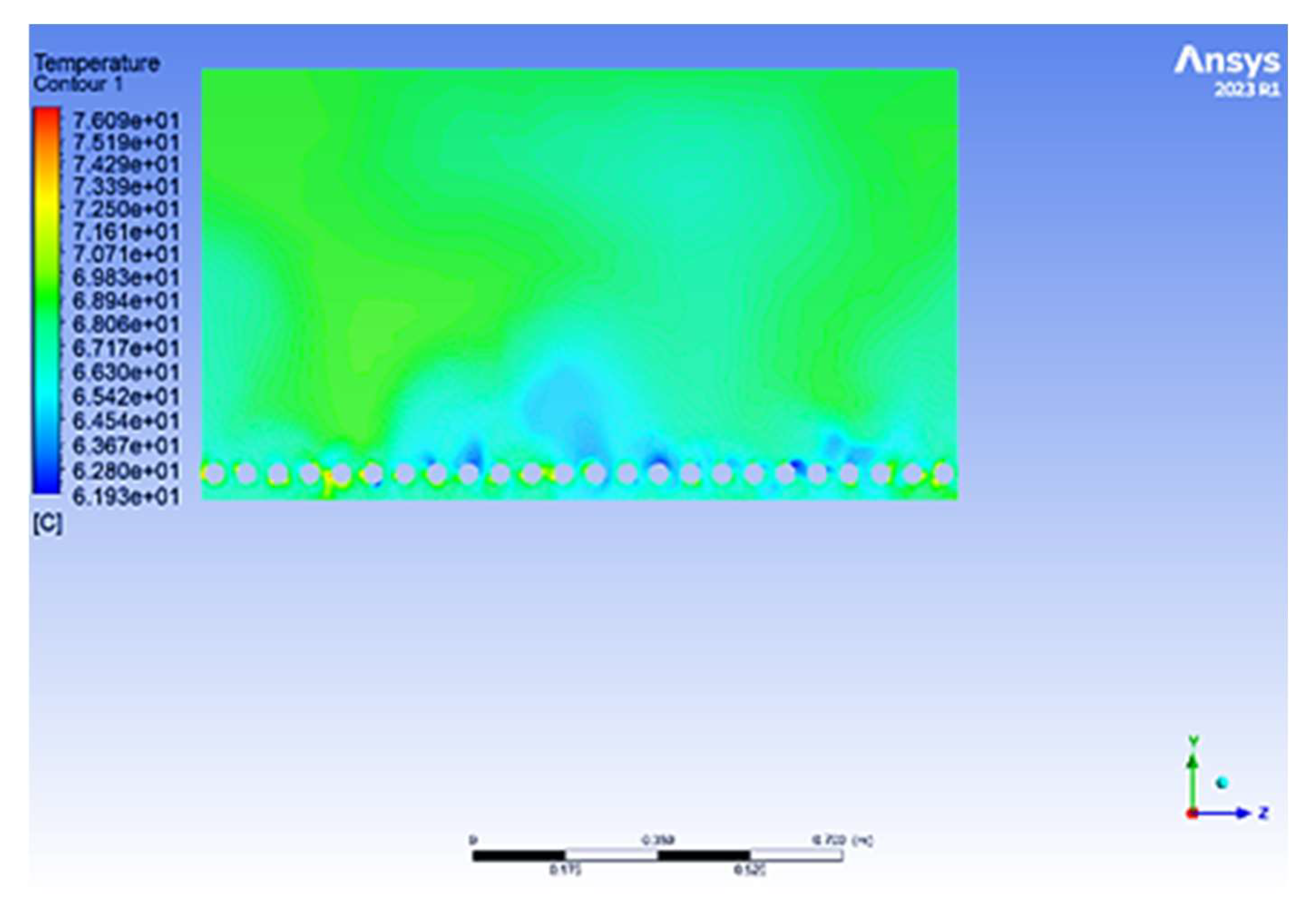

Figure 8. Water Temperature distribution of different oils used (a) Heat transfer oil 32.

Figure 8. Water Temperature distribution of different oils used (a) Heat transfer oil 32.

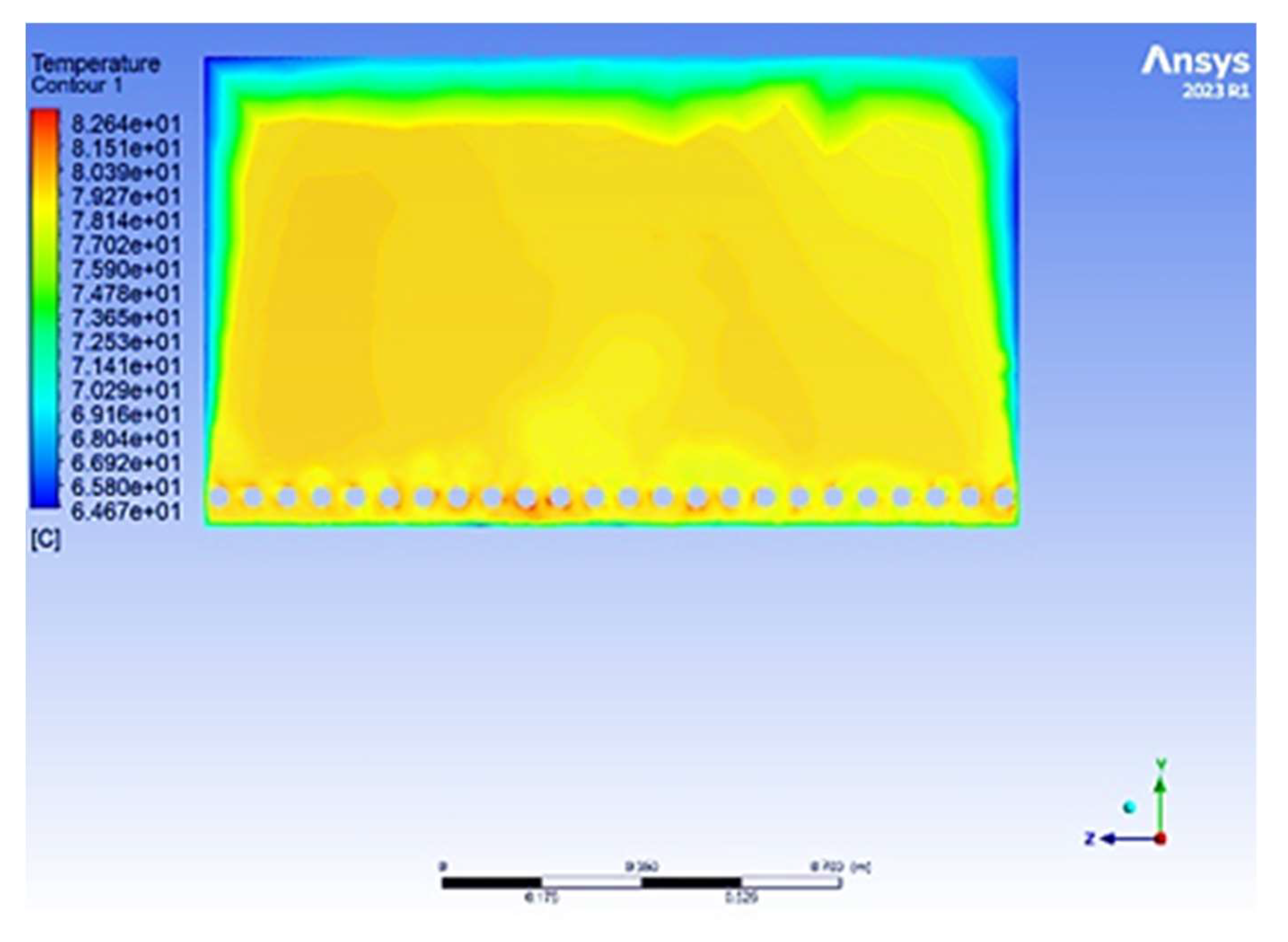

Figure 8. Water Temperature distribution of different oils used (b) Biphasic oil.

Figure 8. Water Temperature distribution of different oils used (b) Biphasic oil.

Figure 8. Water Temperature distribution of different oils used (c) Thermia B.

Figure 8. Water Temperature distribution of different oils used (c) Thermia B.

Figure 8. Water Temperature distribution of different oils used (d) Therminol vp1.

Figure 8. Water Temperature distribution of different oils used (d) Therminol vp1.

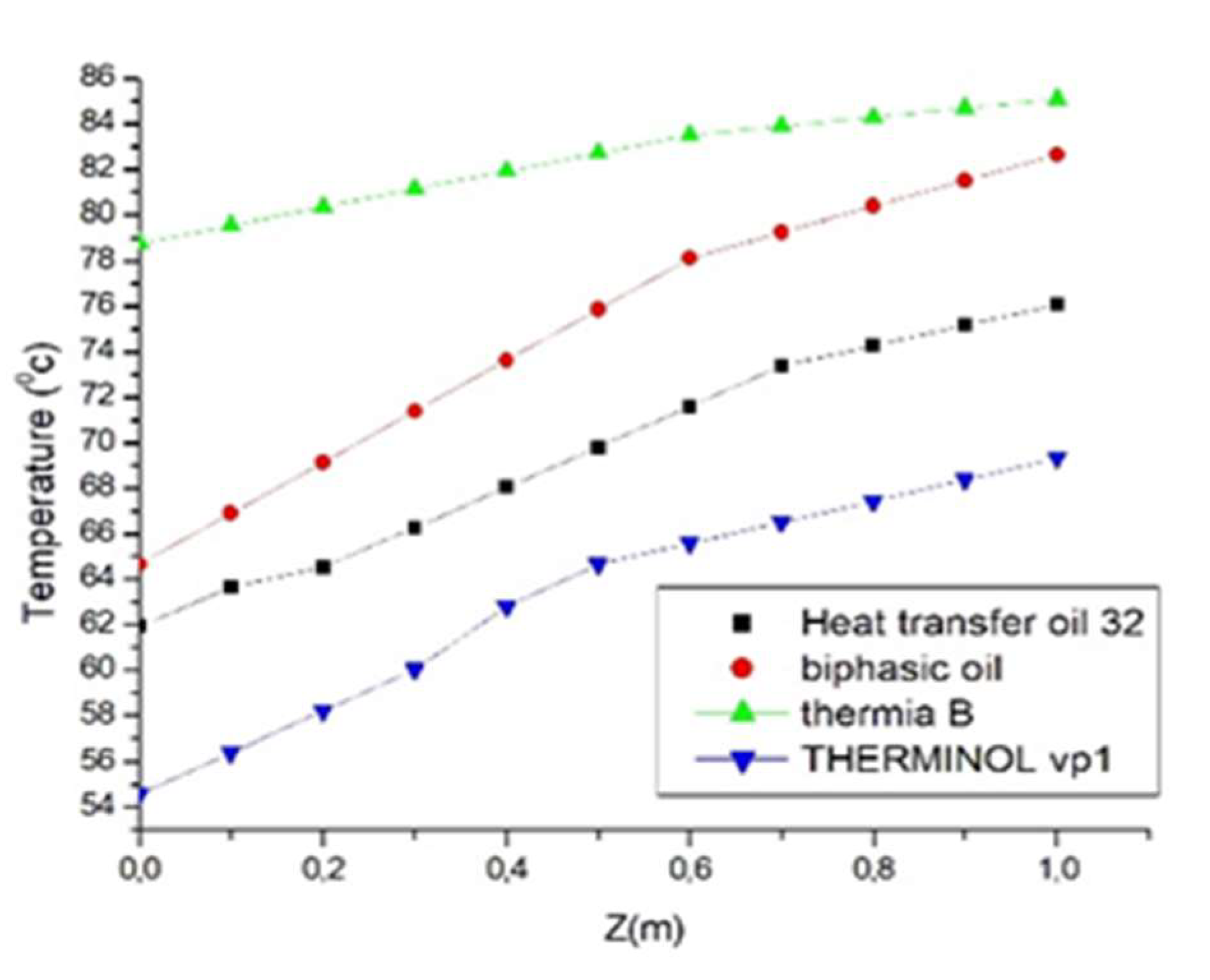

The results of distribution of temperature in pool high direction the critical importance of selecting the appropriate heat transfer fluid for wool washing processes (Figure 9). Where its demonstrates again that Thermia B oil provides uniform and stable variation of water temperature in all points of pool that deponds to the ability to reach high temperatures and maintain stable thermal performance of Thermia B oil ,. which qualifies it emerges as the optimal choice. While the other oils performed satisfactorily, they fall short of Thermia B’s energy efficiency, underscoring the direct impact of heat transfer fluid selection on overall system thermal performance [26]. As more clearly, that shown as water temperature evolution curves depends to changing the chosen synthetic oil in Figure 9 and Figure 10. A significant temperature difference is observed between the various tested heat transfer fluids. Thermia B stands out for its ability to maintain the highest water temperatures between 75°C to 85°C, indicating superior thermal performance, likely due to better conductivity and lower heat loss. Biphasic Oil and Heat Transfer Oil 32 follow intermediate trajectories with water temperatures ranging from 67°C to 77°C and 64°C to 74°C, respectively, suggesting moderate thermal performance suitable for industrial heating applications. In contrast, the use of Therminol vp1 shows the lowest water temperatures range starts from 55°C to 66°C, that indicates lower thermal efficiency, but it may still be useful for applications requiring regulation at moderate temperatures.

5. Conclusions

This investigation delved into the integration of a parabolic through solar system to revolutionize water heating in the wool washing industry, an inherently energy-intensive process. Aimed at transitioning from conventional fossil fuel-dependent methods to renewable energy-driven systems, the study focused on enhancing thermal efficiency while addressing environmental sustainability challenges. The approach encompassed a holistic optimization of the system, emphasizing the design of the water pool and the selection of heat transfer fluids. Where it adopted a methodologically rigorous framework, utilizing a water pool constructed with a steel-reinforced interior to amplify thermal conductivity and ensure efficient heat distribution. The thermal performance of four synthetic oils Thermia B, Heat Transfer Oil 32, Biphasic Oil (Syltherm 800), and Therminol VP1was meticulously evaluated. Advanced computational fluid dynamics simulations, implemented through ANSYS CFX software and leveraging the k-ε turbulence model, provided nuanced insights into temperature profiles, heat transfer dynamics, and system efficacy. The results unequivocally identified Thermia B as the most effective heat transfer fluid, characterized by its capacity to maintain uniform and elevated temperature distributions. The steel-reinforced pool demonstrated superior thermal performance compared to a brick-only configuration, achieving optimal water temperatures between 78°C and 85°C, critical for industrial wool washing. The findings underscore the transformative potential of integrating renewable energy technologies in industrial processes, offering a dual benefit of operational efficiency and environmental stewardship. This study not only reinforces the viability of solar-powered systems but also lays a robust foundation for their broader application in energy-intensive industries, marking a significant stride toward a more sustainable industrial paradigm.
