Median Based Unit Weibull Distribution (MBUW): Does the Higher Order Probability Weighted Moments (PWM) Add More Information over the Lower Order PWM in Parameter Estimation

1. Introduction

Iman Attia was the first to introduce Median Based Unit Weibull distribution (MBUW)(Iman M.Attia, 2024) (Attia I.M. 2024), given a random variable y distributed as Median Based Unit Weibull distribution (MBUW), the PDF, CDF and quantile functions are as follow:

$$f\left(y\right)={\displaystyle \frac{6}{{\alpha }^{\beta }}}\left[1-y^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right]y^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}-1\right)}\mathrm{}\mathrm{},\mathrm{}\mathrm{}\mathrm{}0<y<1\mathrm{},\mathrm{}\alpha >0,\mathrm{}\beta >0$$

(1)

$$F\left(y\right)={3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\mathrm{}\mathrm{},\mathrm{}\mathrm{}\mathrm{}0<y<1\mathrm{},\mathrm{}\alpha >0,\mathrm{}\beta >0$$

(2)

$$y=F^{-1}\left(y\right)={\left\{-.5\left(cos\left[{\displaystyle \frac{{cos}^{-1}\left(1-2u\right)}{3}}\right]-\sqrt{3}\mathrm{}sin\left[{\displaystyle \frac{{cos}^{-1}\left(1-2u\right)}{3}}\right]\right)+.5\right\}}^{{\alpha }^{\beta }}$$

(3)

Various methods are used to estimate the parameters of a distribution. MLE is widely used because it leads to an efficient asymptotically minimum variance though not necessarily unbiased estimator. Methods of moments are ease to apply and obtain. They can be used as starting values for numerical procedures involved in MLE.

(Greenwood et al., 1979) were in favor of Probability weighted moments and initiated the methodology to use it in hydrology for small sample size because the ML does not always work well in small samples. They are leading alternative to MM and MLE for fitting statistical distribution to data, especially distribution written in inverse form; that is, if y is a random variable and F is the value of the CDF for y, the value of y may be written as a function of F; $y=y\left(F\right).$ These distributions include the Gumbel, Weibull, and logistic, as well as some less common types, such as, Tukey’s symmetric lambda, Thomas’ Wakeby, and Mielke’s kappa. (Hosking et al., 1985) had advocated PWMs as they demonstrated the outperformance of them over the other estimators using Monte Carlo Simulations. Rather simple expressions for the parameters could be derived for most of these distributions,(J. R. M. Hosking & J. R. Wallis, 1987) including several for which parameters estimates are not readily obtained by using MLE or conventional moments.  These distributions are related to many fields like hydrology, resource management and estimation, and forecasting of a number of weather parameter such as temperature, precipitation, wind velocity, flood, drought and rainfall. Many researchers used PWMs like (Ekta Hooda, et al., 2018) for estimating parameters of type II extreme value distribution. (Ashkar F. & Mahdi S., 2003) used the generalized form of PWMs for estimating the two parameter Weibull distribution. (Caeiro & Mateus, 2023) used a new class of generalized PWMs for estimating parameters of Pareto Distribution. (Wang, 1990) used partial PWMs for censored data from generalized extreme value distribution (GEV). Many authors like (Caeiro,F. & Mateus, A., 2017), (Caeiro & Prata Gomes, 2015), (Caeiro et al., 2014), (Caeiro & Ivette Gomes, 2011), (Caeiro & Gomes, 2013), (Rizwan Munir et al., 2013), (Chen et al., 2017), (Vogel et al., 1993) had used PWMs for many distributions mainly the GEV.  PWMs are more robust than conventional moments to outliers in the data. PWMs yield more efficient estimators from small data about underlying probability distribution. They are expectations of certain functions of a random variable. So the main advantage over the conventional moment is that they are by definition linear functions of the ordered data and hence suffering less from the effects of sampling variability.

This paper is arranged as follows: Section 1 introduces the definition PWMs and the method of the classic PWMs for parameter estimation. Section 2 derives the PWMs for MBUW and how to use these moments for parameter estimation. Section 3 illustrates the derivation of the asymptotic variance of different estimators. Section 4 discusses the application of this method to real data analysis.

 Section 1

The population PWM is defined as $M_{p,r,s}$, where $p,r,ands$are real numbers.

$$M_{p,r,s}=E\left(y^p\mathrm{}{\left[F\left(y\right)\right]}^{r\mathrm{}}\mathrm{}{\left[1-F\left(y\right)\right]}^s\right)=\underset{-\mathrm{\infty }}{\overset{\mathrm{\infty }}{\int }}{y}^p\mathrm{}{\left[F\left(y\right)\right]}^{r\mathrm{}}\mathrm{}{\left[1-F\left(y\right)\right]}^s\mathrm{}f\left(y\right)dy$$

(4)

$$M_{p,r,s}=E\left(y^p\mathrm{}{\left[F\left(y\right)\right]}^{r\mathrm{}}\mathrm{}{\left[1-F\left(y\right)\right]}^s\right)=\underset{0}{\overset{1}{\int }}{\left[y\left(F\right)\right]}^p\mathrm{}{\left[F\right]}^{r\mathrm{}}\mathrm{}{\left[1-F\right]}^s\mathrm{}dF$$

(5)

Where $y\left(F\right)$ is a solution to  $F\left(y\right)=F$ , in other words, the distribution has a closed form quantile function, inverse CDF.

In practice, $p$ is chosen to be 1, and so $M_{1,r,s}$ are used for parameter estimation.$M_{\mathrm{1,0},0}$ is the mean. If this mean exists, then $M_{1,r,s}$ exists for any real positive values r and s. They are often restricted to small positive integers values. Choosing  $p=1$ has the double advantage of not overweighting sample values unduly and also leads to a class of linear L moments with asymptotic normality (Hosking J.R.M., 1990; Hosking,J.R.M., 1986) Although only small positive integers are required to estimate the parameters of distributions, there is a lot to gain in using real numbers and not necessarily small ones, according to (Rasmussen, 2001) who extended PWMs into generalized PWMs to involve the PWMs with $p\ne 1$. PWMs is a generalization of classic method of moments when $r=s=0$ ,$M_{\mathrm{1,0},0}$ , are the non-central moments of order p . (Jing, et al. 1989)  modified the method to accommodate for the models without an analytic CDF and qunatile function. Greenwood et al. 1979 and Hoskings 1986 advised using $M_{1,r,s}$  because the relations between parameters and moments are much simpler. The empirical estimate of $M_{1,r,s}$  is usually less sensitive to outliers and has good properties when the sample size is small. For convenience, several authors chose to use p=1 and non-negative integer values for r and s. This approach is referred to as the classic PWM method. When p=1, r and s are non-negative , the followings are defined:

$${\alpha }_r=\mathrm{}{M}_{\mathrm{1,0},s}=E\left(y{\left(1-F\left(y\right)\right)}^S\right)\mathrm{},\mathrm{}\mathrm{}s=\mathrm{0,1},\dots .\mathrm{}\mathrm{}\mathrm{}\&\mathrm{}r=0$$

(6)

$${\beta }_s=\mathrm{}{M}_{1,r,0}=E\left(y{\left(F\left(y\right)\right)}^r\right)\mathrm{},\mathrm{}\mathrm{}r=\mathrm{0,1},\dots .\mathrm{}\mathrm{}\mathrm{}\mathrm{}\mathrm{}\mathrm{}\&\mathrm{}\mathrm{}\mathrm{}\mathrm{}s=0\mathrm{}$$

(7)

Both ${\alpha }_r$  and    ${\beta }_s$ are related by the following equations:

$${\alpha }_r=\mathrm{}\sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right){\beta }_i\mathrm{}\mathrm{}\mathrm{}\mathrm{}\mathrm{}and\mathrm{}\mathrm{}{\beta }_s=\mathrm{}\sum _{i=0}^r{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right){\alpha }_i\mathrm{}\mathrm{}$$

(8)

For non-negative integers values of r and s that are as small as possible, both  ${\alpha }_r$  and ${\beta }_s$ are equivalent. (Landwehr et al., 1979b) defined the sample unbiased estimators for PWMs ${\alpha }_r$  and    ${\beta }_s$ as the followings:

$${\widehat{\alpha }}_r={\displaystyle \frac{1}{n}}\sum _{i=1}^{n-r}{\displaystyle \frac{\left(\genfrac{}{}{0pt}{}{n-i}{r}\right)}{\left(\genfrac{}{}{0pt}{}{n-1}{r}\right)}}{y}_{i:n\mathrm{}\mathrm{}}\mathrm{}\mathrm{}\mathrm{}and\mathrm{}\mathrm{}\mathrm{}\mathrm{}\mathrm{}{\widehat{\beta }}_s={\displaystyle \frac{1}{n}}\sum _{i=1+s}^n{\displaystyle \frac{\left(\genfrac{}{}{0pt}{}{i-1}{s}\right)}{\left(\genfrac{}{}{0pt}{}{n-1}{s}\right)}}{y}_{i:n\mathrm{}\mathrm{}}$$

(9)

The biased estimator is defined as

${\widehat{M}}_{1,r,s}=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^r{\left(1-p_{i:n}\right)}^s$  ,   so it can be defined for:

$${\widehat{\alpha }}_r=M_{\mathrm{1,0},s}=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^0{\left(1-p_{i:n}\right)}^s\mathrm{}$$

(10)

$$\mathrm{}{\widehat{\beta }}_s=M_{1,r,0}=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^r{\left(1-p_{i:n}\right)}^0\mathrm{}$$

(11)

Where $p_{i:n}=\mathrm{}{\displaystyle \frac{i-b}{n\mathrm{}}}\mathrm{}\mathrm{},\mathrm{}0\le b\le 1\mathrm{}\mathrm{}\mathrm{}or\mathrm{}\mathrm{}{p}_{i:n}=\mathrm{}{\displaystyle \frac{i-b}{n+1-2b\mathrm{}}}\mathrm{}\mathrm{},\mathrm{}\mathrm{}-0.5\le b\le 0.5\mathrm{}$(Landwehr et al., 1979a) concluded empirically that moderated biased estimates of the PWMs could produce more accurate estimates of upper quantiles.

In the present paper,  $M_{\mathrm{1,0},1}$  and  $M_{\mathrm{1,1},0}$ are used as a system of equations to estimate the parameters of the Median Based Unit Weibull (MBUW) distribution. Higher moments $M_{\mathrm{1,0},2}$  and  $M_{\mathrm{1,2},0}$ are also used to estimate the parameters and compare the results with lower moments $M_{\mathrm{1,0},1}$  and  $M_{\mathrm{1,1},0}$ .

Parameter estimation using PWMs is carried out by equating the analytic expression of the population PWMs by the corresponding sample estimates of PWMs and solving the resulting systems of equations in terms of the parameters.

2. Calculating PWMs for BMUW

2.1. Calculating ${\mathit{M}}_{1,0,1}$

$$\begin{gathered} \mathrm{}{M}_{p,r,s}=\mathrm{}{M}_{\mathrm{1,0},1}=E\left(y\mathrm{}\mathrm{}{\left[1-F\left(y\right)\right]}^s\right)=\underset{0}{\overset{1}{\int }}y\mathrm{}\mathrm{}{\left[1-F\left(y\right)\right]}^s\mathrm{}f\left(y\right)dy \\ {M}_{\mathrm{1,0},1}=\underset{0}{\overset{1}{\int }}y\mathrm{}\mathrm{}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^s\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\left[1-y^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right]y^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}-1\right)}dy=\underset{0}{\overset{1}{\int }}\mathrm{}\mathrm{}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^s\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\left[1-y^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right]y^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}dy \end{gathered}$$

(12)

$$=\underset{0}{\overset{1}{\int }}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}\mathrm{}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^{s}dy-\mathrm{}\underset{0}{\overset{1}{\int }}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{3}{{\alpha }^{\beta }}}\right)}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^{s}dy$$

(13)

$$=\underset{0}{\overset{1}{\int }}\mathrm{}A\left(y\right)dy-\mathrm{}\underset{0}{\overset{1}{\int }}B\left(y\right)dy$$

(14)

Using binomial expansion in equation (13):

$$\begin{gathered} {\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^s=\mathrm{}\sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right){\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)}^i \\ \sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}\mathrm{}{\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}\right)}^i{\left(1-{{\displaystyle \frac{2}{3}}y}^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right)}^i= \\ \sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}\mathrm{}{\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}\right)}^i\sum _{m=0}^i{\left(-1\right)}^m\left({\displaystyle \genfrac{}{}{0pt}{}{i}{m}}\right)\mathrm{}\mathrm{}{\left({{\displaystyle \frac{2}{3}}y}^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right)}^m= \\ \sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}{3}^i\mathrm{}{y}^{{\displaystyle \frac{2i}{{\alpha }^{\beta }}}}\sum _{m=0}^i{\left(-1\right)}^m\left({\displaystyle \genfrac{}{}{0pt}{}{i}{m}}\right){\left({\displaystyle \frac{2}{3}}\right)}^m\mathrm{}\mathrm{}{y}^{{\displaystyle \frac{m}{{\alpha }^{\beta }}}}\mathrm{} \end{gathered}$$

(15)

Now exchange integration with summation in equations (13) & (14):

$$\begin{gathered} \underset{0}{\overset{1}{\int }}\mathrm{}A\left(y\right)dy=\mathrm{}\underset{0}{\overset{1}{\int }}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}\mathrm{}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^{s}dy= \\ =\underset{0}{\overset{1}{\int }}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}\mathrm{}\sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}{3}^i\mathrm{}{y}^{{\displaystyle \frac{2i}{{\alpha }^{\beta }}}}\sum _{m=0}^i{\left(-1\right)}^m\left({\displaystyle \genfrac{}{}{0pt}{}{i}{m}}\right){\left({\displaystyle \frac{2}{3}}\right)}^m\mathrm{}\mathrm{}{y}^{{\displaystyle \frac{m}{{\alpha }^{\beta }}}}\mathrm{}dy\mathrm{}= \\ {\displaystyle \frac{6}{{\alpha }^{\beta }}}\sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}{3}^i\mathrm{}\sum _{m=0}^i{\left(-1\right)}^m\left({\displaystyle \genfrac{}{}{0pt}{}{i}{m}}\right){\left({\displaystyle \frac{2}{3}}\right)}^m\mathrm{}\mathrm{}\mathrm{}\mathrm{}\underset{0}{\overset{1}{\int }}\mathrm{}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}{y}^{{\displaystyle \frac{2i}{{\alpha }^{\beta }}}}\mathrm{}{y}^{{\displaystyle \frac{m}{{\alpha }^{\beta }}}}\mathrm{}\mathrm{}\mathrm{}\mathrm{}dy \end{gathered}$$

(16)

Where the integral is:

$$\begin{gathered} \underset{0}{\overset{1}{\int }}\mathrm{}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}{y}^{{\displaystyle \frac{2i}{{\alpha }^{\beta }}}}\mathrm{}{y}^{{\displaystyle \frac{m}{{\alpha }^{\beta }}}}\mathrm{}\mathrm{}\mathrm{}\mathrm{}dy\mathrm{}=\mathrm{}{\displaystyle \frac{{\alpha }^{\beta }}{2+2i+m+{\alpha }^{\beta }}} \\ so\mathrm{}\mathrm{}\mathrm{}:\mathrm{}\underset{0}{\overset{1}{\int }}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}\mathrm{}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^{s}dy= \\ {\displaystyle \frac{6}{{\alpha }^{\beta }}}\sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}{3}^i\mathrm{}\sum _{m=0}^i{\left(-1\right)}^m\left({\displaystyle \genfrac{}{}{0pt}{}{i}{m}}\right){\left({\displaystyle \frac{2}{3}}\right)}^m\mathrm{}\mathrm{}\mathrm{}\mathrm{}\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2i+m+{\alpha }^{\beta }}}\right) \end{gathered}$$

(17)

The same steps follow for:

$$\begin{gathered} \underset{0}{\overset{1}{\int }}B\left(y\right)dy=\mathrm{}\underset{0}{\overset{1}{\int }}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{3}{{\alpha }^{\beta }}}\right)}{\left[1-\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right)\right]}^{s}dy= \\ {\displaystyle \frac{6}{{\alpha }^{\beta }}}\sum _{i=0}^s{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{s}{i}}\right)\mathrm{}{3}^i\mathrm{}\sum _{m=0}^i{\left(-1\right)}^m\left({\displaystyle \genfrac{}{}{0pt}{}{i}{m}}\right){\left({\displaystyle \frac{2}{3}}\right)}^m\mathrm{}\mathrm{}\mathrm{}\mathrm{}\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2i+m+{\alpha }^{\beta }}}\right) \end{gathered}$$

(18)

Substitute equation (17) and (18) into equation (14):

$$\begin{gathered} \underset{0}{\overset{1}{\int }}\mathrm{}A\left(y\right)dy= \\ {{\displaystyle \frac{6}{{\alpha }^{\beta }}}\{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right){\left(3\right)}^0\mathrm{}\left[{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{0}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(0\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{0}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\mathrm{}\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(0\right)+1+{\alpha }^{\beta }}}\right)\right] \\ {+\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right){\left(3\right)}^1\mathrm{}\left[{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\mathrm{}\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+1+{\alpha }^{\beta }}}\right)\right]\} \\ =\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\displaystyle \frac{{\alpha }^{\beta }}{2+{\alpha }^{\beta }}}-{\displaystyle \frac{3{\alpha }^{\beta }}{4+{\alpha }^{\beta }}}+{\displaystyle \frac{2{\alpha }^{\beta }}{5+{\alpha }^{\beta }}}\right\}=6\left\{{\displaystyle \frac{1}{2+{\alpha }^{\beta }}}-{\displaystyle \frac{3}{4+{\alpha }^{\beta }}}+{\displaystyle \frac{2}{5+{\alpha }^{\beta }}}\right\} \end{gathered}$$

(19)

For

$$\begin{gathered} \underset{0}{\overset{1}{\int }}\mathrm{}B\left(y\right)dy= \\ {{\displaystyle \frac{6}{{\alpha }^{\beta }}}\{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right){\left(3\right)}^0\mathrm{}\left[{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{0}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(0\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{0}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\mathrm{}\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(0\right)+1+{\alpha }^{\beta }}}\right)\right] \\ {+\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right){\left(3\right)}^1\mathrm{}\left[{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\mathrm{}\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+1+{\alpha }^{\beta }}}\right)\right]\} \\ =\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\displaystyle \frac{{\alpha }^{\beta }}{3+{\alpha }^{\beta }}}-{\displaystyle \frac{{3\alpha }^{\beta }}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{{2\alpha }^{\beta }}{6+{\alpha }^{\beta }}}\right\}=6\left\{{\displaystyle \frac{1}{3+{\alpha }^{\beta }}}-{\displaystyle \frac{3}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{2}{6+{\alpha }^{\beta }}}\right\} \end{gathered}$$

(20)

Substitute equation (19) and (20) into equation (14)

$$M_{\mathrm{1,0},1}=\mathrm{}{\displaystyle \frac{360+108{\alpha }^{\beta }}{1044{\alpha }^{\beta }+580{\alpha }^{2\beta }+155{\alpha }^{3\beta }+20{\alpha }^{4\beta }+{\alpha }^{5\beta }+720}}$$

2.2. Calculate $M_{\mathrm{1,1},0}$

$$\begin{gathered} M_{\mathrm{1,1},0}=E\left(y^p\mathrm{}{\left[F\left(y\right)\right]}^{r\mathrm{}}\mathrm{}\right)=\mathrm{}\underset{0}{\overset{1}{\int }}{y}^p\mathrm{}{\left[F\left(y\right)\right]}^{r\mathrm{}}\mathrm{}\mathrm{}f\left(y\right)dy \\ \underset{0}{\overset{1}{\int }}y\mathrm{}\mathrm{}{\left[{3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right]}^r\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\left[1-y^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right]y^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}-1\right)}dy\mathrm{}\mathrm{} \end{gathered}$$

(21)

$$\begin{gathered} =\underset{0}{\overset{1}{\int }}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}\mathrm{}{\left[{3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right]}^{r}dy-\mathrm{}\underset{0}{\overset{1}{\int }}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{3}{{\alpha }^{\beta }}}\right)}{\left[{3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right]}^{r}dy \\ =\underset{0}{\overset{1}{\int }}\mathrm{}C\left(y\right)dy-\mathrm{}\underset{0}{\overset{1}{\int }}D\left(y\right)dy \end{gathered}$$

(22)

$$\underset{0}{\overset{1}{\int }}\mathrm{}C\left(y\right)dy=\underset{0}{\overset{1}{\int }}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}\mathrm{}{\left[{3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}-{2y}^{{\displaystyle \frac{3}{{\alpha }^{\beta }}}}\right]}^{r}dy={\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\underset{0}{\overset{1}{\int }}\mathrm{}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}{\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}\right)}^r\mathrm{}{\left[1-{{\displaystyle \frac{2}{3}}y}^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right]}^{r}dy$$

Using binomial expansion:

$$\begin{gathered} {\left[1-{{\displaystyle \frac{2}{3}}y}^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right]}^r=\mathrm{}\sum _{i=0}^r{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right)\mathrm{}\mathrm{}{\left({{\displaystyle \frac{2}{3}}y}^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right)}^{i}So \\ \underset{0}{\overset{1}{\int }}\mathrm{}C\left(y\right)dy=\mathrm{}\mathrm{}\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\underset{0}{\overset{1}{\int }}\mathrm{}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}{\left({3y}^{{\displaystyle \frac{2}{{\alpha }^{\beta }}}}\right)}^r\mathrm{}\sum _{i=0}^r{\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right)\mathrm{}\mathrm{}{\left({{\displaystyle \frac{2}{3}}y}^{{\displaystyle \frac{1}{{\alpha }^{\beta }}}}\right)}^{i}dy \end{gathered}$$

(23)

Exchange the integral and the sum

$$\begin{gathered} {\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\sum _{i=0}^r{3^r\mathrm{}\mathrm{}\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right)\mathrm{}\mathrm{}{\left({\displaystyle \frac{2}{3}}\right)}^i\underset{0}{\overset{1}{\int }}\mathrm{}{y}^{\left({\displaystyle \frac{2}{{\alpha }^{\beta }}}\right)}{y}^{{\displaystyle \frac{2r}{{\alpha }^{\beta }}}}\mathrm{}{y}^{{\displaystyle \frac{i}{{\alpha }^{\beta }}}}dy= \\ \underset{0}{\overset{1}{\int }}\mathrm{}C\left(y\right)dy=\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\sum _{i=0}^r{3^r\mathrm{}\mathrm{}\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right)\mathrm{}\mathrm{}{\left({\displaystyle \frac{2}{3}}\right)}^i\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2r+i+{\alpha }^{\beta }}}\right) \end{gathered}$$

(24)

The same steps are followed and give:

$$\underset{0}{\overset{1}{\int }}\mathrm{}D\left(y\right)dy=\mathrm{}{\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\sum _{i=0}^r{3^r\mathrm{}\mathrm{}\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right)\mathrm{}\mathrm{}{\left({\displaystyle \frac{2}{3}}\right)}^i\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2r+i+{\alpha }^{\beta }}}\right)$$

(25)

Substitute equation (24) and equation (25) into equation (22)

$$\begin{gathered} M_{\mathrm{1,1},0}\mathrm{}={\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\sum _{i=0}^r{3^r\mathrm{}\mathrm{}\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right)\mathrm{}\mathrm{}{\left({\displaystyle \frac{2}{3}}\right)}^i\left[\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2r+i+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2r+i+{\alpha }^{\beta }}}\right)\right] \\ ={\displaystyle \frac{6}{{\alpha }^{\beta }}}\mathrm{}\mathrm{}\{{3^1\mathrm{}\mathrm{}\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right)\mathrm{}\mathrm{}{\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+\left(0\right)+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+\left(0\right)+{\alpha }^{\beta }}}\right) \\ {{+\mathrm{}3}^1\mathrm{}\mathrm{}\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right)\mathrm{}\mathrm{}{\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+\left(1\right)+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+\left(1\right)+{\alpha }^{\beta }}}\right)\} \\ ={\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\displaystyle \frac{3{\alpha }^{\beta }}{4+{\alpha }^{\beta }}}-{\displaystyle \frac{{2\alpha }^{\beta }}{5+{\alpha }^{\beta }}}-{\displaystyle \frac{{3\alpha }^{\beta }}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{{2\alpha }^{\beta }}{6+{\alpha }^{\beta }}}\right\}={\displaystyle \frac{18}{4+{\alpha }^{\beta }}}-{\displaystyle \frac{30}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{12}{6+{\alpha }^{\beta }}} \\ {M}_{\mathrm{1,1},0}=\mathrm{}{\displaystyle \frac{6\left(10+{\alpha }^{\beta }\right)}{\left(4+{\alpha }^{\beta }\right)\left(5+{\alpha }^{\beta }\right)\left(6+{\alpha }^{\beta }\right)}}={\displaystyle \frac{60+6{\alpha }^{\beta }}{74{\alpha }^{\beta }+15{\alpha }^{2\beta }+{\alpha }^{3\beta }+120}} \end{gathered}$$

To sum up, PWMs method for estimating the parameters using  $M_{\mathrm{1,0},1}$  and  $M_{\mathrm{1,1},0}$ :

Step 1: Calculate the population PWMs for the order p=1

$$M_{\mathrm{1,0},1}=\mathrm{}{\displaystyle \frac{360+108{\alpha }^{\beta }}{1044{\alpha }^{\beta }+580{\alpha }^{2\beta }+155{\alpha }^{3\beta }+20{\alpha }^{4\beta }+{\alpha }^{5\beta }+720}}$$

(27)

$$M_{\mathrm{1,1},0}=\mathrm{}{\displaystyle \frac{60+6{\alpha }^{\beta }}{74{\alpha }^{\beta }+15{\alpha }^{2\beta }+{\alpha }^{3\beta }+120}}\mathrm{}$$

(28)

Step 2: Calculate the estimated sample PWMs whether the unbiased or biased estimators and equate these estimators with the corresponding population PWMs.

$$\begin{gathered} \mathrm{}{\widehat{\alpha }}_r=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{\displaystyle \frac{\left(n-i\right)}{\left(n-1\right)}}\mathrm{}{y}_{i:n}=M_{\mathrm{1,0},1},\mathrm{}or\mathrm{}\mathrm{}\mathrm{}{\widehat{\alpha }}_r=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^0{\left(1-p_{i:n}\right)}^s=M_{\mathrm{1,0},1} \\ {\widehat{\beta }}_s=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{\displaystyle \frac{\left(i-1\right)}{\left(n-1\right)}}\mathrm{}{y}_{i:n}=\mathrm{}{M}_{\mathrm{1,1},0}\mathrm{}\mathrm{},\mathrm{}or\mathrm{}or\mathrm{}\mathrm{}\mathrm{}{\widehat{\beta }}_s=\mathrm{}{\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^1{\left(1-p_{i:n}\right)}^0=M_{\mathrm{1,1},0}\mathrm{} \end{gathered}$$

Step 3: The above equations construct system of equations to be solved numerically. In this paper, the author used Levenberg-Marquardt (LM) algorithm. The objective functions to be minimized are equations (27) and (28).

$$\begin{gathered} M\_101=\mathrm{}{\widehat{\alpha }}_r\left\{1044{\alpha }^{\beta }+580{\alpha }^{2\beta }+155{\alpha }^{3\beta }+20{\alpha }^{4\beta }+{\alpha }^{5\beta }+720\right\}-\mathrm{}\left\{360+108{\alpha }^{\beta }\right\}=0 \\ M\_110=\mathrm{}{\widehat{\beta }}_s\left\{74{\alpha }^{\beta }+15{\alpha }^{2\beta }+{\alpha }^{3\beta }+120\right\}-\mathrm{}\left\{60+6{\alpha }^{\beta }\right\}=0 \end{gathered}$$

Differentiate the previous equations with respect to alpha and beta

The Jacobian matrix is  $\left[\begin{array}{cc}{\displaystyle \frac{\partial \mathrm{}}{\partial \alpha }}M\_101\mathrm{}& {\displaystyle \frac{\partial \mathrm{}}{\partial \beta }}M\_101\\ {\displaystyle \frac{\partial \mathrm{}}{\partial \alpha }}M\_110& {\displaystyle \frac{\partial \mathrm{}}{\partial \beta }}M\_110\end{array}\right]$

$$\left(y-f\left({\mathit{\theta }}^{\left(\mathit{a}\right)}\right)\right)=\mathrm{}\left[\begin{array}{c}{\widehat{\alpha }}_r-\mathrm{}{\displaystyle \frac{360+108{\alpha }^{\beta }}{1044{\alpha }^{\beta }+580{\alpha }^{2\beta }+155{\alpha }^{3\beta }+20{\alpha }^{4\beta }+{\alpha }^{5\beta }+720}}\\ {\widehat{\beta }}_s-\mathrm{}{\displaystyle \frac{60+6{\alpha }^{\beta }}{74{\alpha }^{\beta }+15{\alpha }^{2\beta }+{\alpha }^{3\beta }+120}}\end{array}\right],$$

$where{\mathbf{}\mathit{\theta }}^{\left(\mathit{a}\right)}=\left[\begin{array}{c}{\alpha }^{\left(a\right)}\\ {\beta }^{\left(a\right)}\end{array}\right]\mathrm{}$Apply LM algorithm:

$${\theta }^{\left(a+1\right)}=\mathrm{}{\theta }^{\left(a\right)}+\mathrm{}{\left[J^{\mathrm{\text{'}}}\left({\theta }^{\left(a\right)}\right)J\left({\theta }^{\left(a\right)}\right)+\mathrm{}{\lambda }^{\left(a\right)}{I}^{\left(a\right)}\right]}^{-1}\left[J\mathrm{\text{'}}\left({\theta }^{\left(a\right)}\right)\right]\left(y-f\left({\theta }^{\left(a\right)}\right)\right)$$

Where the parameters used in the first iteration are the initial guess, then they are updated according to the sum of squares of errors.

LM algorithm is an iterative algorithm.

$J^{\text{'}}\left({\theta }^{\left(a\right)}\right)$ :  this is the Jacobian function which is the first derivative of the objective function evaluated at the initial guess ${\theta }^{\left(a\right)}$ .

${\lambda }^{\left(a\right)}$ is a damping factor that adjusts the step size in each iteration direction, the starting value usually is 0.001 and according to the sum square of errors (SSE) in each iteration this damping factor is adjusted:

$$\begin{gathered} {SSE}^{\left(a+1\right)}\ge \mathrm{}{SSE}^{\left(a\right)}\mathrm{}\mathrm{}\mathrm{}\mathrm{}so\mathrm{}\mathrm{}update:\mathrm{}\mathrm{}\mathrm{}\mathrm{}\mathrm{}\mathrm{}{\lambda }_{updated}=10\mathrm{*}\mathrm{}{\lambda }_{old} \\ {SSE}^{\left(a+1\right)}<{SSE}^{\left(a\right)}soupdate:{\lambda }_{updated}={\displaystyle \frac{1}{10}}\mathrm{*}{\lambda }_{old} \end{gathered}$$

$f\left({\theta }^{\left(a\right)}\right)$ : is the objective function (population PWMs, $M_{\mathrm{1,0},1}$ & $M_{\mathrm{1,1},0}$) evaluated at the initial guess.

$y$ : is the sample estimates of population PWMs , the $M_{\mathrm{1,0},1}$ and $M_{\mathrm{1,1},0}$.

Steps of the LM algorithm:

1-

Start with the initial guess of parameters (alpha and beta).

2-

Substitute these values in the objective function and the Jacobian.

3-

Choose the damping factor, say lambda=0.001

4-

Substitute in equation (LM equation) to get the new parameters.

5-

Calculate the SSE at these parameters and compare this SSE value with the previous one when using initial parameters to adjust for the damping factor.

6-

Update the damping factor accordingly as previously explained.

7-

Start new iteration with the new parameters and the new updated damping factor, i.e, apply the previous steps many times till convergence is achieved or a pre-specified number of iterations is accomplished.

The value of this quantity: ${\left[J^{\text{'}}\left({\theta }^{\left(a\right)}\right)J\left({\theta }^{\left(a\right)}\right)+{\lambda }^{\left(a\right)}{I}^{\left(a\right)}\right]}^{-1}$ can be considered a good approximation to the variance – covariance matrix of the estimated parameters. Standard errors for the estimated parameters are the square root of the diagonal of the elements in this matrix divided by sample size.

2.3. Calculate ${\mathit{M}}_{1,0,2}$

Substitute for s=2 in equation (13) and solve to get:

$$\begin{gathered} {\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{2}{0}}\right){\left(3\right)}^0\right[{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{0}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(0\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{0}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(0\right)+1+{\alpha }^{\beta }}}\right) \\ +{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{0}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(0\right)+2+{\alpha }^{\beta }}}\right)] \\ {+\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{1}}\right){\left(3\right)}^1\left[{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+1+{\alpha }^{\beta }}}\right) \\ +{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(1\right)+2+{\alpha }^{\beta }}}\right)\right] \\ {+\left(-1\right)}^2\left({\displaystyle \genfrac{}{}{0pt}{}{2}{2}}\right){\left(3\right)}^2\left[{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(2\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(2\right)+1+{\alpha }^{\beta }}}\right) \\ +{\left(-1\right)}^2\left({\displaystyle \genfrac{}{}{0pt}{}{2}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^2\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(2\right)+2+{\alpha }^{\beta }}}\right)\right]\} \\ {-{\displaystyle \frac{6}{{\alpha }^{\beta }}}\{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{2}{0}}\right){\left(3\right)}^0\left[{\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{0}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(0\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{0}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(0\right)+1+{\alpha }^{\beta }}}\right) \\ +{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{0}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(0\right)+2+{\alpha }^{\beta }}}\right)\right] \\ {+\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{1}}\right){\left(3\right)}^1\left[{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+1+{\alpha }^{\beta }}}\right) \\ +{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{1}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(1\right)+2+{\alpha }^{\beta }}}\right)\right] \\ {+\left(-1\right)}^2\left({\displaystyle \genfrac{}{}{0pt}{}{2}{2}}\right){\left(3\right)}^2\left[{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(2\right)+0+{\alpha }^{\beta }}}\right)+{\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(2\right)+1+{\alpha }^{\beta }}}\right) \\ +{\left(-1\right)}^2\left({\displaystyle \genfrac{}{}{0pt}{}{2}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^2\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(2\right)+2+{\alpha }^{\beta }}}\right)\right]\} \\ {M}_{\mathrm{1,0},2}={\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\displaystyle \frac{{\alpha }^{\beta }}{2+{\alpha }^{\beta }}}-{\displaystyle \frac{6{\alpha }^{\beta }}{4+{\alpha }^{\beta }}}+{\displaystyle \frac{{4\alpha }^{\beta }}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{9{\alpha }^{\beta }}{6+{\alpha }^{\beta }}}-{\displaystyle \frac{{12\alpha }^{\beta }}{7+{\alpha }^{\beta }}}+{\displaystyle \frac{{4\alpha }^{\beta }}{8+{\alpha }^{\beta }}}\right\} \\ -{\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\displaystyle \frac{{\alpha }^{\beta }}{3+{\alpha }^{\beta }}}-{\displaystyle \frac{6{\alpha }^{\beta }}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{{4\alpha }^{\beta }}{6+{\alpha }^{\beta }}}+{\displaystyle \frac{9{\alpha }^{\beta }}{7+{\alpha }^{\beta }}}-{\displaystyle \frac{{12\alpha }^{\beta }}{8+{\alpha }^{\beta }}}+{\displaystyle \frac{{4\alpha }^{\beta }}{9+{\alpha }^{\beta }}}\right\} \\ {M}_{\mathrm{1,0},2}=6\left\{{\displaystyle \frac{1}{2+{\alpha }^{\beta }}}-{\displaystyle \frac{6}{4+{\alpha }^{\beta }}}+{\displaystyle \frac{4}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{9}{6+{\alpha }^{\beta }}}-{\displaystyle \frac{12}{7+{\alpha }^{\beta }}}+{\displaystyle \frac{4}{8+{\alpha }^{\beta }}}\right\} \\ -6\left\{{\displaystyle \frac{1}{3+{\alpha }^{\beta }}}-{\displaystyle \frac{6}{5+{\alpha }^{\beta }}}+{\displaystyle \frac{4}{6+{\alpha }^{\beta }}}+{\displaystyle \frac{9}{7+{\alpha }^{\beta }}}-{\displaystyle \frac{12}{8+{\alpha }^{\beta }}}+{\displaystyle \frac{4}{9+{\alpha }^{\beta }}}\right\} \\ {M}_{\mathrm{1,0},2}={\displaystyle \frac{K}{L}}where: \end{gathered}$$

(29)

$$K=962880{\alpha }^{\beta }+553300{\alpha }^{2\beta }+175520{\alpha }^{3\beta }+32575{\alpha }^{4\beta }+3515{\alpha }^{5\beta }+205{\alpha }^{6\beta }+5{\alpha }^{7\beta }+72560$$

$$L=663696{\alpha }^{\beta }+509004{\alpha }^{2\beta }+214676{\alpha }^{3\beta }+54649{\alpha }^{4\beta }+8624{\alpha }^{5\beta }+826{\alpha }^{6\beta }+44{\alpha }^{7\beta }+{\alpha }^{8\beta }+362880$$

2.4. Calculate ${\mathit{M}}_{1,2,0}$

Substitute for r=2 in equation (21) and solve to get:

$$\begin{gathered} M_{\mathrm{1,2},0}={\displaystyle \frac{6}{{\alpha }^{\beta }}}\sum _{i=0}^2{3^r\left(-1\right)}^i\left({\displaystyle \genfrac{}{}{0pt}{}{r}{i}}\right){\left({\displaystyle \frac{2}{3}}\right)}^i\left[\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2r+i+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2r+i+{\alpha }^{\beta }}}\right)\right] \\ ={\displaystyle \frac{6}{{\alpha }^{\beta }}}\{{3^2\left(-1\right)}^0\left({\displaystyle \genfrac{}{}{0pt}{}{2}{0}}\right){\left({\displaystyle \frac{2}{3}}\right)}^0\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(2\right)+\left(0\right)+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(2\right)+\left(0\right)+{\alpha }^{\beta }}}\right) \\ {{+3}^2\left(-1\right)}^1\left({\displaystyle \genfrac{}{}{0pt}{}{2}{1}}\right){\left({\displaystyle \frac{2}{3}}\right)}^1\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(2\right)+\left(1\right)+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(2\right)+\left(1\right)+{\alpha }^{\beta }}}\right) \\ {{+3}^2\left(-1\right)}^2\left({\displaystyle \genfrac{}{}{0pt}{}{2}{2}}\right){\left({\displaystyle \frac{2}{3}}\right)}^2\left({\displaystyle \frac{{\alpha }^{\beta }}{2+2\left(2\right)+\left(2\right)+{\alpha }^{\beta }}}\right)-\left({\displaystyle \frac{{\alpha }^{\beta }}{3+2\left(2\right)+\left(2\right)+{\alpha }^{\beta }}}\right)\} \\ {M}_{\mathrm{1,2},0}={\displaystyle \frac{6}{{\alpha }^{\beta }}}\left\{{\displaystyle \frac{9{\alpha }^{\beta }}{6+{\alpha }^{\beta }}}-{\displaystyle \frac{{12\alpha }^{\beta }}{7+{\alpha }^{\beta }}}+{\displaystyle \frac{{4\alpha }^{\beta }}{8+{\alpha }^{\beta }}}-{\displaystyle \frac{{9\alpha }^{\beta }}{7+{\alpha }^{\beta }}}+{\displaystyle \frac{{12\alpha }^{\beta }}{8+{\alpha }^{\beta }}}-{\displaystyle \frac{{4\alpha }^{\beta }}{9+{\alpha }^{\beta }}}\right\} \\ {M}_{\mathrm{1,2},0}={\displaystyle \frac{54}{6+{\alpha }^{\beta }}}-{\displaystyle \frac{126}{7+{\alpha }^{\beta }}}+{\displaystyle \frac{96}{8+{\alpha }^{\beta }}}-{\displaystyle \frac{4}{9+{\alpha }^{\beta }}} \\ {M}_{\mathrm{1,2},0}={\displaystyle \frac{3070{\alpha }^{\beta }+426{\alpha }^{2\beta }+20{\alpha }^{3\beta }+7728}{1650{\alpha }^{\beta }+335{\alpha }^{2\beta }+30{\alpha }^{3\beta }+{\alpha }^{4\beta }+3024}} \end{gathered}$$

(30)

To sum up PWMs method for estimating the parameters using $M_{\mathrm{1,0},2}$ and $M_{\mathrm{1,2},0}$ :

Step 1: Calculate the population PWMs for the order p=1. See equation (29) & (30)

Step 2: Calculate the estimated sample PWMs whether the unbiased or biased estimators and equate these estimators with the corresponding population PWMs.

$$\begin{gathered} {\widehat{\alpha }}_r={\displaystyle \frac{1}{n}}\sum _{i=1}^n{\displaystyle \frac{\left(n-i\right)\left(n-i-1\right)}{\left(n-1\right)\left(n-2\right)}}{y}_{i:n}=M_{\mathrm{1,0},2} \\ or{\widehat{\alpha }}_r={\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^0{\left(1-p_{i:n}\right)}^2=M_{\mathrm{1,0},2} \\ {\widehat{\beta }}_s={\displaystyle \frac{1}{n}}\sum _{i=1}^n{\displaystyle \frac{\left(i-1\right)\left(i-2\right)}{\left(n-1\right)\left(n-2\right)}}{y}_{i:n}=M_{\mathrm{1,2},0} \\ or{\widehat{\beta }}_s={\displaystyle \frac{1}{n}}\sum _{i=1}^n{y}_{i:n}{\left(p_{i:n}\right)}^2{\left(1-p_{i:n}\right)}^0=M_{\mathrm{1,2},0} \end{gathered}$$

Step 3: The above equations construct system of equations to be solved numerically. In this paper, the author used Levenberg-Marquardt (LM) algorithm.

The objective functions to be minimized are equations (29) and (30).

$$\begin{gathered} M\_102={\widehat{\alpha }}_r\left\{L\right\}-\left\{K\right\}=0 \\ M\_120={\widehat{\beta }}_s\left\{1650{\alpha }^{\beta }+335{\alpha }^{2\beta }+30{\alpha }^{3\beta }+{\alpha }^{4\beta }+3024\right\}-\left\{3070{\alpha }^{\beta }+426{\alpha }^{2\beta }+20{\alpha }^{3\beta }+7728\right\}=0 \end{gathered}$$

Differentiate the previous equations with respect to alpha and beta

The Jacobian matrix is $\left[\begin{array}{cc}{\displaystyle \frac{\partial }{\partial \alpha }}M\_102& {\displaystyle \frac{\partial }{\partial \beta }}M\_102\\ {\displaystyle \frac{\partial }{\partial \alpha }}M\_120& {\displaystyle \frac{\partial }{\partial \beta }}M\_120\end{array}\right]$

$$\left(y-f\left({\mathit{\theta }}^{\left(\mathit{a}\right)}\right)\right)=\left[\begin{array}{c}{\widehat{\alpha }}_r-{\displaystyle \frac{K}{L}}\\ {\widehat{\beta }}_s-{\displaystyle \frac{3070{\alpha }^{\beta }+426{\alpha }^{2\beta }+20{\alpha }^{3\beta }+7728}{1650{\alpha }^{\beta }+335{\alpha }^{2\beta }+30{\alpha }^{3\beta }+{\alpha }^{4\beta }+3024}}\end{array}\right],$$

$where{\mathit{\theta }}^{\left(\mathit{a}\right)}=\left[\begin{array}{c}{\alpha }^{\left(a\right)}\\ {\beta }^{\left(a\right)}\end{array}\right]$Apply LM algorithm

$${\theta }^{\left(a+1\right)}={\theta }^{\left(a\right)}+{\left[J^{\mathrm{\text{'}}}\left({\theta }^{\left(a\right)}\right)J\left({\theta }^{\left(a\right)}\right)+{\lambda }^{\left(a\right)}{I}^{\left(a\right)}\right]}^{-1}\left[J\mathrm{\text{'}}\left({\theta }^{\left(a\right)}\right)\right]\left(y-f\left({\theta }^{\left(a\right)}\right)\right)$$

3. Asymptotic Distribution of PWM Estimators:

Ideally, the comparison of estimators based on different PWMs would be based on analytical expressions for their variances, obtained by asymptotic theory. This would avoid the use of extensive computer simulation. However, in many cases, simple expressions for the asymptotic variance of moments and parameter estimators cannot be found. Moreover, as noted by Hosking1986 and (J. R. M. Hosking & J. R. Wallis, 1987) , asymptotic variance expressions are inaccurate for small samples. Hosking 1986 gave expressions for the asymptotic variances of the generalized pareto parameters estimated using the classical PWMs. The asymptotic variances are a rather inaccurate representation of the true sampling variances when n <50. The asymptotic distribution for the sample PWMs is a linear combination of the order statistics and the results of (Chernoff, et al., 1967) prove that the vector of $\widehat{b}=({\widehat{b}}_1,{\widehat{b}}_2)$ has asymptotically a multivariate Normal Distribution with mean $\widehat{b}=({\widehat{b}}_1,{\widehat{b}}_2)$ and covariance matrix $n^{-1}V$ . According to (Rao, C.R., 1973) and using the delta method, the covariance matrix has the expression of $n^{-1}GV{G}^T$ , where V is the variance of the parameter. The quantity: ${\left[J^{\text{'}}\left({\theta }^{\left(a\right)}\right)J\left({\theta }^{\left(a\right)}\right)+{\lambda }^{\left(a\right)}{I}^{\left(a\right)}\right]}^{-1}$ obtained from applying the LM algorithm for parameters estimation can be considered a good approximation to the variance – covariance matrix of the estimated parameters , the V matrix. The G matrix is the function of the parameter used in the LM algorithm, is the Jacobian matrix.

4. Real Data Analysis

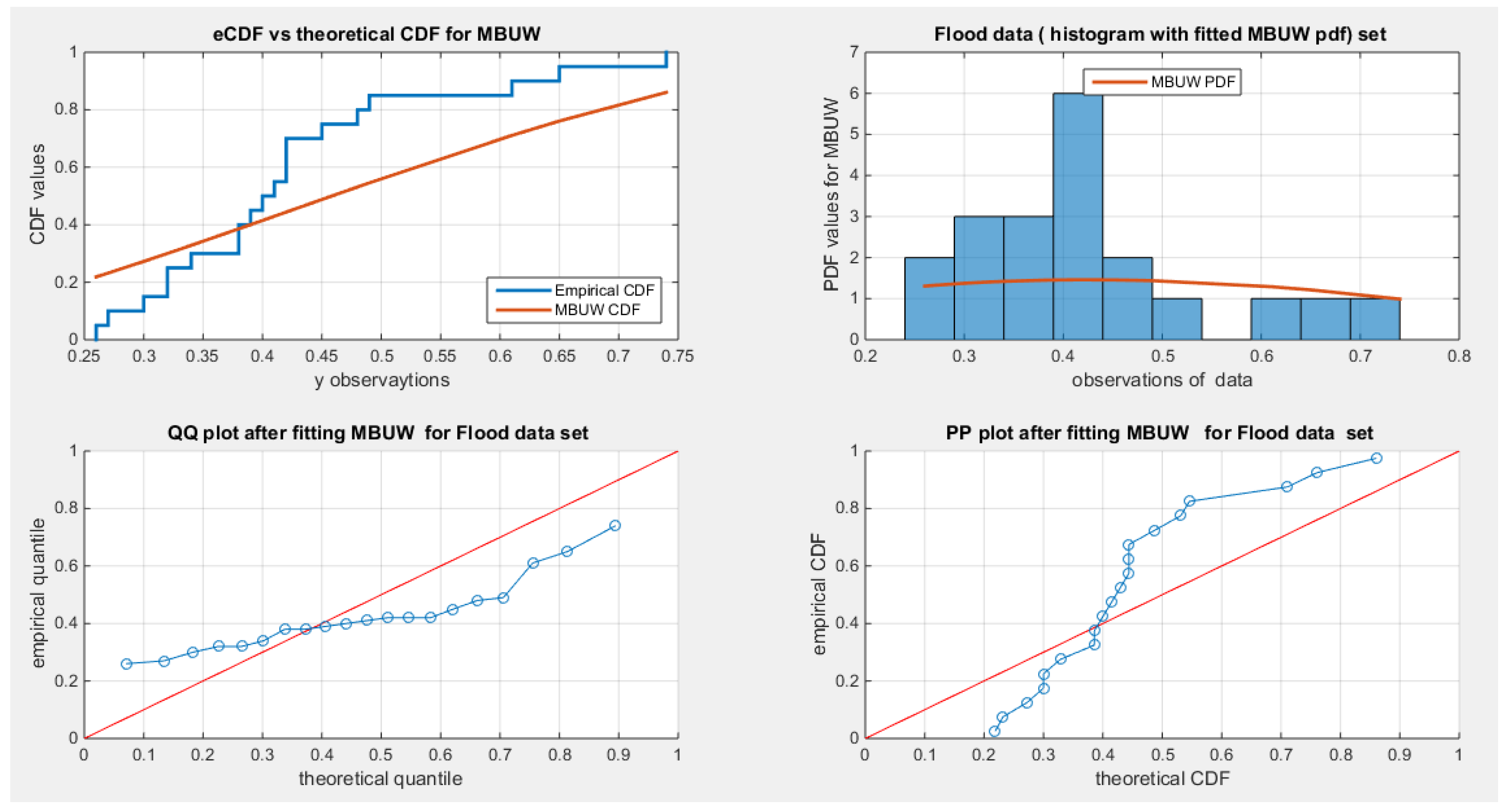

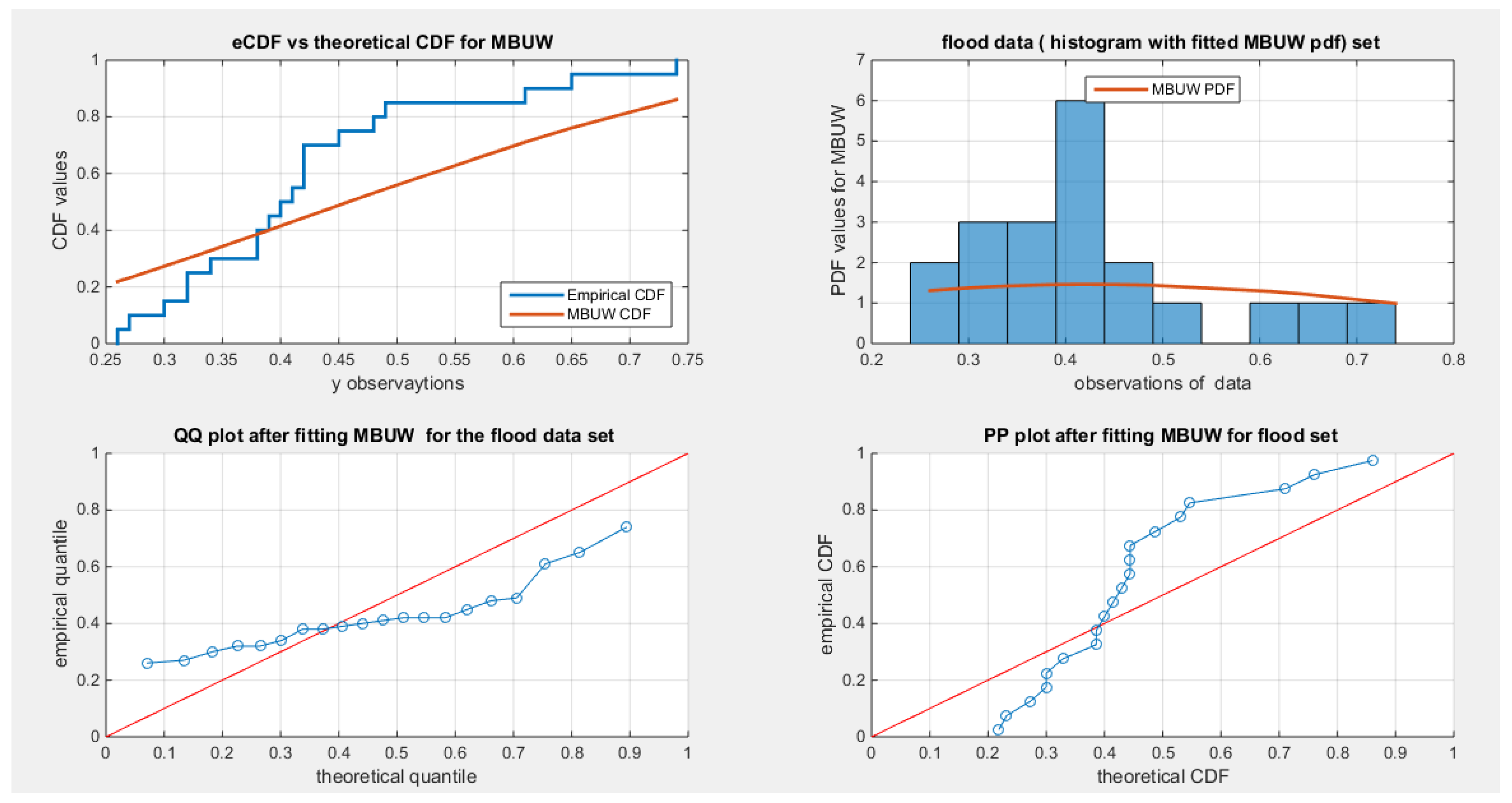

First data: shown in Table 1 ( Flood Data)

This includes 20 observations regarding the maximum flood levels in the Susquehanna River at Harrisburg, Pennsylvania (Dumonceaux & Antle, 1973).

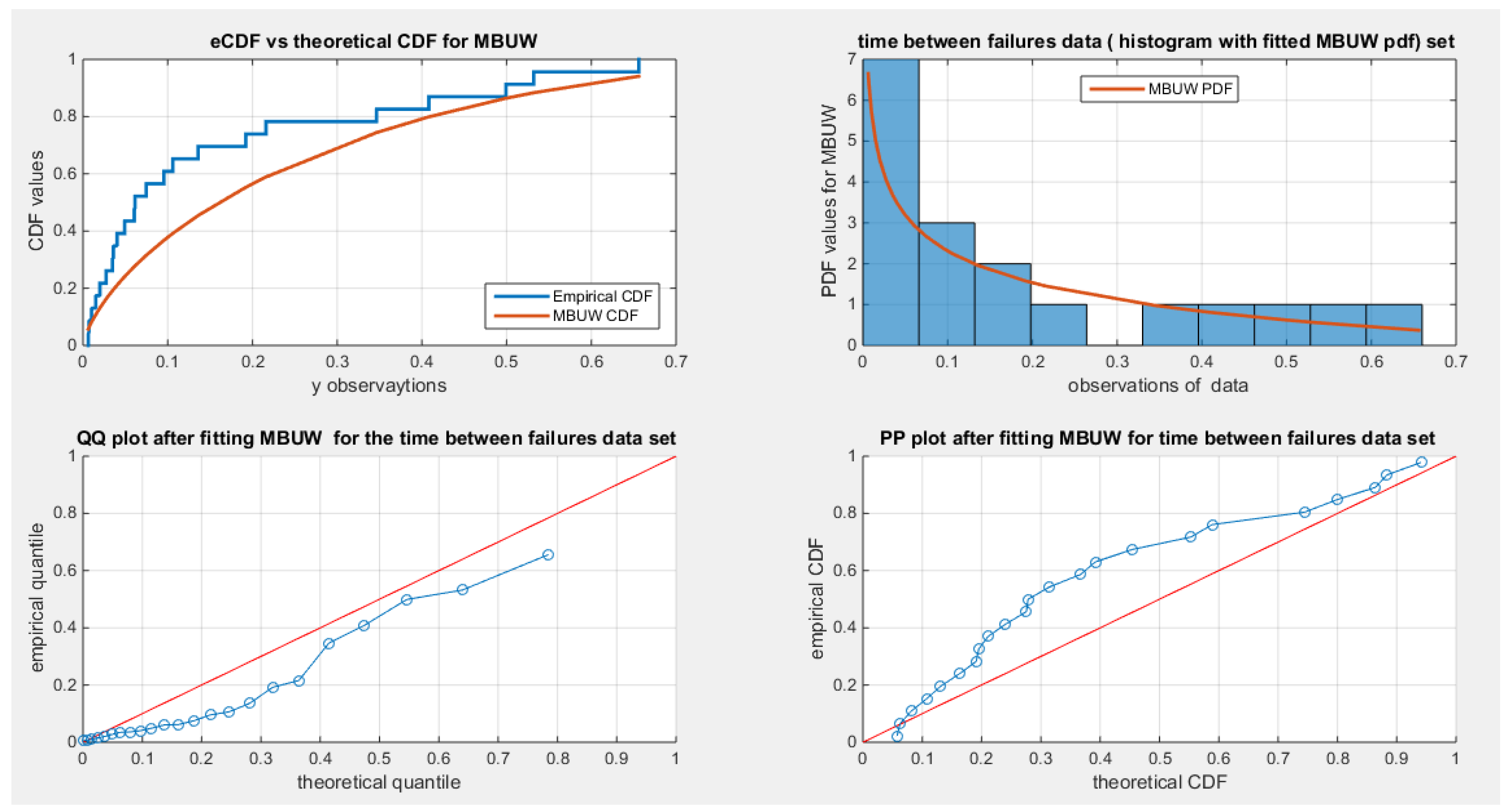

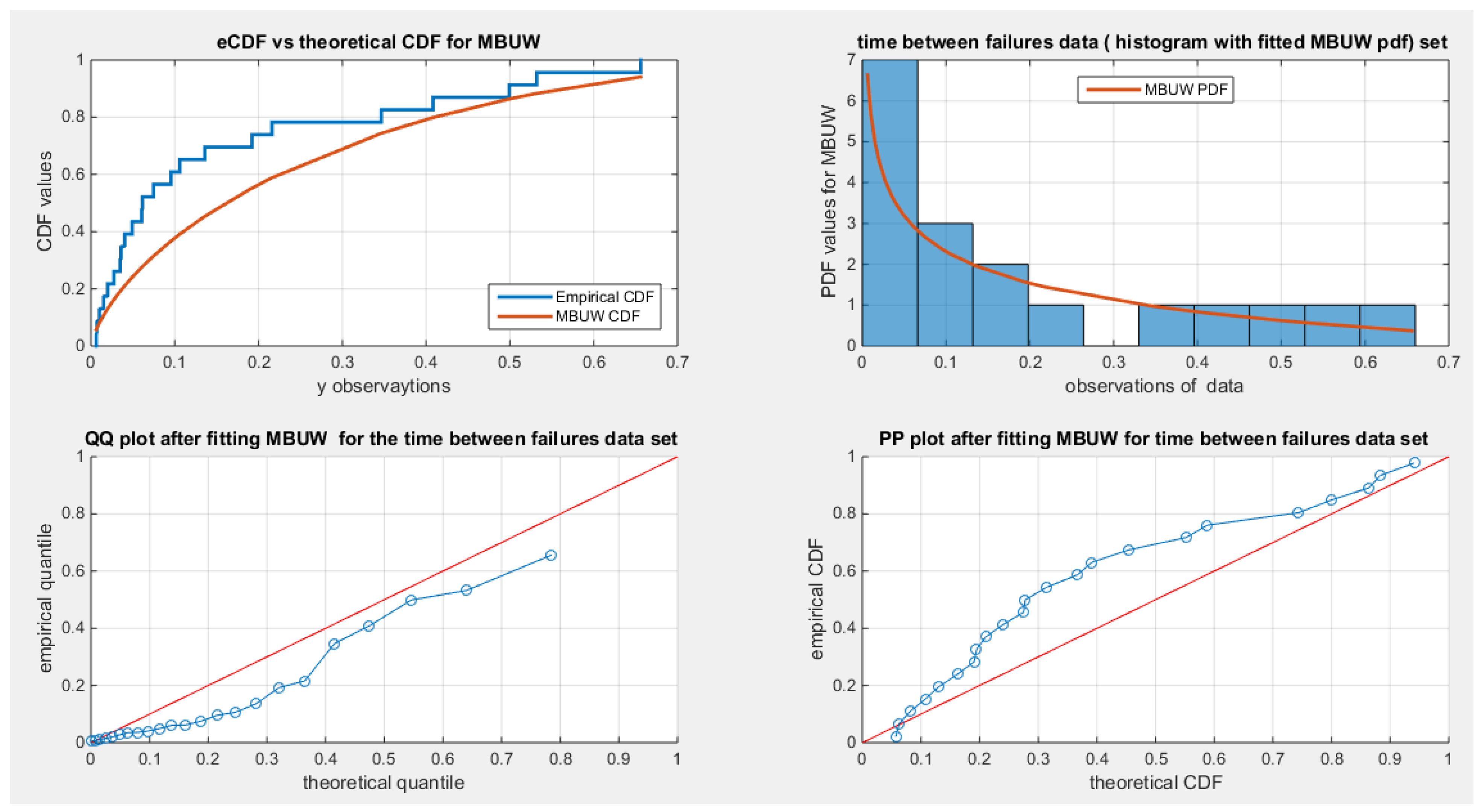

Second data: shown in Table 2 (Time between Failures of Secondary Reactor Pumps)(Maya et al., 2024, 1999)(Suprawhardana and Prayoto)

Table 4 shows the results obtained from applying the LM algorithm to estimate the parameter using PWMs method ($M_{\mathrm{1,0},1}and{M}_{\mathrm{1,1},0})$ . The results are nearly the same. The determinant of the variance of estimator obtained from using the empirical estimator is less than using the unbiased sample estimator for PMWs. The statistical significance of alpha is tremendously high. Figure 1 and Figure 2 shows the flood data fitting the MBUW distribution using the PWMs method ($M_{\mathrm{1,0},1}and{M}_{\mathrm{1,1},0})$ and the unbiased and biased sample PWMs respectively.

Table 5 shows the results obtained from applying the LM algorithm to estimate the parameter using PWMs method ($M_{\mathrm{1,0},2}and{M}_{\mathrm{1,2},0})$ . The results are nearly the same. The determinant of the variance of estimator obtained from using the empirical estimator is less than using the unbiased sample estimator for PMWs. The statistical significance of alpha is tremendously high. Figure 3 and Figure 4 shows the flood data fitting the MBUW distribution using the PWMs method ($M_{\mathrm{1,0},2}and{M}_{\mathrm{1,2},0})$ and the unbiased and biased sample PWMs respectively. This method did not add more information or differ from the ($M_{\mathrm{1,0},1}and{M}_{\mathrm{1,1},0})$

Table 6 shows the results obtained from applying the LM algorithm to estimate the parameter using PWMs method ($M_{\mathrm{1,0},1}and{M}_{\mathrm{1,1},0})$ . The results are nearly the same. The trace and the determinant of the variance of estimator obtained from using the empirical estimator is the same as using the unbiased sample estimator for PMWs. The statistical significance of alpha and beta parameters is low. Figure 5 and Figure 6 shows the time between failures data fitting the MBUW distribution using the PWMs method ($M_{\mathrm{1,0},1}and{M}_{\mathrm{1,1},0})$ and the unbiased and biased sample PWMs respectively.

Table 7 shows the results obtained from applying the LM algorithm to estimate the parameter using PWMs method ($M_{\mathrm{1,0},2}and{M}_{\mathrm{1,2},0})$ .The statistical significance of alpha and beta parameters is low. Figure 7 shows the time between failures data fitting the MBUW distribution using the PWMs method ($M_{\mathrm{1,0},2}and{M}_{\mathrm{1,2},0})$ and the biased sample PWMs respectively. The results are equally the same as$M_{\mathrm{1,0},2}and{M}_{\mathrm{1,2},0})$, Hence they did not add much information to the estimators.

5. Conclusion

The classic PWMs method can be utilized for estimation parameter for the new Median Based unit Weibull (MBUW) distribution. It is robust to outliers. It is simple to obtain than maximum likelihood estimator. The sample estimator for PWM can be either the biased plotting position or the unbiased estimators. For the fitting data set used in this paper, both estimators yielded more or less the same results. The PWMs method has several advantages over other methods of estimation. They are fast and straight forward to compute. They always yield feasible values for the estimated parameters. PWM estimators have asymptotic normal distributions. Higher order moments like $\left(M_{\mathrm{1,0},2}and{M}_{\mathrm{1,2},0}\right)$ did not add much information over the most widely used ones $\left(M_{\mathrm{1,0},1}and{M}_{\mathrm{1,1},0}\right)$. In this paper the formula used for defining PWM mainly depends on the binomial expansion of the cumulative distribution function and the survival functions. Hence integrating with respect to the variable (dy) rather than integrating with respect to the CDF (dF).

6. Future Work

PWMs are the basis for the L-moment. In the future work, L-moments in different types like L-skewness and L-kurtosis can be estimated and L-moment method can be used for parameter estimation. The beta parameter of the MBUW can be extended to take negative values. For such cases the generalized PWMs (GPWMs) method can be applied. Partial GPWMs can also be applied to censored data.
